Int. J. Mol. Sci. 2012, 13(3), 3703-3717; doi:10.3390/ijms13033703

Article
Effect of Polyethylene Glycol Modification of TiO2 Nanoparticles on Cytotoxicity and Gene Expressions in Human Cell Lines
Sharmy Saimon Mano 1,2, Koki Kanehira 3, Shuji Sonezaki 3 and Akiyoshi Taniguchi 1,2,*
1
Cell-Materials Interaction Group, Biomaterials Unit, Nano-Bio Field, International Center for Materials Nanoarchitectonics (MANA), National Institute for Materials Science, 1-1, Namiki, Tsukuba, Ibaraki 305-0044, Japan; E-Mail: saimon.sharmy@nims.go.jp
2
Graduate School of Advanced Science and Engineering, Waseda University, 3-4-1 Okubo, Shinjuku, Tokyo 169-8555, Japan
3
TOTO Ltd. Research Institute, Nakashima 2-1-1, Kokurakita, Kitakyushu 802-8601, Japan; E-Mails: koki.kanehira@toto.co.jp (K.K.); shuji.sonezaki@jp.toto.com (S.S.)
*
Author to whom correspondence should be addressed; E-Mail: taniguchi.akiyoshi@nims.go.jp; Tel.: +81-29-860-4505; Fax: +81-29-860-4714.
Received: 27 December 2011; in revised form: 13 March 2012 / Accepted: 14 March 2012 /
Published: 21 March 2012

Abstract

: Nanoparticles (NPs) are tiny materials used in a wide range of industrial and medical applications. Titanium dioxide (TiO2) is a type of nanoparticle that is widely used in paints, pigments, and cosmetics; however, little is known about the impact of TiO2 on human health and the environment. Therefore, considerable research has focused on characterizing the potential toxicity of nanoparticles such as TiO2 and on understanding the mechanism of TiO2 NP-induced nanotoxicity through the evaluation of biomarkers. Uncoated TiO2 NPs tend to aggregate in aqueous media, and these aggregates decrease cell viability and induce expression of stress-related genes, such as those encoding interleukin-6 (IL-6) and heat shock protein 70B’ (HSP70B’), indicating that TiO2 NPs induce inflammatory and heat shock responses. In order to reduce their toxicity, we conjugated TiO2 NPs with polyethylene glycol (PEG) to eliminate aggregation. Our findings indicate that modifying TiO2 NPs with PEG reduces their cytotoxicity and reduces the induction of stress-related genes. Our results also suggest that TiO2 NP-induced effects on cytotoxicity and gene expression vary depending upon the cell type and surface modification.
Keywords:
nanoparticles; titanium dioxide; nanotoxicology; gene expression

1. Introduction

Nanoparticles (NPs) are tiny materials (diameter of 1 to 100 nm in at least one dimension) [1] characterized by a very high surface area-to-volume ratio [2]. Due to the unique properties afforded by their size, NPs possess a wide range of applications in the industrial, electrical, agricultural, pharmaceutical, and medical fields. However, despite the wide application of nanomaterials, little is known about their impact on human health and the environment. As a result, considerable effort has been expended on identifying the potential toxicity of NPs to cells and organisms. It has been suggested that the small size and corresponding high specific surface area are the major determinants of NP toxicity [3]. It has also been proposed that the surface area of NPs greatly increases their ability to produce potentially toxic reactive oxygen species (ROS) [4].

Titanium dioxide (TiO2), which is used as a photocatalyst [5] in air and water cleaning and is found in a wide array of products including paints, pigments, cosmetics, and skin care products [6], has been classified as a biologically inert substance with respect to both animals and humans [7,8]. TiO2 NPs can be applied in biomedical fields, for example, TiO2 NPs could be used for sonodynamic therapy for cancer [9]. However, recent investigations revealed that rats exposed to ultra fine TiO2 (UF-TiO2) NPs develop inflammation, pulmonary damage, and lung tumors [10,11]. This toxicity may be due to the ease with which these NPs can pass through the cell membrane and disrupt biological systems [12]. The design and evaluation of proper safety measures for NPs thus necessitates a more complete understanding of how nanomaterials interact with cells.

Polyethylene glycol (PEG) is a coiled polymer of repeating ethylene ether units with a dynamic conformation. PEG is inexpensive, versatile, and FDA-approved for many applications [13]. In addition, PEG is non-toxic and non-immunogenic, and has favorable pharmacokinetics and tissue distribution [14]. Modifying the surface of NPs with PEG (PEGylation) not only prevents agglomeration [15], but also renders NPs resistant to protein adsorption and enhances their biocompatibility [16]. Coating nanomaterials with PEG also increases the in vivo circulation time, thereby likely reducing clearance via the reticuloendothelial system (RES) [17]. PEGylated single walled carbon nanotubes exhibited less cytotoxic potency than uncoated ones [18].

Studies of the effects of TiO2 NPs in rodent lungs have shown that NPs induce elevated expression of proinflammatory factors such as interleukins 1 (IL-1) and 6 (IL-6), tumor necrosis factor-α (TNF-α), macrophage inhibitory protein, and monocyte chemotactic protein [19]. In our previous study [20], we examined the cytotoxicity of two types of TiO2 NP aggregates: small-TiO2 NPs (166 nm) and large-TiO2 NPs (596 nm). Cytotoxicity and mRNA expression analyses indicated that large-TiO2 NP aggregates have a greater effect on cell viability and the expression of molecular marker genes, such as heat shock protein (HSP) and IL-6, than do the small-TiO2 aggregates using NCI-H292 and THP-1 cells. We also developed a sensor cell for evaluating nanomaterial biosafety that assesses NF-κB pathway activation to detect TiO2 NP-induced inflammation [21].

Here, we report the results of experiments aimed at reducing the cytotoxicity and induction of gene expression associated with TiO2 NP exposure by modifying the surface of TiO2 NPs with PEG. This study focused on the effects of PEG-conjugated TiO2 (PEG-TiO2-49.6 nm) at the cellular and gene expression levels. We conducted cell viability testing and mRNA expression analysis in different cell lines to assess how PEG modification affects stress and toxicity. Our results indicate that modification of TiO2 NPs with PEG reduces both their cytotoxicity and the induction of toxicity marker gene expression.

2. Results and Discussion

2.1. Viability of Cells Exposed to PEG-TiO2 NPs

In our previous study, we demonstrated the effects of exposure to TiO2 NP aggregates on cell viability using two different human cell lines [20]. The results indicated that high concentrations of TiO2 NP aggregates have a negative impact on cell viability. NCI-H292 cells exposed to 20 μg/mL of TiO2 NP aggregates showed about 80% viability [20]. In this study, we focused on the effects of PEG-TiO2 NPs, which we predicted would be less toxic and induce less expression of genes associated with stress and toxicity. Since it is not clear how NPs affect different cell types, we utilized four different human cell lines in this study.

To analyze the cellular effects of PEG-TiO2, different cell lines (NCI-H292, THP-1, HeLa and HepG2) were exposed to NPs. Cells with no exposure to NPs were also tested as controls for those cell lines. To determine the effect of PEG-TiO2 NP exposure on cell viability, the concentration of cytoplasmic ATP (which signals the presence of metabolically active cells) was determined after 24 h of exposure. At a high concentration of PEG-TiO2 NPs, the viability of both NCI-H292 and THP-1 cells decreased slightly to 95% (Figures 1 and 2, respectively). There was no apparent change in the viability of HeLa and HepG2 cells after 24 h of exposure to PEG-TiO2 NPs (Figures 3 and 4). In a similar experiment involving 6 h of exposure to PEG-TiO2 NPs, all cell lines maintained 100% viability (data not shown). Our findings thus indicate that modification of TiO2 NPs with PEG reduces the cytotoxicity of the particles. In addition, our data indicate that the cytotoxicity of PEG-TiO2 NPs differs between cell lines.

2.2. mRNA Expression Analysis of NP-Exposed Cells

To identify potential biomarkers of nanoparticle toxicity, we conducted a Human Stress and Toxicity Pathway Finder PCR array analysis of 84 genes indicative of stress and toxicity, using NCI-H292 cells exposed to PEG-TiO2 NPs for 6 h. Genes selected as biomarker candidates based on the PCR array results included CCNG1, CRYAB, CSF-2, CYP2E1, CYP7A1, FMO1, FMO5, GSTM3, HMOX-1, HSPA6, IL-6, LTA, TNF, and UGT1A4 (Table 1).

We next investigated the level of mRNA expression of stress- and toxicity-associated molecular markers in PEG-TiO2 NP-exposed cells using RT-PCR. Selected molecular markers included the oxidative marker HMOX-1 and the inflammation markers IL-6 and CSF-2, because expression of mRNAs for these markers was statistically higher than the other markers after treatment with PEG-TiO2 NPs. In PEG-TiO2 NP-exposed NCI-H292 cells, a significant increase in the level of IL-6 mRNA was observed after 6 h (Figure 5, solid black bars). The level of HMOX-1 mRNA was also significantly increased (2-fold higher than in control cells); however, the level of CSF-2 mRNA was lower than that in the control cells after 6 h of exposure. There was no significant difference in the level of HMOX-1, IL-6, or CSF-2 mRNA expression when the exposure duration was increased to 24 h (Figure 5, open bars).

In the case of THP-1 cells, no significant changes in the induction of HMOX-1, IL-6, or CSF-2 mRNA expression were observed after 6 h (Figure 6, solid black) or 24 h (Figure 6, open bars) of exposure to PEG-TiO2 NPs. These results indicate that PEG-TiO2 NPs do not induce expression of these molecular markers in THP-1 cells.

Similarly, neither 6 h nor 24 h of exposure to PEG-TiO2 NPs resulted in induction of HMOX-1, IL-6, or CSF-2 mRNA expression in HeLa cells (Figure 7). In HepG2 cells, 6 h of PEG-TiO2 NP exposure resulted in significant induction of CSF-2 mRNA expression compared to control cells (Figure 8, solid black bars), and a reduction in IL-6 mRNA expression after 24 h of exposure (Figure 8, open bars). The data indicate that each cell line responds differently to PEG-TiO2 NP exposure, which suggests that the induction of mRNA expression depends upon both the NPs and the cell type.

In our previous study, we demonstrated that exposure to high concentrations of TiO2 NP aggregates affects the expression of a number of genes [20]. In NCI-H292 cells, expression of the genes encoding heat shock protein 70B’ (HSP70B’) and IL-6 increased 100-fold and 10-fold, respectively, upon exposure to TiO2 NP aggregates. Exposure to TiO2 NP aggregates resulted in a six-fold increase in expression of the IL-6 gene in THP-1 cells [20]. In the present study, no induction of HSP70B’ expression upon PEG-TiO2 NP exposure was observed in any of the cell lines examined (data not shown). An induction of only approximately 3.5-fold was observed in the NCI-H292 cells exposed to PEG-TiO2 NPs. Our results thus indicate that modifying the surface of TiO2 NPs with PEG reduces the induction of genes associated with stress and toxicity.

2.3. Discussion

Titanium dioxide has a wide range of applications. Uncoated TiO2 NPs, like other insoluble nanomaterials, tend to clump together in aqueous media [22]. In our previous study [20], we focused on the effect of TiO2 NP aggregates on cytotoxicity and gene expression. A series of in vivo and in vitro studies [2328] of aggregated TiO2 NPs showed that these particles stimulate the production of ROS and induce an inflammatory response that damages the cells and neurons and affects the central nervous system. In order to reduce these deleterious biological effects of TiO2 NPs, we conjugated TiO2 NPs with PEG to minimize the formation of aggregates. PEG possesses a number of important physicochemical and biological properties, including hydrophilicity, solubility in water and organic solvents, and lack of toxicity [29,30]. The present study focused primarily on the effects of PEG-TiO2 NPs in different cell lines. The number of viable NCI-H292 cells decreased slightly upon exposure to high concentrations of PEG-TiO2 NPs, indicating that PEG-TiO2 exposure results in a minimal degree of stress in these cells. In our previous study, we demonstrated that exposure to large-TiO2 NP aggregates reduces the number of viable NCI-H292 cells by around 20%, as compared to exposure to small-TiO2 NP aggregates. As demonstrated here, treatment with PEG-TiO2 NPs reduces the number of viable NCI-H292 cells by only around 5%, as compared to TiO2 NPs (Figure 1). Our results thus indicate that modification with PEG reduces the cytotoxic effects of TiO2 NPs. However, it is difficult to distinguish between surface characters and cytotoxic activities, because PEG coated TiO2 NPs changed not only surface character, but also particle aggregate size.

We also performed PCR array analysis of 84 genes that are indicative of stress and toxicity. The mRNA expression analysis was performed, based upon the data obtained from the PCR array. PCR array is a sensitive technique used to screen for biomarkers related to human stress and toxicity. In our experiments, gene expression in response to PEG-TiO2 NP exposure varied with cell type. NCI-H292 cells responded quickly to PEG-TiO2 NP exposure (6 h) with induction of the proinflammatory cytokine IL-6 and oxidative stress marker HMOX-1, and a significant reduction in expression of the cytokine CSF-2. However, the pattern of gene expression changed when the duration of NP exposure was increased to 24 h, probably because the cells had adapted to the presence of NPs, and therefore did not show induction of any of the biomarkers. The same experiment was conducted using THP-1, HeLa, and HepG2 cells; however, the response of these cell lines differed from that of the NCI-H292 cell line. Induction of stress and toxicity biomarkers upon PEG-TiO2 NP exposure was observed only in NCI-H292 cells. In HepG2 cells especially, PEG-TiO2 NP reduced proinflammatory cytokine IL-6, but induced anti-inflammatory CSF-2. Some studies have shown that increased levels of proinflammatory cytokines such as TNF-α, IL-1, and IL-6, coupled with the oxidative stress resulting from increased generation of ROS, induces cardiac dysfunction [31,32]. However, another study showed that inhalation of TiO2 gives rise to a more pronounced inflammatory response than does inhalation of the same mass of larger TiO2 particles [33].

One mechanism whereby NPs can be transported into cells is through a process called endocytosis [34]. Endocytosis involves multiple processes that fall into two categories: phagocytosis and pinocytosis. Phagocytosis is a principal component of the body’s innate immunity in which macrophages internalize targets in an actin-dependent manner. Thus, phagocytosis by macrophages is critical for the uptake of large particles (0.2–10 μm) [35]. Monocytes/macrophages and neutrophils have been described as professional phagocytes [36]. Pinocytosis occurs in all cell types and is mediated by at least four basic mechanisms: macropinocytosis, clathrin-mediated endocytosis, caveolae-mediated endocytosis, and clathrin-caveolae independent endocytosis [37]. Macropinocytosis is the non-selective endocytosis of solute molecules [38], and is associated with the formation of actin-dependent membrane ruffles up to 5 μm in diameter [39]. Clathrin-mediated endocytosis is the most important mechanism for receptor-mediated endocytosis, and involves the formation of clathrin-coated pits that are 100 to 200 nm in size [40]. Caveolae are 50- to 80-nm flask-shaped plasma membrane invaginations found in many cell types and are marked by the presence of a member of the caveolin protein family [41]. The mechanisms that govern clathrin-caveolae independent endocytosis remain poorly understood. It is assumed that THP-1 cells take up NPs via phagocytosis. However, the entry of NPs into the cells depends upon the size and surface properties of the NPs and the presence of appropriate cell membrane receptors. Thus, one possible reason for variable responses to NP exposure may be the differences in the uptake mechanism between cell types.

3. Experimental Section

3.1. Preparation of PEG-TiO2

TiO2 NPs (Degussa Aeroxide P25: The particle size is 25 nm; The crystal rate of anatase and rutile of P25 is 80% anatase and 20% rutile.) was used for PEG modification. PEG-TiO2 was prepared as described previously [9]. The pH of comb-shaped PEG-maleic acid anhydride (PEGMA, AM1510K; Nihon Yushi Co., Ltd., Tokyo, Japan) in water was adjusted to 4.0 using 0.1 M NaOH. To activate the PEGMA carboxyl groups, 0.6 mL of 0.8 M 1-ethyl-3-[3-dimethylaminopropyl] carbodiimide hydrochloride (Pierce, Rockford, IL, USA) was added and the solution was incubated at room temperature for 5 min. Next, 0.3 mL of 0.2 M 4-amino-salicylic acid (4ASA; Wako Jyunyaku, Osaka, Japan) was added and the solution was incubated at 40 °C for 16 h. Unreacted 4ASA and other small molecules were removed by centrifuging five times using Amicon Ultra-15 (MWCO = 3000; Millipore, Billerica, MA, USA) ultra-filters, according to the manufacturer’s instructions. Exchange of the solvent of reacted PEGMA-4ASA was carried out after vacuum drying at 25 °C and 20 hPa for 3 min, and 5 hPa for 35 min. The concentration of PEGMA-4ASA was adjusted to 50 mg/mL using dimethylformamide (DMF). An acidic TiO2 solution was prepared using thermal synthesis based on hydrolysis of an organo-titanium compound followed by peptization. After hydrolysis of chlorotitanium triisopropoxide (Acros, Morris Plains, NJ, USA), peptization with HNO3 was carried out at 80 °C. The reactant was adjusted to a solid content of 20% (w/v) using 1.5 M HNO3. After ultrasonication at 200 kHz for 30 min (Midsonic 600; Kaijyo, Tokyo, Japan), particle-size distribution analysis was conducted, confirming the presence of TiO2 particles with a diameter of approximately 40 nm in the solution. The TiO2 solution (0.75 mL) was added to 10 mL of DMF, and 5 mL of 50 mg/mL PEGMA-4ASA in DMF was subsequently added, followed by stirring. The solution was incubated at 130 °C for 16 h using Chemist Plaza (Shibata Kagaku, Tokyo, Japan). The reaction was carried out under reflux and vigorous stirring at 600 rpm. After the reaction ended, the solution was cooled to room temperature. Exchange of the solvent of reacted PEG-TiO2 was carried out after vacuum drying at 40 °C and 5 hPa for 10 min. The concentration of PEG-TiO2 was adjusted to 10 mg/mL using water. The aqueous PEG-TiO2 solution was purified by centrifuging five times using Amicon Ultra-15 (MWCO = 3000; Millipore) ultra-filters according to the manufacturer’s instructions. The zeta potential and particle-size distributions of PEG-TiO2 were 0.196 mV and 49.6 nm, respectively, measured using a Zetasizer nanoZS (Malvern Instruments, UK), according to the procedures recommended by the manufacturer.

3.2. Cell Culture

Human NCI-H292 pulmonary epithelial cells [42] and human THP-1 acute monocytic leukemia cells [43,44] were cultured in RPMI 1640 medium (Invitrogen, NY, USA). Human HeLa cervical cancer cells [45] were cultured in Minimum Essential Medium (MEM) (Invitrogen), and human HepG2 hepatocarcinoma cells [46,47] were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM) (Invitrogen). All media were supplemented with 10% fetal bovine serum (Biowest, UK), 100 U/mL penicillin, and 100 μg/mL streptomycin (Nacalai Tesque, Japan). All cells were maintained under 5% CO2 and 100% humidity at 37 °C and cultured in the dark to avoid activation of the titanium surfaces. THP-1 cells were treated with 200 nM phorbol 12-myristate 13-acetate (PMA) (Wako Jyunyaku) for 48 h, after which the old medium was replaced with new medium and the cells were exposed to NPs for either 6 h or 24 h. Cultures of NCI-H292, HeLa, and HepG2 cells that had been seeded 24 h prior were exposed to NPs for 6 h or 24 h.

3.3. Cell Viability Test

Cell viability was measured using a Cell Titer-Glo Luminescent Cell Viability Assay kit (Promega, WI, USA) according to the manufacturer’s instructions [48]. For the ATP assay, 1.0 × 104 NCI-H292 cells, 5.0 × 104 THP-1 cells, 2.0 × 104 HeLa cells, and 1.0 × 104 HepG2 cells were seeded in each well of a white opaque-walled 96-well cell culture plate (Nunclone, Roskilde, Denmark). After the cells attained 80% confluence, they were treated with different concentrations of a suspension of PEG-TiO2, ranging from 0.00005% (w/v) (0.5 μg/mL) to 0.01% (w/v) (100 μg/mL) for 24 h. Each PEG-TiO2 particle suspension was added to the cell culture medium at a volume ratio of 5:100 and cultured for 24 h. The cytoplasmic ATP concentration was then analyzed using a Luminescent cell viability assay reader (Wako Jyunyaku).

3.4. Gene Expression Analysis

3.4.1. PCR Array

The PCR array is the most sensitive and reliable method of gene expression analysis. For PCR array analysis, 1.3 × 105 NCI-H292 cells/cm2 were seeded in a culture dish and exposed to a suspension of PEG-TiO2 NPs at a final concentration of 0.0075% (w/v) (75 μg/mL). Following 6 h of exposure to the PEG-TiO2 particles, the cells were detached by mechanical dissociation and the expression of 84 genes that are indicative of stress and toxicity was examined using PCR array analysis as follows. Total cellular RNA was extracted from PEG-TiO2-exposed cells using an RNeasy Kit (Qiagen) according to the manufacturer’s instructions. Extracted RNA was treated with DNaseI (Takara), and 4 μg of total RNA was reverse-transcribed into cDNA with a random hexamer primer using the PrimeScript II 1st strand cDNA Synthesis System (Takara) according to the manufacturer’s protocol. PCR array analysis was performed using an ABI PRISM 7000 Sequence Detection System (Applied Biosystems, Singapore). A standard reaction was prepared in 96-well plates (SA Bioscience, Qiagen) containing forward and reverse primers for several genes indicative of stress and toxicity. The cDNA was diluted five-fold with distilled water and mixed with 2× PCR master mix according to the manufacturer’s protocol. An aliquot of reaction mixture (25 μL) containing the test cDNA was then added to each well. The thermocycling conditions were 95 °C for 10 s followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min. A control reaction was also performed using cDNA prepared from cells that were not exposed to NPs.

3.4.2. Real-Time (RT) PCR

For mRNA expression analysis, 1.3 × 105 NCI-H292 cells/cm2, 1.9 × 105 THP-1 cells/cm2, 2.2 × 105 HeLa cells/cm2, and 1.1 × 105 Hep G2 cells/cm2 were seeded in cell culture dishes, and the cells were then exposed to a suspension of PEG-TiO2 NPs at a final concentration of 0.0075% (w/v) (75 μg/mL) for 6 h or 24 h. Following exposure, cells were detached by mechanical dissociation and subjected to gene expression analysis. The expression of marker genes was determined using quantitative real-time PCR (RT-PCR) as follows. Total cellular RNA was extracted from titania-exposed cells using an RNeasy Kit (Qiagen) according to the manufacturer’s instructions. Extracted RNA was treated with DNaseI (Takara), and 2 μg of total RNA was reverse-transcribed into cDNA with a random hexamer primer using the PrimeScript II 1st strand cDNA Synthesis System (Takara) according to the manufacturer’s protocol. Real-time PCR was performed using an ABI PRISM 7000 Sequence Detection System (Applied Biosystems). A standard reaction was prepared in 96-well plates (Micro Amp, Applied Biosystems). The reaction mixture was composed of 10 μL of SYBR Premix Ex Taq II (Takara), 10 pmol each of the forward and reverse primers, 2 μL of cDNA, and distilled water to a final volume of 20 μL. The thermocycling conditions were 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s and 60 °C for 34 s. Normalization of the data was performed using the housekeeping gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as an endogenous control in the same reaction as the gene of interest [49]. The primers used in this study were as follows: for GAPDH, forward primer 5′-CCCCCACCACACTGAATCTC-3′ and reverse primer 5′-GCCCCTCCCCTCTTCAAG-3′; for heme oxygenase 1 (HMOX-1), forward primer 5′-GGGTGATAGAAGAGGCCAAGA-3′ and reverse primer 5′-AGCTCCTGCAACTCCTCAAA-3′; for IL-6, forward primer 5′-TGAGTACAAAAGTCCTGA-3′ and reverse primer 5′-TCTGTGCCT GCAGCTTCGT-3′; for granulocyte-macrophage colony stimulating factor 2 (CSF-2), forward primer 5′-TCTCAGAAATGTTTGACCTCCA-3′ and reverse primer 5′-GCCCTTGAGC TTGGTGAG-3′.

3.5. Statistical Analysis

Data were expressed as the mean ± SD, (n ≥ 3). The data were analyzed using Student t test to evaluate the significance of differences between the treated groups and control groups.

4. Conclusions

Our previous results indicated that TiO2 NPs induce inflammatory and heat shock responses in cells. In order to minimize these responses, we conjugated TiO2 NPs with PEG to prevent aggregation. The cytotoxic effects of PEG-TiO2 NPs on NCI-H292 cells were less severe than those produced by TiO2 aggregates. However, PEG-TiO2 NPs did not produce any cytotoxicity in THP-1, HeLa, or HepG2 cells. Analysis of mRNA expression indicated that the expression of particular biomarkers depends upon the cell type. Our results showed that modification of TiO2 NPs with PEG reduces their cytotoxicity and reduces the induction of genes associated with stress and toxicity.

References

  1. Ng, C.T.; Li, J.J.; Perumalsamy, R.; Watt, F.; Yung, L.Y.L.; Bay, B.H. Localizing cellular uptake of nanomaterials in vitro by transmission electron microscopy. Microsc. Sci. Technol. Appl. Educ 2010, 1, 316–320.
  2. Ratyakshi; Chauhan, R.P. Colloidal synthesis of silver nanoparticles. Asian J. Chem 2009, 21, S113–S116.
  3. Huang, C.C.; Aronstam, R.S.; Chen, D.R.; Huang, Y.W. Oxidative stress, calcium homeostasis, and altered gene expression in human lung epithelial cells exposed to ZnO nanoparticles. Toxicol. In Vitro 2010, 24, 45–55.
  4. Pujalte, I.; Passagne, I.; Brouillaud, B.; Treguer, M.; Durand, E.; Courtes, C.O.; Lazou, B. Cytotoxicity and oxidative stress induced by different metallic nanoparticles on human kidney cells. Part. Fibre Toxicol 2011, 8, doi:10.1186/1743-8977-8-10.
  5. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium dioxide photocatalysis. J. Photochem. Photobiol. C 2000, 1, 1–21.
  6. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modification and applications. Chem. Rev 2007, 107, 2891–2959.
  7. Chen, E.; Ruvalcaba, M.; Araujo, L.; Chapman, R.; Chin, W.C. Ultrafine titanium dioxide nanoparticles induce cell death in human bronchial epithelial cells. J. Exp. Nanosci 2008, 3, 171–183.
  8. Gurr, J.R.; Wang, A.S.S.; Chen, C.H.; Jan, K.Y. Ultrafine titanium dioxide particles in the absence of photoactivation can induce oxidative damage to human bronchial epithelial cells. Toxicology 2005, 213, 66–73.
  9. Yamaguchi, S.; Kobayashi, H.; Narita, T.; Kanehira, K.; Sonezaki, S.; Kudo, N.; Kubota, Y.; Terasaka, S.; Houkin, K. Sonodynamic therapy using water-dispersed TiO2-polyethylene glycol compound on glioma cells: Comparison of cytotoxic mechanism with photodynamic therapy. Ultrason. Sonochem 2011, 18, 1197–1204.
  10. Oberdorster, G.; Ferin, J.; Gelein, R.; Soderholm, S.C.; Finkelstein, J. Role of alveolar macrophages in lung injury studies with ultra fine particles. Environ. Health Perspect 1992, 97, 193–199.
  11. Baggs, R.B.; Fern, J.; Oberdorster, G. Regression of pulmonary lesions produced by inhaled titanium dioxide in rats. Vet. Pathol 1997, 34, 592–597.
  12. Mishra, V.K.; Mishra, S.K.; Jha, A. Application of nanomaterials in mesenchymal stem cell engineering. Dig. J. Nanomater. Biostructures 2008, 3, 203–208.
  13. Jokerst, J.V.; Lobovkin, T.; Zare, R.N.; Gambhir, S.S. Nanoparticle PEGylation for imaging and therapy. Nanomedicine 2011, 6, 715–728.
  14. Wang, W.; Xiong, W.; Wan, J.; Sun, X.; Xu, H.; Yang, X. The decrease of PAMAM dendrimer-induced cytotoxicity by PEGylation via attenuation of oxidative stress. Nanotechnology 2009, 20, 105103–105109.
  15. Matsumura, S.; Sato, S.; Yadasaka, M.; Tomida, A.; Tsuruo, T.; Iijima, S.; Shiba, K. Prevention of carbon nanohorn agglomeration using a conjugate composed of comb-shaped polyethylene glycol and a peptide aptamer. Mol. Pharmaceutics 2009, 6, 441–447.
  16. Eck, W.; Craig, G.; Sigdel, A.; Ritter, G.; Old, L.J.; Tang, L.; Brennan, M.F.; Allen, P.J.; Mason, M.D. PEGylated gold nanoparticles conjugated to monoclonal F19 antibodies as targeted labeling agents for human pancreatic carcinoma tissue. ACS Nano 2008, 2, 2263–2272.
  17. Prencipe, G.; Tabakman, S.M.; Welsher, K.; Liu, Z.; Goodwin, A.P.; Zhang, L.; Henry, J.; Dai, H. PEG branched polymer for functionalization of nanomaterials with ultralong blood circulation. J. Am. Chem. Soc 2009, 131, 4783–4787.
  18. Zhang, Y.; Xu, Y.; Li, Z.; Chen, T.; Lantz, S.M.; Howard, P.C.; Paule, M.G.; Slikker, W., Jr; Watanabe, F.; Mustafa, T.; et al. PEGylated single-walled carbon nanotubes in neuronal PC12 cells. ACS Nano 2011, 5, 7020–7033.
  19. Park, E.J.; Yoon, J.; Choi, K.; Li, J.; Park, K. Induction of chronic inflammation in mice treated with titanium dioxide nanoparticles by intratracheal instillation. Toxicology 2009, 260, 37–46.
  20. Shimazaki, J.O.; Takaku, S.; Kanehira, K.; Sonezaki, S.; Taniguchi, A. Effects of titanium dioxide nanoparticle aggregate size on gene expression. Int. J. Mol. Sci 2010, 11, 2383–2392.
  21. Chen, P.; Migita, S.; Kanehira, K.; Sonezaki, S.; Taniguchi, A. Development of sensor cells using NF-κB pathway activation for detection of nanoparticle induced inflammation. Sensors 2011, 11, 7219–7230.
  22. Sharma, V.K. Aggregation and toxicity of titanium dioxide nanoparticles in aquatic environment. J. Environ. Sci. Health Part A: Toxic/Hazard. Subst. Environ. Eng 2009, 44, 1485–1495.
  23. Hamilton, R.F.; Wu, N.; Porter, D.; Buford, M.; Wolfarth, M.; Holian, A. Particle length-dependent titanium dioxide nanomaterials toxicity and bioactivity. Part. Fibre Toxicol 2009, 6, doi:10.1186/1743-8977-6-35.
  24. Jin, C.Y.; Zhu, B.S.; Wang, X.F.; Lu, Q.H. Cytotoxicity of TiO2 nanoparticles in mouse fibroblast cells. Chem. Res. Toxicol 2008, 21, 1871–1877.
  25. Pan, W.; Lee, L.; Slutsky, R.; Clak, A.F.; Pernodet, N.; Rafailovich, M.H. Adverse effects of TiO2 nanoparticles on human dermal fibroblasts and how to protect cells. Small 2009, 4, 511–520.
  26. Long, T.C.; Tajuba, J.; Sama, P.; Saleh, N.; Swartz, C.; Parker, J.; Hester, S.; Lowry, G.V.; Veronesi, B. Nanosize TiO2 stimulates reactive oxygen species in brain microglia and damages neurons in vitro. Environ. Health Perspect 2007, 115, 1631–1637.
  27. Warheit, D.B.; Webb, T.R.; Sayes, C.M.; Colvin, V.L.; Reed, K.L. Pulmonary instillation studies with nanoscale TiO2 rods and dots in rats: Toxicity is not dependent upon particle size and surface area. Toxicol. Sci 2006, 91, 227–236.
  28. Shimizu, M.; Tainaka, H.; Oba, T.; Mizuo, K.; Umezawa, M.; Takeda, K. Maternal exposure to nanoparticulate titanium dioxide during the prenatal period alters gene expression related to brain development in the mouse. Part. Fibre Toxicol 2009, 6, doi:10.1186/1743-8977-6-20.
  29. Hu, Y.; Xie, J.; Tong, Y.W.; Wang, C.H. Effects of PEG conformation and particle size on the cellular uptake efficiency of nanoparticles with the Hep G2 cells. J. Controlled Release 2007, 118, 7–17.
  30. Tangaraja, A.; Savitha, V.; Jegatheesan, K. Preparation and characterization of polyethylene glycol coated silica nanoparticles for drug delivery application. Comp. Gen. Pharmacol 2010, 4, 31–38.
  31. Molavi, B.; Mehta, J.L. Oxidative stress in cardiovascular disease: Molecular basis of its deleterious effects, its detection, and therapecutic considerations. Curr. Opin. Cardiol 2004, 19, 488–493.
  32. Mann, D.L. Stress activated cytokines and the heart: From adaptation to maladaptation. Annu. Rev. Physiol 2003, 65, 81–101.
  33. Oberdorster, G.; Ferin, J.; Lehnert, B.E. Correlation between particle size, in vivo particle persistence and lung injury. Environ. Health Perspect 1994, 102, 173–179.
  34. Champion, J.A.; Mitragotri, S. Role of target geometry in phagocytosis. Proc. Natl. Acad. Sci. USA 2006, 3, 4930–4934.
  35. Garnett, M.C.; Kallinteri, P. Nanomedicines and nanotoxicology: Some physiological principles. Occup. Med 2006, 56, 307–311.
  36. Anderem, A.; Underhill, D.M. Mechanism of phagocytosis in macrophages. Annu. Rev. Immunol 1999, 17, 593–623.
  37. Conner, S.D.; Schmid, S.L. Regulated portals of entry into the cell. Nature 2003, 422, 37–44.
  38. Zhang, L.W.; Riviere, N.A.M. Mechanism of quantum dot nanoparticle cellular uptake. Toxicol. Sci 2009, 110, 138–155.
  39. Hansen, C.G.; Nichols, B.J. Molecular mechanisms of clathrin-independent endocytosis. J. Cell Sci 2009, 122, 1713–1721.
  40. Xiao, Y.; Forry, S.P.; Gao, X.; Holbrook, R.D.; Telford, W.D.; Tona, A. Dynamics and mechanisms of quantum dot nanoparticle cellular uptake. J. Nanobiotechnol 2010, 8, doi:10.1186/1477-3155-8-13.
  41. Mayor, S.; Pagano, R.E. Pathways of clathrin-independent endocytosis. Nat. Rev. Mol. Cell Biol 2007, 8, 603–612.
  42. Ishibashi, Y.; Imai, S.; Inouye, Y.; Okano, T.; Taniguchi, A. Effects of carbocisteine on sialyl-Lewis x expression in NCI-H292 cells, an airway carcinoma cell line, stimulated with tumor necrosis factor-α. Eur. J. Pharmacol 2006, 530, 223–228.
  43. Nudejima, S.; Miyazawa, K.; Shimazaki, J.O.; Taniguchi, A. Observation of phagocytosis of fullerene nanowhiskers by PMA-treated THP-1 cells. J. Phys. Conf. Ser 2009, 159, 1–6.
  44. Shimazaki, J.O.; Nudejima, S.; Takaku, S.; Kanehira, K.; Sonezaki, S.; Taniguchi, A. Effects of fullerene nanowhiskers on cytotoxicity and gene expression. Health 2010, 2, 1463–1466.
  45. Zheng, Y.; Li, R. In vitro and in vivo biocompatibility studies on ZnO nanoparticles. Int. J. Mod. Phys. B 2009, 23, 1566–1571.
  46. Piret, J.P.; Vankoningsloo, S.; Noel, F.; Mendoza, J.M.; Lucas, S.; Saout, C.; Toussaint, O. Inflammation response at the transcriptional level of HepG2 cells induced by multi-walled carbon nanotubes. J. Phys. Conf. Ser 2011, 304, doi:10.1088/1742-6596/304/1/012040.
  47. Kawata, K.; Osawa, M.; Okabe, S. In vitro toxicity of silver nanoparticles at nanocytotoxic doses to Hep G2 human hepatoma cells. Environ. Sci. Technol 2009, 43, 6046–6051.
  48. AshaRani, P.V.; Mun, G.L.K.; Hande, M.P.; Valiyaveettil, S. Cytotoxicity and genotoxicity of silver nanoparticles in human cells. ACS Nano 2009, 3, 279–290.
  49. Matsumoto, A.; Harada, H.; Saito, M.; Taniguchi, A. Induction of enamel matrix protein expression in an ameloblast cell line co-cultures with a mesenchymal cell line in vitro. In Vitro Cell. Dev. Biol. Anim 2011, 47, 39–44.
Ijms 13 03703f1 200
Figure 1. Cell viability testing based on cytoplasmic ATP concentration. NCI-H292 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration. * P < 0.01.

Click here to enlarge figure

Figure 1. Cell viability testing based on cytoplasmic ATP concentration. NCI-H292 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration. * P < 0.01.
Ijms 13 03703f1 1024
Ijms 13 03703f2 200

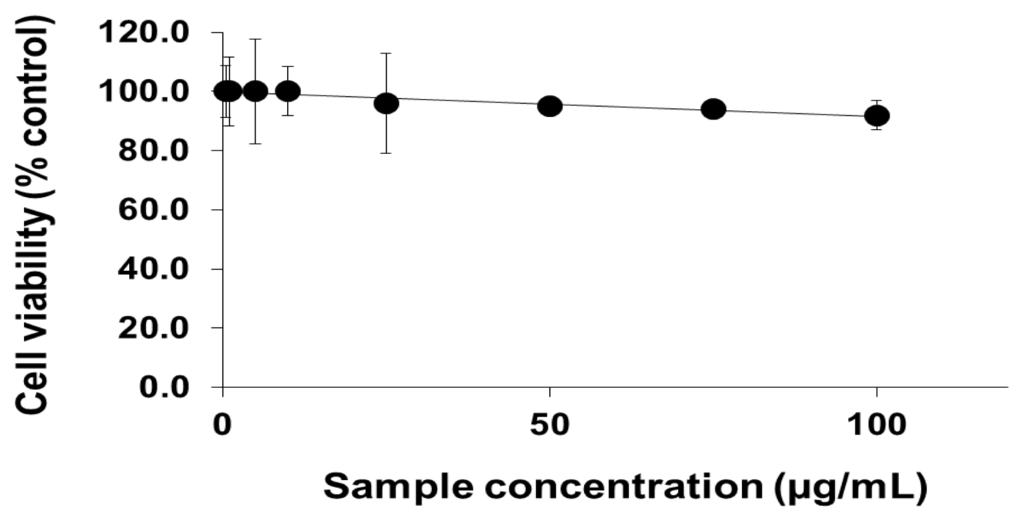

Figure 2. Cell viability testing based on cytoplasmic ATP concentration. THP-1 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.

Click here to enlarge figure

Figure 2. Cell viability testing based on cytoplasmic ATP concentration. THP-1 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.
Ijms 13 03703f2 1024
Ijms 13 03703f3 200

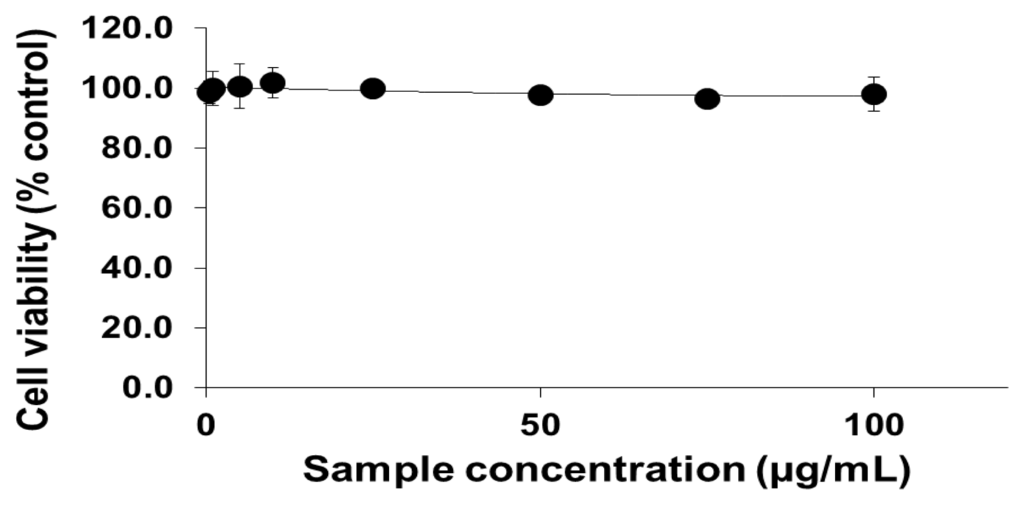

Figure 3. Cell viability testing based on cytoplasmic ATP concentration. HeLa cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.

Click here to enlarge figure

Figure 3. Cell viability testing based on cytoplasmic ATP concentration. HeLa cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.
Ijms 13 03703f3 1024
Ijms 13 03703f4 200

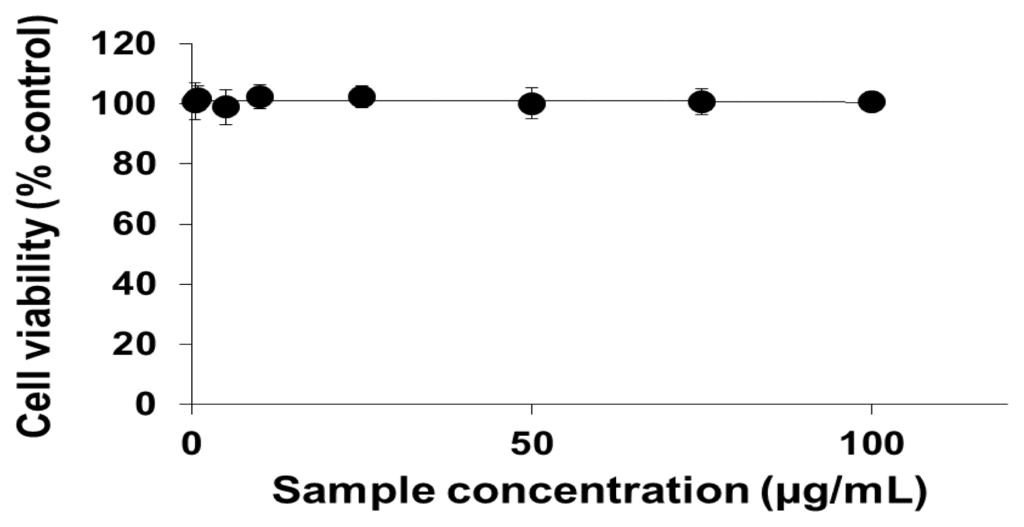

Figure 4. Cell viability testing based on cytoplasmic ATP concentration. HepG2 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.

Click here to enlarge figure

Figure 4. Cell viability testing based on cytoplasmic ATP concentration. HepG2 cells were exposed to the indicated concentrations of PEG-TiO2 NPs for 24 h. Results are shown as the mean ± SD, n ≥ 3 for each concentration.
Ijms 13 03703f4 1024
Ijms 13 03703f5 200

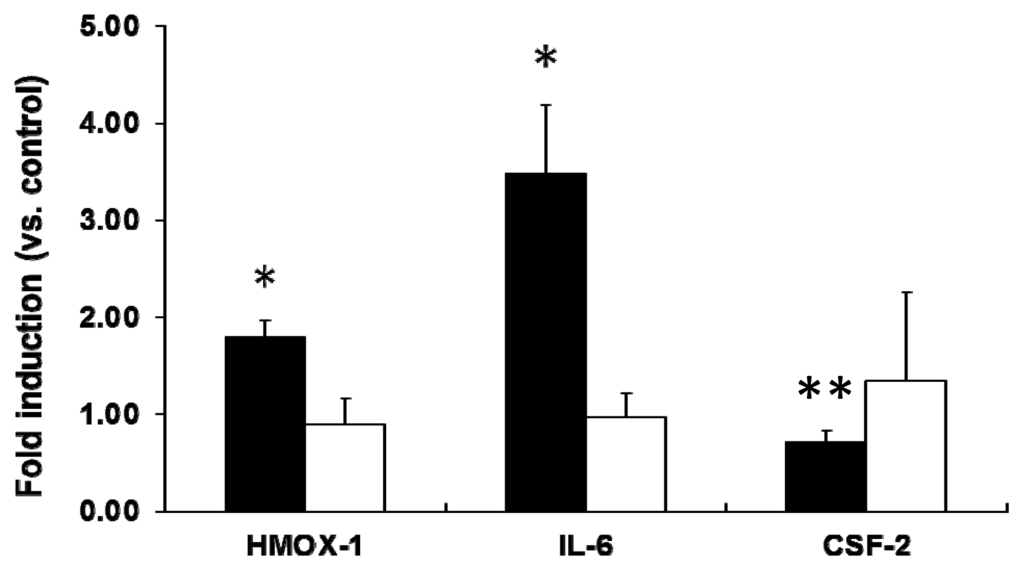

Figure 5. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed NCI-H292 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker. * P < 0.05, ** P < 0.01.

Click here to enlarge figure

Figure 5. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed NCI-H292 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker. * P < 0.05, ** P < 0.01.
Ijms 13 03703f5 1024
Ijms 13 03703f6 200
Figure 6. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed THP-1 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker.

Click here to enlarge figure

Figure 6. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed THP-1 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker.
Ijms 13 03703f6 1024
Ijms 13 03703f7 200

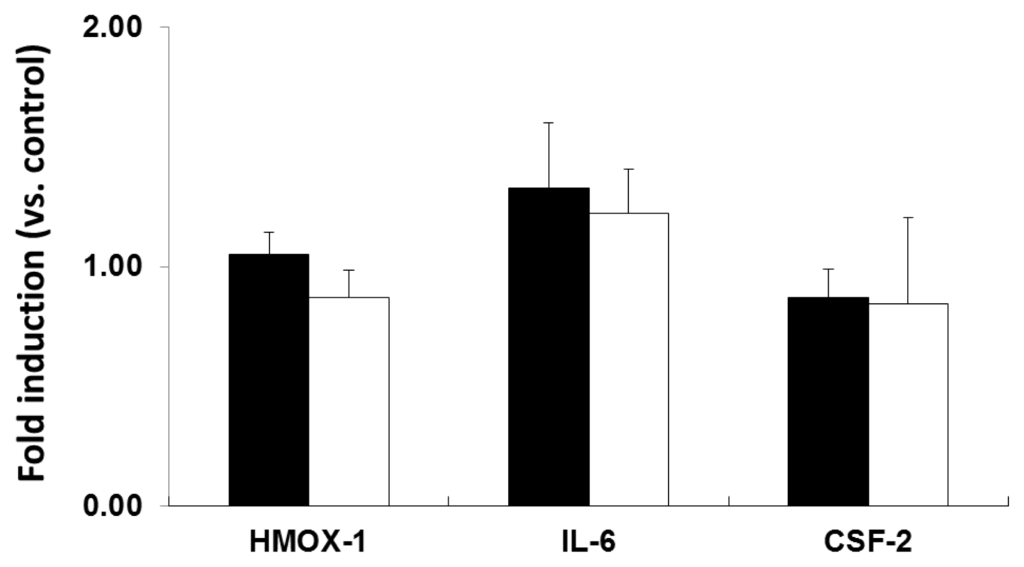

Figure 7. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed HeLa cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker.

Click here to enlarge figure

Figure 7. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed HeLa cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker.
Ijms 13 03703f7 1024
Ijms 13 03703f8 200

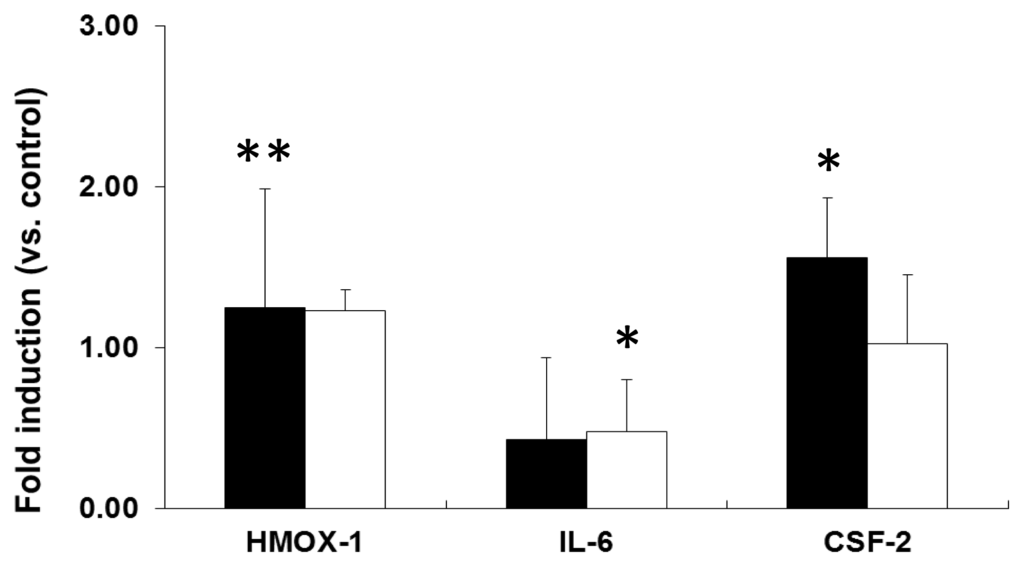

Figure 8. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed HepG2 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker. * P < 0.05, ** P < 0.01.

Click here to enlarge figure

Figure 8. Expression of stress and toxicity marker mRNAs in PEG-TiO2 NP-exposed HepG2 cells. Cells were exposed for 6 h (solid black bars) or 24 h (open bars). Results are shown as the mean ± SD, n ≥ 3 for each marker. * P < 0.05, ** P < 0.01.
Ijms 13 03703f8 1024
Table 1. Lists for genes showed induction of mRNA expression in PEG-TiO2 particles-exposed NCI-H292 cells after 6 h in PCR array.

Click here to display table

Table 1. Lists for genes showed induction of mRNA expression in PEG-TiO2 particles-exposed NCI-H292 cells after 6 h in PCR array.
Symbols of GenesDescription of the Genes
CCNG1Cyclin G1
CRYABCrystallin, alpha B
CSF2Colony stimulating factor 2 (granulocyte- macrophage)
CYP2E1Cytochrome P450, family 2, subfamily E, polypeptide 1
CYP7A1Cytochrome P450, family 7, subfamily A, polypeptide 1
FMO1Flavin containing monooxygenase 1
FMO5Flavin containing monooxygenase 5
GSTM3Glutathione transferase M3
HMOX1Heme oxygenase 1
HSPA6Heat Shock 70kDa protein 6 (HSP70B’)
IL6Interleukin 6 (interferon, beta 2)
LTALymphotoxin alpha (TNF superfamily, member 1)
TNFTumor necrosis factor (TNF superfamily, member 2)
UGT1A4UDP glucuronosyltransferase 1 family, polypeptide A4
