Steady State–Hopf Mode Interactions at the Onset of Electroconvection in the Nematic Liquid Crystal Phase V
Department of Physics, Kent State University, Kent, OH 44242, USA
Department of Mathematics, Colorado State University, Fort Collins, CO 80523, USA
* Author to whom correspondence should be addressed.
Received: 13 May 2011; in revised form: 28 June 2011 / Accepted: 6 July 2011 / Published: 13 July 2011

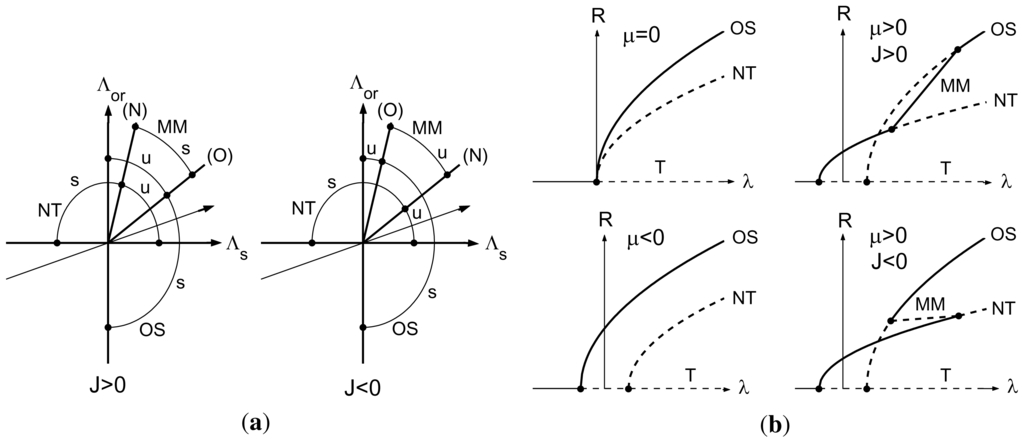

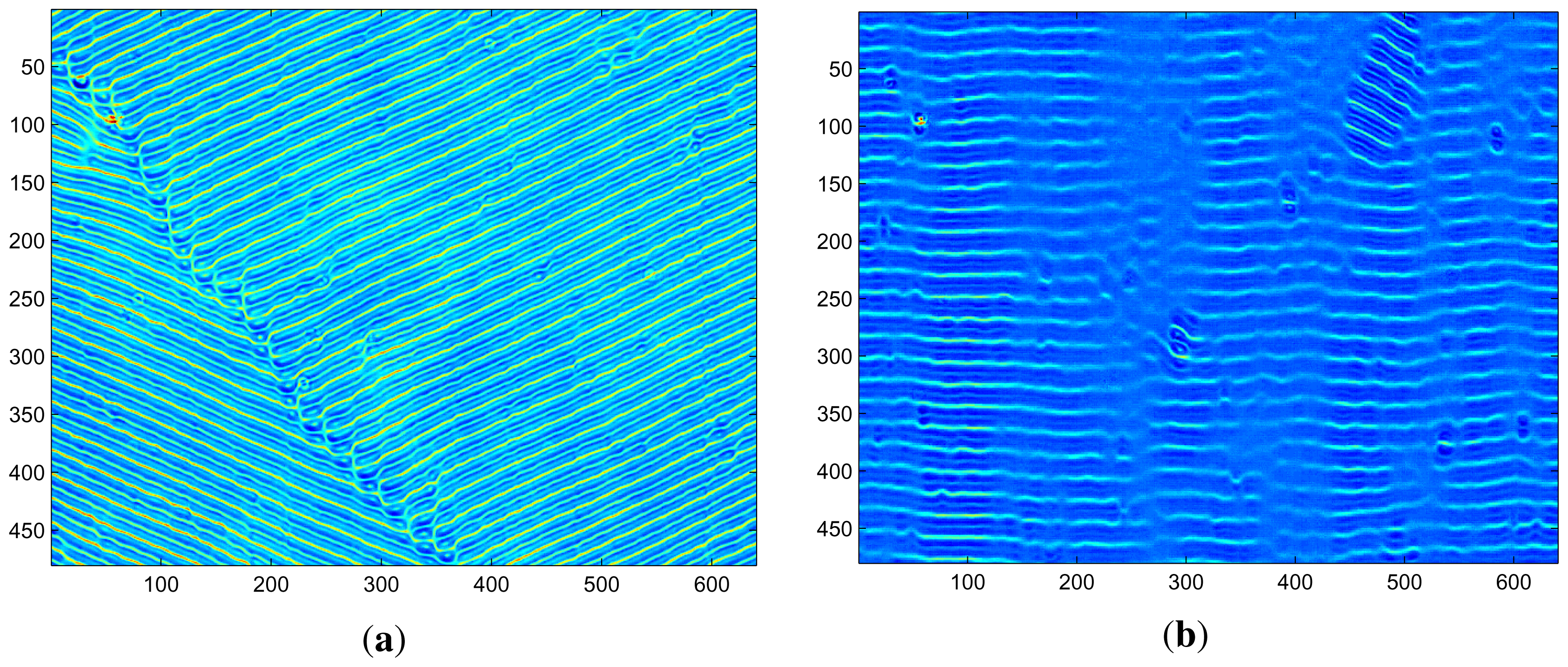

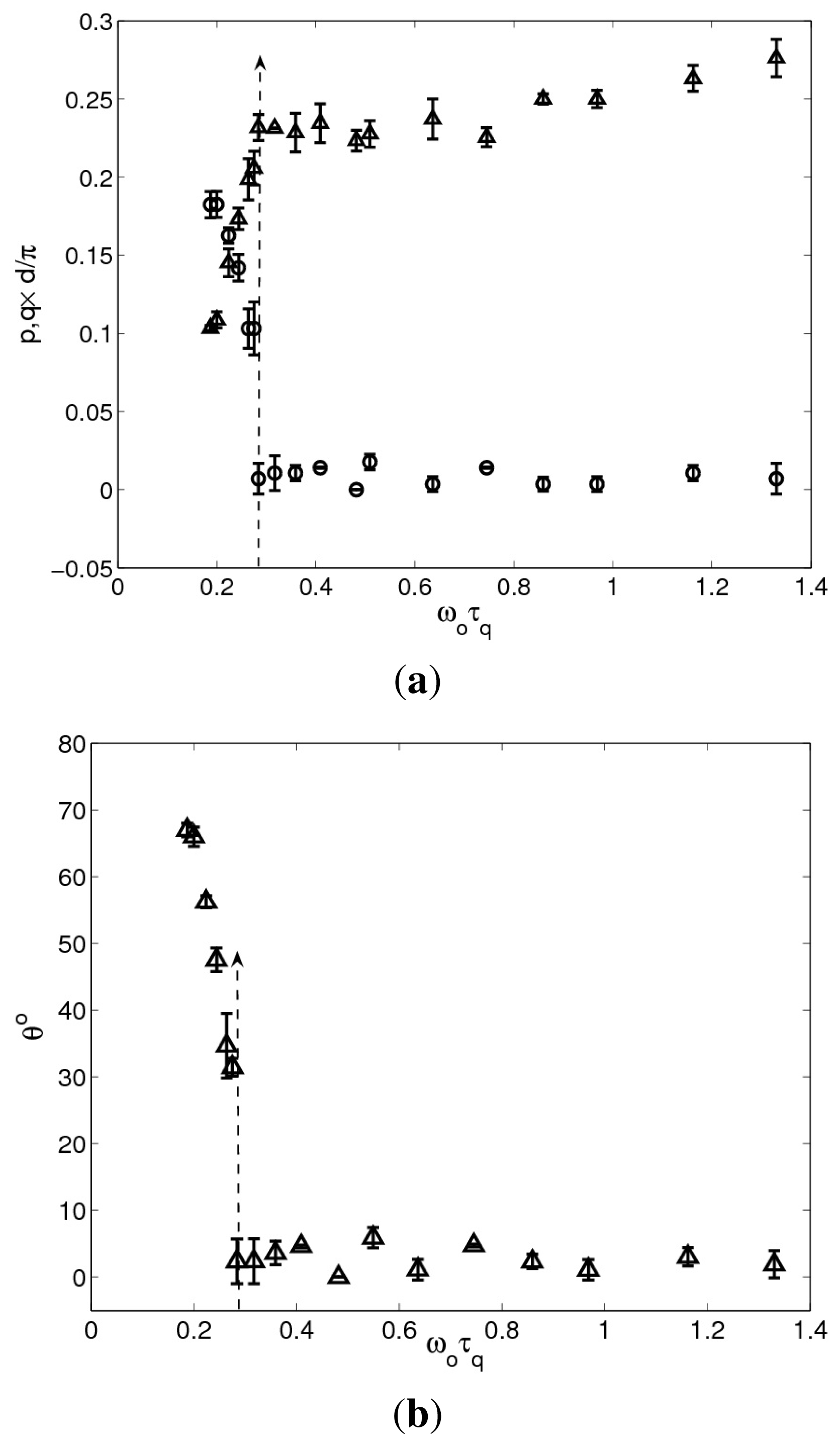

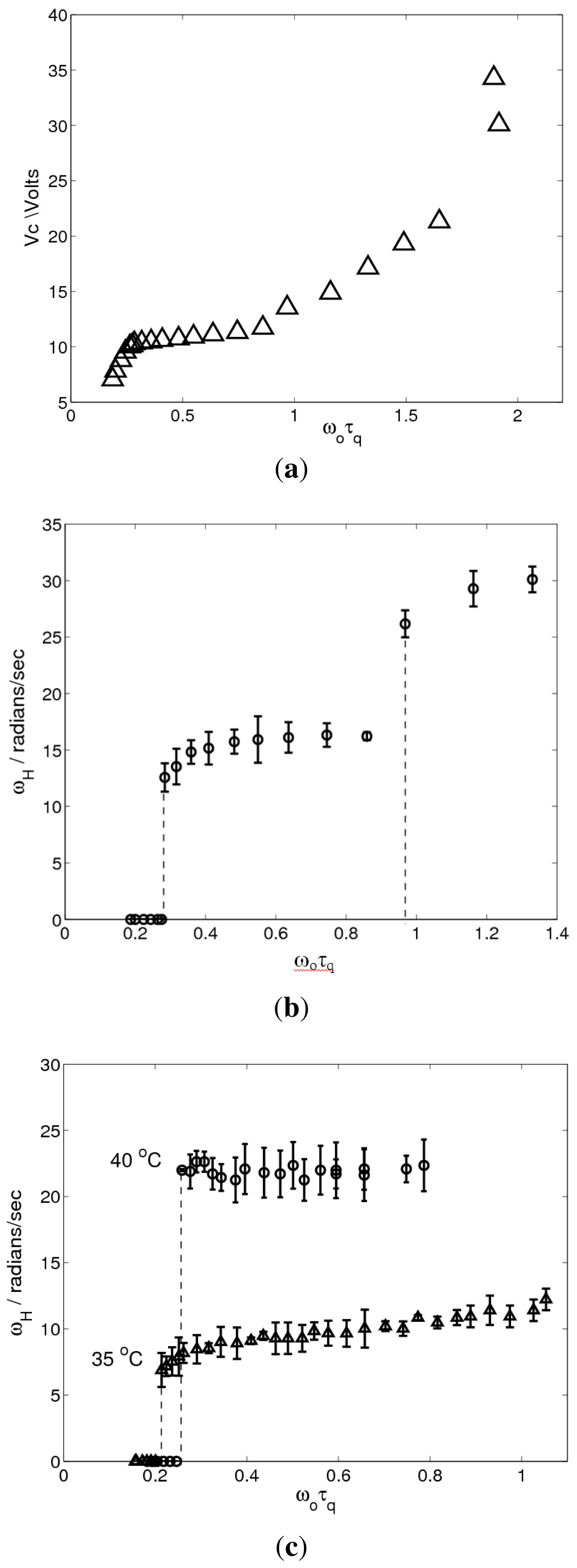

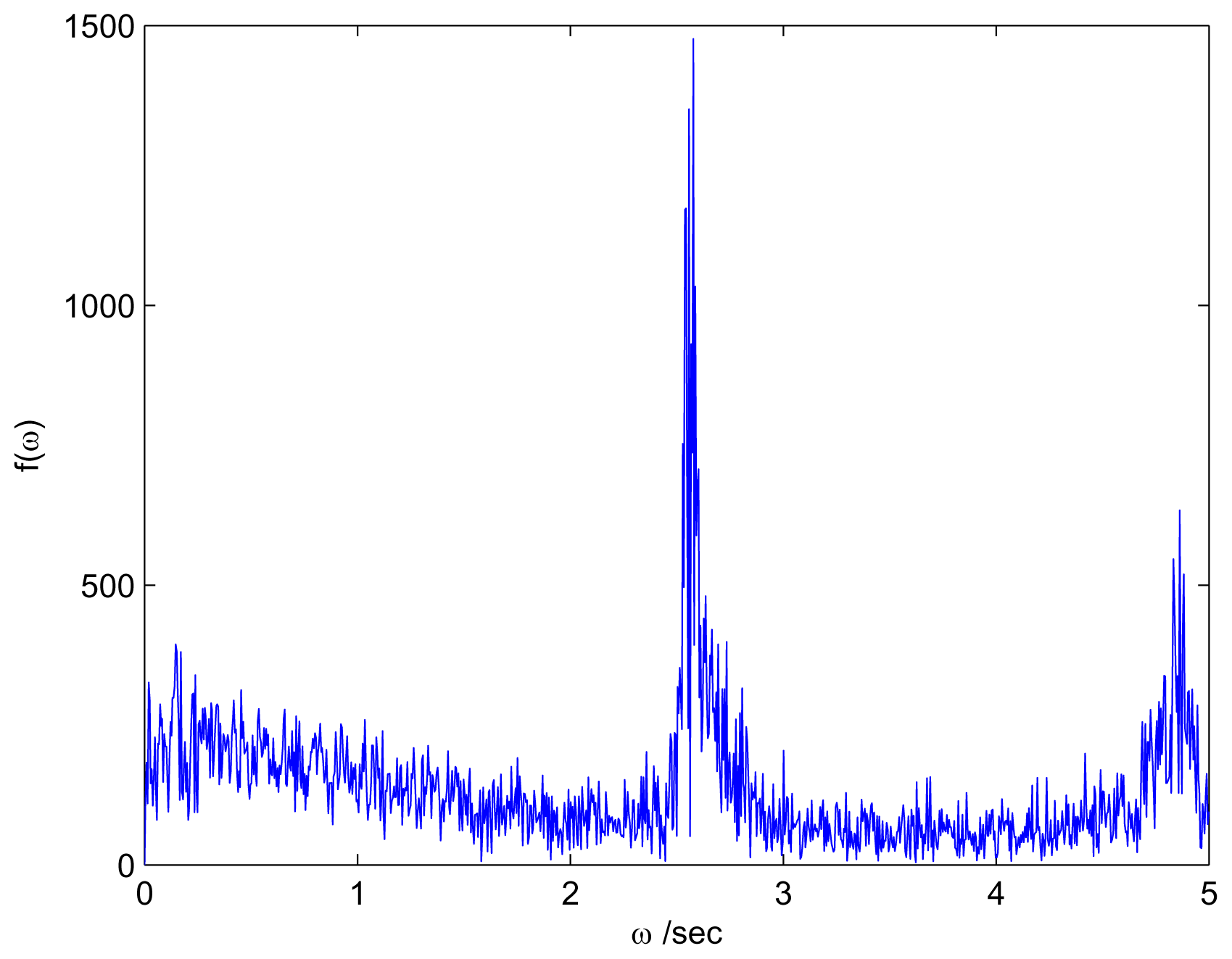

Abstract: We report on a new mode interaction found in electroconvection experiments on the nematic liquid crystal mixture Phase V in planar geometry. The mode interaction (codimension two) point occurs at a critical value of the frequency of the driving AC voltage. For frequencies below this value the primary pattern-forming instability at the onset voltage is an oblique stationary instability involving oblique rolls, and above this value it is an oscillatory instability giving rise to normal traveling rolls (oriented perpendicular to and traveling in the director direction). The transition has been confirmed by measuring the roll angle and the dominant frequency of the time series, as both quantities exhibit a discontinuous jump across zero when the AC frequency is varied near threshold. The globally coupled system of Ginzburg–Landau equations that qualitatively describe this mode interaction is constructed, and the resulting normal form, in which slow spatial variations of the mode amplitudes are ignored, is analyzed. This analysis shows that the Ginzburg–Landau system provides the adequate theoretical description for the experimentally observed phenomenon. The experimentally observed patterns at and higher above the onset allow us to narrow down the range of the parameters in the normal form.
Keywords: nematic liquid crystals; electrohydrodynamic convection; mode interactions; pattern formation; amplitude equations
Article StatisticsClick here to load and display the download statistics.
Notes: Multiple requests from the same IP address are counted as one view.
Cite This Article
MDPI and ACS Style
Acharya, G.; Dangelmayr, G.; Gleeson, J.; Oprea, I. Steady State–Hopf Mode Interactions at the Onset of Electroconvection in the Nematic Liquid Crystal Phase V. Int. J. Mol. Sci. 2011, 12, 4488-4503.
Acharya G, Dangelmayr G, Gleeson J, Oprea I. Steady State–Hopf Mode Interactions at the Onset of Electroconvection in the Nematic Liquid Crystal Phase V. International Journal of Molecular Sciences. 2011; 12(7):4488-4503.
Acharya, Gyanu; Dangelmayr, Gerhard; Gleeson, James; Oprea, Iuliana. 2011. "Steady State–Hopf Mode Interactions at the Onset of Electroconvection in the Nematic Liquid Crystal Phase V." Int. J. Mol. Sci. 12, no. 7: 4488-4503.
