Int. J. Mol. Sci. 2011, 12(4), 2275-2293; doi:10.3390/ijms12042275

Review
Glass Formation, Chemical Properties and Surface Analysis of Cu-Based Bulk Metallic Glasses
Chunling Qin 1,2, Weimin Zhao 1,* and Akihisa Inoue 2
1
School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300132, China; E-Mail: dashan_qin@yahoo.com
2
WPI Advanced Institute for Materials Research, Tohoku University, Sendai 980-8577, Japan; E-Mail: ainoue@imr.tohoku.ac.jp
*
Author to whom correspondence should be addressed; E-Mail: wmzhao@hebut.edu.cn; Tel.: +86-22-6020-4477.
Received: 1 November 2010; in revised form: 2 December 2010 / Accepted: 6 December 2010 /
Published: 4 April 2011

Abstract

: This paper reviews the influence of alloying elements Mo, Nb, Ta and Ni on glass formation and corrosion resistance of Cu-based bulk metallic glasses (BMGs). In order to obtain basic knowledge for application to the industry, corrosion resistance of the Cu–Hf–Ti–(Mo, Nb, Ta, Ni) and Cu–Zr–Ag–Al–(Nb) bulk glassy alloy systems in various solutions are reported in this work. Moreover, X-ray photoelectron spectroscopy (XPS) analysis is performed to clarify the surface-related chemical characteristics of the alloy before and after immersion in the solutions; this has lead to a better understanding of the correlation between the surface composition and the corrosion resistance.
Keywords:
metallic glasses; glass formation; chemical properties; polarization curves; XPS measurements

1. Introduction

Bulk metallic glasses (BMGs) have been drawing increasing attention in recent years due to their superior properties and potential as new engineering materials [1,2]. To date, a large number of BMG systems, including Mg-, Zr-, Pd-, Fe-, Co-, Ti-, Ni-, and Cu-based multicomponent systems, have been produced by conventional mold casting and water quenching techniques [310]. Among them, the Cu-based BMGs are particularly interesting and show commercial potential as structural materials in some fields due to the combination of high strength, distinct plasticity and relatively low cost of fabrication. This includes the discoveries of unusual glass-forming ability (GFA) and high strength in ternary Cu–Zr(Hf)–Ti(Al) [1012] and quaternary Cu–Zr–(Ti, Al)–Ag [1315] alloys. These BMGs—as an engineering material—are now attracting our attention on applications in the industrial field. However, so far, extensive studies have focused on the glass formation, crystallization processes, mechanical, and physical properties of BMGs. There is quite some corrosion data of BMGs in aqueous solutions. Actually, chemical properties of materials are of great importance. In order to enable the use of the new type of BMGs as engineering material, the glassy alloys must have a good corrosion resistance and electrochemical stability in industrial environments. Therefore, it is of great importance to investigate the corrosion behavior and, subsequently, to improve the corrosion resistance by alloying corrosion resistant elements, such as Mo, Nb and Ta, etc. Moreover, a better understanding of the role of the alloy constituent elements in corrosion resistance is useful for designing a high corrosion resistant BMG alloy.

This paper aims to review the influence of alloying elements Mo, Nb, Ta and Ni on glass formation and corrosion resistance of Cu-based BMGs. In order to obtain basic data for application to the industry, corrosion resistance of the Cu–Hf–Ti–(Mo, Nb, Ta, Ni) and Cu–Zr–Ag–Al–(Nb) glassy alloy systems in various solutions are reported in this paper. Moreover, X-ray photoelectron spectroscopy (XPS) is used to clarify the origin of the high corrosion resistance of the alloys. Particular attention has been paid to the chemical composition and the oxidation states of alloy constituents in surface films.

2. Results and Discussion

2.1. Fabrication, Glass Formation and Corrosion Resistance of the Cu–Hf–Ti–(Mo, Nb, Ta) BMGs

The Cu-based BMGs are known for their ultrahigh strength exceeding 2 GPa, high glass-forming ability (GFA), and good wear resistance, allowing potential applications as advanced engineering materials in many areas, such as surgical instruments and bipolar plates in fuel cells. However, the corrosion resistance of these Cu-based BMGs is not always better than that of conventional Cu-based crystalline alloys, though the tensile strength levels are 2- to 5-times higher for the Cu-based BMGs [16]. Therefore, there is a need to improve their corrosion resistance by alloying corrosion resistant elements to make the Cu-based BMGs acceptable for use on an industrial level.

2.1.1. Effects of Additional Elements Mo, Nb and Ta on the Glass Formation and Corrosion Resistance

Firstly, we examined the effect of additional elements Mo, Nb and Ta on glass formation of the Cu–Hf–Ti–(Mo, Nb and Ta) alloys. Figure 1 shows the differential scanning calorimetry (DSC) curves of the Cu-based bulk glassy alloys containing Mo, Nb and Ta elements with a diameter of 1.5 mm, together with the data of the Cu60Hf25Ti15 alloy [17]. All the alloys exhibit the distinct glass transition, followed by a large supercooled liquid region before crystallization. The temperature interval of the supercooled liquid region (ΔTx) of the Cu60Hf25Ti15 glassy alloy is 60 K. By the addition of a small amount of Mo, Nb or Ta, the ΔTx decreases, but still keeps large values of 51 K at 2 at.% Ta, 46 K at 2 at.% Nb and 40 K at 2 at.% Mo. The critical diameter for glass formation is 4.0 mm at 2 at.% Nb, 3.5 mm at 2 at.% Ta and 1.5 mm at 2 at.% Mo.

The average corrosion rates of the Cu–Hf–Ti–(Mo, Nb, Ta) bulk glassy alloys with a diameter of 1.5 mm in 1 N HCl, 3 mass% NaCl and 1 N H2SO4 + 0.001 N NaCl solutions at 298 K for 168 h are shown in Table 1 [18]. The accuracy of the balance for measuring weight loss of all the samples in this paper is about 1 × 10−5 g. In 1 N HCl solution, the corrosion rate of the Cu60Hf25Ti15 alloy is about 0.340 mm year−1 and the decrease in corrosion rates of the alloys by substituting 2 at.% Mo, Nb or Ta is about half of that of the Cu60Hf25Ti15 alloy. In 3 mass% NaCl solution, the corrosion rates of the Cu–Hf–Ti–(Mo, Nb, Ta) alloys decrease significantly from the order of 10−1 mm year−1 for the Cu60Hf25Ti15 alloy to the order of 10−3 mm year−1 for the Cu–Hf–Ti–(Mo, Nb, Ta) alloys. In 1 N H2SO4 + 0.001 N NaCl, the alloys containing additional elements show undetectable weight loss, indicating a corrosion rate of less than 1 × 10−3 mm·year−1, which is the reproducibility limit for the present measurement.

After immersion in 3 mass% NaCl solution for one week, changes in surface morphology of the samples were further observed by SEM, as shown in Figure 2 [18]. The alloy without any additional elements suffered serious corrosion, and its surface was covered with thick corrosive products. The 2 at% Mo, Nb and Ta alloy still kept the previous metallic luster and almost no changes in their surfaces were seen after immersion. This indicates that the addition of Mo, Nb or Ta to the Cu–Hf–Ti alloy is effective for suppressing the corrosion of the Cu-based glassy alloys in the chloride containing environments.

2.1.2. Fabrication, GFA and Corrosion Resistance of Cu–Hf–Ti–Nb BMGs

In Section 2.1.1, we demonstrated that the addition of 2 at.% Mo, Nb or Ta to the Cu–Hf–Ti bulk glassy alloy was effective in improving the corrosion resistance of the alloys. However, the corrosion resistance of these glassy alloys is still low in acidic and chloride containing solutions. Moreover, the further addition of Mo or Ta to the alloys results in a significant decrease in the glass-forming ability (GFA). Therefore, it is expected that Cu–Hf–Ti–Nb glassy alloys synthesized by rapid solidification can show high GFA and improved corrosion resistance.

2.1.2.1. Fabrication and Thermal Properties of Cu–Hf–Ti–Nb BMGs

Figure 3 shows DSC curves of the (Cu0.6Hf0.25Ti0.15)100−xNbx bulk glassy alloys with their critical diameters for glass formation, where Tg and Tx correspond to glass transition temperature and onset temperature of crystallization, respectively [19]. The distinct glass transition, followed by a supercooled liquid region prior to crystallization, is recognized. The crystallization of the Cu–Hf–Ti–Nb alloys with a supercooled liquid region appears to occur through multiple exothermic events, indicating a multi-stage phase transformation process. The Tg, Tx and ΔTx are plotted against Nb content in the alloys in Figure 4 [19]. As the Nb content increases, the glass transition temperature (Tg) remains almost constant while crystallization temperature (Tx) decreases, resulting in a decrease in ΔTx (= TxTg) from 60 K at 0 at.% Nb to 38 K at 8 at.% Nb. Although the addition of Nb to the alloys exhibits a negative effect on ΔTx, the Cu–Hf–Ti–Nb bulk glassy alloys still keep high GFA. Actually, the critical diameter for glass formation (dc) was 4 mm for the alloys with Nb contents up to 6 at.%, and 2.5 mm for the 8 at.% Nb alloy. The outer surfaces of the cast rods were smooth and no trace of precipitation of crystalline phase was seen.

2.1.2.2. Corrosion Behavior of Cu–Hf–Ti–Nb Bulk Glassy Alloys

In Figure 5 [19], the average corrosion rates of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys immersed in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air for one week are plotted as a function of Nb content. In 1 N HCl solution, it is clearly seen that the alloy without Nb dissolves actively, showing a high corrosion rate of 0.34 mm·y−1. The alloys containing Nb exhibit lower corrosion rates of 0.17 mm·y−1 at 2 at.% Nb, 7.6 × 10−2 mm·y−1 at 4 at.% Nb, 2.6 × 10−3 mm·y−1 at 6 at.% Nb, and less than the detectable value at 8 at.% Nb. This means that the average corrosion rate of 8 at.% Nb alloy is less than 1 × 10−3 mm·y−1, which was the reproducibility limit for the present measurement. On the other hand, in 3 mass% NaCl solution, it also appears that the average corrosion rate of the Cu–Hf–Ti–Nb glassy alloys decreases sharply with the addition of the alloying element Nb and becomes less than 1 × 10−3 mm·y−1 when the Nb content reaches 4 at.% or higher.

Figure 6 shows the polarization curves for the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys with a diameter of 1.5 mm in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air, respectively [19]. In 1 N HCl solution in Figure 6(a), the alloys containing Nb up to 4 at.% dissolve actively due to the formation of CuCl2 complex anion [20]. However, the alloys containing 6 at.% Nb and more show distinct spontaneous passivation although they suffer pitting by anodic polarization. All the alloys exhibit similar cathodic polarization behavior. On the other hand, the addition of Nb to the alloys ennobles the open circuit potential and enhances the corrosion resistance in the 1 N HCl solution. In 3 mass% NaCl solution, as shown in Figure 6(b), the glassy alloys containing Nb are spontaneously passivated and their passive current densities are in the range of 10−2–10−3 A·m−2 before the occurrence of pitting corrosion, which is indicated by the abrupt rise in the current density. It is noticed that the alloys with a larger amount of Nb show the nobler pitting potential, leading to the reduction of pitting susceptibility and improvement of pitting corrosion resistance. In addition, the addition of Nb positively affects the passivating ability of the alloys by decreasing their passive current densities and widening their passive regions. On the other hand, all the Cu–Hf–Ti–Nb glassy alloys with Nb content up to 8 at.% have undetectable weight loss with the present measurement after immersion in 1 N H2SO4 and 1 N H2SO4 + 0.001 N NaCl solutions for two weeks, revealing that the Nb-containing Cu–Hf–Ti–Nb alloys possess high corrosion resistance in these solutions.

2.1.2.3. XPS Analysis of Surface Film

For a better understanding of the effect of Nb on the corrosion resistance of the (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys, X-ray photoelectron spectroscopy analysis (XPS) was performed for the specimens exposed to air after mechanical polishing and those immersed in 1 N HCl and 3 mass% NaCl solutions open to air for one week. Over a wide binding energy region, the XPS spectra exhibited peaks of copper, titanium, hafnium, niobium, oxygen and carbon. The C 1s peaks were those from so-called contaminant carbon covering the top surface of the specimen. The O 1s spectrum consisted of peaks originating from oxygen in metal-O-metal bond, metal-OH bond and bound water. The peaks of Cu 2p, Hf 4f, Ti 2p, Nb 3d were composed of peaks corresponding to their oxidized states in a surface film and the metallic states in an underlying alloy surface. The major cations in the surface film were Cu+, Cu2+, Hf4+, Ti4+ and Nb5+.

Figure 7 show the cationic contents (oxidized states) of Cu, Hf, Ti and Nb in the surface films as a function of Nb content for the (Cu0.6Hf0.25Ti0.15)100−xNbx (x = 0–8 at.%) bulk glassy alloys exposed to air and those immersed in the solutions after mechanical polishing [19]. In the surface films formed by air exposure after mechanical polishing, Hf and Ti elements are enriched, while Cu is deficient and Nb scarcely changes with respect to the alloy compositions. Accordingly, air exposure of the (Cu0.6Hf0.25Ti0.15)100−xNbx alloys results in preferential oxidation of Hf and Ti. Immersion in the NaCl and the HCl solutions causes a significant change in the compositions of the surface films for the alloys with and without Nb. The content of Cu cations in the surface film for the alloys free of Nb slightly increases after immersion in the NaCl solution and further increases after immersion in the HCl solution, while those for the Nb-containing alloys immersed in the solutions decrease significantly, as shown in Figure 7(a). Moreover, it is seen in Figure 7(b),(c) that the surface films of the Nb-free alloy immersed in the solutions are deficient in Hf cations and greatly enriched in Ti cations with respect to their alloy contents. On the other hand, both Hf and Ti cations are largely concentrated in the surface films of the Nb-containing alloys after the immersion. In Figure 7(d), it can be seen that the Nb concentration in the surface films of the alloys immersed in the HCl increases, and further increases after immersion in the NaCl solution, in comparison with that in the air-formed films or the alloy Nb content. Furthermore, the Nb concentration in the surface films of the alloys immersed in the solutions significantly increases with an increase in Nb content in the alloys. Thus, Hf, Ti and Nb cations are largely concentrated in the surface for the alloys immersed in the above solutions. The enrichment of Hf, Nb and Ti might be explained by preferential dissolution of Cu and the effect of Nb-addition. As indicated by the results of the corrosion rates and electrochemical properties of the present alloys in Figures 5 and 6, we can see the alloy with a higher Nb content exhibits the higher passivating ability, and hence better corrosion resistance. The protective quality of the surface films is improved by increasing the Nb content. This is in agreement with XPS surface analysis. Accordingly, the formation of the highly protective Hf-, Ti- and Nb-enriched surface film on the alloys by immersion in HCl and NaCl solutions could be responsible for the high corrosion resistance of the Nb-containing alloys.

2.2. Fabrication, Thermal Properties and Corrosion Resistance of Cu–Hf–Ti–Ni–Nb BMGs

In our previous work shown in Sections 2.1.1 and 2.1.2, the addition of Mo, Nb or Ta is shown to effectively improve the corrosion resistance of the Cu–Hf–Ti-based BMGs in various aggressive environments. Unfortunately, the supercooled liquid region (ΔTx) decreases greatly with alloying additional elements, resulting in a decrease in GFA and thermal stability of the supercooled liquid before crystallization. Hence, the limitations of thermal stability and composition range for the glass formation for the Cu–Hf–Ti-based alloys will prevent a further extension of their application fields. Great efforts have been devoted to develop new BMGs with larger supercooled liquid region and good viscous flow workability in conjunction with higher corrosion resistance. Recently, we found that the addition of 5 at.% Ni to Cu–Hf–Ti-based BMGs caused a significant increase in the supercooled liquid region and the extension of the composition range for the bulk metallic glass formation. In addition, the simultaneous addition of Ni and Nb elements is effective for the improvement of corrosion resistance in the maintenance of high GFA.

2.2.1. The Effects of the Ni and Nb Additions on GFA and Thermal Stability

XRD patterns identified that bulk alloys with a diameter of 1.5 mm, consisting of a glassy single phase without crystallinity, were fabricated in a wide composition range of 0 to 5 at.% Ni and 0 to 6 at.% Nb for the (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx alloys. Figure 8 shows DSC curves of the (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx BMG rods with a diameter of 1.5 mm, where Tg and Tx correspond to glass transition temperature and onset temperature of crystallization, respectively [21]. The addition of the Ni element causes an extension of a supercooled liquid region (ΔTx = TxTg) from 60 K for Cu60Hf25Ti15 to 70 K for (Cu0.6Hf0.25Ti0.15)95Ni5, accompanying the change in the crystallization mode from multiple stages to a single stage. It can be concluded that the addition of 5 at.% Ni is beneficial for increasing the thermal stability of the supercooled liquid before crystallization. A larger supercooled liquid region and a higher stability of the supercooled liquid phase are useful for the superplastic processing of the alloy in supercooled liquid state to produce, for example, bipolar plates for fuel cells or intricate devices. With further alloying Nb element to the (Cu0.6Hf0.25Ti0.15)95Ni5 alloy, the glass transition temperature (Tg) remains almost constant while crystallization temperature (Tx) decreases, resulting in a decrease in ΔTx (=TxTg) from 70 K at 0 at.% Nb to 40 K at 6 at.% Nb. Moreover, the distinguished single-stage exothermic reaction due to crystallization changes to multiple exothermic reactions. The critical diameter for glass formation (dc) was 2 mm for 5 at.% Ni alloy, though the alloy exhibits the largest ΔTx value of 70 K, 3 mm for the alloys with Nb content up to 4 at.%, and 2 mm for 6 at.% Nb alloy. It is interesting to note that the addition of Nb to the (Cu0.6Hf0.25Ti0.15)95Ni5 quaternary alloy promotes the glass-forming ability, despite the fact that the Nb element negatively influences the supercooled liquid region of the Cu–Hf–Ti–Ni–Nb BMGs.

2.2.2. The Effects of the Ni and Nb Additions on Corrosion Resistance

Figure 9 shows the average corrosion rates of the as-cast (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx alloys with a diameter of 1.5 mm immersed in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air for one week, respectively [21]. The corrosion rate of an industrial brass (60 wt.% Cu + 40 wt.% Zn) in 3 mass% NaCl is also displayed for comparison. The corrosion rate of less than 1 × 10−3 mm·year−1 is out of the detectable limits for the present measurements and hence is marked with a star in Figure 9.

In 1 N HCl solution, the addition of Ni or Nb causes a significant decrease in corrosion rate from 0.34 mm·year−1 for Cu60Hf25Ti15 to 0.17 mm·year−1 for (Cu0.6Hf0.25Ti0.15)95Ni5 and 0.0075 mm·year−1 for (Cu0.6Hf0.25Ti0.15)93Ni5Nb2. The corrosion rates are less than 1 × 10−3 mm·y−1 when the alloys reach critical composition, that is, (Cu0.6Hf0.25Ti0.15)91Ni5Nb4 alloy in 1 N HCl solutions. The effect of additional elements on the Cu–Hf–Ti alloy is more pronounced in 3 mass% NaCl solution. By substitution of 5 at.% Ni for the Cu60Hf25Ti15 alloy, the corrosion rate of alloy decreases by two orders of magnitude as compared to that of the Ni-free alloy in 3 mass% NaCl solution. Moreover, all the alloys show undetectable weight loss with the subsequent addition of 2 at.% Nb or more to the (Cu0.6Hf0.25Ti0.15)95Ni5 in this solution. It is well-known that industrial brass exhibits high corrosion resistance in sea water. The corrosion resistance of the 5 at.% Ni alloy is comparable to that of industrial brass in 3 mass% NaCl, and the corrosion resistance of the alloys by the simultaneous addition of Ni and Nb elements is better than that of the industrial brass. On the other hand, in 1 N H2SO4 + 0.01 N NaCl solution (not shown in Figure 9), a simulated fuel cell environment, no appreciable loss in sample weight is obtained for the (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx (x = 0 to 6 at.% and y = 5 at.%) alloys, indicating that the present alloys with Ni or Nb possess high corrosion resistance in this solution, while the corrosion rate of the alloy without Ni or Nb is about 0.045 mm·year−1.

Further examination was conducted by potentiodynamic polarization measurements. Figure 10 shows anodic polarization curves for the as-cast 1.5 mm (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx glassy alloys in 3 mass% NaCl solution at 298 K [21]. It is observed that the alloys with and without Nb or Ni show different polarization curves. The alloys containing additional elements Nb or Ni are spontaneously passivated with low anodic passive current density, although they suffer pitting corrosion by anodic polarization. In particular, the simultaneous addition of Ni and Nb to the alloys is effective in enhancing the pitting corrosion resistance in chloride-ions-containing solutions. Their pitting corrosion potentials are nobler with an increase in Nb content. Accordingly, the coexistence of Ni and Nb elements leads to the reduction of pitting susceptibility and improvement of pitting corrosion resistance of the Cu–Hf–Ti–Ni–Nb alloys. Actually, (Cu0.6Hf0.25Ti0.15)89Ni5Nb6 alloy has the highest pitting corrosion potential in comparison with the other Cu-based BMGs, such as Cu–Zr(Hf)–Ti–(Mo, Nb, Ta) and Cu–Zr–Ti–Ni–Nb alloys [17,19,22,23]. As a result, the Cu–Hf–Ti–Ni–Nb BMGs with the coexistence of Ni and Nb possess significantly lower corrosion rates in 1 N HCl, 3 mass% NaCl and 1 N H2SO4 + 0.01 N NaCl solutions, and their pitting potentials in NaCl are ennobled with the further increase in Nb content, indicating that the addition of Ni and Nb is the best combination for enhancing the corrosion resistance.

2.2.3. Surface Characteristics after Immersion

The chemical and engineering applications of materials generally require the synergistic effect of various elements. In this study, the corrosion resistance of Cu–Hf–Ti–Ni–Nb alloys is enhanced synergistically by coexisting alloying Ni and Nb elements in 1 N HCl, 3 mass% NaCl and 1 N H2SO4 + 0.01 N NaCl solutions as shown in Figures 9 and 10. One of the most important characteristics is ennoblement of their pitting potentials with the simultaneous addition of Ni and Nb to the Cu–Hf–Ti alloy (Figure 10). They are higher than those of (Cu0.6Hf0.25Ti0.15)100−xNbx alloys. Ni and Nb elements of the alloys have different chemical characteristics in corrosion behavior, especially in pitting corrosion. Nb is known to be an effective element in providing the strong passivating ability, whereas Ni shows high chemical reactivity in acidic solutions [24,25]. It is interesting to clarify the role of the combination of Ni and Nb elements in the passivation and corrosion mechanism of alloys in these corrosive solutions. XPS result revealed that the large enrichment of passivating elements (Hf, Ti and Nb) in the surface film for the Ni-containing alloys immersed in various solutions is caused by preferential dissolution of Ni and Cu into solutions [25,26]. The role of Cu element in the alloys in the corrosion behavior has been reported by several surface studies [19,23]. Preferential dissolution of Ni from the alloys assists the formation of passive films highly enriched in passivating elements, such as Hf, Ti and Nb. In addition, it is observed that the cationic Nb content of the surface films formed on (Cu0.6Hf0.25Ti0.15)95−xNi5Nbx (x = 0 to 6 at%) alloys immersed in the solutions significantly increases with increasing Nb content of the alloys, whereas the cationic Hf, Ti, and Cu contents are not so different with the change in Nb content in the alloys [21]. This fact suggests that the surface film is further modified toward more stabilized composition with a higher Nb content. Consequently, the simultaneous addition of Ni and Nb is favorable for the alloys in forming Hf-, Ti- and Nb-enriched highly protective surface films in these corrosive solutions.

2.3. The Electrochemical and XPS Studies of the Cu–Zr–Ag–Al–(Nb) BMGs

Very recently, a new series of (CuZr)-based BMGs with excellent glass-forming ability (GFA) and a large supercooled liquid region have been developed [14,15]. These glassy alloys possessed high fracture strength of over 1850 MPa with appreciable plasticity. The critical diameter was 10 mm for Cu42Zr42Ag8Al8, 15 mm for Cu40Zr44Ag8Al8 and Cu38Zr46Ag8Al8, and 25 mm for Cu36Zr48Ag8Al8. Compared with other BMGs discovered so far, these newly developed (CuZr)-based BMGs present unique features, which combine the ductility of Cu-based BMGs with the high GFA and the large supercooled liquid region of Zr-based BMGs. This unique combination of properties provides the new BMGs with significant potential in application fields, such as in bipolar plate materials, biomedical instruments and micro devices.

2.3.1. Electrochemical Properties and Surface Characteristics of Cu–Zr–Ag–Al BMGs

The Cu36Zr48Ag8Al8 BMG with a diameter of 25 mm and high fracture strength of 1850 MPa has attracted special attention for applications. The corrosion behavior and surface characteristics of the Cu36Zr48Ag8Al8 BMG were instigated in this work.

2.3.1.1. Corrosion Rates and Electrochemical Properties of the Alloys

The average corrosion rates of the as-cast 2 mm diameter Cu36Zr48Ag8Al8 BMG immersed in acidic and alkaline solutions open to air at 298 K were measured [27]. No weight loss was detected for the rod samples after immersion in 1 N H2SO4 and 1 N NaOH solutions, respectively, even after two months. This means that the corrosion rate of the alloy is less than 1 × 10−3 mm·y−1. After immersion in 1 N H2SO4 + 0.01 N NaCl solution, the corrosion rate is about 0.15 mm·y−1. The result reveals that the present alloy is sensitive to chloride ions, which results from the chemical instability of the Cu species and the pitting susceptibility of the Zr and Al species in the alloy. After the weight loss tests, surfaces of the alloy rods were examined by SEM. The entire alloy samples maintained metallic luster after immersion for two months in 1 N H2SO4 and 1 N NaOH, and neither change nor pitting corrosion was observed on their surfaces. However, when the rod sample was immersed in H2SO4 containing aggressive anions (chloride ions), the sample suffered corrosion attack and its surface was covered with corrosion products, appearing as granular materials. Accordingly, the new Cu36Zr48Ag8Al8 BMG possesses excellent corrosion resistance in strong acidic and alkaline solutions without chloride ions.

Figure 11 shows the potentiodynamic polarization curves of the as-cast CuZrAgAl BMG rods with a diameter of 2 mm in 1 N H2SO4 solution open to air at 298 K. The polarization curves of the melt-spun Cu50Zr50 ribbon and a SUS316L stainless steel are also shown for comparison. The binary Cu50Zr50 glassy alloy shows the active-passive transition and its active dissolution current peak is quite high. For Cu42Zr42Ag8Al8 alloy, the active dissolution current peak decreases remarkably with alloying Ag and Al elements to the binary CuZr alloy. In addition, spontaneous passivation with a significantly low current density of the order of 10−2 A·m−2 takes place for Cu36Zr48Ag8Al8 alloy. Its passive current density is about one order of magnitude lower than that of the SUS316L. SEM observation showed that no pitting corrosion was observed for (CuZr)-based alloys during anodic polarization. Therefore, the newly developed CuZrAgAl BMGs exhibit high corrosion resistance in 1 N H2SO4 solution and their corrosion resistance is much better than that of SUS316L.

2.3.1.2. Chemical Characteristics of the Passive Surface Film

In order to clarify the surface-related chemical characteristics of the alloy, XPS analyses were performed for the Cu36Zr48Ag8Al8 specimens as-polished mechanically in cyclohexane or immersed for 168 h in 1 N H2SO4 solution. The valence of oxidized states in the surface film can be identified as Cu+, Cu2+, Zr4+, Ag+, and Al3+. Figure 12 shows the cationic fraction of elements in the surface film for the Cu36Zr48Ag8Al8 alloy exposed to air and a sample immersed in 1 N H2SO4 solution open to air for 168 h after mechanical polishing [27]. When the alloy is exposed to air after mechanical polishing, Zr and Al cations are enriched in the surface film, whereas Cu and Ag cations are deficient. This is caused by the preferential oxidation of Zr and Al elements during air exposure. When the as-polished alloy is immersed in 1 N H2SO4 solution for 168 h, a new surface film is formed, which is different from the as-polished film. This is a result of the selective dissolution of Al and Cu elements from the alloy surface film. After immersion, it is found that Zr cationic ions further concentrate at the surface, while Cu and Al cations inversely decrease. Moreover, a small amount of Ag cations are observed in the passive film on the alloy. These results indicate that open circuit immersion for the glassy alloy in 1 N H2SO4 leads to rapid initial dissolution of Al and Cu with a consequent enrichment in Zr content in the surface film. The thickness of the as-polished surface film and passive surface film is ∼2.8 nm and 3.2 nm, respectively. Consequently, the origin of high corrosion resistance for the present alloy in H2SO4 solution is explained by formation of the highly protective Zr- and Al-enriched thin surface film, which is able to separate the bulk of the alloy from the corrosive solutions.

Similar XPS results have been found for the Cu–Zr–Ag–Al alloy immersed in 1 N NaOH solution and will not be presented here in detail. In conclusion, the present alloy exhibits high corrosion resistance in acidic and alkaline solutions. However, the main disadvantage of the present alloy is that the alloy shows low corrosion resistance in chloride-ion-containing solution. The surface film of the alloy immersed in chloride-ion-containing solution is less protective, giving rise to accumulation of uneven non-protective corrosion products on the alloy surface. In addition, a larger amount of Cu, Zr, Ag, and Al cations are detected in this solution during the open circuit immersion by ICP-OES measurement [27], which is in agreement with the corrosion rate. Therefore, it is necessary to improve the corrosion resistance of the present alloy system against chloride ions by alloying the corrosion resistant elements or modification of its surface.

2.3.2. The Enhanced Corrosion Resistance of Cu–Zr–Ag–Al–Nb BMGs

The as-cast (Cu0.36Zr0.48Ag0.08Al0.08)100−xNbx (x = 0–5 at.%) rods with a diameter of 2 mm consisted of a single glassy phase which was evident from a main halo peak without crystalline peaks in their X-ray diffraction patterns. We measured average corrosion rates of the as-cast CuZrAgAlNb alloy rods immersed in acidic and alkaline solutions open to air at 298 K [28]. No weight loss was detected for all the rod samples after immersion in 1 N H2SO4 and 1 N NaOH solutions, even after two months. This means that the corrosion rate of the alloy is less than 1 × 10−3 mm·y−1. After immersion in 1 N H2SO4 + 0.01 N NaCl solution for one week, as shown in Figure 13, the 0 at.% Nb and 2.5 at.% Nb alloys show the high corrosion rates of 0.15 and 0.11 mm·y−1, respectively. In addition, the corrosion resistance of the alloy containing 5 at.% Nb is much improved, and the 5 at.% Nb alloy exhibits a much lower corrosion rate of 0.047 mm·y−1. These results reveal that the alloys without Nb and with a small amount of Nb are sensitive to chloride ions. However, when the Nb content is raised to 5 at%, the corrosion resistance against localized corrosion in chloride-ion-containing solutions is greatly enhanced. Apparently, the presence of Nb element in the alloy inhibits the dissolution of the constituent elements into the solutions. Other groups’ work [29,30] also investigated the effect of microalloying of Nb and Ti on corrosion resistance of Cu–Zr–Al–Ag BMGs. Corrosion resistance of CuZr-based BMGs is improved by alloying with Nb or Ti elements in various aqueous solutions.

The nature of passive surface films on the alloys plays a vital role in the mechanism of corrosion resistance. XPS measurements revealed the addition of Nb is favorable for the alloys in forming Zr- and Nb-enriched highly protective surface film with higher chemical stability in 1 N H2SO4 solution. As compared to the passive surface formed for the Cu36Zr48Ag8Al8 alloy after immersion in H2SO4 solution [27], the passive surface for the 5 at.% Nb alloy is improved by the enrichment of Nb in the surface.

3. Conclusions

The corrosion resistance of metallic glasses is superior to that of their crystalline counterparts due to the lack of grain boundaries and second phase precipitates. However, the alloy composition is also a very important factor dominating the corrosion resistance in all materials, including metallic glasses. Alloying additional elements, such as Mo, Nb, Ta and Ni, is effective in improving the corrosion resistance of Cu-based BMGs in various solutions. These alloying elements play different roles in glass-forming ability (GFA) and corrosion resistance for Cu-based BMGs. A better understanding of the role of the alloy constituent elements in corrosion resistance is useful for designing a high corrosion resistant BMG alloy.

The authors would like to thank Natural Science Foundation of Hebei Province, China (No. E2010000057) and International S & T Cooperation Program of China (No. 2010DFA51850) for financial support.

References

  1. Inoue, A. Stabilization of metallic supercooled liquid and bulk amorphous alloys. Acta Mater 2000, 48, 279–306.
  2. Johnson, WL. Bulk glass-forming metallic alloys: Science and technology. MRS Bull 1999, 24, 42–56.
  3. Inoue, A; Kato, A; Zhang, T; Kim, SG; Masumoto, T. Mg–Cu–Y amorphous alloys with high mechanical strengths produced by a metallic mold casting method. Mater. Trans. JIM 1991, 32, 609–616.
  4. Peker, A; Johnson, WL. A highly processable metallic glass—Zr41.2Ti13.8Cu12.5Ni10Be22.5 of outstanding interest. Appl. Phys. Lett 1993, 63, 2342–2344.
  5. Inoue, A; Nishiyama, N; Matsuda, T. Preparation of bulk glassy Pd40Ni10Cu30P20 alloy of 40 mm in diameter by water quenching. Mater. Trans. JIM 1996, 37, 181–184.
  6. Inoue, A; Gook, JS. Fe-based ferromagnetic glassy alloys with wide supercooled liquid region. Mater. Trans. JIM 1995, 36, 1180–1183.
  7. Itoi, T; Inoue, A. Thermal stability and soft magnetic properties of Co–Fe–M–B (M=Nb, Zr) amorphous alloys with large supercooled liquid region. Mater. Trans. JIM 2000, 41, 1256–1262.
  8. Inoue, A; Nishiyama, N; Amiya, K; Zhang, T; Masumoto, T. Ti-based amorphous alloys with a wide supercooled liquid region. Mater. Lett 1994, 19, 131–135.
  9. Wang, XM; Yoshii, I; Inoue, A. Bulk amorphous Co–Ni-based alloys with a large supercooled liquid region. Mater. Trans. JIM 2000, 41, 539–542.
  10. Inoue, A; Zhang, W; Zhang, T; Kurosaka, K. High-strength Cu-based bulk glassy alloys in Cu–Zr–Ti and Cu–Hf–Ti ternary systems. Acta Mater 2001, 49, 2645–2652.
  11. Inoue, A; Zhang, W. Formation, thermal stability and mechanical properties of Cu–Zr–Al bulk glassy alloys. Mater. Trans 2002, 43, 2921–2925.
  12. Das, J; Tang, MB; Kim, KB; Theissmann, R; Baier, F; Wang, WH; Eckert, J. “Work-hardenable” ductile bulk metallic glass. Phys Rev Lett 2005, 94, 205501:1–205501:4.
  13. Dai, CL; Guo, H; Shen, Y; Li, Y; Ma, E; Xu, J. A new centimeter-diameter Cu-based bulk metallic glass. Scr. Mater 2006, 54, 1403–1408.
  14. Zhang, QS; Zhang, W; Inoue, A. New Cu–Zr-based bulk metallic glasses with large diameters of up to 1.5 cm. Scr. Mater 2006, 55, 711–713.
  15. Zhang, QS; Zhang, W; Inoue, A. Preparation of Cu36Zr48Ag8Al8 bulk metallic glass with a diameter of 25 mm by copper mold casting. Mater. Trans 2007, 48, 629–631.
  16. Annual Book of ASTM Standards; ASTM: West Conshohocken, PA, USA, 1997.
  17. Qin, CL; Asami, K; Zhang, T; Zhang, W; Inoue, A. Effects of additional elements on the glass formation and corrosion behavior of bulk glassy Cu–Hf–Ti alloys. Mater. Trans 2003, 44, 1042–1045.
  18. Qin, CL; Zhang, W; Asami, K; Kimura, H; Inoue, A. Cu–Hf–Ti–(Mo, Nb, Ta) bulk glassy alloys with high corrosion resistance and high strength. J Metast Nanocryst Mater 2005, 24–25, 355–358.
  19. Qin, CL; Zhang, W; Asami, K; Ohtsu, N; Inoue, A. Glass formation, corrosion behavior and mechanical properties of bulk glassy Cu–Hf–Ti–Nb alloys. Acta Mater 2005, 53, 3903–3911.
  20. Naka, M; Hashimoto, K; Masumoto, T. Corrosion behavior of amorphous and crystalline Cu50Ti50 and Cu50Zr50 alloys. J. Non-Cryst. Solids 1978, 30, 29.
  21. Qin, CL; Zhang, W; Asami, K; Ohtsu, N; Inoue, A. Thermal stability, corrosion resistance, and surface analysis of Cu–Hf–Ti–Ni–Nb bulk metallic glasses. J. Mater. Res 2009, 24, 316–323.
  22. Qin, CL; Zhang, W; Asami, K; Kimura, H; Inoue, A. Influence of alloying elements Ni and Nb on thermal stability and corrosion resistance of Cu-based bulk metallic glasses. J. Mater. Res 2007, 22, 1710–1717.
  23. Qin, CL; Asami, K; Zhang, T; Zhang, W; Inoue, A. Corrosion behavior of Cu–Zr–Ti–Nb bulk glassy alloys. Mater. Trans 2003, 44, 749–753.
  24. Hirota, E; Yoshioka, H; Habazaki, H; Kawashima, A; Asami, K; Hashimoto, K. The corrosion behavior of sputter-deposited amorphous copper-niobium alloys in 12 N HCl. Corros. Sci 1991, 32, 1213–1226.
  25. Lee, HJ; Akiyama, E; Habazaki, H; Kawashima, A; Asami, K; Hashimoto, K. The roles of tantalum and phosphorus in the corrosion behavior of Ni–Ta–P alloys in 12 M HCl. Corros. Sci 1997, 39, 321–332.
  26. Katagiri, H; Meguro, S; Yamasaki, M; Habazaki, H; Sato, T; Kawashima, A; Asami, K; Hashimoto, K. Synergistic effect of three corrosion-resistant elements on corrosion resistance in concentrated hydrochloric acid. Corros. Sci 2001, 43, 171–182.
  27. Qin, CL; Zhang, W; Zhang, QS; Asami, K; Inoue, A. Chemical characteristics of the passive surface films formed on newly developed Cu–Zr–Ag–Al bulk metallic glasses. J. Mater. Res 2008, 23, 2091–2098.
  28. Qin, CL; Zhang, W; Zhang, QS; Asami, K; Inoue, A. Electrochemical properties and surface analysis of Cu–Zr–Ag–Al–Nb bulk metallic glasses. J. Alloys Compd 2009, 483, 317–320.
  29. Nie, XP; Xu, XM; Jiang, QK; Chen, LY; Xu, Y; Fang, YZ; Xie, GQ; Luo, MF; Wu, FM; Wang, XD. Effect of microalloying of Nb on corrosion resistance and thermal stability of ZrCu-based bulk metallic glasses. J. Non-Cryst. Solids 2009, 355, 203–207.
  30. Nie, XP; Yang, XH; Jiang, JZ. Ti microalloying effect on corrosion resistance and thermal stability of CuZr-based bulk metallic glasses. J. Alloys Compd 2009, 481, 498–502.
Ijms 12 02275f1 200

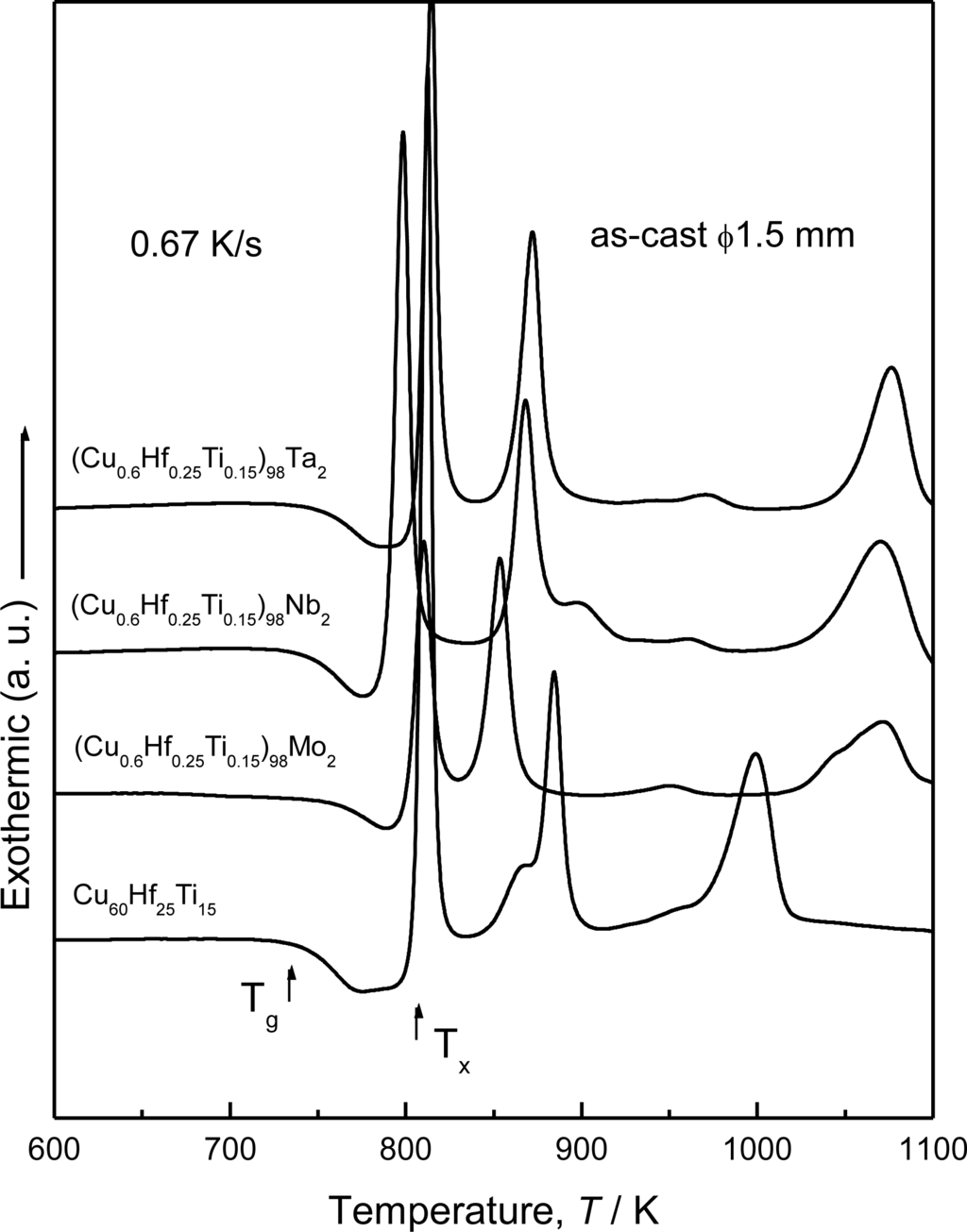

Figure 1. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)98M2 (M = Mo, Nb and Ta) glassy alloys.

Click here to enlarge figure

Figure 1. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)98M2 (M = Mo, Nb and Ta) glassy alloys.
Ijms 12 02275f1 1024
Ijms 12 02275f2 200
Figure 2. SEM micrographs of the surfaces of the bulk glassy (Cu0.6Hf0.25Ti0.15)100−xMox (x = 0 and 2 at%) alloys after immersion in 3 mass% NaCl solution for 168 h at 298 K.

Click here to enlarge figure

Figure 2. SEM micrographs of the surfaces of the bulk glassy (Cu0.6Hf0.25Ti0.15)100−xMox (x = 0 and 2 at%) alloys after immersion in 3 mass% NaCl solution for 168 h at 298 K.
Ijms 12 02275f2 1024
Ijms 12 02275f3 200

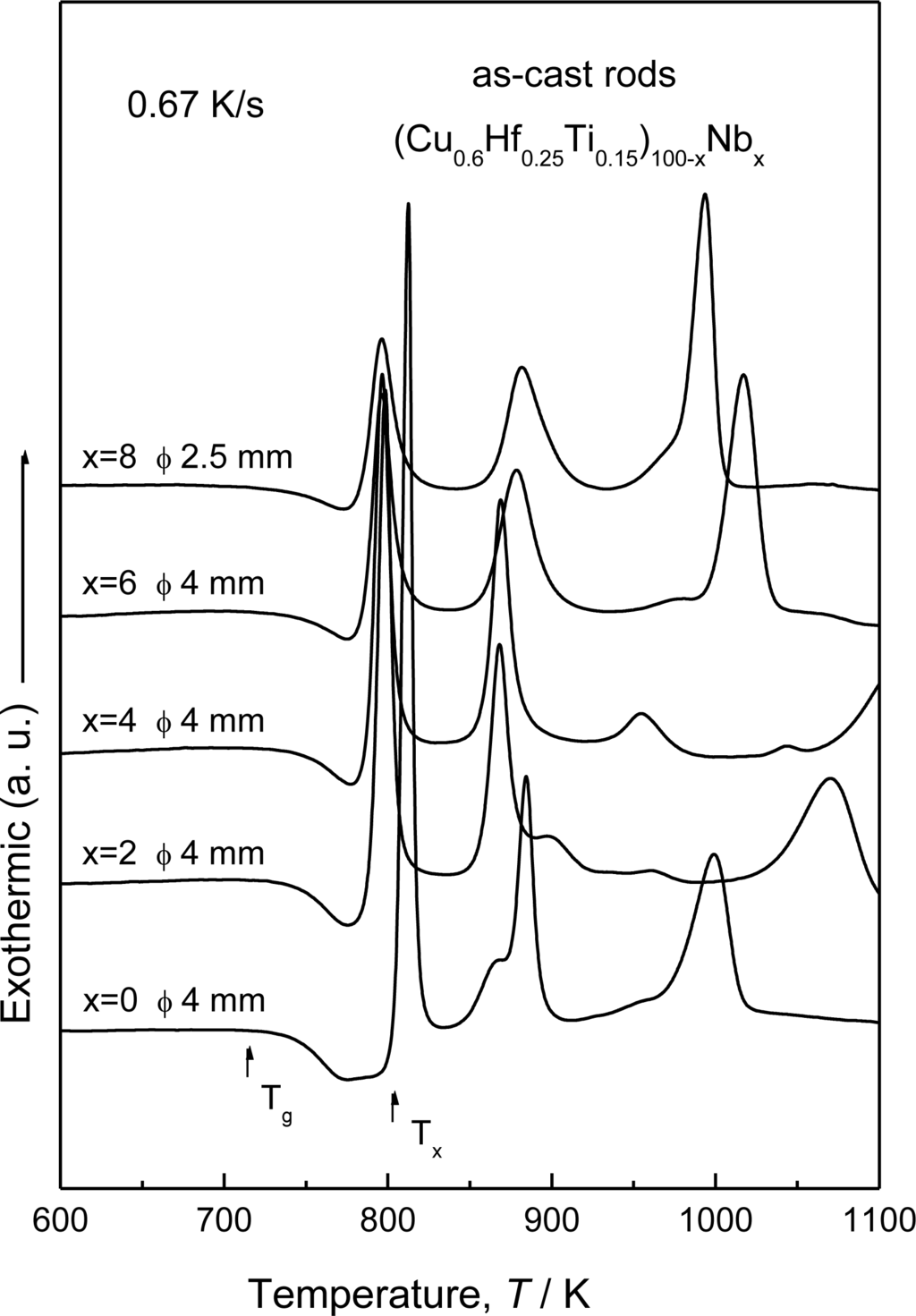

Figure 3. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx (x = 0, 2, 4, 6 and 8 at.%) glassy alloys with their critical diameters for glass formation.

Click here to enlarge figure

Figure 3. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx (x = 0, 2, 4, 6 and 8 at.%) glassy alloys with their critical diameters for glass formation.
Ijms 12 02275f3 1024
Ijms 12 02275f4 200

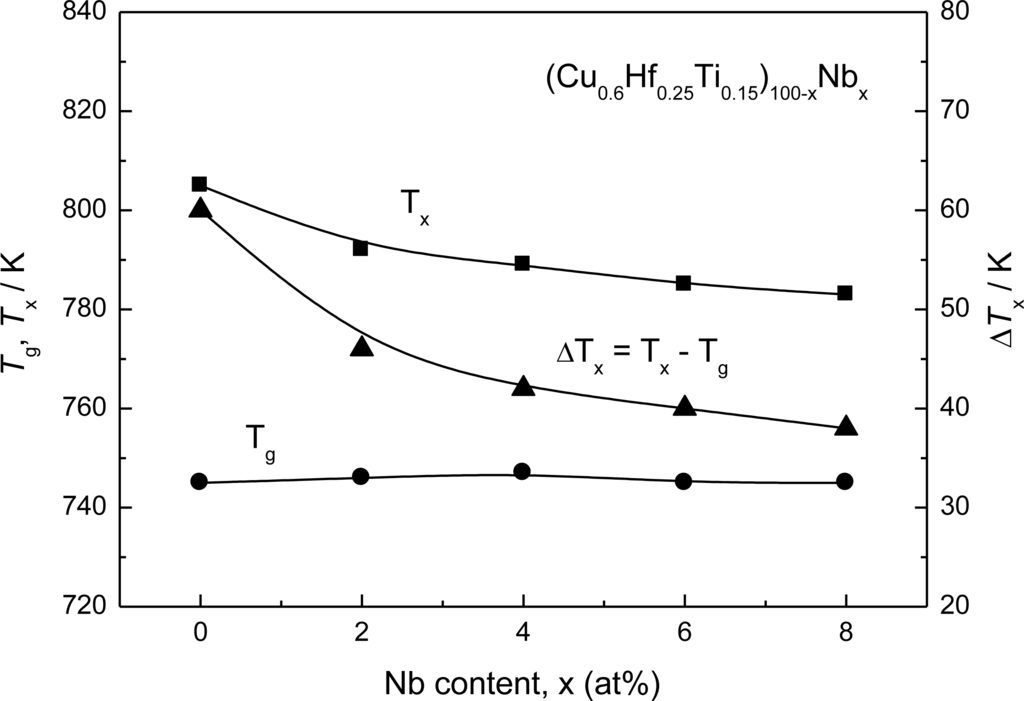

Figure 4. Changes in Tg, Tx and ΔTx as a function of Nb content for the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys.

Click here to enlarge figure

Figure 4. Changes in Tg, Tx and ΔTx as a function of Nb content for the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys.
Ijms 12 02275f4 1024
Ijms 12 02275f5 200

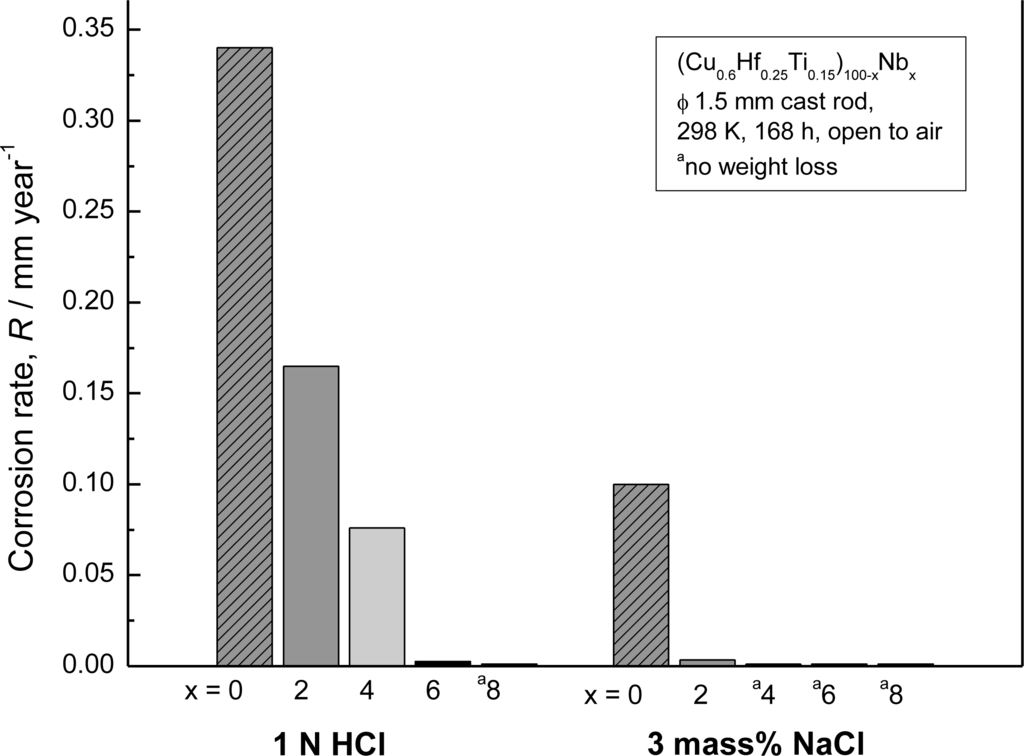

Figure 5. The average corrosion rates of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys (x = 0, 2, 4, 6 and 8 at.%) in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air.

Click here to enlarge figure

Figure 5. The average corrosion rates of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys (x = 0, 2, 4, 6 and 8 at.%) in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air.
Ijms 12 02275f5 1024
Ijms 12 02275f6 200

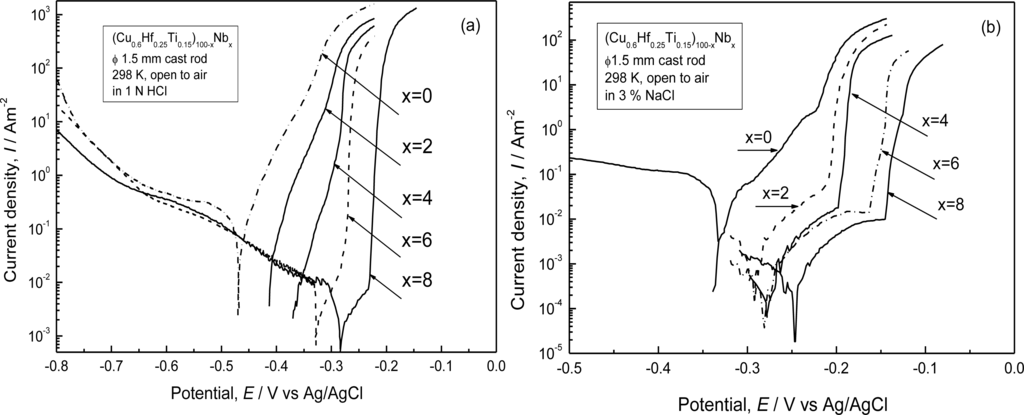

Figure 6. Potentiodynamic polarization curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys (x = 0, 2, 4, 6 and 8 at.%) alloys in (a) 1 N HCl and (b) 3 mass% NaCl. solutions at 298 K open to air.

Click here to enlarge figure

Figure 6. Potentiodynamic polarization curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−xNbx glassy alloys (x = 0, 2, 4, 6 and 8 at.%) alloys in (a) 1 N HCl and (b) 3 mass% NaCl. solutions at 298 K open to air.
Ijms 12 02275f6 1024
Ijms 12 02275f7 200

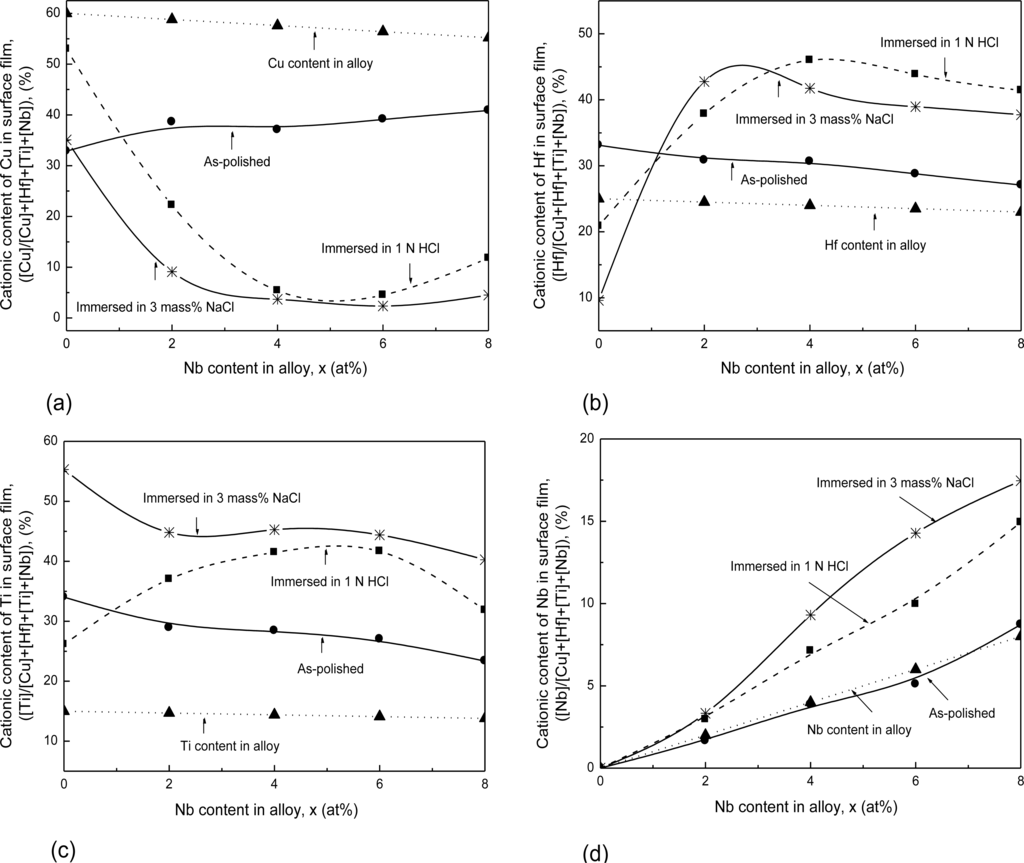

Figure 7. Cationic content of (a) Cu; (b) Hf; (c) Ti; and (d) Nb, in surface film as a function of Nb content for the (Cu0.6Hf0.25Ti0.15)100−xNbx bulk glassy alloys exposed to air and those immersed in 1 N HCl and 3 mass% NaCl solutions open to air for one week after mechanical polishing.

Click here to enlarge figure

Figure 7. Cationic content of (a) Cu; (b) Hf; (c) Ti; and (d) Nb, in surface film as a function of Nb content for the (Cu0.6Hf0.25Ti0.15)100−xNbx bulk glassy alloys exposed to air and those immersed in 1 N HCl and 3 mass% NaCl solutions open to air for one week after mechanical polishing.
Ijms 12 02275f7 1024
Ijms 12 02275f8 200
Figure 8. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx (x = 0 to 6 at.% and y = 0 to 5 at.%) glassy rods with a diameter of 1.5 mm.

Click here to enlarge figure

Figure 8. DSC curves of the as-cast (Cu0.6Hf0.25Ti0.15)100−x−yNiyNbx (x = 0 to 6 at.% and y = 0 to 5 at.%) glassy rods with a diameter of 1.5 mm.
Ijms 12 02275f8 1024
Ijms 12 02275f9 200

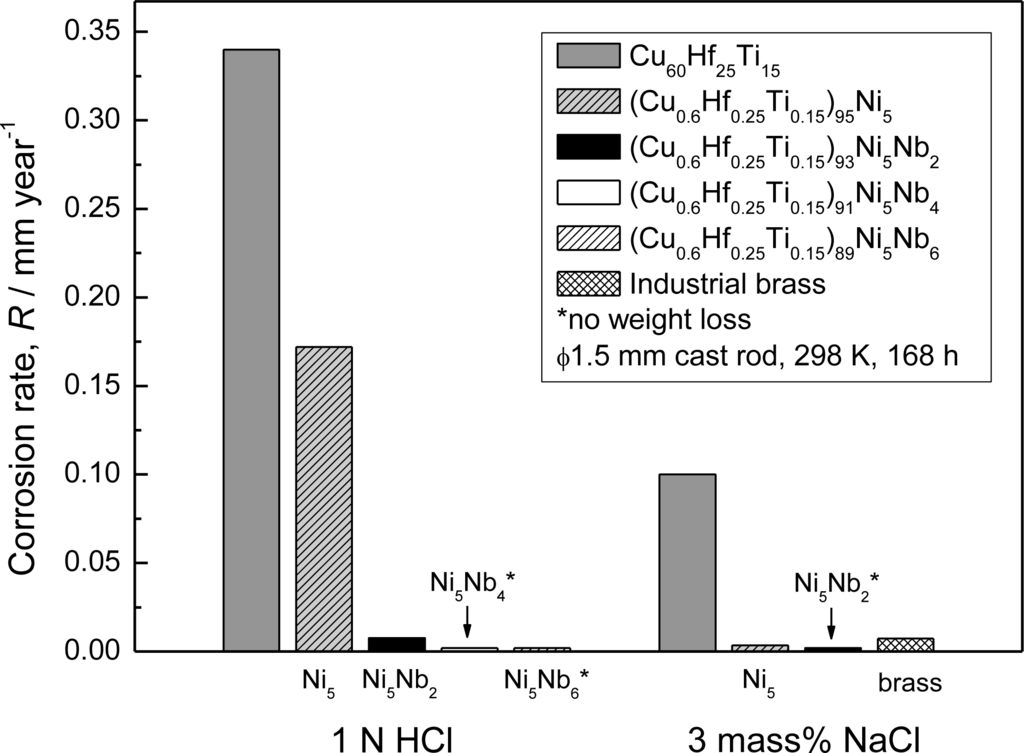

Figure 9. Corrosion rates of the Cu–Hf–Ti–Ni–Nb BMGs in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air.

Click here to enlarge figure

Figure 9. Corrosion rates of the Cu–Hf–Ti–Ni–Nb BMGs in 1 N HCl and 3 mass% NaCl solutions at 298 K open to air.
Ijms 12 02275f9 1024
Ijms 12 02275f10 200

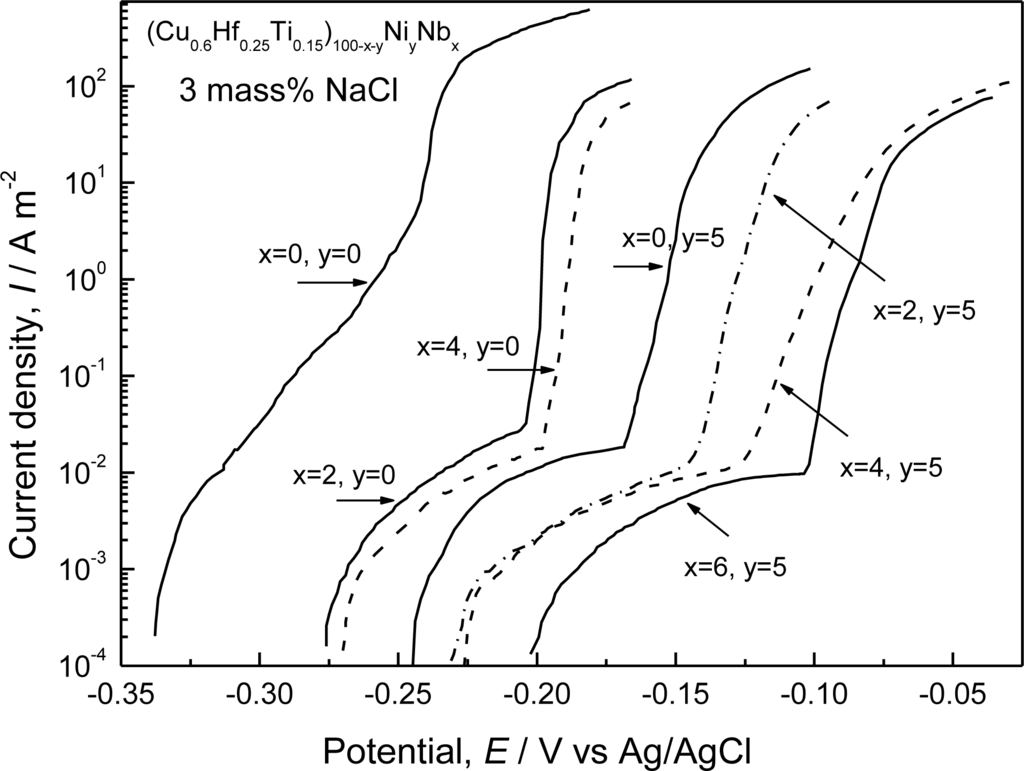

Figure 10. Anodic polarization curves of the Cu–Hf–Ti–Ni–Nb BMGs in 3 mass% NaCl solution at 298 K.

Click here to enlarge figure

Figure 10. Anodic polarization curves of the Cu–Hf–Ti–Ni–Nb BMGs in 3 mass% NaCl solution at 298 K.
Ijms 12 02275f10 1024
Ijms 12 02275f11 200

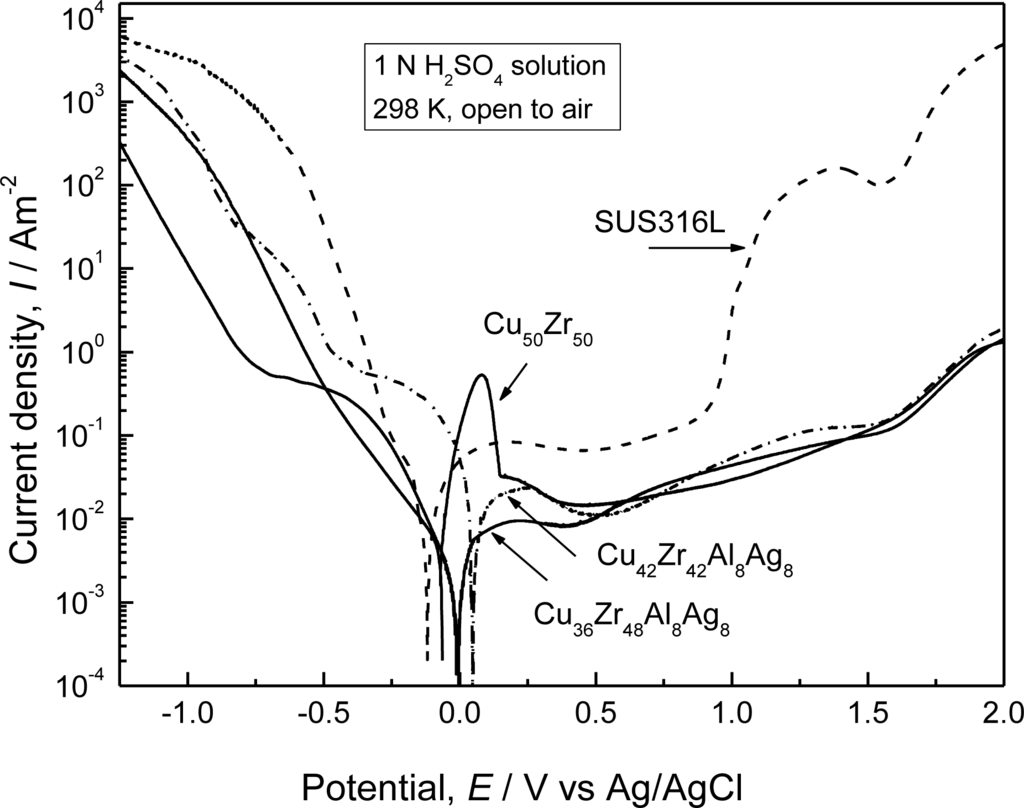

Figure 11. Potentiodynamic polarization curves of the as-cast Cu–Zr–Ag–Al glassy alloys measured in 1 N H2SO4 solution open to air at 298 K. Polarization curves of the Cu50Zr50 glassy alloy and a SUS316L stainless steel are also shown for comparison.

Click here to enlarge figure

Figure 11. Potentiodynamic polarization curves of the as-cast Cu–Zr–Ag–Al glassy alloys measured in 1 N H2SO4 solution open to air at 298 K. Polarization curves of the Cu50Zr50 glassy alloy and a SUS316L stainless steel are also shown for comparison.
Ijms 12 02275f11 1024
Ijms 12 02275f12 200
Figure 12. The change in cationic fraction in the surface film for the as-cast Cu36Zr48Ag8Al8 alloy exposed to air and that immersed in 1 N H2SO4 solution open to air for 168 h after mechanical polishing.

Click here to enlarge figure

Figure 12. The change in cationic fraction in the surface film for the as-cast Cu36Zr48Ag8Al8 alloy exposed to air and that immersed in 1 N H2SO4 solution open to air for 168 h after mechanical polishing.
Ijms 12 02275f12 1024
Ijms 12 02275f13 200

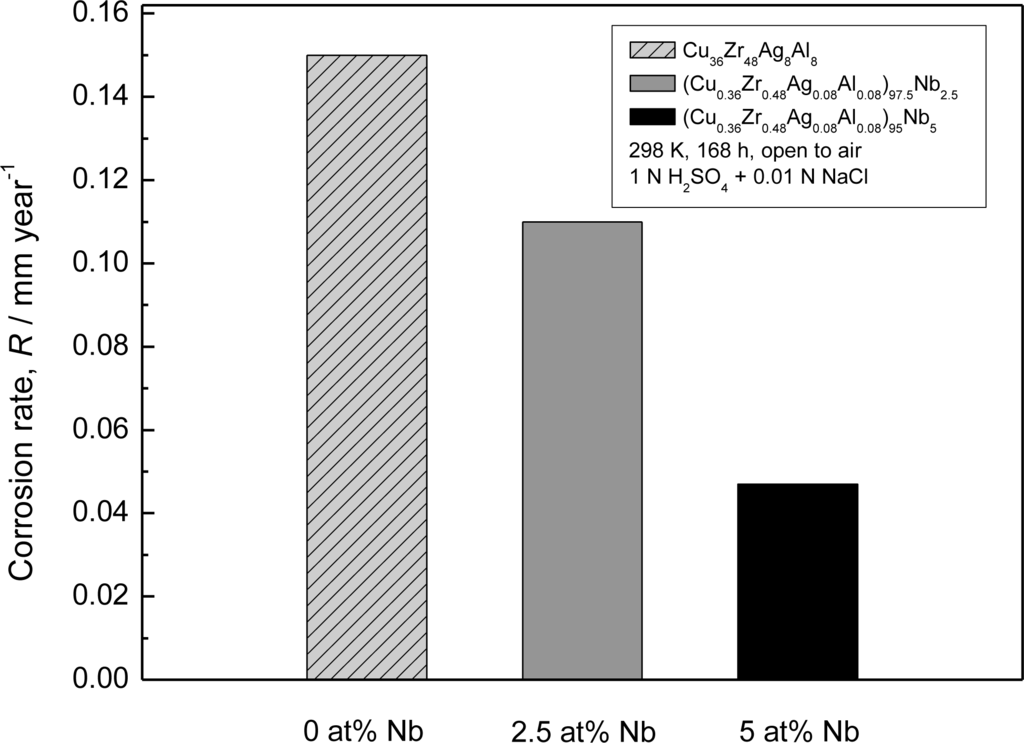

Figure 13. Average corrosion rates of the as-cast (Cu0.36Zr0.48Ag0.08Al0.08)100−xNbx (x = 0–5 at.%) alloys in 1 N H2SO4 + 0.01 N NaCl solution at 298 K open to air.

Click here to enlarge figure

Figure 13. Average corrosion rates of the as-cast (Cu0.36Zr0.48Ag0.08Al0.08)100−xNbx (x = 0–5 at.%) alloys in 1 N H2SO4 + 0.01 N NaCl solution at 298 K open to air.
Ijms 12 02275f13 1024
Table 1. Average corrosion rates of Cu–Hf–Ti–(Mo, Nb, Ta) in chloride containing solutions estimated from weight loss after immersion for 168 h at 298 K.

Click here to display table

Table 1. Average corrosion rates of Cu–Hf–Ti–(Mo, Nb, Ta) in chloride containing solutions estimated from weight loss after immersion for 168 h at 298 K.
AlloysCorrosion rate (mm/year)
1 N HCl3 mass% NaCl1 N H2SO4 + 0.001 N NaCl
Cu60Hf25Ti150.3400.1000.011
(Cu06Hf0.25Ti0.15)98Mo20.1744.2 × 10−3<1 × 10−3
(Cu06Hf0.25Ti0.15)98Nb20.1653.2 × 10−3<1 × 10−3
(Cu06Hf0.25Ti0.15)98Ta20.1663.3 × 10−3<1 × 10−3
