Int. J. Mol. Sci. 2010, 11(6), 2473-2498; doi:10.3390/ijms11062473

Article
Adsorption and Quantum Chemical Studies on the Inhibition Potentials of Some Thiosemicarbazides for the Corrosion of Mild Steel in Acidic Medium
Eno E. Ebenso 1,*, David A. Isabirye 1 and Nnabuk O. Eddy 2
1
Department of Chemistry, North West University (Mafikeng Campus), Private Bag X2046, Mmabatho 2735, South Africa
2
Department of Chemistry, Ahmadu Bello University, Zaria, Nigeria
*
Author to whom correspondence should be addressed; E-Mail: Eno.Ebenso@nwu.ac.za; Tel.: (+27)-18-389-2113; Fax: (+27)-18-389-2052.
Received: 8 May 2010; in revised form: 22 May 2010 / Accepted: 23 May 2010 /
Published: 15 June 2010

Abstract

: Three thiosemicarbazides, namely 2-(2-aminophenyl)-N phenylhydrazinecarbothioamide (AP4PT), N,2-diphenylhydrazinecarbothioamide (D4PT) and 2-(2-hydroxyphenyl)-N-phenyl hydrazinecarbothioamide (HP4PT), were investigated as corrosion inhibitors for mild steel in H2SO4 solution using gravimetric and gasometric methods. The results revealed that they all inhibit corrosion and their % inhibition efficiencies (%IE) follow the order: AP4PT > HP4PT > D4PT. The %IE obtained from the gravimetric and gasometric experiments were in good agreement. The thermodynamic parameters obtained support a physical adsorption mechanism and the adsorption followed the Langmuir adsorption isotherm. Some quantum chemical parameters were calculated using different methods and correlated with the experimental %IE. Quantitative structure activity relationship (QSAR) approach was used on a composite index of some quantum chemical parameters to characterize the inhibition performance of the studied molecules. The results showed that the %IE were closely related to some of the quantum chemical parameters, but with varying degrees. The calculated/theoretical %IE of the molecules were found to be close to their experimental %IE. The local reactivity has been studied through the Fukui and condensed softness indices in order to predict both the reactive centers and to know the possible sites of nucleophilic and electrophilic attacks.
Keywords:
thiosemicarbazides; corrosion inhibitors; quantum chemical calculations; QSAR; adsorption; Fukui function

1. Introduction

There has been a growing interest in the use of organic compounds as inhibitors for the aqueous corrosion of metals. The protection of metal surfaces against corrosion is an important industrial and scientific topic. Inhibitors are one of the practical means of preventing corrosion, particularly in acidic media. Inhibitors can adhere to a metal surface to form a protective barrier against corrosive agents in contact with metal. The effectiveness of an inhibitor to provide corrosion protection depends to a large extent on the interaction between the inhibitor and the metal surface. The adsorbed inhibitors can affect the corrosion reaction, either by the blocking effect of the adsorbed inhibitor on the metal surface or by the effects attributed to the change in the activation barriers of the anodic and cathodic reactions of the corrosion process. Organic compounds, which can donate electrons to unoccupied d orbitals of metal surface to form coordinate covalent bonds and can also accept free electrons from the metal surface by using their antibonding orbitals to form feedback bonds, constitute excellent corrosion inhibitors. The most effective inhibitors are those compounds containing heteroatoms like nitrogen, oxygen, sulfur and phosphorus, as well as aromatic rings. The inhibitory activity of these molecules is accompanied by their adsorption to the metal surface. Free electron pairs on heteroatoms or π electrons are readily available for sharing to form a bond and act as nucleophile centers of inhibitor molecules and greatly facilitate the adsorption process over the metal surface, whose atoms act as electrophiles. Recently, the effectiveness of an inhibitor molecule has been related to its spatial as well as electronic structure [14]. Quantum chemical methods are ideal tools for investigating these parameters and are able to provide insight into the inhibitor–surface interaction.

Thiosemicarbazides, thiosemicarbazones and their derivatives have continued to be the subject of extensive investigation in chemistry and biology owing to their broad spectrum of antitumor [5], antibacterial [6,7], antiviral [810], antifungal [11], antimalarial [12] and antineoplastic [13] activities, and recently reported corrosion inhibiting properties [1423]. Recently, Kandemirli and Sagdinc [24] reported on the theoretical studies of corrosion inhibition of some amides and thiosemicarbazones using some quantum chemical calculations. The data available so far are largely incomplete and it is not yet possible to draw very good conclusions about the characteristics of this set of compounds and their derivatives. Therefore, the objective of this study is to present an experimental and theoretical study on the adsorption, electronic and molecular structures of three thiosemicarbazides, namely 2-(2-aminophenyl)-N-phenylhydrazinecarbothioamide (AP4PT), N,2-diphenylhydrazinecarbothioamide (D4PT) and 2-(2-hydroxyphenyl)-N-phenyl hydrazinecarbothioamide (HP4PT), used as inhibitors, and to determine the relationship between some quantum chemical parameters/descriptors from the structure of the compounds and the inhibition efficiencies obtained using different methods. Our aim is to also find good theoretical parameters to characterize the inhibition property of the inhibitors, to establish correlations between inhibition efficiencies and some of the electronic properties of the studied molecules using different quantum chemical/theoretical methods, quantitative structure activity relationship (QSAR) approach and local reactivity indices.

2. Results and Discussion

2.1. Effect of AP4PT, HP4PT and D4PT and Temperature

Figure 1 shows the chemical and optimized structures of the inhibitors (AP4PT, HP4PT and D4PT). Table 1 shows the corrosion rates and the % inhibition efficiencies of AP4PT, HP4PT and D4PT in acid media. The corrosion rate of mild steel for the blank solution (1 M H2SO4) is higher than those obtained for solutions containing various concentrations of AP4PT, HP4PT and D4PT. This indicates that the corrosion of mild steel in H2SO4 solution is inhibited by various concentrations of AP4PT, HP4PT and D4PT. It was also found that the corrosion rate of mild steel decreases with increase in the concentration of the inhibitor, but decreases with increasing temperature, which indicates that the inhibitory potentials of AP4PT, HP4PT and D4PT for mild steel corrosion increase with increasing concentration but decrease with increase in temperature. The values of % inhibition efficiencies obtained from the hydrogen evolution method are close to that obtained using the weight loss method (Table 1). From the calculated values of the inhibition efficiencies of AP4PT, HP4PT and D4PT, it is indicative that these inhibitors are adsorption inhibitors and that their inhibition efficiencies decrease in the following trend, AP4PT > HP4PT > D4PT. Furthermore, from the observed trend for the variation of inhibition efficiency with temperature, it is evident that the mechanism of adsorption of the inhibitors on mild steel surface is by a physical adsorption mechanism. For physical adsorption, the inhibition efficiency is expected to decrease with increasing temperature, but for chemical adsorption, the inhibition efficiency is expected to increase with increasing temperature [25].

The activation energies for the corrosion of mild steel in the absence and presence of the inhibitors were calculated using the logarithmic form of the Arrhenius Equation shown below [25]:

log C R 2 C R 1 = E a 2.303 R ( 1 T 1 1 T 2 )
where CR1 and CR2 are the corrosion rates of mild steel at the temperatures T1 (303 K) and T2 (333 K), respectively. Ea is the activation energy for the reaction and R is the molar gas constant. Values of the Ea calculated from Equation 1 are presented in Table 2. The activation energies obtained for the inhibited corrosion of mild steel are within the limit expected (<80 KJ/mol) for the mechanism of physical adsorption, hence the adsorption of AP4PT, HP4PT and D4PT on mild steel surface is consistent with the mechanism of charge transfer from the inhibitor to the metal surface [26].

2.2. Thermodynamics/Adsorption Considerations

The heats of adsorption of AP4PT, HP4PT and D4PT on mild steel surface were calculated using the following Equation [25]:

Q a d s = 2.303 R [ log ( θ 2 1 θ 2 ) log ( θ 1 1 θ 1 ) ] x ( T 1 X T 2 T 2 T 1 ) k J m o l 1
where Qads is the heat of adsorption, R is the gas constant, θ1 and θ2 are the degrees of surface coverage of the inhibitors at the temperatures T1 (303 K) and T2 (333 K), respectively. Calculated values of Qads are negative, indicating that the adsorption of the inhibitors on the mild steel surface is exothermic (see Table 2).

The adsorption characteristics of the inhibitors were investigated by fitting the experimental data obtained for the degrees of surface coverage into different adsorption isotherms. The tests revealed that the adsorption of AP4PT, HP4PT and D4PT can best be described by the Langmuir adsorption isotherm. The Equation for the Langmuir adsorption isotherm can be written as follows [27,28]:

θ = K C × 1 / 1 + K C )
where K designates the adsorption equilibrium constant and C is the concentration of the inhibitor in the bulk electrolyte. From the rearrangement of Equation 3, Equations 4 and 5 are obtained.

1 / K + C = C / θ
log ( C / θ ) = log C log K

Figure 2 shows the plots of values of log(C/θ) versus logC. The plots were found to be linear indicating the application of the Langmuir isotherm to the adsorption of AP4PT, HP4PT and D4PT on mild steel surface. Values of adsorption parameters deduced from the Langmuir adsorption isotherms are presented in Table 3. The results obtained indicated that the slopes and R2 values were very close to unity, which signifies strong adherence of AP4PT, HP4PT and D4PT to the adsorption of the Langmuir model.

The values of the adsorption equilibrium constant (K) obtained from the intercept of the Langmuir adsorption isotherms are related to the free energy of adsorption according to Equation 6 [28,29];

Δ G a d s 0 = 2.303 R T log ( 55.5 K )
where ΔG0ads is the free energy of adsorption, R is the gas constant and T is the temperature of the system. Calculated values of the free energies are also presented in Table 3. The free energies ranged from −10.51 to −16.76 kJ/mol and are within the range expected for the transfer of charge from the inhibitor to the metal surface. Therefore, the adsorption of AP4PT, HP4PT and D4PT is spontaneous. Generally, values of ΔG0ads up to −20 kJ/mol signify physisorption, the inhibition acts due to electrostatic interactions between the charged molecules and the charged metal, while values around −40 kJ/mol or less are associated with chemisorption as a result of sharing or transfer of electrons from the organic molecules to the metal surface to form a coordinate type of bond (chemisorption). The values obtained from this study ranged from −10.51 to −16.76 kJ/mol, which support the mechanism of physical adsorption [30].

2.3. Quantum Chemical Studies

Quantum chemical calculations have been widely used to study reaction mechanisms [31]. They have also been proved to be a very powerful tool for studying inhibition of the corrosion of metals [3234]. It has been found that the effectiveness of a corrosion inhibitor can be related to its electronic and spatial molecular structure [3539]. In this study, the relationship between quantum chemical parameters and inhibition efficiency was investigated.

Table 4 shows the values of some quantum chemical parameters, namely the energy of the highest occupied molecular orbital (EHOMO), energy of the lowest unoccupied molecular orbital (ELUMO), the energy gap (ELUMO-HOMO), the total electronic energy of the molecules (EE), core core repulsion (CC), dipole moment (μ), logP (substituent constant - measure of the differential solubility of a compound in two solvents and characterizes the hydrophobicity/hydrophilicity of a molecule), molecular polarizability (pol), cosmo volume (molecular volume) (cosVol) and cosmo area (molecular surface area or solvent accessible molecular surface area) (cosAr). The quantum chemical parameters were computed for five different Hamiltonians, namely, parametric method 6 (PM6), parametric method 3 (PM3), Austin model 1 (AM1), Recife model 1 (RM1) and modified neglect of diatomic overlap (MNDO) [40]. The results obtained from semi empirical computations, are presented in Table 4. As can be seen from Table 4, the EHOMO, ELUMO, ΔE and dipole moment values calculated for AP4PT by PM3 method heavily deviate from the data obtained from other Hamiltonians. This can be explained as follows. All the semi empirical methods contain sets of parameters. Atomic and diatomic parameters exist in PM6, while MNDO, AM1, PM3, and MNDO-d use only single-atom parameters. Not all parameters are optimized for all methods; for example, in MNDO and AM1 the two electron one center integrals are normally taken from atomic spectra. Therefore, in AP4PT, atomic and diatomic parameters are very significant. The frontier molecular orbital energies (i.e., EHOMO and ELUMO) are significant parameters for the prediction of the reactivity of a chemical species. The EHOMO is often associated with the electron donating ability of a molecule [3638]. Therefore, increasing values of EHOMO indicates higher tendency for the donation of electron(s) to the appropriate acceptor molecule with low energy and empty molecular orbital. According to Eddy and Ebenso [40], increasing values of EHOMO facilitate the adsorption of the inhibitor. Consequently, the inhibition efficiency of the inhibitor would be enhanced by improving the transport process through the adsorbed layer. From Table 4, it is evident that the EHOMO for the inhibitors decreases in the order; (AP4PT > HP4PT > D4PT), which is consistent with the experimental % inhibition efficiency results. However, the ELUMO decreases in a similar order. This can be explained as follows. The ELUMO indicates the ability of the molecule to accept electrons. Therefore, the lower the value of ELUMO the more apparent it is that the molecule would accept electrons. Also, the ELUMO-HOMO (energy gap) was also found to decrease in the order similar to that of the ELUMO. Literature reveals that a larger value of the energy gap indicates low reactivity to a chemical species because the energy gap is related to the softness or hardness of a molecule. A soft molecule is more reactive than a hard molecule because a hard molecule has a larger energy gap [37,38].

Values of logP (substituent constant) were also found to have a good relationship with the corrosion inhibition efficiencies of the studied inhibitors. Substituent constants are empirical quantities, which account for the variation of the structure and do not depend on the parent structure but vary with the substituent [39]. According to Eddy and Ebenso [40], logP accounts for the hydrophobicity of an actual molecule. Hydrophobicity of an organic molecule increases with decreasing water solubility. In corrosion studies, hydrophobicity is related to the mechanism of formation of the oxide/hydroxide layer on the metal surface (which reduces the corrosion process drastically). From the results obtained, based on the increasing value of logP, the inhibition efficiencies of the studied thiosemicarbazides increase in the following order, AP4PT > HP4PT > D4PT, which is consistent with experimental obtained % inhibition efficiency results.

The dipole moment (μ) is an index that can also be used for the prediction of the direction of a corrosion inhibition process. Dipole moment is the measure of polarity in a bond and is related to the distribution of electrons in a molecule [41]. Although literature is inconsistent on the use of ‘μ’ as a predictor for the direction of a corrosion inhibition reaction, it is generally agreed that the adsorption of polar compounds possessing high dipole moments on the metal surface should lead to better inhibition efficiency. Comparison of the results obtained from quantum chemical calculations with experimental inhibition efficiencies indicated that the % inhibition efficiencies of the inhibitors increase with increasing value of the dipole moment.

El Ashry et al. [42] noted that core core repulsion energy is a quantum chemical parameter that may have excellent correlation with inhibition efficiency. They reported that the inhibition efficiency of some Schiff bases decreased with increasing value of core core repulsion energy. Similarly, the inhibition efficiencies of the studied thiosemicarbazides were found to decrease with increasing values of core core repulsion. This study on quantum chemical descriptors has been extended to include the total and the electronic energies of the molecules. From the results, it is evident that based on the decreasing values of the total energy (TE) and electronic energy (EE), as well as decreasing value of cosmo area and cosmo volume, the trend for the variation of the inhibition efficiency follows the order similar to experimental %inhibition efficiencies (AP4PT > HP4PT > D4PT).

Polarizability is the ratio of induced dipole moment to the intensity of the electric field. The induced dipole moment is proportional to polarizability [43]. Some attempts have been made to relate the polarizability of some corrosion inhibitors to their inhibition efficiency. According to Arslan et al. [38], the minimum polarizability principle (MPP) expects that the natural direction of evolution of any system is towards a state of minimum polarizability. From the results obtained from quantum chemical calculations, the trend for the increase in the inhibition efficiencies of the inhibitors with respect to increasing polarizability correlates well with the order of the experimental % inhibition efficiencies results (AP4PT > HP4PT > D4PT).

Correlations between the calculated quantum chemical parameters were also carried out. Figure 3 shows plots for the variation of the experimental inhibition efficiencies with some quantum chemical parameters. The figure reveals that the degree of linearity (R2) between the plotted quantum chemical parameters and the experimental inhibition efficiencies were very close to unity, which indicated a high degree of linearity. However, the plots were developed from parameters obtained from PM6 Hamiltonians. R2 values for other Hamiltonians are presented in Table 5. From the results obtained, the highest degree of linearity between the experimental inhibition efficiencies and the EHOMO, ELUMO, ELUMO-HOMO and μ were obtained from the AM1, PM6, AM1 and MNDO Hamiltonians, respectively. However, R2 values with respect to EE, CC, cosVol and cosAr were relatively low.

2.4. Quantitative Structure Activity Relationship (QSAR)

According to Karelson and Lobanov [44], quantitative structure-activity and structure property relationship studies are unquestionably of great importance in modern chemistry and biochemistry. The concept of QSAR/QSPR is to transform searches for compounds with desired properties using chemical intuition and experience into mathematically quantified and computed form. Once a correlation between structure and activity/property is found, any number of compounds, including those not yet synthesized, can readily be screened on the computer [45,46].

Most recent studies on the use of QSPR/QSAR for corrosion employ quantum chemical calculations as an attractive source of new molecular descriptor. According to Vera et al. [47], QSAR/QSPR can be used to relate the inhibition efficiency of most inhibitors to structural parameters (quantum and topological), which can be theoretically calculated with the ultimate aim of obtaining a molecular design of new corrosion inhibitors. El Ashry et al. [48] also stated that although the QSAR is a useful tool for the development of new corrosion inhibitors, the development of Equations for calculating the corrosion inhibition efficiency may lead to a prediction of the efficiency of some inhibitors.

Attempts were made to establish the relationship between corrosion inhibition efficiencies and the calculated quantum chemical parameters using linear regression analysis. The linear model approximated the inhibition efficiency (IETheor) according to the following Equation [49]:

I E Theor = A x i C i + B
where A and B are the regression coefficients determined by regression analysis, xi is a quantum chemical index characteristic of the molecule i, Ci is the experimental concentration of the inhibitor. Equation 7 did not give a good correlation between the experimental and theoretical inhibition efficiencies therefore, a non linear model, which was first proposed by Lukovits et al. [50] for the study of interaction of corrosion inhibitors with metal surface in acidic solutions, was used. This model is based on the Langmuir adsorption isotherm (which assumes that the coverage of the metal surface by the inhibitor’s molecule is the primary cause of corrosion inhibition) and can be written as follows [38]:
I E Theor ( % ) = ( A x j + B ) C i 1 + ( A x j + B ) C i × 100

Using the non linear model, multiple regressions were performed between the inhibition efficiencies of the inhibitors and some quantum chemical parameters/descriptors. The solutions of the above non linear Equation are given by Equations 9 to 13 for PM6, PM3, AM1, RM1 and MNDO, respectively. The corresponding correlation coefficients (r) were 0.821, 0.8589, 0.7500, 0.8155 and 0.8068, respectively. Values of inhibition efficiencies calculated from Equations 9 to 13 are presented in Table 6.

IE Theor = ( 1.0127 E HOMO + E LUMO + 0.99 E LUMo HOMO + μ + LogP + Pol + 69.12 ) * C i x 100 ( 1 + ( 1.0127 E HOMO + E LUMO + 0.99 E LUMo HOMO + μ + LogP + Pol + 69.12 ) * C i
IE Theor = ( 1.0175 E HOMO + E LUMO + 0.997 E LUMo HOMO + μ + LogP + Pol + 58.61 ) * C i x 100 ( 1 + ( 1.0175 E HOMO + E LUMO + 0.997 E LUMo HOMO + μ + LogP + Pol + 58.61 ) * C i
IE Theor = ( 1.0131 E HOMO + E LUMO + E LUMo HOMO + 0.989 μ + LogP + Pol + 68.52 ) * C i x 100 ( 1 + ( 1.0131 E HOMO + E LUMO + E LUMo HOMO + 0.989 μ + LogP + Pol + 68.52 ) * C i
IE Theor = ( 1.0148 E HOMO + E LUMO + 0.991 E LUMo HOMO + μ + LogP + Pol + 65.19 ) * C i x 100 ( 1 + ( 1.0148 E HOMO + E LUMO + 0.991 E LUMo HOMO + μ + LogP + Pol + 65.19 ) * C i
IE Theor = ( 1.0131 E HOMO + E LUMO + 0.987 E LUMo HOMO + μ + LogP + Pol + 72.63 ) * C i x 100 ( 1 + ( 1.0131 E HOMO + E LUMO + 0.987 E LUMo HOMO + μ + LogP + Pol + 72.63 ) * C i

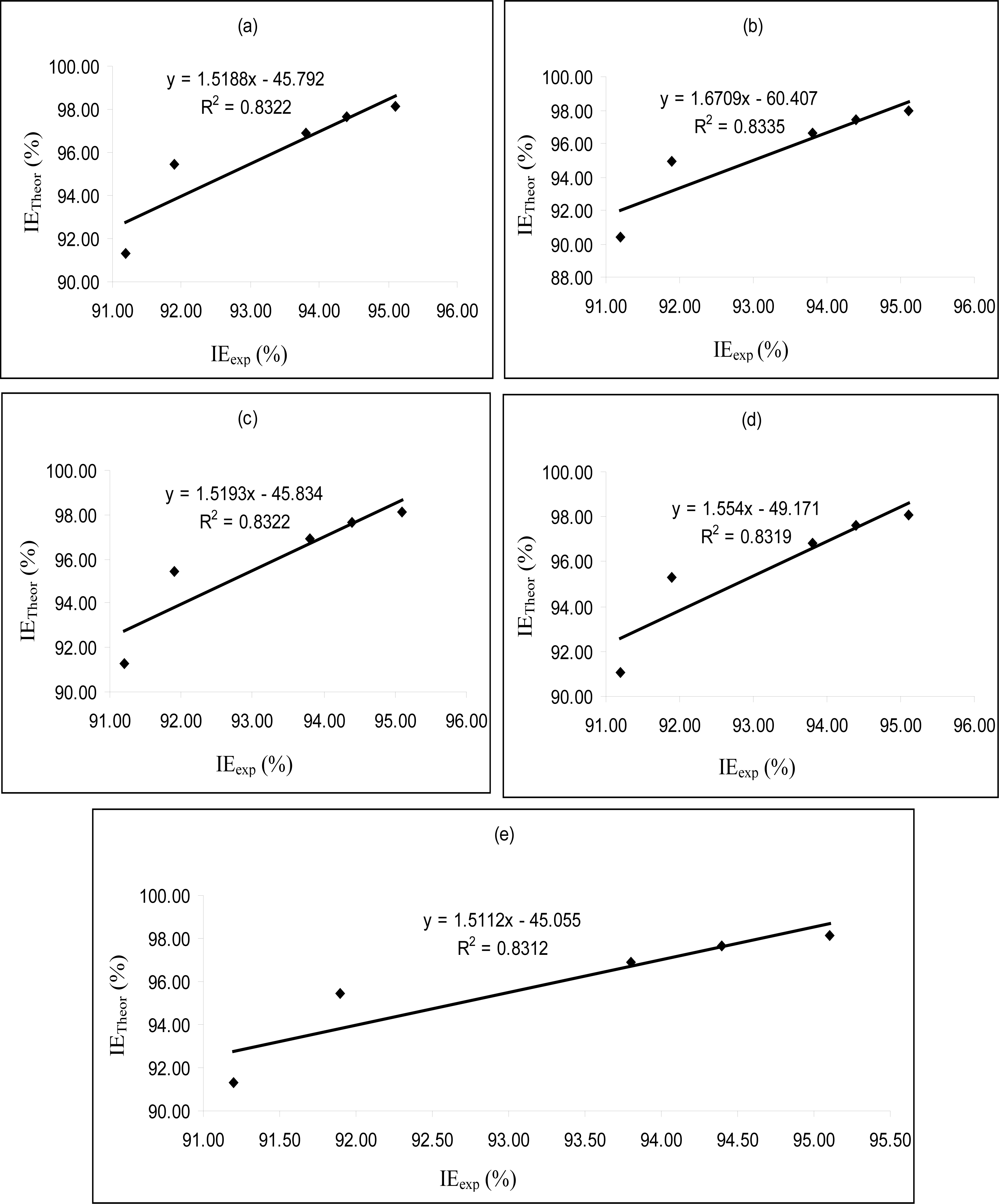

Figures 46 are plots showing the variation of experimental inhibition efficiencies with theoretical inhibition efficiencies for AP4PT, HP4PT and D4PT, respectively. From the plots, it is evident that there is a strong relationship between the theoretical and experimental inhibition efficiencies, indicating that these models can be used to predict the inhibition efficiencies of new corrosion inhibitors that are structurally related to the studied thiosemicarbazides.

2.5. Density Functional Theory (DFT)

DFT is based on solving the time independent Schrodinger Equation for the electrons of molecular systems as a function of the positions of the nuclei [51]. The premise behind the density functional theory is that the energy of a molecule can be determined from the electron density instead of a wave function [52]. However, in this study, MP2 method (Moller-Plesset perturbation theory method at level 2) was adopted for computation because of the bulkiness of the studied inhibitors.

2.5.1. Ionization Energy and Electron Affinity

Ionization potential (IP) and the electron affinity (EA) were calculated using the finite difference approximation as follows [53]:

I P = E ( N 1 ) E ( N )
E A = E ( N ) E ( N + 1 )
where E(N - 1), E(N) and E(N + 1) are the ground state energies of the system with N - 1, N and N + 1 electrons, respectively. Values of IE and EA calculated from Equations 14 and 15 are presented in Table 7. The results obtained indicate that the inhibition efficiencies of the inhibitors increase with increasing ionization energy but decrease with decreasing value of electron affinity. This is because IP is directly related with the EHOMO, while EA is related to the ELUMO. This explains why the trend for the variation of inhibition efficiencies of the inhibitors with IP and EA are similar to those obtained for EHOMO and ELUMO data.

2.5.2. Global Softness and Hardness

In DFT, the ground state energy E(ρ) of an atom/molecule can be expressed in terms of its electron density, ρ(r). The first and second derivatives of E(ρ) with respect to the number of electrons (N) defines the chemical potential (σ) and the global hardness (η) of a molecule as follows [46]:

σ = ( δ E / δ N ) ν ( r )
η = ( δ 2 E / δ 2 N ) ν ( r )
where v(r) indicates that the differentiation is carried out under constant external potentials. Using the finite difference approximation, the global softness can be evaluated as S = 1/(IP - EA). The global hardness, η, which is the inverse of the global softness can be evaluated using Equation 18 below:
S = 1 / [ ( E ( N 1 ) E ( N ) ) ( E ( N ) E ( N + 1 ) ) ]

Calculated values of S and η are also presented in Table 7. From Table 7, it is evident that the inhibitor with the least value of global hardness (hence the highest value of global softness) is the best and vice versa. This is because a soft molecule is more reactive than a hard molecule. This observation is consistent with the results obtained from experimental %inhibition efficiencies.

The fraction of electron transferred, δ, was calculated using the Equation 19 below [36]:

δ = ( χ Fe χ inh ) / 2 ( η Fe + η inh )
where χFe and χinh are the electronegativity of Fe and the inhibitor, respectively, and can be evaluated as χ = (IP + EA)/2. ηFe and ηinh are the global hardness of Fe and the inhibitor, respectively (calculated using Equation 21). In order to apply Equation 19 to the present study, the theoretical values of χFe = 7 ev and ηFe = 0 were used for the computation of δ values for the various Hamiltonians. Calculated values of δ are presented in Table 7. The results indicate that δ values correlates strongly with experimental inhibition efficiencies. Thus, the highest fraction of electrons is associated with the best inhibitor (AP4PT), while the least fraction is associated with the inhibitor that has the least inhibition efficiency (D4PT).

2.5.3. Local Selectivity

The local selectivity of a corrosion inhibitor is best analyzed using the Fukui function. The Fukui indices permit the distinction of each part of a molecule on the basis of its chemical behavior due to different substituent functional groups.

According to Fuentealba et al. [52], the Fukui function can be formally defined as

f ( r ) = ( δ σ / δ ν ) N
where the functional derivative must be taken at constant number of electron, N. If it is assumed that the total energy, E, is a function of v(r) and is an exact differential, then the Maxwell relations between derivatives can be applied to derive the following Equation:
f ( r ) = ( δ ρ ( r ) / δ N ) ν

Equation 21 is the most standard presentation of the Fukui function. The Fukui function is provoked by the fact that if an electron δ is transferred to an N electron molecule, it will tend to distribute so as to minimize the energy of the resulting N + δ electron system. The resulting change in electron density is the nucleophilic (f+) and electrophilic (f) Fukui functions, which can be calculated using the finite difference approximation as follows [52]:

f + = ( δ ρ ( r ) / δ N ) υ + = q ( N + 1 ) q ( N )
f = ( δ ρ ( r ) / δ N ) υ = q ( N ) q ( N 1 )
where ρ, q(N + 1), q(N) and q(N - 1) are the density of electron and the Mulliken charge of the atom with N + 1, N and N-1 electrons.

Calculated values of q(N + 1), q(N), q(N - 1), f+ and f for AP4PT, HP4PT and D4PT are presented in Tables 710. The site for nucleophilic attack is the site where the value of f+ is maximum, while the site for electrophilic attack is controlled by the values of f. Assuming that the protonated forms of the inhibitors’ molecules have a net positive charge, it can be deduced that the sites for nucleophilic attack are the nitrogen atom (N 4) for the three inhibitors. However, the sites for electrophilic attack are in the carbon atoms (C12, C6 and C6) for AP4PT, HP4PT and D4PT, respectively.

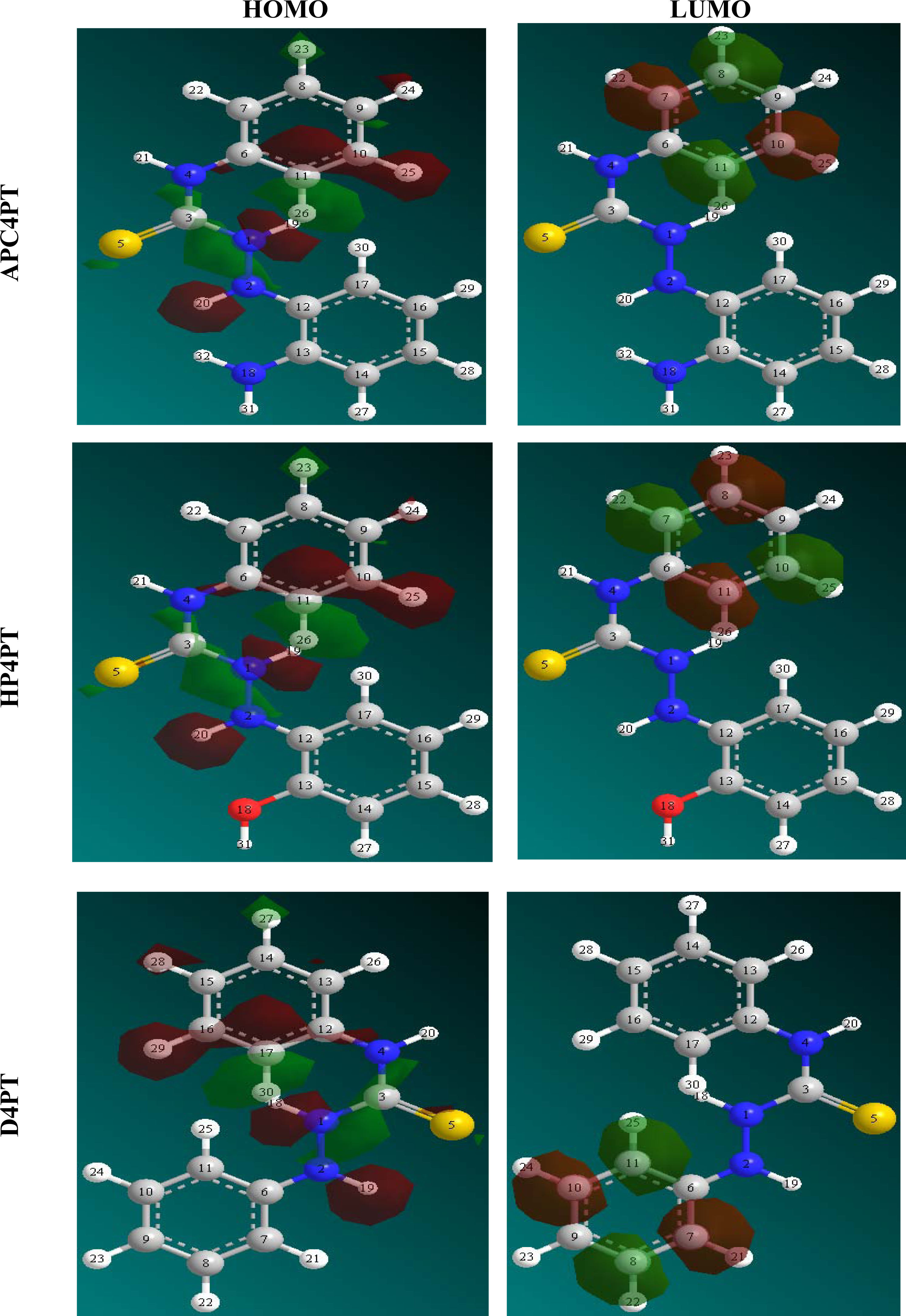

The HOMO and LUMO orbitals of AP4PT, HP4PT and D4PT are presented in Figure 7. The figure clearly reveals the information that governs the nucleophilic and electrophilic attacks on the studied inhibitors. The information obtained from the HOMO and LUMO orbitals are consistent with the findings obtained from the Fukui function.

The local softness, S, for an atom can be expressed as the product of the condensed Fukui function (f) and the global softness (S), as follows [5254];

S + = ( f + ) S
S = ( f ) S

The local softness contains information similar to those obtained from the condensed Fukui function plus additional information about the total molecular softness, which is related to the global reactivity with respect to a reaction partner. Calculated values of S+ and S are presented in Tables 810. From the results obtained, the sites for electrophilic and nucleophilic attack in the studied thiosemicarbazides are slightly similar. Other indices that can be used to predict the reactive sites of a corrosion inhibitor are the relative nucleophilicity and electrophilicity, which is defined as (S+/S) and (S/S+), respectively. These functions have been successfully applied for the prediction of reactivity sequences of carbonyl compounds toward nucleophilic attack. It was observed that the atoms with highest value of relative nucleophilicity and electrophilicity are similar to those obtained for the Fukui and global softness functions (though the results are not presented here).

3. Experimental Techniques

3.1. Materials

Materials used for the study were mild steel sheets of composition (wt %); Mn (0.6), P (0.36), C (0.15) and Si (0.03) and the rest Fe. Each sheet was mechanically pressed cut to form different coupons, each of dimension 5 × 4 × 0.11 cm. Each coupon was degreased by washing with ethanol, dipped in acetone and allowed to air dry before they were preserved in a desiccator. All reagents used for the study were Analar grade and double distilled water was used for their preparation. The inhibitors 2-(2-aminophenyl) Nphenylhydrazinecarbothioamide(AP4PT),N,2diphenylhydrazinecarbothioamide(D4PT) and 2-(2-hydroxyphenyl)- phenylhydrazinecarbothioamide(HP4PT) were synthesized as described earlier by Kittur and Mahajan Shetti [55]. The concentrations of inhibitor used for the study was 4 × 10−4 to 20 × 10−4 M in 1L solution of 1M H2SO4.

3.2. Gravimetric (Weight Loss) Method

In the gravimetric experiment, a previously weighed mild steel coupon was completely immersed in 250 mL of the test solution in an open beaker. The beaker was inserted into a water bath maintained at 303 K. After every 24 h, each sample was withdrawn from the test solution, washed in a solution containing 50% NaOH and 100 g/L of zinc dust. The washed coupons were dipped in acetone and allowed to air dry before re-weighing. The difference in weight for a period of 168 h (7 days) was taken as total weight loss. The experiments were repeated at 333 K. From the weight loss results, the inhibition efficiency (%I) of the inhibitor, degree of surface coverage and corrosion rates were calculated using Equations 26, 27, and 28. respectively [56];

% IE = ( 1 W 1 / W 2 ) × 100
θ = 1 W 1 / W 2
C R ( gh 1 cm 2 ) = W / A t
where W1 and W2 are the weight losses (g) for mild steel in the presence and absence of the inhibitor in H2SO4 solution, θ is the degree of surface coverage of the inhibitor, A is the area of the mild steel coupon (in cm2), t is the period of immersion (in hours) and W is the weight loss of mild steel after time, t. All the measurements were performed in triplicate and the mean value recorded.

3.3. Gasometric (Hydrogen Evolution) Method

The hydrogen evolution technique (gasometric) experiment was carried out at 303 K as described in literature [56]. From the volume of hydrogen evolved per minute, inhibition efficiencies were calculated using Equation 29 below.

% IE = ( 1 V H t 1 V H t o ) x 100
where V H t 1 and V H t o are the volumes of H2 gas evolved at time ‘t’ for inhibited and uninhibited solutions, respectively.

3.4. Quantum Chemical Calculations

Single point energy calculations were carried out using AM1, PM6, PM3, MNDO and RM1 Hamiltonian in the MOPAC 2008 software for Windows [57]. Calculations were performed on an IBM compatible Intel Pentium IV (2.8 GHz, 4 GB RAM) computer. The following quantum chemical parameters were calculated: the energy of the highest occupied molecular orbital (EHOMO), the energy of the lowest unoccupied molecular orbital (ELUMO), the dipole moment (μ), the total energy (TE), the electronic energy (EE), the ionization potential, the cosmo area (cosAr) and the cosmo volume (cosVol). The polarizability (Pol) and logP were also calculated using Hyperchem release 8.0.3 for windows [58]. The Mulliken and Lowdin charges (q) for nucleophilic and electrophilic attacks were computed using GAMES computational software [59]. The correlation type and method used for the calculation was MP2 while the basis set was set to STO3G*.

Statistical analyses were performed using SPSS program version 15.0 for Windows. Non-linear regression analyses were performed by unconstrained sum of squared residuals for loss function and estimation methods of Levenberg-Marquardt using SPSS program version 15.0 for Windows [60].

4. Conclusions

All the methods used showed that the three thiosemicarbazides possess good inhibition properties for the corrosion of mild steel in H2SO4 at the temperatures studied and their % inhibition efficiencies increased with increasing concentration of the inhibitors and decreasing temperature. The % inhibition efficiencies obtained from the gravimetric and gasometric experiments were in good agreement. The thermodynamic parameters obtained support a physical adsorption mechanism. Adsorption of the inhibitors on the mild steel surface followed the Langmuir adsorption isotherm. The calculated/theoretical % inhibition efficiencies of the molecules were found to be close to their experimental % inhibition efficiencies. From the local reactivity indices, it was found that the sites for electrophilic attack are in the carbon atoms (C12, C6 and C6) for AP4PT, HP4PT and D4PT respectively and that for nucleophilic attack are the nitrogen atom (N 4) for the three inhibitors.

References and Notes

  1. Valdez, LMR; Villafane, AM; Mitnik, DG. CHIH-DFT theoretical study of isomeric thiatriazoles and their potential activity as corrosion inhibitors. J. Mol. Struct.: Theochem 2005, 716, 61–65. [Google Scholar]
  2. Stoyanova, AE; Peyerimhoff, SD. On the relationship between corrosion inhibiting effect and molecular structure. Electrochim. Acta 2002, 47, 1365–1371. [Google Scholar]
  3. Gomez, B; Likhanova, NV; Aguilar, MAD; Palou, RM; Vela, A; Gasquez, JL. Quantum chemical study of the inhibitive properties of 2-Pyridyl-Azoles. J. Phys. Chem 2006, B110, 8928–8934. [Google Scholar]
  4. Finsgar, M; Lesar, A; Kokaij, A; Milosev, I. A comparative electrochemical and quantum chemical calculation study of BTAH and BTAOH as copper corrosion inhibitors in near neutral chloride solution. Electrochim. Acta 2008, 53, 8287–8297. [Google Scholar]
  5. Dobek, AS; Klayman, DL; Dickson, ET, Jr; Scovill, JP; Tramont, EC. Inhibition of clinically significant bacterial organisms in vitro by 2-acetylpyridine thiosemicarbazones. Antimocrob. Agents Chemother 1980, 18, 27–36. [Google Scholar]
  6. Offiong, OE; Martelli, S. Antifungal and antibacterial activity of 2-acetylpyridine-(4-phenylthiosemicarbazone) and its metal (II) complexes. IL Farmaco 1992, 42, 1543–1554. [Google Scholar]
  7. Offiong, OE; Martelli, S. Stereochemistry and antitumor activity of platinum metal complexes of 2-acetylpyridine thiosemicarbazones. Transit. Met. Chem 1997, 22, 263–269. [Google Scholar]
  8. Easmon, J; Heinisch, G; Holzer, W; Rosenwirth, B. Synthesis and antiviral activity of thiosemicarbazone derivatives of pyridazinecarbaldehydes and alkyl pyridazinyl ketones. Arnein-Forsch/Drug Res 1989, 39, 1196–1201. [Google Scholar]
  9. Easmon, J; Heinisch, G; Holzer, W; Rosenwirth, B. Pyridazines. 63. Novel thiosemicarbazones derived from formyl- and acyldiazines: synthesis, effects on cell proliferation, and synergism with antiviral agents. J. Med. Chem 1992, 35, 3288–3296. [Google Scholar]
  10. West, DX; El-Sawaf, AK; Bain, GA. Metal complexes of N (4)-substituted analogues of the antiviral drug methisazone {1-methylisatin thiosemicarbazone}. Transit. Met. Chem 1997, 23, 1–6. [Google Scholar]
  11. Offiong, OE; Martelli, S. Synthesis, biological activity of novel metal complexes of 2-acetylpyridine thiosemicarbazones. IL Farmaco 1995, 50, 625–632. [Google Scholar]
  12. Klayman, DL; Bartosevich, JE; Griffin, TS; Mason, CJ; Scovil, JP. 2-Acetylpyridine thiosemicarbazones. 1. A new class of potential antimalarial agents. J. Med. Chem 1979, 22, 855–862. [Google Scholar]
  13. Brockman, RW; Thompson, JR; Bell, MJ; Skipper, HE. Observations on the antileukemic activity of pyridine-2-carboxaldehyde thiosemicarbazone and thiocarbohydrazone. Cancer Res 1956, 16, 167–170. [Google Scholar]
  14. Ekpe, UJ; Ibok, UJ; Ita, BI; Offiong, EO; Ebenso, EE. Inhibitory action of methyl and phenyl thiosemicarbazone derivatives on the corrosion of mild steel in HCl. Mater. Chem. Phys 1995, 40, 87–93. [Google Scholar]
  15. Babaqi, AS; El-Basiounyi, MS; Abdulla, RM. Kinetic study of corrosion and corrosion inhibition of aluminium in chloroacetic acids. Bull. Soc. Chim. Fr 1989, 3, 297–302. [Google Scholar]
  16. Ateya, BG; El-Anadouli, BE; El-Nizamy, FMA. Corrosion Inhibition and adsorption behaviour of some thioamides on mild steel in sulfuric acid. Bull. Chem. Soc. Jp 1981, 54, 3157–3161. [Google Scholar]
  17. Okafor, PC; Ebenso, EE; Ekpe, UJ. Inhibition of aluminium corrosion by some derivatives of thiosemicarbazone. Bull. Chem. Soc. Ethiopia 2004, 18, 181–192. [Google Scholar]
  18. Quraishi, MA; Sardar, R; Khan, S. An investigation of the inhibitive capacity of synthesized thiosemicarbazides on the corrosion of carbon steel in acid solutions. Anti. Corros. Methods Mater 2008, 35, 60–65. [Google Scholar]
  19. Ita, BI; Offiong, OE. Inhibition of steel corrosion in HCl by pyridoxal, 4-methylthiosemicarbazide, pyridoxal-(4-methyl thiosemicarbazone) and its Zn(II) complex. Mater. Chem. Phys 1997, 48, 164–169. [Google Scholar]
  20. Ebenso, EE; Ekpe, UJ; Ita, BI; Offiong, OE; Ibok, UJ. Effect of molecular structure on the efficiency of amides and thiosemicarbazones used for corrosion inhibition of mild steel in HCl. Mater. Chem. Phys 1999, 60, 79–90. [Google Scholar]
  21. Ita, BI; Offiong, OE. The study of inhibitory properties of benzoin, benzil, benzoin-(4-phenylthiosemicarbazone) and benzil-(4-phenylthiosemicarbazone) on the corrosion of mild steel in hydrochloric acid. Mater. Chem. Phys 2001, 70, 330–335. [Google Scholar]
  22. Ekpe, UJ; Okafor, PC; Ebenso, EE; Offiong, OE; Ita, BI. Mutual effects of TSC derivatives on the acidic corrosion of aluminium. Bull. Electrochem 2001, 17, 131–135. [Google Scholar]
  23. Ebenso, EE; Okafor, PC; Offiong, OE; Ita, BI; Ibok, UJ; Ekpe, UJ. Comparative investigation into the kinetics of corrosion inhibition of aluminium alloy (AA 1060) in acidic medium. Bull. Electrochem 2001, 17, 459–464. [Google Scholar]
  24. Kandemirli, F; Sagdinc, S. Theoretical study of corrosion inhibition of amides and thiosemicarbazones. Corros. Sci 2007, 49, 2118–2130. [Google Scholar]
  25. Eddy, NO; Odoemelam, SA; Odiongenyi, AO. Inhibitive, adsorption and synergistic studies on ethanol extract of Gnetum africana as green corrosion inhibitor for mild steel in H2SO4. Green Chem. Lett. Rev 2009, 2, 111–119. [Google Scholar]
  26. Noor, EA. Potential of aqueous extract of Hibiscus sabdariffa leaves for inhibiting the corrosion of aluminium in alkaline solutions. J Appl Electrochem 2009, 39, 1465–1475. [Google Scholar]
  27. Dehri, I; Ozcan, M. The effect of temperature on the corrosion of mild steel in acidic media in the presence of some sulphur–containing organic compounds. Mater. Chem. Phys 2008, 98, 316–323. [Google Scholar]
  28. Eddy, NO; Odoemelam, SA; Odiongenyi, AO. Joint effect of halides and ethanol extract of Lasianthera Africana on the inhibition of the corrosion of mild steel in H2SO4. J Appl Electrochem 2009, 39, 849–857. [Google Scholar]
  29. Quraishi, MA; Ahamad, I; Singh, AK; Shukla, SK; Lal, B; Singh, V. N-(Piperidinomethyl)-3-[(pyridylidene) amino] isatin: A new and effective acid corrosion inhibitor for mild steel. Mater. Chem. Phys 2008, 112, 1035–1039. [Google Scholar]
  30. Ashassi-Sorkhabi, H; Shaabani, B; Seifzadeh, D. Effect of some pyrimidinic Schiff bases on the corrosion of mild steel in HCl solution. Electrochim. Acta 2005, 50, 3446–3452. [Google Scholar]
  31. Tao, Z; Zhang, S; Li, W; Hou, B. Adsorption and Corrosion inhibition behaviour of mild steel by one derivative of benzoic–triazole in acidic solution. Ind. Eng. Chem. Res 2010, 49, 2593–2599. [Google Scholar]
  32. Emregul, KC; Hayvali, M. Studies on the effect of a newly synthesized Schiff base compound from phenazone and vanillin on the corrosion of steel in 2 M HCl. Corros. Sci 2006, 48, 797–812. [Google Scholar]
  33. Rodriguez-Valdez, LM; Villamisar, W; Casales, M; Gonzalez-Rodriguez, JG; Martinez-Villafane, A; Martinez, L; Glossman-Mitnik, D. Computational simulations of the molecular structure and corrosion properties of amidoethyl, aminoethyl and hydroxyethyl imidazolines. Corros. Sci 2006, 48, 4053–4064. [Google Scholar]
  34. Khaled, KF; Babić-Samardžija, K; Hackerman, N. Theoretical study of the structural effects of polymethylene amines on corrosion inhibition of iron in acid solutions. Electrochim. Acta 2005, 50, 2515–2520. [Google Scholar]
  35. Bentiss, F; Lebrini, M; Lagren′ee, M; Traisnel, M; Elfarouk, A; Vezin, H. The influence of some new 2,5-disubstituted 1,3,4-thiadiazoles on the corrosion behaviour of mild steel in 1M HCl solution: AC impedance study and theoretical approach. Electrochim. Acta 2007, 52, 6865–6872. [Google Scholar]
  36. Xia, S; Qiu, M; Yu, L; Liu, F; Zhao, H. Molecular dynamics and density functional theory study on relationship between structure of imidazoline derivatives and inhibition performance. Corros. Sci 2008, 50, 2021–2029. [Google Scholar]
  37. Ebenso, EE; Arslan, T; Kandemirli, F; Caner, N; Love, I. Quantum chemical studies of some rhodanine azosulpha drugs as corrosion inhibitors for mild steel in acidic medium. Int. J. Quantum Chem 2010, 110, 1003–1018. [Google Scholar]
  38. Arslan, T; Kandemirli, F; Ebenso, EE; Love, I; Alemu, H. Quantum chemical studies on the corrosion inhibition of some sulphonamides on mild steel in acidic medium. Corros. Sci 2009, 51, 35–47. [Google Scholar]
  39. Hansch, C; Leo, A. Substituentz for Correlation Analysis in Chemistry and Biology; Wiley: New York, NY, USA, 1979. [Google Scholar]
  40. Eddy, NO; Ebenso, EE. Quantum chemical studies on the inhibition potentials of some penicillin compounds for the corrosion of mild steel in 0.1 M HCl. J Mol Model 2010. [Google Scholar]
  41. Gece, G. The use of quantum chemical methods in corrosion inhibitor studies. Corros. Sci 2008, 50, 2981–2992. [Google Scholar]
  42. El Ashry, HE; El Nemr, A; Esawy, SA; Ragab, S. Corrosion inhibitors. Part II: Quantum chemical studies on the corrosion inhibitions of steel in acidic medium by some triazole, oxadiazole and thiadiazole derivatives. Electrochim. Acta 2006, 51, 3957–3968. [Google Scholar]
  43. Eddy, NO; Ibok, UJ; Ebenso, EE; El Nemr, A; El Ashry, HE. Quantum chemical study of the inhibition of the corrosion of mild steel in H2SO4 by some antibiotics. J. Mol. Model 2009, 15, 1085–1092. [Google Scholar]
  44. Karelson, M; Lobanov, VS. Quantum chemical descriptors in QSAR/QSPR studies. Chem. Rev 1996, 96, 1027–1043. [Google Scholar]
  45. Cardoso, SP; Hollauer, E; Borges, LEP; Gomes, JA da CP. QSPR prediction analysis of corrosion inhibitors in hydrochloric acid on 22%-Cr stainless steel. J. Braz. Chem. Soc 2006, 17, 1241–1249. [Google Scholar]
  46. Trainor, TP; Chaka, AM; Eng, PJ; Newville, M; Waychunas, GA; Catalano, JG; Brown, GE, Jr. Structure and reactivity of hydrated heamatite (0001) surface. Surf. Sci 2004, 573, 204–224. [Google Scholar]
  47. Vera, L; Guzman, M; Ortega-Luoni, YP. QSPR study of corrosion inhibitors; imidazolines. J. Chil. Chem. Soc 2006, 51, 1034–1039. [Google Scholar]
  48. Khamis, E; El Ashry, ESH; Ibrahim, AK. Synergistic action of vinyl triphenylphosphonium bromide with various anions on corrosion of steel. Br. Corros. J 2000, 35, 150–154. [Google Scholar]
  49. Eddy, NO; Ibok, UJ; Ebenso, EE. Adsorption, synergistic inhibitive effect and quantum chemical studies on ampicillin and halides for the corrosion of mild steel. J. Appl. Electrochem 2010, 40, 445–456. [Google Scholar]
  50. Lukovits, I; Shaban, A; Kalman, E. Corrosion inhibitors: Quantitative structure activity relationships. Russ. J. Electrochem 2003, 39, 177–181. [Google Scholar]
  51. Young, DC. Computational Chemistry, A Practical Guide for Applying Techniques to Real World Problems; Wiley Interscience: New York, NY, USA, 2001. [Google Scholar]
  52. Fuentealba, P; Perez, P; Contreras, R. On the condensed Fukui functions. J. Chem. Phys 2000, 113, 2544–2551. [Google Scholar]
  53. Stoyanov, SR; Gusarov, S; Kovalenko, A. Modelling of bitumen fragment adsorption on Cu2+ and Ag+exchanged zeolite nanoparticles. Mol. Simul 2008, 34, 943–951. [Google Scholar]
  54. Stoyanov, SR; Gusarov, S; Kuznick, SM; Kovalenko, A. Theoretical modelling of zeolite nanoparticle surface acidity for heavy oil upgrading. J. Phys. Chem. C 2008, 112, 6794–6810. [Google Scholar]
  55. Kittur, MIH; Majan Shetti, CS. Oleochemical: Part 1: Synthesis and biological evaluation of 1,4,6–oxadiazoles and 4H-1,2,4 –triazoles derived from long chain fatty acids. J. Oil Tech. Assoc 1984, 16, 49–54. [Google Scholar]
  56. Ebenso, EE; Ibok, UJ; Ekpe, UJ; Umoren, SA; Jackson, E; Abiola, OK; Oforka, NC; Martinez, S. Corrosion inhibition studies of some plant extracts on aluminium in acidic medium. Trans. SAEST 2004, 39, 117–123. [Google Scholar]
  57. Schmidt, MW; Baldridge, KK; Boatz, JA; Elbert, ST; Gordon, MS; Jensen, JH; Koseki, S; Matsunaga, N; Nguyen, KA; Su, SJ; Windus, TL; Dupus, M; Montgomery, JA. Games version 12. J Comp Chem 1993, 1347–1363. [Google Scholar]
  58. Hypercube Inc: Gainesville, FL, USA, 2002.
  59. Steward, JP. Steward Computational Chemistry, 2009.
  60. .
Ijms 11 02473f1 1024

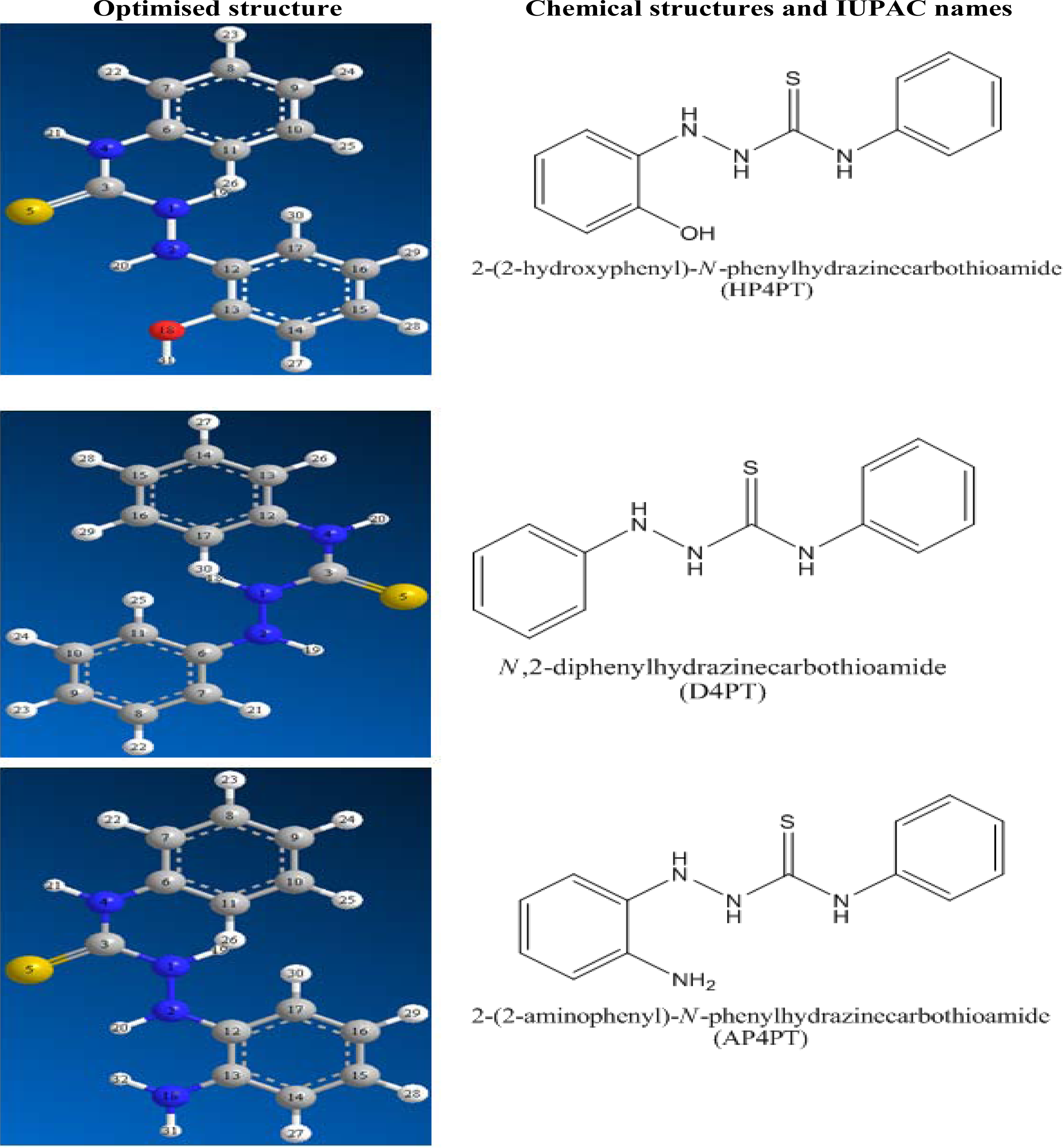

Figure 1. Chemical and optimized structures of the studied thiosemicarbazides.

Click here to enlarge figure

Figure 1. Chemical and optimized structures of the studied thiosemicarbazides.
Ijms 11 02473f1 1024
Ijms 11 02473f2 1024

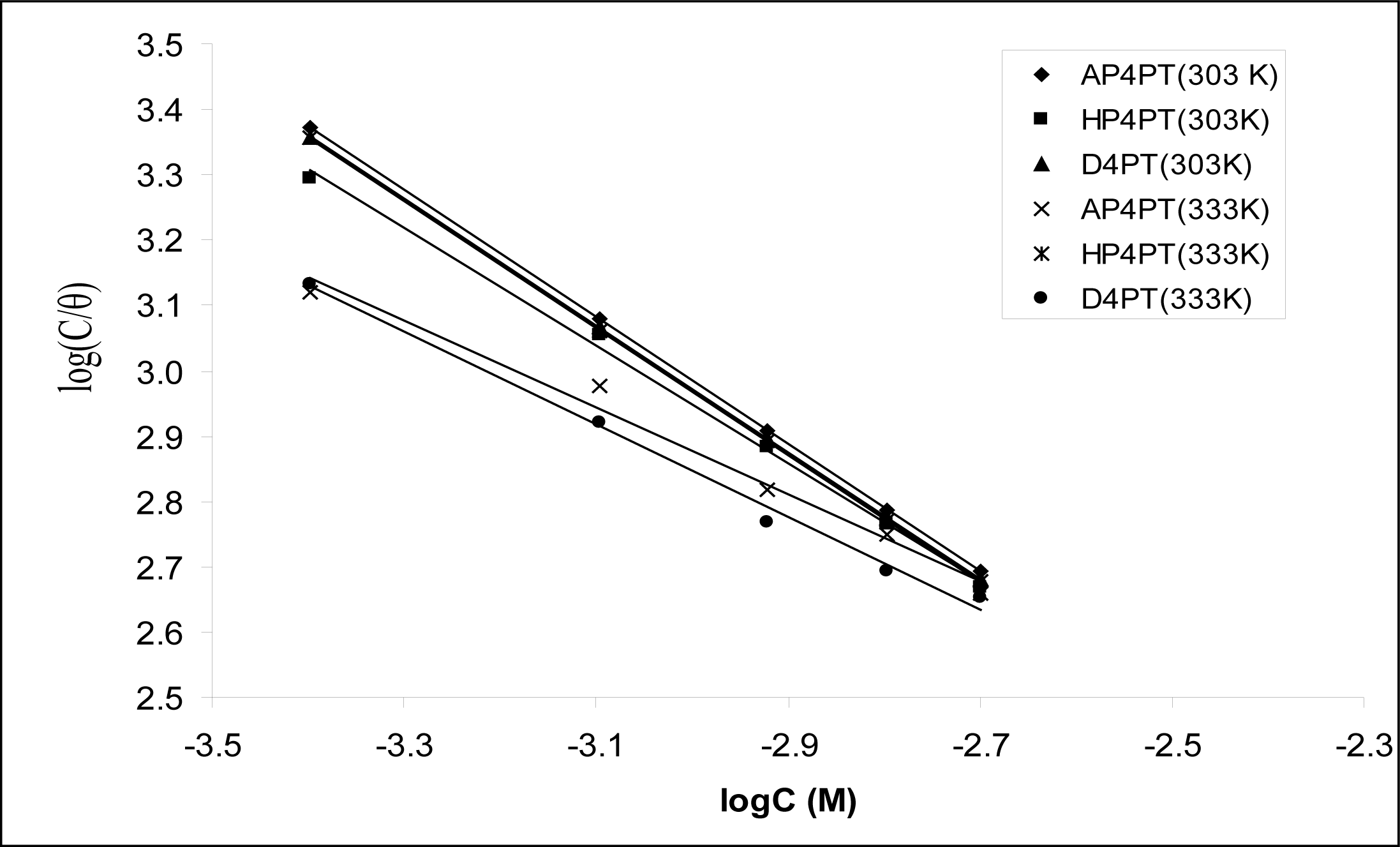

Figure 2. Langmuir isotherm for the adsorption of AP4PT, HP4PT and D4PT on mild steel surface.

Click here to enlarge figure

Figure 2. Langmuir isotherm for the adsorption of AP4PT, HP4PT and D4PT on mild steel surface.
Ijms 11 02473f2 1024
Ijms 11 02473f3 1024

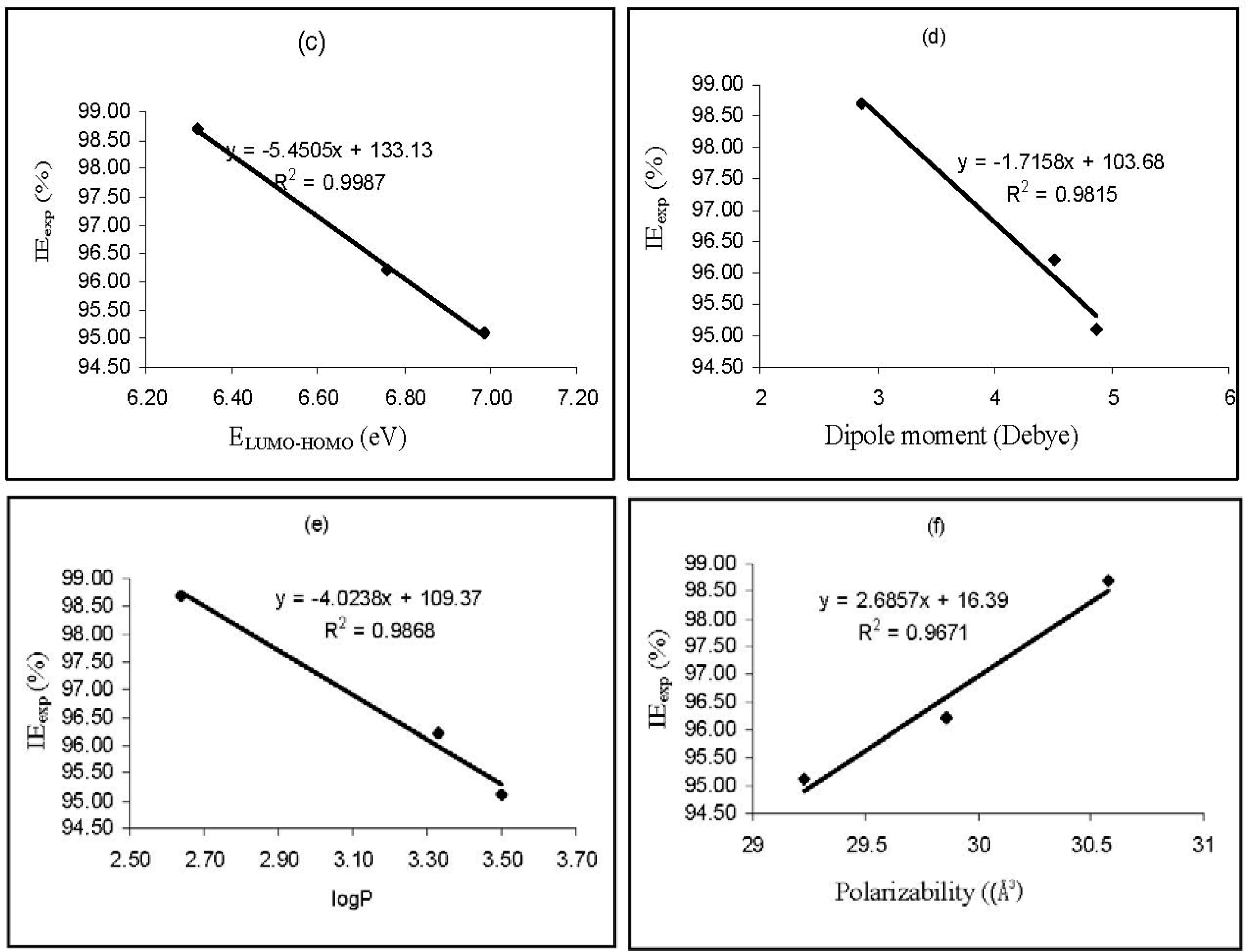

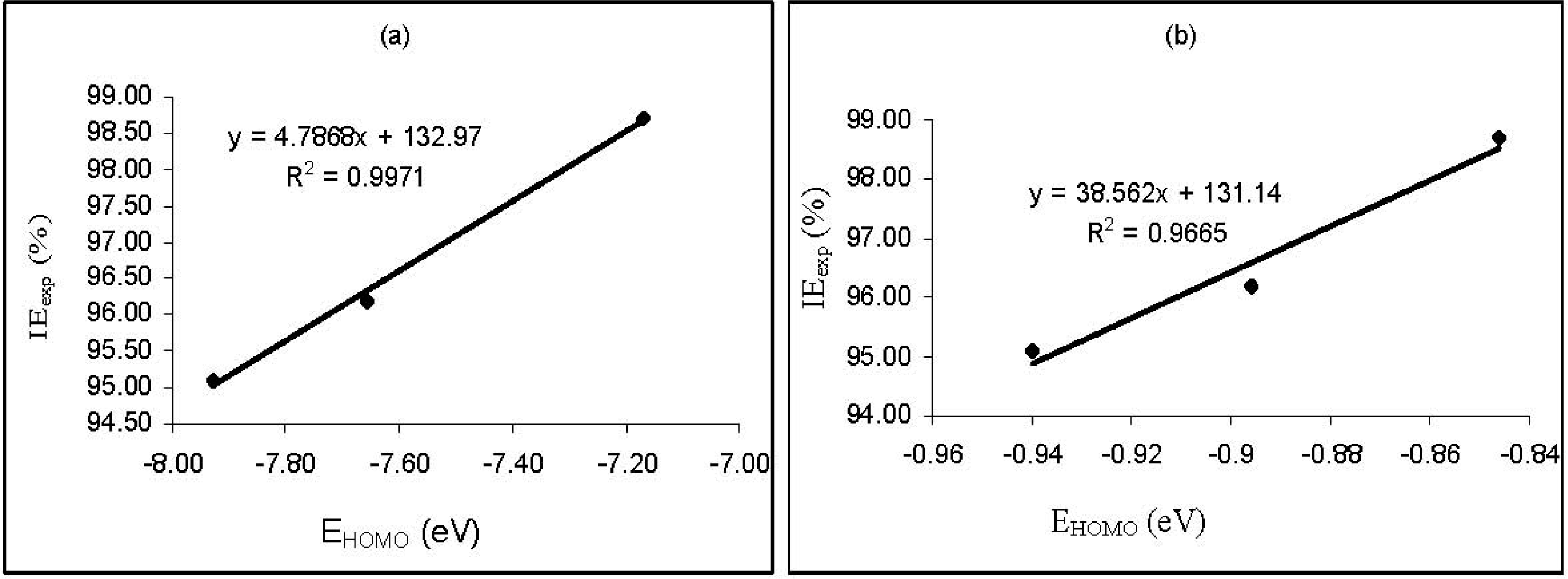

Figure 3. Variation of experimental inhibition efficiency (IEexp) of the studied thiosemicarbazides with (a) EHOMO (b) ELUMO (c) ELUMO-HOMO (d) Dipole moment; (e) logP and (f) Polarizability obtained from PM6 calculations.

Click here to enlarge figure

Figure 3. Variation of experimental inhibition efficiency (IEexp) of the studied thiosemicarbazides with (a) EHOMO (b) ELUMO (c) ELUMO-HOMO (d) Dipole moment; (e) logP and (f) Polarizability obtained from PM6 calculations.
Ijms 11 02473f3 1024Ijms 11 02473f3a 1024
Ijms 11 02473f4 1024

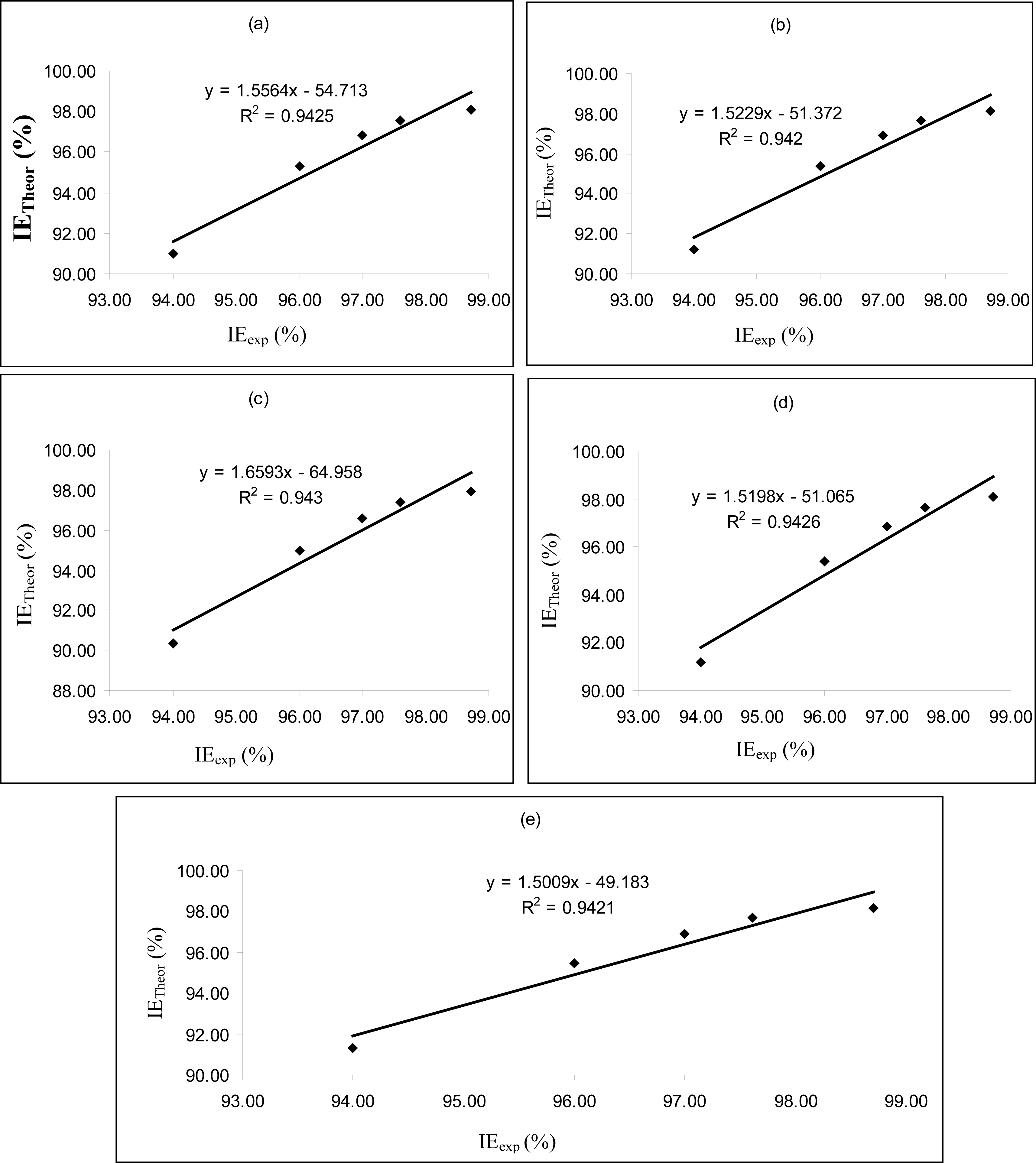

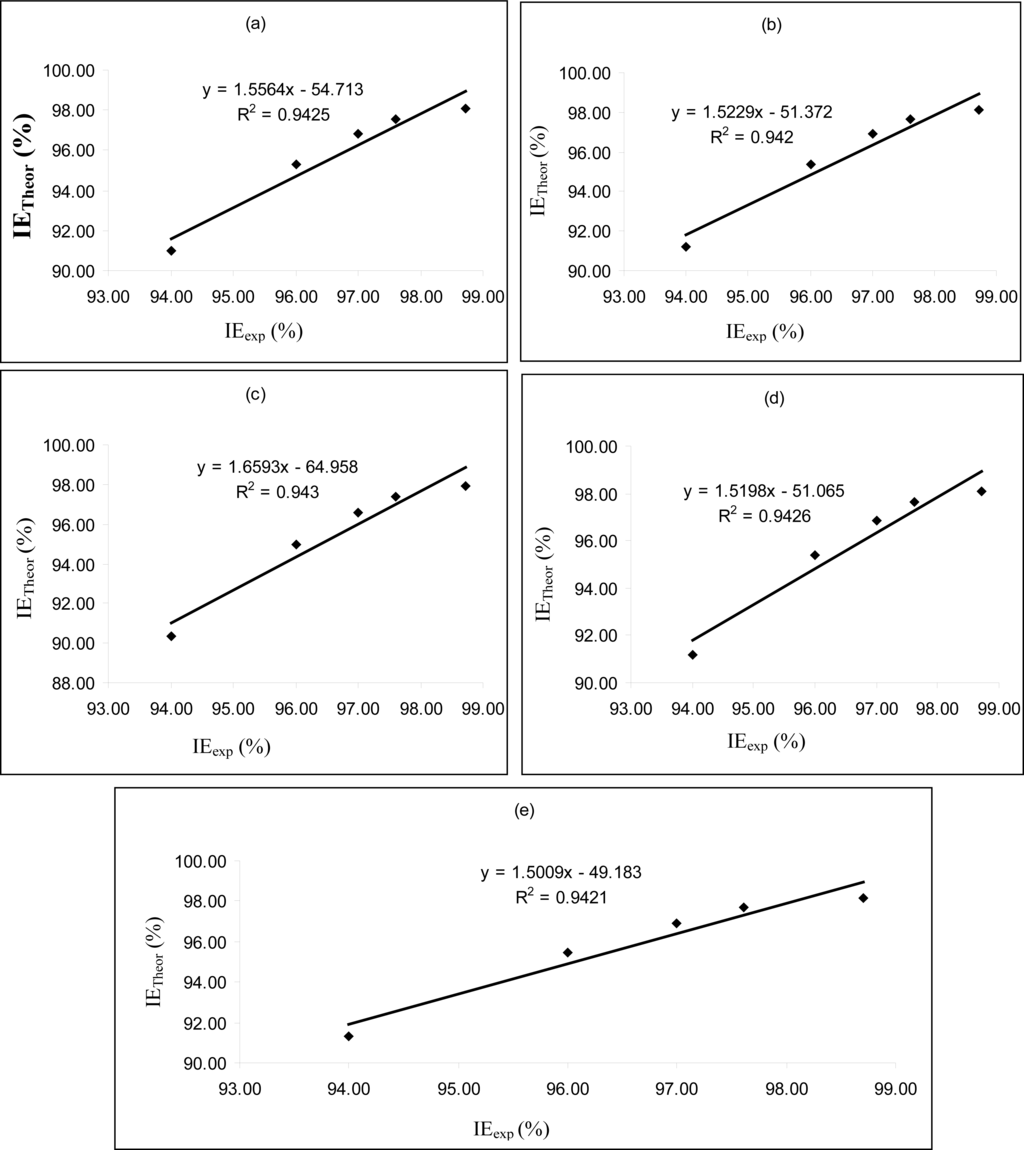

Figure 4. Variation of experimental inhibition efficiency (IEexp) of AP4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.

Click here to enlarge figure

Figure 4. Variation of experimental inhibition efficiency (IEexp) of AP4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.
Ijms 11 02473f4 1024
Ijms 11 02473f5 1024

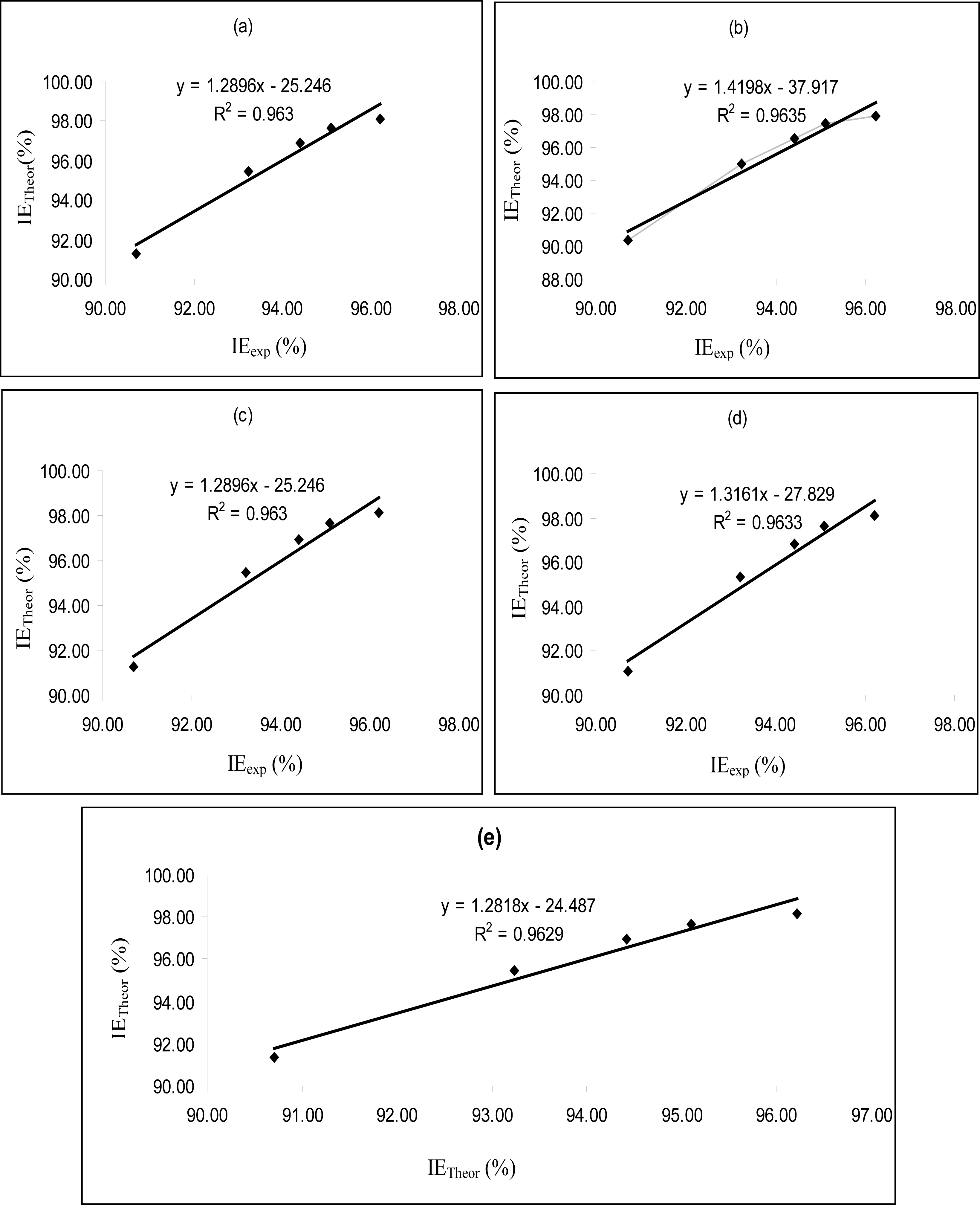

Figure 5. Variation of experimental inhibition efficiency (IEexp) of HP4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.

Click here to enlarge figure

Figure 5. Variation of experimental inhibition efficiency (IEexp) of HP4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.
Ijms 11 02473f5 1024
Ijms 11 02473f6 1024
Figure 6. Variation of experimental inhibition efficiency (IEexp) of D4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.

Click here to enlarge figure

Figure 6. Variation of experimental inhibition efficiency (IEexp) of D4PT with the theoretical inhibition efficiencies (IETheor) calculated for (a) PM6 (b) PM3 (c) AM1 (d) RM1 and (e) MNDO Hamiltonians.
Ijms 11 02473f6 1024
Ijms 11 02473f7 1024
Figure 7. Molecular orbital of the studied thiosemicarbazides showing the HOMO and the LUMO.

Click here to enlarge figure

Figure 7. Molecular orbital of the studied thiosemicarbazides showing the HOMO and the LUMO.
Ijms 11 02473f7 1024
Table Table 1. Inhibition efficiencies (%IE) and corrosion rates (CR) of the studied thiosemicarbazides for the corrosion of mild steel in H2SO4 solutions using both the weight loss (at 303 and 333 K) and hydrogen evolution techniques at 303 K only.

Click here to display table

Table 1. Inhibition efficiencies (%IE) and corrosion rates (CR) of the studied thiosemicarbazides for the corrosion of mild steel in H2SO4 solutions using both the weight loss (at 303 and 333 K) and hydrogen evolution techniques at 303 K only.
Systems%IE (CR)
303 K333 K
1 M H2SO4 (Blank)(34.69)(96.23)
4 × 10−4 M AP4PT + 1 M H2SO494.0 a(2.08) [92.2]b78.92 (20.29)
8 × 10−4 M AP4PT + 1 M H2SO496.0 (1.37) [94.6]90.80 (8.85)
12 × 10−4 M AP4PT + 1 M H2SO497.0(1.04) [95.9]91.90 (7.79)
16 × 10−4 M AP4PT + 1 M H2SO497.6 (0.82) [96.1]92.80 (6.93)
20 × 10−4 M AP4PT + 1 M H2SO498.7 (0.44) [97.2]93.40 (6.35)
4 × 10−4 M HP4PT + 1 M H2SO490.7 (3.23) [88.6]52.80 (45.42)
8 × 10−4 M HP4PT + 1 M H2SO493.1 (2.38) [91.8]75.90 (23.19)
12 × 10−4 M HP4PT + 1 M H2SO494.4 (1.93) [92.9]79.00 (20.21)
16 × 10−4 M HP4PT + 1 M H2SO495.1 (1.70) [94.2]89.84 (9.78)
20 × 10−4 M HP4PT + 1 M H2SO496.2 (1.30) [95.0]91.21 (8.46)
4 × 10−4 M D44PT + 1 M H2SO491.2 (3.05) [90.1]54.42 (43.86)
8 × 10−4 M D4PT + 1 M H2SO491.9 (2.79) [88.4]66.40 (32.33)
12 × 10−4 M D4PT + 1 M H2SO493.8 (2.15) [91.5]70.50 (28.39)
16 × 10−4 M D4PT + 1 M H2SO494.4 (1.93) [93.2]79.20 (20.02)
20 × 10−4 M D4PT + 1 M H2SO495.1 (1.70) [93.9]89.98 (9.64)

a%IE obtained from the weight loss technique.b%IE obtained from the hydrogen evolution technique.

Table Table 2. Some thermodynamics parameters for the adsorption of the studied thiosemicarbazides using the weight loss technique.

Click here to display table

Table 2. Some thermodynamics parameters for the adsorption of the studied thiosemicarbazides using the weight loss technique.
SystemsActivation Energy, Ea(kJ mol−1)Heat of adsorption, Qads (kJ mol−1)
1 M H2SO4 (Blank)28.28-
4 × 10−4 M AP4PT + 1 M H2SO463.13−30.03
8 × 10−4 M AP4PT + 1 M H2SO451.72−18.64
12 × 10−4 M AP4PT + 1 M H2SO455.83−21.97
16 × 10−4 M AP4PT + 1 M H2SO459.15−24.10
20 × 10−4 M AP4PT + 1 M H2SO474.00−35.24
4 × 10−4 M HP4PT + 1 M H2SO473.27−45.42
8 × 10−4 M HP4PT + 1 M H2SO463.11−30.52
12 × 10−4 M HP4PT + 1 M H2SO465.10−31.46
16 × 10−4 M HP4PT + 1 M H2SO448.49−16.49
20 × 10−4 M HP4PT + 1 M H2SO451.91−18.71
4 × 10−4 M D44PT + 1 M H2SO473.89−45.33
8 × 10−4 M D4PT + 1 M H2SO467.91−36.66
12 × 10−4 M D4PT + 1 M H2SO471.53−38.71
16 × 10−4 M D4PT + 1 M H2SO464.83−31.21
20 × 10−4 M D4PT + 1 M H2SO448.11−16.17
Table Table 3. Langmuir parameters for the adsorption for AP4PT, HP4PT and D4PT on mild steel surface.

Click here to display table

Table 3. Langmuir parameters for the adsorption for AP4PT, HP4PT and D4PT on mild steel surface.
InhibitorTemperature (K)Slopelog KΔG0(kJ mol−1)R2
AP4PT3030.9710.0716−10.511.0000
3330.66250.8893−16.760.9843
HP4PT3030.89870.9975−15.880.9975
3330.97270.051−11.420.9999
D4PT3030.96440.0786−10.551.0000
3330.70740.7243−15.710.9938
Table Table 4. Quantum chemical parameters for the studied thiosemicarbazides.

Click here to display table

Table 4. Quantum chemical parameters for the studied thiosemicarbazides.
InhibitorModelsEHOMO (eV)ELUMO (eV)ΔE (eV)EE (eV)C-C (eV)cosAr (Å2)cosVol (Å3)μ (Debye)logPPol (Å3)
AP4PTPM6−7.168−0.8466.322−19082.6816440.61264.16283.672.8742.6430.58
PM3−4.986−2.2192.767−18634.2416068.10264.16283.676.5492.6430.58
AMI−7.390−0.5226.868−19175.6516316.84264.16283.673.0502.6430.58
RMI−7.197−0.4506.747−19276.0516439.86264.16283.673.4732.6430.58
MNDO−7.441−0.5316.910−19245.1416350.65264.16283.673.0762.6430.58
HP4PTPM6−7.658−0.8966.762−19094.7516353.37263.66282.724.5173.3329.86
PM3−7.769−1.0586.711−18716.6216028.44263.66282.724.6423.3329.86
AMI−7.854−0.5387.316−19220.3016260.58263.66282.724.5503.3329.86
RMI−7.678−0.4817.197−19304.3716375.01263.66282.725.0673.3329.86
MNDO−7.889−0.5467.343−19290.7916293.87263.66282.724.4603.3329.86
D4PTPM6−7.927−0.9406.987−17084.5414634.46254.24270.424.8703.5029.23
PM3−8.014−1.1316.883−16675.3414280.63254.24270.425.0983.5029.23
AMI−8.103−0.5987.505−17145.8914506.42254.24270.424.8543.5029.23
RMI−7.914−0.5377.377−17240.0914627.01254.24270.425.3073.5029.23
MNDO−8.112−0.6057.507−17213.0714538.32254.24270.424.8063.5029.23
Table Table 5. Correlation coefficients, r (degree of linearity, R2) between quantum chemical parameters and experimental inhibition efficiencies of the studied thiosemicarbazides.

Click here to display table

Table 5. Correlation coefficients, r (degree of linearity, R2) between quantum chemical parameters and experimental inhibition efficiencies of the studied thiosemicarbazides.
Quantum parametersPM6PM3AM1RM1MNDO
EHOMO(eV)0.9916 (0.9971)0.9917 (0.9481)0.8800 (0.9977)0.9362 (0.993)0.8669 (0.9910)
ELUMO(eV)−0.998 (0.9665)−0.994 (0.8766)−0.9983 (0.7326)−0.9989 (0.8538)−0.9980 (0.7254)
ELUMO-HOMO(eV)−0.7678 (0.9987)−0.5319 (0.931)−0.7552 (0.9999)−0.7410 (0.9995)−0.7420 (0.9989)
EE (eV)0.7977 (0.5357)0.5777 (0.5053)0.7847 (0.5221)0.7733 (0.5290)0.7730 (0.5217)
CC (eV)0.7989 (0.5834)0.5982 (0.5602)0.7953 (0.5681)0.7816 (0.5722)0.7838 (0.5683)
cosAr (Å2)0.8104 (0.5853)0.6138 (0.5853)0.8071 (0.5853)0.7936 (0.5853)0.7958 (0.5853)
cosVol (Å3)−0.9819 (0.6045)0.9542 (0.6045)−0.9814 (0.6045)−0.9784 (0.6045)−0.9899 (0.6048)
μ (Debye)−0.9857 (0.9815)−0.9934 (0.7412)−0.9867 (0.9792)−0.9901 (0.9672)−0.9896 (0.9874)
logP0.9918 (0.9868)0.9162 (0.9868)0.9910 (0.9668)0.9878 (0.9668)0.9884 (0.9868)
Polarizability (Å2)0.9985 (0.9671)0.9737 (0.9671)0.9989 (0.9671)0.9997 (0.9671)0.9960 (0.9671)
Table Table 6. Theoretical inhibition efficiencies of the studied thiosemicarbazides obtained from various models.

Click here to display table

Table 6. Theoretical inhibition efficiencies of the studied thiosemicarbazides obtained from various models.
InhibitorC (M)PM6 (%)PM3 (%)AM1 (%)RM1 (%)MNDO (%)
AP4PT4 × 10−490.9891.1890.3791.2091.31
8 × 10−495.2795.3994.9495.4095.46
12 × 10−496.8096.8896.5796.8896.92
16 × 10−497.5897.6497.4097.6497.68
20 × 10−498.0598.1097.9198.1198.13

HP4PT4 × 10−491.3090.4091.3091.1191.35
8 × 10−495.4594.9695.4595.3495.48
12 × 10−496.9296.5896.9296.8496.94
16 × 10−497.6797.4197.6797.6197.68
20 × 10−498.1397.9298.1398.0898.14

D4PT4 × 10−491.2890.3991.2891.0791.32
8 × 10−495.4494.9595.4495.3395.47
12 × 10−496.9196.5896.9296.8396.93
16 × 10−497.6797.4197.6797.6197.68
20 × 10−498.1397.9298.1398.0898.14
Table Table 7. Calculated quantum chemical descriptors for the studied thiosemicarbazides.

Click here to display table

Table 7. Calculated quantum chemical descriptors for the studied thiosemicarbazides.
InhibitorModelEN (eV)EN− 1(eV)EN+ 1(eV)IP (eV)EA (eV)η (eV)S (/eV)χ (eV)δ
AP4PTPM6−2642.06−2635.75−2643.146.311.085.230.193.690.3160
PM3−2566.14−2562.45−2570.285.692.143.550.283.920.4345
AM1−2858.81−2852.21−2858.916.600.106.500.153.350.2808
RM1−2836.25−2829.91−2837.336.341.085.260.193.710.3127
MNDO−2894.50−2887.83−2895.066.670.566.110.163.620.2770
HP4PTPM6−2741.38−2734.67−2743.096.711.715.000.204.210.2790
PM3−2688.18−2681.28−2687.196.90−0.997.890.132.950.2563
AM1−2959.71−2952.78−2959.766.930.056.880.153.490.2551
RM1−2929.36−2922.64−2930.426.721.065.660.183.890.2747
MNDO−2996.92−2989.95−2997.486.970.566.410.163.770.2523
D4PTPM6−2450.08−2443.10−2451.816.981.735.250.194.360.2519
PM3−2394.72−2387.57−2395.947.151.225.930.174.180.2374
AM1−2639.48−2632.31−2639.637.170.157.020.143.660.2379
RM1−2613.08−2606.13−2614.176.951.095.860.174.020.2543
MNDO−2674.75−2667.56−2675.367.190.616.580.153.900.2356
Table Table 8. Fukui and global softness indices for nucleophilic and electrophilic attacks in HP4PT calculated from Mulliken (Lowdin) charges.

Click here to display table

Table 8. Fukui and global softness indices for nucleophilic and electrophilic attacks in HP4PT calculated from Mulliken (Lowdin) charges.
Atom (No)fx+ (|e|)fx (|e|)Sx+ (eV|e|)Sx (eV|e|)
1 N–0.0245(−0.0346)0.5191(0.3439)–0.0059(−0.0083)0.0825(0.1246)
2 N–0.0023(0.0003)2.7382(2.8610)–0.0006(0.0001)0.6866(0.6572)
3 C0.0009(0.0042)–3.5149(−3.1289)0.0002(0.0010)–0.7509(−0.8436)
4 N0.0011(0.0071)–5.1867(−4.9549)0.0003(0.0017)–1.1892(−1.2448)
5 S–0.1030(−0.0974)1.6665(1.3058)–0.0247(−0.0234)0.3134(0.4000)
6 C–0.0198(−0.0132)–3.8634(−3.9023)–0.0048(−0.0032)–0.9366(−0.9272)
7 C–0.0841(−0.1110)–4.0753(−4.0663)–0.0202(−0.0266)–0.9759(−0.9781)
8 C–0.1022(−0.1425)–4.0387(−4.0031)–0.0245(−0.0342)–0.9607(−0.9693)
9 C0.0000(0.0131)–4.0731(−4.0514)0.0000(0.0031)–0.9723(−0.9775)
10 C–0.0928(−0.1269)–4.0352(−4.0019)–0.0223(−0.0305)–0.9605(−0.9684)
11 C–0.1004(−0.1281)–4.0622(−4.1127)–0.0241(−0.0307)–0.9870(−0.9749)
12 C–0.0070(−0.0075)4.1171(4.0717)–0.0017(−0.0018)0.9772(0.9881)
13 C–0.0086(−0.0082)4.1127(4.0689)–0.0021(−0.0020)0.9765(0.9870)
14 C–0.0084(−0.0103)3.9200(3.9422)–0.0020(−0.0025)0.9461(0.9408)
15 C–0.0070(−0.0085)3.9152(3.9360)–0.0017(−0.0020)0.9446(0.9396)
16 C–0.0048(−0.0045)3.9426(3.9744)–0.0012(−0.0011)0.9539(0.9462)
17 C0.0012(0.0057)3.9019(3.9011)0.0003(0.0014)0.9363(0.9365)
18 O–0.0010(−0.0014)1.6743(1.7849)–0.0002(−0.0003)0.4284(0.4018)
Table Table 9. Fukui and global softness indices for nucleophilic and electrophilic attacks in D4PT calculated from Mulliken (Lowdin) charges.

Click here to display table

Table 9. Fukui and global softness indices for nucleophilic and electrophilic attacks in D4PT calculated from Mulliken (Lowdin) charges.
Atom (No)fx+ (|e|)fx (|e|)Sx+ (eV|e|)Sx (eV|e|)
1 N–0.0460(−0.0547)–0.0527(−0.0617)–0.0017(−0.0021)–0.0020(−0.0023)
2 N0.0059(0.0104)–0.0063(−0.0101)0.0002(0.0004)–0.0002(−0.0004)
3 C–0.1280(−0.1782)0.0106(0.0241)–0.0049(−0.0068)0.0004(0.0009)
4 N0.0241(0.0366)–0.0263(−0.0361)0.0009(0.0014)–0.0010(−0.0014)
5 S–0.2715(−0.2551)–0.5881(−0.6199)–0.0103(−0.0097)–0.0223(−0.0236)
6 C–0.0031(−0.0016)0.0143(0.0227)–0.0001(−0.0001)0.0005(0.0009)
7 C–0.0158(−0.0174)–0.0167(−0.0201)–0.0006(−0.0007)–0.0006(−0.0008)
8 C–0.0097(−0.0110)–0.0057(−0.0049)–0.0004(−0.0004)–0.0002(−0.0002)
9 C–0.0213(−0.0275)–0.0245(−0.0317)–0.0008(−0.0010)–0.0009(−0.0012)
10 C–0.0070(−0.0059)–0.0048(−0.0030)–0.0003(−0.0002)–0.0002(−0.0001)
11 C–0.0069(−0.0075)–0.0151(−0.0183)–0.0003(−0.0003)–0.0006(−0.0007)
12 C–0.0653(−0.0862)0.0082(0.0217)–0.0025(−0.0033)0.0003(0.0008)
13 C–0.0207(−0.0232)–0.0251(−0.0298)–0.0008(−0.0009)–0.0010(−0.0011)
14 C–0.0256(−0.0293)–0.0052(−0.0026)–0.0010(−0.0011)–0.0002(−0.0001)
15 C–0.0359(−0.0483)–0.0268(−0.0342)–0.0014(−0.0018)–0.0010(−0.0013)
16 C–0.0263(−0.0291)–0.0047(0.0006)–0.0010(−0.0011)–0.0002(0.0000)
17 C–0.0251(−0.0269)–0.0456(−0.0579)–0.0010(−0.0010)–0.0017(−0.0022)
Table Table 10. Fukui and global softness indices for nucleophilic and electrophilic attacks in AP4PT calculated from Mulliken (Lowdin) charges.

Click here to display table

Table 10. Fukui and global softness indices for nucleophilic and electrophilic attacks in AP4PT calculated from Mulliken (Lowdin) charges.
Atom (No)fx+ (|e|)fx (|e|)Sx+ (eV|e|)Sx (eV|e|)
1 N–0.0239(−0.0340)–0.0113(−0.0051)–0.0045(−0.0065)–0.0022(−0.0010)
2 N–0.0034(−0.0010)–0.1666(−0.2265)–0.0007(−0.0002)–0.0317(−0.0430)
3 C0.0011(0.0044)–0.0009(0.0002)0.0002(0.0008)–0.0002(0.0000)
4 N0.0009(0.0070)–0.0148(−0.0176)0.0002(0.0013)–0.0028(−0.0033)
5 S–0.1005(−0.0948)–0.1067(−0.1053)–0.0191(−0.0180)–0.0203(−0.0200)
6 C–0.0178(−0.0102)0.0055(0.0130)–0.0034(−0.0019)0.00105(0.0025)
7 C–0.0879(−0.1168)–0.0190(−0.0230)–0.0167(−0.0222)–0.0036(−0.0044)
8 C–0.1014(−0.1408)–0.0069(−0.0064)–0.0193(−0.0268)–0.0013(−0.0012)
9 C0.0007(0.0142)–0.0194(−0.0237)0.0001(0.00270)–0.0037(−0.0045)
10 C–0.0947(−0.1304)–0.0013(0.0032)–0.0180(−0.0248)–0.0003(0.0006)
11 C–0.0990(−0.1257)–0.0272(−0.0362)–0.0188(−0.0239)–0.0052(−0.0069)
12 C0.0020(0.0051)–0.0074(−0.0025)0.0004(0.0010)–0.0014(−0.0005)
13 C–0.0106(−0.0116)–0.0261(−0.0257)–0.0020(−0.0022)–0.0050(−0.0049)
14 C–0.0075(−0.0088)–0.0221(−0.0227)–0.0014(−0.0017)–0.0042(−0.0043)
15 C–0.0123(−0.0155)–0.0487(−0.0639)–0.0023(−0.0030)–0.0093(−0.0121)
16 C–0.0015(0.0004)–0.0255(−0.0282)–0.0003(0.0001)–0.0049(−0.0054)
17 C–0.0041(−0.0018)–0.0553(−0.0682)–0.0008(−0.0003)–0.0105(−0.0130)
18 N–0.0036(−0.0042)–0.6434(−0.4673)–0.0007(−0.0008)–0.1223(−0.0888)
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
