Article

3-(2-Alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones - Synthesis and Photosynthesis-Inhibiting Activity in Spinach Chloropasts

Institute of Chemistry, Faculty of Natural Sciences, Comenius University, Mlynska dolina CH-2, SK- 842 15 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Molecules 1999, 4(3), 73-80; https://doi.org/10.3390/40300073
Submission received: 12 May 1998 / Accepted: 5 March 1999 / Published: 29 March 1999

Abstract

:
The synthesis and photosynthesis-inhibiting activity of 14 new 3-(2-alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones are reported. The new compounds were prepared by the reaction of 2-alkylsulfanyl-6-aminobenzothiazoles with 3-hydroxymethyl-2-benzoxazolethione. The structures of the compounds were verified by 1H NMR spectra. The compounds inhibit photosynthetic electron transport in spinach chloroplasts. The photosynthetic activity was found to depend on the calculated lipophilicity of the new compounds. Some structure characteristics and quantum chemical  parameters  were calculated by AM1 method.

Introduction

Benzothiazole derivatives have shown a large scale of biological activities. 2-Alkylsulfanyl-6-aminobenzothiazoles [1] and their derivatives substituted at the amino group [2] are of interest both for agricultural and pharmaceutical chemistry.
3-(2-Alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzothiazolethiones [3] have shown antifungal and anticandidous [4,5] activities. The compounds were not stable enough on longer storing. Replacing one sulphur atom in the heterocyclic system by an oxygen atom perfectly solved the stability of the products. All the same, the change was unadvantageous for the anticandidous activity.
Various derivatives of 2-alkylsulfanyl-6-aminobenzothiazoles substituted at the amino group were found to inhibit photosynthetic processes in spinach chloroplasts and the chlorophyll production in algae Chlorella vulgaris [6,7,8]. Photosynthesis-inhibiting activity of the above compounds showed the so-called "cut off" effect - a decreased activity for the more lipophilic substances in the series.

Results and Discussion

This work, based on 14 new 3-(2-alkysulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones (Scheme 1, Table 1) is focused on their inhibitory effect on the photosynthetic electron transport in spinach chloroplasts.
The compounds have been synthesized by reaction of 2-alkylsulfanyl-6-aminobezothiazoles [1] with 3-hydroxymethyl-2-benzoxazolethione (Scheme 2).
The structures of the new compounds have been verified by 1H NMR spectroscopy. The 1H NMR spectra showed a doublet signal in the range of 5.79 - 5.77 δ belonging to the NCH2 group with J = 7.1 - 6.8 Hz, a multiplet of aromatic protons in the range of 7.9 - 6.9 δ and the signals of alkyl groups, which were in accordance with the values of δ given in literature [9]. The signal of the NH group was partially overlapped by the aromatic signals.
The structures and the atomic charges of the synthesized compounds were calculated by quantum chemical AM1 method [12]. The calculated torsion angles between benzothiazolyl and benzoxazolyl parts were in the range 80 - 82° and the alkylsulfanyl substituents were in the plane of the thiazolyl rings (Figure 1) except for cyclopentyl (19°) and benzyl (89°).
The changes of the atomic charges in all positions are very small. Atomic charges on C at position 6 are in the range 0.035 - 0.054 and at position 2 in the range -0.390 — -0.404. Similar differences are on all atoms.
The inhibition of the photosynthetic electron transport in spinach chloroplasts was monitored by reduction of DCPIP in the presence of the studied compounds. The inhibitory activity has been expressed by IC50 values, i.e. by concentrations of the inhibitors causing 50 % decrease of the oxygen evolution rate (OER) as compared with the untreated control sample (Table 2).
The dependence of the photosynthesis-inhibiting activity on the calculated lipophilicity [13] of the studied compounds showed a quasi - parabolic course with the maximum activity for the pentyl derivative (IC50 = 56 μmol dm-3). The least lipophilic compounds, methyl (1) and hydroxyethyl (14) derivatives did not inhibit oxygen evolution rate in spinach chloroplasts. It can be assumed that the passage of these compounds (log P = 3.64 and 3.20 respectively) through the lipophilic regions of thylakoid membranes is limited, what results in an insufficient number of inhibitors reaching the site of action in proteins situated on the inner side of thylakoid membrane. The decrease of the inhibitory activity with more lipophilic compounds (log P > 5.25) is probably connected with the too high lipophilicity of these compounds causing a limited penetrability through the hydrophilic regions of thylakoid membranes. Similar results were also obtained for the dependence of photosynthesis-inhibiting activity on the lipophilicity for several homologous series of NH2-substituted 2-alkylsulfanyl-6-aminobenzothiazoles [6,7,8], including 3-(2-alkylsulfanyl-6-benzothiazolylamino-methyl)-2-benzothiazolethiones [7,8]. Based on the results obtained with EPR spectroscopy it has been shown that the site of action of the above benzothiazole derivatives in the photosynthetic apparatus of spinach chloroplasts is the donor side of photosystem 2, upstream of the site of diphenylcarbazide action, i.e. in the oxygen evolving complex [7]. Significant dependence of the OER inhibitory activity in spinach chloroplasts upon the lipophilicity of the compounds was found also with 2-(6-acetamidobenzothiazole-thio) acetic acid esters [10], what means broadening of the variability of substituents for compounds with OER inhibiting activity by the alkoxycarbonylmethylsulfanyl group at position 2 of the benzothiazole skeleton.
The relatively small differences between charge densities of atoms do not allow meaningful correlation between biological activity and theoretical parameters. The parabolic dependence of the calculated log P on the biological activity has high statistical significance.
log(1/IC50) = (2.553±0.245)log P - (0.240±0.026)log2 P - 2.578
r = 0.965 s = 0.189 F = 58.0 n = 12
The bilinear model [14,15] gave statistically more significant results, the best value of the lipophilicity (log P0) was also calculated.
log(1/IC50) = (0.821±0.075)log P - (1.276±0.107)log(β+1) + 0.540
r = 0.971 s = 0.049 F = 74.9 n = 12 log P0 = 5.18 β = 1.202 . 10-5
The F-test value is statistically significant at the 99.5 % level of probability. The biological efficiency of the molecule decreases when the value calculated for log P is lower or higher than the value calculated for log P0. The compound 7 (R = -(CH2)4CH3) has the best biological activity.

Experimental

General

The starting 2-alkylsulfanyl-6-aminobenzothiazoles were synthesized according to [1]. 3-Hydroxymethyl-2-benzoxazolethione was prepared by the method described in [11]. Melting points were determined on a Kofler hotstage apparaturs and are uncorrected. 1H NMR spectra were obtained on a TESLA BS 587 spectrometer (80 MHz) in deuterated dimethylsulfoxide (DMSO) solution. Tetramethylsilane was used as inner standard.
The inhibitory effect of the studied compounds on the rate of photosynthetic electron transport in spinach chloroplasts was investigated spectrophotometrically (Specord UV VIS, Zeiss Jena, Germany) in the presence of electron acceptor 2,6-dichlorophenol-indophenol (DCPIP) immediately after treating the chloroplast suspension with the inhibitor. The measurements were carried out in phosphate buffer (20 mmol, pH = 7.2) containing sucrose (0.4 mol dm-3), MgCl2 (5 mmol dm-3) and NaCl (15 mmol dm-3) and the chlorophyll content in the suspension was 30 mg dm-3. The samples were irradiated (~100 W m-2) from 10 cm distance with a halogen lamp (250 W) using water filter to exclude warming of the samples. The applied DMSO concentration (up to 5 %) did not affect the oxygen evolution rate.
Structures and atomic charges were calculated by quantum chemical AM1 method with standard parametrization and full optimalization (keyword PRECISE) [12]. Log P were found by Crippen°s method [13].

3-(2-Alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones 1 – 14

The mixture of 2-alkylsulfanyl-6-aminobenzothiazole (0.02 mol) and 3-hydroxymethyl-2-benzoxazolethione (0.02 mol, 3.4 g) was refluxed in ethanol (50 cm3) for 5 min. After cooling the reaction mixture to 4 °C the product was filtered off and washed with the mixture of isohexane and cyklohexane (2 : 1).

Acknowledgements

Our thanks are due to Dr. E. Solcaniova and Dr. E. Greiplova for 1H NMR spectra and elemental analysis (Institute of Chemistry, Faculty of Natural Sciences, Comenius University, Brati-slava). Financial support for this research by the Slovak Grant Agency (grant No. 1/4013/97 and 1/5085/98) gratefully acknowledged.

References and Notes

  1. Sidoova, E.; Odlerova, Z.; Volna, F.; Blockinger, G. Chem. Zvesti 1979, 33, 830.
  2. Sidoova, E. Chem. Listy 1993, 87 (Supplementum), 231.
  3. Sidoova, E.; Bujdakova, H.; Kralova, K. SK Pat 278095, 1995.
  4. Bujdakova; Kralova, K.; Sidoova, E. Pharmazie 1994, 49, 375.
  5. Bujdakova; Kralova, K.; Sidoova, E. Pharmazie 1995, 50, 156.
  6. Kralova, K.; Sersen, F.; Sidoova, E. Chem. Papers 1992, 46, 348.
  7. Kralova, K.; Sersen, F.; Sidoova, E. Gen. Physiol. Biophys. 1993, 12, 421.
  8. Kralova, K.; Sersen, F.; Loos, D.; Sidoova, E. Chem. Papers 1994, 48, 198.
  9. Gunther, H. NMR Spectroscopy; John Wiley: Chichester, 1995; p. 102. [Google Scholar]
  10. Sidoova, E.; Kralova, K.; Loos, D. Molecules 1998, 3, 135.
  11. Stavrovskaya, V.I.; Kolosova, M.O. Zh. Obshch. Khim. 1960, 30, 689.
  12. AMPAC 5.0, 1994 Semichem, 7128 Summit, KS 66216
  13. Ertl, P. Chem. Listy 1992, 86, 465.
  14. Kubyni, H. Arzneim-Forsch. (Drug. Res.) 1976, 26, 1991.
  15. Kubyni, H.; Kehrhan, O.H. Arzneim-Forsch. (Drug. Res.) 1978, 28, 598.
  • Samples Availability: Available from the authors.

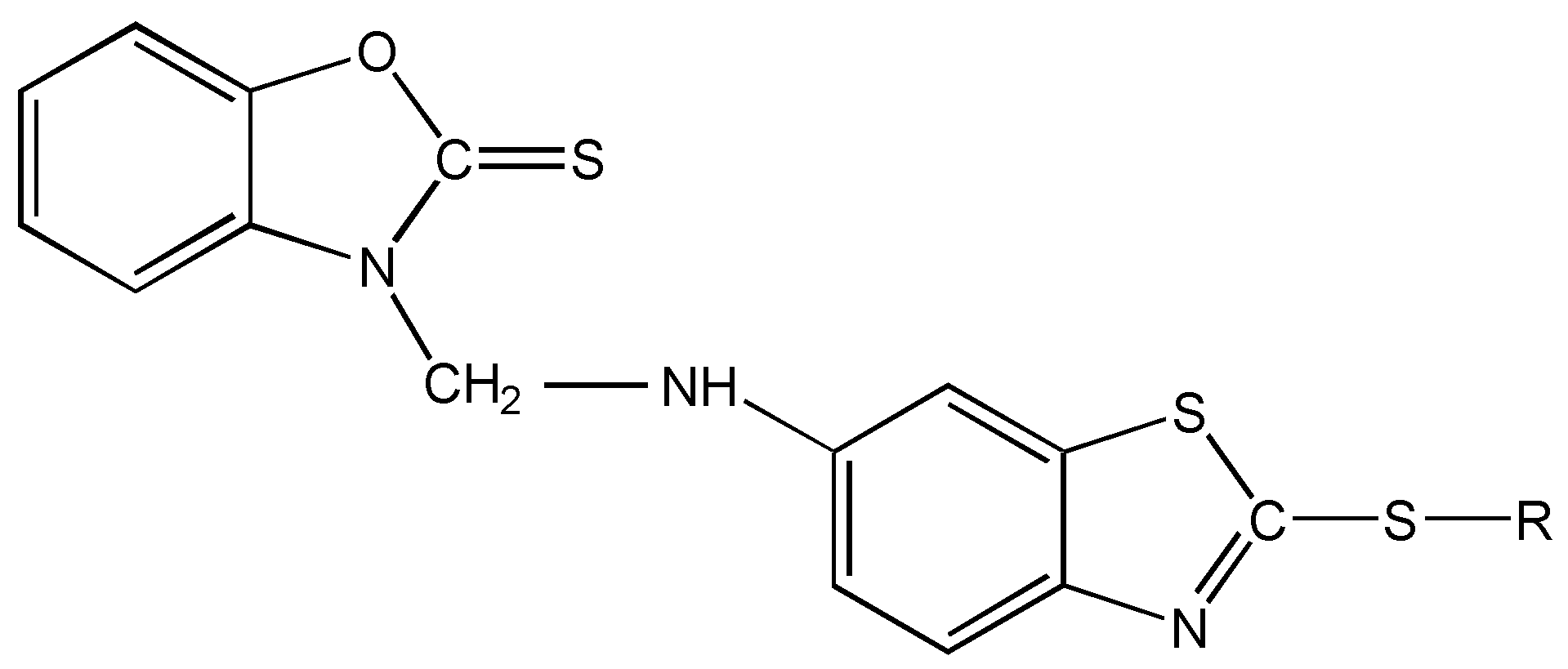

Scheme 1.
Scheme 1.
Molecules 04 00073 sch001

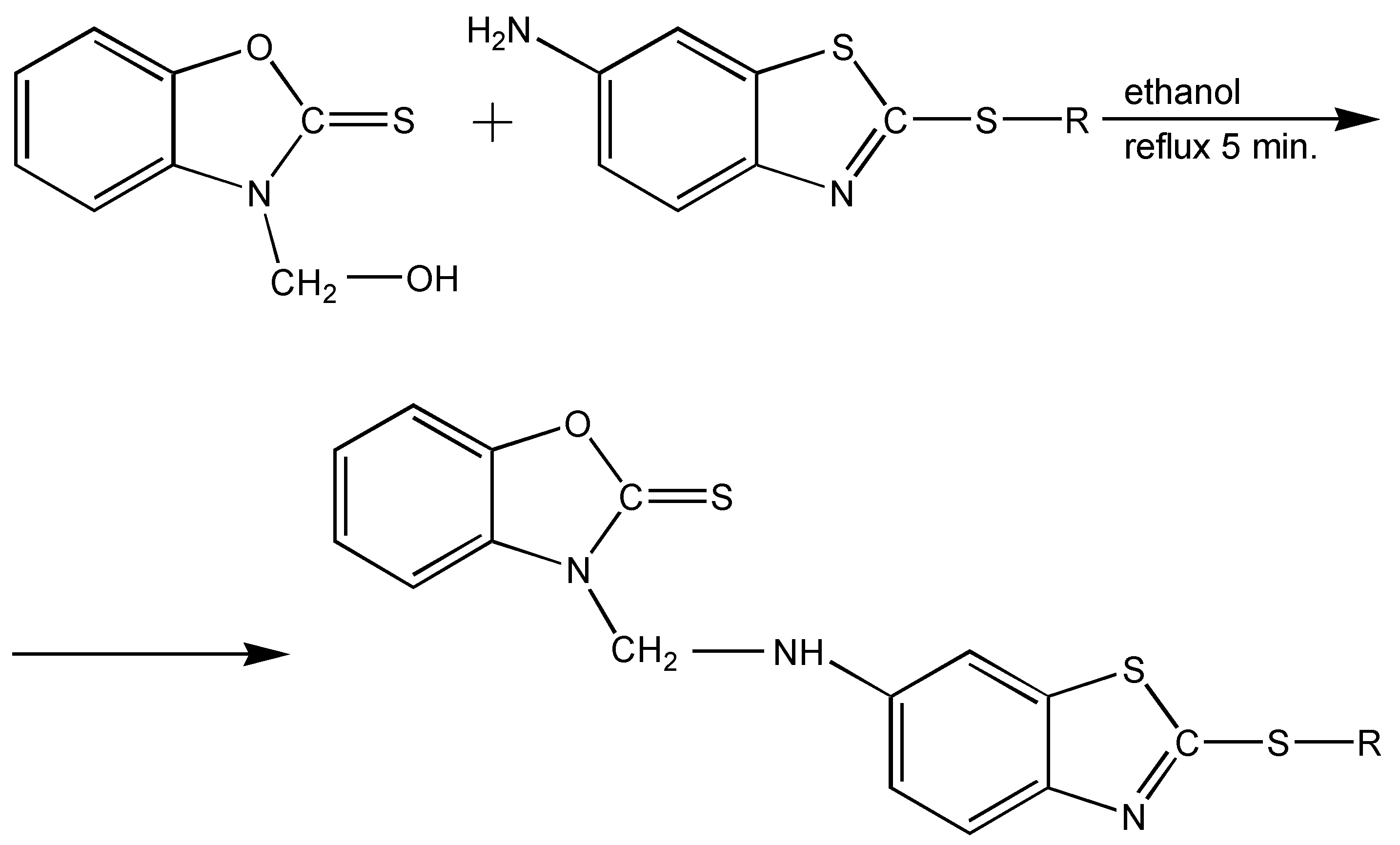

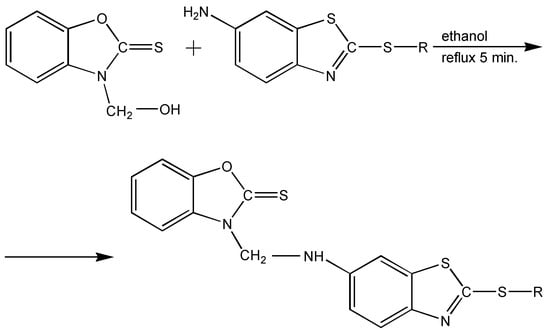

Scheme 2.
Scheme 2.
Molecules 04 00073 sch002

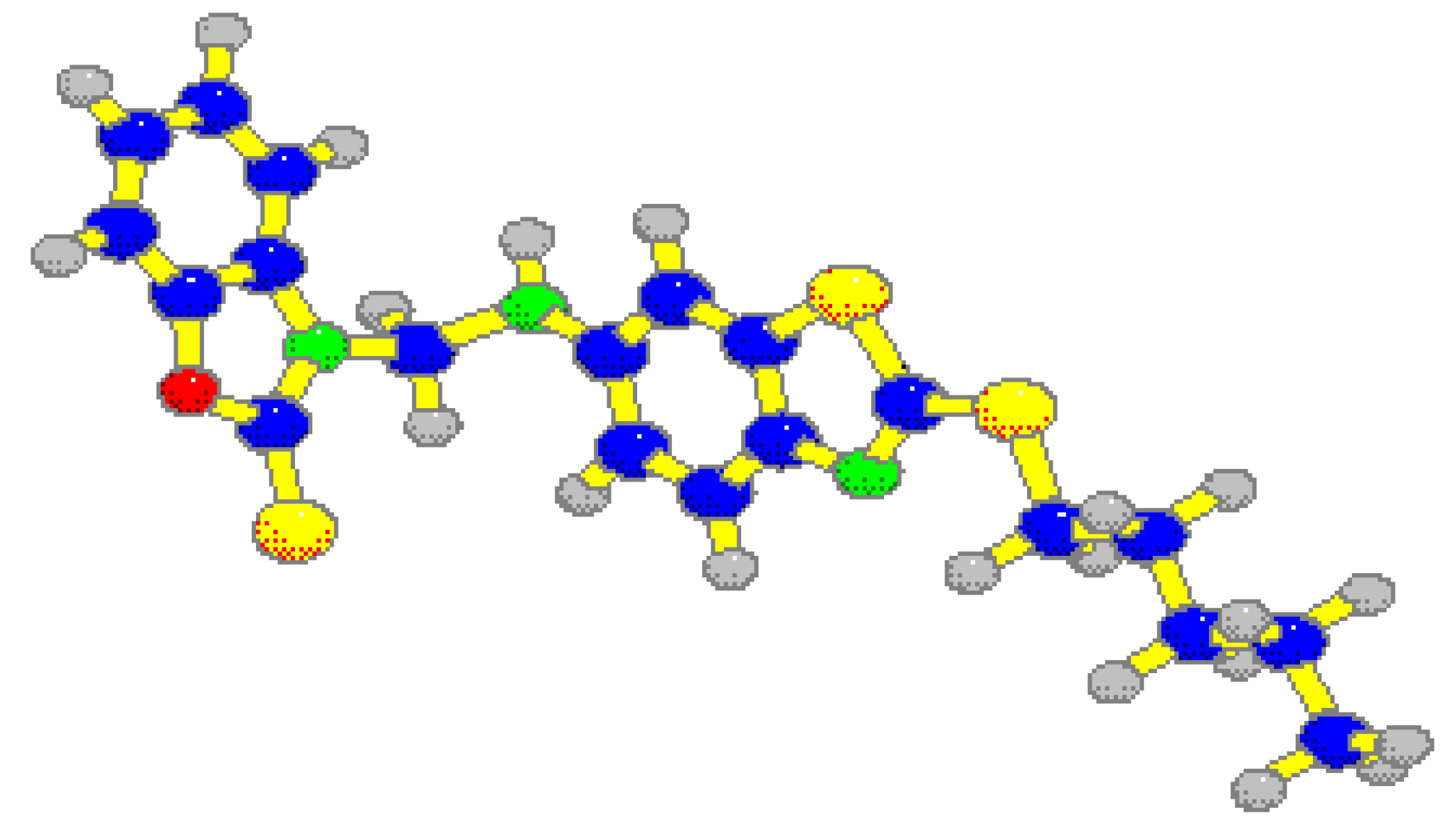

Figure 1. Scheme of the most active compound (7, R = - (CH2)4CH3). Oxygen is indicated by red, nitrogen by green and sulphur by yellow colour.
Figure 1. Scheme of the most active compound (7, R = - (CH2)4CH3). Oxygen is indicated by red, nitrogen by green and sulphur by yellow colour.
Molecules 04 00073 g001
Table 1. Characterisation of the prepared 3-(2-alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones.
Table 1. Characterisation of the prepared 3-(2-alkylsulfanyl-6-benzothiazolylaminomethyl)-2-benzoxazolethiones.
Comp.RFormulaWi (calc) % / Wi (found) %YieldM.p.
MrCHNS%°C
1-CH3C16H13N3OS3
359.49
53.46
53.54
3.65
3.67
11.69
11.68
26.76
26.71
88.9192-194
2-C2H5C17H15N3OS3
373.52
54.67
54.90
4.05
3.99
11.25
11.31
25.75
25.53
86.6169.0- 170.5
3-(CH2)2CH3C18H17N3OS3
389.33
55.99
55.97
4.40
4.33
10.79
10.90
24.71
24.63
69.2167.5- 169.0
4-C3H5aC18H15N3OS3
387.31
56.28
56.29
3.90
3.89
10.85
10.94
24.84
25.12
84.0155-157
5-(CH2)3CH3C19H19N3OS3
401.57
56.83
56.54
4.77
4.67
10.46
10.30
23.95
23.93
85.0159-160
6-C4H9bC19H19N3OS3
401.57
56.83
56.98
4.77
4.75
10.46
10.47
23.95
24.26
63.4166.5- 168.5
7-(CH2)4CH3C20H21N3OS3
415.60
57.80
57.97
5.09
5.10
10.11
10.16
23.15
23.29
70.9150.0- 152.5
8-CH(CH2)4cC20H19N3OS3
413.58
58.08
58.12
4.63
4.56
10.16
10.14
23.26
23.28
74.9179.5- 181.5
9-(CH2)5CH3C21H23N3OS3
429.63
58.71
58.78
5.40
5.44
9.78
9.78
22.39
22.03
82.0156.5- 158.5
10 -(CH2)6CH3C22H25N3OS3
443.65
59.56
59.68
5.68
5.60
9.47
9.46
21.68
21.85
86.7 149.5-151.0
11 -(CH2)7CH3C23H27N3OS3
457.68
60.36
60.48
5.95
5.89
9.18
9.08
21.02
21.40
87.4 151-152
12 -(CH2)8CH3C24H29N3OS3
471.71
61.11
61.11
6.20
6.22
8.91
8.88
20.39
20.31
79.5 143-145
13 -CH2-C6H5C22H17N3OS3
435.59
60.66
60.46
3.93
3.88
9.65
9.56
22.08
21.87
75.6 151.5-153.5
14-C2H4OHdC17H15N3O2S3
389.52
52.42
52.13
3.88
3.83
10.79
10.87
24.70
24.69
68.0 165.0-167.5
aallyl; bsec – butyl; ccyclopentyl; d2-hydroxyethyl.
Table 2. Experimental values of IC50 of the studied compounds concerning oxygen evolution rate inhibition in spinach chloroplasts and calculated log P.
Table 2. Experimental values of IC50 of the studied compounds concerning oxygen evolution rate inhibition in spinach chloroplasts and calculated log P.
Comp.log PIC50a (μmol dm-3)
13.64-
23.98183
34.4574
44.38113
54.8577
64.8768
75.2556
84.8363
95.6475
106.0490
116.43124
126.83208
135.4263
143.20-
aIC50 - molar concentration of the inhibitor causing 50 % decrease of activity against control
