Sulphur vs NH Group: Effects on the CO₂ Electroreduction Capability of Phenylenediamine-Cp Cobalt Complexes

Abstract

The cobalt complex (I) with cyclopentadienyl and 2-aminothiophenolate ligands was investigated as a homogeneous catalyst for electrochemical CO₂ reduction. By comparing its behavior with an analogous complex with the phenylenediamine (II), the effect of sulfur atom as a substituent has been evaluated. As a result, a positive shift of the reduction potential and the reversibility of the corresponding redox process have been observed, also suggesting a higher stability of the compound with sulfur. Under anhydrous conditions, complex I showed a higher current enhancement in the presence of CO₂ (9.41) in comparison with II (4.12). Moreover, the presence of only one -NH group in I explained the difference in the observed increases on the catalytic activity toward CO₂ due to the presence of water, with current enhancements of 22.73 and 24.40 for I and II, respectively. DFT calculations confirmed the effect of sulfur on the lowering of the energy of the frontier orbitals of I, highlighted by electrochemical measurements. Furthermore, the condensed Fukui function f ⁻ values agreed very well with the current enhancement observed in the absence of water.

1. Introduction

Carbon dioxide (CO₂), produced by both nature and human activities such as fossil fuel combustion and industrial processes, is the largest contributor among greenhouse gases to the well-known problem of global warming. On the other hand, CO₂ is also considered as one of the most abundant and accessible carbon sources. Indeed, under appropriate conditions, it could be used as a fossil-free building block for the preparation of more complex derivatives and intermediates [1,2,3], even at lower costs, than those on the current market [4]. Therefore, for both environmental and economic reasons, catalysts able to reduce CO₂ with high efficiency and selectivity are strongly desired [5].

Because of its high stability, the conversion of CO₂ to compounds with the carbon atom in a lower oxidation state requires a large amount of energy to be achieved. Among other approaches, electrochemistry seems to be a very promising method for carbon dioxide reduction because of its versatility, simplicity, and cleanness [6,7,8,9,10,11]. Moreover, alternative and eco-sustainable methods for producing energy allow the use of electricity to become both economically and environmentally more sustainable and convenient. In fact, the cost of wind- and solar-generated electricity can be competitive with fossil fuel-based electricity generation technologies [12]. Furthermore, in periods of low consumption, the excess of electricity produced from renewable sources can be stored through electrochemical reactions, allowing overcoming disadvantages, such as variability and unpredictability, related to the above-mentioned renewable energy sources. From an electrochemical point of view, the reduction of CO₂ is not thermodynamically favored due to the CO₂-to-CO₂^•− single-electron reduction step, which requires a high reductive potential to occur, mainly because of the large reorganization energy associated [8]. This reaction affects the global process with severe kinetics drawbacks despite the promising thermodynamic equilibrium potential values of other reduction products. In addition, other side reactions can be promoted and actively compete with CO₂ reduction. For example, hydrogen evolution reaction (HER) is very favored in aqueous solvents and with most of the electrodes and conditions. For these reasons, there is an increasing interest in the development of suitable electrocatalysts that combine high activity and selectivity to improve the efficiency and selectivity towards a specific product [12,13,14].

Metal complex-based electrocatalysts are a wide class of catalysts that have been proved to be a good option in relation to the versatility and tunability of their properties by a suitable choice of the metal center and a proper ligand design [15,16,17,18,19,20]. Although CO₂ is substantially considered a weak ligand due to its general chemical stability [21], several CO₂−metal adducts have been isolated showing both electrophilic and nucleophilic characteristics [22]. The formation of such adducts is generally recognized as a first and necessary condition for the catalysis to take place: for this reason, a good choice of the ligand and the metal play a crucial role in the reactivity of these intermediates.

In this context, a biomimetic approach based on the use of “non-innocent” (redox-active) ligands could have a beneficial effect: in fact, in this kind of complexes, in addition to the metal, the ligand moiety also contributes to the redox activity of the molecular catalyst accepting and donating electrons [23,24,25,26,27,28,29,30]. This feature makes possible redox processes that involve multiple electrons also in complexes of metals which typically show one-electron redox activity (for example Fe, Cu, and Co), avoiding the use of catalysts based on precious and expensive metals such Pd, Pt, Rh, and Ir [31,32]. Moreover, in the specific case of CO₂ reduction, the presence of “non-innocent” ligands in the molecule of the catalyst increases the selectivity toward CO₂ reduction against HER. Indeed, the capability of “non-innocent” ligands to store electrons prevents a double reduction of the metal center which is necessary for the formation of the metal hydride [33,34]. Furthermore, the increased electron density on the reduced ligand can favor the stabilization of the adduct with CO₂ via σ and π interactions [21,22,23,35].

Recently, we reported a study [36] on the homogeneous electrochemical reduction of CO₂, using four heteroleptic complexes ([CpCo(R_nL_NN)]) of an Earth-abundant metal, such cobalt, bearing two “non-innocent” ligands: cyclopentadienyl (Cp) and R_n-o-phenylenediamine (R_nL_NN) (n = 4, R = H or F; n = 1, R = p-COOH or p-NO₂) [37,38,39,40]. Therein, we focused the attention on the effects of different kinds of electron-withdrawing substituents (-F, -COOH, and -NO₂) on the phenylenediamine ring. The presence of these groups affects the electronic properties of the ligand, lowering the energy of the frontier orbitals and, consequently, facilitating the complex reduction. All the investigated compounds showed good electrocatalytic capability; in particular, the tetrafluorinated derivative proved to be the most effective one, with a 31-fold enhancement of the reduction current intensity in the presence of CO₂ and water.

In this paper, we investigated the effect, induced by the replacement of one of the two amino groups of the phenylenediamine ligand with a sulfur atom, on the electrochemical and catalytic properties of this class of Co complexes. The replacement of a nitrogen donor with a bigger and more polarizable sulfur atom should affect the ligand’s redox-active characteristics, such as the efficiency in stabilizing charges and its capability as a supplier and/or storage of electrons [41,42,43,44]. Moreover, the presence of d-orbitals on the sulfur atom could play an important role on the catalyst−CO₂ interactions and on the stability of such an adduct. Furthermore, in the literature, it has been pointed out that the presence of amino groups close to the metal center can play a key role in the overall reduction of CO₂ [24,45,46,47]. These groups indeed, similar to the hydroxyl functionality [48,49,50], can act as a proton relay and stabilize the intermediates of the reaction by hydrogen bond interactions. For these reasons, we prepared the complex [CpCo(L_NS)] (I), as summarized in Scheme 1, with the ligand 2-aminobenzenthiolate (L_NS) which has one sulfur atom and a N-H group as donor units. This compound was experimentally studied by means of electrochemical techniques to establish its electrochemical behavior and its potential as an electrochemical catalyst for the CO₂ reduction reaction. In addition, a computational study was performed by using the density functional theory calculations (DFT) [51] and the condensed Fukui function analysis [52], with the aim to investigate the electronic structure of this complex and to highlight the structure−properties relationship. To better highlight the sulfur atom effect, the results on compound I were discussed in comparison to those on complex [CpCo(L_NN)] (II, L_NN = o-phenylenediamine).

2. Results and Discussion

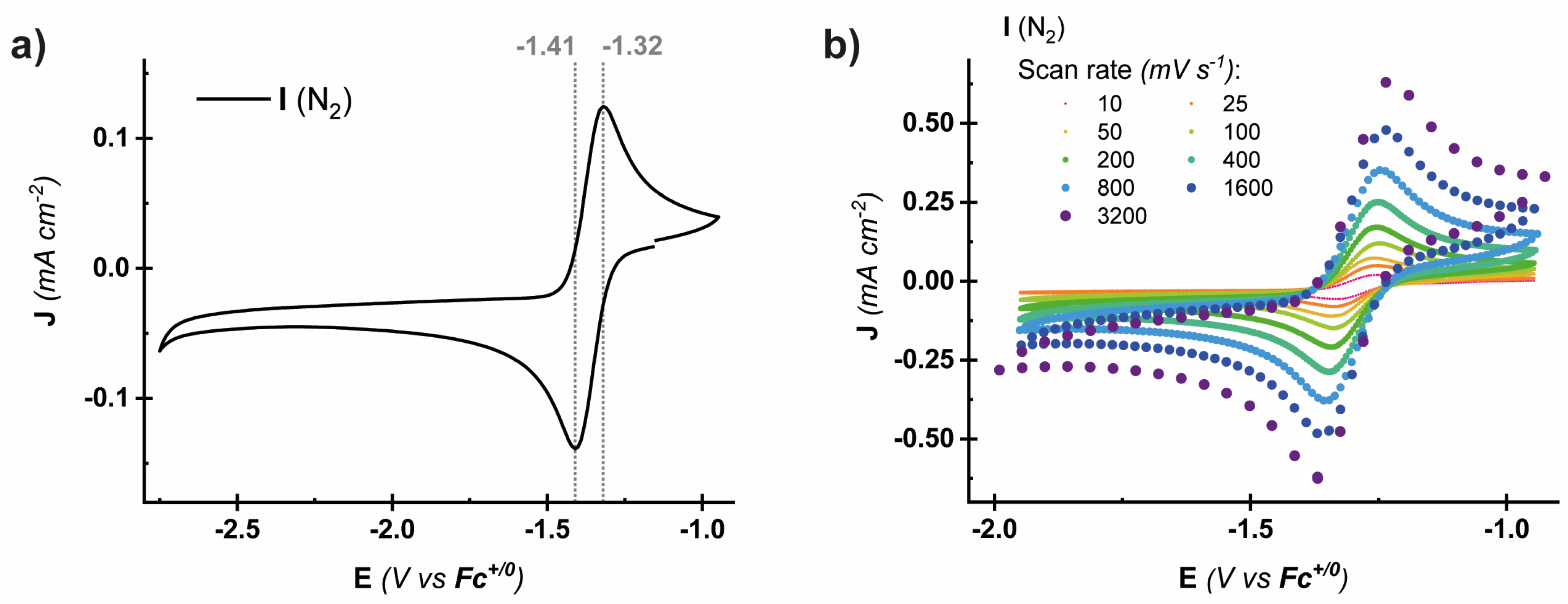

The electrochemical properties of compound I were investigated by CV techniques. The CV of I under an inert nitrogen atmosphere showed a redox couple centered at −1.36 V (Figure 1a), and the potential difference (ΔE) between the cathodic and anodic peaks was 90 mV at 100 mV s⁻¹ of the scan rate.

Table 1. Peaks analyses of complexes I and II under an inert nitrogen atmosphere.

	O1 (V)	R1 (V)	E1/2 (V)	ΔE (mV)
I	−1.32	−1.41	−1.36	90
II	−1.66	−1.74	−1.70	80

resumes the peaks data related to I along with those of compound II. The reduction process of complex I occurred at less negative potentials than in the case of compound II, which showed this process at −1.74 V [36].

These data suggest that the presence of the sulfur atom in place of a N-H group stabilizes the anionic form of the catalyst.

Aiming at a broader characterization of the electrochemistry of compound I, CVs at different scan rates (0.01–3.2 V s⁻¹) were recorded, as reported in Figure 1b.

The current intensities related to both the oxidation (I_ox) and reduction (I_red) processes showed a linear dependence on the square root of the scan rate (ν^1/2), indicating an electron transfer process involving freely diffusing redox species (Figure S1), while the ratio between the two current intensities (I_ox/I_red) remained close to unity in all the investigated scan rates. Moreover, ΔE also increased linearly with the square root of the scan rate, pointing to a quasi-reversible redox process [53].

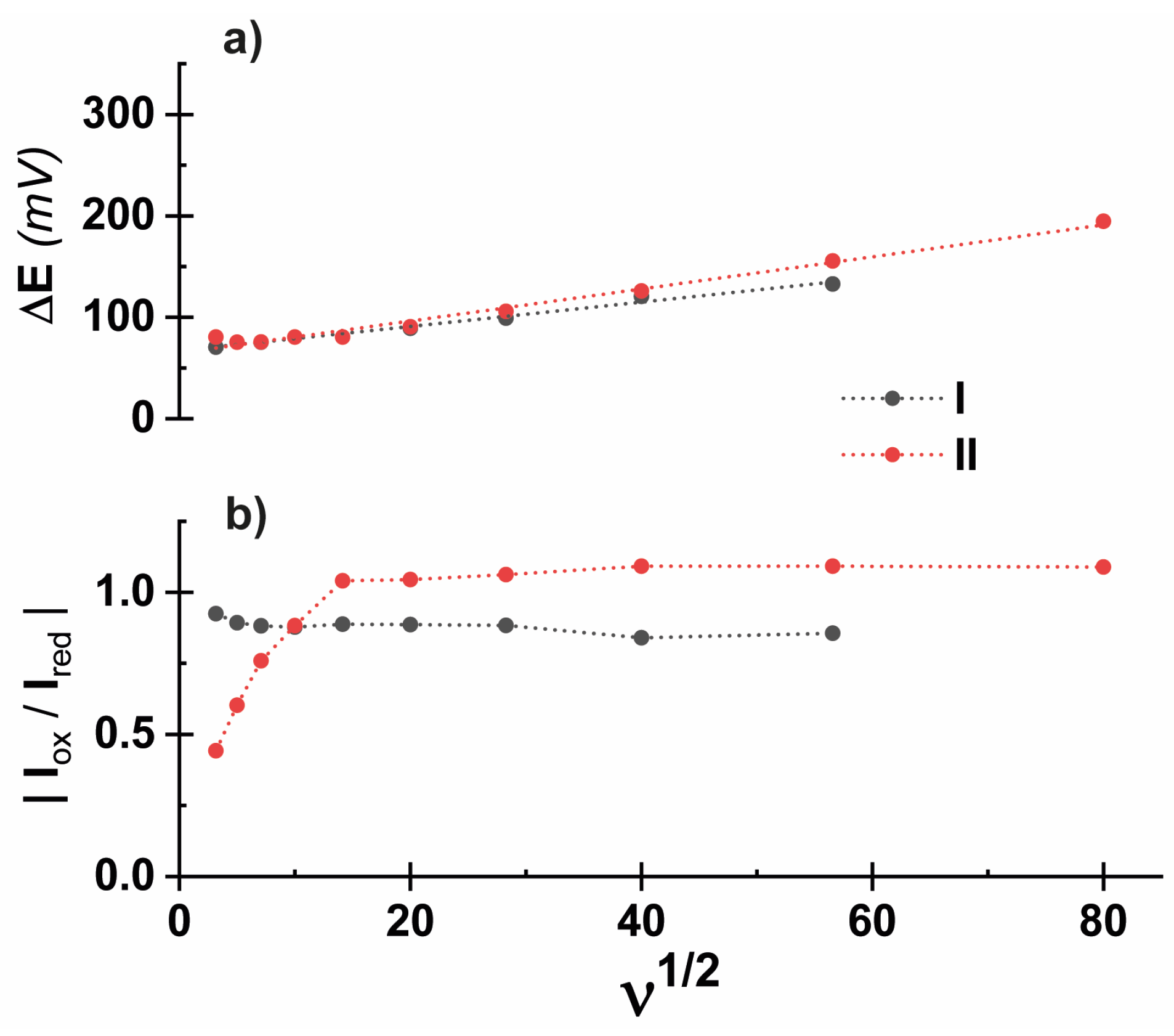

For comparison purposes, the same electrochemical investigations were performed on complex II, which showed a similar behavior (Figure 2a). As can be seen in Figure 2b the ratio I_ox/I_red was constant and close to 1 over the investigated range of scan rates for complex I, while for derivative II poor reversibility was observed at low scan rates which was regained at 200 mV s⁻¹. From the analysis of these data, some information about chemical reactions eventually coupled with the reversible charge transfer process can be derived [53,54].

In fact, side chemical reactions that involve oxidized or reduced species can affect the long-term stability of the complex, depending on the kinetic and the reversibility/irreversibility of the reaction. As suggested by Nicholson [53], plotting the intensities ratio (I_ox/I_red) vs. ν^1/2 (Figure 2b) can give important hints on kinetic features of side chemical reactions.

With regards to this aspect, the constant trend of complex I can be associated with a quasi-reversible electrochemical system with no subsequent chemical reaction (or a really slow one); thus, the ratio of I_ox/I_red was close to 1 over the investigated scan rate range. Differently, in the case of complex II, the redox couple gained reversibility as the scan rate increased: in fact, as mentioned before, the current ratio reached 1 only at 200 mV s⁻¹.

Such a behavior was consistent with a reversible electrochemical (E_R) step followed by an irreversible chemical (C_I) reaction (E_RC_I mechanism) until a scan rate of 200 mV s⁻¹, above which value the chemical process was suppressed because of the high scan rates and the system showed a quasi-reversible behavior. The rate constant k_f of the chemical step for compound II was determined as described in S.I. [53,55,56], obtaining a value of 1.90 s⁻¹ (with t_1/2 equals to 364.8 s). Since the side reaction of the reduced species could lead to a degradation of the complex, the behavior reported above seems to suggest a higher electrochemical stability of the sulphurated I derivative compared to that of its nitrogenated counterpart II.

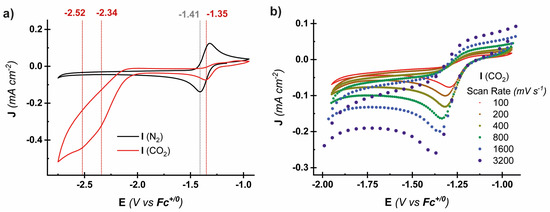

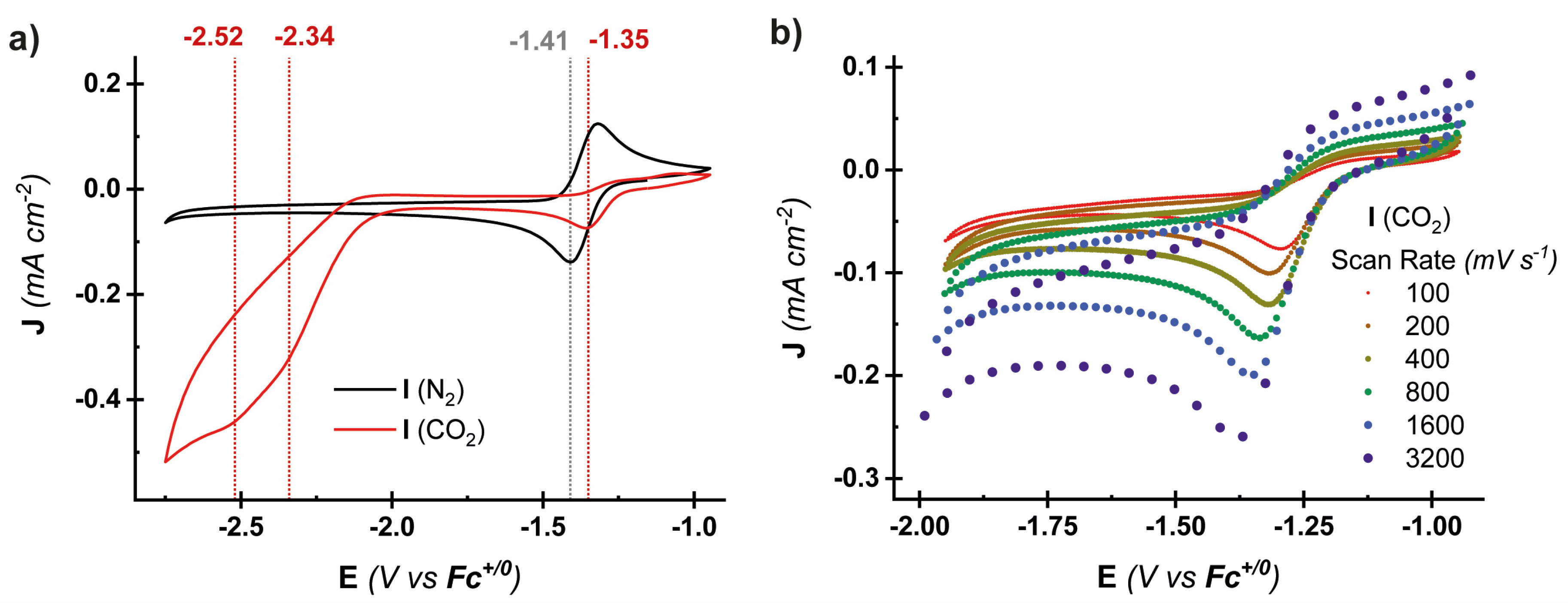

The electrochemical properties of complex I as a catalyst were tested with CV measurements in a CO₂-saturated solution. As it can be observed in Figure 3a, in the presence of CO₂, a faradaic cathodic current was well visible starting from −2.04 V, correlated to the electrochemical carbon dioxide reduction process. Furthermore, as previously pointed out in similar cases, an anodic shift (≈60 mV) of the reduction peak was observed, while a quasi-reversible redox couple disappeared. It is interesting to point out that, as already observed in the other studied examples of this class of compounds, the current density of the reduction peaks under a CO₂ environment was lower in comparison to under a N₂ atmosphere: this aspect can be due to the formation of a [CoCpL-CO₂] adduct with a different electrochemical behavior, diminishing the concentration of the free complex species.

Although not clearly shaped as peaks, the current onset of the reduction branch of the CV started at ca. −2.0 V and presented two small shoulders at −2.34 V and −2.52 V; therefore, these potentials were chosen for evaluating the catalytic activity of I. As summarized in

Table 2. Peaks analyses of complexes I and II in CO₂-saturated solutions.

	R1 (V)	Ep/2 (V)	R2 (V)	E (V)	ICO2/IN2
I	−1.35	−1.29	−2.34	−2.34	7.16
			−2.52	−2.52	9.41
II	−1.78	−1.72	−2.52	−2.54	4.12

, compared with the corresponding values observed with N₂, a current 7.16- and 9.41-fold higher were observed at −2.34 V and −2.52 V, respectively; these enhancements can be related to the ability of the complex to catalyze the CO₂ reduction. In fact, when the CV was performed without the complex in both N₂- and CO₂-saturated solutions, no significant increase in current values were observed, indicating that the CO₂ reduction did not occur in a substantial manner in the investigated range of the potential (see Figure S3). It is interesting to note that in the case of complexes II the presence of CO₂ increased the cathodic current by 4.12-fold with respect to that with N₂ [36], suggesting a higher catalytic activity of compound I.

The electrochemistry of I was investigated in the presence of CO₂ with a series of CVs performed at different scan rates (0.1–3.2 V s⁻¹) as reported in Figure 3b. As it became more noticeable by normalizing the current values for the square root of the scan rates (Figure S4), it seems that just a minimum portion of the reoxidation process was regained, increasing the scan rate. This behavior should indicate a very fast chemical irreversible step following CO₂ binding. Similar cases have been reported in relation to very fast processes such as isomerization or protonation [57]. Nevertheless, since the current intensity varied linearly with ν^1/2, the reduction of complex I appeared to be a diffusion-controlled process [36].

As with I and also with II, the process involving CO₂ was too fast to be reversed in these conditions, and no oxidation peak can be observed, even at very high scan rates (>10 V s⁻¹). Thus, under a CO₂ atmosphere, the mono-reduced species appeared to be more reactive with respect to under inert N₂ conditions for both the derivatives.

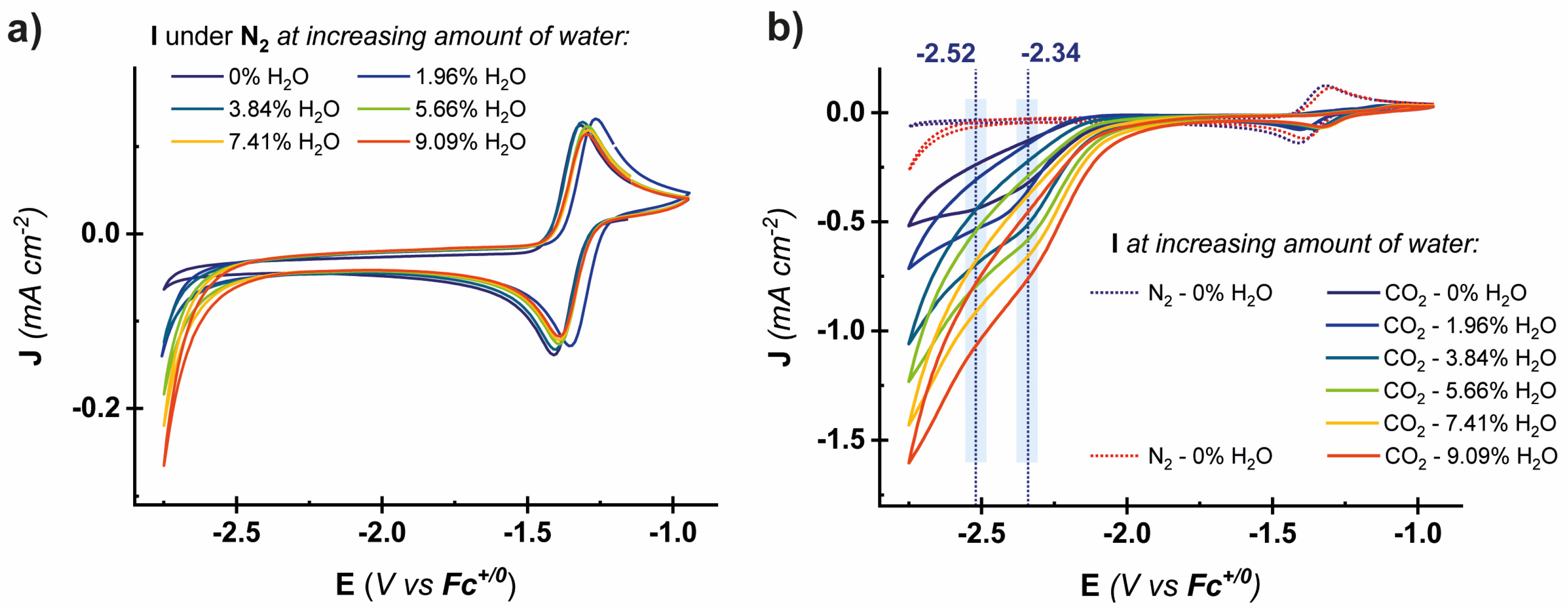

It is well-known that the presence of proton-coupled electron transfer can enhance the catalytic capability of several molecular catalysts [47,48,58,59]. For this reason, the electrochemical behaviors of complex I and its catalytic response under CO₂ have been also investigated in the presence of an increasing amount of water. Therefore, we registered the CV upon successive additions of 200 µL of water to an anhydrous DMSO solution containing the complex in both N₂ (Figure 4a) and CO₂ (Figure 4b) atmospheres: the maximum value of 1 mL of water was added, corresponding to 9.09%_v/v. It is expected that a catalytic current enhancement with an increasing amount of water under a nitrogen atmosphere can be related to HER process. It is worth noting that, in the case of complex I, the current enhancement observed with N₂ was largely smaller than that measured when the solution and the atmosphere were saturated with carbon dioxide, even in the presence of a large amount of water. These findings suggest a high selectivity of this catalyst toward the CO₂ reduction over proton reduction [36].

In

Table 3. I_CO²/I_N² and (I_cat/I_p)² values summary for complexes I and II under anhydrous conditions and in the presence of water calculated at the corresponding potentials.

	I				II
Ecat (V)	−2.34		−2.52		−2.54
H2O (%v/v)	0	9.09	0	9.09	0	9.09
ICO2/IN2	7.16	16.89	9.41	22.73	4.12	24.40
(Icat/Ip)2	5.48	42.25	10.26	83.90	3.32	280.07
IHER/I[a]		1.02		1.37		1.09

^[a] Calculated at 9.09%_v/v of water after reconditioning the system with nitrogen.

, a comparison between the current enhancements (I_CO2/I_N2) upon 9.09%_v/v water additions, calculated at two different potentials (−2.34 V and −2.52 V) under both N₂ and CO₂ atmospheres, is reported. Comparing the I_CO2/I_N2 ratios in the presence of 9.09% of H₂O of compound I (16.89 and 22.73), with those of complex II (24.40), it comes to light that, although I seems to be the most effective catalyst in anhydrous conditions, in the presence of water it shows a slightly smaller current enhancement with respect to II.

These different performances could be explained by considering the role played by the molecules of water in reactions with catalysts that present amino functionalities. In fact, it has been proposed that the molecules of H₂O can form H-bonds with the amino group and the CO₂ in the adduct with the catalyst; these interactions stabilize the intermediates of the reaction, favoring the CO₂ reduction process [24,45,46,47]. As far as our study is concerned, in complex I the ligand has only one N-H group, whereas the phenylenediamine ligand (L_NN) presents two of those. Therefore, it is possible that in the case of compound I, the substitution of the NH group with the S atom implicates a smaller stabilizing effect due to a lack of H-bonds on the intermediates, causing, in the presence of water, a decrease in the catalytic activity of this complex in comparison with that of compound II. Moreover, Table 3 also reports the relative turnover frequency (R-TOF), (I_cat/I_p)², which is proportional to the TOF and a convenient guideline for an easier and more direct comparison between the catalytic performances of similar molecules.

For the calculation of these quantities, we considered the current intensities under a CO₂ atmosphere for both the chosen potentials (I_cat), but due to the lack of the substrate (CO₂), no peak was observed in potentials more negative than −1.6 V in non-catalytic conditions. Thus, following the example of Artero [45], the current intensity under N₂ of the one-electron reduction peak R1 at the corresponding content of water was considered as I_p. Indeed, relative TOF values reflect the current enhancement trend: thus, as expected, II presented the highest value (280.07 vs 83.90 s⁻¹ at a similar potential) in the presence of water, whereas in anhydrous conditions the highest value was generated in the case of I.

It is interesting to notice that, contrary to its N,N counterparts, this N,S complex seemed to preserve the reversibility of the redox couple at around −1.32 V, even in the presence of water. This feature suggests that in the case of I, the proton reduction—if any—does not involve the catalyst re-oxidation (see Figure 4a).

In order to highlight the effect of the sulfur atom on the electronic structure of this family of complexes, DFT calculations at the B3LYP/6-311+G(d,p) level were performed on compounds I and II. Figure 5 depicts the frontier molecular orbitals (FOs) with the corresponding energies for the two compounds in their neutral form. These results suggest that, in comparison with complex II, the presence of a sulfur atom lowers both the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) energies for complex I.

The trend in the LUMOs energies agreed with the trend observed in the experimental redox potentials: indeed, complex I showed the easiest reduction process, whereas compound II required the most negative potential to be reduced. Moreover, the reduction potential value predicted by applying the empirical relation proposed by D’Andrade et al., which correlates the LUMO energy (E_LUMO) and the reduction potential (E_red), was also consistent with the measured potential (−1.24 V in the case of I) [60].

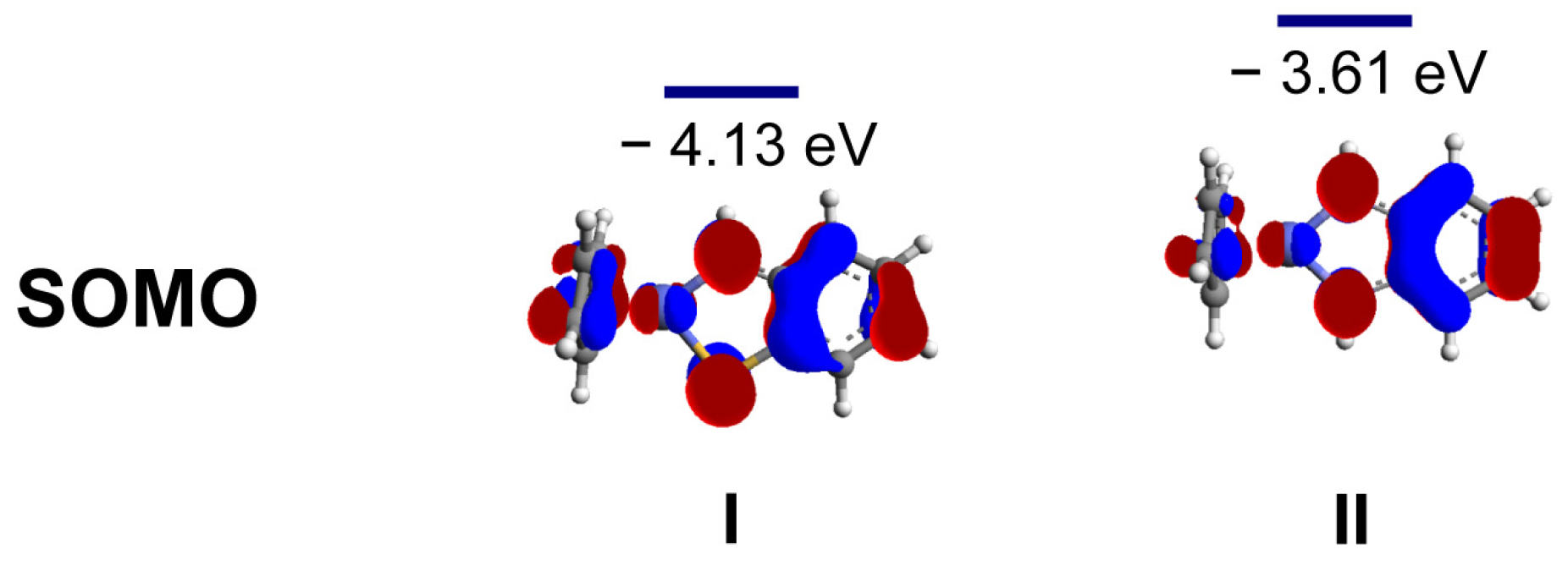

Figure 6 shows the single occupied molecular orbital (SOMO) of the same compounds in their monoreduced form as radical anions. As one can see, the observed trend was consistent with the HOMO/LUMO energies, and complex I showed the SOMO with the lowest energy, accordingly with its capability to better stabilize the extra negative charge due to the presence of the sulfur atom in comparison with complexes II.

As far as the frontier orbitals’ shapes are concerned, some differences can be observed between the FOs of complexes I and II; indeed, this comparison highlights the effect of the sulfur atom on the electronic structure of this compound. In fact, looking at the benzene ring in the case of HOMOs, while atoms C2 and C5 (see Scheme 1) give very similar and small contributions to the MO in II, in I, C2 and C5 orbitals contribute in a negligible and significant manner, respectively. Furthermore, no sulfur orbitals contribute to the HOMO of I, whereas nitrogen orbitals contribute in a sizable way to it. Considering the LUMO, carbon atoms 2, 3, 4, and 5 contribute almost in the same manner to this orbital in the case of complexes with the phenylenediamine ligand. In the case of I, however, the most important contributions to the benzene ring come from atoms C1, C3, and C5. These differences are a clear effect of the non-symmetry of the ligand, when a sulfur atom replace a nitrogen: therefore, the impacts of the sulfur atom on the electronic distributions of ortho- and para-positions seem to prevail on the one of the amine group. Moreover, for both FOs in all these complexes, important contributions are made by the Cp ring and the cobalt d orbitals.

The reactivity of I and II compounds was further investigated by calculating the atomic dipole-corrected Hirshfeld atomic charge (ADHC) [61] on each atom (either in the optimized reduced form of the complexes and in the neutral form with the same geometry of the reduced form) and the corresponding value of the condensed Fukui f–function (see

Table 4. ADCH charges for the core group atoms of the catalyst in the reduced form (Red^•–) and in the neutral species (Neutr)—both calculated on the optimized anion and the corresponding condensed Fukui function (f ⁻).

	I			II
	Red−	Neutr	f−	Red−	Neutr	f−
Co	−0.105	−0.097	−0.008	−0.136	−0.077	−0.059
N	−0.326	−0.241	−0.086	−0.350	−0.266	−0.083
C (Cp)	−0.159	−0.105	−0.054	−0.169	−0.131	−0.038
S	−0.455	−0.228	−0.226
Sum	−1.682	−1.091	−0.591	−1.682	−1.267	−0.415

). From the atomic charges of the anionic species, it can be noticed that the charge on the sulfur atom was more than 25% higher than that on the nitrogen atom. The f–values indicates that the contribution to electron donation of the nitrogen atoms was ca. 0.08 e⁻ in both I and II, and that of sulfur was much higher (ca. 0.23 e⁻); this indicated that the electrophilic attack on the reduced form of I was likely to occur on sulfur. Such a difference between the heteroatoms in the ligand correlated with the increased catalytic capability of compound I, reported in Table 2.

Considering all of the atoms in the catalytic core comprising the metal and the surrounding heavy atoms (i.e., N + S + Co + Cp in I and 2 N + Co + Cp in II), it can be noticed that while the ADCH charge of the core of the reduced species did not correlate with the catalytic capability reported in Table 2, the f–values did correlate. Specifically, the order of the f–values (I > II) was in agreement with the experimental current enhancement reported in Table 2.

3. Materials and Methods

3.1. Synthesis

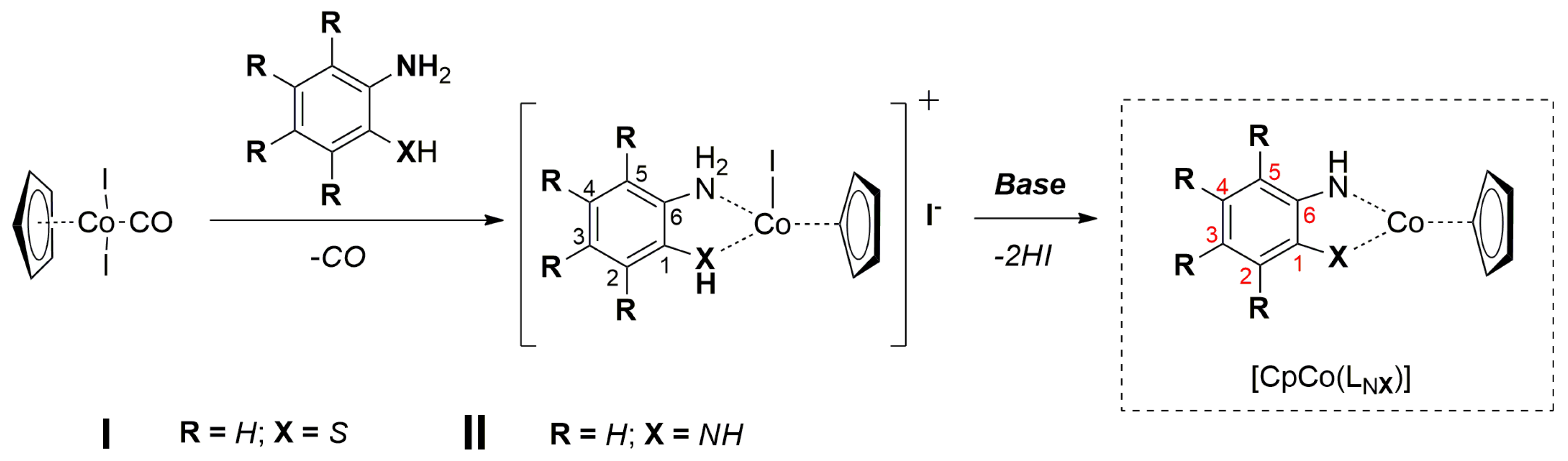

All the reagents and solvents were purchased from Sigma-Aldrich (St. Louis, MO, USA) and used as received. The intermediate cobalt complex CpCoI₂CO was prepared as described by King [62]. The synthesis of complexes I and II were performed as previously reported by Heck [40,63].

3.2. Electrochemical Methods

The electrochemical properties of complex I were investigated by the cyclic voltammetry (CV) technique both under nitrogen and carbon dioxide atmospheres, using different scan rates from 0.010 up to 12.8 V s⁻¹. All the measurements were carried out with a three-electrode cell using glassy carbon (3 mm in diameter) as a working electrode, a platinized titanium net as a counter electrode, and a platinum wire as a pseudo-reference electrode. The electrochemical experiments were performed at room temperature using an AUTOLAB PGSTAT302N (Metrohm, Switzerland) potentiostat/galvanostat controlled with the NOVA software. Anhydrous dimethylsulfoxide, DMSO (Sigma-Aldrich), used as received, was chosen as a model solvent mainly for its typical high boiling point, which should reasonably avoid any changes in concentration by the evaporation of the solvent during nitrogen and CO₂ insufflation processes. The supporting electrolyte was 0.1 M [nBu₄N][PF₆] (Sigma-Aldrich); in these conditions, the redox couple Fc^0/+ was centered at +0.45 V. The working electrode was cleaned before each measurement as follows: after extensive washing with distilled water and isopropanol, the glassy carbon electrode was polished with diamond suspensions (0.05, 0.25, 1, and 3 μm) and a wet pad.

Depending on the runs, the solutions containing complex I were bubbled with N₂ or CO₂ for 30 min. The effect of the presence of water was measured by an incremental addition of degassed deionized H₂O in an electrochemical solution by an air-tight syringe.

The number of electrons involved in the reversible redox processes were calculated by using the following Equation (1):

$$\left|E_p-E_{\frac{p}{2}}\right|=\frac{59\mathrm{mV}}{n}$$

(1)

3.3. Computational Methods

The structure of the studied compounds in both the neutral and anionic radical forms was optimized by means of DFT calculations. In detail, geometry optimization was performed by employing the B3LYP functional as implemented in the commercially available suite of programs Gaussian 16 [64] using the 6-311+G(d,p) basis set for all atoms. The solvent effects on the geometry and on the electronic properties were included by further optimizing the in vacuo global minimum of each species using the current implementation in Gaussian 16 of the polarizable conductor-like continuum model (CPCM) [65,66] for the DMSO solvent. All PCM calculations were carried out at 298.15 K, and the molecular cavity was constructed using the default procedure in Gaussian 16.

Graphics of molecular models were generated using ArgusLab 4.0 [67]. Atomic dipole moment-corrected Hirshfeld population (ADCH) charges were calculated using the software Multiwfn [68]. The condensed Fukui function, which can be calculated from the ADCH charges, was extensively used to predict reactive sites. The Fukui condensed function for the electrophilic attack (f ⁻) was calculated as:

$$f_k^{-}=q_k\left(N\right)-q_k\left(N-1\right)$$

(2)

where q_k(N) is the charge at the atomic center k calculated on the optimized geometry of the reduced complex, and q_k(N – 1) is the charge of the corresponding neutral form with the same geometry, both calculated at the CPCM(DMSO)/UB3LYP/6-311+g(d,p) level. The electrophilic attack is likely to occur on the atoms with larger f_k ⁻.

4. Conclusions

In this paper, the effect of the replacement of a NH group with a sulfur atom in cyclopentadienyl phenylenediamine cobalt complexes towards electrochemical CO₂ reduction has been evaluated.

As expected, a more polarizable atom such as sulfur, with empty d orbitals, is likely to stabilize more effectively an extra charge as in the case of the monoreduced radical anion derivative formation. In the context of metal complex-mediated electroreduction of CO₂, the effect of replacing two opposite nitrogen atoms with sulfur in the Ni(cyclam) complex has been highlighted. As pointed out by Gerschel et al., such a substitution leads to lower overpotentials for the reduction of CO₂, of which the reduction would occur at a more positive potential, and to enhance the HER capability of the complex [69]. Moreover, in the field of photocatalyzed reduction, Kojima and his research group proved the selectivity of a Ni^II-based N₂S₂-type complex for reduction of CO₂ to CO, reporting a higher TON value for nickel complexes in that photocatalytic setup [70]. This aspect of sulfur atom reactivity is reflected on the reversibility of the characteristic redox couple of I, which was constant on all the investigated scan rates. These features of complex I had an effect on its catalytic properties; indeed, it presented a higher I_CO2/I_N2 ratio under anhydrous conditions with respect to its nitrogenated counterpart II. Moreover, the higher reversibility is also a hint of the higher stability of complex I in comparison with II. However, in the presence of water, compound I showed a slightly smaller I_CO2/I_N2 in comparison with II. This result can be related to the presence of only one nitrogen atom; in fact, the NH group favors catalyst−H₂O interactions which play an important role in the CO₂ reduction process. Moreover, the different behavior of complex I with water seemed to be confirmed by the presence of the re-oxidation process observed, when CVs were carried out under N₂ in the presence of water. This fact might suggest a low affinity of I for hydrogen reduction, and therefore, it might be a hint of a high selectivity towards CO₂.

The experimental results were supported by computational investigations. DFT calculations confirmed the effect of sulfur on the lowering of the energy of the FOs and, consequently, the reduction potential of I. The sulfur effect on stabilizing the extra charge has been highlighted both by the analysis of the atomic charges and by the calculated energies of the SOMO for the corresponding radical anions of complexes I and II. Interestingly, the current enhancement observed in the absence of water correlated very well with the probability of an electrophilic attack on the core atoms of the complexes, as measured by the condensed Fukui function f⁻.
