Article

Recoverable Palladium-Catalyzed Carbon-Carbon Bond Forming Reactions under Thermomorphic Mode: Stille and Suzuki-Miyaura Reactions

by
Eskedar Tessema
1,†,
Vijayanath Elakkat
1,†,
Chiao-Fan Chiu
2,3,*,
Zong-Lin Tsai
1,
Ka Long Chan
1,
Chia-Rui Shen
4,5,
Han-Chang Su
6 and
Norman Lu
1,7,*
1
Institute of Organic and Polymeric Materials, National Taipei University of Technology, Taipei 106, Taiwan
2
Department of Pediatrics, Linkou Medical Center, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
3
Graduate Institute of Clinical Medical Sciences, College of Medicine, Chang Gung University, Taoyuan 333, Taiwan
4
Department of Medical Biotechnology and Laboratory Sciences, College of Medicine, Chang Gung University, Taoyuan 333, Taiwan
5
Department of Ophthalmology, Linkou Medical Center, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
6
Creditable Service Technology Consultants, New Taipei City 235, Taiwan
7
Development Center for Smart Textile, National Taipei University of Technology, Taipei 106, Taiwan
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2021, 26(5), 1414; https://doi.org/10.3390/molecules26051414
Submission received: 31 January 2021 / Revised: 26 February 2021 / Accepted: 1 March 2021 / Published: 5 March 2021
(This article belongs to the Special Issue Sustainable Catalysis)
Browse Figures
Versions Notes

Abstract

:
The reaction of [PdCl2(CH3CN)2] and bis-4,4′-(RfCH2OCH2)-2,2′-bpy (1a–d), where Rf = n-C11F23 (a), n-C10F21 (b), n-C9F19 (c) and n-C8F17 (d), respectively, in the presence of dichloromethane (CH2Cl2) resulted in the synthesis of Pd complex, [PdCl2[4,4′-bis-(RfCH2OCH2)-2,2′-bpy] (2a–d). The Pd-catalyzed Stille arylations of vinyl tributyltin with aryl halides were selected to demonstrate the feasibility of recycling usage with 2a as the catalyst using NMP (N-methyl-2-pyrrolidone) as the solvent at 120–150 °C. Additionally, recycling and electronic effect studies of 2a–c were also carried out for Suzuki-Miyaura reaction of phenylboronic acid derivatives, 4-X-C6H4-B(OH)2, (X = H or Ph) with aryl halide, 4-Y-C6H4-Z, (Y = CN, H or OCH3; Z = I or Br) in dimethylformamide (DMF) at 135–150 °C. At the end of each cycle, the product mixtures were cooled to lower temperature (e.g., −10 °C), and then catalysts were recovered by decantation with Pd leaching less than 1%. The products were quantified by gas chromatography/mass spectrometry (GC/MS) analysis or by the isolated yield. The complex 2a-catalyzed Stille reaction of aryl iodides with vinyl tributyltin have good recycling results for a total of 8 times, with a high yield within short period of time (1–3 h). Similarly, 2a–c-catalyzed Suzuki-Miyaura reactions also have good recycling results. The electronic effect studies from substituents in both Stille and Suzuki-Miyaura coupling reactions showed that electron withdrawing groups speed up the reaction rate. To our knowledge, this is the first example of recoverable fluorous long-chained Pd-catalyzed Stille reactions under the thermomorphic mode.

1. Introduction

Carbon-carbon bond forming reactions are among the most useful and most widely studied synthetic transformations. Most importantly, the Stille, Suzuki-Miyaura, Heck, Negishi and Sonogashira coupling reactions typically catalyzed by palladium have been abundantly used in syntheses and widely studied in recent decades. Stille coupling, which is the palladium-catalyzed cross-coupling of an organostannane and an organohalide, is one of the most powerful methods for the straightforward joining together of carbon-carbon bonds in synthetic chemistry [1,2,3]. It is currently a widely used cross-coupling method for the synthesis of functional molecules and polymers, both in laboratory research and in industry [1,4]. In such kind of coupling reaction, several advantages are observed from the substrate groups. These include the stability and functional group tolerance of stannanes, the broad reaction scope of aryl halides and pseudo-halides, and its chemoselectivity. On the other hand, Suzuki-Miyaura coupling reaction has become a main method in modern synthetic organic chemistry for the preparation of biaryl compounds [5,6]. Therefore, the coupling products of both the reactions have been widely applied in natural products [7,8,9], medicinal chemistry [10,11], chemical biology [12], industrial process [13] and materials [14,15] in a controlled and selective manner.
Homogeneous catalysis of Stille coupling reaction generally takes place in organic solvents and, hence, it is difficult to separate the catalyst from the reaction mixture and recover it at the end of the reaction, leading to wastage of noble metals. Concerns for the environment and scarcity of resources is becoming a challenge, which motivates chemists to look for greener processes that are more economical and ecofriendly. Therefore, developing a catalyst with a better activity, excellent selectivity, easy separation and better yield is everyone’s goal. To solve this problem, several noble strategies involving heterogeneous and improvised homogeneous catalysts have been developed for recycling and reusing Stille catalysts, including the use of Pd complexes supported by recombinant peptide fusion nanoparticles [16], magnetic nanoparticles [17], stainless steel mesh-GO (graphene oxide) nanoparticles [18], polymer [19,20,21], silica [22], porous metal-organic framework (MOF) [23], functionalized nanoporous silica [24,25], bulky ligands [26] and metal nanoparticles [27,28]. Additionally, a few reaction solvent options, including alcohols [29,30], water [31,32,33], and ionic liquid [34,35] were also studied to ensure that successful recovery occurred. Similarly, several recoverable Suzuki-Miyaura catalysts, including the use of Pd complexes supported by agar [36], polymer [37], aminophosphine supported on Al2O3 [38], perovskite-based [39], and magnetically recoverable ones [40,41] were used.
In this work, the fluorous long-chained palladium catalysts, [PdCl2[4,4′-bis-(n-CF3(CF2)10CH2OCH2)-2,2′-bpy] (2a–c) had been synthesized and been applied to catalyze the Stille and Suzuki-Miyaura reaction of aryl halides with their respective reagents. Recently in Lu’s group, both linear and branched fluorous chains are used to diversify and enrich the fluorous ligand selection pool, when designing the recoverable fluorous catalysis and keeping the enough amount of fluorine content in the complex necessary for this kind of recoverable catalysis. To the best of our knowledge, this is the first example of the application of fluorous long-chained Pd complexes as effective, recoverable catalysts for Stille and Suzuki-Miyaura reactions under thermomorphic condition for many times of re-usage. The thermomorphic property of few fluorous long-chained palladium complexes was previously demonstrated in DMF solvent in Lu’s group and published elsewhere [42,43]. In this study, we have a more complete thermomorphic survey of a series of the chain length of Pd complexes and a related fluorous compound (see Figure 1 below). This type of fluorous long-chained palladium complexes 2a–c features on homogeneously catalyzing at high temperature in common polar organic solvent and turning to the heterogeneous precipitation at lower temperature. Taking their good catalytic ability and good thermal stability into consideration, these catalysts could be regarded as a very good alternative to homogeneous complexes in sustainable catalysis.

2. Results and Discussion

2.1. Catalyst Synthesis

The preparation of fluorous long-chained ligands bis-4,4′-(n-RfCH2OCH2)-2,2′-bpy (1a–e), where Rf = n-C11F23 (a), n-C10F21 (b), n-C9F19 (c), n-C8F17 (d) and n-C7F15 (e), respectively, followed a literature procedure [44,45,46]. The reaction of fluorinated long-chained bipyridine (bpy) ligands, 1a–d, with [PdCl2(CH3CN)2] in CH2Cl2, as shown in Scheme 1, resulted in the synthesis of Pd complex [PdCl2[4,4′-bis-(RfCH2OCH2)-2,2′-bpy] (2a–d) as pale yellow solid already published elsewhere [47,48].

2.2. Thermomorphic Property Study

The solubility of Pd complexes 2a–c in DMF as a function of temperature was shown on the previously published work from Lu’s group [42,43]. As reported here, the solubility was measured by the variable temperature nuclear magnetic resonance (NMR) spectrometer, where the temperatures were varied from −40 to 80 °C (see Figure 1). In this study, we recorded the solubility of Pd complex 2a–d and a bpy ligand, bis-4,4′-(n-C7F15CH2OCH2)-2,2′-bpy (1e), by adapting more temperature points when using a similar procedure (see Supplementary Materials). It was shown that compounds 1e and 2a–d which showed their solubilities increased dramatically with the increasing temperature. The complex 2d was soluble in DMF at 20 °C, but complexes 2a–c were not soluble at −10 °C and below. The Pd complexes 2a–c were then selected as good candidates for the subsequent catalytic experiments to examine the temperature dependency of the recoverable reactions.

2.3. Recoverable Pd Complex-Catalyzed Stille Reaction of Aryl Halides

The fluorous long-chained Pd complex 2a was then examined for the following Stille reactions where Pd-catalyzed the coupling reaction of vinyl tributyltin (3) with aryl iodides (4–7) or aryl bromides (8–11).

2.3.1. Aryl Iodides

As shown in Scheme 2, the Pd-catalyzed Stille arylation of vinyl tributyltin (3) with aryl iodides was selected to demonstrate the feasibility of recycling usage with 2a as the catalyst using NMP (N-methyl-2-pyrrolidone) as the solvent under thermomorphic mode, at ca 120 °C for 1–8 h varying in each run for different substituents. At the end of each cycle, the product mixtures were cooled to below −10 °C and centrifuged, and the catalyst was recovered by decantation. The recovered 2a was added with NMP and substrates to proceed to the next cycle. The products were quantified with GC/MS analysis by comparison to internal standard (anisole). As one example shown in Table 1, 2a-catalyzed Stille reaction of C6H5I (4) with vinyl tributyltin (3) could give rise to the good recycling results for a total of 8 times. To our knowledge, this is the first example of recoverable fluorous Pd-catalyzed Stille reaction under a thermomorphic mode with such a high yield and recyclability.
With electron-withdrawing groups (EWGs) CN and NO2 substituents on iodobenzene, the 2a-catalyzed Stille reactions also gave rise to respective 5a and 6a with the excellent yield and recyclability under the thermomorphic mode (see Table 2 and Table 3).
Similar to the recycling observed in the reaction of parent aryl compound (4), here complex 2a could be easily recovered and reused in the Pd-catalyzed Stille arylation of vinyl tributyltin under the thermomorphic mode. The aryl compounds with EWGs exhibited a greater rate (only 1 h as shown in Table 2 and Table 3) than the parent aryl compound, which needed 3–6 h to complete the reaction.
When an electron-releasing group (ERG) CH3 substituted on iodobenzene (7) was used as a substrate in 2a-catalyzed Stille reaction, the electron-releasing Me group slowed down the reactions (Table 4), although 8 mol% of catalytic loading was used. Nonetheless, the recyclability could be demonstrated, only with both a longer time and at higher temperature. The yields were 100% throughout, but the temperature was 130 °C for the first five cycles in 8 h and raised to 140 °C time to 9 h in the sixth cycle; it then continued to rise to 150 °C in the seventh and eighth cycles in 10 and 15 h, respectively.
Sajiki and his co-workers [49] have reported palladium on charcoal-catalyzed ligand-free Stille coupling aryl iodides as shown on Scheme 2. They have used 5 mol% of catalytic loading for 4-cyanoiodobenzne to obtain a yield of 88% in 24 h at an elevated temperature with turnover number (TON) and turnover frequency (TOF) values of 17.6 and 0.73 h−1, respectively. For same catalytic loading and duration of time, they have obtained 63% yield at 50 °C by using 4-nitroiodobenzene with TON and TOF values of 12.6 and 0.52 h−1, respectively. However, for a similar reaction only 1 mol% of catalytic loading was needed for our catalyst 2a to have a 100% yield at 120 °C in 1 h with TON and TOF values of 100 and 100, respectively. Thus, the activity of catalyst 2a reported here is robust with better recovery of 8 cycles.
Thus, the iodobenzene bearing an electron-withdrawing group (CN and NO2) smoothly underwent the cross-coupling reaction compared to the non-substituted (R = H) case or the case bearing an electron-releasing group (R = CH3) to give the desired vinyl derivatives in excellent yields.

2.3.2. Aryl Bromides

The Pd complex 2a was also found to be effective in the Pd-catalyzed Stille vinylation of less reactive aryl bromide under thermomorphic mode, as shown in Scheme 3. Table 5 shows the results of Stille reaction of the unsubstituted aryl bromides (8) with vinyl tributyltin (3) using NMP as a solvent.
Table 6 and Table 7 show the good results of reactivities and recycling of 2a-catalyzed Stille reaction of the EWGs CN and NO2-containing aryl bromides (9 and 10, respectively) with vinyl tributyltin (3) using NMP as a solvent. The same reaction had been performed by using an aryl bromide containing the ERG CH3 in the same conditions expressed above. Although the reaction proceeded forming the products, it took a very long time to finish the reaction. Thus, those data have not been presented here.
Lerebours and Wolf [50] have reported that they have used 6 mol% of Pd-catalyst at 140 °C for 24 h to catalyze a similar kind of Stille reaction (Scheme 3) which uses bromobenzene as a substrate. As a result, they have obtained a product in 95–96% yield with a TOF = 0.67 h−1, after the first two cycles of reactions, but it was found that the catalytic performance of the recovered Pd catalyst slightly diminished after each step to the 4th cycle. However, at similar temperature we have obtained a better yield in 12 h (for the first two cycles) by using unsubstituted aryl bromide substrate with a TOF = 0.83 h−1. Thus, a catalytic efficiency of 2a was proved to be better comparatively. Additionally, for the EWG substituted aryl bromides, only 6 h was required to reach a yield of 100% in the first 5 cycles, even at a slightly reduced temperature (120 °C; see Table 7). Additionally, catalyst 2a can be recovered and reused for up to 8 cycles by keeping their activity used for all kinds of substrates.

2.3.3. Purification of Crude Product Mixture from Pd-Catalyzed Stille Reaction

At the end of the reaction, a two-step procedure was followed to obtain a pure product. On the first step, the crude reaction mixture obtained was added to an aqueous solution of potassium fluoride (KF) according to a reported literature procedure using an alcoholic KF solution [51]. The KF solution was allowed to react with the tin by-product in the mixture, so that the tin by-product precipitates into a white powder of polymeric Bu3SnF [2] and is removed by filtration. This was repeated until no residue was observed in the flask. Finally, water and CH2Cl2 were used for extraction in the second step, so that the solvent (NMP) would be trapped into the water layer with the KI after several extractions to achieve the pure product in the CH2Cl2 layer (Scheme 4). Therefore, the recoverability of Pd catalyst and easy isolation of product demonstrated that 2a-catalyzed Stille reactions of aryl halides are good examples of sustainable catalysis.

2.4. Recoverable Pd Complex-Catalyzed Suzuki-Miyaura Reaction of Aryl Halides

2.4.1. Aryl Iododes

We also evaluated complex 2a in Suzuki-Miyaura reaction of aryl iodides (13–15) with phenyl boronic acid derivatives (11, 12) as indicated in Scheme 5. The results showed that 2a could effectively catalyze the Suzuki-Miyaura reactions as shown in Table 8. The catalyst could be recycled and reused several times. The electron withdrawing phenyl substituent on the 4-biphenylboronic acid (12) was seen to speed up the reaction (see entries 1–3 in Table 8). It is known that the electron-withdrawing CN substituent on aryl iodide (14) could speed up Suzuki-Miyaura reactions. Thus, the entries 1–6 in Table 8 were tested first for 2a-catalyzed Suzuki-Miyaura reaction of 4-cyanoiodobenzene (when Y = CN) (14). After the 1st run, the recovered catalyst was subjected to the normal washing steps and then reused for the next runs. For two sets (entries 1–3 and entries 4–6) of three runs, the reactions were all completed with high yields within 4 h at 135 and 140 °C for 4-biphenyl boronic acid (12) and phenyl boronic acid (11), respectively.
For entries 7 and 8 of Table 8, iodobenzene (when Y = H) (14) with phenyl boronic acid (11) were used as the substrates for the 2a-catalyzed Suzuki-Miyaura reaction. The results demonstrated that complex 2a, was a good recoverable catalyst for the two runs with the respective yields of 80% and 75% under the conditions outlined in Scheme 5. For entries 9 and 10, these two results also showed that 2a-catalyzed Suzuki-Miyaura reactions were efficient and recyclable. Although these two Suzuki-Miyaura reactions using the less reactive 4-methoxyiodobenzene (when Y = OCH3) (15) were found to be slower with the reduced yields of 70% and 60% within 4 h for entries 9 and 10, respectively. Thus, the results in Table 8 have clearly demonstrated that the fluorous long-chained Pd complex (2a) is an excellent thermomorphic catalyst for C–C forming Suzuki-Miyaura reactions of aryl iodides.

2.4.2. Aryl Bromides

The catalytic recovery of fluorous long-chained Pd complexes 2a–c were then examined for the following Suzuki-Miyaura reaction experiment to catalyze the coupling of phenyl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic condition.
The Pd-catalyzed Suzuki-Miyaura reactions of phenyl boronic acid (11) with 4-cyanobromobenzene (12) (see Scheme 6) were successfully carried out under the thermomorphic condition at a 3 mol% of catalytic loading. It was shown that, at an elevated temperature a higher yield was obtained within 8 h. The catalytic recovery has was proven to be robust for 8, 8 and 9 consecutive cycles for 2a, 2b and 2c, respectively. Their good results are shown in Table 9, Table 10 and Table 11, respectively.
Note: after 8 cycles, the recovered Pd catalyst (2b) was checked by the 19F NMR method. The results show that the 19F NMR spectrum of catalyst 2b are exactly the same before and after (8 cycles) reactions (see Figure S1 in Supplementary Materials).

2.5. Detection of Metal Recovery by ICP-MS

The amount of Pd leaching of catalyst (2a) in the product solution of Stille reaction after centrifugation from the two randomly selected specific runs from each table were determined by inductively coupled plasma mass spectrometry (ICP-MS). The results indicate that less than 1% of the Pd was leached out to the solution from the catalyst as shown in Table 12 and Table 13. Most of the recovery studies in Stille reaction reported so far have not included ICP-MS data in their works.
Similarly, a Pd leaching study was done for two randomly selected specific runs from each table of Suzuki-Miyaura reactions (see Table 14). From these tables, we can find that the recovery rate of the fluorous long-chained palladium, catalysts 2a–c can reach up to 99%, under the thermomorphic system. Almost all the metal catalysts could be recycled for the next reaction and get reused. The negligible Pd loss during the 8 cycles did not seem to affect the catalytic activity much, which proves that metal catalysts 2a–c can achieve the goals of sustainable catalysis.

3. Experimental

3.1. General Procedures

Gas chromatographic/mass spectrometric data were obtained using an Agilent 6890 Series gas chromatograph (Taipei, Taiwan) with a series 5973 mass selective detector. Reactions were monitored with a HP 6890 GC using a 30 m 0.250 mm HP-1 capillary column with a 0.25 mm stationary phase film thickness. The flow rate was 1 mL/min and split-less. Fourier transform infrared (FT-IR) spectra were obtained on a PerkinElmer RX I FT-IR spectrometer (Taipei, Taiwan). NMR spectra were recorded on Bruker AM 500 and 300 spectrometers (Taipei, Taiwan) using 5 mm o.d. sample tubes.

3.2. Starting Materials

The chemicals, reagents and solvents employed were commercially available and used as received. RfCH2OH where Rf = n-C11F23 (a), n-C10F21 (b), n-C9F19 (c) and n-C8F17 (d), and C87F15 (e) were purchased from either Aldrich or SynQuest (Taipei, Taiwan).

3.3. Preparation of Palladium Complexes

The fluorous bipyridyl ligandes were prepared using the literature method [42]. The reaction of [PdCl2(CH3CN)2] with fluorinated bipyridine derivatives, bis-4,4′-(n- RfCH2OCH2)-2,2′-bpy (1a–d), resulted in the synthesis of [PdCl2[4,4′-bis-(n-CF3(CF2)10CH2OCH2)-2,2′-bpy] (2a–d) as pale yellow solids, where Rf = n-C11F23 (a), n-C10F21 (b), n-C9F19 (c) and n-C8F17 (d), respectively [44,45,46,47,48,52,53,54,55,56,57]. The reaction was stirred in CH2Cl2 under nitrogen for 6 h, and the complexes 2a–d would then precipitate from the reaction mixture. The precipitate was collected after removing the solvent by using vacuum pump and finally washed with methanol to remove the excess metal. The yield was about 85%.

3.4. Analytical Data for the Ligands and Pd Metal Complexes

Analytical data of ligand 1e (as a representative example; for others, see refs [44,45,46,47,48]). Yield: 90%. m.p.: 93–96 °C. FT-IR (cm−1): v (bpy, m) 1602, 1561; v (CF2 stretch, s) 1242, 1208, 1147. 1H-NMR (500 MHz, DMSO-d6, rt): δ (ppm) 8.67 (d, J = 5.0 Hz, 2H, H6), 8.34 (s, 2H, H3), 7.34 (d, J = 5.0 Hz, 2H, H5), 4.77 (s, 4H, bpy-CH2), 4.04 (t, J = 14.6 Hz, 4H, -CH2CF2-); 13C-NMR (113 MHz, CDCl3, 350 K): δ (ppm) 155.9, 149.5, 146.8, 121.8, 119.1 (10C, bpy), 118–108 (-C7F15), 72.9 (bpy-CH2O-), 67.6 (-CH2CF2-); 19F-NMR (470 MHz, CDCl3, 350 K): δ (ppm) −80.8 (t, J = 9.7 Hz, 6F, -CF2CF3), −119.3 (t, J = 8.6 Hz, 4F, -CH2CF2), −122.0 (8F), −122.7 (4F), −123.2 (4F), −126.1 (4F). GC/MS: 582 (M+-OCH2C7F15), 183 (M+-2 (OCH2C7F15)), 91 (C6H5N+).
For Analytical data of complexes 2a–d, see the literature methods in [42,43,44].

3.5. Procedures in Catalytic Stille Reaction and Recovery

In a typical run, an aryl iodide (1 mmol) and vinyl tributyltin (1.02 mmol) were charged into a 10 mL reaction tube containing a magnetic stirrer bar, then the Pd catalyst (1 mol%) and followed by NMP solvent (5 mL). Then the reaction mixture was set to react at 120 °C for the given period of time before GC/MS analysis was done to confirm the completion of the reaction. Once the catalytic recovery was done, the pure product was isolated by using CH2Cl2/H2O extraction and the CH2Cl2 layer was pumped under reduced pressure to obtain the pure product. The product was finally analyzed by using 1H-NMR spectroscopy.
The Pd-catalyzed Stille reactions of all the aryl halide substrates with 3 were carried out under the thermomorphic condition that effectively confirmed the practicability of reutilizing the catalyst in NMP solvent. For every round, the catalytic reaction was performed at 120–150 °C under N2 gas. At the end of each run, the product mixtures were put into a freezer (−10 °C) for about five minutes and then centrifuged to separate the catalyst and reaction mixture. After the catalyst was recovered by decantation and washed three times by the same solvent, it was again supplied with the same amounts of NMP solvent, aryl halide and vinyl tributyltin to continue to the next round. The products were tracked with GC/MS (see Section 3 in Supplementary Materials) and 1H NMR, using anisole as an internal standard until the completion of the reaction was confirmed.

3.6. Procedures in Catalytic Suzuki-Miyaura Reaction and Recovery

In a typical run, 4-cyanoiodobenzene (0.3 mmol) and phenylboronic acid (0.2 mmol) were charged into 10 mL reaction tube containing a magnetic stirrer bar, then the Pd catalyst (3 mol%) and followed by DMF solvent (5 mL). Then the reaction mixture was set to react at 150 °C for 8 h before GC/MS analysis was done to confirm the completion of the reaction. The Pd-catalyzed Suzuki-Miyaura reactions of boronic acid substrates with aryl halides were carried out under the thermomorphic condition that effectively confirmed the practicability of reutilizing the catalyst in a DMF solvent. Every round the catalytic reaction was performed at 135, 140 or 150 °C under N2 gas. At the end of each run, the product mixtures were put into a freezer (−10 °C) for about 2 h and then centrifuged to separate the catalyst and reaction mixture. After the catalyst was recovered by decantation and washed three times, it was again supplied with the same amounts of DMF solvent and the substrates to continue to the next round. The products were tracked with GC/MS (see Section 3 in Supplementary Materials) and 1H NMR.

4. Conclusions

The recovery and recycling of catalysts in Pd-catalyzed Stille and Suzuki-Miyaura coupling reactions employing the thermomorphic condition were successfully demonstrated. The prepared Pd complexes 2a–c had very high fluorine contents and worked well in both Stille and Suzuki-Miyaura reactions up to 8 cycles. The product yield was also higher in most reaction runs; sometimes it even reached 100%. In the Stille reaction by using catalyst 2a, when aryl iodides were used as the substartes, good catalytic activities and recoverability were observed for all the cases while the R group was unsubstituted, EWG or ERG. The electronic effects from the R group could also be easily observed with R = EWG speeding up the reaction and R = ERG slowing down the reaction. The metal leaching study for the Stille reaction via the ICP-MS method showed that the Pd metal in the complex was effectively recovered throughout the catalytic cycles with almost no loss in activity. Similarly, the 2a-catalyzed Suzuki-Miyaura reaction of iodobenzene derivatives with biphenyl boronic acid derivatives took place with good catalytic activities and recoverability. Additionally, in the extended work, the metal complexes 2a–c were also shown to be active in Pd-catalyzed Suzuki-Miyaura reactions of 4-cyanobromobenzene with phenyl boronic acid. Previously, we have reported that this type of fluorous long-chained Pd complexes have good catalytic activity for Heck and Sonogashira reactions under the thermorphic mode. Therefore, we can conclude that the catalysts 2a–c are effective in all major Pd-catalyzed C-C coupling reactions for the sustainable research.

Supplementary Materials

The materials are available online. They include thermomorphic curve studies, GC/MS data of products, and Figure S1. 19F NMR spectrum of the catalyst 2b.

Author Contributions

N.L., C.-F.C. and C.-R.S. performed the conceptualization and had the research idea; E.T., V.E., Z.-L.T., H.-C.S. and K.L.C. performed syntheses and characterization of the palladium complexes and conducted the catalytic studies. N.L. and C.-F.C. analyzed the obtained data and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by MOST, 106–2113-M-027–001 and university joint grants: NTUT-CGMH-108–03 and NTUTCGMH-106–7 (or CORPG3G0071).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Acknowledgments

We gratefully acknowledge the Ministry of Science and Technology in Taiwan and university joint grants. All authors thank R. L. Sobocinski for proof-reading.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Some of the fluorous palladium complexes are available from the authors.

References

  1. Cordovilla, C.; Bartolomé, C.; Martínez-Ilarduya, J.S.M.; Espinet, P. The Stille reaction, 38 years later. ACS Catal. 2015, 5, 3040–3053. [Google Scholar] [CrossRef] [Green Version]
  2. Lee, V. Application of copper (i) salt and fluoride promoted Stille coupling reactions in the synthesis of bioactive molecules. Org. Biomol. Chem. 2019, 17, 9095–9123. [Google Scholar] [CrossRef] [PubMed]
  3. Nikoorazm, M.; Ghorbani-Choghamarani, A.; Khanmoradi, M. Application of Pd-2A3HP-MCM-41 to the Suzuki, Heck and Stille coupling reactions and synthesis of 5-substituted 1H-tetrazoles. Appl. Organomet. Chem. 2016, 30, 705–712. [Google Scholar] [CrossRef]
  4. Wang, D.-Y.; Kawahata, M.; Yang, Z.-K.; Miyamoto, K.; Komagawa, S.; Yamaguchi, K.; Wang, C.; Uchiyama, M. Stille coupling via C–N bond cleavage. Nat. Commun. 2016, 7, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Miyaura, N.; Suzuki, A. Palladium-catalyzed cross-coupling reactions of organoboron compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef] [Green Version]
  6. Suzuki, A.J. Recent advances in the cross-coupling reactions of organoboron derivatives with organic electrophiles, 1995–1998. J. Organomet. Chem. 1999, 576, 147–168. [Google Scholar] [CrossRef]
  7. Sofiyev, V.; Navarro, G.; Trauner, D. Biomimetic synthesis of the shimalactones. Org. Lett. 2008, 10, 149–152. [Google Scholar] [CrossRef]
  8. Souris, C.; Frébault, F.; Patel, A.; Audisio, D.; Houk, K.N.; Maulide, N. Stereoselective synthesis of dienyl-carboxylate building blocks: Formal synthesis of inthomycin C. Org. Lett. 2013, 15, 3242–3245. [Google Scholar] [CrossRef] [Green Version]
  9. Heravi, M.M.; Hashemi, E.; Azimian, F. Recent developments of the Stille reaction as a revolutionized method in total synthesis. Tetrahedron 2014, 70, 7–21. [Google Scholar] [CrossRef]
  10. Lord, A.M.; Mahon, M.F.; Lloyd, M.D.; Threadgill, M.D. Design, synthesis, and evaluation in vitro of quinoline-8-carboxamides, a new class of poly (adenosine-diphosphate-ribose) polymerase-1 (PARP-1) inhibitor. J. Med. Chem. 2009, 52, 868–877. [Google Scholar] [CrossRef]
  11. Cullen, M.D.; Deng, B.L.; Hartman, T.L.; Watson, K.M.; Buckheit, R.W.; Pannecouque, C.; Cushman, M. Synthesis and biological evaluation of alkenyldiarylmethane HIV-1 non-nucleoside reverse transcriptase inhibitors that possess increased hydrolytic stability. J. Med. Chem. 2007, 50, 4854–4867. [Google Scholar] [CrossRef] [PubMed]
  12. Nicolaou, K.C.; King, N.P.; Finlay, M.R.V.; He, Y.; Roschangar, F.; Vourloumis, D.; Hepworth, D. Total synthesis of epothilone E and related side-chain modified analogues via a Stille coupling based strategy. Bioorg. Med. Chem. 1999, 7, 665–697. [Google Scholar] [CrossRef]
  13. Johansson Seechurn, C.C.; Kitching, M.O.; Colacot, T.J.; Snieckus, V. Palladium-catalyzed cross-coupling: A historical contextual perspective to the 2010 Nobel Prize. Angew. Chem. Int. Ed. 2012, 51, 5062–5085. [Google Scholar] [CrossRef] [PubMed]
  14. Carsten, B.; He, F.; Son, H.J.; Xu, T.; Yu, L. Stille polycondensation for synthesis of functional materials. Chem. Rev. 2011, 111, 1493–1528. [Google Scholar] [CrossRef]
  15. Choudary, B.M.; Madhi, S.; Chowdari, N.S.; Kantam, M.L.; Sreedhar, B. Layered double hydroxide supported nanopalladium catalyst for Heck-, Suzuki-, Sonogashira-, and Stille-type coupling reactions of chloroarenes. J. Am. Chem. Soc. 2002, 124, 14127–14136. [Google Scholar] [CrossRef]
  16. Mosleh, I.; Shahsavari, H.R.; Beitle, R.; Beyzavi, M.H. Recombinant Peptide Fusion Protein-templated Palladium Nanoparticles for Suzuki-Miyaura and Stille Coupling Reactions. ChemCatChem 2020, 12, 2942–2946. [Google Scholar] [CrossRef]
  17. Ghorbani-Choghamarani, A.; Norouzi, M. Palladium supported on modified magnetic nanoparticles: A phosphine-free and heterogeneous catalyst for Suzuki and Stille reactions. Appl. Organomet. Chem. 2016, 30, 140–147. [Google Scholar] [CrossRef]
  18. Mohazzab, B.F.; Jaleh, B.; Issaabadi, Z.; Nasrollahzadeh, M.; Varma, R.S. Stainless steel mesh-GO/Pd NPs: Catalytic applications of Suzuki–Miyaura and Stille coupling reactions in eco-friendly media. Green Chem. 2019, 21, 3319–3327. [Google Scholar] [CrossRef]
  19. Dell’Anna, M.M.; Lofù, A.; Mastrorilli, P.; Mucciante, V.; Nobile, C.F. Stille coupling reactions catalysed by a polymer supported palladium complex. J. Organomet. Chem. 2006, 691, 131–137. [Google Scholar] [CrossRef]
  20. Yin, X.; Guo, F.; Lalancette, R.A.; Jäkle, F. Luminescent main-chain organoborane polymers: Highly robust, electron-deficient poly (oligothiophene borane) s via Stille coupling polymerization. Macromolecules 2016, 49, 537–546. [Google Scholar] [CrossRef]
  21. Ryu, S.H.; Choi, S.J.; Seon, J.H.; Jo, B.; Lee, S.M.; Kim, H.J.; Ko, Y.-J.; Ko, K.C.; Ahn, T.K.; Son, S.U. Visible light-driven Suzuki–Miyaura reaction by self-supported Pd nanocatalysts in the formation of Stille coupling-based photoactive microporous organic polymers. Catal. Sci. Technol. 2020, 10, 5535–5543. [Google Scholar] [CrossRef]
  22. McAfee, S.M.; McCahill, J.S.; Macaulay, C.M.; Hendsbee, A.D.; Welch, G.C. Utility of a heterogeneous palladium catalyst for the synthesis of a molecular semiconductor via Stille, Suzuki, and direct heteroarylation cross-coupling reactions. RSC Adv. 2015, 5, 26097–26106. [Google Scholar] [CrossRef] [Green Version]
  23. Saha, D.; Sen, R.; Maity, T.; Koner, S. Anchoring of palladium onto surface of porous metal–organic framework through post-synthesis modification and studies on Suzuki and Stille coupling reactions under heterogeneous condition. Langmuir 2013, 29, 3140–3151. [Google Scholar] [CrossRef] [PubMed]
  24. Ghorbani-Choghamarani, A.; Nikpour, F.; Ghorbani, F.; Havasi, F. Anchoring of Pd (II) complex in functionalized MCM-41 as an efficient and recoverable novel nano catalyst in C–C, C–O and C–N coupling reactions using Ph3SnCl. RSC Adv. 2015, 5, 33212–33220. [Google Scholar] [CrossRef]
  25. Khanmoradi, M.; Nikoorazm, M.; Ghorbani-Choghamarani, A. Synthesis and characterization of Pd schiff base complex immobilized onto functionalized nanoporous MCM-41 and its catalytic efficacy in the Suzuki, Heck and Stille coupling reactions. Catal. Lett. 2017, 147, 1114–1126. [Google Scholar] [CrossRef]
  26. Su, W.; Urgaonkar, S.; McLaughlin, P.A.; Verkade, J.G. Highly active palladium catalysts supported by bulky proazaphosphatrane ligands for Stille cross-coupling: Coupling of aryl and vinyl chlorides, room temperature coupling of aryl bromides, coupling of aryl triflates, and synthesis of sterically hindered biaryls. J. Am. Chem. Soc. 2004, 126, 16433–16439. [Google Scholar] [PubMed]
  27. Li, X.; Zhu, T.; Shao, Z.; Li, Y.; Chang, H.; Gao, W.; Zhang, Y.; Wei, W. Newly-generated Al(OH)3-supported Pd nanoparticles-catalyzed Stille and Kumada coupling reactions of diazonium salts,(Het) aryl chlorides. Tetrahedron 2016, 72, 69–75. [Google Scholar] [CrossRef]
  28. Holz, J.; Pfeffer, C.; Zuo, H.; Beierlein, D.; Richter, G.; Klemm, E.; Peters, R. In Situ Generated Gold Nanoparticles on Active Carbon as Reusable Highly Efficient Catalysts for a C–C Stille Coupling. Angew. Chem. Int. Ed. 2019, 58, 10330–10334. [Google Scholar] [CrossRef] [PubMed]
  29. Ghorbani-Choghamarani, A.; Naghipour, A.; Heidarizadi, F.; Shirkhani, R.; Notash, B. Bis[(2-methylacetatobenzyl)tri(p-tolyl) phosphonium] hexabromodipalladate (II); Synthesis, characterization, structural study and application as a retrievable heterogeneous catalyst for the amination of aryl halides and Stille cross-coupling reaction. Inorg. Chim. Acta 2016, 446, 97–102. [Google Scholar] [CrossRef]
  30. Naghipour, A.; Ghorbani-Choghamarani, A.; Heidarizadi, F.; Notash, B. Synthesis, characterization and structural study of a phosphonium salt containing the [Pd2Br6]2−ion and its application as a novel, efficient and renewable heterogeneous catalyst for amination of aryl halides and the Stille cross-coupling reaction. Polyhedron 2016, 105, 18–26. [Google Scholar] [CrossRef]
  31. Wu, W.-Y.; Liu, L.-J.; Chang, F.-P.; Cheng, Y.-L.; Tsai, F.-Y. A Highly Efficient and Reusable Palladium (II)/Cationic 2, 2′-Bipyridyl-Catalyzed Stille Coupling in Water. Molecules 2016, 21, 1205. [Google Scholar] [CrossRef] [Green Version]
  32. Ogo, S.; Takebe, Y.; Uehara, K.; Yamazaki, T.; Nakai, H.; Watanabe, Y.; Fukuzumi, S. pH-Dependent C−C Coupling Reactions Catalyzed by Water-Soluble Palladacyclic Aqua Catalysts in Water. Organometallics 2006, 25, 331–338. [Google Scholar] [CrossRef]
  33. Fareghi-Alamdari, R.; Golestanzadeh, M.; Bagheri, O. An efficient and recoverable palladium organocatalyst for Suzuki reaction in aqueous media. Appl. Organomet. Chem. 2017, 31, e3698. [Google Scholar] [CrossRef]
  34. Hao, W.; Xi, Z.; Cai, M. A practical synthesis of biaryls and aromatic acetylenes by Stille coupling in room-temperature ionic liquids. Synth. Commun. 2012, 42, 2396–2406. [Google Scholar] [CrossRef]
  35. Chiappe, C.; Imperato, G.; Napolitano, E.; Pieraccini, D. Ligandless Stille cross-coupling in ionic liquids. Green Chem. 2004, 6, 33–36. [Google Scholar] [CrossRef]
  36. Baran, T.; Baran, N.Y.; Menteş, A. An easily recoverable and highly reproducible agar-supported palladium catalyst for Suzuki-Miyaura coupling reactions and reduction of o-nitroaniline. Int. J. Biol. Macromol. 2018, 115, 249–256. [Google Scholar] [CrossRef]
  37. Okamoto, K.; Akiyama, R.; Kobayashi, S. Suzuki–Miyaura Coupling Catalyzed by Polymer-Incarcerated Palladium, a Highly Active, Recoverable, and Reusable Pd Catalyst. Org. Lett. 2004, 6, 1987–1990. [Google Scholar] [CrossRef]
  38. Lin, B.; Liu, Z.; Liu, M.; Pan, C.; Ding, J.; Wu, H.; Cheng, J. Aminophosphine supported on Al2O3 as recoverable catalyst for the Suzuki coupling. Catal. Commun. 2007, 8, 2150–2152. [Google Scholar] [CrossRef]
  39. Smith, M.D.; Stepan, A.F.; Ramarao, C.; Brennan, P.E.; Ley, S.V. Palladium-containing perovskites: Recoverable and reuseable catalysts for Suzuki couplings. Chem. Commun. 2003, 21, 2652–2653. [Google Scholar] [CrossRef]
  40. Guerra, R.R.; Martins, F.C.; Lima, C.G.; Goncalves, R.H.; Leite, E.R.; Pereira-Filho, E.R.; Schwab, R.S. Factorial design evaluation of the Suzuki cross-coupling reaction using a magnetically recoverable palladium catalyst. Tetrahedron Lett. 2017, 58, 903–908. [Google Scholar] [CrossRef]
  41. Rangraz, Y.; Nemati, F.; Elhampour, A. A novel magnetically recoverable palladium nanocatalyst containing organoselenium ligand for the synthesis of biaryls via Suzuki-Miyaura coupling reaction. J. Phys. Chem. Solids 2020, 138, 109251–109258. [Google Scholar] [CrossRef]
  42. Lu, N.; Chen, S.-C.; Chen, T.-C.; Liu, L.-K. Palladium-catalyzed Heck reaction under thermomorphic mode. Tetrahedron Lett. 2008, 49, 371–375. [Google Scholar] [CrossRef]
  43. Li, C.-K.; Ghalwadkar, A.; Lu, N. Recoverable cationic Pd-catalyzed Heck reaction under thermomorphic mode. J. Organomet. Chem. 2011, 696, 3637–3642. [Google Scholar] [CrossRef]
  44. Lu, N.; Lin, Y.-C.; Chen, J.-Y.; Fan, C.-W.; Liu, L.-K. New bis (fluoro-ponytailed) bipyridine ligands for Pd-catalyzed Heck reactions under fluorous biphasic catalysis condition. Tetrahedron 2007, 63, 2019–2023. [Google Scholar] [CrossRef]
  45. Lu, N.; Ou, Y.-M.; Feng, T.-Y.; Cheng, W.-J.; Tu, W.-H.; Su, H.-C.; Wang, X.; Liu, L.; Hennek, M.D.; Sayler, T.S. Synthesis and characterization of polyfluorinated 2, 2′-bipyridines and their palladium and platinum complexes [MX2(bis(RfCH2OCH2)-2, 2′-bpy)](X = Cl, Br). J. Fluor. Chem. 2012, 137, 54–63. [Google Scholar] [CrossRef]
  46. Lu, N.; Lin, K.Y.; Li, C.K.; Kung, C.C.; Yeh, Y.P.; Cheng, Y.Y.; Liu, L.K. Recyclable palladium catalysts for the Heck/Sonogashira reaction under microwave-assisted thermomorphic conditions. J. Chin. Chem. Soc. 2015, 62, 64–72. [Google Scholar] [CrossRef]
  47. Lu, N.; Chen, Y.-C.; Chen, W.-S.; Chen, T.-L.; Wu, S.-J. Efficient, Recoverable, Copper-Free Sonogashira Reaction under FBS and Thermomorphic Mode. J. Organomet. Chem. 2009, 694, 278–284. [Google Scholar] [CrossRef]
  48. Lu, N.; Chen, S.C.; Lin, Y.C.; Cheng, Y.Y.; Liu, L.K. High Fluorine Content Bis (fluoro-Ponytailed) Bipyridine Palladium Complexes as Catalyst for Mizoroki-Heck Reactions under Fluorous Biphasic Catalysis Conditions. J. Chin. Chem. Soc. 2008, 55, 89–96. [Google Scholar] [CrossRef]
  49. Yabe, Y.; Maegawa, T.; Monguchi, Y.; Sajiki, H. Palladium on charcoal-catalyzed ligand-free Stille coupling. Tetrahedron 2010, 66, 8654–8660. [Google Scholar] [CrossRef]
  50. Wolf, C.; Lerebours, R. Efficient Stille cross-coupling reaction using aryl chlorides or bromides in water. J. Org. Chem. 2003, 68, 7551–7554. [Google Scholar] [CrossRef] [PubMed]
  51. Milstein, D.; Stille, J.K. A general, selective, and facile method for ketone synthesis from acid chlorides and organotin compounds catalyzed by palladium. J. Am. Chem. Soc. 1978, 100, 3636–3638. [Google Scholar] [CrossRef]
  52. Lu, N.; Yeh, Y.P.; Wang, G.B.; Feng, T.Y.; Shih, Y.H.; Chen, D. Dye-sensitized TiO2-catalyzed photodegradation of sulfamethoxazole under blue or yellow light. Environ. Sci. Pollut. Res. 2017, 24, 489–499. [Google Scholar] [CrossRef]
  53. Howell, J.L.; Lu, N.; Friesen, C.M. New derivatives of poly-hexafluoropropylene oxide from the corresponding alcohol. J. Fluor. Chem. 2005, 126, 281–288. [Google Scholar] [CrossRef]
  54. Lu, N.; Tu, W.H.; Hou, H.C.; Lin, C.T.; Li, C.K.; Liu, L.K. Synthesis, structure and spectroelectrochemical property of (2, 2′-bipyridine)–metal (M = Pt, Pd) dichloride with 4, 4′-bis (fluorous-ponytail) on bipyridine. Polyhedron 2010, 29, 1123–1129. [Google Scholar] [CrossRef]
  55. Periyanagounder, D.; Wei, T.C.; Li, T.Y.; Lin, C.H.; Gonçalves, T.P.; Fu, H.C.; Tsai, D.S.; Ke, J.J.; Kuo, H.W.; Huang, K.W.; et al. Fast-Response, Highly Air-Stable, and Water-Resistant Organic Photodetectors Based on a Single-Crystal Pt Complex. Adv. Mater. 2020, 32, 1904634. [Google Scholar] [CrossRef] [PubMed]
  56. Lu, N.; Chen, J.Y.; Fan, C.W.; Lin, Y.C.; Wen, Y.S.; Liu, L.K. (2, 2′-Bipyridine) palladiumdichloride Derivatives as Recyclable Catalysts in Heck Reactions. J. Chin. Chem. Soc. 2006, 53, 1517–1521. [Google Scholar] [CrossRef]
  57. Howell, J.L.; Lu, N.; Perez, E.W.; Friesen, C.M.; Novak, I.; Waterfeld, A.; Thrasher, J.S. The preparation of primary poly-hexafluoropropylene oxide halides (poly-HFPO-CF2X where X = I, Br, Cl and F). J. Fluor. Chem. 2004, 125, 1513–1518. [Google Scholar] [CrossRef]
Molecules 26 01414 sch001 550

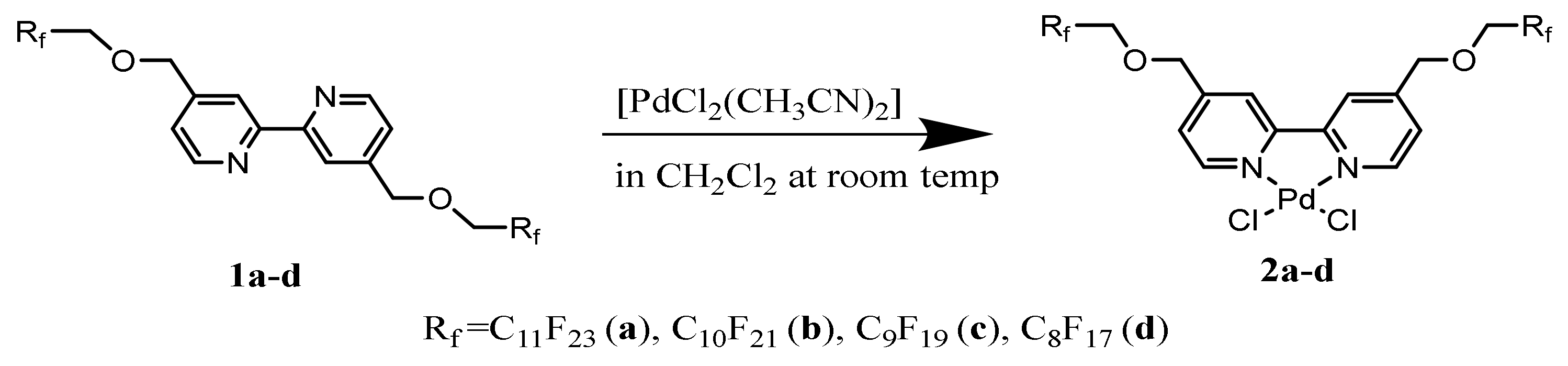

Scheme 1. Synthesis of the fluorous long-chained Pd complexes.
Scheme 1. Synthesis of the fluorous long-chained Pd complexes.
Molecules 26 01414 sch001
Molecules 26 01414 g001 550

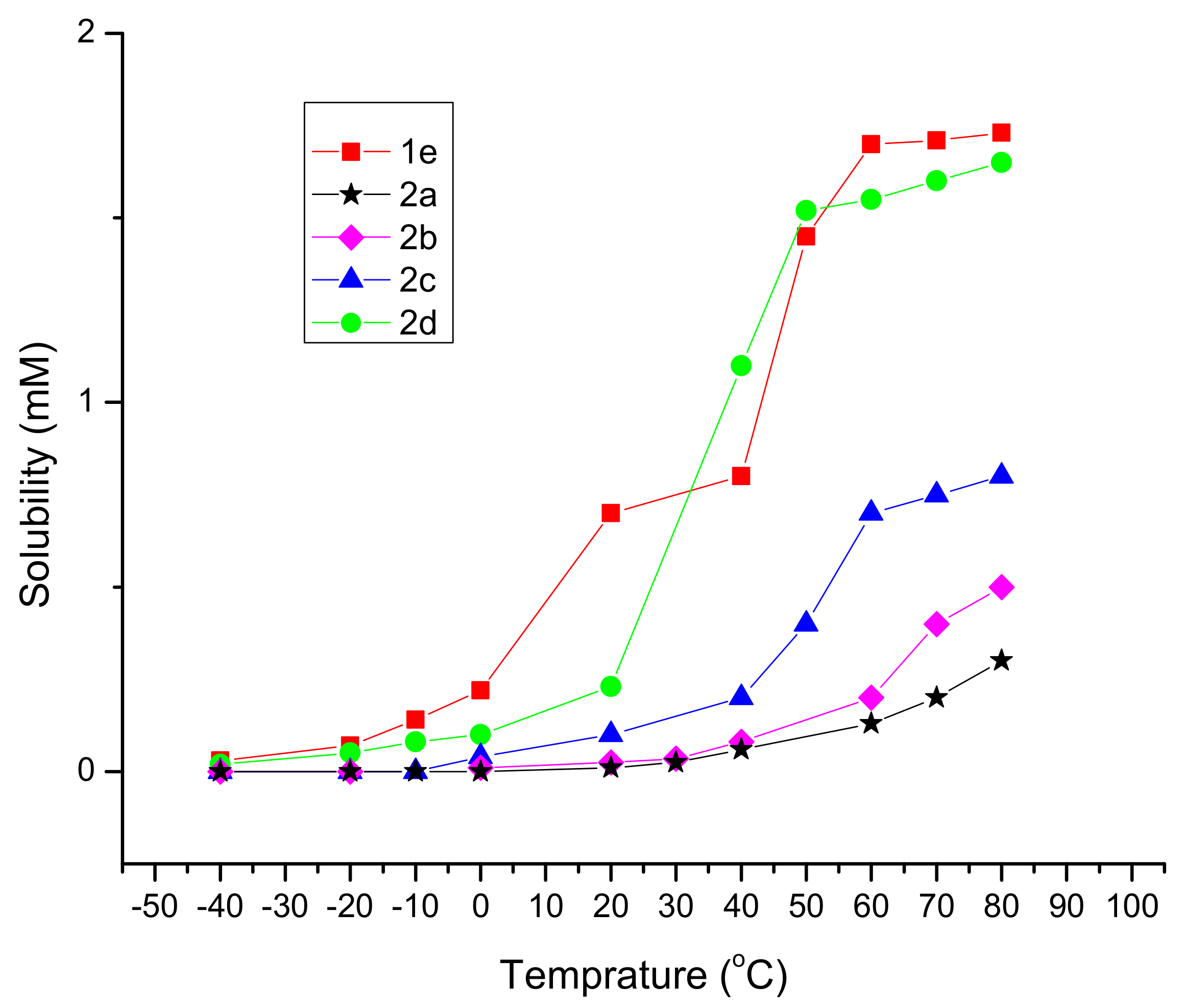

Figure 1. Solubility of Pd complexes 2a–d and ligand 1e in dimethylformamide (DMF) as a function of temperature.
Figure 1. Solubility of Pd complexes 2a–d and ligand 1e in dimethylformamide (DMF) as a function of temperature.
Molecules 26 01414 g001
Molecules 26 01414 sch002 550

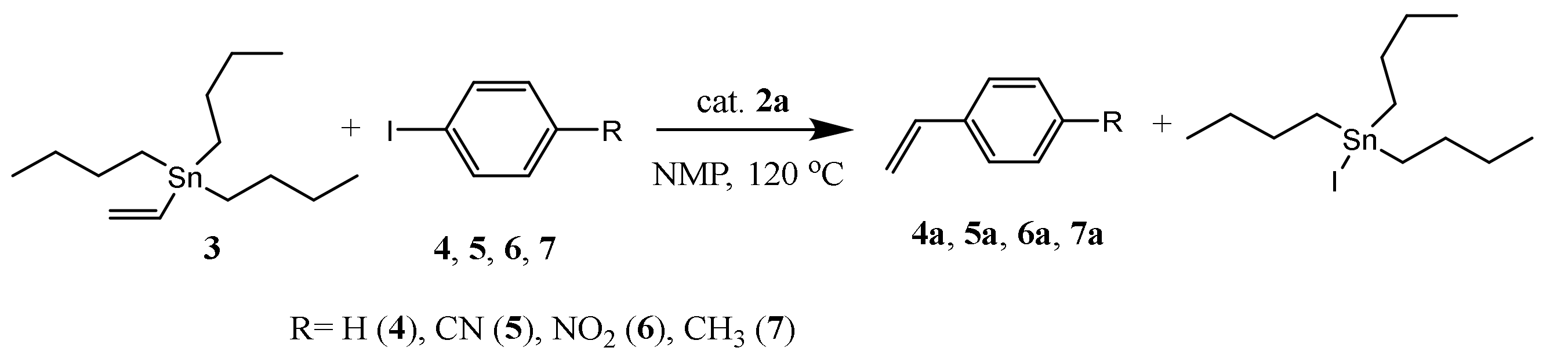

Scheme 2. The Pd catalyst (2a)-catalyzed Stille reaction of aryl iodides (4–7) with vinyl tributyltin (3) under the thermomorphic condition.
Scheme 2. The Pd catalyst (2a)-catalyzed Stille reaction of aryl iodides (4–7) with vinyl tributyltin (3) under the thermomorphic condition.
Molecules 26 01414 sch002
Molecules 26 01414 sch003 550

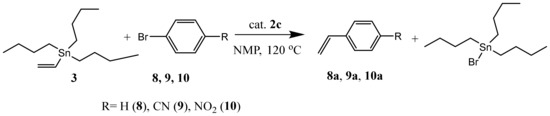

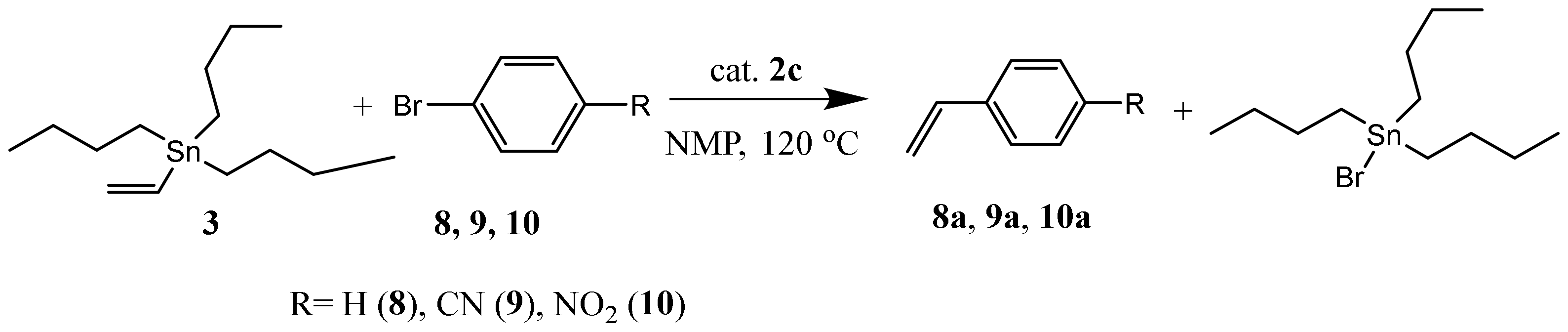

Scheme 3. The Pd catalyst (2a)-catalyzed Stille reaction of aryl bromides (8–10) with vinyl tributyltin (3) under the thermomorphic condition.
Scheme 3. The Pd catalyst (2a)-catalyzed Stille reaction of aryl bromides (8–10) with vinyl tributyltin (3) under the thermomorphic condition.
Molecules 26 01414 sch003
Molecules 26 01414 sch004 550

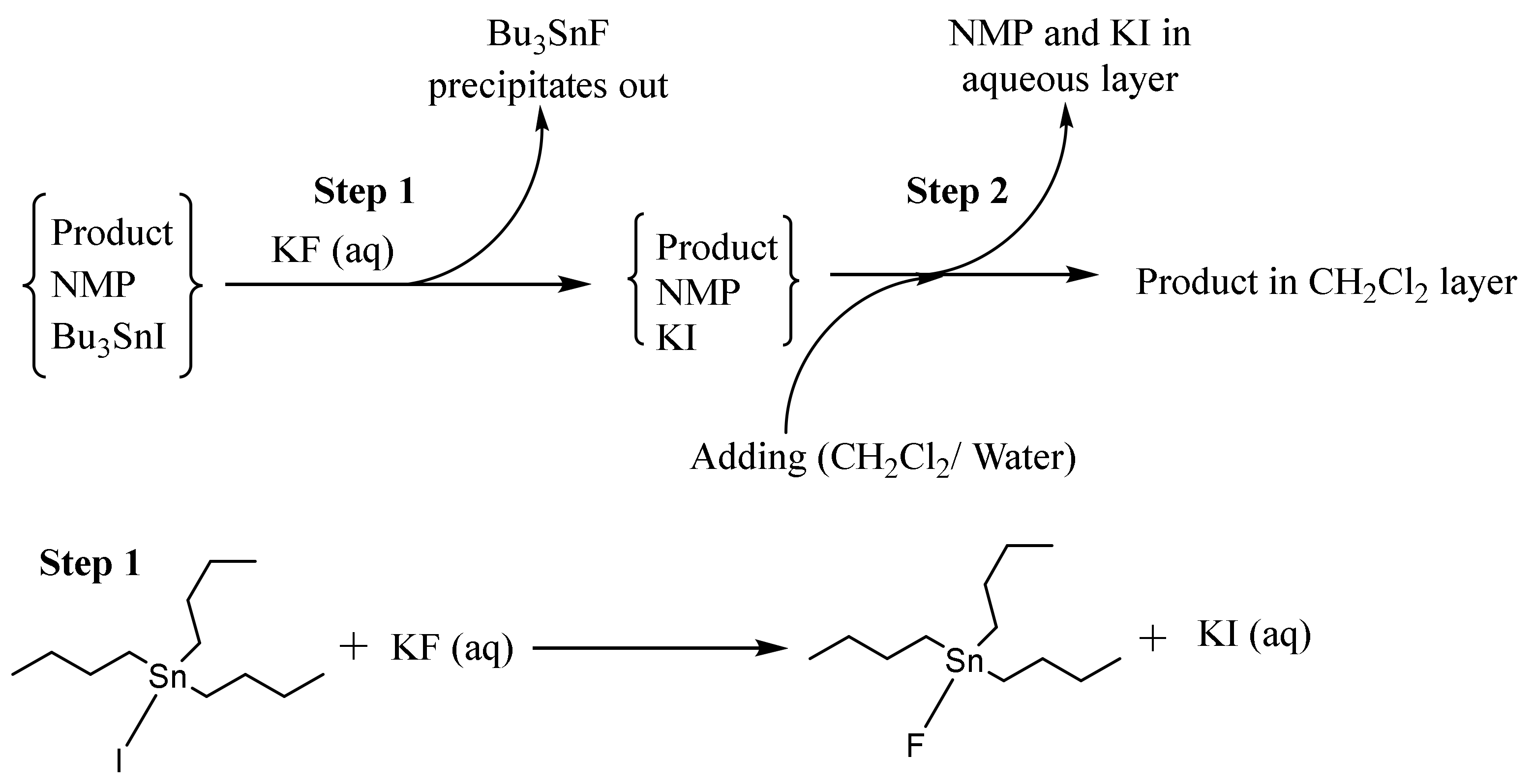

Scheme 4. Schematic drawing of the purification process of the Stille reaction product mixture.
Scheme 4. Schematic drawing of the purification process of the Stille reaction product mixture.
Molecules 26 01414 sch004
Molecules 26 01414 sch005 550

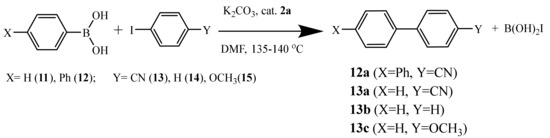

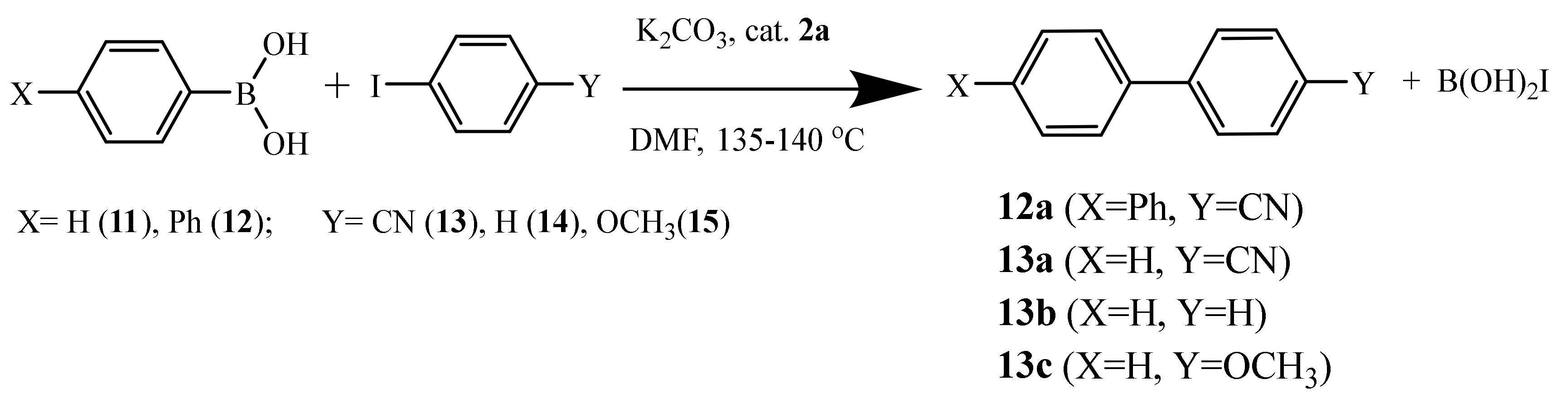

Scheme 5. The Pd catalyst (2a)-catalyzed Suzuki-Miyaura reaction of two phenyl boronic acid derivatives with three iodobenzene derivatives under the thermomorphic condition.
Scheme 5. The Pd catalyst (2a)-catalyzed Suzuki-Miyaura reaction of two phenyl boronic acid derivatives with three iodobenzene derivatives under the thermomorphic condition.
Molecules 26 01414 sch005
Molecules 26 01414 sch006 550

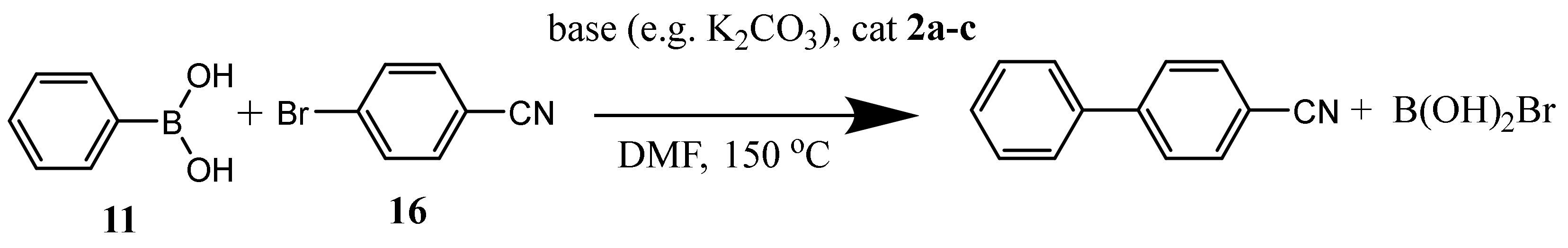

Scheme 6. The Pd catalyst (2a–c)-catalyzed Suzuki-Miyaura reaction of phenyl boronic acid (11) with 4-cyanobromobenzene (12) under the thermomorphic condition.
Scheme 6. The Pd catalyst (2a–c)-catalyzed Suzuki-Miyaura reaction of phenyl boronic acid (11) with 4-cyanobromobenzene (12) under the thermomorphic condition.
Molecules 26 01414 sch006
Table
Table 1. Recycling results of 2a-catalyzed Stille reaction of iodobenzene (4) and vinyl tributyltin (3) under the thermomorphic mode.
Table 1. Recycling results of 2a-catalyzed Stille reaction of iodobenzene (4) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON c
13120100 (99) b20
23120100 (91)20
33120100 (95)20
4312010020
5413010020
6413010020
7613010020
8613010020
Reaction conditions: Temp (T) = 120–130 °C, cat. 2a (5 mol%), 4 (204 mg, 1 mmol), 3 (333 mg, 1.05 mmol), solvent: 5 mL. a: measured by GC/MS (see Supplementary Materials); b: isolated yield in parenthesis; c: turnover number.
Table
Table 2. Recycling results of 2a-catalyzed Stille reaction of 4-cyanoiodobenzene (5) and vinyl tributyltin (3) under the thermomorphic mode.
Table 2. Recycling results of 2a-catalyzed Stille reaction of 4-cyanoiodobenzene (5) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
11120100 (98) b100
21120100100
31120100 (95)100
41120100100
51120100 (99)100
61120100100
711209999
811209898
Reaction conditions: T = 120 °C, cat. 2a (1 mol%), 5 (229 mg, 1 mmol), 3 (320.3 mg, 1.01 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 3. Recycling results of 2a-catalyzed Stille reaction of 4-nitroiodobenzene (6) and vinyl tributyltin (3) under the thermomorphic mode.
Table 3. Recycling results of 2a-catalyzed Stille reaction of 4-nitroiodobenzene (6) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
11120100 (98) b100
21120100 (95)100
31120100 (97)100
41120100100
51120100100
61120100100
711209999
811209797
Reaction conditions: T = 120 °C, cat. 2a (1 mol%), 6 (249 mg, 1 mmol), 3 (320.3 mg, 1.01 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 4. Recycling results of 2a-catalyzed Stille reaction of 4-iodotoluene (7) and vinyl tributyltin (3) under thermomorphic mode.
Table 4. Recycling results of 2a-catalyzed Stille reaction of 4-iodotoluene (7) and vinyl tributyltin (3) under thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
18130100 (98) b12.5
28130100 (95)12.5
38130100 (99)12.5
4813010012.5
5813010012.5
6914010012.5
71015010012.5
81515010012.5
Reaction conditions: T = 130–150 °C, cat. 2a (8 mol%), 7 (218 mg, 1 mmol), 3 (323.4 mg, 1.02 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 5. Recycling result of 2a-catalyzed Stille reaction of bromobenzene (8) and vinyl tributyltin (3) under the thermomorphic mode.
Table 5. Recycling result of 2a-catalyzed Stille reaction of bromobenzene (8) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
11214010010
212140100 (99) b10
31214010010
41415010010
51415010010
620150100 (97)10
724150959.5
830150868.6
Reaction conditions: T = 140–150 °C, cat. 2a (10 mol%), 8 (157 mg, 1 mmol), 3 (475.6 mg, 1.5 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 6. Recycling results of 2a-catalyzed Stille reaction of 4-cyanobromobenzene (9) and vinyl tributyltin (3) under the thermomorphic mode.
Table 6. Recycling results of 2a-catalyzed Stille reaction of 4-cyanobromobenzene (9) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
1414010010
25140100 (98) b10
3514010010
46140100 (98)10
5614010010
67140100 (97)10
71014010010
81814010010
Reaction conditions: T = 140 °C, cat. 2a (10 mol%), 9 (182 mg, 1 mmol), 3 (475.6 mg, 1.5 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 7. Recycling results of 2a-catalyzed Stille reaction of 4-nitrobromobenzene (10) and vinyl tributyltin (3) under the thermomorphic mode.
Table 7. Recycling results of 2a-catalyzed Stille reaction of 4-nitrobromobenzene (10) and vinyl tributyltin (3) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
1412010010
2412010010
34120100 (98) b10
4412010010
54120100 (98)10
6515010010
71515010010
82015010010
Reaction conditions: T = 120–150 °C, cat. 2a (10 mol%), 10 (202 mg, 1 mmol), 3 (475.6 mg, 1.5 mmol), solvent: 5 mL a: measured by GC/MS; b: isolated yield in parenthesis.
Table
Table 8. Recycling results of 2a-catalyzed Suzuki-Miyaura reaction of two phenyl boronic acid derivatives, 4-X-C6H4-B(OH)2 [X = H (11) or Ph (12)], with three iodobenzene derivatives, 4-Y-C6H4-I, [Y = CN (13), H (14) or OCH3(15)] under the thermomorphic condition.
Table 8. Recycling results of 2a-catalyzed Suzuki-Miyaura reaction of two phenyl boronic acid derivatives, 4-X-C6H4-B(OH)2 [X = H (11) or Ph (12)], with three iodobenzene derivatives, 4-Y-C6H4-I, [Y = CN (13), H (14) or OCH3(15)] under the thermomorphic condition.
EntryCycleReactant A
(X=)		Reactant B
(Y=)		Temp (°C)Yield (%) aTON
11stPhCN13510033.3
22ndPhCN13510033.3
33rdPhCN13510033.3
41stHCN1409531.7
52ndHCN1409230.7
63rdHCN1408528.3
71stHH1408026.7
82ndHH1407525
91stHOCH31407023.3
102ndHOCH31406020
Reaction conditions: Time = 4 h (for all entries), T = 135 or 140 °C, cat. 2a (3 mol%), 11 or 12 (0.2 mmol), 13, 14 or 15 (0.3 mmol), solvent: 5 mL. a: measured by GC/MS.
Table
Table 9. Recycling results of 2a-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Table 9. Recycling results of 2a-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
181509933
281509933
3815099 (98) b33
481509230.7
581508127
6815078 (77)26
781507324.3
881507826
Reaction conditions: T = 150 °C, cat. 2a (3 mol%), 11 (202 mg, 1 mmol), 16 (475.6 mg, 1.5 mmol), solvent: 5 mL. a: measured by GC/MS. b: isolated yield in parenthesis.
Table
Table 10. Recycling results of 2b-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Table 10. Recycling results of 2b-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
181509933
281509732.3
3815099 (97) b33
481509933
581509933
681509933
781509933
881509230.7
Reaction conditions: T = 150 °C, cat. 2b (3 mol%), 11 (202 mg, 1 mmol), 16 (475.6 mg, 1.5 mmol), solvent: 5 mL. a: measured by GC/MS. b: isolated yield in parenthesis.
Table
Table 11. Recycling results of 2c-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Table 11. Recycling results of 2c-catalyzed Suzuki-Miyaura reaction of aryl boronic acid (11) with 4-cyanobromobenzene (16) under the thermomorphic mode.
Cycle No.Time (h)Temp (°C)Yield (%) aTON
181509933
281509832.7
3815099 (98) b33
481509933
581509832.7
681509933
781509933
8815092 (89)30.7
981508327.7
Reaction conditions: T = 150 °C, cat. 2c (3 mol%), 11 (40 mg, 0.2 mmol), 16 (36.6 mg, 1.5 mmol), solvent: 5 mL. a: measured by GC/MS. b: isolated yield in parenthesis.
Table
Table 12. Pd leaching (%) after 2a-catalyzed Stille coupling of aryl iodides from inductively coupled plasma mass spectrometry (ICP-MS).
Table 12. Pd leaching (%) after 2a-catalyzed Stille coupling of aryl iodides from inductively coupled plasma mass spectrometry (ICP-MS).
Table No.-Cycle No.Pd Detected from ICP-MS (In ppm) aWt of the Catalyst
Used (mg)		Pd Leaching (%)Pd Recovery (%)
1–12.932800.1199.89
1–85.953800.2199.79
2–14.109160.7299.28
2–51.372160.2799.73
3–20.37160.0699.94
3–60.393160.0899.92
4–32.6731280.0799.93
4–721.861280.4699.54
a: Pd (in ppm) detected from ICP-MS analysis.
Table
Table 13. Pd leaching (%) after 2a-catalyzed Stille coupling of aryl bromides from ICP-MS.
Table 13. Pd leaching (%) after 2a-catalyzed Stille coupling of aryl bromides from ICP-MS.
Table No.-Cycle No.Pd Detected from ICP-MS (In ppm) aWt of the Catalyst
Used (mg)		Pd Leaching
(%)		Pd Recovery
(%)
5–12.5141600.0599.95
5–34.3981600.0899.92
6–234.891601.1898.82
6–415.081600.6399.37
7–50.621600.0399.97
7–821.761600.7699.24
a: Pd (in ppm) detected from ICP-MS analysis.
Table
Table 14. Pd leaching (%) after 2a–c-catalyzed Suzuki-Miyaura coupling of aryl bromides from ICP-MS.
Table 14. Pd leaching (%) after 2a–c-catalyzed Suzuki-Miyaura coupling of aryl bromides from ICP-MS.
Table No.-Cycle No.Pd Detected from
ICP-MS (In ppm) a		Wt of the Catalyst Used (mg)Pd Leaching (%)Pd Recovery
(%)
8–15.12470.4099.6
8–37.69470.6099.4
9–14.08440.3199.69
9–512.32440.9999.01
10–33.33410.2699.74
10–513.03411.0698.94
a: Pd (in ppm) detected from ICP-MS analysis.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tessema, E.; Elakkat, V.; Chiu, C.-F.; Tsai, Z.-L.; Chan, K.L.; Shen, C.-R.; Su, H.-C.; Lu, N. Recoverable Palladium-Catalyzed Carbon-Carbon Bond Forming Reactions under Thermomorphic Mode: Stille and Suzuki-Miyaura Reactions. Molecules 2021, 26, 1414. https://doi.org/10.3390/molecules26051414

AMA Style

Tessema E, Elakkat V, Chiu C-F, Tsai Z-L, Chan KL, Shen C-R, Su H-C, Lu N. Recoverable Palladium-Catalyzed Carbon-Carbon Bond Forming Reactions under Thermomorphic Mode: Stille and Suzuki-Miyaura Reactions. Molecules. 2021; 26(5):1414. https://doi.org/10.3390/molecules26051414

Chicago/Turabian Style

Tessema, Eskedar, Vijayanath Elakkat, Chiao-Fan Chiu, Zong-Lin Tsai, Ka Long Chan, Chia-Rui Shen, Han-Chang Su, and Norman Lu. 2021. "Recoverable Palladium-Catalyzed Carbon-Carbon Bond Forming Reactions under Thermomorphic Mode: Stille and Suzuki-Miyaura Reactions" Molecules 26, no. 5: 1414. https://doi.org/10.3390/molecules26051414

Article Metrics

Back to TopTop
