A New Dimeric Copper(II) Complex of Hexyl Bis(pyrazolyl)acetate Ligand as an Efficient Catalyst for Allylic Oxidations

by
Luca Bagnarelli
1,
Alessandro Dolmella
2,
Carlo Santini
1,
Riccardo Vallesi
1,
Roberto Giacomantonio
1,
Serena Gabrielli
1,* and
Maura Pellei
1,*
1
Chemistry Division, School of Science and Technology, University of Camerino, Via S. Agostino 1, 62032 Camerino, Italy
2
Department of Pharmaceutical and Pharmacological Sciences, University of Padova, Via Marzolo 5, 35131 Padova, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(20), 6271; https://doi.org/10.3390/molecules26206271
Submission received: 21 September 2021 / Revised: 13 October 2021 / Accepted: 14 October 2021 / Published: 16 October 2021
(This article belongs to the Special Issue Copper in Synthesis and Catalysis)
Browse Figures
Versions Notes

Abstract

:
A new dimeric copper(II) bromide complex, [Cu(LOHex)Br(μ-Br)]2 (1), was prepared by a reaction of CuBr2 with the hexyl bis(pyrazol-1-yl)acetate ligand (LOHex) in acetonitrile solution and fully characterized in the solid state and in solution. The crystal structure of 1 was also determined: the complex is interlinked by two bridging bromide ligands and possesses terminal bromide ligands on each copper atom. The two pyrazolyl ligands in 1 coordinate with the nitrogen atoms to complete the Cu coordination sphere, resulting in a five-coordinated geometry—away from idealized trigonal bipyramidal and square pyramidal geometries—which can better be described as distorted square pyramidal, as measured by the τ and χ structural parameters. The pendant hexyloxy chain is disordered over two arrangements, with final site occupancies refined to 0.705 and 0.295. The newly synthesized complex was evaluated as a catalyst in copper-catalyzed C–H oxidation for allylic functionalization through a Kharasch–Sosnovsky reaction without any external reducing agent. Using 0.5 mol% of this catalyst, and tert-butyl peroxybenzoate (Luperox) as an oxidant, allylic benzoates were obtained with up to 90% yield. The general reaction time was only slightly decreased to 24 h but a very significant decrease in the alkene:Luperox ratio to 3:1 was achieved. These factors show relevant improvements with respect to classical Kharasch–Sosnovsky reactions in terms of rate and amount of reagents. The present study highlights the potential of copper(II) complexes containing functionalized bis(pyrazol-1-yl)acetate ligands as efficient catalysts for allylic oxidations.

Graphical Abstract

1. Introduction

Nowadays, the focus on innovative and proper chemical transformations using catalytic metal complexes to devise functionalized intermediates remains indispensable in many chemical areas. The allylic oxidation of alkenes [1,2,3,4] allows access to highly functionalized compounds with a high added value, such as alcohols, aldehydes, ketones, epoxides, and carboxylic acids, which are suitable for further manipulations in synthetic and industrial applications [5,6]. These chemical derivatives can be generally obtained throughout an epoxidation and a dihydroxylation reaction, but, in contrast, allylic oxidation with copper catalysts and peroxy ester oxidant, often referred to as the Kharasch–Sosnovsky reaction, generates products with the olefin left intact [7,8,9,10,11,12,13] (Scheme 1). In this way, among the several transformations existing for olefins, allylic oxidation has demonstrated a very good aptitude for synthetic purposes that complement epoxidation and dihydroxylation. Although it is a powerful method that has been extensively studied, its use in synthesis has been limited because of the need for a long reaction time and superstoichiometric amounts of olefin (2.5–10 equivalents) [14]. Classically, the Kharasch–Sosnovsky reaction employs simple Cu(I) salts [10,15,16,17,18,19], able to promote the homolysis of the peroxy ester. The exact reaction mechanism is quite complex, even if no clear relationship has been found between the use of a particular ligand and copper salts [8,10,20,21]. In recent years, the search for improved Cu-based catalysts to promote allylic oxidation and widen the related field of applications has been an important topic in the scientific community [22]. In particular, the copper-catalyzed allylic oxidation of olefins is the key step in the synthesis of many natural products and pharmaceuticals [23,24,25,26,27,28,29]. The ease of handling and the stability of copper(II) salts make them valuable and suitable catalysts [8,10,20,30,31,32,33]. However, in the Kharasch–Sosnovsky reaction, the use of Cu(I) complexes results in better and more reproducible yields compared to Cu(II) species, which, in addition, require the use of external reducing agents. The mechanism of the reaction has been controversial, and different alternatives have been presented over the years [34,35,36,37,38,39]. This can be explained by how copper chemistry is incredibly diverse, and, depending on its oxidation state, this metal can powerfully catalyze reactions involving one- and/or two-electron mechanisms.
Complexes containing κ3N,N,O-heteroscorpionate ligands, derived from bis(pyrazol-1-yl)acetates [40,41,42], are of particular interest due to their coordination behavior in organometallic chemistry [42,43,44], both as metalloenzyme models [42,45,46,47,48] and as starting reagents in the synthesis of bifunctional ligands and related metal complexes which are useful for their biological activity [49,50,51,52,53,54]. Furthermore, in the last years, interest in the catalytic activity of this type of metal complex has grown considerably [55]. Currently, although few catalytic studies have been carried out, some of them are active catalysts in processes such as olefin polymerization [56,57,58,59] and oxidation [60], C–H bond functionalization/activation [61], ring-closing metathesis [62], and the reduction of protons from organic acids or aqueous solutions [63]. In addition, bis(pyrazol-1-yl)acetates are suitable for the preparation of solid-phase-grafted ligands [64,65,66] and in the development of hybrid organic–inorganic materials [67], which are not only of interest due to the advantages of supported catalysts in potential applications [68,69] but also to favor the formation of mono-ligand complexes without the need for sterically demanding substituents [69,70].

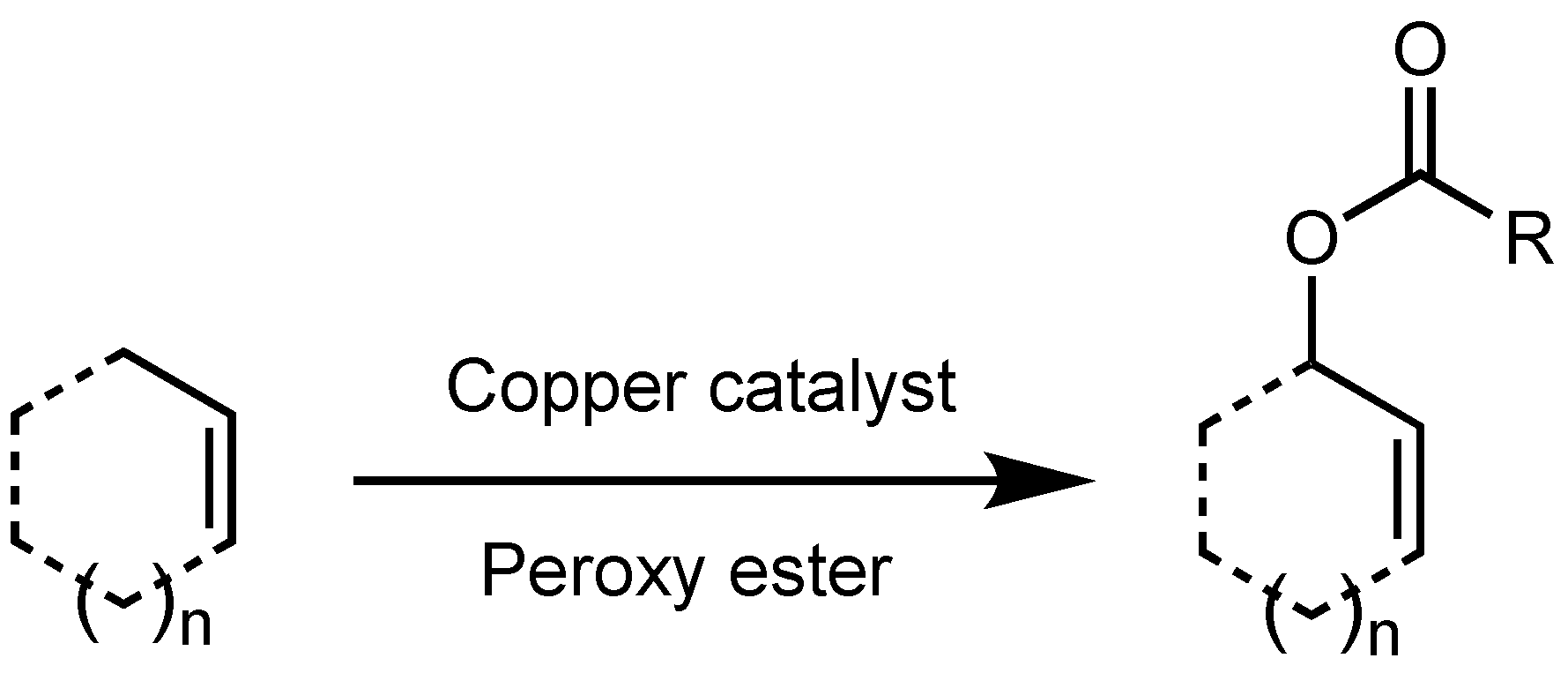

In the last few years, there has been increased interest in copper-catalyzed organic reactions [8,22,71,72], as copper is an earth-abundant metal, making its use more cost-effective and sustainable than precious transition metal catalysts. The most popular species employed in the Kharasch–Sosnovsky oxidation are the Cu(I) or Cu(II) complexes bearing oxazoline-based ligands [73]. The use of additives that accelerate the rate of this reaction has been constant. One of the most important additives used in these reactions is phenylhydrazine as a reducing agent of Cu(II) species to Cu(I) [30].
Recently, inspired by this growth of studies, we successfully tested the catalytic activity of novel copper(II) complexes containing the ester derivatives of bis(azol-1-yl)acetate ligands by the Kharasch–Sosnovsky reaction [74]. Thus, the present study reports the syntheses of a new dimeric copper(II) bromide complex, [Cu(LOHex)Br(μ-Br)]2 (1), containing the hexyl bis(pyrazol-1-yl)acetate ligand useful as a catalyst in copper-catalyzed C–H oxidation for allylic functionalization. In this way, we emphasize the use of a Cu(II) catalyst in Kharasch–Sosnovsky reactions without the need for superstoichiometric amounts of olefin and external reducing agents, such as phenylhydrazine, considered toxic by the United Nations Environment Program [75], decreasing the generation of waste and preventing the use of unnecessary reagents.

2. Results and Discussion

2.1. Synthesis and Characterization

The ligand LOHex was prepared according to the procedure reported in Scheme 2, using HC(COOH)(pz)2 and 1-hexanol as starting materials. LOHex is soluble in common organic solvents and slightly soluble in water. The 1H- and 13C-NMR spectra of the ligand, recorded in CDCl3, CD3CN, and DMSO-d6 solutions, showed all the expected signals and, due to magnetic equivalence, only one set of resonances for the pyrazole rings. The molecular structure of LOHex is confirmed by the presence of the peaks at m/z 277 and 299 of the [LOHex + H]+ and [LOHex + Na]+ species, respectively, in the positive-ion spectrum in CH3CN solution.

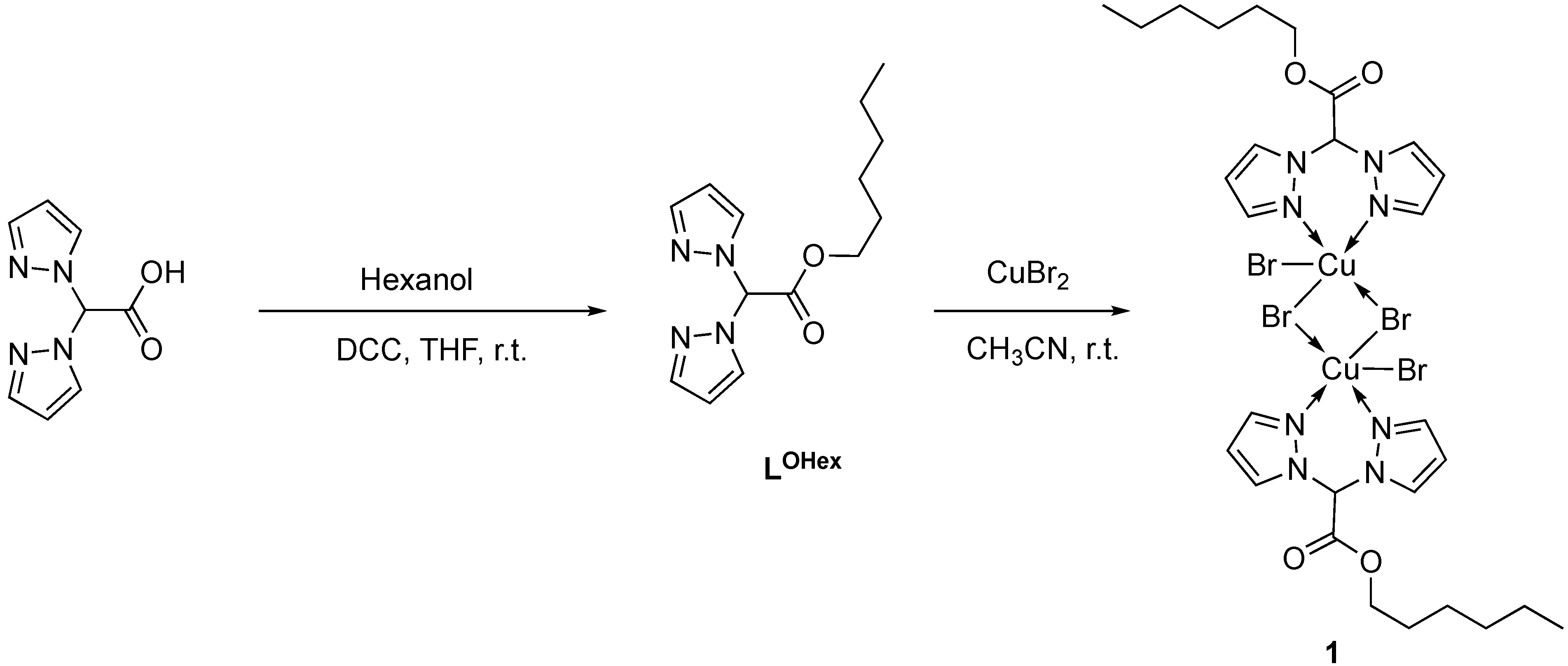

The copper complex [Cu(LOHex)Br(μ-Br)]2 (1, Scheme 2) was prepared from the reaction of LOHex with CuBr2 in acetonitrile suspension at room temperature. Complex 1 is soluble in methanol, acetonitrile, chloroform, dimethyl sulfoxide, and acetone; it was completely characterized in the solid state and in solution. In particular, complex 1 shows an intense absorption at 1740 cm−1 due to the asymmetric stretching of the C=O groups. No significant variation with respect to the free ligand (vasym C=O, 1754 cm−1) has been observed, confirming that in the solid state the carbonyl groups are not involved in the coordination of copper, in accordance with the X-ray crystal structure with the ligands chelating in a κ2N,N’ bidentate fashion. In the ESI-MS(+) spectrum of 1, the peaks at m/z of 339 and 615, due to the [LOHex − H + Cu]+ and [2LOHex − H + Cu]+ species, respectively, confirm the complex formation.

2.2. Investigation on the Catalytic Activity of Complex 1 in the Allylic Oxidation of Alkenes

The high catalytic activity of copper complexes found during our recent work [74] stimulated us to develop a new copper(II) complex (1) in order to study its catalytic potential towards the oxidation of alkenes. In fact, we started from the results [74] obtained during our previous experimental tests with analogous copper(II) complexes—such as the [HC(COOH)(pzMe2)2] (L2OHex) derivatives [(L2OHex)CuCl2] and [(L2OHex)CuBr2]—in which we obtained an 85% yield, using 5 mol% of [(L2OHex)CuBr2], with a 5:1 ratio of alkenes and Luperox, performing the reaction at 60 °C over 6 h. Herein, we developed a further strategy for allylic oxidation in order to reduce the amount of catalyst and increase the yield. In particular, the new LOHex derivative 1 was chosen to enlarge the chemical pattern of copper complexes, allowing for the formation of these important products. To determine the catalytic activity of complex 1, a series of preliminary tests were carried out.

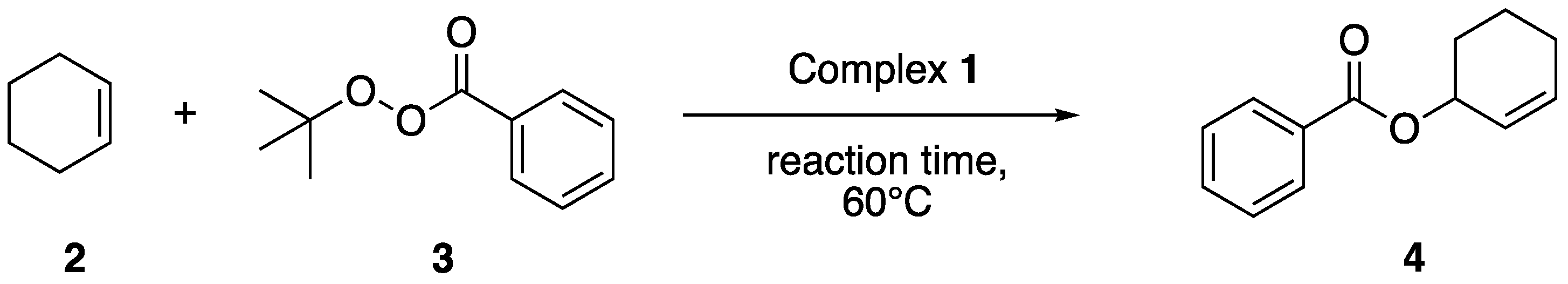

The starting point was related to the use of 5 mol% of the catalyst 1—leaving the reaction time at 6 h and the temperature at 60 °C—focused on the oxidation of cyclohexene 2 using t-butyl perbenzoate 3 (Luperox) as a reactant to the corresponding ester 4 with a 2:3 ratio of 5:1, achieving only 73% yield (Table 1, entry 1a). After this first trial, we made several attempts to define the mutual activity of complex 1. The best result was in fact observed using 0.5 mol% of 1, a slight excess of cyclohexene (2:3 ratio = 3:1), at 60 °C (Table 1, entry 1h) for 24 h.
Complex 1 showed very virtuous catalytic performance. Using a 2:3 ratio of 5:1, with 5 mol% of the catalyst over 24 h, the yield was almost quantitative (Table 1, entry 1b). This yield decreased a bit upon reducing the ratio of 2:3 to 3:1, due to the scarce and non-proportional amount of cyclohexene 2 and Luperox 3 (Table 1, entry 1c). A noteworthy upgrade was obtained by carrying out the reaction with 1 mol% of 1, for 24 h at 60 °C; in this setting, the yields were comparable with those obtained before (Table 1, entry 1d of 77% and Table 1, entry 1e of 74%). So, based on the above-mentioned optimization steps, the catalytic activity of complex 1 has been further developed, decreasing the amount to 0.5 mol%. Nonetheless, an almost quantitative yield can be reached by increasing the 2:3 ratio to 10:1, using 0.5 mol% of the catalyst, and obtaining 95% yield after 24 h at 60 °C. A reduction of the 2:3 ratio means a reduction in the amount of alkene that could be, in some way, precious and not easily available, thus reducing the waste of the starting materials. Therefore, the use of a 3 to 1 ratio of cyclohexene 2 and Luperox 3 allowed us to obtain a very good yield, up to 90%, under the same reaction conditions (Table 1, entry 1h).
Finally, once we confirmed the catalytic activity of this complex, we examined the feasibility of this reaction on cyclopentene and cyclooctene, obtaining, in both cases, good yields, under the same experimental conditions (Figure 1).
It is important to note that the presence of a hexyl group in the ester moiety appears to have a positive effect on the reaction yields. In addition, the chelating properties of the ligand [HC(COOH)(pz)2] (LOHex) allows for the formation of the dimeric compound [Cu(LOHex)Br(μ-Br)]2, where the second copper(II) ion might participate in the catalytic process, increasing the yields by using 0.5 mol% of complex 1. Moreover, based on the chemical structure of alkenes, the yields are variable; in fact, considering the conformational structure of the alkenes, the yield increased in the case of cyclohexene, while a lower interaction with the catalyst resulted in a lower yield for cyclopentene and cyclooctene.
In this paper, we have tested the catalytic properties of 1 on cyclohexene, cyclopentene, and cyclooctene. In fact, the substrate nature has been somewhat limited and most of the work in the literature has been performed with hydrocarbons, mainly cyclic alkenes or very simple linear alkenes. Cyclohexene has been the substrate of choice in most studies, usually providing the highest yields among related olefins under a wide range of conditions. Cyclooctene also proceeds with moderate to good yields. In contrast, the behavior of cyclopentene and cycloheptene is less predictable. In Table 2 we have reported, for comparison, conditions used and results obtained in recent years using other Cu(I) or Cu(II) salts or complexes as catalysts for allylic oxidations of simple cyclic alkenes.

2.3. X-ray Crystallography

A summary of the crystal/structure refinement data is given in Table S1 (Supplementary Materials), and selected bond lengths and angles are reported in Table 3. An ORTEP-like [80] representation of the complex is given in Figure 2; Figure 3 highlights the distorted square pyramidal polyhedra of the two Cu centers. The crystal structure investigation revealed that, in the solid state, the compound exists as a dimer of formula [Cu(LOHex)Br(μ-Br)]2, with the Br(1) ions binding two symmetry-related units to each other. To the best of our knowledge, this complex is one of the few mono- or di-nuclear bis-pyrazolyl acetate copper complexes [81,82] with uncoordinated acetate moieties, and also one of the relatively not-so-abundant copper complexes showing µ-bridging bromide ions coupled with two pentacyclic N-based ligands [83,84,85,86,87,88], described in the CCDC repository [89].

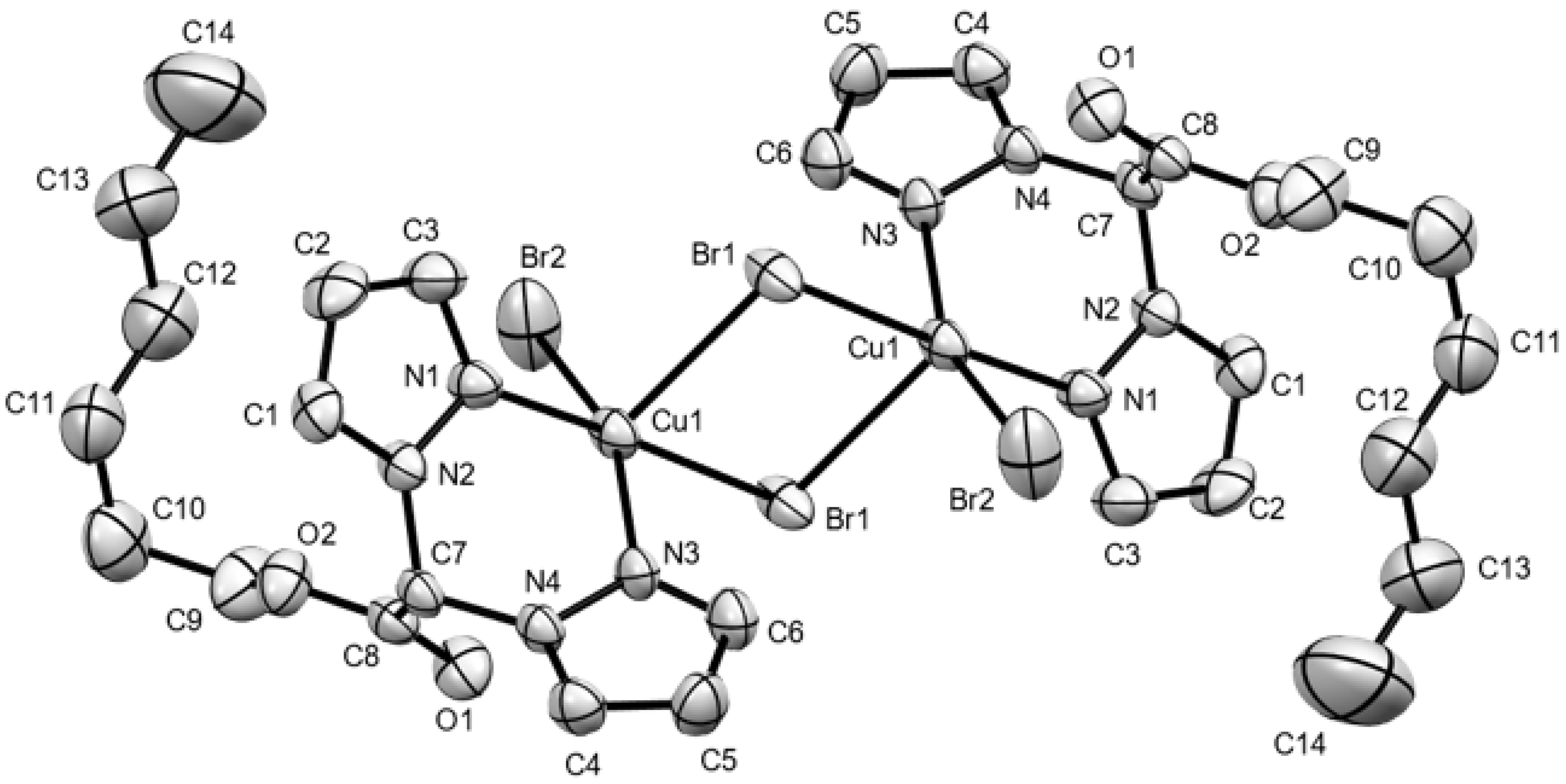

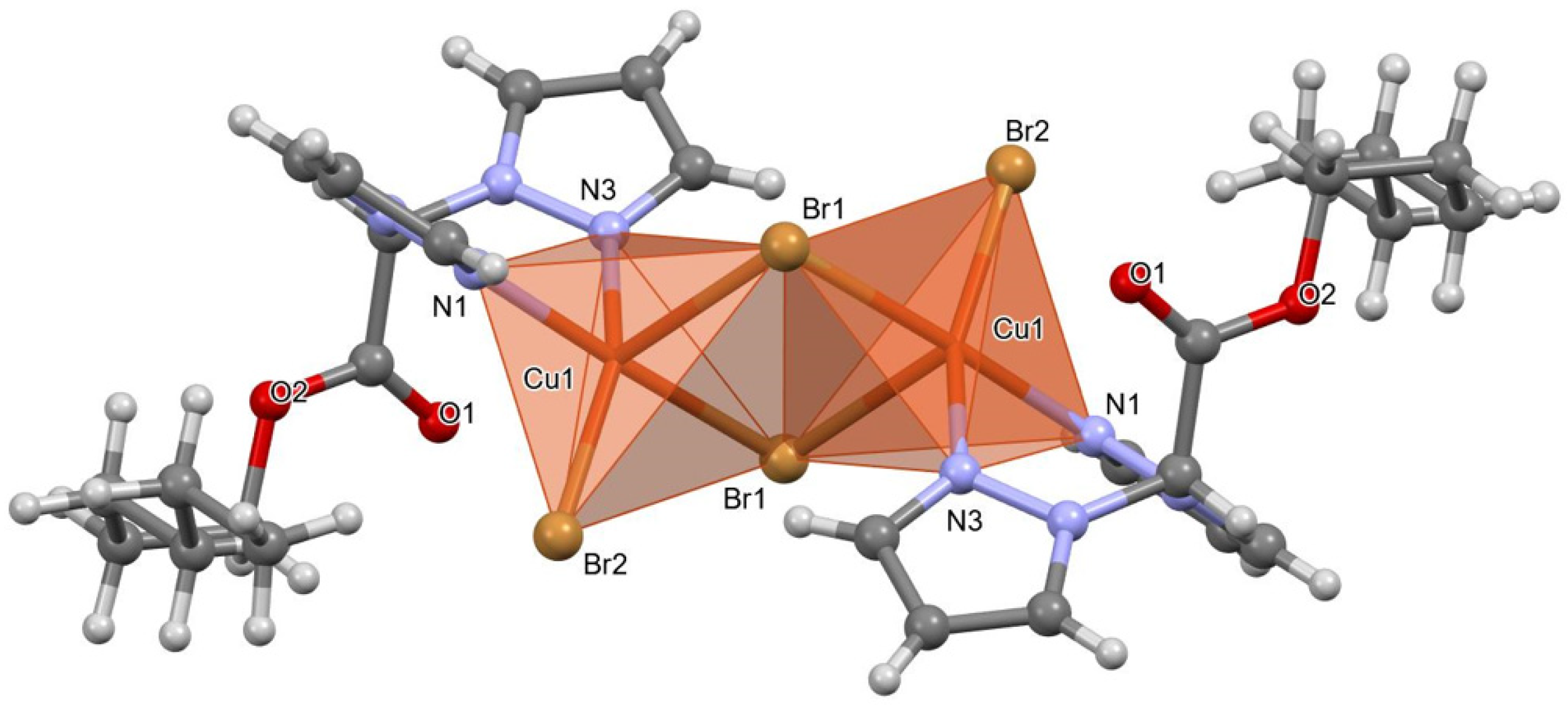

In the dimer, two µ-bridging Br(1) and two Cu atoms define a Cu2Br2 tetracycle, while, upon coordination, the bis-pyrazolyl ligand makes with the copper atom a six-membered cycle puckered in a boat shape. In the latter, the four nitrogen atoms N(1)/N(4) lie in the same plane, whereas C(7) and Cu(1) atoms are at the ‘stern’ and ‘prow’ positions. The mean planes encompassing the five-membered pyrazolyl rings N(1):C(3) and N(3):C(6) make dihedral angles of 27.1 and 33.3°, respectively, with the N(1)/N(4) plane, and also make an angle of 59.8° with each other. Atoms C(9) to C(14) of the hexyl ester are disordered in two alternate arrangements, which have been conveniently modeled by means of SHELXL restraints [91]. The aliphatic chain is placed in such a way as to fold towards the N(1):C(3) ring, with C(12)/C(12A) approximately 4 Å apart from the ring centroid. The Cu atom is penta-coordinated and the environment has a distorted square planar shape; this seems to be the preferred shape in similar compounds [82,83,84,85,86,87,88]. Sitting in the pyramid basal plane are the N(1) and N(3) atoms of the two pyrazolyl rings, which are in trans position with the Br(1) and Br(2) atoms, respectively. The apical position is taken by a symmetry-related bridging Br(1)I atom (at 1−x, 1−y, 1−z). The departure from the ideal arrangement is measured by the τ and χ parameters (0.32 and 0.36, respectively) [92,93] and by the bond angle values listed in Table 3, all reasonably close to the ideal values of 90 and 180°, except for the N(3)−Cu(1)−Br(2) angle of 157.34 (7)°.
As for metal-involving bonds, the Cu(1)−Br(2) length of the terminal bromide ion (see Table 3) is about 0.06 Å shorter than the Cu(1)−Br(1) distance (2.3687 (6) vs. 2.4302 (4) Å); the Cu(1)−Br(1)I bond length of the µ-bridging Br ion is instead appreciably longer at 2.7600 (5), about 0.33 Å longer than the terminal Cu−Br bond. This value is higher than the reported average for similar compounds (2.59 Å) but fits within the reported range (2.37–3.06 Å) [82,83,84,85,86,87,88]. Similar considerations can apply to the Cu−N(1) and Cu−N(3) distances: respectively, 2.017 (2) and 2.042 (3) Å (mean: 2.00, range: 1.97–2.09 Å). The situation closely matches that found in the two known compounds that also show a bis-pyrazolyl moiety [82,86]. The N–N and C–N bond distances in the bis-pyrazolyl residues, and the C−C bonds in the hexyl chain, appear in line with known data and do not deserve further comment. It is instead worth noting that the O(1) oxygen of the carboxylic moiety is roughly in trans position with respect to the symmetry-related bridging Br(1) atom (angle O(1)−Cu(1)−Br(1)I of 162.6°), in a virtual sixth Cu coordination position; however, the Cu(1)-O(1) distance is 3.174 Å, well above the sum of the Cu and O vdW radii (1.92 Å). The same situation was found in a recent report [82].
The crystal packing diagram [90] of 1 (Figure S3, Supplementary Materials) shows no strong intermolecular contacts. A few loose intermolecular contacts are established by C(7), C(8), H(1), and H(7) atoms with the Br(1) atom. In Table S2 (Supplementary Materials) we indicate these as having an interatomic distance about 0.1 Å smaller than the sum of the pertaining vdW radii. These contacts propagate both in the directions of the b- and c-axes, yielding a bi-dimensional network running along to the bc plane and containing all the Cu2Br2 units. Above and below this plane, we find two layers containing the aliphatic hexyl chains, thus defining a ‘sandwich’ structure with the layer containing the copper and bromine atoms. This motif is repeated along the a-axis. No π–π interactions appear to involve the pyrazolyl rings.

3. Experimental Section

3.1. Materials and Instruments

All syntheses and handling were carried out under a dry and oxygen-free atmosphere, using standard Schlenk techniques. All solvents were dried, degassed, and distilled prior to use. Elemental analyses (C,H,N,S) were performed with a Fisons Instruments EA-1108 CHNS-O Elemental Analyzer (Thermo Fisher Scientific Inc., Waltham, MA, USA). Melting points were taken on an SMP3 Stuart Scientific Instrument (Bibby Sterilin Ltd., London, UK). IR spectra were recorded from 4000 to 700 cm−1 on a PerkinElmer Frontier FT-IR instrument (PerkinElmer Inc., Waltham, MA, USA), equipped with a single-reflection universal diamond ATR top-plate. IR annotations used: m = medium, s = strong, sh = shoulder, vs = very strong, vw = very weak, w = weak. 1H- and 13C-NMR spectra were recorded with an Oxford AS400 Varian Spectrometer (400.4 MHz for 1H and 100.1 MHz for 13C) (Agilent Technologies Inc, Santa Clara, CA, USA) or with a 500Bruker Ascend (500.1 MHz for 1H and 125 MHz for 13C) (Bruker BioSpin Corporation, 15 Fortune Drive, Billerica, MA, USA). Referencing was relative to tetramethylsilane (TMS) (1H and 13C). NMR annotations used were as follows: d = doublet, m = multiplet, s = singlet, t = triplet. Electrospray ionization mass spectra (ESI-MS) were obtained in positive- (ESI-MS(+)) or negative-ion (ESI-MS(−)) mode on an Agilent Technologies Series 1100 LC/MSD Mass Spectrometer (Agilent Technologies Inc., Santa Clara, CA, USA), using a water or acetonitrile mobile phase. The compounds were added to reagent grade water or acetonitrile to give approximately 0.1 mM solutions, injected (1 μL) into the spectrometer via a Hewlett Packard 1090 Series II UV-Visible HPLC system (Agilent Technologies Inc., Santa Clara, CA, USA) fitted with an autosampler. The pump delivered the solutions to the mass spectrometer source at a flow rate of 300 mL/min, and nitrogen was employed both as a drying and nebulizing gas. Capillary voltages were typically 4000 V and 3500 V for the ESI-MS(+) and ESI-MS(−) mode, respectively. Confirmation of all major species in this ESI-MS study was supported by a comparison of the observed and predicted isotope distribution patterns, the latter calculated using the IsoPro 3.1 computer program (T-Tech Inc., Norcross, GA, USA). Gas chromatography-mass spectra (GC-MS) analyses were obtained on an Agilent GC(6850N)/MS(5973N) (Stevens Creek Blvd, Santa Clara, CA, USA); electronic impact technique (70 eV); GC/MSD software; HP-5MS column (30 m, Id 0.25 µm, film thickness 0.25 µm).

3.2. Synthesis

All reagents were purchased from Merck KGaA (Merck Life Science S.R.L., Via Monte Rosa, 93, Milano, Italy) and used without further purification. The ligand HC(COOH)(pz)2 was prepared by the literature methods [44]; HC(COOHex)(pz)2 (LOHex) was prepared by changing the literature procedure [74].

3.2.1. Synthesis of HC(COOHex)(pz)2 (LOHex)

In a round-bottom flask, the ligand HC(COOH)(pz)2 (0.769 g, 4.000 mmol) and the 1-hexanol (HexOH, 0.409 g, 4.000 mmol) were added to tetrahydrofuran (THF, 50 mL), obtaining a suspension left under magnetic stirring and cooled at 0 °C. Subsequently, a solution of N,N′-dicyclohexylcarbodiimide (DCC, 1.651 g, 8.000 mmol) in THF (50 mL) was added dropwise; the mixture was stirred for 24 h at room temperature. The THF was evaporated at reduced pressure and ethyl acetate (EtOAc) was poured into the round-bottom flask. The obtained mixture was filtered and the mother liquors were washed with a citric acid solution (pH~3, 2 × 50 mL) and a saturated NaHCO3 solution (2 × 50 mL) and dried with Na2SO4. The mixture was filtered, and EtOAc was evaporated under reduced pressure. The residue was purified by a chromatographic column (SiO2; elution with cyclohexane:EtOAc 90:10 and then cyclohexane:EtOAc 80:20) and dried under reduced pressure, obtaining LOHex as a pale yellow oily product, with a yield of 80%. 1H-NMR (CDCl3, 293 K): δ 0.88 (t, 3H, O(CH2)5CH3), 1.25–1.31 (m, 6H, O(CH2)2(CH2)3CH3), 1.61–1.68 (m, 2H, OCH2CH2(CH2)3CH3), 4.29 (t, 2H, OCH2(CH2)4CH3), 6.36 (t, 2H, 4-CH), 7.09 (s, 1H, CHCOO), 7.61 (d, 2H, 5-CH), 7.77 (d, 2H, 3-CH). 1H-NMR (CD3CN 293 K): δ 0.89 (t, 3H, O(CH2)5CH3), 1.24–1.31 (m, 6H, O(CH2)2(CH2)3CH3), 1.55–1.60 (m, 2H, OCH2CH2(CH2)3CH3), 4.23 (t, 2H, OCH2(CH2)4CH3), 6.36 (t, 2H, 4-CH), 7.28 (s, 1H, CHCOO), 7.57 (d, 2H, 5-CH), 7.84 (d, 2H, 3-CH). 1H-NMR (DMSO-d6 293 K): δ 0.81 (t, 3H, O(CH2)5CH3), 1.13–1.19 (m, 6H, O(CH2)2(CH2)3CH3), 1.47 (mbr, 2H, OCH2CH2(CH2)3CH3), 4.14 (t, 2H, OCH2(CH2)4CH3), 6.33 (t, 2H, 4-CH), 7.56 (d, 2H, 5-CH), 7.71 (s, 1H, CHCOO), 7.94 (d, 2H, 3-CH). 13C-NMR (CDCl3, 293 K): δ 13.9 (O(CH2)5CH3); 22.4, 25.2, 28.2, 31.2 (OCH2(CH2)4CH3); 67.2 (OCH2(CH2)4CH3); 74.6 (CHCOO); 107.3 (4-CPz); 130.1 (5-CPz); 140.9 (3-CPz); 164.4 (CO). IR (cm−1): 3322 vw, 3139 w, 3109 w, 2956 m, 2923 s, 2871 m, 2851 m (C–H); 1754 vs (vasym C=O); 1626 w, 1574 w, 1517 m (C=C/C=N); 1465 m, 1451 m, 1436 m, 1393 vs, 1385 vs, 1354 m, 1329 m, 1292 vs, 1253 vs, 1223 vs, 1213 vs, 1187 m, 1161 vs, 1088 vs, 1053 vs, 1022 m, 993 m, 972 s, 957 vs, 938 sh, 912 s, 905 vs, 892 m, 858 m, 845 m, 827 m, 806 vs, 777 vs, 762 vs, 725 s. ESI-MS(+) (major positive ions, CH3CN), m/z (%): 209 (10) [LOHex − pz]+, 277 (15) [LOHex + H]+, 299 (100) [LOHex + Na]+. ESI-MS(−) (major negative ions, CH3CN), m/z (%): 147 (100) [HC(pz)2]−. Elemental analysis (%): calculated for C14H20N4O2: C, 60.85; H, 7.30; N, 20.28; found: C, 60.50; H, 7.07; N, 19.80.

3.2.2. Synthesis of [Cu(LOHex)Br(μ-Br)]2 (1)

In a round-bottom flask, the ligand LOHex (0.277 g, 1.0 mmol) was dissolved in CH3CN (50 mL). Then, a CH3CN solution (50 mL) of CuBr2 (0.223 g, 1.0 mmol) was added, and the resulting red-violet solution was stirred at room temperature for 18 h. At the end of the reaction, the solution was filtered and the brown-violet complex [Cu(LOHex)Br(μ-Br)]2, dried at reduced pressure, was obtained at a 90% yield.
Single crystals of [Cu(LOHex)Br(μ-Br)]2, suitable for X-ray analysis, were obtained by the slow evaporation of an acetone solution of 1. Melting point: 163–166 °C. IR (cm−1): 3146 w, 3134 w, 3122 w, 3101 m, 2983 w, 2952 m, 2929 m, 2908 sh, 2865 m (C–H); 1740 vs (νasym C=O); 1626 w, 1525 sh, 1515 m, 1463 sh, 1455 m (C=C/C=N); 1402 s, 1373 w, 1356 w, 1345 w, 1286 vs, 1255 s, 1227 vs, 1195 s, 1179 m, 1102 m, 1094 m, 1068 m, 1058 vs, 1019 w, 989 m, 976 m, 951 m, 922 m, 911 m, 878 w, 864 m, 823 m, 803 m, 762 vs, 723 m. ESI-MS(+) (major positive ions, CH3CN), m/z (%): 145 (90) [CuBr]+, 299 (10) [LOHex + Na]+, 339 (100) [LOHex − H + Cu]+, 615 (25) [2LOHex − H + Cu]+. ESI-MS(−) (major negative ions, CH3OH), m/z (%): 222 (100) [CuBr3]−. Elemental analysis (%) calculated for C14H20Br2CuN4O2: C, 33.65; H, 4.03; N, 11.21; found: C, 33.85; H, 4.00; N, 11.01.

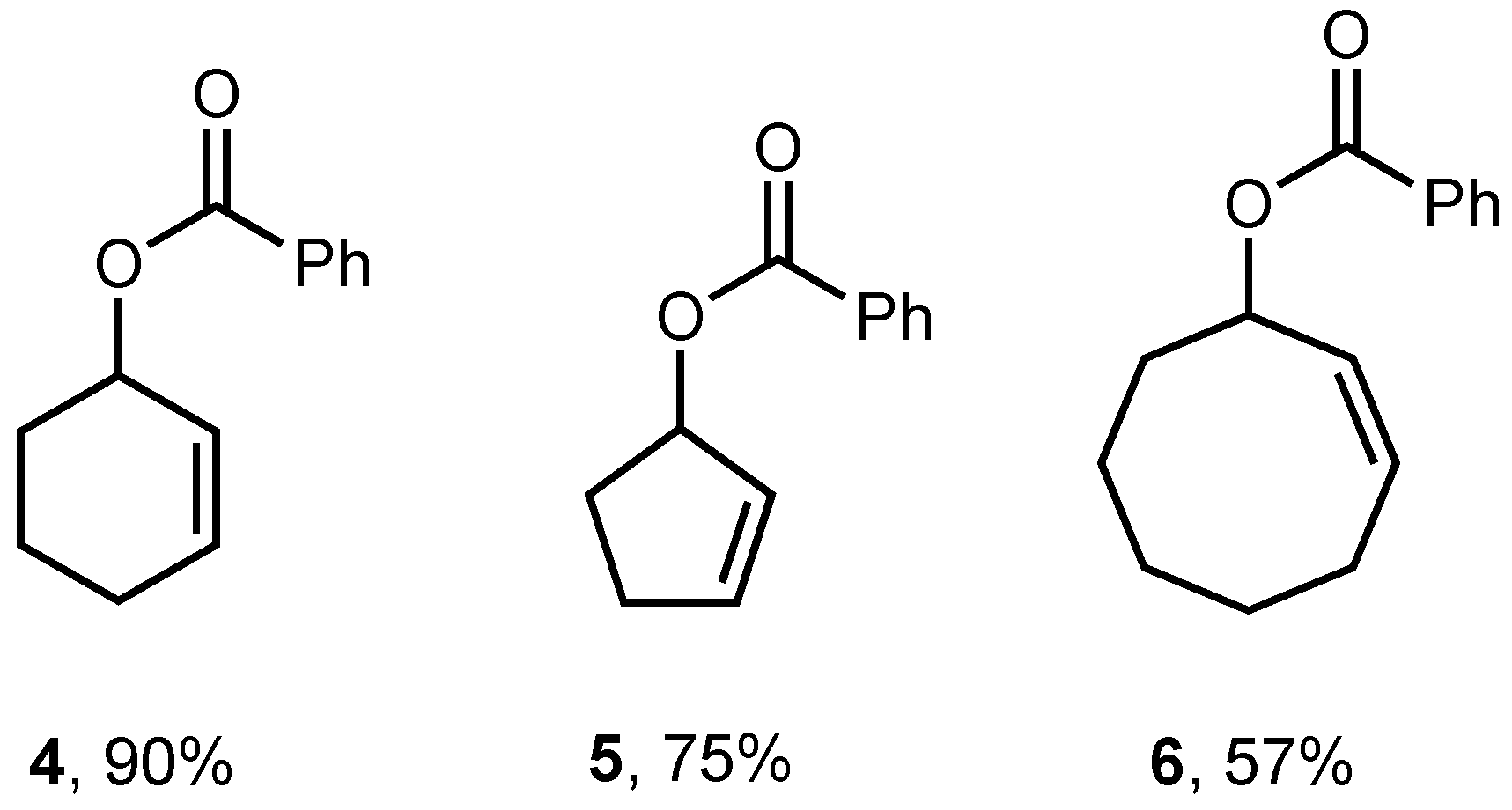

3.2.3. General Procedure for the Synthesis of Compounds 4–6

The reactions were performed in a sealed vial in which 0.5 mol% of complex 1, 1 mmol of t-butyl peroxybenzoate (Luperox), and, finally, 3 mmols of the appropriate alkene were introduced, and the reaction was stirred at 60 °C for 24 h. The workup consisted of a pre-pad chromatography column (SiO2, elution with 150 mL of n-hexane:EtOAc 70:30). The purification of the crude residue was performed by a chromatography column (SiO2, elution with n-hexane:EtOAc 98:2) to give pure products.

Synthesis of 4

Yield 90%. Colourless oil. IR (cm−1): 3064 w, 3033 w, 2934 m, 2868 w, 2835 w (C–H); 1710 vs (νasym C=O); 1602 m, 1585 m, 1491 w, 1451 s, 1396 m, 1336 m, 1314 s, 1266 vs, 1176 s, 1163 s, 1143 m, 1109 vs, 1100 sh, 1069 vs, 1057 vs, 1051 vs, 1026 vs, 1008 vs, 1001 vs, 915 vs, 853 m, 837 m, 806 m, 708 vs. 1H-NMR (CDCl3, 293 K): δ 1.70–1.77 (m, 1H, CH2CH2CH2CH=CH), 1.83–2.21 (m, 5H, CHCO(CH2)3), 5.52–5.55 (m, 1H, CH2CH=CH), 5.84–5.87 (m, 1H, CH=CHCHCO), 6.01–6.05 (m, 1H, CHCO), 7.45 (t, 2H, J = 7.5 Hz, C6H5), 7.57 (t, 1H, J = 7.5 Hz, C6H5), 8.08 (d, 2H, J = 10 Hz, C6H5). 13C-NMR (CDCl3, 293 K): δ 19.0, 25.0, 28.4, 68.6, 125.8, 128.3, 129.6, 130.8, 132.7, 132.8, 166.2. GC-MS (70eV), m/z: 202 ([M+], 11), 157 (4), 120 (3), 105 (100), 97 (13), 81 (30), 77 (38), 51 (13), 41 (8). Elemental analysis (%) calculated for C13H14O2: C, 77.20; H, 6.98; found: C, 77.96; H, 7.14.

Synthesis of 5

Yield 75%. Pale yellow oil. IR (cm−1): 3062 w, 2973 w, 2939 w, 2855 w (C–H); 1709 vs (νasym C=O); 1602 m, 1585 m, 1491 w, 1451 s, 1366 m, 1338 vs, 1314 s, 1267 vs, 1176 s, 1161 m, 1110 vs, 1100 vs, 1069 vs, 1026 vs, 1001 s, 946 vs, 937 vs, 917 s, 884 vs, 850 m, 806 m, 788 m, 708 vs. 1H-NMR (CDCl3, 293 K): δ 1.96–2.03 (m, 1H, CH=CHCH2), 2.38–2.47 (m, 2H, CH2CHCO and CH=CHCH2), 2.55–2.66 (m, 1H, CH2CHCO), 5.96–5.99 (m, 2H, CH2CH=CH), 6.17–6.19 (m, 1H, CHCO), 7.45 (t, 2H, J = 7.5 Hz, C6H5), 7.56 (t, 1H, J = 7.5 Hz, C6H5), 8.05–8.07 (m, 2H, C6H5). 13C-NMR (CDCl3, 293 K): δ 29.9, 31.2, 81.1, 128.3, 129.4, 129.6, 130.7, 132.7, 137.7, 166.6. GC-MS (70 eV), m/z: 188 ([M+], 26), 170 (7), 143 (10), 122 (5), 105 (100), 84 (55), 77 (56), 67 (97), 51 (26), 41 (18), 39 (20), 29 (5). Elemental analysis (%) calculated for C12H12O2: C, 76.57; H, 6.43; found: C, 76.09; H, 6.05.

Synthesis of 6

Yield 57%. Colourless oil. IR (cm−1): 3063 vw, 3023 w, 2927 m, 2856 m (C–H); 1714 vs (νasym C=O); 1602 w, 1585 w, 1491 w, 1451 s, 1362 w, 1314 s, 1270 vs, 1195 m, 1176 m, 1150 m, 1110 vs, 1069 vs, 1025 vs, 1003 sh, 947 vs, 893 m, 868 w, 851 w, 835 w, 805 w, 781 m, 754 vs, 708 vs. 1H-NMR (CDCl3, 293 K): δ 1.44–1.52 (m, 1H, CH=CHCH2), 1.59–1.79 (m, 6H, (CH2)3CH2CHCO), 2.05–2.11 (m, 1H, CH=CHCH2), 2.16–2.22 (m, 1H, CH2CHCO), 2.33–2.41 (m, 1H, CH2CHCO), 5.63–5.68 (m, 1H, CH2CH=CH), 5.72–5.77 (m, 1H, CH=CHCHCO), 5.91–5.95 (m, 1H, CHCO), 7.46 (t, 2H, J = 7.7 Hz, C6H5), 7.57 (t, 1H, J = 7.4 Hz, C6H5), 8.07–8.09 (m, 2H, C6H5). 13C-NMR (CDCl3, 293 K): δ 23.4, 25.9, 26.4, 28.8, 35.1, 73.0, 128.3, 129.6, 129.9, 130.7, 130.8, 132.7, 166.0. GC-MS (70 eV), m/z: 230 ([M+], 3), 202 (10), 149 (1), 123 (6), 105 (100), 93 (10), 77 (44), 67 (9), 51 (10), 41 (8). Elemental analysis (%) calculated for C15H18O2: C, 78.23; H, 7.88; found: C, 78.83; H, 7.81.

3.3. Crystallographic Data Collection and Refinement

Crystals suitable for the X-ray diffraction experiment were recrystallized from an acetone solution. A crystalline specimen of 1 was carefully separated from a conglomerate and turned out to be a very thin, clear, reddish-brown plate. The sample was gently picked up with a microloop wetted with paratone oil and placed on the top of the goniometer head of a kappa-geometry Oxford Diffraction Gemini EOS diffractometer, equipped with a 2 K × 2 K CCD area detector and sealed-tube Enhance (Mo) and (Cu) X-ray sources. Two different data collections were performed at room temperature by means of the ω-scan technique, using graphite-monochromated Cu and Mo Kα radiations (λ = 1.54184 and 0.71073 Å, respectively) in a 1024 × 1024 pixel mode and 2 × 2 pixel binning. Data collected under the Mo radiation [296.9 (9) K] afforded a better final solution and are those reported in the present work. The raw intensities were corrected for absorption, Lorentz, and polarization effects. With respect to absorption, an empirical multi-scan absorption correction based on equivalent reflections was applied by means of the scaling algorithm SCALE3 ABSPACK.
Final unit cell parameters were determined by least-squares refinement of 21,955 reflections picked during the whole experiment. Data collection, reduction, and finalization were performed with the CrysAlis Pro suite [94]. The structure was solved by intrinsic phasing in the P 21/c space group with SHELXT [95], and refined by full-matrix least-squares methods based on Fo2 with SHELXL [91] software integrated with the OLEX2 program [96]; there were no atoms sitting in special positions. During the refinement, we realized that almost all atoms [C(9) to C(14)] of the hexyloxy residue were disordered. Luckily, we were able to model the disorder by means of two alternative arrangements of the aliphatic chain, with SOFs constrained to sum to unity. The final occupancies turned out to be 0.705 and 0.295. The model of the aliphatic chain was further improved by imposing some additional restraints (DELU, SIMU, SADI, and RIGU) on the disordered atoms. In the end, the thermal factors of the terminal atoms in one arrangement were quite high, but no atoms needed to be split. The positions of all atoms (including the H atoms of the bis-pyrazolyl moiety) were identified by difference Fourier maps; non-hydrogen atoms were refined anisotropically. On the opposite side, H atoms of the disordered part of the molecule were added in calculated positions with Uiso values calculated from the Ueq of the pertinent carbon atoms.
The crystallographic .cif file containing data for 1 was deposited at the Cambridge Crystallographic Data Center (CCDC no. 2110450). Data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ (accessed on 17 September 2021).

4. Conclusions

A new dimeric copper(II) bromide complex was prepared in acetonitrile by a reaction of CuBr2 with the hexyl bis(pyrazol-1-yl)acetate ligand (LOHex), obtained by the esterification of the related bis(pyrazolyl)carboxylic acid. The X-ray crystal structure investigation revealed that, in the solid state, the compound exists as a dimer of formula [Cu(LOHex)Br(μ-Br)]2, with the Br(1) ions binding two symmetry-related units to each other, in which the copper ion shows a distorted square pyramidal arrangement. This new complex is among the few so far reported mono- or di-nuclear bis-pyrazolyl acetate copper complexes with uncoordinated acetate moieties that show µ-bridging bromide ions in the Cu coordination sphere. The complex was successfully investigated as a catalyst for the synthesis of oxygenate allylic compounds via the Kharasch–Sosnovsky reaction, avoiding the use of any external agents and superstoichiometric amounts of reagents, preventing the generation of excessive waste. Indeed, the use of the new catalyst allowed for the implementation of old synthetic procedures by decreasing the amount to 0.5 mol%, presumably due to the dimeric structure of the complex. Moreover, the ratio between the alkene and the oxidant species was decreased to 3 to 1, broadening the applicability spectrum of this procedure to more expensive and less available starting materials, as well. In fact, superstoichiometric amounts of olefin and long reaction times in the order of days represent the limitations of the implementation of this procedure in the synthesis of highly valuable species. Considering the interest in the allylic oxidation of olefins as an important step in the synthesis of natural compounds, drugs, and industrial products, future efforts will be focused on the applicability of these compounds to other catalytic pathways in order to ensure their catalytic activity and strength.

Supplementary Materials

The following are available online: Table S1: Summary of crystal data and structure refinement for compound 1; Table S2: Intermolecular contacts in 1; Figure S1: ORTEP drawing of the asymmetric unit of 1; Figure S2: ORTEP representation of the dimeric complex 1, showing part of the selected numbering scheme; Figure S3: Packing diagrams for 1; Figures S4–S18: 1H-NMR, 13C-NMR, FT-IR, and ESI-MS spectra.

Author Contributions

Conceptualization, M.P. and S.G.; data curation, R.V., R.G. and A.D.; formal analysis, L.B. and A.D.; investigation, M.P., C.S. and S.G.; methodology, M.P., C.S., S.G. and A.D.; supervision, M.P. and S.G.; Writing–original draft, L.B., M.P., A.D., C.S. and S.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the University of Camerino (FAR 2019).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available from the authors on request.

Acknowledgments

We are grateful to the CIRCMSB (Consorzio Interuniversitario di Ricerca in Chimica dei Metalli nei Sistemi Biologici).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 1–6 are available from the authors on request.
