Structure-Based Design of Novel Benzimidazole Derivatives as Pin1 Inhibitors

by
Shuxiang Wang
,
Lihong Guan
,
Jie Zang
,
Kun Xing
,
Jian Zhang
,
Dan Liu
* and
Linxiang Zhao
*
Key Laboratory of Structure-Based Drug Design & Discovery of Ministry of Education, Shenyang Pharmaceutical University, Shenyang 110016, China
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(7), 1198; https://doi.org/10.3390/molecules24071198
Submission received: 2 March 2019 / Revised: 20 March 2019 / Accepted: 22 March 2019 / Published: 27 March 2019
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
Peptidyl-prolyl cis/trans isomerase Pin1 plays a key role in amplifying and translating multiple oncogenic signaling pathways during oncogenesis. The blockade of Pin1 provided a unique way of disrupting multiple oncogenic pathways and inducing apoptosis. Aiming to develop potent Pin1 inhibitors, a series of benzimidazole derivatives were designed and synthesized. Among the derivatives, compounds 6h and 13g showed the most potent Pin1 inhibitory activity with IC50 values of 0.64 and 0.37 μM, respectively. In vitro antiproliferative assay demonstrated that compounds 6d, 6g, 6h, 6n, 6o and 7c exhibited moderate antiproliferative activity against human prostate cancer PC-3 cells. Taken together, these unique benzimidazole derivatives exhibited great potential to be further explored as potent Pin1 inhibitors with improved potency.

1. Introduction

Protein interacting with Never in mitosis A1 (Pin1) is a peptidyl-prolyl isomerase, which catalyzes the cis-trans isomerization of prolyl amide bonds (pSer/Thr-Pro) in its substrate proteins to modulate their function and/or stability [1,2]. Proline-directed phosphorylation on serine or threonine is a common regulation mechanism in cells, it has been demonstrated that Pin1 can regulate diverse signaling processes in cell by functioning as a molecular switch and participate in cell cycle progression, apoptosis and immune responses [3,4,5]. In particular, many research suggested that Pin1 played a critical role in oncogenesis by upregulation of oncogenes and downregulation of tumor suppressors [6]. Therefore, it was speculated that inhibiting Pin1 might be an effective way to conquer the aggressive cancers by simultaneously impacting on multiple oncogenic signaling pathways. It was found that Pin1 is overexpressed in many human cancers, including prostate, breast, lung and colon cancer, and the overexpression of Pin1 is associated with aggressive tumor progression and poor prognosis in cancer [7,8,9]. Therefore, inhibiting Pin1 is expected to be an effective way for fighting against tumors.
To date, a number of structurally distinct small molecule inhibitors of Pin1 have been reported (Figure 1). Juglone (1), a naturally occurring naphthoquinone compound [10], was found to be the first Pin1 inhibitor, which could inactivate Pin1 in an irreversible manner by covalently binding to active cysteine through Michael addition and has been widely used for the exploration of Pin1 biology in cells [11]. Researchers at Pfizer designed and synthesized several Pin1 inhibitors 2–4 by structure-based drug design, among which, compound 2 displayed the best Pin1 inhibitory activity [12,13,14]. However, compound 2 did not exhibit antiproliferative activities against tumor cells, the phosphate group conferring the compound poor permeability was the main reason for that. Pu et al. developed a specific, 6-O-benzylguanine skeleton-containing Pin1 inhibitor, API-1 (5), based on computer-aided virtual screening, API-1 directly and specifically binds to the Pin1 PPIase domain and potently inhibits the catalytic activity of Pin1 [15]. Virtual screening was used to identify potent Pin1 inhibitors by Spena et al., a potent Pin1 inhibitor VS10 (6) was identified and VS10 treatment reduced the viability of ovarian cancer cell lines by inducing proteasomal Pin1 degradation, without effects on Pin1 transcription [16]. Although tremendous works have been done, there have been no desirable inhibitors with potent activity in cellular level reported due to either poor physicochemical properties or low potency in enzymatic activity. Thus, it is challenging to discover highly potent Pin1 inhibitors with drug-like properties. Spena et al. encapsulated compound 4 efficiently in modified cyclodextrins and loaded them into pegylated liposomes, this liposomal fromulation accumulates preferentially in tumor and has a desirable pharmacokinetic profile [17]. Recently, it was reported that all-trans retinoic acid (ATRA), a therapeutic agent for acute promyelocytic leukemia, could inhibit and degrade Pin1 in cancer cells, which demonstrated a viable way for using Pin1 inhibitors as anti-cancer agents [18]. However, the efficacy of ATRA against solid tumors is limited due to its short half-life of 45 min in humans, to overcame the poor pharmacokenitic profiles of ATRA, a novel controlled release fromulation of ATRA-PLLA (poly L-lactic acid) microparticles was developed, which exhibited good biocompatibility, and could significantly enhance the inhibition of ATRA on HCC cell growth and dramatically decrease the dose of ATRA in both in vitro and in vivo systems [19].
The crystal structures of small molecule inhibitors complexes with Pin1 indicated that the unique substrate binding site of Pin1 consisting of the following subpockets, including the prolyl pocket fromed by His59, His157, Met130 and Phe13, a slightly shallow hydrophobic shelf lined fromed by Ala118 and Leu22, and a unique phosphate binding pocket embracing Lys63, Arg68 and Arg69. The aryl scaffold, hydrophobic side chains and phosphate group or carboxylic group of known Pin1 inhibitors such as compounds 2–4 occupied the corresponding pocket respectively and inhibited the activity of Pin1 [12,13,14,20,21,22].
In our design of Pin1 inhibitors, a bioactive benzimidazole was selected as the scaffold to occupy the prolyl pocket and a flexible hydrophobic side chain was connected to the 1-N of benzimidazole scaffold to occupy the slightly shallow hydrophobic-lined shelf (Figure 2). A docking study indicated that the carboxyl can be linked to the 2-C position of benzimidazole by a suitable linker; this carboxyl was expected to from H-bonds with basic amino acid residues in the phosphate binding pocket, and the linker needed to possess a suitable length and spatial conformation to ensure that the carboxyl group extends into the phosphate binding pocket accurately. It is reported that cinnamic acid derivatives displayed inhibitory activity on Pin1 [23], so selecting the vinyl group as the linker was expected to meet the conditions mentioned. Three other compounds with -CH2CH2- as the linker were designed to verify the design strategy. At the same time, replacement of the double bond by a thiazole ring could further restrict the conformation of the compounds and ensure establishment of strong interactions between the carboxyl and basic amino acid residues of the phosphate binding pocket, which should be helpful to improve the activity of these compounds. Based on these ideas, a series of novel (E)-3-(1H-benzo[d]imidazol-2-yl)acrylic acids and 5-(1H-benzo[d]imidazol-2-yl) thiazole-2-carboxylic acid derivatives featured with various 1-N substituents were designed and synthesized.

2. Results and Discussion

2.1. Chemistry

The synthesis route of 6a–6o and 7a–7c is described in Scheme 1. The commercial material o-phenylenediamine was selected as starting material, and compound 1 was obtained by condensation and cyclization of o-phenylenediamine and glycolic acid. Oxidation of the C2-hydroxymethyl of 1 with manganese dioxide yielded aldehyde product 2. Intermediate 3 was generated in good yield by a Wittig-Horner reaction with methyl diethylphosphonoacetate, and then alkylation with 3-bromopropionic acid produced key intermediate 4. Reaction of carboxylic acid 4 with amines afforded the corresponding amides, and treatment of these amides with lithium hydroxide afforded 6a–6o. Compounds 7a–7c were obtained by reduction of 6d, 6f and 6o, respectively.
The synthesis of 13a–13j is described in Scheme 2. Oxidization of 1 with potassium permanganate afforded 1H-benzo[d]imidazole-2-carboxylic acid (8). Conversion of the carboxylic acid group of 8 to a carbamoyl group was achieved by first froming the acyl chloride and subsequently reacting it with ammonium hydroxide to yield compound 9. Thionation of the carbonyl of compound 9 with Lawsson’s reagents gave 10. Condensation and cyclization of compound 10 using ethyl 3-bromo-2-oxopropanoate gave 2-(1H-benzo[d]imidazol-2-yl)thiazole intermediate 11. Alkylation of 11 with 3-bromopropionic acid afforded the desired product 12. Coupling of the carboxylic acid 12 with amines yielded the corresponding amides, which were finally reacted with lithium hydroxide to afford final products 13a–13j.

2.2. Biological Activity

To investigate the Pin1 inhibitory potency of all synthesized compounds, the inhibition ratio at 10 μM or IC50 of all synthesized compounds was determined using protease-coupled assay. The results for all target compounds are shown in Table 1 and Table 2.
The results indicate that a portion of the target compounds exhibited promising activities towards Pin1, among which, most of the compounds displayed an inhibition ratio >50% at 10 μM. Compounds 6a and 6b with piperidyl or morpholinyl substituents exhibited little potency (28% and 27% at 10 μM, respectively); replacing piperidyl or morpholinyl with phenyl (compound 6c) led to increased inhibitory activity (46%), indicating that aromatic ring is beneficial to the Pin1 inhibition, so the following compounds employed phenyl as substituent, and a more systematic study of the substituents on the phenyl moiety was carried out. 4-Methyl-substituent compound 6d exhibited elevated inhibitory activity, while compounds 6e or 6f with 4-methoxy or 4-chloro substituents demonstrated decreased activities, which indicated that introducing electron-donating substituents on the phenyl is helpful to Pin1 inhibition. What’s more, it is worth noting that compound 6h with a 3-Br substituent showed the best Pin1 inhibitory activity among 6a–6o, with an IC50 value of 0.64 μM, suggesting that the bromine atom is preferable, presumably to interact with the amino acid residues via forming an H-halogen bond. The effect of extending the substituent (compounds 6g, 6j and 6k or 6e, 6l and 6m) on activity is weak. Increasing the number of substituents on the phenyl may improve the activity of the compounds to different degrees, but trimethyl-substituent compound 6o did not show a prominent advantage over compound 6d. Compounds 7a, 7b and 7c were obtained by reduction of 6d, 6f and 6o, respectively. Compared to compounds 6d, 6f and 6o, the activity of compounds 7a–7c showed different degrees of decline, proving that the double bond is a necessary group for activity, which confirmed our design idea.
In order to further restrict the conformation of the compound, the double bond was replaced by a thiazole ring (compounds 13a–13j). The results indicated that most of the compounds with thiazole rings as the linker displayed better inhibitory activity than double bond compounds. Compound 13a with a phenyl substituent exhibited significantly improved activity compared to 6a, and a more systematic study of the substituents on the phenyl ring was carried out. Compounds 13b and 13c with 3-Br or 2-Br substituents showed similar activity. Replacing the 3-Br with 3-OCH3 or 3,5-diOCH3 afforded 13d and 13e, which displayed improved activity compared to 13a, but there was no significant difference in the activity of the two compounds. Introducing a NO2 into the C3 position (compound 13f) reduced the activity. Replacing the NO2 with CF3 afforded 13g, which showed the best Pin1 inhibitory activity with an IC50 value of 0.37 μM. Compounds 13h and 13i with 4-CF3 or 3,5-diCl substituents displayed reduced activity, respectively.
The structure-activity relationship analysis indicated that compared with the number of substituents, the kinds of substituents influenced the Pin1 inhibitory activity more. As mentioned above, most of the Pin1 small molecule inhibitors did not exhibit promising antiproliferative activities due to Pin1 specifically recognizing a phosphorylated Ser/Thr motif in its substrate binding site, and consequently potent Pin1 inhibitors commonly contain a negatively double-charged phosphate group or carboxyl group, and the phosphate or carboxyl group can be detrimental to inhibitor cell permeability which hinders activity in a whole cell assay. It is still challenging to discover highly potent Pin1 inhibitors with drug-like properties. As for Pin1 was overexpressed in human prostate cancer cells, the antiproliferative activity of these benzimidazole derivatives against PC-3 cells were further evaluated by MTT assay. Meanwhile, the polar surface area (PSA) of these compounds was calculated under the optimal conformation since PSA is the key indicator of membrane permeability. As shown in Table 3, most of the compounds showed hardly any antiproliferative activity against PC-3 cells (GI50 > 50 μM), except compounds 6d, 6g, 6h, 6n, 6o and 7c, which demonstrated moderate antiproliferative activity, with GI50 values between 9.89 to 28.57 μM. Compounds 6a–6o and 7a–7c exhibited a polar surface area between 150 and 200, while compound 13a–13j showed a polar surface area > 200, indicating that the membrane permeability of 13a–13j is worse than that of 6a–6o and 7a–7c, which is probably the reason why compounds 13a–13j exhibited stronger Pin1 inhibitory activities but worse antiproliferative activities than 6a–6o and 7a–7c.

3. Materials and Methods

3.1. Chemistry

Melting points were measured with an X-4 digital micro melting point apparatus (Shanghai Jingke Co. Ltd, Shanghai, China) and are uncirrected. 1H-NMR spectra were measured with a Bruker ARX (400 MHz) spectrometer and 13C-NMR with a Bruker AV (150 MHz) instrument (Bruker, Karlsruhe, Germany). Chemical shifts are recorded in δ units using tetramethylsilane as the standard (NMR peak description: s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet; br, broad peak). Low resolution mass spectrometry (MS) were recorded with an Agilent 1100 ion trap liquid chromatography-mass spectrometer (Agilent, Santa Clara, CA, USA). Organic solutions were dried over anhydrous sodium sulfate during workup. Column chromatography was carried out on a Combiflash Rf+ preparative liquid chromatograph (Teledyne ISCO, NE, USA). Silica gel 60 (200–300 mesh) and TLC were purchased from Qingdao Haiyang Chemical Co. Ltd. (Qingdao, China) All commercial reagents and solvents were used without further purification unless otherwise noted. The purity of all compounds screened in biological assays was >95% pure as judged by HPLC. HPLC analysis were obtained on an L-2400 system (Hitachi, Kyoto, Japan) using a AichromBond-AQ C18 column (150 mm × 4.6 mm, 5 μm) with a 1.5 mL/min flow rate using acetonitrile and water solution (v/v = 70:30) as the eluent over 30 min.
The original figures of 1H-NMR, 13C-NMR and MS of all the target compounds as the Supplementary Materials are available online.

3.1.1. General Procedure for the Synthesis of 6a–6o

(1H-Benzo[d]imidazol-2-yl) methanol (1): To a solution of 1,2-diaminobenzene (10.0 g, 92.6 mmol), in 4 N HCl (80 mL), glycolic acid (20.0 g, 263 mmol) was added and stirred for 4 h at 100 °C and monitored by TLC. After complete conversion of starting material, cooled the solution to room temperature, the pH of the solution was adjusted to 8 with a 2 mol/L aqueous sodium hydroxide solution, the precipitate was filtered and dried to afford 1 as white solid in 88.0% yield. LC-MS m/z: 149.2 [M + H]+.
1H-Benzo[d]imidazole-2-carbaldehyde (2): To a solution of 1 (5.0 g, 34 mmol) in DCM was added MnO2 (1.3 g, 6.8 mmol). The resulting solution was stirred at 40 °C for 2 h and monitored by TLC. After complete conversion of starting material, reaction mixture was cooled to room temperature, filtered and concentrated in vacuo to obtain 2 as white solid in 85.0% yield. LC-MS m/z: 147.1 [M + H]+.
Methyl (E)-3-(1H-benzo[d]imidazol-2-yl) acrylate (3): To a solution of methyl diethylphosphonoacetate (3.17g, 15.0 mmol) in dry THF (40 mL) was added sodium carbonate (3.79 g, 27.4 mmol), the mixture was stirred for 30 min at room temperature prior to the addition of compound 2 (2.0 g, 13.7 mmol). The mixture was stirred and refluxed for 24 h under an argon atmosphere and monitored by TLC. After complete conversion of starting material, the reaction mixture was filtered, the filtrate was concentrated and re-dissolved by ethyl acetate, and then washed with saturated NaCl solution and dried over anhydrous sodium sulfate, concentrated in vacuo and purified by flash silica gel column (PE/EA = 4/1, v/v) to obtain 3 as white solid in 87.5% yield. LC-MS m/z: 203.1 [M + H]+.
(E)-3-(2-(3-Methoxy-3-oxoprop-1-en-1-yl)-1H-benzo[d]imidazol-1-yl) propanoic acid (4): To a solution of 3 (0.4 g, 2.0 mmol) in DMF (10 mL) and acetone (40 mL) was added 3-bromopropionic acid (1.2 g, 8.0 mmol) and a solution of K2CO3 (5.5 g, 40 mmol) in water (0.8 mL), the mixture was stirred at 70 °C for 4 h. After complete conversion of starting material, the reaction mixture was cooled to room temperature, concentrated in vacuo and redissolved in water (50 mL). The resulting solution was adjusted to pH 5 with a 6 N HCl at 0 °C, and then extracted with ethyl acetate, the organic layers combined and washed with saturated NaCl, dried over anhydrous sodium sulfate, filtered, and concentrated in vacuo to obtain 4 as a white solid in 82.5% yield. LC-MS m/z: 273.1 [M − H] −.
(E)-3-(1-(3-oxo-3-(piperidin-1-yl)propyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6a): To a mixture of compound 4 (0.47 g, 1.73 mmol) and piperidine (0.16 g, 1.9 mmol) in dried DCM (50 mL) was added 4-methylmorpholine (0.97 mL) followed by HOBt (0.47 g 3.46 mmol) at 0 °C, and EDCI (0.66 g, 3.46 mmol) was added in batches. After stirring for 30 min, the mixture was warmed to room temperature and stirred overnight. The reaction mixture was washed by saturated NaCl solution three times and dried over anhydrous sodium sulfate, concentrated and purified by flash silica gel column (PE/EA = 1/3, v/v), the residue was dissolved in THF (6 mL), then lithium hydroxide solution (3.5 mmol/mL, 1.6 mL) was added dropwise. The resulting solution was stirred at room temperature for 6 h then concentrated in vacuo, and the residue re-dissolved by water and acidified with 2N HCl to pH 5 at 0 °C. Filtered and dried to obtain the desired compounds 6a as white solid in 58.5% yield. m.p.: 128–130 °C. 1H-NMR (DMSO-d6) δ: 12.74 (s, 1H), 7.79 (d, J = 15.4 Hz, 1H), 7.67 (m, 1H), 7.66 (m, 1H), 7.33 (m, J = 9.04 Hz, 2H), 6.90 (d, J = 15.4 Hz, 1H), 4.60 (t, J = 6.6 Hz, 2H), 3.34 (t, J = 5.44 Hz, 2H), 3.21 (t, J = 5.4 Hz, 2H), 2.84 (t, J = 6.7 Hz, 2H), 1.47 (m, J = 5.32 Hz, 2H), 1.32 (m, J = 3.9 Hz, 2H), 1.26 (m, J = 7.4 Hz, 2H). LC-MS m/z: 328.2 [M + H]+.
(E)-3-(1-(3-Morpholino-3-oxopropyl)-1H-benzo[d]imidazol-2-yl) acrylic acid (6b): Compound 6b was prepared from 4 and morpholine in a similar manner as compound 6a. White solid. Yield 51.2%. m.p.: 207–209 °C. 1H-NMR (DMSO-d6) δ: 12.81 (s, 1H), 7.79 (d, J = 15.4 Hz, 1H), 7.66 (t, J = 7.36 Hz, 2H), 7.28 (m, J = 7.2, 3.6 Hz, 2H), 6.91 (d, J = 15.4 Hz, 1H), 4.61 (t, J = 6.7 Hz, 2H), 3.44 (t, J = 9.36 Hz, 2H), 3.37 (t, J = 4.16Hz, 4H), 3.26 (t, J = 9.36 Hz, 2H), 2.86 (t, J = 6.7 Hz, 2H). LC-MS m/z: 330.1 [M + H]+.
(E)-3-(1-(3-Oxo-3-(phenylamino)propyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6c): Compound 6c was prepared from 4 and aniline in a similar manner as compound 6a. White solid. Yield 59.5%. m.p.: 228–230 °C. 1H-NMR (DMSO-d6) δ: 12.89 (s, 1H), 9.95 (s, 1H), 7.81 (d, J = 15.4 Hz, 1H), 7.67 (t, J = 8.9 Hz, 2H), 7.46 (d, J = 8.0 Hz, 2H), 7.30 (t, J = 7.5 Hz, 1H), 7.24 (t, J = 7.8 Hz, 3H), 7.00 (t, J = 7.4 Hz, 1H), 6.91 (d, J = 15.4 Hz, 1H), 4.71 (t, J = 6.3 Hz, 2H), 2.85 (t, J = 6.4 Hz, 2H). LC-MS m/z: 336.1 [M + H]+.
(E)-3-(1-(3-Oxo-3-(p-tolylamino)propyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6d): Compound 6d was prepared from 4 and p-toluidine in a similar manner as compound 6a. White solid. Yield 54.1%. m.p.: 221–222 °C. 1H-NMR (DMSO-d6) δ: 12.93 (s, 1H), 9.88 (s, 1H), 7.80 (d, J = 15.4 Hz, 1H), 7.67 (t, J = 7.8 Hz, 2H), 7.35 (d, J = 8.4 Hz, 2H), 7.30 (t, J = 7.5 Hz, 1H), 7.24 (t, J = 7.5 Hz, 1H), 7.04 (d, J = 8.3 Hz, 2H), 6.91 (d, J = 15.4 Hz, 1H), 4.70 (t, J = 6.4 Hz, 2H), 2.83 (t, J = 6.4 Hz, 2H), 2.21 (s, 3H). LC-MS m/z: 350.1 [M + H]+.
(E)-3-(1-(3-((4-Methoxyphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6e): This compound was prepared from 4 and 4-methoxyaniline in a similar manner as compound 6a. White solid. Yield 53.6%. m.p.: 215–217 °C. 1H-NMR (DMSO-d6) δ: 12.80 (s, 1H), 9.80 (s, 1H), 7.81 (d, J = 15.4 Hz, 1H), 7.67 (t, J = 7.3 Hz, 2H), 7.36 (d, J = 8.9 Hz, 2H), 7.32 (s, 1H), 7.25 (t, J = 7.6 Hz, 1H), 6.90 (d, J = 15.4 Hz, 1H), 6.82 (d, J = 8.9 Hz, 2H), 4.70 (t, J = 6.2 Hz, 2H), 3.69 (s, 3H), 2.80 (t, J = 6.3 Hz, 2H). LC-MS m/z: 366.1 [M + H]+.
(E)-3-(1-(3-((4-Chlorophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6f): Compound 6f was prepared from 4 and 4-chloroaniline in a similar manner as compound 6a. White solid. Yield 54.8%. m.p.: 158–160 °C. 1H-NMR (DMSO-d6) δ: 10.23 (s, 1H), 7.67 (d, J = 15.3 Hz, 1H), 7.64 (t, J = 8.2 Hz, 2H), 7.52 (d, J = 8.8 Hz, 2H), 7.30 (d, J = 8.8 Hz, 2H), 7.25 (t, 1H), 7.22(t, J = 7.1 Hz, 1H), 6.95 (d, J = 15.3 Hz, 1H), 4.68 (t, J = 6.2 Hz, 2H), 2.86 (t, J = 6.3 Hz, 2H). LC-MS m/z: 370.1 [M + H]+.
(E)-3-(1-(3-((4-Bromophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6g): Compound 6g was prepared from 4 and 4-bromoaniline in a similar manner as compound 6a. White solid. Yield 48.0%. m.p.: 192–194 °C. 1H-NMR (DMSO-d6) δ: 10.18 (s, 1H), 7.66 (d, J = 15.6 Hz, 1H),7.64 (t, J = 5.5 Hz, 2H), 7.46 (m, J = 6.7 Hz, 4H), 7.26 (t, J = 7.2 Hz, 1H), 7.22 (t, J = 7.2 Hz, 1H), 6.94 (d, J = 15.6 Hz, 1H), 4.68 (t, J = 5.8 Hz, 2H), 2.86 (t, J = 5.8 Hz, 2H). LC-MS m/z: 414.0 [M + H]+.
(E)-3-(1-(3-((3-Bromophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6h): Compound 6h was prepared from 4 and 3-bromoaniline in a similar manner as compound 6a. White solid. Yield 58.9%. m.p.: 209–210 °C. 1H-NMR (DMSO-d6) δ: 12.46 (s, 1H), 10.15 (s, 1H), 7.80 (s, 1H), 7.78 (d, J = 15.4 Hz, 1H), 7.67 (t, J = 6.9 Hz, 2H), 7.36 (d, J = 6.56 Hz, 1H), 7.30 (t, J = 7.24 Hz, 1H), 7.24 (t, J = 7.68 Hz, 1H), 7.21 (d, J = 6.28 Hz 1H), 7.20 (s, 1H), 6.92 (d, J = 15.4 Hz, 1H), 4.71 (t, J = 6.3 Hz, 2H), 2.86 (t, J = 6.3 Hz, 2H). LC-MS m/z: 416.1 [M + H]+.
(E)-3-(1-(3-((3,5-dimethoxyphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6i): Compound 6i was prepared from 4 and 3,5-dimethoxyaniline in a similar manner as compound 6a. White solid. Yield 53.1%. m.p.: 203–204 °C. 1H-NMR (DMSO-d6) δ: 12.81(s, 1H), 9.90 (s, 1H), 7.81 (d, J = 15.4 Hz, 1H), 7.67 (t, J = 7.5 Hz, 2H), 7.31 (t, J = 7.5 Hz, 1H), 7.25 (t, J = 7.8 Hz, 1H), 6.91 (d, J = 15.4 Hz, 1H), 6.87 (s, 1H), 6.71 (s, 2H), 4.70 (t, J = 6.4 Hz, 2H), 3.67 (s, 6H), 2.82 (t, J = 6.4 Hz, 2H). LC-MS m/z: 396.1 [M + H]+.
(E)-3-(1-(3-((4-Bromobenzyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6j): Compound 6j was prepared from 4 and (4-bromophenyl)methanamine in a similar manner as compound 6a. White solid. Yield 55.8%. m.p.: 210–212 °C. 1H-NMR (DMSO-d6) δ: 12.78 (s, 1H), 8.42 (t, J = 5.9 Hz, 1H), 7.77 (d, J = 15.4 Hz, 1H), 7.72–7.66 (m, 1H), 7.66–7.58 (m, 1H), 7.35 (d, J = 8.4 Hz, 2H), 7.33–7.22 (m, 2H), 6.89 (d, J = 15.4 Hz, 3H), 4.65 (t, J = 6.3 Hz, 2H), 4.11 (d, J = 5.8 Hz, 2H), 2.68 (t, J = 6.3 Hz, 2H). LC-MS m/z: 430.1 [M + H]+.
(E)-3-(1-(3-((4-Bromophenethyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6k): Compound 6k was prepared from 4 and 2-(4-bromophenyl)ethan-1-amine in a similar manner as compound 6a. White solid. Yield 59.9%. m.p.: 203–205 °C. 1H-NMR (DMSO-d6) δ: 12.82(s, 1H), 8.00 (t, J = 5.4 Hz, 1H), 7.71–7.59 (m, 3H), 7.34 (d, J = 8.3 Hz, 2H), 7.31–7.21 (m, 2H), 6.93 (d, J = 15.5 Hz, 1H), 6.89 (d, J = 8.3 Hz, 2H), 4.59 (t, J = 6.2 Hz, 2H), 3.12 (dd, J = 12.7, 6.7 Hz, 2H), 2.56 (t, J = 6.3 Hz, 2H), 2.46 (t, J = 7.1 Hz, 2H). 13C-NMR (DMSO-d6) δ 169.3, 167.2, 148.1, 142.7, 138.8, 135.3, 131.0, 130.9, 128.5, 127.1, 123.1, 122.7, 119.4, 119.1, 111.1, 40.1, 36.0, 34.1, 30.5. LC-MS m/z: 442.0 [M + H]+.
(E)-3-(1-(3-((4-Methoxybenzyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6l): Compound 6l was prepared from 4 and (4-methoxyphenyl)methanamine in a similar manner as compound 6a. White solid. Yield 54.3%. m.p.: 203–205 °C. 1H-NMR (DMSO-d6) δ: 12.85 (s, 1H), 8.32 (t, J = 5.7 Hz, 1H), 7.78 (d, J = 15.4 Hz, 1H), 7.69 (d, J = 7.16 Hz, 1H), 7.63 (d, J = 7.16 Hz, 1H), 7.29 (m, J = 7.1 Hz, 2H), 6.89 (d, J = 8.6 Hz, 3H), 6.75 (d, J = 9.1 Hz, 2H), 4.65 (t, J = 6.3 Hz, 2H), 4.08 (d, J = 5.7 Hz, 2H), 3.70 (s, 3H), 2.66 (t, J = 6.3 Hz, 2H). 13C-NMR (DMSO-d6) δ 169.2, 166.9, 158.1, 147.7, 142.7, 135.4, 130.9, 129.6, 128.5, 125.4, 123.3, 122.8, 119.5, 113.6, 111.2, 55.0, 41.6, 40.1, 36.0. LC-MS m/z: 380.1 [M + H]+.
(E)-3-(1-(3-((4-Methoxyphenethyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6m): Compound 6m was prepared from 4 and 2-(4-methoxyphenyl)ethan-1-amine in a similar manner as compound 6a. White solid. Yield 51.9%. m.p.: 219–220 °C. 1H-NMR (DMSO-d6) δ: 12.85 (s, 1H), 8.32 (t, J = 5.7 Hz, 1H), 7.78 (d, J = 15.4 Hz, 1H), 7.69 (d, J = 7.48,1H), 7.62 (d, J = 7.64 Hz, 1H), 7.31 (t, J = 7.12 Hz, 2H), 7.26 (t, J = 7.12 Hz, 2H), 6.91 (d, J = 15.4 Hz, 1H), 6.87 (d, J = 8.56 Hz, 2H), 6.73 (d, J = 8.64 Hz, 2H), 4.60 (t, J = 6.3 Hz, 2H), 3.68 (s, 3H), 3.08(q, J = 6.76 Hz, 2H), 2.57 (t, J = 6.24 Hz, 2H), 2.42 (t, J = 7.24 Hz, 2H). LC-MS m/z: 394.1 [M + H]+.
(E)-3-(1-(3-((3,5-Dichlorophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6n): Compound 6n was prepared from 4 and 3,5-dichloroaniline in a similar manner as compound 6a. White solid. Yield 51.7%. m.p.: 152–154 °C. 1H-NMR (DMSO-d6) δ: 10.48 (s, 1H), 7.63 (d, J = 7.88 Hz, 2H), 7.60 (d, J = 15.3 Hz, 1H), 7.54 (d, J = 1.5 Hz, 2H), 7.26 (t, J = 7.0 Hz, 1H), 7.23 (s, 1H), 7.20 (t, J = 7.3 Hz, 1H), 6.92 (d, J = 15.3 Hz, 1H), 4.67 (t, J = 6.1 Hz, 2H), 2.86 (t, J = 6.3 Hz, 2H). LC-MS m/z: 404.0 [M + H]+.
(E)-3-(1-(3-((2,4,6-Trimethylphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)acrylic acid (6o): Compound 6o was prepared from 4 and 2,4,6-trimethylaniline in a similar manner as compound 6a. White solid. Yield 55.5%. m.p.: 275–278 °C. 1H-NMR (DMSO-d6) δ: 9.17 (s, 1H), 7.73(d, J = 15.2 Hz, 1H), 7.65 (t, J = 8.3 Hz, 2H), 7.26 (dq, J = 7.2, 6.0 Hz, 2H), 6.93(d, J = 15.2 Hz, 1H), 6.76(s, 2H), 4.68 (t, J = 6.1 Hz, 2H), 2.88 (t, J = 6.2 Hz, 2H), 2.16 (s, 3H), 1.73 (s, 6H). 13C-NMR (DMSO-d6) δ 168.0, 167.2, 148.0, 142.8, 135.3, 135.3, 134.7, 132.1, 129.1, 128.1, 126.6, 123.2, 122.7, 119.4, 111.3, 40.1, 35.6, 20.4, 17.6. LC-MS m/z: 378.1 [M + H]+.

3.1.2. General Procedure for the Synthesis of 7a–7c

To a solution of compounds 6d, 6f or 6o (0.29 mmol) in methanol (5 mL) was added Pd/C (5%, 31 mg, 0.14 mmol). The mixture was stirred and subjected to an atmosphere of hydrogen for 3 h at room temperature. After the start material was completed, the mixture was filtered and the filtrate was concentrated in vacuo to obtain the desired compounds 7a–7c.
3-(1-(3-Oxo-3-(p-tolylamino)propyl)-1H-benzo[d]imidazol-2-yl)propanoic acid (7a): Compound 7a was prepared from 6d using the general procedure as a white solid. Yield 98.0%. m.p.: 66–68 °C. 1H-NMR (DMSO-d6) δ: 12.28 (s, 1H), 9.95 (s, 1H), 7.54 (dd, J = 11.4, 7.8 Hz, 2H), 7.38 (t, J = 11.6 Hz, 2H), 7.18 (t, J = 7.1 Hz, 1H), 7.13 (t, J = 7.5 Hz, 1H), 7.07 (d, J = 8.3 Hz, 2H), 4.51 (t, J = 6.8 Hz, 2H), 3.13 (t, J = 7.0 Hz, 2H), 2.82 (t, J = 6.9 Hz, 4H), 2.22 (s, 3H). LC-MS m/z: 352.1 [M + H]+.
3-(1-(3-((4-Chlorophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)propanoic acid (7b): Compound 7b was prepared from 6f using the general procedure as a white solid. Yield 95.0%. m.p.: 66–68 °C. 1H-NMR (DMSO-d6) δ: 12.28 (s, 1H), 10.15 (s, 1H), 7.54 (m, 4H), 7.33 (d, J = 7.9 Hz, 2H), 7.18 (t, J = 7.5 Hz, 1H), 7.13 (t, J = 7.4 Hz, 1H), 4.51 (d, J = 6.0 Hz, 2H), 3.60 (d, J = 6.1Hz, 2H), 3.12 (d, J = 6.2 Hz, 2H), 2.84 (d, J = 6.7 Hz, 2H). LC-MS m/z: 372.1 [M + H] +.
3-(1-(3-(Mesitylamino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)propanoic acid (7c): Compound 7c was prepared from 6o using the general procedure as a white solid. Yield 94.0%. m.p.: 222–224 °C. 1H-NMR (DMSO-d6) δ: 12.25 (s, 1H), 9.19 (s, J = 8.1 Hz, 1H), 7.54 (dd, J = 7.3, 4.0 Hz, 2H), 7.21–7.10 (m, 2H), 6.77 (s, 2H), 4.50 (t, J = 6.6 Hz, 2H), 3.14 (t, J = 7.1 Hz, 2H), 2.86 (t, J = 6.6 Hz, 2H), 2.81 (t, J = 7.1 Hz, 2H), 2.17 (t, J = 4.3 Hz, 3H), 1.81 (s, 6H). LC-MS m/z: 380.2 [M + H]+.

3.1.3. General Procedure for the Synthesis of 13a–13j

1H-Benzo[d]imidazole-2-carboxylic acid (8): To a mixture of 1 (6.0 g, 40.5 mmol) and K2CO3 (4.3 g, 31.2 mmol) in 100 mL water was added KMnO4 (6.4 g, 40.5 mmol) in batches, the mixture was refluxed for 1h. After complete conversion of starting material, the reaction mixture was filtered; the pH of the filtrate was adjusted to 5 with 6N HCl at 0 °C. Filter and dried to obtain 8 as white solid in 45.0% yield. LC-MS m/z: 161.5 [M − H]−.
1H-Benzo[d]imidazole-2-carboxamide (9): A solution of 8 (3.0 g, 18.6 mmol) in SOCl2 (30 mL) was stirred at 70 °C for 4 h. The mixture was cooled to room temperature, concentrated in vacuo and aqueous ammonia (150 mL) was added. The resulting solution was stirred at 70 °C for 5 h, then cooled and water (50 mL) was added and stirred at room temperature for additional 1 h. Filtration and drying gave 9 as a yellow solid in 51.4% yield. LC-MS m/z: 162.1 [M + H]+.
1H-Benzo[d]imidazole-2-carbothioamide (10): To a solution of 9 (3.0 g, 18.6 mmol) in THF (70 mL) was added Lawesson’s reagent (7.5 g, 18.6 mmol). The resulting solution was stirred at 66 °C for 5 h. After complete conversion of the starting material, the reaction mixture was concentrated in vacuo and the residue was redissolved in DCM (500 mL), the solution was washed with saturated NaCl solution three times, dried over anhydrous sodium sulfate, concentrated and purified by flash silica gel column chromatography (DCM:MeOH = 100:1) to obtain 10 as yellow solid in 61.2% yield. LC-MS m/z: 178.2 [M + H]+.
Ethyl 2-(1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylate (11): A solution of ethyl 3-bromo-2-oxopropanoate (3.0 g, 16.9 mmol) and 10 (3.0 g 16.9 mmol) in ethanol (150 mL) was stirred at 66 °C for 5 h. After complete conversion of the starting material, the reaction mixture was concentrated in vacuo, and then purified by silica gel column chromatography (DCM:MeOH= 250:1) to obtain 11 as white solid in 95.0% yield. LC-MS m/z: 274.3 [M + H]+.
3-(2-(4-(Ethoxycarbonyl)thiazol-2-yl)-1H-benzo[d]imidazol-1-yl)propanoic acid (12): To a solution of 11 (1.0 g, 3.70 mmol) in mixture of DMF (20 mL) and acetone (100 mL), 3-bromopropionic acid (2.2 g, 14.8 mmol) and a solution of K2CO3 (10.0 g, 72.4 mmol) in water (2 mL) was added, the mixture was stirred at 70 °C for 4 h. After complete conversion of the starting material, the reaction mixture was concentrated in vacuo and redissolved in water (80 mL). The resulting solution was acidified to pH 5 with 6 N HCl at 0 °C, and then extracted with ethyl acetate, the organic layers combined and washed with saturated NaCl and dried over anhydrous sodium sulfate, filtered, and concentrated in vacuo to give 12 as white solid in 65.0% yield. LC-MS m/z: 344.1 [M − H]−.
2-(1-(3-Oxo-3-(phenylamino)propyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13a): To a mixture of compounds 12 (500 mg, 1.45 mmol), 4-methylmorpholine (0.8 mL, 4.25 mmol) and aniline (161 mg, 1.74 mmol) in dried DCM was added HOBt (389 mg, 2.90 mmol) at 0 °C, and then EDCI (557 mg, 2.90 mmol) was added in batches. The resulting solution was warmed to room temperature after stirring for 30 min at 0 °C. The reaction mixture was washed with water three times and saturated NaCl solution once. The organic layer was dried over anhydrous sodium sulfate, concentrated and purified by flash silica gel column chromatography (PE/EA = 4/1, v/v), and then the residue was re-dissolved in THF (15 mL), and lithium hydroxide solution (3.5 mmol/mL, 5 mL) was added dropwise. The resulting solution was stirred at room temperature for 6 h. After the reaction was completed, the reaction mixture was concentrated in vacuo, and the residue dissolved in water and acidified with 2 N HCl to pH 5 at 0 °C, filtered and dried to obtain the desired compound 13a as a white solid in 56.1% yield. m.p.: 226–228 °C. 1H-NMR (DMSO-d6) δ: 13.23 (s, 1H), 9.88 (s, 1H), 8.64 (s, 1H), 7.77 (d, J = 8.2 Hz, 1H), 7.73 (d, J = 8.0 Hz, 1H), 7.43 (d, J = 7.9 Hz, 2H), 7.36 (t, J = 7.5 Hz, 1H), 7.29 (t, J = 7.5 Hz, 1H), 7.22 (t, J = 7.8 Hz, 2H), 6.99 (t, J = 7.3 Hz, 1H), 5.15 (t, J = 6.6 Hz, 2H), 2.96 (t, J = 6.6 Hz, 2H). 13C-NMR (DMSO-d6) δ 168.7, 161.9, 159.3, 148.6, 144.1, 142.0, 138.8, 136.1, 130.8, 128.6, 124.1, 123.2, 123.1, 119. 6, 119.2, 111.7, 41.3, 36.8. LC-MS m/z: 391.0 [M − H]−.
2-(1-(3-((3-Bromophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13b): Compound 13b was prepared from 12 and 3-bromoaniline in a similar manner as compound 13a. White solid. Yield 53.0%. m.p.: 210–212 °C. 1H-NMR (DMSO-d6) δ: 9.59 (s, 1H), 8.62 (s, 1H), 7.74 (d, J = 8.1 Hz, 3H), 7.58 (d, J = 7.9 Hz, 1H), 7.37 (t, J = 7.4 Hz, 1H), 7.31 (t, J = 7.5 Hz, 2H), 7.27 (s, 1H), 7.09 (t, J = 7.1 Hz, 1H), 5.15 (t, J = 6.2 Hz, 2H), 3.02 (s, 2H). LC-MS m/z: 469.4 [M − H]−.
2-(1-(3-((2-Bbromophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13c): Compound 13c was prepared from 12 and 2-bromoaniline in a similar manner as compound 13a. White solid. Yield 48.3%. m.p.: 186–188 °C. 1H-NMR (DMSO-d6) δ: 9.59 (s, 1H), 8.62 (s, 1H), 7.74 (d, J = 8.1 Hz, 3H), 7.58 (d, J = 7.9 Hz, 1H), 7.37 (t, J = 7.4 Hz, 1H), 7.31 (t, J = 7.5 Hz, 2H), 7.27 (s, 1H), 7.09 (t, J = 7.1 Hz, 1H), 5.15 (t, J = 6.2 Hz, 2H), 3.02 (s, 2H). LC-MS m/z: 469.4 [M − H]−.
2-(1-(3-((3-Methoxyphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13d): Compound 13d was prepared from 12 and 3-methoxyaniline in a similar manner as compound 13a. White solid. Yield 46.8%. m.p.: 223–225 °C. 1H-NMR (DMSO-d6) δ: 9.92 (s, 1H), 8.62 (s, 1H), 7.77 (d, J = 8.2 Hz, 1H), 7.73 (d, J = 8.0 Hz, 1H), 7.36 (t, J = 7.7 Hz, 1H), 7.29 (t, J = 7.6 Hz, 1H), 7.13 (dd, J = 9.6, 6.6 Hz, 2H), 6.99 (d, J = 8.0 Hz, 1H), 6.58 (d, J = 8.2 Hz, 1H), 6.58 (d, J = 8.2 Hz, 1H), 5.14 (t, J = 6.7 Hz, 2H), 3.68 (s, 3H), 2.95 (t, J = 6.7 Hz, 2H). 13C-NMR (DMSO-d6) δ 169.0, 164.1, 159.4, 159.3, 156.1, 145.2, 142.1, 140.6, 135.9, 129.1, 123.8, 123.6, 122.8, 119.5, 112.5, 110.9, 108.7, 106.1, 55.0, 42.6, 38.2. LC-MS m/z: 421.3 [M − H]−.
2-(1-(3-((3,5-Dimethoxyphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13e): Compound 13e was prepared from 12 and 3,5-dimethoxyaniline in a similar manner as compound 13a. White solid. Yield 43.9%. m.p.: 208–210 °C. 1H-NMR (DMSO-d6) δ: 10.68 (s, 1H), 8.02 (s, 1H), 7.72 (d, J = 10.5 Hz, 2H), 7.35 (t, J = 7.5 Hz, 1H), 7.28 (t, J = 7.6 Hz, 1H), 7.10 (s, 2H), 6.19 (s, 1H), 5.04–4.87 (m, 2H), 3.70 (s, 6H), 3.13–2.97 (m, 2H). 13C-NMR (DMSO-d6) δ 169.3, 164.3, 160.4, 159.7, 156.3, 145.4, 142.3, 141.2, 136.1, 124.0, 123.8, 123.1, 119.7, 111.2, 98.8, 95.5, 55.3, 42.7, 38.4. LC-MS m/z: 451.0 [M − H]−.
2-(1-(3-((3-Nitrophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13f): Compound 13f was prepared from 12 and 3-nitroaniline in a similar manner as compound 13a. White solid. Yield 44.7%. m.p.: 234–236 °C. 1H-NMR (DMSO-d6) δ: 11.64 (s, 1H), 8.92 (s, 1H), 8.30 (d, J = 8.0 Hz, 1H), 8.06 (s, 1H), 7.91 (d, J = 8.1 Hz, 1H), 7.73 (d, J = 8.0 Hz, 2H), 7.59 (t, J = 8.1 Hz, 1H), 7.37 (t, J = 7.6 Hz, 1H), 7.30 (t, J = 7.6 Hz, 1H), 5.01–4.93 (m, 2H), 3.18–3.12 (m, 2H). LC-MS m/z: 436.4 [M − H]−.
2-(1-(3-Oxo-3-((3-(trifluoromethyl)phenyl)amino)propyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13g): Compound 13g was prepared from 12 and 3-(trifluoromethyl)aniline in a similar manner as compound 13a. White solid. Yield 47.6%. m.p.: 178–180 °C. 1H-NMR (400 MHz, DMSO-d6) δ: 11.35 (s, 1H), 8.36 (s, 1H), 8.11 (d, J = 7.9 Hz, 1H), 8.05 (s, 1H), 7.72 (dd, J = 7.7, 4.1 Hz, 2H), 7.52 (t, J = 7.8 Hz, 1H), 7.38 (d, J = 7.9 Hz, 1H), 7.36 (d, J = 7.8 Hz, 1H), 7.29 (t, J = 7.5 Hz, 1H), 4.98–4.94 (m, 2H), 3.13 (t, J = 13.1 Hz, 2H). 13C-NMR (150 MHz, DMSO) δ 169.4, 162.1, 159.2, 144.3, 142.1, 139.6, 136.1, 130.3, 129.9, 129.5, 129.2, 125.1, 124.2, 123.3, 123.2, 122.9, 119.7, 115.4, 115.4, 111.6, 41.4, 37.1. LC-MS m/z: 459.1 [M − H]−.
2-(1-(3-Oxo-3-((4-(trifluoromethyl)phenyl)amino)propyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13h): Compound 13h was prepared from 12 and 4-(trifluoromethyl)aniline in a similar manner as compound 13a. White solid. Yield 56.7%. m.p.: 176–178 °C. 1H-NMR (DMSO-d6) δ: 11.36 (s, 1H), 8.13 (d, J = 8.1 Hz, 2H), 8.04 (s, 1H), 7.72 (d, J = 8.3 Hz, 2H), 7.64 (d, J = 8.5 Hz, 2H), 7.36 (t, J = 7.6 Hz, 1H), 7.29 (t, J = 7.6 Hz, 1H), 4.98–4.92 (m, 2H), 3.23-3.09 (m, 2H). 13C-NMR (DMSO-d6) δ 168.8, 161.2, 158.7, 147.8, 143.5, 141.8, 141.4, 135.5, 130.2, 125.3, 124.7, 123.5, 122.9, 122.6, 122.5, 119.0, 118.3, 111.0, 40.5, 36.3. LC-MS m/z: 459.1 [M − H]−.
2-(1-(3-((3,5-Dichlorophenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13i): Compound 13i was prepared from 12 and 3,5-dichloroaniline in a similar manner as compound 13a. White solid. Yield 42.6%. m.p.: 192–194 °C. 1H-NMR (DMSO-d6) δ: 10.42 (s, 1H), 8.62 (s, 1H), 7.77 (d, J = 8.2 Hz, 1H), 7.74 (d, J = 8.0 Hz, 1H), 7.47 (d, J = 1.8 Hz, 2H), 7.37 (dd, J = 10.0, 5.3 Hz, 1H), 7.32–7.30 (m, 1H), 7.20 (t, J = 1.8 Hz, 1H), 5.18 (t, J = 6.6 Hz, 2H), 2.97 (t, J = 6.6 Hz, 2H). 13C-NMR (DMSO-d6) δ 168.9, 161.1, 158.7, 147.8, 143.5, 141.3, 140.5, 135.4, 133.3, 130.1, 123.5, 122.5, 121.7, 118.9, 116.6, 111.0, 40.5, 36.3. LC-MS m/z: 459.3 [M − H]−.
2-(1-(3-((3-Fluoro-4-methylphenyl)amino)-3-oxopropyl)-1H-benzo[d]imidazol-2-yl)thiazole-4-carboxylic acid (13j): Compound 13j was prepared from 12 and 3-fluoro-4-methylaniline in a similar manner as compound 13a. White solid. Yield 46.6%. m.p.: 204–206 °C. 1H-NMR (DMSO-d6) δ: 11.08 (s, 1H), 8.03 (s, 1H), 7.80 (d, J = 12.7 Hz, 1H), 7.74-7.65 (m, 2H), 7.61 (d, J = 8.3 Hz, 1H), 7.36 (t, J = 7.6 Hz, 1H), 7.29 (t, J = 7.6 Hz, 1H), 7.16 (t, J = 8.6 Hz, 1H), 5.05–4.87 (m, 2H), 3.14–2.96 (m, 2H), 2.18 (s, 3H). 13C-NMR (DMSO-d6) δ 168.9, 162.3, 160.9, 159.3, 144.3, 142.0, 138.4, 136.0, 131.2, 124.0, 123.0, 119.6, 118.4, 118.3, 115.0, 111.4, 106.2, 106.0, 41.6, 37.2, 13.7. LC-MS m/z: 423.4 [M − H]−.

3.2. Pin1 Inhibition Assay

Pin1 inhibitory activities were measured at 10 °C by protease-coupled assay as reported previous [24]. Suc-Ala-Glu-cis-Pro-Phe-4-nitroaniline (Bachem, Bubendorf, Switzerland) in 0.47 mol/L, LiCl/trifluoroethanol was used as the substrate. The assay buffer (860 μL of 35 mM HERES at pH 7.8), Pin1 (20 μL, Bought from Sino Biological Inc., Beijing, China) and target compounds (10 μL of varying comcentrations in DMSO) were pre-equilibtated in the cuvette at 10 °C for 30 min. Then, 150 uL of ice-cooled chymotrypsin (60 mg/mL in 0.001 M/HCl) was added and mixed immediately. Additional substrate (40 μL) was added to start the assay and the reaction was monitored by absorbance at 390 nm for 90 s. For each compound, four concentrations (10 μM, 3.3 μM, 1.1 μM, 0.37 μM) were chosen, and the assay was performed in duplicate. The data was analyzed by Graphpad Prism 6.0.

3.3. In Vitro Anti-Proliferative Assay

The tested cells were plated in 96-well microtiter plates with a density of 2,000 cells/well and incubated in a humidified atmosphere with 5% CO2 at 37 °C for 24 h. The cells were then exposed to tested compounds of different concentrations in triplicate. After incubated for 96 h, 50 μL of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) solution (2 mg/mL) was added to each well and incubated for an additional 4 h. Then the suspernatant was discarded and the fromazan was dissolved in 200 μL of dimethyl sulfoxide (DMSO). The plate was oscillated subtly at room temperature for 10 min before the absorbance was measured at 570 nm by a microplate reader. Cell inhibitory ratio was calculated with the following formula:
Inhibitory Rate (%) = [(Acontrol − Atreated)/Acontrol] × 100%
The GI50 was determined as the concentration that caused half inhibition of cell proliferation. All experiments were performed three times independently, and the results were reported presented as the mean.

4. Conclusions

We report herein the design and synthesis of some novel benzimidazole derivatives as potent Pin1 inhibitors. Among the 28 compounds, 6h and 13g were the most potent Pin1 inhibitors, with IC50 values of 0.64 and 0.37 μM, respectively. In vitro antiproliferative assays demonstrated that compounds 6d, 6g, 6h, 6n, 6o and 7c exhibited moderate antiproliferative activity against human prostate cancer PC-3 cells with GI50 values between 9.89 to 28.57 μM. This unique benzimidazole scaffold demonstrated great potential to be further explored as a source of potent Pin1 inhibitors with improved potency. Efforts are ongoing to further optimize and provide a systematic structure-activity analysis of the active positions and the results will be reported in due course.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/24/7/1198/s1. 1H-NMR, 13C-NMR, MS of the target compounds.

Author Contributions

Conceptualization, L.Z. and S.W.; Methodology, D.L. and S.W.; software, L.G. and K.X.; Fromal analysis, J.Z. (Jie Zang) and J.Z. (Jian Zhang); Writing—original draft preparation, S.W.; Writing—review and editing, L.Z. and S.W.; Project administration, L.Z.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, K.P.; Hanes, S.D.; Hunter, T. A human peptidyl-prolyl isomerase essential for regulation of mitosis. Nature 1996, 380, 544–547. [Google Scholar] [PubMed]
  2. Yeh, E.S.; Means, A.R. PIN1, the cell cycle and cancer. Nat. Rev. Cancer 2007, 7, 381–388. [Google Scholar] [CrossRef]
  3. Rustighi, A.; Tiberi, L.; Soldano, A.; Napoli, M.; Nuciforo, P.; Rosato, A.; Kaplan, F.; Capobianco, A.; Pece, S.; Di Fiore, P.P.; et al. The prolyl-isomerase Pin1 is a Notch1 target that enhances Notch1 activation in cancer. Nat. Cell Biol. 2009, 11, 133–142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lu, Z.; Hunter, T. Prolyl isomerase Pin1 in cancer. Cell Res. 2014, 24, 1033–1049. [Google Scholar] [CrossRef] [Green Version]
  5. Winkler, K.E.; Swenson, K.I.; Kornbluth, S.; Means, A.R. Requirement of the prolyl isomerase Pin1 for the replication checkpoint. Science 2000, 287, 1644–1647. [Google Scholar] [CrossRef]
  6. Cui, G.; Jin, J.; Chen, H.; Cao, R.; Chen, X.; Xu, B. Synthesis and biological evaluation of pyrimidine derivatives as novel human Pin1 inhibitors. Bioorg. Med. Chem. 2018, 26, 2186–2197. [Google Scholar] [CrossRef] [PubMed]
  7. Bao, L.; Kimzey, A.; Sauter, G.; Sowadski, J.M.; Lu, K.P.; Wang, D. Prevalent overexpression of prolyl isomerase Pin1 in human cancers. Am. J. Pathol. 2004, 164, 1727–1737. [Google Scholar] [CrossRef]
  8. Wulf, G.M.; Ryo, A.; Wulf, G.G.; Lee, S.W.; Niu, T.; Petkova, V.; Lu, K.P. Pin1 is overexpressed in breast cancer and cooperates with Ras signaling in increasing the transcriptional activity of c-Jun towards cyclin D1. Embo J. 2001, 20, 3459–3472. [Google Scholar] [CrossRef] [Green Version]
  9. Ayala, G.; Wang, D.; Wulf, G.; Frolov, A.; Li, R.; Sowadski, J.; Wheeler, T.M.; Lu, K.P. The prolyl isomerase Pin1 is a novel prognostic marker in human prostate cancer. Cancer Res. 2003, 63, 6244–6251. [Google Scholar]
  10. Hennig, L.; Christner, C.; Kipping, M.; Schelbert, B.; Rucknagel, K.P.; Grabley, S.; Kullertz, G.; Fischer, G. Selective Inactivation of Parvulin-Like Peptidyl-Prolyl cis/trans Isomerases by Juglone. Biochemistry 1998, 37, 5953–5960. [Google Scholar] [CrossRef]
  11. Chao, S.H.; Greenleaf, A.L.; Price, D.H. Juglone, an inhibitor of the peptidyl-prolyl isomerase Pin1, also directly blocks transcription. Nucleic Acids Res. 2001, 29, 767–773. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Guo, C.; Hou, X.; Dong, L.; Dagostino, E.; Greasley, S.; Ferre, R.; Marakovits, J.; Johnson, M.C.; Matthews, D.; Mroczkowski, B.; et al. Structure-based design of novel human Pin1 inhibitors (I). Bioorg. Med. Chem. Lett. 2009, 19, 5613–5616. [Google Scholar] [CrossRef]
  13. Dong, L.; Marakovits, J.; Hou, X.; Guo, C.; Greasley, S.; Dagostino, E.; Ferre, R.; Johnson, M.C.; Kraynov, E.; Thomson, J.; et al. Structure-based design of novel human Pin1 inhibitors (II). Bioorg. Med. Chem. Lett. 2010, 20, 2210–2214. [Google Scholar] [CrossRef] [PubMed]
  14. Guo, C.; Hou, X.; Dong, L.; Marakovits, J.; Greasley, S.; Dagostino, E.; Ferre, R.; Catherine Johnson, M.; Humphries, P.S.; Li, H.; et al. Structure-based design of novel human Pin1 inhibitors (III): Optimizing affinity beyond the phosphate recognition pocket. Bioorg. Med. Chem. Lett. 2014, 24, 4187–4191. [Google Scholar] [CrossRef] [PubMed]
  15. Pu, W.; Li, J.; Zheng, Y.; Shen, X.; Fan, X.; Zhou, J.; He, J.; Deng, Y.; Liu, X.; Wang, C.; et al. Targeting Pin1 by inhibitor API-1 regulates microRNA biogenesis and suppresses hepatocellular carcinoma development. Hepatology 2018, 68, 547–560. [Google Scholar] [CrossRef]
  16. Russo Spena, C.; De Stefano, L.; Poli, G.; Granchi, C.; Ei Boustani, M.; Ecca, F.; Grassi, G.; Grassi, M.; Canzonieri, V.; Giordano, A.; et al. Virtual screening identifies a PIN1 inhibitor with possible antiovarian cancer effects. J. Cell Physiol. 2019. [Google Scholar] [CrossRef] [PubMed]
  17. Russo Spena, C.; De Stefano, L.; Palazzolo, S.; Salis, B.; Granchi, C.; Minutolo, F.; Tuccinardi, T.; Fratamico, R.; Crotti, S.; D’Aronco, S.; et al. Liposomal delivery of a Pin1 inhibitor complexed with cyclodextrins as new therapy for high-grade serous ovarian cancer. J. Control. Rel. 2018, 281, 1–10. [Google Scholar] [CrossRef]
  18. Wei, S.; Kozono, S.; Kats, L.; Nechama, M.; Li, W.; Guarnerio, J.; Luo, M.; You, M.; Yao, Y.; Kondo, A.; et al. Active Pin1 is a key target of all-trans retinoic acid in acute promyelocytic leukemia and breast cancer. Nat. Med. 2015, 21, 457–466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Yang, D.; Luo, W.; Wang, J.; Zheng, M.; Liao, X.; Zhang, N.; Lu, W.; Wang, L.; Chen, A.; Wu, W.; et al. A novel controlled release fromulation of the Pin1 inhibitor ATRA to improve liver cancer therapy by simultaneously blocking multiple cancer pathways. J. Control. Rel. 2018, 269, 405–422. [Google Scholar] [CrossRef] [PubMed]
  20. Ranganathan, R.; Lu, K.P.; Hunter, T.; Noel, J.P. Structural and functional analysis of the mitotic rotamase Pin1 suggests substrate recognition is phosphorylation dependent. Cell 1997, 89, 875–886. [Google Scholar] [CrossRef]
  21. Potter, A.J.; Ray, S.; Gueritz, L.; Nunns, C.L.; Bryant, C.J.; Scrace, S.F.; Matassova, N.; Braker, L.; Dokurno, P.; Robinson, D.A.; et al. Structure-guided design of alpha-amino acid-derived Pin1 inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 586–590. [Google Scholar] [CrossRef] [PubMed]
  22. Potter, A.; Oldfield, V.; Nunns, C.; Fromont, C.; Ray, S.; Northfield, C.J.; Bryant, C.J.; Scrace, S.F.; David, M.N.; Baker, L.; et al. Discovery of cell-active phenyl-imidazole Pin1 inhibitors by structure-guided fragment evolution. Bioorg. Med. Chem. Lett. 2010, 20, 6483–6488. [Google Scholar] [CrossRef] [PubMed]
  23. Bayer, E.; Thutewohl, M.; Christner, C.; Tradler, T.; Osterkamp, F.; Waldmann, H.; Bayer, P. Identification of hPin1 inhibitors that induce apoptosis in a mammalian Ras transfromed cell line. Chem. Co. 2005, 4, 516–518. [Google Scholar] [CrossRef] [PubMed]
  24. Li, X.; Li, L.; Zhou, Q.; Zhang, N.; Zhang, S.; Zhao, R.; Liu, D.; Zhao, L. Synthesis of the novel elemonic acid derivatives as Pin1 inhibitors. Bioorg. Med. Chem. Lett. 2014, 24, 5612–5615. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the all target compounds are available from the authors.
Molecules 24 01198 g001 550

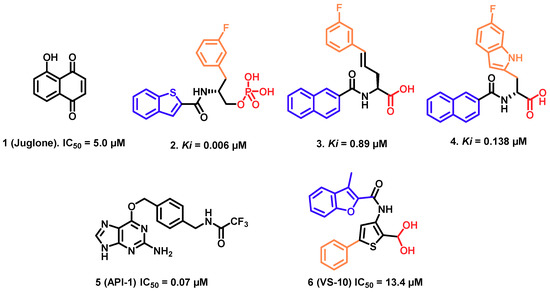

Figure 1. Chemical structures of known Pin1 inhibitors.
Figure 1. Chemical structures of known Pin1 inhibitors.
Molecules 24 01198 g001
Molecules 24 01198 g002 550

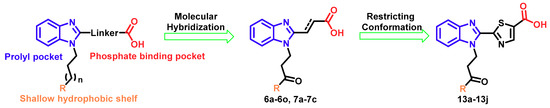

Figure 2. Design strategies of novel Pin1 inhibitors.
Figure 2. Design strategies of novel Pin1 inhibitors.
Molecules 24 01198 g002
Molecules 24 01198 sch001 550

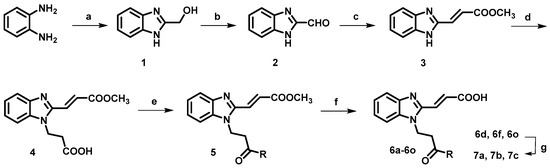

Scheme 1. Synthesis of 6a–6o and 7a–7c. Reagents and Conditions: (a) CH2(OH)COOH, 4N HCl/H2O, 100 °C; (b) MnO2, CH2Cl2, reflux; (c) methyl diethylphosphonoacetate, K2CO3, dry THF, reflux; (d) 3-bromopropionic acid, K2CO3, acetone/DMF/H2O=5/1/0.1, reflux; (e) piperidine or morpholine or RNH2, EDCI, HOBt, 4-methylmorpholine, CH2Cl2, r.t.; (f) LiOH, THF/H2O, r.t.; (g) H2, Pd/C, r.t.
Scheme 1. Synthesis of 6a–6o and 7a–7c. Reagents and Conditions: (a) CH2(OH)COOH, 4N HCl/H2O, 100 °C; (b) MnO2, CH2Cl2, reflux; (c) methyl diethylphosphonoacetate, K2CO3, dry THF, reflux; (d) 3-bromopropionic acid, K2CO3, acetone/DMF/H2O=5/1/0.1, reflux; (e) piperidine or morpholine or RNH2, EDCI, HOBt, 4-methylmorpholine, CH2Cl2, r.t.; (f) LiOH, THF/H2O, r.t.; (g) H2, Pd/C, r.t.
Molecules 24 01198 sch001
Molecules 24 01198 sch002 550

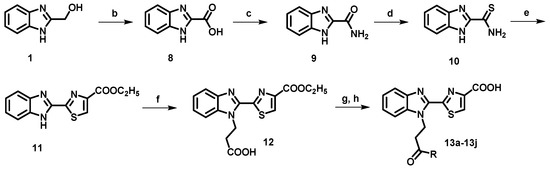

Scheme 2. Synthesis of 13a–13j. Reagents and Conditions: (a) CH2(OH)COOH, 4N HCl/H2O, 100 °C; (b) KMnO4, H2O, reflux; (c) SOCl2, NH3·H2O, 70 °C; (d) Lawsson’s reagent, THF, 66 °C; (e) ethyl 3-bromo-2-oxopropanoate, ethanol, 78 °C; (f) 3-bromopropionic acid, K2CO3, acetone/DMF/H2O, 70 °C; (g) RNH2, EDCI, HOBt, 4-methylmorpholine, CH2Cl2, r.t.; (h) LiOH, THF/H2O, r.t.
Scheme 2. Synthesis of 13a–13j. Reagents and Conditions: (a) CH2(OH)COOH, 4N HCl/H2O, 100 °C; (b) KMnO4, H2O, reflux; (c) SOCl2, NH3·H2O, 70 °C; (d) Lawsson’s reagent, THF, 66 °C; (e) ethyl 3-bromo-2-oxopropanoate, ethanol, 78 °C; (f) 3-bromopropionic acid, K2CO3, acetone/DMF/H2O, 70 °C; (g) RNH2, EDCI, HOBt, 4-methylmorpholine, CH2Cl2, r.t.; (h) LiOH, THF/H2O, r.t.
Molecules 24 01198 sch002
Table

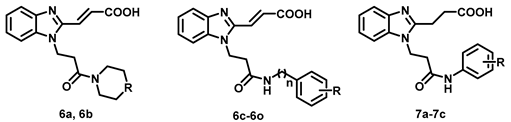

Table 1. The structure and inhibitory activity against Pin1 of 6a–6o and 7a–7c.
Table 1. The structure and inhibitory activity against Pin1 of 6a–6o and 7a–7c.
Molecules 24 01198 i001
Compd.Rn%Inhibition (10 μM) aIC50 (μM) bCompd.Rn%Inhibition (10 μM) aIC50 (μM) b
6aCH2-28n.d. c6j4-Br159n.d.
6bO-27n.d.6k4-Br262n.d.
6c-H046n.d.6l4-OCH3142n.d.
6d4-CH30751.656m4-OCH3249n.d.
6e4-OCH3048n.d.6n3,5-diCl0711.87
6f4-Cl054n.d.6o2,4,6-triCH30840.97
6g4-Br0661.737a4-CH3-60n.d.
6h3-Br0900.647b4-Cl-31n.d.
6i3,5-diOCH3060n.d.7c2,4,6-triCH3-60n.d.
Juglone---10.01
a Values are means of triple independent experiments. b All results represent the mean of duplicate experiments. c not determined.
Table
Table 2. The structure and inhibitory activity against Pin1 of 13a–13j.
Table 2. The structure and inhibitory activity against Pin1 of 13a–13j.
Molecules 24 01198 i002
Compd.R%Inhibition (10 μM) aIC50 (μM) bCompd.R%Inhibition (10 μM) aIC50 (μM) b
13a-H73n.d. c13f3-NO240n.d.
13b3-Br870.8913g3-CF3990.37
13c2-Br79n.d.13h4-CF3811.15
13d3-OCH375n.d.13i3,5-diCl801.35
13e3,5-diOCH379n.d.13j3-F-4-CH372n.d.
Juglone--10.01
a Values are means of triple independent experiments. b All results represent the mean of duplicate experiments. c not determined.
Table
Table 3. The antiproliferative activities against prostate cancer PC-3 cells and calculated PSA of target compounds.
Table 3. The antiproliferative activities against prostate cancer PC-3 cells and calculated PSA of target compounds.
CompoundPSA aGI50 (μM) bCompoundPSA aGI50 (μM) b
6a137.55>506o148.6911.10
6b153.66>507a141.44>50
6c151.52>507b141.06>50
6d156.0717.427c132.9828.57
6e168.82>5013a212.54>50
6f157.60>5013b212.13>50
6g155.7714.1013c210.69>50
6h149.979.8913d231.02>50
6i180.56>5013e225.21>50
6j149.90>5013f296.88>50
6k153.04>5013g212.06>50
6l161.52>5013h212.13>50
6m173.11>5013i211.37>50
6n152.2120.3213j210.25>50
Juglonen.d. c4.89
a PSA was calculated with SYBYL software under the optimal conformation of the compounds. b value was the mean of triple experiments. c Not determined.
