Review

Well-Defined Pre-Catalysts in Amide and Ester Bond Activation

by
Sandeep R. Vemula
,
Michael R. Chhoun
and
Gregory R. Cook
*
Department of Chemistry and Biochemistry, North Dakota State University, Fargo, ND 58108–6050, USA
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(2), 215; https://doi.org/10.3390/molecules24020215
Submission received: 3 December 2018 / Revised: 2 January 2019 / Accepted: 2 January 2019 / Published: 9 January 2019
(This article belongs to the Special Issue Amide Bond Activation)
Browse Figures
Review Reports Versions Notes

Abstract

:
Over the past few decades, transition metal catalysis has witnessed a rapid and extensive development. The discovery and development of cross-coupling reactions is considered to be one of the most important advancements in the field of organic synthesis. The design and synthesis of well-defined and bench-stable transition metal pre-catalysts provide a significant improvement over the current catalytic systems in cross-coupling reactions, avoiding excess use of expensive ligands and harsh conditions for the synthesis of pharmaceuticals, agrochemicals and materials. Among various well-defined pre-catalysts, the use of Pd(II)-NHC, particularly, provided new avenues to expand the scope of cross-coupling reactions incorporating unreactive electrophiles, such as amides and esters. The strong σ-donation and tunable steric bulk of NHC ligands in Pd-NHC complexes facilitate oxidative addition and reductive elimination steps enabling the cross-coupling of broad range of amides and esters using facile conditions contrary to the arduous conditions employed under traditional catalytic conditions. Owing to the favorable catalytic activity of Pd-NHC catalysts, a tremendous progress was made in their utilization for cross-coupling reactions via selective acyl C–X (X=N, O) bond cleavage. This review highlights the recent advances made in the utilization of well-defined pre-catalysts for C–C and C–N bond forming reactions via selective amide and ester bond cleavage.

1. Introduction

Transition metal-catalyzed cross-coupling reactions to form C–C and C–N bonds are a mainstay of organic synthesis for a wide range of academic and industrial applications [1,2,3,4,5,6]. Due to their wide applicability, these reactions have become a critical arsenal for synthetic chemists and have clearly changed retrosynthetic analysis of complex targets. Since their discovery in the late 1960s, palladium catalyzed cross-coupling reactions has been considerable and continues to be a focus of organometallic research [7,8,9,10,11,12,13,14]. The most active Pd catalysts for cross-coupling reactions involve the use of strong donor ligands to reach a high degree of efficiency. In fact, one of the major advancement in cross-coupling reactions is the synthesis and utilization of specialized electron-rich phosphines and N-heterocyclic carbenes (NHC) for the development of active catalytic systems expanding the substrate scope with lower catalyst loadings and milder conditions [15,16]. However, the monetary costs of these specialized ligands are often comparable to the Pd precursor. Therefore, the traditional route of addition of excess ligand for generating the active Pd(0) becomes unattractive [15,17]. Furthermore, in many cross-coupling reactions, the optimal Pd to ligand ratio is 1:1, with the active species proposed to be a monoligated Pd(0). Therefore, the use of well-defined Pd(II) pre-catalysts to facilitate cross-coupling reactions is highly desirable, as they can generate mono ligated active Pd(0) catalysts in solution. Since Herrmann reported that Pd-NHC complexes efficiently catalyzed Heck reaction [18], these complexes found a widespread use for various cross-coupling reactions incorporating previously unreactive coupling partners (Figure 1) [19].
Although various electrophiles are employed in cross-coupling reactions for the construction of C–C and C–N bonds, there is immense interest in increasing the substrate scope to include a wide range of cross-coupling partners [1,4,20]. In recent years, tremendous progress was made to incorporate stable, unreactive, carboxylic acid derivatives, such as amides and esters, in cross-coupling reactions to form ketones or amides [20,21]. The resonance, due to nN (or) O →π*C=O conjugation, makes them a complicated reacting partner in cross-coupling reactions, requiring a high activation energy for the N or O–C(O) bond scission. Destabilization strategies increasing the steric bulk on the amide nitrogen independently developed by the laboratories of Garg [22], Szostak [23], and Zou [24] provide a basis for the development of acyl cross-coupling of amides. Various Pd and Ni catalyst systems with phosphine and NHC ancillary ligands are shown to be effective in utilizing amides and esters as coupling partners in Suzuki-Miyaura coupling and Buchwald-Hartwig amination reactions. However, in this review, we will focus only on describing the recent advances made in the cross-coupling of amides and esters using well-defined pre-catalysts. The individual sections in this review are organized according to the pre-catalysts employed [Pd(allyl)(NHC)Cl, and Pd-PEPPSI] for cross-coupling of amides and esters.

2. Pd(allyl)(NHC)Cl Pre-Catalysts in Suzuki-Miyaura Cross-Coupling of Amides and Esters

With a wide functional group tolerance and less sensitivity toward air and moisture, palladium is by far the most commonly used metal for catalysis of cross-coupling reactions. Among the various pre-catalysts developed in the past decade, there is considerable interest and improvement in pre-catalysts based on η3-allyl ligands. Aside from the inherent advantages associated with NHC ligands (i.e., strong σ-donation, tunability, sterics), Nolan demonstrated that η3-allyl and η3-cinnamyl pre-catalysts with bulky NHC ligands also exhibit high stability toward air and moisture allowing for easy storage and handling [15,25,26]. Furthermore, the commercial availability and ease of synthesis made them an important class of catalysts for reaction screening. The strong σ-donating nature of NHC facilitates the activation of stable and unreactive bonds. Specifically, the [Pd(cinnamyl)(L)Cl] scaffold (L = IPr* or IPr*OMe) was incorporated into several highly active catalysts for difficult cross-coupling reactions, such as the synthesis of tetra-ortho-substituted biaryls using Suzuki-Miyaura coupling [27], Buchwald-Hartwig reactions with secondary amines [28], as well as the use of amides and esters as electrophiles in Suzuki-Miyaura coupling and Buchwald-Hartwi aminations. Figure 2 lists selected and active Pd(allyl)NHC pre-catalysts that were employed for the cross-coupling of amides and esters [19].

2.1. Pd(allyl)(NHC)Cl Pre-Catalysts in Suzuki-Miyaura Cross-Coupling of Amides

Given the key role of the amide bond in nature, development of new methods to functionalize amides via C–N bond activation became an active area of research. Mechanistically, activation of the C–N amide bond proceeds through ground-state destabilization (twisting) of the amide bond by steric and/or electronic factors, allowing a facile insertion of a metal into the C–N bond, furnishing the acyl–metal intermediate facilitating coupling reactions [29,30,31]. Scheme 1 lists various substituents on amide nitrogen employed for the destabilization.
In 2015, the utilization of amide bond for the Suzuki-Miyaura cross-coupling was reported by Zou and coworkers employing N-phenyl-N-tosyl substituted amides [24]. The report showcased the effect of substituent electronics on the destabilization of amide resonance facilitating the metal insertion in to the amide C–N bond. Although the methodology showed good functional group tolerance, it suffered from high catalyst loadings and stringent reaction conditions (Scheme 2).
In the same year, Szostak and coworkers employed a rather different approach of sterically controlled amide bond destabilization using a variety of N-substituted amides and found the best results to be N-glutarimide [23]. The methodology provided inherent steric advantages for amide bond distortion, thereby providing a milder reaction conditions and high functional group tolerance (Scheme 3). But the utilization of large excess of expensive ligand (1:4 ratio of Pd(OAc)2 to PCy3HBF4), and applicability to only highly twisted N-glutarimide amides restricted the practical applications of the methodology.

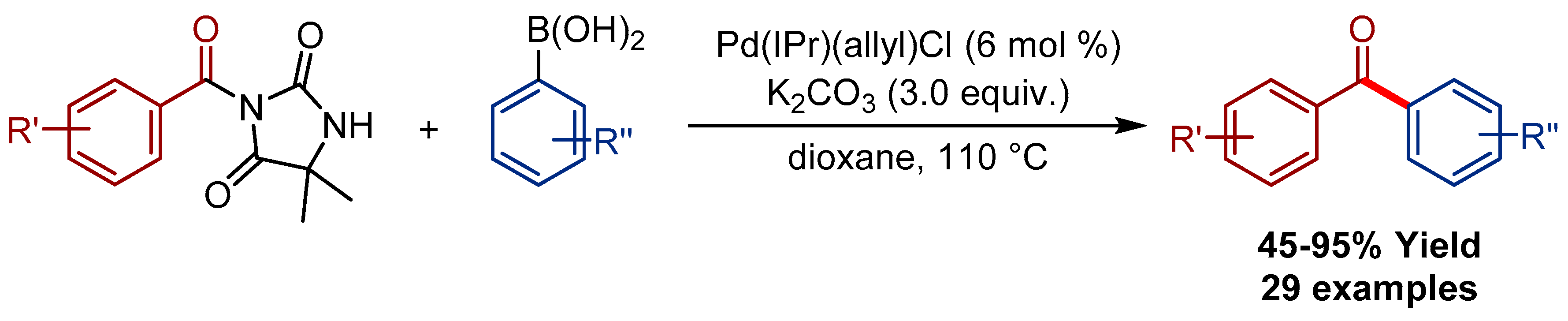

It was not until recently that a more general method incorporating all classes of amides under milder conditions was developed. In 2017, Szostak and coworkers reported the versatility of [Pd(IPr)(cinnamyl)Cl], a well-defined pre-catalyst in the Suzuki-Miyaura cross-coupling of amides under operationally simple conditions (Scheme 4) [23]. The methodology is highly significant, as it promoted the C–N amide bond activation of various amides, including N-glutarimide, N-Boc-carbamate, and N-toluenesulfonamide, under the same reaction conditions with similar yields of the ketone product. The method also showed high functional group tolerance for both reacting partners. The use of easily prepare and common protecting groups (N-Boc and N-Ts amides) for cross-coupling is appealing, as it brings the amide bond cross-coupling closer to general practical use. As stated previously, it was proposed that strong σ donation of the NHC facilitates oxidative addition, while flexible steric bulk around Pd promotes reductive elimination, triggering high reactivity even with less activated amide precursors.
While nonplanar amides were found to be very effective and well-documented for cross-coupling reactions by steric distortion, the resonance destabilization of corresponding planar amides was not well developed. To incorporate planar amides for cross-coupling reactions, Szostak and coworkers utilized N-acylpyrroles and N-acylpyrazoles in Suzuki-Miyaura cross-coupling reactions (Scheme 5) [32]. They found delocalization of Nlp into the π-electron system of the pyrrole/pyrazole ring to be sufficient to selectively insert palladium into the amide C–N bond in the absence of steric distortion. The extensive optimization emphasized the importance of well-defined [Pd(cinnamyl)(IPr)Cl] producing ketone in good yields compared to traces of product formation with the traditional catalyst/ancillary ligand system.

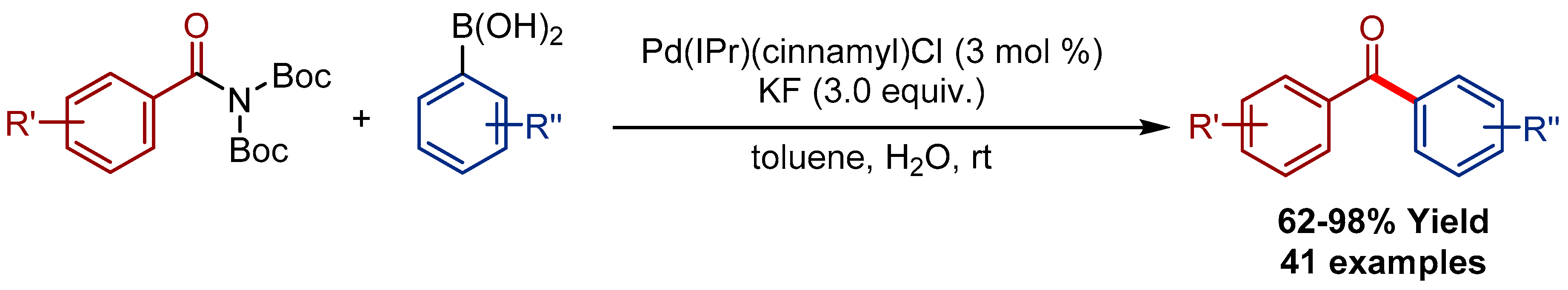

Compared to both traditional Pd/phosphine catalyst systems or Pd/ancillary NHC catalytic systems, well-defined [Pd(cinnamyl)(IPr)Cl] offers both practical advantages and high activity in cross-coupling reactions of amides. In fact, the high catalytic activity of [Pd(cinnamyl)(IPr)Cl] can be evident by its ability to convert N-alkyl-N-aryl amides to corresponding ketones. In 2017, Szostak and coworkers introduced N-methylaminopyrimidyl amides (MAPA) as highly reactive, electronically activated amides for C–N bond cleavage (Scheme 6) [33,34].
Interestingly, Suzuki-Miyaura cross-coupling of both the sterically distorted and/or electronically distorted amides were found to be reactive under similar reaction conditions, further demonstrating how the well-defined nature of a catalyst can enhance the overall catalytic activity and reactivity compared to traditional usage of excess ancillary ligand. This is highly beneficial, as it allows chemists to screen minimal conditions to optimize methodology for new classes of amides with similar distortion angles or resonance energies. In fact, Zeng and coworkers, on their quest to incorporate commercially available and inexpensive N-acylhydantoins as amide electrophiles, have also used similar conditions for the formation of ketones indicating the versatility of Pd(allyl)(NHC)Cl pre-catalysts with different substituted amides (Scheme 7) [35].

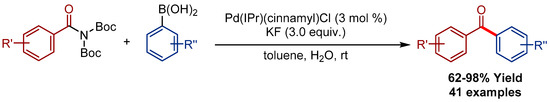

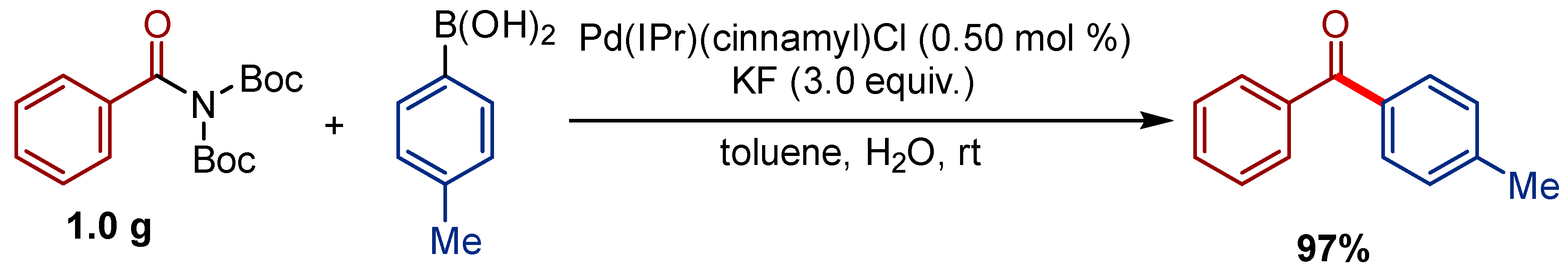

Although the reported methods to incorporate amide bonds in cross-coupling reactions is quite promising, the synthetic modifications to activate amide bond can impede overall synthetic utility. On the other hand, use of N,N-di-Boc-activated amides would be highly beneficial, allowing direct engagement of most ubiquitous primary amides. Szostak and coworkers developed a new catalytic system based on [Pd(IPr)(cinnamyl)Cl]/KF for the selective insertion of metal into acyl amide bond (cf. N-carbamate bond) [36]. The addition of 5.0 equiv of water was found to be critical for the cross-coupling of di-boc amides, as is evident from decreased yields or no reaction in the absence of water (Scheme 8).

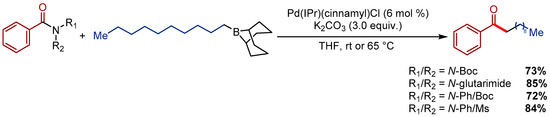

The high catalytic activity of Pd(IPr)(cinnamyl)Cl allowed for the cross-coupling to be conducted at ambient temperature with even lower catalyst loadings. The robust nature of Pd(IPr)(cinnamyl)Cl also allowed them for the gram scale conversion of primary amides to ketones with just 0.5 mol % of catalyst with a TON of 1220, further increasing the practicality of amide cross-coupling (Scheme 9) [36]. In fact, the high catalytic activity of Pd-IPr complexes also allowed Szostak and coworkers to use easily accessible N-acyl amides for the cross-coupling reaction with the highest reported TON (3500), compared to the corresponding traditional Pd-phosphine catalytic systems [37].
Recently, employing standard reaction conditions of amide Suzuki-Miyaura cross-coupling under well-defined Pd-NHC catalysis (i.e., Pd(IPr)(cinnamyl)Cl/K2CO3/THF), Szostak and coworkers also realized challenging C(sp2)-C(sp3) couplings using N,N-di-Boc-amides and B-sp3 alkyl reagents (Scheme 10) [38]. Various substituents on the amide bonds, such as N-glutarimide, N-Ph-N-Boc, and N-Ph-N-Ms were also found to be reactive under identical conditions albeit at a higher temperature.

2.2. Pd(η3-1-t-Bu-indenyl) (NHC)Cl Pre-Catalysts in Suzuki-Miyaura Cross-Coupling of Amides

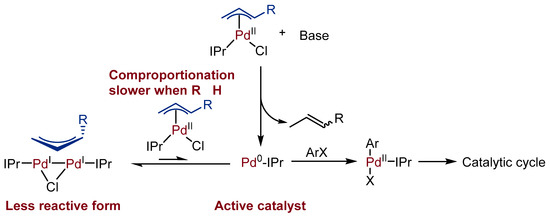

The high reactivity of [Pd(allyl)(NHC)Cl] pre-catalysts stems from maintaining the optimal 1:1 Pd to ligand ratio and the fast reduction of Pd(II) to active Pd(0) [15]. It is now widely accepted that base mediated activation of [Pd(allyl)(NHC)Cl] pre-catalysts forms the active ligated Pd(0) catalyst in solution [34]. However, elegant studies by Hazari and coworkers observed a deleterious comproportionation pathway under catalytic conditions to form Pd(I) μ-allyl dimers (Scheme 11) [39,40]. Based on extensive mechanistic investigation, they proposed two strategies to develop even more active catalysts: (1) Increase the barrier to comproportionation between Pd (0) and Pd (II), and (2) develop systems that undergo faster activation so that all of Pd(II) is converted to Pd(0) before comproportionation.
The mechanistic insights on the deactivation pathway led the Hazari group to discover Pd(η3-1-t-Bu-indenyl)(NHC)Cl (Hazari catalyst), a highly efficient pre-catalyst for cross-coupling reactions [41]. As a major advance in Pd-NHC precatalysts, the inability of (η3-1-t-Bu-indenyl) (NHC)Cl to generate unreactive Pd(I) dimers significantly improved its activity for cross-coupling reactions. In 2017, Szostak and coworkers utilized [Pd(indenyl)(IPr)Cl] for the development of Suzuki-Miyaura cross-coupling of N-Ph-N-Boc amides under otherwise standard conditions of amide cross-coupling reaction (K2CO3/THF, Scheme 12) [42]. The unprecedented reactivity of Hazari catalyst by suppressing the deactivation pathway led the amide cross-coupling reaction to occur at room temperature under glovebox-free conditions, increasing the operational simplicity and practicality of the reaction. This reaction is notable as the first example of Suzuki-Miyaura cross-coupling of an amide at room temperature with excellent yield of ketone product. The robust nature of the pre-catalyst allowed the Szostak group to develop the first direct one-pot activation/cross-coupling of secondary amides.

2.3. Pd(allyl)(NHC)Cl Pre-Catalysts in Suzuki-Miyaura Cross-Coupling of Esters

The ubiquitous nature of ester bonds attracted the interest of chemists for their synthetic manipulation into useful products. In recent years, the direct use of aromatic esters in cross-coupling reactions to form biaryls or ketones has been demonstrated as a promising area of research [20]. The selective cleavage of ester bonds offers significant advantages in multistep synthesis as they are robust to a range of reaction conditions and can only be activated under specific conditions. Although activation of aryl C–O bonds to form biaryls via decarbonylation is well-documented [43,44] the corresponding synthesis of ketones is still in its infancy. In 2017, Newman, Houk and coworkers reported the first-time utilization of aryl esters as acyl equivalents for the formation of ketones (Scheme 13) [45]. The exceptional bulkiness of NHC ligand on the catalyst hindered the decarbonylation step facilitating ketone formation over the well-known biaryl formation.

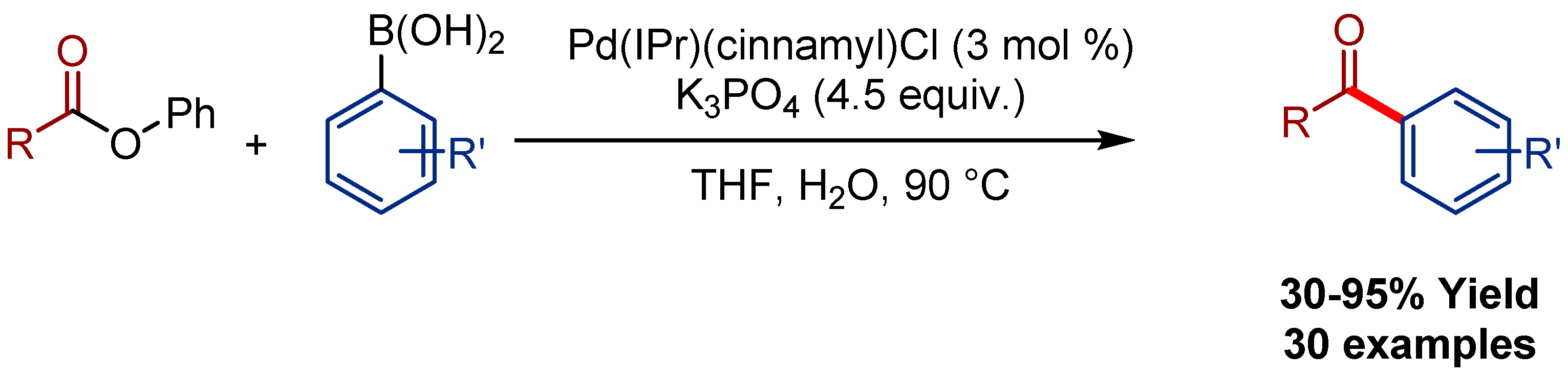

Optimization studies demonstrated the importance of well-defined pre-catalysts for successful ketone formation (Table 1). When Pd catalysts in combination with excess ancillary ligand were used, very low yield of the product was obtained (Table 1, entry 1–4). On the contrary, when the metal to ligand ratio was decreased to the optimal 1:1 ratio, a substantial increase in the product formation was observed (Table 1, entry 5). Further improvement was reported when a preformed well-defined Pd(IPr)(cinnamyl)Cl was used as the catalyst, forming the cross-coupled product in 95% yield, highlighting the importance of well-defined pre-catalysts as compared to traditional catalyst/ligand system (Table 1, entry 6).

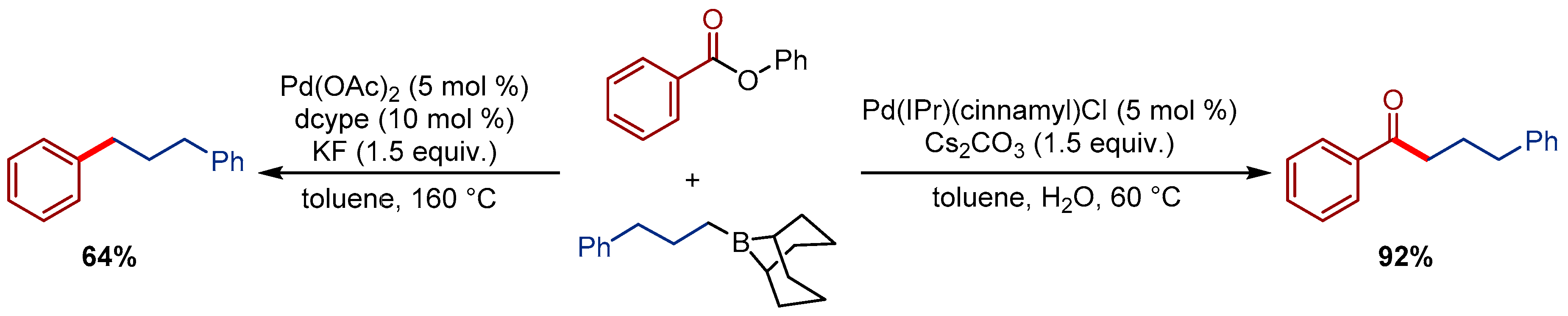

Very recently, as an improvement from their work on C(sp2)-C(sp2) cross-coupling of esters, the Newman group reported a C(sp2)-C(sp3) cross-coupling of aryl esters with alkyl-BBN to form aryl-alkyl ketones [46]. This reaction is particularly challenging, as alkyl boron reagents, in general, are reluctant to undergo transmetallation relative to their aryl counterparts and the intermediacy of alkylmetal species are prone to β-hydride elimination. However, the strong σ-donation and bulky nature of NHC in precatalysts, enabled the reaction to proceed to form ketones. On the contrary, when they employed Pd-ancillary phosphine catalyst conditions, biaryls were formed via decarbonylation and reductive elimination (Scheme 14).

2.4. Pd(η3-1-t-Bu-indenyl) (NHC)Cl Pre-Catalysts in Suzuki-Miyaura Cross-Coupling of Esters

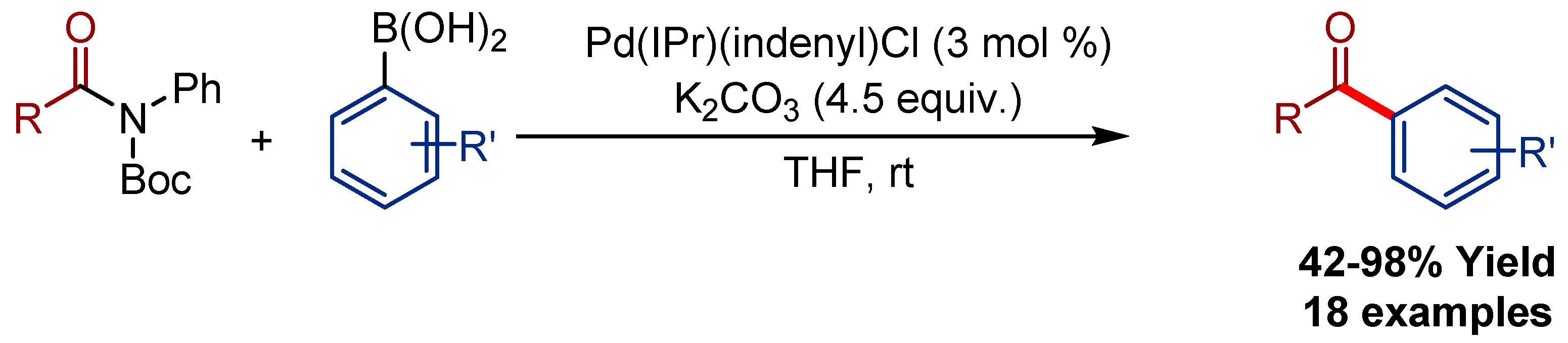

The Hazari catalyst, a highly active catalyst for amide bond cross-coupling, was also found to be very effective in Suzuki-Miyaura cross-coupling of aryl esters. In 2017, Szostak and coworkers reported the first room temperature Suzuki-Miyaura cross-coupling of esters by selective C–O bond activation to give biaryl ketones (Scheme 15) [42]. Interestingly, only a small variation in the amount of base from the conditions employed for amide cross-coupling enabled the cross-coupling of esters.

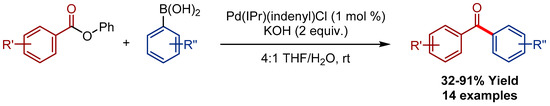

An advancement in the cross-coupling of aryl esters catalyzed by Pd(indenyl)(IPr)Cl was reported by Hazari and coworkers (Scheme 16) [47]. The use of potassium hydroxide base allowed them to develop even milder reaction conditions with lower catalyst loadings (1.0 mol %), and shorter reaction times (6 h to 16 h).

3. Pd(allyl)(NHC)Cl Pre-Catalysts in Buchwald-Hartwig Amination of Amides and Esters

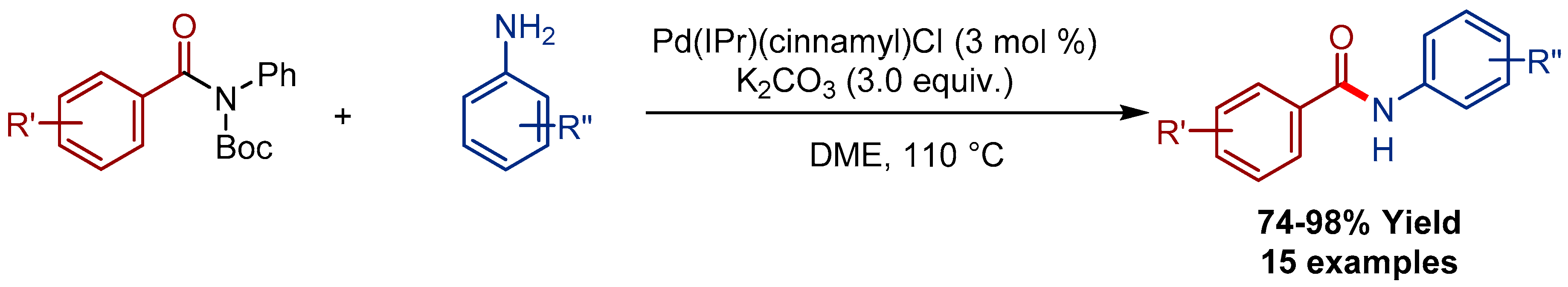

3.1. Pd(cinnamyl)(IPr)Cl Pre-Catalyst for the Transamidation of Amides

The excellent reactivity of Pd(cinnamyl)(IPr)Cl pre-catalysts in amide C–N activation to form acyl-metal species is highly significant, as it can potentially undergo cross-coupling reactions with any nucleophile. In 2017, Szostak and coworkers realized the acyl-metal reaction with other nucleophiles when they reported the first general method for Buchwald-Hartwig amination of acyl-metal species with amines under Pd-NHC catalysis (Scheme 17) [48]. The protocol offered advantages in efficient cross-coupling of both alkyl, aryl, and sterically hindered anilines. The method also showed a broad scope with respect to both the amine and amide components.

3.2. Pd(allyl)(IPr)Cl Pre-Catalyst for the Transamidation of Esters

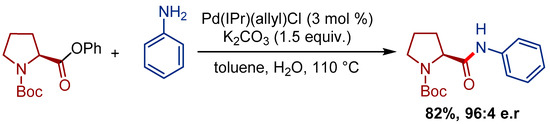

Newman and coworkers reported the first example of Pd-NHC catalyzed amide bond formation directly from aryl esters and anilines. Similar to their observation in Suzuki coupling of aryl esters, a well-defined preassembled NHC-ligated catalyst was essential, as separated components resulted in reduced yields [45]. They found the use of a mild carbonate base and the presence of water was essential for higher conversion, forming the transamidated product in good yields (Scheme 18). The mildness of the protocol was showcased by the reaction of proline ester with anilines and the aminated product was formed with minimal loss of enantiopurity.

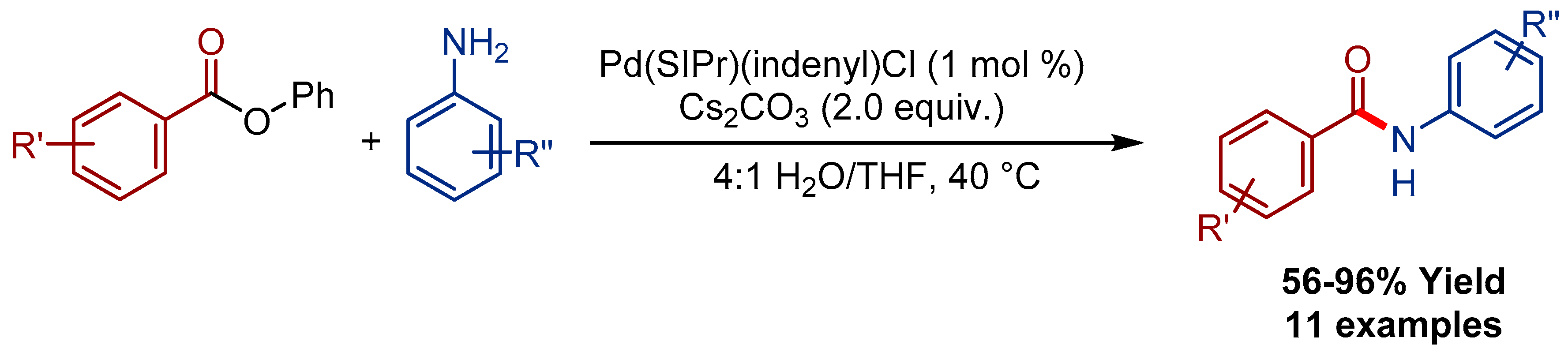

3.3. Pd(indenyl)(SIPr)Cl Pre-Catalyst for the Transamidation of Esters

Given the exceptional catalytic activity of Pd(indenyl)(IPr)(Cl) for Suzuki-Miyaura reactions involving aryl esters, Hazari and coworkers also explored Buchwald-Hartwig amination of aryl esters. Using 1 mol % of Pd(indenyl)(SIPr)(Cl) (SIPr = 1,3-bis(2,6-diisopropylphenyl)imidazolidin-2-ylidene) as the pre-catalyst, they were able to couple phenyl benzoate and aniline in essentially quantitative yield at 40 °C, using a 4:1 H2O/THF solvent mixture (Scheme 19) [47]. They also found that the coupling was highly sensitive to the ligand used, with SIPr affording the best yields, whereas other NHC or phosphine ligands were ineffective.

4. Pd-PEPPSI Pre-Catalysts in the Suzuki-Miyaura Cross-Coupling of Amides and Esters

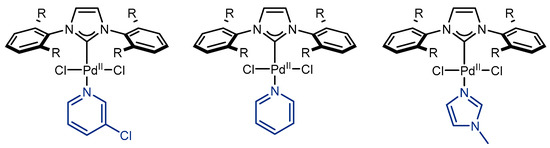

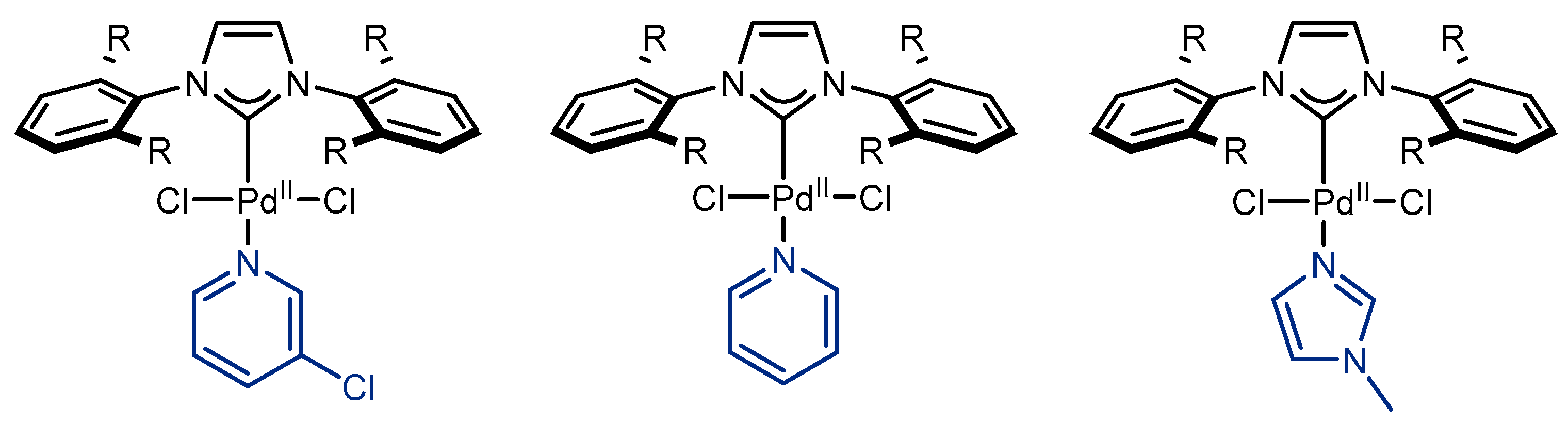

The last two decades saw tremendous growth in the development of highly active, generally applicable, and functional group-tolerant catalytic systems employing NHC ligands. One highly active well-defined pre-catalyst system is Pd-PEPPSI (pyridine-enhanced pre-catalyst preparation, stabilization and initiation), developed by the Organ group [49]. As Figure 1 illustrates, Pd-PEPPSI catalysts found their use in various cross-coupling reactions, such as Suzuki-Miyaura, Negishi, Kumada-Tamao-Corriu, and Buchwald-Hartwig aminations [50]. As with all the Pd-NHC precatalysts, Pd-PEPPSI has two major components: The bulky NHC ligand, which contains strong σ-donor properties which help promote the oxidative addition, and the sterics aid reductive elimination. The second component, the pyridine, often referred as a “throw away ligand,” aids not only in the synthesis of pre-catalyst, but also increases the stability of the isolated complexes (Figure 3). The easy synthesis, high stability toward air and moisture and the exceptional reactivity of Pd-PEPPSI complexes led synthetic chemists to utilize these pre-catalysts in the cross-coupling of difficult and unreactive electrophiles, such as amides and esters (vide infra).

4.1. Pd-PEPPSI Pre-Catalysts in the Suzuki-Miyaura Cross-Coupling of Amides

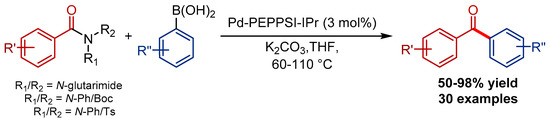

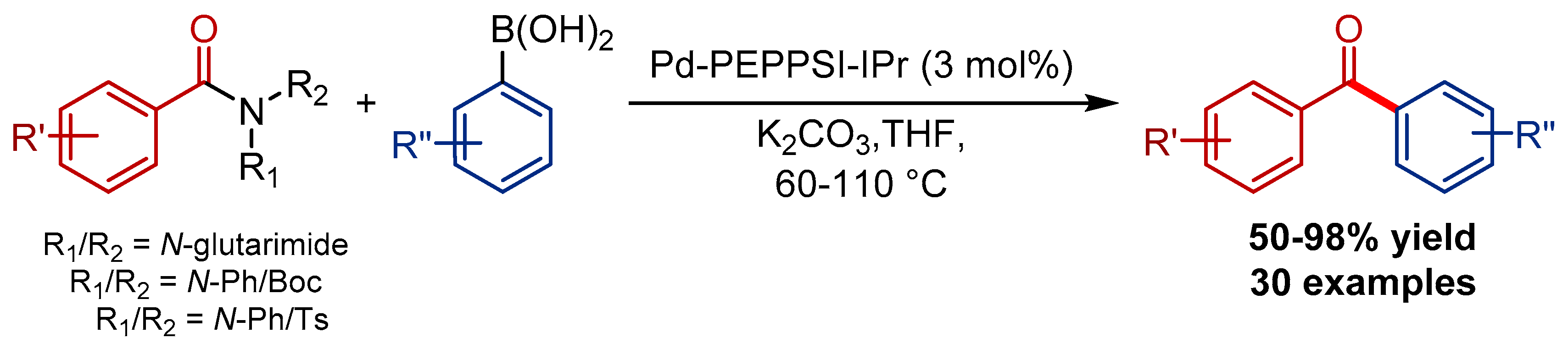

Szostak and coworkers were the first to report the use of Pd-PEPPSI pre-catalysts in Suzuki-Miyaura cross-coupling of amides [51]. In agreement with high catalytic activity of in situ generated Pd-NHC complexes, identical reaction conditions could be employed for the cross-coupling of various destabilized amides (Scheme 20).

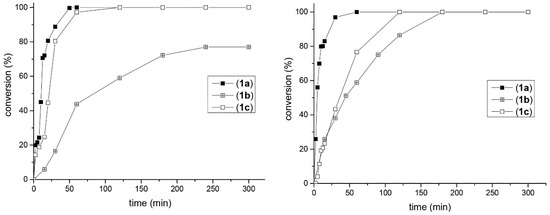

In accordance with the amide C–N bond destabilization, kinetic studies with N-glutarimide, N-Ph-N-Ts, and N-Ph-N-Boc amides showed similar reactivity to their cross-coupling reactivity scale with N-glutarimide being the fastest and N-Ph-N-Ts being the slowest [52]. The kinetic data between Pd-PEPPSI and Pd(IPr)(cinnamyl)Cl precatalysts under identical conditions suggested tha while the reaction rates of N-glutarimide and N-Ph-N-Boc amides were higher with Pd-PEPPSI, N-Ph-N-Ts amides are shown to have faster reaction rates under Pd(IPr)(cinnamyl)Cl catalysis (Figure 4) [19]. The data is highly beneficial, as it provides a general idea for chemists to choose from both the catalyst systems for different type of amides employed in cross-coupling reactions.

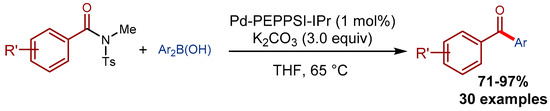

Very recently, Zou and coworkers reported the Suzuki-Miyaura cross-coupling of less reactive N-alkyl-N-Ts amides with diarylborinic acids under Pd-PEPPSI catalysis (Scheme 21) [53]. The use of stable diarylborinic acids was advantageous, as it extended nucleophile counterparts in cross-coupling reactions. Under otherwise standard reaction conditions of amide cross-coupling reactions, they were successful in cross-coupling less reactive N-Me-N-Ts amides to form ketone products. Notably, no reaction ensued under Pd/phosphine catalysis and only low Pd-PEPPSI catalyst loadings (1.0 mol %) were needed, highlighting the high activity of Pd-NHC pre-catalysts. The protocol also offered a broad functional group tolerance, with both electron donating and electron withdrawing groups on both coupling partners.
Zou and coworkers further advanced the Suzuki-Miyaura coupling of amides to form alkyl ketones using trialkylboranes as coupling partners under Pd-PEPPSI catalysis [54]. Although Pd/phosphine catalysis proved ineffective, 5 mol % of Pd-PEPPSI was very effective in transforming N-Me-N-Ts amides to form alkyl ketones (Scheme 22). Unlike the high-order arylboron compounds, in which all the aryl groups react effectively, only one of the three primary alkyl groups in alkylboranes could be used as alkyl source for the acyl alkylation.

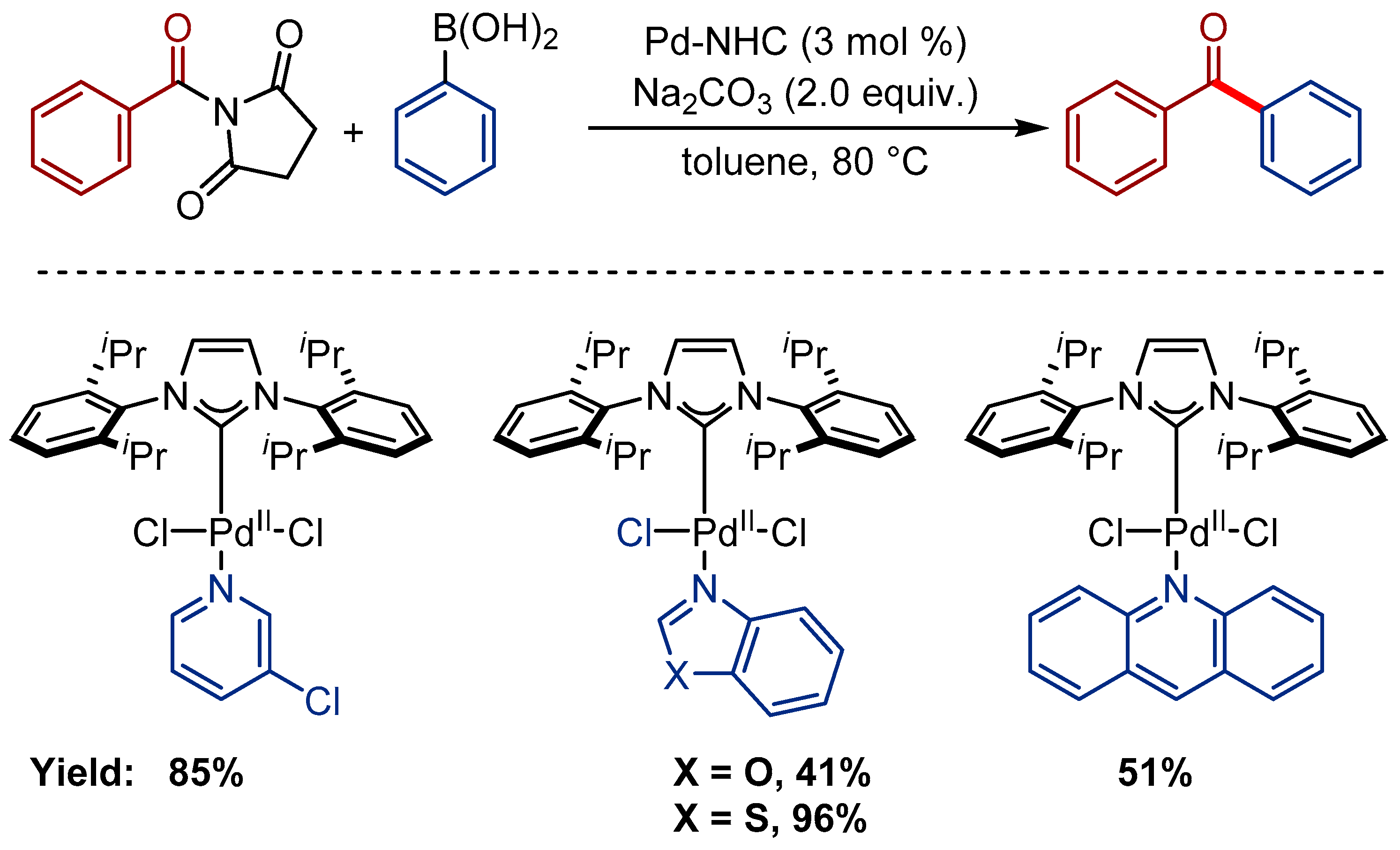

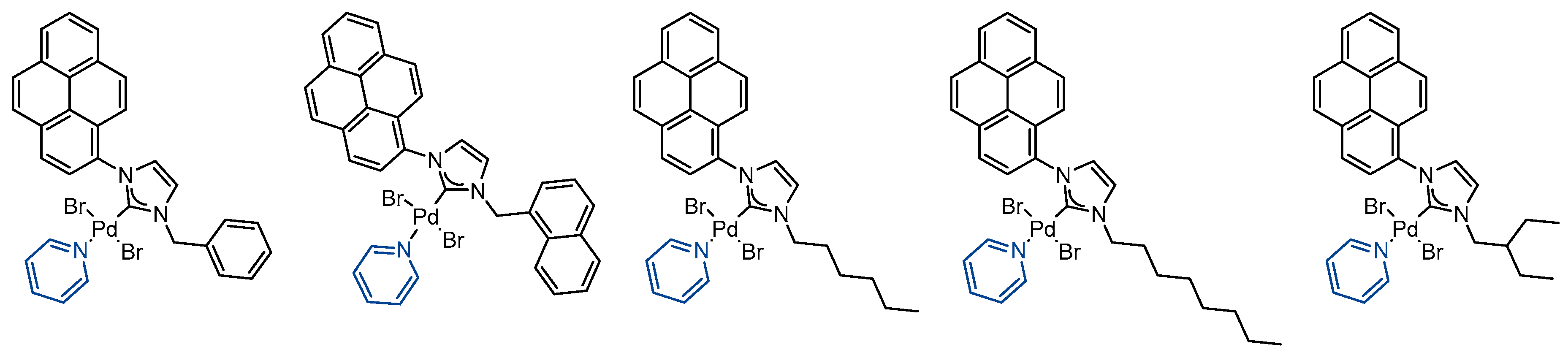

Wang, Liu, and coworkers recently reported a new series of Pd-NHC pre-catalysts using various N-heterocycles [55] as “throwaway ligands” with benzothiazole being the most effective for the Suzuki-Miyaura cross coupling of N-succinimide amides (Scheme 23) [56]. Change in the “throw-away ligand” was found to have a profound effect on the overall yield of the reaction, with benzothiazole ligand outperforming traditional 3-chloro pyridine ligand.

4.2. Pd-PEPPSI Pre-Catalysts in the Suzuki-Miyaura Cross-Coupling of Esters

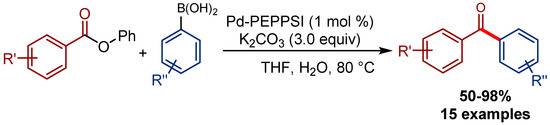

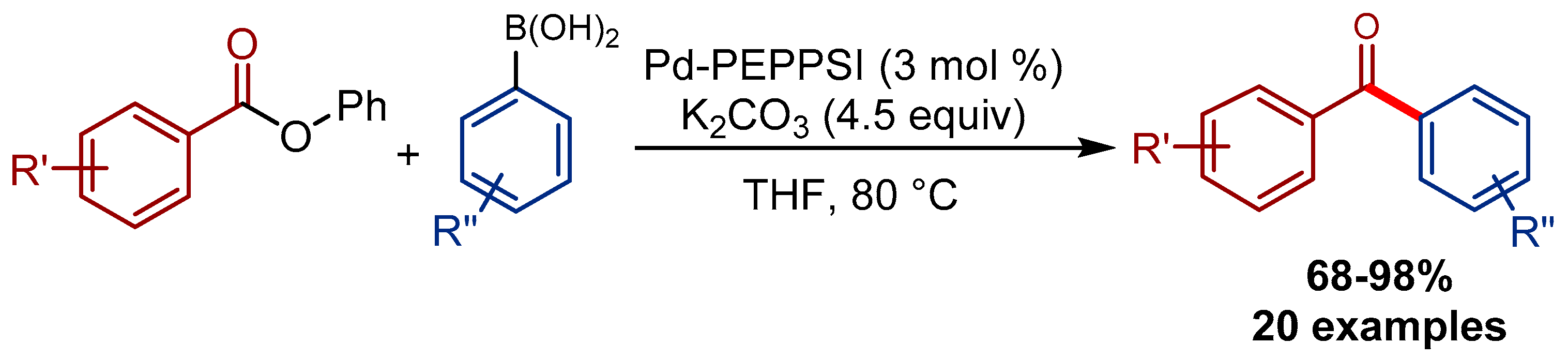

Pd-PEPPSI pre-catalysts were also found to be effective in catalyzing the cross-coupling of esters. In most cases, the reactivity was comparable to that of [Pd(IPr)(cinnamyl)Cl]. Szostak and coworkers reported a direct Suzuki-Miyaura cross-coupling of aryl esters under Pd-PEPPSI catalysis and found that the rates were similar to those reported for the cross-coupling of N-Ph/Boc, and N-Ph/Ts amides under identical reaction conditions (Scheme 24) [57].
To further advance cross-coupling of esters, and to find a more general method, Szostak and coworkers reported a water assisted Suzuki-Miyaura cross-coupling of aryl esters at room temperature (Scheme 25) [58]. They demonstrated that the addition of water (5.0 equiv) was able to facilitate the reaction under very mild reaction conditions with only 1 mol % catalyst loading and at room temperature.

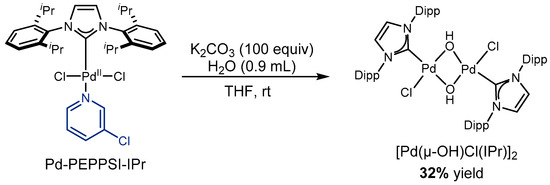

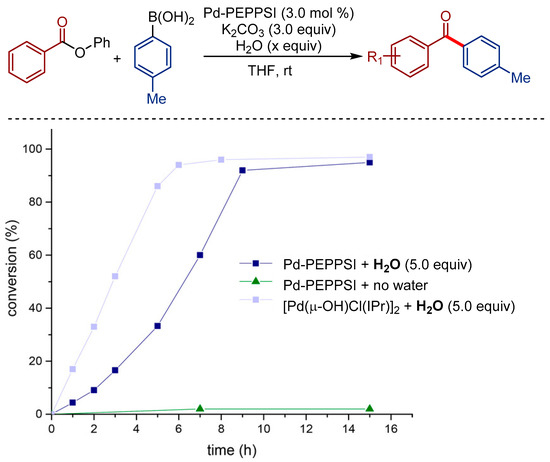

To elucidate the role of water additive, they subjected the Pd-PEPPSI pre-catalyst under optimized reaction conditions without the coupling partners to observe the formation of hydroxide dimer, [Pd(μ-OH)Cl(IPr)]2 in appreciable 32% yield (Scheme 26).
They also performed kinetic studies to probe the catalytic activity of preformed dimer and observed faster reaction rates compared to the Pd-PEPPSI conditions. Notably, negligible product formation in the absence of water additive indicated the importance of Pd-hydroxide dimer formation prior to the reduction of Pd(II) to active Pd(0) species (Figure 5). This protocol has also allowed the first achievement of a TON > 1000 in the Suzuki-Miyaura cross-coupling of aryl esters.
Very recently, while preparing this manuscript, Szostak and coworkers reported Suzuki-Miyaura cross-coupling of esters using pentafluorophenyl substituents. Although the reported method was primarily focused on the utilization of traditional Pd-ancillary phosphine catalysis, the high catalytic activity of Pd-PEPPSI catalysts allowed them to use even milder conditions with better yields [59].

5. Pd−PEPPSI Pre-Catalysts in Buchwald–Hartwig Amidation of Esters and Amides

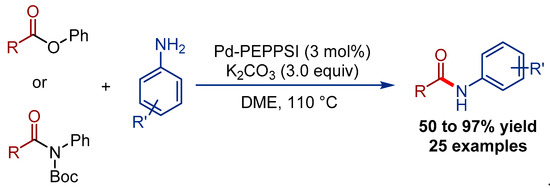

Szostak and Shi also reported the first Pd-PEPPSI catalyzed Buchwald-Hartwig amination of phenyl esters and activated amides. In their work, they reported the chemo-selective acyl C–O/C–N amination with anilines using the Pd-PEPPSI pre-catalyst [60]. Phenyl esters, N-Ph-N-Boc, and N-Ph-N-Ts amides were successfully converted to amides with excellent yield. However, conditions reported were harsher than conditions reported for ketone synthesis (Scheme 27).

6. Palladium(II)/N-Heterocyclic Carbene-Catalyzed Direct C–H Acylation of Heteroarenes with N-Acylsaccharins

Following up on the work from the Szostak group, Gandhi and coworkers reported the use of pyrene based Pd-PEPPSI catalysts (Figure 6) with wingtip substituents, such as Ar/alkyl and alkyl groups for the cross-coupling of N-acylsaccharin amides with azoles and azole derivatives [61].

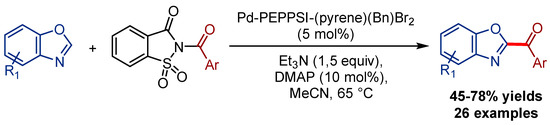

N-acyl saccharin, a commonly used twisted amide, was used to accomplish the difficult cross coupling reactions incorporating amide bond cleavage and C-H activation reactions. The work focused on the cross-coupling of N-functionalized saccharins with benzoxazole and its derivatives through a C-H activation process (Scheme 28). Not surprisingly, other activated amides such as N-aryl-N-Ts were found ineffective, resulting in no product.

7. Conclusions

In summary, the use of well-defined Pd(II)-NHC pre-catalysts offers significant advantages over the traditional approach of adding extra ligand to standard Pd catalysts. In the past few years, these catalysts were found to be exceptional in enabling the cross-coupling reactions of amides and esters via C–N(O) bond activation to form ketones and amides. The easy preparation, commercial availability, and stability toward air and moisture of the pre-catalysts facilitate the development of operationally simple and practical cross-coupling methods. The strong σ-bond donating nature of NHC ligands increases the reactivity of Pd center toward oxidative addition of difficult electrophiles, such as amides and esters, increasing the scope and generality of the cross-coupling reactions. Further exciting developments are expected in this relatively new area of employing amides and esters as acyl electrophiles, with recent breakthroughs enabled by Pd(II)-NHC catalysis.

Author Contributions

S.R.V., M.R.C. collected the literature references. S.R.V., M.R.C., and G.R.C. contributed to the manuscript writing.

Funding

This research was funded by the generous financial support from North Dakota State University and a pilot project grant from NIH NIGMS P30 GM103332, NSF-ND-EPSCoR Track 1 Grant Award IIA-1355466.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alberico, D.; Scott, M.E.; Lautens, M. Aryl−Aryl Bond Formation by Transition-Metal-Catalyzed Direct Arylation. Chem. Rev. 2007, 107, 174–238. [Google Scholar] [CrossRef] [PubMed]
  2. Stuart, D.R.; Fagnou, K. The Catalytic Cross-Coupling of Unactivated Arenes. Science 2007, 316, 1172–1175. [Google Scholar] [CrossRef]
  3. Kumar, D.; Vemula, S.R.; Cook, G.R. Merging C–H Bond Functionalization with Amide Alcoholysis: En Route to 2-Aminopyridines. ACS Catal. 2016, 6, 3531–3536. [Google Scholar] [CrossRef]
  4. Park, Y.; Kim, Y.; Chang, S. Transition Metal-Catalyzed C–H Amination: Scope, Mechanism, and Applications. Chem. Rev. 2017, 117, 9247–9301. [Google Scholar] [CrossRef] [PubMed]
  5. Kumar, D.; Vemula, S.R.; Balasubramanian, N.; Cook, G.R. Indium-Mediated Stereoselective Allylation. Acc. Chem. Res. 2016, 49, 2169–2178. [Google Scholar] [CrossRef] [PubMed]
  6. Kumar, D.; Vemula, S.R.; Cook, G.R. Recent Advances in the Catalytic Synthesis of α-Ketoamides. ACS Catal. 2016, 6, 4920–4945. [Google Scholar] [CrossRef]
  7. Kumar, D.; Vemula, S.R.; Cook, G.R. Highly Chemo- and Regioselective Allylic Substitution with Tautomerizable Heteroarenes. Green Chem. 2015, 17, 4300–4306. [Google Scholar] [CrossRef]
  8. Vemula, S.R.; Kumar, D.; Cook, G.R. Palladium-Catalyzed Allylic Amidation with N-Heterocycles via Sp 3 C–H Oxidation. ACS Catal. 2016, 6, 5295–5301. [Google Scholar] [CrossRef]
  9. Satoh, T.; Miura, M. Catalytic Direct Arylation of Heteroaromatic Compounds. Chem. Lett. 2007, 36, 200–205. [Google Scholar] [CrossRef] [Green Version]
  10. Tamao, K.; Sumitani, K.; Kumada, M. Selective Carbon-Carbon Bond Formation by Cross-Coupling of Grignard Reagents with Organic Halides. Catalysis by Nickel-Phosphine Complexes. J. Am. Chem. Soc. 1972, 94, 4374–4376. [Google Scholar] [CrossRef]
  11. Corriu, R.J.P.; Masse, J.P. Activation of Grignard Reagents by Transition-Metal Complexes. A New and Simple Synthesis of Trans-Stilbenes and Polyphenyls. J. Chem. Soc. Chem. Commun. 1972, 144a. [Google Scholar] [CrossRef]
  12. Milstein, D.; Stille, J.K. A General, Selective, and Facile Method for Ketone Synthesis from Acid Chlorides and Organotin Compounds Catalyzed by Palladium. J. Am. Chem. Soc. 1978, 100, 3636–3638. [Google Scholar] [CrossRef]
  13. Miyaura, N.; Yamada, K.; Suzuki, A. A New Stereospecific Cross-Coupling by the Palladium-Catalyzed Reaction of 1-Alkenylboranes with 1-Alkenyl or 1-Alkynyl Halides. Tetrahedron Lett. 1979, 20, 3437–3440. [Google Scholar] [CrossRef]
  14. Trost, B.M.; Fullerton, T.J. New Synthetic Reactions. Allylic Alkylation. J. Am. Chem. Soc. 1973, 95, 292–294. [Google Scholar] [CrossRef]
  15. Marion, N.; Nolan, S.P. Well-Defined N-Heterocyclic Carbenes−Palladium(II) Precatalysts for Cross-Coupling Reactions. Acc. Chem. Res. 2008, 41, 1440–1449. [Google Scholar] [CrossRef] [PubMed]
  16. Valdés, H.; Canseco-González, D.; Germán-Acacio, J.M.; Morales-Morales, D. Xanthine Based N-Heterocyclic Carbene (NHC) Complexes. J. Organomet. Chem. 2018, 867, 51–54. [Google Scholar] [CrossRef]
  17. Hazari, N.; Melvin, P.R.; Beromi, M.M. Well-Defined Nickel and Palladium Precatalysts for Cross-Coupling. Nat. Rev. Chem. 2017, 1, 0025. [Google Scholar] [CrossRef]
  18. Herrmann, W.A.; Elison, M.; Fischer, J.; Köcher, C.; Artus, G.R.J. Metal Complexes of N-Heterocyclic Carbenes—A New Structural Principle for Catalysts in Homogeneous Catalysis. Angew. Chem. Int. Ed. English 1995, 34, 2371–2374. [Google Scholar] [CrossRef]
  19. Shi, S.; Nolan, S.P.; Szostak, M. Well-Defined Palladium(II)–NHC Precatalysts for Cross-Coupling Reactions of Amides and Esters by Selective N–C/O–C Cleavage. Acc. Chem. Res. 2018, 51, 2589–2599. [Google Scholar] [CrossRef]
  20. Takise, R.; Muto, K.; Yamaguchi, J. Cross-Coupling of Aromatic Esters and Amides. Chem. Soc. Rev. 2017, 46, 5864–5888. [Google Scholar] [CrossRef]
  21. Vemula, S.R.; Kumar, D.; Cook, G.R. N-Boc-Glycine-Assisted Indium-Mediated Allylation Reaction: A Sustainable Approach. Tetrahedron Lett. 2015, 56, 3322–3325. [Google Scholar] [CrossRef]
  22. Hie, L.; Fine Nathel, N.F.; Shah, T.K.; Baker, E.L.; Hong, X.; Yang, Y.-F.; Liu, P.; Houk, K.N.; Garg, N.K. Conversion of Amides to Esters by the Nickel-Catalysed Activation of Amide C–N Bonds. Nature 2015, 524, 79–83. [Google Scholar] [CrossRef] [PubMed]
  23. Meng, G.; Szostak, M. Sterically Controlled Pd-Catalyzed Chemoselective Ketone Synthesis via N–C Cleavage in Twisted Amides. Org. Lett. 2015, 17, 4364–4367. [Google Scholar] [CrossRef] [PubMed]
  24. Li, X.; Zou, G. Acylative Suzuki Coupling of Amides: Acyl-Nitrogen Activation via Synergy of Independently Modifiable Activating Groups. Chem. Commun. 2015, 51, 5089–5092. [Google Scholar] [CrossRef] [PubMed]
  25. Marion, N.; Navarro, O.; Mei, J.; Stevens, E.D.; Scott, N.M.; Nolan, S.P. Modified (NHC)Pd(Allyl)Cl (NHC = N -Heterocyclic Carbene) Complexes for Room-Temperature Suzuki−Miyaura and Buchwald−Hartwig Reactions. J. Am. Chem. Soc. 2006, 128, 4101–4111. [Google Scholar] [CrossRef] [PubMed]
  26. Navarro, O.; Marion, N.; Mei, J.; Nolan, S.P. Rapid Room Temperature Buchwald–Hartwig and Suzuki–Miyaura Couplings of Heteroaromatic Compounds Employing Low Catalyst Loadings. Chem. A Eur. J. 2006, 12, 5142–5148. [Google Scholar] [CrossRef]
  27. Chartoire, A.; Lesieur, M.; Falivene, L.; Slawin, A.M.Z.; Cavallo, L.; Cazin, C.S.J.; Nolan, S.P. [Pd(IPr*)(Cinnamyl)Cl]: An Efficient Pre-Catalyst for the Preparation of Tetra-Ortho-Substituted Biaryls by Suzuki-Miyaura Cross-Coupling. Chem. A Eur. J. 2012, 18, 4517–4521. [Google Scholar] [CrossRef]
  28. Chartoire, A.; Frogneux, X.; Nolan, S.P. An Efficient Palladium-NHC (NHC=N-Heterocyclic Carbene) and Aryl Amination Pre-Catalyst: [Pd(IPr*)(Cinnamyl)Cl]. Adv. Synth. Catal. 2012, 354, 1897–1901. [Google Scholar] [CrossRef]
  29. Szostak, M.; Aubé, J. Chemistry of Bridged Lactams and Related Heterocycles. Chem. Rev. 2013, 113, 5701–5765. [Google Scholar] [CrossRef] [Green Version]
  30. Liu, C.; Szostak, M. Twisted Amides: From Obscurity to Broadly Useful Transition-Metal-Catalyzed Reactions by N−C Amide Bond Activation. Chem. A Eur. J. 2017, 23, 7157–7173. [Google Scholar] [CrossRef]
  31. Meng, G.; Shi, S.; Lalancette, R.; Szostak, R.; Szostak, M. Reversible Twisting of Primary Amides via Ground State N–C(O) Destabilization: Highly Twisted Rotationally Inverted Acyclic Amides. J. Am. Chem. Soc. 2018, 140, 727–734. [Google Scholar] [CrossRef] [PubMed]
  32. Meng, G.; Szostak, R.; Szostak, M. Suzuki-Miyaura Cross-Coupling of N-Acylpyrroles and Pyrazoles: Planar, Electronically Activated Amides in Catalytic N-C Cleavage. Org. Lett. 2017, 19, 3596–3599. [Google Scholar] [CrossRef] [PubMed]
  33. Meng, G.; Lalancette, R.; Szostak, R.; Szostak, M. N-Methylamino Pyrimidyl Amides (MAPA): Highly Reactive, Electronically-Activated Amides in Catalytic N-C(O) Cleavage. Org. Lett. 2017, 19, 4656–4659. [Google Scholar] [CrossRef] [PubMed]
  34. Li, G.; Lei, P.; Szostak, M.; Casals-Cruañas, E.; Poater, A.; Cavallo, L.; Nolan, S.P. Mechanistic Study of Suzuki–Miyaura Cross-Coupling Reactions of Amides Mediated by [Pd(NHC)(Allyl)Cl] Precatalysts. ChemCatChem 2018, 10, 3096–3106. [Google Scholar] [CrossRef]
  35. Luo, Z.; Liu, T.; Guo, W.; Wang, Z.; Huang, J.; Zhu, Y.; Zeng, Z. N -Acyl-5,5-Dimethylhydantoin, a New Mild Acyl-Transfer Reagent in Pd Catalysis: Highly Efficient Synthesis of Functionalized Ketones. Org. Proc. Res. Dev. 2018, 22, 1188–1199. [Google Scholar] [CrossRef]
  36. Lei, P.; Meng, G.; Ling, Y.; An, J.; Nolan, S.P.; Szostak, M. General Method for the Suzuki-Miyaura Cross-Coupling of Primary Amide-Derived Electrophiles Enabled by [Pd(NHC)(Cin)Cl] at Room Temperature. Org. Lett. 2017, 19, 6510–6513. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, C.; Li, G.; Shi, S.; Meng, G.; Lalancette, R.; Szostak, R.; Szostak, M. Acyl and Decarbonylative Suzuki Coupling of N -Acetyl Amides: Electronic Tuning of Twisted, Acyclic Amides in Catalytic Carbon–Nitrogen Bond Cleavage. ACS Catal. 2018, 8, 9131–9139. [Google Scholar] [CrossRef]
  38. Meng, G.; Szostak, M. Palladium/NHC (NHC = N -Heterocyclic Carbene)-Catalyzed B-Alkyl Suzuki Cross-Coupling of Amides by Selective N–C Bond Cleavage. Org. Lett. 2018, 20, 6789–6793. [Google Scholar] [CrossRef]
  39. Hruszkewycz, D.P.; Balcells, D.; Guard, L.M.; Hazari, N.; Tilset, M. Insight into the Efficiency of Cinnamyl-Supported Precatalysts for the Suzuki–Miyaura Reaction: Observation of Pd(I) Dimers with Bridging Allyl Ligands During Catalysis. J. Am. Chem. Soc. 2014, 136, 7300–7316. [Google Scholar] [CrossRef]
  40. Hruszkewycz, D.P.; Guard, L.M.; Balcells, D.; Feldman, N.; Hazari, N.; Tilset, M. Effect of 2-Substituents on Allyl-Supported Precatalysts for the Suzuki–Miyaura Reaction: Relating Catalytic Efficiency to the Stability of Palladium(I) Bridging Allyl Dimers. Organometallics 2015, 34, 381–394. [Google Scholar] [CrossRef]
  41. Melvin, P.R.; Nova, A.; Balcells, D.; Dai, W.; Hazari, N.; Hruszkewycz, D.P.; Shah, H.P.; Tudge, M.T. Design of a Versatile and Improved Precatalyst Scaffold for Palladium-Catalyzed Cross-Coupling: (η 3 -1- t Bu-Indenyl) 2 (μ-Cl) 2 Pd 2. ACS Catal. 2015, 5, 3680–3688. [Google Scholar] [CrossRef]
  42. Lei, P.; Meng, G.; Shi, S.; Ling, Y.; An, J.; Szostak, R.; Szostak, M. Suzuki–Miyaura Cross-Coupling of Amides and Esters at Room Temperature: Correlation with Barriers to Rotation around C–N and C–O Bonds. Chem. Sci. 2017, 8, 6525–6530. [Google Scholar] [CrossRef] [PubMed]
  43. Ishizu, J.; Yamamoto, T.; Yamamoto, A. Selective Cleavage of C–O Bonds In Esters Through Oxidative Addition To Nickel(0) Complexes. Chem. Lett. 1976, 5, 1091–1094. [Google Scholar] [CrossRef]
  44. Yamaguchi, J.; Muto, K.; Itami, K. Recent Progress in Nickel-Catalyzed Biaryl Coupling. Eur. J. Org. Chem. 2013, 2013, 19–30. [Google Scholar] [CrossRef]
  45. Ben Halima, T.; Vandavasi, J.K.; Shkoor, M.; Newman, S.G. A Cross-Coupling Approach to Amide Bond Formation from Esters. ACS Catal. 2017, 7, 2176–2180. [Google Scholar] [CrossRef]
  46. Masson-Makdissi, J.; Vandavasi, J.K.; Newman, S.G. Switchable Selectivity in the Pd-Catalyzed Alkylative Cross-Coupling of Esters. Org. Lett. 2018, 20, 4094–4098. [Google Scholar] [CrossRef]
  47. Dardir, A.H.; Melvin, P.R.; Davis, R.M.; Hazari, N.; Mohadjer Beromi, M. Rapidly Activating Pd-Precatalyst for Suzuki-Miyaura and Buchwald-Hartwig Couplings of Aryl Esters. J. Org. Chem. 2018, 83, 469–477. [Google Scholar] [CrossRef]
  48. Meng, G.; Lei, P.; Szostak, M. A General Method for Two-Step Transamidation of Secondary Amides Using Commercially Available, Air- and Moisture-Stable Palladium/NHC (N-Heterocyclic Carbene) Complexes. Org. Lett. 2017, 19, 2158–2161. [Google Scholar] [CrossRef]
  49. Valente, C.; Çalimsiz, S.; Hoi, K.H.; Mallik, D.; Sayah, M.; Organ, M.G. The Development of Bulky Palladium NHC Complexes for the Most-Challenging Cross-Coupling Reactions. Angew. Chem. Int. Ed. 2012, 51, 3314–3332. [Google Scholar] [CrossRef]
  50. Froese, R.D.J.; Lombardi, C.; Pompeo, M.; Rucker, R.P.; Organ, M.G. Designing Pd–N-Heterocyclic Carbene Complexes for High Reactivity and Selectivity for Cross-Coupling Applications. Acc. Chem. Res. 2017, 50, 2244–2253. [Google Scholar] [CrossRef]
  51. Lei, P.; Meng, G.; Ling, Y.; An, J.; Szostak, M. Pd-PEPPSI: Pd-NHC Precatalyst for Suzuki–Miyaura Cross-Coupling Reactions of Amides. J. Org. Chem. 2017, 82, 6638–6646. [Google Scholar] [CrossRef] [PubMed]
  52. Pace, V.; Holzer, W.; Meng, G.; Shi, S.; Lalancette, R.; Szostak, R.; Szostak, M. Corrigendum to: Structures of Highly Twisted Amides Relevant to Amide N−C Cross-Coupling: Evidence for Ground-State Amide Destabilization. Chem. A Eur. J. 2017, 23, 3496. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, C.; Huang, L.; Wang, F.; Zou, G. Highly Efficient Synthesis of Aryl Ketones by PEPPSI-Palladium Catalyzed Acylative Suzuki Coupling of Amides with Diarylborinic Acids. Tetrahedron Lett. 2018, 59, 2299–2301. [Google Scholar] [CrossRef]
  54. Shi, W.; Zou, G. Palladium-Catalyzed Room Temperature Acylative Cross-Coupling of Activated Amides with Trialkylboranes. Molecules 2018, 23, 2412. [Google Scholar] [CrossRef] [PubMed]
  55. Vemula, S.R.; Kumar, D.; Cook, G.R. Bismuth-Catalyzed Synthesis of 2-Substituted Quinazolinones. Tetrahedron Lett. 2018, 59, 3801–3805. [Google Scholar] [CrossRef]
  56. Wang, T.; Guo, J.; Wang, H.; Guo, H.; Jia, D.; Zhang, W.; Liu, L. N-Heterocyclic Carbene Palladium(II)-Catalyzed Suzuki-Miyaura Cross Coupling of N-Acylsuccinimides by C–N Cleavage. J. Organomet. Chem. 2018, 877, 80–84. [Google Scholar] [CrossRef]
  57. Shi, S.; Lei, P.; Szostak, M. Pd-PEPPSI: A General Pd-NHC Precatalyst for Suzuki–Miyaura Cross-Coupling of Esters by C–O Cleavage. Organometallics 2017, 36, 3784–3789. [Google Scholar] [CrossRef]
  58. Li, G.; Shi, S.; Lei, P.; Szostak, M. Pd-PEPPSI: Water-Assisted Suzuki−Miyaura Cross-Coupling of Aryl Esters at Room Temperature Using a Practical Palladium-NHC (NHC=N-Heterocyclic Carbene) Precatalyst. Adv. Synth. Catal. 2018, 360, 1538–1543. [Google Scholar] [CrossRef]
  59. Buchspies, J.; Pyle, D.J.; He, H.; Szostak, M. Pd-Catalyzed Suzuki-Miyaura Cross-Coupling of Pentafluorophenyl Esters. Molecules 2018, 23, 3134. [Google Scholar] [CrossRef]
  60. Shi, S.; Szostak, M. Pd–PEPPSI: A General Pd–NHC Precatalyst for Buchwald–Hartwig Cross-Coupling of Esters and Amides (Transamidation) under the Same Reaction Conditions. Chem. Commun. 2017, 53, 10584–10587. [Google Scholar] [CrossRef]
  61. Karthik, S.; Gandhi, T. Palladium(II)/ N-Heterocyclic Carbene-Catalyzed Direct C–H Acylation of Heteroarenes with N -Acylsaccharins. Org. Lett. 2017, 19, 5486–5489. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 24 00215 g001 550

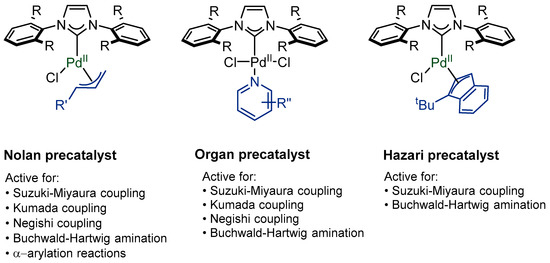

Figure 1. Overview of cross-coupling reactions catalyzed by Pd(II)-NHC pre-catalysts.
Figure 1. Overview of cross-coupling reactions catalyzed by Pd(II)-NHC pre-catalysts.
Molecules 24 00215 g001
Molecules 24 00215 g002 550

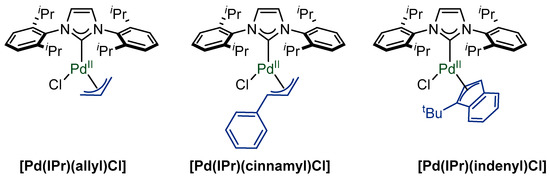

Figure 2. Pd(allyl)NHC pre-catalysts employed in the cross-coupling of amides.
Figure 2. Pd(allyl)NHC pre-catalysts employed in the cross-coupling of amides.
Molecules 24 00215 g002
Molecules 24 00215 sch001 550

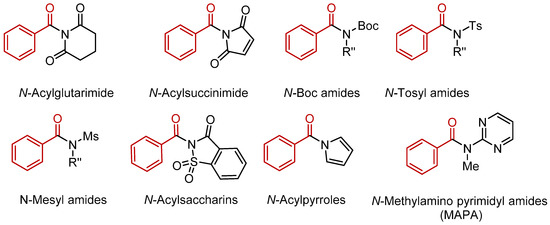

Scheme 1. Selected N-substituents employed for amide C–N bond destabilization.
Scheme 1. Selected N-substituents employed for amide C–N bond destabilization.
Molecules 24 00215 sch001
Molecules 24 00215 sch002 550

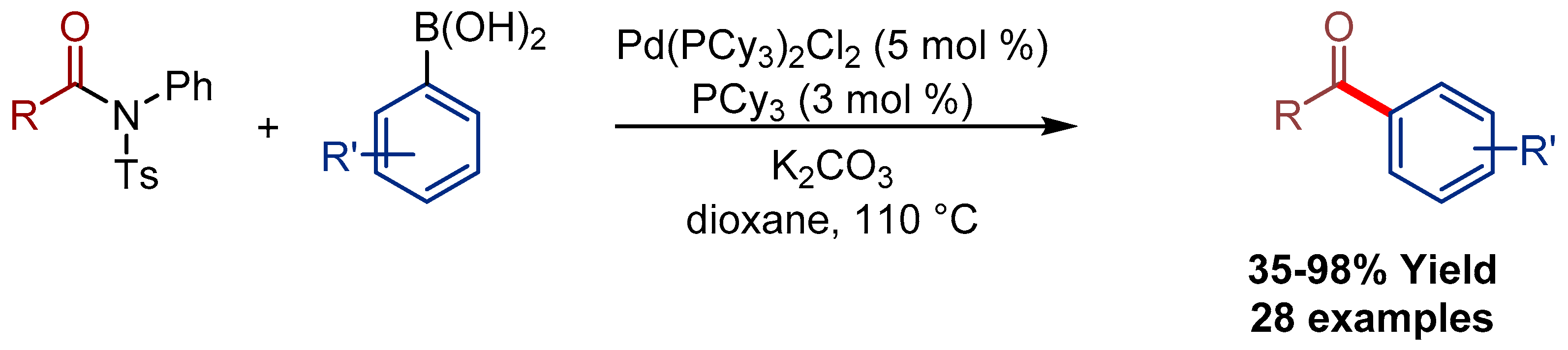

Scheme 2. Suzuki-Miyaura cross-coupling of N-phenyl-N-tosyl substituted amides.
Scheme 2. Suzuki-Miyaura cross-coupling of N-phenyl-N-tosyl substituted amides.
Molecules 24 00215 sch002
Molecules 24 00215 sch003 550

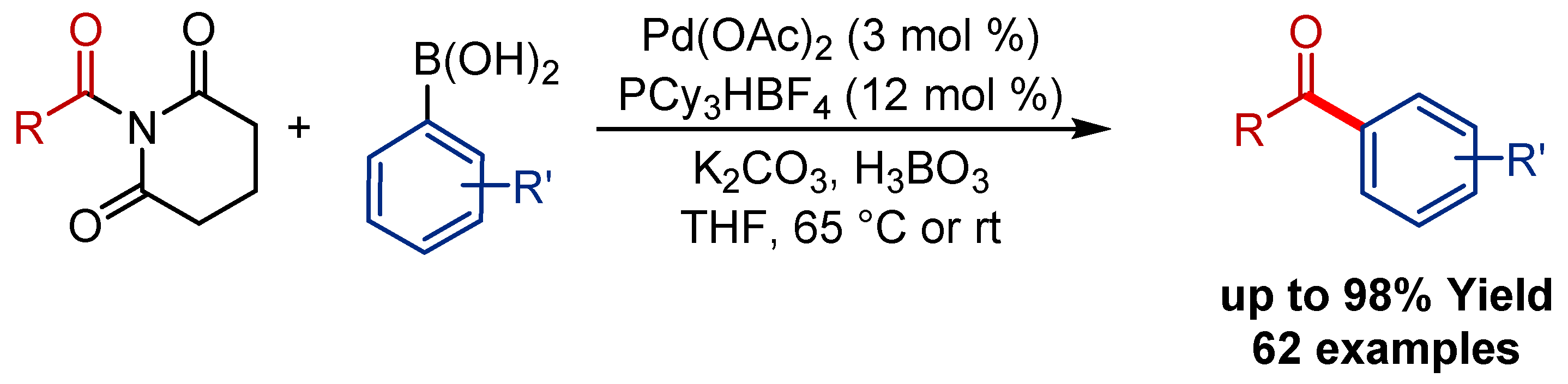

Scheme 3. Suzuki-Miyaura cross-coupling of sterically substituted twisted amides.
Scheme 3. Suzuki-Miyaura cross-coupling of sterically substituted twisted amides.
Molecules 24 00215 sch003
Molecules 24 00215 sch004 550

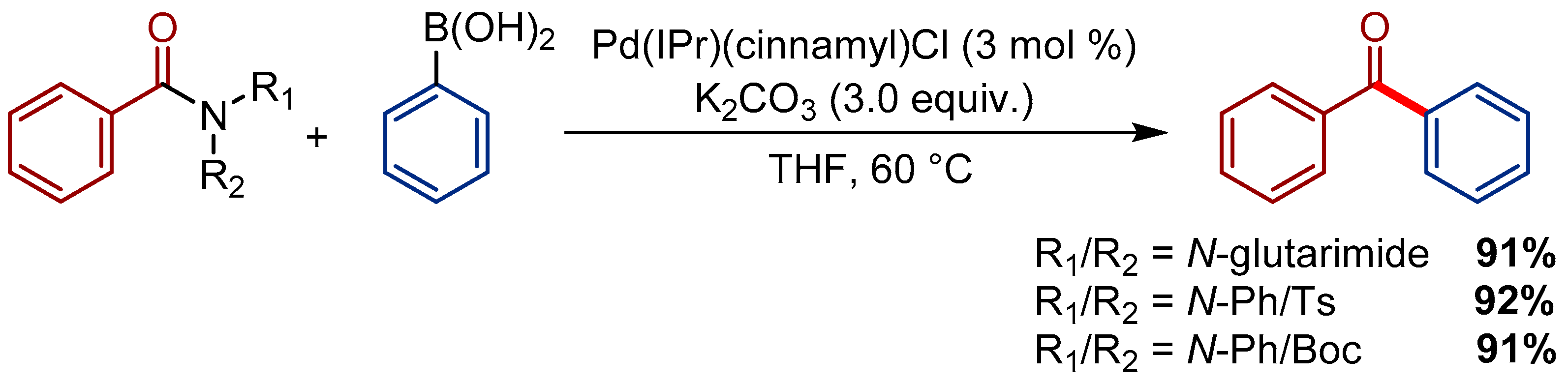

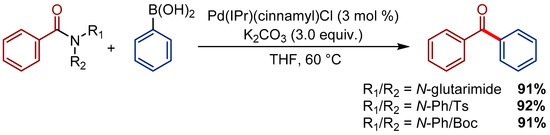

Scheme 4. Application of Pd(cinnamyl)(IPr)Cl in amide bond cross-coupling.
Scheme 4. Application of Pd(cinnamyl)(IPr)Cl in amide bond cross-coupling.
Molecules 24 00215 sch004
Molecules 24 00215 sch005 550

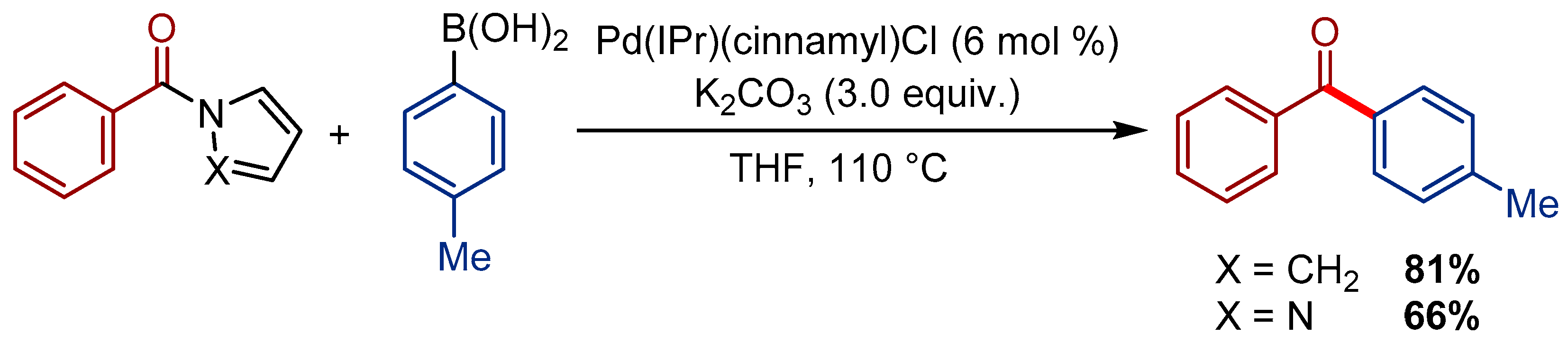

Scheme 5. Cross-coupling of planar amides catalyzed by well-defined Pd(cinnamyl)(IPr)Cl.
Scheme 5. Cross-coupling of planar amides catalyzed by well-defined Pd(cinnamyl)(IPr)Cl.
Molecules 24 00215 sch005
Molecules 24 00215 sch006 550

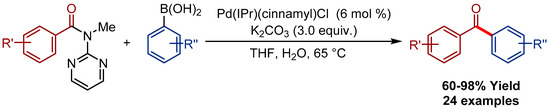

Scheme 6. Pd(cinnamyl)(IPr)Cl catalyzed Suzuki-Miyaura cross-coupling of N-alkyl-N-aryl amides.
Scheme 6. Pd(cinnamyl)(IPr)Cl catalyzed Suzuki-Miyaura cross-coupling of N-alkyl-N-aryl amides.
Molecules 24 00215 sch006
Molecules 24 00215 sch007 550

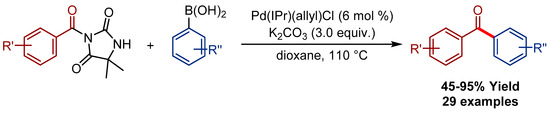

Scheme 7. Pd(allyl)(IPr)Cl catalyzed Suzuki-Miyaura cross-coupling of N-acylhydantoins.
Scheme 7. Pd(allyl)(IPr)Cl catalyzed Suzuki-Miyaura cross-coupling of N-acylhydantoins.
Molecules 24 00215 sch007
Molecules 24 00215 sch008 550
Scheme 8. Direct cross-coupling of N,N-di-Boc-amides under Pd(IPr)(cinnamyl)Cl catalysis.
Scheme 8. Direct cross-coupling of N,N-di-Boc-amides under Pd(IPr)(cinnamyl)Cl catalysis.
Molecules 24 00215 sch008
Molecules 24 00215 sch009 550
Scheme 9. Scale-up study in direct cross-coupling of N,N-di-Boc-amides under Pd(IPr)(cinnamyl)Cl catalysis.
Scheme 9. Scale-up study in direct cross-coupling of N,N-di-Boc-amides under Pd(IPr)(cinnamyl)Cl catalysis.
Molecules 24 00215 sch009
Molecules 24 00215 sch010 550

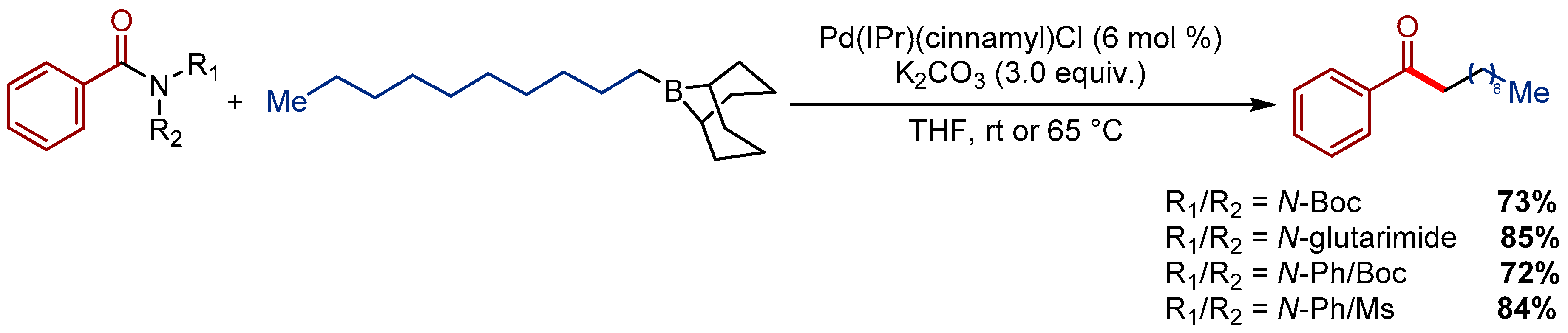

Scheme 10. Pd(IPr)(cinnamyl)Cl catalyzed alkylation of amides by C–N bond cleavage.
Scheme 10. Pd(IPr)(cinnamyl)Cl catalyzed alkylation of amides by C–N bond cleavage.
Molecules 24 00215 sch010
Molecules 24 00215 sch011 550
Scheme 11. Activation/deactivation pathway during Pd(allyl)(NHC)Cl pre-catalyst activation.
Scheme 11. Activation/deactivation pathway during Pd(allyl)(NHC)Cl pre-catalyst activation.
Molecules 24 00215 sch011
Molecules 24 00215 sch012 550
Scheme 12. Pd(IPr)(indenyl)Cl catalyzed Suzuki-Miyaura coupling of amides at room temperature.
Scheme 12. Pd(IPr)(indenyl)Cl catalyzed Suzuki-Miyaura coupling of amides at room temperature.
Molecules 24 00215 sch012
Molecules 24 00215 sch013 550
Scheme 13. Pd(IPr)(cinnamyl)Cl catalyzed Suzuki-Miyaura cross-coupling of aryl esters.
Scheme 13. Pd(IPr)(cinnamyl)Cl catalyzed Suzuki-Miyaura cross-coupling of aryl esters.
Molecules 24 00215 sch013
Molecules 24 00215 sch014 550

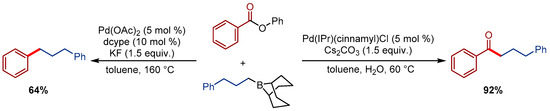

Scheme 14. Suzuki-Miyaura coupling of aryl esters with alkyl-BBN.
Scheme 14. Suzuki-Miyaura coupling of aryl esters with alkyl-BBN.
Molecules 24 00215 sch014
Molecules 24 00215 sch015 550
Scheme 15. Suzuki-Miyaura cross-coupling of aryl esters catalyzed by Pd(indenyl)(IPr)Cl.
Scheme 15. Suzuki-Miyaura cross-coupling of aryl esters catalyzed by Pd(indenyl)(IPr)Cl.
Molecules 24 00215 sch015
Molecules 24 00215 sch016 550
Scheme 16. Hazari protocol for the Suzuki-Miyaura cross-coupling of aryl esters catalyzed by Pd(indenyl)(IPr)Cl using hydroxide bases.
Scheme 16. Hazari protocol for the Suzuki-Miyaura cross-coupling of aryl esters catalyzed by Pd(indenyl)(IPr)Cl using hydroxide bases.
Molecules 24 00215 sch016
Molecules 24 00215 sch017 550
Scheme 17. Pd(IPr)(cinnamyl)Cl catalyzed transamidation of amides.
Scheme 17. Pd(IPr)(cinnamyl)Cl catalyzed transamidation of amides.
Molecules 24 00215 sch017
Molecules 24 00215 sch018 550
Scheme 18. Pd(allyl)(IPr)Cl catalyzed amidation of proline esters.
Scheme 18. Pd(allyl)(IPr)Cl catalyzed amidation of proline esters.
Molecules 24 00215 sch018
Molecules 24 00215 sch019 550
Scheme 19. Pd(indenyl)(SIPr)Cl pre-catalyst for the Buchwald-Hartwig amination of aryl esters.
Scheme 19. Pd(indenyl)(SIPr)Cl pre-catalyst for the Buchwald-Hartwig amination of aryl esters.
Molecules 24 00215 sch019
Molecules 24 00215 g003 550
Figure 3. Well-defined Pd-PEPPSI pre-catalysts employed in the cross-coupling reactions.
Figure 3. Well-defined Pd-PEPPSI pre-catalysts employed in the cross-coupling reactions.
Molecules 24 00215 g003
Molecules 24 00215 sch020 550
Scheme 20. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of amides.
Scheme 20. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of amides.
Molecules 24 00215 sch020
Molecules 24 00215 g004 550
Figure 4. Kinetic study displaying the conversion percentage over time of Pd-PEPPSI (left), and Pd(IPr)(Cinnamyl)Cl (right) pre-catalysts. Activated amides used were N-Glutarimide (1a), N-Ph-N-Ts (1b), and N-Ph-N-Boc (1c). Reprinted with permission from J. Org. Chem. 2017, 82, 6638−6646. Copyright 2017 American Chemical Society.
Figure 4. Kinetic study displaying the conversion percentage over time of Pd-PEPPSI (left), and Pd(IPr)(Cinnamyl)Cl (right) pre-catalysts. Activated amides used were N-Glutarimide (1a), N-Ph-N-Ts (1b), and N-Ph-N-Boc (1c). Reprinted with permission from J. Org. Chem. 2017, 82, 6638−6646. Copyright 2017 American Chemical Society.
Molecules 24 00215 g004
Molecules 24 00215 sch021 550
Scheme 21. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of amides with diarylborinic acids.
Scheme 21. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of amides with diarylborinic acids.
Molecules 24 00215 sch021
Molecules 24 00215 sch022 550

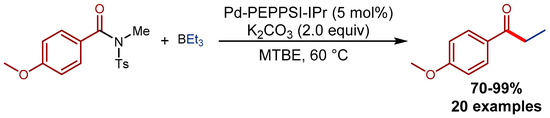

Scheme 22. Pd-PEPPSI catalyzed alkylation of N-Me-N-Ts amide.
Scheme 22. Pd-PEPPSI catalyzed alkylation of N-Me-N-Ts amide.
Molecules 24 00215 sch022
Molecules 24 00215 sch023 550
Scheme 23. NHC-Pd(II) catalyzed acylative Suzuki-Miyaura cross-coupling of amides.
Scheme 23. NHC-Pd(II) catalyzed acylative Suzuki-Miyaura cross-coupling of amides.
Molecules 24 00215 sch023
Molecules 24 00215 sch024 550
Scheme 24. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of aryl esters.
Scheme 24. Pd-PEPPSI catalyzed Suzuki-Miyaura cross-coupling of aryl esters.
Molecules 24 00215 sch024
Molecules 24 00215 sch025 550
Scheme 25. Water assisted, Pd-PEPPSI catalyzed Suzuki-Miyaura coupling of esters.
Scheme 25. Water assisted, Pd-PEPPSI catalyzed Suzuki-Miyaura coupling of esters.
Molecules 24 00215 sch025
Molecules 24 00215 sch026 550
Scheme 26. Synthesis of Pd(II) hydroxide dimer formation from Pd-PEPPSI.
Scheme 26. Synthesis of Pd(II) hydroxide dimer formation from Pd-PEPPSI.
Molecules 24 00215 sch026
Molecules 24 00215 g005 550
Figure 5. Kinetic profile of aryl ester cross-coupling under Pd-PEPPSI catalysis Reprinted with permission from Adv. Synth. Catal. 2018, 360, 1538–1543. Copyright © 2018 John Wiley and Sons.
Figure 5. Kinetic profile of aryl ester cross-coupling under Pd-PEPPSI catalysis Reprinted with permission from Adv. Synth. Catal. 2018, 360, 1538–1543. Copyright © 2018 John Wiley and Sons.
Molecules 24 00215 g005
Molecules 24 00215 sch027 550
Scheme 27. Pd-PEPPSI catalyzed Buchwald-Hartwig amination of amides and esters.
Scheme 27. Pd-PEPPSI catalyzed Buchwald-Hartwig amination of amides and esters.
Molecules 24 00215 sch027
Molecules 24 00215 g006 550
Figure 6. Pyrene based Pd-PEPPSI catalysts employed in the cross-coupling reactions.
Figure 6. Pyrene based Pd-PEPPSI catalysts employed in the cross-coupling reactions.
Molecules 24 00215 g006
Molecules 24 00215 sch028 550
Scheme 28. Pd-PEPPSI-pyrene pre-catalysts in the C-H acylation of benzoxazole.
Scheme 28. Pd-PEPPSI-pyrene pre-catalysts in the C-H acylation of benzoxazole.
Molecules 24 00215 sch028
Table

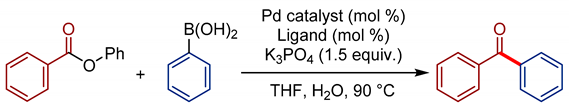

Table 1. Optimization study for the Suzuki-Miyaura cross-coupling of aryl esters.
Table 1. Optimization study for the Suzuki-Miyaura cross-coupling of aryl esters.
Molecules 24 00215 i001
EntryPd Source (mol %)Ligand (mol %)Yield (%)
1Pd(OAc)2 (5)IPr·HCl (10)11
2Pd(dba)3 (5)IPr·HCl (10)16
3[Pd(allyl)Cl]2 (5)IPr·HCl (10)19
4[Pd(cinnamyl)Cl]2 (5)IPr·HCl (10)21
5[Pd(cinnamyl)Cl]2 (5)IPr·HCl (5)59
6Pd(IPr)(cinnamyl)Cl (5)none95

Share and Cite

MDPI and ACS Style

Vemula, S.R.; Chhoun, M.R.; Cook, G.R. Well-Defined Pre-Catalysts in Amide and Ester Bond Activation. Molecules 2019, 24, 215. https://doi.org/10.3390/molecules24020215

AMA Style

Vemula SR, Chhoun MR, Cook GR. Well-Defined Pre-Catalysts in Amide and Ester Bond Activation. Molecules. 2019; 24(2):215. https://doi.org/10.3390/molecules24020215

Chicago/Turabian Style

Vemula, Sandeep R., Michael R. Chhoun, and Gregory R. Cook. 2019. "Well-Defined Pre-Catalysts in Amide and Ester Bond Activation" Molecules 24, no. 2: 215. https://doi.org/10.3390/molecules24020215

Article Metrics

Back to TopTop
