A Divergent Alkyne Diol Directs [2 + 2] Photoreactivity in the Solid State: Cocrystal, Supramolecular Catalysis, and Sublimation Effects

Abstract

2-butyne-1,4-diol (1,4-bd) is used as a divergent ditopic template that directs trans-1,2-bis (n-pyridyl) ethylene (n,n′-bpe, where n = n′ = 3 or 4) to undergo an intermolecular [2 + 2] photodimerization in the solid state. The components of cocrystals [(1,4-bd)·(4,4′-bpe)]_n and [(1,4-bd)·(3,3′-bpe)]_n form 1D hydrogen-bonded polymers with n,n′-bpe assembled as infinite parallel stacks. The alkenes undergo [2 + 2] photocycloadditions to form rctt-tetrakis (n-pyridyl) cyclobutane (where n = 3 or 4). We demonstrate that the reactive solid involving 4,4′-bpe exhibits supramolecular catalysis.

1. Introduction

We have recently demonstrated that intermolecular [2 + 2] photodimerizations can be directed using principles of supramolecular catalysis in the solvent-free environment of the solid state. The ditopic hydrogen-bond-donor 4,6-dichloro-resorcinol (4,6-diCl-res) was used in catalytic amounts as a template to achieve a [2 + 2] photodimerization of trans-1,2-bis (4-pyridyl) ethylene (4,4′-bpe) [1,2]. Supramolecular catalysis of the photodimerization involving 4,4′-bpe was also realized using ditopic organoboronic acids as templates [3]. The approach to supramolecular catalysis was performed mechanochemically via vortex grinding [2]. In both cases, the catalysts functioned as convergent ditopic receptors with reactivity occurring within zero-dimensional (0D), or discrete, hydrogen-bonded structures.

Seminal work of Toda has reported on the reactivity properties of host–guest complexes formed with the divergent ditopic host 1,1,6,6-tetraphenyl-hexa-2,4-diyne-1,6-diol (1,6-diol). The diol interacted with chalcones to generate photoactive hydrogen-bonded solids [4]. The 1,6-diol assembled the olefins within solid-state cavities supported by the bulky tetraphenyl-substituents of the host. The reactive solids based on 1,6-diol also formed via dry grinding [5]. Moreover, simple shaking of 1:2 and 1:4 solid mixtures of 1,6-diol and the chalcones resulted in up to 90% photoconversion following UV-irradiation.

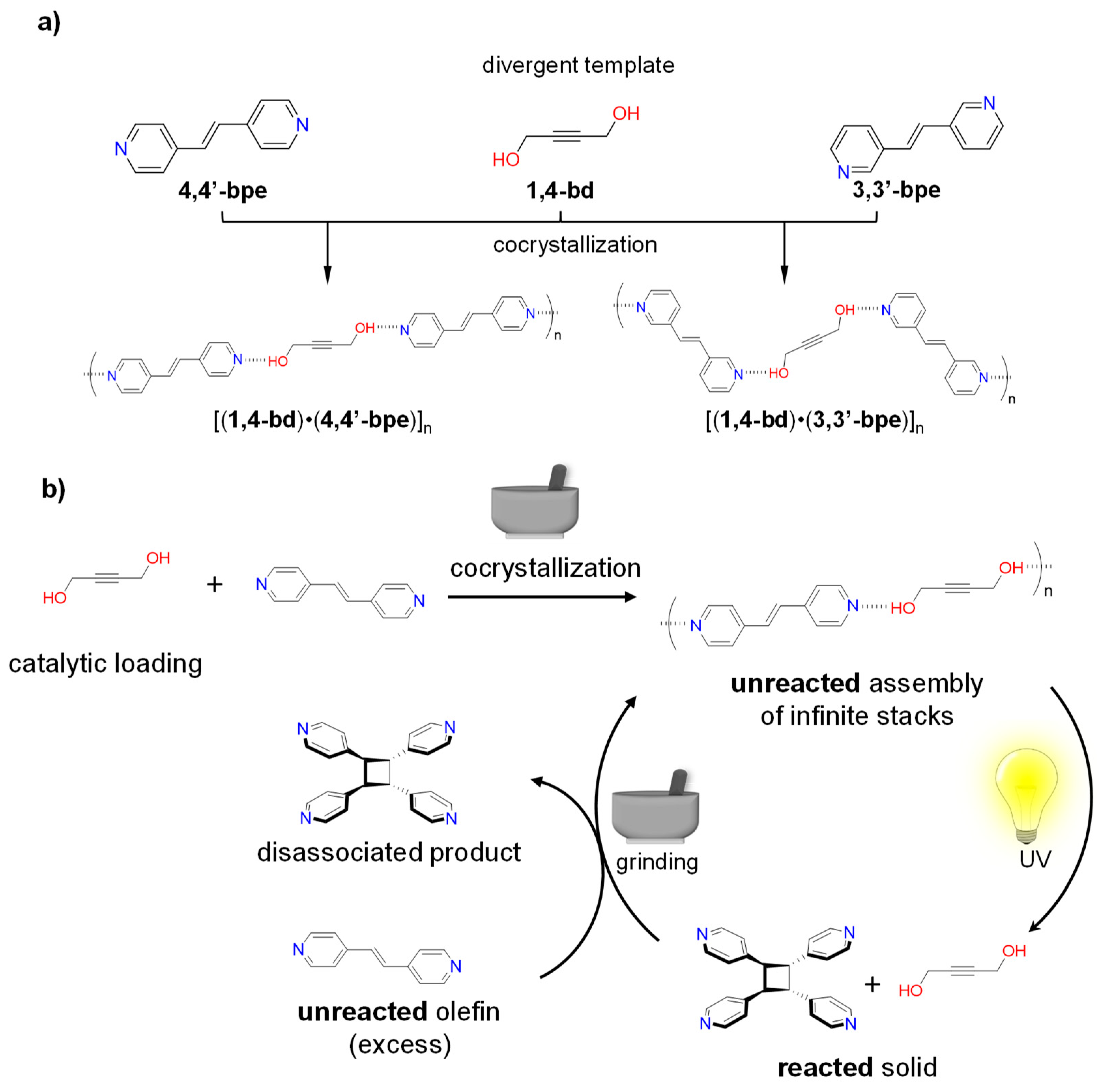

Here, we report the ability of 2-butyne-1,4-diol (1,4-bd)—effectively, a minimalist derivative of 1,6-diol—to act as a divergent ditopic template of an intermolecular [2 + 2] photodimerization in the solid state (Scheme 1). Cocrystallizations of 1,4-bd with trans-1,2-bis (n-pyridyl) ethylene (n,n′-bpe, where n = n′ = 3 or 4) generate cocrystals of composition [(1,4-bd)·(4,4′-bpe)]_n and [(1,4-bd)·(3,3′-bpe)]_n. The components of the cocrystals form 1D hydrogen-bonded polymers with olefins that stack into infinite columns. UV-irradiation of each solid generates rctt-tetrakis (n-pyridyl) cyclobutanes (n,n′-tpcb) stereoselectively. We also reveal 1,4-bd to act as a supramolecular catalyst for the photoreaction involving 4,4′-bpe.

2. Results and Discussion

2.1. Photoreactive Cocrystals of [(1,4-bd)·(4,4′-bpe)]_n

Cocrystals of composition [(1,4-bd)·(4,4′-bpe)]_n were obtained by combining equimolar solutions of 4,4′-bpe and 1,4-bd in acetonitrile, and allowing the resulting solution to slowly evaporate to yield colorless plate-like crystals suitable for single-crystal X-ray diffraction.

The components of [(1,4-bd)·(4,4′-bpe)]_n crystallize in the monoclinic space group P2₁/c (

Table 1. Crystallographic data for [(1,4-bd)·(4,4′-bpe)]_n, [(1,4-bd)·(3,3′-bpe)]_n, and (rctt-3,3′-tpcb)·(H₂O).

Cocrystal/Hydrate	[(1,4-bd)·(4,4′-bpe)]n	[(1,4-bd)·(3,3′-bpe)]n	(rctt-3,3′-tpcb)·(H2O)
Formula	C16H16N2O2	C16H16N2O2	C24H22N4O
Formula weight (g·mol−1)	268.31	268.31	382.45
Crystal system	Monoclinic	Monoclinic	Triclinic
Space group	P21/c	P21/n	P-1
a (Å)	4.1905 (4)	10.8899 (12)	8.7650 (9)
b (Å)	10.9558 (11)	4.2077 (4)	9.4600 (9)
c (Å)	15.8790 (16)	16.2118 (16)	13.0903 (13)
α (°)	90	90	92.879 (5)
β (°)	91.420 (5)	101.580 (5)	94.862 (5)
γ (°)	90	90	112.923 (5)
Z	2	2	2
V (Å3)	728.79 (12)	727.73 (13)	991.99 (17)
ρcalcd (g·cm−3)	1.223	1.224	1.280
T (K)	298	298	298
μ (mm−1)	0.082	0.082	0.081
Reflections collected	10144	9896	7864
F(000)	284	284	404
Crystal size (mm3)	0.19 × 0.18 × 0.05	0.32 × 0.27 × 0.13	0.34 × 0.22 × 0.07
Independent reflections	1320	1428	4189
Data/restraints/parameters	1320/0/92	1428/0/100	4189/0/284
Rint	0.0257	0.0234	0.0355
R1 (I ≥ 2σ(I))	0.0361	0.0356	0.0561
wR (F2) (I ≥ 2σ(I))	0.0880	0.0881	0.1293
R1 (all data)	0.0538	0.0495	0.1277
wR (F2) all data	0.0996	0.0975	0.1618
Goodness-of-fit on F2	1.054	1.077	1.018
CCDC deposition number	1,942,417	1,942,416	1,871,324

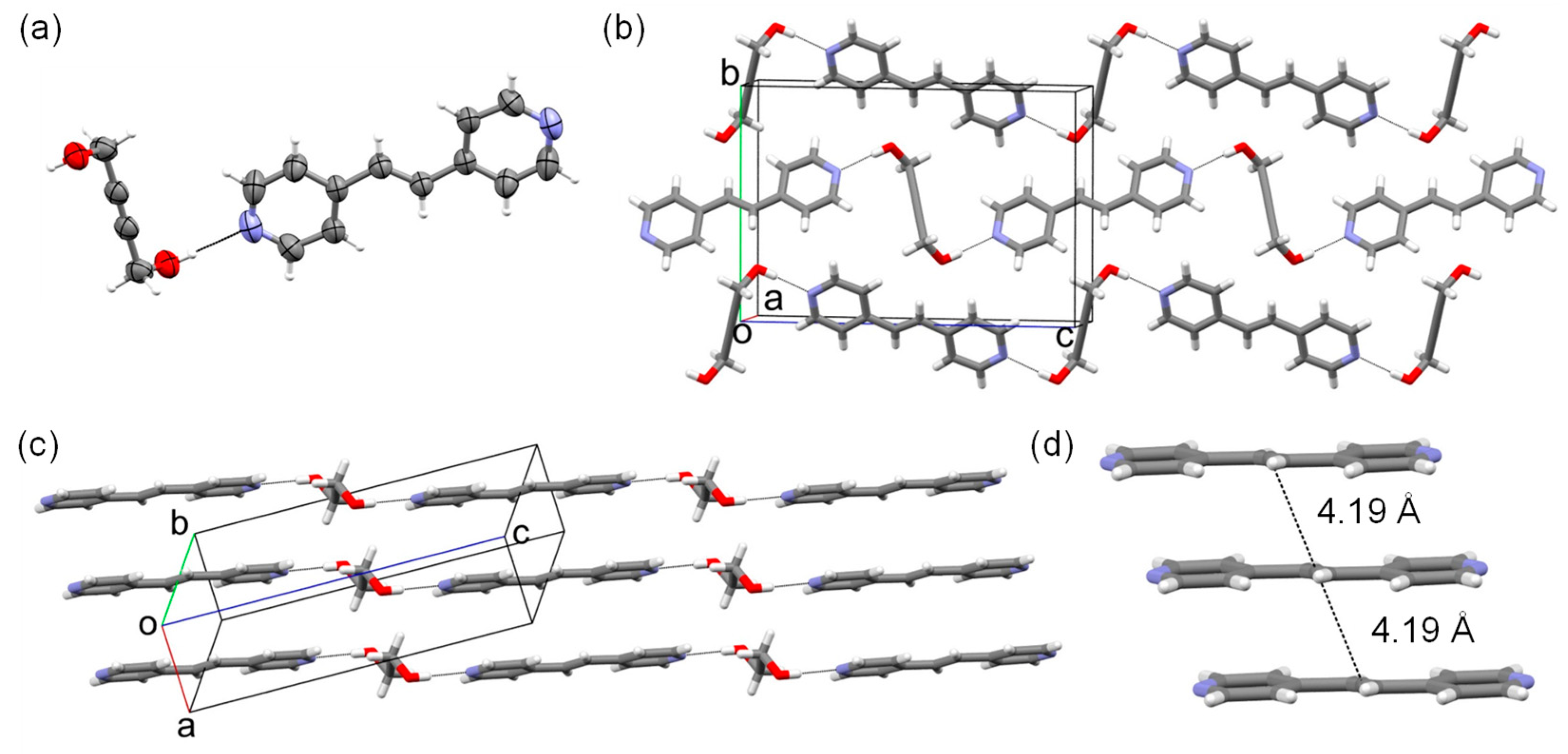

, Figure 1). The asymmetric unit contains one half each of a molecule of 1,4-bd and 4,4′-bpe. The diol and bipyridine interact via O-H···N hydrogen bonds [O(1)···N(2) separation (Å): 2.792(2)] to generate infinite 1D hydrogen-bonded chains that propagate along the crystallographic c-axis. The hydroxyl groups of 1,4-bd adopt an anti-conformation with a dihedral angle of nearly 180°. Adjacent 1D hydrogen-bonded chains are sustained by bifurcating-type C-H(pyridine)···O and C-H(alkene)···O forces along the b-axis [C···O separations (Å): C(8)···O(1) 3.43, C(4)···O(1) 3.58] such that neighboring 1D chains lie offset and tilted by 56.4°. The hydrogen-bonded chains pack into segregated 2D stacks along the a-axis. The carbon–carbon double (C = C) bonds of the stacked olefins are organized parallel and separated by 4.19 Å, which conforms to the criteria of Schmidt for a [2 + 2] photocycloaddition in the solid state [6].

To determine photoreactivity of [(1,4-bd)·(4,4′-bpe)]_n, a finely-ground crystalline powder was distributed between two glass plates and exposed to UV-irradiation (450 W medium-pressure Hg lamp) for a period of 55 h. A ¹H-NMR spectrum revealed the emergence of a single cyclobutane resonance (4.68 ppm) consistent with rctt-tetrakis (4-pyridyl) cyclobutane (4,4-tpcb) (79% conversion), which was accompanied by a decrease in intensity of the olefinic signals (see Figure S2). Prolonged UV exposure did not result in an increase in conversion of olefin to cyclobutane. We also note that the amount of 1,4-bd present in the sample decreased by 6% during the photoreaction. We ascribe the decrease in 1,4-bd to sublimation of the diol, which may also affect the overall photoconversion. Indeed, we have determined that 1,4-bd as a pure form sublimes at 40–45 °C at ambient pressure. Sublimation of 1,4-bd from the unreacted cocrystal, however, does not occur (see Experimental). We note that Groeneman has recently reported that the template 1,2-dibromo-4,5-diflorobenzene can be sublimed for product purification [7]. We confirmed the stereochemistry of the photoproduct generated from [(1,4-bd)·(4,4′-bpe)]_n by treatment of acid and extraction into chloroform (see Figure S3) [8].

2.2. Photoreactive Cocrystals of [(1,4-bd)·(3,3′-bpe)]_n

Cocrystals of [(1,4-bd)·(3,3′-bpe)]_n were obtained by dissolving equimolar 3,3′-bpe and 1,4-bd in minimal boiling diethyl ether. The solvent was allowed to slowly evaporate for 2 d to yield colorless single crystals of [(1,4-bd)·(3,3′-bpe)]_n. In contrast to [(1,4-bd)·(4,4′-bpe)]_n, the cocrystals [(1,4-bd)·(3,3′-bpe)]_n were determined to be highly deliquescent.

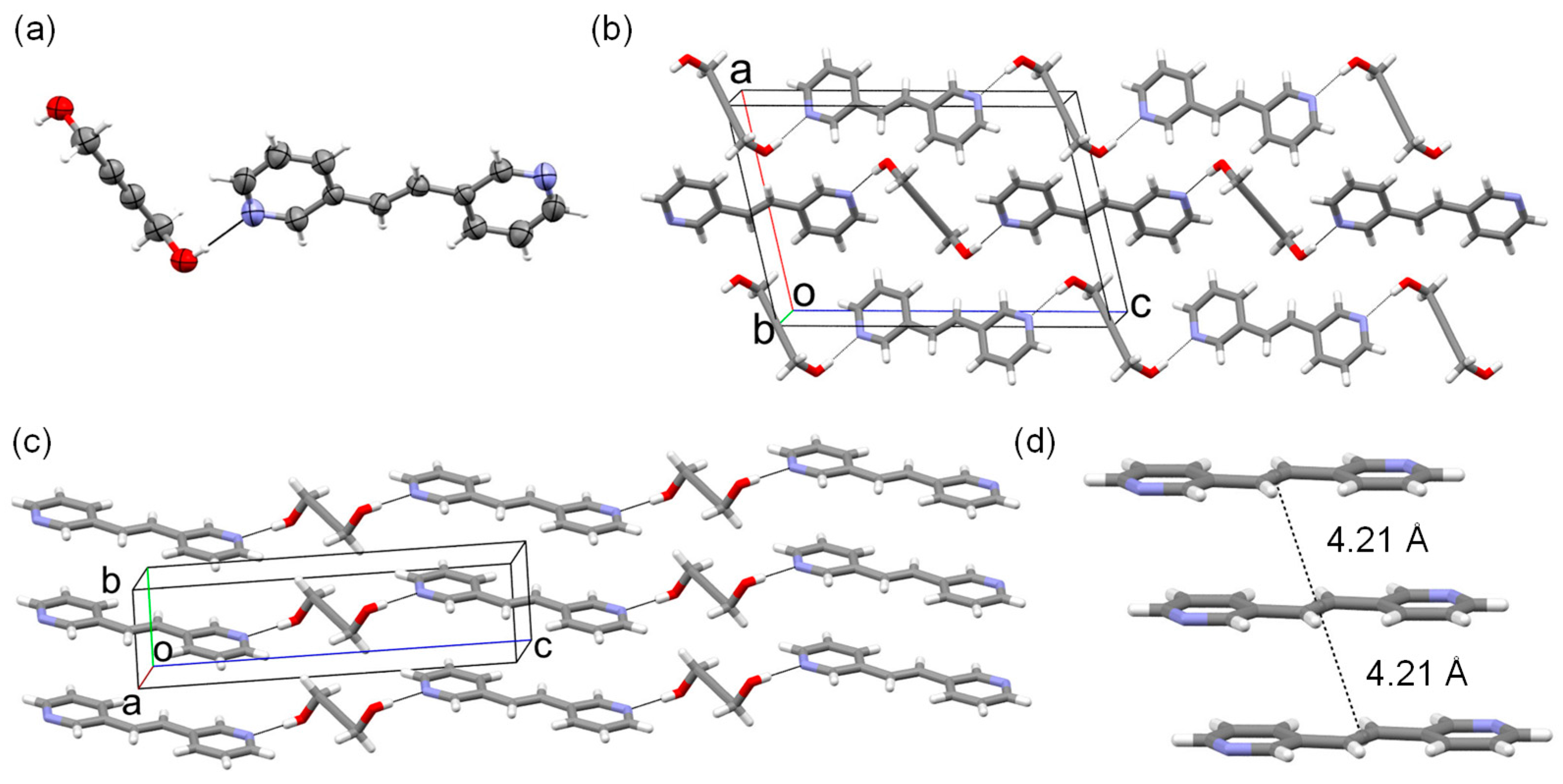

The components of [(1,4-bd)·(3,3′-bpe)]_n crystallize in the monoclinic space group P2₁/n (Table 1, Figure 2). Similar to [(1,4-bd)·(4,4′-bpe)]_n, the asymmetric unit of [(1,4-bd)·(3,3′-bpe)]_n consists of one half of a molecule of 1,4-bd and 3,3′-bpe. The components assemble via O-H···N hydrogen bonds [O(1)···N(2) separation (Å): 2.802(1)] to form infinite 1D hydrogen-bonded chains along the crystallographic c-axis. The hydroxyl groups of 1,4-bd also adopt an anti-conformation with a dihedral angle of nearly 180°. Adjacent 1D chains are sustained by bifurcating C-H(pyridine)···O and C-H(alkene)···O forces along the a-axis [C···O separations (Å): C(8)···O(1) 3.45, C(5)···O(1) 3.56] such that neighboring chains lie offset and tilted by 61.6°. The hydrogen-bonded chains arrange into infinite offset 2D stacks along the b-axis such that the C = C bonds lie parallel and separated by 4.21 Å.

When a finely-ground crystalline powder of [(1,4-bd)·(3,3′-bpe)]_n in a 20-mL scintillation vial was exposed to UV-radiation for 23 h, a ¹H-NMR spectrum revealed 3,3′-bpe to be converted a cyclobutane product (68% conversion) (see Figure S5). The formation of the photoproduct was evidenced by the emergence of a single cyclobutane resonance (4.71 ppm) consistent with rctt-tetrakis (3-pyridyl) cyclobutane (3,3′-tpcb) and a concomitant decrease in intensity of the olefinic resonances

The stereochemistry of the photoproduct 3,3′-tpcb as rctt- was confirmed by treatment with acid and extraction into chloroform (see Figure S6). Single crystals of (rctt-3,3′-tpcb)·(H₂O) in the form of plates were obtained by slow solvent evaporation over a period of 4 d in chloroform.

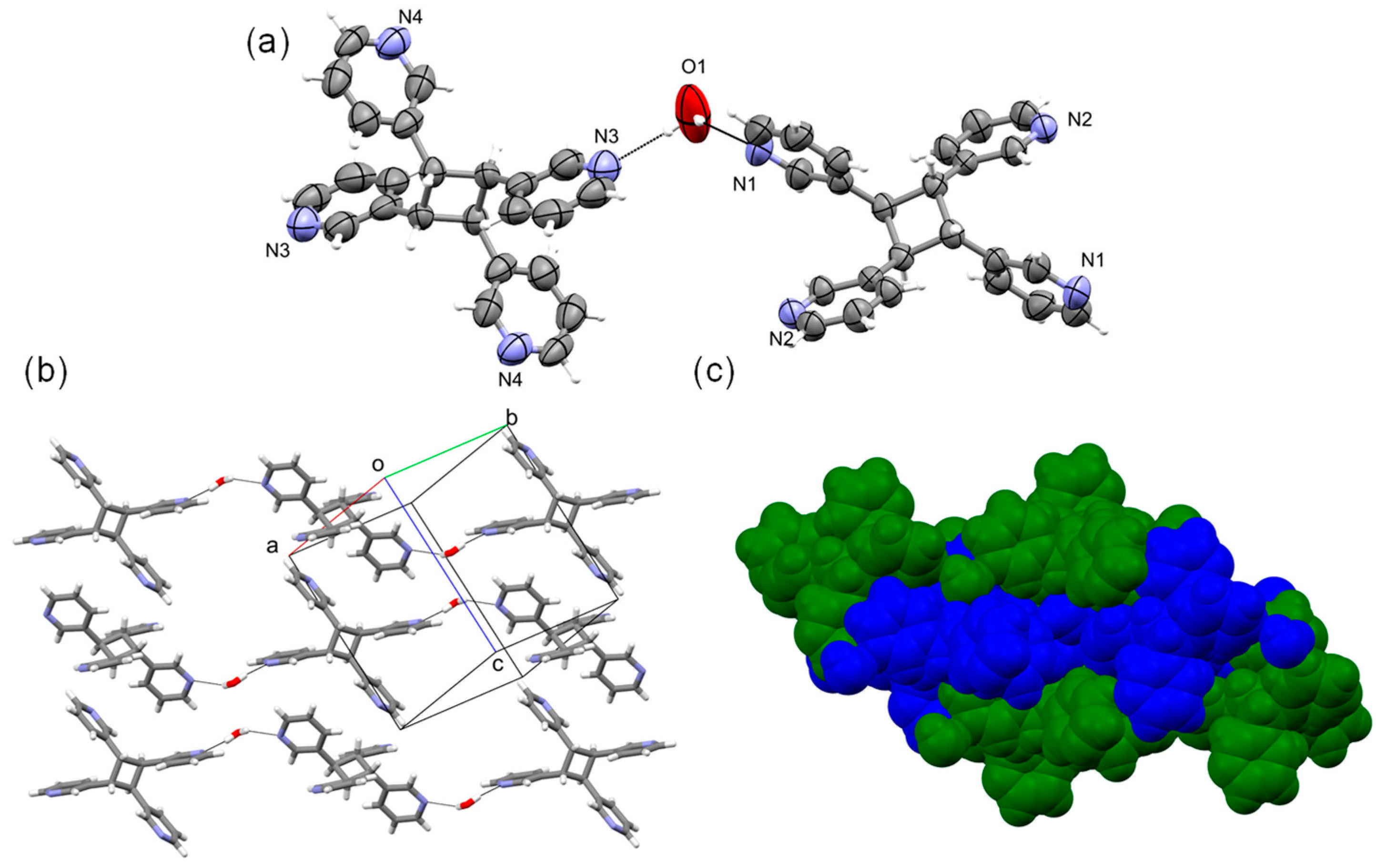

The components of (rctt-3,3′-tpcb)·(H₂O) crystallize in the triclinic space group $P\overline{1}$ (Table 1). The asymmetric unit consists of two unique one-half molecules of rctt-3,3′-tpcb and one full molecule of H₂O. One cyclobutane (N3/N4) lies disordered over two positions (occupancies C17A/C17B 70/30). The transoid-pyridyl groups of the cyclobutanes adopt anti- (N1/N2) and syn-conformations (N3/N4) (Figure 3). The components of the solid assemble via O-H···N hydrogen bonds [O···N separations (Å): 2.926(6) O(1)/N(1), 2.839(5) O(1)/N(3)] with the included water molecules bridging adjacent cyclobutanes. As a consequence of the assembly process, the components form 1D hydrogen-bonded chains along the crystallographic b-axis. Adjacent 1D chains stack along the a-axis and interact via edge-to-face C-H···π contacts to form 2D sheets. The 2D sheets interdigitate perpendicular to the c-axis.

2.3. Mechanochemistry and Supramolecular Catalysis

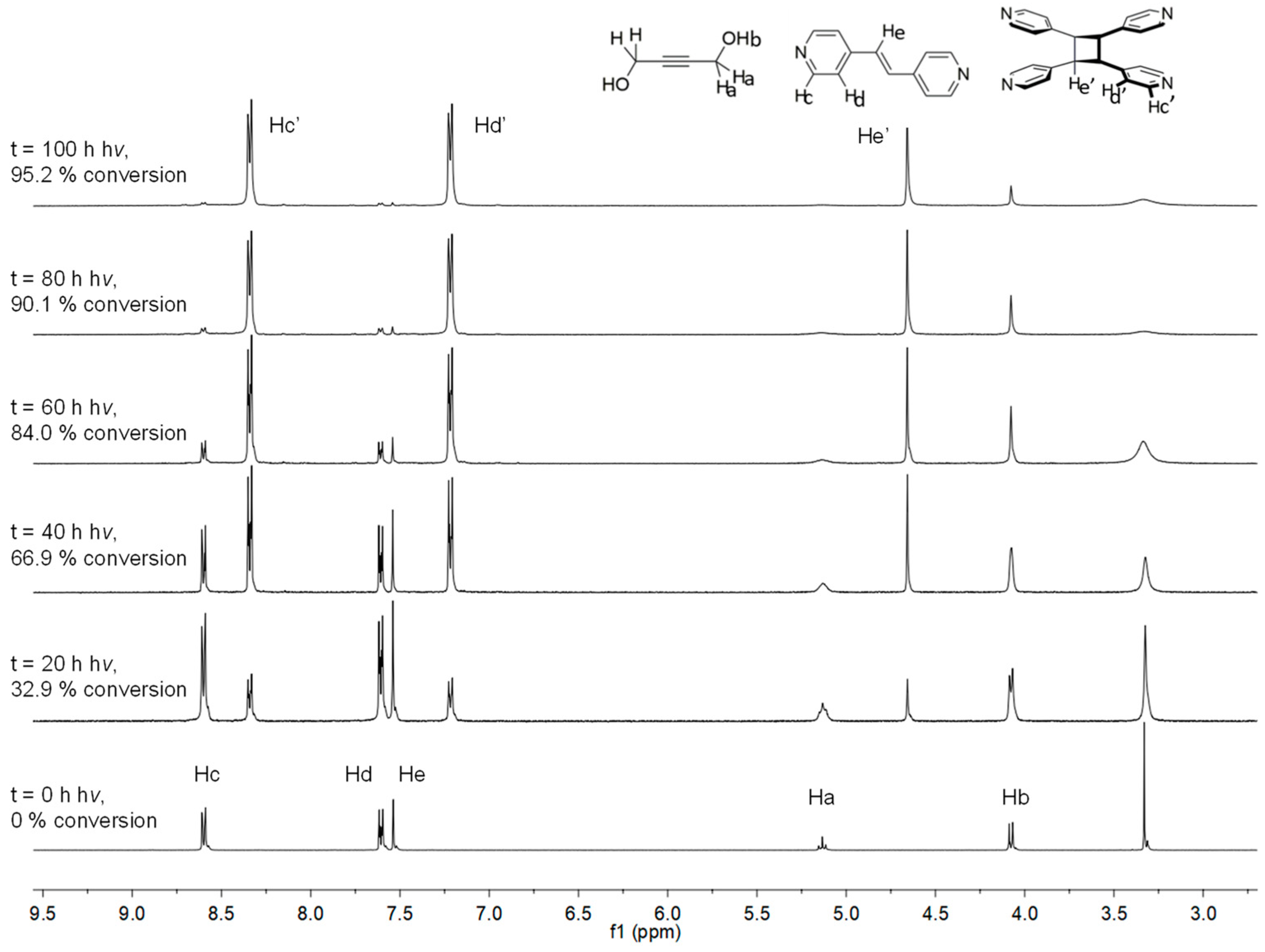

The diol 1,4-bd acts as a supramolecular catalyst to form 4,4′-tpcb in near quantitative yield. Specifically, dry-grinding of equimolar 1,4-bd and 4,4′-bpe using an agate mortar and pestle generated the cocrystal [(1,4-bd)·(4,4′-bpe)]_n in 20 min (see Figure S8). Moreover, cycles (5 cycles) of mechanical grinding followed by exposure to UV-radiation (20 h) with 50% loading of 1,4-bd resulted in near quantitative (95%) conversion of 4,4′-bpe to 4,4′-tpcb (Figure 4, see Figure S9). Similar results were obtained for 20% loading of 1,4-bd, albeit with lower (34%) conversion. ¹H-NMR assay suggested 1,4-bd to sublime under the mechanochemical conditions in both cases (see Figure S10) [7]. PXRD data was consistent with crystalline [(1,4-bd)·(4,4′-bpe)]_n and 4,4′-tpcb being generated during the catalysis and grinding (see Figure S11) [1].

Infinitely stacked C = C bonds in the solid state will exhibit a maximum possible theoretical conversion owing to independent photodimerization events taking place [9,10,11,12] We envision that the increase in conversion of 4,4′-bpe to 4,4′-tpcb achieved by supramolecular catalysis relative to the stoichiometric cocrystal [(1,4-bd)·(4,4′-bpe)]_n likely involves ‘free’ diol being available for recrystallization to support reactivity of the C = C bonds between the 1D hydrogen-bonded chains.

3. Conclusions

We have demonstrated 1,4-bd to function as a divergent template to direct [2 + 2] photodimerizations in the solid state. Cocrystals containing 1,4-bd generate 1D hydrogen-bonded chains of [(1,4-bd)·(n,n′-bpe)]_n (where: n = n′ = 3 or 4) that form infinite stacks. The cocrystals undergo [2 + 2] photodimerizations to form rctt-n,n′-tpcb (n = n′ = 3 or 4), with sublimation effects involving the template. An increase in yield of the photodimerization of [(1,4-bd)·(4,4′-bpe)]_n is realized with supramolecular catalysis. Our current efforts are focused to identify and apply approaches involving divergent templates to alkenes of increasing structural complexity.

4. Materials and Methods

4.1. Materials

Reagents 1,4-butynediol (1,4-bd) and trans-1,2-bis (4-pyridyl) ethylene (4,4′-bpe) were purchased from Sigma Aldrich^© (St. Louis, MO, USA). Anhydrous diethyl ether (Et₂O) and acetonitrile (MeCN) were purchased from Fisher Scientific^TM and VWR International^©, respectively. Chloroform (CHCl₃) and dichloromethane (CH₂Cl₂) were purchased from Fischer Scientific^TM. All chemicals were used as received without further purification. The alkene trans-1,2-bis (3-pyridyl) ethylene (3,3′-bpe) was synthesized via a Hiyama–Heck coupling of triethoxy(vinyl)silane and 3-bromopyridine [13].

4.2. Cocrystallizations

Cocrystals of [(1,4-bd)·(4,4′-bpe)]_n were obtained by dissolving equimolar 4,4′-bpe (346 mg, 2.0 mmol) and 1,4-bd (172 mg, 2.0 mmol) separately in MeCN (10 mL). The two solutions were combined and the solvent was allowed to slowly evaporate for 6 d to yield colorless plate-like crystals of [(1,4-bd)·(4,4′-bpe)]_n suitable for single-crystal X-ray diffraction (SCXRD). ¹H-NMR (300 MHz, DMSO-d₆): δ 8.60 (dd, J = 4.5, 1.6 Hz, 2H), 7.61 (dd, J = 4.5, 1.6 Hz, 2H), 7.55 (s, 1H), 5.29 − 5.02 (m, 1H), 4.22 − 3.95 (m, 2H).

For synthesis of [(1,4-bd)·(3,3′-bpe)]_n, equimolar 3,3′-bpe (39 mg, 0.2 mmol) and 1,4-bd (19 mg, 0.2 mmol) were dissolved together in minimum boiling Et₂O. The solvent was allowed to slowly evaporate for 2 d to yield colorless plate-like crystals of [(1,4-bd)·(3,3′-bpe)]_n suitable for SCXRD. ¹H-NMR (300 MHz, DMSO-d₆): δ 8.79 (d, J = 2.2 Hz, 1H), 8.49 (d, J = 4.7 Hz, 1H), 8.07 (d, J = 8.0 Hz, 1H), 7.43 (s, 1H), 7.43 (t, J = 4.8 Hz, 1H), 5.20 − 5.04 (m, 1H), 4.08 (dd, J = 5.9, 0.7 Hz, 2H). Cocrystals of [(1,4-bd)·(3,3′-bpe)]_n were determined to be highly deliquescent.

4.3. Photodimerization

All single crystals were finely ground using a mortar and pestle and then spread thinly between a pair of Pyrex glass plates for [(1,4-bd)(4,4′-bpe)]_n. Finely ground crystals of [(1,4-bd)(3,3′-bpe)]_n were thinly spread across the bottom of a 20-mL glass scintillation vial. The samples were irradiated in 12 h intervals (ACE Glass photochemistry cabinet, 450 W, medium-pressure Hg-vapor lamp). Cyclobutane formation was monitored using ¹H-NMR spectroscopic assay.

4.4. Photoproduct Isolation

A photoreacted solid of [(1,4-bd)·(4,4′-bpe)]_n was dissolved in 3 M HCl and subsequently washed with CH₂Cl₂ (3 × 15 mL). The photoproduct was precipitated from the aqueous solution using 50% NaOH to pH 12 and extracted with CHCl₃ (3 × 15 mL). The organic layer was dried (Na₂SO₄) and discoloration was removed using activated carbon. The solution was filtered and solvent was removed under vacuum to yield rctt-tetrakis (4-pyridyl) cyclobutane (rctt-4,4-tpcb) [8]. ¹H-NMR (300 MHz, DMSO-d₆): δ 8.34 (dd, J = 4.5, 1.5 Hz, 2H), 7.22 (dd, J = 4.5, 1.6 Hz, 2H), 4.66 (s, 1H).

A photoreacted solid of [(1,4-bd)·(3,3′-bpe)]_n was dissolved in 3 M HCl and subsequently washed with CH₂Cl₂ (3 × 15 mL). The photoproduct was precipitated from the aqueous solution using 50% NaOH to pH 11 and extracted with CHCl₃ (3 × 15 mL). The organic layer was dried (Na₂SO₄). The solution was filtered and solvent evaporated under vacuum. The crude product was purified using flash column chromatography. The column was primed with 10% MeOH/CH₂Cl₂. The percentage of MeOH in CH₂Cl₂ was increased in 2% increments until pure photoproduct was collected. Fractions containing photoproduct were combined and solvent was removed under vacuum to yield rctt-tetrakis (3-pyridyl) cyclobutane (rctt-3,3-tpcb). ¹H-NMR (300 MHz, CDCl₃): δ 8.37 (d, J = 2.1 Hz, 1H), 8.31 (dd, J = 4.8, 1.4 Hz, 1H), 7.42 − 7.30 (m, 1H), 7.06 (dd, J = 7.9, 4.8 Hz, 1H), 4.52 (s, 1H).

4.5. X-ray Diffraction Experiments

Diffraction data were collected on a Bruker^© Nonius^© (Billerica, MA, USA) APEX II Kappa single-crystal X-ray diffractometer at room temperature (298.15 K) using graphite-monochromated Mo Kα₁ radiation (λ = 0.71073 Å). Structure solution and refinement were accomplished using ShelXT [14] and ShelXL [15], respectively, in the Olex2 user graphical interface. The structures were solved using direct methods. All non-hydrogen atoms were identified from the difference Fourier map and refined anisotropically. All hydrogen atoms were placed in their calculated positions and were refined using isotropic thermal parameters.

All powder samples were mounted on glass slides. Each sample was finely ground using an agate mortar and pestle prior to mounting. PXRD data were collected by a Siemens D5000 X-ray diffractometer using Cu Kα₁ radiation (λ = 1.54056 Å) (scan type: locked coupled; scan mode: continuous; step size: 0.02°). PXRD data of (rctt-3,3′-tpcb)·(H₂O) were collected at room temperature on a Bruker D8 Advance X-ray diffractometer. Instrument parameters: radiation wavelength, Cu Kα₁ (λ = 1.5418 Å); scan type, coupled 2Theta/Theta; scan mode, continuous PSD fast; scan range, 5–40° two-theta; step size, 0.02°; voltage, 40 kV; current, 30 mA. Background subtractions were applied to all experimentally collected data within the Bruker^© DIFFRAC.EVA v3.1 software suite.

4.6. H-NMR Experiments

All ¹H-NMR spectra were obtained on a Bruker^© Fourier-300 NMR spectrometer (Billerica, MA, USA) operating at 300 MHz. All data were processed with the MestReNova^TM v6.0.2 software program.

4.7. Mechanochemistry and Catalysis

Cocrystals of [(1,4-bd)·(4,4′-bpe)]_n were generated by combining 1,4-bd (21.9 mg, 0.3 mmol) and 4,4′-bpe (48.8 mg, 0.3 mmol) and grinding in agate mortar and pestle for 12 min. Cocrystals of [(1,4-bd)·(3,3′-bpe)]_n were generated by combining 1,4-bd (48.7 mg, 0.6 mmol) and 3,3′-bpe (101.6 mg, 0.6 mmol) together and grinding in an agate mortar and pestle for 30 min. The resulting crystalline phases were confirmed using powder X-ray diffraction (PXRD).

For catalysis employing a 1,4-bd template, 4,4′-bpe (116 mg, 0.64 mmol) with 50 or 20 mol.% of 1,4-bd were combined and finely ground using an agate mortar and pestle. The formation of cocrystalline material was confirmed using PXRD. The finely ground crystalline powders were spread thinly between two glass plates and exposed to broadband UV-irradiation. The crystalline materials were exposed to additional dry grinding (20 min in an agate mortar and pestle) after 20 h intervals of UV-irradiation. Solid-state catalysis reactions were monitored using ¹H-NMR spectroscopy and PXRD.

4.8. Sublimation Experiments

A crystalline sample of 1,4-bd (see ref. [16] for crystal structure) was placed in a glass sublimation apparatus. The apparatus was gently heated to ca. 40 °C and the temperature was maintained for 12 h. The sublimed material was confirmed to be 1,4-bd by ¹H-NMR spectroscopic analysis (see Figure S12). ¹H-NMR (300 MHz, CDCl₃): δ 4.34 (s, 4H).
