A Comprehensive Screening and Identification of Genistin Metabolites in Rats Based on Multiple Metabolite Templates Combined with UHPLC-HRMS Analysis

by
Yaoyue Liang
1,
Wenjing Zhao
1,
Chenxiao Wang
1,
Zijian Wang
2,
Zhibin Wang
2,* and
Jiayu Zhang
2,*
1
School of Chinese Pharmacy, Beijing University of Chinese Medicine, Beijing 100029, China
2
Beijing Research Institution of Chinese Medicine, Beijing University of Chinese Medicine, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(8), 1862; https://doi.org/10.3390/molecules23081862
Submission received: 29 June 2018 / Revised: 18 July 2018 / Accepted: 19 July 2018 / Published: 26 July 2018
(This article belongs to the Section Analytical Chemistry)
Browse Figures
Versions Notes

Abstract

:
Genistin, an isoflavone belonging to the phytoestrogen family, has been reported to possess various therapeutic effects. In the present study, the genistin metabolites in rats were investigated by UHPLC-LTQ-Orbitrap mass spectrometer in both positive and negative ion modes. Firstly, the data sets were obtained based on data-dependent acquisition method and then 10 metabolite templates were established based on the previous reports. Then diagnostic product ions (DPIs) and neutral loss fragments (NLFs) were proposed to efficiently screen and ascertain the major-to-trace genistin metabolites. Meanwhile, the calculated Clog P values were used to identify the positional isomers with different retention times. Consequently, a total of 64 metabolites, including prototype drug, were positively or putatively characterized. Among them, 40 metabolites were found according to the templates of genistin and genistein, which was the same as the previous research method. After using other metabolite templates, 24 metabolites were added. The results demonstrated that genistin mainly underwent methylation, hydrogenation, hydroxylation, glucosylation, glucuronidation, sulfonation, acetylation, ring-cleavage and their composite reactions in vivo biotransformation. In conclusion, the research not only revealed the genistein metabolites and metabolic pathways in vivo comprehensively, but also proposed a method based on multiple metabolite templates to screen and identify metabolites of other natural compounds.

1. Introduction

Recently, isoflavones have received much attention due to their nutritional and potential health benefits. They are non-steroidal phytoestrogenic and antioxidative polyphenolic molecules, which have the possibilities to protect against hormone-dependent diseases, such as prostate cancer, breast cancer, menopausal symptoms, cardiovascular disease and osteoporosis [1,2,3]. Genistin, as one of the common isoflavones, has a similar structure with phytoestrogens and belongs to the annual plant of Fabaceae family especially Glycine max (L.) MERR. It possesses various therapeutic effects, including anti-inflammatory, anticancer activities, cardioprotective effects, antioxygenation, etc., through pharmacological studies [4,5,6,7]. For example, it was found that genistin could enhance the expression of acetylcholinesterase (AChE) related enzymes and related proteins in cultured rat osteoblasts. Therefore, it was speculated that genistin could improve osteoporosis [8]. Compared with other drugs, genistin has many advantages, such as abundant sources, stable nature, low toxicity and side effects. Although there is no clear evidence that the ingestion of genistin is harmful, genistin (i.e., genistein-7-glucoside) can metabolize to produce genistein after entering the body. The genotoxicity and potential adverse effects (cell growth inhibition, apoptosis, topoisomerase inhibition, and DNA damages) of genistein were reported in vitro as well as in experimental animals (e.g., rats) [9,10,11,12,13]. Genistin produces metabolic products of different biological effects through metabolic process in vivo, and the metabolic level of different organisms is different. However, it is still ambiguous that what the material basis is responsible for the effects of genistin. But it is certain that metabolites play an important role. Therefore, it is necessary to study the metabolism of genistin, which helps to explore its effects on cardiovascular and cerebrovascular diseases, tumor and other diseases. And it is of great significance to understand the biological activity of isoflavones and explore its development and utilization.
Contemporarily, ultra-high performance liquid chromatography (UHPLC) coupled with mass spectrometry (MS) has been widely used in drug metabolism analysis [14,15,16]. UHPLC has a powerful separation capability, which is currently one of the most effective tools for the complex components separation. MS owns the properties of high speed, sensitivity and selectivity, during which the high resolution (HR) and multistage mass spectrometry technology have been comprehensively used for online structural analysis and quantitative detection of known and unknown components. In recent years, with the continuous development of Orbitrap technology, Orbitrap mass spectrometer is widely used in pharmaceutical analysis due to the HR detection through combining with the linear ion trap [17,18,19]. Nowadays, UHPLC-LTQ-Orbitrap mass spectrometer has been widely applied in metabolism studies [20,21,22,23,24].
To date, there are dozens of reports concerned with the techniques of dealing the dataset to extract the metabolite information. These techniques include the adoption of mass defect filters, isotope pattern filters, and background subtraction and so on [25]. Generally, the parent drug is selected as the template to predict metabolites according to the common metabolic pathways. The obvious limitation is that many drug metabolites are yielded through the composite reactions. In the previous studies of the metabolites of genistin and the corresponding aglycone (genistein), the number of the detected metabolites was small [26,27,28,29]. This greatly hinders the discussion of the material basis for the efficacy of genistin after entering the body. The characteristic of our study is that according to the literature reports and the results of pre experiments, the multiple metabolite templates are established to assist with data processing. In combination of diagnostic product ions (DPIs), neutral loss fragments (NLFs) and calculated Clog P values, the potential metabolites of genistin were proposed in this study. As far as we know, it was the first time to comprehensively investigate the metabolism of genistin in vivo.

2. Results and Discussion

2.1. The Establishment of Analytical Strategy

In this study, we established a comprehensive and effective strategy to discover and identify genistin metabolites by using UHPLC-HRMS. At the beginning, HR-ESI-MS1 analysis was performed on the HRMS instrument with a resolution of 30,000. Meanwhile ESI-MSn data sets were got both in negative and positive ion modes based on data-dependent acquisition method. Secondly, the metabolite templates were established according to the literature reports and the pre experiment results. Then DPIs and NLFs, which were proposed by the mass fragmentation behaviors of reference standards, were applied to efficiently confirm and identify the genistin metabolites. After that, according to different retention times, positional isomers were distinguished by using the corresponding Clog P values calculated by ChemBioDraw Ultra 14.0 (PerkinElmer, Waltham, MA, USA). Depending on the information obtained above, all metabolites were identified positively or putatively. Finally, grounded on metabolites data and references, the metabolic pathway of genistin was proposed. Through the whole experiment, we had summed up a schematic diagram, as shown in Figure 1, which was an analytical strategy for detecting and identifying genistin metabolites.

2.2. The Establishment of Multiple Metabolite Templates Screening Method

Ten metabolite templates, genistin, genistein, daidzin, daidzein, puerarin, dihydrogenistein, tetrahydrogenistein, dihydrodaidzein, equol, and O-desmethylangolensin, were selected as the screening templates for genistin metabolites. Of course, based on this method, the metabolites selected from different templates would be the same. Combined with the retention time, DPIs, and NLFs, the compounds with the same structure need to be deleted. Based on this efficient method, some uncommon compound metabolites could be much more comprehensively detected.

2.3. Establishment of Diagnostic Product Ions Basing on Fragmentation Behaviors of Genistin and Its Homologues

In order to obtain an extensive fragmentation behavior of genistin and the other four homologues (genistein, daidzin, daidzein, and puerarin) (Figure 2), the mixed standard solution was comprehensively analyzed by using UHPLC-LTQ-Orbitrap MS. It can provide the useful information, such as DPIs and characteristic fragmentation patterns, which were utilized for deducting the structures of related metabolites. Taking genistin as an example, it showed a protonated [M + H]+ ion at m/z 433.1110 (C21H21O10, −4.39 ppm) with the retention time of 4.59 min in the ESI-MS experiment. It produced the base peak ion at m/z 271 [M + H − 162]+ via the loss of glucose moiety in the ESI-MS2 spectrum. In the ESI-MS3 experiment, m/z 153 was yielded as the base peak via Retro-Diels-Alder (RDA) fragmentation by losing C8H6O. Meanwhile, the other characteristic ions at m/z 215 (81%), 243 (59%), 253 (34%), 149 (30%), 145 (16%), and 225 (11%) were yielded by losing 2CO, CO, H2O, C7H6O2, C6H6O3, and CO + H2O, as shown in Figure 3. For genistein with retention time of 8.00 min, the MS2 ions at m/z 153 (100%), 215 (79%), 243 (62%), 253 (34%), 149 (29%), 145 (18%), and 225 (10%) were the same as the ESI-MS3 ions of genistin, which could be attributed to the fact that genistin is the glucoside of genistein. Meanwhile, daidzin and daidzein were eluted at 3.86 and 6.28 min, respectively. In the MS3 spectrum of daidzin and MS2 spectrum of daidzein, the most abundant fragment ion at m/z 199 was produced due to the loss of 2CO. Moreover, several major fragment ions at m/z 137, m/z 227, m/z 237, and m/z 145 were also observed due to the respective loss of C8H6O, CO, H2O, and C6H6O2, which indicated that they owned the similar cracking behavior with genistin [26].
In addition, it was necessary to note that m/z 269 and m/z 268 were produced in the ESI-MS2 of genistin in negative ion mode under the lower collision energies. It showed the loss of a C6H10O5 (162 Da) moiety and the corresponding pure scission process by losing C6H11O5 (163 Da) moiety, which resulted in the formation of the aglycone and free radical aglycone product ions [30]. Some of the main characteristic ions were generated by rearrangement and scission. For example, m/z 267 (100%), 239 (81%), and 223 (56%) were occurred in the ESI-MS3 spectrum. The residues in the ESI-MS3 of genistin were similar to those in the ESI-MS2 spectrum of genistein as showed in Figure 4, which could facilitate the structural elucidation of the genistin metabolites in vivo. Besides, the fragmentation pathways of daidzin and daidzein were also similar to those of genistin [31].
Unlike the above four reference standards, puerarin, attributed to C-glycoside, possessed its own unique cleavage mode. Taking puerarin in positive ion mode as an example, it yielded the protonated molecule [M + H]+ ion at m/z 417.1160 (C21H21O9, −4.89 ppm) in the ESI-MS1 spectrum. In the ESI-MS2 spectrum, some fragmentation ions, occurred on heteroside moiety, were generated, including m/z 399 (100%), m/z 351 (53%), m/z 381 (36%), m/z 297 (31%), m/z 363 (14%), and m/z 321 (12%) by NLFs of H2O, 2H2O + CH2O, 2H2O, C4H6O3, 3H2O, and 2H2O + 2CH2O. The fragmentation pathways of puerarin in positive and negative ion modes are proposed in Figure 5 [32,33].
To facilitate the structural illustration of genistin metabolites in the complex matrix, the DPIs were applied to distinguish genistin metabolites in this study [25]. The homologues possessed the similar fragmentation behaviors, which meant that there would be similar DPIs and regular NLFs for providing adequate evidences for elucidating the metabolites. With the biological reactions in vivo, the DPIs might change accordingly. For instance, in positive ion mode, the aglycone moiety of genistin was easily lost in ESI-MS analysis, and the DPI at m/z 271 [M + H − C6H10O5]+ would be produced in ESI-MS2 spectrum. If some different kinds of biological reactions occurred on the original drug (not on the aglycone moiety), new DPIs resulted from newly generated metabolites at m/z 271 + X (X: mass weight of substituent groups, such as 14, 16, 80, 162, etc.) giving information about the type of the substituent groups. Besides, the DPI at m/z 153 was generated due to RDA rearrangement which occurred on the 1,4-position of C-ring of genistin in positive ion mode. It would give the information whether bio-reactions occurred on the A-ring or not. To point out, NLFs also provided tremendous help for efficiently elucidating the structures of unknown metabolites. For instance, the successive losses of 28 Da (CO) eliminated in the ESI-MSn spectra of genistin and the NLF of 44 Da (CO2) was only found in negative ion mode of genistin, which could also offer much information to identify these metabolites. Although the metabolites were difficult to identify because of the absence of corresponding reference standards, the DPIs coupled with NLFs were calculated to clarify these complex metabolites.

2.4. Identification of Genistin Metabolites in Rats

The total ion chromatograms (TICs) of urine and plasma samples from the rats after oral administration of genistin were obtained by using UHPLC-LTQ-Orbitrap mass spectrometry. After comparing the drug-obtained samples with the corresponding control ones, 64 metabolites were detected in both positive and negative ion modes, among which 39 metabolites in positive ion mode and 43 metabolites in negative ion mode were identified in urine, while six metabolites in positive ion mode and eight metabolites in negative ion mode were identified in plasma. The high-resolution extracted ion chromatograms (HREICs) of related metabolites were showed in Figure 6 and the chromatographic retention times and some other concerned data were summarized in Table 1.

2.4.1. Identification of Metabolites with the Templates of Genistin and Genistein

Based on the templates of genistin and its aglycone, genistein, 40 compounds were identified, labeled from M0 to M39.
M0 and M12, which possessed the same deprotonated [M − H]− ions at m/z 431.0972 (C21H19O10, error within ±3.50 ppm), were eluted at 4.64 and 5.01 min, respectively. By comparing the full-scan MS/MSn spectra and retention time with the reference standard, M0 was unequivocally deduced to be the parent drug. The accurate mass weight and major product ions (m/z 268, m/z 269, m/z 223, m/z 224, and m/z 267, etc.) of M12 were coincident with those of M0, indicating that it could be deduced as a genistin isomer.
M4, eluted at 4.38 min, gave rise to its [M + H]+ ion at m/z 595.1645 (C27H31O15, −2.11 ppm). It was 162 Da higher than that of genistin, indicating that it might be glucosylation product of genistin. In its ESI-MS2 spectrum, successive NLFs of 162 Da (m/z 595 → m/z 433 → m/z 271) were observed, which demonstrated that the glucosyl group was probably introduced into the glucose moiety.
M17, eluted at 5.52 min, possessed the experimental [M − H]− ion at m/z 473.1092 (C23H21O11, 2.80 ppm), which was 42 Da higher than that of genistin, meaning that it might be an acetylation product of genistin. The ion at m/z 311 was observed by the NLF of 162 Da and the ion at m/z 269 was also found by successive losing the NLFs of 162 Da and 42 Da, which further confirmed our deduction.
Metabolites M8, M16, M20, M28, and M38 showed their retention times at 4.61, 5.52, 5.92, 8.03, and 12.34 min, respectively, were exhibited the same theoretical [M + H]+ ion at m/z 271.0601 (C15H11O5, error within ±4.00 ppm) or the same theoretical [M − H]− ion at m/z 269.0444 (C15H9O5, error within ±4.00 ppm). Among them, M28 was determined as genistein by comparing the retention time and fragmentation behaviors with genistein reference standard. M8, M16, M20, and M38 possessed the similar characteristic fragments (such as m/z 153, m/z 215, m/z 243, m/z 253, and m/z 225 in positive ion mode and m/z 181, m/z 201, m/z 225, and m/z 197 in negative ion mode) with M28 and therefore they were preliminarily identified as the isomers of genistein under the present situation.
Metabolites M1, M3, M7, M13, M24, and M39 with a protonated [M + H]+ ion at m/z 285.0757 (C16H13O5, error within ±3.50 ppm) or a deprotonated [M − H]− ion at m/z 283.0600 (C16H11O5, error within ±3.50 ppm), were individually eluted at 3.93, 4.27, 4.59, 5.02, 6.62, and 12.44 min. They were 14 Da more than genistein whether in positive ion mode or in negative ion mode. The DPI at m/z 270 [M + H − CH3]+ indicated that M1, M24, and M39 might be methylated products of genistein. The DPI at m/z 242 generated by the NLF of CO and the DPI at m/z 152 yielded by RDA rearrangement occurred on positions 1 and 3 further confirmed our conjecture. Due to a compound with a larger Clog P value would have a longer retention time in a reverse phase (RP) chromatographic system [34]. Therefore M1, M24, and M39 were putatively thought as 5-O-methylgenistein (Clog P, 2.09), 4′-O-methylgenistein (Clog P, 2.99), and 7-O-methyl-genistein (Clog P, 2.99).
There was a NLF of 15 Da (CH3) from M13, indicating that a methyl group existed in M13. The subsequent MS3 of m/z 268 generated the fragment ion at m/z 240 by the NLF of 28 Da. According the limited information, M13 was guessed as the O-methyl product of an isomer of genistein. Different from the above methylated products, the ion of losing 15 Da was not found in the mass spectrum of M3 and M7. As a result, we considered they might be the C-methylgenistein. The DPI at m/z 109 yielded by RDA rearrangement occurred on positions 10 and 4 further confirmed our conjecture.
M36 and M37, possessed experimental protonated molecular ions [M + H]+ at m/z 299.0906 (C17H15O5, −2.84 ppm) and m/z 299.0905 (C17H15O5, −3.08 ppm), were detected at 10.07 and 10.28 min, respectively. They were 14 Da higher than that of methylgenistein, so they were could be the dimethylation products of genistein. The sequential NLFs of 15 Da (m/z 299 → m/z 284 → m/z 269) occurred in ESI-MSn spectra, coupling with the DPIs at m/z 152 and m/z 166 (generated by the RDA rearrangement occurred on positions 1 and 3) further validated that one methyl group was added to A-ring, while the other methyl was introduced to B-ring. They were tentatively interpreted as 5,4′-dimethygenistein and 7,4′-dimethygenistein.
M6, M11, and M15 with their retention times of 4.56, 4.88, and 5.11 min separately, were 176 Da higher than that of genistein. They exhibited the same molecular ion at m/z 445.0765 ([C21H17O11]−, error within ±3.50 ppm) and showed the NLF of 176 Da (m/z 445 → m/z 269) in their ESI-MS2 spectra, which indicated the presence of glucuronidation group. Meanwhile, the mass fragmentation behaviors of m/z 269 were similar to those of genistein, which provided adequate evidence that they were genistein-O-glucuronides. Due to the structure of genistein, there were three sites that might accomodate glucose aldehyde acidification. So M6, M11, and M15 were provisionally characterized as 5-O-glucuronide-genistein, 7-O-glucuronide-genistein, and 4′-O-glucuronide-genistein based on their Clog P values.
Metabolites M2, M19, and M22, whose elution times were 3.96, 5.83, and 6.38 min, were 80 Da higher than that of genistein in negative ion mode, which indicated the occurrence of sulfonation reaction. In its MS/MS2 spectrum, the DPI at m/z 269 was detected due to the NLF of 80 Da from the parent ion at m/z 349 and in its MS/MS3 spectrum, the similar characteristic fragments with genistein were observed, which all indicated that the three metabolites were the sulfonation products of genistein. According to their Clog P values, they were briefly inferred to be 5-O-sulfate-genistein, 4′-O-sulfate-genistein, and 7-O-sulfate-genistein, respectively.
Metabolites M18 and M23 were eluted at 5.82 and 6.53 min, respectively, and produced the same theoretical [M − H]− ion at m/z 285.0393 (C15H9O6, error within ±2.50 ppm) in negative ion mode, which were 16 Da higher than that of genistein. Thus they were supposed to be hydroxylation products of genistein due to the similar fragmentation behaviors. The DPI at m/z 153 (RDA rearrangement occurred on positions 1 and 3 of C-ring) of M23 in positive ion mode, indicating that the hydroxyl group was added to the B-ring, which was deduced as 3′-hydroxygenistein [35]. M18 was provisionally characterized as 8-hydroxygenistein on the basis of the calculated Clog P values [36]. M9, possessed the same fragment ions (m/z 285, 257, 229, and 217) with M23 in negative ion mode, was 80 Da more than that of M23, manifesting the presence of sulfuric group.
M5, M10, and M14, whose retention times are 4.47, 4.85, and 5.11 min, were 162 Da more than that of hydroxylation of genistein, indicating they might be glucosylation products of hydroxylated genistein. The DPI at m/z 285 ([M − H − Glc]−) was yielded by a NLF of glucose moiety, which identified our hypothesis. Therefore, they were putatively identified as hydroxygenistein-O-glucoside.
M21, M33, M34, and M35 were eluted at 5.92, 6.31, 8.24, 8.46, and 8.79 min, respectively. M21 possessed a deprotonated molecule ion at m/z 299.0549 (C16H11O6, 2.89 ppm) and M33, M34, and M35 showed a protonated molecule ion at m/z 301.0706 (C16H13O6, error within ±2.50 ppm). The NLF of 30 Da (CH3O) was observed in the ESI-MS2 spectra of M21, which indicated that it was a product of O-methoxygenistein. In the ESI-MS3 spectra, the similar characteristic ions were tested with genistein, further confirming our speculation. The DPIs of M33, M34, and M35 were m/z 286 by loss of 15 Da (CH3) and m/z 258 via a NLF of 28 Da (CO), suggesting that they were the methylation of hydroxylated genistein.
The ion at m/z 153 of M34 and M35 were produced by RDA rearrangement occurred on positions 1 and 3 of C-ring, suggesting that hydroxylation and methylation were occurred on B-ring. Therefore they were identified as 3′-hydroxyl-4′-O-methylgenistein and 3′-methoxylgenistein, respectively. The fragment ion at m/z 168 of M33 indicated that hydroxyl was attributed to A-ring.
M25, 14 Da more than that of M34, presented a protonated molecule ion at m/z 315.0856 (C17H15O6, −2.36 ppm) with the retention time of 6.98 min. The DPI at m/z 300 with the loss of CH3 and m/z 167 produced by the RDA rearrangement occurred on positions 1 and 3 provided the evidence for identifying the metabolite. In addition, the fragmentation behaviour was similar with M34. Hence we deemed M25 was the methylated product of M34 with the methyl group attaching to A-ring.
M26, M27, and M29-M32 were the cleavage products of genistein by losing different groups. The metabolite M27 with the quasi-molecular ion at m/z 215.0697 (C13H11O3, −2.65 ppm) was discovered at 7.97 min in the ESI-MS1 spectra. In the MS2, the base peak of m/z 197 was generated by loss of C2H2O3 (2CO + H2O). Based on the possible metabolic path, its structure was suspected as showed in Table 1. In negative ion mode, M26 and M32 showed the [M − H]− at m/z 201.0553 (C12H9O3, 3.38 ppm) and 201.0552 (C12H9O3, 2.78 ppm), respectively. The characteristic fragment ions were m/z 173, 159, 157, and 133 by loss of CO, C2H2O, CO2, and C4H4O. According to the above data, both compounds were decided as showed in Table 1.
M29 (C14H9O3) and M30 (C14H9O4) were generated via the loss of CO2 and CO at ring C, yielding [M − H − CO2] (m/z 225.0546, −0.09 ppm) and [M − H − CO] (m/z 241.0494, −0.52 ppm), respectively. Both ions possessed stable structures with a basic phenanthrene framework. The same fragmentation behaviour with genistein in negative ion mode supported our speculation. Different from M29 and M30, M31 was formed by the loss of C2H2O occurred at ring A, which was confirmed by its further fragmentation behavior with losing CO2, CO, and CO + CO2. Therefore, the structures were showed in Table 1.

2.4.2. Identification of Metabolites with the Templates of Daidzin and Daidzein

M40, M45, and M48 gave a deprotonated ion at m/z 253.0495 (C15H9O4, error within ±4.00 ppm), which were eluted at 3.85, 4.82, and 6.33 min, respectively. By comparing the chromatographic retention time and MS/MS spectra, M48 was positively identified as daidzein. Due to the similar fragmentation behaviours with M48, we conjectured M40 and M45 were the isomerides of daidzein.
M41 and M44 were 162 Da higher than daidzein, indicating that they were the glucoside conjugate of daidzein. In the MS2, one fragment ion, m/z 255, was formed by the loss of the glucose moiety from the precursor ion. In the MS3, the neutral losses of CO, 2CO, and C8H6O from m/z 255 were observed and the corresponding fragment ions at m/z 227, 199, and 137 were generated, respectively. Based on the reference compound, M41 was hopefully identified as daidzin, therefore M44 was deduced as 4′-glucoside-daidzein and the calculated Clog P value further confirmed our guess. M43, showed the [M − H]− ion at m/z 461.1091 (C22H21O11, 2.80 ppm), was 46 Da more than daidzin and the highest product ion at m/z 253 was found in the mass spectrum of MS2. The second highest product ion at m/z 415 was formed via the loss of CH2O2. Hence we suspected the structure of M43 as showed in Table 1.
M42 exhibited a protonated ion at m/z 431.0973 (C21H19O10, −2.44 ppm), which was 176 Da higher than that of daidzein. MS2 gave the base peak of m/z 255 via loss of a glucuronide moiety (176 Da) from m/z 431. In the MS3 spectrum of M42, the m/z 255 ion yielded specific ions at m/z 199, 137, 227, and 145 due to the loss of 2CO, C8H6O, CO, and C6H6O2. Therefore M42 was supposed as the daidzein-O-glucuronide. The MS2 of M46 ([M + H]+, m/z 335.0208) generated the fragment ion at m/z 255 by the NLF of 80 Da and the fragmentation behaviour of m/z 255 was similar with daidzein by losing 2CO, C8H6O, CO, and C6H6O2, so we proposed that M46 was O-sulfate-daidzein.
M50, eluted at 9.92 min, was 14 Da higher than daidzein in positive ion mode, manifesting that it might be a methylated product of daidzein. The DPIs at m/z 254 (100%), 237 (46%), and 213 (37%) were generated by the NLFs of CH3, CH4O (H2O + CH2), and 2CO. Because of two active sites existed in daidzein, M50 was putatively appraised as O-methyldaidzein.
M47 was eluted at 6.31 min with a deprotonated [M − H]− ion at m/z 299.0549 (C16H11O6, −0.48 ppm). It was 46 Da higher than that of daidzein, showing that there was a CH2O2 more than daidzein in molecular composition. The DPIs at m/z 253, 225, and 224 offered the evidence to support our guess. The ion at m/z 163 was formed by RDA rearrangement which occurred on positions 0 and 3 on C-ring, which indicated that the CH2O was attached to B-ring as shown in Table 1 [36].
Metabolite M49 with a protonated [M + H]+ ion at m/z 227.0698 (C14H11O3, −2.16 ppm), was eluted at 6.34 min. The DPI at m/z 199 was found in the mass spectrum of MS2 by the NLF of CO with no other characteristic ions observed. So it was putatively identified as the decarbonylation product of daidzein.

2.4.3. Identification of Metabolites with the Templates of Puerarin

M51, possessed the deprotonated [M − H]− ion at 415.1036 (C21H19O9, 2.94 ppm), was 162 Da more than that of daidzein with the retention time of 3.49 min. It was definitely identified as puerarin by comparing with the information of the standard.

2.4.4. Identification of Metabolites with the Template of Hydrogenated Genistein

M53, M56, and M57 were detected at 5.13, 7.64, and 8.03 min and possessed the same [M + H]+ ion at m/z 273.0758 (C15H13O5, error within ±3.00 ppm), which were 2 Da higher than that of genistein. In their ESI-MS2 spectra, DPIs of M53 and M56 at m/z 255 ([M + H − H2O]+) and m/z 245 ([M + H − CO]+) were found and m/z 153 of M57 was also detected via RDA rearrangement occurred on positions 1 and 3. So we suspected that they were hydrogenated products of genistein and its isomers.
The two compounds of M52 and M55 showed [M + H]+ at m/z 287.0915 (C16H15O5, error within ±2.80 ppm), respectively, with 14 Da more than that of hydrogenated genistein. The quasi-molecular ion at m/z 287 presented the base peak at m/z 259 via the loss of 28 Da, while the base peak of M55 at m/z 272 was produced via a loss of 15 Da, so we deduced that M52 and M55 were the C-methylated product and O-methylated product of genistein, respectively. M54, yielding the accurate [M + H]+ at m/z 303.0870, was 30 Da more than that of hydrogenated genistein. The product ions at m/z 285 (87%) and 257 (22%) were generated by the loss of H2O and H2O + CO. There was no other more information, so M54 was putatively considered as a product of C-methyl-hydroxylation of genistein.

2.4.5. Identification of Metabolites with the Template of Hydrogenated Daidzein

M58 was 2 Da higher than that of daidzein, which indicated that it might be hydrogenation product of daidzein. The most abundant fragment at m/z 149 in the spectra of M58 in negative ion mode was a result of RDA reaction occurred on the positions 2 and 3. The DPI at m/z 135 was generated by RDA rearrangement occurred between positions 1 and 3, further conforming our conjecture.

2.4.6. Identification of Metabolites with the Template of Equol

M60, eluted at 5.23 min, gave rise to its [M + H]+ ion at m/z 243.1008 (C15H15O3, −3.05 ppm). The observed DPI of m/z 123 was generated by RDA rearrangement which occurred on positions 1 and 3 on C-ring. Therefore, M60 was putatively identified as equol [37].
M61 was 32 Da more than that of M60, indicating M61 might be the dihydroxylated product of M60. In the ESI-MS2 spectra, the corresponding base peak at m/z 151 was generated by losing 124 Da (C6H4O3). The fragmentation ions of the subsequent MS3 of m/z 151 were similar with equol [37], which was consistent with our guess.
M59, possessing deprotonated [M − H]− ion at 417.1194 (C21H21O9, 3.38 ppm), was eluted at 5.20 min, which was 176 Da higher than M60. Due to there was no other characteristic ions, M59 was guessed as the product of glucose aldehyde acidification of equol.

2.4.7. Identification of Metabolites with the Template of O-Desmethylangolensin

M62 possessed the [M − H]− ion at m/z 257.0817 (C15H13O4, 3.48 ppm) with the retention time at 9.60 min. It was 4 Da more than that of daidzein, which indicated that it might be a dihydrogenation product of daidzein. In its ESI-MS2 spectrum, DPIs at m/z 163 ([M − H − C6H6O]−, produced by RDA rearrangement occurred on positions 3 and 1′) and m/z 109 ([M − H − C9H8O2]−, formed by RDA rearrangement occurred on positions 4 and 10) indicated it should be O-desmethylangolensin.
M63, eluted at 9.63 min, gave rise to its [M − H]− ion at m/z 287.0922 (C16H15O5, 2.86 ppm). In the MS2, the loss of CH3 formed the characteristic ion at m/z 272. Then the MS3 of m/z 272 presented the specific fragment ion at m/z 151 via RDA rearrangement occurred on positions 1 and 3. According to the possible metabolic path, the methyl group was attached to 4′-OH to get the hydroxylation and methylation product of M62.

2.5. Proposed Metabolic Pathways of Genistin−

In our study, a total of 64 metabolites (parent drug included) were found in rats after oral administration of genistin. The proposed metabolic pathways of genistin are illustrated in Figure 7. There was a series of metabolic reactions including methylation, hydrogenation, hydroxylation, glucosylation, glucuronidation, sulfonation, acetylation, ring cleavage and their composite reactions in vivo biotransformation. In addition, it should be noted that some cracked ring and rearrangement products were produced, such as M26, M27, M29–M32, and M49. Furthermore some special products were detected which some methyl groups were introduced to carbon rings, such as M3 and M7.

3. Materials and Methods

3.1. Chemicals and Reagents

Genistin, genistein, daidzin, daidzein, and puerain were commercially provided by Chengdu Must Biotechnology Co., Ltd. (Chengdu, Sichuan, China). These five reference standards with the purity higher than 98% were applicable to UHPLC-LTQ-Orbitrap analysis. Acetonitrile, methanol, and formic acid (HPLC grade) used in the mobile phase were obtained from Fisher Scientific (Fair Lawn, NJ, USA). In addition, the other reagents and solvents met the requirements of analytical experiments, which were from Beijing Chemical Works (Beijing, China). The ultrapure water was derived from Milli-Q Gradient Å 10 water purification system (Millipore, Billerica, MA, USA). Grace PureTM SPE C18-Low solid-phase extraction (SPE) cartridges (200 mg/3mL, 59 μm, 70 Å) for solid phase pretreatment of biological samples were supplied by Grace Davison Discovery Science™ (Deerfield, IL, USA).

3.2. Animals and Drug Administration

Eight SD rats (male, 200–240 g) were purchased from Beijing Weitong Lihua Experimental Animals Company (Beijing, China) and kept under controlled environmental conditions (temperature: 22–26 °C, relative humidity: 65–75%, day and night alternation time: 12-h light/dark cycle) with free food intake and water consumption. After one week of acclimatization, rats were randomly divided into two groups (n = 4 each): Drug Group and Control Group. The standard of genistin was suspended in 0.5% sodium carboxymethyl cellulose (CMC-Na) solution. The Drug Group was orally administered genistin (350 mg/kg), while Control Group was given equivalent 0.5% CMC-Na solution by oral gavage. Before the experiment, all the rats were fasted for 12 h but free drinking water. All procedures were conducted according to the guidelines of Animal Care and Use Committee of Beijing University of Chinese Medicine and Guide for the Care and Use of Laboratory Animals of the US National Institutes of Health.

3.3. Sample Collection and Preparation

3.3.1. Plasma Sample Collection

After oral administration, the blood samples were taken from the suborbital venous plexus of the rats in Drug Group at 0.5, 1, 1.5, 2, and 4 h with blood volume of about 0.5 mL. The obtained blood samples were placed in the anticoagulant EP tubes of heparin sodium. After resting for 10 min, each blood sample was centrifuged for 15 min (3500 rpm, 4 °C) and all the blood supernatants in Drug Group were merged into a collective one to get the test plasma containing the drug. The blank plasma sample was from Control Group and the method of collection was the same as the test samples. The above plasma samples were stored at −80 °C.

3.3.2. Urine Sample Collection

Urine samples from 0 to 24 h of each rat in Drug Group were collected by using separate metabolic cages after administration. Each urine sample was centrifuged for 15 min (3500 rpm, 4 °C) and all the urine supernatants in Drug Group were mixed to obtain urine test sample. The blank urine was from Control Group and the method of collection was the same as the test samples. The above urine samples were stored at −80 °C.
Finally we used the SPE method to pretreat all biological samples, which was a method for precipitation and concentration of protein and solid residues. The SPE cartridges were pre-activated with 5 mL of methanol and 5 mL of deionized water and then 1 mL of plasma and urine samples were added. At last the cartridges were eluted by 5 mL of deionized water and 3 mL of methanol orderly. The methanol eluent was collected and dried under N2 at room temperature. The residue was then redissolved in 80 μL 10% acetonitrile solution and centrifuged for 30 min (13,500 rpm, 4 °C). The supernatant was used for subsequent analysis.

3.4. Instruments and Analytical Conditions

An UHPLC-LTQ-Orbitrap mass spectrometer (Thermo Scientific, Bremen, Germany) coupled with an ESI source was used to identify metabolites. The separation of samples was performed on a Waters ACQUITY BEH C18 column (2.1 mm × 100 mm i.d., 1.7 μm; Waters Corporation, Milford, MA, USA). The mobile phase consisted of 0.1% formic acid aqueous solution (A) and acetonitrile (B), and the linear gradient procedure was described as follows: 0–2 min, 5–20% B; 2–27 min, 20–85% B; 27–30 min, 85% B. The column temperature was set at 30 °C, and the flow rate was 0.3 mL/min with 2 μL of the injection volume.
The optimized operating parameters were set as follows: capillary temperature, 350 °C; electrospray voltage, 3.5 kV; sheath gas, 35 arb; auxiliary gas, 10 arb; and probe heater temperature, 300 °C. The metabolites were detected by full-scan mass analysis from m/z 100–1000 with a resolution of 30,000 under positive ion and negative ion modes. The MS2 and MS3 analysis were based on the data dependent scan, and the three most abundant ions from the precursor list were selected for collision induced dissociation (CID). The collision energy was adjusted to 40% of maximum to minimize the total analysis time. The dynamic exclusion (DE) was used to prevent duplication. The repeat count was set at 5 and the dynamic repeat time was 30 s with the dynamic exclusion duration at 60 s. Furthermore, MSn stages of the obtained data sets were obtained by the parent ion list (PIL)-DE dependent acquisition mode.

3.5. Data Processing

The collected data sets were recorded and processed by Thermo Xcalibur 2.1 workstation (Thermo Scientific, Bremen, Germany). In order to acquire as many fragment ions as possible, we selected the peaks with intensity over 10,000 under negative ion mode and 40,000 under positive ion mode to identify the metabolites. Based on the accurate mass and considering the potential element compositions and the occurrence of possible reactions, the types and number of the predicted atoms were set as follows: C [0–35], H [0–50], O [0–25], S [0–2], N [0–3], and ring double bond (RDB) equivalent value [0–15]. The maximum mass errors between the measured and the calculated values were fixed within 5 ppm.

4. Conclusions

In the present study, a single oral administration of genistin to SD rats was used to study the metabolic profile of genistin in urine and plasma both in positive and negative ion modes. Different from the previous researches, the multiple metabolite templates were set up to assist in data processing combining with DPIs and calculated Clog P values. First, based on the ten metabolite templates, 101 metabolites including the prototype drug were found and confirmed positively or ambiguously according to the fragmentation patterns, accurate mass measurements, chromatographic retention times and relevant drug biotransformation knowledge. Among them, 47 metabolites were found according to the templates of genistin and genistein, which was the same as the previous research method. After using the other metabolite templates, many more metabolites were added, among which 24 metabolites were detected with the templates of daidzin and daidzein. Taking puerarin as a template, only one metabolite was found in vivo. There were also six metabolites on the basis of the template of dihydrodaidzein. Moreover, 16 metabolites with the template of hydrogenated genistein (including dihydrogenistein and tetrahydrogenistein), three metabolites based on the template of equol and four metabolites with O-desmethylangolensin as the template were identified respectively. After deleting the same metabolites, a total of 64 metabolites (including the parent drug) were left. The metabolite templates and the number of corresponding metabolites were as follows: genistin and genistein (40 metabolites), daidzin and daidzein (11 metabolites), puerarin (one metabolite), dihydrodaidzein (one metabolite), hydrogenated genistein (six metabolites), equol (three metabolites), and O-desmethylangolensin (two metabolites). The results demonstrated that genistin mainly underwent methylation, hydrogenation, hydroxylation, glucuronide conjugation, sulfate conjugation, acetylation, ring-cleavage and their composite reactions in vivo biotransformation. In conclusion, our research not only revealed the metabolites of genistein in vivo roundly, but also proposed an integrated strategy based on multiple metabolite templates to screen and identify the metabolites of natural compounds roundly. Meanwhile, an effective method based on the multiple metabolite templates combined with UHPLC-LTQ-Orbitrap mass spectrometer was established for screening metabolites.

Author Contributions

J.Z. conceived and designed the experiments; Z.W. (Zhibin Wang) supervised the experimental plan; W.Z., and Z.W. (Zijian Wang) performed the experiments; Y.L. and C.W. analyzed the data; Y.L. wrote the paper; J.Z. and Z.W. (Zhibin Wang) reviewed the manuscript; all authors read and approved the final manuscript.

Funding

This work was supported by the Beijing Nova Program (No. Z171100001117029) and the Open Project Program of Shanxi Key Laboratory of Chinese Medicine Encephalopathy (Grant No. CME-OP-2017002).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, C.H.; Yang, L.; Xu, J.Z.; Venus, Y.S.Y.; Huang, Y.; Chen, Z.Y. Relative antioxidant activity of soybean isoflavones and their glycosides. Food Chem. 2005, 90, 735–741. [Google Scholar] [CrossRef]
  2. Rekha, C.R.; Vijayalakshmi, G. Influence of natural coagulants on isoflavones and antioxidant activity of tofu. J. Food Sci. Technol. 2010, 47, 387–393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Villares, A.; Rostagno, M.A.; Garcia-Lafuente, A.; Guillamon, E.; Martinez, J.A. Content and profile of isoflavones in soy-based foods as a function of the production process. Food Bioprocess Technol. 2009, 4, 27–38. [Google Scholar] [CrossRef]
  4. Zhao, J.H.; Arao, Y.; Sun, S.J.; Kikuchi, A.; Kayama, F. Oral administration of soy-derived genistin suppresses lipopolysaccharide-induced acute liver inflammation but does not induce thymic atrophy in the rat. Life Sci. 2006, 78, 812–819. [Google Scholar] [CrossRef] [PubMed]
  5. Spagnuolo, C.; Russo, G.L.; Orhan, I.E.; Habtemariam, S.; Daglia, M.; Sureda, A.; Nabavi, S.F.; Devi, K.P.; Loizzo, M.R.; Tundis, R.; et al. Genistein and cancer: Current status, challenges, and future directions. Adv. Nutr. 2015, 6, 408–419. [Google Scholar] [CrossRef] [PubMed]
  6. Gu, M.; Zheng, A.B.; Jin, J.; Cui, Y.; Zhang, N.; Che, Z.P.; Wang, Y.; Zhan, J.; Tu, W.J. Cardioprotective Effects of Genistin in Rat Myocardial Ischemia-Reperfusion Injury Studies by Regulation of P2X7/NF-κB Pathway. Evid. Based Complement. Altern. Med. 2016, 2016, 5381290. [Google Scholar] [CrossRef] [PubMed]
  7. Russo, A.; Cardile, V.; Lombardo, L.; Vanella, L.; Acquaviva, R. Genistin inhibits UV light-induced plasmid DNA damage and cell growth in human melanoma cells. J. Nutr. Biochem. 2006, 17, 103–108. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, M.L.; Bi, C.W.; Kong, A.Y.; Dong, T.T.; Wong, Y.H.; Tsim, K.W. Flavonoids induce the expression of acetylcholinesterase in cultured osteoblasts. Chem. Biol. Interact. 2016, 259, 295–300. [Google Scholar] [CrossRef] [PubMed]
  9. Klein, C.B.; King, A.A. Genistein genotoxicity: Critical considerations of in vitro exposure dose. Toxicol. Appl. Pharmacol. 2007, 224, 1–11. [Google Scholar] [CrossRef] [PubMed]
  10. Touny, L.H.; Banerjee, P.P. Identification of both Myt-1 and Wee-1 as necessary mediators of the p21-independent inactivation of the Cdc-2/cyclin B1 complex and growth inhibition of TRAMP cancer cells by genistein. Prostate 2006, 66, 1542–1555. [Google Scholar] [CrossRef] [PubMed]
  11. Snyder, R.D.; Gillies, P.J. Reduction of genistein clastogenicity in Chinese hamster V79 cells by daidzein and other flavonoids. Food Chem. Toxicol. 2003, 41, 1291–1298. [Google Scholar] [CrossRef]
  12. Ramos, S. Effects of dietary flavonoids on apoptotic pathways related to cancer chemoprevention. J. Nutr. Biochem. 2007, 18, 427–442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Meena, R.; Supriya, C.; Pratap, R.K.; Sreenivasula, R.P. Altered spermatogenesis, steroidogenesis and suppressed fertility in adult male rats exposed to genistein, a non-steroidal phytoestrogen during embryonic development. Food Chem. Toxicol. 2017, 99, 70–77. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, Y.; Ren, Y.; Jiao, J.; Li, D.; Zhang, Y. Ultra high-performance liquid chromatography-tandem mass spectrometry for the simultaneous analysis of asparagine, sugars, and acrylamide in Maillard Reactions. Anal. Chem. 2011, 83, 3297–3304. [Google Scholar] [CrossRef] [PubMed]
  15. Ma, Y.L.; Qin, H.L.; Liu, W.J.; Peng, J.Y.; Huang, L.; Zhao, X.P.; Cheng, Y.Y. Ultra-high performance liquid chromatography-mass spectrometry for the metabolomic analysis of urine in colorectal cancer. Dig. Dis. Sci. 2009, 54, 2655–2662. [Google Scholar] [CrossRef] [PubMed]
  16. Grata, E.; Guillarme, D.; Glauser, G.; Boccard, J.; Carrupt, P.A.; Veuthey, J.L.; Rudaz, S.; Wolfender, J.L. Metabolite profiling of plant extracts by ultrahigh-pressure liquid chromatography at elevated temperature coupled to time-of-flight mass spectrometry. J. Chromatogr. 2009, 1216, 5660–5668. [Google Scholar] [CrossRef] [PubMed]
  17. Soldi, M.; Cuomo, A.; Bonaldi, T. Improved bottom-up strategy to efficiently separate hypermodified histone peptides through ultra-HPLC separation on a bench top Orbitrap instrument. Proteomics 2014, 14, 2212–2225. [Google Scholar] [CrossRef] [PubMed]
  18. Jia, W.; Ling, Y.; Lin, Y.; Chang, J.; Chu, X. Analysis of additives in dairy products by liquid chromatography coupled to quadrupole-orbitrap mass spectrometry. J. Chromatogr. A 2014, 1336, 67–75. [Google Scholar] [CrossRef] [PubMed]
  19. Fornelli, L.; Ayoub, D.; Aizikov, K.; Beck, A.; Tsybin, Y.O. Middle-down analysis of monoclonal antibodies with electron transfer dissociation orbitrap fourier transform mass spectrometry. Anal. Chem. 2014, 86, 3005–3012. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, F.; Cao, G.S.; Li, Y.; Xu, L.L.; Wang, Z.B.; Liu, Y.; Lu, J.Q.; Zhang, J.Y. Characterization of forsythoside A metabolites in rats by a combination of UHPLC-LTQ-Orbitrap mass spectrometer with multiple data processing techniques. Biomed. Chromatogr. 2018, 32, e4164. [Google Scholar] [CrossRef] [PubMed]
  21. Shang, Z.P.; Wang, F.; Dai, S.Y.; Lu, J.Q.; Wu, X.D.; Zhang, J.Y. Profiling and identification of (−)-epicatechin metabolites in rats using ultra-high performance liquid chromatography coupled with linear trap-Orbitrap mass spectrometer. Drug Test Anal. 2017, 9, 1224–1235. [Google Scholar] [CrossRef] [PubMed]
  22. Tchoumtchoua, J.; Njamen, D.; Mbanya, J.C.; Skaltsounis, A.L.; Halabalaki, M. Structure-oriented UHPLC-LTQ Orbitrap-based approach as a dereplication strategy for the identification of isoflavonoids from Amphimas pterocarpoides crude extract. J. Mass Spectrom. 2013, 48, 561–575. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, B.; Deng, Y.; Hou, J.; Bi, Q.; Yang, M.; Jiang, B.; Liu, X.; Wu, W.; Guo, D. UHPLC-LTQ-Orbitrap MS combined with spike-in method for plasma metabonomics analysis of acute myocardial ischemia rats and pretreatment effect of Danqi Tongmai tablet. Mol. Biosyst. 2015, 11, 486–496. [Google Scholar] [CrossRef] [PubMed]
  24. Shang, Z.P.; Cai, W.; Cao, Y.F.; Wang, F.; Wang, Z.B.; Lu, J.Q.; Zhang, J.Y. An integrated strategy for rapid discovery and identification of the sequential piperine metabolites in rats using ultra high-performance liquid chromatography/high resolution mass spectrometery. J. Pharm. Biomed. Anal. 2017, 146, 387–401. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, J.F.; Song, Y.L.; Guo, X.Y.; Tu, P.F.; Jiang, Y. Characterization of the herb-derived components in rats following oral administration of Carthamus tinctorius extract by extracting diagnostic fragment ions (DFIs) in the MSn chromatograms. Analyst 2014, 139, 6474–6485. [Google Scholar] [CrossRef] [PubMed]
  26. Li, Y.F.; Ren, Q.; Jin, Y.; Wu, C.S.; Wang, C.H.; Jia, Z.X.; Zhang, J.L. Metabolic studies of four soy isoflavones in rats by HPLC-HR-MS. J. Asian Nat. Prod. Res. 2014, 16, 497–510. [Google Scholar] [CrossRef] [PubMed]
  27. Hosoda, K.; Furuta, T.; Yokokawa, A.; Ogura, K.; Hiratsuka, A.; Ishii, K. Plasma profiling of intact isoflavone metabolites by high-performance liquid chromatography and mass spectrometric identification of flavone glycosides daidzin and genistin in human plasma after administration of kinako. Drug Metab. Dispos. 2008, 36, 1485–1495. [Google Scholar] [CrossRef] [PubMed]
  28. Hosoda, K.; Furuta, T.; Ishii, K. Metabolism and disposition of isoflavone conjugated metabolites in humans after ingestion of kinako. Drug Metab. Dispos. 2011, 39, 1762–1767. [Google Scholar] [CrossRef] [PubMed]
  29. Hosoda, K.; Furuta, T.; Ishii, K. Simultaneous determination of glucuronic acid and sulfuric acid conjugated metabolites of daidzein and genistein in human plasma by high-performance liquid chromatography. J. Chromatogr. B 2010, 878, 628–636. [Google Scholar] [CrossRef] [PubMed]
  30. March, R.E.; Miao, X.S.; Metcalfe, C.D.; Stobiecki, M.; Marczak, L. A fragmentation study of an isoflavone glycoside, genistein-7-O-glucoside, using electrospray quadrupole time-of-flight mass spectrometry at high mass resolution. Int. J. Mass Spectrom. 2004, 232, 171–183. [Google Scholar] [CrossRef]
  31. Kang, J.; Hick, L.A.; Price, W.E. A fragmentation study of isoflavones in negative electrospray ionization by MSn ion trap mass spectrometry and triple quadrupole mass spectrometry. Rapid Commun. Mass Spectrom. 2007, 21, 857–868. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Y.H.; Dai, H.X.; Li, X.R.; Wang, L.J.; Xue, M. Analysis Fragment Pathway of Puerarin by Electron Spray Ionization Mass Spectrometry. J. Chin. Mass Spectrom. Soc. 2007, 28, 224–228. [Google Scholar]
  33. Shang, Z.P.; Xin, Q.; Zhao, W.J.; Wang, Z.; Li, Q.; Zhang, J.; Cong, W. Rapid profiling and identification of puerarin metabolites in rat urine and plasma after oral administration by UHPLC-LTQ-Orbitrap mass spectrometer. J. Chromatogr. B 2017, 1068–1069, 180–192. [Google Scholar] [CrossRef] [PubMed]
  34. Yao, D.; Wang, Y.; Huo, C.; Wu, Y.; Zhang, M.; Li, L.; Shi, Q.; Kiyota, H.; Shi, X. Study on the metabolites of isoalantolactone in vivo and in vitro by ultra performance liquid chromatography combined with Triple TOF mass spectrometry. Food Chem. 2017, 214, 328–338. [Google Scholar] [CrossRef] [PubMed]
  35. Pandey, B.P.; Lee, N.; Choi, K.Y.; Jung, E.; Jeong, D.H.; Kim, B.G. Screening of bacterial cytochrome P450s responsible for regiospecific hydroxylation of (iso)flavonoids. Enzyme Microb. Technol. 2011, 48, 386–392. [Google Scholar] [CrossRef] [PubMed]
  36. Kulling, S.E.; Honig, D.M.; Simat, T.J. Oxidative in vitro metabolism of the soy phytoestrogens daidzein and genistein. J. Agric. Food Chem. 2000, 48, 4963–4972. [Google Scholar] [CrossRef] [PubMed]
  37. Muthyala, R.S.; Ju, Y.H.; Sheng, S.; Williams, L.D.; Doerge, D.R.; Katzenellenbogen, B.; Helferich, W.G.; Katzenellenbogen, J.A. Equol, a natural estrogenic metabolite from soy isoflavones: Convenient preparation and resolution of R- and S-equols and their differing binding and biological activity through estrogen receptors alpha and beta. Bioorgan. Med. Chem. 2004, 12, 1559–1567. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 01862 g001 550

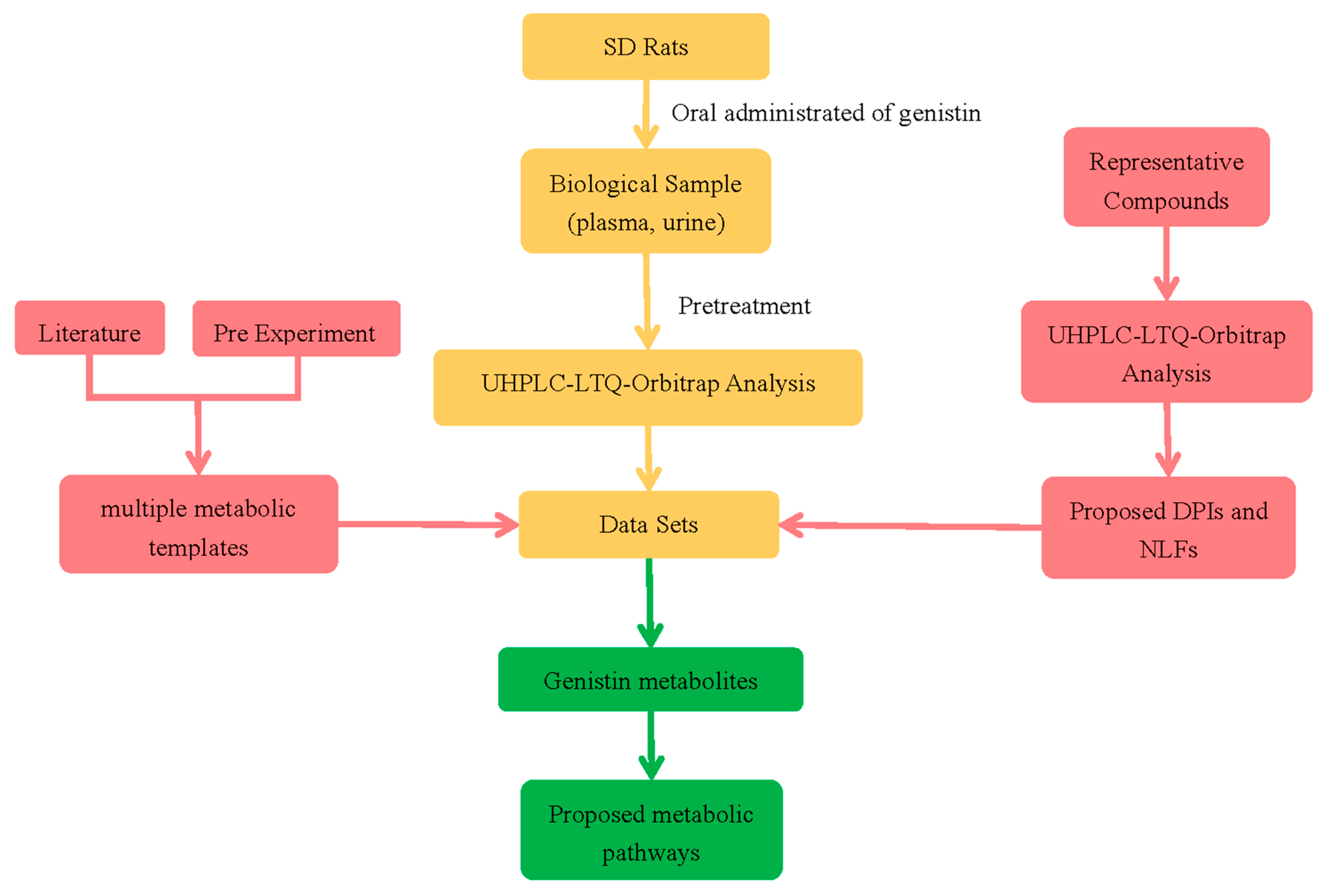

Figure 1. The summary diagram of analytical strategy for detection and identification of genistin metabolites.
Figure 1. The summary diagram of analytical strategy for detection and identification of genistin metabolites.
Molecules 23 01862 g001
Molecules 23 01862 g002 550

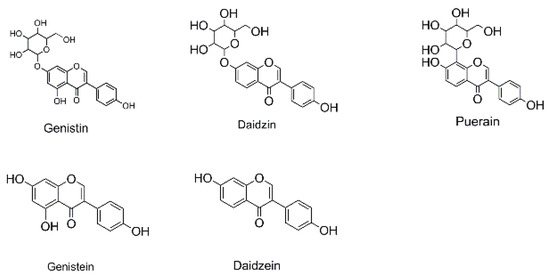

Figure 2. The chemical structures of the five reference standards.
Figure 2. The chemical structures of the five reference standards.
Molecules 23 01862 g002
Molecules 23 01862 g003 550

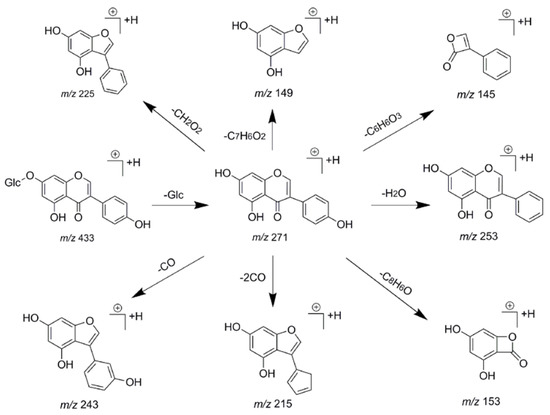

Figure 3. The fragmentation behavior of genistin in positive ion mode.
Figure 3. The fragmentation behavior of genistin in positive ion mode.
Molecules 23 01862 g003
Molecules 23 01862 g004 550

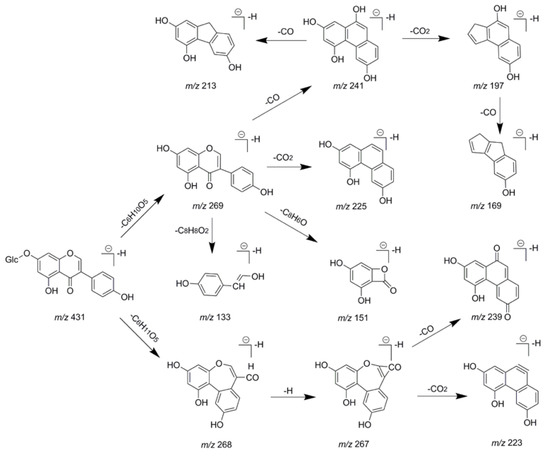

Figure 4. The fragment behaviors of genistin in negative ion mode.
Figure 4. The fragment behaviors of genistin in negative ion mode.
Molecules 23 01862 g004
Molecules 23 01862 g005 550

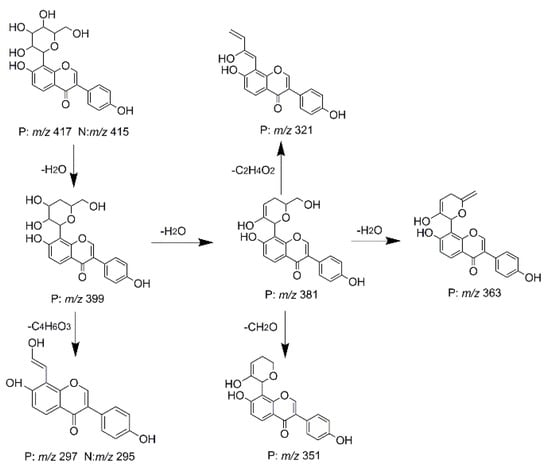

Figure 5. The fragmentation patterns of puerarin (P for the positive ion mode and N for the negative ion mode).
Figure 5. The fragmentation patterns of puerarin (P for the positive ion mode and N for the negative ion mode).
Molecules 23 01862 g005
Molecules 23 01862 g006 550

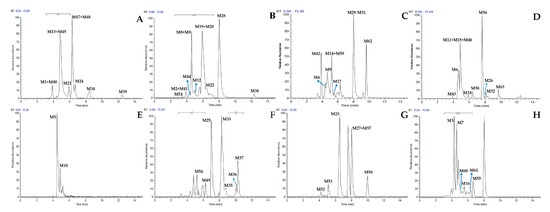

Figure 6. High resolution extracted ion chromatograms of genistin metabolites ((A–E) for negative ion mode and (F–H) for positive ion mode): (A) m/z 253.0495, 283.0600, 299.0549, 447.0922; (B) m/z 269.0444, 349.0012, 415.1023, 431.0972; (C) m/z 225.0546, 227.0340, 241.0495, 257.0809, 364.9961, 417.1181, 429.0815, 447.0922, 473.1079, 593.1501; (D) m/z 201.0570, 255.0652, 271.0601, 285.0393, 287.0913, 333.0063, 445.0765, 461.1078; (E) m/z 447.0922; (F) m/z 227.0703, 299.0903, 301.0706, 303.0863, 315.0864; (G) m/z 215.0702, 269.0803, 273.0758, 287.0550, 287.0915; (H) m/z 243.1016, 271.0601, 275.0908, 285.0757, 287.0915.
Figure 6. High resolution extracted ion chromatograms of genistin metabolites ((A–E) for negative ion mode and (F–H) for positive ion mode): (A) m/z 253.0495, 283.0600, 299.0549, 447.0922; (B) m/z 269.0444, 349.0012, 415.1023, 431.0972; (C) m/z 225.0546, 227.0340, 241.0495, 257.0809, 364.9961, 417.1181, 429.0815, 447.0922, 473.1079, 593.1501; (D) m/z 201.0570, 255.0652, 271.0601, 285.0393, 287.0913, 333.0063, 445.0765, 461.1078; (E) m/z 447.0922; (F) m/z 227.0703, 299.0903, 301.0706, 303.0863, 315.0864; (G) m/z 215.0702, 269.0803, 273.0758, 287.0550, 287.0915; (H) m/z 243.1016, 271.0601, 275.0908, 285.0757, 287.0915.
Molecules 23 01862 g006
Molecules 23 01862 g007 550

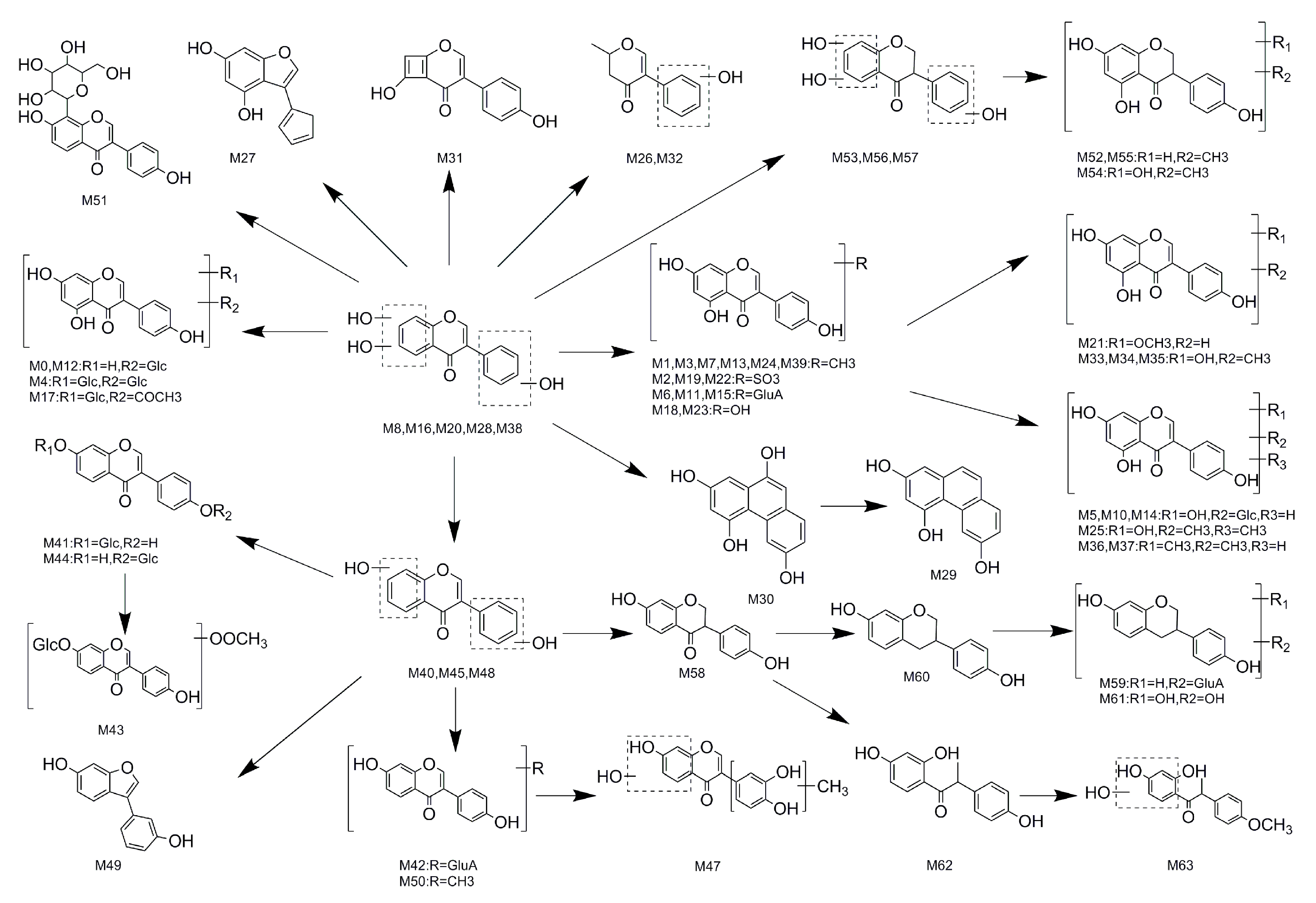

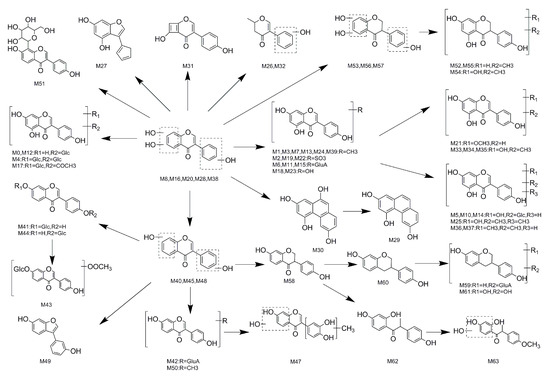

Figure 7. The proposed genistin metabolic patterns in vivo.
Figure 7. The proposed genistin metabolic patterns in vivo.
Molecules 23 01862 g007
Table
Table 1. Summary of genistin metabolites in rat urine and plasma by HPLC-LTQ-Orb.
Table 1. Summary of genistin metabolites in rat urine and plasma by HPLC-LTQ-Orb.
PeakIon ModetR/minFormulaTheoretical Mass m/zExperimental Mass m/zError (ppm)MS/MS Fragment IonsIdentification/ReactionsClog P ValueUP
M0P4.64C21 H21O10433.1129433.1119−2.34MS2[433]:271(100)
MS3[271]:153(100), 215(81), 243(66), 271(34), 253(28)		 Molecules 23 01862 i0010.91+−
N4.64C21H19O10431.0972431.09852.73MS2[431]:268(100), 269(75)
MS3[268]:267(100), 224(84), 223(62), 240(54), 239(42), 226(25)		+−
M1P3.93C16H13O5285.0757285.0752−1.93MS2[285]:270(100), 229(18), 225(14), 285(11), 170(11), 145(11)
MS3[270]:242(100), 152(16), 214(12)		 Molecules 23 01862 i0022.09+−
N3.93C16H11O5283.0600283.06113.43MS2[283]:268(100)
MS3[268]:240(100)		+−
M2N3.96C15 H9 O8 S349.0012349.00222.77MS2[349]:269(100) Molecules 23 01862 i003−0.06+−
M3P4.27C16H13O5285.0757285.0753−1.51MS2[285]:179(100), 165(21)
MS3[179]:151(100), 109(31), 111(30)		 Molecules 23 01862 i004-+−
M4P4.38C27H31O15595.1657595.1645−2.11MS2[595]:271(100), 433(62), 497(20)
MS3[271]:243(100), 215(97), 153(39)		 Molecules 23 01862 i005-+−
N4.38C27H29O15593.1501593.15132.05MS2[593]:269(100), 431(14)+−
M5P4.47C21H21O11449.1078449.1065−1.36MS2[449]:287(100), 272(45), 271(32), 433(14),273(13)
MS3[287]:187(100), 153(24), 259(3)		 Molecules 23 01862 i006-−+
N4.47C21H19O11447.0922447.09271.17MS2[447]:285(100)
MS3[285]:241(100), 243(98), 217(85), 175(71), 199(54), 285(50), 201(40), 151(19), 133(18)		−+
M6P4.56C21H19O11447.0922447.0910−2.59MS2[447]:271(100)
MS3[271]:153(100), 215(98), 243(75), 253(51), 149(38), 159(28)		 Molecules 23 01862 i007−0.47++
N4.56C21H17O11445.0765445.07792.95MS2[445]:269(100), 175(26)
MS3[269]:269(100), 224(37), 241(27), 197(25), 225(21), 181(17), 227(16), 213(14)		++
M7P4.59C16H13O5285.0757285.0752−2.07MS2[285]:165(100), 270(33), 191(18), 164(11)
MS3[165]:123(100), 137(66), 109(23), 141(20)		 Molecules 23 01862 i008-+−
M8P4.61C15H11O5271.0601271.0595−2.18MS2[271]:153(100), 215(78), 243(67), 253(37), 149(29), 159(18), 145(18), 271(17), 225(11) Molecules 23 01862 i009-++
N4.61C15H9O5269.0444269.04533.23MS2[269]:269(100), 181(57), 201(54), 225(52), 224(35), 197(29), 180(21)++
M9N4.64C15H9O9S364.9961364.99712.44MS2[365]:285(100)
MS3[285]:257(100), 176(56), 177(52), 243(37), 241(30), 229(26), 217(24)		 Molecules 23 01862 i010-+−
M10N4.85C21H19O11447.0922447.09271.03MS2[447]:284(100), 285(78), 255(15), 270(14), 327(12) Molecules 23 01862 i011-−+
M11P4.88C21H19O11447.0922447.0905−3.89MS2[447]:271(100)
MS3[271]:153(100), 215(95), 243(47), 149(32), 253(31), 145(19)		 Molecules 23 01862 i0120.43+−
N4.88C21H17O11445.0765445.07803.29MS2[445]:225(100), 201(63), 269(47), 181(38), 213(27), 197(27)++
M12N5.01C21H19O10431.0972431.09883.43MS2[431]:268(100), 269(30)
MS3[268]:223(100), 224(98), 267(75), 239(47), 240(41), 198(35)		 Molecules 23 01862 i013-+−
M13N5.02C16H11O5283.0600283.06092.97MS2[283]:268(100)
MS3[268]:240(100)		 Molecules 23 01862 i014-+−
M14N5.11C21H19O11447.0922447.09373.29MS2[447]:271(100), 285(21), 175(16), 403(10) Molecules 23 01862 i015-+−
M15N5.11C21H17O11445.0765445.07803.29MS2[445]:269(100), 175(15), 153(12)
MS3[269]:225 (100), 201(55), 241(28), 197(24), 269(18)		 Molecules 23 01862 i0160.43+−
M16P5.52C15H11O5271.0601271.0596−1.84MS2[271]:215(100), 153(82), 243(61), 149(38), 253(36), 159(20), 145(14), 225(13) Molecules 23 01862 i017-+−
M17N5.52C23H21O11473.1079473.10922.80MS2[473]:268(100), 269(66), 311(12) Molecules 23 01862 i018-+−
M18N5.82C15H9O6285.0393285.04002.37MS2[285]:217(100), 199(19), 241(16), 175(10) Molecules 23 01862 i0191.77+−
M19P5.83C15H11O8S351.0169351.0162−1.92MS2[351]:271(100), 333(21)
MS3[271]:153(100), 253(81), 215(63), 243(50), 159(32), 149(22), 197(12)		 Molecules 23 01862 i0200.84+−
N5.83C15H9O8S349.0012349.00232.94MS2[349]:269(100)
MS3[269]:225(100), 227(95), 175(51), 269(36), 241(32), 240(30), 197(24), 224(23)		+−
M20N5.92C15H9O5269.0444269.04543.68MS2[269]:225(100), 269(96), 181(71), 227(68), 201(54), 224(43), 197(41) Molecules 23 01862 i021-+−
M21N5.92C16H11O6299.0549299.05592.89MS2[299]:269(100)
MS3[269]:241(100), 224(48), 173(43), 180(22)		 Molecules 23 01862 i022-+−
M22N6.38C15H9O8S349.0012349.00181.45MS2[349]:269(100)
MS3[269]:225(100), 227(65), 269(39), 176(31), 197(26), 181(22), 169(21), 213(12), 241(10)		 Molecules 23 01862 i0230.85+−
M23P6.53C15H11O6287.0550287.0544−2.32MS2[287]:272(100), 286(46), 153(44), 241(39), 269(34), 271(33), 231(19), 287(18), 259(13) Molecules 23 01862 i0241.81+−
M24P6.62C16H13O5285.0757285.0751−2.28MS2[285]:285(100), 270(90), 229(17), 225(15)
MS3[270]:242(100), 152(11)		 Molecules 23 01862 i0252.99+−
N6.62C16H11O5283.0600283.06103.32MS2[283]:268(100)
MS3[268]:240(100)		+−
M25P6.98C17H15O6315.0864315.0856−2.36MS2[315]:300(100), 283(20)
MS3[300]:167(100), 283(69), 299(42), 244(36), 166(32), 272(27)		 Molecules 23 01862 i026-+−
M26N7.93C12H9O3201.0570201.05533.38MS2[201]:173(100), 159(94), 157(75) Molecules 23 01862 i027-+−
M27P7.97C13H11O3215.0702215.0697−2.65MS2[215]:197(100), 169(64), 187(31), 147(18), 173(15), 159(10) Molecules 23 01862 i0282.67+−
M28P8.03C15H11O5271.0601271.0590−3.98MS2[271]:271(100), 153(32), 215(25), 243(19)
MS3[271]:153(100), 215(71), 243(58), 253(35), 149(25)		 Molecules 23 01862 i0292.41++
N8.03C15H9O5269.0444269.0442−1.08MS2[269]:269(100), 225(52), 181(47), 201(44), 224(32), 197(26), 241(23)++
M29N8.03C14H9O3225.0546225.0546−0.09MS2[225]:197(100), 181(98), 196(33), 169(27), 183(19), 180(17) Molecules 23 01862 i0302.49+−
M30N8.03C14H9O4241.0495241.0494−0.52MS2[241]:213(100), 197(56), 199(22), 169(14), 196(11), 173(11) Molecules 23 01862 i0311.82+−
M31N8.03C13H7O4227.0340227.0339−0.07MS2[227]:183(100), 199(40), 155(19), 66(13), 159(10) Molecules 23 01862 i0320.49+−
M32N8.14C12H9O3201.0570201.05522.78MS2[201]:159(100), 173(98), 133(18) Molecules 23 01862 i033-+−
M33P8.24C16 H13O6301.0706301.0700−2.17MS2[301]:286(100)
MS3[286]:285(100), 258(31), 286(14), 168(13)		 Molecules 23 01862 i034-+−
M34P8.46C16H13O6301.0706301.0700−2.37MS2[301]:286(100), 269(41), 241(14)
MS3[286]:258(100), 153(83), 285(21), 269(12)		 Molecules 23 01862 i0352.25+−
N8.46C16H11O6299.0549299.05592.89MS2[299]:284(100)
MS3[284]:256(100), 255(60), 227(37), 283(30), 212(30), 211(24), 240(20), 239(15)		+−
M35P8.79C16H13O6301.0706301.0700−2.08MS2[301]:286(100), 269(74), 241(25), 153(17)
MS3[286]:153(100), 258(36), 229(21), 269(14), 230(10)		 Molecules 23 01862 i0362.25+−
M36P10.07C17H15O5299.0903299.0906−2.84MS2[299]:284(100)
MS3[284]:256(100), 253(53), 161(32), 269(32), 108(27), 228(27), 152(21)		 Molecules 23 01862 i0372.67+−
M37P10.28C17H15O5299.0903299.0905−3.08MS2[299]:284(100), 243(20), 166(20), 299(13), 239(12), 267(11)
MS3[284]:256(100), 166(25), 267(11), 255(11), 283(10)		 Molecules 23 01862 i0383.57+−
M38N12.34C15H9O5269.0444269.04533.23MS2[269]:269(100), 181(61), 201(55), 225(53), 224(40), 197(33), 180(26), 183(23), 133(11) Molecules 23 01862 i039-+−
M39P12.44C16H13O5285.0757285.0749−3.02MS2[285]:270(100), 229(49), 253(42), 152(31), 123(25), 269(19)
MS3[270]:152(100), 269(87), 242(40), 253(36), 252(31)		 Molecules 23 01862 i0402.99+−
N12.44C16H11O5283.0600283.06092.97MS2[283]:268(100)
MS3[268]:267(100), 239(68), 224(68), 240(61), 223(43), 226(22), 211(11)		+−
M40P3.85C15H11O4255.0652255.0647−1.90MS2[255]:199(100), 137(65), 227(52), 237(23), 145(12) Molecules 23 01862 i041-++
N3.85C15H11O4253.0495253.05053.77MS2[253]:253(100), 224(52), 209(43), 225(35), 197(26), 208(18), 124(14), 223(11)+−
M41P3.86C21H21O9417.1180417.1170−2.42MS2[417]:255(100)
MS3[255]:199(100), 227(45), 181(40), 137(24), 209(20)		 Molecules 23 01862 i0420.37+−
N3.86C21H19O9415.1023415.10352.73MS2[415]:253(100), 252(15)
MS3[253]:253(100), 135(53), 160(46), 225(27)		+−
M42P3.86C21H19O10431.0973431.0960−2.44MS2[431]:255(100)
MS3[255]:199(100), 137(33), 255(28), 227(19), 145(16), 211(10)		 Molecules 23 01862 i043-+−
N3.86C21H17O10429.0815429.08303.16MS2[429]:253(100), 175(41)
MS3[253]:209(100), 253(91), 183(23)		+−
M43N3.86C22H21O11461.1078461.10912.80MS2[461]:253(100), 415(37), 298(15), 240(13), 284(12) Molecules 23 01862 i044-+−
M44P4.26C21H21O9417.1180417.1164−3.81MS2[417]:255(100)
MS3[255]:199(100), 237(53), 137(47), 227(22), 157(10)		 Molecules 23 01862 i0450.56+−
N4.26C21H19O9415.1023415.10352.73MS2[415]:253(100), 135(53), 225(27)+−
M45N4.82C15H9O4253.0495253.05053.62MS2[253]:253(100), 224(52), 225(39), 209(33), 197(25), 208(12) Molecules 23 01862 i046-+−
M46P4.88C15H11O7S335.0220335.0208−3.55MS2[335]:255(100), 316(44)
MS3[255]:199(100),137(33),255(28), 227(19), 145(16), 211(10)		 Molecules 23 01862 i047-+−
N4.88C15H9O7S333.0063333.00710.79MS2[333]:253(100)
MS3[253]:211(100), 209(95), 225(91), 224(56), 135(42)		+−
M47N6.31C16H11O6299.0549299.0549−0.48MS2[299]:281(100), 163(79), 253(39), 237(28), 225(13), 224(11) Molecules 23 01862 i048-+−
M48P6.33C15H11O4255.0652255.0648−1.67MS2[255]:255(100), 199(18), 137(13)
MS3[255]:199(100), 137(97), 227(42), 171(12)		 Molecules 23 01862 i0492.08++
N6.33C15H9O4253.0495253.04991.56MS2[253]:253(100)
MS3[253]:253(100), 225(53), 209(46), 197(18), 208(17)		++
M49P6.34C14H11O3227.0703227.0698−2.16MS2[227]:182(100), 199(47), 184(26), 157(22), 86(22) Molecules 23 01862 i0503.26+−
M50P9.92C16H13O4269.0803269.0801−2.58MS2[269]:254(100), 237(46), 213(37), 253(12) Molecules 23 01862 i051-+−
M51N3.49C21H19O9415.1023415.10362.94MS2[415]:295(100)
MS3[295]:267(100)		 Molecules 23 01862 i0520.02+−
M52P4.16C16H15O5287.0915287.0908−2.23MS2[287]:259(100), 66(30), 231(18), 241(18), 213(14) Molecules 23 01862 i053-+−
M53P5.13C15H13O5273.0758273.0751−2.27MS2[273]:255(100), 66(85), 179(82), 123(58), 245(31) Molecules 23 01862 i054-+−
M54P5.19C16H15O6303.0863303.08702.39MS2[303]:230(100), 285(87), 217(30), 257(22), 272(14) Molecules 23 01862 i055-+−
M55P6.72C16H15O5287.0915287.0906−2.75MS2[287]:272(100), 286(40), 66(38), 270(36), 193(29) Molecules 23 01862 i056-+−
M56P7.64C15H13O5273.0758273.0751−2.49MS2[273]:255(100), 179(84), 123(42), 151(37), 107(10), 245(10) Molecules 23 01862 i057-+−
N7.64C15H11O5271.0601271.06093.10MS2[271]: 165 (100), MS3[165]:137(100), 93(26), 109(25), 121(24)+−
M57P8.03C15H13O5273.0758273.0750−2.86MS2[273]:272(100), 216(49), 244(41), 153(41), 154(37), 254(24) Molecules 23 01862 i058-+−
M58P6.42C15H13O4257.0809257.0802−2.47MS2[257]:140(100), 256(76), 163(53), 200(30), 137(29)
MS3[140]:112(100)		 Molecules 23 01862 i0592.53+−
N6.37C15H11O4255.0652255.0649−1.32MS2[255]:149(100), 254(79), 135(20)
MS3[149]:121(100)		+−
M59N5.20C21H21O9417.1181417.11943.38MS2[417]:175(100), 399(25), 113(21), 227(12), 109(11) Molecules 23 01862 i060-++
M60P5.23C15H15O3287.0915243.1008−3.05MS2[243]:172(100), 200(63), 198(56), 197(33), 216(33), 225(18), 123(10)
MS3[172]:157(100)		 Molecules 23 01862 i0613.01+−
M61P6.33C15H15O5275.0908275.0911−1.24MS2[275]:151(100)
MS3[151]:123(100), 151(71), 133(48), 141(33), 107(17)		 Molecules 23 01862 i062-+−
M62N9.60C15H13O4257.0809257.08173.48MS2[257]:239(100), 109(69), 163(36), 213(30), 242(27), 148(20) Molecules 23 01862 i0632.82+−
M63P9.63C16H17O5289.1065289.1061−3.36MS2[289]:149(100), 271(76), 121(26), 195(20), 66(19)
MS3[149]:121(100)		 Molecules 23 01862 i064-+−
N9.63C16H15O5287.0913287.09222.86MS2[287]:272(100)
MS3[272]:152(100), 151(34)		+−
Note: tR: retention time; U: urine; P: plasma; +: detected; −: undetected.

Share and Cite

MDPI and ACS Style

Liang, Y.; Zhao, W.; Wang, C.; Wang, Z.; Wang, Z.; Zhang, J. A Comprehensive Screening and Identification of Genistin Metabolites in Rats Based on Multiple Metabolite Templates Combined with UHPLC-HRMS Analysis. Molecules 2018, 23, 1862. https://doi.org/10.3390/molecules23081862

AMA Style

Liang Y, Zhao W, Wang C, Wang Z, Wang Z, Zhang J. A Comprehensive Screening and Identification of Genistin Metabolites in Rats Based on Multiple Metabolite Templates Combined with UHPLC-HRMS Analysis. Molecules. 2018; 23(8):1862. https://doi.org/10.3390/molecules23081862

Chicago/Turabian Style

Liang, Yaoyue, Wenjing Zhao, Chenxiao Wang, Zijian Wang, Zhibin Wang, and Jiayu Zhang. 2018. "A Comprehensive Screening and Identification of Genistin Metabolites in Rats Based on Multiple Metabolite Templates Combined with UHPLC-HRMS Analysis" Molecules 23, no. 8: 1862. https://doi.org/10.3390/molecules23081862

Article Metrics

Back to TopTop
