Molecules 2018, 23(5), 1214; doi:10.3390/molecules23051214

Communication
Antioxidants from the Brown Alga Dictyopteris undulata
1
Graduate School of Environmental Science, Hokkaido University, Sapporo 060-0810, Japan
2
Department of Chemistry, Graduate School of Science, Osaka City University, Sumiyoshi-ku, Osaka 558-8585, Japan
3
Japan Food Research Laboratories, Ibaraki, Osaka 567-0085, Japan
4
National Institute of Technology, Asahikawa College, Asahikawa 071-8142, Japan
5
Faculty of Environmental Earth Science, Hokkaido University, Sapporo 060-0810, Japan
*
Author to whom correspondence should be addressed.
Academic Editors: Isabel C. F. R. Ferreira and Nancy D. Turner
Received: 31 March 2018 / Accepted: 16 May 2018 / Published: 18 May 2018

Abstract

:
An investigation of anti-oxidative compounds from the brown alga Dictyopteris undulata has led to the isolation and identification of isozonarol, isozonarone, chromazonarol, zonaroic acid and isozonaroic acid. Their structures were identified by comparison of MS and NMR spectra. Full NMR assignment and absolute configuration of isozonaroic acid are described. Isozonarol showed the most potent 1,1-diphenyl-2-picrylhydrazyl (DPPH) radical scavenging activity among the compounds isolated.
Keywords:
Dictyopteris undulata; antioxidant; sesquiterpene hydroquinone

1. Introduction

Radical species such as active oxygen can promote arteriosclerosis and liver disease by accumulating peroxide in the body. DNA strand breakage and base modification by radical species can cause genetic disorders, carcinogenesis and aging [1,2]. In foods, oxidative denaturation of unsaturated fatty acids causes noxious odor and toxicity [3]. Therefore, antioxidants which prevent such harmful oxidation are important.
As an attempt to search for new antioxidants from natural source materials, we screened extracts of macroalgae and microalgae for 1,1-diphenyl-2-picrylhydrazyl (DPPH) radical scavenging activity. This method is widely used to determine the antioxidant activity [4]. As a screening result, DPPH radical scavenging activities were observed in the lipid-soluble fraction of the red alga Neorhodomela aculeata [5] and brown alga Dictyopteris undulata. In the present study, we searched for antioxidants from D. undulata. and revealed five sesquiterpenoids (15). Since full relative configurations of one of compounds (5) has not been determined. We revealed the relative and absolute configuration of isozonaroic acid (5) and considered the biosynthetic mechanism of a series of compounds.

2. Results and Discussion

In our screening for anti-oxidative substances, we found the methanol extract of Dictyopteris undulata had strong DPPH radical scavenge activity. Bioassay-guided fractionation led to isolation of five active compounds: isozonarol (1); isozonarone (2); chromazonarol (3); zonaroic acid (4); and isozonaroic acid (5). Their structures were identified, as shown in Figure 1, by comparison with the literature data [6,7,8,9,10] and 2D NMR analysis (Supplementary Materials Figures S1–S24). Planer structures and relative configuration of 3 and 4 were determined by analyzing COSY, HSQC, HMBC and NOESY spectra (Supplementary Materials Figures S11 and S18 and Table S1). Absolute configurations of 14 were reported by chemical synthesis [6,7,11] or chemical degradation [12]. Our experimental values of specific rotation for 1 [α]D18 +36.6 (c 0.075, CHCl3), 2 [α]D18 +115.3 (c 0.055, CHCl3), 3 [α]D18 −38.3 (c 0.20, CHCl3) and 4 [α]D23 +24.2 (c 0.22, CHCl3) were similar to the literature values {1 [α]D22 +28 (c 1.0, CHCl3) [6], 2 [α]D21 +89 (c 0.1, MeOH) [6], 3 [α]D20 −33.5 (c 0.37, CHCl3) [11] and 4 [α]D27 +32 (c 0.10, CHCl3) [13]}. We concluded these structures to be as described in Figure 1. These compounds have been reported from D. undulata [8,9,10,11,12,13,14].
The molecular formula of 5 was determined to be C22H30O3 (m/z 341.2134, calcd. for C22H29O3, 341.2111 [M − H]) by HR-ESIMS. Compound 5 was suggested to have one more carbon and one oxygen atom than isozonarol (1). The 1H and 13C-NMR spectra of 5 were similar to 1. However, 1H-NMR chemical shift changes were observed (H-4′: δ 6.60 and H-6′: δ 6.74 in 1, H-4′: δ 7.83 and H-6′: δ 8.03 in 5). Furthermore, 13C-NMR chemical shift (C-7′: δ 171.6) and IR absorption (1678 cm−1) indicated that the hydroxy group at C-5′ of 1 was replaced by a carboxylic acid in 5. Planar structure of 5 was confirmed by COSY and HMBC spectra (Figure 2A). HMBC peaks from H-4′ to C-7′ and H-6′ to C-7′ concluded carboxylation at C-5′. The results indicated that 5 was isozonaroic acid [14]. However, complete assignment of isozonaroic acid (5) was not conducted and only the relative configuration between C-9 and C-10 was reported. We assigned all peaks of 1H and 13C-NMR unambiguously (Supplementary Materials Table S1). All relative configurations in 5 were determined by NOESY correlations (Figure 2B). The absolute configuration of 5 was presumed to be similar to the other analogs isolated from D. undulata. To confirm the absolute configuration of 5, we derivatized to methyl ester 6, and compared the specific rotation of dactylosponol (7) [15] derived from sponge which was enantiomeric to proposed configurations of 6 (Figure 3). Specific rotation of 6 [α]D23 +12.9 (c 0.004, CH2Cl2) and the literature value of 7 [α]D −14 (c 0.05, CH2Cl2) [15] showed opposite signs, therefore 6 was estimated to be (5R, 9R, 10R). Furthermore, in order to make this result more accurate, we derived isozonaroic acid (5) from isozonarol (1), which has (5R, 9R, 10R) configurations, and compared the specific rotation of synthetic sample to that of the natural product (Figure 4). Methyl ester 6 was synthesized through triflation of one hydroxy group in 1 followed by palladium-catalyzed alkoxycarbonylation. Subsequent ester hydrolysis afforded the desired 5. Specific rotations of synthetic 5, [α]D23 +48.3 (c 0.075, CHCl3), and the natural compound, [α]D23 +48.4 (c 0.055, CHCl3), were comparable. Therefore, absolute configurations of 5 are related to the other compounds (14) from D. undulata.
The precursor of these sesquiterpenoids is known to be farnesyl diphosphate [9]. Since the stereochemistry of the cyclization reaction product of farnesyl diphosphate is controlled by the folding forms on the substrate surface of the cyclase, it is conceivable that the enantiomer is formed by a single enzyme. Looking at marine natural products, some compounds obtained from the sponge have been reported to have isozonarol-type absolute configurations (5R, 9R, 10R) like hyatellaquinone (from Heatella intestinalis) [16,17] and isojaspic acid (from Cacosponsia sp.) [18], but those having the opposite absolute configuration such as ent-chromazonarol (from Disidea pallescens) [19] and ent-yahazunol (from Dysidea sp.) [20] have also been reported. Given our research and the reports to date, the absolute stereochemistry (5R, 10R) of all drimane-type sesquiterpenoids isolated from D. undulata is formed by a single cyclase that performs this steric regulation.
We tested all five compounds for DPPH radical scavenging activity (Table 1). The intensity of the DPPH radical scavenging activity was highest for isozonarol (1), having a hydroquinone structure, and it’s EC50 values (71 μM) were comparable to the positive control (α-tocopherol). Hydroquinone structure is known as an active center showing efficient scavenging activity against reactive oxygen species and DPPH radicals [21], and it was thought that DPPH radicals were eliminated by isozonarol (1) having hydroquinone structure. Activity was weakened with isozonarone (2) and chromazonarol (3) without the para-hydroquinone structure. In addition, DPPH radical scavenging activity was not observed by replacing one of the hydroxy group with a carboxylic acid (zonaroic acid and isozonaroic acid). These results suggest that the para-hydroquinone structure may be important for DPPH radical scavenging activity of these sesquiterpenoids. Although, DPPH assay was foreign to biological systems [22], hydroquinone has a long history of application in cosmetic skin lightning formulations [23]. Recently, anti-inflammatory [24] and neuroprotective effects [25] have been reported for zonarol, which is an analogous substance of isozonarol. Further studies were needed to clarify the biological activities of isolated compounds.

3. Materials and Methods

3.1. General Procedures

1H-NMR and 13C-NMR spectra were recorded in CDCl3 by using JEOL JNM ECA-600 (JEOL, Tokyo, Japan), JEOL JNM-EX400 (JEOL, Tokyo, Japan). ESI-MS were obtained on a Bruker Daltonics micrOTOF-HS focus spectrometer. Optical rotations were recorded on a HORIBA SEPA-300 polarimeter (Horiba, Kyoto, Japan). IR spectra were measured on a JASCO IR-700 spectrometer (JASCO, Tokyo, Japan).

3.2. Plant Material

Algal samples of Dictyopteris undulata were collected at Chichi-jima Island and Haha-jima Island, Tokyo, Japan.

3.3. Isolation of Compounds

The air-dried alga (40.5 g) was soaked in MeOH (0.5 L ×2). The MeOH solution was concentrated in vacuo, and the residue was partitioned between EtOAc (500 mL) and H2O (500 mL). The EtOAc layer was then concentrated to leave a dark green substance (2.5 g). The extract (2.45 g) was fractioned by Si gel CC with a step gradient (hexane and EtOAc) to give thirteen fractions. A part of the third fraction (68.8 mg) which was eluted with hexane-EtOAc (9:1) was subjected to RP-HPLC (Cosmosil 5C18AR-II with MeOH) to give isozonarone (2, 2.6 mg). The forth fraction (205.9 mg) was further separated by RP-HPLC (Inertsil-ODS-3, MeCN and H2O) to give chromazonarol (3, 6.0 mg). The fifth fraction (1023 mg) which was eluted with hexane-EtOAc (4:1) was further separated by Si gel column chromatography with a step gradient (hexane and EtOAc). The fraction (452 mg) eluted with hexane-EtOAc (4:1) was further subjected to NP-HPLC (Develosil 30-5, hexane and 2-propanol) to give isozonarol (1, 171 mg). The eighth fraction (191 mg) eluted with hexane-EtOAc (1:1) was separated by RP-HPLC (Cosmosil 5C18AR-II with MeOH and H2O) to give zonaroic acid (4, 20.0 mg) and isozonaroic acid (5, 7.5 mg). The following shows the NMR data for the isolated compounds.
Isozonarol (1): 1H-NMR (400 MHz, CDCl3): δ 0.89 (s, 3H), 0.90 (s, 3H), 0.92 (s, 3H), 1.08–1.31 (m, 3H), 1.42–1.48 (m, 5H), 1.55 (m, 1H), 1.90 (m, 2H), 1.98 (m, 1H), 2.36 (brs, 1H), 2.59 (m, 2H), 5.39 (brs, 1H), 6.50 (dd, J = 8.3/2.9 Hz, 1H), 6.60 (d, J = 8.6 Hz, 1H), 6.74 (d, J = 2.9 Hz, 1H); 13C-NMR (100 MHz, CDCl3): δ 14.1, 19.1, 22.1, 22.4, 23.9, 26.3, 33.2, 33.4, 37.0, 39.7, 42.4, 50.4, 54.3, 112.7, 115.9, 116.4, 122.2, 131.2, 135.2, 146.8, 149.1; ESI-HR-MS: m/z 313.2182 [M − H] (calcd for C21H29O2, 313.2168); [α]D18 +36.6 (c 0.075, CHCl3).
Isozonarone (2): 1H-NMR (400 MHz, CDCl3): δ 0.85 (s, 3H), 0.88 (s, 3H), 0.90 (s, 3H), 1.04 (m, 1H), 1.19 (m, 1H), 1.26 (m, 1H), 1.40–1.60 (m, 3H), 1.46 (brs, 3H), 1.78 (m, 1H), 1.90 (m, 1H), 2.01 (m, 1H), 2.20 (m, 1H), 2.39 (m, 1H), 2.55 (m, 1H), 5.43 (m, 1H), 6.67 (m, 1H), 6.72 (dd, J = 10.0/2.4 Hz, 1H), 6.78 (d, J = 10.0 Hz, 1H ); 13C-NMR (100 MHz, CDCl3): δ 14.0, 19.0, 22.0, 22.8, 23.9, 25.9, 33.1, 33.3, 36.9, 39.8, 42.2, 50.2, 53.0, 123.3, 132.6, 133.4, 135.9, 136.8, 151.4, 187.1, 187.3; APCI-HR-MS: m/z 312.2054 [M] (calcd for C21H29O2, 312.2084); [α]D18 +115.3 (c 0.055, CHCl3).
Chromazonarol (3): 1H-NMR (400 MHz, CDCl3): δ 0.84 (s, 3H), 0.88 (s, 3H), 0.90 (s, 3H), 0.95 (m, 1H), 1.02 (m, 1H), 1.14–1.19 (m, 1H), 1.17 (s, 3H), 1.35–1.46 (m, 3H), 1.62–1.74 (m, 5H), 2.03 (m, 2H), 2.56 (m, 1H), 6.55 (d, J = 10.3 Hz, 2H), 6.62 (d, J = 8.3 Hz, 1H); 13C-NMR (100 MHz, CDCl3): δ 14.8, 18.5, 19.7, 20.7, 21.6, 22.5, 33.2, 33.4, 36.8, 39.2, 41.1, 41.8, 52.1, 56.1, 76.7, 114.2, 115.8, 117.5, 123.3, 147.2, 148.5; ESI-HR-MS: m/z 313.2225 [M − H] (calcd for C21H29O2, 313.2168); [α]D18 −38.3 (c 0.20, CHCl3). Detailed 1H-NMR and 13C-NMR spectra, see Supplementary Materials Table S1.
Zonaroic acid (4): 1H-NMR (400 MHz, CDCl3): δ 0.83 (s, 3H), 0.84 (s, 3H), 0.90 (s, 3H), 1.20 (m, 1H), 1.21 (m, 1H), 1.24 (m, 1H), 1.36–1.42 (m, 2H), 1.52 (m, 1H), 1.61 (m, 1H), 1.76 (m, 1H), 1.88 (m, 1H), 2.05 (m, 1H), 2.26 (m, 1H), 2.38 (m, 1H), 2.78 (m, 2H), 4.67 (s, 1H), 4.81 (s, 1H), 6.77 (d, J = 8.3 Hz, 1H), 7.81 (dd, J = 8.3/1.9 Hz, 1H), 7.87 (d, J = 1.7 Hz, 1H); 13C-NMR (100 MHz, CDCl3): δ 14.5, 19.4, 21.7, 23.4, 24.4, 33.6, 33.6, 38.1, 39.1, 40.1, 42.1, 55.5, 55.8, 107.6, 115.0, 121.3, 128.6, 129.5, 132.3, 148.7, 158.8, 171.9; ESI-HR-MS: m/z 341.2103 [M − H] (calcd for C22H29O3, 341.2111); [α]D23 +24.2 (c 0.22, CHCl3). Detailed 1H-NMR and 13C-NMR spectra, see Supplementary Materials Table S1.
Isozonaroic acid (5): 1H-NMR (400 MHz, CDCl3): δ 0.89 (s, 3H), 0.91 (s, 3H), 0.92 (s, 3H), 1.16 (m, 1H), 1.23 (m, 1H), 1.33 (m, 1H),1.43–1.47 (m, 2H), 1.44 (brs, 3H), 1.57 (m, 1H), 1.90–2.00 (m, 3H), 2.46 (brs, 1H), 2.67 (m, 2H), 5.41 (brs, 1H), 6.78 (d, J = 8.3 Hz, 1H), 7.83 (d, J = 8.3 Hz, 1H), 8.03 (s, 1H); 13C-NMR (100 MHz, CDCl3): δ 13.9, 18.9, 22.0, 22.4, 23.8, 26.0, 33.1, 33.2, 36.9, 39.5, 42.1, 50.1, 53.8, 115.2, 121.7, 122.7, 129.4, 130.0, 132.5, 135.0, 158.0, 171.6; ESI-HR-MS: m/z 341.2134 [M − H] (calcd for C22H29O3, 341.2111); [α]D23 +48.4 (c 0.055, CHCl3); IR (neat) νmax 3378, 2916, 1678, 1599, 1271, 1125, 1093, 1043, 928; Detailed 1H-NMR and 13C-NMR spectra, see Supplementary Materials Table S1.

3.4. Methylation of Isozonaroic Acid (5)

To a solution of 5 (3 mg, 0.009 mmol) in MeOH (0.1 mL) was added CH2N2 in Et2O (0.24 mL) at 0 °C for 2 h. The mixture was concentrated under reduced pressure and purified by silica gel column chromatography (Hex/EtOAc, 7:3). The following shows the NMR data for compound (6).
Isozonaroic acid methyl ester (6): 1H-NMR (400 MHz, CDCl3): δ 0.89 (s), 0.91 (s), 0.92 (s), 1.43 (brs), 2.47 (m), 2.65 (m), 3.86 (s), 5.40 (brs), 6.74 (d), 7.75 (dd), 7.95 (d); ESI-HR-MS: m/z 355.2286 [M − H] (calcd for C23H32O3, 355.2273); [α]D23 +12.9 (c 0.004, CH2Cl2).

3.5. Semisynthesis of Isozonaroic Acid from Isozonarol

Triflation of one hydroxy group in isozonarol (1) followed by palladium-catalyzed alkoxycarbonylation was conducted [26,27]. Isolated compound 1 (70 mg, 0.22 mmol) was dissolved in dichloromethane (DCM) (5.0 mL). After the solution was cooled to −78 °C, pyridine (70 µL, 0.87 mmol) was added dropwise to the solution. A solution of triflic anhydride (77 µL, 0.47 mmol) in DCM (2.2 mL) was added dropwise to the solution. After addition, the reaction mixture was warmed to room temperature and stirred for 30 min. Then the reaction mixture was partitioned between EtOAc, brine, and 1 M HCl aqueous. The organic layer was washed with H2O and brine, dried over anhydrous Na2SO4, filtered, and concentrated in vacuo. Purification by RP-HPLC (Cosmosil 5C18AR-II with MeOH) to give triflate 8 (46 mg, 0.10 mmol, 46%) as white powder.
Triflate 8 (15 mg, 0.034 mmol), Pd(OAc)2 (8.4 mg, 0.037 mmol), and dppp (14 mg, 0.034 mmol) were dissolved to the solution (DMF/MeOH/Et3N, 5:5:1, 2.0 mL) under the CO atmosphere. After the solution was stirred at 60 °C for overnight, the reaction mixture was partitioned between EtOAc, brine, and 1 M HCl aqueous. The organic layer was washed with H2O and brine, dried over anhydrous Na2SO4, filtered, and concentrated in vacuo. Since unreacted compound 8 and methyl ester 6 could not be separated by silica gel CC (hexane/EtOAc, 7:3) and RP-HPLC, the reaction mixture (4.5 mg) was dissolved in EtOH (126 µL) and 63% KOH aqueous (112 µL) and stirred for overnight. Then the reaction mixture was partitioned between EtOAc, brine, and 1 M HCl aqueous. The organic layer was washed with H2O and brine, dried over anhydrous Na2SO4, filtered, and concentrated in vacuo. It then underwent purification by RP-HPLC (Cosmosil 5C18AR-II with MeOH/H2O, 9:1) to give isozonaroic acid (5) (1.5 mg, 0.0044 mmol, 13% in 2 steps) as a colorless solid. 1H and 13C-NMR chemical shifts of synthetic 5 were identical to those of the natural sample. Specific rotation of synthetic 5 as follows; [α]D23 +48.3 (c 0.075, CHCl3).

3.6. DPPH Radical Scavenge Assay

Isolated compounds were dissolved in ethanol. This solution (20 µL) was added to 80 µL of Tris-HCl buffer (pH 7.4) on a 96 well plate. DPPH (1,1-diphenyl-2-picrylhydrazyl) was dissolved (0.5 mM) in ethanol and added (100 µL) to start the reaction and incubated at room temperature for 20 min. After incubation, the absorbance was recorded at 570 nm using a micro plate reader. Results were expressed as percentage decrease with respect to control values. The control sample contained solvent (ethanol) in place of the test sample. α-Tocopherol was used as the reference sample. All assays were conducted in triplicate or duplicate.

4. Conclusions

Sesquiterpenoids (15) were identified as DPPH radical scavenger from brown alga, Dictyopteris undulata. The absolute stereochemistry of isozonaroic acid, which has not been reported, was determined to be (5R, 9R, 10R) by 2D NMR analysis and chemical derivatization. Among the isolated compounds, DPPH radical scavenge activity of isozonarol, having a hydroquinone structure, was the strongest.

Supplementary Materials

The following are available online, Figure S1: 1H-NMR spectrum of isozonarol (1) in CDCl3; Figure S2: 13C-NMR spectrum of isozonarol (1) in CDCl3; Figure S3: 1H-NMR spectrum of isozonarone (2) in CDCl3; Figure S4: 13C-NMR spectrum of isozonarone (2) in CDCl3; Figure S5: 1H-NMR spectrum of chromazonarol (3) in CDCl3; Figure S6: 13C-NMR spectrum of chromazonarol (3) in CDCl3; Figure S7: COSY spectrum of chromazonarol (3) in CDCl3; Figure S8: HSQC spectrum of chromazonarol (3) in CDCl3; Figure S9: HMBC spectrum of chromazonarol (3) in CDCl3; Figure S10: NOESY spectrum of chromazonarol (3) in CDCl3; Figure S11: Key COSY, HMBC (A) and NOESY correlations of chromazonarol (3); Figure S12: 1H-NMR spectrum of zonaroic acid (4) in CDCl3; Figure S13: 13C-NMR spectrum of zonaroic acid (4) in CDCl3; Figure S14: COSY spectrum of zonaroic acid (4) in CDCl3; Figure S15: HSQC spectrum of zonaroic acid (4) in CDCl3; Figure S16: HMBC spectrum of zonaroic acid (4) in CDCl3; Figure S17: NOESY spectrum of zonaroic acid (4) in CDCl3; Figure S18: Key COSY, HMBC (A) and NOESY correlations of zonaroic acid (4); Figure S19: 1H-NMR spectrum of isozonaroic acid (5) in CDCl3; Figure S20: 13C-NMR spectrum of isozonaroic acid (5) in CDCl3; Figure S21: COSY spectrum of isozonaroic acid (5) CDCl3; Figure S22: HSQC spectrum of isozonaroic acid (5) in CDCl3; Figure S23: HMBC spectrum of isozonaroic acid (5) in CDCl3; Figure S24: NOESY spectrum of isozonaroic acid (5) in CDCl3; Table S1: 1H and 13C-NMR spectroscopic data for chromazonarol (3), zonaroic acid (4) and isozonaroic acid (5) in CDCl3.

Author Contributions

M.K., H.M. and T.O. conceived and designed the experiments; M.K. performed the experiments; M.K., K.N. and T.O. analyzed the data; K.N., T.U., F.M. contributed synthetic experiments; M.K. and T.O. wrote the manuscript.

Funding

This work was supported by JSPS KAKENHI Grant Number 16H04975

Acknowledgments

The authors would like to thank Yasuhiro Kumaki (High-Resolution NMR Laboratory, Hokkaido University) for NMR experiments and Ikuko Yazaki (Tokyo Metropolitan University) for cooperation in collecting alga samples.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kaur, C.; Kapoor, H.C. Antioxidants in fruits and vegetables the millennium’s health. Int. J. Food Sci. Technol. 2001, 36, 703–725. [Google Scholar] [CrossRef]
  2. Lee, J.; Koo, N.; Min, D.B. Reactive oxygen species, aging, and antioxidative nutraceuticals. Compr. Rev. Food Sci. 2004, 3, 21–33. [Google Scholar] [CrossRef]
  3. McClements, D.J.; Decker, E.A. Lipid oxidation in oil-in-water emulsions: Impact of molecular environment on chemical reactions in heterogeneous food systems. J. Food. Sci. 2000, 65, 1270–1282. [Google Scholar] [CrossRef]
  4. Dong, L.M.; Jia, X.C.; Luo, Q.W.; Zhang, Q.; Luo, B.; Liu, W.B.; Zhang, X.; Xu, Q.L.; Tan, J.W. Phenolics from Mikania micrantha and their antioxidant activity. Molecules 2017, 22, 1140. [Google Scholar] [CrossRef] [PubMed]
  5. Lim, C.S.; Jin, D.-Q.; Sung, J.-Y.; Lee, J.H.; Choi, H.G.; Ha, I.; Han, J.S. Antioxidant and anti-inflammatory activities of the methanolic extract of Neorhodomela aculeate in hippocampal and microglial cells. Biol. Pharm. Bull. 2006, 29, 1212–1216. [Google Scholar] [CrossRef] [PubMed]
  6. Schroder, J.; Magg, C.; Seifert, K. Total synthesis of the marine sesquiterpene hydroquinones zonarol and isozonarol and sesquiterpene quinones zonarone and isozonarone. Tetrahedron Lett. 2000, 41, 5469–5473. [Google Scholar] [CrossRef]
  7. Laube, T.; Schroder, J.; Stehle, R.; Seifert, K. Total synthesis of yahazunol, zonarone and isozonarone. Tetrahedron 2002, 58, 4299–4309. [Google Scholar] [CrossRef]
  8. Taniguchi, K.; Yamaga, J.; Kurata, K.; Suzuki, M. Feeding-deterrents from brown alga Dictyopteris undulata against the abalone Haliotis discus hannai. Nippon Suisan Gakkaishi 1993, 59, 339–343. [Google Scholar] [CrossRef]
  9. Kurata, K.; Taniguchi, K.; Suzuki, M. Cyclozonarone, a sesquiterpene-substituted benzoquinone derivative from the brown alga Dictyopteris undulata. Phytochemistry 1996, 41, 749–752. [Google Scholar] [CrossRef]
  10. Fenical, W.; Sims, J.J.; Squatrito, D.; Wing, R.M.; Radlick, P. Zonarol and isozonarol, fungitoxic hydroquinones from the brown seaweed Dictyopteris zonaroides. J. Org. Chem. 1973, 38, 2383–2386. [Google Scholar] [CrossRef] [PubMed]
  11. Ishibashi, H.; Ishihara, K.; Yamamoto, H. A new artificial cyclase for polyprenoids: Enantioselective total synthesis of (−)-chromazonarol, (+)-8-epi-puupehedione, and (−)-11’-deoxytaondiol methyl ether. J. Am. Chem. Soc. 2004, 126, 11122–11123. [Google Scholar] [CrossRef] [PubMed]
  12. Cimio, G.; Stefano, S.D.; Fenical, W.; Minale, L.; Sims, J.J. Zonaroic acid from the brown seaweed Dictyopteris undulata (= zonarioides). Experimentia 1975, 31, 1250–1251. [Google Scholar] [CrossRef]
  13. Ochi, M.; Kotsuki, H.; Muraoka, K.; Tokoroyama, T. The structure of yahazunol, a new sesquiterpene-substituted hydroquinone from the brown seaweed Dictyopteris undulata Okamura. Bull. Chem. Soc. Jpn. 1979, 52, 629–630. [Google Scholar] [CrossRef]
  14. Koker, M.E.S. Bioactive compounds from the alga Dictyopteris undulata. J. Pharm. Bioresour. 2010, 7, 77–92. [Google Scholar] [CrossRef]
  15. Rodrigues, J.; Quinoa, E.; Riguera, R.; Peters, B.M.; Abrell, L.M.; Crews, P. The structures and stereochemistry of cytotoxic sesquiterpene quinones from dactylospongia elegans. Tetrahedron 1992, 48, 6667–6680. [Google Scholar] [CrossRef]
  16. Talpir, R.; Rudia, A.; Kashman, Y.; Loya, Y.; Hizi, A. Three new sesquiterpene hydroquinones from marine origin. Tetrahedron 1994, 50, 4179–4184. [Google Scholar] [CrossRef]
  17. Bernet, A.; Schroder, J.; Seifert, K. Total synthesis of the marine sesquiterpene quinones hyatellaquinone and spongiaquinone. Helv. Chem. Acta 2003, 86, 2009–2020. [Google Scholar]
  18. Rubio, B.K.; van Soest, R.W.M.; Crews, P. Extending the record of meroditerpenes from Cacospongia marine sponges. J. Nat. Prod. 2007, 70, 628–631. [Google Scholar] [CrossRef] [PubMed]
  19. Cimio, G.; Stefano, S.D.; Minale, L. ent-Chromazonarol, a chroman-sesquiterpenoid from the sponge Disidea pallescens. Experientia 1975, 31, 1117–1118. [Google Scholar] [CrossRef]
  20. Prez-Garcia, E.; Zubia, E.; Ortega, M.J.; Carballo, J.L. Merosesquiterpenes from two sponges of the genus Dysidea. J. Nat. Prod. 2005, 68, 653–658. [Google Scholar] [CrossRef] [PubMed]
  21. Nakanishi, I.; Ohkubo, K.; Ogawa, Y.; Matsumoto, K.; Ozawa, T.; Fukuzumi, S. Aluminium ion-promoted radical-scavenging reaction of methylated hydroquinone derivatives. Org. Biomol. Chem. 2016, 14, 7956–7961. [Google Scholar] [CrossRef] [PubMed]
  22. Lucas-Abellan, C.; Mercader-Ros, M.T.; Zafrilla, M.P.; Gabaldon, J.A.; Nunez-Delicado, E. Comparative study of different methods to measure antioxidant activity of resveratorol in the presence of cyclodextrins. Food Chem. Toxicol. 2011, 49, 1255–1260. [Google Scholar] [CrossRef] [PubMed]
  23. Tse, T.W. Hydroquinone for skin lightening: Safety profile, duration of use and when should we stop. J. Dermatol. Treat. 2010, 21, 272–275. [Google Scholar] [CrossRef] [PubMed]
  24. Yamada, S.; Koyama, T.; Noguchi, H.; Ueda, Y.; Kitsuyama, R.; Shimizu, H.; Tanimoto, A.; Wang, K.-Y.; Nawata, A.; Nakayama, T.; et al. Marine hydroquinone zonarol prevents inflammation and apoptosis in dextran sulfate sodium-induced mice ulcerative colitis. PLoS ONE 2014, 9, e113509. [Google Scholar] [CrossRef] [PubMed]
  25. Shimizu, H.; Koyama, T.; Yamada, S.; Lipton, S.A.; Satoh, T. Zonarol, a sesquiterpene from the brown algae Dictyopteris undulata, provides neuroprotection by activating the Nrf2/ARE pathway. Biochem. Biophys. Res. Commun. 2015, 457, 718–722. [Google Scholar] [CrossRef] [PubMed]
  26. Jana, R.; Tunge, J.A. A Homogeneous, recyclable rhodium(I) catalyst for the hydroarylation of Michael acceptors. Org. Lett. 2009, 11, 971–974. [Google Scholar] [CrossRef] [PubMed]
  27. Dolle, R.E.; Schmidt, S.J.; Kruse, L.I. Palladium catalysed alkoxycarbonylation of phenols to benzoate esters. J. Chem. Soc. Chem. Commun. 1987, 904–905. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are not available from the authors.

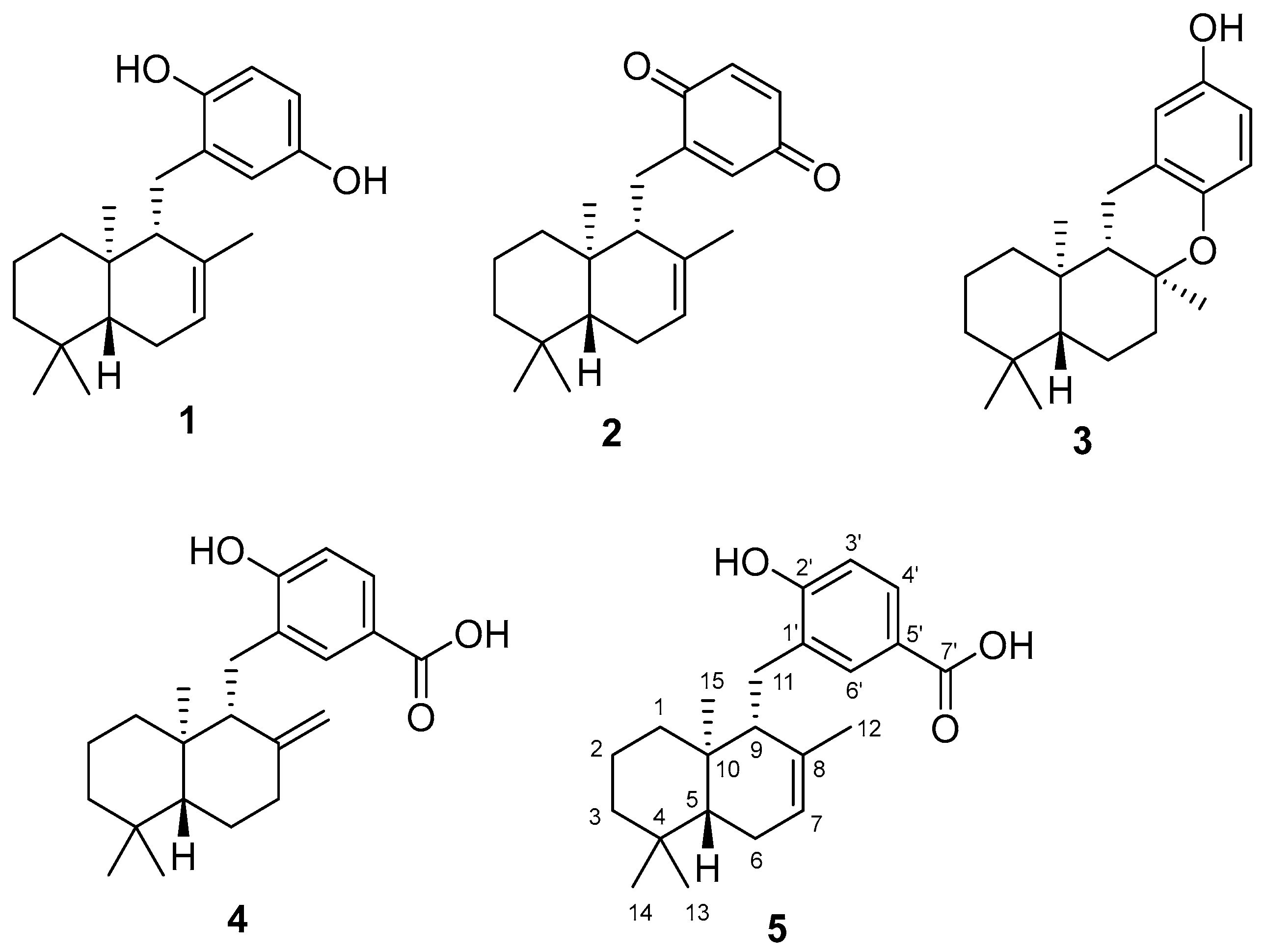

Figure 1. Sesquiterpenoids obtained from D. undulata in this study.
Figure 1. Sesquiterpenoids obtained from D. undulata in this study.
Molecules 23 01214 g001

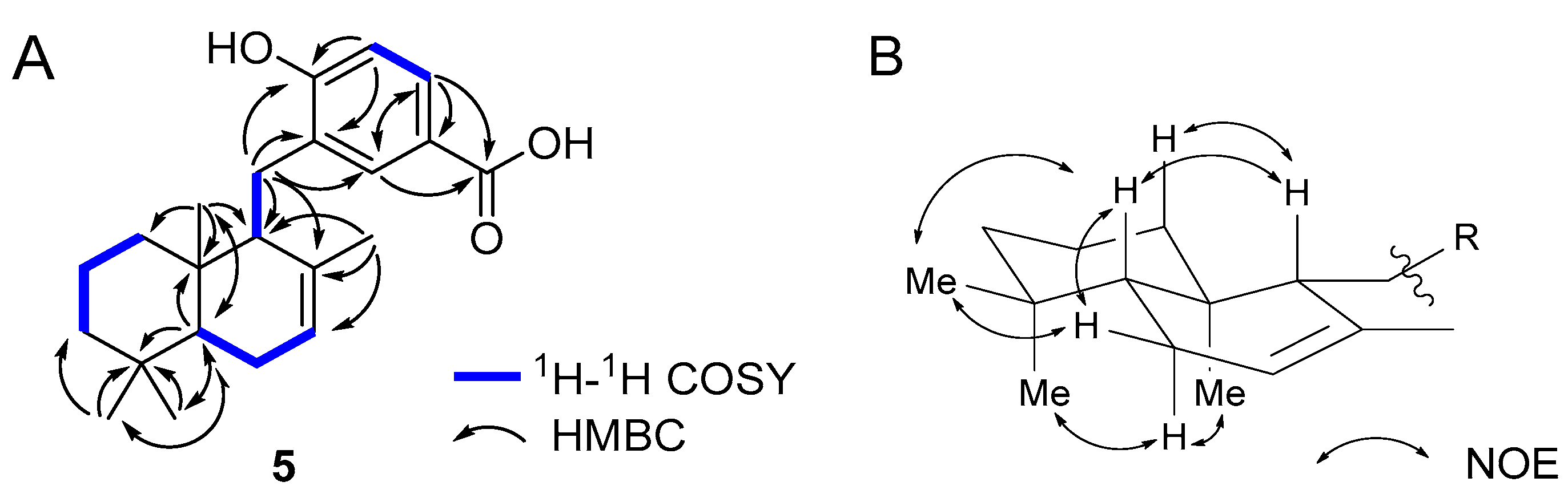

Figure 2. Key COSY, HMBC (A) and NOESY (B) correlations observed in 2D NMR of isozonaroic acid (5).
Figure 2. Key COSY, HMBC (A) and NOESY (B) correlations observed in 2D NMR of isozonaroic acid (5).
Molecules 23 01214 g002

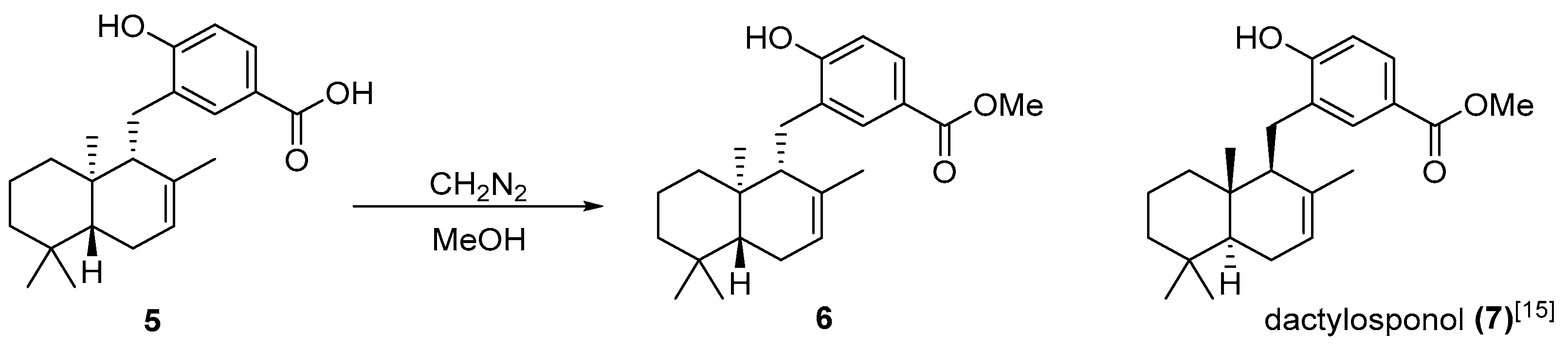

Figure 3. Methyl esterification of isozonaoroic acid (5) and structure of dactylosponol (7).
Figure 3. Methyl esterification of isozonaoroic acid (5) and structure of dactylosponol (7).
Molecules 23 01214 g003

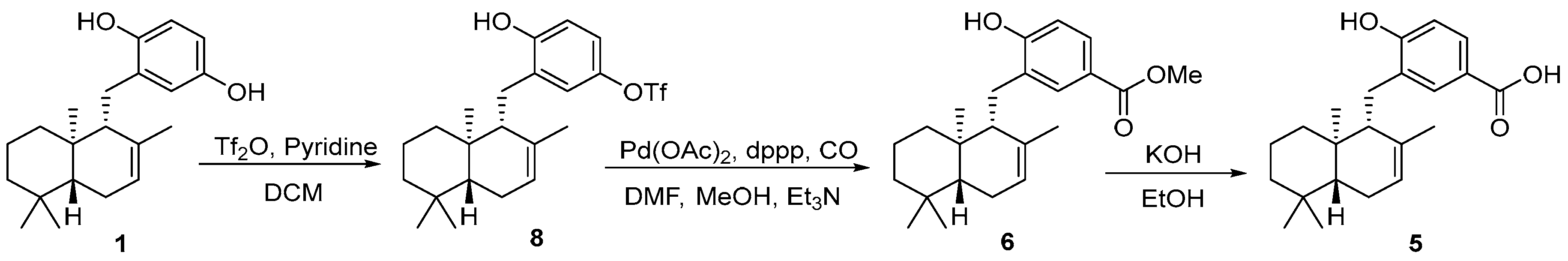

Figure 4. Semisynthesis of isozonaroic acid (5) from isozonarol (1).
Figure 4. Semisynthesis of isozonaroic acid (5) from isozonarol (1).
Molecules 23 01214 g004
Table 1. 1,1-diphenyl-2-picrylhydrazyl (DPPH) radical scavenging activities of isolated compounds.
Table 1. 1,1-diphenyl-2-picrylhydrazyl (DPPH) radical scavenging activities of isolated compounds.
Compound NameDPPH Radical
Scavenging Activity
EC50 Value (µM)
Isozonarol (1)71
Isozonarone (2)145
Chromazonarol (3)121
Zonaroic acid (4)>1000
Isozonaroic acid (5)>1000
α-Tocopherol74
