Molecules 2018, 23(1), 86; doi:10.3390/molecules23010086

Article
Characterization of Vasorelaxant Principles from the Needles of Pinus morrisonicola Hayata
Guan-Heng Chen 1, Yue-Chiun Li 1, Nan-Hei Lin 1, Ping-Chung Kuo 2,*Orcid and Jason T. C. Tzen 1,*
1
Graduate Institute of Biotechnology, National Chung-Hsing University, Taichung 402, Taiwan
2
School of Pharmacy, College of Medicine, National Cheng Kung University, Tainan 701, Taiwan
*
Correspondence: Tel.: +886-6-2353535 (ext. 6806) (P.-C.K.); +886-4-22840328 (ext. 776) (J.T.C.T.)
Received: 26 November 2017 / Accepted: 30 December 2017 / Published: 31 December 2017

Abstract

:
Pinus morrisonicola Hayata, usually called Taiwan five-leaf pine (5LP), is an endemic species in Taiwan and is traditionally used to relieve hypertension symptoms and improve cardiovascular function. In this study, the needle extract of 5LP was fractionated and analyzed by LC/MS/MS to search for possible antihypertensive candidates. In addition, bioassay-guided purification of the bioactive components was performed by Ca2+ fluorescent signal (Fluo 4-AM) assays. Two dihydrobenzofuran lignans, pinumorrisonide A (1) and icariside E4 (2), and one acylated flavonoid glycoside, kaempferol 3-O-α-(6‴-p-coumaroylglucosyl-β-1,4-rhamnoside) (3) were characterized from the active fractions. The structure of a new compound 1 was established on the basis of 2D NMR spectroscopic and mass spectrometric analyses, and the known compounds 2 and 3 were identified by comparison of their physical and spectroscopic data with those reported in the literature. The purified compounds 13 exhibited significant inhibition of Ca2+ fluorescence with IC50 values of 0.71, 0.36, and 0.20 mM, respectively. A mechanism study showed that these compounds showed vasorelaxant effects by blocking the voltage-operated Ca2+ channel (VOCC) and inhibiting Ca2+ influx to the cytoplasmic. These results suggested that 5LP and the three characterized components could be promising antihypertensive candidates for the use as VOCC blockers.
Keywords:
Pinus morrisonicola; lignan; acylated flavonoid glycoside; voltage-operated calcium channel; antihypertensive

1. Introduction

Pinus morrisonicola Hayata is an endemic species widely distributed in the mountain areas of Taiwan, and trivially named as five-leaf pine (5LP). The needle of 5LP is locally used to generate folk medicine and functional food in Taiwan, e.g., directly extracted with water to prepare an instant tonic drink or typically fermented in a time-consuming process to generate liquor and vinegar products [1,2]. It is believed to have many pharmacological effects, such as anti-aging, anti-hypercholesterolemia and anti-hypertension. It was reported that the water extract of 5LP inhibits proliferation and promotes apoptosis of human promyelocytic leukemia cells and exhibited strong cytotoxic effects on GBM8901 glioblastoma cells [3,4]. Moreover, the ethyl acetate fraction and the ethanol extract of pine needles were found to contain large amounts of polyphenols and flavonoids, and have been shown to possess strong free radical scavenging ability [5].
Hypertension has gained much more attention than any other cardiovascular syndromes due to the acceleration of urbanization. Some scholars estimate that in 2025, the total number of adults with hypertension will be 1.56 billion [6]. Hypertension not only affects subsequent mortality rates, but also increases the risk of getting heart stroke, coronary disease and chronic kidney disorders [7,8]. Despite many different types of antihypertensive drugs been used in therapeutic applications, Ca2+ channel blockers (CCBs) have been in the first line of treatment for more than 25 years [8]. Three major types of CCB drugs are diltiazem (a benzothiazepinone, BTZ), nifedipine (a 1,4 dihydropyridine, DHP) and verapamil (a phenylalkylamine, PAA) [9]. These drugs target the voltage-operated Ca2+ channel (VOCC) and l-type Ca2+ channel (Cav1.1-1.4) in the smooth muscle by blocking Ca2+ influx and lowering cytoplasm Ca2+ concentration [10]. However, some problems result from these drugs such as low efficacy and many serious side effects like dysrhythmia, myocardial infarction and cancer [8,11,12], which led researchers to explore new leads from natural sources.
Pine needle was regarded as an anti-hypertension herb medicine in both ancient eastern and western countries. The medical effects of pine needle had been well documented in many studies and the pine related functional food, Pycnogenol® has been developed to relief hypertension symptoms [13]. A study demonstrated that the ethyl acetate layer of Pinus densiflora and its self-fermented needle extract exhibited a vascular relaxation effect in isolated mouse aortic strip model [14]. Other experiments showed that the vascular relaxation effect of pine needle maybe mediated through various mechanisms, such as antioxidant scavenging effects or inhibition of catecholamine release [15,16].
The efficiency of current CCBs is still far from expectation and different hypertension patients usually respond differently depending on causes and progress, making it difficult to find a uniform treatment [17,18]. Despite the vascular relaxation effect of pine needle extract mentioned above, the detailed chemical compositions of pine needle and the vasodilator compounds remains unclear. In this study, we analyzed the chemical composition of the needle extract of 5LP by LC/MS/MS. The CCB activities in 5LP extract were evaluated via cytosolic Ca2+ fluorescent signals in A7r5 cell (a Rattus norvegicus aorta smooth muscle cell). Furthermore, the CCB candidates were characterized in the extracts and their ability to target calcium channels was also examined.

2. Results

2.1. Phenolic Composition in 5LP Needle Extract

To understand the phenolic composition of 5LP needles, LC/MS/MS were used to obtain phenolic profiles. Ten phenolics were tentatively identified and their retention times (RT), UV, molecular weights and fragmentation patterns are listed in Table 1 and Figure 1. Phenolic composition was mainly catechin (m/z 289), lignan glycoside (m/z 507) and flavonoid glycoside with a coumaroyl acylation functional group (m/z 593, 609, 563, 739).

2.2. Evaluation of the CCB Candidates from the 5LP Fractions

To explore new CCB candidates responsible for antihypertension treatment, cellular Ca2+ content was estimated by Ca2+ fluorescence signal intensity and Fluo4-AM in A7r5 cells. The ethyl acetate layer was passed through a Diaion HP-20 column to afford four fractions A–D (Figure 1), and then, these fractions were subjected to the Ca2+ fluorescence signal assay. Fraction D showed the most significant inhibition effect in cellular Ca2+ content (0.43 ± 0.13) compared to other fractions (Figure 2). Fraction D was further purified by HPLC to produce subfractions D1–D10 and these subfractions were assayed for bioactivity (Figure 3). Only subfractions D6 and D10 (at 0.3 mg/mL) displayed inhibition ratios of 0.48 ± 0.11 and 0.11 ± 0.05, and were further purified by TLC and HPLC. Finally, two lignans 1 and 2 were acquired after separation of subfraction D6 by TLC with dichloromethane:methanol (9:1). In addition, one acylated flavonoid glycoside 3 was isolated from subfraction D10 by HPLC. Quantitatively, the IC50 (50% inhibitory concentration) values of 13 were approximately 0.71, 0.36, and 0.20 mM, respectively. Inhibition activities were similar for these three purified compounds, however, the inhibition curve pattern of 3 is distinct from those of 1 and 2 (Figure 4). The structures of 13 are discussed below.

2.3. Characterization of the Vasodilation Candidates 13

Compound 1 was isolated as an optically active yellow powder with mp 163–165 °C. The high resolution electrospray ionization mass (HR-ESI-MS) analysis of 1 showed a pseudomolecular ion peak at m/z 515.1890 indicating the molecular formula as C25H32O10. The UV spectrum exhibited absorption maxima at 281, 236, and 219 nm, and IR absorption bands at 3446 and 1653 cm−1 were characteristic for the hydroxy and carbon–carbon double bond functionalities. In the 1H NMR spectrum of 1, there were characteristics for four methylene signals at δ 1.79 (2H), 2.56 (2H), 3.56 (2H), 3.75 (1H) and 3.85 (1H), two methine protons at δ 3.56 and 5.53, two mutually meta-coupled aromatic protons at δ 6.56 and 6.58 and three aromatic protons of ABX coupling system at 6.91, 6.99 and 7.04, respectively. These signals suggested that 1 possessed a neolignan skeleton [25]. In addition, the 1H- and 13C-NMR spectra also exhibited typical signals at δH 3.64, 3.75, 3.86, 3.95, 4.02, 4.94, and δC 63.1, 78.8, 83.6, 85.8, 109.4, which were identified as an arabinose substituent [26,27]. The configuration of the sugar moiety was inferred from the 1H NMR coupling constants and the nuclear Overhauser effect spectroscopy (NOESY) spectrum. In the heteronuclear multiple bond correlation (HMBC) spectrum (Figure 5), the 3J-HMBC correlations from δ 4.94 (H-1″) to δ 85.8 (C-4″) and δ 65.2 (C-9′) revealed the presence of arabinofuranoside moiety and the connection of arabinofuranoside at C-9′, respectively. The other 2J- and 3J-correlation signals in the HMBC spectrum from H-8 to C-9 and C-1; from H-7 to C-9 and C-1; from H-9 to C-7 and C-8; from H-8′ and H-9′b to C-7′; from OCH3-3′ and -4′ to C-4′ and C-3′; from H-1′’ to C-3′’; from H-7′ to C-8′, C-9′, C-2′, C-6′, C-1′ and C-4; from H-2 to C-7, C-6 and C-3; from H-6 to C-7, C-8′, C-2 and C-4; from H-5′ to C-1′, C-4′ and C-3′; from H-6′ to C-7′, C-2′ and C-4′; from H-2′ to C-7′, C-6′ and C-4′, respectively, constructed the complete planar structure. The electronic circular dichroism (ECD) spectrum of 1 showed a negative Cotton effect at 223 nm (Δε − 0.59), which indicated the absolute configurations of 1 to be 7′R and 8′S [25]. Conclusively, the structure of 1 was characterized as (7′R,8′S)-7′-(3′,4′-dimethoxyphenyl)-3-hydroxy-8′-hydroxymethyl-7′,8′-dihydrobenzofuran-1-propanol 9′-O-α-l-arabinofuranoside, and hence, 1 is a new compound reported from natural sources for the first time and trivially named as pinumorrisonide A.
Compound 2 was identified as icariside E4 by comparison of its physical and spectral data with those reported [25]. Comparatively, 2 showed a positive Cotton effect at 224 nm (Δε + 1.25), which was assigned the absolute configurations as 7′S and 8′R [25]. Compound 3 exhibited pseudomolecular signals with m/z 739 and fragment ions at m/z 593, 485, and 285 in its MS and MS/MS analytical spectra and tentatively identified as kaempferol coumaroyl-glucose-rhamnoside [24]. Its chemical structure was confirmed as kaempferol 3-O-α-(6‴-p-coumaroylglucosyl-β-1,4-rhamnoside) by comparison of its physical and spectral data with those reported [26]. The chemical structures of the known compounds 2 and 3 are shown in Figure 6.

2.4. Effects of Co-administration Vasodilation Candidates with Different Ca2+-elevation Agents

In order to understand the mechanism of the Ca2+ inhibition activity of the vasodilation compounds, three Ca2+-elevation agents including thapsigargin (THAPS), adenosine triphosphate (ATP) and bayK8644 were co-administrated with compounds 13. In the first set of experiments, THAPS induced Ca2+ storage release from the endoplasmic reticulum (ER). The depletion of Ca2+ pool evoked the cytosolic Ca2+ concentration even in the absence of extracellular Ca2+ (10 mM EGTA). THAPS (0.25 μg/mL) altered the fluorescence intensity ratio to 1.40 ± 0.14 compared to control. However, no obvious inhibition existed after co-incubating THAPS with 200 μg/mL of all compounds after 30 min (1.52 ± 0.07, 1.60 ± 0.08 and 1.55 ± 0.21, respectively) (Figure 7A). In another experiment using a receptor-operated Ca2+ channel (ROCC) agonist, ATP was administrated and fluorescence intensity significantly increased compared to control (1.47 ± 0.08). However, no obvious inhibition activity occurred (1, 1.67 ± 0.20; 2, 1.57 ± 0.25; 3, 1.49 ± 0.10, respectively) (Figure 7B). A voltage-operated Ca2+ channels agonist (VOCC), bayK8644, was serially diluted into 50, 100 and 200 μg/mL and co-incubated with all compounds. The Ca2+ fluorescence intensity was significantly reduced under 100 μg/mL of 1 and 2, and 200 μg/mL of 3 (Figure 8).

3. Discussion

In this study, the phenolic composition of 5LP needle was analyzed by LC/MS/MS. The major phenolic components are catechin, lignan glycosides and flavonoid glycosides with acylation group. It has been reported that the major flavonoid aglycones in other Pinus species were kaempferol and quercetin. The loss of 162 and 146 mass units corresponded to the glucosyl and rhamnosyl residues, respectively. However, m/z 146 could be also designated to the coumaroyl moiety [27]. Thus, they were tentatively identified as mono or di-glycosides acylated with coumaric acid. These types of phenolic compounds have been proven to possess anti-aging effects in recent studies [28,29]. Francisco J. Luna-Vázquez et al. published a review article and listed more than two hundred different vasodilator compounds obtained from various plants. Phenolic compounds play a major role in all different categories and many of them had been studied under various examinations [30]. Researchers had also demonstrated that the French maritime pine (Pinus pinaster) extract, Pycnogenol®, augments vasodilatation effects in a two-week clinical trial [31]. The composition of Pycnogenol® is mainly catechins, flavonoids and taxifolin [32,33,34,35]. Even though the health effect of pine extract has been well studied, there is little understanding about the detailed mechanism. Our experiment demonstrated that the ethanol extracts of 5LP needle have CCB effects and lowered cytosolic Ca2+ concentrations. Compounds 13 were further characterized and displayed significant cytoplasmic Ca2+ inhibition effects. Both of compounds 1 and 2 belong to dihydrobenzofuran lignan with arabinose and rhamnose moiety, respectively. Compound 2 had been discovered in Juniperus communis, Tabebuia roseo-alba and Pinus densiflora and exhibited anti-inflammatory, neuroprotective and antinociceptive activity [25,28,29,36]. Compound 1 was a new lignan glycoside reported from a natural source for the first time. It had a benzofuran skeleton similar to that of 2 with one arabinose moiety substituted at C-9′ position and one OCH3 group at C-4′ position. Compound 3 belongs to the acylated flavonoid glucoside and recently some acylated flavonoid have been reported, by our team, to have the ability to induce growth hormone release in an anterior pituitary cell model [37].
Cytoplasmic Ca2+ concentrations of smooth muscle cells are highly associated with vascular tone [8]. The reduction of Ca2+ concentration causes relaxation of contractile filaments followed by vasorelaxant action [38]. Two major types of receptors directly regulate the extracellular Ca2+ entrance, one is voltage operated Ca2+ channel (VOCC) and the other one is receptor-operated Ca2+ channel (ROCC) [8]. In normal HBSS condition, both of bayK8644 and ATP significantly induced the Ca2+ fluorescence signal after 30 min incubation. However, only bayk8644-induced fluorescence signals were inhibited by the three examined compounds. Despite all three phenolics having similar IC50 values, their inhibition curve patterns are quite different as compared two dihydrobenzofuran lignans (1 and 2) and acylated flavonoid glucoside (3). Moreover, the same phenomenon also appears in the inhibition assay with bayk8644, indicating that the drug binding sites on VOCC vary depending on their chemical structures. For the three prototypes of VOCC blockers, BTZ, DHP and PAA, the effect was mainly on the α1 subunit, at the third and fourth repeating domain between the fifth and sixth segments [39]. Some exceptions are on α2δ subunit which allosterically inhibit calcium flow [8]. Therefore, the complexity of the VOCC binding pocket alone with phenolic structures provides different choices for developing novel classes of Ca2+ inhibitor. In view of other reports, resveratrol increased cytoplasmic Ca2+ concentration through depletion of endoplasmic reticulum (ER) Ca2+ storage [38,40]. The effect of the three phenolic compounds on ER Ca2+ storage needs to be further investigated. In this regard, thapsigargin (THAPS), a sarco/endoplasmic reticulum Ca2+ ATPase (SERCA) blocker that increases cytoplasmic Ca2+ concentration was co-administrated with the three phenolic compounds under Ca2+-free external solution. Since there was no Ca2+ present in the extracellular areas, the refilling of Ca2+ only comes from the ER storage. Our experimental data showed that the THAPS-induced Ca2+ increase cannot be abolished by the three compounds. There is no other evidence that these compounds can pass through cell membrane and interact with the ER.

4. Materials and Methods

4.1. Chemicals and Materials

All chemicals were purchased from E. Merck Co. (Merck KGaA, Darmstadt, Germany) unless stated otherwise. HPLC grade acetonitrile was purchased from Fisher Scientific (Fair Lawn, NJ, USA). Acetic acid (99.7%) was obtained from J. T. Baker (Mallinckrodt Baker, Inc., Phillipsburg, NJ, USA). Dulbeco’s Modified Eagle Medium (DMEM), Hank’s Balanced Salt Solution (HBSS) and fetal bovine serum (FBS) were purchased from GIBCO (Grand Island, NY, USA). Fluo-4-AM was purchased from Invitrogen (Burlington, ON, Canada). Purified water was afforded by a Millipore clear water purification system (Direct-Q, Millipore, Billerica, MA, USA). The shoots of P. morrisonicola Hayata (5LP) were freshly obtained from the local pine tree farmer in Puli, Nantou, Taiwan and were authenticated by Dr. Nan-Hei Lin. The voucher specimens were deposited at the herbarium of Graduate Institute of Biotechnology, National Chung-Hsing University. The needles were detached from the shoots and washed with tap water, air dried in 40 °C oven for 2 days and stored at 4 °C before the extraction.

4.2. Preparation of Pine Needle Extract

Pine needles (1 kg) were ground into fine powder and extracted with 75% ethanol of 2 L at room temperature for three days. The extract was separated from the needles by filtration and partitioned with n-hexane and ethyl acetate successively. The ethyl acetate layer was subjected to LC/MS/MS analysis for phenolic constituents.

4.3. LC/MS/MS Analysis

The LC/MS/MS analysis was performed by Shimadzu LC-MS 8040 (Shimadzu Co., Kyoto, Japan) using a Shim-pack XR-ODS II column (2.0 × 100 mm, inner diameter 2.2 µm, Shimadzu Co., Kyoto, Japan). The column was maintained at room temperature, and 5 µL of sample was injected to the LC system at a flow rate of 0.2 mL/min. The mobile phase was composed of (A) acetonitrile and (B) 0.5% acetic acid in water. The gradient was as follows: 0–15 min, linear gradient from 5% to 15% A; 15–20 min, linear gradient from 15% to 20% A; 20–25 min, maintained at 20% A; 25–30 min, linear gradient from 20% to 25% A; 30–50 min, linear gradient from 25% to 30% A; 50–65 min, linear gradient from 30% to 40% A; 65–75 min, linear gradient from 40% to 60% A; 75–80 min, maintained at 60% A; 80–90 min, linear gradient from 5% A. For continuous sample analysis, the column was equilibrated with 6% B for 15 min before the next sample injection. The wavelength of UV absorbance was monitored at 280 nm.
The MS spectra (negative ion mode) were obtained on the Shimadzu LC-MS 8040 triple quadruple mass spectroscopy with an ESI interface. Ionization voltage was −4.5 kV, and source temperature was 250 °C. The flow rates of nebulizer and drying gas offered by nitrogen gas were 3 and 15 L/min, respectively. Argon gas was used as collision gas for tandem mass spectrometric experiment. All of MS spectra and data were collected and processed by the LabSolutions software (Version 5.60 SP2, Shimadzu).

4.4. Intracellular Ca2+ Imaging

A7r5 (a Rattus norvegicus aorta smooth muscle cell) were obtain from the American Type Culture Collection (ATCC, CRL-1444; Rockville, MD, USA). A7r5 cells were sub-cultured in DMEM containing 10% FBS. The cell culture condition was set at 37 °C with 5% CO2. For fluorescence imaging, cells were plated in 35 mm cell glass bottom culture dishes (World precision instruments Ltd., London, UK) and grown to 80% confluence (approximately 48 h).
The method for detecting the intracellular Ca2+ imaging was the same procedure as described previously [40,41]. Briefly, 80% confluence of the intracellular Ca2+ level of A7r5 cells was tracked and visualized by a preloaded fluorescent Ca2+-sensitive dye, Fluo4-AM. Cell-permeable Fluo4-AM was dissolved in DMSO to a concentration of 3 mM, and then further diluted to 3 μM in DMEM. The cell was washed three times with Hanks’ balanced salt solution (HBSS), and added with DMEM supplemented with 3 μM Fluo4-AM and 1% pluronic F127 (Sigma-Aldrich, St. Louis, MO, USA) for 30 min in a humidified 5% CO2 incubator at 37 °C. After washed three times with HBSS, cells were added with different reagents. The data was collected at two time points, 0 and 30 min. For experiment in extracellular Ca2+ free assay, 10 mM EGTA (Sigma-Aldrich, St. Louis, MO, USA) was added in the HBSS. Time-lapse images of live cells loaded with Fluo4-AM were collected by the IX71 inverted microscopy (Olympus, Tokyo, Japan). Fluctuation of fluorescence intensity of A7r5 cells treated with pine extracts were analyzed frame by frame with a time series analyzer [41,42]. This plug-in was used to analyze time-lapse image stacks. Cells were chosen as a region of interest (ROI) through mouse click and its fluorescence intensity of each time point was measured.

4.5. Isolation of Vasodilatation Candidates from Pine Needle Extract

The ethyl acetate layer of pine needle extract was chromatographed on a Diaion HP-20 column (GE Healthcare, Uppsala, Sweden) and eluted by water and step gradient with methanol (7:3, 5:5, 2:8, and 0:10) to afford fractions A–D, respectively. The isolated fractions A–D were subjected to the bioactivity examinations and only fraction D displayed the vasodilator effect, therefore it was further purified by HPLC. For HPLC purification, the sample was filtered through a 0.45 μm polyvinylidene difluoride (PVDF) membrane filter (PALL Corporation, Glen Cove, NY, USA) before passing through the liquid chromatography system coupled to a Model 600E photodiode array detector and Waters fraction collector III (Waters Corporation, Milford, MA, USA). Isolation was performed using a 250 mm × 4.6 mm i.e., 5 μm, Mightysil RP-18 GP column (Kanto Chemical Co., Tokyo, Japan). The mobile phase consisted of (A) acetonitrile and (B) water containing 0.5% acetic acid. The linear gradient was programmed as the follows: 0 min, 10% A; 5 min, 15% A; 15 min, 20% A; 25 min, 30% A; 55 min, 40% A; 70 min, 60% A; 85 min, 40% A; 90 min, 20% A; 95 min, 10% A. The column was maintained at room temperature and at a flow rate of 1 mL/min. The UV absorbance detection wavelength was set at 280 nm. The purified subfractions (D1–D10) were assayed for the bioactivity and the active fractions (D6 and D10) were further purified by the thin-layer chromatography (TLC) with dichloromethane and methanol (9:1) and HPLC with solvent mixture of A and B (40:60) to obtain highly purified compounds 13 for further experiments.

4.6. Spectroscopic and Spectrometric Studies of Purified Compounds

The melting point was measured using Yanaco MP-S3 micromelting point apparatus (Yanaco, Tokyo, Japan). Optical rotations were recorded on a Jasco P-2000 digital polarimeter (Jasco, Tokyo, Japan). The UV spectra were obtained by a Hitachi U-0080D diode array spectrophotometer (Hitachi, Tokyo, Japan). The IR spectra were examined with a PerkinElmer FT-IR Spectrum RX1 spectrophotometer (PerkinElmer, Waltham, MA, USA). NMR spectrum was acquired on a Bruker AMX500 (500 MHz) NMR (Bruker, Billerica, MA, USA) and a Jeol JNM-ECA600 (600 MHz) instrument (Jeol, Tokyo, Japan) at a constant temperature controlled and adjusted to room temperature, and chemical shifts are shown in δ values (ppm) with tetramethylsilane as an internal standard. 1H, 13C NMR and 2D spectra were recorded using methanol-d4 as the solvent. The ECD spectrums were analyzed on the Jasco J-815 spectropolarimeter (Jasco, Tokyo, Japan) with a 5 mm optical pathlength cell. The blank solvent spectra were measured with methanol. The scan ranged from 200–400 nm and was performed at room temperature. The data pitch is 1 nm with scan speed at 100 nm/min and accumulation of the data are the average from 5 scans. The ESI-MS and HR-ESI-MS were taken on a Bruker Solarix FT-MS spectrometer (Bruker, Billerica, MA, USA).
Pinumorrisonide A (1):
light yellow powder (CH3OH), m.p. 163–165 °C, [α]D29-12.1 (c 0.2, CH3OH); UV (CH3OH) λmax (log ε): 281(3.37), 236(3.63), 219(3.62) nm; IR (KBr) νmax: 3446, 2950, 1653, 1559, 1022 cm−1; ECD (CH3OH, c = 6.30 × 10−5 M) 203 (Δε − 5.52), 211 (Δε + 2.36), 223 (Δε − 0.59), 240 (Δε +0.89), 295 (Δε +0.62); 1H-NMR (CD3OD, 500 MHz) δ 1.79 (2H, tt, J = 8.0, 6.5 Hz, H-8), 2.56 (2H, t, J = 7.5 Hz, H-7), 3.56 (1H, m, H-8′), 3.56 (2H, t, J = 6.5 Hz, H-9), 3.64 (1H, m, H-5″a), 3.75 (1H, m, H-5″b), 3.75 (1H, dd, J = 10.0, 6.0 Hz, H-9′b), 3.81 (3H, s, OCH3-3′), 3.81 (3H, s, OCH3-4′), 3.85 (1H, dd, J = 10.0, 4.0 Hz, H-9′a), 3.86 (1H, m, H-3″), 3.95 (1H, m, H-4″), 4.02 (1H, dd, J = 4.0, 2.0 Hz, H-2″), 4.94 (1H, d, J = 1.0 Hz, H-1″), 5.53 (1H, d, J = 6.0 Hz, H-7′), 6.56 (1H, br s, H-2), 6.58 (1H, br s, H-6), 6.91 (1H, d, J = 8.5 Hz, H-5′), 6.99 (1H, dd, J = 8.5, 2.0 Hz, H-6′), 7.04 (1H, d, J = 2.0 Hz, H-2′); 13C-NMR (CD3OD, 125 MHz) δ 30.8 (CH2, C-7), 35.8 (CH2, C-8), 53.3 (CH, C-8′), 56.6 (OCH3-3′), 56.6 (OCH3-4′), 62.3 (CH2, C-9), 63.1 (CH2, C-5″), 70.7 (CH2, C-9′), 78.8 (CH, C-3″), 83.6 (CH, C-2″), 85.8 (CH, C-4″), 88.7 (CH, C-7′), 109.4 (CH, C-1″), 110.8 (CH, C-2′), 113.0 (CH, C-5′), 116.2 (CH, C-6), 117.4 (CH, C-2), 119.4 (CH, C-6′), 129.1 (C-5), 136.6 (C-1′), 136.8 (C-1), 142.8 (C-3), 146.7 (C-4), 150.1 (C-4′), 150.6 (C-3′); ESI-MS (rel. int.): m/z 515 ([M + Na]+, 51), 381 (100), 353 (10); HR-ESI-MS m/z 515.1890 [M + Na]+ (Calcd. for C25H32O10Na, 515.1888).

5. Conclusions

In conclusion, we isolated three phenolic compounds from P. morrisonicola needle extract and identified as pinumorrisonide A (1), icariside E4 (2), and kaempferol 3-O-α-(6‴-p-coumaroylglucosyl-β-1,4-rhamnoside) (3) under the assistance of spectroscopic and spectrometric analyses. All of them showed inhibitory effects on the cytoplasmic Ca2+ concentration through VOCC in A7r5 cells. In addition, our results first indicated that P. morrisonicola could be a good candidate for further application as a new treatment for hypertension.

Acknowledgments

Authors are thankful to the financial support from Ministry of Science and Technology, Taiwan. The work was also sponsored in part by a grant to Jason TC Tzen of National Chung-Hsing University (NCHU-104D505). This research also received funding from the Headquarters of University Advancement at the National Cheng Kung University, which is sponsored by the Ministry of Education, Taiwan.

Author Contributions

G.-H.C. and Y.-C.L. performed the research and completed most of the lab work. N.-H.L. in helped to collect part of the plant materials and experimental data. P.-C.K. and J.T.C.T. elucidated the constituents and bioactivity, and also designed the research. G.-H.C. and P.-C.K. conducted the manuscript draft and all authors have given approval to the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, K.Y.; Chung, H.J. Flavor compounds of pine sprout tea and pine needle tea. J. Agric. Food Chem. 2000, 48, 1269–1272. [Google Scholar] [CrossRef] [PubMed]
  2. Lai, C.H.; Hsieh, C.W.; Ko, W.C. Detection limit of molasses spirits mixed in rice spirits using the SNIF-NMR method. J. Food Drug Anal. 2014, 22, 197–201. [Google Scholar] [CrossRef]
  3. Liu, G.Y.; Wang, Z.W. Pinus morrisonicola Hayata extracts inhibit cell proliferation and promote apoptosis of human promyelocytic HL-60 leukemia cells. Eur. J. Cancer 2014, 50, S44. [Google Scholar] [CrossRef]
  4. Liao, C.L.; Chen, C.M.; Chang, Y.Z.; Liu, G.Y.; Hung, H.C.; Hsieh, T.Y.; Lin, C.L. Pine (Pinus morrisonicola Hayata) needle extracts sensitize GBM8901 human glioblastoma cells to temozolomide by downregulating autophagy and O(6)-methylguanine-DNA methyltransferase expression. J. Agric. Food Chem. 2014, 62, 10458–10467. [Google Scholar] [CrossRef] [PubMed]
  5. Yen, G.C.; Duh, P.D.; Huang, D.W.; Hsu, C.L.; Fu, T.Y.C. Protective effect of pine (Pinus morrisonicola Hay.) needle on LDL oxidation and its anti-inflammatory action by modulation of NOS and COX-2 expression in LPS-stimulated RAW 264.7 macrophages. Food Chem. Toxicol. 2008, 46, 175–185. [Google Scholar] [CrossRef] [PubMed]
  6. Kearney, P.M.; Whelton, M.; Reynolds, K.; Muntner, P.; Whelton, P.K.; He, J. Global burden of hypertension: Analysis of worldwide data. Lancet 2005, 365, 217–223. [Google Scholar] [CrossRef]
  7. Murray, C.J.; Vos, T.; Lozano, R.; Naghavi, M.; Flaxman, A.D.; Michaud, C.; Ezzati, M.; Shibuya, K.; Salomon, J.A.; Abdalla, S.; et al. Disability-adjusted life years (DALYs) for 291 diseases and injuries in 21 regions, 1990–2010: A systematic analysis for the global burden of disease study 2010. Lancet 2012, 380, 2197–2223. [Google Scholar] [CrossRef]
  8. Triggle, D.J. Calcium channel antagonists: Clinical uses-past, present and future. Biochem. Pharmacol. 2007, 74, 1–9. [Google Scholar] [CrossRef] [PubMed]
  9. Zamponi, G.W.; Striessnig, J.; Koschak, A.; Dolphin, A.C. The physiology, pathology, and pharmacology of voltage-gated calcium channels and their future therapeutic potential. Pharmacol. Rev. 2015, 67, 821–870. [Google Scholar] [CrossRef] [PubMed]
  10. Catterall, W.A.; Swanson, T.M. Structural basis for pharmacology of voltage-gated sodium and calcium channels. Mol. Pharmacol. 2015, 88, 141–150. [Google Scholar] [CrossRef] [PubMed]
  11. Grimaldi-Bensouda, L.; Klungel, O.; Kurz, X.; de Groot, M.C.; Maciel Afonso, A.S.; de Bruin, M.L.; Reynolds, R.; Rossignol, M. Calcium channel blockers and cancer: A risk analysis using the UK Clinical Practice Research Datalink (CPRD). BMJ Open 2016, 6, e009147. [Google Scholar] [CrossRef] [PubMed]
  12. Weber, M.A.; Schiffrin, E.L.; White, W.B.; Mann, S.; Lindholm, L.H.; Kenerson, J.G.; Flack, J.M.; Carter, B.L.; Materson, B.J.; Ram, C.V.S.; et al. Clinical practice guidelines for the management of hypertension in the community a statement by the American society of hypertension and the international society of hypertension. J. Clin. Hypertens. 2014, 16, 14–26. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, X.; Wei, J.; Tan, F.; Zhou, S.; Würthwein, G.; Rohdewald, P. Pycnogenol®, French maritime pine bark extract, improves endothelial function of hypertensive patients. Life Sci. 2004, 74, 855–862. [Google Scholar] [CrossRef] [PubMed]
  14. Cheong, H.S.; Lim, D.Y. Pine needle extracts inhibit contractile responses of the isolated rat aortic strips. Nat. Prod. Sci. 2010, 16, 123–132. [Google Scholar]
  15. Jung, M.J.; Chung, H.Y.; Choi, J.H.; Choi, J.S. Antioxidant principles from the needles of red pine, Pinus densiflora. Phytother. Res. 2003, 17, 1064–1068. [Google Scholar] [CrossRef] [PubMed]
  16. Choi, M.S.; Seo, Y.H.; Cheong, H.S.; Lim, D.Y. Inhibitory effects of self-fermented pine needle extract on catecholamine release in the rat adrenal medulla. Nat. Prod. Sci. 2013, 19, 36–48. [Google Scholar]
  17. Moutzouri, E.; Florentin, M.; Elisaf, M.S.; Mikhailidis, D.P.; Liberopoulos, E.L. Aliskiren, a direct renin inhibitor, in clinical practice: A new approach in the treatment of hypertension. Curr. Vasc. Pharmacol. 2010, 8, 344–362. [Google Scholar] [CrossRef] [PubMed]
  18. Sarafidis, P.A.; Bakris, G.L. Resistant hypertension: An overview of evaluation and treatment. J. Am. Coll. Cardiol. 2008, 52, 1749–1757. [Google Scholar] [CrossRef] [PubMed]
  19. Quirantes-Piné, R.; Funes, L.; Micol, V.; Segura-Carretero, A.; Fernández-Gutiérrez, A. High-performance liquid chromatography with diode array detection coupled to electrospray time-of-flight and ion-trap tandem mass spectrometry to identify phenolic compounds from a lemon verbena extract. J. Chromatogr. A 2009, 1216, 5391–5397. [Google Scholar] [CrossRef] [PubMed]
  20. Wallis, C.; Eyles, A.; Chorbadjian, R.A.; Riedl, K.; Schwartz, S.; Hansen, R.; Cipollini, D.; Herms, D.A.; Bonello, P. Differential effects of nutrient availability on the secondary metabolism of Austrian pine (Pinus nigra) phloem and resistance to Diplodia pinea. For. Pathol. 2011, 41, 52–58. [Google Scholar] [CrossRef]
  21. Benayad, Z.; Gomez-Cordoves, C.; Es-Safi, N.E. Characterization of flavonoid glycosides from Fenugreek (Trigonella foenum-graecum) crude seeds by HPLC-DAD-ESI/MS analysis. Int. J. Mol. Sci. 2014, 15, 20668–20685. [Google Scholar] [CrossRef] [PubMed]
  22. Karonen, M.; Hamalainen, M.; Nieminen, R.; Klika, K.D.; Loponen, J.; Ovcharenko, V.V.; Moilanen, E.; Pohlaja, K. Phenolic extractives from the bark of Pinus sylvestris L. and their effects on inflammatory mediators nitric oxide and prostaglandin E-2. J. Agric. Food Chem. 2004, 52, 7532–7540. [Google Scholar] [CrossRef] [PubMed]
  23. Li, B.; Shen, Y.H.; He, Y.R.; Zhang, W.D. Chemical constituents and biological activities of Pinus species. Chem. Biodivers. 2013, 10, 2133–2160. [Google Scholar] [CrossRef] [PubMed]
  24. Karapandzova, M.; Stefkov, G.; Cvetkovikj, I.; Stanoeva, J.P.; Stefova, M.; Kulevanova, S. Flavonoids and other phenolic compounds in needles of Pinus peuce and Other pine species from the Macedonian Flora. Nat. Prod. Commun. 2015, 10, 987–990. [Google Scholar] [PubMed]
  25. Nakanishi, T.; Iida, N.; Inatomi, Y.; Murata, H.; Inada, A.; Murata, J.; Lang, F.A.; Iinuma, M.; Tanaka, T. Neolignan and flavonoid glycosides in Juniperus communis var. depressa. Phytochemistry 2004, 65, 207–213. [Google Scholar] [CrossRef] [PubMed]
  26. Nasr, C.; Haag-Berrurier, M.; Lobsterin-Guth, A.; Anton, R. Kaempferol coumaroyl glucorhamnoside from Ginko biloba. Phytochemistry 1986, 25, 770–771. [Google Scholar] [CrossRef]
  27. Fitzpatrick, D.F.; Bing, B.; Rohdewald, P. Endothelium-dependent vascular effects of Pycnogenol. J. Cardiovasc. Pharmacol. 1998, 32, 509–515. [Google Scholar] [CrossRef] [PubMed]
  28. Ferreira-Junior, J.C.; Conserva, L.M.; Lyra Lemos, R.P.; de Omena-Neta, G.C.; Cavalcante-Neto, A.; Barreto, E. Isolation of a dihydrobenzofuran lignan, icariside E4, with an antinociceptive effect from Tabebuia roseo-alba (Ridley) Sandwith (Bignoniaceae) bark. Arch. Pharm. Res. 2015, 38, 950–956. [Google Scholar] [CrossRef] [PubMed]
  29. Kwon, J.H.; Kim, J.H.; Choi, S.E.; Park, K.H.; Lee, M.W. Inhibitory effects of phenolic compounds from needles of Pinus densiflora on nitric oxide and PGE2 production. Arch. Pharm. Res. 2010, 33, 2011–2016. [Google Scholar] [CrossRef] [PubMed]
  30. Luna-Vázquez, F.J.; Ibarra-Alvarado, C.; Rojas-Molina, A.; Rojas-Molina, I.; Zavala-Sánchez, M.A. Vasodilator compounds derived from plants and their mechanisms of action. Molecules 2013, 18, 5814–5857. [Google Scholar] [CrossRef] [PubMed]
  31. Nishioka, K.; Hidaka, T.; Nakamura, S.; Umemura, T.; Jitsuiki, D.; Soga, J.; Goto, C.; Chayama, K.; Yoshizumi, M.; Higashi, Y. Pycnogenol®, French maritime pine bark extract, augments endothelium-dependent vasodilation in humans. Hypertens. Res. 2007, 30, 775–780. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, X.; Wei, J.; Tan, F.; Zhou, S.; Würthwein, G.; Rohdewald, P. Antidiabetic effect of Pycnogenol French maritime pine bark extract in patients with diabetes type II. Life Sci. 2004, 75, 2505–2513. [Google Scholar] [CrossRef] [PubMed]
  33. Rohdewald, P. A review of the French maritime pine bark extract (Pycnogenol), a herbal medication with a diverse clinical pharmacology. Int. J. Clin. Pharmacol. Ther. 2002, 40, 158–168. [Google Scholar] [CrossRef] [PubMed]
  34. Schäfer, A.; Chovanova, Z.; Muchova, J.; Sumegová, K.; Liptáková, A.; Duracková, Z.; Högger, P. Inhibition of COX-1 and COX-2 activity by plasma of human volunteers after ingestion of French maritime pine bark extract (Pycnogenol). Biomed. Pharmacother. 2006, 60, 5–9. [Google Scholar] [CrossRef] [PubMed]
  35. Williamson, G.; Manach, C. Bioavailability and bioefficacy of polyphenols in humans. II. Review of 93 intervention studies. Am. J. Clin. Nutr. 2005, 81, 243S–255S. [Google Scholar] [PubMed]
  36. Seo, M.J.; Kang, B.W.; Jeong, Y.K. Identification of a neolignan glycoside from the pine tree, Pinus densiflora showed antithrombotic activity. Life Sci. 2014, 24, 873–879. [Google Scholar] [CrossRef]
  37. Lo, Y.H.; Chen, Y.J.; Chang, C.I.; Lin, Y.W.; Chen, C.Y.; Lee, M.R.; Lee, V.S.Y.; Tzen, J.T.C. Teaghrelins, unique acylated flavonoid tetraglycosides in Chin-shin oolong tea, are putative oral agonists of the ghrelin receptor. J. Agric. Food Chem. 2014, 62, 5085–5091. [Google Scholar] [CrossRef] [PubMed]
  38. Campos-Toimil, M.; Elies, J.; Orallo, F. Trans- and cis-resveratrol increase cytoplasmic calcium levels in A7r5 vascular smooth muscle cells. Mol. Nutr. Food Res. 2005, 49, 396–404. [Google Scholar] [CrossRef] [PubMed]
  39. Striessnig, J.; Grabner, M.; Mitterdorfer, J.; Hering, S.; Sinnegger, M.J.; Glossmann, H. Structural basis of drug binding to L Ca2+ channels. Trends Pharmacol. Sci. 1998, 19, 108–115. [Google Scholar] [CrossRef]
  40. Cuíñas, A.; García-Morales, V.; Viña, D.; Gil-Longo, J.; Campos-Toimil, M. Activation of PKA and Epac proteins by cyclic AMP depletes intracellular calcium stores and reduces calcium availability for vasoconstriction. Life Sci. 2016, 155, 102–109. [Google Scholar] [CrossRef] [PubMed]
  41. Lin, N.H.; Chung, T.Y.; Li, F.Y.; Chen, H.A.; Tzen, J.T.C. Enhancing the potency of lithospermate B for inhibiting Na+/K+-ATPase activity by forming transition metal ion complexes. Acta Pharmacol. Sin. 2013, 34, 893–900. [Google Scholar] [CrossRef] [PubMed]
  42. Vicencio, J.M.; Ibarra, C.; Estrada, M.; Chiong, M.; Soto, D.; Parra, V.; Diaz-Araya, G.; Jaimovich, E.; Lavandero, S. Testosterone induces an intracellular calcium increase by a nongenomic mechanism in cultured rat cardiac myocytes. Endocrinology 2006, 147, 1386–1395. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the purified compounds 13 are available from the authors.

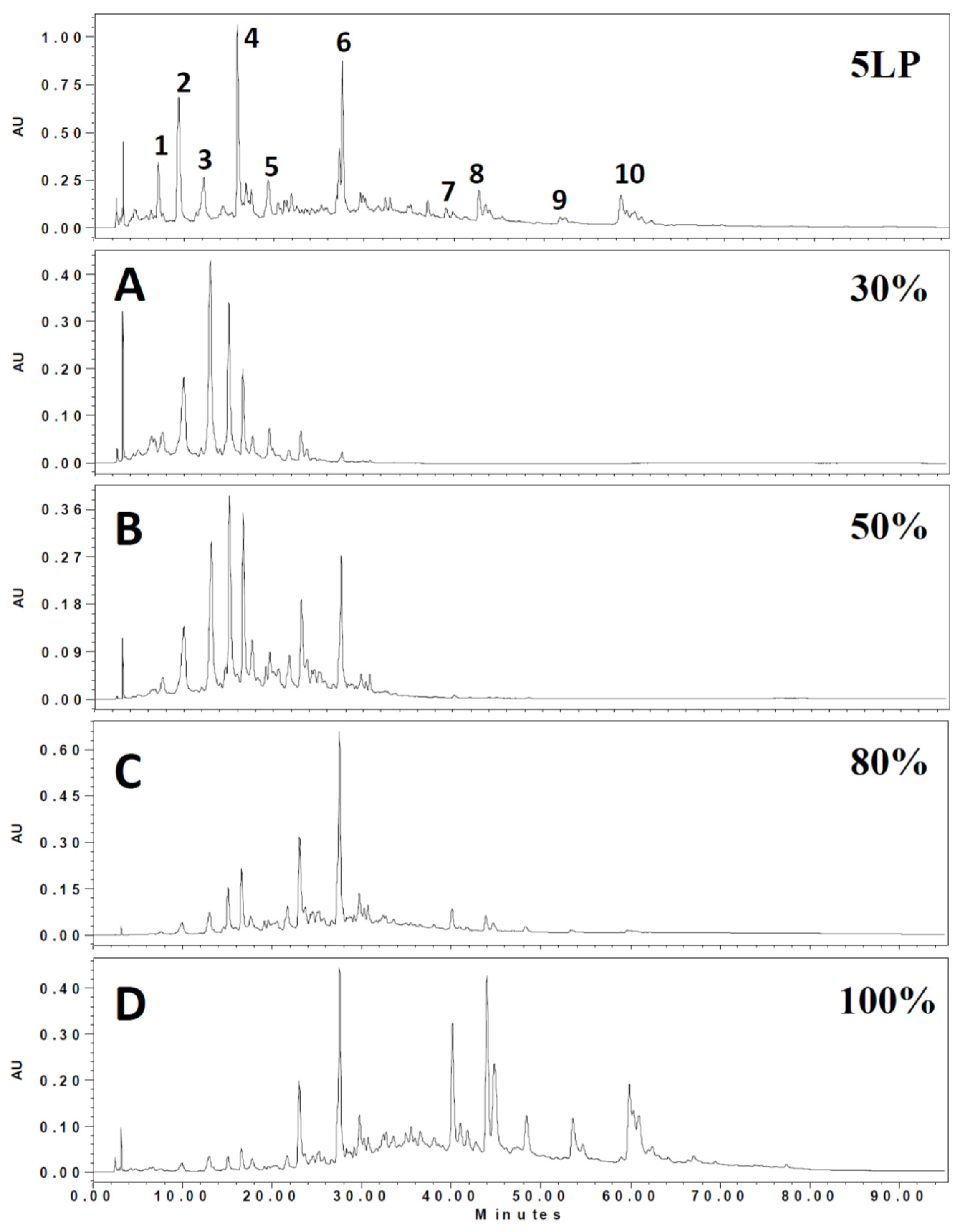

Figure 1. The ethyl acetate soluble components of 5LP needle were further fractionated by a Diaion HP-20 column with 30%, 50%, 80% and 100% methanol. Chemical constituents were analyzed and compared by HPLC (0–95 min).
Figure 1. The ethyl acetate soluble components of 5LP needle were further fractionated by a Diaion HP-20 column with 30%, 50%, 80% and 100% methanol. Chemical constituents were analyzed and compared by HPLC (0–95 min).
Molecules 23 00086 g001

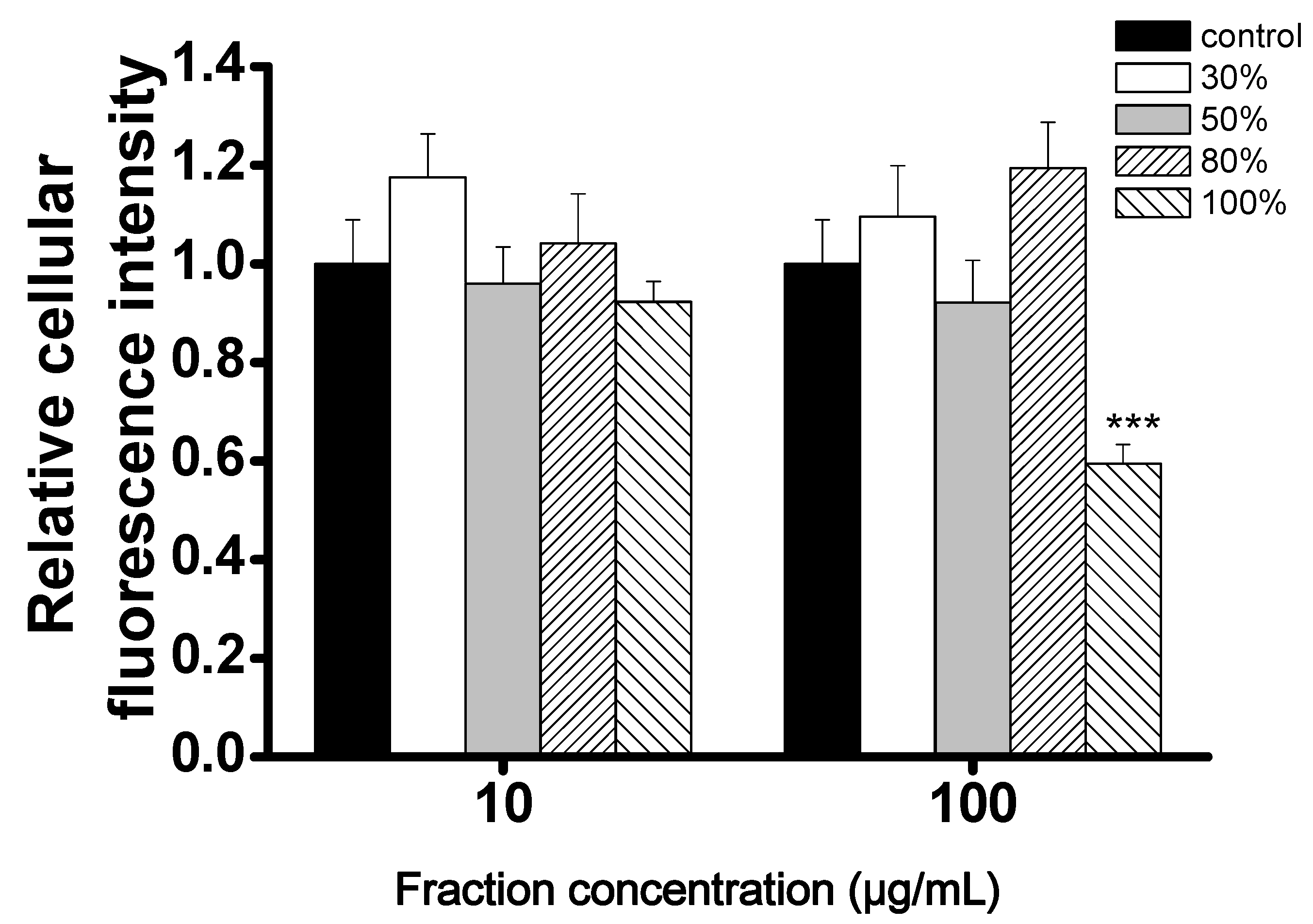

Figure 2. Reducing of intracellular Ca2+ levels in A7r5 cells treated with different 5LP Diaion HP-20 fractions. A7r5 cells were loaded with Fluo4-AM prior to incubation with various concentrations of Diaion HP-20 fractions (A:30%, B:50%, C:80%, D:100%). Intensity of fluorescence was collected at 0 and 30 min. All fractions were tested under two different concentrations, 10 and 100 μg/mL. Mean ± S.D. (indicated by vertical lines) was calculated from three different experiments. *** p <0.001 versus control values.
Figure 2. Reducing of intracellular Ca2+ levels in A7r5 cells treated with different 5LP Diaion HP-20 fractions. A7r5 cells were loaded with Fluo4-AM prior to incubation with various concentrations of Diaion HP-20 fractions (A:30%, B:50%, C:80%, D:100%). Intensity of fluorescence was collected at 0 and 30 min. All fractions were tested under two different concentrations, 10 and 100 μg/mL. Mean ± S.D. (indicated by vertical lines) was calculated from three different experiments. *** p <0.001 versus control values.
Molecules 23 00086 g002

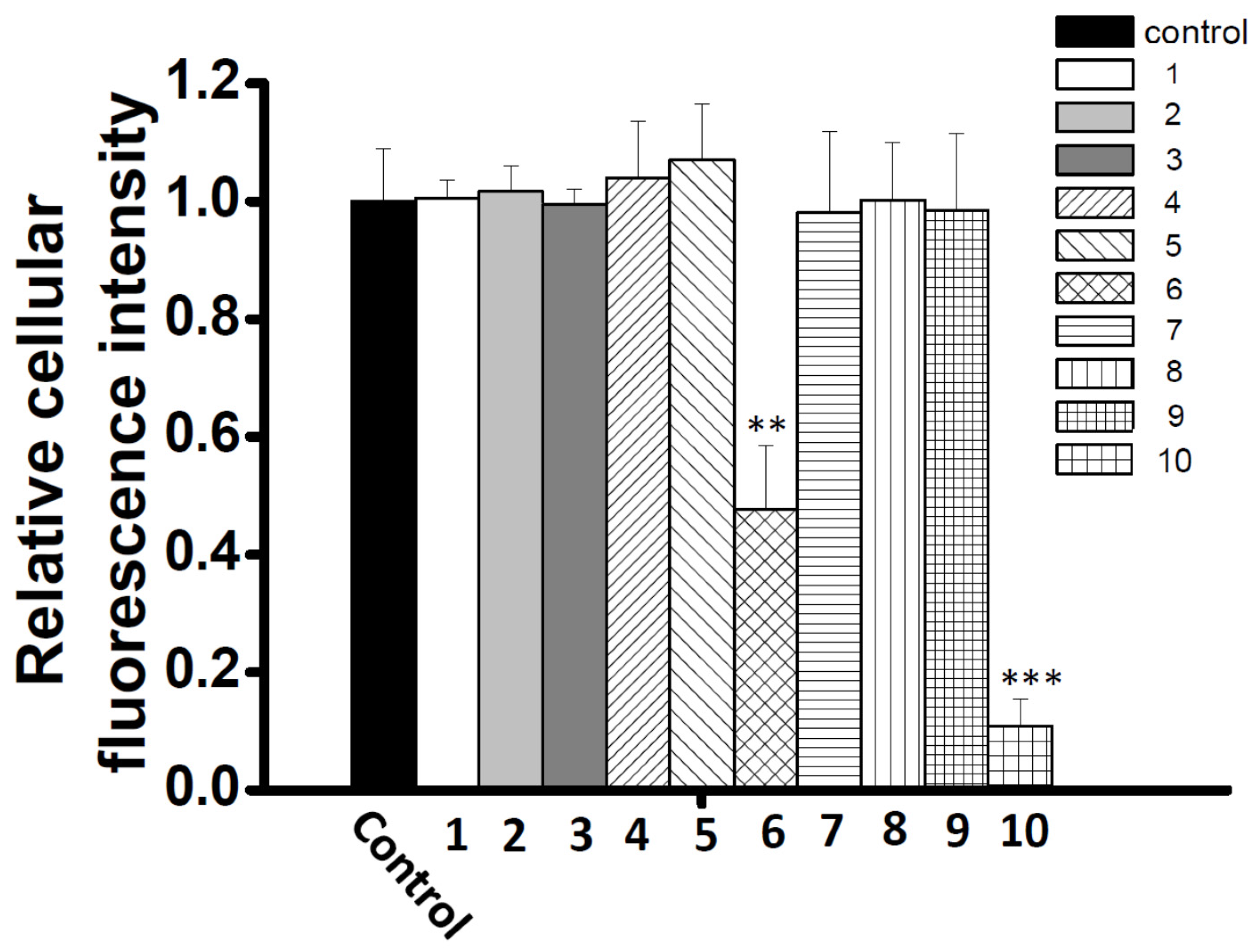

Figure 3. Reducing of intracellular Ca2+ levels of A7r5 cells treated with subfractions D1–D10 (0.3 mg/mL) fractions. A7r5 cells were loaded with Fluo4-AM prior to incubation with different fractions. Intensity of fluorescence was collected at 0 and 30 min. Mean ± S.D. (indicated by vertical lines) values were calculated from three different experiments. ** p <0.01 and *** p <0.001 versus control values.
Figure 3. Reducing of intracellular Ca2+ levels of A7r5 cells treated with subfractions D1–D10 (0.3 mg/mL) fractions. A7r5 cells were loaded with Fluo4-AM prior to incubation with different fractions. Intensity of fluorescence was collected at 0 and 30 min. Mean ± S.D. (indicated by vertical lines) values were calculated from three different experiments. ** p <0.01 and *** p <0.001 versus control values.
Molecules 23 00086 g003

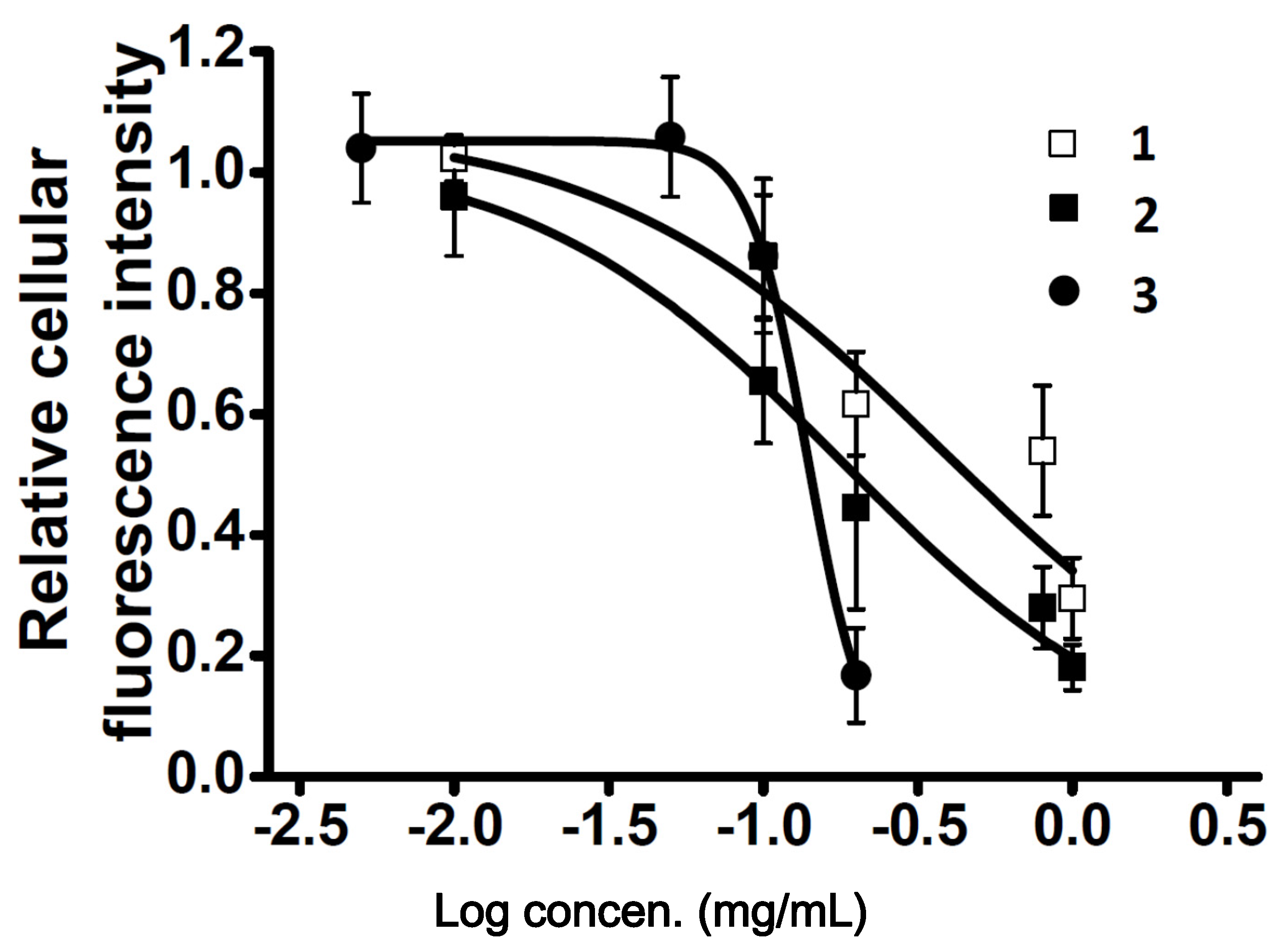

Figure 4. The inhibitory potency of compounds 13 on the relative cellular calcium level in A7r5 cells in normal HBSS solution. A7r5 cells were loaded with Fluo4-AM prior to incubation with various concentrations of compounds (compounds 1 and 2 at 1, 0.8, 0.2, 0.1 and 0.01 mg/mL; compound 3 at 0.2, 0.1, 0.05 and 0.005 mg/mL). Intensities of fluorescence were recorded at 0 and 30 min. The inhibitory potency was determined by calcium fluorescence intensity. Each curve represents the mean ± S.D. (indicated by vertical lines) and was calculated from three different experiments.
Figure 4. The inhibitory potency of compounds 13 on the relative cellular calcium level in A7r5 cells in normal HBSS solution. A7r5 cells were loaded with Fluo4-AM prior to incubation with various concentrations of compounds (compounds 1 and 2 at 1, 0.8, 0.2, 0.1 and 0.01 mg/mL; compound 3 at 0.2, 0.1, 0.05 and 0.005 mg/mL). Intensities of fluorescence were recorded at 0 and 30 min. The inhibitory potency was determined by calcium fluorescence intensity. Each curve represents the mean ± S.D. (indicated by vertical lines) and was calculated from three different experiments.
Molecules 23 00086 g004
Figure 5. Structure and significant HMBC correlations of compound 1.
Figure 5. Structure and significant HMBC correlations of compound 1.
Molecules 23 00086 g005
Figure 6. Structures of known compounds 2 and 3.
Figure 6. Structures of known compounds 2 and 3.
Molecules 23 00086 g006

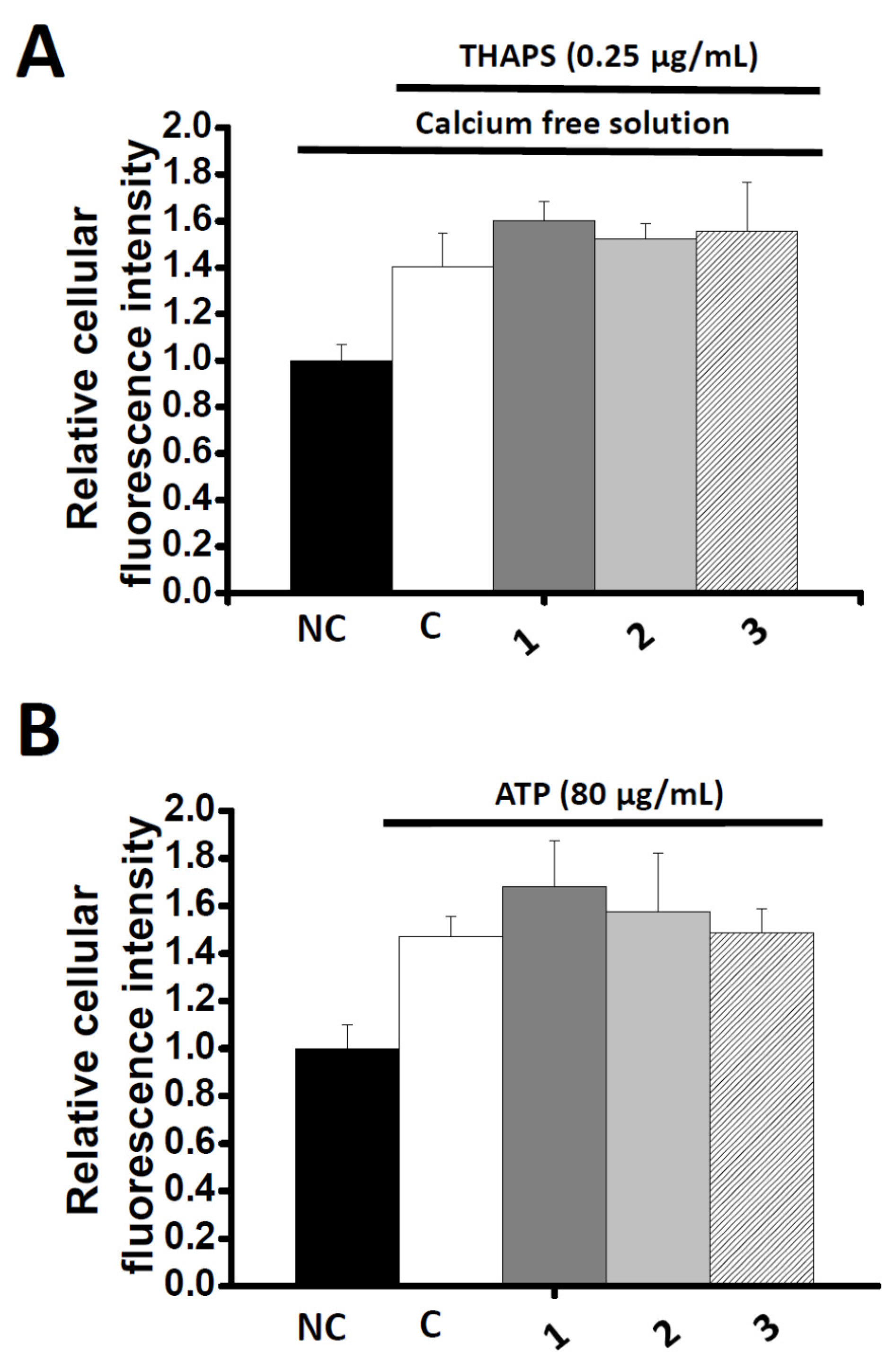

Figure 7. Effects of compounds 13 (200 μg/mL) on the calcium fluorescent intensity induced by (A) THAPS (0.25 μg/mL) with calcium free solution (10 mM EGTA) or (B) ATP (80 μg/mL) with normal HBSS solution. A7r5 cells were loaded with Fluo4-AM prior to incubation with different compounds. Intensity of fluorescence was collected at 0 and 30 min. Each bar represents the mean ± S.D. (indicated by vertical lines) and calculated from three different experiments.
Figure 7. Effects of compounds 13 (200 μg/mL) on the calcium fluorescent intensity induced by (A) THAPS (0.25 μg/mL) with calcium free solution (10 mM EGTA) or (B) ATP (80 μg/mL) with normal HBSS solution. A7r5 cells were loaded with Fluo4-AM prior to incubation with different compounds. Intensity of fluorescence was collected at 0 and 30 min. Each bar represents the mean ± S.D. (indicated by vertical lines) and calculated from three different experiments.
Molecules 23 00086 g007

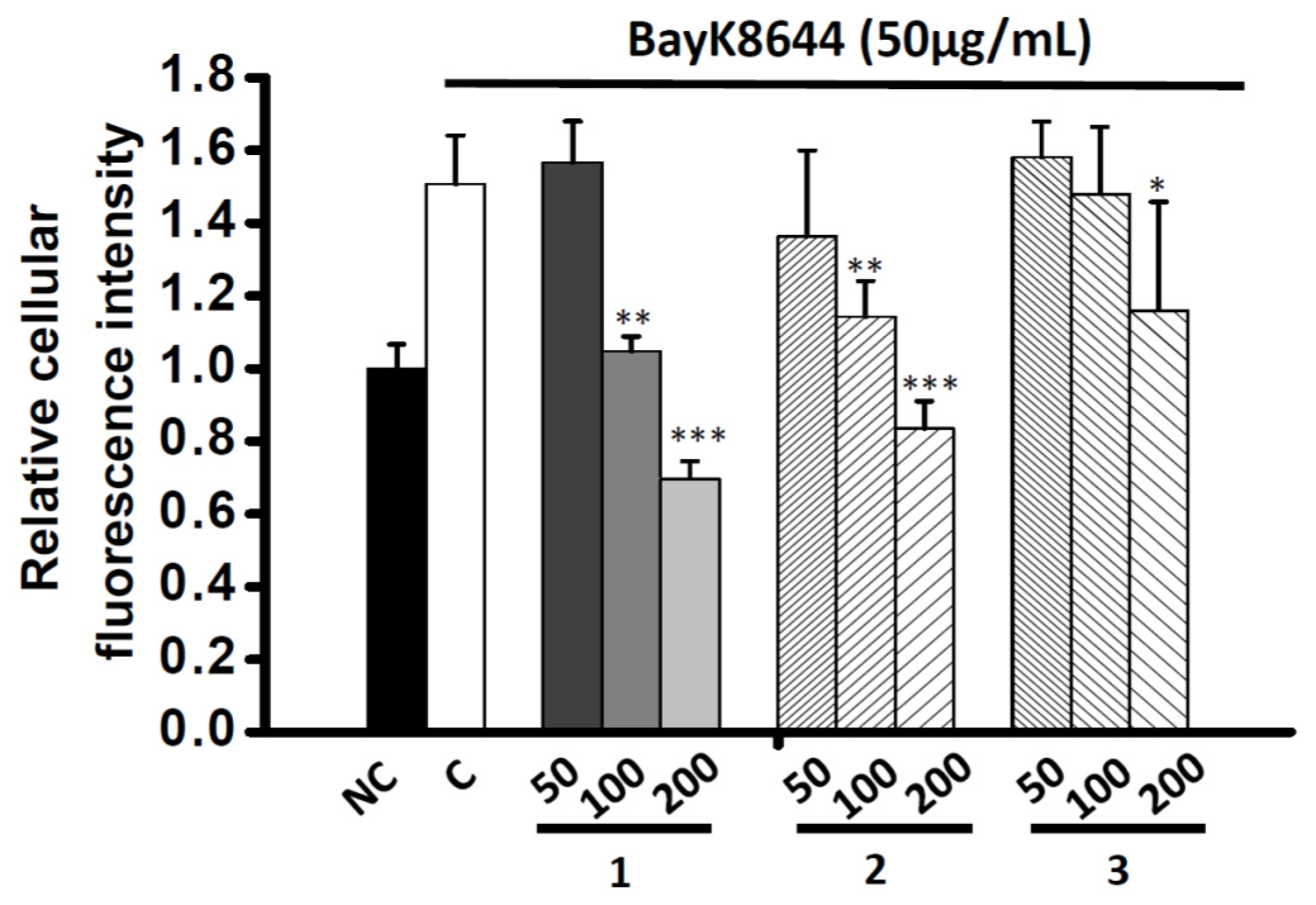

Figure 8. Effects of compounds 13 on the calcium fluorescent intensity induced by Bayk8644 (50 μg/mL). The compounds were tested under three different concentrations, 50, 100 and 200 μg/mL. A7r5 cells were loaded with Fluo4-AM prior to incubation with different compounds. Intensity of fluorescence was collected at 0 and 30 min. Each bar represents the mean ± SD (indicated by vertical lines) and calculated from three different experiments. * p <0.05, ** p <0.01 and *** p <0.001 versus control values.
Figure 8. Effects of compounds 13 on the calcium fluorescent intensity induced by Bayk8644 (50 μg/mL). The compounds were tested under three different concentrations, 50, 100 and 200 μg/mL. A7r5 cells were loaded with Fluo4-AM prior to incubation with different compounds. Intensity of fluorescence was collected at 0 and 30 min. Each bar represents the mean ± SD (indicated by vertical lines) and calculated from three different experiments. * p <0.05, ** p <0.01 and *** p <0.001 versus control values.
Molecules 23 00086 g008
Table 1. Phenolic compounds detected in the extract of five-leaf pine (5LP) needles a.
Table 1. Phenolic compounds detected in the extract of five-leaf pine (5LP) needles a.
Peak No.RT (min)λmax (nm)[M – H] (m/z)MS2 (m/z)Tentative IdentificationRef
121.4294651489,325,163Flavone-diglucoside[19]
222.2316647485,383,323unknown
324.5280289245,205,203,137Catechin[20]
430.0313671323,119Dicaffeoyl-protocatechuic acid glucoside[21]
534.1281509491,361,313Lignan glucoside[22]
640.0281507491,359,341,329Icariside[23]
767.5267,314593447,285Kaempferol coumaroyl-glucoside[24]
867.8267,314609433,300Quercetin coumaroyl-rhamnose[24]
975.2268,316563417,284Kaempferol coumaroyl-rhamnose[24]
1076.1267,314739593,485,285Kaempferol coumaroyl-glucose-rhamnoside[24]
a The numbers of the compounds refer to the peak numbers in Figure 1.
