Molecules 2018, 23(1), 45; doi:10.3390/molecules23010045

Article
Synthesis and Evaluation of Biological Activities of Aziridine Derivatives of Urea and Thiourea
Aleksandra Kowalczyk 1,, Adam M. Pieczonka 2,*,, Michał Rachwalski 2, Stanisław Leśniak 2 and Paweł Stączek 1,*Orcid
1
Department of Microbial Genetics, Faculty of Biology and Environmental Protection, University of Lodz, Banacha 12/16, 90-237 Lodz, Poland
2
Department of Organic and Applied Chemistry, Faculty of Chemistry, University of Lodz, Tamka 12, 91-403 Lodz, Poland
*
Correspondence: Tel.: +48-426-354-4466 (P.S.); Fax: +48-426-655-818 (P.S.)
These authors contributed equally to this work.
Received: 12 December 2017 / Accepted: 21 December 2017 / Published: 25 December 2017

Abstract

:
In the present paper, we report the synthesis and evaluation of in vitro antimicrobial activities of aziridine-thiourea derivatives. A series of aziridines in reaction with isocyanates and isothiocyanates to obtain urea and thiourea derivatives were used. The structures of all new products were confirmed based on spectroscopic data (1H-NMR, 13C-NMR, HR-MS). These compounds were screened for their in vitro antimicrobial activity against a panel of Gram-positive and Gram-negative strains of bacteria. Six of the tested compounds appeared to be promising agents against reference strains of Escherichia coli, Staphylococcus aureus and Staphylococcus epidermidis. Subsequently, compounds exhibiting promising antibacterial activity were tested against twelve clinical isolates of S. aureus from three different sources of infection. The most bactericidal compounds (MIC = 16–32 µg/mL) showed better antibacterial activity against MRSA than ampicillin and streptomycin. The in vitro cytotoxicity analysis on L929 murine fibroblast and HeLa human tumor cell line using the MTT assay allowed us to select the least toxic compounds for future investigation.
Keywords:
aziridines; thiourea derivatives; antimicrobial activity; cytotoxicity

1. Introduction

Aziridines are nitrogen-containing, three-membered ring heterocycles, which are widely known as useful reactive intermediates in the synthesis of amino acid derivatives, azomethine ylides or chiral amino alcohols [1,2,3]. In addition, they are used as chiral auxiliaries and chiral ligands in asymmetric synthesis [4,5,6,7,8] or in fused heterocycles [9]. Besides their importance as reactive intermediates, aziridine-containing compounds possess many biological activities especially antitumor and antibacterial ones, due to the presence of the aziridine ring [10]. Aziridines are powerful alkylating agents and their in vivo potency is based primarily on toxicity rather than specific activity. The toxicity of aziridine derivatives depends on their structure, and several important natural products, such as mitomycin C [11], porfiromycin [12], and carzinophilin A [13] are well known in the literature as biologically active agents. Physiological effect of mitomycin C relies on aziridine ring opening and interaction with guanine nucleobase of DNA in the alkylation reaction. This leads to covalent interstrand DNA–DNA crosslink formation, inhibition of replication and finally to cell death. Aziridines with the amide function are currently of special interest with Imexon as the well-known representative. Imexon is an anticancer agent active especially against human myeloma cells where it binds to cellular thiols, reduces the amount of glutathione and cysteine in target cells which leads to elevated levels of reactive oxygen species (ROS). As a result, mitochondria swell, cytochrome c is released, caspase 3 and 9 are activated and the cells enter an apoptotic pathway [14,15]. Imexon is also known to disrupt the redox balance of the endoplasmic reticulum which inhibits protein translation and arrests cell growth [16]. In combination with docetaxel it has been successfully applied in the trial treatment of different cancers [17]. Other work related its activity to suppression of B-lymphocyte activation which suggested Imexon to be useful in the treatment of B-cell or plasma cell lymphomas or neoplasias, certain autoimmune disorders and infection with Rauscher leukemia virus [18,19]. Natural aziridine alkaloids, as well as their lipophilic semi-synthetic, and synthetic analogs, in addition to antitumor activity, have also a strong antibacterial activity [20]. Well known mitomycin A, C and mitosane compounds show antimicrobial activity primarily against Gram-positive bacteria and Klebsiella pneumoniae [10,20]. Azirinomycin (3-methyl-2H-azirine-2-carboxylic acid) is most active against Staphylococcus aureus followed by Streptococcus faecalis, Proteus vulgaris and Bacillus subtilis. The methyl ester of azirinomycin exhibited broad spectrum antibiotic activity in vitro against both Gram-positive and Gram-negative bacteria [21,22]. The alkaloidal antibiotic ficellomycin produced by Streptomyces ficellus inhibited growth of Gram-positive bacteria in vitro and in vivo during treatment of experimental Staphylococcus aureus infections in mice [23]. Some naturally occurring peptides containing an aziridine ring, for example madurastatin A1 and B1, consisting of Ser and salicylic acid moieties exhibit antibacterial activity against Micrococcus luteus [24]. Anticancer drugs, azinomycin A and B are active against both Gram-positive and Gram-negative bacteria. Two other aziridine derivatives, azicemicin A and B demonstrate strong antibacterial activity mainly against Mycobacterium smegmatis, Escherichia coli NIHJ, Corynebacterium bovis and Micrococcus luteus [25]. A chromoprotein antitumor drug maduropeptin exhibits inhibitory activity against Gram-positive bacteria [26]. There are also known some aziridine, 2-aminoethylaziridine and azirine complexes of copper(II) and palladium(II) with potent antimicrobial properties against Gram-positive bacteria (S. aureus, S. epidermidis, E. faecalis) [27]. Moreover, one derivative of diaziridinyl quinone isoxazole hybrid showed good antibacterial and anti-biofilm activities with very low MIC values against S. aureus and B. subtilis and it also exhibited antifungal activity against Candida albicans [28].
Many other natural or synthesized compounds with different structures like lipids, steroids, amino acids and peptides containing the aziridine moiety have also shown biological activity and are promising candidates for the development of new drugs against several diseases [10,27,29,30].
In the present paper, we focused on the design and synthesis of structurally novel urea and thiourea aziridine derivatives and evaluation of their biological activity based on the fact that many aziridine ring containing compounds have demonstrated antibacterial and cytotoxic activities.

2. Results and Discussion

2.1. Chemistry

In continuation of the studies on the synthesis and application of chiral aziridines [1,8,10,29,31,32,33], we used chiral aminoalcohols 1 to convert them into NH aziridines 2 via a modified Wenker synthesis [34]. Aminoalcohols 1ab in the presence of chlorosulfonic acid form sulfonic esters under mild conditions in quantitative yields. These esters under strong basic conditions were converted into the corresponding aziridines 2ac at elevated temperature (Figure 1).
Non-protected aziridines are stable compounds under basic conditions and they can easily react with diverse electrophiles. In our case, we used a series of aziridines 2 in reactions with isothiocyanates to obtain urea and thiourea derivatives. This methodology was previously used in 1987 to obtain mitomycin C derivatives [35], but none of the presented compounds exhibited significant activity against leukemia cells.
In the course of our studies, three aziridines 2ac bearing different substituents ((S)-2-methyl, (S)-2-isopropyl, 2,2-dimethyl), were reacted with a series of isothiocyanates yielding expected products in high yields after 16 h (Figure 2, Table 1) [30].
Structures of all new products were confirmed based on spectroscopic data (1H-NMR, 13C-NMR, HR-MS). For example, the 1H-NMR spectrum of thiourea 3a revealed the presence of two characteristic doublets at 2.17 and 2.51 ppm attributed to CH2 group of aziridine ring and broad signal at 6.61 ppm attributed to NH group. In the 13C-NMR spectra absorbance of a C=S group was found at 197.9 ppm. Due to the fact that many aziridine alkaloids exhibit good antimicrobial activity against selected phatogens [10], we decided to test preliminary the antibacterial and cytotoxic activity of our aziridine derivatives. Based on the results obtained from biological analysis of 3a3h compounds, we decided to confirm our preliminary conclusions regarding the biological role of some atoms and conformations in analyzed aziridine-containing agents by designing and synthesizing the next set of compounds.
In pursuit of the second goal, we synthesized aziridine-thiourea derivatives containing sterically crowded substituents, like benzyl (3i, 3j) and benzhydryl (3k, 3l). We also decided to include additional amine function in the aliphatic chain (compounds 3m3p) as a modification of compound 3a. We also replaced sulfur atom in compounds 3a and 3c to check the influence of the oxygen atom in the new urea derivatives, and we also synthesized an analog of compound 3o with (R)-isopropylaziridine (Table 2) to test if the configuration of the aziridine subunit had any significance to the biological activity. All new compounds were obtained according to a previously described procedure, only the reaction of (S)-2-isopropylaziridine 2b butylisocyanate and cyclohexylisocyanate gave the corresponding urea derivatives 3r, 3s in excellent yields after 30 min.

2.2. Biology

All compounds were tested for their antimicrobial activity against a representative panel of bacteria i.e., Escherichia coli, Pseudomonas aeruginosa, Staphylococcus aureus, Staphylococcus epidermidis, Enterococcus faecalis, Proteus vulgaris and Proteus mirabilis using nitrofurantoin, ampicillin and streptomycin as reference drugs. The in vitro antimicrobial activities of the compounds 3a3h at concentrations ranging from 1 to 512 μg/mL were screened using the microdilution method. The results showed that two compounds 3g, 3h were inactive against all tested bacteria in analyzed concentrations. Six compounds, 3a3f, showed antibacterial activity against Gram-positive strains (MIC value ranging from 16 to 512 μg/mL), however, lower than the reference drugs, and were inactive against P. aeruginosa and Proteus strains. The in vitro results of antibacterial activity of these compounds are presented in Table 3 as a minimal inhibitory concentration (MIC) and a minimal bactericidal concentration (MBC).
Among Gram-positive species, the most sensitive to all of the active compounds were two strains of S. aureus and S. epidermidis. The most effective against these strains were compounds 3a, 3b, 3c, 3f (MIC = 16–32 µg/mL) although their activities were lower than those exhibited by ampicillin and streptomycin which are the antibiotics commonly used in the therapy of staphylococcal infections. Among six tested compounds, 3b was the only effective agent against E. coli reference strain (MIC = 32 µg/mL). 3f was the most active compound especially against Gram-positive strains with activity similar to nitrofurantoin (MIC = 16 µg/mL), however, in case of S. aureus strains, its activity was more bacteriostatic than bactericidal with high MBC value (MBC = 128 µg/mL) while other agents showed bactericidal activity (MBC/MIC = 2 or 3, respectively). Compounds 3d and 3e showed lower antibacterial activity than other compounds with MIC= 128–256 µg/mL. Our observations suggest that 2,2-dimethyl substituent at R2 position of aziridine significantly reduces antibacterial activity (Table 3, see data 3e vs. 3b and 3g vs. 3c). The most potent derivatives were aziridines with (S)-2-methyl or (S)-2-isopropyl moiety at R2 however their activity also depended on the type of substituent at R1 position. For R1-methyl derivatives the replacement of (S)-2-methyl with (S)-2-isopropyl group highly increased antibacterial activity (4–8 fold) (Table 2, see data 3d vs. 3b). On the other hand, for R1-cyclohexyl derivatives the replacement of (S)-2-methyl with (S)-2-isopropyl did not have such significant consequences, however, compound 3f with (S)-2-methyl group showed two-fold stronger antimicrobial activity than 3c.
Considering good activity of the tested compounds, especially 3a, 3b, 3c, 3f, against Staphylococcus spp., a set of 12 S. aureus clinical strains including the ones isolated from two typical sources such as naso-pharynx (carrier state) and ulcers/furuncles (skin and soft tissue infections), but also those from infected bones (invasive infections) were tested against these agents. S. aureus D15 and D17 strains were characterized as MRSA due to their resistance to high concentrations of oxacillin. Similarly to the reference Staphylococcus spp. Strains, clinical isolates displayed high level of susceptibility to the analyzed compounds (MIC ranging from 16 to 64 µg/mL, Table 4).
Again, compound 3f showed the strongest activity, with MIC being equal to 8–16 µg/mL for all of the tested clinical isolates, which for most of the strains was a better result than in case of ampicillin and nitrofurantoin (used as positive control drugs). On the other hand, the other common antibiotics oxacillin and streptomycin were the most active in almost all cases, except for the two MRSA strains isolated from bones (S. aureus D15, and D17, which were 16–32 times more sensitive to 3f compound and 8–16 times to 3a, 3b, 3c compounds. For all four tested compounds, the MBC values were in a similar range, suggesting their bactericidal activity (MBC/MIC = 2).
Many aziridine-containing compounds are known to demonstrate strong anticancer activity. The cytotoxic activities of 3a3f were assessed using L929 murine cell line (recommended by the International Standard ISO 10993:2009 for evaluation of cytotoxic activities) as well as HeLa human tumor cell line. The percentage of viability inhibition compared to the negative control in which cells were grown in the absence of tested compounds was estimated for concentrations ranging from 2 to 256 µg/mL of the compound. A common antitumor drug, cisplatin, was used as a positive control. Compounds 3d and 3e showed weak cytotoxic effect on both tested cell lines and their activity was ~30-fold lower than for cisplatin (Table 5, Figure 3 and Figure 4). The most toxic were compounds which were the most bactericidal as well (3b, 3f) with IC30 = 20–28 µg/mL which is only nearly three-fold lower activity than in case of cisplatin however, they showed no selectivity against tumor cells.
Eleven new compounds, 3i3s, were tested for their antimicrobial activity against the same reference panel of bacteria and again using nitrofurantoin, ampicillin and streptomycin as reference drugs. The in vitro antimicrobial activities of the compounds 3i3s at concentrations ranging from 1 to 512 μg/mL were screened using the microdilution method. The results showed that five compounds 3i, 3n, 3r, 3s and (R)-3o were completely inactive against all tested bacteria in analyzed concentrations. Interestingly, both urea derivatives had no biological activity compared to their thiourea analogs (Table 2 and Table 6, see data 3r vs. 3a and 3s vs. 3c) which suggests that the sulphur atom is a principal factor for antibacterial properties. Moreover, an analog of compound 3o with (R)-isopropylaziridine also had no significant biological activity which confirmed that configuration of the aziridine plays an important role for evolving antimicrobial profiles. Six compounds 3j3o and 3p showed antibacterial activity mainly against Gram-positive strains (MIC value ranging from 4 to 256 μg/mL) and were inactive against P. aeruginosa and Proteus strains. The in vitro results of antibacterial activity of these compounds are presented in Table 6 as a minimal inhibitory concentration (MIC). For the two most active compounds 3o and 3p minimal bactericidal concentration was also determined (Table 7). For both compounds, the MBC values were in the similar range as MIC, suggesting their bactericidal activity (MBC/MIC = 2 or 3).
Considering good activity of these two compounds against S. aureus reference strains, we used a set of 12 S. aureus clinical strains to test antibacterial activity of 3o and 3p. Our results revealed satisfactory activity only in case of compound 3o with MIC being equal to 32 µg/mL for all of the tested clinical isolates, which, for most of the strains, was a better result than in case of ampicillin. Moreover, two MRSA strains isolated from bones (S. aureus D15, and D17 were 8–16 times more sensitive to 3o compound. For both tested compounds, the MBC values were in the similar range, suggesting their bactericidal activity (MBC/MIC = 2, Table 8).
As in the case of previous compounds, the cytotoxic activities of 3o3p were assessed using L929 murine cell line as well as HeLa human tumor cell line. The percentage of viability inhibition compared to the negative control in which cells were grown in the absence of tested compounds was estimated for concentrations ranging from 2 to 128 µg/mL of the compound. Compound 3o was more toxic (IC30 = 42–45 µg/mL), with cytotoxicity about two-fold higher than 3p (Table 9, Figure 5 and Figure 6). However, 3o seemed to be harmless for cells in a concentration corresponding to its antibacterial activity. Both compounds showed no selectivity against tumor cells.
To date, many anticancer agents have been found to show antimicrobial activity against several bacterial pathogens. Among them, mitomycin C as well as other aziridine derivatives have been tested. It is believed that, like in case of their anticancer activity, these compounds act mainly as alkylating agents also in bacterial cells. For example, mitomycin C which was found to be passively transported into the cells, may be used not only for killing metabolically active bacteria but also act against dormant presister cells, leading to formation of DNA crosslinks [36]. However, despite this typical crosslinking activity of aziridine derivatives, other possible modes of antibacterial action cannot be excluded. For example, naturally occurring aziridine derivative (2S,3S)-aziridine-2,3-dicarboxylic acid was found to inhibit the activity of E. coli aspartase [37]. We presume that the mechanism of action of the aziridine derivatives described in this paper may be typical as for the other members of this group of compounds, however, on the basis of this study, it is too early to predict it.

3. Experimental Section

3.1. Chemistry

General: Melting points were determined in a capillary using a STUART SMP30 and were uncorrected. The 1H- (600 MHz), 13C{1H}- (150 MHz) spectra were measured on a Bruker Avance III instrument (Bruker, Billerica, MA, USA) using solvent signals as reference. Chemical shifts (δ) are given in ppm and coupling constants J in Hz. Assignments of signals in13C-NMR spectra were made on the basis of HMQC experiments. HR-MS: Bruker Esquire LC spectrometers (Bruker Daltonics). All solvents are commercially available reagents and were used as received. Aziridines 2ac were obtained according to a published procedure [34].

3.2. General Procedure for Synthesis of Urea and Thiourea Derivatives 3

To a stirred solution of an aziridine 2 (1 mmol) in CH2Cl2 (5 mL) at 20 °C, an equimolar quantity of the isocyanate or isothiocyanate was slowly added. The mixture was stirred for 16 h at room temperature (3ap), or 30 min (3r, 3s), the solution was concentrated and the resulting mixture was purified by flash chromatography (SiO2/CH2Cl2).
(2S)-N-Butyl-2-isopropyl-aziridine-1-carbothioamide (3a): colorless crystals; yield: 92%; m.p. 71–72 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.61 (1H, br. s, NH); 3.61–3.57 (2H, m, N-CH2); 2.51 (1H, d, J = 6.6 Hz, CH2); 2.31–2.28 (1H, m, aziridine CH); 2.17 (1H, d, J = 4.2 Hz, CH2); 1.63–1.35 (5H, m); 1.07 (3H, d, J = 6.6 Hz, CH3); 0.98 (3H, d, J = 7.2 Hz, CH3); 0.95 (3H, t, J = 1.8 Hz, butyl CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 197.9 (C=S); 48.9 (aziridine CH); 45.8 (N-CH2); 34.8 (aziridine CH2); 30.8 (CH); 30.6, 20.1 (2 CH2); 20.0, 19.3 (2 CH3); 13.7 (butyl CH3). HR-EI-MS: 200.1350 (M+, C10H20N2S+; calcd. 200.1347).
(2S)-2-Isopropyl-N-methyl-aziridine-1-carbothioamide (3b): colorless crystals; yield: 90%; m.p. 65–66 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.67 (1H, br. s, NH); 3.16 (3H, d, J = 5.4 Hz, N-CH3); 2.55 (1H, d, J = 6.6 Hz, CH2); 2.37–2.33 (1H, m, aziridine CH); 2.21 (1H, d, J = 4.2 Hz, CH2); 1.62–1.55 (1H, m, isopropyl CH); 1.10 (3H, d, J = 6.6 Hz, CH3); 1.01 (3H, d, J = 7.2 Hz, CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 198.2 (C=S); 48.9 (aziridine CH); 34.9 (aziridine CH2); 33.2 (N-CH3); 30.8 (CH); 20.0, 19.4 (2 CH3). HR-EI-MS: 158.0879 (M+, C7H14N2S+; calcd. 158.0878).
(2S)-N-Cyclohexyl-2-isopropyl-aziridine-1-carbothioamide (3c): colorless crystals; yield: 89%; m.p. 75–76 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.60 (1H, br. s, NH); 4.18–4.16 (1H, m, N-CH); 2.49 (1H, d, J = 6.6 Hz, aziridine CH2); 2.29–2.26 (1H, m, aziridine CH); 2.07 (1H, d, J = 4.2 Hz, aziridine CH2); 2.06–2.04 (2H, m, cyclohexyl CH2); 1.72–1.37 (6H, m); 1.24–1.17 (3H, m); 1.07 (3H, d, J = 6.6 Hz, CH3); 0.98 (3H, d, J = 7.2 Hz, CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 197.7 (C=S); 54.1 (cyclohexyl CH); 48.9 (aziridine CH); 34.9 (aziridine CH2); 33.6, 33.4, 25.6, 25.5, 24.7 (5 CH2); 30.9 (CH); 20.0, 19.3 (2 CH3). HR-EI-MS: 226.1500 (M+, C12H22N2S+; calcd. 226.1504).
(2S)-N-Methyl-2-methyl-aziridine-1-carbothioamide (3d): colorless crystals; yield: 89%; m.p. 70–71 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.81 (1H, br. s, NH); 3.07 (3H, s, N-CH3); 2.54–2.52 (1H, m, CH); 2.46 (1H, d, J = 6.6 Hz, CH2); 2.07 (1H, d, J = 4.2 Hz, CH2); 1.25 (3H, d, J = 5.4 Hz, aziridine CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 198.5 (C=S); 38.2 (aziridine CH); 37.0 (aziridine CH2); 33.2 (N-CH3); 17.6 (aziridine CH3). HR-EI-MS: 130.0569 (M+, C5H10N2S+; calcd. 130.0565).
(2S)-N-Methyl-2,2-dimethyl-aziridine-1-carbothioamide (3e): colorless crystals; yield: 94%; m.p. 77–78 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.39 (1H, br. s, NH); 3.10 (3H, d, J = 5.4 Hz, N-CH3); 2.40 (2H, s, CH2); 1.23 (6H, s, 2 aziridine CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 195.8 (C=S); 42.5 (aziridine CH2); 33.2 (N-CH3); 22.4 (aziridine CH3). HR-EI-MS: 144.0722 (M+, C6H12N2S+; calcd. 144.0721).
(2S)-N-Cyclohexyl-2-methyl-aziridine-1-carbothioamide (3f): colorless crystals; yield: 97%; m.p. 68–67 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.52 (1H, br. s, NH); 4.12–4.08 (1H, m, N-CH); 2.54–2.51 (1H, m, aziridine CH); 2.42 (1H, d, J = 6.6 Hz, aziridine CH2); 2.07 (1H, d, J = 4.2 Hz, aziridine CH2); 2.06–1.20 (10H, m); 1.25 (3H, d, J = 6.0 Hz, CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 198.7 (C=S); 54.2 (cyclohexyl CH); 38.0 (aziridine CH); 36.9 (aziridine CH2); 33.6, 33.4, 25.6, 25.5, 24.7 (5 CH2); 17.5 (aziridine CH3). HR-EI-MS: 198.1198 (M+, C10H18N2S+; calcd. 198.1191).
(2S)-N-Cyclohexyl-2,2-dimethyl-aziridine-1-carbothioamide (3g): colorless crystals; yield: 96%; m.p. 76–77 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.24 (1H, br. s, NH); 4.19–4.13 (1H, m, N-CH); 2.38 (2H, s, aziridine CH2); 2.03–1.23 (10H, m); 1.15 (6H, s, 2 CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 192.8 (C=S); 54.5 (cyclohexyl CH); 42.1 (aziridine CH2); 33.3, 32.5, 25.5, 25.2, 24.8 (5 CH2); 22.0 (aziridine CH3). HR-EI-MS: 212.1351 (M+, C11H20N2S+; calcd. 212.1347).
(2S)-N-Allyl-2-isopropyl-aziridine-1-carbothioamide (3h): colorless crystals; yield: 76%; m.p. 65–66 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 6.56 (1H, br. s, NH); 5.86–5.80 (2H, m, CH2=); 5.20–5.16 (1H, m, CH=); 4.19–4.17 (allyl CH2); 2.46 (1H, d, J = 6.6 Hz, CH2); 2.28–2.25 (1H, m, CH); 2.14 (1H, d, J = 4.2 Hz, CH2); 1.53–1.47 (1H, m); 1.01 (3H, d, J = 6.6 Hz, CH3); 0.92 (3H, d, J = 7.2 Hz, CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 198.1 (C=S); 132.7 (CH2=); 117.6 (CH=); 48.9 (aziridine CH); 48.3 (CH2); 34.9 (aziridine CH2); 30.8 (isopropyl CH); 20.0, 19.0 (2 aziridine CH3). HR-EI-MS: 184.1039 (M+, C9H16N2S+; calcd. 184.1034).
(2S)-N-Cyclohexyl-2-isopropyl-aziridine-1-carboxamide (3s): colorless crystals; yield: 96%; m.p. 74–75 °C (MeOH). 1H-NMR (600 MHz, CDCl3, δ, ppm): 5.16 (1H, br. s, NH); 3.57–3.55 (1H, m, N-CH); 2.30 (1H, d, J = 6.6 Hz, aziridine CH2); 2.10–2.07 (1H, m, aziridine CH); 1.92–1.85 (2H, m, cyclohexyl CH2); 1.82 (1H, d, J = 4.2 Hz, aziridine CH2); 1.70–1.67, 1.61–1.57 (4H, 2 m, 2 cyclohexyl CH2); 1.42–1.31 (3H, m, isopropyl CH, cyclohexyl CH2); 1.18–1.12 (2H, m, cyclohexyl CH2);1.04 (3H, d, J = 6.6 Hz, CH3); 0.96 (3H, d, J = 7.2 Hz, CH3). 13C-NMR (150 MHz, CDCl3, δ, ppm): 163.1 (C=O); 54.5 (cyclohexyl CH); 45.9 (aziridine CH); 33.6, 33.4, 25.6, 25.5, 24.7 (5 CH2); 31.8 (aziridine CH2); 30.8 (CH); 20.0, 19.3 (2 CH3). HR-EI-MS: 210.1734 (M+, C12H22N2O+; calcd. 210.1732).

3.3. Biology

3.3.1. Antibacterial Assay

The in vitro antimicrobial activity of newly synthesized compounds was evaluated against the reference strains of Gram-negative (Escherichia coli NCTC 8196, Proteus vulgaris ATCC 49990, Proteus mirabilis ATCC 29906, Pseudomonas aeruginosa NCTC 6249), and Gram-positive (Staphylococcus aureus ATCC 6538, Staphylococcus aureus ATCC 29213, Enterococcus faecalis ATCC 29212, Staphylococcus epidermidis ATCC 12228) bacterial species. Moreover, the most active (against the reference strains) compounds were examined against a set of twelve clinical isolates of S. aureus received from the collection of the Chair of Immunology and Infectious Biology, University of Łódź. These strains were isolated from the following three sources: naso-pharynx of young patients hospitalized at Children’s Hospital in Łódź (n = 4), ulcers and furuncles from adult patients of Dermatological Clinic in Łódź (n = 4), and from infected bones of patients hospitalized at Oncological Hospital in Łódź (n = 4). All strains were kept frozen at −80 °C on Tryptic Soy Broth with 15% of glycerol until testing. Before using, S. aureus strains were subcultured on blood agar and identified by routine methods (catalase, coagulase and clumping factor). Minimal inhibitory concentration (MIC) was determined as the lowest concentration of the compound preventing growth of the tested microorganism using microdilution method according to EUCAST guidelines. The inoculum density was adjusted to 0.5 McFarland standard. All of the tested compounds were dissolved in dimethyl sulfoxide (DMSO). Concentration of the agents evaluated in Mueller-Hinton broth ranged from 1 to 512 µg/mL. DMSO at the final concentration in the medium had no influence on growth of the tested microorganisms. The incubation was carried out at 37 °C for 18 h and optical density (OD600) measurements were determined for bacterial cultures in the presence and absence of the tested compounds. Ampicillin, nitrofurantoin, and streptomycin widely used in the treatment of infectious diseases were used as positive control antimicrobial agents. Minimal bactericidal concentration (MBC), defined as the lowest concentration of a compound that resulted in >99.9% reduction in CFU of the initial inocula (2 × 108 cfu) was assessed only for compounds 3c3h and 3o, 3p. MBC was determined by a broth microdilution technique followed by plating out the contents of the wells that showed no visible growth of bacteria onto Mueller-Hinton agar plates and incubating at 35 °C for 18 h. Both MIC and MBC evaluations were performed in triplicates and are given in µg/mL.

3.3.2. Cytotoxicity Assay

Cytotoxic effect of compounds 3c3h and 3o, 3p on host cells was detected by determining cellular viability using MTT reduction assay. Murine fibroblasts L929 cells (ATTC® catalog No. CCL-1, mouse fibroblasts) or human tumor HeLa cells (ATTC® catalog No. CCL-2™, human epithelial cells) were plated in 96-well microplates at density of 1 × 104 cells/mL (100 μL per well) and cultivated in Iscove’s modified Dulbecco’s medium (IMDM), supplemented with 100.0 U/mL penicillin and streptomycin, 5 × 10−5 M 2-mercaptoethanol and enriched with 10% fetal bovine serum (FBS). After overnight incubation at 37 °C, the growth medium was removed and 100 μL of medium supplemented with different concentrations of synthetic compounds in the range of 1–300 µg/mL were added. Cells were further incubated for 24 h with tested agents. At the end of the incubation time, the medium was removed and MTT was added to each well at a final concentration of 0.5 mg/mL and plates were incubated for the next 2 h at 37 °C. Then, formazan crystals were solubilized in 150 μL DMSO. The optical density was measured at 550 nm. The results of experiments were shown as mean arithmetic values of eight repeats (two experiments) and the percentage of inhibition of viability compared to control wells was calculated for each concentration of the tested compounds and IC30 value (which is considered to be save for tested cells) was determined in each case. The results of the experiments were shown as mean arithmetic values from 3 repeats in each of two independent experiments.

4. Conclusions

In conclusion, we have reported the synthesis and preliminary evaluation of the biological activity of 19 novel urea and thiourea aziridine derivatives. While comparing the structure of tested compounds with the antibacterial and cytotoxic activity, we could already draw some substantial conclusions. The presence of sulphur atom is a principal factor for antibacterial properties of aziridine derivatives. The (S)-configuration of the aziridine plays an important role for conferring antimicrobial activity. All tested (S)-isopropylaziridine derivatives with 1-methyl (3b), 1-butyl (3a), 1-cyclohexyl (3c) and 1-(2-piperidinoethyl) (3o) substituents, showed similar satisfactory antibacterial results. The only exception was compound 3h with a 1-allyl moiety which can suggest that it decreases the antimicrobial activity. We have also observed that a 2,2-dimethyl moiety at C2 position of aziridine (3e, 3g) significantly reduces antibacterial activity. The most bactericidal aziridine derivatives of thiourea also showed the highest toxic activity against both cell lines with no selectivity for tumor cells. It can be explained by the alkylating activity of aziridine ring possessing agents and their in vivo potency based primarily on toxicity rather than specific activity. We selected five of the tested compounds 3a, 3b, 3c, 3f, 3o which showed the best activity against clinical S. aureus strains, and in two cases of invasive infections of MRSA, these agents exceeded the activity of commonly used antibiotics such as ampicillin, streptomycin and oxacillin by 16-fold. To conclude, all the collected data could provide valuable information for further modifications of these compounds in order to select those with stronger antibacterial activity which would be less harmful. Simultaneously, our attention will be also focused on the improvements leading to the increase of their selectivity against tumor cells, bearing in mind their potential usage in antitumor therapy.

Acknowledgments

We are grateful to Beata Sadowska from the Chair of Immunology and Infectious Biology, University of Łódź for providing us with a set of S. aureus clinical isolates. Financial support by the Ministry of Science and Higher Education in Poland, Grant Iuventus Plus nr IP2014–035873 for A.M.P., is gratefully acknowledged. This research was in part conducted using the equipment of the Laboratory of Microscopic Imaging and Specialized Biological Techniques, Faculty of Biology and Environmental Protection, University of Łódź.

Author Contributions

A.M.P. and A.K. performed the experiments. S.L. and M.R. analyzed the data. A.M.P., A.K. and P.S. wrote the paper.

Conflicts of Interest

Authors declare no conflict of interest.

References

  1. Yudin, A.K. Aziridines and Epoxides in Organic Synthesis; Wiley-VCH: Weinheim, Germany, 2006; p. 494. [Google Scholar]
  2. Morieux, P.; Stables, J.P.; Kohn, H. Synthesis and anticonvulsant activities of N-benzyl (2R)-2-acetamido-3-oxysubstituted propionamide derivatives. Bioorg. Med. Chem. 2006, 16, 8968–8975. [Google Scholar] [CrossRef] [PubMed]
  3. Cimarelli, C.; Fratoni, D.; Palmieri, G. A Convenient Synthesis of New Diamine, Amino Alcohol and Aminophosphines Chiral Auxiliaries Based on Limonene Oxide. Tetrahedron Asymmetry 2009, 20, 2234–2239. [Google Scholar] [CrossRef]
  4. Leśniak, S.; Pieczonka, A.M.; Jarzyński, S.; Justyna, K.; Rachwalski, M. ChemInform Abstract: Synthesis and Evaluation of the Catalytic Properties of Semicarbazides Derived from N-Triphenylmethyl-aziridine-2-carbohydrazides. Tetrahedron Asymmetry 2013, 24, 1341–1344. [Google Scholar] [CrossRef]
  5. Pieczonka, A.M.; Leśniak, S.; Rachwalski, M. Direct asymmetric aldol condensation catalyzed by aziridine semicarbazide zinc(II) complexes. Tetrahedron Lett. 2014, 55, 2373–2375. [Google Scholar] [CrossRef]
  6. Jarzyński, S.; Leśniak, S.; Pieczonka, A.M.; Rachwalski, M. N-Trityl-aziridinyl alcohols as highly efficient chiral catalysts in asymmetric additions of organozinc species to aldehydes. Tetrahedron Asymmetry 2015, 26, 35–40. [Google Scholar] [CrossRef]
  7. Pieczonka, A.M.; Leśniak, S.; Jarzyński, S.; Rachwalski, M. Aziridinylethers as highly enantioselective ligands for the asymmetric addition of organozinc species to carbonyl compounds. Tetrahedron Asymmetry 2015, 26, 148–151. [Google Scholar] [CrossRef]
  8. Lesniak, S.; Rachwalski, M.; Pieczonka, A.M. Optically Pure Aziridinyl Ligands as Useful Catalysts in the Stereocontrolled Synthesis. Curr. Org. Chem. 2014, 18, 3045–3065. [Google Scholar] [CrossRef]
  9. Cheung, L.L.W.; Zhi, H.; Decker, S.M.; Yudin, A.K. Skeletal Fusion of Small Heterocycles with Amphoteric Molecules. Angew. Chem. Int. Ed. 2011, 50, 11798–11802. [Google Scholar] [CrossRef] [PubMed]
  10. Ismail, F.M.D.; Levitsky, D.O.; Dembitsky, V.M. Aziridine alkaloids as potential therapeutic agents. Eur. J. Med. Chem. 2009, 44, 3373–3387. [Google Scholar] [CrossRef] [PubMed]
  11. Wakaki, S.; Marumo, H.; Tomioka, K.; Shimizu, G.; Kato, E.; Kamada, H.; Kudo, S.; Fujimoto, Y. Isolation of new fractions of antitumor mitomycins. Antibiot. Chemother. 1958, 8, 228–235. [Google Scholar]
  12. Herr, R.R.; Bergy, M.E.; Eble, T.E.; Jahnke, H.K. Porfiromycin, a new antibiotic. Antimicrob. Agents Ann. 1960, 8, 23–31. [Google Scholar]
  13. Zang, H.; Gates, K.S. DNA Binding and Alkylation by the “Left Half” of Azinomycin B. Biochemistry 2000, 39, 14968–14975. [Google Scholar] [CrossRef] [PubMed]
  14. Dvorakova, K.; Payne, C.M.; Tome, M.E.; Briehl, M.M.; McClure, T.; Dorr, R.T. Induction of oxidative stress and apoptosis in myeloma cells by the aziridine-containing agent imexon. Biochem. Pharm. 2000, 60, 749–758. [Google Scholar] [CrossRef]
  15. Dvorakova, K.; Waltmire, C.N.; Payne, C.M.; Tome, M.E.; Briehl, M.M.; Dorr, R.T. Induction of mitochondrial changes in myeloma cells by imexon. Blood 2001, 97, 3544–3551. [Google Scholar] [CrossRef] [PubMed]
  16. Sheveleva, E.V.; Landowski, T.H.; Samulitis, B.K.; Bartholomeusz, G.; Powis, G.; Dorr, R.T. Imexon Induces an Oxidative Endoplasmic Reticulum Stress Response in Pancreatic Cancer Cells. Mol. Cancer Res. 2012, 10, 392–400. [Google Scholar] [CrossRef] [PubMed]
  17. Moulder, S.; Dhillon, N.; Ng, C.; Hong, D.; Wheler, J.; Naing, A.; Tse, S.; La Paglia, A.; Dorr, R.; Hersh, E.; et al. A phase I trial of imexon, a pro-oxidant, in combination with docetaxel for the treatment of patients with advanced breast, non-small cell lung and prostate cancer. Investig. New Drugs 2010, 28, 634–640. [Google Scholar] [CrossRef] [PubMed]
  18. Barr, P.M.; Miller, T.P.; Friedberg, J.W.; Peterson, D.R.; Baran, A.M.; Herr, M.; Spier, C.M.; Cui, H.; Roe, D.J.; Persky, D.O.; et al. Phase 2 study of imexon, a prooxidant molecule, in relapsed and refractory B-cell non-Hodgkin lymphoma. Blood 2014, 124, 1259–1265. [Google Scholar] [CrossRef] [PubMed]
  19. Herrmann, D.; Haag, R.; Bosies, E.; Bicker, U.; Kampe, W. Use of Imexone as an Immunosuppressive Agent. Patent EP 352652 A2, 31 January 1990. [Google Scholar]
  20. Kinoshita, S.; Uzu, K.; Nakano, M.; Shimizu, A.; Takahashi, T. Mitomycin derivatives. 1. Preparation of mitosane and mitosene compounds and their biological activities. J. Med. Chem. 1971, 14, 103–109. [Google Scholar] [CrossRef] [PubMed]
  21. Stapley, E.O.; Hendlin, D.; Jackson, M.; Miller, A.K.; Hernandez, S.; Martinez, M.; Martinez, M. Azirinomycin. I. Microbial production and biological characteristics. J. Antibiot. 1971, 24, 42–47. [Google Scholar] [CrossRef] [PubMed]
  22. Miller, T.W.; Tristram, E.W.; Wolf, F.J. Azirinomycin. II. Isolation and chemical characterization as 3-methyl-2(2H) azirinecarboxylic acid. J. Antibiot. 1971, 24, 48–50. [Google Scholar] [CrossRef] [PubMed]
  23. Argoudelis, A.D.; Reusser, F.; Whaley, H.A. The Antibiotic U-47,929 and Its Preparation. U.S. Patent 542,226, 24 February 1976. [Google Scholar]
  24. Harada, K.I.; Tomita, K.; Fujii, K.; Masuda, K.; Mikami, Y.; Yazawa, K.; Komaki, H. Isolation and Structural Characterization of Siderophores, Madurastatins, Produced by a Pathogenic Actinomadura madurae. J. Antibiot. 2004, 57, 125–135. [Google Scholar] [CrossRef] [PubMed]
  25. Tsuchida, T.; Iinuma, H.; Kinoshita, N.; Ikeda, T.; Sawa, T.; Hamada, M.; Takeuchi, T. Azicemicins A and B, a New Antimicrobial Agent Produced by Amycolatopsis. J. Antibiot. 1995, 48, 217–221. [Google Scholar] [CrossRef] [PubMed]
  26. Schroeder, D.R.; Colson, K.L.; Klohr, S.E.; Zein, N.; Langley, D.R.; Lee, M.S.; Matson, J.A.; Doyle, T.W. Isolation, Structure Determination, and Proposed Mechanism of Action for Artifacts of Maduropeptin Chromophore. J. Am. Chem. Soc. 1994, 116, 9351–9352. [Google Scholar] [CrossRef]
  27. Budzisz, E.; Bobka, R.; Hauss, A.; Roedel, J.N.; Wirth, S.; Lorenz, I.-P.; Rozalska, B.; Więckowska-Szakiel, M.; Krajewska, U.; Rozalski, M. Synthesis, structural characterization, antimicrobial and cytotoxic effects of aziridine, 2-aminoethylaziridine and azirine complexes of copper(II) and palladium(II). Dalton Trans. 2012, 41, 5925–5933. [Google Scholar] [CrossRef] [PubMed]
  28. Swapnaja, K.J.M.; Yennam, S.; Chavali, M.; Poornachandra, Y.; Kumar, C.G.; Muthusamy, K.; Jayaraman, V.B.; Arumugam, P.; Balasubramanian, S.; Sriram, K.K. Design, synthesis and biological evaluation of diaziridinyl quinone isoxazole hybrids. Eur. J. Med. Chem. 2016, 117, 85–98. [Google Scholar] [CrossRef] [PubMed]
  29. Moonen, K.; Laureyn, I.; Stevens, C.V. Synthetic methods for azaheterocyclic phosphonates and their biological activity. Chem. Rev. 2004, 104, 6177–6215. [Google Scholar] [CrossRef] [PubMed]
  30. Dogan, Ö.; Babiz, H.; Gözen, A.G.; Budak, S. Synthesis of 2-aziridinyl phosphonates by modified Gabriel–Cromwell reaction and their antibacterial activities. Eur. J. Med. Chem. 2011, 46, 2485–2489. [Google Scholar] [CrossRef] [PubMed]
  31. Chebanov, V.A.; Zbruyev, A.I.; Desenko, S.M.; Orlov, V.D.; Yaremenko, F.G. Three-Membered Azaheterocycles Based on α, β-Unsaturated Ketones. Curr. Org. Chem. 2008, 12, 792–812. [Google Scholar] [CrossRef]
  32. Singh, G.S.; D’hooghe, M.; De Kimpe, N. Synthesis and Reactivity of C-Heteroatom-Substituted Aziridines. Chem. Rev. 2007, 107, 2080–2135. [Google Scholar] [CrossRef] [PubMed]
  33. Callebaut, G.; Meiresonne, T.; De Kimpe, N.; Mangelinckx, S. Synthesis and Reactivity of 2-(Carboxymethyl)aziridine Derivatives. Chem. Rev. 2014, 114, 7954–8015. [Google Scholar] [CrossRef] [PubMed]
  34. Li, X.; Chen, N.; Xu, J. An improved and mild Wenker synthesis of aziridines. Synthesis 2010, 20, 3423–3428. [Google Scholar]
  35. Fishbein, P.L.; Kohn, H. Synthesis and antineoplastic activity of 1a-formyl and 1a-thioformyl derivatives of mitomycin C and 2-methylaziridine. J. Med. Chem. 1987, 30, 1767–1773. [Google Scholar] [CrossRef] [PubMed]
  36. Kwan, B.W.; Chowdhury, N.; Wood, T.K. Combatting bacterial infections by killing persister cells with mitomycin C. Environ. Microbiol. 2015, 17, 4406–4414. [Google Scholar] [CrossRef] [PubMed]
  37. Higashi, Y.; Tokushige, M.; Umezawa, H. Specific inhibition of aspartase by S-2,3-dicarboxyaziridine. Biochem. Int. 1988, 16, 449–452. [Google Scholar] [PubMed]
  • Sample Availability: Samples of the compounds 3a3s are available from the authors.

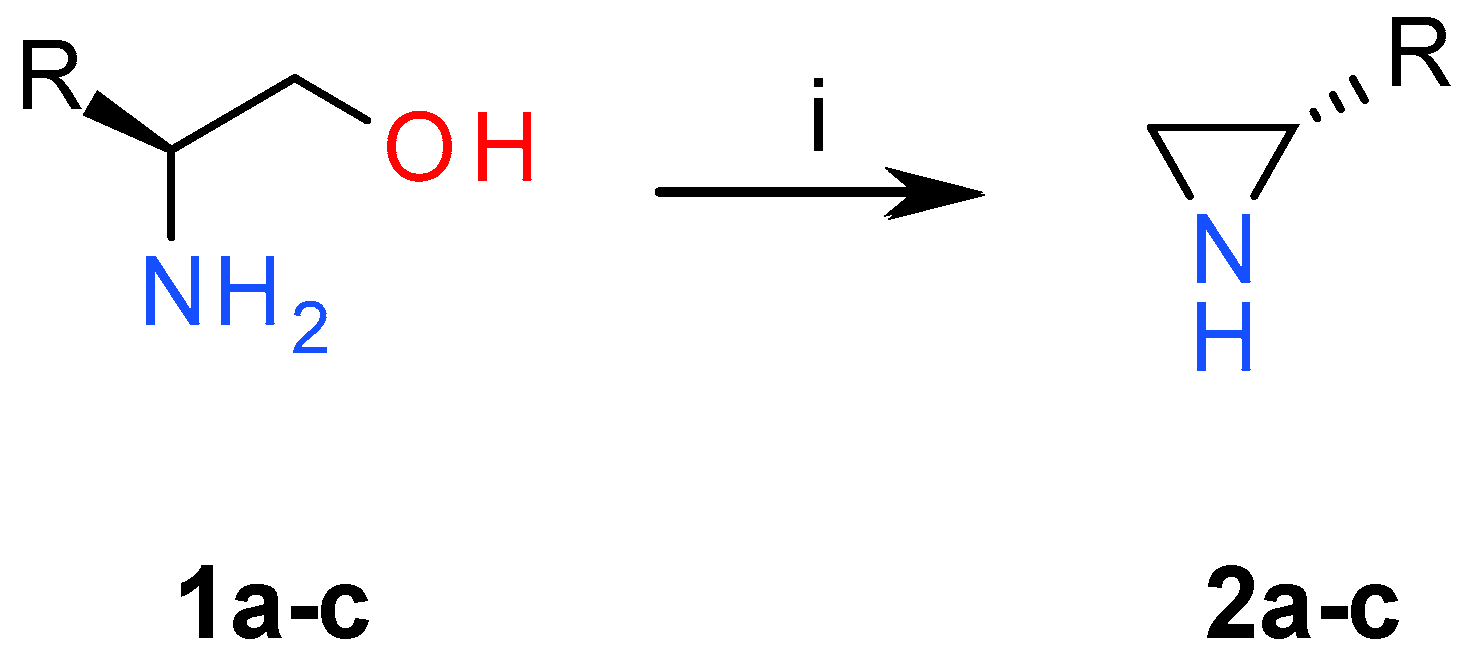

Figure 1. Reagents and conditions: (i) 1. ClSO3H, MeCN; 2. 5 M NaOH, reflux.
Figure 1. Reagents and conditions: (i) 1. ClSO3H, MeCN; 2. 5 M NaOH, reflux.
Molecules 23 00045 g001

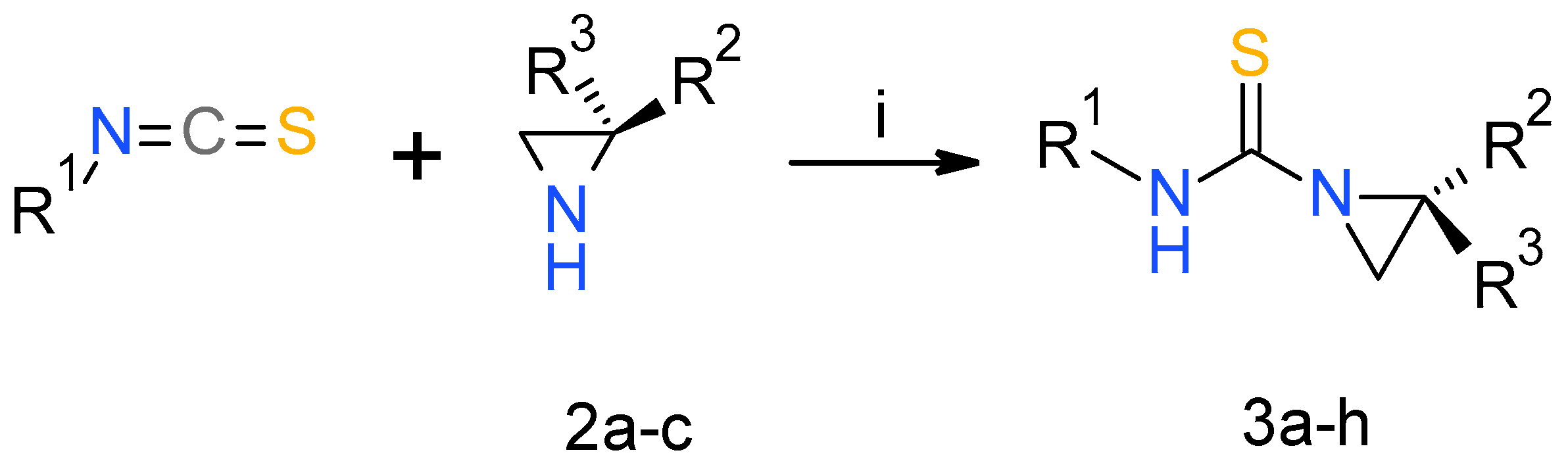

Figure 2. Reagents and conditions: (i) CH2Cl2, 30 min to 16 h.
Figure 2. Reagents and conditions: (i) CH2Cl2, 30 min to 16 h.
Molecules 23 00045 g002

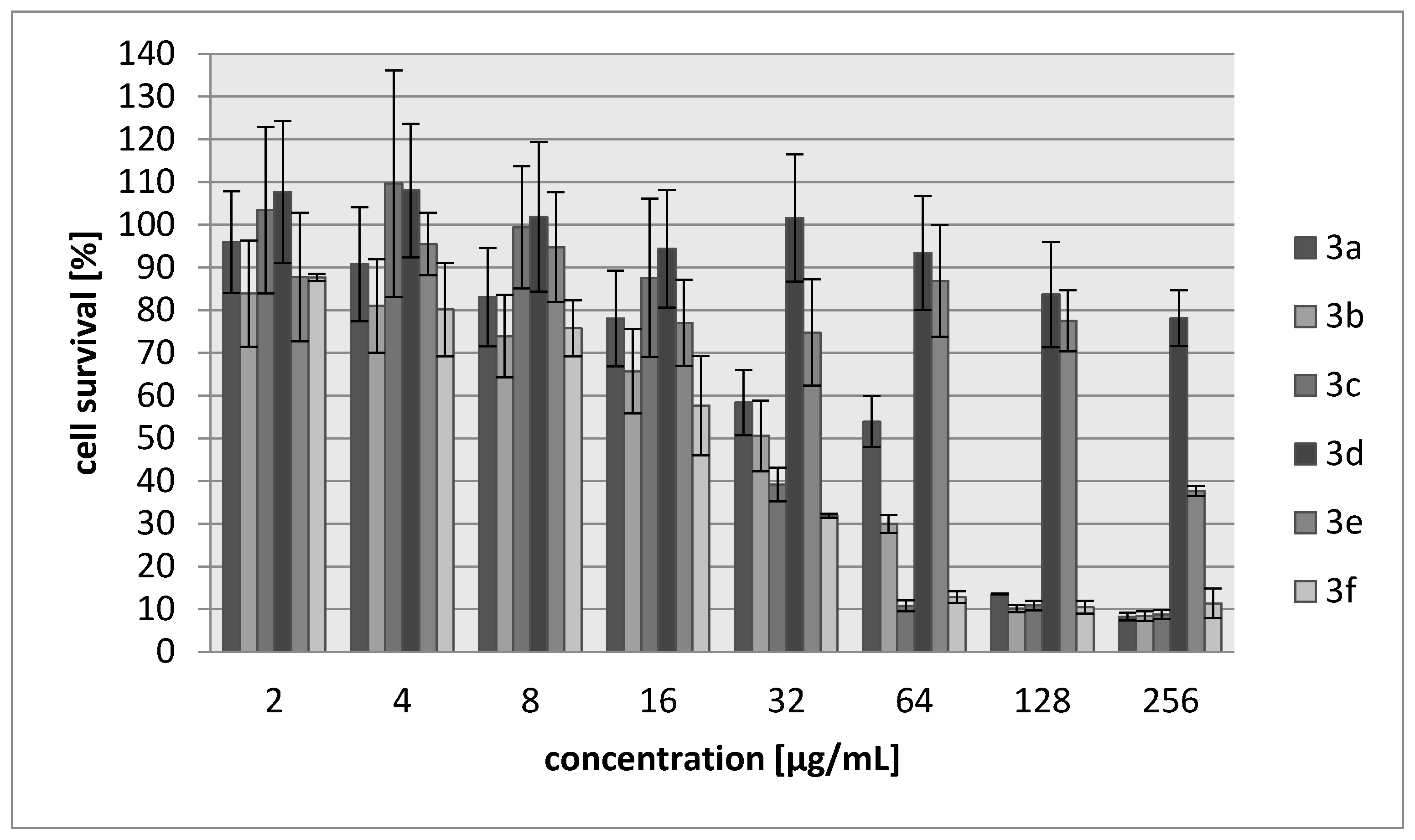

Figure 3. Concentration-dependent cytotoxic activity of 3a, 3b, 3c, 3d, 3e, 3f for L929 cell line.
Figure 3. Concentration-dependent cytotoxic activity of 3a, 3b, 3c, 3d, 3e, 3f for L929 cell line.
Molecules 23 00045 g003
Figure 4. Concentration-dependent cytotoxic activity of 3a, 3b, 3c, 3d, 3e, 3f for HeLa cell line.
Figure 4. Concentration-dependent cytotoxic activity of 3a, 3b, 3c, 3d, 3e, 3f for HeLa cell line.
Molecules 23 00045 g004

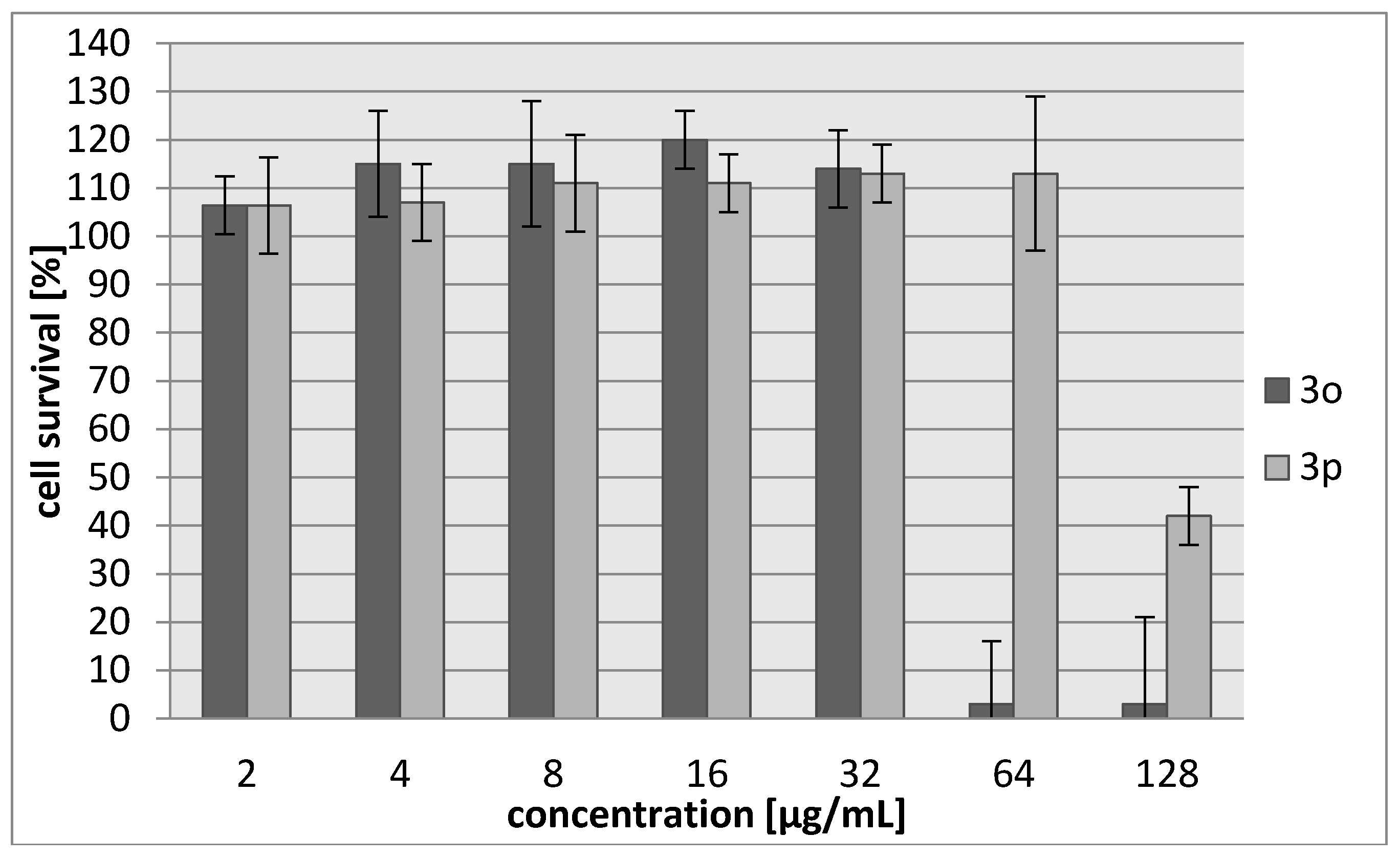

Figure 5. Concentration-dependent cytotoxic activity of 3o and 3p for L929 cell line.
Figure 5. Concentration-dependent cytotoxic activity of 3o and 3p for L929 cell line.
Molecules 23 00045 g005

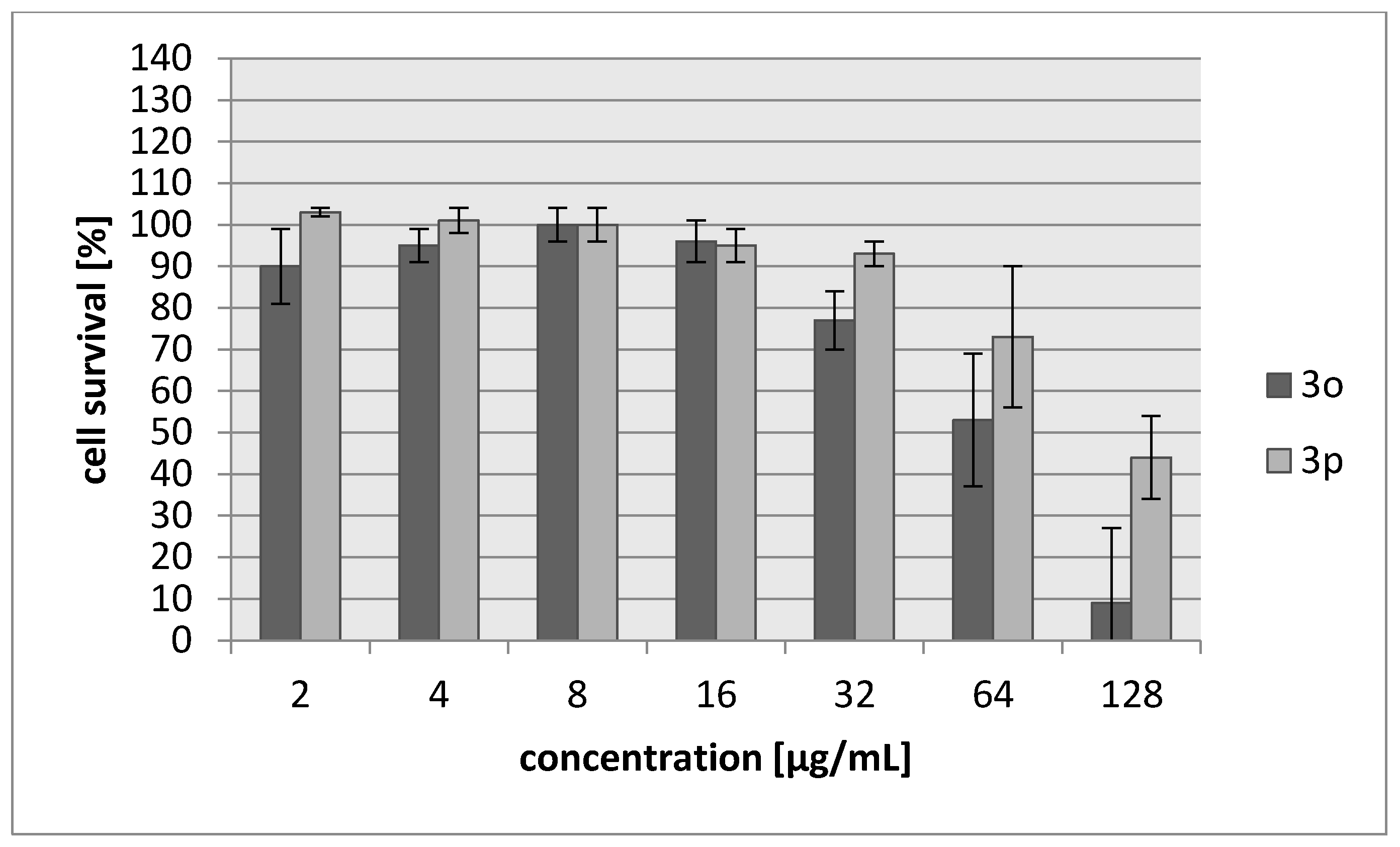

Figure 6. Concentration-dependent cytotoxic activity of 3o and 3p for HeLa cell line.
Figure 6. Concentration-dependent cytotoxic activity of 3o and 3p for HeLa cell line.
Molecules 23 00045 g006
Table 1. Yields of the new urea and thiourea derivatives 3a3h.
Table 1. Yields of the new urea and thiourea derivatives 3a3h.
CompoundR1R2R3Yield (%)
3aBuiPrH92
3bMeiPrH90
3ccHexiPrH89
3dMeMeH89
3eMeMeMe94
3fcHexMeH97
3gcHexMeMe96
3hAllyliPrH76
Table 2. Yields of the urea and thiourea derivatives 3i3s.
Table 2. Yields of the urea and thiourea derivatives 3i3s.
Molecules 23 00045 i001
CompoundR1R2XYield (%)
3iCH2PhiPrS90
3jCH2PhMeS89
3kCHPh2iPrS88
3lCHPh2MeS85
3m2-(4-morpholino)ethyliPrS92
3n2-(4-morpholino)ethylMeS93
3o2-piperidinoethyliPrS95
(R)-3o2-piperidinoethyliPrS90
3p2-piperidinoethylMeS91
3rBuiPrO96
3scHexiPrO98
Table 3. In vitro antibacterial activity of 3a, 3b, 3c, 3d, 3e, 3f expressed as a minimal inhibitory concentration (MIC) (µg/mL) and a minimal bactericidal concentration (MBC) (µg/mL). AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Table 3. In vitro antibacterial activity of 3a, 3b, 3c, 3d, 3e, 3f expressed as a minimal inhibitory concentration (MIC) (µg/mL) and a minimal bactericidal concentration (MBC) (µg/mL). AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Tested StrainE. coli NCTC 8196
NCTC 8196
S. aureus ATCC 6538
ATCC 6538
S. aureus ATCC 29213
ATCC 29213
S. epidermidis ATCC 12228
ATCC 12228
CompoundMICMBCMICMBCMICMBCMICMBC
3a>512nd32128321283264
3b3232326432641616
3c>512nd326432643264
3d128128256512256512256512
3e>512nd128128128128128128
3f25651216128161281616
NTF881632163288
AMP44112411
STR121112>512>512
Note: nd—not determined.
Table 4. In vitro activity of 3a, 3b, 3c, 3f against clinical isolates of S. aureus expressed as the minimal inhibitory concentration (MIC) (µg/mL) and minimal bactericidal concentration (MBC) (µg/mL). OX: oxacillin, AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Table 4. In vitro activity of 3a, 3b, 3c, 3f against clinical isolates of S. aureus expressed as the minimal inhibitory concentration (MIC) (µg/mL) and minimal bactericidal concentration (MBC) (µg/mL). OX: oxacillin, AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Compound3a3b3c3fOXAMPNTFSTR
Tested StrainMICMBCMICMBCMICMBCMICMBCMICMBCMICMBCMICMBCMICMBC
naso-pharynx isolates
S. aureus
C432643264326416160.250.25512512161688
C732643232326416160.250.25641281616816
C832643232326416160.250.25512>5121616816
C1932643232326416160.50.564128323288
ulcers/furuncles isolates
D1232641632321288160.50.52562563232816
F13264321286412816640.250.25128128323288
F7326432128326416640.250.25441616816
F123264163232648160.250.25641281632832
bone isolates
D1432643232326416160.50.52565123232816
D15 (MRSA)3264323232641616>512>512>512>5123232256>512
D17 (MRSA)326416163264832>512>512>512>5123232256>512
D20326432326412816640.50.5128256163288
Table 5. Cytotoxic activity data.
Table 5. Cytotoxic activity data.
CompoundIC30 (µg/mL)/(µM)
L929 Cells
HeLa Cells
3a68/34083/388
3b27/17128/177
3c34/14769/304
3d>250/>1922>250/1922
3e214/1485250/1735
3f20/10222/111
Cisplatin7.24/246.53/22
Table 6. In vitro antibacterial activity of 3j, 3k, 3l, 3m, 3o, 3p expressed as a minimal inhibitory concentration (MIC) (µg/mL). AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Table 6. In vitro antibacterial activity of 3j, 3k, 3l, 3m, 3o, 3p expressed as a minimal inhibitory concentration (MIC) (µg/mL). AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Tested StrainE. coli NCTC 8196
NCTC 8196
S. aureus ATCC 6538
ATCC 6538
S. aureus ATCC 29213
ATCC 29213
S. epidermidis ATCC 12228
ATCC 12228
CompoundMIC (µg/mL)
3j256128128128
3k256na*Na256
3l256256256256
3mna128256128
3o64884
3p256646464
NTF816168
AMP4121
STR111>512
na*—no activity.
Table 7. In vitro antibacterial activity of 3o and 3p expressed as a minimal bactericidal concentration (MBC) (µg/mL).
Table 7. In vitro antibacterial activity of 3o and 3p expressed as a minimal bactericidal concentration (MBC) (µg/mL).
Tested StrainE. coli NCTC 8196
NCTC 8196
S. aureus ATCC 6538
ATCC 6538
S. aureus ATCC 29213
ATCC 29213
S. epidermidis ATCC 12228
ATCC 12228
CompoundMBC (µg/mL)
3o12816168
3p256128128128
Table 8. In vitro activity of 3o and 3p against clinical isolates of S. aureus expressed as a minimal inhibitory concentration (MIC) (µg/mL) and a minimal bactericidal concentration (MBC) (µg/mL). OX: oxacillin, AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Table 8. In vitro activity of 3o and 3p against clinical isolates of S. aureus expressed as a minimal inhibitory concentration (MIC) (µg/mL) and a minimal bactericidal concentration (MBC) (µg/mL). OX: oxacillin, AMP: ampicillin, NTF: nitrofurantoin, STR: streptomycin.
Compound3o3pOXAMPNTFSTR
Tested StrainMICMBCMICMBCMICMBCMICMBCMICMBCMICMBC
naso-pharynx isolates
S. aureus
C432642562560.250.25512512161688
C732642562560.250.25641281616816
C832642562560.250.25512>5121616816
C1932642562560.50.2564128323288
ulcers/furuncles isolates
D1232642562560.50.52562563232816
F132642562560.250.25128128323288
F732642562560.250.25441616816
F1232642562560.250.25641281632832
bone isolates
D1432642562560.50.52565123232816
D15 (MRSA)3264256512>512>512>512>5123232256>512
D17 (MRSA)3264256512>512>512>512>5123232256>512
D2032642565120.50.5128256163288
Table 9. Cytotoxic activity data.
Table 9. Cytotoxic activity data.
CompoundIC30 (µg/mL)/(µM)
L929 Cells
HeLa Cells
3o45/18742/174
3p103/48371/333
Cisplatin7.24/246.53/22

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
