Molecules 2017, 22(2), 323; doi:10.3390/molecules22020323

Review
Design of Drug Delivery Systems Containing Artemisinin and Its Derivatives
Blessing Atim Aderibigbe
Department of Chemistry, University of Fort Hare, Alice Campus, Eastern Cape 5700, South Africa
Academic Editor: Derek J. McPhee
Received: 26 December 2016 / Accepted: 15 February 2017 / Published: 20 February 2017

Abstract

:
Artemisinin and its derivatives have been reported to be experimentally effective for the treatment of highly aggressive cancers without developing drug resistance, they are useful for the treatment of malaria, other protozoal infections and they exhibit antiviral activity. However, they are limited pharmacologically by their poor bioavailability, short half-life in vivo, poor water solubility and long term usage results in toxicity. They are also expensive for the treatment of malaria when compared to other antimalarials. In order to enhance their therapeutic efficacy, they are incorporated onto different drug delivery systems, thus yielding improved biological outcomes. This review article is focused on the currently synthesized derivatives of artemisinin and different delivery systems used for the incorporation of artemisinin and its derivatives.
Keywords:
artemisinin; artesunate; artemether; arteether; drug delivery systems

1. Introduction

Artemisinin is obtained from the Chinese medicinal herb Artemisia annua [1]. Its structure is a sesquiterpene lactone containing an internal peroxide bridge which makes it different from other available drugs [1]. Some of its derivatives such as artesunate, artemether, artenimol, artelinic acid and arteether are referred to as semisynthetic derivatives [1]. The therapeutic applications of artemisinin and its derivatives is wide and huge. They are used to reduce angiogenesis; they exhibit antitumor and anticancer activities [2]; they are used for the treatment of joint pain; epilepsy; liver problems; menstrual pain and loss of appetite [3]. They also exhibit anti-inflammatory activity, sedative activity, treat insomnia and gastrointestinal disease, exhibit antibacterial activity and are useful for the treatment of ulcers, skin diseases and wounds [3]. They build-up the healthy cells, prevent infections, destroy existing infections and inhibit viral infections [3,4]. They are effective for the treatment of malaria and protozoan infections [5,6].
Despite the effectiveness of artemisinin in the treatment of several diseases, it is limited in the treatment of malaria by its cost when compared to other antimalarials [7], poor bioavailability and solubility, short half-life, toxicity and drug resistance [8]. Due to the aforementioned pharmacological limitations, several researchers are designing derivatives with enhanced therapeutic effects and some researchers have developed delivery systems in which artemisinin and its derivatives are incorporated to produce improved therapeutic effects. This review will focus on the recent trends in the incorporation of artemisinin and its derivatives onto delivery systems and the biological evaluations of these systems.

2. Artemisinin Derivatives

Presently, there are several known derivatives of artemisinin such as artesunate (1), artemether (2), artenimol (3), artelinic acid (4) and arteether (5) (Figure 1) [1]. There are also several derivatives of artesiminin derivatives/hybrid compounds containing artemisinin that have been reported with good biological activity in vivo/in vitro when compared to the free artemisinin (Table 1). Wang et al. prepared the artesunate-indoloquinoline hybrid 6 that was active as an antimalarial [9] (Figure 2).
In vitro evaluation of the cytotoxicity of the hybrid compound on normal cells revealed a decreased cytotoxicity. The antimalarial activity of the hybrid compound was good and it acted as an excellent β-haematin inhibitors when compared to the free drugs [9]. Zhang et al. prepared artesunate-podophyllotoxin analogue 7 with good anticancer activity in vitro [10] (Figure 3).

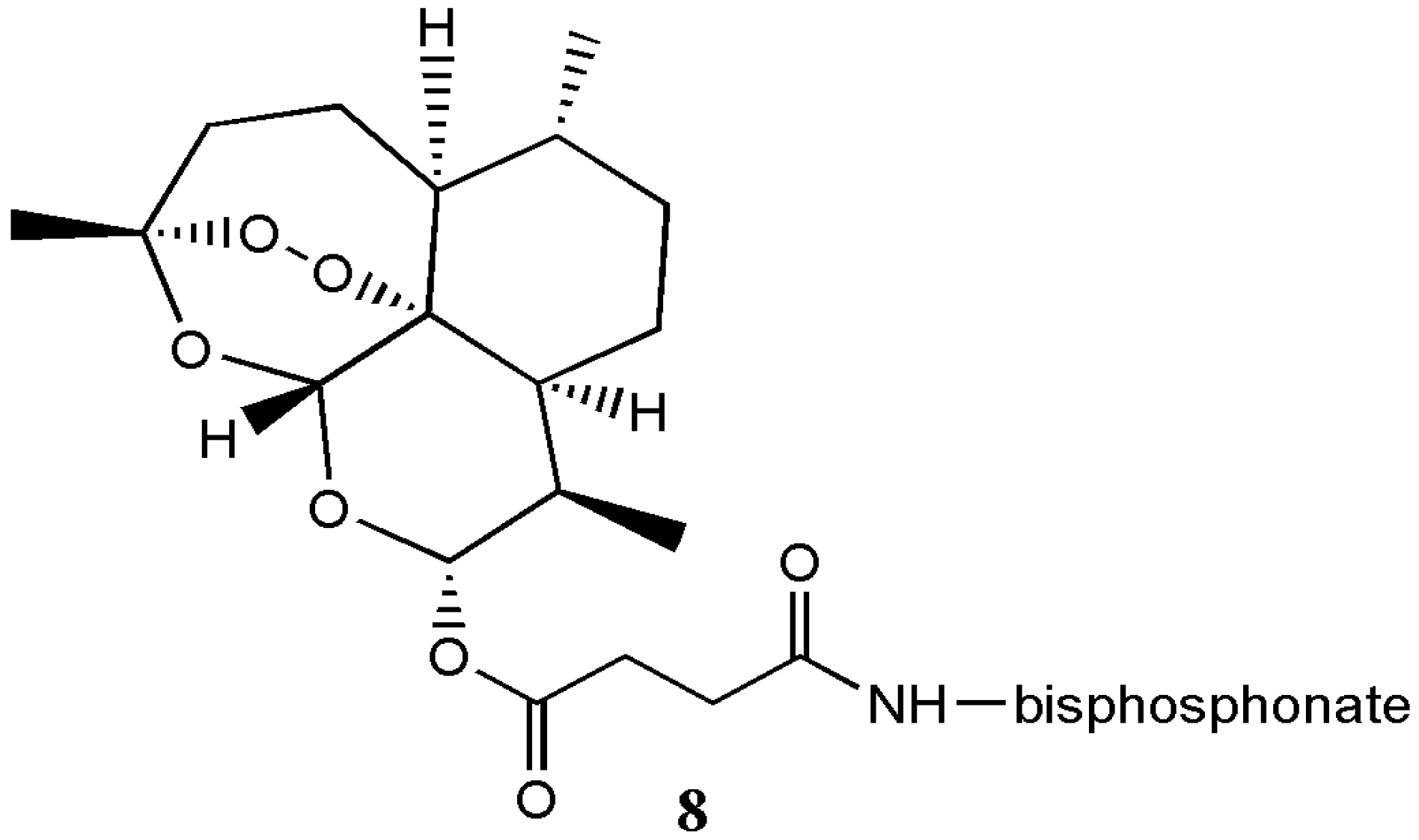

He et al. synthesized artesunate α-aminophosphonate analogue 8 with good antimicrobial activity that was further enhanced when combined with roxithromycin, an antibiotic (Figure 4) [11].
Griesbeck et al. prepared artesunate-safranol analogue 9 by DCC coupling reaction of safranol and artesunic acid, followed by photo-oxygenation (Figure 5) [12]. However, no biological evaluation was performed on the hybrid compound.
Capela et al. prepared primaquine-artemisinin analogue 10 with effective antimalarial activity against drug resistant P. falciparium (Figure 6) [13].

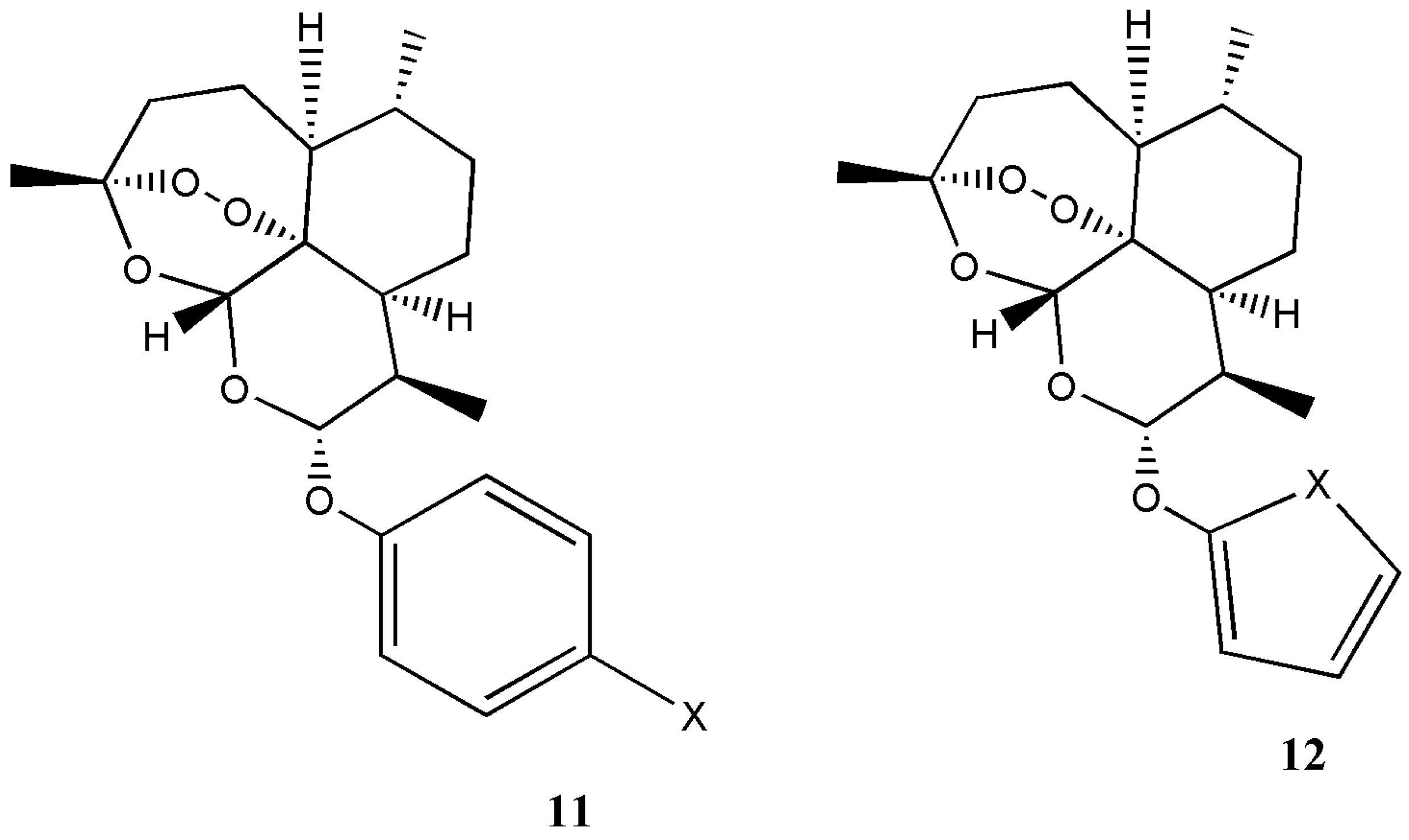

Ying et al. prepared arteminisin derivatives containing Mannich base group and artesunate with excellent antimalarial activity and good stability [14]. Chand et al. prepared β-ether derivatives of dihydroartemisinin in excellent yield and high diastereoselectivity [15]. Opsenica et al. reported synthesis of artemisinin derivatives 11 and 12 with enhanced antimalarial activity (Figure 7) [16].

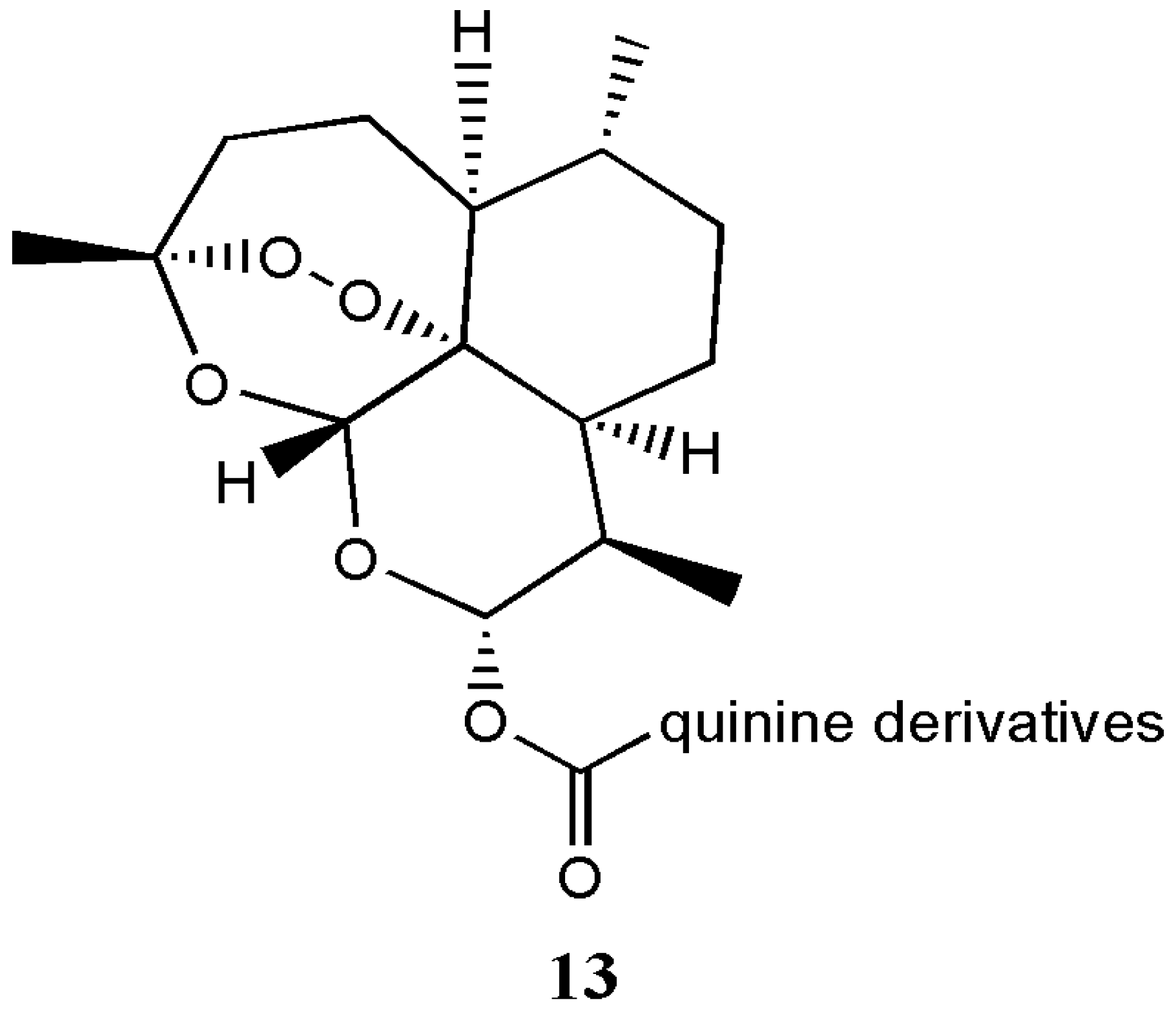

Walsh prepared artemisinin-quinine hybrids 13 with good antimalarial activity (Figure 8) [17]. In vitro evaluation of the compound on 3D7 and FcB1 strains of Plasmodium falciparum indicated that the potent activity of the hybrid compound was higher than that of the free artemisinin drug [17]. Joubert et al. prepared artemisinin-acridine hybrids effective against malaria and cervical cancer in vitro [18]. Pandey et al. prepared a pyrrolidine-acridine-artemisinin hybrid with antimalarial activity suitable for combination therapy [19].
Guo et al. prepared artemisone and artemiside derivatives from dihydroartemisinin for treatment of severe murine malaria in vivo [20]. Wei et al. prepared artemisone derivatives from dihydroartemisinin with antitumor activity [21,22]. Soomro et al. prepared artemisinin derivatives effective for the treatment of cancer and infections [23]. Xu et al. prepared dihydroartemisinin-cinnamic acid hybrids 14 that were active against selected cancer cell lines (Figure 9) [24].

3. Pharmacokinetics of Artemisinin and Its Derivatives

Derivatives of artemisinin can be administered orally, intravenously, intramuscularly and rectally [25,26]. They have been reported to exhibit neurotoxicity which is dependent on the nature of the formulation and mode of administration [1]. In the antimalarial activity of artemisinin and its derivatives, the principal bioactive metabolite is dihydroartemisinin and the activity is considered to be due to the presence of the endoperoxide bond [27]. Artemisinin free radical is also believed to form a covalent bond with the heme or parasite proteins thereby inhibiting the production of hemozoin [27,28]. Artemisinin half-live ranges between 2 to 5 h, whereas the half-lives or artemether and artesunate range between 2 to 4 h and less than 1 h, respectively [1]. The metabolism of artemisinin is primarily mediated by the genes CYP2B6 and CYP3A4. Artesunate is metabolised by CYP2A6 to dihydroartemisinin, an active metabolite which is responsible for its antimalarial activity. Artemether is also rapidly metabolised to dihydroartemisinin by CYP3A4 and CYP3A5 [1]. Arteether is metabolised by CYP3A4 to dihydroartemisinin. The active metabolite, dihydroartemisinin is converted to inactive metabolites by glucuronidation. Dihydroartemisinin is eliminated in the bile as minor glucuronides [1].
The presence of the endoperoxide moiety is also responsible for the anticancer activity of artemisinin and its derivatives [29,30]. The absence of the endoperoxide moiety reduces significantly their cytotoxic effects. Iron and heme metabolism is important in the anticancer activity of artemisinin because it enhances its cytotoxicity [29,31,32,33]. It has been postulated that iron-activated artemisinin produces alkylating carbon-centered radicals and radical oxygen species that results in DNA damage, enhanced apoptosis, growth arrest and reduced angiogenesis [29].
Artemisinin derivatives such as artesunate has been reported to exhibit antiviral activity. It hinders in vitro replication of human cytomegalovirus (HCMV) and β-herpes virus that are responsible for lifelong infections in humans. The mode of action was postulated that it inhibit central regulatory processes of HCMV-infected cells thereby interfering with host-cell type and metabolism requirements for HCMV replication [2,34,35].

4. Delivery Systems Loaded with Artemisinin and Its Derivatives

4.1. Polymer-Drug Conjugates

Polymer-drug conjugates are polymeric therapeutics which consist of a biodegradable polymeric backbone, a targeting moiety, a bioactive molecule with low molecular weight incorporated to the polymer via covalent bond and a bio responsive linker (Figure 10) [36].
Incorporation of bioactive agents into polymers enhances their solubility and pharmacokinetic profiles, increases plasma half-life, reduces rate of clearance by the kidneys or liver and protects the bioactive agents against premature degradation [36,37,38,39] (Table 2). Two or more bioactive agents can be incorporated onto polymeric carriers for combination therapy.
Liu et al. prepared polymer-drug conjugates for targeted delivery to the tumor from transferrin-eight-arm-polyethylene glycol nanoparticles loaded with dihydroartemisinin [40]. The role of targeting ligand in polymer-drug conjugates was demonstrated using transferrin as a targeting moiety. The rate of proliferation of cancer cells is usually rapid with their high demand for iron than the normal cells, resulting in an increased expression of transferrin on the surface of cancer cells. In vitro cytotoxicity evaluation on Lewis lung carcinoma cells revealed that incorporating dihydroartemisinin into the polymer resulted in enhanced solubility and long circulating half-life of the incorporated drug. In vivo evaluation further revealed that the conjugates inhibited tumor growth in mice bearing Lewis lung carcinoma than the free drug [40].
Incorporation of dihydroartemisinin onto the polymer resulted in enhanced water solubility, improved their stability and enhanced bioavailability. The presence of the targeting moiety, transferrin resulted in enhanced cellular uptake. No side effects were observed in the polymer-drug conjugates when compared to the free dihydroartemisinin suggesting that the poor water solubility of artemisinin compounds is responsible for their toxic side effects.
Wang et al. incorporated dihydroartemisinin to hydroxypropyl-β-cyclodextrin for oral administration. Incorporating dihydroartemisinin to the modified cyclodextran resulted in enhanced solubility and stability of dihydroartemisinin [41]. However, it is important to mention that high dose of cyclodextrin can result in toxicity. In order to overcome toxicity, auxiliary substances are employed. Wang et al. used different auxiliary substances resulting in a reduced uptake of cyclodextrin and enhanced biological activity of the formulation.
Dal et al. incorporated dihydroartemisinin onto polyethylene glycol carriers in order to overcome their poor water solubility and enhance their bioavailability of dihydroartemisinin. The conjugates were soluble in water, inhibited tumor growth and enhanced blood circulation half-time significantly in vivo [42]. The release of the incorporated drug from the conjugates was slow in vitro because of the hydrolysis of the ester bond between the polymer and the drug, indicating that the type of drug linker influences drug release mechanisms. Yaméogo et al. incorporated artemisinin onto cyclodextrin via vinyl-acyl fatty esters. PEGylated amphiphiles were incorporated onto the cyclodextrin nanostructures. In vitro antimalarial evaluation showed that the suspensions inhibited the growth of cultured Plasmodium falciparum [43]. Burst effects was observed and the stability of the formulation was dependent on the high drug content. The sustained release of the drug from the formulation was influenced by the interaction of the artemisinin with cyclodextrin. Xiao et al. prepared C-10-phenoxy artemisinin-chitosan conjugate. Artemisinin derivative was covalently bonded to chitosan resulting in enhanced solubility of artemisinin than the free artemisinin drug [44]. The percentage incorporation of artemisinin onto chitosan was dependent on the ratio of chitosan to artemisinin. Kumar et al. prepared poly(organophosphazenes) carriers loaded with primaquine and dihydroartemisinin [45]. The degradation of the conjugates was higher at acidic pH. The nature and position of functionalities on the conjugates influenced the degradation behaviour of the conjugates. In vivo evaluation on P. berghei infected mice further revealed that the formulation is a potential therapeutic useful in combination therapy for the treatment of resistant malaria [45].
Incorporation of artemisinin derivatives onto polymers resulted in enhanced water solubility [40,41,42,43], improved stability [41], enhanced bioavailability by extending the circulation half-life of the drugs [40,41] and useful for combination therapy [45]. The release of the artemisinin and its derivatives from the conjugates was dependent on the pH whereby the bond between the conjugated drug and the polymer undergo hydrolysis resulting in the release of the drug at the targeted site [40,42,43,45]. The enhanced water solubility, stability and extended blood circulation of the polymer-drug conjugates resulted in their improved anticancer and antimalarial effects when compared to the free drugs that are limited by poor water solubility and poor bioavailability [40,41,42,43,44,45]. Polymer-drug conjugates are potential delivery systems for the delivery of artemisinin and its derivatives with enhanced therapeutic efficacy. However, polymer-drug conjugates containing artemisinin derivatives in vitro drug release was quick in the presence of esterase suggesting that the type of drug linkers employed determines their susceptibility to hydrolysis [40]. The design of the polymer-drug conjugates affect their therapeutic outcomes such as the nature of targeting moieties used affect the specificity of the conjugates [40], materials used affect their degree of toxicity [41], the type of drug linkers determine the drug release mechanism from the conjugates [43] and the position of functionalities on the conjugates affect their rate of degradation [45].

4.2. Micelles

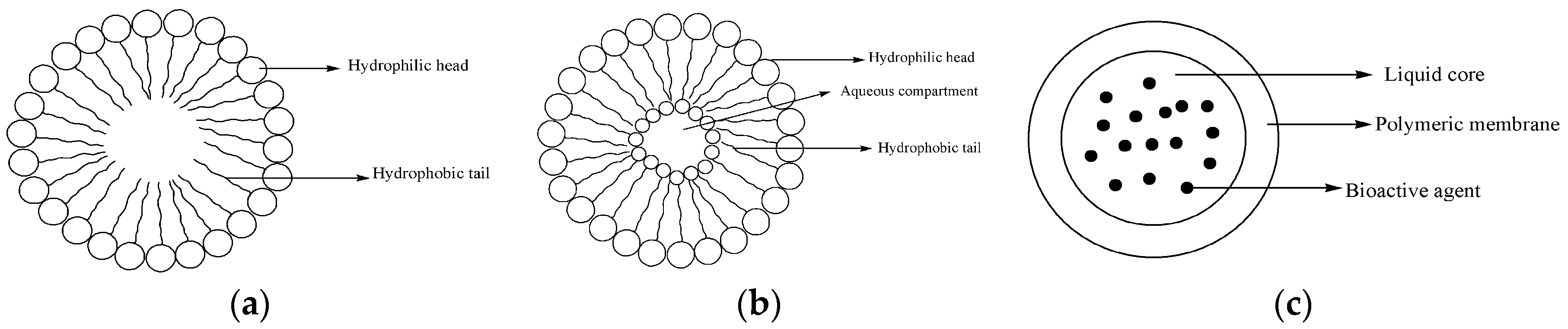

Micelles are polymeric delivery systems that are used to deliver several bioactive agents. They are composed of amphiphilic block copolymers forming a hydrophobic core used for encapsulation of lipophilic drugs (Figure 11a) [50]. The size of polymer micelles ranges between 10 to 200 nm [50]. Their structure enhances prolonged circulation in the bloodstream and are useful for sustained drug release mechanisms (Table 2) [50].
Bhadra et al. developed a polymeric amphiphilic micellar system from methoxypolyethylene glycol loaded with artemether [46]. The formulation enhanced drug stability with prolonged release of artemether over a period of two days [46]. However, the system was found to be toxic as a result of its densely clubbed hyper-branched micellar structures and the slow rate of degradation. This finding indicate that the design of the micelles is very important because poor designs can influence their degree of toxicity. Jabbarzadegan et al. encapsulated arteether into polyurethane-based nanomicelles [47]. The formulation exhibited fast release of arteether at pH 5.4 with significant inhibition of the growth of 4T1 cell line [47]. Wang et al. conjugated artemisinin to PEG-PCL micelles for delivery to highly metastatic tumor [48]. The formulation revealed high cellular uptake and inhibition effects on cancer cell lines with good antitumor efficacy [48]. The cellular uptake, selectivity and low toxicity of the formulation was due to the presence of lymphatics-homing peptide incorporated onto the micelles. The design of micelles influence their biological activity and therapeutic efficacy. Lu et al. encapsulated dihydroartemisinin into methoxypoly(ethylene glycol)/poly(l-lactic acid) with anticancer effects. The micelles were worm-like with particle size of 130 nm [49]. In vitro drug release from the micelles was dependent on the stability of micelles, pH, rate of biodegradation of the micelles and rate of diffusion of the incorporated drug from the micelles. Burst drug release effect was observed and the conjugates were selective towards selected cell lines. Their effects on normal cell lines was minimal and potent on cancer cell lines. This indicated that micelles can reduce the toxic side effects associated the incorporated drug [49].
Incorporation of artemisinin and its derivatives to polymeric micelles resulted in improved drug stability, enhanced cellular uptake and controlled release of the drugs resulting in increased bioavailability [46,47,48,49]. In vitro evaluation of the micelles loaded with artemisinin and its derivatives inhibited the growth of cancer cell lines when compared to free artemisinin and its derivatives [47,48,49]. The release of the drugs was pH dependent [46,47,49]. However, the application of micelles for artemisinin is limited by poor drug incorporation and burst effects [49]. It is important to mention that the design of micelles is very important because it influence their degree of toxicity [46], rate of biodegradation [46,47,48,49] and the rate of diffusion of the incorporated drugs from the micelles [47,48,49].

4.3. Liposomes

Liposomes contain amphiphilic molecules which are composed of an aqueous core with lipid bilayer that separates the inner aqueous core from the outside (Figure 11b) [51]. They improve the therapeutic effects of encapsulated drugs by enhancing drug absorption, extending biological half-life and reducing drug toxicity [51]. They are biodegradable and biocompatible. They interact with the cells by: simple adsorption, endocytosis, fusion with cell membranes and by lipid exchange [51]. They have been employed for the delivery of artemisinin and its derivatives with good biological activity than the free artemisinin and its derivatives (Table 3).
Liposomes loaded with artemisinin and its derivatives have been reported to be effective as anticancer agents and antimalarials when compared to free artemisinin and its derivatives. Chen et al. reported artemether encapsulated in liposomes with significant sonodynamic anticancer activity [52]. The application of ultrasound in the treatment of cancer is a non-invasive approach and it can penetrate deep tissues making it a potential approach for the treatment of cancer. Liposomes loaded with sonosensitizers and artemether in vitro killing effects on tumor cells was influenced by ultrasound radiation. Ultrasound radiation triggered drug release from liposomes by formation of cavities on the liposomes membranes resulting in rapid drug release and enhanced cellular uptake. Neda et al. prepared nanoliposomal formulation of artemisinin with anticancer activity from poly(ethyleneglycol), phophatidylcholine and cholesterol [53]. The formulations were stable, non-toxic and their biological activity was influenced by the materials used for their preparation. Isacchi et al. prepared artemisinin-based liposomal formulations [54]. In vivo evaluation on P. berghei NK-65 infected mice at the dosage of 50 mg/kg/days alone and in combination with curcumin (100 mg/kg/days) revealed that the liposomal formulation containing artemisinin in combination with curcumin cured all malaria infected mice [54]. The curcumin loading efficiency onto the PEGylated liposomes was low which was as a result of the small size of the liposomes. In PEGylated liposomes loaded with artemisinin and curcumin, the synergistic effect of curcumin was not significant which is attributed to a high dosage of artemisinin in the combination therapy [54].
Li et al. developed a liposomal formulation with encapsulated paclitaxel and artemether [55]. In vivo studies in brain glioma bearing rats revealed that the formulation was effective for the treatment of invasive brain glioma [55]. The formulation was able to penetrate blood brain barriers, destroy brain cancer vasculogenic mimicry channels and eliminate brain cancer stem cells thereby overcoming the barrier that is common in drugs used for the treatment of invasive brain glioma. Isacchi et al. also reported artemisinin-loaded polyethylene glycol-based liposomes [56]. The drug encapsulation efficacy was more than 70% in vitro. Investigation on mice showed that the liposomal formulations blood-circulation time was prolonged more than the free drug. The half-life of artemisinin in the liposomal formulation was also improved by more than 5-fold signifying that the formulation is a potential therapeutic for the treatment of tumors and parasitic diseases [56]. The significant effect of encapsulation of aremisinin to liposomes was the extended blood circulation. Gharib et al. loaded artemisinin and transferrin onto magnetic nanoliposomes prepared from lipids [57]. The formulation was thermo-sensitive and exhibited high antiproliferative activity influenced by the presence of a magnetic field [57]. A combination of magnetic nanoliposomes and transferrin resulted in targeted delivery of the formulation and hence, enhanced the therapeutic efficacy. Magnetic liposomes are useful as smart drug delivery systems and magnetic resonance imaging. Jin et al. assessed the anticancer effects of artesunate loaded nanoliposomes [58]. The formulation inhibited tumor growth and the inhibitory effect of nanoliposomes containing artesunate was 32.7%, whereas artesunate API was 20.5%. HepG-2 cells treated with nanoliposomes containing artesunate showed dose-dependent apoptosis. The antitumor effect of nanoliposomes containing artesunate and its effect on human hepatoma HepG2 cells was significant [58]. The inhibitory effects of the drug loaded liposomes was dependent on the concentration of the drug. Dadgar et al. prepared pegylated-based nanoliposomal formulation of artemisinin [59]. The nanoliposomes were prepared from phosphatidylcholine and polyethylene glycol. Incorporation of artemisinin to the liposomes enhanced its cytotoxic effects [59]. However, the percentage encapsulation of artemisinin in the formulation was low. Righeschi et al. prepared liposomal formulations of dihydroartemisinin [60]. The formulations were not toxic, exhibited anticancer activity and can be administered parenterally. However, formulations prepared from polyethylene glycol, exhibited reduced cellular uptake which is attributed to the hydrophilic steric hindrance of polyethylene glycol.
The percentage drug encapsulation of the liposomes was influenced by their size. Liposomal formulations containing artemisinin and its derivatives were effective in the treatment of cancerous and parasitic diseases. The formulations reduced the toxic side effects of the incorporated drug, extended blood circulation time with enhanced inhibitory effects [52,53,55,56,57,58,59,60]. However, liposomes prepared for the encapsulation of artemisinin derivatives were limited by their poor storage stability and low drug loading [59,60]. The type of polymers used to prepare liposomes affected their cellular uptake [60]. The inhibitory effects of liposomes loaded with artemisinin derivatives was dependent on the concentration of the loaded drug [58].

4.4. Nanocapsules

Nanocapsules are a class of nanoparticles composed of a core and a protective shell where bioactive agents are encapsulated (Figure 11c) [68]. They have several advantages such as sustained drug release mechanisms, improve drug bioavailability and reduce drug toxicity [68]. Due to the aforementioned advantages, they have been used to encapsulate artemisinin and its derivatives.
Chen et al. encapsulated artemisinin to nanocapsules prepared from chitosan, gelatin, and alginate with controlled drug release mechanism [61]. Nanocapsules encapsulated with artemisinin exhibited prolonged release mechanism (Table 3) [61]. The hydrophilic property of artemisinin was enhanced by encapsulating it onto nanocapsules. Tran et al. encapsulated artesunate onto chitosan-coated lipid nanocapsule. In vitro evaluation on different cancer cell lines showed that the formulation exhibited excellent anticancer activity towards MCF-7 and MDA-MB-231 with enhanced drug stability than the free artesunate [62]. Meng et al. performed esterification reaction between poly(ethylene glycol) monomethyl ether and artesunate resulting in nanocapsules [63]. The release of artesunate from the nanocapsules was controlled by the ester bond. The cytotoxicity effect of formulation on L1210 and MCF7 cell lines was decreased compared to the free drug [63]. Xiao et al. prepared nanocapsules containing artesunate by microcrystallization method with a potential to increase the bioavailability of artesunate [64]. Encapsulation of artemisinin and its derivatives onto nanocapsules resulted in improved drug stability, prolonged drug release mechanism and enhanced bioavailability [61,62,63,64]. The drug linker used influenced the release mechanism of artemisinin from the nanocapsules [63].

4.5. Niosomes

Niosomes are non-ionic surfactant vesicles similar to liposomes [69]. They are more stable than liposomes and they have some advantages which make them better than the liposomes. They can be used to incorporate hydrophilic and lipophilic drugs in aqueous layer and vesicular membrane, respectively [69].
Dwivedi et al. designed niosomes for encapsulation of artemisone, a 10-aminoartemisinin derivative with antitumor activity (Table 3) [65]. In vitro evaluation on cancer cell lines, human melanoma A-375 cells and human keratinocytes (HaCaT) revealed that the formulation cytotoxic effects towards the melanoma cells were highly selective. No significant toxicity towards the normal skin cells was observed. The formulation inhibited the growth of the cancer cell lines more than the free drug [65]. Asgharkhani et al. prepared a niosomal formulation containing artesunate [66]. The release of artesunate from the formulations was slow, with no burst effect. The inhibitory effects against MCF-7 and C6 cell lines was significant [66]. Incorporation of artemisinin derivatives onto niosomes enhanced the selective cytotoxicity of the formulation [65] and the cytotoxic effects was also significant when compared to the free artemisinin derivatives [65,66]. The application of niosomes in drug delivery is very new is still at its infancy stage and they are physically unstable.

4.6. Ethosomes

Ethosomes are soft lipid vesicles. They are composed of phospholipids, alcohol and water [70]. They are used for transdermal and dermal drug delivery. They are easy to prepare, non-toxic and patient compliance. However, their use is limited by their poor yield [70].
Shen et al. prepared artesunate-loaded ethosomes with antimalarial activity [67]. The formulation enhanced the accumulation permeation of artesunate significantly over a period of 8 h after administration than the free drug. The formulation killed Plasmodium parasite significantly with prevention of a resurgence of the infection (Table 3) [67]. The skin penetrating capacity of the ethosomes containing artemisinin derivatives indicate their ability to interact with the microstructure of the skin resulting in enhanced permeability. However, overcoming the barrier of the skin for enhanced transdermal permeation of drugs is challenging. Presently there is only one research report on the design of ethosomes for the delivery of artemisinin derivatives and more studies are required to evaluate the stability of ethosomal systems in long-term storage.

4.7. Carbon-Based Materials

Carbon based materials such as graphene, carbon nanotubes and fullerenes have been employed in the preparation of drug delivery systems (Table 4). They have unique properties such as large surface area and can be modified so as to enhance their biocompatibility and biodegradability [71].
Rezaei et al. incorporated artemisinin onto multi-walled carbon nanotubes without altering the properties of the drug [72]. In vitro evaluations on K562 cancer cell lines revealed the inhibition effects on cancer cell growth by the formulation was higher than free artemisinin [72]. Zhang et al. prepared a multi-walled carbon nanotubes-hyaluronic acid formulation loaded with artemisinin [73]. Transferrin was employed as a targeting ligand and the formulation exhibited enhanced antitumor efficacy in tumor-bearing murine model [73]. Zhang et al. grafted hyaluronic acid onto fullerene containing transferrin and artesunate with tumor-targeting efficacy [74]. The formulation exhibited good antitumor efficacy in tumor-bearing murine model [74]. Modification of carbon nanotubes with a targeting moiety resulted in targeted drug delivery [73,74]. Incorporation of artemisinin and derivatives to the modified CNTs enhanced their anticancer activity. However, there is a pressing need to evaluate the possible toxic side effects associated with the use of CNT over an extended period of time.

4.8. Nanoparticles

4.8.1. Lipid Based Nanoparticles

Lipid-based nanoparticles can be classified as solids and nanostructured lipid-based nanoparticles. Solid lipid-based nanoparticles size ranges between 50–1000 nm after encapsulation of bioactive agents [75]. They are biocompatible, biodegradable and their preparation is not expensive [75]. They consist of a core and their stability is enhanced by the addition of surfactant coating. However, they are limited by particle agglomeration which usually results in drug burst release effects [75]. They have unique crystal networks making it possible to load bioactive agents in molecular form. Nanostructured lipid-based nanoparticles have amorphous structures and the drug burst effect is reduced [75]. Their particle sizes ranges between 100 to 500 nm and they are useful for the delivery of bioactive agents. Table 4 shows the delivery of arteminisin derivatives with enhanced therapeutic efficacy.
Lipid-based nanoparticles loaded with artemisinin and derivatives have been administered orally with enhanced therapeutic effects. Zhang et al. developed artemisinin dimer piperazine derivatives incorporated onto lipid-based nanoparticles [76]. The formulation exhibited enhanced inhibition of cell-proliferation effects than the free drug [76]. The release of artemisinin was pH sensitive which is associated with the presence of the pH sensitive moiety, piperazine moiety. The rate of release of artemisinin decreased with increase in the environmental pH. Dwivedi et al. prepared solid lipid nanoparticles loaded with areether for the treatment of cerebral malarial [77]. The release of areether was slow and in vivo evaluation showed that the drug loaded lipid enhanced the oral bioavailability of the drug [77]. The formulation was useful and effective when administered orally. Incorporating areether onto solid lipid nanoparticles protected the drug from acidic pH of the stomach thereby improving their bioavailability and therapeutic efficacy. Lipid based nanoparticles loaded with artemisinin derivative have been administered intravenously. Zhang et al. assessed the pharmacokinetics and tissue distribution of nanostructured lipid carrier loaded with dihydroxyartemisinin after intravenous administration [78]. The system showed decreased systemic toxicity with sustained drug release mechanism [78]. In a research report by Aditya et al. artemeter was loaded onto lipid nanoparticles and their therapeutic efficacy after parenteral administration was evaluated [79]. The formulation was not toxic and suitable for parenteral delivery. In vivo evaluation further confirmed that the formulation was biocompatible and useful for the treatment of malaria [79]. The application of lipid-based nanoparticles has several advantages. However, their application is limited by their tendency to gelation and low drug incorporation.

4.8.2. Polymer-Based and Inorganic-Based Nanoparticles

Polymer-based and inorganic materials have been used for the delivery of bioactive agents because they are biodegradable and biocompatible. Some researchers have investigated their applications in the delivery of artemisinin and its derivatives with excellent therapeutic effects (Table 4).

4.8.2.1. Polymer-Based Nanoparticles

Polymeric-based nanoparticles have been employed for the treatment of leishmaniasis in vivo. Want et al. prepared poly(lactic-co-glycolic)acid nanoparticles loaded with artemisinin with antileishmanial efficacy [80]. In vivo evaluation on BALB/c model with visceral leishmaniasis showed a significant reduction in the parasite load in the liver and spleen than the free artemisinin [80]. The artemisinin-loaded nanoparticles refurbish the expression of CD80 molecules resulting in the restoration of appropriate effector T-cell response. Gupta et al. prepared artemisinin HCl nanoparticles by solvent evaporation method from poly(ε-caprolactone) [81]. The in vitro release mechanism of artemisinin from the nanoparticles was sustained over a period of 24 h [81]. In the anticancer effects of polymeric nanoparticles loaded with artemisinin derivative, Nguyen et al. loaded artesunate onto poly (lactic-co-glycolic)acid nanoparticles by oil/water emulsion evaporation method [82]. In vitro cytotoxicity evaluation of the drug loaded nanoparticles on A549, SCC-7, and MCF-7 cancer cell lines showed that the nanoparticles had significant effect against the cancer cell lines. The formulations were very stable and effective as anticancer agent [82]. Some researchers reported the physicochemical properties of nanoparticles loaded with artemisinin and its derivatives which confirmed that they are potential therapeutic agents [89,90]. Chadha et al. complexed artesunate with β-cyclodextrin and loaded onto chitosan/lecithin nanoparticles with enhanced antimalarial activity [83]. The drug release behaviour from the nanoparticles was pH dependent and in vivo evaluation on mice infected with Plasmodium berghei by oral administration of the formulation showed that incorporation of artesunate onto the nanoparticle enhanced its therapeutic efficacy [83]. Sun et al. loaded dihydroartemisinin onto nanoparticles of gelatin and hyaluronan with anticancer activity [84]. In vitro analysis on A549 cancer cell lines showed that the nanoparticles loaded with drug, inhibited the cell growth more than the free drug. The anticancer effects of the formulation resulted from the aggregation of the drug with the nanoparticles in an electrostatic field environment [84]. Ibrahim et al. reported albumin nanoparticles loaded with artemisinin with antimalarial activity [85]. In vivo analysis on P. falciparum-infected humanized mice by intravenous administration revealed a 96% parasitemia inhibition effects of the nanoparticles loaded with drug at a dosage of 10 mg/kg/day [85]. Ma et al. developed poly(lactic-co-glycolic acid)-based nanoparticle and loaded with dihydroartemisinin and doxorubicin for combination chemotherapy [86]. Polymeric-nanoparticles therapeutic efficacy as a leishmanial agent in vivo [80], as anticancer agents [82,84] and as antimalarials [83,85] indicate that polymeric-nanoparticles are potential systems for the treatment of cancerous and protozoal infections. However, the size of the nanoparticles can result in particle-particle aggregation making their handling and storage difficult.

4.8.2.2. Inorganic-Based Nanoparticles

Wang et al. reported the effect of magnetic nanoparticles of Fe3O4 on the anticancer activity of artesunate [87]. In vitro evaluation of K562 cell lines revealed a significant cell growth inhibition and apoptosis rate when cell lines were treated with nanoparticles together with co-polymer of artesunate more than the free drug [87]. Chen et al. loaded artemisinin onto iron nanoparticles with antitumor efficacy [88]. In vitro evaluation on HeLa cell lines revealed that the formulation inhibited cell growth. Incorporation of artemisinin derivatives onto the inorganic-based nanoparticles reduced their side effects and enhanced their biological activity. However, there are very few research reports and there is need for further studies.

5. Conclusions

Artemisinin and its derivatives have been reported to be effective as antitumor, anticancer, anti-inflammatory, antiviral and antibacterial agents. They are also effective for the treatment of other protozoan infections. Their poor bioavailability, poor water solubility and short half-life have motivated researchers to develop delivery systems that can improve their therapeutic efficacy. Some researchers developed and used known techniques to develop formulations encapsulated with artemisinin and its derivatives resulting in formulations with excellent bioavailability, stability, pharmacokinetic mechanisms and reduced toxicity than artemisinin and its derivatives.
In the application of delivery systems for the delivery of artemisinin and its derivatives, the design of the systems affects their therapeutic efficacy. In the design of polymer-drug conjugates for the delivery of artemisinin and derivatives, the nature of the targeting moieties affect the specificity of the conjugates, materials used influence their degree of toxicity, the type of drug linkers determine the drug release mechanism from the conjugates and the position of functionalities on the conjugates affect their rate of degradation. The design of micelles influence their degree of toxicity, rate of biodegradation and the rate of diffusion of the incorporated drugs. However, some of these delivery systems are limited by aggregation upon storage, burst drug release effects and susceptibility of selected drug linkers to some enzymes resulting in rapid drug release. There are few reports on the delivery of artemisinin and its derivatives from selected systems such as ethosomes, nanocapsules, niosomes and CNTs indicating that there is a need for further investigations on these systems. Most of the systems were evaluated in vitro and in vivo and the results obtained were promising suggesting that there is a pressing need for further studies to be performed on these systems to reach clinical trials because emergence of drug resistance remains a global problem.

Acknowledgments

The financial assistance of National Research Foundation, South Africa, Goven Mbeki Research Council University of Fort Hare and Medical Research Council (Self-Initiated Research), South Africa towards this research is hereby acknowledged. The views and opinions expressed in this manuscript are those of the author and not of MRC or NRF.

Conflicts of Interest

The author reports no conflict of interest.

References

  1. Whirl-Carrillo, M.; McDonagh, E.M.; Hebert, J.M.; Gong, L.; Sangkuhl, K.; Thorn, C.F.; Altman, R.B.; Klein, T.E. Pharmacogenomics Knowledge for Personalized Medicine. Clin. Pharmacol. Ther. 2012, 92, 414–417. [Google Scholar] [CrossRef] [PubMed]
  2. Blazquez, A.G.; Fernandez-Dolon, M.; Sanchez-Vicente, L.; Maestre, A.D.; Gomez-San Miguel, A.B.; Alvarez, M.; Serrano, M.A.; Jansen, H.; Efferth, T.; Marin, J.J.; et al. Novel artemisinin derivatives with potential usefulness against liver/colon cancer and viral hepatitis. Bioorg. Med. Chem. 2013, 21, 4432–4441. [Google Scholar] [CrossRef] [PubMed]
  3. Artemisinin Effects, Health Benefits and Uses. Available online: http://nootriment.com/artemisinin/ (accessed on 12 December 2016).
  4. Efferth, T.; Romero, M.R.; Wolf, D.G.; Stamminger, T.; Marin, J.J.; Marschall, M. The antiviral activities of artemisinin and artesunate. Clin. Infect. Dis. 2008, 47, 804–811. [Google Scholar] [CrossRef] [PubMed]
  5. Loo, C.S.; Lam, N.S.; Yu, D.; Su, X.Z.; Lu, F. Artemisinin and its derivatives in treating protozoan infections beyond malaria. Pharmacol. Res. 2016. [Google Scholar] [CrossRef] [PubMed]
  6. Mutabingwa, T.K. Artemisinin-based combination therapies (ACTs): Best hope for malaria treatment but inaccessible to the needy. Acta Trop. 2005, 95, 305–315. [Google Scholar] [CrossRef] [PubMed]
  7. Okell, L.C.; Cairns, M.; Griffin, J.T.; Ferguson, N.M.; Tarning, J.; Jagoe, G.; Hugo, P.; Baker, M.; D’Alessandro, U.; Bousema, T.; et al. Contrasting benefits of different artemisinin combination therapies as first-line malaria treatments using model-based cost-effectiveness analysis. Nat. Commun. 2014, 5, 5606. [Google Scholar] [CrossRef] [PubMed]
  8. Medhi, B.; Patyar, S.; Rao, R.S.; Byrav, D.S.P.; Prakash, A. Pharmacokinetic and toxicological profile of artemisinin compounds: an update. Pharmacol. 2009, 84, 323–332. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, N.; Wicht, K.J.; Shaban, E.; Ngoc, T.A.; Wang, M.Q.; Hayashi, I.; Hossain, M.I.; Takemasa, Y.; Kaiser, M.; El Sayed, I.E.; et al. Synthesis and evaluation of artesunate-indoloquinoline hybrids as antimalarial drug candidates. MedChemComm 2014, 5, 927–931. [Google Scholar] [CrossRef]
  10. Zhang, L.; Chen, F.; Zhang, Z.; Chen, Y.; Wang, J. Synthesis and biological evaluation of a novel artesunate-podophyllotoxin conjugate as anticancer agent. Bioorg. Med. Chem. Lett. 2016, 26, 38–42. [Google Scholar] [CrossRef] [PubMed]
  11. He, S.; Ouyang, X.; Huang, X.; Hu, W.; Dai, W.; Tian, X.; Pan, Y.; Huang, S.; Wang, H. Synthesis of derivatives of artesunate α-aminophosphonate and their antimicrobial activities. Lett. Drug Des. Discov. 2015, 12, 408–416. [Google Scholar] [CrossRef]
  12. Griesbeck, A.G.; de Kiff, A.; Neudörfl, J.M.; Sillner, S. Singlet oxygen addition to cyclo-1,3-hexadienes from natural sources and from organocatalytic enal dimerization. ARKIVOC 2015, 3, 101–110. [Google Scholar]
  13. Capela, R.; Cabal, G.G.; Rosenthal, P.J.; Gut, J.; Mota, M.M.; Moreira, R.; Lopes, F.; Prudêncio, M. Design and evaluation of primaquine-artemisinin hybrids as a multistage antimalarial strategy. Antimicrob. Agents Chemother. 2011, 55, 4698–4706. [Google Scholar] [CrossRef] [PubMed]
  14. Li, Y.; Yang, Z.S.; Zhang, H.; Cao, B.J.; Wang, F.D.; Zhang, Y.; Shi, Y.L.; Yang, J.D.; Wu, B.A. Artemisinin derivatives bearing Mannich base group: Synthesis and antimalarial activity. Bioorg. Med. Chem. 2003, 11, 4363–4368. [Google Scholar] [CrossRef]
  15. Chand, H.R.; Bhattacharya, A.K. Diastereoselective Synthesis of β-Ether Derivatives of Artemisinin, an Antimalarial Drug: The Effect of Nitrile on Stereoselectivity. Asian J. Org. Chem. 2015, 5, 201–206. [Google Scholar] [CrossRef]
  16. Opsenica, D.M.; Šolaja, B.A. Artemisinins and synthetic peroxides as highly efficient antimalarials. Maced. J. Chem. Chem. Eng. 2012, 31, 137–182. [Google Scholar]
  17. Walsh, J.J.; Coughlan, D.; Heneghan, N.; Gaynor, C.; Bell, A. A novel artemisinin-quinine hybrid with potent antimalarial activity. Bioorg. Med. Chem. Lett. 2007, 17, 3599–3602. [Google Scholar] [CrossRef] [PubMed]
  18. Joubert, J.P.; Smit, F.J.; du Plessis, L.; Smith, P.J.; N’Da, D.D. Synthesis and in vitro biological evaluation of aminoacridines and artemisinin-acridine hybrids. Eur. J. Pharm. Sci. 2014, 56, 16–27. [Google Scholar] [CrossRef] [PubMed]
  19. Pandey, S.K.; Biswas, S.; Gunjan, S.; Chauhan, B.S.; Singh, S.K.; Srivastava, K.; Singh, S.; Batra, S.; Tripathi, R. Pyrrolidine-Acridine hybrid in Artemisinin-based combination: A pharmacodynamic study. Parasitology 2016, 143, 1421–1432. [Google Scholar] [CrossRef] [PubMed]
  20. Guo, J.; Guiguemde, A.W.; Bentura-Marciano, A.; Clark, J.; Haynes, R.K.; Chan, W.C.; Wong, H.N.; Hunt, N.H.; Guy, R.K.; Golenser, J. Synthesis of artemiside and its effects in combination with conventional drugs against severe murine malaria. Antimicrob. Agents Chemother. 2012, 56, 163–173. [Google Scholar] [CrossRef] [PubMed]
  21. Wei, M.; Xu, J.; Zhang, H.; Li, X. Synthesis and Anti-tumor Effect of Artemisone Derivatives. Chin. J. Org. Chem. 2015, 35, 1097. [Google Scholar] [CrossRef]
  22. Xu, J.; Wei, M.; Li, G.; Li, X. Synthesis and Anti-tumor Activities of Novel Artemisone-piperazine-sulfonamide Derivatives. Chem. J. Chin. 2015, 36, 919–926. [Google Scholar]
  23. Soomro, S.; Langenberg, T.; Mahringer, A.; Konkimalla, V.B.; Horwedel, C.; Holenya, P.; Brand, A.; Cetin, C.; Fricker, G.; Dewerchin, M.; et al. Design of novel artemisinin-like derivatives with cytotoxic and anti-angiogenic properties. J. Cell. Mol. Med. 2011, 15, 1122–1135. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, C.C.; Deng, T.; Fan, M.L.; Lv, W.B.; Liu, J.H.; Yu, B.Y. Synthesis and in vitro antitumor evaluation of dihydroartemisinin-cinnamic acid ester derivatives. Eur. J. Med. Chem. 2016, 107, 192–203. [Google Scholar] [CrossRef] [PubMed]
  25. Morris, C.A.; Duparc, S.; Borghini-Fuhrer, I.; Jung, D.; Shin, C.S.; Fleckenstein, L. Review of the clinical pharmacokinetics of artesunate and its active metabolite dihydroartemisinin following intravenous, intramuscular, oral or rectal administration. Malar. J. 2011, 10, 1. [Google Scholar] [CrossRef] [PubMed]
  26. World Health Organization. Guidelines for the Treatment of Malaria; World Health Organization: Geneva, Switzerland, 2011. [Google Scholar]
  27. Saifi, M.A.; Beg, T.; Harrath, A.H.; Altayalan, F.S.; Al Quraishy, S. Antimalarial drugs: Mode of action and status of resistance. Afr. J. Pharm. Pharmacol. 2013, 7, 148–156. [Google Scholar] [CrossRef]
  28. Yang, Y.Z.; Little, B.; Meshnick, S.R. Alkylation of proteins by artemisinin. Effects of heme, pH, and drug structure. Biochem. Pharmacol. 1994, 48, 569–573. [Google Scholar] [CrossRef]
  29. Das, A.K. Anticancer Effect of AntiMalarial Artemisinin Compounds. Ann. Med. Health Sci. Res. 2015, 5, 93–102. [Google Scholar] [CrossRef] [PubMed]
  30. Olliaro, P.L.; Haynes, R.K.; Meunier, B.; Yuthavong, Y. Possible modes of action of the artemisinin-type compounds. Trends Parasitol. 2001, 17, 122–126. [Google Scholar] [CrossRef]
  31. Lu, J.J.; Meng, L.H.; Shankavaram, U.T.; Zhu, C.H.; Tong, L.J.; Chen, G.; Lin, L.P.; Weinstein, J.N.; Ding, J. Dihydroartemisinin accelerates c-MYC oncoprotein degradation and induces apoptosis in c-MYC-overexpressing tumor cells. Biochem. Pharmacol. 2010, 80, 22–30. [Google Scholar] [CrossRef] [PubMed]
  32. Lu, J.J.; Chen, S.M.; Zhang, X.W.; Ding, J.M.; Meng, L.H. The anti-cancer activity of dihydroartemisinin is associated with induction of iron-dependent endoplasmic reticulum stress in colorectal carcinoma HCT116 cells. Investig. New Drugs 2011, 29, 1276–1283. [Google Scholar] [CrossRef] [PubMed]
  33. Mercer, A.E.; Copple, I.M.; Maggs, J.L.; O’Neill, P.M.; Park, B.K. The role of heme and the mitochondrion in the chemical and molecular mechanisms of mammalian cell death induced by the artemisinin antimalarials. J. Biol. Chem. 2011, 286, 987–996. [Google Scholar] [CrossRef] [PubMed]
  34. Qian, R.; Li, Z.; Yu, J.; Ma, D. The Immunologic and Antiviral Effect of Qinghaosu. J. Tradit. Chin. Med. 1982, 2, 271–276. [Google Scholar] [PubMed]
  35. Kaptein, S.J.; Efferth, T.; Leis, M.; Rechter, S.; Auerochs, S.; Kalmer, M.; Bruggeman, C.A.; Vink, C.; Stamminger, T.; Marschall, M. The anti-malaria drug artesunate inhibits replication of cytomegalovirus in vitro and in vivo. Antivir. Res. 2006, 69, 60–69. [Google Scholar] [CrossRef] [PubMed]
  36. Sanchis, J.; Canal, F.; Lucas, R.; Vicent, M.J. Polymer-drug conjugates for novel molecular targets. Nanomedicine 2010, 5, 915–935. [Google Scholar] [CrossRef] [PubMed]
  37. Vasey, P.A.; Kaye, S.B.; Morrison, R.; Twelves, C.; Wilson, P.; Duncan, R.; Thomson, A.H.; Murray, L.S.; Hilditch, T.E.; Murray, T.; et al. Phase I clinical and pharmacokinetic study of PK1 [N-(2-hydroxypropyl) methacrylamide copolymer doxorubicin]: First member of a new class of chemotherapeutic agents-drug-polymer conjugates. Clin. Cancer Res. 1999, 5, 83–94. [Google Scholar] [PubMed]
  38. Ringsdorf, H. Structure and properties of pharmacologically active polymers. J. Polym. Sci. C Polym. Symp. 1975, 51, 135–153. [Google Scholar] [CrossRef]
  39. Terwogt, J.M.; ten Bokkel Huinink, W.W.; Schellens, J.H.; Schot, M.; Mandjes, I.A.; Zurlo, M.G.; Rocchetti, M.; Rosing, H.; Koopman, F.J.; Beijnen, J.H. Phase I clinical and pharmacokinetic study of PNU166945, a novel water-soluble polymer-conjugated prodrug of paclitaxel. Anticancer Drugs 2001, 12, 315–323. [Google Scholar] [CrossRef]
  40. Liu, K.; Dai, L.; Li, C.; Liu, J.; Wang, L.; Lei, J. Self-assembled targeted nanoparticles based on transferrin-modified eight-arm-polyethylene glycol-dihydroartemisinin conjugate. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, D.; Li, H.; Gu, J.; Guo, T.; Yang, S.; Guo, Z.; Zhang, X.; Zhu, W.; Zhang, J. Ternary system of dihydroartemisinin with hydroxypropyl-β-cyclodextrin and lecithin: Simultaneous enhancement of drug solubility and stability in aqueous solutions. J. Pharm. Biomed. Anal. 2013, 83, 141–148. [Google Scholar] [CrossRef] [PubMed]
  42. Dai, L.; Wang, L.; Deng, L.; Liu, J.; Lei, J.; Li, D.; He, J. Novel multiarm polyethylene glycol-dihydroartemisinin conjugates enhancing therapeutic efficacy in non-small-cell lung cancer. Sci. Rep. 2014, 4, 5871. [Google Scholar] [CrossRef] [PubMed]
  43. Yaméogo, J.B.; Gèze, A.; Choisnard, L.; Putaux, J.L.; Gansané, A.; Sirima, S.B.; Semdé, R.; Wouessidjewe, D. Self-assembled biotransesterified cyclodextrins as Artemisinin nanocarriers—I: Formulation, lyoavailability and in vitro antimalarial activity assessment. Eur. J. Pharm. Biopharm. 2012, 80, 508–517. [Google Scholar] [CrossRef] [PubMed]
  44. Xiao, D.; Yang, B.; Chen, Y.J.; Liao, X.L.; Yang, X.M.; Qin, Q.X.; Yi, D. Synthesis of Water Soluble C-10-Phenoxy Artemisinin-Chitosan Conjugate. Asian J. Chem. 2013, 25, 4654–4656. [Google Scholar]
  45. Kumar, S.; Singh, R.K.; Murthy, R.S.; Bhardwaj, T.R. Synthesis and Evaluation of Substituted Poly(organophosphazenes) as a Novel Nanocarrier System for Combined Antimalarial Therapy of Primaquine and Dihydroartemisinin. Pharm. Res. 2015, 32, 2736–2752. [Google Scholar] [PubMed]
  46. Bhadra, D.; Bhadra, S.; Jain, N.K. Pegylated lysine based copolymeric dendritic micelles for solubilization and delivery of artemether. J. Pharm. Pharm. Sci. 2005, 8, 467–482. [Google Scholar] [PubMed]
  47. Jabbarzadegan, M.; Rajayi, H.; Mofazzal Jahromi, M.A.; Yeganeh, H.; Yousefi, M.; Muhammad Hassan, Z.; Majidi, J. Application of arteether-loaded polyurethane nanomicelles to induce immune response in breast cancer model. Artif. Cells Nanomed. Biotechnol. 2016, 1–9. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, Z.; Yu, Y.; Ma, J.; Zhang, H.; Zhang, H.; Wang, X.; Wang, J.; Zhang, X.; Zhang, Q. LyP-1 modification to enhance delivery of artemisinin or fluorescent probe loaded polymeric micelles to highly metastatic tumor and its lymphatics. Mol. Pharm. 2012, 9, 2646–2657. [Google Scholar] [CrossRef] [PubMed]
  49. Lu, W.F.; Chen, S.F.; Wen, Z.Y.; Li, Q.; Chen, J.H. In vitro evaluation of efficacy of dihydroartemisinin-loaded methoxy poly (ethylene glycol)/poly (l-lactic acid) amphiphilic block copolymeric micelles. J. Appl. Polym. Sci. 2013, 128, 3084–3092. [Google Scholar] [CrossRef]
  50. Kim, S.; Park, K. Polymer Micelles for Drug Delivery. Chapter 19. Available online: http://kinam.com/Articles/PMicelles%20Papers/Kim,%20SW%2010%20Pol%20Micelle%20BookCh.pdf (accessed on 23 December 2016).
  51. Çağdaş, M.; Sezer, A.D.; Bucak, S. Liposomes as Potential Drug Carrier Systems for Drug Delivery. In Nanotechnology and Nanomaterials. Application of Nanotechnology in Drug Delivery; Sezer, A.D., Ed.; Intech: Rijeka, Croatia, 2014; pp. 1–50. [Google Scholar]
  52. Chen, H.J.; Huang, X.R.; Zhou, X.B.; Zheng, B.Y.; Huang, J.D. Potential sonodynamic anticancer activities of artemether and liposome-encapsulated artemether. Chem. Commun. 2015, 51, 4681–4684. [Google Scholar] [CrossRef] [PubMed]
  53. Neda, D.; Dariush, N.; Mohsen, C.; Hassan, E.S.; Mohammadreza, M.S.; Ali, F.; Akbarzadeh, A. Effect of artemisinin liposome and artemisinin liposome polyethyleneglycol on MCF-7 cell line. Int. J. Life Sci. Biotechnol. Pharm. Res. 2013, 2, 349–355. [Google Scholar]
  54. Isacchi, B.; Bergonzi, M.C.; Grazioso, M.; Righeschi, C.; Pietretti, A.; Severini, C.; Bilia, A.R. Artemisinin and artemisinin plus curcumin liposomal formulations: Enhanced antimalarial efficacy against Plasmodium berghei-infected mice. Eur. J. Pharm. Biopharm. 2012, 80, 528–534. [Google Scholar] [CrossRef] [PubMed]
  55. Li, X.Y.; Zhao, Y.; Sun, M.G.; Shi, J.F.; Ju, R.J.; Zhang, C.X.; Li, X.T.; Zhao, W.Y.; Mu, L.M.; Zeng, F.; et al. Multifunctional liposomes loaded with paclitaxel and artemether for treatment of invasive brain glioma. Biomaterials 2014, 35, 5591–5604. [Google Scholar] [CrossRef] [PubMed]
  56. Isacchi, B.; Arrigucci, S.; Marca, G.L.; Bergonzi, M.C.; Vannucchi, M.G.; Novelli, A.; Bilia, A.R. Conventional and long-circulating liposomes of artemisinin: Preparation, characterization, and pharmacokinetic profile in mice. J. Liposome Res. 2011, 21, 237–244. [Google Scholar] [CrossRef] [PubMed]
  57. Gharib, A.; Faezizadeh, Z.; Mesbah-Namin, S.A.; Saravani, R. Preparation, characterization and in vitro efficacy of magnetic nanoliposomes containing the artemisinin and transferrin. DARU J. Pharm. Sci. 2014, 22, 1. [Google Scholar] [CrossRef] [PubMed]
  58. Jin, M.; Shen, X.; Zhao, C.; Qin, X.; Liu, H.; Huang, L.; Qiu, Z.; Liu, Y. In vivo study of effects of artesunate nanoliposomes on human hepatocellular carcinoma xenografts in nude mice. Drug Deliv. 2013, 20, 127–133. [Google Scholar] [CrossRef] [PubMed]
  59. Dadgar, N.; Alavi, S.E.; Esfahani, M.K.; Akbarzadeh, A. Study of toxicity effect of pegylated nanoliposomal artemisinin on breast cancer cell line. Ind. J. Clin. Biochem. 2013, 28, 410–412. [Google Scholar] [CrossRef] [PubMed]
  60. Righeschi, C.; Coronnello, M.; Mastrantoni, A.; Isacchi, B.; Bergonzi, M.C.; Mini, E.; Bilia, A.R. Strategy to provide a useful solution to effective delivery of dihydroartemisinin: Development, characterization and in vitro studies of liposomal formulations. Colloid Surf. B Biointerfaces 2014, 116, 121–127. [Google Scholar] [CrossRef] [PubMed]
  61. Chen, Y.; Lin, X.; Park, H.; Greever, R. Study of artemisinin nanocapsules as anticancer drug delivery systems. Nanomed. Nanotechnol. Biol. Med. 2009, 5, 316–322. [Google Scholar] [CrossRef] [PubMed]
  62. Tran, T.H.; Nguyen, T.C.; Poudel, B.K.; Nguyen, H.T.; Kim, J.O.; Yong, C.S.; Nguyen, C.N. Development and Evaluation of Artesunate-Loaded Chitosan-Coated Lipid Nanocapsule as a Potential Drug Delivery System Against Breast Cancer. AAPS PharmSciTech 2015, 16, 1307–1316. [Google Scholar] [CrossRef] [PubMed]
  63. Meng, H.; Xu, K.; Xu, Y.; Luo, P.; Du, F.; Huang, J.; Lu, W.; Yu, J.; Liu, S.; Muir, B. Nanocapsules based on mPEGylated artesunate prodrug and its cytotoxicity. Colloids Surf. B Biointerfaces 2014, 115, 164–169. [Google Scholar] [CrossRef] [PubMed]
  64. Xiao, X.-C.; Hong, Z.-G. Firstborn microcrystallization method to prepare nanocapsules containing artesunate. Int. J. Nanomed. 2010, 5, 483–486. [Google Scholar] [CrossRef]
  65. Dwivedi, A.; Mazumder, A.; Du Plessis, L.; Du Preez, J.L.; Haynes, R.K.; Du Plessis, J. In vitro anti-cancer effects of artemisone nano-vesicular formulations on melanoma cells. Nanomed. Nanotechnol. Biol. Med. 2015, 11, 2041–2050. [Google Scholar] [CrossRef] [PubMed]
  66. Asgharkhani, E.; Najmafshar, A.; Chiani, M. Research Article Artemisinin (ART) Drug Delivery Using Mixed Non-ionic Surfactants and Evaluation of Their Efficiency in Different Cancer Cell Lines. Int. J. Drug Deliv. Technol. 2014, 4, 67–71. [Google Scholar]
  67. Shen, S.; Liu, S.Z.; Zhang, Y.S.; Du, M.B.; Liang, A.H.; Song, L.H.; Ye, Z.G. Compound antimalarial ethosomal cataplasm: Preparation, evaluation, and mechanism of penetration enhancement. Int. J. Nanomed. 2015, 10, 4239–4253. [Google Scholar] [CrossRef] [PubMed]
  68. Kothamasu, P.; Kanumur, H.; Ravur, N.; Maddu, C.; Parasuramrajam, R.; Thangavel, S. Nanocapsules: The weapons for novel drug delivery systems. Bioimpacts 2012, 2, 71–81. [Google Scholar] [PubMed]
  69. Effertha, T.; Romero, M.R.; Bilia, A.R.; Osman, A.G.; ElSohly, M.; Wink, M.; Bauer, R.; Ikhlas, K.H.; Bergonzi, M.C.; Marin, J.J.G. Expanding the Therapeutic Spectrum of Artemisinin: Activity Against Infectious Diseases Beyond Malaria and Novel Pharmaceutical Developments. World J. Tradit. Chin. Med. 2016, 2, 1–23. [Google Scholar] [CrossRef]
  70. Nandure, H.P.; Puranik, P.; Giram, P.; Lone, V. Ethosome: A Novel Drug Carrier. Int. J. Pharm. Res. Allied Sci. 2013, 2, 18–30. [Google Scholar]
  71. Cha, C.; Shin, S.R.; Annabi, N.; Dokmeci, M.R.; Khademhosseini, A. Carbon-based nanomaterials: Multifunctional materials for biomedical engineering. ACS Nano 2013, 7, 2891–2897. [Google Scholar] [CrossRef] [PubMed]
  72. Rezaei, B.; Majidi, N.; Noori, S.; Hassan, Z.M. Multiwalled carbon nanotubes effect on the bioavailability of artemisinin and its cytotoxity to cancerous cells. J. Nanopart. Res. 2011, 13, 6339–6346. [Google Scholar] [CrossRef]
  73. Zhang, H.; Ji, Y.; Chen, Q.; Jiao, X.; Hou, L.; Zhu, X.; Zhang, Z. Enhancement of cytotoxicity of artemisinin toward cancer cells by transferrin-mediated carbon nanotubes nanoparticles. J. Drug Target. 2015, 23, 552–567. [Google Scholar] [CrossRef] [PubMed]
  74. Zhang, H.; Hou, L.; Jiao, X.; Ji, Y.; Zhu, X.; Zhang, Z. Transferrin-mediated fullerenes nanoparticles as Fe2+-dependent drug vehicles for synergistic anti-tumor efficacy. Biomaterials 2015, 37, 353–366. [Google Scholar] [CrossRef] [PubMed]
  75. Puri, A.; Loomis, K.; Smith, B.; Lee, J.H.; Yavlovich, A.; Heldman, E.; Blumenthal, R. Lipid-based nanoparticles as pharmaceutical drug carriers: From concepts to clinic. Crit. Rev. Ther. Drug Carr. Syst. 2009, 26, 523–580. [Google Scholar] [CrossRef]
  76. Zhang, Y.J.; Gallis, B.; Taya, M.; Wang, S.; Ho, R.J.; Sasaki, T. pH-responsive artemisinin derivatives and lipid nanoparticle formulations inhibit growth of breast cancer cells in vitro and induce down-regulation of HER family members. PLoS ONE 2013, 8, e59086. [Google Scholar] [CrossRef] [PubMed]
  77. Dwivedi, P.; Khatik, R.; Khandelwal, K.; Taneja, I.; Raju, K.S.; Paliwal, S.K.; Dwivedi, A.K.; Mishra, P.R. Pharmacokinetics study of arteether loaded solid lipid nanoparticles: An improved oral bioavailability in rats. Int. J. Pharm. 2014, 466, 321–327. [Google Scholar] [CrossRef] [PubMed]
  78. Zhang, X.; Qiao, H.; Liu, J.; Dong, H.; Shen, C.; Ni, J.; Shi, Y.; Xu, Y. Dihydroartemisinin loaded nanostructured lipid carriers (DHA-NLC): Evaluation of pharmacokinetics and tissue distribution after intravenous administration to rats. Die Pharm. Int. J. Pharm. Sci. 2010, 65, 670–678. [Google Scholar]
  79. Aditya, N.P.; Patankar, S.; Madhusudhan, B.; Murthy, R.S.; Souto, E.B. Arthemeter-loaded lipid nanoparticles produced by modified thin-film hydration: Pharmacokinetics, toxicological and in vivo anti-malarial activity. Eur. J. Pharm. Sci. 2010, 40, 448–455. [Google Scholar] [CrossRef] [PubMed]
  80. Want, M.Y.; Islamuddin, M.; Chouhan, G.; Ozbak, H.A.; Hemeg, H.A.; Dasgupta, A.K.; Chattopadhyay, A.P.; Afrin, F. Therapeutic efficacy of artemisinin-loaded nanoparticles in experimental visceral leishmaniasis. Colloids Surf. B Biointerfaces 2015, 130, 215–221. [Google Scholar] [CrossRef] [PubMed]
  81. Gupta, D.K.; Razdan, B.K.; Bajpai, M. Formulation and evaluation of nanoparticles containing artemisinin HCL. Int. J. Res. Dev. Pharm. Sci. 2014, 3, 925–934. [Google Scholar]
  82. Nguyen, H.T.; Tran, T.H.; Kim, J.O.; Yong, C.S.; Nguyen, C.N. Enhancing the in vitro anti-cancer efficacy of artesunate by loading into poly-d,l-lactide-co-glycolide (PLGA) nanoparticles. Arch. Pharm. Res. 2015, 38, 716–724. [Google Scholar] [CrossRef] [PubMed]
  83. Chadha, R.; Gupta, S.; Pathak, N. Artesunate-loaded chitosan/lecithin nanoparticles: Preparation, characterization, and in vivo studies. Drug Dev. Ind. Pharm. 2012, 38, 1538–1546. [Google Scholar] [CrossRef] [PubMed]
  84. Sun, Q.; Teong, B.; Chen, I.F.; Chang, S.J.; Gao, J.; Kuo, S.M. Enhanced apoptotic effects of dihydroartemisinin-aggregated gelatin and hyaluronan nanoparticles on human lung cancer cells. J. Biomed. Mater. Res. Part B Appl. Biomater. 2014, 102, 455–462. [Google Scholar] [CrossRef] [PubMed]
  85. Ibrahim, N.; Ibrahim, H.; Sabater, A.M.; Mazier, D.; Valentin, A.; Nepveu, F. Artemisinin nanoformulation suitable for intravenous injection: Preparation, characterization and antimalarial activities. Int. J. Pharm. 2015, 495, 671–679. [Google Scholar] [CrossRef] [PubMed]
  86. Ma, W.; Xu, A.; Ying, J.; Li, B.; Jin, Y. Biodegradable Core-Shell Copolymer-Phospholipid Nanoparticles for Combination Chemotherapy: An In Vitro Study. J. Biomed. Nanotechnol. 2015, 11, 1193–1200. [Google Scholar] [CrossRef] [PubMed]
  87. Wang, Y.; Han, Y.; Yang, Y.; Yang, J.; Guo, X.; Zhang, J.; Pan, L.; Xia, G.; Chen, B. Effect of interaction of magnetic nanoparticles of Fe3O4 and artesunate on apoptosis of K562 cells. Int. J. Nanomed. 2011, 6, 1185. [Google Scholar]
  88. Chen, J.; Guo, Z.; Wang, H.B.; Zhou, J.J.; Zhang, W.J.; Chen, Q.W. Multifunctional mesoporous nanoparticles as pH-responsive Fe2+ reservoirs and artemisinin vehicles for synergistic inhibition of tumor growth. Biomaterials 2014, 35, 6498–6507. [Google Scholar] [CrossRef] [PubMed]
  89. Anand, R.; Manoli, F.; Manet, I.; Daoud-Mahammed, S.; Agostoni, V.; Gref, R.; Monti, S. β-Cyclodextrin polymer nanoparticles as carriers for doxorubicin and artemisinin: A spectroscopic and photophysical study. Photochem. Photobiol. Sci. 2012, 11, 1285–1292. [Google Scholar] [CrossRef] [PubMed]
  90. Kakran, M.; Sahoo, N.G.; Li, L.; Judeh, Z. Dissolution of artemisinin/polymer composite nanoparticles fabricated by evaporative precipitation of nanosuspension. J. Pharm. Pharmacol. 2010, 62, 413–421. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Semisynthetic derivatives of artemisinin: artesunate (1), artemether (2) Dihydroartemisinin (3), artelinic acid (4) and arteether (5).
Figure 1. Semisynthetic derivatives of artemisinin: artesunate (1), artemether (2) Dihydroartemisinin (3), artelinic acid (4) and arteether (5).
Molecules 22 00323 g001

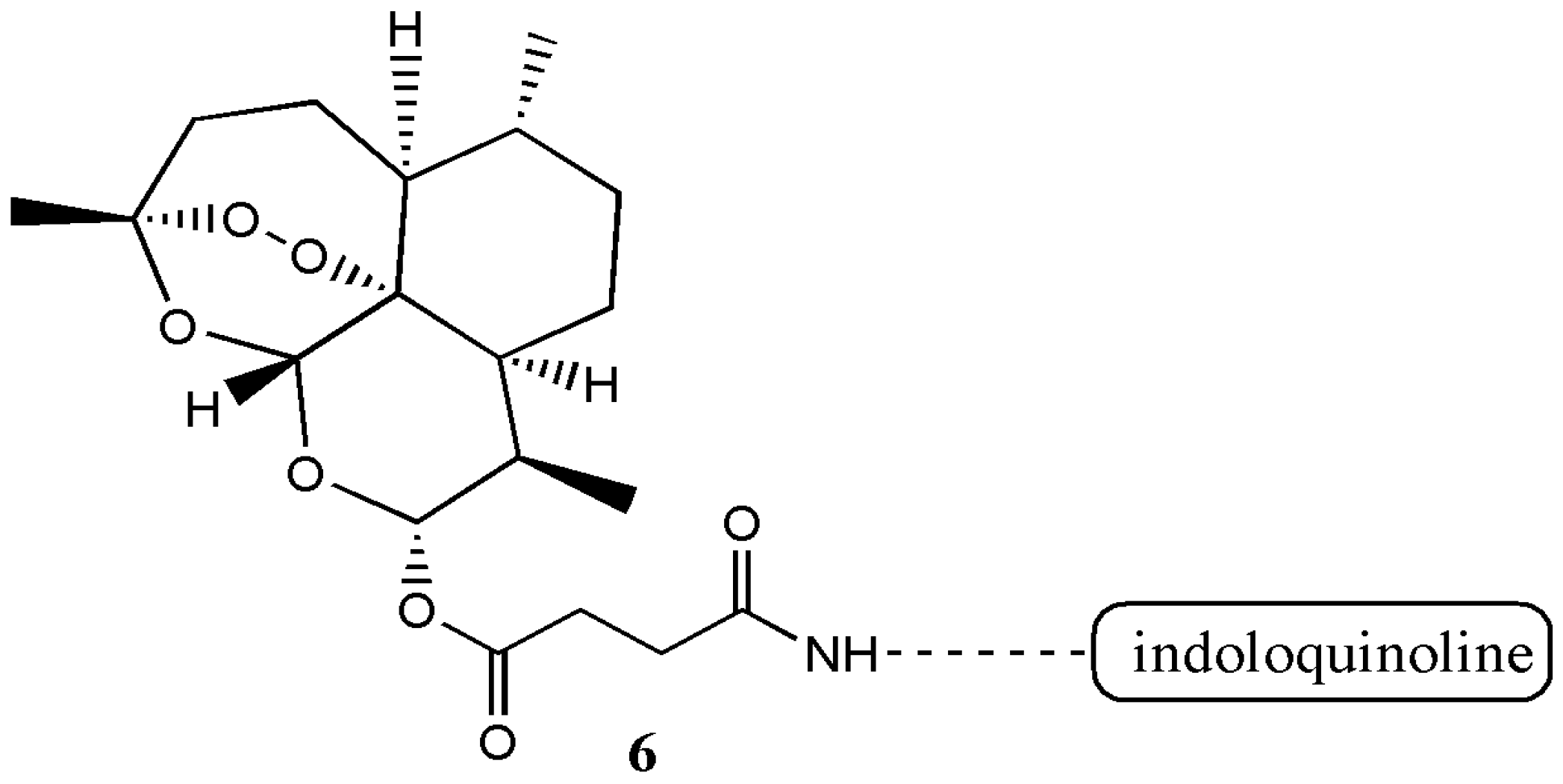

Figure 2. Artesunate-indoloquinoline hybrid 6.
Figure 2. Artesunate-indoloquinoline hybrid 6.
Molecules 22 00323 g002

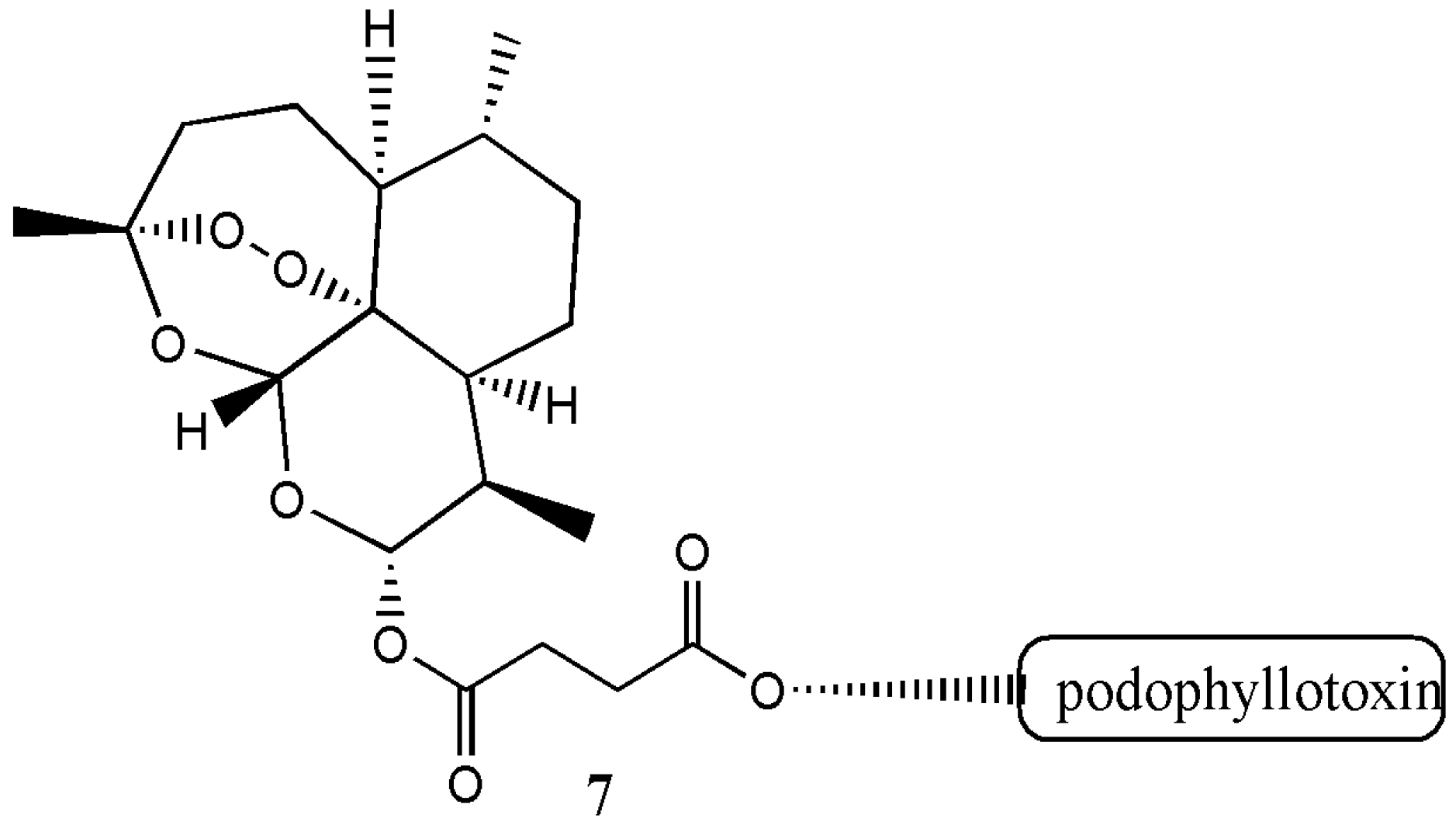

Figure 3. Artesunate-podophyllotoxin analogue 7.
Figure 3. Artesunate-podophyllotoxin analogue 7.
Molecules 22 00323 g003
Figure 4. Artesunate α-aminophosphonate analogue 8.
Figure 4. Artesunate α-aminophosphonate analogue 8.
Molecules 22 00323 g004
Figure 5. Artesunate-safranol analogue 9.
Figure 5. Artesunate-safranol analogue 9.
Molecules 22 00323 g005
Figure 6. Primaquine-artemisinin hybrid 10.
Figure 6. Primaquine-artemisinin hybrid 10.
Molecules 22 00323 g006
Figure 7. Artemisinin derivatives 11 and 12.
Figure 7. Artemisinin derivatives 11 and 12.
Molecules 22 00323 g007
Figure 8. Artemisinin-quinine hybrid 13.
Figure 8. Artemisinin-quinine hybrid 13.
Molecules 22 00323 g008
Figure 9. Dihydroartemisinin-cinnamic acid hybrid 14.
Figure 9. Dihydroartemisinin-cinnamic acid hybrid 14.
Molecules 22 00323 g009
Figure 10. A schematic diagram of polymer-drug conjugate.
Figure 10. A schematic diagram of polymer-drug conjugate.
Molecules 22 00323 g010
Figure 11. (a) Schematic diagram of a micelle; (b) Liposomes; (c) Nanocapsule loaded with bioactive agent.
Figure 11. (a) Schematic diagram of a micelle; (b) Liposomes; (c) Nanocapsule loaded with bioactive agent.
Molecules 22 00323 g011
Table 1. Biological activity of reported hybrids of artemisinin.
Table 1. Biological activity of reported hybrids of artemisinin.
Artemisinin Hybrid CompoundsBiological ActivityIn Vivo/In Vitro OutcomeRef.
Artesunate-indoloquinoline hybrid 6AntimalarialThe hybrid compound exhibited decreased cytotoxicity and increased antimalarial activity compared to the individual compounds. A dose of 10 mg·kg−1 once a day for four consecutive days resulted in a significant reduction of parasitemia.[9]
Artesunate-podophyllotoxin analogue 7AnticancerThe hybrid compound exhibited good cytotoxicity effects on cancer cell lines with reduced resistant factor. It induced D G2/M cell cycle arrest in multidrug resistance K562/ADR cells.[10]
Artesunate α-aminophosphonate analogue 8AntimicrobialThe hybrid compound exhibited significant activity against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa and Candida albicans microbials.[11]
Artesunate-safranol analogue 9--[12]
Primaquine-artemisinin analogue 10AntimalariaThe hybrids were more effective against the liver and blood stages of malarial parasites compared to the individual compounds.[13]
Arteminisin derivatives containing Mannich base groupAntimalariaThe derivatives were very stable and effective against Plasmodium berghei in mice when compared to the free artesunic acid.[14]
β-Ether derivatives of dihydroartemisininAntimalaria-[15]
Artemisinin derivatives 11 and 12AntimalariaThe derivatives exhibited good antimalarial activity.[16]
Artemisinin-quinine hybrids 13AntimalariaThe hybrid compounds exhibited potent antimalarial activity against the 3D7 and drug-resistant FcB1 strains of Plasmodium falciparum in vitro than the individual drugs[17]
Artemisinin-acridine hybridsAntimalaria and anticancerThe hybrid exhibited seven-fold higher anti-gametocytocidal effect. The anticancer activity against the HeLa cells was between three to eight fold higher than the individual drugs.[18]
Pyrrolidine-acridine-artemisinin hybridAntimalarialThe antimalarial activity of the hybrid was dose dependent resulting in haem bio-mineralization inhibition. It was effective for the treatment of multiple drug resistant with no sign of toxicity in vivo.[19]
Artemisone and artemiside derivativesAntimalarialThe derivatives increased drug concentrations in the combination therapy without reaching toxic levels and were active against Plasmodium falciparum.[20]
Artemisone derivativesAntitumorIn vitro activity of the derivatives on human hepatoma SMMC-7721 cell lines revealed that the derivatives inhibited proliferation of the liver cancer cells by inducing apoptosis.[21,22]
Artemisinin derivativesAnticancerThe derivatives were stable at room temperature, disrupting drug-resistance pathways when compared to artesunate.[23,24]
Dihydroartemisinin-cinnamic acid hybrids 14AnticancerIn vitro antitumor activities of the hybrids against PC-3, SGC-7901, A549 and MDA-MB-435s cancer cell lines revealed that the hybrids were active against lung cancer.[25]
Table 2. Polymer-drug conjugates and micelles containing artemisinin derivatives.
Table 2. Polymer-drug conjugates and micelles containing artemisinin derivatives.
PolymerArtemisinin DerivativesDrug Delivery SystemApplication AdvantagesRef.
Polyethylene glycolDihydroartemisininPolymer-drug conjugateAntitumorEnhanced solubility, long circulating half-life and improved antitumor effect.[40,42]
Hydroxypropyl-β-cyclodextrinDihydroartemisininPolymer-drug conjugateOral administrationIncreased solubility and stability of dihydroartemisinin.[41]
Cyclodextrin via vinyl-acyl fatty estersArtemisininPolymer-drug conjugateAntimalarial by injection.Effective antimalarial effect against P. falciparum.[43]
ChitosanArtemisininPolymer-drug conjugate-Improved solubility of artemisinin than the free artemisinin.[44]
Polyorgano-phosphazenesPrimaquine and dihydroartemisininPolymer-drug conjugateAntimalarialEffective for combination therapy against drug resistant strain of P. berghei infected mice with 100% antimalarial activity.[45]
Methoxy-polyethylene glycolArtemetherMicellesAntimalarialEnhanced drug stability with prolonged release of artemether.[46]
PolyurethaneArteetherMicellesAnticancerSignificant inhibition of the growth of 4T1 cell line.[47]
PEG-PCLArtemisininMicellesAntitumorHigh cellular uptake and inhibition effects on cancer cell lines with good antitumor efficacy.[48]
Methoxy poly(ethylene glycol)/poly(l-lactic acid)DihydroartemisininMicellesAnticancerBetter solubilizing ability than dihydroartemisinin suspension.[49]
Table 3. Liposomes, nanocapsules, niosomes and ethosomes containing artemisinin derivatives.
Table 3. Liposomes, nanocapsules, niosomes and ethosomes containing artemisinin derivatives.
Artemisinin DerivativeDrug Delivery SystemApplication AdvantageRef.
ArtemetherLipososmesAnticancerEnhanced sonodynamic anticancer activity.[52]
ArtemisininLiposomesAnticancerEnhanced cytotoxicity effects on MCF-7 cell lines.[53]
ArtemisininLiposomesAntimalarialImmediate and enhanced antimalarial activity.[54]
ArtemeterLiposomesAnticancerEffective for invasive brain glioma.[55]
ArtemisininLiposomesAntitumor and antiparasiticEnhanced blood-circulation time and prolonged half-life.[56]
ArtemisininMagnetic liposomesAnticancerThermosensitive with high antiproliferative activity.[57,59]
ArtesunateLiposomesAntitumorEnhanced antitumor effects on human hepatoma HepG2 cells than the free artesunate[58]
DihydroartemisininLiposomesAnticancerEnhanced anticancer activity.[60]
ArtemisininNanocapulesAnticancerProlonged release mechanism with enhanced bioavailability[61,62,63,64]
ArtemisoneNiosomesAnticancerEnhanced selective anticancer activity towards human melanoma A-375 cells with no toxicity towards the normal skin cells.[65]
ArtesunateNiosomesAnticancerThe release of artesunate from the formulations were slow and sustained with enhanced inhibitory effects against MCF-7 and C6 cell lines.[66]
ArtesunateEthosomesAntimalarialEnhanced permeation effect with antimalarial activity against Plasmodium parasite with no sign of re-emergence of malaria infection.[67]
Table 4. Therapeutic outcomes of carbon-based, lipid-based, polymer-based and inorganic-based delivery systems loaded with artemisinin and derivatives.
Table 4. Therapeutic outcomes of carbon-based, lipid-based, polymer-based and inorganic-based delivery systems loaded with artemisinin and derivatives.
Artemisinin DerivativesCompositionDrug Delivery SystemApplicationAdvantageRef.
ArtemisininMulti-walled carbon nanotubesCarbon-basedAnticancerEnhanced inhibitory effect on K562 cancer cell lines.[72]
ArtemisininMulti-walled carbon nanotubesCarbon-basedAnticancerEnhanced antitumor effects in tumor-bearing murine model.[73]
ArtesunateFullerene, hyaluronic acidCarbon-basedAnticancerExcellent antitumor activity.[74]
Artemisinin dimer piperazine derivativesl-α-Phosphatidyl-choline extract from eggLipid-based nanoparticlesAnticancerEnhanced inhibition of the growth of breast cancer cells and induced down-regulation of HER Family Members.[76]
AreetherSoya lecithin, Tween 80 and Pluronic F68Lipid-based nanoparticlesAntimalarialEnhanced bioavailability.[77]
DihydroxyartemisininMiglyol® 812Lipid-based nanoparticlesAntimalarialEnhanced bioavailability.[78]
ArtemetherGlyceryl trimyristate (solid lipid) and soybean oilLipid-based nanoarticlesAntimalarialImproved bioavailability and biocompatibility.[79]
ArtemisininPoly lactic co-glycolic acidPolymer-based nanoparticlesAntileishmanialSignificant reduction in the parasite load in the liver and spleen than the free artemisinin.[80]
ArtemisininPoly(ε-capro-lactone)Polymer-based nanoparticlesAntimalarialSustained delivery of artemisinin.[81]
ArtesunatePoly(lactic-co-glycolic)acid-Polymer-based nanoparticlesAnticancerInhibitory effect of the nanoparticles loaded with drug was enhanced on A549, SCC-7, and MCF-7 cancer cell lines.[82]
Artesunateβ-Cyclodextrin, chitosan/lecithinPolymer-based nanoparticlesAntimalarialEnhanced drug stability and antimalarial activity.[83]
DihydroartemisininGelatin and hyaluronanPolymer-based nanoparticlesAnticancerSignificant inhibition of the proliferation of A549 cells[84]
ArtemisininAlbuminPolymer-based nanoparticlesAntimalarialExcellent bioavailability.[85]
DihydroartemisininPoly(lactic-co-glycolic)acid-Polymer-based nanoparticlesAnticancerEnhanced anticancer activity.[86]
ArtesunateFe3O4Inorganic-based nanoparticlesAnticancerSignificant cell growth inhibition and apoptosis rate of K562 cell lines.[87]
ArtemisininIron nanoparticlesInorganic-based nanoparticlesAnticancerEnhanced inhibition of HeLa cell lines.[88]
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
