Molecules 2017, 22(12), 2134; doi:10.3390/molecules22122134

Article
A Diastereoselective Synthesis of Dispiro[oxindole-cyclohexanone]pyrrolidines by 1,3-Dipolar Cycloaddition
Alexander Anis’kov *Orcid, Irina Klochkova, Roman Tumskiy and Alevtina Yegorova
Institute of Chemistry, Chernyshevsky Saratov State University, 83 Astrakhanskaya Street, Saratov 410012, Russia
*
Correspondence: Tel.: +7-8452-51-69-51
Received: 30 September 2017 / Accepted: 2 December 2017 / Published: 4 December 2017

Abstract

:
For the first time, arylmethylidene cyclohexanones that are non-symmetrical due to the presence of peripheral substituents were studied in 1,3-dipolar cycloaddition reactions. It is shown that the interaction with the azomethine ylide generated from sarcosine proceeds regio- and diastereoselectively, with the participation of two non-equivalent parts of the dipolarophile. Also for the first time, β-amino ketones (Mannich bases) were used as dipolarophile equivalents of unsaturated ketones. It was found that cycloaddition occurs diastereoselectively at the generated center.
Keywords:
spiro[indoline-3,2′-pyrrolidin]-2-one; azomethine ylides; unsaturated ketones; 1,3-dipolar cycloaddition; sarcosine

1. Introduction

Recently, there great attention has been given in the literature to 1,3-dipolar cycloaddition reactions of azomethine ylides with alkenes activated by electron-withdrawing substituents. This is explained by the fact that azomethine ylides can be easily obtained from amino acids, benzylamine and isatin or ninhydrin [1,2,3]. Taking into account the large number of stereocenters formed during this process, the cycloaddition reaction proceeds with high stereoselectivity [3,4,5]. All this together makes the considered reactions a convenient tool for the construction of complex heterocyclic ensembles, structural analogues of natural alkaloids containing one or more spiro-atoms [5,6,7,8].
Up to the present time, a large amount of data has been accumulated on the regio- and stereochemistry for dipolarophiles of different nature, including acrylates, chalcones, and nitrostyrenes, so it is known that ylides generated from sarcosine react regioselectively with the most electrophilic center of the dipolarophile [9,10,11,12,13] (path I, Scheme 1) with the formation of endo-adducts in good yields. Exceptions are nitrostyrene, that exhibits a reversed addition selectivity (path II, Scheme 1) [14]. The regioselectivity of interaction of dipoles generated from benzylamine and isatin with chalcones is less predictable [13,14,15]. Benzylamine ylide can form the addition product of the most electrophilic atom of the double bond to the less substituted carbon atom of the dipole (path I Scheme 1), but the opposite can also occur (path II, Scheme 1). Besides, the route depends on the reaction conditions and the acidity of the reaction medium [15].
However, all these data relate to activated alkenes having one reaction center, and there is much less data on the use of dipolarophiles with two non-equivalent and reactive centers. The use of such dipolarophiles raises the question of selectivity of addition, the solution of which can provide valuable information on the details of the course of the reaction.
Previously, cycloaddition of sarcosine ylide to non-symmetrical (due to the presence of peripheral substituents) diarylmethylideneacetones was studied [12]. It was shown that the addition of ylide occurs at the most electrophilic center of the asymmetric dienone. However, the reactions of non-symmetrical biarylmethylidenecyclohexanones [16], as more sterically hindered analogues, with sarcosine and benzylamine ylides have not been studied. Therefore, it was interesting to evaluate the activity of the non-equivalent centers and the regio- and stereoselectivity of cycloaddition of azomethine ylides to such sterically hindered substrates. Previously, these ketones were systematically studied in reactions with nucleophiles (hydrazine and phenylhydrazine) [16]. Differences in the activity of the multiple bonds of the substrates were established.

2. Results and Discussion

We used diarylmethylidenecyclohexanones as initial substrates, 1ag (Scheme 2), which differ in the peripheral substituents.
As model dipoles, we selected azomethine ylide A generated from sarcosine and isatin, as the most accessible in terms of their generation (Scheme 3).
The reaction was carried out as a three component interaction of equimolar amounts of ketone 1, isatin and sarcosine by refluxing in acetonitrile for 3–5 h. The same solvent was used by us in similar studies performed earlier [12]. 1,3-Dipolar cycloaddition is a highly stereoselective reaction. The stereoselective formation of an endo- or an exo-adduct can be realized in the result of the cycloaddition. Sometimes, the reaction leads to the formation of a mixture thereof. The probability of favoring one or another direction is determined by a combination of factors. The substrates 1ae contain two unequal parts of the dipolarophile (green or red on Scheme 2), which raises the question about the direction of attack of the dipole. However, in view of the question of endo or exo-stereoselectivity, the identification of products may become more complicated. It can be easily solved by using a dipolarophile whose structure does not contain a second non-equivalent center. Despite the existence of literature data concerning the use of such dipolarophiles [17], we have performed a control experiment for the selected solvent and we used difurylmethylidenecyclohexanone 1g as an initial compound (Scheme 4).
Based on the combination of TLC and NMR spectroscopy data, we established that the cycloaddition of the sarcosine ylide A with 1g takes place regio- and diastereoselectively to give endo-adduct 2g. The 1H-NMR spectra of 2g have three characteristic triplets at 3.50 ppm (t, J = 8.6 Hz, 1H), at 3.85 ppm (t, J = 9.5 Hz, 1H) and 4.71 ppm (t, J = 9.1 Hz, 1H), respectively. This signals are related to the AMX system of protons H2-5 and H-4 of pyrrolidine ring. In the 13C-NMR spectrum, the signals corresponding to C-4 and C-5 were observed at 43.2 ppm, 57.2 ppm. The quaternary carbons C-2 and C-3 were resonated at 62.2 ppm, and 72.3 ppm, respectively. These signals indicate that pyrrolidine ring is connected with the oxindole and cyclohexanone moieties by two spiro-carbons. The relative configuration of the stereogenic centers has been established on the basis of the NOESY data (see Supplementary Materials). The key cross correlations are shown in Figure 1. The diagnostic strong correlation of the aromatic proton of oxindole and H-4 of pyrrolidine ring confirmed the stereochemistry of stereogenic centers.
The formation of the diastereomer 2g occurs through the endo-transition state (TS endo), as the most advantageous cycloaddition channel. The exo-channel (TS exo) is not beneficial, because of the repulsion of the cyclohexane core and the oxindole fragment. The results of our control experiment are confirmed by literature data [9,10,11]. Under similar conditions, biarylidenecyclohexanones 1af (Scheme 5) in the reaction with sarcosine ylide give rise to a mixture of 2 and 3 cycloaddition products at two reactive multiple bonds.
The 1H-NMR spectra exhibited two triplets of diastereotopic protons H2-5 at 3.39–3.83 ppm, 3.49–3.99 ppm (J = 8.8–9.1 Hz). Two doublet of doublets or multiplets at 4.73–4.86, 4.81–5.17 ppm (dd, J = 10.6, 7.6 Hz) were assigned to H-4 of pyrrolidine ring of compounds 2 and 3, respectively. For some compounds (2 and 3b) a coalescence of signals of protons at the C-5 and C-4 positions is observed. The chemical shift of protons at C-4 isomers 3 depends on the nature and the position of substituent in the ring. Proton H-4 in 3a was resonated at 5.17 ppm in the form of a triplet. It is due to the influence of the chlorine atom in the ortho-position of the ring. The signal at similar position in 3c is weakly deshielded. It was observed at 4.95 ppm, which is due to the influence of the nitro group. The signals of the considered position for 2a, c, 3d and 2df were observed in the interval 4.81–4.86 ppm and 4.70–4.74 ppm, respectively.
In the 13C-NMR spectrum the peaks at 47.7–49.3 ppm, and 60.3–60.9 ppm were assigned to pyrrolidine carbons C-4 and C-5, respectively. The two spiro-carbons resonate at 63.8–64.2 ppm, and 76.4–76.8 ppm. The carbonyl carbon of oxindole fragment was noted at 171.2–177.2 ppm. Also carbons of carbonyl group of cyclohexane skeleton was observed at 200.1–201.2 ppm. In most cases, a doubling of the signals were observed in the 13C-NMR spectra, which confirms the presence of two isomers with similar structures. Unfortunately, the preparative separation of the isomers of 2 and 3 were hindered by their similar chromatographic mobility.
The exact structural identification of compounds 2 and 3 were carried out on the basis of the 1H13C HMBC experiments (see Supplementary Materials). For example, in the spectra of products 2 and 3c important cross-peaks, proving the formation of 2c, were noted (Figure 2): 4.86/137.8 ppm, 4.86/130.7 ppm. That cross-peaks correspond to correlations of the proton at C-4 of pyrrolidine fragment with ipso- and ortho-carbons of the benzene ring. The same correlations were noted for 3c: 4.93/141.3 ppm, 4.93/131.5 ppm (Figure 2). The correlations of protons at C-4 of the pyrrolidine fragment with spiro-carbons (4.86/64.7 ppm, 4.86/76.7 ppm), (4.93/63.8 ppm, 4.86/76.7 ppm), for 2 and 3c, respectively were observed.
Moreover, the structures of the adducts 2 and 3c were confirmed by the data of NOESY spectroscopy (see Supplementary Materials). For example, key NOE-contacts between protons at C-4 with ortho-hydrogens of aromatic rings (4.86/7.40 ppm for 2c and 4.93/7.67 ppm for 3c) were noted. (Figure 3). On the basis of NOESY data the endo-configuration of adduct was discovered. Also, the key correlations between protons at C-4 with proton of the oxindole fragment for 2 and 3c (4.86/7.08 ppm and 4.93/7.10 ppm for 2 and 3c, respectively) were observed. The same configuration of compounds 2df and 2d was confirmed by close chemical shifts and the coupling constants of the protons at C-4.
Guided by the analysis of the relative intensities of key signals (CH protons of the pyrrolidine fragment) in 1H-NMR spectra, we established the ratio of isomers 2 and 3 (Table 1). Thus, in the case of ketones 1df the furylmethylidene moiety is a strongly dominant center. These facts can be explained by the greater steric availability of the furylmethylidene fragment (red part in Scheme 2) of dipolarophiles 1df for attack of azomethine ylide. There were not dominated centers of cycloadition for dipolarophiles 1ac. The quantities of isomers 2 and 3ac were the same. It should be noted that the ortho-substituent in the ring makes the cycloaddition less preferable.
It was discovered that the diastereoselectivity does not depend on the nature of the substituent at the reaction centers of the dipolarophile. All products were endo-adducts. Thus, the most electrophilic and sterically available center of the dipolarophile reacts with the more accessible carbon of the dipole. Steric repulsion of the cyclohexane skeleton and oxindole ring makes the exo-transition state (TS exo) not fruitful.
Next we studied the chemical behavior of Mannich ketones in reactions with sarcosine ylide. We proposed that Mannich bases can react with azomethine ylide A, because they can generate unsubstituted unsaturated ketones at the β-position (Scheme 6). We also proposed, that they can form an unsubstituted pyrrolidines at the 4 or 5 positions.
It is known, that cyclohexanone Mannich bases are the simplest in deamination reaction [18]. We used 2-[(dimethylamino)methyl]cyclohexanone hydrochloride (4) (Scheme 7) as the simplest dipolarophile. We don’t use acetone derivatives as the most simple dipolarophile due to the bad results [18]. 2-[(dimethyl-amino)methyl]cyclohexanone hydrochloride (4) reacted with azomethine ylide A with the formation of dispirane 5 in 28% yield. The reaction was carried out as a three component interaction of equimolar amounts of ketone 4, isatin and sarcosine by mixing in isopropanol at 60 °C for 3–5 h. Refluxing in isopropanol led to very low yield of 5. When acetonitrile was used as a solvent, the recovery of the reaction product was greatly complicated by the formation of a resin.
The 1H-NMR spectrum of the synthesized compound 5 exhibits multiplet at 3.20–3.28 ppm, which correspond to proton at C-5 of pyrrolidine ring. Also two doublet of doublet of doublets at 2.66 ppm (J = 10.7, 8.5, 5.4 Hz), and at 1.93 ppm (J = 10.8, 8.3, 4.2 Hz) were noted. These signals were assigned to two diastereotopic protons at C-4 of pyrrolidine ring.
In the 13C-NMR spectrum, 34.1 ppm, 52.1 ppm signals were assigned to the С-4 and C-5 of pyrrolidine ring. The signals of quaternary carbons, which were resonated at 62.1 ppm, and 76.1 ppm, were noted. This was evidence of the formation of a new heterocyclic system, where the pyrrolylidine ring is connected to the oxindole and cyclohexanone skeletons through two spiro carbons.
We decided to continue the research. The structure of the initial dipolarophile was complicated by the introduction of a new reaction center (phenylmethylidene fragment). 6. The introduction of that center will allow studying the selectivity of cycloaddition. It is established that sarcosine ylide reacts with dipolarophile 6 regioselectively and generates spirane 7 (Scheme 8).
In the 1H-NMR spectrum of dispirane 7 signals of diastereotopic protons at C-5 of the pyrrolidine ring at 3.49 ppm ddd (J = 9.3, 5.6, 3.6 Hz) and 3.25 ppm ddd (J = 11.5, 5.6, 2.2 Hz) were noted. The hydrogen of the ylidene fragment at 7.42 ppm was observed. This fact proved the course of cycloaddition with the participation of only the aminomethylene center. It was difficult to identify of the signals of protons at C-4 due to coalescence. The chemical shifts of diastereotopic protons at C-4 (2.51 and 2.17 ppm) were determined using the dqCOSY experiment. The observation of the two signals of spiro carbons at 59.9 ppm, 78.3 ppm in 13C-NMR spectrum of 7 confirms the formation of new pyrrolidine cycle. The signals of two carbonyl carbons at 178.9 ppm, 212.3 ppm were noted.
Based on the NOESY 2D experiment data, we have established the spatial architecture of the molecule (Figure 4). Key NOE contacts are marked on the diagram. Adduct 7 is the result of cycloaddition of ylide A to the most sterically available center (see Supplementary Materials). These data correlate well with data on the selectivity of cycloaddition to dipolarophiles 1af.
Arylmethylidene cyclohexanones that are on-symmetrical due to peripheral substituents were studied in the reactions of 1,3-dipolar cycloaddition for the first time. It was shown that two non-equivalent centers of the dipolarophile react with azomethine ylide A. The direction of cycloaddition depends on the steric volume of the peripheral substituent at 1af. It was discovered that the most sterically available and electrophilic center of the dipolarophile reacts with the more accessible carbon of the ylide. This is also confirmed by the data of the reactions of Mannich ketones. Cycloaddition took place only at the aminomethylene center.

3. Materials and Methods

The 1H- and 13C-NMR spectra were recorded at 25 °C on a Varian-400 spectrometer (400 and 100 MHz, respectively; Agilent Technologies, Santa Clara, CA, USA), using CDCl3 as a solvent and tetramethylsilane as an internal standard. Analytical thin layer chromatography TLC was performed using Alugram Xtra Sil G 254 plates (Macherey-Nagel GmbH & Co. KG, Düren, Germany; hexane–ethyl acetate–chloroform, 2:2:1). The melting points were measured in open capillaries. The elemental analyses were obtained on a Vario Micro cube Elementar CHNS analyzer (Elementar Analysensysteme GmbH, Hanau, Germany). Arylmethylidenecyclohexanones were synthesized according to [16]. Diarylmethylidenecyclohexanones 1af were synthesized according to [19]. 2-((Dimethyl)methyl)cyclohexanone hydrochloride (4) and 6-phenylmethylidene-2-((dimethyl)methyl)-cyclohexanone hydrochloride (6) were synthesized according to [20,21].

3.1. Synthesis of 1-N-Methyl-spiro[2.31]oxindole-spiro[3.211]611-arylmethylidenecyclohexanone-4-aryl-pyrrolidines (General Method). 2, 3ag

A solution of ketone 1af (5 mmol), isatin (0.88 g, 6 mmol), and sarcosine (0.45 g, 5 mmol) in acetonitrile (20 mL) was heated at reflux for 3–5 h. The solvent was evaporated off at reduced pressure, and the solid residue was washed with hexane.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-(2-chlorophenyl)methylidenecyclohexanone-4-phenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-phenylmethylidenecyclohexanone-4-(2-chloro-phenyl)pyrrolidines (2, 3a). Yield: 78%. m.p.: 171–173 °C. 1H-NMR: δ 1.02–1.19 (m, 1H), 1.21–1.42 (m, 1H), 2.09 (c, 1.08H), 2.11 (c, 1.92H), 2.16–2.46 (m, 4H), 3.44 (t, J = 8.3 Hz, 0.64H, C-5), 3.49 (t, J = 8.9 Hz, 0.36H, C-5), 3.91 (t, J = 8.9 Hz 0.64H, C-5), 3.99 (t, J = 8.9 Hz, 0.36H, C-5), 4.86 (dd, J = 11.9 Hz, 8.0 Hz 0.64H, C-4), 5.17 (t, J = 8.9 Hz 0,36Н, C-4), 6.70–6.80 (m, 1H), 6.90 (d, J = 7.4 Hz, 1H), 7.01 (t, J = 7.8 Hz, 1H), 7.62–7.14 (m, 9H), 8.00 (d, J = 7.9 Hz, 1H), 8.05 (broad s, 0.36H), 8.07 (broad s, 0.64H). 13C-NMR: δ 28.3, 28.4, 30.9, 31.2, 34.7, 34.9 (Me), 37.7, 45.6, 47.7 (C-4), 49.4 (C-4), 52.8, 57.5 (C-5), 57.7 (C-5), 62.2 (spiro), 63.8 (spiro), 76.1 (spiro), 109.3, 109.4, 123.5, 126.6, 126.8, 127.8, 128.1, 128.2, 128.2, 128.5, 128.7, 129.1, 129.2, 129.3, 129.4, 129.9, 130.2, 130.4, 134.3, 134.6, 135.3, 138.5, 139.3, 141.2, 171.2, 177.2, 201.3 (C=O), 201.6 (C=O). Anal. Calcd. for C30H27ClN2O3: C 74.60, H 5.63, N 6.63; found: C 75.01, H 5.54, N 6.96.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-(4-chlorophenyl)methylidenecyclohexanone-4-phenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-phenylmethylidenecyclohexanone-4-(4-chloro-phenyl)pyrrolidines (2, 3b). Yield: 72%. m.p.: 175–178 °C. 3,4 b 1H-NMR: δ 1.03–1.16 (m, 1H), 1.23–1.66 (m, 1H), 2.11 (с, 1.5H), 2.12 (c, 1.5 H), 2.15–2.25 (m, 2H), 2.30–2.47 (m, 2H), 3.43 (t, J = 8.9 Hz, 1H, C-5), 3.83 (t, J = 8.9 Hz, 0.5H, C-5), 3.90–3.95 (m, J = 8.9 Hz, 0.5H, C-5), 4.87–4.78 (m, 1H, C-4), 6.72 (d, J = 7.7 Hz, 1H), 6.90–7.10 (m, 2H), 7.06–7.27 (m, 9H), 7.34–7.16 (m, 6H), 7.80 (broad s, 1H). 13C-NMR: δ 21.3, 28.5, 30.9, 31.0, 34.7(Me), 48.7 (C-4), 49.3(C-4), 57.8 (C-5), 63.8 (spiro), 64.0 (spiro), 76.6 (spiro), 109.3, 122.6, 122.7, 126.8, 128.0, 128.2, 128.4, 128.3, 128.4, 129.8, 130.3, 131.0, 134.1, 134.2, 136.9, 152.9, 153.1, 171.2, 202.3 (C=O). Anal. Calcd. for C30H27ClN2O3: C 74.60, H 5.63, N 6.63; found: C 74.52, H 5.33, N 6.55.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-(4-nitrophenyl)methylidenecyclohexanone-4-phenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-phenylmethylidenecyclohexanone-4-(4-nitro-phenyl)pyrrolidines (2, 3c). Yield: 82%. m.p.: 191–193 °C. 1H-NMR: δ 1.00–1.10 (m, 1H), 1.11–1.18 (m, 1H), 1.26–1.44 (m, 2H), 2.12 (s, 1.35H), 2.14 (s, 1.65H), 2.19–2.47 (m, 2H), 3.38–3.51 (m, 1H), 3.92 (dd, J = 10.6, 7.7 Hz, 0.55H, C-4), 4.86 (dd, J = 10.6, 7.6 Hz, 0.45H, C-4), 4.95 (dd, J = 10.1, 7.7 Hz, 0.55H), 6.75 (d, J = 7.7 Hz, 1H), 7.01–7.12 (m, 2H), 7.13–7.36 (m, 5H), 7.44 (d, J = 7.3 Hz, 1.08H), 7.66 (d, J = 8.6 Hz, 0.92H), 7.80 (broad s, 1H), 8.12 (d, J = 8.7 Hz, 0.92H), 8.17 (d, J = 8.7 Hz, 1.08H). 13C-NMR: δ 21.4, 28.7, 30.7, 31.8, 34.5 (Me), 48.8 (C-4), 49.0 (C-4), 57.2 (C-5), 63.8 (spiro), 64.7 (spiro), 76.7 (spiro), 109.3, 122.4, 122.6, 122.9, 126.5, 128.1, 128.2, 128.3, 128.3, 128.5, 129.8, 130.3, 131.0, 136.1, 135.2, 136.8, 141.1, 141.2, 146.8, 147.3, 171.2, 201.7 (C=O), 202.1 (C=O). Anal. Calcd. for C30H27N3O4: C 73.01, H 5.51, N 8.51; found: C 73.38, H 5.37, N 8.56.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-2-furylmethylidenecyclohexanone-4-phenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-phenylmethylidenecyclohexanone-4-2-furylpyrrolidines (2, 3d). Yield: 65%. m.p.: 164–168 °C. 1H-NMR: δ 1.14–1.25 (m, 2H), 1.24–1.44 (m, 2H), 2.13 (s, 3H), 2.23–2.49 (m, 2H), 3.45 (t, J = 7.7 Hz, 1H), 3.83 (t, J = 7.9 Hz, 0.2H), 3.91 (t, J = 7.9 Hz, 0.8H), 4.74 (dd, J = 10.1, 7.7 Hz, 0.2H), 4.81 (dd, J = 10.1, 7.7 Hz, 0.8H), 6.40 (d, J = 3.2 Hz, 1H), 6.45 (d, J = 3.3 Hz, 1H), 6.73 (d, J = 7.6 Hz, 1H), 6.91 (t, J = 7.6 Hz, 1H), 7.07–7.15 (m, 2H), 7.17–7.34 (m, 5H), 7.43 (d, J = 1.5 Hz, 1H), 7.47 (d, J = 7.5 Hz, 2H), 7.93 (broad s, 1H). 13C-NMR: δ 22.8, 27.9, 28.5, 30.5, 34.7, 49.4 (C-4), 55.9 (C-5), 58.1 (C-5), 62.8, 68.4 (spiro), 76.7 (spiro), 108.4, 109.2, 112.2, 115.7, 122.8, 125.4, 126.7, 128.11, 128.4, 129.2, 130.6, 138.4, 139.4, 141.3, 144.4, 152.5, 177.2, 201.3 (C=O).
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-2-furylmethylidenecyclohexanone-4-4-chlorophenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-4-chlorophenylmethylidenecyclohexanone-4-2-furylpyrrolidines (2, 3e). Yield: 68%. m.p.: 164–168 1H-NMR: δ 1.23–1.48 (m, 2H), 1.80–1.93 (m, 1H), 2.05 (s, 3H), 2.18–2.38 (m, 1H), 2.39–2.56 (m, 1H), 3.53–3.36 (m, 1H), 3.83 (t, J = 9.6 Hz, 1H), 4.72 (dd, J = 10.1, 7.6 Hz, 0.8H), 4.79 (dd, J = 10.1, 7.5 Hz, 0.2H), 6.40 (d, J = 3.2 Hz, 1H), 6.45 (d, J = 3.3 Hz, 1H), 6.36–6.52 (m, 2H), 6.64 (d, J = 3.2 Hz, 1H), 6.72 (t, J = 7.3 Hz, 1H), 6.90 (t, J = 7.8 Hz, 1H), 7.03–7.18 (m, 2H), 7.20–7.35 (m, 1H), 7.43 (d, J = 7.6Hz, 2H), 7.53 (d, J = 1.5 Hz, 1H), 8.02 (broad s, 1H). 13C-NMR: δ 18.2, 18.3, 19.2, 21.7, 25.4, 27.9, 27.9, 29.1, 30.6, 34.6, 34.7, 43.3, 43.6 (C-4), 49.3 (C-4), 55.9 (C-5), 56.3 (C-5), 62.5 (spiro), 64.5 (spiro), 77.5 (spiro), 108.4, 108.5, 109.3, 110.3, 112.3, 115.7, 115.9, 116.1, 122.8, 123.4, 125.6, 128.2, 128.4, 128.4, 129.3, 131.9, 132.6, 138.0, 141.3, 144.5, 152.5, 152.6, 152.8, 154.4, 177.2, 200.7 (C=O), 201.2 (C=O). Anal. Calcd. for C28H25ClN2O3: C 71.10, H 5.33, N 5.92; found: C 70.95, H 4.97, N 5.77.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-2-furylmethylidenecyclohexanone-4-4-N,N-(dimethyl)phenyl-pyrrolidines and 1-N-methylspiro[2.31]oxindole-spiro[3.211]611-4-N,N-(dimethyl)phenylmethylidenecyclo-hexanone-4-2-furylpyrrolidines (2, 3f) Yield: 64%. m.p.: 131–134 1H-NMR: δ 1.23–1.51 (m, 2H), 1.80–2.10 (m, 5H), 2.39–2.49 (m, 2H), 2.91 (c, 0.9H), 3.09 (c, 2.1H), 3.49 (t, J = 8.6 Hz, 1H), 3.80–3.87 (m, 1H), 4.68 (t, J = 8.6, 0.3H), 4.70 (dd, J = 8.5 Hz, 0.7H), 6.34 (d, J = 3.2 Hz, 1H), 6.41–6.47 (m, 1H), 6.47–6.52 (m, 1H), 6.63–6.70 (m, 1H), 6.72 (d, J = 7.3 Hz, 1H), 6.89–6.92 (m, 2H), 7.06 (d, J = 7.3 Hz, 1H), 7.12 (t, J = 7.3 Hz, 1H), 7.32 (d, J = 7.6Hz, 2H), 7.47 (d, J = 1.5 Hz, 0.7H), 7.55 (d, J = 1.5 Hz, 0.3H), 8.03 (broad s, 1H). 13C-NMR: δ 18.2, 19.8, 21.7, 25.4, 28.0, 29.1, 34.7, 40.7, 40.9, 43.6, (C-4), 56.3 (C-5), 62.2 (spiro), 77.5 (spiro), 108.5, 109.3, 110.4, 112.4, 112.6, 115.8, 115.9, 122.2, 125.3, 125.7, 128.2, 128.6, 128.9, 129.3, 132.8, 141.2, 144.55, 152.6, 152.8, 154.4, 173.9, 200.8 (C=O). Anal. Calcd. for C30H31N3O3: C 74.82, H 6.49, N 8.73; found: C 74.52, H 6.54, N 8.62.
1-N-Methylspiro[2.31]oxindole-spiro[3.211]611-2-furylmethylidenecyclohexanone-4-2-furylpyrrolidines (3g) Yield: 61%. m.p.: 163–165 1H-NMR: δ 1.23–1.59 (m, 4H), 2.13 (s, H), 2.41–2,50 (m, 2H), 3.50 (t, J = 8.6 Hz, 1H), 3.85 (t, J = 9.5 Hz, 1H), 4.71 (t, J = 9.1 Hz, 1H), 6.35 (dd, 1H, J = 3.5, 1.8 Hz, 1H), 6.45 (d, J = 4.4 Hz, 1H), 6.50 (d, J = 4.4 Hz, 1H),6.73 (d, J = 7.7 Hz, 1H), 6.90 (t, J = 7.6 Hz, 1H), 7.08 (d, 1H, J = 7.7), 7.12 (t, 1H, J = 7.5), 7.33 (d, J = 4.8 Hz, 2H), 7.47 (s, 1H), 7.85 (broad s, 1H). 13C-NMR: δ 18.2, 27.9, 29.0, 34.7, 43.5(C-4), 56.3(C-5), 62.2 (spiro), 76.3 (spiro), 108.5, 109.2, 110.3, 112.2, 115.7, 122.7, 125.3, 125.9, 128.2, 129.3, 132.9, 141.2, 141.4, 144.4, 152.5, 154.3, 176.8, 200.7 (C=O). Anal. Calcd. for C26H24N2O4: C 72.88, H 5.65, N 6.54; found: C 71.86, H 5.68, N 6.34.

3.2. Synthesis of 8-R-14-N-Methyl-2,14-diazaspiro[4.0.5.3]tetradecan-3,4-benzo-1,7-dione (General Method)

A solution of ketone 5, 7 (5 mmol), isatin (0.88 g, 6 mmol), and sarcosine (0.45 g, 5 mmol) in isopropanol (20 mL) was heated at 60 °C for 3–5 h. The solvent was evaporated off at reduced pressure, and the solid residue was washed with hexane.
14-N-Methyl-2,14-diazaspiro[4.0.5.3]tetradecan-3,4-benzo-1,7-dione (5). Yield: 28%. m.p.: 71–74, 1H-NMR: δ 1.29–1.43 (m, 1H), 1.43–1.59 (m, 1H), 1.58–1.83 (m, 1H), 1.93 (ddd, 11.7, 7.9, 4.7, 1H), 1.98–2.02 (m, 1H), 2.05 (s. 1H), 2.07–2.15 (m, 1H), 2.22 (1H, ddd, J = 10.7, 8.5, 5.4), 2.36–2.46 (m, 1H), 2.66 (1H, ddd, J = 11.1, 8.3, 4.2), 3.19–3.30 (m, 2H), 6.86 (d, J = 7.7, 1H), 6.96 (d, 1H, J = 7.7), 7.01 (t, 1H, J = 7.7), 7.21 (t, J = 7.6, 1H), 8.57 (broad s, 1H). 13C-NMR: δ 21.5, 25.3, 34.0, 35.4, 35.6, 41.2, 51.9, 62.7 (spiro), 76.6 (spiro), 109.9, 122.6, 126.9, 127.1, 129.3, 141.5, 178.9, 212.0 (C=O). Anal. Calcd. for C17H20N2O2: C 71.81, H 7.09, N 9.85; found: C 71.43, H 7.12, N 9.71.
8-Phenylmethyliden-14-N-methyl-2,14-diazaspiro[4.0.5.3]tetradecan-3,4-benzo-1,7-dione (7). Yield: 34%. m.p.:123–126. 1H-NMR: δ 1.28–1.52 (m, 2H), 1.92 (1H, ddd, J = 14.2, 11.2, 3.1), 2.10 (s, 3H), 2.12–2.23 (m, 2H), 2.38–2.58 (m, 2H), 3.25 (ddd, J = 11.5, 5.6, 2.2, 1H), 3.49 (ddd, J = 9.3, 5.6, 3.6, 1H), 6.76 (J = 7.7, 1H), 6.91 (t, J = 7.5, 1H), 7.08–7.19 (m, 2H), 7.21–7.36 (m, 5H), 7.40 (s,1H), 8.00 (broad s, 1H). 13C-NMR: δ 21.6, 24.8, 34.5, 35.3, 35.7, 42.8, 50.8, 59.1 (spiro), 76.8 (spiro), 109.5, 115.8, 116.2, 122.6, 124.1, 126.9, 127.1, 129.3, 134.7, 141.5, 178.9, 202.3. Anal. Calcd. for C24H24N2O2: C 77.39, H 6.49, N 7.52; found: C 77.22, H 6.32, N 7.55.

4. Conclusions

For the first time, we have studied in the reactions of 1,3-dipolar cycloaddition of arylmethylidene cyclohexanones that are asymmetric due to peripheral substituents. It has been established that the interaction with sarcosine azomethine ylide proceeds with the participation of two non-equivalent centers of the dipolarophile. On the basis of a set of NMR spectroscopy data, it is established that the reaction products indicate the endo-selectivity of the dipole addition. Also, for the first time, β-amino ketones (Mannich bases) were used as dipolarophile equivalents of unsaturated ketones. It was found that the interaction proceeds diastereoselectively through the generated center, with the formation of endo-adducts.

Supplementary Materials

Spectral data for all new products and NOESY spectra for compound 2, 3af and 5 are available online.

Acknowledgments

The study was supported by a grant from the Russian Science Foundation (Project 15-13-10007).

Author Contributions

A.A., R.T. carried out all syntheses and characterized new compounds, drafted the manuscript, A.Y. took part in the spectral characterization of synthesized compounds, prepared final version of the manuscript and translated it into English, assisted technically, I.K. designed and supervised all experiments, and manuscript drafting. All authors read and approved the final version of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Shankar, M.; Chowdhury, S.; Koley, S. Progress in 1,3-dipolar cycloadditions in the recent decade: An update to strategic development towards the arsenal of organic synthesis. Tetrahedron 2016, 72, 1603–1644. [Google Scholar]
  2. Rouatbi, F.; Askri, M.; Nana, F.; Kirsch, G.; Sriram, D.; Yogeeswari, P. Synthesis of new spirooxindole derivatives through 1,3-dipolar cycloaddition of azomethine ylides and their antitubercular activity. Tetrahedron Lett. 2016, 57, 163–167. [Google Scholar] [CrossRef]
  3. Narayanarao, M.; Koodlur, L.; Revanasiddappa, V.G.; Gopal, S.; Kamila, S. Multicomponent synthesis of spiropyrrolidine analogues derived from vinylindole/indazole by a 1,3-dipolar cycloaddition reaction. Beilstein J. Org. Chem. 2016, 12, 2893–2897. [Google Scholar] [CrossRef] [PubMed]
  4. Barkov, A.; Zimnitskiy, N.; Korotaev, V.; Kutyashev, I.; Moshkin, V.; Sosnovskikh, V. Highly regio- and stereoselective 1,3-dipolar cycloaddition of stabilised azomethine ylides to 3,3,3-trihalogeno-1-nitropropenes: Synthesis of trihalomethylated spiro[indoline-3,2′-pyrrolidin]-2-ones and spiro[indoline-3,3′-pyrrolizin]-2-ones. Tetrahedron 2016, 72, 6825–6836. [Google Scholar] [CrossRef]
  5. Mancebo-Aracil, J.; Najera, C.; Castello, L.M.; Cossíoc, P.F.; Larranagac, O.; Cozarcd, A. Regio and diastereoselective multicomponent 1,3-dipolar cycloadditions between prolinate hydrochlorides, aldehydes and dipolarophiles for the direct synthesis of pyrrolizidines. Tetrahedron 2015, 71, 9645–9661. [Google Scholar] [CrossRef]
  6. Almansour, N.A.A.I.; Kumar, R.S.; Menéndez, J.C.; Sultan, M.A.; Karama, U.; Ghabbour, H.A.; Fun, H. An Expedient Regio- and Diastereoselective Synthesis of Hybrid Frameworks with Embedded Spiro[9,10]dihydroanthracene [9,3′]-pyrrolidine and Spiro[oxindole-3,2′-pyrrolidine] Motifs via an Ionic Liquid-Mediated Multicomponent Reaction. Molecules 2015, 20, 16142–16153. [Google Scholar]
  7. Mathusalini, S.; Arasakumar, T.; Lakshmi, K.; Lin, C.; Subramaniam, M.P.; Gogul Ramnathc, M.; Thirugnanasampandan, R. Synthesis and biological evaluation of new spirooxindoles with embedded pharmacophores. New J. Chem. 2016, 40, 5164–5169. [Google Scholar] [CrossRef]
  8. Onishi, T.; Sebahar, P.R.; Williams, R.M. Concise, Asymmetric Total Synthesis of Spirotryprostatin A. Org. Lett. 2003, 5, 3135–3137. [Google Scholar] [CrossRef] [PubMed]
  9. Anis’kov, A.A.; Kamneva, Y.I.; Zheleznova, A.M.; Yegorova, A.Y. Reaction of arylmethylidene derivatives of 3H-furan-2-ones with azomethine ylide. Chem. Heterocycl. Compd. 2015, 51, 709–712. [Google Scholar] [CrossRef]
  10. Klochkova, I.N.; Shchekina, M.P.; Anis’kov, A.A. Synthesis of Spiropyrrolidines and Spiropyrrolizidines from Azomethine Ylides. Chem. Heterocycl. Compd. 2014, 50, 479–488. [Google Scholar] [CrossRef]
  11. Izmest’ev, N.A.; Gazieva, G.A.; Sigay, N.V.; Serkov, S.A.; Karnoukhova, V.A.; Kachala, V.V.; Shashkov, A.S.; Zanin, I.E.; Kravchenko, A.N.; Makhova, N.N. An effective one-pot access to polynuclear dispiroheterocyclic structures comprising pyrrolidinyloxindole and imidazothiazolotriazine moieties via a 1,3-dipolar cycloaddition strategy. Beilstein J. Org. Chem. 2016, 12, 2240–2249. [Google Scholar] [CrossRef] [PubMed]
  12. Sobhi, C.; Khorief Nacereddine, A.; Djerourou, A.; Ríos-Gutiérrez, M. A DFT study of the mechanism and selectivities of the [3 + 2] cycloaddition reaction between 3-(benzylideneamino)oxindole and trans-β-nitrostyrene. J. Phys. Org. Chem. 2017, 30, 3637–3646. [Google Scholar] [CrossRef]
  13. Jayashankaran, J.; Manian, R.D.R.S.; Venkatesan, R.; Raghunathan, R. A regioselective synthesis of dispiro[oxindole-cyclohexanone]pyrrolidines and dispiro[oxindole-hexahydroindazole]pyrrolidines by sequential 1,3-dipolar cycloaddition and annulation through a microwave induced solvent-free approach. Tetrahedron 2005, 61, 5595–5598. [Google Scholar] [CrossRef]
  14. Sumana, K.; Thennarasu, S. Acetic acid promoted tandem cyclization of in situ generated 1,3-dipoles: Stereoselective synthesis of dispiroimidazolidinyl and dispiropyrrolidinyl oxindoles with multiple chiral stereocenters. RSC Adv. 2015, 5, 79413–79422. [Google Scholar] [CrossRef]
  15. Peng, C.; Ren, J.; Xiao, J.; Zhang, H.; Yang, H.; Luo, Y. Additive-assisted regioselective 1,3-dipolar cycloaddition of azomethine ylides with benzylideneacetone. Beilstein J. Org. Chem. 2014, 10, 352–360. [Google Scholar] [CrossRef] [PubMed]
  16. Bugaev, A.A.; Golikov, A.G.; Kriven’ko, A.P. Synthesis of substituted hexahydroindazoles. Chem. Heterocycl. Compd. 2005, 41, 831–834. [Google Scholar] [CrossRef]
  17. Amal Raj, A.; Raghunathan, R.; SrideviKumarib, M.R.; Raman, N. Synthesis, Antimicrobial and antifungal activity of a new class of spiro pyrrolidines. Bioorg. Med. Chem. 2003, 11, 407–419. [Google Scholar]
  18. Shchekina, M.P.; Tumskii, R.S.; Klochkova, I.N.; Anis’kov, A.A. Synthesis of pyrimidinethiones and spiropyrans proceeding from Mannich ketones. Russ. J. Org. Chem. 2017, 53, 263–269. [Google Scholar] [CrossRef]
  19. Kriven’ko, A.P.; Bugaev, A.A.; Golikov, A.G. Synthesis and configuration of 6-arylidene-2-furfurylidene-cyclohexanones. Chem. Heterocycl. Compd. 2005, 41, 163–167. [Google Scholar] [CrossRef]
  20. Mannich, C.; Braun, R. Über die Synthese von β-Ketobasen aus Aminsalzen, Formaldehyd und cyclo-Hexanon. Eur. J. Inorg. Chem. 1920, 53, 1874–1880. [Google Scholar] [CrossRef]
  21. Lorand, T.; Kocsis, B.; Sohar, P.; Nagy, G.; Kispal, G.; Krane, H.-G.; Schmitt, H.; Weckert, E. Synthesis and antibacterial study of unsaturated Mannich ketones. Eur. J. Med. Chem. 2001, 36, 705–717. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 2, 3c,e,f, 5 and 7 are available from the authors.
Scheme 1. Cycloaddition of azomethine ylides.
Scheme 1. Cycloaddition of azomethine ylides.
Molecules 22 02134 sch001

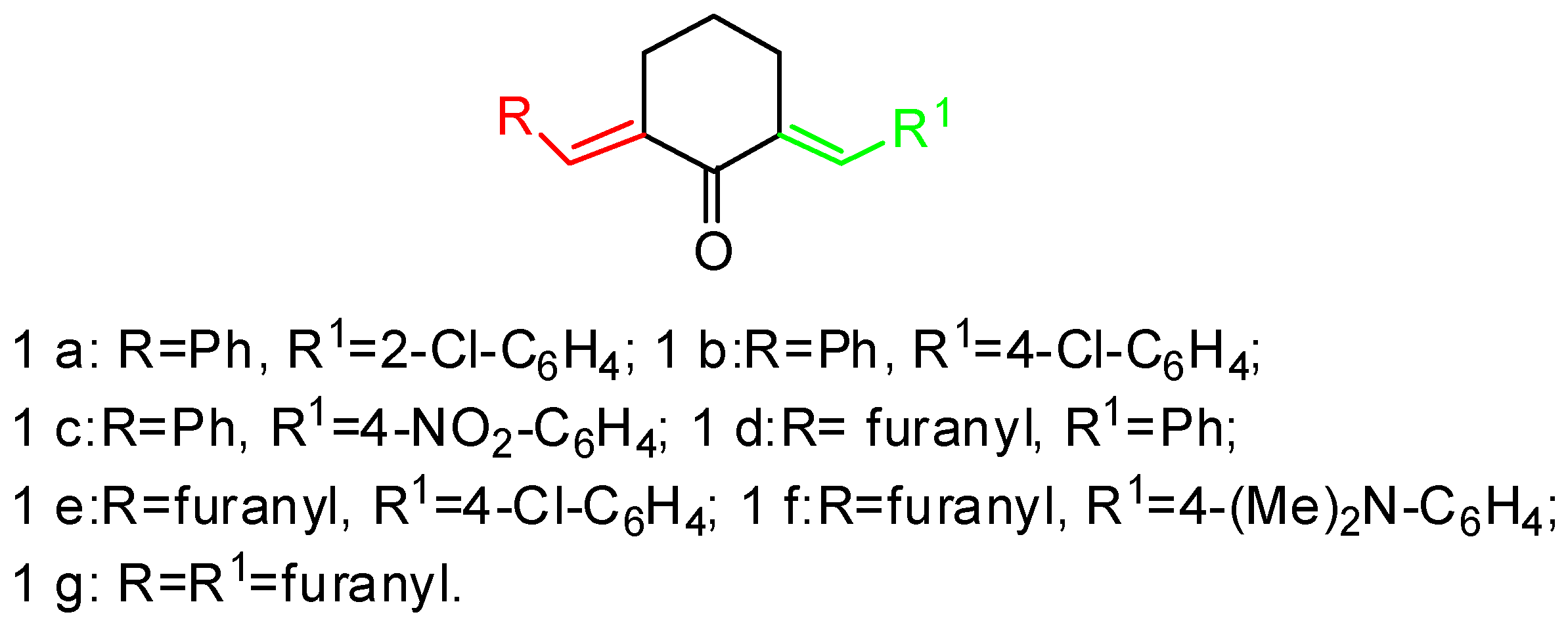

Scheme 2. Initial substrates.
Scheme 2. Initial substrates.
Molecules 22 02134 sch002

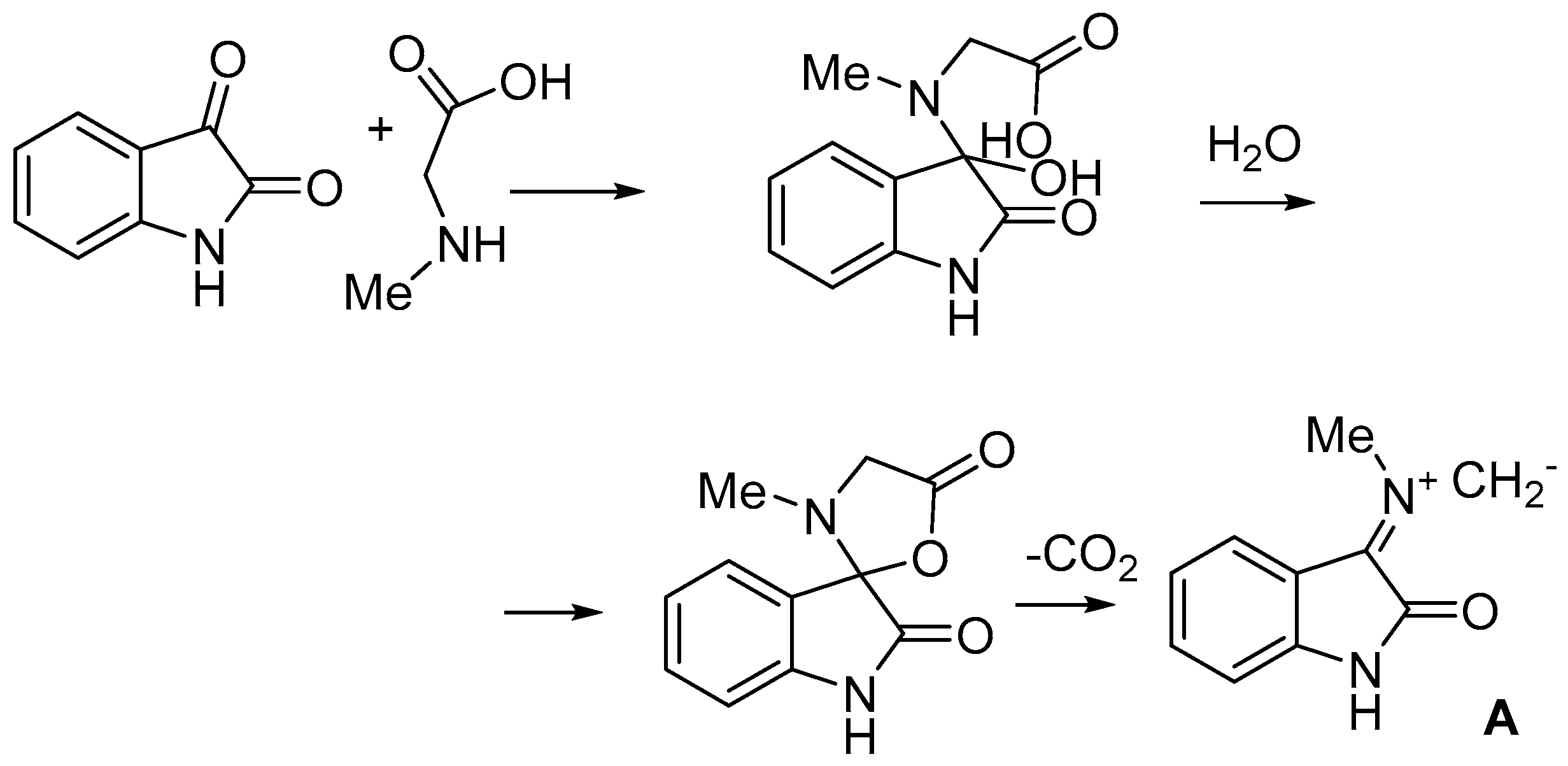

Scheme 3. Generation of azomethine ylide A.
Scheme 3. Generation of azomethine ylide A.
Molecules 22 02134 sch003
Scheme 4. Cycloaddition of ylide A to difurylmethylidencyclohaxanone 1g.
Scheme 4. Cycloaddition of ylide A to difurylmethylidencyclohaxanone 1g.
Molecules 22 02134 sch004

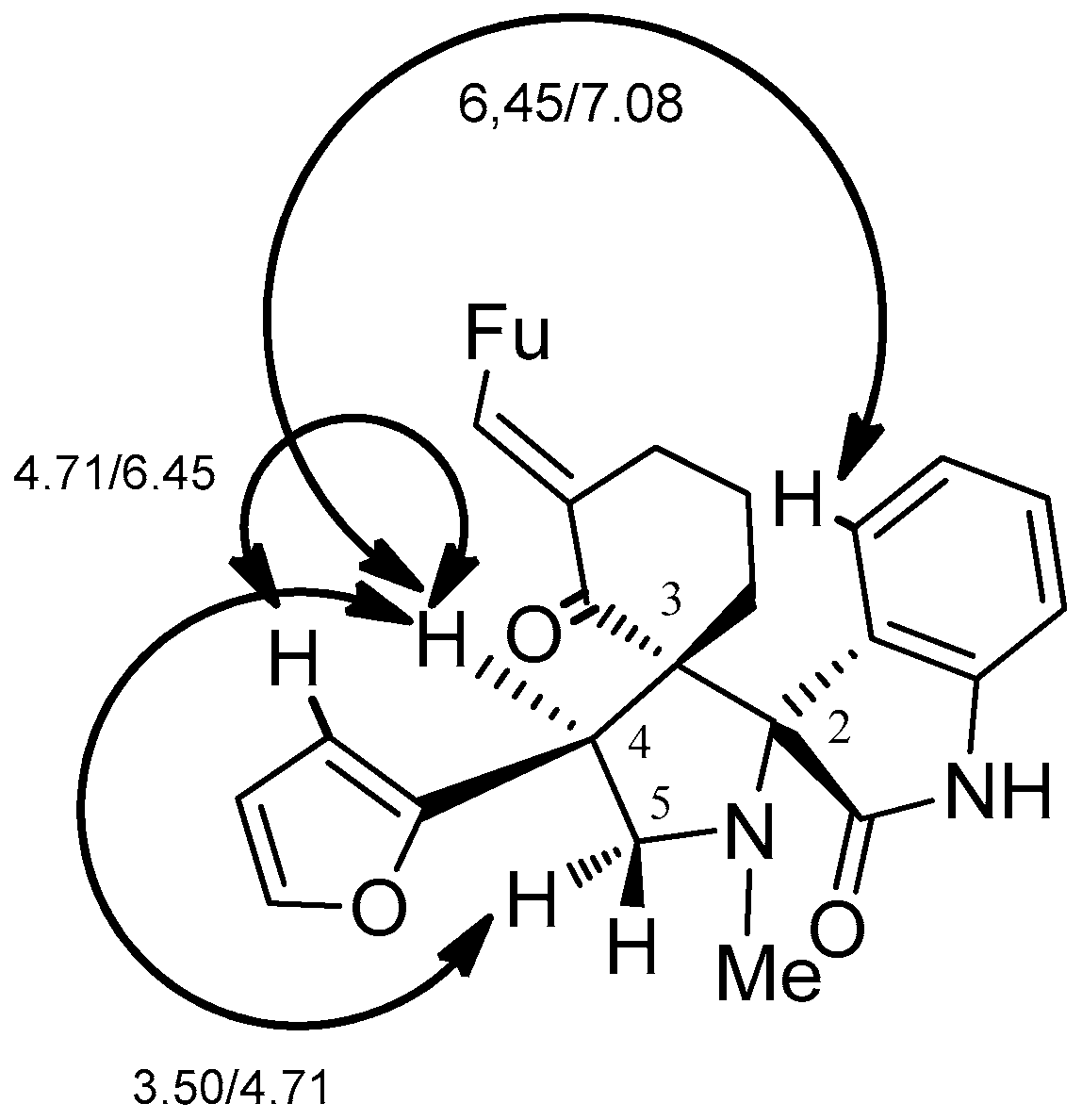

Figure 1. The key NOE contacts for 2g.
Figure 1. The key NOE contacts for 2g.
Molecules 22 02134 g001

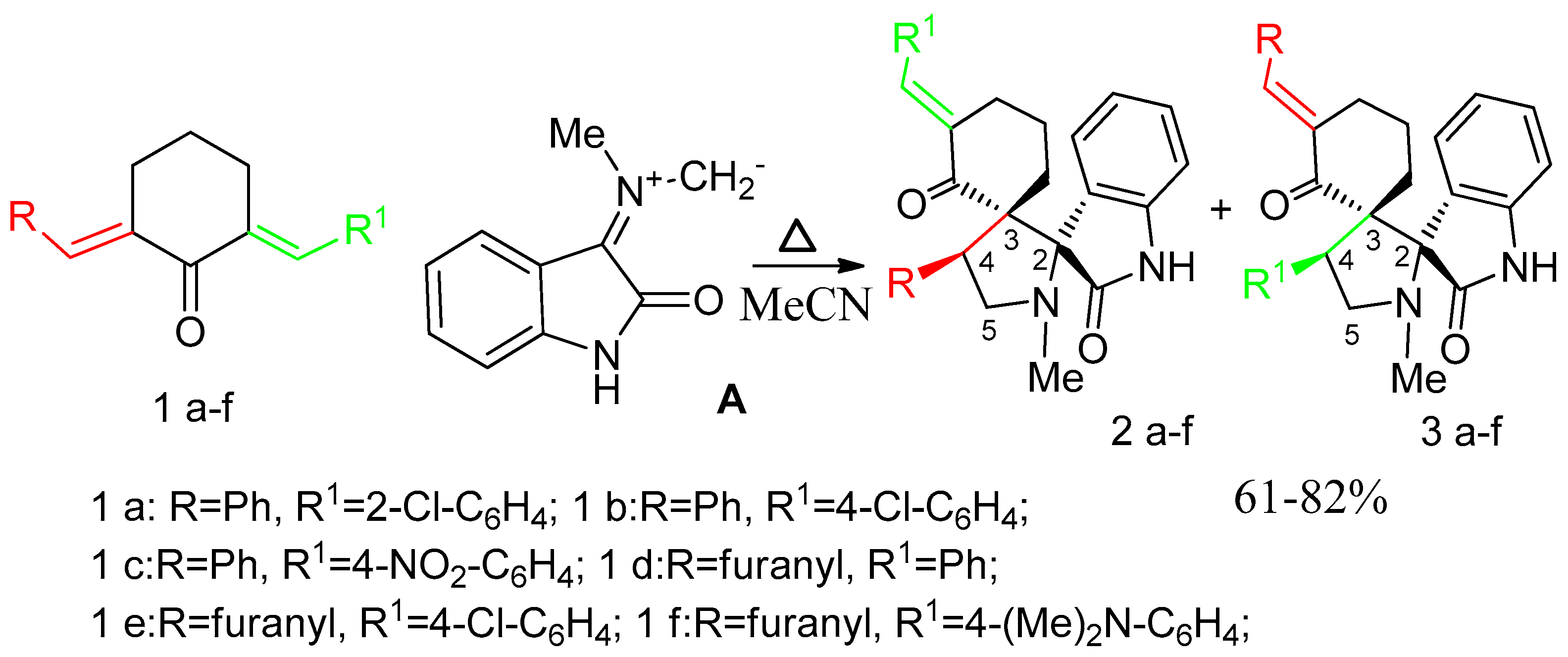

Scheme 5. Cycloaddition of ylide A to diarylmethylidenecyclohexanones 1af.
Scheme 5. Cycloaddition of ylide A to diarylmethylidenecyclohexanones 1af.
Molecules 22 02134 sch005

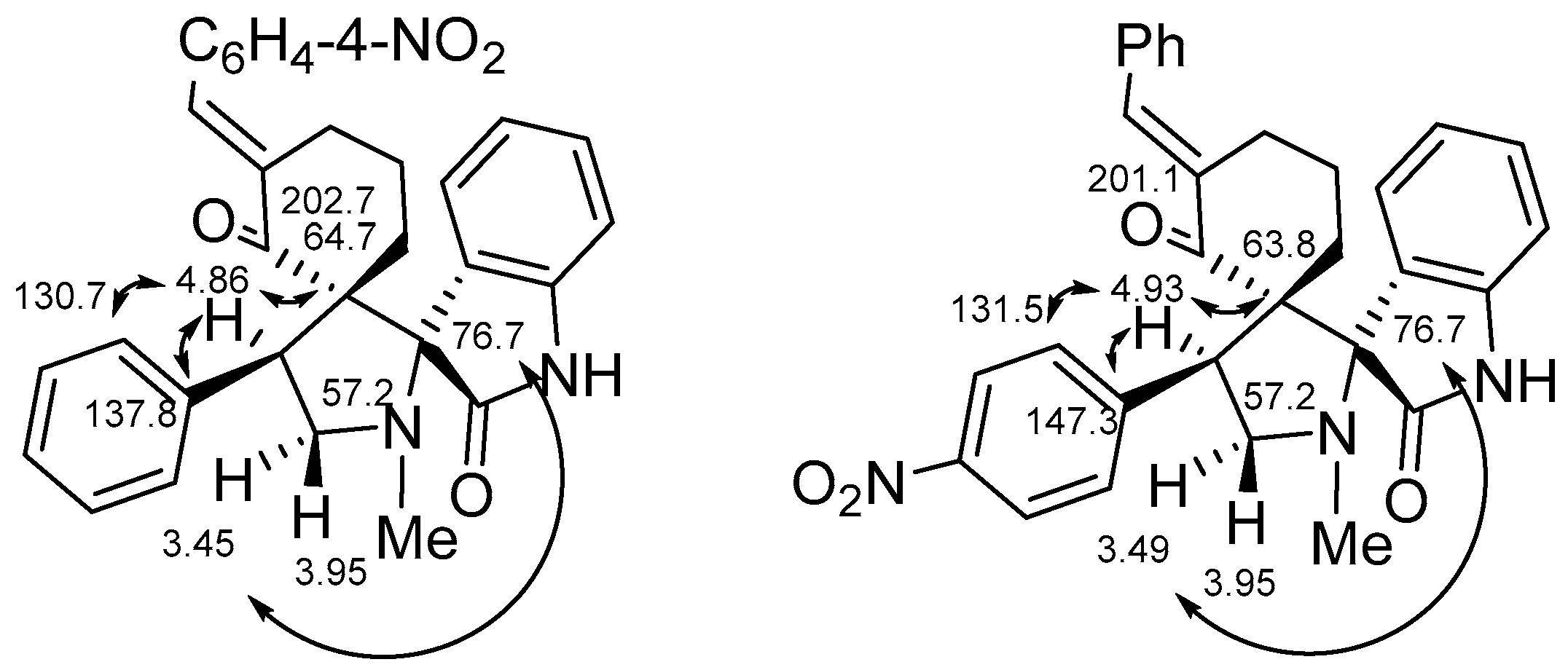

Figure 2. The key HMBC correlation for 2 and 3c.
Figure 2. The key HMBC correlation for 2 and 3c.
Molecules 22 02134 g002

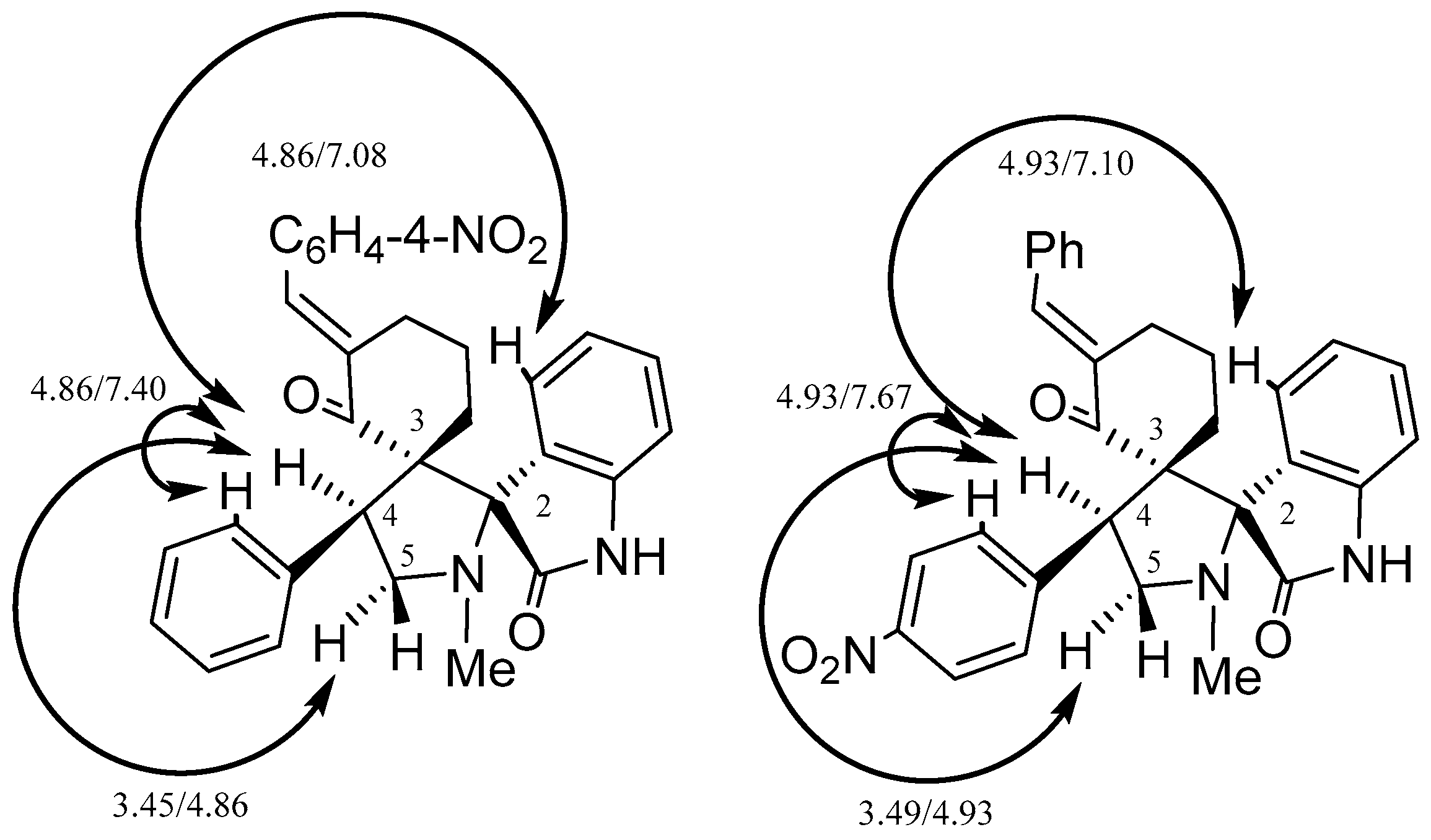

Figure 3. The key NOE contacts for 2 and 3c.
Figure 3. The key NOE contacts for 2 and 3c.
Molecules 22 02134 g003

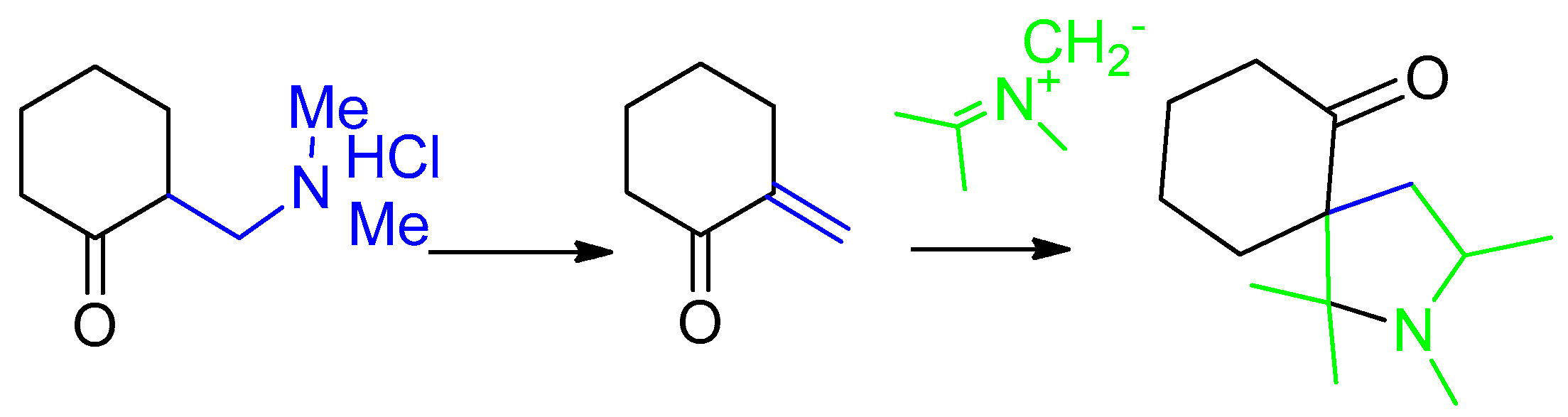

Scheme 6. Cycloaddition of azomethine ylides to the Mannich ketones.
Scheme 6. Cycloaddition of azomethine ylides to the Mannich ketones.
Molecules 22 02134 sch006

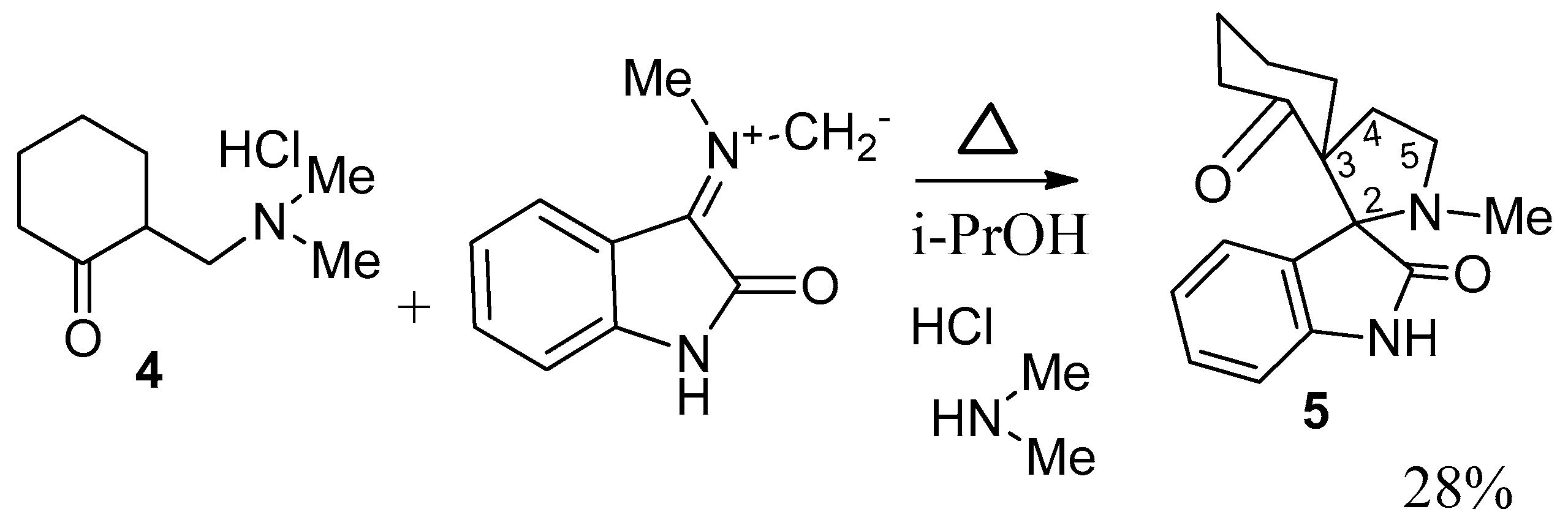

Scheme 7. Cycloaddition of ylide A to the unsaturated ketone generated from hydrochloride 2-[(dimethylamino)methyl]cyclohexanone.
Scheme 7. Cycloaddition of ylide A to the unsaturated ketone generated from hydrochloride 2-[(dimethylamino)methyl]cyclohexanone.
Molecules 22 02134 sch007
Scheme 8. Cycloaddition of ylide A to the unsaturated ketone generated from 7.
Scheme 8. Cycloaddition of ylide A to the unsaturated ketone generated from 7.
Molecules 22 02134 sch008
Figure 4. The key NOE contacts for 7.
Figure 4. The key NOE contacts for 7.
Molecules 22 02134 g004
Table 1. Yields and isomer ratios of compounds 2 and 3.
Table 1. Yields and isomer ratios of compounds 2 and 3.
CompoundRatio 2/3Yields, %Ratio Endo/Exo
a64/3678100/0
b50/5072100/0
c55/4582100/0
d80/2065100/0
e80/2068100/0
f70/3064100/0
