A Strategy for Preparative Separation of 10 Lignans from Justicia procumbens L. by High-Speed Counter-Current Chromatography
1
Key Laboratory of TCM Quality Control Technology, Shandong Analysis and Test Center, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250014, China
2
College of Pharmacy, Shandong University of Traditional Chinese Medicine, Jinan 250355, China
3
College of Food Science and Engineering, Shandong Agricultural University, Taian 271018, China
*
Authors to whom correspondence should be addressed.
Received: 31 October 2017 / Accepted: 20 November 2017 / Published: 23 November 2017

Abstract

:
Ten compounds, including three lignan glycosides and seven lignans, were purified from Justicia procumbens L. in 8 h using an efficient strategy based on high-speed counter-current chromatography (HSCCC). The two-phase solvent system composed of petroleum–ethyl acetate–methanol–H2O (1:0.7:1:0.7, v/v) was firstly employed to separate the crude extract (320 mg), from which 19.3 mg of justicidin B (f), 10.8 mg of justicidin A (g), 13.9 mg of 6′-hydroxyjusticidin C (h), 7.7 mg of justicidin E (i), 6.3 mg of lignan J1 (j) were obtained with 91.3 mg of enriched mixture of compounds ae. The enriched mixture (91.3 mg) was further separated using the solvent system consisting of petroleum–ethyl acetate–methanol–H2O (3:3.8:3:3.8, v/v), yielding 12.1 mg of procumbenoside E (a); 7.6 mg of diphyllin-1-O-β-d-apiofuranoside (b); 7.4 mg of diphyllin (c); 8.3 mg of 6′-hydroxy justicidin B (d); and 7.9 mg of diphyllin acetyl apioside (e). The purities of the 10 components were all above 94%, and their structures were identified by NMR and ESI-MS spectra. The results demonstrated that the strategy based on HSCCC for the separation of lignans and their glycosides was efficient and rapid.
Keywords:
Justicia procumbens L.; lignans and their glycosides; preparative separation; high-speed counter-current chromatography

1. Introduction

Justicia procumbens L. (Chinese name Juechuang) is one of the famous traditional Chinese herbal medicine, which stemmed from the dried whole plant of the genus Acanthaceae [1]. It has detoxification and diuretic swelling effect for the treatment of fever, cough, sore throat, cirrhosis of the ascites [2,3]. Previous phytochemical studies indicated that J. procumbens contains various ingredients, including lignans, lignan glycosides, alkaloids, flavonoids, triterpenes, steroids, etc. [4,5,6]. Modern pharmacological investigations indicated that lignans and their glycosides are the main chemical components in J. procumbens, which exhibit various pharmacological activities, including antitumor, antivirus, antihepatitis, inhibition of platelet aggregation, and cytotoxicity [7,8,9,10]. In order to better understand the biochemical properties of lignans and their glycosides from J. procumbens and to ascertain their clinical applications, it is essential to develop an efficient method for the preparative separation of lignans and their glycosides.
Solid-phase chromatography was often used to separate lignans and their glycosides, which is time-consuming and laborious [5,9,11]. High-speed counter-current chromatography (HSCCC) used liquid as a carrier, which effectively avoided the solid carrier adsorption, sample loss, etc. [12,13,14,15,16]. With its high recovery rates and excellent repeatability, the application of HSCCC in preparation separation of bioactive ingredients from natural products is steadily increasing [17,18,19,20,21,22,23]. HSCCC has been reported by Zhou et al. for isolating the lignans [24], however, only four lignans—including justicidin B, justicidin A, 6′-hydroxyjusticidin C, and lignan J1—were obtained, and the main components of lignans glycosides were not concerned. In this paper, 10 compounds including 7 lignans and 3 lignan glycosides (Figure 1), were obtained from J. procumbens, and the total yield of 10 compounds was 31.7%.

2. Results and Discussion

2.1. Selection of the Two-Phase Solvent System

Selection of solvent system is the key step for the HSCCC separation, usually by measuring the KD value of target compounds to determine the suitable two-phase solvent system. For the isolation of HSCCC, the optimum range of the KD value of target compounds in two-phase solvent system is 0.5–2 [25,26,27]. According to the chemical properties of lignans, in this paper, the KD values of 10 components in J. procumbens were measured by HPLC in a series of different solvent systems compose of petroleum (Pet)–ethyl acetate (EtOAc)–methanol (MeOH)–H2O at various volume ratios.
The KD value of the 10 target compounds were summarized in Table 1. As shown in Table 1, there are no satisfactory KD values for the 10 components in a single two-phase solvent system, and it is impossible that the 10 components were isolated by a single-step CCC separation. However, Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v) provided suitable KD values for compounds fj (Figure 2), when this solvent system was applied in CCC apparatus at the conventional flow-rate of 2.0 mL·min−1, compounds fj could be purified with good resolution and compounds ae (Figure 2) were eluted together as an enriched mixture near the solvent front. The whole separation process took more than 6 h, but it would be shortened by increasing the flow rate. However, the flow rate reached up to 4 mL·min−1, loss of the stationary phase caused the low resolution between compounds f and g. However, when the flow rate was 3.0 mL·min−1, satisfactory isolation with high efficiency and resolutions was acquired in 5 h (Figure 3A).
Based on the KD values of compounds ae in Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v), the solvent system composed of Pet–EtOAc–MeOH–H2O may be valid for the separation of the enriched mixture. In further research, the ratio of EtOAc and H2O were increased to reduce the elution ability of the mobile phase. The KD values of compounds ae in a series of solvent system composed of Pet–EtOAc–MeOH–H2O at different ratios were evaluated (Table 1), and Pet–EtOAc–MeOH–H2O (3:3.8:3:3.8, v/v) provide suitable KD values for compounds ae, and when this solvent system was used for separation of the enriched mixture at the flow rate of 3.0 mL·min−1, five irregular peaks were presented in 3 h, which indicating the successful separation of compounds ae (Figure 3B).
Therefore, the solvent system composed of Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v) was applied to purify the crude sample, and the HSCCC absorption curve was presented in Figure 3A. Subsequent HPLC analysis indicated that a mixture, justicidin B (peak f), justicidin A (peak g), 6′-hydroxyjusticidin C (peak h), justicidin E (peak i), and lignan J1 (peak j) were obtained. For the further separation, the enriched mixture was purified by HSCCC using Pet–EtOAc–MeOH–H2O (3:3.8:3:3.8, v/v) as the solvent system. Figure 3B shows that five major peaks were gained. Five HSCCC peaks were analyzed by HPLC showed that the five peaks were procumbenoside E (peak a), diphyllin-1-O-β-d-apiofuranoside (peak b), diphyllin (peak c), 6′-hydroxy justicidin B (peak d), and diphyllin acetyl apioside (peak e), respectively.

2.2. HPLC Analysis of HSCCC Peak Fractions

The crude sample, the enriched mixture and each peak collection from HSCCC were all analyzed by HPLC with a gradient elution mode. After analyzed by HPLC in sequence based on the peak area normalization method at the optimized detection wavelength of 260 nm, the purities of 10 compounds were 98.7% (a), 96.2% (b), 95.6% (c), 95.0% (d), 94.1% (e), 97.6% (f), 95.4% (j), 97.3% (h), 98.1% (i) and 97.3% (j), respectively, as shown in Figure 2.

3. Experimental

3.1. Material and Reagents

Dried whole plant of J. procumbens was purchased from Bozhou drug market (Bozhou, Anhui province, China), and identified by Professor Jia Li (Shandong University of Traditional Chinese Medicine, Jinan, China).
Petroleum ether (Pet) (60–90 °C), ethyl acetate (EtAc), methanol (MeOH), and chloroform were all of analytical grade and purchased from Tianjin Chemical Reagent Factory (Tianjin, China). Acetonitrile and trifluoroacetic acid (TFA) employed for HPLC analysis were purchased from Shanghai Baili Bio-technology Co., Ltd. (Shanghai, China). The distilled water (Beijing Boao Biological Co., Ltd., Beijing, China) was used for all pure and solutions.

3.2. Apparatus

HSCCC separation was performed by TBE-300C (Tauto Biotech, Shanghai, China), which was armed with three multilayer coils connected in series (total volume: 320 mL, the diameter: 2.6 mm) with a sample loop (20 mL). Rotation speed of the apparatus can be controlled up to 1000 rpm with a speed controller. During the experiment, the temperature of the HSCCC equipment is controlled at 25 °C by the DCW-0506 low constant temp monitor (Tauto Biotech, Shanghai, China). The pumping of the two-phase system was performed by the BT100-2J constant flow pump (Longer Pump Co., Ltd., Baoding, China). Spectra were produced from an 8823B-UV detector (Asahi Technology Co., Ltd., Hangzhou, China) at 254 nm. The description of the CCC diagram was implemented by a model MTK 1000 recorder (Hangzhou Mico Technology Co., Ltd., Hangzhou, China).
The sample was analyzed by HPLC Agilent 1120 (Agilent Technologies, Santa Clara, CA, USA) equipped with a G1315C diode array detector (DAD) system, an Agilent 1120 binary-solvent delivery system, an automatic sample injection, and an Empower 3 work-station.

3.3. Pre-Processing of Crude Sample

The dried whole plant (5 kg) of J. procumbens was fully crushed into powder and extracted three times (3 h, 2 h, 2 h) with 95% ethanol under reflux. The extract was filtered and concentrated by rotary evaporation at 55 °C to remove ethanol completely Then, equal amount of ethyl acetate (1 L) was applied to extract the concentrate three times, yielding 87.5 g of crude sample which was stored in refrigerator at 4 °C for further HSCCC purification.

3.4. Measurement of the Partition Coefficients (KD)

Pet-EtAc-MeOH-H2O as the optimized solvent system was used to measure the partition coefficients (KD) value of the target compounds by HPLC as follows: Approximately 2 mg of crude sample was placed in a test tube, to which 1.5 mL equilibrated two-phase solvent system were added. The sample was fully dissolved in the solvent system by violently shaking the tube. Then, equal amounts of the organic and aqueous phases were separately analyzed by HPLC. The KD values of target compounds are defined as
KD = As/Am
As: The HPLC peak area of the target components in the stationary phase; Am: The HPLC peak area of target components in the mobile phase.

3.5. Preparation of Solvent Systems and Sample Solutions

Two-phase solvent systems composed of Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v) and Pet–EtOAc–MeOH–H2O (3:3.8:3:3.8, v/v) were applied in the HSCCC separation. Each solvent mixture was thoroughly equilibrated in a separatory funnel for 2 h at room temperature. Shortly before use, each solvent system was separated into two phases and each phase was degassed separately.
The sample solutions were prepared by dissolving 320 mg of the crude sample in 5 mL of each phase (total of 10 mL) used for separation.

3.6. Separation Procedure

In each separation process, the upper phase was firstly pumped into the three multilayer-coil combined in series at 40 mL·min−1. Then, when the CCC instrument rotational speed reaches 810 rpm in the positive direction, the mobile phase was introduced into the column with 3.0 mL·min−1. When the hydrodynamic equilibrium between the two phases was reached, the sample solution was put into the sample loop, while the UV detector (254 nm) monitored the effluent continuously. The peaks were gathered manually in accordance with the UV absorption curve and then subjected to HPLC analysis. Finally, measure the ratio of the organic phase to the whole volume in the multilayer-coiled columns to obtain the retention of the organic phase.

3.7. HPLC Analysis of CCC Separation Products

The peak fraction from CCC separation, crude sample, and the enriched mixture were analyzed by HPLC equipped with a G1315C diode array detector (DAD) system. A RP-C18 column (5 µm, 4.6 mm × 250 mm; Waters Technologies, Milford, MA, USA) at 25 °C was applied for all the analyses. The flow-rate was get to 1 mL·min−1, and the monitor wavelength was 254 nm. Using the mobile phase composed of A (acetonitrile) and B (water including of 0.1% TFA), and the gradient elution was carried out as follows: 0 min, 30% A; 0–10 min, 30–45% A; 10–25 min, 45–60% A; 25–40 min, 60–100% A.

3.8. Identification of CCC Fractions

The pure compounds obtained by the CCC separation were analyzed by 1H-NMR and 13C-NMR with a Varian-600 spectrometer (Varian, Palo Alto, CA, USA)and detected the molecular weight by an Agilent 1100/MS-G1946 (Agilent, Santa Clara, CA, USA) mass selective detector. The detail data of each component was as follows:
Compound a (peak a in Figure 3B): Positive ESI-MS (m/z): 777.0 [M + H]+. 1H-NMR (DMSO-d6, 400 MHz) δ: 6. 94 (1H, d, J = 1.1 Hz, H-2′), 7.03 (1H, d, J = 7.9 Hz, H-5′), 6.77 (1H, dd, J = 7.9, 1.1 Hz, H-6′), 7.00 (1H, s, H-5), 7.64 (1H, s, H-8), 3.98 (3H, s, OCH3-6), 3.64 (3H, s, OCH3-7), 6.13 (2H, s, 3′-OCH2O-4′), 5.69 (1H, d, J = 2.8 Hz, H-1′′), 4.38 (1H, d, J = 7.4 Hz, H-1′′′), 4.26 (1H, d, J = 7.2 Hz, H-1′′′′). 13C-NMR (DMSO-d6, 100 MHz) δ: 144.7 (C-1), 119.4 (C-2), 128.7 (C-3), 130.3 (C-4), 105.5 (C-5), 150.4 (C-6), 152.5 (C-7), 101.3 (C-8), 129.7 (C-9), 126.4 (C-10), 169.4 (C-11), 67.4 (C-12), 128.6 (C-1′), 109.7 (C-2′), 147.3 (C-3′), 147.7 (C-4′), 108.0 (C-5′), 124.7 (C-6′), 55.8 (OCH3-6), 55.2 (OCH3-7), 101.2 (3′-OCH2O-4′), 109.2 (C-1′′), 104.8 (C-1′′′), 104.2 (C-1′′′′). Compared with the previous reference [28], compound a corresponded to procumbenoside E.
Compound b (peak b in Figure 3B): Positive ESI-MS (m/z): 543.0 [M + H]+. 1H-NMR (DMSO-d6, 400 MHz) δ: 6.94 (1H, d, J = 2.0 Hz, H-2′), 7.03 (1H, d, J = 8.0 Hz, H-5′), 6.77 (1H, dd, J = 8.0, 2.0 Hz, H-6′), 7.00 (1H, s, H-5), 7.68 (1H, s, H-8), 3.68 (3H, s, OCH3-6), 3.97 (3H, s, OCH3-7), 6.13 (2H, s, 3′-OCH2O-4′), 5.50 (1H, d, J = 1.5 Hz, H-1′′), 4.40 (1H, d, J = 2.8 Hz, H-2′′), 3.78 (1H, d, J = 2.8 Hz, H-4′′), 3.49 (1H, s, H-5′′). 13C-NMR (DMSO-d6,100 MHz) δ: 144.6 (C-1), 128.3 (C-2), 126.5 (C-3), 134.3 (C-4), 108.0 (C-5), 150.0 (C-6), 151.8 (C-7), 101.0 (C-8), 128.1 (C-9), 134.4 (C-10), 67.3 (C-11), 169.6 (C-12), 130.8 (C-1′), 111.5 (C-2′), 147.5 (C-3′), 147.5 (C-4′), 106.2 (C-5′), 124.5 (C-6′), 56.1 (OCH3-6), 55.8 (OCH3-7), 101.6 (3′-OCH2O-4′), 110.9 (C-1′′), 76.0 (C-2′′), 78.9 (C-2′′), 75.6 (C-4′′), 66.9 (C-5′′). Compared with the previous reference [29], compound b corresponded to diphyllin-1-O-β-d-apiofuranoside.
Compound c (peak c in Figure 3B): Positive ESI-MS (m/z): 381.0 [M + H]+. 1H-NMR (DMSO-d6, 400 MHz) δ: 6.68 (1H, d, J = 1.4 Hz, H-2′), 6.85 (1H, d, J = 8.0 Hz, H-5′), 6.55 (1H, dd, J = 8.0, 1.4 Hz, H-6′), 7.51 (1H, s, H-5), 7.03 (1H, s, H-8), 5.69 (2H, s, H-12), 3.65 (3H, s, OCH3-6), 3.95 (3H, s, OCH3-7), 9.03 (1H, s, OH-4). 13C-NMR (DMSO-d6, 100 MHz) δ: 130.1 (C-1), 119.1 (C-2), 118.3 (C-3), 147.2 (C-4), 101.2 (C-5), 151.2 (C-6), 150.9 (C-7), 106.5 (C-8), 129.9 (C-9), 124.2 (C-10), 169.1 (C-11), 67.2 (C-12), 125.4 (C-1′), 115.9 (C-2′), 145.1 (C-3′), 145.3 (C-4′), 107.3 (C-5′), 121.7 (C-6′), 55.6 (OCH3-6), 56.0 (OCH3-7), 101.5 (3′-OCH2O-4′). Compared with the previous reference [30], compound c corresponded to diphyllin.
Compound d (peak d in Figure 3B): Positive ESI-MS (m/z): 381.1 [M + H]+. 1H-NMR (DMSO-d6, 400 MHz) δ: 6.71 (1H, s, H-2′), 6.61 (1H, s, H-5′), 7.89 (1H, s, H-4), 6.97 (1H, s, H-5), 7.47 (1H, s, H-8), 5.41 (2H, s, H-12), 9.01 (1H, s, OH-6′), 3.94 (3H, s, OCH3-6), 3.68 (3H, s, OCH3-7), 6.02 (2H, s, 3′-OCH2O-4′). 13C-NMR (DMSO-d6, 100 MHz) δ: 118.9 (C-1), 140.6 (C-2), 119.8 (C-3), 136.4 (C-4), 105.5 (C-5), 151.7 (C-6), 150.3 (C-7), 107.4 (C-8), 128.8 (C-9), 133.0 (C-10), 68.4 (C-11), 167.9 (C-12), 113.1 (C-1′), 110.3 (C-2′), 140.2 (C-3′), 148.5 (C-4′), 98.8 (C-5′), 149.5 (C-6′), 56.7 (OCH3-6), 55.2 (OCH3-7), 101.9 (3′-OCH2O-4′). Compared with the previous reference [31], compound d corresponded to 6′-hydroxy justicidin B.
Compounds e (peak e in Figure 3B): Positive ESI-MS (m/z): 553.0 [M + H]+. 1H-NMR (DMSO-d6, 400 MHz) δ: 6.77 (1 H, d, J = 2 Hz, H-2′), 6.96 (1H ,d, J = 8 Hz, H-5′), 6.80 (1H, dd, J = 8.0, 2.0 Hz, H-6′), 7.60 (1 H, s, H-5), 7.03 (1H, s, H-8), 4.01 (3H, s, OCH3-6), 3.96 (3H, s, OCH3-7), 6.06 (2H, s, 3′-OCH2O-4′), 5.49 (1H, s, H -l”), 4.43 (1H, s, H -2”), 4.05 (1 H, d, J = 10.1 Hz, H-4”). 13C-NMR (DMSO-d6, 100 MHz) δ: 137.2 (C-1), 118.3 (C-2), 129.0 (C-3), 144.8 (C-4), 100.6 (C-5), 152.1 (C-6 ), 150.5 (C-7), 105.5 (C-8 ), 129.9 (C-9), 126.7 (C-10), 171.2 (C-11), 65.4 (C-12), 129.3 (C-1′), 110.8 (C-2′), 147.7 (C-3′), 148.1 (C-4′), 107.8 (C-5′), 123.7 (C-6′), 56.3 (OCH3-6), 56.5 (OCH3-7), 101.6 (3′-OCH2O-4′), 111.2 (C-1”),78.5 (C-2”), 77.92 (C-3”), 74.9 (C-4”), 66.6 (C-5”). Compared with the previous reference [32], compound e corresponded to diphyllin acetyl apioside.
Compound f (peak f in Figure 3A): Positive ESI-MS (m/z): 365.1 [M + H]+. 1H-NMR (CDCl3-d1, 400 MHz) δ: 6.82 (1H, d, J = 1.7 Hz, H-2′), 6.95 (1H, d, J = 7.9 Hz, H-5′), 6.81 (1H, dd, J = 1.7, 7.9 Hz, H-6′), 7.71 (1H, s, H-4), 7.23 (1H, s, H-5), 7.11 (1H, s, H-8), 5.32 (2H, s, H-12) 4.17 (3H, s, OCH3-6), 3.87 (3H, s, OCH3-7), 6.04 (1H, d, J = 1.2 Hz, OCH2O-3′), 6.11 (1H, d, J = 1.2 Hz, OCH2O-4′). 13C-NMR (CDCl3-d1, 100 MHz) δ: 139.6 (C-1), 118.5 (C-2), 138.5(C-3), 118.3 (C-4), 106.0(C-5), 151.0(C-6), 152.2(C-7), 108.0(C-8), 128.9 (C-9), 133.4 (C-10), 169.9 (C-11), 68.0 (C-12), 128.4 (C-1′), 110.5 (C-2′), 147.6 (C-3′), 147.5 (C-4′), 106.2 (C-5′), 123.5(C-6′), 56.1 (OCH3-6), 55.8 (OCH3-7), 101.3 (3′-OCH2O-4′). Compared with the previous reference [28], compound f corresponded to justicidin B.
Compound g (peak g in Figure 3A): Positive ESI-MS (m/z): 395.1 [M + H]+. 1H-NMR (CDCl3-d1, 400 MHz) δ: 6.93 (1H, d, J = 1.3 Hz, H-2′), 6.97 (1H, d, J = 7.9 Hz, H-5′), 6.85 (1H, dd, J = 1.3, 7.8 Hz, H-6′), 7.52 (1H, s, H-5), 7.03 (1H, s, H-8), 5.65 (2H, s, H-12), 4.15 (3H, s, OCH3-4), 4.16 (3H, s, OCH3-6), 3.81 (3H, s, OCH3-7), 6.07 (1H, d, J = 1.3 Hz, OCH2O-3′), 6.10 (1H, d, J = 1.3 Hz, OCH2O-4′). 13C-NMR (CDCl3-d1, 100 MHz) δ: 128.5 (C-1), 119.2 (C-2), 130.4 (C-3), 147.7 (C-4), 100.6 (C-5), 150.9 (C-6), 150.1 (C-7), 106.2 (C-8), 134.4 (C-9), 123.6 (C-10), 169.6 (C-11), 66.6 (C-12), 126.5 (C-1′), 110.7 (C-2′), 147.4 (C-3′), 147.8 (C-4′), 108.2 (C-5′), 123.6 (C-6′), 56.6 (OCH3-1), 56.1 (OCH3-6), 55.8 (OCH3-7), 101.2 (3′-OCH2O-4′). Compared with the previous reference [31], compound g corresponded to justicidin A.
Compound h (peak h in Figure 3A): Positive ESI-MS (m/z): 411.1 [M + H]+. 1H-NMR (CDCl3-d1, 400 MHz) δ: 6.93 (1H, s, H-2′), 7.06 (1H, s, H-5′), 6.95 (1H, s, OH-6′), 7.73 (1H, s, H-5), 6.85 (1H, s, H-8), 5.15 (2H, s, H-12), 4.48 (3H, s, OCH3-4), 4.12 (3H, s, OCH3-6), 3.93 (3H, s, OCH3-7), 6.06 (1H, d, J = 1.3 Hz, OCH2O-3′), 6.11 (1H, d, J = 1.3 Hz, OCH2O-4′). 13C-NMR (CDCl3-d1, 100 MHz) δ: 129.3 (C-1), 109.2 (C-2), 133.4 (C-3), 148.7 (C-4), 101.5 (C-5), 155.5 (C-6), 152.2 (C-7), 104.0 (C-8), 139.9 (C-9), 123.6 (C-10), 169.6 (C-11), 68.6 (C-12), 126.5 (C-1′), 109.7 (C-2′), 147.4 (C-3′), 149.4 (C-4′), 109.2 (C-5′), 123.76 (C-6′), 56.1 (OCH3-6), 55.9 (OCH3-7), 102.2 (3′-OCH2O-4′). Compared with the previous reference [33], compound h corresponded to 6′-hydroxyjusticidin C.
Compound i (peak i in Figure 3A): Positive ESI-MS (m/z): 349.1 [M + H]+. 1H-NMR (CDCl3-d1, 400 MHz) δ: 6.83 (1H, d, J = 1.7 Hz, H-2′), 6.87 (1H, d, J = 8.0 Hz ,H-5′), 6.68 (1H, dd, J = 1.7, 8.0 Hz, H-6′), 8.27 (1H, s, H-1), 7.28 (1H, s, H-5), 7.33 (1H, s, H-8); 13C-NMR (CDCl3-d1, 100 MHz) δ: 124.7 (C-1), 137.4 (C-2), 120.7 (C-3), 131.3(C-4), 101.5 (C-5), 147.4 (C-6), 151.5 (C-7), 105.3 (C-8), 133.1 (C-9), 133.4 (C-10), 172.4 (C-11), 69.4 (C-12), 129.6 (C-1′), 109.7 (C-2′), 147.3 (C-3′), 148.7 (C-4′), 109.0 (C-5′), 122.7 (C-6′), 102.2 (6-OCH2O-7), 101.7 (3′-OCH2O-4′). Compared with the previous reference [13], compound i corresponded to justicidin E.
Compound j (peak j in Figure 3A): Positive ESI-MS (m/z): 379.0 [M + H]+. 1H-NMR (CDCl3-d1, 400 MHz) δ: 6.77 (1H, d, H-2′), 6.86 (1H, d, H-5′), 6.99 (1H, m, H-6′), 7.81 (1H, s, H-5), 7.04 (1H, s, H-8), 5.20 (2H, s, H-12), 4.35 (3H, s, OCH3-4), 6.09 (2H, dd, J = 4.5 Hz, 6-OCH2O-7), 6.11 (2H, dd, J = 4.6, 3.7 Hz, 3′-OCH2O-4′). 13C-NMR (CDCl3-d1, 100 MHz) δ: 129.7 (C-1), 139.4 (C-2), 122.7 (C-3), 150.3 (C-4), 121.5 (C-5), 138.4 (C-6), 138.5 (C-7), 100.3 (C-8), 135.7 (C-9), 127.4 (C-10), 169.4 (C-11), 68.4 (C-12), 129.6 (C-1′), 109.7 (C-2′), 148.3 (C-3′), 147.8 (C-4′), 109.0 (C-5′), 125.7 (C-6′), 101.8 (3′-OCH2O-4′), 101.4 (6-OCH2O-7). Compared with the previous reference [33], compound j corresponded to lignan J1.

4. Conclusions

The satisfactory isolation strategy of 10 lignans from a crude extract of J. procumbens was successfully optimized and established by HSCCC. From 320 mg of the crude sample, 10 lignans were obtained, including procumbenoside E (12.1 mg), diphyllin-1-O-β-d-apiofuranoside (7.6 mg), diphyllin (7.4 mg), 6′-hydroxy justicidin B (8.3 mg), diphyllin acetyl apioside (7.9 mg), justicidin B (19.3 mg), justicidin A (10.8 mg), 6′-hydroxyjusticidin C (13.9 mg), justicidin E (7.7 mg), and lignan J1 (6.3 mg) with purity all over 94.0%. The study is of great reference value for obtaining high purity lignans and their glycosides from J. procumbens, which also indicated that HSCCC is a powerful technique for the separation and purification of active compounds with a wide range of polarity from natural products.

Acknowledgments

The work was supported by Shandong National Natural Science Foundation (ZR2016YL006), the Priority Research Program of the Shandong Academy of Sciences and Shandong Province Major Scientific and Technological Innovation Project (Grant No. 2017CXGC1308).

Author Contributions

Jiaojiao Jiang conducted the experiment and wrote the paper; Hongjing Dong, Tao Wang, Ruixuan Zhao, Yan Mu, and Yanling Geng conducted the experiment; Zhenjia Zheng and Xiao Wang designed and guided the experiment.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, C.C.; Hsin, W.C.; Ko, F.N.; Huang, Y.L.; Ou, J.C.; Teng, C.M. Antiplatelet arylnaphthalide lignans from Justicia procumbens. J. Nat. Prod. 1996, 59, 1149–1150. [Google Scholar] [CrossRef] [PubMed]
  2. Su, C.L.; Huang, L.L.; Huang, L.M.; Lee, J.C.; Lin, C.N.; Won, S.J. Caspase-8 acts as a key upstream executor of mitochondria during justicidin A-induced apoptosis in human hepatoma cells. FEBS Lett. 2006, 580, 3185–3191. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, L.; Pan, J.; Yang, M.; Wu, J.; Yang, J. Chromatographic fingerprint analysis and simultaneous determination of eight lignans in Justicia procumbens and its compound preparation by HPLC-DAD. J. Sep. Sci. 2011, 34, 667–674. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, Y.L.; Cheng, Y.X. Antibacterial Lignans and Triterpenoids from Rostellularia procumbens. Planta Med. 2007, 73, 1596–1599. [Google Scholar] [CrossRef] [PubMed]
  5. Day, S.H.; Chiu, N.Y.; Lin, C.N. Cytotoxic Lignans of Justicia ciliate. J. Nat. Prod. 1999, 62, 1056–1058. [Google Scholar] [CrossRef] [PubMed]
  6. Luo, Z.; Kong, W.; Qiu, F.; Yang, M.; Li, Q.; Wei, R.; Yang, X.; Qin, J. Simultaneous determination of seven lignans in Justicia procumbens by high performance liquid chromatography-photodiode array detection using relative response factors. J. Sep. Sci. 2013, 36, 699–705. [Google Scholar] [CrossRef] [PubMed]
  7. Willfor, S.M.; Smeds, A.I.; Holmbom, B.R. Chromatographic analysis of lignans. J. Chromatogr. A 2006, 1112, 64–77. [Google Scholar] [CrossRef] [PubMed]
  8. Qu, H.; Madl, R.L.; Takemoto, D.J.; Baybutt, R.C.; Wang, W. Lignans are involved in the antitumor activity of wheat bran in colon cancer SW480 cells. J. Nutr. 2005, 135, 598–602. [Google Scholar] [PubMed]
  9. Wu, M.D.; Huang, R.L.; Kuo, L.M.; Hung, C.C.; Ong, C.W.; Kuo, Y.H. The anti-HBsAg (human type B hepatitis, surface antigen) and anti-HBeAg (human type B hepatitis, e antigen) C18 dibenzocyclooctadiene lignans from Kadsura matsudai and Schizandra arisanensis. Chem. Pharm. Bull. 2003, 51, 1233–1236. [Google Scholar] [CrossRef] [PubMed]
  10. Gordaliza, P.A.; Garcia, J.M.; Del Corral, M.A.; Castro, M.A. Gómez-Zurita, Podophyllotoxin: Distribution, sources, applications and new cytotoxic derivatives. Toxicon 2004, 44, 441–459. [Google Scholar] [CrossRef] [PubMed]
  11. Day, S.H.; Lin, Y.C.; Tsai, M.L.; Tsao, L.T.; Ko, H.H.; Chung, M.I.; Lee, J.C.; Wang, J.P.; Won, S.J.; Lin, C.N. Potent cytotoxic lignans from Justicia procumbens and their effects on nitric oxide and tumor necrosis factor-α production in mouse macrophages. J. Nat. Prod. 2002, 65, 379–381. [Google Scholar] [CrossRef] [PubMed]
  12. Sun, C.L.; Liu, F.; Sun, J.; Li, J.; Wang, X. Optimisation and establishment of separation conditions of organic acids from Usnea longissima Ach. by pH-zone-refining counter-current chromatography: Discussion of the eluotropic sequence. J. Chromatogr. A 2016, 1427, 96–101. [Google Scholar] [CrossRef] [PubMed]
  13. Fukamiya, N.; Lee, K.H. Antitumor agents, 81. Justicidin-A and diphyllin, two cytotoxic principles from Justicia procumbens. J. Nat. Prod. 1986, 49, 348–350. [Google Scholar] [CrossRef] [PubMed]
  14. Skalicka-Wozniak, K.; Garrard, I. A comprehensive classification of solvent systems used for natural product purifications in countercurrent and centrifugal partition chromatography. Nat. Prod. Rep. 2015, 32, 1556–1561. [Google Scholar] [CrossRef] [PubMed]
  15. Shehzad, O.; Khan, S.; Ha, I.J.; Park, Y.; Tosun, A.; Kim, Y.S. Dynamic pH junction high-speed counter-current chromatography coupled with microwave-assisted extraction for online separation and purification of alkaloids from Stephania cepharantha. J. Chromatogr. A 2013, 1310, 66–73. [Google Scholar] [CrossRef] [PubMed]
  16. Sutherland, I.A.; Fisher, D. Role of counter-current chromatography in the modernisation of Chinese herbal medicines. J. Chromatogr. A 2009, 1216, 740–753. [Google Scholar] [CrossRef] [PubMed]
  17. Zhu, Y.; Liu, Y.; Zhang, Y.; Liu, L.; Xu, Y.X.; Xu, Y.H.; Liu, T.H. Preparative isolation and purification of five flavonoid glycosides and one benzophenone galloyl glycoside from Psidium guajava by high-speed counter-current chromatography (HSCCC). Molecules 2013, 18, 15648–15661. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, X.; Dong, H.; Liu, Y.; Yang, B.; Wang, X.; Huang, L. Application of high-speed counter-current chromatography for preparative separation of cyclic peptides from Vaccaria segetalis. J. Chromatogr. B 2011, 879, 811–814. [Google Scholar] [CrossRef] [PubMed]
  19. Sun, C.L.; Li, J.; Wang, D.J.; Yu, J.Q.; Wang, X.; Huang, L.Q. Preparative separation of alkaloids from Litsea cubeba using combined applications of pH-zone-refining and high-speed counter-current chromatography. RSC Adv. 2015, 92, 75831–75837. [Google Scholar] [CrossRef]
  20. Kotland, A.; Chollet, S.; Autret, J.M.; Diard, C.; Marchal, L.; Renault, J.H. Modeling pH-zone refining countercurrent chromatography: A dynamic approach. J. Chromatogr. A 2015, 1391, 80–87. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, Q.H.; Shu, X.K.; Jing, F.; Wang, X.; Lin, C.H.; Luo, A.Q. Preparative Separation of Alkaloids from Picrasma quassioides (D. Don) Benn. by Conventional and pH-Zone-Refining Countercurrent Chromatography. Molecules 2014, 19, 8752–8761. [Google Scholar] [CrossRef] [PubMed]
  22. Bakri, M.; Chen, Q.; Ma, Q.L.; Yang, Y.; Abdukadir, A.; Aisa, H.A. Separation and purification of two new and two known alkaloids from leaves of Nitraria sibirica by pH-zone-refining counter-current chromatography. J. Chromatogr. B 2015, 1006, 138–145. [Google Scholar] [CrossRef] [PubMed]
  23. Li, H.Z.; Zhang, Y.Q.; Liu, Q.; Sun, C.L.; Li, J.; Yang, P.; Wang, X. Preparative Separation of Phenolic Compounds from Chimonanthus praecox Flowers by High-Speed Counter-Current Chromatography Using a Stepwise Elution Mode. Molecules 2016, 21, 8752–8761. [Google Scholar] [CrossRef] [PubMed]
  24. Zhou, P.J.; Luo, Q.J.; Ding, L.J.; Fang, F.; Yuan, Y.; Chen, J.J.; Zhang, J.R.; Jin, H.X.; He, S. Preparative isolation and purification of lignans from Justicia procumbens using high-speed counter-current chromatography in stepwise elution mode. Molecules 2015, 20, 7048–7058. [Google Scholar] [CrossRef] [PubMed]
  25. He, S.; Lu, Y.; Jiang, L.; Wu, B.; Zhang, F.; Pan, Y. Preparative isolation and purification of antioxidative stilbene oligomers from Vitis chunganeniss using high-speed counter-current chromatography in stepwise elution mode. J. Sep. Sci. 2009, 32, 2339–2345. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, S.T.; Li, L.X.; Cui, Y.; Luo, L.X.; Li, Y.Y.; Zhou, P.Y.; Sun, B.S. Preparative high-speed counter-current chromatography separation of grape seed proanthocyanidins according to degree of polymerization. Food Chem. 2017, 219, 399–407. [Google Scholar] [CrossRef] [PubMed]
  27. Luo, L.X.; Cui, Y.; Zhang, S.T.; Li, L.X.; Li, Y.Y.; Zhou, P.Y.; Sun, B.S. Preparative separation of grape skin polyphenols by high-speed counter-current chromatography. Food Chem. 2016, 212, 712–721. [Google Scholar] [CrossRef] [PubMed]
  28. Charlton, J.L.; Oleschuk, C.J.; Si, J.; Chee, G.L.; Yang, M. Hindered rotation in arylnaphthalene lignans. J. Org. Chem. 1996, 61, 3452–3457. [Google Scholar] [CrossRef]
  29. Liu, G.R.; Wu, J.; Si, J.Y.; Wang, J.M.; Yang, M.H. Complete assignments of 1H and 13C-NMR data for three new arylnaphthalene lignan from Justicia procumbens. Magn. Reson. Chem. 2008, 46, 283–286. [Google Scholar] [CrossRef] [PubMed]
  30. Zhao, C.Q.; Huang, J.; Nagatsu, A.; Ogihara, Y. Two newpodophyllotoxin glucosides from Sinopodophyllum emodi (Wall.) Ying. Chem. Pharm. Bull. 2001, 49, 773–775. [Google Scholar] [CrossRef] [PubMed]
  31. Yang, M.; Wu, J.; Cheng, F.; Zhou, Y. Complete assignments of 1H- and 13C-NMR data for seven arylnaphthalide lignans from Justicia procumbens. Magn. Reson. Chem. 2006, 44, 727–730. [Google Scholar] [CrossRef] [PubMed]
  32. Hayat, F.; Kang, L.; Lee, C.Y.; Shin, D. Synthesis of arylnaphthalene lignan lactone using benzoin condensation, intramolecular thermal cyclization and Suzuki coupling. Tetrahedron 2015, 71, 2945. [Google Scholar] [CrossRef]
  33. Gopalaiah, K.; Kavitha, J.; Kanumuri, R.V.; Rajasekhar, D.; Subbaraju, G.V. Justicia lignans: Part 9—Two new lignans from Justicia neesii Ramamoorthy (white flower variety). Indian J. Chem. 2001, 40, 596–600. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the lignans and lignan glycosides compounds are available from the authors.

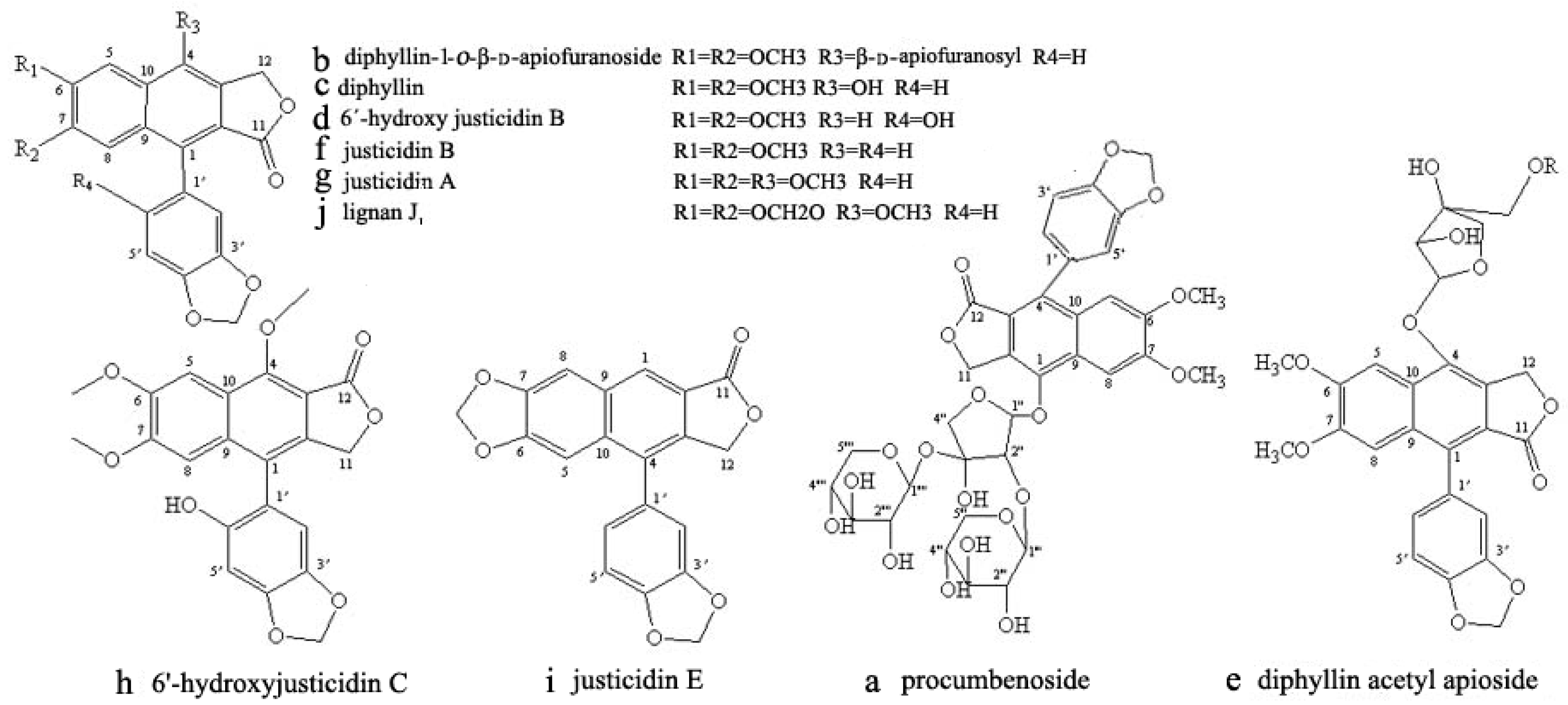

Figure 1. Chemical structures of 10 lignans from Justicia procumbens.
Figure 1. Chemical structures of 10 lignans from Justicia procumbens.
Molecules 22 02024 g001

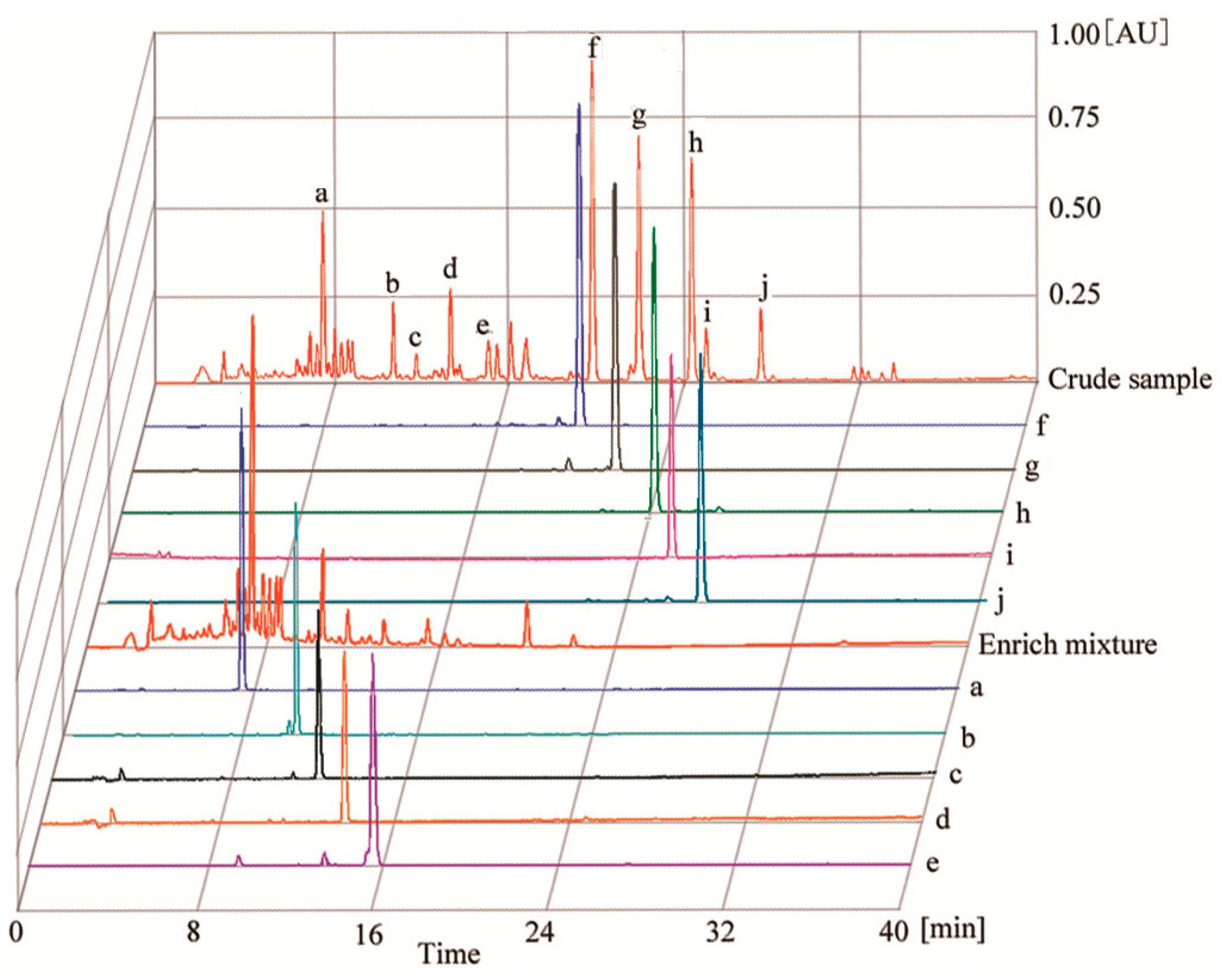

Figure 2. HPLC chromatograms of crude sample, enriched mixture (compounds ae) and purified lignans (compounds aj) from J. procumbens. Experimental conditions: RP-C18 column (5 µm, 4.6 mm × 250 mm; Waters Technologies, USA); mobile phase: acetonitrile (A) 0.1% TFA water solution (B) (0–10 min, 30–45% A; 10–25 min, 45–60% A; 25–40 min, 60–100% A); RP-C18 column temperature: 25 °C, UV monitor wavelength: 254 nm; flow-rate: 1 mL·min−1; injection volume: 20 µL. a. procumbenoside E; b. diphyllin-1-O-β-d-apiofuranoside; c. diphyllin; d. 6′-hydroxy justicidin B; e. diphyllin acetyl apioside; f. justicidin B; g. justicidin A; h. 6′-hydroxyjusticidin C; i. justicidin E; j. lignan J1.
Figure 2. HPLC chromatograms of crude sample, enriched mixture (compounds ae) and purified lignans (compounds aj) from J. procumbens. Experimental conditions: RP-C18 column (5 µm, 4.6 mm × 250 mm; Waters Technologies, USA); mobile phase: acetonitrile (A) 0.1% TFA water solution (B) (0–10 min, 30–45% A; 10–25 min, 45–60% A; 25–40 min, 60–100% A); RP-C18 column temperature: 25 °C, UV monitor wavelength: 254 nm; flow-rate: 1 mL·min−1; injection volume: 20 µL. a. procumbenoside E; b. diphyllin-1-O-β-d-apiofuranoside; c. diphyllin; d. 6′-hydroxy justicidin B; e. diphyllin acetyl apioside; f. justicidin B; g. justicidin A; h. 6′-hydroxyjusticidin C; i. justicidin E; j. lignan J1.
Molecules 22 02024 g002
Figure 3. HSCCC chromatograms of crude sample and enriched mixture (compounds ae). Experimental conditions of crude sample (A): solvent system: Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v); sample size: 320 mg; retention of the organic phase: 62.5%. Conditions of the enriched mixture (B): solvent system: Pet–EtOAc–MeOH–H2O (3:3.8:3:3.8, v/v); sample size: 91.3 mg. retention of the organic phase: 53.1%. In both separations: flow-rate: 3.0 mL∙min−1; rotational speed: 810 rpm; UV monitor: 254 nm.
Figure 3. HSCCC chromatograms of crude sample and enriched mixture (compounds ae). Experimental conditions of crude sample (A): solvent system: Pet–EtOAc–MeOH–H2O (1:0.7:1:0.7, v/v); sample size: 320 mg; retention of the organic phase: 62.5%. Conditions of the enriched mixture (B): solvent system: Pet–EtOAc–MeOH–H2O (3:3.8:3:3.8, v/v); sample size: 91.3 mg. retention of the organic phase: 53.1%. In both separations: flow-rate: 3.0 mL∙min−1; rotational speed: 810 rpm; UV monitor: 254 nm.
Molecules 22 02024 g003
Table 1. The KD values of target compounds in a series of solvent systems.
Table 1. The KD values of target compounds in a series of solvent systems.
SampleSolvent System (v/v): (Pet–EtOAc–MeOH–H2O)Partition Coefficient (KD)
abcdefghij
Crude sample3:3:3:30.120.250.340.811.284.066.187.127.8912.10
3:2.4:3:2.40.090.190.290.681.062.524.335.415.976.43
3:2.1:3:2.10.070.110.180.230.420.741.351.842.182.44
3:1.8:3:1.80.050.080.100.160.310.370.671.261.542.07
Enriched mixture3:3.2:3:3.20.170.300.440.931.44
3:3.8:3:3.80.220.680.931.752.08
3:4.2:3:4.20.351.341.862.524.03
