Molecules 2017, 22(12), 2000; doi:10.3390/molecules22122000

Article
Design, Synthesis and Bioactivities of Novel Isoxazole-Containing Pyrazole Oxime Derivatives
1
College of Chemistry and Chemical Engineering, Nantong University, Nantong 226019, China
2
School of Environmental and Chemical Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China
3
Analysis and Testing Center, Nantong University, Nantong 226019, China
*
Authors to whom correspondence should be addressed.
Received: 9 November 2017 / Accepted: 24 November 2017 / Published: 27 November 2017

Abstract

:
In this study, in order to find novel biologically active pyrazole oxime derivatives, twenty-eight new pyrazole oxime compounds containing a substituted isoxazole ring were synthesized and evaluated for their acaricidaland insecticidal activities. Bioassays exhibited that some target compounds indicated good acaricidal and insecticidal activities against Tetranychus cinnabarinus, Aphis medicaginis, Mythimna separata, and Nilaparvata lugens. Especially, compounds 9c, 9h, 9u, and 9v showed 100.00%, 90.56%, 90.78%, and 90.62% insecticidal activities against A. medicaginis at the concentration of 20 μg/mL, respectively, compounds 9k and 9u had 70.86% and 100.00% insecticidal activities against M. separata at 20 μg/mL, respectively.
Keywords:
isoxazole; pyrazole oxime; synthesis; bioactivity

1. Introduction

In the past few decades, heterocycles play a significant role in the research of agricultural and medicinal chemistry. The isoxazole skeleton, a crucial type of nitrogen-containing heterocycle, has been used in pesticide and drug design because of their various biological activities, such as insecticidal [1,2,3], herbicidal [4,5,6], fungicidal [7], antiviral [8,9,10], and anticancer activities [11]. Recently, Yu et al. obtained a series of 3,4,5-trisubstituted isoxazoles that were showing good insecticidal activities [12]. More recently, Sun et al. reported several series of isoxazole compounds carrying benzoylurea moiety displaying perfect insecticidal activities [13]. The widespread use of isoxazole-based compounds as a scaffold in the field of agriculture and medicine research endows the isoxazole ring as an important structural class.
On the other hand, pyrazole oxime derivatives are one of the hotspots in the design of new drugs due to their broad spectrum of insecticidal [14,15], acaricidal [16], fungicidal [17], anti-TMV [18], and antitumor activities [19]. In particular, the insecticidal and acaricidal activities have been widely investigated for their potential applications in agricultural production. For instance, Fenpyroximate (Figure 1), an excellent acaricide containing a pyrazole oxime moiety, is used to control some phytophagous mites, such as Tetranychus urticae Koch and Polyphagotarsonemus latus Banks [20,21]. Recently, Dai et al. reported that some pyrazole oximes possessed interesting insecticidal and acaricidal activity through modification of the esterified group of Fenpyroximate with thiazolylmethoxy or thiadiazolylmethoxy unit [22,23]. Wang and co-workers synthesized and evaluated the insecticidal activity of a series of pyrazole oxime ethers containing oxazole ring and found that some compounds showed good insecticidal properties against Aphis craccivora and Nilaparvata lugens [24]. Very recently, Dai and co-workers also obtained some pyrazole oximes owning wonderful acaricidal and insecticidal activities against Tetranychus cinnabarinus, Aphis medicaginis and Nilaparvata lugens by substituting the esterified aryl group of Fenpyroximate with oxadiazole ring [25]. This gave a great impetus to the search for biologically active molecules carrying the pyrazole oxime subunit.
Encouraged by the aforementioned facts, we envisioned that the introduction of a substituted isoxazole pharmacophore into the parent pyrazole oxime scaffold might produce some new compounds with multiple biological activities. In this study, we describe the design and synthesis of a number of novel pyrazole oxime derivatives bearing isoxazole ring (Figure 1). Moreover, all of the new compounds were tested for their acaricidal and insecticidal activities.

2. Results and Discussion

2.1. Chemistry

The general synthetic route of the title compounds 9a9v was depicted in Scheme 1. The key intermediates 3 were conveniently synthesized by two steps from 1,3-dimethyl-5-chloro-1H-pyrazole-4-carbaldehyde (1). The condensation of compound 1 with various substituted phenols under basic conditions gave compounds 2, which were easily transformed into intermediates 3 by treatment with hydroxylamine hydrochloride using potassium hydroxide as the base. Intermediate 3-chloromethyl-5-substituted phenyl isoxazole (8) was prepared from compound 4. Compound 4 was easily reacted with dimethyl oxalate under basic conditions to obtain compound 5. Further reaction with hydroxylamine hydrochloride afforded compound 6 successfully. Next, a reaction with LiAlH4 was undertaken to form compound 7 in good yields. Further chlorination of compound 7 provided intermediate 8 smoothly by the addition of some drops of N,N-dimethylformamide. Finally, pyrazole oximes 3 were admixed with 3-chloromethyl-5-substituted phenyl isoxazole (8) in acetonitrile using potassium carbonate as alkali and cesium carbonate as catalyst to afford corresponding compounds 9a9v in satisfactory yields (Scheme 1). The synthetic route for the target compounds 13a13f is shown in Scheme 2. The important intermediates 12 were smoothly prepared in three steps from compound 8. The condensation of compound 8 with 4-hydroxybenzaldehyde under basic condition afforded compounds 10, which were transformed to intermediates 11 by treatment with LiAlH4. Then, compounds 11 reacted with SOCl2 to give intermediates 12 conveniently. At last, intermediates 12 were treated with compound 8 in acetonitrile using potassium carbonate as alkali to obtain corresponding pyrazole oximes derivatives 13a13f in good yields (Scheme 2). The target compounds 9a9v and 13a13f were effectively characterized by 1H-NMR, 13C-NMR, and elemental analyses.

2.2. Biological Activities

The synthesized compounds 9a9v and 13a13f were evaluated for insecticidal activities against Aphis medicaginis, Mythimna separata and Nilaparvata lugens, and acaricidal activity against Tetranychus cinnabarinus using known procedures, and Chlorantraniliprole, Pyridalyl, Abamectin and Fenpyroximate were used as the positive controls, respectively. As indicated in Table 1, some title compounds showed moderate to good acaricidal activity against T. cinnabarinus at a concentration of 500 μg/mL. The mortalities of compounds 9e and 9q were 80.46% and 50.38%, respectively. Besides acaricidal potencies, most title compounds displayed wonderful insecticidal activities against A. medicaginis at a dosgae of 500 μg/mL, for example, compounds 9b, 9c, 9d, 9e, 9g, 9h, 9i, 9j, 9k, 9q, 9r, 9s, 9t, 9u, and 9v all possessed 100.00% inhibition rates, respectively, which were equal to that of the control Chlorantraniliprole. Furthermore, some aimed compounds exhibited potent insecticidal activities against A. medicaginis when the dosage was lowered to 100 μg/mL. For instance, compounds 9b, 9c, 9d, 9g, 9h, 9i, 9j, 9u, and 9v all owned 100.00% insecticidal activity against A. medicaginis, respectively, which were comparable to that of the control Chlorantraniliprole. Even when the dosage was reduced to 20 μg/mL, some compounds still had satisfactory insecticidal activity against A. medicaginis, and the mortalities of compounds 9c, 9h, 9u, and 9v were 100.00%, 90.56%, 90.78%, and 90.62%, respectively. From the above insecticidal activity data, we can find that the substituents (R1) on the phenyl ring may have an impact on the activities. When R2 is 4-fluoro or 2,4-difluoro, the substituent (R1) at 4-position of phenyl ring was methoxy (9c), halogen (9g, 9h, 9u, and 9v), or 2,4-position of phenyl ring was fluoro or chloro (9i and 9j), it was more favorable to the insecticidal activity against A. medicaginis at the dosage of 20 μg/mL. Table 2 demonstrated that most target compounds showed excellent larvicidal activity against M. separata at a concentration of 500 μg/mL. Moreover, some of them had moderate to good larvicidal activity against M. separata when the concentration came to 100 μg/mL, among these derivatives, compounds 9c, 9k, and 9u all exhibited 100.00% inhibition rates, respectively, which were comparable to that of the control Pyridalyl. When the concentration arrived at 20 μg/mL, compounds 9k and 9u still indicated potential inhibitory activities against M. separata, with the inhibition rates being 70.86% and 100.00%, respectively. When R2 is 4-fluoro or 2,4-difluoro, the substituent (R1) at 4-position of phenyl ring was methoxy (9k) or bromo (9u), it was more favorable to the insecticidal activity against M. separata at 20 μg/mL. Interestingly, some designed compounds possessed wonderful inhibitory activities against N. lugens besides good insecticidal activities against A. medicaginis and M. separata. Among them, compounds 9c, 9d, 9i, 9k, 9r, 9s, and 9t all had 100.00% inhibition rates against N. lugens at 500 μg/mL. When the dosage was reduced to 100 μg/mL, some title compounds were still active against N. lugens, especially, the inhibition rates of compounds 9e and 9g were 75.23% and 75.76%. From the data shown in Table 1 and Table 2, we found that the structure-insecticidal activity relationship of some obtained compounds against N. lugens is similar to structure-insecticidal activity relationship of some compounds against A. medicaginis. When R2 is 4-fluoro, the substituent (R1) was 4-fluoro (9e) or 4-bromo (9g), it was more advantageous to increase the insecticidal activity against N. lugens at 100 μg/mL than other substituents. The data presented in Table 1 and Table 2 also displayed that compounds 9c, 9g, 9h, 9i, 9j, 9k, 9r, 9s, and 9t exhibited exciting insecticidal effects against N. lugens and M. separata beyond wonderful insecticidal activities against A. medicaginis at the dosage of 500 μg/mL. At the same time, compound 9e had good acaricidal activity against T. cinnabarinus besides potent insecticidal activities against A. medicaginis, M. separata, and N. lugens at 500 μg/mL. From the data listed in Table 1 and Table 2, we can find that some benzyloxy-linked isoxazole derivatives also possessed good insecticidal activities against A. medicaginis, M. separata, and N. lugens at the dosage of 500 μg/mL. For example, compounds 13c and 13f both had 100.00% insecticidal activities against A. medicaginis, which were similar to that of the control Chlorantraniliprole. Compounds 13a, 13b, 13c, 13e, and 13f all displayed 100.00% insecticidal activities against M. separata, respectively, which were equal to that of the control Pyridalyl. In addition, compound 13d indicated 100.00% inhibitory activity against N. lugens, which was near to that of the control Abamectin. All of the above data implied that the bioactivity spectrum of pyrazole oxime derivatives was significantly improved by introducing the important isoxazole ring. This research indicated that these target compounds may function as potential lead structures for the discovery of novel pesticides in future.

3. Experimental Section

3.1. Chemistry

3.1.1. General Procedures

All of the reagents were chemically pure and solvents were dried according to standard methods. 1H-NMR and 13C-NMR spectra were obtained on a Bruker AV400 spectrometer (400 MHz, 1H; 100 MHz, 13C, Bruker, Billerica, MA, USA) in CDCl3 with tetramethylsilane as the internal standard. The melting points were determined on an X-4 binocular microscope melting point apparatus (Beijing Tech Instrument Co., Beijing, China) and are uncorrected. Elemental analyses were determined on a Yanaco CHN Corder MT-3 elmental analyzer (Yanaco, Kyoto, Japan). The reactions were monitored by analytical thin-layer chromatography (TLC) with ultraviolet (UV) light and TLC was carried out on silica gel GF254. The intermediate 5-chloropyrazole aldehyde 1 was synthesized according to the reported procedure [26]. The intermediates 5 and 6 were prepared by the literature method [27].

3.1.2. General Procedure for the Preparation of 2

To a well stirred solution of substituted phenol (30 mmol) in DMF or DMSO (30 mL), KOH was added (40 mmol) at room temperature. The resulting mixture was heated to 40 °C for 2–4 h, and then compound 1 (20 mmol) was added thereto. The reaction solution was heated to 105 °C for 8–24 h. After being cooled to room temperature, the mixture was poured into water and extracted with ethyl acetate (3 × 50 mL). The combined extracts were dried over anhydrous magnesium sulfate, filtered, and evaporated to afford intermediate 2, with yields ranging from 52% to 76% [25].

3.1.3. General Procedure for the Preparation of 3

To a solution of hydroxylamine hydrochloride (30 mmol) in anhydrous methanol (60 mL) at room temperature, was added KOH (40 mmol) in portions, and the mixture was stirred at room temperature for 20 min. To the above solution was added intermediate 2, the reaction mixture was heated to reflux for 7–22 h. After being cooled to room temperature, the mixture was poured into water (100 mL), and the solid precipitate was filtered, washed with water, and dried to give corresponding 5-substituted phenoxy pyrazole oximes 3, with yields ranging from 61% to 73% [25].

3.1.4. General Procedure for the Preparation of 7

To a well stirred cold (0 °C) solution of intermediate 6 (4 mmol) and THF (60 mL), was added LiAlH4 (10 mmol) in three portions and the reaction mixture was stirred at 0 °C for 3–6 h. To the above solution, was added ice water (40 mL). After the solid precipitate was filtered, the filtrate was extracted with ethyl acetate (3 × 50 mL). The combined extracts were dried over anhydrous sodium sulfate, filtered, and concentrated to produce compound 7, with yields ranging from 70% to 76% [28].

3.1.5. General Procedure for the Preparation of 8

To a well stirred cold (0 °C) solution of compound 7 (20 mmol) in CH2Cl2 (50 mL), was added dropwise a mixture of thionyl chloride (40 mmol) in CH2Cl2 (15 mL). Then, several drops of DMF was added thereto. The resulting mixture was stirred at 0 °C for 4–7 h. To the above solution, was added ice water (50 mL), and pH value of the mixture was adjusted to 6 by saturated sodium bicarbonate solution. The separated organic layer was dried over anhydrous sodium sulfate, filtered, and concentrated to afford the corresponding compound 8, with yields ranging from 73% to 80% [28].

3.1.6. General Procedure for the Preparation of 9a9v

To a mixture of intermediate 8 (4 mmol), compound 3 (5 mmol), and potassium carbonate (12 mmol) in acetonitrile (30 mL) at room temperature, was added cesium carbonate (1 mmol). The resulting mixture was heated to reflux for 8–19 h. The reaction mixture was allowed to cool at room temperature and filtered. The solvent was evaporated under reduced pressure, and the residue was admixed with water (50 mL) and extracted with ethyl acetate (3 × 50 mL). The combined organic layer was washed with water (3 × 20 mL), dried over anhydrous sodium sulfate, filtered, and concentrated. The residue was purified by silica gel column chromatography using a mixture of petroleum ether and ethyl acetate as an eluent to produce the target compounds 9a9v, with yields ranging from 47% to 63%. Pyrazole oxime derivatives 9a9v were novel, and the physical and spectral data for these compounds are listed below. 1H-NMR and 13C-NMR spectra are provided in the Supplementary Materials.
Data for 9a. Yellow solid, yield 51%, m.p.: 93–94 °C. 1H-NMR (400 MHz, DMSO-d6): δ 7.87–7.91 (m, 2H, Ar-H), 7.75 (s, 1H, CH=N), 6.98–7.40 (m, 5H, Ar-H), 6.80 (s, 1H, Isoxazole-H), 6.56 (d, J = 8.0 Hz, 1H, Ar-H), 5.00 (s, 2H, CH2), 3.55 (s, 3H, N-CH3), 2.32 (s, 3H, CH3), 2.24 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.9, 165.0, 162.5, 162.1, 154.9, 148.4, 147.0, 141.7, 131.6, 127.9, 127.1, 126.7, 123.8, 123.6, 116.3, 116.0, 113.3, 99.5, 98.9, 67.0, 34.1, 16.1, 14.7. Anal. Calcd for C23H21FN4O3: C, 65.70; H, 5.03; N, 13.33. Found: C, 65.56; H, 5.16; N, 13.18.
Data for 9b. White solid, yield 53%, m.p.: 96–97 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.8 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 7.09 (d, J = 8.0 Hz, 2H, Ar-H), 6.79 (d, J = 8.8 Hz, 2H, Ar-H), 6.47 (s, 1H, Isoxazole-H), 5.10 (s, 2H, CH2), 3.60 (s, 3H, N-CH3), 2.38 (s, 3H, CH3), 2.27 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.1, 154.7, 148.3, 146.9, 141.8, 136.2, 133.3, 130.6, 130.4, 129.3, 127.1, 125.9, 118.0, 115.2, 99.8, 99.6, 67.0, 34.3, 20.6, 14.9. Anal. Calcd for C23H21FN4O3: C, 65.70; H, 5.03; N, 13.33. Found: C, 65.85; H, 4.90; N, 13.21.
Data for 9c. Yellow solid, yield 55%, m.p.: 104–105 °C. 1H-NMR (400 MHz, CDCl3): δ 7.82 (s, 1H, CH=N), 7.66 (d, J = 8.8 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 6.80–6.85 (m, 4H, Ar-H), 6.46 (s, 1H, Isoxazole-H), 5.11 (s, 2H, CH2), 3.74 (s, 3H, OCH3), 3.61 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.1, 155.8, 150.6, 148.6, 146.9, 141.8, 136.2, 129.3, 127.1, 125.8, 119.8, 116.4, 115.0, 114.9, 99.5, 99.4, 67.0, 55.6, 34.2, 14.8. Anal. Calcd for C23H21FN4O4: C, 63.30; H, 4.85; N, 12.84. Found: C, 63.45; H, 4.71; N, 12.96.
Data for 9d. Yellow solid, yield 47%, m.p.: 76–78 °C. 1H-NMR (400 MHz, CDCl3): δ 7.82 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.41–7.44 (m, 3H, Ar-H), 7.00–7.15 (m, 2H, Ar-H), 6.70 (d, J = 8.4 Hz, 1H, Ar-H), 6.44 (s, 1H, Isoxazole-H), 5.05 (s, 2H, CH2), 3.65 (s, 3H, CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.7, 162.0, 152.1, 147.3, 147.1, 141.3, 136.2, 131.0, 129.3, 128.0, 127.1, 125.9, 124.6, 122.8, 115.5, 99.7, 99.6, 67.0, 34.3, 14.5. Anal. Calcd for C22H18ClFN4O3: C, 59.94; H, 4.12; N, 12.71. Found: C, 59.78; H, 4.25; N, 12.85.
Data for 9e. Yellow oil, yield 50%. 1H-NMR (400 MHz, DMSO-d6): δ 7.89–7.92 (m, 2H, Ar-H), 7.85 (s, 1H, CH=N), 7.14–7.41 (m, 4H, Ar-H), 6.98–7.01 (m, 2H, Ar-H), 6.86 (s, 1H, Isoxazole-H), 5.02 (s, 2H, CH2), 3.56 (s, 3H, N-CH3), 2.24 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.1, 165.0, 162.5, 161.9, 160.0, 157.6, 152.5, 148.8, 148.0, 147.1, 141.3, 127.9, 123.8, 116.7, 116.3, 116.1, 99.8, 98.9, 67.1, 34.4, 14.6. Anal. Calcd for C22H18F2N4O3: C, 62.26; H, 4.27; N, 13.20. Found: C, 62.10; H, 4.41; N, 13.33.
Data for 9f. White solid, yield 49%, m.p.: 116–118 °C. 1H-NMR (400 MHz, DMSO-d6): δ 7.88–7.92 (m, 3H, CH=N and Ar-H), 7.36–7.41 (m, 4H, Ar-H), 6.98 (d, J = 8.0 Hz, 2H, Ar-H), 6.85 (s, 1H, Isoxazole-H), 5.02 (s, 2H, CH2), 3.56 (s, 3H, N-CH3), 2.24 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.0, 165.0, 162.5, 161.9, 155.2, 147.4, 147.1, 141.3, 129.9, 128.9, 127.9, 127.8, 123.7, 116.7, 116.3, 98.9, 98.6, 67.1, 34.3, 14.5. Anal. Calcd for C22H18ClFN4O3: C, 59.94; H, 4.12; N, 12.71. Found: C, 60.07; H, 4.02; N, 12.57.
Data for 9g. White solid, yield 52%, 114–115 °C. 1H-NMR (400 MHz, CDCl3): δ 7.84 (s, 1H, CH=N), 7.72–7.75 (m, 2H, Ar-H), 7.40 (d, J = 9.2 Hz, 2H, Ar-H), 7.16 (t, J = 8.8 Hz, 2H, Ar-H), 6.78 (d, J = 8.8 Hz, 2H, Ar-H), 6.40 (s, 1H, Isoxazole-H), 5.08 (s, 2H, CH2), 3.60 (s, 3H, CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.0, 165.0, 162.5, 161.9, 155.7, 147.1, 141.3, 132.9, 127.9, 127.8, 123.8, 117.1, 116.3, 116.2, 116.1, 99.9, 98.9, 67.1, 34.3, 14.6. Anal. Calcd for C22H18BrFN4O3: C, 54.45; H, 3.74; N, 11.54. Found: C, 54.30; H, 3.88; N, 11.63.
Data for 9h. White solid, yield 55%, m.p.: 100–101 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.72–7.76 (m, 2H, Ar-H), 7.59 (d, J = 8.8 Hz, 2H, Ar-H), 7.16 (t, J = 8.8 Hz, 2H, Ar-H), 6.67 (d, J = 8.8 Hz, 2H, Ar-H), 6.41 (s, 1H, Isoxazole-H), 5.09 (s, 2H, CH2), 3.60 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.1, 165.0, 162.5, 161.9, 156.6, 147.1, 141.3, 138.8, 127.9, 123.8, 123.7, 117.5, 116.3, 99.9, 98.9, 86.5, 67.1, 34.3, 14.6. Anal. Calcd for C22H18FIN4O3: C, 49.64; H, 3.41; N, 10.53. Found: C, 49.52; H, 3.27; N, 10.66.
Data for 9i. Yellow oil, yield 48%. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 6.73–6.94 (m, 3H, Ar-H), 6.46 (s, 1H, Isoxazole-H), 5.05 (s, 2H, CH2), 3.67 (s, 3H, N-CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.9, 162.0, 147.4, 147.2, 141.1, 136.2, 129.3, 127.1, 125.8, 123.9, 117.5, 117.4, 111.2, 110.9, 105.9, 105.4, 99.4, 99.2, 67.0, 34.3, 14.3. Anal. Calcd for C22H17F3N4O3: C, 59.73; H, 3.87; N, 12.66. Found: C, 59.85; H, 3.76; N, 12.51.
Data for 9j. Yellow oil, yield 51%. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.41–7.44 (m, 3H, Ar-H), 7.08–7.11 (m, 1H, Ar-H), 6.63 (d, J = 8.8 Hz, 1H, Ar-H), 6.44 (s, 1H, Isoxazole-H), 5.05 (s, 2H, CH2), 3.64 (s, 3H, CH3), 2.35 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.9, 161.9, 150.8, 147.3, 146.8, 141.0, 136.2, 130.7, 129.3, 127.9, 127.1, 125.9, 123.7, 121.9, 116.3, 99.8, 99.4, 67.1, 34.3, 14.2. Anal. Calcd for C22H17Cl2FN4O3: C, 55.59; H, 3.61; N, 11.79. Found: C, 55.45; H, 3.72; N, 11.94.
Data for 9k. Yellow solid, yield 63%, m.p.: 113–115 °C. 1H-NMR (400 MHz, CDCl3): δ 7.82 (s, 1H, CH=N), 7.67 (d, J = 8.8 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 6.80–6.85 (m, 4H, Ar-H), 6.46 (s, 1H, Isoxazole-H), 5.11 (s, 2H, CH2), 3.74 (s, 3H, OCH3), 3.61 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.1, 155.9, 150.6, 148.7, 147.0, 141.8, 136.2, 129.3, 127.1, 125.9, 116.4, 115.0, 99.6, 99.5, 67.0, 55.7, 34.2, 14.8. Anal. Calcd for C23H21ClN4O4: C, 61.00; H, 4.67; N, 12.37. Found: C, 60.84; H, 4.81; N, 12.49.
Data for 9l. Yellow solid, yield 61%, m.p.: 152–154 °C. 1H-NMR (400 MHz, CDCl3): δ 7.85 (s, 1H, CH=N), 7.68 (d, J = 8.8 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 7.16 (d, J = 8.8 Hz, 2H, Ar-H), 6.91 (d, J = 9.2 Hz, 2H, Ar-H), 6.46 (s, 1H, Isoxazole-H), 5.07 (s, 2H, CH2), 3.62 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.9, 161.9, 154.9, 147.4, 147.2, 144.8, 141.3, 136.3, 129.3, 127.1, 125.8, 122.8, 116.4, 99.9, 99.4, 67.1, 34.3, 14.6. Anal. Calcd for C23H18ClF3N4O4: C, 54.50; H, 3.58; N, 11.05. Found: C, 54.63; H, 3.46; N, 11.16.
Data for 9m. Yellow solid, yield 56%, m.p.: 96–98 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.43 (d, J = 8.4 Hz, 2H, Ar-H), 7.00–7.18 (m, 3H, Ar-H), 6.76–6.80 (m, 1H, Ar-H), 6.45 (s, 1H, Isoxazole-H), 5.05 (s, 2H, CH2), 3.67 (s, 3H, N-CH3), 2.36 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.0, 153.2, 150.7, 147.4, 147.1, 144.1, 141.3, 136.2, 129.3, 127.1, 125.8, 124.5, 117.3, 117.1, 116.7, 99.5, 99.4, 67.0, 34.3, 14.4. Anal. Calcd for C22H18ClFN4O3: C, 59.94; H, 4.12; N, 12.71. Found: C, 59.80; H, 3.99; N, 12.79.
Data for 9n. White solid, yield 52%, m.p.: 146–147 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.67 (d, J = 8.4 Hz, 2H, Ar-H), 7.44 (d, J = 8.8 Hz, 2H, Ar-H), 6.83–7.00 (m, 4H, Ar-H), 6.44 (d, 1H, Isoxazole-H), 5.09 (s, 2H, CH2), 3.61 (s, 3H, N-CH3), 2.36 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.0, 159.9, 157.5, 152.6, 147.9, 147.1, 141.5, 136.2, 129.3, 127.1, 125.8, 116.6, 116.4, 99.7, 99.4, 67.0, 34.2, 14.6. Anal. Calcd for C22H18ClFN4O3: C, 59.94; H, 4.12; N, 12.71. Found: C, 60.04; H, 4.23; N, 12.57.
Data for 9o. White solid, yield 50%, m.p.: 116–118 °C. 1H-NMR (400 MHz, CDCl3): δ 7.85 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.44 (d, J = 8.8 Hz, 2H, Ar-H), 6.82–7.20 (m, 4H, Ar-H), 6.42 (s, 1H, Isoxazole-H), 5.09 (s, 2H, CH2), 3.61 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.8, 162.0, 157.1, 147.2, 141.3, 136.2, 131.1, 129.3, 127.1, 126.9, 125.8, 123.1, 118.7, 114.1, 100.0, 99.4, 67.1, 34.3, 14.5. Anal. Calcd for C22H18BrClN4O3: C, 52.66; H, 3.62; N, 11.17. Found: C, 52.79; H, 3.48; N, 11.30.
Data for 9p. White solid, yield 58%, m.p.: 147–149 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.59 (d, J = 8.8 Hz, 2H, Ar-H), 7.45 (d, J = 8.4 Hz, 2H, Ar-H), 6.67 (d, J = 8.8 Hz, 2H, Ar-H), 6.45 (s, 1H, Isoxazole-H), 5.09 (s, 2H, CH2), 3.59 (s, 3H, CH3), 2.36 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 168.9, 161.9, 156.6, 147.2, 147.1, 141.3, 138.8, 136.2, 129.3, 127.1, 125.8, 117.5, 99.9, 99.4, 86.5, 67.1, 34.3, 14.6. Anal. Calcd for C22H18ClIN4O3: C, 48.15; H, 3.31; N, 10.21. Found: C, 48.01; H, 3.25; N, 10.33.
Data for 9q. Yellow solid, yield 49%, m.p.: 80–81 °C. 1H-NMR (400 MHz, CDCl3): δ 7.83 (s, 1H, CH=N), 7.68 (d, J = 8.4 Hz, 2H, Ar-H), 7.44 (d, J = 8.4 Hz, 2H, Ar-H), 6.70–6.95 (m, 3H, Ar-H), 6.46 (s, 1H, Isoxazole-H), 5.06 (s, 2H, CH2), 3.68 (s, 3H, CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 167.8, 160.9, 158.5, 156.0, 152.1, 149.6, 146.4, 146.2, 140.1, 139.6, 135.2, 128.3, 126.0, 124.8, 116.5, 110.1, 104.8, 98.3, 98.2, 66.0, 33.2, 13.2. Anal. Calcd for C22H17ClF2N4O3: C, 57.59; H, 3.73; N, 12.21. Found: C, 57.75; H, 3.58; N, 12.08.
Data for 9r. White solid, yield 61%, m.p.: 86–88 °C. 1H-NMR (400 MHz, CDCl3): δ 7.91–7.97 (m, 1H, Ar-H), 7.81 (s, 1H, CH=N), 6.67–7.04 (m, 7H, Ar-H and Isoxazole-H), 5.12 (s, 2H, CH2), 3.75 (s, 3H, OCH3), 3.61 (s, 3H, N-CH3), 2.38 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 165.1, 162.9, 162.2, 160.7, 158.3, 155.9, 150.6, 148.8, 147.0, 141.8, 128.9, 119.8, 116.4, 115.0, 112.4, 104.8, 102.9, 99.5, 66.9, 55.7, 34.2, 14.8. Anal. Calcd for C23H20F2N4O4: C, 60.79; H, 4.44; N, 12.33. Found: C, 60.65; H, 4.59; N, 12.45.
Data for 9s. Yellow solid, yield 52%, m.p.: 106–108 °C. 1H-NMR (400 MHz, CDCl3): δ 7.91–7.97 (m, 1H, Ar-H), 7.83 (s, 1H, CH=N), 7.10 (d, J = 6.0 Hz, 2H, Ar-H), 6.63–7.03 (m, 5H, Ar-H and Isoxazole-H), 5.10 (s, 2H, CH2), 3.61 (s, 3H, CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 165.0, 162.9, 162.1, 160.8, 160.0, 158.2, 157.5, 152.6, 147.9, 147.1, 141.5, 128.9, 116.6, 116.4, 112.4, 104.8, 102.8, 99.7, 67.0, 34.2, 14.6. Anal. Calcd for C22H17F3N4O3: C, 59.73; H, 3.87; N, 12.66. Found: C, 59.58; H, 4.01; N, 12.78.
Data for 9t. Yellow solid, yield 56%, m.p.: 108–109 °C. 1H-NMR (400 MHz, CDCl3): δ 7.92–7.97 (m, 1H, Ar-H), 7.84 (s, 1H, CH=N), 6.63–7.26 (m, 7H, Ar-H and Isoxazole-H), 5.10 (s, 2H, CH2), 3.61 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 165.0, 163.0, 162.6, 162.1, 160.7, 158.2, 155.1, 147.4, 147.2, 141.4, 129.9, 128.8, 116.6, 112.4, 112.2, 104.8, 102.8, 99.9, 67.0, 34.3, 14.5. Anal. Calcd for C22H17ClF2N4O3: C, 57.59; H, 3.73; N, 12.21. Found: C, 57.49; H, 3.86; N, 12.35.
Data for 9u. Yellow solid, yield 60%, m.p.: 101–103 °C. 1H-NMR (400 MHz, CDCl3): δ 7.89 (d, J = 8.4 Hz, 1H, Ar-H), 7.84 (s, 1H, CH=N), 7.53 (d, J = 2.0 Hz, 1H, Ar-H), 6.76–7.40 (m, 6H, Ar-H and Isoxazole-H), 5.11 (s, 2H, CH2), 3.60 (s, 3H, N-CH3), 2.37 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 165.2, 161.8, 155.7, 147.3, 147.1, 141.4, 136.2, 132.9, 132.2, 130.6, 130.1, 127.7, 124.7, 117.0, 116.2, 104.3, 99.8, 67.0, 34.3, 14.6. Anal. Calcd for C22H17BrF2N4O3: C, 52.50; H, 3.40; N, 11.13. Found: C, 52.66; H, 3.27; N, 11.27.
Data for 9v. Yellow solid, yield 58%, m.p.: 104–106 °C. 1H-NMR (400 MHz, CDCl3): δ 7.89 (d, J = 8.8 Hz, 1H, Ar-H), 7.83 (s, 1H, CH=N), 7.58 (d, J = 8.4 Hz, 2H, Ar-H), 6.65–7.54 (m, 5H, Ar-H and Isoxazole-H), 5.11 (s, 2H, CH2), 3.60 (s, 3H, CH3), 2.38 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 165.2, 161.8, 156.5, 147.3, 147.1, 141.4, 138.8, 136.3, 132.3, 130.7, 130.1, 127.7, 124.7, 117.5, 104.3, 99.9, 86.6, 67.0, 34.3, 14.6. Anal. Calcd for C22H17F2IN4O3: C, 48.02; H, 3.11; N, 10.18. Found: C, 48.13; H, 3.01; N, 10.33.

3.1.7. General Procedure for the Preparation of 10

To a mixture of intermediate 8 (10 mmol), 4-hydroxybenzaldehyde (12 mmol) in acetonitrile (60 mL) at room temperature, was added cesium carbonate (13 mmol). The resulting mixture was heated to reflux for 5 h. After being cooled to room temperature, the mixture was poured into water (100 mL), and the solid precipitate was filtered, washed with water, and dried to afford corresponding compound 10, with yields ranging from 71% to 77%, which could be used for the next reaction without further purification.

3.1.8. General Procedure for the Preparation of 11

To a well stirred cold (0 °C) solution of intermediate 10 (4 mmol) and THF (60 mL), was added LiAlH4 (6 mmol) in three portions and the reaction mixture was stirred at 0 °C for 30 min. To the above solution, was added ice water (40 mL). After the solid precipitate was filtered, the filtrate was extracted with ethyl acetate (3 × 30 mL). The combined extracts were dried over anhydrous sodium sulfate, filtered, and concentrated to give compound 11 with yields ranging from 68% to 72%, which could be used for the next reaction without further purification.

3.1.9. General Procedure for the Preparation of 12

To a well stirred cold (0 °C) solution of compound 11 (4 mmol) in CH2Cl2 (50 mL), was added dropwise a mixture of thionyl chloride (8 mmol) in CH2Cl2 (10 mL). Then, several drops of DMF was added thereto. The resulting mixture was stirred at 0 °C for 6–8 h. To the above solution, was added ice water (50 mL), and the pH value of the mixture was adjusted to 6 by saturated sodium bicarbonate solution. The organic layer was dried over anhydrous sodium sulfate, filtered, and concentrated to afford the corresponding compound 12, with yields ranging from 62% to 65%, which could be used for the following transformations without further purification.

3.1.10. General Procedure for the Preparation of 13a13f

To a mixture of intermediate 12 (4 mmol), compound 3 (5 mmol), and potassium carbonate (10 mmol) in acetonitrile (30 mL) at room temperature. The resulting mixture was heated to reflux for 10–15 h. The reaction mixture was allowed to cool at room temperature and filtered. The solvent was evaporated under reduced pressure, and the residue was admixed with water (40 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layer was washed with water (3 × 20 mL), dried over anhydrous sodium sulfate, filtered, and concentrated. The residue was purified by silica gel column chromatography using a mixture of petroleum ether and ethyl acetate as an eluent to produce the title compounds 13a13f, with yields ranging from 46% to 56%. Pyrazole oxime derivatives 13a13f were novel and the physical and spectral data for these compounds are listed below. 1H-NMR and 13C-NMR spectra are provided in the Supplementary Materials.
Data for 13a. White solid, yield 50%, m.p.: 77–79 °C. 1H-NMR (400 MHz, CDCl3): δ 7.75–7.78 (m, 3H, Ar-H and CH=N), 7.07–7.26 (m, 6H, Ar-H), 6.94 (d, J = 8.0 Hz, 2H, Ar-H), 6.76 (d, J = 8.0 Hz, 2H, Ar-H), 6.58 (s, 1H, Isoxazole-H), 5.18 (s, 2H, CH2), 4.94 (s, 2H, CH2), 3.58 (s, 3H, N-CH3), 2.37 (s, 3H, CH3), 2.30 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.6, 165.1, 162.6, 161.5, 157.8, 154.7, 148.1, 146.8, 140.7, 133.1, 130.8, 130.4, 128.0, 127.9, 123.6, 116.4, 116.1, 115.1, 114.6, 100.2, 98.6, 75.6, 61.8, 34.2, 20.6, 14.9. Anal. Calcd for C30H27FN4O4: C, 68.43; H, 5.17; N, 10.64. Found: C, 68.59; H, 5.05; N, 10.77.
Data for 13b. White solid, yield 48%, m.p.: 99–101 °C. 1H-NMR (400 MHz, CDCl3): δ 7.75–7.78 (m, 3H, Ar-H and CH=N), 7.13–7.24 (m, 4H, Ar-H), 6.82–7.00 (m, 6H, Ar-H), 6.59 (s, 1H, Isoxazole-H), 5.18 (s, 2H, CH2), 4.92 (s, 2H, CH2), 3.60 (s, 3H, N-CH3), 2.35 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.6, 165.1, 162.6, 161.5, 160.0, 157.8, 157.5, 152.7, 152.6, 147.7, 147.0, 140.4, 130.7, 130.3, 128.0, 127.9, 123.6, 116.6, 116.5, 116.4, 116.1, 114.6, 100.2, 98.6, 75.7, 61.8, 34.2, 14.6. Anal. Calcd for C29H24F2N4O4: C, 65.65; H, 4.56; N, 10.56. Found: C, 65.78; H, 4.42; N, 10.65.
Data for 13c. White solid, yield 46%, m.p.: 91–93 °C. 1H-NMR (400 MHz, CDCl3): δ 7.75–7.78 (m, 3H, Ar-H and CH=N), 7.40 (d, J = 8.0 Hz, 2H, Ar-H), 7.13–7.22 (m, 4H, Ar-H), 6.94 (d, J = 8.0 Hz, 2H, Ar-H), 6.76 (d, J = 8.0 Hz, 2H, Ar-H), 6.59 (s, 1H, Isoxazole-H), 5.18 (s, 2H, CH2), 4.91 (s, 2H, CH2), 3.59 (s, 3H, N-CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.6, 165.1, 162.6, 161.5, 157.8, 155.8, 147.0, 140.3, 132.9, 130.7, 130.3, 128.0, 127.9, 123.6, 117.1, 116.4, 116.1, 114.6, 100.3, 98.6, 75.7, 61.8, 34.2, 14.5. Anal. Calcd for C29H24BrFN4O4: C, 58.89; H, 4.09; N, 9.47. Found: C, 58.74; H, 4.20; N, 9.61.
Data for 13d. White solid, yield 53%, m.p.: 97–99 °C. 1H-NMR (400 MHz, CDCl3): δ 7.75–7.78 (m, 3H, Ar-H and CH=N), 7.59 (d, J = 8.0 Hz, 2H, Ar-H), 7.13–7.22 (m, 4H, Ar-H), 6.95 (d, J = 8.0 Hz, 2H, Ar-H), 6.65 (d, J = 8.0 Hz, 2H, Ar-H), 6.59 (s, 1H, Isoxazole-H), 5.19 (s, 2H, CH2), 4.91 (s, 2H, CH2), 3.58 (s, 3H, N-CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.5, 165.1, 162.6, 161.5, 157.8, 156.6, 147.0, 146.9, 140.2, 138.8, 130.7, 130.3, 128.0, 127.9, 123.6, 117.5, 116.4, 116.1, 114.6, 100.3, 98.6, 86.4, 75.7, 61.8, 34.2, 14.5. Anal. Calcd for C29H24FIN4O4: C, 54.56; H, 3.79; N, 8.78. Found: C, 54.69; H, 3.90; N, 8.64.
Data for 13e. White solid, yield 51%, m.p.: 88–90 °C. 1H-NMR (400 MHz, CDCl3): δ 7.77 (s, 1H, CH=N), 7.70 (d, J = 8.0 Hz, 2H, Ar-H), 7.39–7.44 (m, 4H, Ar-H), 7.21 (d, J = 8.0 Hz, 2H, Ar-H), 6.94 (d, J = 8.0 Hz, 2H, Ar-H), 6.76 (d, J = 8.0 Hz, 2H, Ar-H), 6.63 (s, 1H, Isoxazole-H), 5.19 (s, 2H, CH2), 4.91 (s, 2H, CH2), 3.59 (s, 3H, N-CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.4, 161.6, 157.8, 155.8, 147.0, 140.2, 136.4, 133.3, 132.9, 130.7, 130.3, 129.3, 127.1, 125.7, 119.4, 117.1, 116.1, 114.6, 100.3, 99.1, 75.7, 61.7, 34.2, 14.5. Anal. Calcd for C29H24BrClN4O4: C, 57.30; H, 3.98; N, 9.22. Found: C, 57.14; H, 3.85; N, 9.36.
Data for 13f. White solid, yield 56%, m.p.: 83–85 °C. 1H-NMR (400 MHz, CDCl3): δ 7.76 (s, 1H, CH=N), 7.71 (d, J = 8.0 Hz, 2H, Ar-H), 7.59 (d, J = 8.0 Hz, 2H, Ar-H), 7.44 (d, J = 8.0 Hz, 2H, Ar-H), 7.21 (d, J = 8.0 Hz, 2H, Ar-H), 6.63–6.96 (m, 5H, Ar-H and Isoxazole-H), 5.19 (s, 2H, CH2), 4.91 (s, 2H, CH2), 3.59 (s, 3H, N-CH3), 2.34 (s, 3H, CH3). 13C-NMR (100 MHz, CDCl3): δ 169.4, 161.6, 157.8, 156.6, 147.0, 146.9, 140.2, 139.2, 138.8, 136.4, 130.7, 130.4, 129.3, 127.1, 119.6, 117.6, 114.6, 100.4, 99.2, 86.4, 75.7, 61.8, 34.2, 14.5. Anal. Calcd for C29H24ClIN4O4: C, 53.19; H, 3.69; N, 8.56. Found: C, 53.33; H, 3.54; N, 8.47.

3.2. Biological Tests

3.2.1. Bioassay Methods

All of the bioassays were performed on representative test organisms reared in the laboratory. The bioassay was repeated in triplicate. Acaricidal and insecticidal assessments were made on a dead/alive basis, and mortality rates were corrected using Abbott’s formula.

3.2.2. Insecticidal Activities against Mythimna separata

The larvicidal activities of the title compounds against Mythimna separata were tested by foliar application [29]. Corn leaves were dipped into the obtained solutions for 2–3 s. After air-drying, the soaked leaves were put into a culture dish with a piece of filter paper, followed by inoculation of 10 third-instar M. separata larvae per dish. Covered with gauze and kept in observation room for normal cultivation at 24 °C–27 °C. Mortality was assessed 48 h after treatment. The individuals who did not respond to the touch of writing brush were recognized as dead. Each test was run three times and the results were averaged. Pyridalyl, as the control compound, was tested under the same conditions.

3.2.3. Acaricidal Activities against Tetranychus cinnabarinus, and Insecticidal Activities against Aphis medicaginis and Nilaparvata lugens

The acaricidal activities against Tetranychus cinnabarinus, and insecticidal activities against Aphis medicaginis and Nilaparvata lugens of the title compounds were tested by the spray method [30]. Under the Potter spray tower, horsebean leaves, inoculated with T. cinnabarinus were separately treated with solutions of tested compounds. After that, the resultant horsebean leaves were kept in an observation room for normal cultivation at 24 °C–27 °C. Mortality was assessed 48 h after treatment. Each test was run three times and results were averaged. Fenpyroximate was used as the control. Activities against A. medicaginis were evaluated by the similar procedure except that the culture temperature was reduced to 20 °C–22 °C. Inhibitions of N. lugens were tested on the rice seedlings, which was inoculated with N. lugens first. After that, the resultant rice seedlings were kept in an observation room for normal cultivation at 24 °C–27 °C. Mortality was assessed 48 h after treatment. All of the tests were run with three duplicates and the results were averaged. Chlorantraniliprole and Abamectin were used as the positive controls, respectively.

4. Conclusions

In summary, a series of novel pyrazole oxime compounds containing isoxazole moiety were prepared and evaluated for their acaricidal activity against T. cinnabarinus, and insecticidal activities against A. medicaginis, M. separata and N. lugens. Bioassays results revealed that some title compounds exhibited potent acaricidal and insecticidal activities. Among these compounds, compound 9e showed 80.46% acaricidal activity against T. cinnabarinus at 500 μg/mL, compounds 9c, 9h, 9u, and 9v had 100.00%, 90.56%, 90.78%, and 90.62% insecticidal activity against A. medicaginis at the concentration of 20 μg/mL, respectively, compounds 9k and 9u possessed 70.86% and 100.00% insecticidal activity against M. separata at the dosage of 20 μg/mL, respectively, and insecticidal activity against N. lugens of compounds 9e and 9g were 75.23% and 75.76% at 100 μg/mL. Further analogue synthesis and structural optimization are well under way.

Supplementary Materials

The following are available online.

Acknowledgments

This work was funded by the National Natural Science Foundation of China (No. 21372135), the Research Foundation of the Six People Peak of Jiangsu Province (No. 2013-SWYY-013), the Technology Project Fund of Nantong City (Nos. CP12013002, MS22015020), and Postgraduate Research and Practice Innovation Program of Jiangsu Province (SJCX17_0640).

Author Contributions

Y.S. designed the research; H.D., W.Y., Y.F., S.S., J.C., J.S. performed the research and analyzed the data; G.J. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yu, M.; Liu, G.; Zhang, Y.; Feng, T.; Xu, M.; Xu, H. Design, synthesis and evaluation of novel isoxazolines/oxime sulfonates of 2(2,6)-(di)chloropodophyllotoxins as insecticidal agents. Sci. Rep. 2016, 6, 33062. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, G.; Ozoe, F.; Furuta, K.; Ozoe, Y. 4,5-Substituted 3-isoxazolols with insecticidal activity act as competitive antagonists of housefly GABA receptors. J. Agric. Food Chem. 2015, 63, 6304–6312. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, M.; Wagerle, T.; Long, J.K.; Lahm, G.P.; Barry, J.D.; Smith, R.M. Insecticidal quinoline and isoquinoline isoxazolines. Bioorg. Med. Chem. Lett. 2014, 24, 4026–4030. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, Y.; Cui, Z.; Bin, L.; Cai, B.; Li, Y.; Wang, Q. Design, synthesis, and herbicidal activities of novel 2-cyanoacrylates containing isoxazole moieties. J. Agric. Food Chem. 2010, 58, 2685–2689. [Google Scholar] [CrossRef] [PubMed]
  5. Hwang, I.T.; Kim, H.R.; Jeon, D.J.; Hong, K.S.; Song, J.H.; Cho, K.Y. 5-(2,6-Difluorobenzyl) oxymethyl-5-methyl-3-(3-methylthiophen-2-yl)-1,2-isoxazoline as a useful rice herbicide. J. Agric. Food Chem. 2005, 53, 8639–8643. [Google Scholar] [CrossRef] [PubMed]
  6. Hamper, B.C.; Leschinsky, K.L.; Massey, S.S.; Bell, C.L.; Brannigan, L.H.; Prosch, S.D. Synthesis and herbicidal activity of 3-aryl-5-(haloalkyl)-4-isoxazolecarboxamides and their derivatives. J. Agric. Food Chem. 1995, 43, 219–228. [Google Scholar] [CrossRef]
  7. Liu, P.; Xu, Y.; Li, J.; Liu, J.; Cao, Y.; Liu, X. Photodegradation of the isoxazolidine fungicide SYP-Z048 in aqueous solution: Kinetics and photoproducts. J. Agric. Food Chem. 2012, 60, 11657–11663. [Google Scholar] [CrossRef] [PubMed]
  8. Piotrowska, D.G.; Andrei, G.; Schols, D.; Snoeck, R.; Grabkowska-Druzyc, M. New isoxazolidine-conjugates of quinazolinones-synthesis, antiviral and cytostatic activity. Molecules 2016, 21, 959. [Google Scholar] [CrossRef] [PubMed]
  9. Kokosza, K.; Andrei, G.; Schols, D.; Snoeck, R.; Piotrowska, D.G. Design, antiviral and cytostatic properties of isoxazolidine-containing amonafide analogues. Bioorg. Med. Chem. 2015, 23, 3135–3146. [Google Scholar] [CrossRef] [PubMed]
  10. Piotrowska, D.G.; Balzarini, J.; Glowacka, I.E. Design, synthesis, antiviral and cytostatic evaluation of novel isoxazolidine nucleotide analogues with a 1,2,3-triazole linker. Eur. J. Med. Chem. 2012, 47, 501–509. [Google Scholar] [CrossRef] [PubMed]
  11. Kumar, R.N.; Dev, G.J.; Ravikumar, N.; Swaroop, D.K.; Debanjan, B.; Bharath, G.; Rao, A.G. Synthesis of novel triazole/isoxazole functionalized 7-(trifluoromethyl) pyrido[2,3-d]pyrimidine derivatives as promising anticancer and antibacterial agents. Bioorg. Med. Chem. Lett. 2016, 26, 2927–2930. [Google Scholar] [CrossRef] [PubMed]
  12. Yu, G.J.; Iwamoto, S.; Robins, L.I.; Fettinger, J.C.; Sparks, T.C.; Lorsbach, B.A.; Kurth, M.J. 3-(Arylthiomethyl) isoxazole-4,5-dicarboxamides: Chemoselective nucleophilic chemistry and insecticidal activity. J. Agric. Food Chem. 2009, 57, 7422–7426. [Google Scholar] [CrossRef] [PubMed]
  13. Sun, R.; Li, Y.; Xiong, L.; Liu, Y.; Wang, Q. Design, synthesis, and insecticidal evaluation of new benzoylureas containing isoxazoline and isoxazole group. J. Agric. Food Chem. 2011, 59, 4851–4859. [Google Scholar] [CrossRef] [PubMed]
  14. Fu, C.; Pei, J.; Ning, Y.; Liu, M.; Shan, P.; Liu, J.; Zou, X. Synthesis and insecticidal activities of novel pyrazole oxime ether derivatives with different substituted pyridyl rings. Pest Manag. Sci. 2014, 70, 1207–1214. [Google Scholar] [CrossRef] [PubMed]
  15. Song, H.; Liu, Y.; Xiong, L.; Li, Y.; Yang, N.; Wang, Q. Design, synthesis, and insecticidal evaluation of new pyrazole derivatives containing imine, oxime ether, oxime ester, and dihydroisoxazoline groups based on the inhibitor binding pocket of respiratory complex I. J. Agric. Food Chem. 2013, 61, 8730–8736. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, Y.; Lin, D.; Fu, C.; Zou, X. Synthesis and biological activity evaluation of novel pyrazole oxime ether derivatives containing chlorothiazole group and pyrimidine rings. Chin. J. Org. Chem. 2015, 35, 100–108. [Google Scholar] [CrossRef]
  17. Li, Y.; Zhang, H.Q.; Liu, J.; Yang, X.P.; Liu, Z.J. Stereoselective synthesis and antifungal activities of (E)-α-(methoxyimino) benzeneacetate derivatives containing 1,3,5-substituted pyrazole ring. J. Agric. Food Chem. 2006, 54, 3636–3640. [Google Scholar] [CrossRef] [PubMed]
  18. Ouyang, G.; Cai, X.J.; Chen, Z.; Song, B.A.; Bhadury, P.S.; Yang, S.; Jin, L.H.; Xue, W.; Hu, D.Y.; Zeng, S. Synthesis and antiviral activities of pyrazole derivatives containing an oxime moiety. J. Agric. Food Chem. 2008, 56, 10160–10167. [Google Scholar] [CrossRef] [PubMed]
  19. Park, H.J.; Lee, K.; Park, S.J.; Ahn, B.; Lee, J.C.; Cho, H.; Lee, K.I. Identification of antitumor activity of pyrazole oxime ethers. Bioorg. Med. Chem. Lett. 2005, 15, 3307–3312. [Google Scholar] [CrossRef] [PubMed]
  20. Swanson, M.B.; Ivancic, W.A.; Saxena, A.M.; Allton, J.D.; O’Brien, G.K.; Suzuki, T.; Nokata, M. Direct photolysis of fenpyroximate in a buffered aqueous solution under a xenon lamp. J. Agric. Food Chem. 1995, 43, 513–518. [Google Scholar] [CrossRef]
  21. Motoba, K.; Nishizawa, H.; Suzuki, T.; Hamaguchi, H.; Uchida, M.; Funayama, S. Species-specific detoxification metabolism of fenpyroximate, a potent acaricide. Pestic. Biochem. Physiol. 2000, 67, 73–84. [Google Scholar] [CrossRef]
  22. Dai, H.; Xiao, Y.S.; Li, Z.; Xu, X.Y.; Qian, X.H. The thiazoylmethoxy modification on pyrazole oximes: Synthesis and insecticidal biological evaluation beyond acaricidal activity. Chin. Chem. Lett. 2014, 25, 1014–1016. [Google Scholar] [CrossRef]
  23. Dai, H.; Huang, J.; Jin, Z.; Cheng, X.; Huang, K.; Shi, Y.; Wang, Q.; Ling, Y. Synthesis and bioactivities of novel pyrazole oximes containing substituted thiadiazole moiety. Chin. J. Org. Chem. 2015, 35, 2617–2623. [Google Scholar] [CrossRef]
  24. Wang, S.L.; Shi, Y.J.; He, H.B.; Li, Y.; Li, Y.; Dai, H. Synthesis and bioactivity of novel pyrazole oxime derivatives containing oxazole ring. Chin. Chem. Lett. 2015, 26, 672–674. [Google Scholar] [CrossRef]
  25. Dai, H.; Li, G.; Chen, J.; Shi, Y.; Ge, S.; Fan, C.; He, H. Synthesis and biological activities of novel 1,3,4-thiadiazole-containing pyrazole oxime derivatives. Bioorg. Med. Chem. Lett. 2016, 26, 3818–3821. [Google Scholar] [CrossRef] [PubMed]
  26. Park, M.S.; Park, H.J.; Park, K.H.; Lee, K.I. Introduction of N-containing heterocycles into pyrazole by nucleophilic aromatic substitution. Synth. Commun. 2004, 34, 1541–1550. [Google Scholar] [CrossRef]
  27. Tanaka, A.; Terasawa, T.; Hagihara, H.; Sakuma, Y.; Ishibe, N.; Sawada, M.; Takasugi, H.; Tanaka, H. Inhibitors of acyl-CoA: Cholesterol O-acyltransferase. 2. Identification and structure-activity relationships of a novel series of N-alkyl-N-(heteroaryl-substituted benzyl)-N′-arylureas. J. Med. Chem. 1998, 41, 2390–2410. [Google Scholar] [CrossRef] [PubMed]
  28. Shi, Y.J.; Fang, Y.; Li, Y.; Chen, J.; Li, G.; Wang, Q.M.; Dai, H. Synthesis and biological activities of novel cyanoacrylate derivatives carrying 5-arylisoxazole group. Chem. J. Chin. Univ. 2017, 38, 421–428. [Google Scholar]
  29. Yu, X.L.; Liu, Y.X.; Li, Y.Q.; Wang, Q.M. Design, synthesis, and acaricidal/insecticidal activities of oxazoline derivatives containing a sulfur ether moiety. J. Agric. Food Chem. 2015, 63, 9690–9695. [Google Scholar] [CrossRef] [PubMed]
  30. Xu, R.B.; Xia, R.; Luo, M.; Xu, X.Y.; Cheng, J.G.; Shao, X.S.; Li, Z. Design, synthesis, crystal structures, and insecticidal activities of eight-membered azabridge neonicotinoid analogues. J. Agric. Food Chem. 2014, 62, 381–390. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 9a9v and 13a13f are available from the authors.

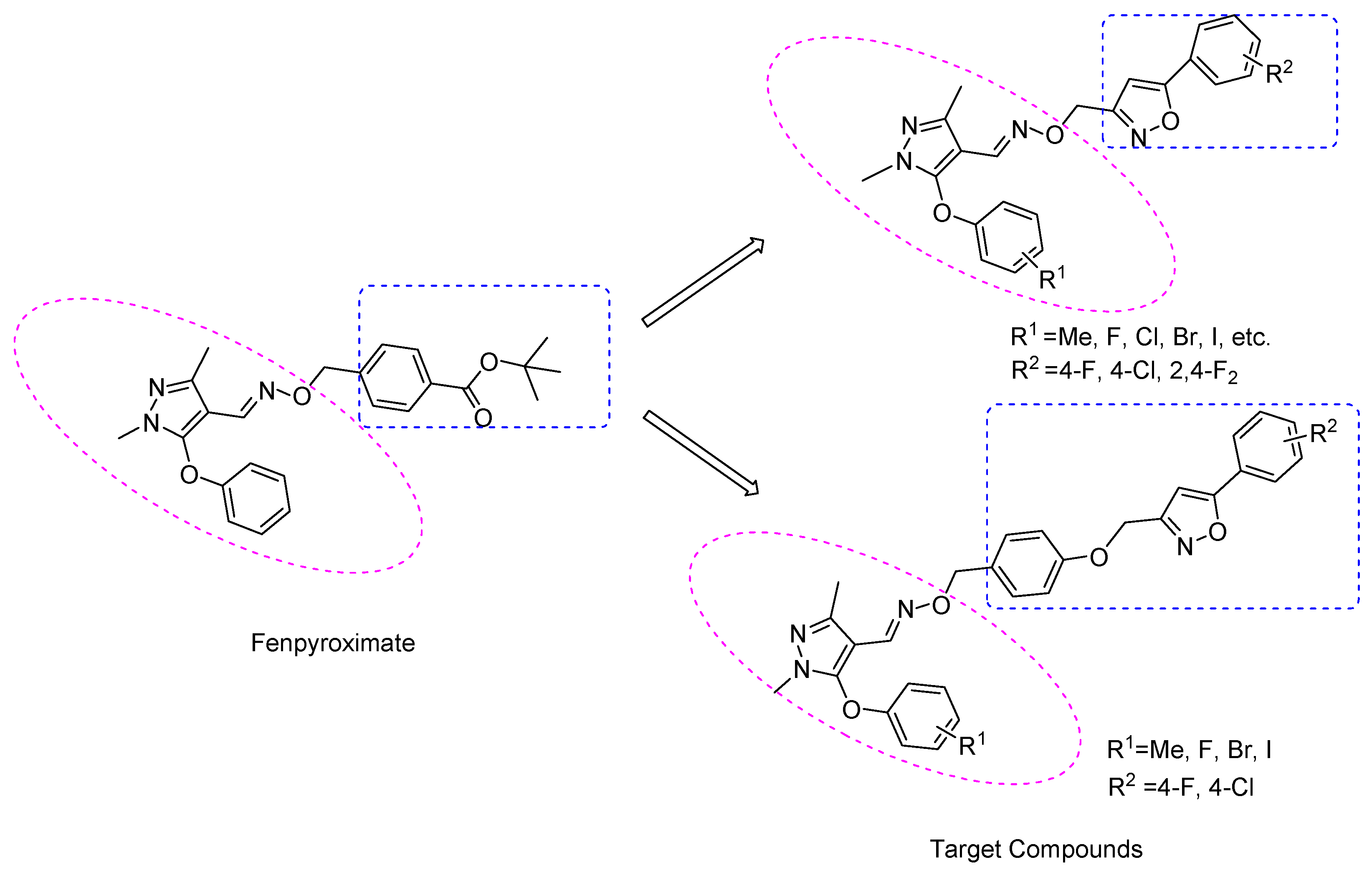

Figure 1. The design of the target molecules.
Figure 1. The design of the target molecules.
Molecules 22 02000 g001

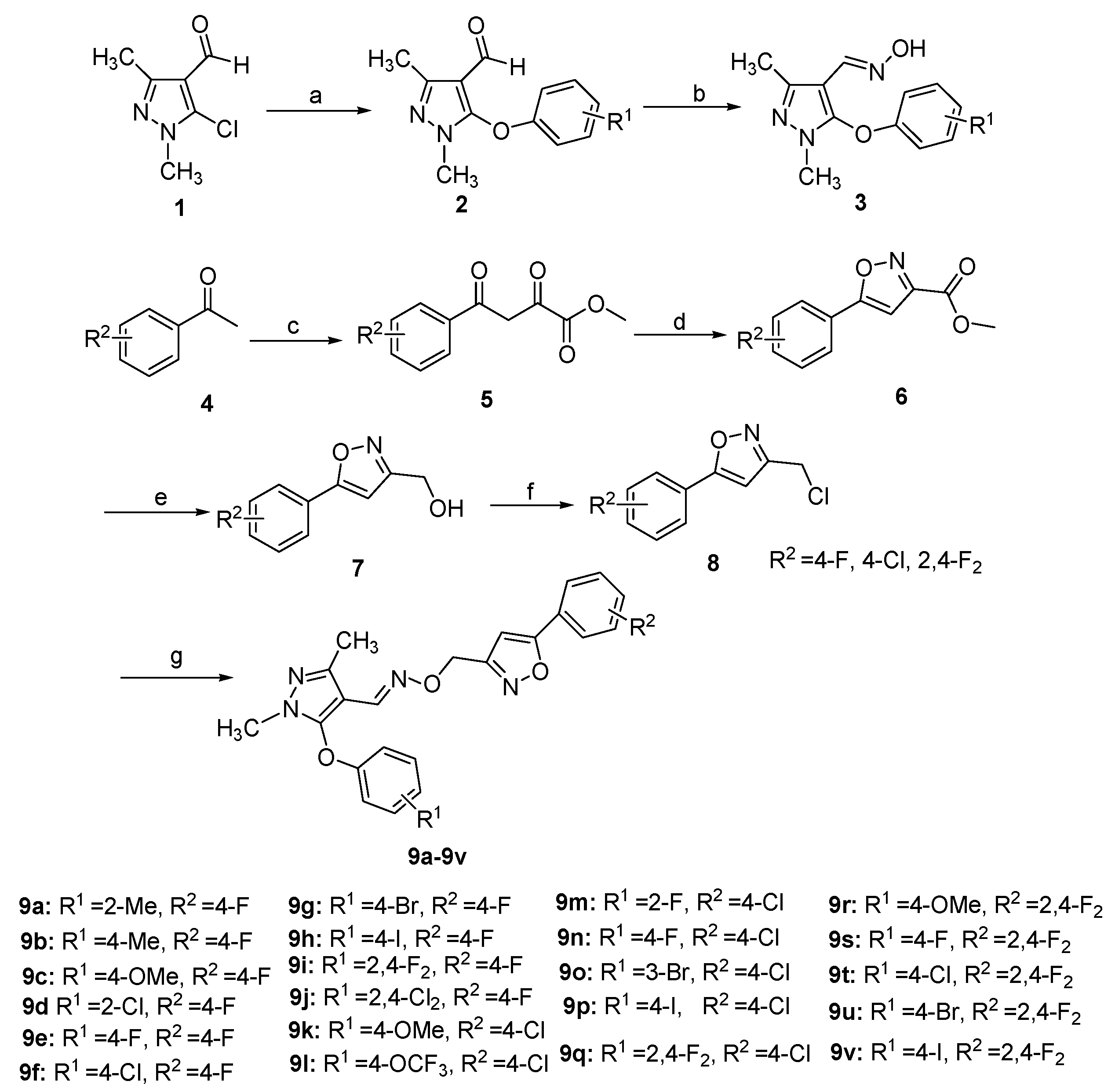

Scheme 1. Synthesis of the title compounds 9a9v. Reagents and conditions: (a) substituted phenol, KOH, DMF or DMSO, 40 °C, 2–4 h, 105 °C, 8–24 h, 52–76% for 2; (b) NH2OH·HCl, KOH, CH3OH, reflux, 7–22 h, 61–73% for 3; (c) dimethyl oxalate, CH3ONa, CH3OH, 60 °C, 6–8 h, 53–65% for 5; (d) NH2OH·HCl, CH3OH, 60 °C, 7–10 h, 55–60% for 6; (e) LiAlH4, THF, 0 °C, 3–6 h, 70–76% for 7; (f) SOCl2, DMF, CH2Cl2, 0 °C, 4–7 h, 73–80% for 8; (g) compound 3, K2CO3, Cs2CO3, CH3CN, reflux, 8–19 h, 47–63% for 9.
Scheme 1. Synthesis of the title compounds 9a9v. Reagents and conditions: (a) substituted phenol, KOH, DMF or DMSO, 40 °C, 2–4 h, 105 °C, 8–24 h, 52–76% for 2; (b) NH2OH·HCl, KOH, CH3OH, reflux, 7–22 h, 61–73% for 3; (c) dimethyl oxalate, CH3ONa, CH3OH, 60 °C, 6–8 h, 53–65% for 5; (d) NH2OH·HCl, CH3OH, 60 °C, 7–10 h, 55–60% for 6; (e) LiAlH4, THF, 0 °C, 3–6 h, 70–76% for 7; (f) SOCl2, DMF, CH2Cl2, 0 °C, 4–7 h, 73–80% for 8; (g) compound 3, K2CO3, Cs2CO3, CH3CN, reflux, 8–19 h, 47–63% for 9.
Molecules 22 02000 sch001

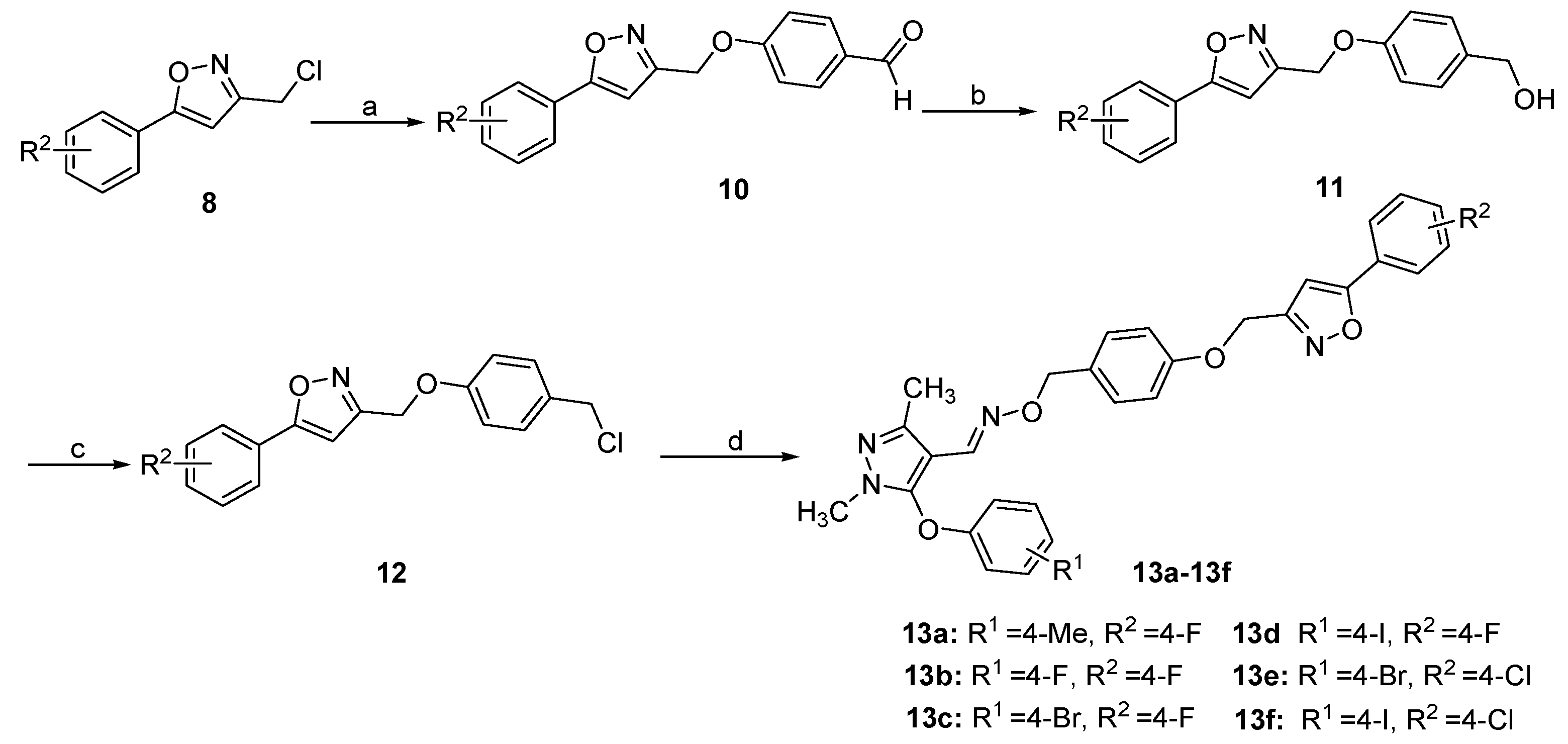

Scheme 2. Synthesis of the title compounds 13a13f. Reagents and conditions: (a) 4-hydroxybenzaldehyde, Cs2CO3, CH3CN, reflux, 5 h, 71–77% for 10; (b) LiAlH4, THF, 0 °C, 30 min, 68–72% for 11; (c) SOCl2, DMF, CH2Cl2, 0 °C, 6–8 h, 62–65% for 12; and, (d) compound 3, K2CO3, CH3CN, reflux, 10–15 h, 46–56% for 13.
Scheme 2. Synthesis of the title compounds 13a13f. Reagents and conditions: (a) 4-hydroxybenzaldehyde, Cs2CO3, CH3CN, reflux, 5 h, 71–77% for 10; (b) LiAlH4, THF, 0 °C, 30 min, 68–72% for 11; (c) SOCl2, DMF, CH2Cl2, 0 °C, 6–8 h, 62–65% for 12; and, (d) compound 3, K2CO3, CH3CN, reflux, 10–15 h, 46–56% for 13.
Molecules 22 02000 sch002
Table 1. Acaricidal and insecticidal activities of target compounds 9a9v and 13a13f (mortality, %).
Table 1. Acaricidal and insecticidal activities of target compounds 9a9v and 13a13f (mortality, %).
Compd.Tetranychus cinnabarinusAphis medicaginis
500 μg/mL100 μg/mL500 μg/mL100 μg/mL20 μg/mL
9a0b90.52 ± 0.7240.54 ± 1.220
9b0100.00 ± 0.00100.00 ± 0.0040.89 ± 0.57
9c0100.00 ± 0.00100.00 ± 0.00100.00 ± 0.00
9d0100.00 ± 0.00100.00 ± 0.0060.36 ± 1.08
9e80.46 ± 0.65 a50.49 ± 1.78100.00 ± 0.0090.66 ± 0.5350.67 ± 1.36
9f050.33 ± 1.590
9g0100.00 ± 0.00100.00 ± 0.0080.73 ± 0.71
9h0100.00 ± 0.00100.00 ± 0.0090.56 ± 0.82
9i0100.00 ± 0.00100.00 ± 0.0085.83 ± 0.69
9j0100.00 ± 0.00100.00 ± 0.0080.28 ± 1.21
9k0100.00 ± 0.000
9l00
9m050.72 ± 1.370
9n00
9o00
9p00
9q50.38 ± 1.230100.00 ± 0.000
9r0100.00 ± 0.0070.89 ± 1.250
9s0100.00 ± 0.0040.57 ± 0.68
9t0100.00 ± 0.000
9u0100.00 ± 0.00100.00 ± 0.0090.78 ± 1.35
9v0100.00 ± 0.00100.00 ± 0.0090.62 ± 0.96
13a00
13b00
13c20.26 ± 1.61100.00 ± 0.0020.92 ± 0.52
13d00
13e00
13f0100.00 ± 0.0030.81 ± 1.47
Fenpyroximate100.00 ± 0.00100.00 ± 0.00
Chlorantraniliprole100.00 ± 0.00100.00 ± 0.00100.00 ± 0.00
a Each value represents the mean ± standard error of three replications. b “—” refers to “not tested”.
Table 2. Insecticidal activities of title compounds 9a9v and 13a13f (mortality, %).
Table 2. Insecticidal activities of title compounds 9a9v and 13a13f (mortality, %).
Compd.Mythimna separataNilaparvata lugens
500 μg/mL100 μg/mL20 μg/mL500 μg/mL100 μg/mL20 μg/mL
9a0b85.54 ± 1.320
9b90.37 ± 0.85 a00
9c100.00 ± 0.00100.00 ± 0.0040.57 ± 0.76100.00 ± 0.000
9d60.29 ± 1.030100.00 ± 0.000
9e50.55 ± 0.92090.26 ± 1.4575.23 ± 0.6930.87 ± 1.43
9f80.76 ± 0.65050.32 ± 1.210
9g80.32 ± 0.8250.43 ± 0.73080.79 ± 0.8775.76 ± 0.750
9h100.00 ± 0.0040.56 ± 0.4795.23 ± 0.6550.43 ± 1.580
9i100.00 ± 0.0030.19 ± 1.58100.00 ± 0.000
9j90.74 ± 0.57090.86 ± 0.710
9k100.00 ± 0.00100.00 ± 0.0070.86 ± 0.63100.00 ± 0.000
9l050.43 ± 0.540
9m080.31 ± 1.290
9n00
9o100.00 ± 0.0000
9p100.00 ± 0.0060.58 ± 1.2100
9q100.00 ± 0.00070.32 ± 0.860
9r100.00 ± 0.0030.48 ± 0.65100.00 ± 0.0040.87 ± 0.73
9s100.00 ± 0.000100.00 ± 0.000
9t100.00 ± 0.0070.18 ± 1.4330.27 ± 1.22100.00 ± 0.0030.75 ± 0.82
9u100.00 ± 0.00100.00 ± 0.00100.00 ± 0.000
9v100.00 ± 0.0050.21 ± 1.5600
13a100.00 ± 0.0040.43 ± 1.810
13b100.00 ± 0.0030.61 ± 0.630
13c100.00 ± 0.00020.68 ± 1.21
13d70.91 ± 0.890100.00 ± 0.0020.65 ± 0.53
13e100.00 ± 0.00030.21 ± 1.12
13f100.00 ± 0.00020.57 ± 0.43
Pyridalyl100.00 ± 0.00100.00 ± 0.00100.00 ± 0.00
Abamectin100.00 ± 0.00100.00 ± 0.00100.00 ± 0.00
a Each value represents the mean ± standard error of three replications. b “—” refers to “not tested”.
