Molecules 2017, 22(11), 1956; doi:10.3390/molecules22111956

Article
Two Sulfur Glycoside Compounds Isolated from Lepidium apetalum Willd Protect NRK52e Cells against Hypertonic-Induced Adhesion and Inflammation by Suppressing the MAPK Signaling Pathway and RAAS
1
College of Pharmacy, Henan University of Chinese Medicine, Zhengzhou 450046, China
2
Collaborative Innovation Center for Respiratory Disease Diagnosis and Treatment & Chinese Medicine Development of Henan Province, Zhengzhou 450046, China
*
Author to whom correspondence should be addressed.
Received: 12 October 2017 / Accepted: 9 November 2017 / Published: 12 November 2017

Abstract

:
Lepidium apetalum Willd has been used to reduce edema and promote urination. Cis-desulfoglucotropaeolin (cis-DG) and trans-desulfoglucotropaeolin (trans-DG) were isolated from Lepidium apetalum Willd, and caused a significant increase in cell viability in a hypertonic model in NRK52e cells. In the hypertonic model, cis-DG and trans-DG significantly promoted the cell viability of NRK52e cells and inhibited the elevation of Na+ in the supernatant, inhibited the renin-angiotensin-aldosterone (RAAS) system, significantly reduced the levels of angiotensin II (Ang II) and aldosterone (ALD), and lowered aquaporin-2 (AQP2) and Na+–K+ ATP content in renal medulla. After treatment with cis-DG and trans-DG, expression of calcineurin (CAN) and Ca/calmodulin-dependent protein kinase II (CaMK II) was decreased in renal tissue and Ca2+ influx was inhibited, thereby reducing the secretion of transforming growth factor-β (TGFβ), reversing the increase in adhesion and inflammatory factor E-selectin and monocyte chemotactic protein 1 (MCP-1) induced by high NaCl, while reducing oxidative stress status and decreasing the expression of cyclooxygenase-2 (COX2). Furthermore, inhibition of protein kinase C (PKC) expression also contributed to these improvements. The cis-DG and trans-DG reduced the expression of p-p44/42 MAPK, p-JNK and p-p38, inhibited the phosphorylation of the MAPK signaling pathway in NRN52e cells induced by high salt, decreased the overexpression of p-p38 and p-HSP27, and inhibited the overactivation of the p38-MAPK signaling pathway, suggesting that the p38-MAPK pathway may play a vital role in the hypertonic-induced adhesion and inflammatory response. From the results of this study, it can be concluded that the mechanism of cis-DG and trans-DG may mainly be through inhibiting the p38-MAPK signaling pathway, inhibiting the excessive activation of the RAAS system, and thereby reducing adhesion and inflammatory factors.
Keywords:
sulfur glycoside; hypertonic model; MAPK signaling pathway; RAAS; adhesion; inflammatory

1. Introduction

Lepidium apetalum Willd was first described in the Eastern Han Chinese “Shen Nong Ben Cao Jing”. It is a commonly used Chinese medicine in the treatment of edema, cough and asthma. Lepidium apetalum Willd belongs to the Brassicaceae family. The dry mature seeds of this plant have been used in traditional Chinese medicine (TCM) to relieve cough, prevent asthma, reduce edema and promote urination. Several studies have reported that it contains various types of secondary metabolites, such as oils, flavonoids, sterols and cardiac glycosides [1,2,3], and shows antioxidant [1], antibacterial [2] and beneficial cardiac [4] activities. Clinical research suggests that it is useful for heart failure [5,6]. Therefore, studies of the phytochemical activity and structure–activity relationships of constituents of Lepidium apetalum Willd were developed in our lab.
According to the effect on reducing edema and promoting urination of Lepidium apetalum Willd, we tried to establish the corresponding cell model of hypertonic stress to investigate the mechanism at the molecular level. When the extracellular environment is hypertonic, cells lose water and consequently, shrink. To counteract this, cells increase their sodium uptake in order to lose less water. However, an increase in intracellular ionic concentration is harmful to the cell. Hypertonic stress leads to a decrease in cell viability, and intracellular and extracellular ionic strength may change. At the same time, due to the hypertonic effect, the intracellular Na+ level rises, renin-angiotensin-aldosterone system (RAAS) will be activated and the expression of cellular aquaporin-2 (AQP2) increases. The renin angiotensin aldosterone system (RAAS) plays an important role in blood pressure regulation, fluid volume and sodium balance, mainly including renin, angiotensin converting enzyme (ACE), angiotensin II (Ang II) and aldosterone (ALD). Excessive activation of the RAAS system can not only lead to vasoconstriction and sodium water retention, and cause high blood pressure, it contributes to the pathogenesis of a variety of clinical conditions, including progression of kidney disease, and leads to cardiac and vascular remodeling that affects cardiac function and reduces vascular elasticity [7,8]. Angiotensin II increases blood pressure by stimulating the Gq protein in vascular smooth muscle cells (which in turn activates an IP3-dependent mechanism leading to a rise in intracellular calcium levels and ultimately causing contraction). In addition, angiotensin II acts at the Na/H+ exchanger in the proximal tubules of the kidney to stimulate Na+ reabsorption and H+ excretion, which is coupled to bicarbonate reabsorption. In the adrenal cortex, angiotensin II acts to cause the release of aldosterone. Aldosterone acts on the tubules (e.g., the distal convoluted tubules and the cortical collecting ducts) in the kidneys, causing them to reabsorb more sodium and water from the urine. This ultimately results in an increase in blood volume and, therefore, increases blood pressure. As the main peptide hormone that causes vasoconstriction and a subsequent increase in blood pressure, angiotensin II also causes the occurrence of an inflammatory response [9]. Under normal conditions, pro-inflammatory cytokines and anti-inflammatory factors maintain a dynamic equilibrium with each other. After being subjected to external stimuli such as hypertonic stress, RAAS is activated, the level of angiotensin II increases, and the dynamic balance is broken, leading to a series of pathophysiological changes. This leads to an increase in the release of inflammatory factors, including transforming growth factor-β (TGFβ), monocyte chemotactic protein 1 (MCP-1), E-selectin and cyclooxygenase-2 (COX2). MAPKs are involved in directing cellular responses to a diverse array of stimuli, such as mitogens, osmotic stress, heat shock and pro-inflammatory cytokines. They regulate cell functions including proliferation, gene expression, differentiation, mitosis, cell survival and apoptosis. MAPKs are evolutionarily conserved signaling proteins present in all eukaryotes. They are activated by substantially diverse extracellular stimuli (e.g., osmotic stress), and the activation of multiple MAPK pathways orchestrates fundamental cellular processes (e.g., proliferation, growth, survival, migration, gene expression, cell cycle control and apoptosis) [10]. As the main effector cells of interstitial inflammatory injury, the surface membrane receptor CD40 of renal tubular epithelial cells binds to ligand CD154 in order to phosphorylate the MAPK signaling pathway to synthesize TGFβ, MCP-1 and other inflammatory factors, and upregulate COX2 expression [11,12]. These inflammatory factors are important regulatory factors in the inflammatory response of the kidneys. Many experiments have confirmed that MCP-1 has chemotactic activity in vivo, activates monocytes and macrophages, increases intracellular Ca2+ concentration, leads to the production and release of superoxide anions and upregulates the expression of adhesion factors such as E-selectin. While the increase in the concentration of Ca2+ in the body will directly lead to activation of protein kinase C (PKC), it will also activate the Ca2+/calmodulin-dependent protein kinases II -Calcineurin (CaMK II-CAN) signaling pathway. The CaMK II-CAN signaling pathway plays an important role in osmotic regulation, and the extracellular Ca2+ influx caused by osmotic response will further activate the CaMK II-CAN signaling pathway. Its downstream nuclear factor of activated T-cells 5, also known as NFAT5, is a human gene that encodes a transcription factor that regulates the expression of genes involved in osmotic stress [13,14]. Therefore, the activation of the CaMK II-CAN signaling pathway indicates the occurrence of hypertonic stress.
In the early stages of our group’s research, a large number of valuable monomer components were isolated from Lepidium apetalum Willd. The two sulfide glycoside compounds isolated from the 20% ethanol elution fraction were racemates and were isolated for the first time from Lepidium apetalum Willd [15]. After active screening, the two sulfide glycosides had a significant effect on the hypertonic model in NRK52e cells induced by high NaCl, suggesting that they may play a role in the treatment of kidney injury and other diseases (including nephritis, renal fibrosis and hypertension). Therefore, to further explore the mechanism of action of the two sulfide glycosides, we conducted this experiment to provide the basis of the discovery of new drugs with kidney damage-related diseases.

2. Results

2.1. Cis-DG and Trans-DG Increased the Cell Survival Rate in a Hypertonic Model in NRK52e Cells

The MTT assay was used to monitor cell viability in response to cis-desulfoglucotropaeolin (cis-DG) and trans-desulfoglucotropaeolin (trans-DG) treatment of the hypertonic model. As shown in Table 1, the cell survival rate of NRK52e cells was significantly decreased in the high-NaCl group compared with the normal control group (Control) (p < 0.01). While the cis-DG and trans-DG groups had a significantly increased cell survival rate compared with the high-NaCl group (p < 0.01), there was no difference between the cis-DG and trans-DG groups (p > 0.05), which indicated that cis-DG and trans-DG promoted the cell survival rate in the hypertonic model.

2.2. Cis-DG and Trans-DG Decreased Ion Concentration in the Hypertonic Model in NRK52e Cells

When the extracellular environment is hypertonic, intracellular and extracellular ionic strength may change. An increase in intracellular ionic concentration is harmful to the cell. As shown in Table 2, the level of Na+ and Cl were significantly increased in the high-NaCl group (p < 0.01), and the level of K+ was decreased (p < 0.01). Cis-DG and trans-DG could reverse the level of Na+ (p < 0.01 and p < 0.05), but there was a more-significant decrease in the cis-DG group compared with the trans-DG group (p < 0.01). This result may be related to the difference of configuration, and the cis-configuration decreased more in the level of Na+.

2.3. Cis-DG and Trans-DG Inhibited RAAS Overactivation in the Hypertonic Model in NRK52e Cells

As a hormone system that regulates blood pressure and fluid balance, RAAS plays a vital role in the organism. In this research, we tested the components of the RAAS system, including renin, Ang II, ACE and ALD. From the results, we found that cis-DG and trans-DG could decrease the levels of Ang II and ALD (p < 0.01 or p < 0.05), as shown in Table 3, and reverse the situation of overactivation of RAAS, which suggested that the two compounds suppressed RAAS mainly through Ang II and ALD.

2.4. Cis-DG and Trans-DG Downregulated AQP2 and Na+–K+ ATP Expression in the Hypertonic Model in NRK52e Cells

AQP2 and Na+–K+ ATPs maintain the balance of water metabolism in the body. As shown in Table 4, in the high-NaCl group, cellular AQP2 and Na+–K+ ATP levels increased remarkably (p < 0.05), while cis-DG and trans-DG decreased cellular AQP2 and Na+–K+ ATP levels (p < 0.01 or p < 0.05). From the result, cis-DG decreased Na+–K+ ATP levels (p < 0.01) and trans-DG decreased Na+–K+ ATP levels (p < 0.05).

2.5. Cis-DG and Trans-DG Reduced CaMK II and CAN Expression in the Hypertonic Model in NRK52e Cells

As shown in Table 5, in the high-NaCl group, cellular CaMK II and CAN expression increased remarkably (p < 0.01), while cis-DG and trans-DG decreased cellular CaMK II and CAN significantly (p < 0.01).

2.6. Cis-DG and Trans-DG Reduced the Expression of Adhesion and Inflammatory Factors in the Hypertonic Model in NRK52e Cells

As shown in Table 6 and Table 7, high NaCl induced hypertonic stimulation, led to TGF-β and MCP-1 overexpression, suppressed adiponectin (APN) expression (p < 0.01), activated monocytes and macrophages, increased intracellular Ca2+ concentration and increased superoxide anion production and release, which resulted in PKC activation and an increase in E-selectin and COX2 expression (p < 0.01).
Cis-DG and trans-DG reversed TGF-β and MCP-1 overexpression and increased APN expression, but decreased PKC, E-selectin and COX2 expression (p < 0.01), thus alleviating the adhesion and inflammatory response induced by hypertonic stress.

2.7. Cis-DG and Trans-DG Inhibited the Overexpression of the MAPK and p38-MAPK Signaling Pathways in the Hypertonic Model in NRK52e Cells

As shown in Figure 1, high NaCl-induced hypertonic stimulation resulted in p-p44/42 MAPK, p-c-Jun N-terminal kinase (p-JNK) and p-p38 overexpression (p < 0.01), indicating that the MAPK signaling pathway was mainly activated by the phosphorylated key proteins. Cis-DG and trans-DG suppressed the phosphorylation of the MAPK signaling pathway (p < 0.01), and showed the greatest improvement on p-p38.
Meanwhile, as shown in Figure 2, p-p38 and p-heat shock protein 27 (p-HSP27) overexpression (p < 0.01) showed that the p38-MAPK signaling pathway was activated significantly. The intervention of cis-DG and trans-DG inhibited the overactivation of the p38-MAPK signaling pathway (p < 0.01), indicating that the p38-MAPK signaling pathway may play a key role in the hypertonic model.

3. Discussion

Lepidium apetalum Willd in the ancient Materia Medica was shown to have significant benefits of inducing diuresis for removing edema, reducing edema and promoting urination. Therefore, the effect of cis-DG and trans-DG was investigated for hypertonic stress in vitro, similar to the renal-injury or salt-sensitive-hypertension models.
The kidney undertakes three physiological functions in the body. Firstly, it is an important excretory organ for metabolic excretion in the body, maintaining the internal environment through the urine to produce metabolic end products, and excreting excess substances of the body to the outside [16]. Secondly, the kidney can regulate the water, electrolyte and acid–base equilibrium [17]. The regulation of moisture by the kidney depends on antidiuretic hormones. The regulation of Na+ and K+ ions depends on aldosterone. Thirdly, the kidney has an endocrine function and can secrete hormone-like substances, such as renin, bradykinin, prostaglandins, erythropoietin and others [18]. In short, the excretion of the kidneys, and regulation of electrolytes and the body-fluid balance, are accomplished through urine generation and excretion to maintain the normal osmotic pressure of the body. Epithelial cells isolated from mouse or rat medulla have become one of the best and most common model cells for cell osmotic regulation [19,20]. Therefore, in this study, we established the hypertonic model with high NaCl in NRK52e cells to mimic the renal injury of salt-sensitive hypertension in vivo. The RAAS system is an important neurohumoral mechanism that regulates water-sodium metabolism, and vasomotor and blood-pressure stability. Renin activates angiotensinogen into angiotensin I, and ACE can split angiotensin I into active angiotensin II, which can cause vasoconstriction and lead to high blood pressure. In addition, angiotensin II can also promote the synthesis and secretion of aldosterone, thus causing water-sodium retention, increasing blood circulation and increasing blood pressure [21,22]. Under the hypertonic stress, extracellular ionic strength rises, and cells lose water. The Na+ retention in vivo can lead to the expansion of blood volume, which leads to contraction of the arteries and an increase of peripheral resistance, eventually activating RAAS. The renin–angiotensin–aldosterone system (RAAS) is both a circulatory system and a local secretion system, and is one of the most important regulatory mechanisms of blood pressure. Its main effect is mediated by Ang II and its specific type 1 receptor (AT1R). When the signaling molecule Ang II activates its receptor AT1R on intraglomerular mesangial cells, this causes these cells to contract along with the blood vessels surrounding them and causes the release of aldosterone from the zona glomerulosa in the adrenal cortex [23]. Ang II not only plays an important role in vasoconstriction, but can also induce hypertension through oxidative stress and the inflammatory response [24]. Meanwhile, Ang II induces endothelial dysfunction by producing nitric oxide and mediating inflammation. Inflammation and endothelial dysfunction are the major risk factors of atherosclerosis and cardiovascular disease [25]. Excessive activation of the RAAS system is regarded as an important pathological link in the pathogenesis of primary hypertension, and the excessive secretion of plasma renin activity (PRA), Ang II and ALD in the system can raise blood pressure by promoting vasoconstriction and water-sodium reabsorption [26]. In this study, due to the increase in extracellular NaCl, the membrane receptor was activated and the expression of Na+–K+ ATPase increased, leading to overactivation of RAAS. Cis-DG and trans-DG can significantly inhibit the levels of Na+, Ang II and ALD in the RAAS system and alleviate the overactivation of RAAS (as shown in Table 2 and Table 3).
Osmotic stress arises from the difference between intracellular and extracellular osmolality. It induces cell swelling or shrinkage as a consequence of water influx or efflux, which threatens cellular activities. Mitogen-activated protein kinases (MAPKs) play central roles in signaling pathways in osmotic stress responses, including the regulation of intracellular levels of inorganic ions and organic osmolytes. MAPKs are evolutionarily conserved signaling proteins present in all eukaryotes. They are activated by substantially diverse extracellular stimuli (e.g., osmotic stress), and the activation of multiple MAPK pathways orchestrates fundamental cellular processes (e.g., proliferation, growth, survival, migration, gene expression, cell cycle control and apoptosis) [27,28,29,30]. The unique property of the MAPK signaling pathways is the three-layer phosphorylation cascade accomplished by different groups of kinases, which are referred to as “core signaling modules.” The most upstream group, the MAPK kinase kinases (MAP3Ks or MAPKKKs), phosphorylate Ser/Thr residues in the activation loop of MAPK kinases (MAP2Ks or MAPKKs). In turn, MAP2Ks phosphorylate MAPKs at the conserved Thr-X-Tyr motif in their activation loop. Extracellular signal-regulated kinase 1/2 (ERK1/2), p38-MAPK and c-Jun N-terminal kinase (JNK) are the vital members of MAPKs with involvement in osmotic stress signaling. The p38-MAPK signaling pathway plays an important role in the transduction of signal transduction molecules, which can be activated when phosphorylated. The activated p38-MAPK signaling pathway can continue to activate phosphorylation of downstream proteins, and for example, phosphorylate nuclear transcription factors to start gene transcription and to regulate the inflammatory response pathway [31]. In this study, hypertonic stimulation activated phosphorylation of the MAPK signaling pathway, and the p38-MAPK signaling pathway was also activated, leading to a series of inflammatory responses. cis-DG and trans-DG inhibited the activation of the MAPK signaling pathway, significantly reduced the phosphorylation levels of p-44/42 MAPK, p-JNK and p-p38, and decreased the expression of HSP27, indicating that cis-DG and trans-DG can inhibit excessive activity of the MAPK signaling pathway and improve the hypertonic stress state, mainly through the p38-MAPK signaling pathway (as shown in Figure 1 and Figure 2). Meanwhile, The Ca2+/CaMKII/CAN pathway regulates the activity of the transcription factors of the nuclear factor of activated T cells (NFAT) family. The NFAT family encompasses five individually encoded members. NFAT5, which differs in its structure from the other NFATs, is not regulated by calcium, but is activated in response to osmotic stress. NFATs are maintained in an inactive state in the cytosol of resting cells. Upon the stimulation of intracellular Ca2+ influx, CaM is activated by CaMKII and dephosphorylates the phosphorylation motifs from the N-terminus of NFATs, allowing NFATs to translocate to the nucleus where they collaborate with other transcription factors, such as AP-1, to encode a transcription factor that regulates the expression of genes involved in the osmotic stress [32]. This shows the important role of the CaMKII-CAN signaling pathway in osmotic stress regulation. Therefore, this study detected the expression of CaMKII and CAN. We found that cis-DG and trans-DG do have a significant regulatory role in the CaMKII-CAN signaling pathway (as shown in Table 5).
Kidney epithelial cells are the main effector cells of interstitial inflammatory injury. The combination of the surface membrane receptor, CD40, with the ligand, CD154, can activate the MAPK signaling pathway and synthesize IL-8 and MCP-1 inflammatory factors [14,33]. These inflammatory factors are important regulatory factors in the renal inflammatory response and renal interstitial fibrosis (RIF) process. The p38-MAPK pathway is one of the most important signaling pathways that can mediate cell survival under hypertonic stress conditions. Under high osmotic pressure, cells will activate some signaling pathways, including the p38-MAPK pathway, to induce osmotic stress-protection gene expression. Meanwhile, an increase in extracellular NaCl concentration can cause the production of reactive oxygen species (ROS) [34,35]. In general, ROS are destructive to cells, but in the hypertonic stress response, ROS can act as signaling molecules for osmotic protection. ROS participate in activation of the MAPK pathway and mediate increased expression of the COX2 protein in the hypertonic stress state [36]. At present, the biological function of TGF-β is mainly understood to be in inflammation, tissue repair and embryonic development. In recent years, researchers have found that TGF-β has an important regulatory role in cell growth, differentiation and immune function. MCP-1 is also known as a monocyte chemotactic and activating factor (MCAF), and belongs to the cysteine-cysteine subfamily (C-C subfamily) (β-subfamily). APN is an endogenous, biologically active polypeptide or protein secreted by adipocytes. It can reduce the adhesion of mononuclear cells in the early intervention of atherosclerotic lesions, and can also reduce the expression of various adhesion molecules (VCAM-1, ICAM-1, E-selectin) in endothelial cells. The results on TGF-β and MCP-1 as adhesion and inflammatory factors showed that increased extracellular NaCl concentration could cause increased secretion of TGF-β, promoting Ca2+ influx and intracellular inositol 1,3,4-trisphosphate (IP3) levels to increase and activate PKC. It also promoted the secretion of MCP-1, increased the chemotactic activity for activation of monocytes and macrophages, increased the cytoplasmic Ca2+ concentration, produced and released superoxide anions, and resulted in the uptake of adhesion molecules and E-selectin expression. Under a hypertonic stress state, intracellular APN expression decreased and activated monocytes and macrophages, resulting in a series of pathological changes. Hypertonic stimulation also increased COX2 expression and catalyzed prostaglandin (PG) synthesis in the inflammatory response. Intracellular elevated Ca2+ concentration leads to the activation of the CaMKII-CAN signaling pathway, further starting downstream regulation and transcription factor activity to undertake a series of regulatory responses. The experimental results showed that cis-DG and trans-DG can reduce the secretion of TGF-β and MCP-1 (as shown in Table 6) and decrease the concentration of Ca2+ in the cytoplasm, thus reducing the expression of PKC, COX2 and E-selectin, and alleviating the adhesion and inflammatory response (as shown in Table 7). It can be seen from Figure 3 that the forms of cis-DG and trans-DG are structurally similar, but the structures are not the same. Although the two compounds are similar in their mechanism of action, due to structural differences, there are differences in their roles, such as decreasing the expression of PKC and E-selectin and increasing the expression of APN.
Several studies have reported that Lepidium apetalum Willd contains various types of secondary metabolites, such as oils, flavonoids, sterols and cardiac glycosides, but the basis of its efficacy are the flavonoids and flavonoid glycoside compounds [37]. A number of active ingredients were obtained from Lepidium apetalum Willd in our research group; among them, cis-DG and trans-DG significantly promoted the proliferation of NRK52e cells with a hypertonic model. As Lepidium apetalum Willd is used commonly as a treatment for edema, we presumed that cis-DG and trans-DG may also have a similar effect. In this study, the mechanism of cis-DG and trans-DG was studied from the cellular level, and it was found that cis-DG and trans-DG can inhibit the overactivation of RAAS and MAPK signaling pathways, thereby inhibiting the expression of adhesion factors and inflammatory factors and alleviating cell hypertonic stress, suggesting that cis-DG and trans-DG may have a potential therapeutic effect on edema. In the follow-up experiment, we will carry out the relevant animal experiments to explore its in-depth mechanism in vivo.

4. Materials and Methods

4.1. Material

The seeds of Lepidium apetalum Willd were collected from Nanyang city in Henan Province, China, and were identified by Dr. Chen Suiqing and Dong Chengming (College of Pharmacy, Henan University of Chinese Medicine, Zhengzhou, China).
Lepidium apetalum Willd (8 kg) was prepared at 240 °C for 5.5 min and then extracted three times by water (80 L × 3) 1.5 h each at 100 °C. The solvent was evaporated under reduced pressure to get the crude extract. We adjusted the concentration of ethanol to 80% to make polysaccharide precipitate. The supernatant was concentrated, and then subjected to a Dianion HP-20 column followed by elution with water, 20% ethanol, 40% ethanol, 60% ethanol and 95% ethanol to give a water elution fraction (361 g), 20% ethanol elution fraction (71 g), 40% ethanol elution fraction (89 g), 60% ethanol elution fraction (67 g) and 95% ethanol elution fraction (28 g). The 20% ethanol eluting fractions (71 g) were applied to Toyopearl HW-40 column chromatography, and eluted with methanol–water (0:100 to 100:0) to give components A1 to A5. Component A2 (15 g) was chromatographed by ODS-18 reverse-phase column chromatography, and eluted with methanol–water (0:100 to 100:0) to give B1 to B7. Component B4 was subjected to Sephadex LH-20 column chromatography, and eluted with 70% methanol–water to give the components C1 to C3. C2 was applied to semi-preparative HPLC, and eluted with methanol–water (32:68) to get compound 1 (32 mg, tR = 40.6 min) and compound 2 (13 mg, tR = 86.6 min). Through the spectral data and physicochemical properties of the compounds, the two compounds were identified as cis-desulfoglucotropaeolin (cis-DG) and trans-desulfoglucotropaeolin (trans-DG), and the purity of these two compounds prepared in our laboratory was more than 98%, as determined by UV spectrophotometry [15] and as shown in Figure 3.

4.2. Cell Culture

Rat renal proximal tubular epithelial cell lines (NRK52e), which were purchased from ATCC (Rockville, MD, USA), were utilized in in-vitro experiments. The cells were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM, HyClone, Logan, UT, USA) and supplemented with 10% Fetal Bovine Serum (FBS) (Gibco, Pittsburgh, PA, USA). A humidified incubator with 5% CO2 at 37 °C was used to culture the NRK52e cells.

4.3. Generation of High Salt-Induced Hypertonic Model in NRK52e Cells

The NRK52e cells were divided into the following groups: Control, the normal group without any treatment; High NaCl, the high-NaCl group, which consisted of 200 mmol/L NaCl; High NaCl + HCTZ pertained to the 20 μmol/L hydrochlorothiazide intervention group, which contained 200 mmol/L NaCl + 20 μmol/L HCTZ; High NaCl + cis-DG pertained to the 5 μmol/L cis-DG intervention group, which contained 200 mmol/L NaCl + 5 μmol/L cis-DG; High NaCl + trans-DG pertained to the 5 μmol/L trans-DG intervention group, which contained 200 mmol/L NaCl + 5 μmol/L trans-DG.
NRK52e cells were seeded in 96-well plates. The density of the cells in each plate was 2 × 104 cells/mL. The cells were cultured at 37 °C in an atmosphere of 5% CO2. After the cells became adherent, we removed the original medium and washed the cells. The medium of the normal control group was replaced with DMEM containing 10% FBS. The medium of the model group was replaced with DMEM containing 10% FBS with 200 mmol/L NaCl. After the cells were cultured for 6 h, we detected the cell survival rate in each group to validate the model by methyl thiazolyl tetrazolium (MTT) assay.

4.4. The Experimental Groups

There were five groups in our study: the normal control group (Control), the high NaCl-induced model group (High NaCl) (treated with 200 mmol/L NaCl and cultivated for 6 h), the HCTZ group (High NaCl + HCTZ) (treated with 10 μmol/L HCTZ), the cis-DG group (treated with 5 μmol/L cis-DG) and the trans-DG group (treated with 5 μmol/L trans-DG).
NRK52e cells were seeded in 96-well plates. The density of the cells in each plate was 2 × 104 cells/mL. The cells were cultured at 37 °C in an atmosphere of 5% CO2. After the cells became adherent, we removed the original medium and washed the cells. The medium of the normal control group was replaced with DMEM containing 10% FBS. The medium of the model group was replaced with DMEM containing 10% FBS with 200 mmol/L NaCl. The medium of the HCTZ group was replaced with DMEM containing 10% FBS with 200 mmol/L NaCl and 20 μmol/L HCTZ. The medium of the cis-DG group was replaced with DMEM containing 10% FBS with 200mmol/L NaCl and 5 μmol/L cis-DG. The medium of the trans-DG group was replaced with DMEM containing 10% FBS with 200 mmol/L NaCl and 5 μmol/L trans-DG. The cells were cultured for 6 h, and then carried on in the follow-up experiments.

4.5. Cell Viability Assay

To measure cell proliferation, a methyl thiazolyl tetrazolium (MTT) assay was used. After passing the incubation time of treatment of NRK52e cells with cis-DG and trans-DG, the medium was substituted with (200 µL) fresh media containing 20 µL of MTT solution (2 mg/mL in Phosphate Buffer Saline (PBS), and the cells were treated for an additional 4 h at 37 °C. Then, the media/MTT mixture was removed and 150 μL of DMSO was added to each well. After 10 min of shaking in the plate to dissolve the crystals, the absorbance of each well was measured using a microplate reader at 490 nm. MTT solution with DMSO (without the cells and medium) was used as a blank control [38]. Finally, cell survival was calculated as: survival (%) = (mean experimental absorbance/mean control absorbance) × 100% [39].

4.6. Enzyme-Linked Immunosorbent Assay

For the ELISA assay, a 100 mm × 20 mm Petri dish was used. The density of cells in each dish was 2 × 105 cells/mL. After treatment with cis-DG and trans-DG for 6 h, the culture medium was collected from each petri dish and centrifuged. The supernatants were collected and used to detect the levels of renin (E-EL-R0030c, Elabscience Biotechnology Co. Ltd., Wuhan, China), ACE (E-EL-R2401c, Elabscience Biotechnology Co. Ltd.), Ang II (E-EL-R1430c, Elabscience Biotechnology Co. Ltd.), ALD (E-EL-0070c, Elabscience Biotechnology Co. Ltd.), MCP-1 (E-EL-R0633c, Elabscience Biotechnology Co. Ltd.) and TGF-β (E-EL-R0084c, Elabscience Biotechnology Co. Ltd.) according to the respective manufacturer’s instructions. The cells in each group were also collected to extract total protein, cytoplasmic protein and nuclear protein according to the manufacturer’s instructions (P0028, Beyotime Institute of Biotechnology, Shanghai, China). The protein solution was used in Western blot experiments after its concentration was determined using the BCA protein assay kit (Solarbio, No.20170815, Beijing Solarbio Science & Technology Co. Ltd., Beijing, China). After measuring its concentration, we used the extract to determine the activities of AQP2 (CSB-E08243r), Na+–K+ ATPs (A070-2, Nanjing Jiancheng Bioengineering Institute, Nanjing, China), CAN (E-EL-R0134c, Elabscience Biotechnology Co. Ltd.), CaMKII (CSB-E10034r, Cusabio Biotech Co. Ltd., Wuhan, China), APN (AK0017APR19018, Elabscience Biotechnology Co. Ltd.), PKC (E-EL-R0815c, Elabscience Biotechnology Co. Ltd.), COX2 (E-EL-R0792c, Elabscience Biotechnology Co. Ltd.) and E-selectin (E-EL-R0893c, Elabscience Biotechnology Co. Ltd.). Summary of the experiment is as follows: (1) add 100 μL standard or sample to each well. Incubate 90 min at 37 °C; (2) remove the liquid. Add 100 μL biotinylated detection antibody (Ab). Incubate 1 h at 37 °C; (3) aspirate and wash 3 times; (4) add 100 μL horseradish peroxidase (HRP) conjugate. Incubate 30 min at 37 °C; (5) aspirate and wash 5 times; (6) add 90 μL substrate reagent. Incubate 15 min at 37 °C; (7) add 50 μL stop solution. Read at 450 nm immediately; (8) according to the standard curve line and the OD values of the samples, calculate the results.

4.7. Western Blot Analysis

Equal amounts (20 μg) of nuclear and cytoplasmic extracts were used for 12% SDS–PAGE analysis, which were then transferred to a polyvinylidene difluoride membrane and then blocked in 5% nonfat milk in Tris-buffered saline with Tween-20 (TBST, 0.1%) for 2 h at room temperature and then immunoblotted with the corresponding primary antibodies and incubated overnight at 4 °C. After washing with TBST (5 × 5 min), the membranes were incubated with the appropriate secondary antibodies for 1 h at room temperature and then detected using a ChemiDoc XRS system (Bio-Rad, Hercules, CA, CA, USA). Finally, Image J (NIH, Rockville, MD, USA) was used to quantify the protein bands.

4.8. Statistical Analyses

All analyses were performed using SPSS 20.0 (IBM, New York, NY, USA). The quantitative data were expressed as the mean ± SEM ( x ¯ ± s, n = 5). Statistical significance was assessed in comparison with the respective control for each experiment using one-way ANOVA. p < 0.05 was accepted as significant.

5. Conclusions

The mechanism by which treatment with cis-DG and trans-DG reverses osmotic stress in NRK52e cells may involve inhibition of adhesion and the inflammatory response by suppression of the MAPK signaling pathways (especially the p38-MAPK signaling pathway) and RAAS.

Acknowledgments

The author of this article wants to take this opportunity to thank the National Key Basic Research Development Program of China (973 Program) (2013CB531802) and the Collaborative Innovation Center for Respiratory Disease Diagnosis and Treatment & Chinese Medicine Development of Henan Province for financial support.

Author Contributions

Xiaoke Zheng designed the experiments. Peipei Yuan performed the experiments, analyzed the raw data, and wrote the manuscript. Yingying Ke assisted with the experiments. Yang Fu and Qi Zhang assisted in the culturing of the cells. Meng Li and Xiaolan Wang contributed reagents. Weisheng Feng supervised the project.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
Abantibody
ACEAngiotensin converting enzyme
APNAdiponectin
ALDAldosterone
Ang IIAngiotensin II
AQP2Aquaporin-2
cis-DGCis-desulfoglucotropaeolin
CaMKIICa2+/calmodulin-dependent protein kinases II
CANCalcineurin
C-C subfamilyCysteine-cysteine subfamily
COX2Cyclooxygenase-2
ELISAEnzyme-linked immunosorbent assay
FBSFetal Bovine Serum
HCTZHydrochlorothiazide
HRPhorseradish peroxidase
HSP27heat shock protein 27
IP3Inositol 1,3,4-trisphosphate
JNKc-Jun N-terminal kinase
MCP-1Monocyte chemotactic protein 1
MTTMethyl thiazolyl tetrazolium
PBSPhosphate Buffer Saline
PGProstaglandin
PKCProtein kinase C
PRAPlasma renin activity
RAASrenin-angiotensin-aldosterone system
RIFRenal interstitial fibrosis
trans-DGTrans-desulfoglucotropaeolin
TGFβTransforming growth factor-β

References

  1. Wei, X.; Chu, K.; Huang, L.; Li, D.C.; Yu, Q.Z.; Xu, C.T. Extraction of Lepidium apetalum seed oil using supercritical carbon dioxide and anti-oxidant activity of the extracted oil. Molecules 2011, 16, 10029–10045. [Google Scholar]
  2. Zhou, X.D.; Tang, L.Y.; Zhou, G.H.; Kou, Z.Z.; Wang, T.; Wang, Z.J. Advances on Lepidii Semen and Descurainiae Semen. China J. Chin. Mater. Med. 2014, 39, 4699–4708. [Google Scholar]
  3. Zhao, H.Y.; Fan, M.X.; Shi, J.L.; Wang, A.Q.; Li, J.L. Isolation and structure identification of chemical constituents from seeds of Lepidium apetalum. Chin. Tradit. Herb. Drugs 2010, 41, 14–18. [Google Scholar]
  4. Wu, X.L.; Yang, Y.Z.; Huang, D.L. The effect of left heart primary function of dogs of the water extraction of Lepidium apetalum. Zhong Yao Cai 1998, 21, 243–245. [Google Scholar] [PubMed]
  5. Hui, Y.Q.; Yong, W.L.; Ying, J.W.; Tao, Y.; Zhou, F.; Yang, Q.; Hua, Z. Luhong formula inhibits myocardial fibrosis in a paracrine manner by activating the gp130/JAK2/STAT3 pathway in cardiomyocytes. J. Ethnopharmacol. 2017, 202, 28–37. [Google Scholar]
  6. Zhang, W.; Zhang, Y.; Li, H. The application of Lepidium apetalumin treatment of chronic heart failure. World J. Integr. Tradit. West Med. 2010, 5, 349. [Google Scholar]
  7. De Mello, W.C. Local renin angiotensin aldosterone systems and cardiovascular diseases. Med. Clin. N. Am. 2017, 101, 117–127. [Google Scholar] [CrossRef] [PubMed]
  8. Te Riet, L.; van Esch, J.H.; Roks, A.J.; van den Meiracker, A.H.; Danser, A.H. Hypertension: Renin-angiotensin aldosterone system alterations. Circ. Res. 2015, 116, 960–975. [Google Scholar] [CrossRef] [PubMed]
  9. Le, T.; William, H.; Vinayak, M.; Jared, A.W. First Aid for the Basic Sciences: Organ Systems, 3rd ed.; McGraw-Hill: New York, NY, USA, 2012; p. 625. ISBN 1259587037. [Google Scholar]
  10. Pearson, G.; Robinson, F.; Beers, G.T.; Xu, B.E.; Karandikar, M.; Berman, K.; Cobb, M.H. Mitogen-activated protein (MAP) kinase pathways: Regulation and physiological functions. Endocr. Rev. 2001, 22, 153–183. [Google Scholar] [CrossRef] [PubMed]
  11. Li, H.Y.; Nord, E.P. CD40 ligation stimulates MCP-1 and IL-8 production, TRAF6 recruitment, and MAPK activation in proximal tubule cells. Am. J. Physiol. Ren. Physiol. 2002, 282, 1020–1033. [Google Scholar] [CrossRef] [PubMed]
  12. Vesey, D.A.; Suen, J.Y.; Seow, V.; Lohman, R.J.; Liu, L.G.; Gobe, G.C.; Johnson, D.W.; Fairlie, D.P. PAR2-induced inflammatory responses in human kidney tubular epithelial cells. Am. J. Physiol. Ren. Physiol. 2013, 304, 737–750. [Google Scholar] [CrossRef] [PubMed]
  13. Kathrina, L.M.; Anthony, R.; Means, B.Y. The Ca2+/Calmodulin/CaMKK2 Axis: Nature’s Metabolic CaMshaft. Trends Endocrinol. Metab. 2016, 27, 706–718. [Google Scholar]
  14. Alain, V.; Emilie, T.; Marcelle, B.; Cécilia, C.; Catherine, W. Calcineurin/NFAT signaling and innate host defence: A role for NOD1-mediated phagocytic functions. Cell Commun. Signal. 2014, 12, 8. [Google Scholar]
  15. Li, M.; Zheng, X.K.; Zhang, Z.G.; Zhang, J.K.; Zhao, X.; Yang, Y.Y.; Wang, X.L.; Kuang, H.X.; Feng, W.S. A new phenylacetamide from the seeds of Lepidium apetalum Willd. Acta Pharm. Sin. 2016, 51, 1881–1884. [Google Scholar]
  16. Passey, C. Reducing the Dietary Acid Load: How a More Alkaline Diet Benefits Patients with Chronic Kidney Disease. J. Ren. Nutr. 2017, 27, 151–160. [Google Scholar] [CrossRef] [PubMed]
  17. Zakrocka, I.; Kocki, T.; Turski, W.A. The effect of three angiotensin-converting enzyme inhibitors on kynurenic acid production in rat kidney in vitro. Pharmacol. Rep. 2017, 69, 536–541. [Google Scholar] [CrossRef] [PubMed]
  18. Verdelli, C.; Corbetta, S. Mechanisms in Endocrinology: Kidney involvement in patients with primary hyperparathyroidism: An update on clinical and molecular aspects. Eur. J. Endocrinol. 2017, 176, R39–R52. [Google Scholar] [CrossRef] [PubMed]
  19. Kim, M.G.; Lee, Y.J.; Choi, E.S.; Yoon, J.J.; Han, B.H.; Kang, D.G.; Lee, H.S. Wiryeongtang regulates hyper tonicity-induced expression of aquaporin-2 water channels in mIMCD-3 cells. Mol. Med. Rep. 2017, 15, 2665–2672. [Google Scholar] [CrossRef] [PubMed]
  20. Lee, Y.J.; Lee, S.M.; Cui, X.; Yoon, J.J.; Oh, H.C.; Kim, Y.C.; Park, M.C.; Kang, D.G.; Lee, H.S. Quantitative evaluation of Oryeongsan and its action on water regulation in renal inner medullary collecting duct cells. J. Ethnopharmacol. 2016, 185, 310–318. [Google Scholar] [CrossRef] [PubMed]
  21. Brugts, J.J.; Vark, L.; Akkerhuis, M.; Bertrand, M.; Fox, K.; Mourad, J.J.; Boersma, E. Impact of renin-angiotensin system inhibitors on mortality and major cardiovascular endpoints in hypertension: A number-needed-to-treat analysis. Int. J. Cardiol. 2015, 15, 425–429. [Google Scholar] [CrossRef] [PubMed]
  22. Blaustein, M.P.; Leenen, F.H.; Chen, L.; Golovina, V.A.; Hamlyn, J.M.; Pallone, T.L.; Van Huysse, J.W.; Zhang, J.; Wier, W.G. How NaCl raises blood pressure: A new paradigm for the pathogenesis of salt-dependent hypertension. Am. J. Physiol. Heart Circ. Physiol. 2012, 302, 1031–1049. [Google Scholar] [CrossRef] [PubMed]
  23. Walter, G.; Thomas, Q.H. Arresting angiotensin type 1 receptors. Trends Endocrinol. Metab. 2003, 14, 243–249. [Google Scholar]
  24. Turoni, C.J.; Maranon, R.O.; Proto, V.; Herrera, R.; de Bruno, M.P. Nitric oxide modulates reactivity to angiotensin II in internal mammary arterial grafts in hypertensive patients without associated risk factors. Clin. Exp. Hypertens. 2011, 33, 27–33. [Google Scholar] [CrossRef] [PubMed]
  25. Steyers, C.M.; Miller, F.J. Endothelial dysfunction in chronic inflammatory diseases. Int. J. Mol. Sci. 2014, 15, 11324–11349. [Google Scholar] [CrossRef] [PubMed]
  26. Chaszczewska, M.M.; Sagan, M.; Bogunia-Kubik, K. The renin angiotensin-aldosterone system (RAAS)-physiology and molecular mechanisms of functioning. Postepy Higieny I Medycyny Doswiadczalnej 2016, 70, 917–927. [Google Scholar] [CrossRef] [PubMed]
  27. Chang, L.F.; Karin, M. Mammalian MAP kinase signalling cascades. Nature 2001, 410, 37–40. [Google Scholar] [CrossRef] [PubMed]
  28. Qi, M.; Elion, E.A. MAP kinase pathways. J. Cell Sci. 2005, 118, 3569–3572. [Google Scholar] [CrossRef] [PubMed]
  29. Cargnello, M.; Roux, P.P. Activation and function of the MAPKs and their substrates, the MAPK-activated protein kinases. Microbiol. Mol Biol. Rev. 2011, 75, 50–83. [Google Scholar] [CrossRef] [PubMed]
  30. Kyriakis, J.M.; Avruch, J. Mammalian MAPK signal transduction pathways activated by stress and inflammation: A 10-year update. Physiol. Rev. 2012, 92, 689–737. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, X.F.; Ye, F.; Xiong, H.B.; Hu, D.N.; Limb, G.A.; Xie, T.; Peng, L.; Zhang, P.L.; Wei, Y.; Zhang, W.; et al. IL-1β induces IL-6 production in retinal Müller cells predominantly through the activation of p38 MAPK/NF-κB signaling pathway. Exp. Cell Res. 2015, 331, 223–231. [Google Scholar] [CrossRef] [PubMed]
  32. Hogan, P.G.; Chen, L.; Nardone, J.; Rao, A. Transcriptional regulation by calcium, calcineurin, and NFAT. Genes Dev. 2003, 17, 2205–2232. [Google Scholar] [CrossRef] [PubMed]
  33. Ma, J.; Jung, B.G.; Yi, N.; Samten, B. Early Secreted Antigenic Target of 6 kDa of Mycobacterium tuberculosis Stimulates Macrophage Chemo-attractant Protein-1 Production by Macrophages and Its Regulation by p38 Mitogen-Activated Protein Kinases and Interleukin-4. Scand. J. Immunol. 2016, 84, 39–48. [Google Scholar] [CrossRef] [PubMed]
  34. Casali, C.I.; Weber, K.; Favale, N.O.; Tome, M.C.F. Environmental hyper osmolality regulates phospholipid biosynthesis in the renal epithelial cell line MDCK. J. Lipid Res. 2013, 54, 677–691. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, X.M.; Ferraris, J.D.; Cai, Q.; Agarwal, A.; Burg, M.B. Increased reactive oxygen species contribute to high NaCl-induced activation of the osmoregulatory transcription factor TonEBP/OREBP. Am. J. Physiol. Ren. Physiol. 2005, 289, 377–385. [Google Scholar] [CrossRef] [PubMed]
  36. Hao, S.J.; Hernandez, A.; Quiroz-Munoz, M.; Cespedes, C.; Vio, C.P.; Ferreri, N.R. PGE2 EP3 receptor downregulates COX-2 expression in the medullary thick ascending limb induced by hypertonic NaCl. Am. J. Physiol. Ren. Physiol. 2014, 307, 736–746. [Google Scholar] [CrossRef] [PubMed]
  37. Shi, P.P.; Chao, L.P.; Wang, T.T.; Liu, E.; Han, L.F.; Zong, Q.; Li, X.X.; Zhang, Y.; Wang, T. New bioactive flavonoid glycosides isolated from the seeds of Lepidium apetalum Willd. Fitoterapia 2015, 103, 197–205. [Google Scholar] [CrossRef] [PubMed]
  38. Tupal, A.; Sabzichi, M.; Ramezani, F.; Kouhsoltani, M.; Hamishehkar, H. Dermal delivery of doxorubicin-loaded solid lipid nanoparticles for the treatment of skin cancer. J. Microencapsul. 2016, 33, 372–380. [Google Scholar] [CrossRef] [PubMed]
  39. Zhang, J.Y.; Lin, M.T.; Zhou, M.J.; Yi, T.; Tang, Y.N.; Tang, S.L.; Yang, Z.J.; Zhao, Z.Z.; Chen, H.B. Combinational treatment of curcumin and quercetin against gastric cancer MGC-803 cells in vitro. Molecules 2015, 20, 11524–11534. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds are available from the authors.

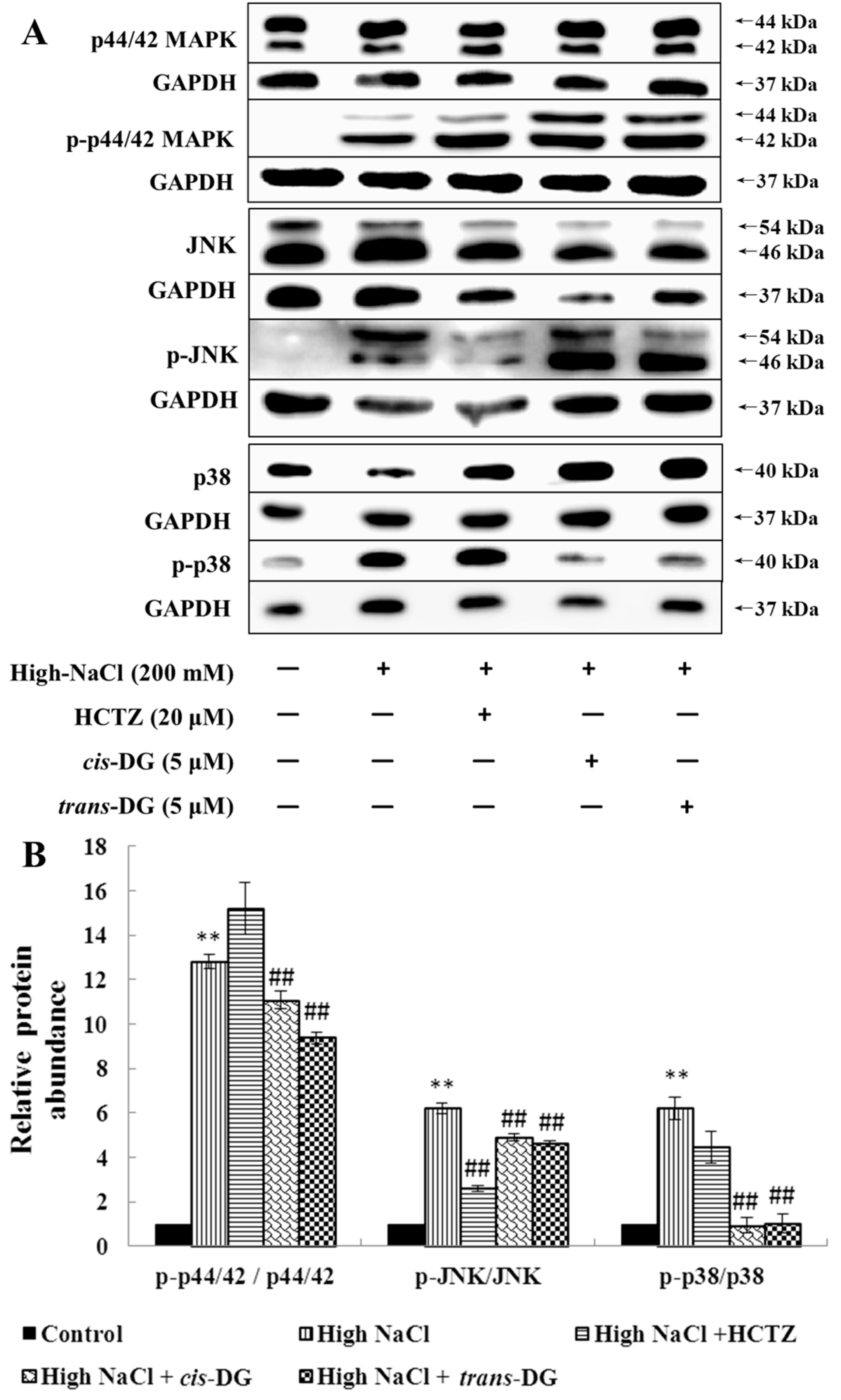

Figure 1. Influence of cis-DG and trans-DG (5 μM) on the MAPK signaling pathways in the hypertonic model in NRK52e cells for 6 h (n = 3). (A) The expression of p-p44/42 MAPK, p-JNK, p-p38, p44/42 MAPK, JNK and p38 measured by Western blot; (B) Relative protein abundance of MAPK signaling pathways proteins [(p-p44/42/GAPDH)/(p44/42/GAPDH), (p-JNK/GAPDH)/(JNK/GAPDH), (p-p38/GAPDH)/(p38/GAPDH)], analysed using SPSS 20.0 (IBM, New York, NY, USA), repeated three times. Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: ## p < 0.01.
Figure 1. Influence of cis-DG and trans-DG (5 μM) on the MAPK signaling pathways in the hypertonic model in NRK52e cells for 6 h (n = 3). (A) The expression of p-p44/42 MAPK, p-JNK, p-p38, p44/42 MAPK, JNK and p38 measured by Western blot; (B) Relative protein abundance of MAPK signaling pathways proteins [(p-p44/42/GAPDH)/(p44/42/GAPDH), (p-JNK/GAPDH)/(JNK/GAPDH), (p-p38/GAPDH)/(p38/GAPDH)], analysed using SPSS 20.0 (IBM, New York, NY, USA), repeated three times. Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: ## p < 0.01.
Molecules 22 01956 g001
Figure 2. Influence of cis-DG and trans-DG (5 μM) on the p38-MAPK signaling pathways in the hypertonic model in NRK52e cells for 6 h (n = 3). A: The expression of p-p38 and p-HSP27 measured by Western blot; B: Relative protein abundance of p38-MAPK signaling pathway proteins (p-p38/GAPDH, p-HSP27/GAPDH), analysed using SPSS 20.0, repeated three times. Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: or ## p < 0.01.
Figure 2. Influence of cis-DG and trans-DG (5 μM) on the p38-MAPK signaling pathways in the hypertonic model in NRK52e cells for 6 h (n = 3). A: The expression of p-p38 and p-HSP27 measured by Western blot; B: Relative protein abundance of p38-MAPK signaling pathway proteins (p-p38/GAPDH, p-HSP27/GAPDH), analysed using SPSS 20.0, repeated three times. Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: or ## p < 0.01.
Molecules 22 01956 g002
Figure 3. The structure of compounds cis-DG and trans-DG.
Figure 3. The structure of compounds cis-DG and trans-DG.
Molecules 22 01956 g003
Table 1. Effect of cis-desulfoglucotropaeolin (cis-DG) and trans-desulfoglucotropaeolin (trans-DG) (5 μM) on the cell survival rate in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 1. Effect of cis-desulfoglucotropaeolin (cis-DG) and trans-desulfoglucotropaeolin (trans-DG) (5 μM) on the cell survival rate in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsCell Survival Rate (%)
Control100.00 ± 6.16
High NaCl78.14 ± 6.08 **
High NaCl + HCTZ 189.35 ± 3.72 #
High NaCl + cis-DG96.08 ± 5.59 ##
High NaCl + trans-DG90.93 ± 7.18 ##
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: # p < 0.05 or ## p < 0.01. 1 HCTZ: Hydrochlorothiazide.
Table 2. Influence of cis-DG and trans-DG (5 μM) on ions in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 2. Influence of cis-DG and trans-DG (5 μM) on ions in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsNa+ (mmol/L)K+ (mmol/L)Cl (mmol/L)
Control159.18 ± 3.395.28 ± 0.03119.89 ± 1.57
High NaCl248.95 ± 7.07 **4.86 ± 0.04 **194.76 ± 1.71 **
High NaCl + HCTZ175.25 ± 16.02 ##5.09 ± 0.09 ##190.51 ± 0.86 ##
High NaCl + cis-DG198.42 ± 4.15 ##4.97 ± 0.09193.11 ± 3.33
High NaCl + trans-DG225.44 ± 19.39 #4.93 ± 0.04193.02 ± 1.57
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: # p < 0.05 or ## p < 0.01.
Table 3. Influence of cis-DG and trans-DG (5μM) on RAAS in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 3. Influence of cis-DG and trans-DG (5μM) on RAAS in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsRenin (pg/mL)Angiotensin II (Ang II) (pg/mL)Angiotensin Converting enzyme (ACE) (U/L)Aldosterone (ALD) (pg/mL)
Control18.62 ± 0.51119.2 ± 9.5834.91 ± 0.2595.02 ± 14.15
High NaCl13.89 ± 0.57 **158.63 ± 8.47 **34.41 ± 2.06124.84 ± 13.54 **
High NaCl + HCTZ14.97 ± 2.57130.64 ± 16.86 #31.13 ± 4.3492.42 ± 15.77 #
High NaCl + cis-DG13.12 ± 1.8196.58 ± 11.01 ##25.75 ± 1.6693.72 ± 17.21 #
High NaCl + trans-DG12.74 ± 2.33109.11 ± 18.88 ##27.62 ± 2.4492.31 ± 8.86 #
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: # p < 0.05 or ## p < 0.01.
Table 4. Influence of cis-DG and trans-DG (5 μM) on ions in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 4. Influence of cis-DG and trans-DG (5 μM) on ions in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsAquaporin-2 (AQP2) (pg/mL)Na+–K+ ATPs (μmol/mL)
Control129.15 ± 2.435.91 ± 0.35
High NaCl159.16 ± 5.85 *7.22 ± 0.50 *
High NaCl + HCTZ124.96 ± 17.04 ##6.15 ± 0.70 #
High NaCl + cis-DG115.12 ± 2.43 ##5.39 ± 0.53 ##
High NaCl + trans-DG112.39 ± 2.34 ##6.21 ± 0.81 #
Note: significant difference versus control group: * p < 0.05; significant difference versus high-NaCl group: # p < 0.05 or ## p < 0.01.
Table 5. Influence of cis-DG and trans-DG (5 μM) on Ca/calmodulin-dependent protein kinase II (CaMK II) and calcineurin (CAN) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 5. Influence of cis-DG and trans-DG (5 μM) on Ca/calmodulin-dependent protein kinase II (CaMK II) and calcineurin (CAN) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsCaMK II (pg/mL)CAN (ng/mL)
Control369.46 ± 92.075.14 ± 0.45
High NaCl981.84 ± 122.98 **10.82 ± 0.08 **
High NaCl + HCTZ648.90 ± 85.28 ##4.99 ± 0.11 ##
High NaCl + cis-DG340.84 ± 97.72 ##6.26 ± 1.34 ##
High NaCl + trans-DG461.22 ± 25.74 ##6.32 ± 1.75 ##
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: ## p < 0.01.
Table 6. Influence of cis-DG and trans-DG (5 μM) on transforming growth factor-β (TGFβ), monocyte chemotactic protein 1 (MCP-1), E-selectin and adiponectin (APN) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 6. Influence of cis-DG and trans-DG (5 μM) on transforming growth factor-β (TGFβ), monocyte chemotactic protein 1 (MCP-1), E-selectin and adiponectin (APN) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsTGFβ (pg/mL)MCP-1 (ng/mL)APN (pg/mL)
Control10.43 ± 3.280.04 ± 0.0224.01 ± 3.41
High NaCl71.61 ± 14.34 **0.27 ± 0.01 **7.12 ± 3.46 **
High NaCl + HCTZ23.4 ± 2.48 ##0.18 ± 0.001 ##20.22 ± 5.08 ##
High NaCl + cis-DG28.03 ± 5.07 ##0.1 ± 0.001 ##7.40 ± 3.29
High NaCl + trans-DG10.89 ± 3.77 ##0.07 ± 0.01 ##22.6 ± 0.76 ##
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: ## p < 0.01.
Table 7. Influence of cis-DG and trans-DG (5 μM) on protein kinase C (PKC), E-selectin and cyclooxygenase-2 (COX2) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
Table 7. Influence of cis-DG and trans-DG (5 μM) on protein kinase C (PKC), E-selectin and cyclooxygenase-2 (COX2) in the hypertonic model in NRK52e cells for 6 h ( x ¯ ± s, n = 5).
GroupsPKC (pg/mL)E-Selectin (pg/mL)COX2 (pg/mL)
Control17.45 ± 2.2312.45 ± 1.9332.19 ± 9.13
High NaCl68.64 ± 1.77 **35.91 ± 4.83 **48.69 ± 2.65 **
High NaCl + HCTZ52.23 ± 11.94 #40.94 ± 5.29 **27.24 ± 7.36 ##
High NaCl + cis-DG76.88 ± 6.6324.43 ± 1.93 ##27.45 ± 1.71 ##
High NaCl + trans-DG17.90 ± 2.18 ##15.42 ± 1.37 ##26.98 ± 6.42 ##
Note: significant difference versus control group: ** p < 0.01; significant difference versus high-NaCl group: # p < 0.05 or ## p < 0.01.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
