Unexpected Synthesis of a Bulky Bis-Pocket A3B-Type Meso-Cyano Porphyrin
Ze-Yu Liu 1, Mian HR Mahmood 2,3, Jian-Zhong Wu 1,*Orcid, Shu-Bao Yang 2 and Hai-Yang Liu 2,*Orcid
1
School of Chemistry and Environment, South China Normal University, Guangzhou 510006, China
2
Department of Chemistry, South China University of Technology, Guangzhou 510641, China
3
Department of Chemistry, University of Education, Lahore 54770, Pakistan
*
Correspondence: Tel.: +86-020-3931-0187 (J.-Z.W.); +86-020-2223-6805 (H.-Y.L.)
Received: 11 October 2017 / Accepted: 7 November 2017 / Published: 9 November 2017

Abstract

:
A one-pot synthesis of bulky bis-pocket A3B-type meso-cyano porphyrin, 5-cyano-10,15,20-tris(2,4,6-triphenylphenyl)porphyrin, has been accomplished via trifluoroacetic acid (TFA) catalyzed condensation of pyrrole and 2,4,6-triphenylbenzaldehyde in an acceptable yield of about 4%. DDQ served as oxidant and the cyanating agent.
Keywords:
meso-cyano porphyrin; One-pot synthesis; pyrrole-aldehyde condensation; trifluoroacetic acid

1. Introduction

The diversity in the synthetic chemistry of porphyrinoid compounds derived from the conventional pyrrole-aldehyde condensation continues to fascinate the scientific community [1,2]. The versatile self-assembly process, generating a ring-expanded or -contracted porphyrinoid, generally ends up with or without oxidative handling depending on the solvating media [3]. This is well illustrated from the recent reports in the facile synthesis of meso-patterned corroles [4,5,6,7] and porphyrins [8,9], expanded and isomeric porphyrins [1,2,10], and related porphyrin-type macrocyclic compounds [11].
Despite this fact, the one-pot synthesis of A3-type porphyrin such as 1 (Figure 1) from a single aldehyde precursor is still a relatively less explored aspect. This may be attributed to the extreme reactivity of pyrrole and aldehyde units toward each other, which usually resulted in the formation of their comparatively more stable symmetrical counterparts [12]. This is indeed responsible for broadening the scope and general ease in the synthesis of meso-tetraaryl porphyrins in recent years [13].
The characteristic structure here refers to the presence of aryl groups at three of the four available meso-positions, while the fourth meso-position may serve as a methine-bridge only, as in A3-type porphyrin, or may undergo subsequent functionalization to give A3B-type porphyrin. Such porphyrins have been extensively employed as synthons for various porphyrin building blocks and as surrogates for the naturally occurring tetrapyrrolic macrocycles [14,15]. The literature reports have emphasized the synthesis of A3-type porphyrins via meso-unsubstituted dipyrromethane procedure [14,15,16,17], which is often accomplished in multi-step process and with low yields. A noteworthy observation in this regard is the interconversion of trans-A2B corrole into the corresponding A3-type porphyrin; simply via prolonged stirring of the methanol or benzene solution of the corrole [18]. A 2π + 2π cycloaddition reaction with subsequent formation of a spirocyclobutane was proposed to be the intermediate in such a conversion. We recently reported the first example of the direct synthesis of A3-type porphyrin (2, Figure 1) via one-pot condensation of pyrrole and highly electron-rich aldehyde, 4-(N,N-dimethylamino)benzaldehyde [19], in the presence of trifluoroacetic acid (TFA). Here, we want to report the unprecedented one-pot synthesis of bulky bis-pocket A3B-type meso-cyano porphyrin (3, Figure 1). The supported spectroscopic characterization and the plausible reaction mechanism are also presented.

2. Results and Discussion

Our interest in the synthesis of porphyrinoids originated from peculiar electronically and sterically crowded aldehydes was due to their intrinsic ability to serve as excellent mechanistic probe for the oxygenation reactions [20,21,22]. Porphyrins obtained from ortho-disubstituted aldehydes are typically employed as catalyst in order to avoid the formation of µ-oxo and µ-peroxo dimer intermediates during the catalytic reaction [23]. This approach was exploited in the synthesis of sterically crowded bis-pocketed porphyrin, 5,10,15,20-tetrakis(2,4,6-triphenylphenyl)porphyrin 4 (H2TTPPP) [24], and corrole, 5,10,15-Tris(2,4,6-triphenylphenyl)corrole 5 (H3TTPPC) [25] that have non-polar pockets on both faces of the macrocycle.
Suslick et al. reported the first synthesis of porphyrin 4 (H2TTPPP) in 1% yield via slow addition of a stochiometric amount of pyrrole diluted in xylenes to a refluxing propionic acid solution of the corresponding aldehyde [24] or by using 2,4,6-collidine as solvent at elevated temperature [26]. The inspirations for our attempts to improve the yield of the bulky bis-pocket porphyrin came from the independent work of Lindsey [8,9] and Drenth [27]. They observed that condensation of pyrrole and arylaldehyde under mild conditions in inert atmosphere using higher dilutions in chlorinated solvents (CH2Cl2 or CHCl3) and strong acid as catalysts significantly improved the yield of porphyrins with bulky substituents at the ortho positions. We have previously observed that TFA catalyst may dramatically improve the yield of corrole 5 (H3TTPPC) from the condensation of 2,4,6-triphenylbenzaldehyde and its dipyrromethane [25]. However, the application of TFA in condensation of the same aldehyde and pyrrole in dichloromethane solvent did not deliver any observable yield of the symmetrical porphyrin 4 (H2TTPPP). We then turned our attention to the use of boron trifluoride etherate (BF3·Et2O) as a catalyst introduced by Lindsey in 1986 [8], which proved to be the most effective acid catalyst for the synthesis of porphyrinoids in the recent years. Recently, we also found BF3⋅Et2O was efficient in the synthesis of bulky multibrominated corrole [28]. A previous report described the unsuccessful attempts for the synthesis of porphyrin 4 (H2TTPPP) using BF3·Et2O catalyst [27], probably due to the excessive dilution and longer reaction time. We also failed to get porphyrin 4 (H2TTPPP) by using the same catalyst and observed TFA was more active than BF3·Et2O in the current reaction as indicated by the color change of the mixture. A more careful investigation of TFA catalyzed condensation of 2,4,6-triphenylbenzaldehyde and pyrrole directed us to the current unexpected finding of one-pot synthesis of A3B-type meso-cyano porphyrin 3 (H2TTPPPCN). We observed that stirring the dichloromethane solution (10−3 M) of equimolar 2,4,6-triphenylbenzaldehyde and pyrrole in the presence of TFA catalyst, followed by quenching with triethylamine and oxidation with DDQ, and the chromatographic work-up mainly provided a dark green colored product with an isolated yield of about 5%. It turned out to be 5,10,15-tris(2,4,6-triphenylphenyl)corrole 5 (H3TTPPC) [25]. At the same time, we had isolated a trace amount of porphyrin that showed a sharp Soret band at 437 nm and four Q-bands in the region of 530–670 nm (Figure 2).
Surprisingly, the appearance of mass ion peak at 1248.3 (Figure S1) in the FAB-MS spectrum corresponds to neither porphyrin 4 (H2TTPPP) nor corrole 5 (H3TTPPC). The difference of more than 300 mass units between the observed mass and the expected symmetrical porphyrin 4 suggested the absence of one meso-triphenylphenyl group in the compound. Nonetheless, even on considering the observed compound as A3-type porphyrin, its mass was 26 mass units more than the expected mass. The 1H-NMR spectrum pattern of the compound (Figure 3) was in accordance with the typical spectrum of an A3B-type porphyrin [19], showing a peak at −3.00 ppm corresponding to two inner N-H protons. However, the absence of C-H peak at approximately 10 ppm in the NMR spectrum (Figure S2) was indicative of the fact the fourth meso-carbon was not free [18] but attached with a substituent other than that originating from the starting aldehyde. In the absence of any external source in our reaction system serving as an additional meso-substituent, this observation was truly unexpected.
We speculated that another group that could serve as the fourth meso-substituent in the reaction system in addition to aldehyde, with a mass equivalent to 26 units, was the ‒CN group from the DDQ. This hypothesis was supported by IR spectrum that indicated a sharp ‒C≡N stretching absorption at 2211 cm−1 (Figure 2, inset). The confirmation of the above ambiguity also came from the HR-MS analysis (Figure S4), which provided a more strong evidence of the product A3B-type meso-cyano porphyrin 3 (H2TTPPPCN), where the three meso-substituents came from the aldehyde, and the fourth cyano group might come from the oxidant DDQ [29].
The serendipitous one-pot synthesis of bulky bis-pocket A3B-type porphyrin in the case of 2,4,6-triphenylbenzaldehyde implies that more sterically crowded aldehydes may undergo similar condensation process to that of the highly electron-rich aldehyde [19], as reported recently. Although the mechanism is still uncertain, a feasible pathway seems to be the formation of a tetrapyrrolic precursor, where the steric hinderance provided by the bulky groups does not facilitate the attachment of the fourth meso-substituent. It is noteworthy that the same steric factors might be responsible for the unexpectedly low yield (1%) of the corresponding symmetrical porphyrin analogue [24]. The resulting corrole intermediate may undergo 2π + 2π cycloaddition reaction, followed by the formation of a spirocyclobutane, which on air-oxidation may generate an A3-type porphyrin devoid of one meso-substituent [18]. The addition of DDQ at this stage completes the oxidation process and causes the substitution of the hydrogen with cyano group at the sole available meso-position of the porphyrin, resulting in the formation of A3B-type meso-cyano porphyrin 3 (H2TTPPPCN) (Figure 4).
While meso-cyano porphyrins are generally obtained via peripheral functionalization of the preformed porphyrins [30,31], a convenient one-pot approach where the oxidant itself serves as an efficient cyanating agent has been reported [29]. It is well documented in the literature that DDQ can interact with the free base porphyrins through inner N-H protons and coordinates exclusively from above and below the plane of the porphyrin, forming 2:1 molecular complexes between DDQ and porphyrin, respectively [32]. For the current observation, it seems more likely that an adduct is first formed between DDQ and porphyrin, which then transfers the cyanide ion [29] from DDQ at the meso- position of the porphyrin because of its higher susceptibility to attack, thus giving a meso-cyano-substituted porphyrin. The cyano-substituted porphyrins are considered to be among the most useful precursors for subsequent transformations because the nitrile group is quite amenable to other functionalities such as aldehydes, amines, amides, and acid derivatives [33]. Thus, the one-pot synthesis of A3B-type cyano-substituted porphyrin may have practical usage in the preparation of functional porphyrins. After optimization of the reaction conditions, the yield of 3 (H2TTPPPCN) may reach about 4%. This yield is acceptable, considering the low yield of ~1% of H2TTPPP (4) [24]. For a typical procedure for 3, see experimental section.

3. Experimental Section

The formation of bulky A3B-type meso-cyano porphyrin followed the general procedure for porphyrin synthesis developed by Lindsey et al. [9]. Typically, equimolar amounts of 2,4,6-triphenylbenzaldehyde (250 mg, 0.75 mmol) and pyrrole (52 µL, 0.75 mmol) were mixed together in 100 mL of dry dichloromethane in a 250 mL round bottom flask. To this mixture an aliquot of trifluoroacetic acid (TFA, 150 µL) was added, and the solution was stirred overnight. After that, 200 mg of 2,3-dichloro-5,6-dicyano-1,4-benzoquinone (DDQ) were added to the reaction mixture and stirred for 1 h. Then, 300 µL of trimethylamine was added to neutralize the solution and the mixture was stirred for another 1 h. The reaction was monitored by thin-layer chromatography and UV-Vis spectroscopy. After the completion of reaction, the solvent was dried in vacuum, and the resulting crude product was purified by chromatography on silica gel column using dichloromethane/hexane (1/2) as eluent and recrystallized from methanol /dichloromethane (1/1, v/v) to afford 12 mg of 3 (H2TTPPPCN) (Yield, 3.8%). UV-Vis (CH2Cl2): λmax/nm 438, 534, 571, 606, 662; 1H-NMR (300 MHz, CDCl3): δ 9.16 (d, J = 4.6 Hz, 2H), 8.81 (d, J = 4.6 Hz, 2H), 8.63 (AB system, J = 4.8 Hz, 4H), 7.96 (m, 12H), 7.57 (apparent t, J = 7.8 Hz, 6H), 7.48 (m, 3H), 6.8 (d, J = 6.6 Hz, 8H), 6.64 (d, J = 7.5 Hz, 4H), 6.49−6.34 (m, 14H), 6.23 (t, J = 7.8 Hz, 4H), −3.00 (s, 2H); FAB-MS: m/z 1248.3; HR-MS calcd exact mass (C93H62N5), 1248.5005; found, 1248.5007 [M + H]+.

4. Conclusions

In summary, we present the first direct synthesis of very sterically crowded bis-pocket A3B-type meso-cyano porphyrin from a single aldehyde precursor in a one-pot pyrrole-aldehyde condensation. It is clear that the electronic and steric features of aldehydes, as well as changing acid catalyst and reaction conditions, such as dilution, affect the nature of the final porphyrinoid product. It may also demonstrate that macrocyclic species may undergo reorganization within the reaction system to attain relatively stable configuration on grounds of electronic and steric factors. Further studies based on exploring the scope of various aldehydes within the current synthetic methodology, along with their optimization, are currently in progress in our laboratory.

Supplementary Materials

Experimental data for the bulky A3B-type meso-cyano porphyrin are available online.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (NNSFC) under Grant (21275056, 21371059, 21671068).

Author Contributions

Jian-Zhong Wu and Hai-Yang Liu coordinated the whole work and provided technical guidance. Ze-Yu Liu and Shu-Bao Yang conceived and carried out the experiments; Ze-Yu Liu and Mian HR Mahmood analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kadish, K.M.; Smith, K.M.; Guilard, R. (Eds.) The Porphyrin Handbook; Academic Press: San Diego, CA, USA, 2000; Volumes 1–20.
  2. Smith, K.M. Development of porphyrin syntheses. New J. Chem. 2016, 40, 5644–5649. [Google Scholar] [CrossRef]
  3. Ghosh, A. A Perspective of One-Pot Pyrrole-Aldehyde Condensations as Versatile Self-Assembly Processes. Angew. Chem. Int. Ed. 2004, 43, 1918–1931. [Google Scholar] [CrossRef] [PubMed]
  4. Paolesse, R.; Jaquinod, L.; Nurco, D.J.; Mini, S.; Sagone, F.; Boschi, T.; Smith, K.M. 5,10,15-Triphenylcorrole: A Product from a Modified Rothemund Reaction. Chem. Commun. 1999, 14, 1307–1308. [Google Scholar] [CrossRef]
  5. Gross, Z.; Galili, N.; Saltsman, I. The First Direct Synthesis of Corroles from Pyrrole. Angew. Chem. Int. Ed. 1999, 38, 1427–1429. [Google Scholar] [CrossRef]
  6. Gryko, D.T. A Simple, Rational Synthesis of Meso-Substituted A2B-Corroles. Chem. Commun. 2000, 22, 2243–2244. [Google Scholar] [CrossRef]
  7. Orłowski, R.; Gryko, D.; Gryko, D.T. Synthesis of Corroles and Their Heteroanalogs. Chem. Rev. 2017, 117, 3102–3137. [Google Scholar]
  8. Lindsey, J.S.; Hsu, H.C.; Schreiman, I.C. Synthesis of Tetraphenylporphyrins under Very Mild Conditions. Tetrahedron Lett. 1986, 27, 4969–4970. [Google Scholar] [CrossRef]
  9. Lindsey, J.S.; Schreiman, I.C.; Hsu, H.C.; Kearney, P.C.; Marguettaz, A.M. Rothemund and Adler-Longo Reactions Revisited: Synthesis of Tetraphenylporphyrins under Equilibrium Conditions. J. Org. Chem. 1987, 52, 827–836. [Google Scholar] [CrossRef]
  10. Saito, S.; Osuka, A. Expanded Porphyrins: Intriguing Structures, Electronic Properties and Reactivities. Angew. Chem. Int. Ed. 2011, 50, 4342–4373. [Google Scholar] [CrossRef] [PubMed]
  11. Mandoj, F.; Stefanelli, M.; Nardis, S.; Mastroianni, M.; Fronczek, F.R.; Smith, K.M.; Paolesse, R. 6-Azahemiporphycene: A Further Example of Corrole Metamorphosis. Chem. Commun. 2009, 12, 1580–1582. [Google Scholar] [CrossRef] [PubMed]
  12. Kral, V.; Kralova, J.; Kaplanek, R.; Briza, T.; Martasek, P. Quo Vadis Porphyrin Chemistry? Physiol. Res. 2006, 55 (Suppl. 2), S3–S26. [Google Scholar] [PubMed]
  13. Lindsey, J.S. Synthetic Routes to meso-Patterned Porphyrins. Acc. Chem. Res. 2010, 43, 300–311. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, H.Y.; Huang, J.W.; Tian, X.; Jiao, X.D.; Luo, G.T.; Ji, L.N. Chiral Linear Assembly of Amino Acid Bridged Dimeric Porphyrin Hosts. Chem. Commun. 1997, 16, 1575–1576. [Google Scholar] [CrossRef]
  15. Chang, C.J.; Deng, Y.; Heyduk, A.F.; Chang, C.K.; Nocera, D.G. Xanthene-Bridged Cofacial Bisporphyrins. Inorg. Chem. 2000, 39, 959–966. [Google Scholar] [CrossRef] [PubMed]
  16. Senge, M.O.; Feng, X.J. Regioselective Reaction of 5,15-Disubstituted Porphyrins with Organolithium Reagents-Synthetic Access to 5,10,15-Trisubstituted Porphyrins and Directly meso-meso-Linked Bisporphyrins. Chem. Soc. Perkin Trans. 1 2000, 21, 3615–3621. [Google Scholar] [CrossRef]
  17. Abada, Z.; Ferrie, L.; Akagah, B.; Lormier, A.T.; Figadere, B. Synthesis of 5,15-Diarylporphyrins via Orthoesters Condensation with Aryldipyrromethanes. Tetrahedron Lett. 2011, 52, 3175–3178. [Google Scholar] [CrossRef]
  18. Gross, C.P.; Barbe, J.M.; Espinosa, E.; Guilard, R. Room-Temperature Autoconversion of Free-Base Corrole into Free-Base Porphyrin. Angew. Chem. Int. Ed. 2006, 45, 5642–5645. [Google Scholar] [CrossRef] [PubMed]
  19. Mahmood, M.H.R.; Liu, H.Y.; Wang, H.H.; Jiang, Y.Y.; Chang, C.K. Unexpected One-Pot Synthesis of A3-Type Unsymmetrical Porphyrin. Tetrahedron Lett. 2013, 54, 5853–5856. [Google Scholar] [CrossRef]
  20. Liu, H.Y.; Mahmood, M.H.R.; Qiu, S.X.; Chang, C.K. Recent Developments in Manganese Corrole Chemistry. Coord. Chem. Rev. 2013, 257, 1306–1333. [Google Scholar] [CrossRef]
  21. Liu, H.Y.; Lai, T.S.; Yeung, L.L.; Chang, C.K. First Synthesis of Perfluorinated Corrole and Its Mn=O Complex. Org. Lett. 2003, 5, 617–620. [Google Scholar] [CrossRef] [PubMed]
  22. Chang, C.K.; Yeh, C.Y.; Lai, T.S. Synthesis of Sterically Encumbered Porphyrins as Catalysts for Shape-Selective Oxidations. Macromol. Symp. 2000, 156, 117–124. [Google Scholar] [CrossRef]
  23. Meunier, B. Metalloporphyrin-Catalyzed Oxygenation of Hydrocarbons. Bull. Soc. Chim. Fr. 1986, 2, 578–594. [Google Scholar]
  24. Suslick, K.S.; Fox, M.M. A Bis-Pocket Porphyrin. J. Am. Chem. Soc. 1983, 105, 3507–3510. [Google Scholar] [CrossRef]
  25. Liu, H.Y.; Yam, F.; Xie, Y.T.; Li, X.Y.; Chang, C.K. A Bulky Bis-Pocket Manganese (V)-Oxo Corrole Complex: Observation of Oxygen Atom Transfer between Triply Bonded MnV≡O and Alkene. J. Am. Chem. Soc. 2009, 131, 12890–12891. [Google Scholar] [CrossRef] [PubMed]
  26. Suslick, K.S.; Cook, B.; Fox, M. Shape-Selective Alkane Hydroxylation. J. Chem. Soc. Chem. Commun. 1985, 9, 580–582. [Google Scholar] [CrossRef]
  27. Van der Made, A.W.; Hoppenbrouwer, E.J.H.; Nolte, R.J.M.; Drenth, W. An Improved Synthesis of Tetraarylporphyrins. Recl. Trav. Chim. Pays-Bas. 1988, 107, 15–16. [Google Scholar] [CrossRef]
  28. Mahmood, M.H.R.; Liu, Z.Y.; Liu, H.Y.; Zou, H.B.; Chang, C.K. Improved Synthesis of Sterically Encumbered Multibrominated Corroles. Chin. Chem. Lett. 2014, 25, 1349–1353. [Google Scholar] [CrossRef]
  29. Garai, A.; Nandy, P.; Sinha, W.; Purohit, C.S.; Kar, S. A New Synthetic Protocol for the Preparation of 5-Cyano-10,15,20-Tris (Alkoxyphenyl) Porphyrins. Polyhedron 2013, 56, 18–23. [Google Scholar] [CrossRef]
  30. Takanami, T.; Hayashi, M.; Chijimatsu, H.; Inoue, W.; Suda, K. Palladium-Catalyzed Cyanation of Porphyrins Utilizing Cyanoethylzinc Bromide as an Efficient Cyanide Ion Source. Org. Lett. 2005, 7, 3937–3940. [Google Scholar] [CrossRef] [PubMed]
  31. Hiroto, S.; Miyake, Y.; Shinokubo, H. Synthesis and functionalization of porphyrins through organometallic methodologies. Chem. Rev. 2017, 117, 2910–3043. [Google Scholar] [CrossRef] [PubMed]
  32. Mohajer, D.; Dehghani, H. Exclusive 2:1 Molecular Complexation of 2,3-Dichloro-5,6-Dicyano-Benzoquinone and para-Substituted meso-Tetraphenylporphyrins: Spectral Analogues for Diprotonated meso-Tetraphenylporphyrin. J. Chem. Soc. Perkin Trans. 2 2000, 2, 199–205. [Google Scholar] [CrossRef]
  33. Rapport, Z. (Ed.) The Chemistry of the Cyano Group; Interscience Publishers: London, UK, 1970.
  • Sample Availability: Samples of the compounds are not available from the authors.

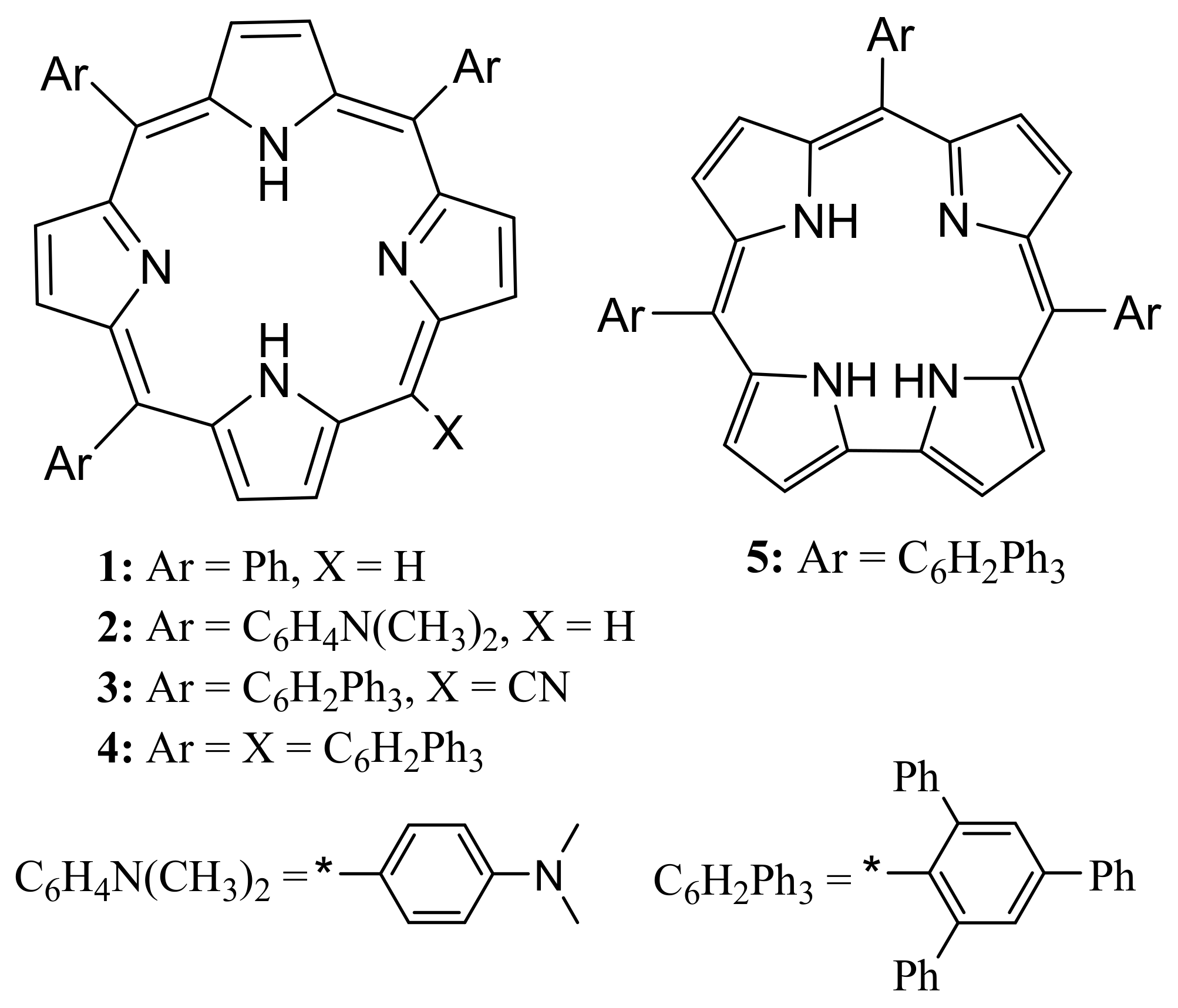

Figure 1. Molecular structures of porphyrins and corrole.
Figure 1. Molecular structures of porphyrins and corrole.
Molecules 22 01941 g001

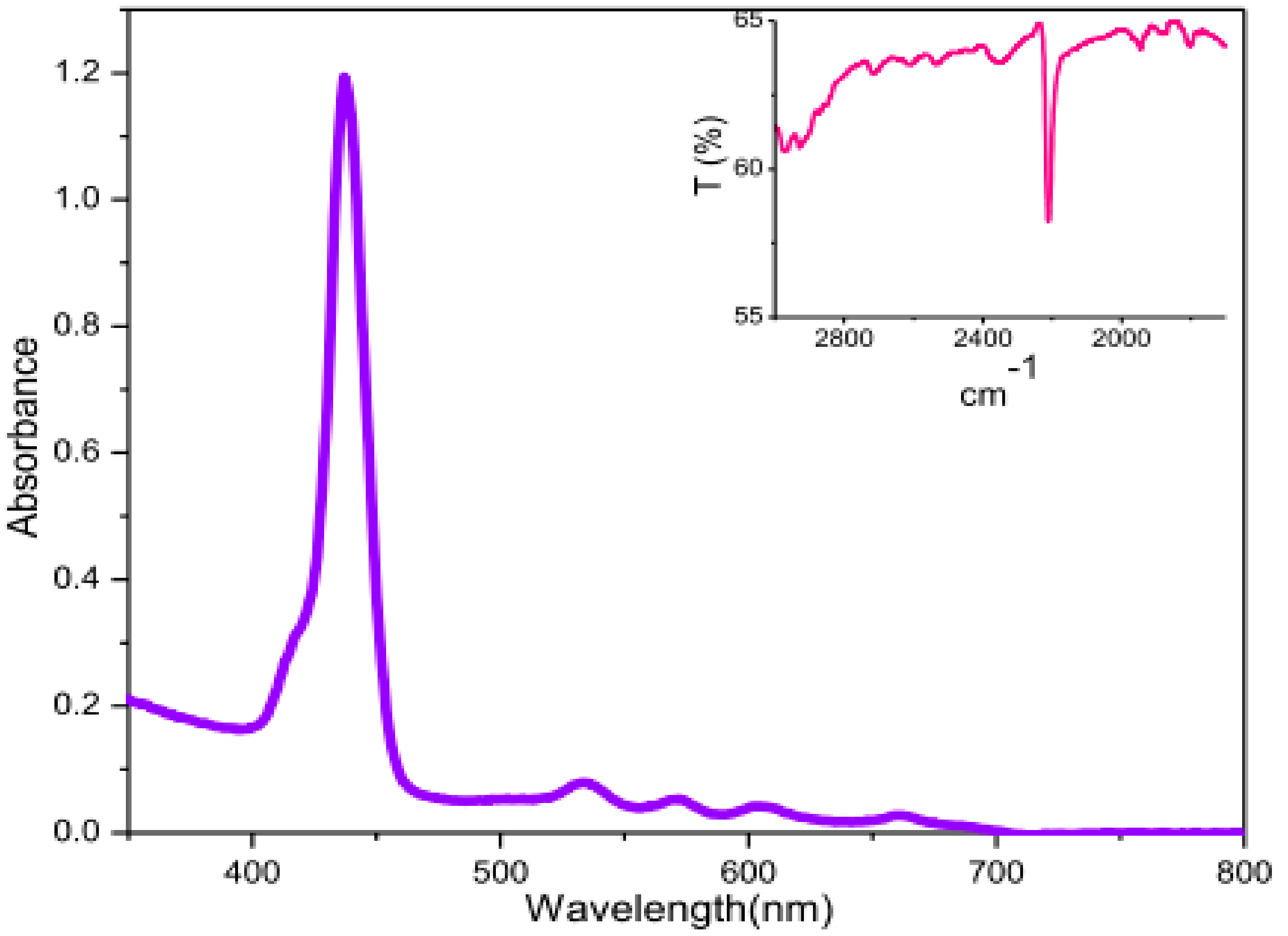

Figure 2. UV-Vis spectrum of 5-cyano-10,15,20-tris(2,4,6-triphenylphenyl)porphyrin 3 in dichloromethane. The inset is the partial IR spectrum showing the characteristic –C≡N stretching absorption at 2211 cm−1.
Figure 2. UV-Vis spectrum of 5-cyano-10,15,20-tris(2,4,6-triphenylphenyl)porphyrin 3 in dichloromethane. The inset is the partial IR spectrum showing the characteristic –C≡N stretching absorption at 2211 cm−1.
Molecules 22 01941 g002
Figure 3. Partial 1H-NMR spectrum of porphyrin 3 showing the aromatic region, inset shows the inner N-H protons.
Figure 3. Partial 1H-NMR spectrum of porphyrin 3 showing the aromatic region, inset shows the inner N-H protons.
Molecules 22 01941 g003

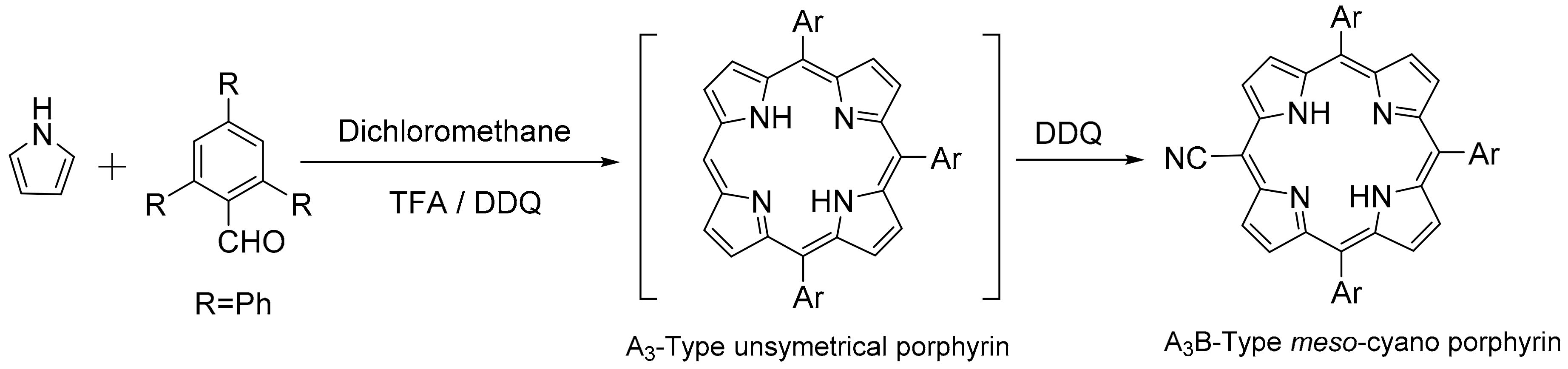

Figure 4. Plausible reaction route for the one-pot synthesis of A3B-type meso-cyano porphyrin 3 (H2TTPPPCN).
