Molecules 2017, 22(11), 1846; doi:10.3390/molecules22111846

Article
Disrupting VEGF–VEGFR1 Interaction: De Novo Designed Linear Helical Peptides to Mimic the VEGF13-25 Fragment
Beatriz Balsera 1, M. Ángeles Bonache 1, Marie Reille-Seroussi 2, Nathalie Gagey-Eilstein 2, Michel Vidal 2,3, Rosario González-Muñiz 1 and María Jesús Pérez de Vega 1,*Orcid
1
Instituto de Química-Médica (IQM-CSIC), Juan de la Cierva 3, Madrid 28006, Spain
2
UMR 8638 CNRS, UFR de Pharmacie, Université Paris Descartes, PRES Sorbonne Paris Cité, 4 avenue de l’Observatoire, Paris 75006, France
3
UF “Pharmacocinétique et Pharmacochimie”, Hôpital Cochin, AP-HP, 27 rue du Faubourg Saint Jacques, Paris 75014, France
*
Correspondence: Tel.: +34-91-258-7482
Received: 9 October 2017 / Accepted: 26 October 2017 / Published: 28 October 2017

Abstract

:
The interaction between vascular endothelial growth factor (VEGF) and its receptors (VEGFR) has important implications in angiogenesis and cancer, which moved us to search for peptide derivatives able to block this protein–protein interaction. In a previous work we had described a collection of linear 13-mer peptides specially designed to adopt helical conformations (Ac-SSEEX5ARNX9AAX12N-NH2), as well as the evaluation of seven library components for the inhibition of the interaction of VEGF with its Receptor 1 (VEGFR1). This study led to the discovery of some new, quite potent inhibitors of this protein–protein system. The results we found prompted us to extend the study to other peptides of the library. We describe here the evaluation of a new selection of peptides from the initial library that allow us to identify new VEGF-VEGFR1 inhibitors. Among them, the peptide sequence containing F, W, and I residues at the 5, 9, and 12 positions, show a very significant nanomolar IC50 value, competing with VEGF for its receptor 1, VEGFR1 (Flt-1), which could represent a new tool within the therapeutic arsenal for cancer detection and therapy.
Keywords:
peptides; α-helix; protein–protein interactions; VEGF-VEGFR1; angiogenesis

1. Introduction

Protein–protein interactions (PPIs) play essential roles in multiple biological functions mediating both in physiological and pathological processes and constitute important targets in biological and medicinal chemistry. Aberrant or inappropriate interactions may be associated with the pathogenesis of several diseases; therefore, the modulation of certain PPIs constitutes a challenging approach for therapeutic intervention in pathological situations [1]. In recent years, a lot of work in this direction has been reported describing different PPI disrupting agents both small molecules and peptides [2,3,4,5]. Some of them have even progressed to clinical development, especially for the inhibition of the interaction of p53 with its suppressor HDM2 (Human Double Minute 2) which is highly implicated in cancer [6,7,8]. A validated approach to tackle the problem of disrupting PPIs is to use peptides to mimic the protein surfaces involved in the interaction, with the aim of reproducing the secondary structure of the hot-spot, an interface region contributing most to the PPI [9,10]. Recent technical advances concerning peptide synthesis and delivery have permitted a resurgence of peptide drug discovery and development [11,12,13,14]. Peptides also show some advantages, like their chemical flexibility, which permits them to adapt to the large and shallow protein surfaces that are generally involved in their interaction with other proteins. Peptides are not only able to mimic the structural features of the protein interfaces, they are also more biocompatible, which redounds in lower toxicity.
We had previously described a collection of linear 13-mer peptide library, de novo designed for adopting helical conformations. Our hypothesis was based on the fact that α-helices are the secondary structure element most frequently involved in PPIs [15]. They were designed to fix a combination of either three aromatic—or two aromatic and one aliphatic—residues on one face of the helix (Ac-SSEEX5ARNX9AAX12N-NH2), taking into account that frequently only the hydrophobic face of the helix is involved in binding, and also that key residues for affinity are located at relative positions i, i + 3(i + 4), i + 7. The library was conceived as a tool to identify peptides able to disrupt PPIs in which helical motives were involved, playing an essential role. In order to validate our initial hypothesis some peptides were selected to evaluate their capacity to interfere with two well-studied PPI targets, such as the p53-MDM2 and VEGF-VEGFR1 interactions. In both cases, the protein–protein contact takes place through interfaces in which the mediation of a hydrophobic α-helix is essential. The results of the appropriate binding experiments showed that some of the tested peptides were able to mimic p53 and VEGF ‘hot-spots’, binding with their complementary proteins MDM2 (murine form of the HDM2 suppressor factor) and VEGFR1, respectively, and finally hampering their interaction with the respective partners, p53 and VEGF [15].
The interaction of the vascular endothelial growth factor (VEGF) with its receptors, is a triggering factor of angiogenesis, a physiological process of generation of blood vessels. Angiogenesis plays also an important role in pathological situations being closely related to certain diseases like cancer and metastasis [16]. VEGF is one of the best known proangiogenic factors, and its biological action is mediated by its binding to specific receptors that are transmembrane proteins with tyrosine kinase activity, VEGFR1, VEGFR2, and VEGFR3 [17,18]. One of the three main epitopes identified as essential for the VEGF-VEGFR1 interaction is the fragment VEGF17-25, located at the N-terminal of VEGF. Within this fragment, Phe17 appears to be a key residue for the VEGF–VEGFR1 interaction together with Tyr21 and Tyr25 residues, which are important for the stabilization of the helical secondary structure [19]. Related to this, we had previously described 13-mer linear and cyclic peptides derived from this fragment that were able to bind to VEGFR1, showing IC50 values in the micromolar range [20].
To validate our helical library in the VEGF/VEGFR system [15], seven peptides of the whole collection were initially selected, including the FYY containing derivative as the most related to VEGF17-25 fragment. Six of them had in their sequence three aromatic residues located at relative positions i, i + 4, i + 7, corresponding to positions 5, 9, 12 of the sequence (Ac-SSEEX5ARNX9AAX12N-NH2) [15]. It is worth to notice that the relative position of the key residues in VEGF17-25 fragment, namely FiY(i+4)Y(i+8), is not exactly the same that in the library components, but the fact that the three aromatic residues are located at the same face of the helix could permit that they mimic the native helical fragment. When these compounds were tested for their ability to displace biotinylated VEGF165 bound to the extracellular domain of VEGFR1, at the unique dose of 100 μM, (compounds 17, Table 1), inhibition values in the range of 30–50% were found for most of them [15]. Two compounds, 2 (FYW) and 3 (FWY), showed good IC50 values (29 ± 3 μM and 23 ± 4 μM, respectively), comparable to that of model peptide QK (Table 1). These results already suggested that the single substitution of Tyr9 and Tyr12 residues by Trp, has some advantages leading to better inhibitors of the VEGF-VEGFR1 interaction. On the contrary, peptide 7 with the combination FYI, resulting from the substitution of Y12 by an aliphatic Ile residue, was inactive.
These results were promising enough to prompt us to extend the study to other peptides from our library [15]. Here we describe the evaluation of the whole sub-library of peptides having three aromatic residues at the mentioned positions, and some components with two aromatic and one aliphatic residues. This study led to the identification of a peptide sequence, containing F, W, and I residues at the 5, 9, and 12 positions, showing submicromolar IC50 value, competing with VEGF for its receptor 1, VEGFR1.

2. Results and Discussion

The binding studies were performed on VEGF isoform VEGF-A (VEGF165) that is the most commonly involved in pathological angiogenesis. Compounds were first evaluated for their ability to displace biotinylated VEGF-A at two different doses, 30 and 100 μM (Table 2). A chemiluminescent assay, relying on competition between tested compounds and biotinylated VEGF-A for binding to the extracellular domain of recombinant VEGFR1, was used [22]. At the lower dose of 30 μM, more than half of the compounds showed inhibition percentage values higher that 40%.
Considering the displacement percentage values at the dose of 100 μM of compound tested, in general it can be said that the introduction of a Trp residue at the key positions enhances the capacity of the peptide to bind to the VEGFR1 receptor. Thus, considering the previously described peptides (Table 1), compounds 2 (FYW), 3 (FWY), and 4 (WYY) resulting from the substitution by Trp of residues at key positions 12, 9, and 5 respectively, display about 15–20% higher binding affinity than peptide 1, keeping the natural sequence FYY (29 ± 3%). Similar results are also observed when comparing compound 9 (FFF, 37 ± 3%), with peptides 10 (WFF, 55 ± 1%), 12 (FWF, 55 ± 1), and 22 (FFW, 82 ± 1), all showing higher inhibitory values, especially in the case of 22 (Table 2). The same tendency is observed in the case of 15 (FYF, 27 ± 5%), and its analogues 16 (WYF, 62 ± 1%), 12 (FWF, 55 ± 1%), and 2 (FYW, 48 ± 6%) (Table 1 and Table 2). In contrast, in the case of 32 (FIY, 60 ± 1%) and 30 (FIW, 47 ± 6%) a decrease in the activity is observed due to the replacement of Tyr12 by Trp. Regarding the substitution by aliphatic residues, it seems that the introduction of Ile at key position 9 is better tolerated than at position 12, as it can be inferred by looking at the inhibitory values of compounds 1 (FYY, 29 ± 3%), 32 (FIY, 60 ± 1%), and 7 (FYI, 0%). Less tolerated was the incorporation of Leu residues at the same positions, leading to poorly active or inactive peptides, 33 (FLY, 19 ± 7%) and 31 (FYL, n.a.). The simultaneous introduction of two Trp residues in the same sequence—like in 20 (FWW, 43 ± 3%), 23 (WYW, 50 ± 1%), and 27 (WWY, 64 ± 5%)—also redounds in better binding results, compared to peptide 1 (FYY, 29 ± 3%), but in general these compounds do not improve the affinity of the mono-Trp-substituted peptides. Although, one of the best results is shown by compound 21, with three Trp residues at the key positions (WWW, 78 ± 2), this result was not corroborated afterwards. Compounds 1, 4, and 6, differing in the aromatic residue at position 5 are almost equipotent. Compared to peptide 9 (FFF, 37 ± 3), equipotent to model 1, the incorporation of a single Tyr residue is detrimental at position 5, compound 11 (7 ± 4), and conservative at positions 9 and 12, compounds 15 (27 ± 5) and 5 (39 ± 6), respectively, as it occurs also for the two-Tyr-containing analogues 17 (6 ± 1) and 26 (38 ± 4) (Table 1 and Table 2). Most of the above commented results are corroborated when the compounds were tested at a 30 μM concentration.
To summarize, from the above SAR, it seems that, in general, aromatic amino acids are suitable at position 5, with some exceptions (compounds 11 and 17, both having Phe at position 12). Concerning position 9, the replacement of Tyr9 by Ile, Trp or Phe is well tolerated, as it can be seen for compounds 32 (FIY, 60 ± 1%), 3 (FWY, 50 ± 5%), and 5 (FFY 39 ± 6%) respectively, while Leu seems to be detrimental for activity, 33 (FLY, 19 ± 7%). Regarding position 12, replacement by Phe apparently has no consequences, 15 (FYF, 27 ± 5%), while introduction of Trp gives a better result, 2 (FYW, 48 ± 5%), and Ile leads to an inactive compound 7 (FYI, n.a.). An exception to this is the high inhibition value found for peptide 29 (FWI, 72 ± 1), leading to a remarkable result despite that an Ile residue is in the place of Tyr 12. In this case, position 9 is occupied by a Trp that, as already commented, seems to increase the affinity for the receptor. On the whole, with the data in our hands it can be tentatively said that the incorporation of Trp at any of the positions give higher inhibition percentages.
Our results concerning the replacement of some aromatic residues by Trp correlate with the work of D´Andrea and co-workers that reported two peptides having the W17Y21Y25 motive and able to bind with high affinity to VEGFR1. In these cases, Phe17 had been replaced by Trp, resulting in very active peptides. However, one of them is a pro-angiogenic agent instead of showing the expected antiangiogenic activity as inhibitor of the VEGF-VEGFR1 interaction (peptide QK, Table 1) [21,23], while the other behaves as an anti-angiogenic [24]. The results are also in certain agreement with the data of a parallel study recently published by some of us, that describes short peptide analogs of the native sequences of the N-terminal α-helix of VEGF-A, VEGF-B, and PLGF, all of them natural ligands of VEGFR1. Sequence alignment showed that key residues for binding to VEGFR1 are respectively: F17Y21Y25, W17Y21, and F25W29Y33. These results also pointed to the benefit that the substitution by the Trp amino acid can have for binding [25].
To avoid false positive results due to possible contamination with metals or peptide aggregation [26,27], the screening was repeated at the same dose of 30 μM, but in the presence of EDTA, for those compounds having inhibition values above 60% (Table 2). The new experiments performed in the presence of EDTA led to slightly lower inhibition percentage values, especially for peptides with high Trp content. These last more reliable values were used to select the best peptides for dose–response experiments and IC50 determination. Only seven compounds exhibiting percentages of inhibition larger than 40% were studied (Table 3).
From the seven compounds studied to find the IC50 values, five of them had only one Trp residue in the sequence occupying either the 5 or the 9 position, (10, 12, 14, 16, and 29), one has two Trp residues (8), and two have one aliphatic residue of Ile, 29 and 32, at positions 12 and 9, respectively. All of them showed good IC50 values, being peptides 10, 14, and 29 the most effective as blockers of the VEGF-VEGFR1 interaction within this series (Figure 1 and Figure 2). All three have a Trp residue, either at position 5 or 9. Quite outstanding is the result found for compound 29, FWI, which showed submicromolar activity with an excellent IC50 value of 0.05 μM (Figure 2). These results correlate with the above commented finding about the replacement of only one of the key amino acid residues by Trp, which seems to be beneficial for increasing the affinity for VEGFR1. Compound 29, in addition to the Trp9, has an aliphatic Ile at position 12, in replacement of the native residue of Tyr12 (that would corresponds to Tyr25 of the native VEGF sequence). Tyr25 residue was suggested to play a relevant role for stabilization of the helix, more than being essential for the interaction with VEGF receptors [19]. The IC50 value found for 29 is as far as we know the best VEGFR1 affinity value ever reported for a peptide, as it can be seen by the results found for the above mentioned related peptides. Just to compare, it can be cited that the proangiogenic peptide QK described by D’Andrea and co-workers, Ac-KLTWMELYQLAYKGI-NH2 [21], in our assay shows an IC50 = 32 ± 8 μM [15]. In addition, the best result obtained for a small collection of peptides recently described by Wang, L. et al., corresponding to the cyclic peptide Ac-[CTVELMGTVAKQLVPC]-NH2, displayed an IC50 value of 10.4 ± 2.8 μM [25].
In summary, the affinities found suggest that the presence of a Trp residue, especially at positions 5 and 9, which is an important feature for VEGFR1 recognition, leading to linear peptides able to bind to this receptor with high affinity. The ultimate result of this study is the discovery of a linear 13-mer peptide 29, that shows the highest binding activity hitherto reported for a VEGFR1 peptide ligand (IC50 = 0.05 μM). To confirm this outstanding result we planned to perform a more complete pharmacological characterization of peptide 29 to explore its potential application in cancer detection and therapy.

3. Experimental Section

3.1. Synthesis

The library peptides were conveniently synthesized by parallel solid-phase methodologies and are described in [15].
Briefly, peptides were prepared starting from a Rink amide resin (0.34 g/mol) following the Fmoc/tBu strategy. Most of them were prepared manually, repeating the same procedure to introduce each amino acid. Swelling of the resin was performed with DMF and DCM (1 mL/100 mg of resin, 30 s × 4). Fmoc deprotections were performed with 20% piperidine in DMF (1 mL/100 mg of resin, one wash for 1 min and three for 10 min). Coupling reaction was carried out with HCTU (2 equiv), DIEA (2 equiv) and the corresponding Fmoc amino acid (2 equiv) in DMF for 1 h to obtain the peptides. Each coupling was checked by the Kaiser test and repeated if necessary. Some of the peptides were prepared using an automatic synthesizer coupled to a microwave heater (Cem Liberty1). In this case, resin was swelled with DCM for 10 min. Fmoc deprotections were performed with 20% piperidine in DMF in two steps. The first step was performed at 40 °C for 30 s and the second at 75 °C for 5 min. Coupling reactions were performed at 75 °C using Fmoc amino acids in DMF (5 equiv related to the resin), HBTU/HOBT in DMF (5 equiv), and DIEA in NMP (10 equiv).
Acetylation reactions were performed with DIEA (20 equiv) and Ac2O (20 equiv) in DMF for 1 h or using an Ac2O/DIEA/DMF (1:1:1) solution (4 × 10 min).
Cleavage of peptides from the resin, and concomitant side chain deprotection, were performed using TFA/EDT/H2O/TIPS (94:2.5:2.5:1) (1 mL, 100 mg of resin) at room temperature for 3 h. The resin was filtered off and crude products were precipitated with cold Et2O. The resulting solid was centrifuged, washed twice with ethyl ether, and then lyophilized.
Peptides with <80% purity were purified by automatic flash chromatography using SNAP 12 g KP-C18-HS cartridges in an ISOLERA ONE (BIOTAGE). A gradient of CH3CN:H2O (0.05% TFA) from 0:100 to 30:70 over 60 min as mobile phase, and a flux of 5 mL/min were used. Peptide purity was analyzed using an analytical HPLC: Waters (model 2690) with a SUNFIRETM column C18 (3.5 m, 4.6 × 50 mm) at 1 mL/min with a 5 to 50% gradient of CH3CN (0.08% HCO2H):H2O (0.01% HCO2H) in 15 min as mobile phase or Agilent (model 1120 Compact LC) with Eclipse Plus column C18 (4.6 × 150 mm) at 1.5 mL/min with a 5 to 50: gradient of CH3CN:H2O (0.05% TFA) in 20 min as mobile phase. Characterization of the products was performed by HPLC-MS (Waters, Milford, MA, USA) coupled to a single quadrupole ESI-MS (Micromass ZQ 2000, Waters, Milford, MA, USA.
Detailed experimental procedures for the conformational analysis of the peptides (CD and NMR) to corroborate their tendency to adopt the desired helical structure are gathered in the Supplementary Material of [15].

3.2. Chemiluminescent Competition Assays

As described by Muller Y. A. et al. [19], the surface of white high-binding 96-well microplate (Corning Life Sciences, Amsterdam, The Netherlands) was coated with 100 μL of phosphate-buffered saline solution (PBS, pH 7.4) containing 200 ng/mL of VEGFR-1 D1-D7 (ECD domain)/Fc Chimera or 150 ng/mL of VEGFR1 D1-D3/Fc chimera (Bio-techne R&D, Abingdon, UK) and incubated at 4 °C overnight. After three washes with 250 μL of PBS 0.1%, (v/v) tween 20 (buffer A), the plate was blocked by 200 μL of PBS with 3% (w/v) of BSA and stirred at 37 °C for 2 h. The plate was washed three times with buffer A. Then, 100 μL of a solution containing 131 pM of btVEGF165 (Bio-techne, R&D, Abingdon, UK) and the tested compounds at various concentration diluted in PBS containing 1% DMSO were added in each well. After 3 h stirring at 37 °C, the plate was washed four times with buffer A and 100 μL of streptavidin-horseradish peroxidase (Amersham Biosciences, Little Chalfont, UK) diluted at 1:8000 in PBS containing 0.1% (v/v) Tween 20 and 0.3% (w/v) BSA were added per well. After 1 h of incubation at 37 °C under obscurity and stirring, the plate was washed five times with 250 μL of buffer A and 100 μL of SuperSignal West Pico chemiluminescent substrate (Pierce, Appleton, WI, USA) were added. The remaining bt-VEGF165 was detected by chemiluminescence, which was quantified. The percentages of btVEGF165 displacement were calculated by the following formula: percentage of displacement = 100 × [1 − (S − NS)/(MS − NS)], where S is the signal measured, NS is the nonspecific binding signal and MS is the maximum binding signal observed with btVEGF165 without compounds tested. Either peptides were tested at 100 μM to determine a displacement percentage, or in a dose–effect relationship to determine their IC50 using the nonlinear regression function in Prism (GraphPad software, La Jolla, CA, USA). Each experiment was performed three times in triplicate.

Acknowledgments

This work was supported by the Spanish Ministerio de Economía y Competitividad (MINECO) SAF2015-66275-C2-R, subprograma NEF and by the University Paris Descartes and the ANR (Grants ANR-2010-BLANC-1533-03). BBP thanks the CSIC for a predoctoral fellowship (JAE-Predoc from Junta para la Ampliación de Estudios, co-financed by FSE).

Author Contributions

Idea: R.G.M., M.J.P.V.; Synthesis and chemical stability: B.B., M.A.B.; In vitro experiments: M.R.-S., N.G.-E.; Supervision: M.J.P.V., R.G.M., M.V.; This article has been written through the contribution of all authors, which have approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ottmann, C. New Compound Classes: Protein–protein Interactions. Handb. Exp. Pharmacol. 2015, 232, 125–138. [Google Scholar] [CrossRef]
  2. Gurung, A.B.; Bhattacharjee, A.; Ajmal Ali, M.; Al-Hemaid, F.; Lee, J. Binding of small molecules at interface of protein–protein complex—A newer approach to rational drug design. Saudi J. Biol. Sci. 2017, 24, 379–388. [Google Scholar] [CrossRef] [PubMed]
  3. Cardote, T.A.F.; Ciulli, A. Cyclic and macrocyclic peptides as chemical tools to recognise protein surfaces and probe protein–protein interactions. ChemMedChem 2016, 11, 787–794. [Google Scholar] [CrossRef] [PubMed]
  4. Petta, I.; Lievens, S.; Libert, C.; Tavernier, J.; De Bosscher, K. Modulation of protein–protein interactions for the development of novel therapeutics. Mol. Ther. 2016, 24, 707–718. [Google Scholar] [CrossRef] [PubMed]
  5. Zarzycka, B.; Kuenemann, M.A.; Miteva, M.A.; Nicolaes, G.A.F.; Vriend, G.; Sperandio, O. Stabilization of protein–protein interaction complexes through small molecules. Drug Discov. Today 2016, 21, 48–57. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, Y.; Aguilar, A.; Bernard, D.; Wang, S. Small-molecule inhibitors of the MDM2–p53 protein–protein interaction (MDM2 Inhibitors) in clinical trials for cancer treatment. J. Med. Chem. 2015, 58, 1038–1052. [Google Scholar] [CrossRef] [PubMed]
  7. Chang, Y.S.; Graves, B.; Guerlavais, V.; Tovar, C.; Packman, K.; To, K.-H.; Olson, K.A.; Kesavan, K.; Gangurde, P.; Mukherjee, A.; et al. Stapled α-helical peptide drug development: A potent dual inhibitor of MDM2 and MDMX for p53-dependent cancer therapy. Proc. Natl. Acad. Sci. USA 2013, 110, E3445–E3454. [Google Scholar] [CrossRef] [PubMed]
  8. Aileron Therapeutics. Available online: https://www.aileronrx.com/clinical-trials (accessed on 27 October 2017).
  9. Perez de Vega, M.J.; Martin-Martinez, M.; Gonzalez-Muniz, R. Modulation of protein–protein interactions by stabilizing/mimicking protein secondary structure elements. Curr. Top. Med. Chem. 2007, 7, 33–62. [Google Scholar] [CrossRef]
  10. Sawyer, N.; Watkins, A.M.; Arora, P.S. Protein domain mimics as modulators of protein–protein interactions. Acc. Chem. Res. 2017, 50, 1313–1322. [Google Scholar] [CrossRef] [PubMed]
  11. Henninot, A.; Collins, J.C.; Nuss, J.M. The Current State of Peptide Drug Discovery: Back to the Future? J. Med. Chem. 2017. [Google Scholar] [CrossRef] [PubMed]
  12. Russo, A.; Aiello, C.; Grieco, P.; Marasco, D. Targeting “undruggable” proteins: Design of synthetic cyclopeptides. Curr. Med. Chem. 2016, 23, 748–762. [Google Scholar] [CrossRef] [PubMed]
  13. Nevola, L.; Giralt, E. Modulating protein–protein interactions: The potential of peptides. Chem. Commun. 2015, 51, 3302–3315. [Google Scholar] [CrossRef] [PubMed]
  14. Scognamiglio, P.L.; Di Natale, C.; Perretta, G.; Marasco, D. From peptides to small molecules: An intriguing but intricated way to new drugs. Curr. Med. Chem. 2013, 20, 3803–3817. [Google Scholar] [CrossRef] [PubMed]
  15. Bonache, M.Á.; Balsera, B.; López-Méndez, B.; Millet, O.; Brancaccio, D.; Gómez-Monterrey, I.; Carotenuto, A.; Pavone, L.M.; Reille-Seroussi, M.; Gagey-Eilstein, N.; et al. De novo designed library of linear helical peptides: An exploratory tool in the discovery of protein–protein interaction modulators. ACS Comb. Sci. 2014, 16, 250–258. [Google Scholar] [CrossRef] [PubMed]
  16. Carmeliet, P. Angiogenesis in health and disease. Nat. Med. 2003, 9, 653–660. [Google Scholar] [CrossRef] [PubMed]
  17. Ferrara, N.; Gerber, H.P.; LeCouter, J. The biology of VEGF and its receptors. Nat. Med. 2003, 9, 669–676. [Google Scholar] [CrossRef] [PubMed]
  18. Horta, B.A.C.; Sodero, A.C.R.; de Alencastro, R.B. Investigating the differential activation of vascular endothelial growth factor (VEGF) receptors. J. Mol. Graph. Model. 2009, 28, 287–296. [Google Scholar] [CrossRef] [PubMed]
  19. Muller, Y.A.; Christinger, H.W.; Keyt, B.A.; de Vos, A.M. The crystal structure of vascular endothelial growth factor (VEGF) refined to 1.93 A resolution: Multiple copy flexibility and receptor binding. Structure 1997, 5, 1325–1338. [Google Scholar] [CrossRef]
  20. Garcia-Aranda, M.I.; Gonzalez-Lopez, S.; Santiveri, C.M.; Gagey-Eilstein, N.; Reille-Seroussi, M.; Martin-Martinez, M.; Inguimbert, N.; Vidal, M.; Garcia-Lopez, M.T.; Jimenez, M.A.; et al. Helical peptides from VEGF and Vammin hotspots for modulating the VEGF-VEGFR interaction. Org. Biomol. Chem. 2013, 11, 1896–1905. [Google Scholar] [CrossRef] [PubMed]
  21. D’Andrea, L.D.; Iaccarino, G.; Fattorusso, R.; Sorriento, D.; Carannante, C.; Capasso, D.; Trimarco, B.; Pedone, C. Targeting angiogenesis: Structural characterization and biological properties of a de novo engineered VEGF mimicking peptide. Proc. Natl. Acad. Sci. USA 2005, 102, 14215–14220. [Google Scholar] [CrossRef] [PubMed]
  22. Goncalves, V.; Gautier, B.; Garbay, C.; Vidal, M.; Inguimbert, N. Development of a chemiluminescent screening assay for detection of vascular endothelial growth factor receptor 1 ligands. Anal. Biochem. 2007, 366, 108–110. [Google Scholar] [CrossRef] [PubMed]
  23. Ziaco, B.; Diana, D.; Capasso, D.; Palumbo, R.; Celentano, V.; Di Stasi, R.; Fattorusso, R.; D’Andrea, L.D. C-terminal truncation of Vascular Endothelial Growth Factor mimetic helical peptide preserves structural and receptor binding properties. Biochem. Biophys. Res. Commun. 2012, 424, 290–294. [Google Scholar] [CrossRef] [PubMed]
  24. Basile, A.; Del Gatto, A.; Diana, D.; Di Stasi, R.; Falco, A.; Festa, M.; Rosati, A.; Barbieri, A.; Franco, R.; Arra, C.; et al. Characterization of a designed vascular endothelial growth factor receptor antagonist helical peptide with antiangiogenic activity in vivo. J. Med. Chem. 2011, 54, 1391–1400. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, L.; Zhou, L.; Reille-Seroussi, M.; Gagey-Eilstein, N.; Broussy, S.; Zhang, T.; Ji, L.; Vidal, M.; Liu, W.-Q. Identification of peptidic antagonists of vascular endothelial growth factor receptor 1 by scanning the binding epitopes of its ligands. J. Med. Chem. 2017, 60, 6598–6606. [Google Scholar] [CrossRef] [PubMed]
  26. Yoshida, H.; Hensgens, C.M.; van der Laan, J.M.; Sutherland, J.D.; Hart, D.J.; Dijkstra, B.W. An approach to prevent aggregation during the purification and crystallization of wild type acyl coenzyme A: Isopenicillin N acyltransferase from Penicillium chrysogenum. Protein Expr. Purif. 2005, 41, 61–67. [Google Scholar] [CrossRef] [PubMed]
  27. Gaucher, J.-F.; Reille-Seroussi, M.; Gagey-Eilstein, N.; Broussy, S.; Coric, P.; Seijo, B.; Lascombe, M.-B.; Gautier, B.; Liu, W.-Q.; Huguenot, F.; et al. Biophysical studies of the induced dimerization of human VEGF receptor 1 binding domain by divalent metals competing with VEGF-A. PLoS ONE 2016, 11, e0167755. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not Available.

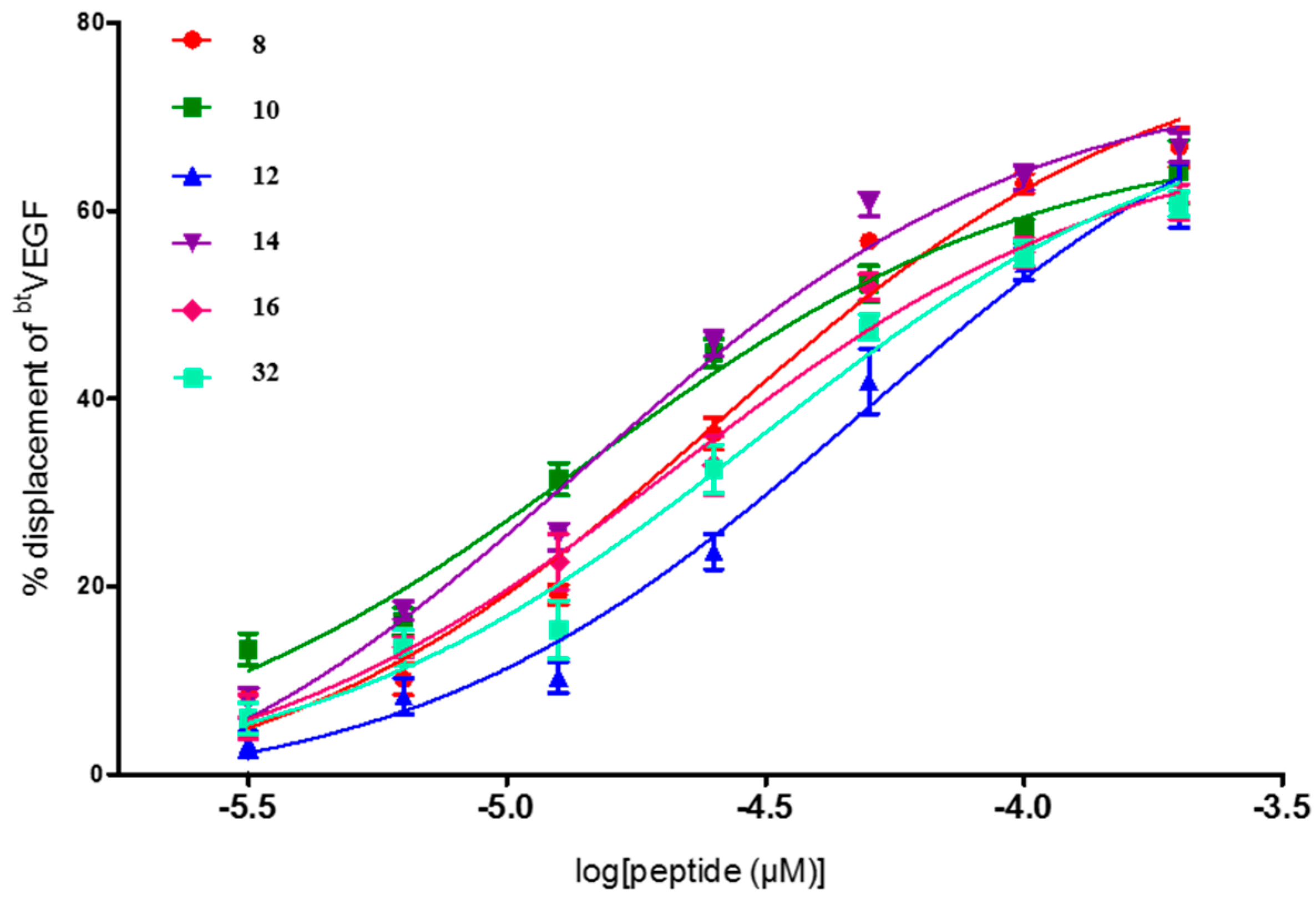

Figure 1. Dose–response curves for 8, 10, 12, 14, 16, and 32 peptides on VEGFR-1 displacement assays. Curves were fitted with log(inhibitor) vs. response method using GraphPad Prism.
Figure 1. Dose–response curves for 8, 10, 12, 14, 16, and 32 peptides on VEGFR-1 displacement assays. Curves were fitted with log(inhibitor) vs. response method using GraphPad Prism.
Molecules 22 01846 g001

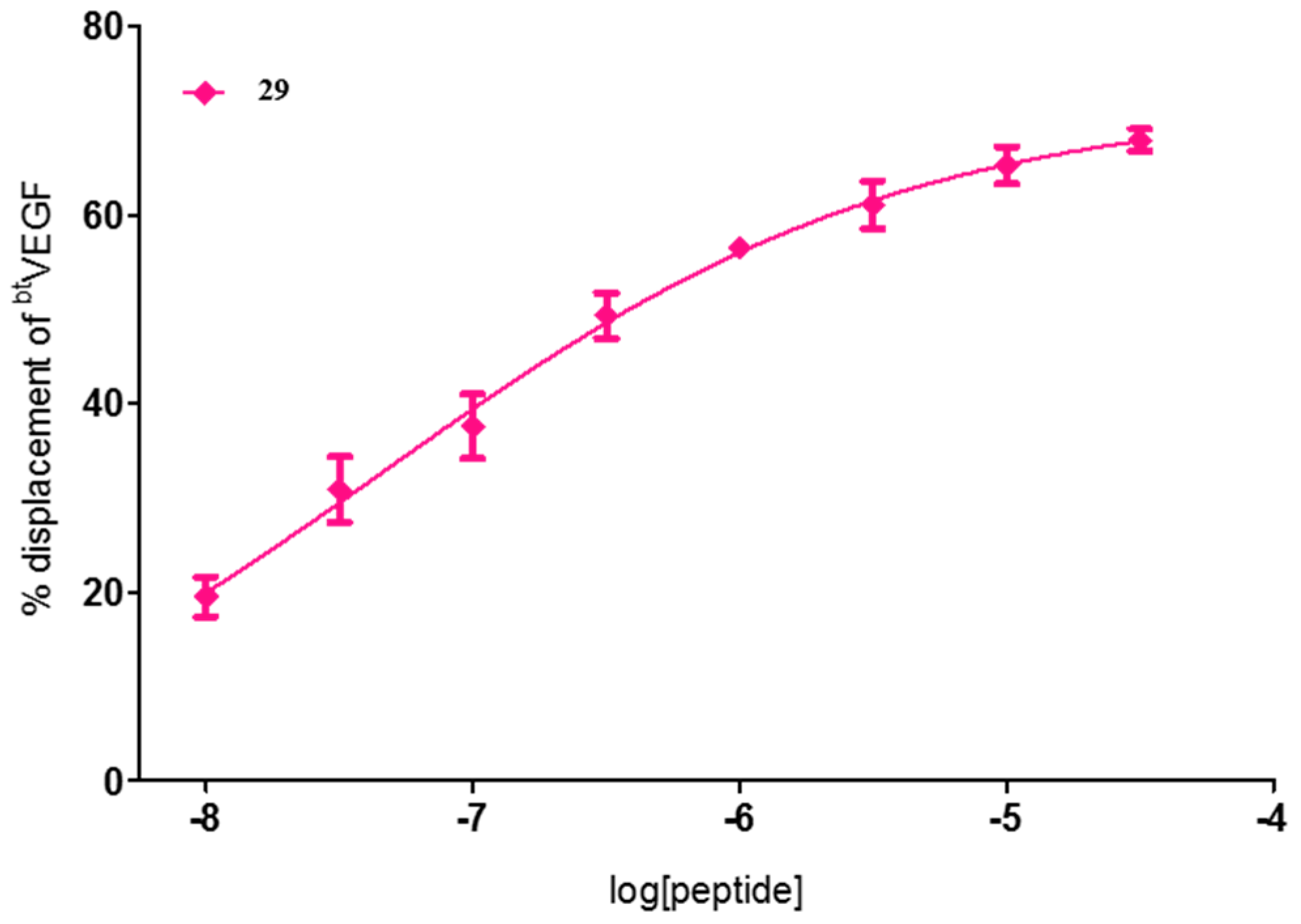

Figure 2. Dose–response curve for compound 29.
Figure 2. Dose–response curve for compound 29.
Molecules 22 01846 g002
Table 1. Inhibitory potency of the previously described peptides Ac-SSEEX5ARNX9AAX12N-NH2 on VEGFR1 a.
Table 1. Inhibitory potency of the previously described peptides Ac-SSEEX5ARNX9AAX12N-NH2 on VEGFR1 a.
Compd. No.Compd. b X5X9X12% of Displacement c (100 μM)IC50 (µM) d
1FYY29 ± 3ND f
2FYW48 ± 629 ± 5
3FWY50 ± 523 ± 4
4WYY45 ± 4>100
5FFY39 ± 6>100
6YYY33 ± 4ND
7FYIn.a. eND
QK g-69 ± 332 ± 8 g
a Displacement assays; b Compounds already described and tested in our previous study; c Activity corresponds to the percentage of biotinylated VEGF165 displaced by a 100 μM concentration of peptide on the whole extracellular domain (ECD, D1–D7) of VEGFR1; d Relative inhibitory concentration 50; e n.a refers to no significant activity; f ND = Not determined; g Described VEGFR1 binder peptide, Ac-KLTWQELYQLKYKGI-NH2 [21] (value from [15]).
Table 2. Inhibitory potency of selected peptides Ac-SSEEX5ARNX9AAX12N-NH2 on VEGFR1 a.
Table 2. Inhibitory potency of selected peptides Ac-SSEEX5ARNX9AAX12N-NH2 on VEGFR1 a.
Compd. No.Compd. X5X9X12% of Displacement b
100 μM30 μM30 μM + EDTA
8YWW63 ± 263 ± 140 ± 7
9FFF37 ± 347 ± 2- d
10WFF55 ± 164 ± 355 ± 4
11YFF7 ± 45 ± 3-
12FWF55 ± 166 ± 153 ± 4
13WWF58 ± 550 ± 434 ± 3
14YWF58 ± 162 ± 456 ± 6
15FYF27 ± 55 ± 4-
16WYF62 ± 171 ± 244 ± 5
17YYF6 ± 1n.a c-
18WFW65 ± 261 ± 131 ± 2
19YFW54 ± 337 ± 1-
20FWW43 ± 341 ± 3-
21WWW78 ± 262 ± 621 ± 4
22FFW82 ± 163 ± 219 ± 3
23WYW50 ± 128 ± 2-
24YYW70 ± 241 ± 2n.a
25WFY43 ± 522 ± 3-
26YFY38 ± 412 ± 5-
27WWY64 ± 557 ± 332 ± 4
28YWY44 ± 444 ± 2-
29FWI72 ± 160 ± 371 ± 2
30FIW47 ± 629 ± 7-
31FYLn.an.a-
32FIY60 ± 159 ± 455 ± 1
33FLY19 ± 76 ± 4-
a Displacement assays; b Activity corresponds to the percentage of biotinylated VEGF-A displaced by a 100 or 30 μM concentration of peptide on the whole extracellular domain (ECD, D1–D7) of VEGFR1; c n.a refers to no significant activity; d means that the measure was not performed [15].
Table 3. IC50 values of selected compounds. Displacement assays.
Table 3. IC50 values of selected compounds. Displacement assays.
EntryCompd. X5X9X12IC50 a (μM) (95% Confident Interval)
8YWW25.6 [18.6–35.1]
10WFF14.5 [9.4–22.2]
12FWF48.6 [31.8–74.3]
14YWF14.0 [10.0–19.6]
16WYF21.3 [13.9–32.7]
29FWI4.6 × 10−2 [1.4 × 10−3–1.5]
32FIY30.4 [19.4–47.5]
a Relative inhibitory concentration 50.
