Molecules 2017, 22(11), 1816; doi:10.3390/molecules22111816

Article
Synthesis, Crystal Structure, and Photoluminescent Properties of 3,3′,4,4′-Tetraethyl-5,5′-divinyl-2,2′-bipyrrole Derivatives
Toru Okawara 1,*, Reo Kawano 2, Hiroya Morita 2, Alan Finkelstein 3, Renjiro Toyofuku 4, Kanako Matsumoto 4, Kenji Takehara 1, Toshihiko Nagamura 1, Seiji Iwasa 5 and Sanjai Kumar 3,6Orcid
1
Department of Creative Engineering, National Institute of Technology, Kitakyushu College, 5-20-1 Shi-i, Kokuraminami-ku, Kitakyushu 802-0985, Japan
2
Advanced School of Creative Engineering, National Institute of Technology, Kitakyushu College, 5-20-1 Shi-i, Kokuraminami-ku, Kitakyushu 802-0985, Japan
3
Department of Chemistry and Biochemistry, Queens College, Queens, NY 11367, USA
4
Department of Materials Science and Chemical Engineering, National Institute of Technology, Kitakyushu College, 5-20-1 Shi-i, Kokuraminami-ku, Kitakyushu 802-0985, Japan
5
Department of Environmental and Life Sciences, Toyohashi University of Technology, 1-1 Tempaku-cho, Toyohashi, Aichi 441-8580, Japan
6
Ph.D. Program in Chemistry and Ph.D. Program in Biochemistry, The Graduate Center of the City University of New York, New York, NY 10016, USA
*
Correspondence: Tel.: +81-93-964-7300
Received: 13 September 2017 / Accepted: 23 October 2017 / Published: 26 October 2017

Abstract

:
Photoluminescent divinylbipyrroles were synthesized from 3,3′,4,4′-tetraetyl-2,2′-bipyrrole-5,5′-dicarboxaldehyde and activated methylene compounds via aldol condensation. For mechanistic clarity, molecular structures of Meldrum’s acid- and 1,3-dimethylbarbituric acid-derived divinylbipyrroles were determined by single-crystal X-ray diffraction. Photoluminescent properties of the synthesized divinylbipyrroles in dichloromethane were found to be dependent on the presence of electron withdrawing groups at the vinylic terminal. The divinylbipyrroles derived from malononitrile, Meldrum’s acid, and 1,3-dimethylbarbituric acid showed fluorescent peaks at 553, 576, and 602 nm respectively. Computational studies indicated that the alkyl substituents on the bipyrrole 3 and 3′ positions increased energy level of the highest occupied molecular orbital (HOMO) compared to the unsubstituted derivatives and provided rationale for the bathochromic shift of the ultraviolet-visible (UV-Vis) spectra compared to the previously reported analogs.
Keywords:
photoluminescent bipyrroles; aldol condensation; organic light emitting diodes; red fluorescence; density functional theory calculation

1. Introduction

Organic photoluminescent materials have attracted much attention in recent years due to their importance in organic light emitting diodes (OLEDs) [1,2,3,4,5] and chemosensors [6,7]. Recently, 2,2′-bipyrrole (Figure 1A), which is also known as a building block of natural red pigments, has been extensively studied because of its luminescent properties and applications in the development of artificial tetrapyrrole and oligopyrrole systems [8,9,10,11,12,13,14,15,16,17,18,19]. Che et al. have demonstrated that a bipyrrole can be a good candidate for the development of luminescent materials of OLEDs [20]. A planar 2,2′-bipyrrole is known to show blue fluorescence upon UV excitation in both solid and solution state. We recently reported the methodology of tuning the fluorescence wavelength of bipyrrole-based fluorophores by utilizing their crystal structure and incorporating suitably placed π-extension [21,22]. In our previous study, a highly efficient photoluminescence was achieved (λFL = 578 nm, ΦFL = 88%) by extending π-conjugation, containing a rigid and flat molecular structure, but unfortunately this resulted in poor solubility and crystallinity of the compounds. For practical applications, such as in vivo imaging of a hydrophobic domain of living cells, both longer wavelength fluorescent properties and good solubility are necessary [23,24]. It has been reported that the introduction of vinyl groups into bipyrrole or other chromophores can bathochromically shift the absorption or fluorescence wavelength [25,26,27,28,29,30,31,32]. Furthermore, in synthetic tetrapyrrole chemistry, it has been established that introduction of ethyl or propyl substituents may effectively improve the solubility in organic solvents [12,13].
Herein we report synthesis of novel π-extended bipyrrole derivatives 24 (Figure 1B) using activated methylene compounds by means of aldol condensation reaction (Scheme 1), study their photophysical properties and utilize time-dependent density functional theory (TD-DFT) calculations to rationalize the desirable bathochromic shifts observed experimentally. It was found that the introduction of four ethyl groups on the bipyrrole 3 and 3′-positions (Figure 1A) resulted in good solubility compared with the previously reported 3,3′-free derivatives [22]. The improvement of the solubility enabled us to obtain single crystals of 3, and 4, suitable for X-ray diffraction analysis. Owing to the ethyl substituents at the bipyrrole 3,3′-position, the absorption and fluorescence peaks shifted to the longer wavelength by ca. 20 nm. TD-DFT calculations indicated that the alkyl substituents on the bipyrrole 3,3′-positions destabilize energy level of the highest occupied molecular orbital (HOMO) and resulted in decrease in the HOMO-LUMO gap.

2. Results and Discussion

2.1. Synthesis

Compound 1 was prepared according to literature method [12]. Novel divinylbipyrroles 24 bearing four ethyl groups were synthesized from compound 1 and corresponding activated methylene compounds, malononitrile, 2,2-dimethyl-1,3-dioxane-4,6-dione (Meldrum’s acid), and 1,3-dimethylbarbituric acid, by means of an aldol condensation catalyzed by ammonium acetate (Scheme 1) [22]. Crude products were precipitated out from the reaction mixture by the addition of water and collected by filtration. The products were purified by column chromatography using a neutral alumina and eluted with dichloromethane/acetone (95:5, v/v). Recrystallization of the fraction from dichloromethane and methanol afforded analytically pure crystalline solids of 24 in 52–80% yield. Each of the synthesized compound exhibited good solubility both in dichloromethane and chloroform.

2.2. Nuclear Magnetic Resonance (NMR) Spectroscopy

NMR spectroscopy supported that synthesized divinylbipyrroles derivative (24) have good solubility in chloroform. Although 13C NMR spectrum of the previously reported 1,3-dimethylbarbituric acid adduct, 4Me could not be obtained because of the poor solubility [22], its analog, 4, afforded clear 13C NMR spectrum at similar experimental condition. The 1H NMR spectral studies revealed that compounds 3 and 4 have hydrogen bonding between NH and CO. The NH signals of 24 were observed from 9.5 to 13.7 ppm depending on the functional groups at the vinyl terminal. The large difference in the chemical shift of the NH proton can be explained by strength of the intramolecular hydrogen bonding. Carbonyl groups in compounds 3 and 4 can participate in the intramolecular hydrogen bonding with the NH group and can thus stabilize a seven-membered ring, while cyano group in 2, which has a linear geometry, is ineffective for such hydrogen bonding interaction.

2.3. Crystal Structure

Compounds 3 and 4 were recrystallized from dichloromethane/methanol and dichloromethane/acetone, respectively. The Oak Ridge Thermal-Ellipsoid Plot Program (ORTEP) diagrams of compounds 3 and 4, are shown in Figure 2 and Figure 3. Both compounds crystallized in the triclinic space group P-1 and showed highly planar structure in the crystals, which is similar to bipyrrole or bithiophene analogs [33,34,35]. Despite this, an extended π-π interaction between bipyrrole rings was interrupted by the relatively hindered ethyl groups.
Compound 3 has planar structure and all ethyl groups were located at the same side of the bipyrrole plane (Figure 2A). The other side interacted with another molecule to form an antiparallel π-stacked pair. The distance between two mean planes defined by N1, C1, C2, C3, C4, N2, C16, C17, C18, and C19 was 3.349 Å. The second shortest distance between the mean planes were 4.936 Å, which means that the ethyl groups served to block the extended π–π interaction (Figure 2B). The closest interatomic distance between the paired bipyrrole molecules was 3.392 Å (C1 and C3, Figure 2C). Dihedral angle of C23-O6H2-N2 was determined to be 1.84, while C8-O2H1-N1 was 21.44. This suggests that the latter hydrogen bonding is weaker than the former. Geometry around the vinyl group tells us that π-conjugation system effectively spreads from one vinyl group to the other. The carbon–carbon distances, C5–C6 and C20–C21 were found to be 1.389 and 1.382 Å, respectively. A. Mendoza and F.-F. Jian independently reported crystal structures of related Meldrum’s acid adducts [36,37,38]. In the literature, when a vinyl and a phenyl group twist each other, the carbon–carbon double bond at the vinyl group becomes shorter (1.33–1.34 Å). In our case however, π-conjugation system extension was successfully achieved by introducing the vinyl group due to the intramolecular hydrogen bonding interaction.
In compound 4, the four ethyl groups were located on both sides of the bipyrrole plane (Figure 3A). The interlayer distance between the mean planes defined by N1, C1, C2, C3, and C4 was determined to be 3.211 Å, but direct interaction between the pyrrole rings was not observed (Figure 3B). Instead, there is another intermolecular interaction between a carbonyl group of barbituric unit (O1) and an electron deficient vinyl group (C9) of the neighboring molecule (Figure 3C) [21,39,40,41]. Compound 4 also showed strong intramolecular hydrogen bonding between the carbonyl oxygen atom and the NH groups. In addition, the dihedral angle of C11-O1H1-N1 were 2.36, which means that 4 was more planar than 3 in the solid state. This is probably because of the hybridization of the terminal six membered ring. The vinyl terminal in 3 includes a sp3 carbon while 4 has all sp2 hybridization. Thus, the hydrogen bonding geometry in 4 becomes nearly flat.

2.4. UV-Vis Absorption and Photoluminescence

Bipyrrole 24 showed large bathochromic shift of absorption and fluorescence compared to the starting compound 1 and depended on the structure of the terminal substituents. In particular, compound 4 having the barbituric unit displayed the fluorescence maxima at 602 nm. Absorption and fluorescence spectra and photophysical parameters are shown in Figure 4 and Figure 5, and Table 1, respectively. These results suggest that expansion of the π-conjugation system by introduction of the vinyl groups effectively influenced the absorption and luminescent properties. Interestingly, absorption and fluorescence maxima of 4 shifted to the longer wavelength compared to the previously reported analog, 4Me, by ca. 20 nm.
Absolute quantum yield measurements revealed that the cyclic and rigid terminal structure led to highly efficient photoluminescence (Table 1). Compound 2 showed the lowest quantum yield (5%) probably because of molecular flexibility. Even though the present compounds have four alkyl groups on the bipyrrole periphery, they did not influence on the quantum yields negatively. The quantum yields of compounds 3 and 4 were determined to be 81 and 93%, respectively. These results support the notion that both a rigid cyclic structure and intramolecular hydrogen bonding play an important role in achieving the high quantum yield for bipyrrole systems. Although alkyl groups are known to promote the internal conversion, our present tetraethylbipyrrole system have comparable quantum yield with the previously reported dialkyl analog such as 4Me.

2.5. TD-DFT Calculations

To rationalize the differences observed in the absorption wavelength, TD-DFT calculations were performed using the Gaussian 09 suite of programs [42]. The initial atomic coordinates for the compounds are shown in the Supplementary Materials. The structures were optimized and evaluated using the CAM-B3LYP/6-31G(d) [43] level. The solvent effect was considered in dichloromethane by the polarizable continuum model using the integral equation formalism variant (IEFPCM) [44]. The calculated absorption maxima are summarized in Table 2. The TD-DFT calculation supported the absorption spectral difference between 4 and 4Me. On the other hand, calculated optical properties of 2 did not agree the experimental results. Relatively flexible compound 2 can take many conformation in the solution thus the experimental absorption spectra likely reflects the average sum of the various possible conformations. The calculation also provided the insight into the differences between the “tetra-alkylated” and “di-alkylated” bipyrroles. Figure 6 shows the HOMO and the LUMO orbitals of 4 and 4Me. It is clear from this that an ethyl group on the pyrrole 3,3′-positions contributes to the HOMO orbital. The HOMO level of 4 was 0.12 eV higher than that of 4Me due to the electron donation from the methyl group. On the other hand, there was no obvious difference between the LUMO orbitals in 4 and 4Me. This result explains the bathochromic shift of absorption and fluorescence wavelength in 4 compared to 4Me.
The vinyl groups and attached electron withdrawing groups significantly contributed to HOMO and LUMO. Thus, the TD-DFT calculations revealed that the alkyl groups on the bipyrrole 3,3′-positions greatly influenced photophysical properties.

3. Experimental

3.1. Materials and Instruments

All chemical reagents and solvents used in this study were obtained from commercial sources and used as received unless otherwise stated. 3,3′,4,4′-tetraethyl-5,5′-diformyl-2,2′-bipyrrole (1) has been prepared according to the literature [12]. Compounds 24 were synthesized using the similar reaction condition reported in the previous paper [22].
UV-Vis absorption spectra were recorded on a JASCO V-670 spectrophotometer (JASCO Corporation, Tokyo, Japan). Emission spectra were measured by a Hitachi F7000 spectrophotometer (Hitachi High-Technology, Tokyo, Japan). 1H and 13C NMR spectra were obtained at 25 °C on a JEOL ECS-400 FT-NMR spectrometer (JEOL, Tokyo, Japan) with tetramethylsilane as an internal standard of the chemical shift. Infrared (IR) spectra were recorded on a JASCO FT/IR-410 spectrometer (JASCO Corporation, Tokyo, Japan). Electrospray ionization time of flight mass (ESI-TOF-MS) spectra were measured with JEOL JMS-T100CS spectrometer (JEOL, Tokyo, Japan) using methanol/dichloromethane as a solvent system. The drying cavity was heated to 250 °C. The needle voltage, orifice 1, and orifice 2 voltages were within the range of 2500–4000 V, 50–80 V, and 3–15 V, respectively. Absolute photoluminescent quantum yields of 24 were determined by using a Hamamatsu Absolute PL Quantum Yield Spectrometer C11347 Quantaurus-QY (400–1100 nm), which equipped with an integrating sphere.

3.2. X-ray Crystallography

X-ray crystallography was performed using a Bruker SMART APEX CCD diffractometer equipped with graphite-monochromated Mo Kα radiation (λ = 0.71073 Å) from a fine-focus sealed tube operated at 50 kV and 30 mA. Single crystals of 3 and 4 were mounted on a glass fiber and the data frames were integrated using SAINT [45]. The integrated data were merged to give a unique data set for the structure determination. Absorption corrections by SADABS were carried out [46]. The structure was solved by a direct method and refined by the full-matrix least-squares method on all F2 data using the SHELXL-2014/7 suite of programs [47]. All nonhydrogen atoms were anisotropically refined. Hydrogen atoms were placed at geometrically idealized positions and constrained to ride on their parent atoms with Uiso(H) = 1.2Ueq(NH, CH and CH2) and Uiso(H) = 1.5Ueq(CH3). Crystallographic data (excluding structure factors) have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-1535686 and 1535687 for 3 and 4, respectively. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB21EZ, UK (fax: (+44) 1223-336-033; email: deposit@ccdc.cam.ac.uk).

3.3. Synthesis

(a) Compound 2. In a round bottomed flask, 32 mg (0.11 mmol) of 1 and 311 mg (4.7 mmol) of malononitrile were dissolved in 10 mL of acetonitrile. The solution was heated to refluxing temperature and then 359 mg (4.7 mmol) of ammonium acetate was added to the solution. The reaction mixture turned dark red and was further heated for 20 min. The reaction mixture was cooled to room temperature and 20 mL of water was added to the mixture. Resulting red precipitates were collected by filtration and washed with water. The product was purified by a neutral alumina. Yield: 29 mg (69%). Elemental Analysis Found: C 72.44, H 6.08, N 20.96, Calcd. (C24H24N6) C 72.70, H 6.10, N 21.20; 1H NMR (400 MHz, 298 K, CDCl3, ppm): δ = 9.57 (s, 2H, NH), 7.47 (s, 2H, vinyl-CH), 2.72, 2.66 (q, J = 7.5 Hz, 8H, -CH2CH3), 1.21, 1.16 (t, J = 7.5 Hz, 12H, -CH2CH3); 13C NMR (100 MHz, 298 K, CDCl3, ppm) δ = 142.2, 140.3, 130.1, 128.6, 125.6, 116.3, 115.0, 68.4, 17.9, 17.5, 17.0, 15.5; IR (KBr) wavenumber cm−1: 2217 (νCN); ESI-TOF-MS (CH3OH/CH2Cl2): m/z = 397 ([M + H]+).
(b) Compound 3. Yield: 80%. Elemental Analysis Found: C 64.43, H 6.43, N 4.96, Calcd. (C30H36N2O8) C 65.20, H 6.57, N 5.07; 1H NMR (400 MHz, 298 K, CDCl3, ppm): δ = 12.96 (s, 2H, NH), 8.28 (s, 2H, vinyl-CH), 2.85, 2.82 (q, J = 7.5 Hz, 8H, -CH2CH3), 1.79 (s, 12H, C(CH3)2), 1.26, 1.20 (t, J = 7.5 Hz, 12H, -CH2CH3); 13C NMR (100 MHz, 298 K, CDCl3, ppm) δ = 165.0, 164.5, 145.4, 137.7, 132.4, 130.6, 127.9, 104.3, 99.1, 77.2, 27.2, 18.1, 17.8, 17.3, 15.6; IR (KBr) wavenumber cm−1: 1731, 1681 (νCO); ESI-TOF-MS (CH3OH/CH2Cl2): m/z = 552 ([M]+); X-ray crystallography: C30H36N2O8, triclinic, P−1, a = 10.006(14) Å, b = 11.205(16) Å, c = 13.232(19) Å, α = 82.71(3)°, β = 80.50(5)°, γ = 73.03(3)°, V = 1395(3) Å3, Z = 2, T = 100 K, λ(Mo Kα) = 0.096 mm−1, R1 = 0.0428 (I > 2σ(I)), wR2 = 0.1091, GOF = 1.363.
(c) Compound 4. Yield: 52%. Elemental Analysis Found: C 62.19, H 6.18, N 14.37, Calcd. (C30H36N6O6) C 62.49, H 6.29, N 14.57; 1H NMR (400 MHz, 298 K, CDCl3, ppm): δ = 13.65 (s, 2H, NH), 8.38 (s, 2H, vinyl-CH), 3.43 (s, 12H, -NCH3), 2.91, 2.86 (q, J = 7.5 Hz, 8H, -CH2CH3), 1.28, 1.22 (t, J = 7.5 Hz, 12H, -CH2CH3); 13C NMR (100 MHz, 298 K, CDCl3, ppm) δ = 164.0, 163.6, 151.6, 145.0, 137.2, 132.1, 130.7, 128.7, 104.7, 28.8, 28.4, 18.2, 17.9, 17.5, 15.7; IR (KBr) wavenumber cm−1: 1720, 1660, 1638 (νCO); ESI-TOF-MS (CH3OH/CH2Cl2): m/z = 577 ([M + H]+); X-ray crystallography: C30H36N6O6, triclinic, P−1, a = 8.363(9) Å, b = 8.754(11) Å, c = 10.446(12) Å, α = 102.81(2)°, β = 108.034(14)°, γ = 100.24(4)°, V = 683.6(14) Å3, Z = 1, T = 100 K, λ(Mo Kα) = 0.099 mm−1, R1 = 0.0572 (I > 2σ(I)), wR2 = 0.1468, GOF = 1.027.

3.4. Computational Methods

The computational studies were carried out by using the Gaussian 09 suite of program [42]. The initial coordinates of the compounds were optimized by the CAMB3LYP/6-31G(d) basis set [43]. The calculations were performed in dichloromethane. The solvent environment was treated using the IEFPCM model [44]. The transition energies were also calculated by using the CAMB3LYP/6-31G(d) level of theory.

4. Conclusions

In conclusion, we synthesized novel luminescent bipyrroles with four ethyl groups and vinylic extensions. The ethyl groups were found to be effective for the solubility improvement. The X-ray structure analysis revealed that compound 3 and 4 have a planar structure and possess intramolecular hydrogen bonding in the solid state. The strong hydrogen bonding resulted in a rigid molecular structure, which led to enhanced quantum yield. The ethyl substituents served to not only provide solubility improvement in organic solvents but also in tuning of the HOMO–LUMO gap. Compound 4, for example, showed 13 nm longer absorption wavelength and exhibited enhanced photoluminescence compared to the previously reported dimethyl analog 4Me. TD-DFT calculation further shed light that the alkyl substitutions at the bipyrrole 3 and 3′-positions have an effect on the HOMO energy level, thereby resulting in the bathochromic shift of the absorption and fluorescence spectra. It is anticipated that the knowledge gained from these studies will contribute towards the development of enhanced organic photoluminescent materials utilizing π-extended bipyrrole derivatives.

Supplementary Materials

Supplementary materials are available online. Crystallographic data for 3 and 4, 1H NMR. 13C NMR, IR and MS spectra, elemental analysis of 24, absolute quantum yield measurements of 24, HOMO and LUMO orbitals of 14 and 4Me, and initial coordinates of 14 and 4Me for TD-DFT calculations.

Acknowledgments

This work was supported by JSPS KAKENHI Grant Number 15K17848, Nanotechnology Platform No. NPS16050, and International Collaborative Education and Research Project (No. 40409) from Toyohashi University of Technology. The authors appreciate Yoshio Hisaeda, Toshikazu Ono, Takahiro Masuko, and Kohei Ishihama for their kind help in X-ray and MS spectra measurements at Kyushu University.

Author Contributions

T. Okawara conceived and designed the experiments, synthesized compound 1, and wrote the paper; R. Kawano, H. Morita, A. Finkelstein, R. Toyofuku, and K. Matsumoto contributed to synthesis and characterization of compounds 24, and 4Me; K. Takehara, T. Nagamura, S. Iwasa, and S. Kumar provided support in writing the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Ma, D.; Tsuboi, T.; Qiu, Y.; Duan, L. Recent Progress in Ionic Iridium(III) Complexes for Organic Electronic Devices. Adv. Mater. 2017, 29, 1603253. [Google Scholar] [CrossRef] [PubMed]
  2. Niklaus, L.; Tansaz, S.; Dakhil, H.; Weber, K.T.; Pröschel, M.; Lang, M.; Kostrzewa, M.; Coto, P.B.; Detsch, R.; Sonnewald, U.; et al. Micropatterned Down-Converting Coating for White Bio-Hybrid Light-Emitting Diodes. Adv. Funct. Mater. 2017, 27, 1601792. [Google Scholar] [CrossRef]
  3. Lamansky, S.; Djurovich, P.; Murphy, D.; Abdel-Razzaq, F.; Lee, H.E.; Adachi, C.; Burrows, P.E.; Forrest, S.R.; Thompson, M.E. Highly Phosphorescent Bis-Cyclometalated Iridium Complexes: Synthesis, Photophysical Characterization, and Use in Organic Light Emitting Diodes. J. Am. Chem. Soc. 2001, 123, 4304–4312. [Google Scholar] [CrossRef] [PubMed]
  4. Reiss, P.; Carrière, M.; Lincheneau, C.; Vaure, L.; Tamang, S. Synthesis of Semiconductor Nanocrystals, Focusing on Nontoxic and Earth-Abundant Materials. Chem. Rev. 2016, 116, 10731–10819. [Google Scholar] [CrossRef] [PubMed]
  5. Tao, Y.; Yuan, K.; Chen, T.; Xu, P.; Li, H.; Chen, R.; Zheng, C.; Zhang, L.; Huang, W. Thermally Activated Delayed Fluorescence Materials Towards the Breakthrough of Organoelectronics. Adv. Mater. 2014, 26, 7931–7958. [Google Scholar] [CrossRef] [PubMed]
  6. Tao, Y.; Yuan, K.; Chen, T.; Xu, P.; Li, H.; Chen, R.; Zheng, C.; Zhang, L.; Huang, W. Hydrogen-Bond and Supramolecular-Contact Mediated Fluorescence Enhancement of Electrochromic Azomethines. Chem. Eur. J. 2016, 22, 11382–11393. [Google Scholar] [CrossRef]
  7. Samanta, S.; Goswami, S.; Hoque, M.N.; Ramesh, A.; Das, G. An aggregation-induced emission (AIE) active probe renders Al(III) sensing and tracking of subsequent interaction with DNA. Chem. Commun. 2014, 50, 11833–11836. [Google Scholar] [CrossRef] [PubMed]
  8. Gale, P.A.; Tomas, R.P.; Quesada, R. Anion Transporters and Biological Systems. Acc. Chem. Res. 2013, 46, 2801–2813. [Google Scholar] [CrossRef] [PubMed]
  9. Rapoport, H.; Holden, K.G. The Synthesis of Prodigiosin. J. Am. Chem. Soc. 1962, 84, 635–642. [Google Scholar] [CrossRef]
  10. Hong, T.; Song, H.; Li, X.; Zhanga, W.; Xie, Y. Syntheses of mono- and diacylated bipyrroles with rich substitution modes and development of a prodigiosin derivative as a fluorescent Zn(II) probe. RSC Adv. 2014, 4, 6133–6140. [Google Scholar] [CrossRef]
  11. Sessler, J.L.; Eller, L.R.; Cho, W.S.; Nicolaou, S.; Aguilar, A.; Lee, J.T.; Lynch, V.M.; Magda, D.J. Synthesis, Anion-Binding Properties, and In Vitro Anticancer Activity of Prodigiosin Analogues. Angew. Chem. Int. Ed. 2005, 44, 5989–5992. [Google Scholar] [CrossRef] [PubMed]
  12. Vogel, E.; Koch, P.; Hou, X.L.; Lex, J.; Lausmann, M.; Kisters, D.C.M.; Aukauloo, M.A.; Richard, P.; Guilard, R. New Porphycene Ligands: Octaethyl- and Etioporphycene (OEPc and EtioPc)—Tetra- and Pentacoordinated Zinc Complexes of OEPc. Angew. Chem. Int. Ed. Engl. 1993, 32, 1600–1604. [Google Scholar] [CrossRef]
  13. Vogel, E.; Balci, M.; Pramod, K.; Koch, P.; Lex, J.; Ermer, O. 2,7,12,17-Tetrapropylporphycene—Counterpart of Octaethylporphyrin in the Porphycene Series. Angew. Chem. Int. Ed. Engl. 1987, 26, 928–931. [Google Scholar] [CrossRef]
  14. Jiao, L.J.; Hao, E.H.; Fronczek, F.R.; Vicente, M.G.H.; Smith, K.M. Palladium(0) catalyzed 2,2′-bipyrrole syntheses. J. Porphyrins Phthalocyanines 2011, 15, 433–440. [Google Scholar] [CrossRef] [PubMed]
  15. Czerski, I.; Listkowski, A.; Nawrocki, J.; Urbańska, N.; Piwoński, H.; Sokołowski, A.; Pietraszkiewicz, O.; Pietraszkiewicz, M.; Waluk, J. The long and winding road to new porphycenes. J. Porphyrins Phthalocyanines 2012, 16, 589–602. [Google Scholar] [CrossRef]
  16. Kumagai, T.; Hanke, F.; Gawinkowski, S.; Sharp, J.; Kotsis, K.; Waluk, J.; Persson, M.; Grill, L. Controlling intramolecular hydrogen transfer in a porphycene molecule with single atoms or molecules located nearby. Nat. Chem. 2014, 6, 41–46. [Google Scholar] [CrossRef] [PubMed]
  17. Sessler, J.L.; An, D.; Cho, W.S.; Lynch, V. Calix[2]bipyrrole[2]furan and Calix[2]bipyrrole[2]thiophene: New Pyrrolic Receptors Exhibiting a Preference for Carboxylate Anions. J. Am. Chem. Soc. 2003, 125, 13646–13647. [Google Scholar] [CrossRef] [PubMed]
  18. Kim, S.K.; Lee, J.; Williams, N.J.; Lynch, V.M.; Hay, B.P.; Moyer, B.A.; Sessler, J.L. Bipyrrole-Strapped Calix[4]pyrroles: Strong Anion Receptors That Extract the Sulfate Anion. J. Am. Chem. Soc. 2014, 136, 15079–15085. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, S.; Lv, G.; Wang, G.; Zhu, K.; Yu, D.; Shao, J.; Wang, Y.; Liu, Y. Facile preparation and fluorescence properties of a soluble oligopyrrole derivative. J. Photochem. Photobiol. A Chem. 2015, 309, 30–36. [Google Scholar] [CrossRef]
  20. Che, C.M.; Wan, C.W.; Lin, W.Z.; Yu, W.Y.; Zhou, Z.Y.; Lai, W.Y.; Lee, S.T. Highly luminous substituted bipyrroles. Chem. Commun. 2001, 721–722. [Google Scholar] [CrossRef]
  21. Okawara, T.; Doi, A.; Ono, T.; Abe, M.; Takehara, K.; Hisaeda, Y.; Matsushima, S. Synthesis and X-ray crystallography of bipyrroles: Impacts of a CO–π interaction on their structure. Tetrahedron Lett. 2015, 56, 1407–1410. [Google Scholar] [CrossRef]
  22. Kawano, R.; Kato, T.; Fukuda, R.; Okawara, T.; Takehara, K.; Nagamura, T. Synthesis, Structure, and Spectroscopy of Green to Yellow Fluorescent Divinylbipyrroles. ChemistrySelect 2016, 1, 4144–4151. [Google Scholar] [CrossRef]
  23. Gao, Z.; Zhang, X.; Chen, Y. One-pot synthesis of a near-infrared fluorophore for living cells imaging. Dyes Pigm. 2017, 140, 56–61. [Google Scholar] [CrossRef]
  24. Wu, A.; Kolanowski, J.L.; Boumelhem, B.B.; Yang, K.; Lee, R.; Kaur, A.; Fraser, S.T.; New, E.J.; Rendina, L.M. A Carborane-Containing Fluorophore as a Stain of Cellular Lipid Droplets. Chem. Asian J. 2017, 12, 1704–1708. [Google Scholar] [CrossRef] [PubMed]
  25. Paine, J.B., III; Dolphin, D. 5-Unsubstituted 2-pyrrolecarboxaldehydes for porphyrin synthesis and the cyanovinyl protecting group. J. Org. Chem. 1988, 53, 2787–2795. [Google Scholar] [CrossRef]
  26. Bauer, V.J.; Clive, D.L.J.; Dolphin, D.; Paine, J.B., III; Harris, F.L.; King, M.M.; Loder, J.; Wang, S.W.C.; Woodward, R.B. Sapphyrins: Novel aromatic pentapyrrolic macrocycles. J. Am. Chem. Soc. 1983, 105, 6429–6436. [Google Scholar] [CrossRef]
  27. Jiao, L.; Yu, C.; Li, J.; Wang, Z.; Wu, M.; Hao, E. β-Formyl-BODIPYs from the Vilsmeier-Haack Reaction. J. Org. Chem. 2009, 74, 7525–7528. [Google Scholar] [CrossRef] [PubMed]
  28. Polander, L.E.; Barlow, S.; Seifried, B.M.; Marder, S.R. A 2,6-Diformylnaphthalene-1,8:4,5-bis(dicarboximide): Synthesis and Knoevenagel Condensation with Malononitrile. J. Org. Chem. 2012, 77, 9426–9428. [Google Scholar] [CrossRef] [PubMed]
  29. Yin, G.; Ma, Y.; Xiong, Y.; Cao, X.; Li, Y.; Chen, L. Enhanced AIE and different stimuli-responses in red fluorescent (1,3-dimethyl)barbituric acid-functionalized anthracenes. J. Mater. Chem. C 2016, 4, 751–757. [Google Scholar] [CrossRef]
  30. Xu, D.; Li, Z.; Peng, Y.X.; Geng, J.; Qian, H.F.; Huang, W. Post-modification of 2-formylthiophene based heterocyclic azo dyes. Dyes Pigm. 2016, 133, 143–152. [Google Scholar] [CrossRef]
  31. Gupta, A.; Kelson, M.M.A.; Armel, V.; Bilic, A.; Bhosale, S.V. N-Alkyl- and N-aryl-dithieno[3,2-b:2′,3′-d]pyrrole-containing organic dyes for efficient dye-sensitized solar cells. Tetrahedron 2014, 70, 2141–2150. [Google Scholar] [CrossRef]
  32. Falk, H.; Flodl, H. Beiträge zur Chemie der Pyrrolpigmente, 76. Mitt.: Die Synthese von symmetrisch substituierten 2,2′-Bipyrrolen durch oxidative Kupplung. Monatsh. Chem. 1988, 119, 247–252. [Google Scholar] [CrossRef]
  33. Sullivan, P.; Collis, G.E.; Rochford, L.A.; Arantes, J.F.; Kemppinen, P.; Jones, T.S.; Winzenberg, K.N. An N-ethylated barbituric acid end-capped bithiophene as an electron-acceptor material in fullerene-free organic photovoltaics. Chem. Commun. 2015, 51, 6222–6225. [Google Scholar] [CrossRef] [PubMed]
  34. Merz, A.; Kronberger, J.; Dunsch, L.; Neudeck, A.; Petr, A.; Parkanyi, L. Radical Dimerization of 5,5′-Diphenyl-3,3′,4,4′-tetramethoxy-2,2′-bipyrrole: π Dimer in the Crystal, σ Dimer in Solution. Angew. Chem. Int. Ed. 1999, 38, 1442–1446. [Google Scholar] [CrossRef]
  35. Sanchez-García, D.; Borrell, J.I.; Nonell, S. One-Pot Synthesis of Substituted 2,2′-Bipyrroles. A Straightforward Route to Aryl Porphycenes. Org. Lett. 2009, 11, 77–79. [Google Scholar] [CrossRef] [PubMed]
  36. Zeng, W.-L.; Jian, F.-F. 5-(2-Fluorobenzylidene)-2,2-dimethyl-1,3-dioxane-4,6-dione. Acta Cryst. 2009, E65, o2587. [Google Scholar] [CrossRef] [PubMed]
  37. García-Álvarez, F.; Romero, N.; Lobato-García, C.E.; Terána, J.L.; Mendoza, A. 2,2-Di­methyl-5-(2-nitro­benzyl­idene)-1,3-dioxane-4,6-dione. Acta Cryst. 2013, E69, o50. [Google Scholar] [CrossRef]
  38. Sabino, J.R.; Damasceno, F.; Cunha, S. 2,2-Dimethyl-5-(pyrrolidin-2-yl­idene)-1,3-dioxane-4,6-dione. Acta Cryst. 2007, E63, o1913. [Google Scholar] [CrossRef]
  39. Egli, M.; Sarkhel, S. Lone Pair-Aromatic Interactions: To Stabilize or Not to Stabilize. Acc. Chem. Res. 2007, 40, 197–205. [Google Scholar] [CrossRef] [PubMed]
  40. Caracelli, I.; Zukerman-Schpector, J.; Haiducc, I.; Tiekink, E.R.T. Main group metal lone-pair⋯π(arene) interactions: A new bonding mode for supramolecular associations. CrystEngComm. 2016, 18, 6960–6978. [Google Scholar] [CrossRef]
  41. Anguera, G.; Kauffmann, B.; Borrell, J.I.; Borros, S.; Sanchez-García, D. Stable 5,5′-Substituted 2,2′-Bipyrroles: Building Blocks for Macrocyclic and Materials Chemistry. J. Org. Chem. 2017, 82, 6904–6912. [Google Scholar] [CrossRef] [PubMed]
  42. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  43. Yanai, T.; Tew, D.; Handy, N. A new hybrid exchange-correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem. Phys. Lett. 2004, 393, 51–57. [Google Scholar] [CrossRef]
  44. JTomasi, J.; Mennucci, B.; Cancès, E. The IEF version of the PCM solvation method: An overview of a new method addressed to study molecular solutes at the QM ab initio level. J. Mol. Struct. Theochem 1999, 464, 211–226. [Google Scholar] [CrossRef]
  45. SAINT, V8.34A, Bruker AXS; Bruker AXS Inc.: Madison, WI, USA, 2013.
  46. SADABS, 2014/5, Bruker AXS; Bruker AXS Inc.: Madison, WI, USA, 2014.
  47. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are not available from the authors.

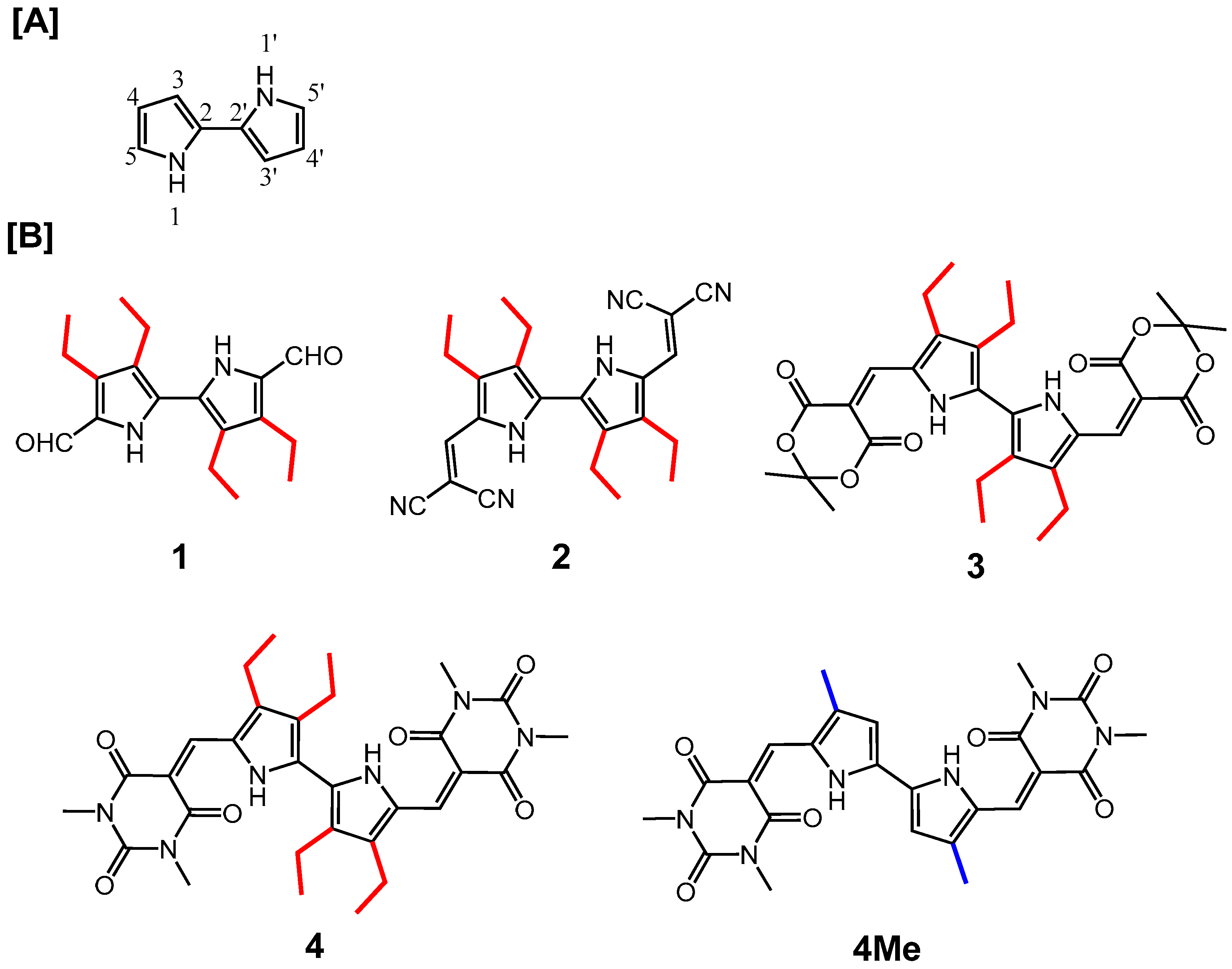

Figure 1. (A) Positional numbering system of the bipyrroles; (B) Structural formulae of the synthesized divinylbipyrrole compounds 14 utilized in this study along with the reference compound 4Me.
Figure 1. (A) Positional numbering system of the bipyrroles; (B) Structural formulae of the synthesized divinylbipyrrole compounds 14 utilized in this study along with the reference compound 4Me.
Molecules 22 01816 g001
Scheme 1. Synthetic scheme of compounds 24 from 1.
Scheme 1. Synthetic scheme of compounds 24 from 1.
Molecules 22 01816 sch001

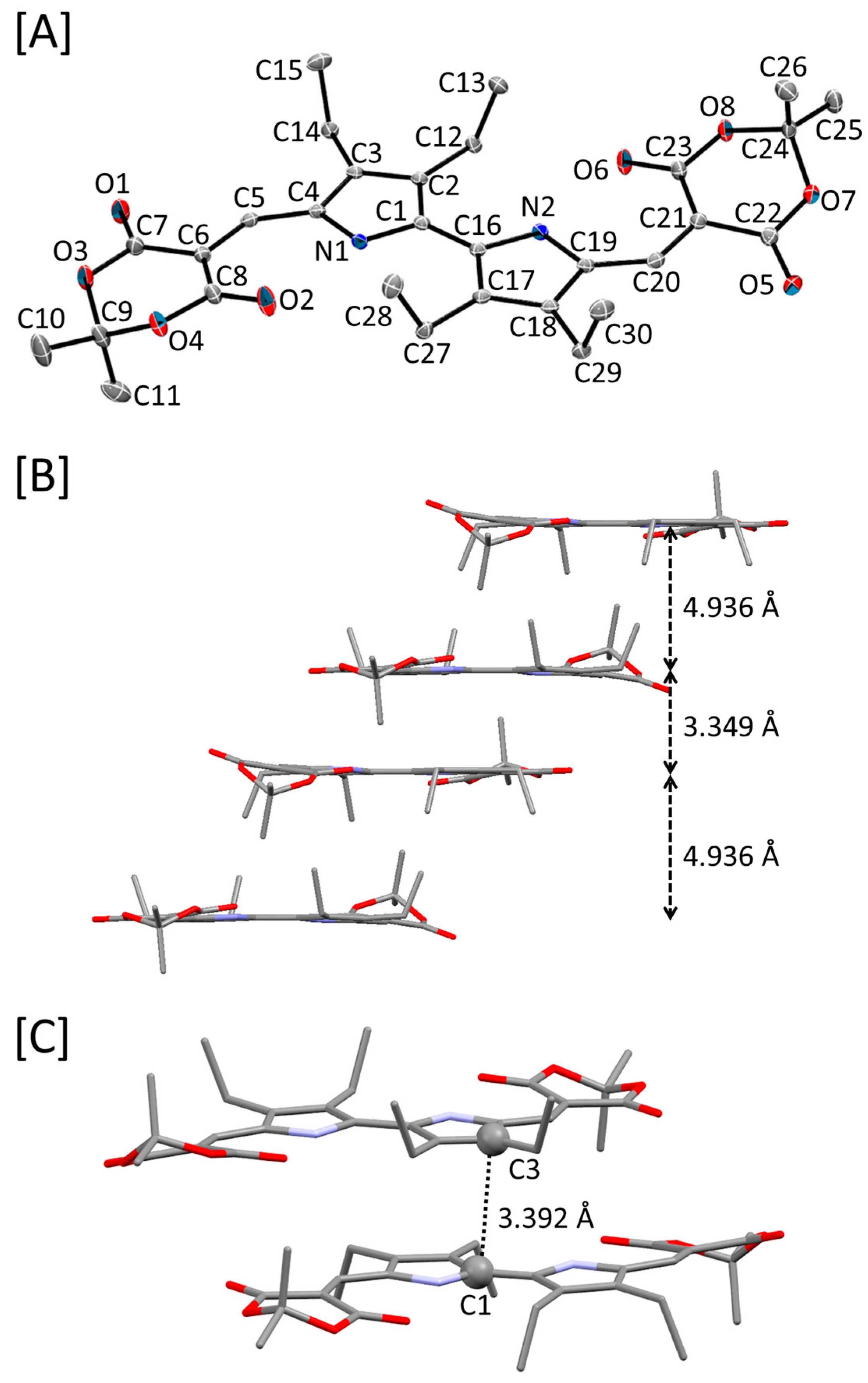

Figure 2. (A) The ORTEP diagrams of compound 3 with the atomic labeling; (B) Side view with the interlayer distances; (C) The closest interatomic distance in a pair of 3. Hydrogen atoms were omitted for clarity. The thermal ellipsoids were drawn at 50% probability level.
Figure 2. (A) The ORTEP diagrams of compound 3 with the atomic labeling; (B) Side view with the interlayer distances; (C) The closest interatomic distance in a pair of 3. Hydrogen atoms were omitted for clarity. The thermal ellipsoids were drawn at 50% probability level.
Molecules 22 01816 g002

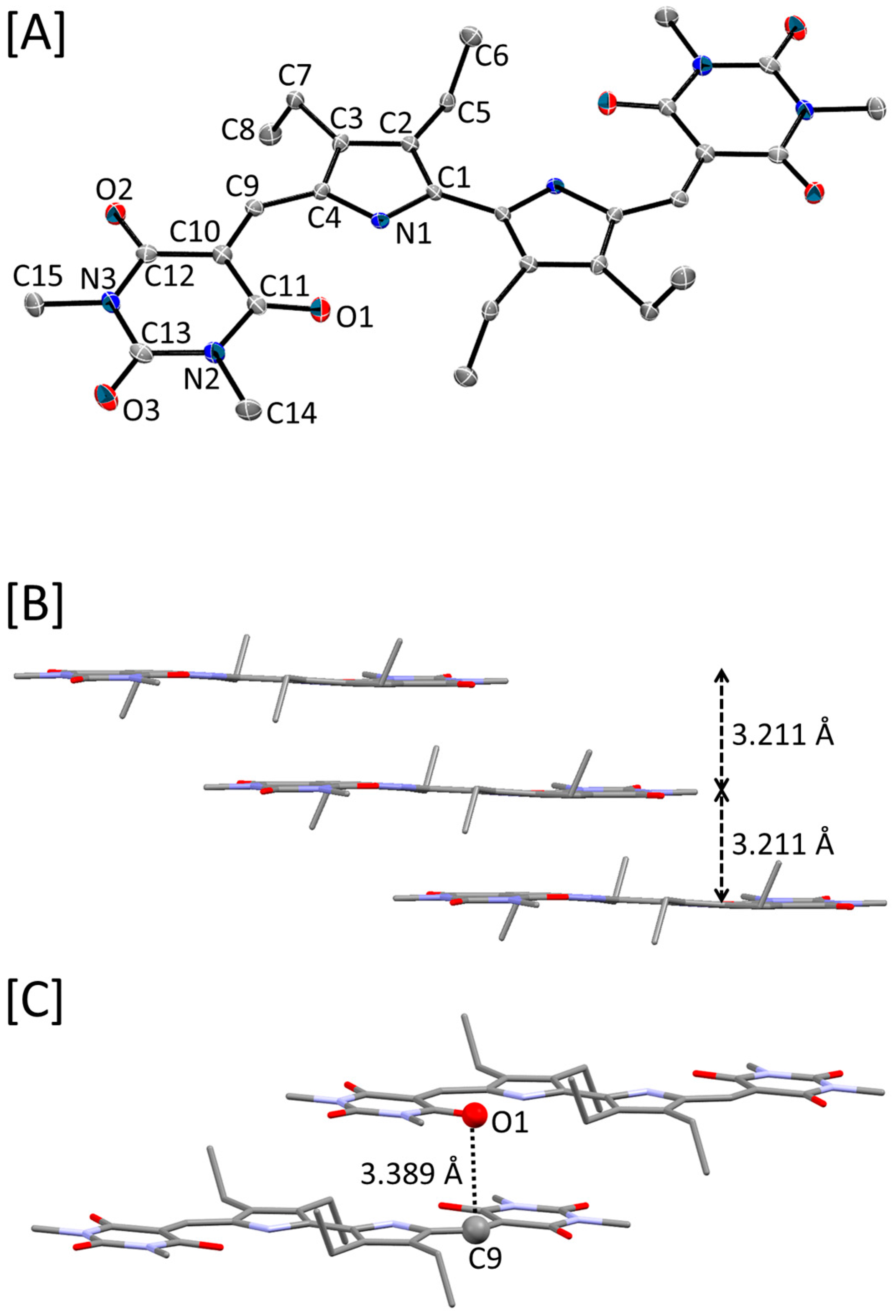

Figure 3. (A) The ORTEP diagrams of compound 4 with the atomic labeling; (B) side view with the interlayer distances; (C) closest interatomic distance in a pair of 4. Hydrogen atoms were omitted for clarity. The thermal ellipsoids were drawn at 50% probability level.
Figure 3. (A) The ORTEP diagrams of compound 4 with the atomic labeling; (B) side view with the interlayer distances; (C) closest interatomic distance in a pair of 4. Hydrogen atoms were omitted for clarity. The thermal ellipsoids were drawn at 50% probability level.
Molecules 22 01816 g003

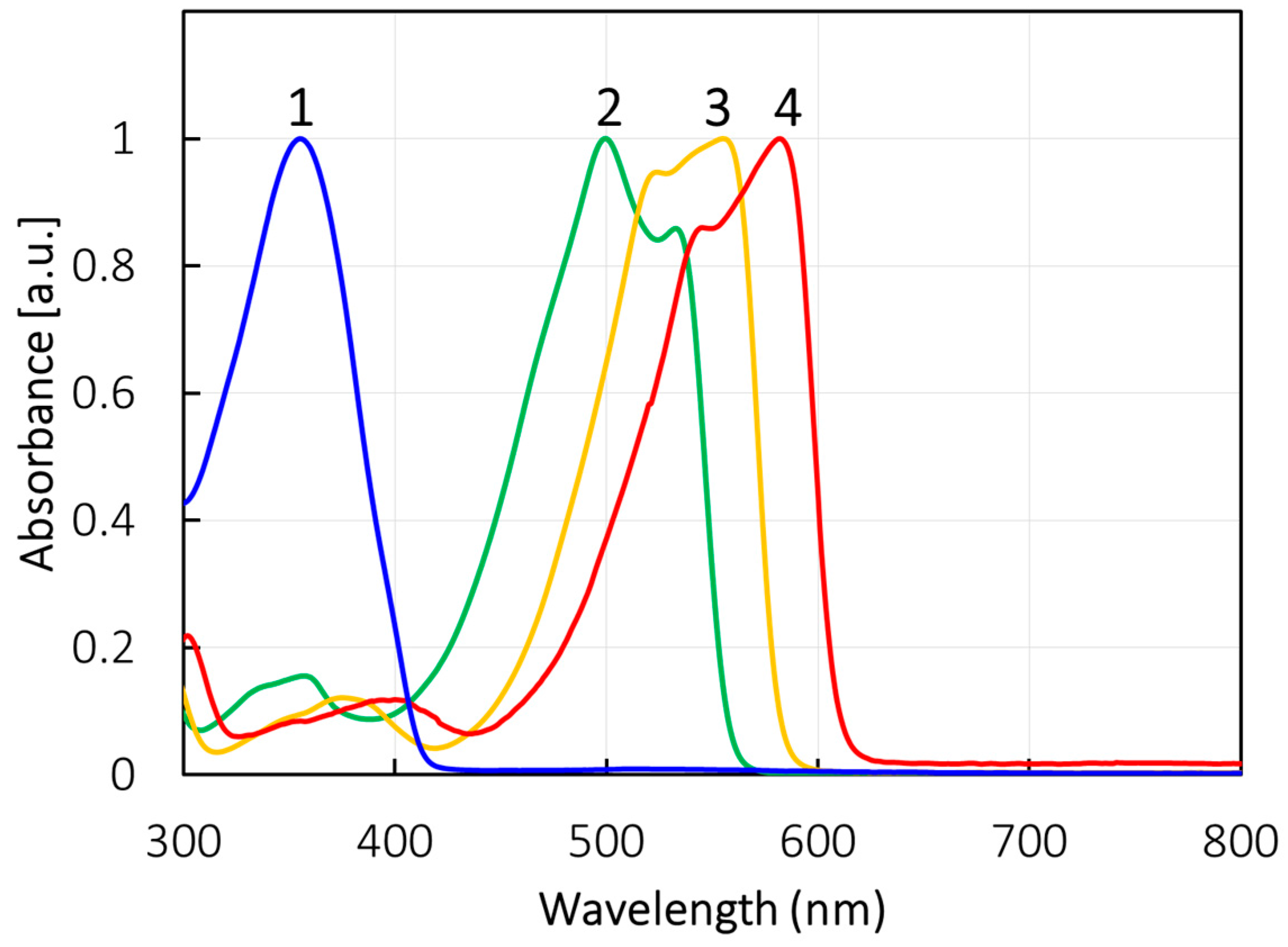

Figure 4. Absorption spectra of 14 in dichloromethane. The absorption spectra were normalized at the maxima.
Figure 4. Absorption spectra of 14 in dichloromethane. The absorption spectra were normalized at the maxima.
Molecules 22 01816 g004

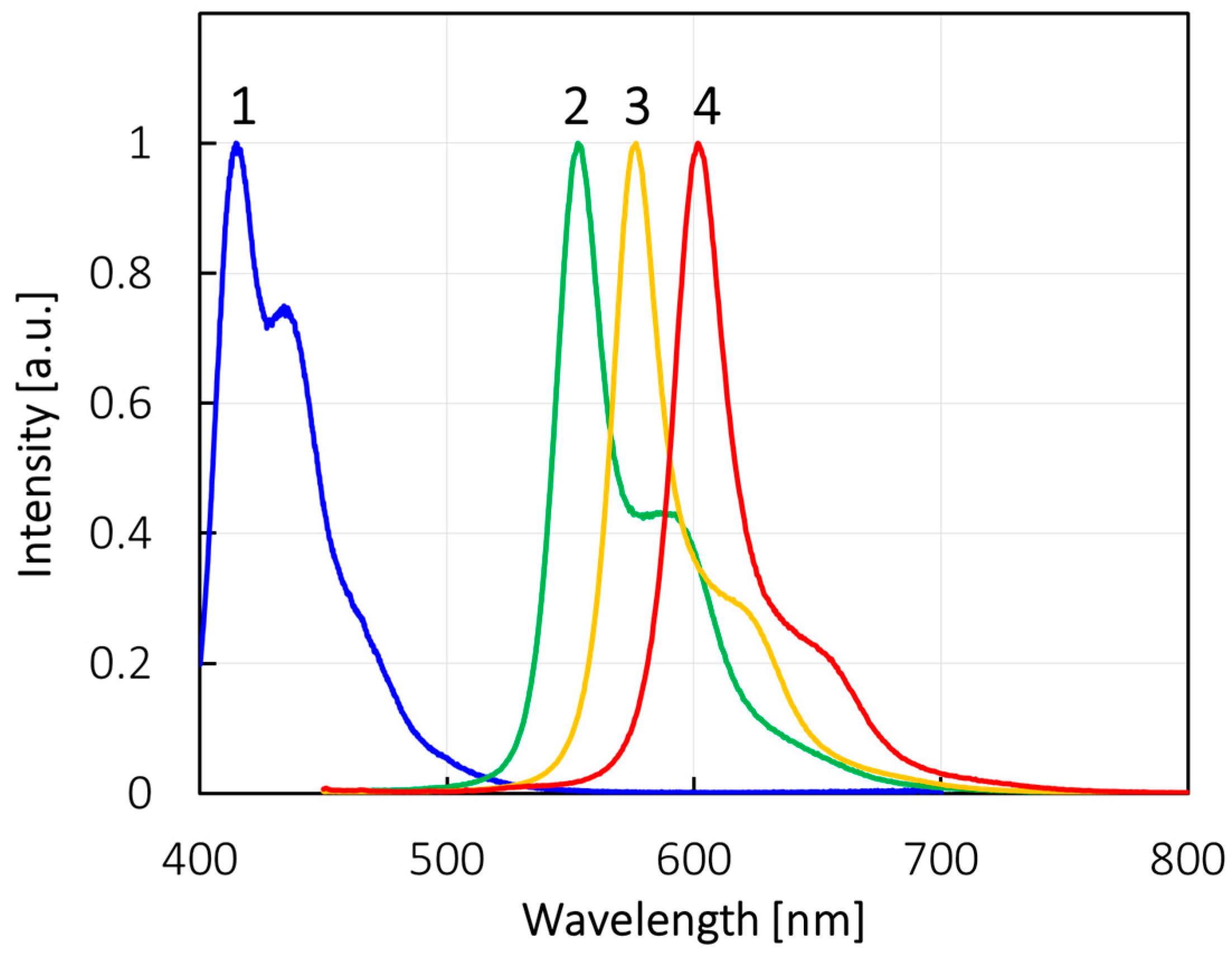

Figure 5. Fluorescence spectra of 14 in dichloromethane. The excitation wavelength was fixed at 365 nm in all scans.
Figure 5. Fluorescence spectra of 14 in dichloromethane. The excitation wavelength was fixed at 365 nm in all scans.
Molecules 22 01816 g005
Figure 6. LUMO (top) and HOMO (bottom) orbitals (isovalue of 0.02) of compounds 4 and 4Me. The red and green surfaces show positive and negative wave functions, respectively. The broken red circles show ethyl groups at the 3 and 3′ positions.
Figure 6. LUMO (top) and HOMO (bottom) orbitals (isovalue of 0.02) of compounds 4 and 4Me. The red and green surfaces show positive and negative wave functions, respectively. The broken red circles show ethyl groups at the 3 and 3′ positions.
Molecules 22 01816 g006
Table 1. Photophysical parameters for 14 and 4Me.
Table 1. Photophysical parameters for 14 and 4Me.
CompoundsλAbs (nm)λFL (nm)ΦFL (−)
1355414NA a
2499, 5315530.05
35555760.81
45826020.93
4Me [22]5695780.88
a Could not be obtained due to the wavelength limit.
Table 2. UV-Vis spectroscopic data and calculated lowest excited states of 14 and 4Me compounds.
Table 2. UV-Vis spectroscopic data and calculated lowest excited states of 14 and 4Me compounds.
CompoundsλAbs (Obs.) (nm)λAbs (Calcd.) (nm)TransitionsOscillator Strength
1355403.3181(HOMO)‒82(LUMO)1.0825
2499, 531556.11104(HOMO−1)‒107(LUMO+1) 105(HOMO)‒106(LUMO)1.5891
3555553.40146(HOMO−1)‒149(LUMO+1) 147(HOMO)‒148(LUMO)1.7047
4582574.31152(HOMO−1)‒155 (LUMO+1) 153(HOMO)‒154(LUMO)1.8560
4Me569560.00128(HOMO−1)‒131(LUMO+1) 129(HOMO)‒130(LUMO)1.9396
