Synthesis of Tertiary and Quaternary Amine Derivatives from Wood Resin as Chiral NMR Solvating Agents

Department of Chemistry, University of Helsinki, A.I. Virtasen aukio 1, P. O. Box 55, FI-00014, Helsinki 00100, Finland
*
Author to whom correspondence should be addressed.
Molecules 2015, 20(11), 20873-20886; https://doi.org/10.3390/molecules201119732
Submission received: 14 October 2015 / Revised: 3 November 2015 / Accepted: 8 November 2015 / Published: 23 November 2015
(This article belongs to the Section Organic Chemistry)

Abstract

:
Chiral tertiary and quaternary amine solvating agents for NMR spectroscopy were synthesized from the wood resin derivative (+)-dehydroabietylamine (2). The resolution of enantiomers of model compounds [Mosher’s acid (3) and its n-Bu4N salt (4)] (guests) by (+)-dehydroabietyl-N,N-dimethylmethanamine (5) and its ten different ammonium salts (hosts) was studied. The best results with 3 were obtained using 5 while with 4 the best enantiomeric resolution was obtained using (+)-dehydroabietyl-N,N-dimethylmethanaminium bis(trifluoromethane-sulfonimide) (6). The compounds 5 and 6 showed a 1:1 complexation behaviour between the host and guest. The capability of 5 and 6 to recognize the enantiomers of various α-substituted carboxylic acids and their n-Bu4N salts in enantiomeric excess (ee) determinations was demonstrated. A modification of the RES-TOCSY NMR pulse sequence is described, allowing the enhancement of enantiomeric discrimination when the resolution of multiplets is insufficient.

Graphical Abstract

1. Introduction

Wood resin is a natural product that after losing its volatile components hardens and is then called rosin. Resin functions in wood as a protective agent against micro-organisms and as a reserve nutrient supply [1]. Resin, a mixture of compounds (e.g., resin acids, fatty acids, sitosterol) can be collected from the tree itself, but can be also obtained from the pulp industry where it is a by-product of pulp milling [2]. For example, pine resin is a mixture of resin acids (ca. 90%) and neutral compounds (ca. 10%). The most abundant resin acid in pine rosin is abietic acid (1, Figure 1), amounting up to 90%. Rosin can be derivatized to an amine mixture (known as Rosin Amine D) containing 60% of (+)-dehydroabietylamine (2, Figure 1) [3,4,5], able to resolve chiral carboxylic acids by crystallization [6,7]. We have previously reported [8] that neutral and ammonium forms of secondary amines derived from dehydroabietylamine may be used in the chiral recognition of enantiomers of certain carboxylic acids. To evaluate the corresponding tertiary amines for chiral recognitions we have examined in the present study the behaviour of dehydroabietylamine (2)-derived tertiary amines and their ammonium salts as chiral solvating agents (CSAs) that can be used in the discrimination of enantiomers of both aromatic and aliphatic carboxylic acids by NMR. In particular, it was of interest to develop ionic CSAs to see if the ionic functionality would provide improved enantiomeric resolution.
Especially in medicinal and biological chemistry, where enantiopurity is important, analytical applications such as NMR spectroscopy for determining the enantiomeric purity are highly useful. In NMR, enantiomeric excess (ee) may be determined up to the level of 99% but generally for ee values over 95% more sensitive chromatographic methods (e.g., chiral HPLC and GC) have been used [9,10,11,12]. Compared to the most commonly used method HPLC, the minimal sample preparation, ease of use and fast analysis make CSAs an optimal tool for expedient ee determinations.

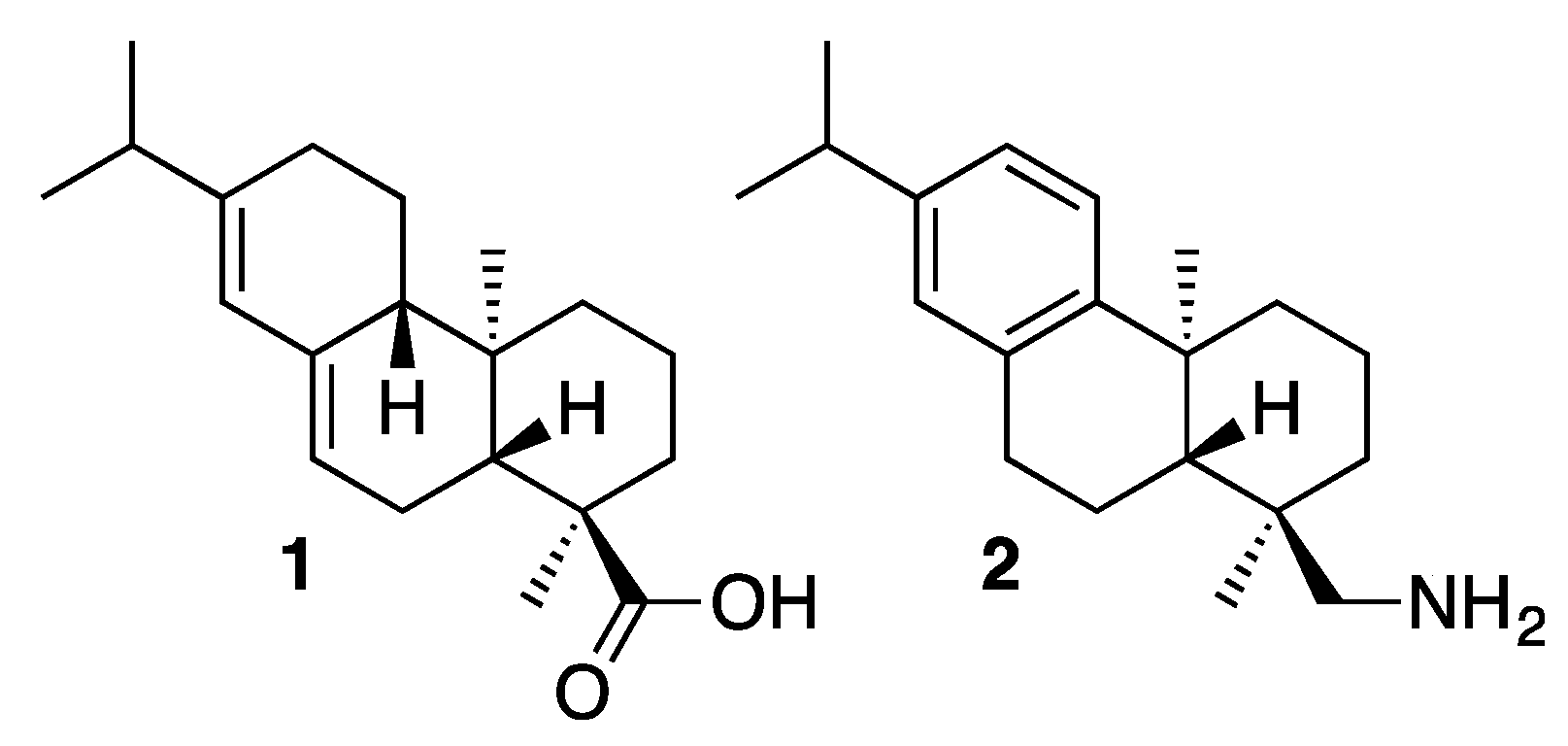

Figure 1. Abietic acid (1) and (+)-dehydroabietylamine (2).
Figure 1. Abietic acid (1) and (+)-dehydroabietylamine (2).
Molecules 20 19732 g001
Enantiomeric resolution by CSAs is based on the formation of a diastereomeric complex (or diastereomeric salt) [13,14]. There are several factors that may have an effect on the complex formation. It is known in the literature that the ability of CSAs (host) to bind a chiral compound (guest) is affected by the deuterated solvent used, the possible anion of the chiral host [15], concentration, host:guest ratio, temperature and the functional groups of the host and guest [13,14]. Since polar solvents can solvate ions and protic solvents can interfere in hydrogen bond formation, it is preferable to use non-polar or weakly polar aprotic NMR solvents such as CDCl3 in recognition studies, especially when the analyte and CSA used are ionic (or when the formation of a diastereomeric salt pair is expected) [13]. The most frequently used compound to test the discrimination ability of a CSA, especially an ionic one, is Mosher’s acid (3, 3,3,3-trifluoro-2-methoxy-2-phenyl-propanoic acid, Figure 2) and its sodium or potassium salt. In our enantiomeric discrimination tests, also Mosher’s acid n-Bu4N salt (4, Figure 2) was employed.

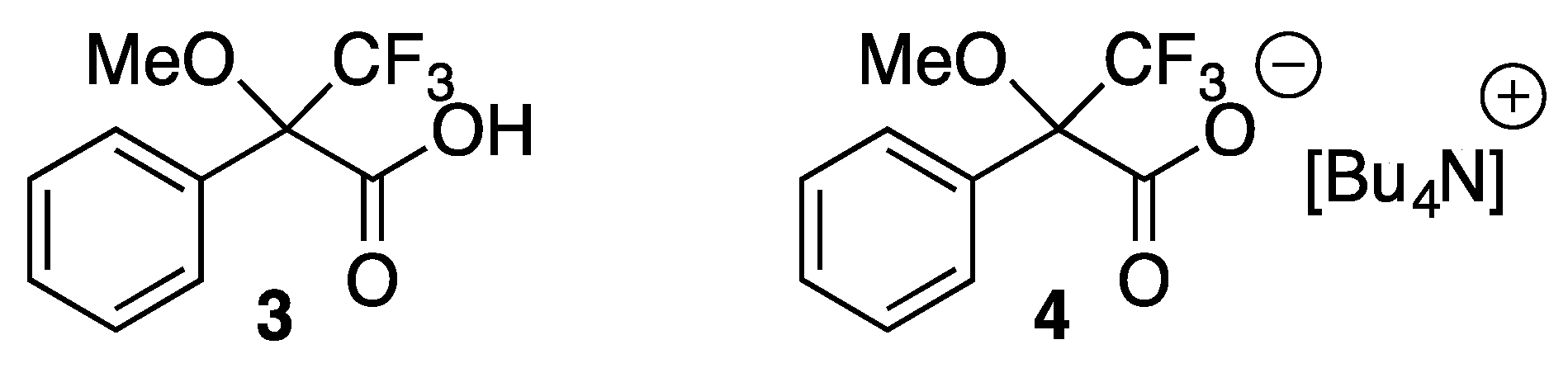

Figure 2. Mosher’s acid (3) and its n-Bu4N salt (4).
Figure 2. Mosher’s acid (3) and its n-Bu4N salt (4).
Molecules 20 19732 g002
With 4 being readily soluble in CDCl3, unlike its potassium or sodium salt, this modification obviates the use of solubilizing additives such as crown ethers [16]. We also report a modification of the RES-TOCSY 2D-NMR technique to enhance enantiomeric discrimination when the resolution of multiplets is insufficient for ee determination. In the various publications concerning the use of CSAs in NMR spectroscopy, all [17,18,19,20,21,22,23,24,25,26,27,28,29,30] or most [31,32,33,34,35,36] of the racemic carboxylic acids or salts studied contain an aromatic moiety, and acids lacking an aromatic ring are largely ignored or deemed [37] poorly resolvable at best. As described in the following, our new ionic and non-ionic tertiary amine CSA agents enable efficient enantiomeric resolution and the determination of ee values of racemic carboxylic acids or salts, including those that lack an aromatic ring.

2. Results and Discussion

Starting material 2 was purchased as 60% grade. It was converted to its acetate salt, which was then purified by crystallisation. Pure (+)-dehydroabietyl acetate was then treated with NaOH solution to release 2 in pure form. The synthesis of CSAs based on 2 consists of two steps (Scheme 1). First, 2 is reacted with formaldehyde and formic acid to form 5 (63.8%). This tertiary amine is then quaternized with an alkyl halide under microwave irradiation. Three different alkyl halides were used: methyl iodide to obtain an uncrowded ammonium terminus (7a, 82.9%), 2-hydroxyethyl bromide to give hydrogen bonding capability (8a, 59.4%), and benzyl bromide to provide a bulky group at the ammonium terminus (9a, 46.5%). It is known that the more delocalised and bulky anions can enhance binding between the cationic CSA and (ionic or non-ionic) chiral substrate due to a weaker binding between the cation and anion of CSA [23]. To tune the binding properties of 7a, 8a and 9a, anion exchange was performed with NH4BF4 or LiNTf2 to obtain 7b, 8b, 9b or 7c, 8c, 9c, respectively, in high yield (89.9%–97.8%). The delocalization and increased size of the anion also affect the physical properties of the ionic CSAs [23]. The melting points of ionic compounds decrease when the anion is bulky and/or weakly coordinating. Molar rotations for compounds were also determined. Alternatively, compound 5 may be protonated with bis(trifluoromethane)-sulfonimide (HNTf2) to give 6. Table 1 presents the collected physical property data of the compounds synthesized.

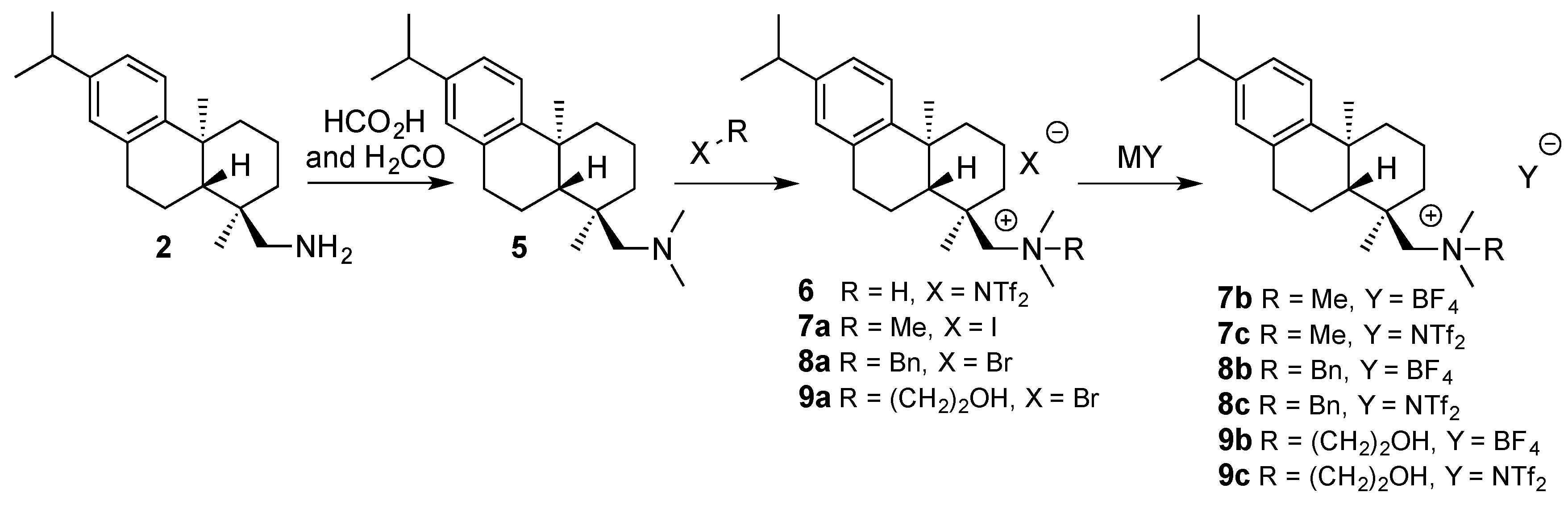

Scheme 1. Synthesis of chiral CSAs from 2. (MY = LiNTf2 or NH4BF4).
Scheme 1. Synthesis of chiral CSAs from 2. (MY = LiNTf2 or NH4BF4).
Molecules 20 19732 g006
Table 1. Physical properties of compounds prepared from 2.
Table 1. Physical properties of compounds prepared from 2.
CSARXmp (°C) [α] D 23 (a) [ M ] D 23 (b)
5--liquid at rt.+52.05 (c)+161.71
6HNTf2114.2+7.45+44.29
7aMeI250.3+20.91+95.19
7bMeBF4246.8+19.93 (d)+82.77
7cMeNTf246.6+7.79+47.41
8aBnBr188.6+7.19+34.83
8bBnBF4179.9+2.28+11.18
8cBnNTf248.8+1.70+11.67
9a(CH2)2OHBr213.5+16.45 (e)+72.12
9b(CH2)2OHBF4188.5+18.73+83.43
9c(CH2)2OHNTf2viscous liquid at rt.+6.56+41.90
(a) [α] D 23 = deg cm3·g−1·dm−1, c = 1.0 g·cm−3, CHCl3; (b) Molar rotation calculated from [α] D 23 × M/100, where M is the molar mass; (c) Temperature 22 °C; (d) Solvent CHCl3 + 3% MeOH; (e) Solvent MeOH.
To investigate the ability of the synthesized compounds 5–9c to resolve ionic and non-ionic racemic carboxylic acids both 3 and 4 were used as model compounds as 22.0 mM solutions in CDCl3. Compounds 5–9c (1.0 eq or 2.0 eq) were dissolved in 0.5 mL (1.0 eq) of the prepared solution and 1H- and 19F-NMR spectra were recorded (Supplementary Material Figures S1 and S2). Both 1:1 and 2:1 host:guest molar ratios were studied since according to literature, the magnitude of non-equivalence (Δδ) increases when the amount of host is higher than that of the guest [13,14]. Compounds 5 and 6 gave the best results both in 1:1 and 2:1 host:guest ratios (Table 2). The former efficiently resolved the enantiomers of 3 according to 1H- and 19F-NMR. The magnitude of non-equivalence was 0.036 ppm (18.1 Hz) in 1H-NMR and 0.12 ppm (58.5 Hz) in 19F-NMR. Only very weak resolution was achieved when compound 5 was used in the enantiomeric resolution of 4. However, compound 6 resolved 4 highly efficiently, 0.030 ppm (15.0 Hz) in 1H-NMR and 0.10 ppm (48.3 Hz) in 19F-NMR. No resolution was detected when 6 and 3 were used as host and guest. It is not surprising that the non-ionic host resolves poorly an ionic guest and vice versa since no ionic interaction can exist between them. This indicates that the resolution is based on the formation of a diastereomeric salt pair. Among the quaternized amine compounds only 8a, 8c and 9c were able to differentiate the enantiomers of 4 while 7c, 8b, 8c and 9c differentiated enantiomers of 3. Compared to 5 and 6 the resolution obtained was not as high (between 8.3 and 0.8 Hz). Interestingly the quaternization of the tertiary amine seems to make the recognition of enantiomers unfeasible. This may be due to a crowding in the active bonding site, i.e., ammonium terminus, caused by the side chain (methyl, benzyl, 2-hydroxyethyl) so that the guest cannot get close enough. In regard to this it is surprising that 7a–c (max. 1.3 Hz) are less effective than 8a–c (max. 8.3 Hz) and 9a–c (max. 8.2 Hz). This may be caused not only by the crowding but also by the failure of the methyl group (7a–c) to give specific enough resolution between the enantiomers compared e.g., to benzyl (8a–c) and hydroxyethyl (9a–c) groups. When the concentration of CSA was increased (host:guest ratio 2:1) no significant increase in the Δδ was observed although in the case of 5 Δδ was increased by 3.5 Hz in 1H-NMR and 13.2 Hz in 19F-NMR. Interestingly, in the case of 6 Δδ decreased in 1H-NMR by 1.9 Hz although it increased in 19F-NMR by 5.9 Hz.
Table 2. Determination of the magnitude of non-equivalence (Δδ) with 3 and 4 as model compounds in the presence of different 2-based CSAs, using both 1H (500 MHz) and 19F-NMR (470 MHz) in CDCl3 at 27 °C (-indicates resolution not detected).
Table 2. Determination of the magnitude of non-equivalence (Δδ) with 3 and 4 as model compounds in the presence of different 2-based CSAs, using both 1H (500 MHz) and 19F-NMR (470 MHz) in CDCl3 at 27 °C (-indicates resolution not detected).
CSAHost:Guest3 (ppm, (Hz))4 (ppm, (Hz))
1H19F1H19F
51:10.036 (18.1)0.12 (58.5)0.0018 (0.9)-
2:10.042 (21.6)0.15 (71.7)--
61:1--0.030 (15.0)0.10 (48.3)
2:1--0.026 (13.1)0.12 (54.2)
7a1:1----
2:1----
7b1:1----
2:1----
7c1:10.027 (1.3)---
2:1----
8a1:1----
2:1---0.015 (6.8)
8b1:10.0015 (0.8)---
2:1----
8c1:10.0017 (0.9)-0.0037 (1.9)-
2:1--0.010 (5.1)0.018 (8.3)
9a1:1----
2:1----
9b1:1----
2:1----
9c1:10.0017 (0.9)-0.0052 (2.6)-
2:1--0.016 (8.2)-
The discrimination ability of the best performing CSAs 5 and 6 was further investigated by titration to find the optimum conditions. Since 5 gave best resolution for 3, and 6 for 4, 3 was titrated by 5 and 4 was titrated by 6. The guest solution (0.5 mL, 2.0 mM) was measured into an NMR tube and titrated with the host solution (46.6 mM). NMR spectra were recorded and Δδ 3 a 4 (both in 1H- and 19F-NMR) shown in Figure 3a,b. Results from 1H- and 19F-NMR spectra suggest that a maximum resolution with 5 and 6 is obtained when the concentrations of host and guest are the same (2.0 mM) indicating a 1:1 complexation of host and guest (Job’s plot in Supplementary material Figures S8 and S12). According to the results both enantiomers of 3 interact with 5 (and both enantiomers of 4 with 6). This can be detected from the chemical shift changes experienced by both the S and R enantiomers (Figure 3c,d) during the titration.
The possibility of using compounds 5 and 6 in enantiomeric excess (ee) measurements by NMR spectroscopy was also tested using solutions of racemic 3 and S-3 (as well as 4 and S-4) (2.0 mM). Mixtures of enantiomerically enriched samples were prepared in an NMR tube (0.5 mL, 1.0 eq) and CSA (46.6 mM, 22.5 μL, 1.0 eq) was added. A clear correlation was detected between the expected and measured ee% values, when just one equivalent of host with respect to the guest in a CDCl3 solution was used (Figure 4). Line shape fitting was used for ee estimation to enhance accuracy.

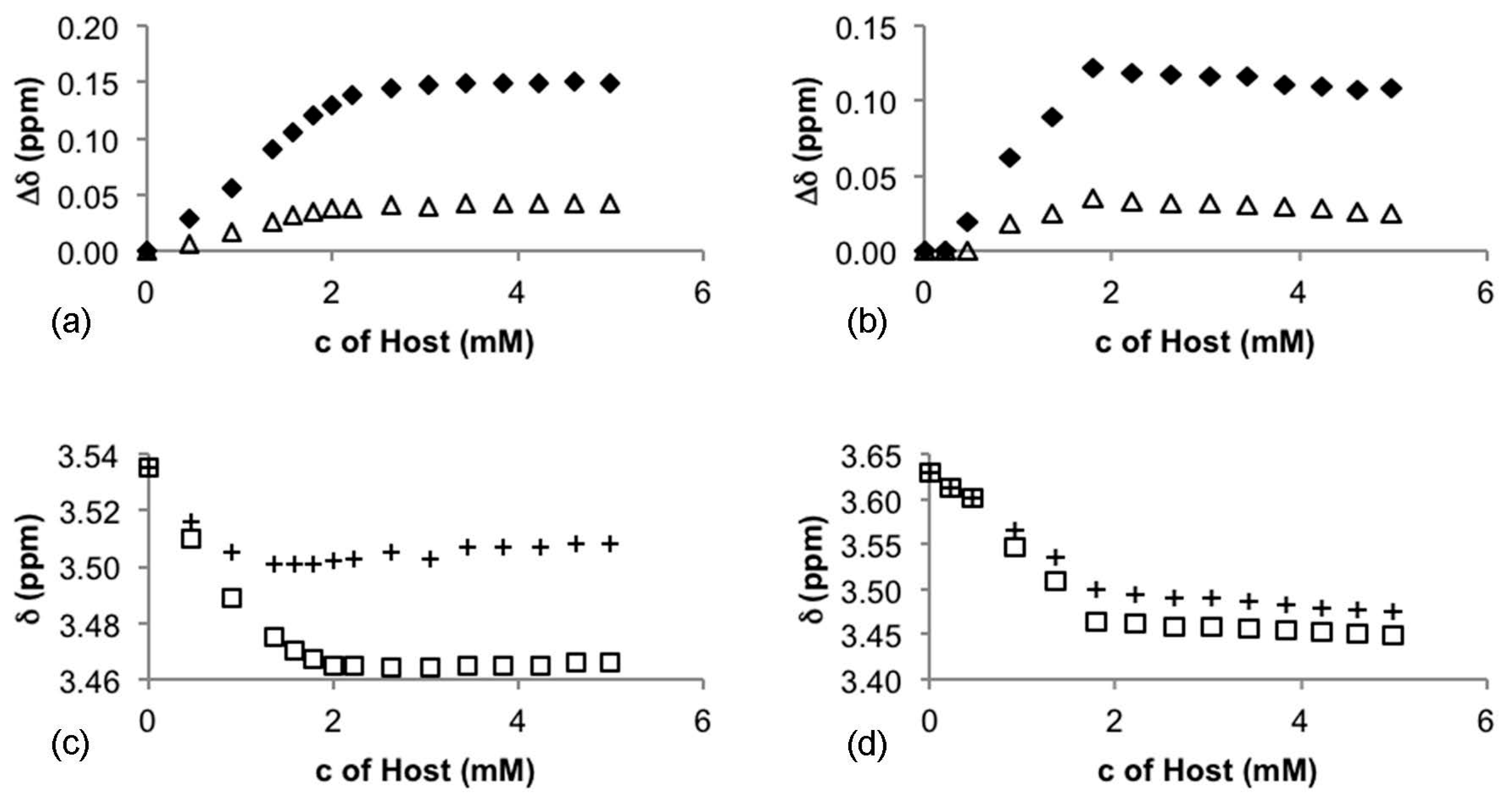

Figure 3. The magnitude of non-equivalence (Δδ): (a) of 3 with 5 (white triangle: 1H-NMR and black diamond: 19F-NMR) and (b) of 4 with 6 (white triangle: 1H-NMR and black diamond: 19F-NMR). The change of chemical shifts of S and R enantiomers: (c) of 3 as a function of the concentration of 5 (white square: R enantiomer and plus sign: S enantiomer) at 1H-NMR; and (d) of 4 as a function of the concentration of 6 (white square: R enantiomer and plus sign: S enantiomer) at 1H-NMR.
Figure 3. The magnitude of non-equivalence (Δδ): (a) of 3 with 5 (white triangle: 1H-NMR and black diamond: 19F-NMR) and (b) of 4 with 6 (white triangle: 1H-NMR and black diamond: 19F-NMR). The change of chemical shifts of S and R enantiomers: (c) of 3 as a function of the concentration of 5 (white square: R enantiomer and plus sign: S enantiomer) at 1H-NMR; and (d) of 4 as a function of the concentration of 6 (white square: R enantiomer and plus sign: S enantiomer) at 1H-NMR.
Molecules 20 19732 g003

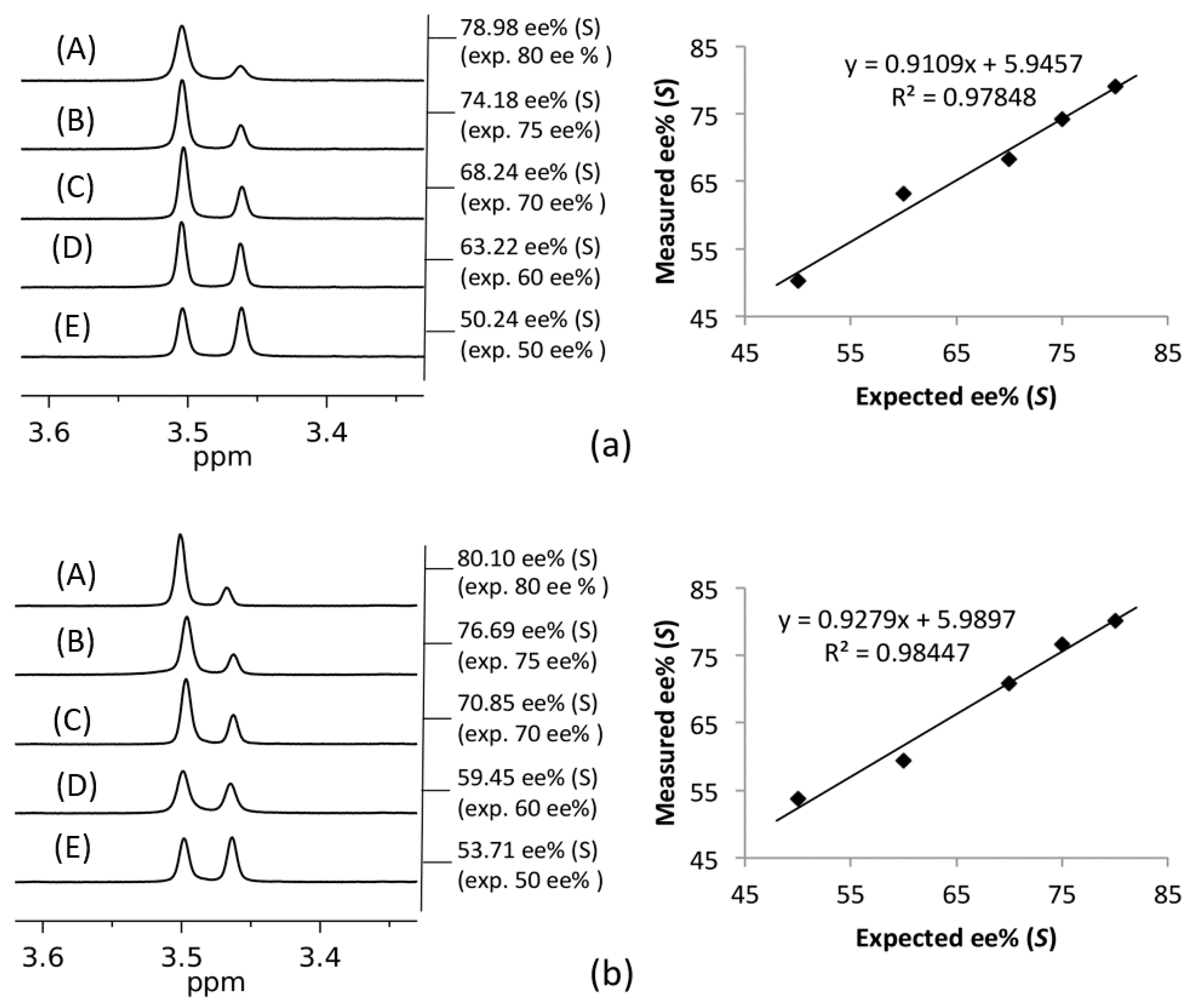

Figure 4. Determination of enantiomeric purities of (a) 3 in the presence of 5 and (b) 4 in the presence of 6 by 1H-NMR (500 MHz) in CDCl3 at 27 °C. (Expected ee% (S): (A) 80, (B) 75, (C) 70, (D) 60, (E) 50).
Figure 4. Determination of enantiomeric purities of (a) 3 in the presence of 5 and (b) 4 in the presence of 6 by 1H-NMR (500 MHz) in CDCl3 at 27 °C. (Expected ee% (S): (A) 80, (B) 75, (C) 70, (D) 60, (E) 50).
Molecules 20 19732 g004
The resolution of various racemic aromatic or non-aromatic α-substituted carboxylic acids 10a–16a, or their n-Bu4N salts 10b–16b, by 5 and 6 was tested (Table 3). In general, 5 and 6 are able to discriminate the corresponding guest and no major differences between the resolution of aromatic and non-aromatic carboxylic acids were detected. Especially 5 gave excellent resolution for the non-aromatic carboxylic acids 13a, 15a and 16a. According to the results, the best enantiomeric resolutions are obtained with racemic carboxylic acids bearing an electronegative atom (e.g., O, N, Br) at the α site. Therefore, it is interesting that compound 5 cannot discriminate the chiral proton in 12a, nor does 6 discriminate the chiral proton in 12b. This indicates that not only the polarity but also the size of the α-group (e.g., 14a,b) and/or crowding at the α site (e.g., 3 and 4) may have an effect. Intriguingly both 5 and 6 discriminate the prochiral CH2 protons of the R and S enantiomers of 14a and 14b. The resolution of carboxylic acids containing an electropositive (methyl group) at the α-site (10 and 11, a and b) was less efficient. In 14b the CH2 peaks overlapped with those of 6. This was overcome by using the 2D NMR techniques HSQC and NOESY (Supplementary Material Figures S17 and S18). Also other 2D experiments such as HMBC may be utilized among 1D experiments such as selective TOCSY as well as carbon selective 1D-HSQC when an overlap of CSA and substrate signals occurs. When the peaks are not baseline resolved (e.g., in case of 13a and 14a), certain specialised NMR techniques are available. Obviously, traditional line shape fitting of an ordinary 1D 1H spectrum can significantly enhance the accuracy of estimated ee values. Other possiblities for ee determination include pure shift experiments [38,39], J-resolved techniques [40] and the recently published RES-TOCSY [41]. Naturally, the use of 2D methods for reliable ee determination requires, that relevant, quantification-affecting NMR properties in the presence of chiral auxiliary for both enantiomers remain essentially similar (cf. Supplementary Material Figure S6). In the current study, the RES-TOCSY pulse sequence was modified to incorporate only one selective pulse (selective refocusing pulse) and gradients for coherence selection. The resulting 2D spectrum is phase sensitive, which allows the extraction of 1D traces with line shapes as encountered in the normal 1H spectrum. A more detailed description of the aforementioned pulse sequence as well as the actual pulse sequence code are given in Supplementary Material (Figures S15–S23). The use of this modified RES-TOCSY to enhance multiplet resolution in an indirectly detected dimension is demonstrated for compounds 13a and 14a in Figure 5.

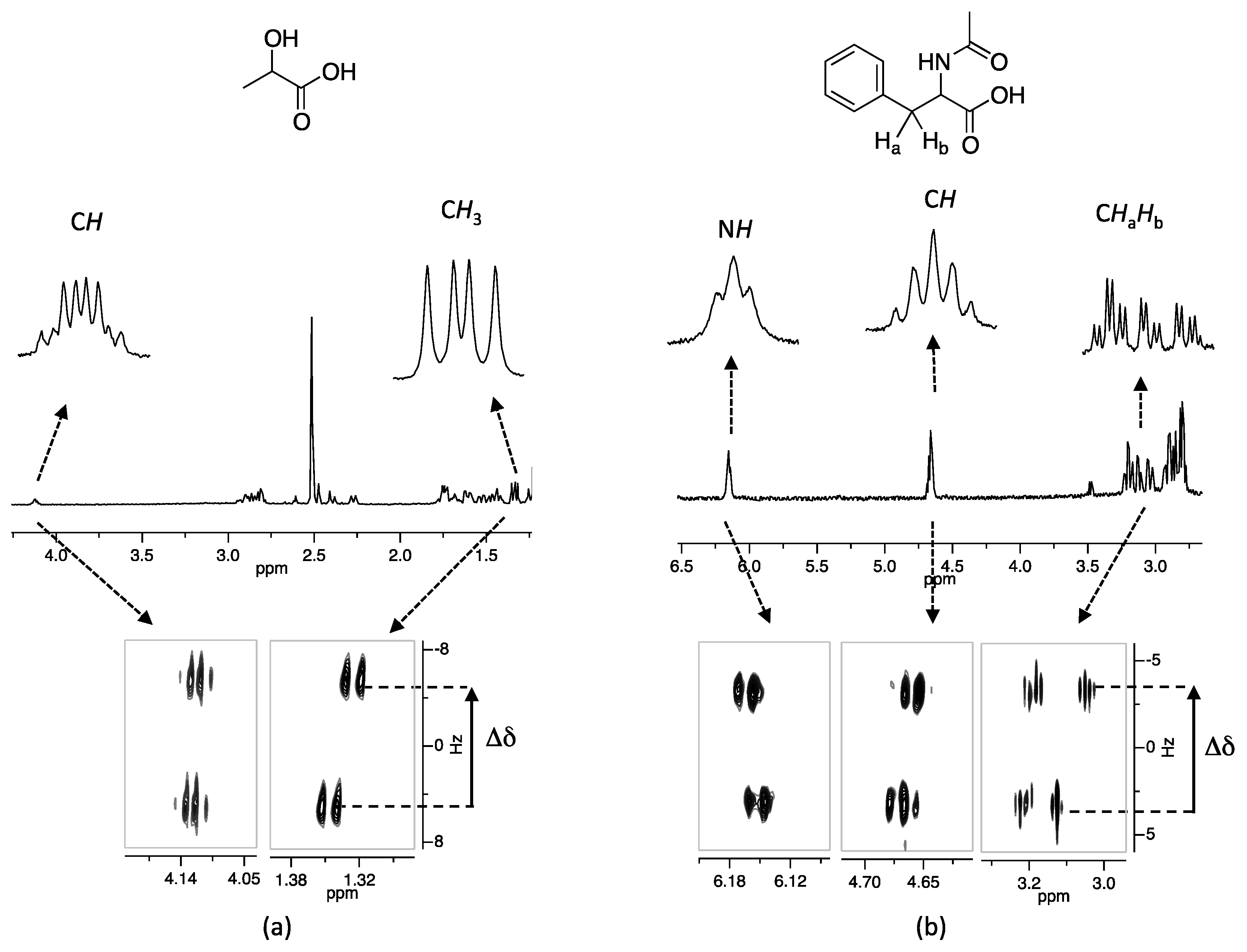

Figure 5. RES-TOCSY experiment performed on (a) 13a (Δδ 11.1 Hz, CH3) and (b) 14a (Δδ 6.1 Hz, CH) with CSA 5 showing the resolution of R and S enantiomer in an indirect dimension.
Figure 5. RES-TOCSY experiment performed on (a) 13a (Δδ 11.1 Hz, CH3) and (b) 14a (Δδ 6.1 Hz, CH) with CSA 5 showing the resolution of R and S enantiomer in an indirect dimension.
Molecules 20 19732 g005
Table 3. The magnitude of non-equivalences (Δδ) of five racemic carboxylic acids in the presence of 5 and their n-Bu4N salts in the presence of 6 (1H-NMR (500 MHz) in CDCl3 at 27 °C). The experiment was performed by adding a solution containing CSA (46.6 mM, 22.5 μL, 1.0 eq) to a solution of the guest (2.0 mM, 0.5 mL, 1.0 eq) (- indicates resolution was not detected).
Table 3. The magnitude of non-equivalences (Δδ) of five racemic carboxylic acids in the presence of 5 and their n-Bu4N salts in the presence of 6 (1H-NMR (500 MHz) in CDCl3 at 27 °C). The experiment was performed by adding a solution containing CSA (46.6 mM, 22.5 μL, 1.0 eq) to a solution of the guest (2.0 mM, 0.5 mL, 1.0 eq) (- indicates resolution was not detected).
Cmpd.Racemic Carboxylic Acid ΔδCmpd.n-Bu4N Salt of Racemic Carboxylic Acid Δδ
ppmHzppmHz
10a Molecules 20 19732 i001Me0.00231.110b Molecules 20 19732 i002Me--
CH--CH--
11a Molecules 20 19732 i003Me0.00593.011b Molecules 20 19732 i004Me0.00412.0
CH0.00472.4CH0.00211.0
12a Molecules 20 19732 i005CH--12b Molecules 20 19732 i006CH--
13a Molecules 20 19732 i007CH0.00814.113b Molecules 20 19732 i008CH0.00683.4
Me0.02211.1Me0.0178.6
14a Molecules 20 19732 i009CH0.0126.114b Molecules 20 19732 i010CH0.0126.0
NH0.0136.5NH0.0146.8
Me0.00281.4Me0.00391.9
Ha0.07236.2Ha (a)0.06532.5
Hb0.02713.4Hb (a)0.03617.8
15a Molecules 20 19732 i011CH--15a Molecules 20 19732 i012CH--
Me0.02311.5Me0.0020.9
16a Molecules 20 19732 i013CH0.0167.916b Molecules 20 19732 i014CH0.0031.4
NH0.02010.2NH0.02010.0
(a) Due to overlapping with protons of [n-Bu4N]+ values are from HSQC/NOESY experiment.

3. Experimental Section

3.1. General Methods

All reagents and solvents were obtained from commercial suppliers and were used without further purification unless otherwise stated. (+)-Dehydroabietylamine was purchased (Sigma Aldrich, St. Louis, MO, USA) as 60% grade and purified using a method described in the literature [42] with slight modifications (see below). Flash chromatography was performed using 40–63 mesh silica gel. Microwave oven reactions were performed in closed vessel using the CEM Focused Microwave™ Synthesis System with an external infrared temperature control system (CEM, Matthews, NC, USA). NMR spectra were recorded using UNITY INOVA 500 (500 MHz 1H-frequency) and Mercury Plus 300 (300 MHz 1H-frequency) instruments (Varian, Palo Alto, CA, USA) at 27 °C. 1H-NMR spectra were recorded at 500 MHz, 13C-NMR spectra were recorded at 125 or 75 MHz, 19F-NMR spectra were recorded at 470 MHz. All 2D NMR experiments (NOESY, HSQC and RES-TOCSY) were recorded at 500 MHz (1H) and 125 (13C). Melting points were determined in a digital melting point apparatus (B 545, Büchi, Flawil, Switzerland). Optical rotations were determined with a digital polarimeter (DIP-1000, JASCO, Halifax, NS, Canada) at 22–23 °C in CHCl3 or MeOH as solvent. The exact mass was obtained using high-resolution mass spectrometry (MicroTOF LC, Bruker, Billerica, MA, USA) with electrospray ionisation (ESI).

3.2. Synthesis of Chiral Solvating Agents

3.2.1. Purification of (+)-Dehydroabietylamine (2)

Acetic acid (9.65 g) in toluene (30.0 mL) was slowly added to 60% (+)-dehydroabietylamine (42.0 g) in toluene (70.0 mL). The product (+)-dehydroabietylaminium acetate was left to crystallise in a fridge, filtered, washed with hexane and recrystallised from MeOH. The salt (21.0 g) was dissolved in hot water and 10% NaOH solution (28.0 mL) was added. (+)-Dehydroabietylamine was extracted by Et2O and the organic phase was washed with water until neutral. The organic phase was dried over Na2SO4. The solvent was evaporated and (+)-dehydroabietylamine was dried under vacuum; mp 44.2 °C (lit. 44–45 °C) [43]; HRMS-ESI (m/z) calc. for C20H32N [M + H]+ 286.2529 found 286.2540; [α] D 22 +44.35 (c 1.0, CHCl3) (lit. +58.0, c 0.2, DMSO, 20 °C) [43]; 1H-NMR (500 MHz, CDCl3) δ ppm 0.85 (s, 3H, CH3), 1.22 (s, 3H, CH3), 1.22 (d, J = 6.98 Hz, 6H, 2× CH3), 1.33 (m, 2H, CH2), 1.39 (m, 1H, CHH), 1.52 (dd, J = −11.75, 3.31 Hz, 1H, CH), 1.69 (m, 2H, CH2), 1.74 (m, 2H, CH2), 2.29 (dt, J = −13.14, 1.72 Hz, 1H, CHH), 2.40 (d, J = −13.46 Hz, 1H, CHH), 2.61 (d, J = −13.46 Hz, 1H, CHH), 2.82 (sep, J = 6.98 Hz, 1H, CH), 2.88 (m, 2H, CH2), 6.89 (d, J = 1.94 Hz, 1H, CHAr), 6.99 (dd, J = 8.08, 1.94 Hz, 1H, CHAr), 7.18 (d, J = 8.08 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3) δ ppm 18.8 (CH2), 18.9 (CH3), 18.895 (CH2), 24.1 H3), 24.130 (CH3), 25.4 (CH3), 30.3 (CH2), 33.6 (CH), 35.355 (CH2), 37.4 (C), 37.527 (C), 38.7 (CH2), 45.0 (CH), 53.9 (CH2), 123.9 (CHAr), 124.4 (CHAr), 126.9 (CHAr), 134.8 (CAr), 145.7 (CAr), 147.6 (CAr).

3.2.2. Synthesis of (+)-Dehydroabietyl-N,N-dimethylmethanamine (5)

Formic acid (3.96 mL, 0.105 mol, 5.0 eq) was added to 2 (6.0 g, 0.021 mol, 1.0 eq) at 0 °C. Formaldehyde (37% H2O solution, 3.81 mL, 0.048 mol, 2.3 eq) was added dropwise and the reaction mixture was refluxed for 4 h. The reaction mixture was cooled to rt. and made basic by adding NaOH solution (2.0 M). The product was extracted with diethyl ether. The organic phase was washed with water until neutral, dried over Na2SO4, concentrated and dried in vacuum. The product was purified by column chromatography (2:3 DCM:EtOAc). Colorless liquid (4.2 g 63.8%); HRMS-ESI (m/z) calc. for C22H36N [M + H]+ 314.2842, found 314.2840; [α] D 22 +52.05 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 0.85 (s, 3H, CH3), 1.22 (s, 3H, CH3), 1.23 (d, J = 6.91 Hz, 6H, 2× CH3), 1.34 (m, 1H, CHH), 1.43 (td, J = −13.21, 4.15 Hz, 1H, CHH), 1.56 (td, J = −13.21, 4.15 Hz, 1H, CHH), 1.65 (m, 2H, CH2), 1.701 (m, 1H, CH), 1.704 (m, 1H, CHH), 1.79 (m, 1H, CHH), 1.95 (d, J = −14.25 Hz, 1H, CHH), 2.26 (m, 1H, CHH), 2.28 (s, 6H, 2× CH3), 2.29 (d, J = −14.25 Hz, 1H, CHH), 2.83 (sep, J= 6.91 Hz, 1H, CH), 2.88 (m, 2H, CH2), 6.88 (d, J = 1.90 Hz, 1H, CHAr), 6.98 (dd, J = 8.14, 1.90 Hz, 1H, CHAr), 7.18 (d, J = 8.14 Hz, 1H, CHAr); 13C-NMR (75 MHz, CDCl3) δ ppm 19.0 (CH3), 19.1 (CH2), 19.3 (CH2), 24.2 (2× CH3), 25.8 (CH3), 30.3 (CH2), 33.6 (CH), 36.6 (CH2), 37.6 (C), 38.6 (CH2), 38.9 (C), 44.3 (CH), 49.3 (2× CH3), 71.2 (CH2), 123.8 (CHAr), 124.3 (CHAr), 126.9 (CHAr), 134.9 (CAr), 145.5 (CAr), 147.9 (CAr).

3.2.3. Synthesis of (+)-Dehydroabietyl-N,N-dimethylmethanaminium bis(trifluoromethanesulfon-imide) (6)

HNTf2 (89.7 mg, 1.0 eq) was added at 0 °C to the tertiary amine 5 (0.1 g, 0.319 mmol, 1.0 eq) in DCM (0.5 mL). After stirring for 1 h at rt water was added. The layers were separated and the organic phase washed with water (3 × 2.0 mL). The organic solvent was evaporated and the product dried under vacuum. White solid (0.18 g, 93.3%;); mp 114.2 °C; HRMS-ESI (m/z) calc. for C22H36N [M − NTf2]+314.2842, found 314.2834; calc. for C2F6NO4S2 [NTf2] 279.9167, found 279.9170; [α] D 23 +7.45 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.16 (s, 3H, CH3), 1.21 (d, J = 6.88 Hz, 6H, 2× CH3), 1.24 (s, 3H, CH3), 1.33 (m, 1H, CHH), 1.37 (dd, J = −12.67, 2.07 Hz, 1H, CH), 1.43 (m, 1H, CHH), 1.65 (dt, J = −13.45, 7.69 Hz, 1H, CHH), 1.67 (dt, J = −13.45, 7.69 Hz, 1H, CHH), 1.79 (m, 2H,CH2), 1.84 (m, 1H, CHH), 2.34 (dt, J = −13.27, 2.97 Hz, 1H, CHH), 2.82 (sep, J = 6.88 Hz, 1H, CH), 2.85 (m, 1H, CHH), 2.94 (d, J = −13.22 Hz, 1H, CHH), 2.95 (m, 1H, CHH), 3.01 (s, 6H, 2× CH3), 3.28 (d, J = −13.22 Hz, 1H,CHH), 6.88 (d, J = 1.65 Hz, 1H, CHAr), 6.99 (dd, J = 8.14, 1.65 Hz, 1H, CHAr), 7.14 (d, J = 8.14 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3) δ ppm 17.6 (CH3), 18.1 (CH2), 19.5 (CH2), 24.1 (2× CH3), 25.4 (CH3), 29.7 (CH2), 33.6 (CH), 35.9 (CH2), 37.7 (C), 37.7 (CH2), 37.7(C), 47.4 (CH), 48.4 (2× CH3), 73.3 (CH2), 119.8 (q, J = 319.79, CF3), 124.1 (CHAr), 124.4 (CHAr), 126.9 (CHAr), 133.7 (CAr), 146.2 (CAr), 146.3 (CAr).

3.2.4. Synthesis of (+)-Dehydroabietyl-N,N,N-trimethylmethanaminium iodide (7a)

The tertiary amine 5 (0.15 g, 0.479 mmol, 1.0 eq), iodomethane (0.68 g 0.30 mL, 4.79 mmol, 10.0 eq, caution toxic) and CHCl3 (1.0 mL) were measured into a microwave tube. The reaction was irradiated in microwave oven at 120 W, 30 min, 47 °C. Et2O was added and the product was collected by filtration and washed with Et2O. The product was dried in vacuum. White solid (0.18 g, 82.9%); mp 250.3 °C (lit. 249–252 °C) [44]; HRMS-ESI (m/z) calc. for C23H38N [M − I]+ 328.2999, found 328.2988; [α] D 23 = +20.91 (c 1.0, CHCl3) (lit. +22.0, c 1.20, CHCl3, 20 °C) [44]; 1H-NMR (500 MHz, CDCl3) δ ppm 1.19 (d, J = 7.01 Hz, 6H, 2× CH3), 1.23 (s, 3H, CH3), 1.33 (s, 3H, CH3), 1.40 (dd, J = −12.32, 1.87 Hz, 1H, CH), 1.42 (m, 1H, CHH), 1.73 (m, 1H, CHH), 1.74 (m, 2H, CH2), 1.86 (m, 1H, CHH), 2.00 (m, 1H, CHH), 2.05 (m, 1H, CHH), 2.30 (dt, J = −13.03 Hz, 1H, CHH), 2.80 (sep, J = 7.01 Hz, 1H, CH), 2.94 (m, 2H, CH2), 3.39 (d, J = −14.04 Hz, 1H, CHH), 3.57 (s, 9H, 3× CH3), 3.94 (d, J = −14.04 Hz, 1H, CHH), 6.88 (d, J = 1.75 Hz, 1H, CHAr), 6.96 (dd, J = 8.20, 1.75 Hz, 1H, CHAr), 7.09 (d, J = 8.20 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3) δ ppm 18.6 (CH2), 20.06 (CH3), 20.08 (CH2), 24.18 (CH3), 24.22 (CH3), 25.8 (CH3), 29.9 (CH2), 33.7 (CH), 37.7 (CH2), 38.2 (C), 39.3 (CH2), 40.9 (C), 48.1 (CH), 56.9 (3× CH3), 78.7 (CH2), 123.8 (CHAr), 124.2 (CHAr), 127.2 (CHAr), 134.4 (CAr), 146.3 (CAr), 146.8 (CAr).

3.2.5. Synthesis of N-Benzyl-1-(+)-dehydroabietyl-N,N-dimethylmethanaminium bromide (8a)

The tertiary amine 1 (0.3 g, 0.956 mmol, 1.0 eq) and benzyl bromide (0.491 g, 0.341 mL, 2.87 mmol, l.3 eq) were measured into a microwave tube and EtOAc (1.0 mL) was added. The reaction was irradiated in the oven at 170 W, 13 min, 80 °C. The crystalline solid formed was filtered and washed with EtOAc. White solid (0.27 g, 59.4%;); mp 188.6 °C (lit. 225–231 °C) [44]; HRMS-ESI (m/z) calc. for C29H42N [M − Br]+ 404.3312, found 404.3310; [α] D 23 +7.19 (c 1.0, CHCl3) (lit. +11.0, c 1.07, CHCl3, 20 °C) [44]; 1H-NMR (500 MHz, CDCl3) δ ppm 1.20 (d, J = 7.00 Hz, 6H, 2× CH3), 1.21 (s, 3H, CH3), 1.32 (m, 1H, CH), 1.33 (s, 3H, CH3), 1.34 (m, 1H, CHH), 1.59 (m, 1H, CHH), 1.70 (m, 2H, CH2), 1.82 (m, 1H, CHH), 1.99 (m, 1H, CHH), 1.99 (m, 1H, CHH), 2.26 (dt, J = −12.88, 3.00 Hz, 1H, CHH), 2.80 (sep, J = 7.00 Hz, 1H, CH), 2.85 (m, 1H, CHH), 2.93 (m, 1H, CHH), 3.32 (s, 3H, CH3), 3.33 (d, J = −14.11 Hz, 1H, CHH), 3.42 (s, 3H, CH3), 4.08 (d, J = −14.11 Hz, 1H, CHH), 5.23 (d, J = −12.44 Hz, 1H, CHH), 5.33 (d, J = −12.44 Hz, 1H, CHH), 6.86 (d, J = 1.59 Hz, 1H, CHAr), 6.96 (dd, J = 8.23, 1.59 Hz, 1H, CHAr), 7.07 (d, J = 8.23 Hz, 1H, CHAr), 7.37 (m, 1H, CHAr), 7.40 (m, 1H, CHAr), 7.70 (d, J = 7.14 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3) δ ppm 18.5 (CH2), 19.9 (CH2), 20.1 (CH3), 24.0 (CH3), 24.1 (CH3), 25.6 (CH3), 29.8 (CH2), 33.5 (CH), 37.6 (CH2), 38.1 (C), 39.6 (CH2), 40.6 (C), 48.4 (CH), 51.4 (CH3), 51.6 (CH3), 71.9 (CH2), 75.9 (CH2), 123.7 (CHAr), 124.1 (CHAr), 127.0 (CHAr), 127.7 (CAr), 129.2 (CHAr), 130.8 (CHAr), 133.8 (CHAr), 134.3 (CAr), 146.1 (CAr), 146.8 (CAr).

3.2.6. Synthesis of 2-Hydroxy-N-(+)-dehydroabietyl-N,N-dimethylethanaminium bromide (9a)

The tertiary amine 5 (0.3 g, 0.956 mmol, 1.0 eq) and benzyl bromide (0.359 g, 0.204 mL, 2.87 mmol, 3.0 eq) were measured into a microwave tube and CHCl3 was added. The mixture was irradiated in the oven at 120 W, 2 h, 110 °C. The solvent was evaporated and product washed with Et2O (3 mL × 3). The product was purified by column chromatography (1:9 MeOH:DCM). White powder (0.20 g, 46.5%); mp 213.5 °C; HRMS-ESI (m/z) calc. for C24H40NO [M − Br]+ 358.3104, found 358.3095; [α] D 23 +16.45 (c 1.0, MeOH); 1H-NMR (500 MHz, CD3OD) δ ppm 1.71 (d, J = 6.91 Hz, 6H, 2× CH3), 1.79 (s, 3H, CH3), 1.88 (s, 3H, CH3), 1.97 (m, 1H, CHH), 1.99 (dd, J = −11.85, 2.49 Hz, 1H, CH), 2.25 (m, 1H, CHH), 2.31 (m, 1H, CHH), 2.37 (m, 1H, CHH), 2.40 (m, 1H, CHH), 2.47 (m, 1H, CHH), 2.63 (dt, J = −11.93 Hz, 1H, CHH), 2.89 (dt, J = −12.68 Hz, 1H, CHH), 3.31 (sep, J = 6.91 Hz, 1H, CH), 3.43 (m, 1H, CHH), 3.48 (ddd, J = −17.37, 7.17, 2.13 Hz, 1H, CHH), 3.83 (s, 6H, 2× CH3), 3.91 (d, J = −14.01 Hz, 1H, CHH), 4.16 (m, 2H, CH2), 4.27 (d, J = −14.01 Hz, 1H, CHH), 4.56 (m, 2H, CH2), 7.39 (d, J = 1.94 Hz, 1H, CHAr), 7.48 (dd, J = 8.27, 1.94 Hz, 1H, CHAr), 7.66 (d, J = 8.27 Hz, 1H, CHAr); 13C-NMR (125 MHz, CD3OD) δ ppm 19.5 (CH2), 19.9 (CH3), 20.6 (CH2), 24.5 (2× CH3), 25.9 (CH3), 30.8 (CH2), 34.8 (CH), 38.9 (C), 39.2 (CH2), 39.7 (CH2), 41.6 (C), 49.6 (CH), 54.3 (CH3), 54.6 (CH3), 57.1 (CH2), 70.3 (CH2), 79.0 (CH2), 124.7 (CHAr), 124.9 (CHAr), 127.7 (CHAr), 135.3 (CAr), 147.2 (CAr), 148.3 (CAr).

3.2.7. General Procedure for Anion Exchange

Anion exchange reactions were performed as described in the literature [32]. LiNTf2 or NH4BF4 solution (1.0 M in H2O, 1.0 eq) was added to CSA (1.0 eq, in DCM) at rt. and stirred for 1 h. Phases were separated and the organic phase was washed with water, concentrated and dried in vacuum.
(+)-Dehydroabietyl-N,N,N-trimethylmethanaminium tetrafluoroborate (7b). White solid (0.085 g, 93.3%); mp 246.8 °C; HRMS-ESI (m/z) calc. for C23H38N [M – BF4]+ 328.2999, found 328.2990; [α] D 23 = +19.93 (c 1.0, CHCl3 + 3% MeOH); 1H-NMR (500 MHz, CDCl3 + 3% CD3OD) δ ppm 1.21 (d, J = 7.02 Hz, 6H, 2× CH3), 1.25 (s, 3H, CH3), 1.31 (s, 3H, CH3), 1.40 (dd, J = −11.63, 2.60 Hz, 1H, CH), 1.43 (m, 1H, CHH), 1.64 (m, 1H, CHH), 1.76 (m, 2H, CH2), 1.89 (m, 2H, CH2), 2.00 (dt, J = −13.10, 2.87 Hz, 1H, CHH), 2.32 (dt, J = −12.83, 2.60 Hz, 1H, CHH), 2.81 (sep, J = 7.03 Hz, 1H, CH), 2.91 (m, 1H, CHH), 2.96 (ddd, J = −17.17, 7.06, 1.86 Hz, 1H, CHH), 3.22 (d, J = −14.33 Hz, 1H, CHH), 3.34 (s, 9H, 3× CH3), 3.67 (d, J = −14.33 Hz, 1H, CHH), 6.89 (d, J = 2.23 Hz, 1H, CHAr), 6.98 (dd, J = 8.22, 2.23 Hz, 1H, CHAr), 7.11 (d, J = 8.22 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3, +3% CD3OD) δ ppm 18.4 (CH2), 19.5 (CH3), 19.6 (CH2), 23.9 (CH3), 24.0 (CH3), 25.6 (CH3), 29.6 (CH2), 33.5 (CH), 37.6 (CH2), 38.0 (C), 38.8 (CH2), 40.6 (C), 47.9 (CH), 56.5 (3× CH3), 78.8 (CH2), 123.6 (CHAr), 124.1 (CHAr), 126.9 (CHAr), 134.1 (CAr), 146.1 (CAr), 146.6 (CAr).
(+)-Dehydroabietyl-N,N,N-trimethylmethanaminium bis(trifluoromethanesulfonimide) (7c). White solid (0.13 g, 97.3%); mp 46.6 °C; HRMS-ESI (m/z) calc. for C23H38N [M − NTf2]+ 328.2999, found 328.3011; calc. for C2F6NO4S2 [NTf2] 279.9167, found 279.9169; [α] D 23 = +7.79 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.21 (d, J = 7.04 Hz, 6H, 2× CH3), 1.26 (s, 3H, CH3), 1.31 (s, 3H, CH3), 1.39 (dd, J = −12.30, 2.70 Hz, 1H, CH), 1.42 (m, 1H, CHH), 1.60 (m, 1H, CHH), 1.76 (m, 2H, CH2), 1.83 (m, 2H, CH2), 1.99 (m, 1H, CHH), 2.33 (dt, J = −13.31, 3.12 Hz, 1H, CHH), 2.82 (sep, J = 7.04 Hz, 1H, CH), 2.87 (m, 1H, CHH), 2.98 (dd, J = −17.20, 6.70 Hz, 1H, CHH), 3.11 (d, J = −14.21 Hz, 1H, CHH), 3.29 (s, 9H, 3× CH3), 3.53 (d, J = −14.21 Hz, 1H, CHH), 6.89 (d, J = 1.88 Hz, 1H, CHAr), 6.99 (dd, J = 8.21, 1.88 Hz, 1H, CHAr), 7.11 (d, J = 8.21 Hz, 1H, CHAr); 13C-NMR (125 MHz, CDCl3) δ ppm 18.4 (CH2), 19.4 (CH3), 19.6 (CH2), 24.0 (CH3), 24.1 (CH3), 25.6 (CH3), 29.5 (CH2), 33.6 (CH), 37.6 (CH2), 38.1 (C), 38.9 (CH2), 40.7 (C), 47.9 (CH), 56.7 (3× CH3), 79.3 (CH2), 119.9 (q, J = 320.54, CF3), 123.7 (CHAr), 124.2 (CHAr), 127.1 (CHAr), 134.0 (CAr), 146.3 (CAr), 146.5 (CAr).
N-Benzyl-1-(+)-dehydroabietyl-N,N-dimethylmethanaminium tetrafluoroborate (8b). White solid (0.19 g, 92.6%); mp 179.9 °C; HRMS-ESI (m/z) calc. for C29H42N [M − BF4]+ 404.3312, found 404.3311; [α] D 23 = +2.28 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.206 (d, J = 6.86 Hz, 6H, 2× CH3), 1.209 (s, 3H, CH3), 1.29 (s, 3H, CH3), 1.33 (m, 1H, CH), 1.39 (m, 1H, CHH), 1.54 (m, 1H, CHH), 1.70 (m, 2H, CH2), 1.82 (m, 2H, CH2), 1.98 (dt, J = −12.28 Hz, 1H, CHH), 2.28 (dt, J = −12.77 Hz, 1H, CHH), 2.81 (sep, J = 6.86 Hz, 1H, CH), 2.83 (m, 1H, CHH), 2.92 (m, 1H, CHH), 3.14 (s, 3H, CH3), 3.17 (d, J = −12.75 Hz, 1H, CHH), 3.21 (s, 3H, CH3), 3.71 (d, J = −12.75 Hz, 1H, CHH), 4.69 (d, J = −12.75 Hz, 1H, CHH), 4.73 (d, J = −12.75 Hz, 1H, CHH), 6.86 (d, J = 1.87 Hz, 1H, CHAr), 6.97 (dd, J = 8.17, 1.87 Hz, 1H, CHAr), 7.08 (d, J = 8.17 Hz, 1H, CHAr), 7.39 (m, 1H, CHAr), 7.42 (m, 1H, CHAr), 7.55 (m, 1H, CHAr); 13C-NMR (75 MHz, CDCl3) δ ppm 18.5 (CH2), 19.7 (CH2), 19.8 (CH3), 24.08 (CH3), 24.11 (CH3), 25.6 (CH3), 29.8 (CH2), 33.6 (CH), 37.6 (CH2), 38.1 (C), 39.2 (CH2), 40.6 (C), 48.4 (CH), 51.3 (CH3), 51.6 (CH3), 73.1 (CH2), 76.2 (CH2), 123.7 (CHAr), 124.1 (CHAr), 127.0 (CHAr), 127.4 (CAr), 129.3 (CHAr), 130.9 (CHAr), 133.6 (CHAr), 134.3 (CAr), 146.2 (CAr), 146.8 (CAr).
N-Benzyl-1-(+)-dehydroabietyl-N,N-dimethylmethanaminium bis(trifluoromethanesulfonimide) (8c). Colorless glass (0.27 g, 89.9%); mp 48.8 °C; HRMS-ESI (m/z) calc. for C29H42N [M − NTf2]+ 404.3312 found 404.3323 calc. for C2F6NO4S2 [NTf2] 279.9167, found 279.9166; [α] D 23 = +1.70 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.22 (d, J = 6.93 Hz, 6H, 2× CH3), 1.24 (s, 3H, CH3), 1.31 (s, 3H, CH3), 1.37 (m, 1H, CH), 1.41 (m, 1H, CHH), 1.53 (m, 1H, CHH), 1.74 (m, 2H, CH2), 1.84 (m, 2H, CH2), 2.00 (dt, J = −12.37, 3.29 Hz, 1H, CHH), 2.31 (dt, J = −12.83, 2.82 Hz, 1H, CHH), 2.82 (m, 1H, CHH), 2.83 (sep, J = 6.93 Hz, 1H, CH), 2.97 (dd, J = −17.75, 6.68 Hz, 1H, CHH), 3.10 (d, J = −14.00 Hz, 1H, CHH), 3.11 (s, 3H, CH3), 3.17 (s, 3H, CH3), 3.59 (d, J = −14.00 Hz, 1H, CHH), 4.50 (d, J = −12.54 Hz, 1H, CHH), 4.56 (d, J = −12.54 Hz, 1H, CHH), 6.89 (d, J = 2.05 Hz, 1H, CHAr), 6.99 (dd, J = 8.16, 2.05 Hz, 1H, CHAr), 7.11 (d, J = 8.16 Hz, 1H, CHAr), 7.469 (m, 1H, CHAr), 7.472 (m, 1H, CHAr), 7.51 (m, 1H, CHAr); 13C-NMR (75 MHz, CDCl3) δ ppm 18.4 (CH2), 19.7 (CH2), 19.8 (CH3), 24.06 (CH3), 24.09 (CH3), 25.6 (CH3), 29.6 (CH2), 33.6 (CH), 37.6 (CH2), 38.2 (C), 39.3 (CH2), 40.8 (C), 48.3 (CH), 51.6 (CH3), 51.9 (CH3), 73.6 (CH2), 76.8 (CH2), 119.9 (q, J = 320.36, CF3), 123.7 (CHAr), 124.3 (CHAr), 126.7 (CAr), 127.0 (CHAr), 129.6 (CHAr), 131.4 (CHAr), 133.3 (CHAr), 134.0 (CAr), 146.3 (CAr), 146.6 (CAr).
2-Hydroxy-N-(+)-dehydroabietyl-N,N-dimethylethanaminium tetrafluoroborate (9b). White solid (0.093 g, 91.3%); mp 188.5 °C; HRMS-ESI (m/z) calc. for C24H40NO [M − BF4]+ 358.3104, found 358.3117; [α] D 23 = +18.73 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.20 (d, J = 6.93 Hz, 6H, 2× CH3), 1.24 (s, 3H, CH3), 1.30 (s, 3H, CH3), 1.38 (m, 1H, CH), 1.42 (m, 1H, CHH), 1.60 (m, 1H, CHH), 1.73 (m, 2H, CH2), 1.85 (m, 2H, CH2), 2.01 (dt, J = −12.20 Hz, 1H, CHH), 2.29 (dt, J = −13.03 Hz, 1H, CHH), 2.80 (sep, J = 6.93 Hz, 1H, CH), 2.93 (m, 2H, CH2), 3.18 (d, J = −14.31 Hz, 1H, CHH), 3.24 (s, 3H, CH3), 3.25 (s, 3H, CH3), 3.60 (br s, 2H, CH2), 3.64 (d, J = −14.31 Hz, 1H, CHH), 4.07 (br s, 2H, CH2), 6.88 (d, J = 1.75 Hz, 1H, CHAr), 6.97 (dd, J = 8.11, 1.75 Hz, 1H, CHAr), 7.09 (d, J = 8.11 Hz, 1H, CHAr); 13C-NMR (75 MHz, CDCl3) δ ppm 18.5 (CH2), 19.62 (CH2), 19.64 (CH3), 24.08 (CH3), 24.11 (CH3), 25.7 (CH3), 29.7 (CH2), 33.6 (CH), 37.7 (C), 38.2 (CH2), 39.1 (CH2), 40.7 (C), 48.2 (CH), 53.7 (CH3), 53.9 (CH3), 56.8 (CH2), 69.3 (CH2), 78.3 (CH2), 123.7 (CHAr), 124.1 (CHAr), 127.0 (CHAr), 134.3 (CAr), 146.2 (CAr), 146.8 (CAr).
2-Hydroxy-N-(+)-dehydroabietyl-N,N-dimethylethanaminium bis(trifluoromethanesulfonimide) (9c). Viscous colorless liquid (0.14 g, 97.8%); HRMS-ESI (m/z) Calc. for C24H40NO [M − NTf2]+ 358.3104, found 358.3105; calc. for C2F6NO4S2 [NTf2] 279.9167, found 279.9164; [α] D 23 = +6.56 (c 1.0, CHCl3); 1H-NMR (500 MHz, CDCl3) δ ppm 1.21 (d, J = 6.80 Hz, 6H, 2× CH3), 1.26 (s, 3H, CH3), 1.31 (s, 3H, CH3), 1.39 (m, 1H, CH), 1.43 (m, 1H, CHH), 1.59 (m, 1H, CHH), 1.82 (m, 2H, CH2), 2.01 (dt, J = −12.52, 2.59 Hz, 1H, CHH), 2.33 (dt, J = −12.93, 2.99 Hz, 1H, CHH), 2.82 (sep, J = 6.80 Hz, 1H, CH), 2.87 (m, 1H, CHH), 2.97 (ddd, J = −17.65, 6.80, 1.81 Hz, 1H, CHH), 3.18 (d, J = −14.05 Hz, 1H, CHH), 3.26 (s, 3H, CH3), 3.27 (s, 3H, CH3), 3.61 (br s, 2H, CH2), 3.62 (d, J = −14.05 Hz, 1H, CHH), 4.09 (br s, 2H, CH2), 6.89 (d, J = 1.87 Hz, 1H, CHAr), 6.99 (dd, J = 8.15, 1.87 Hz, 1H, CHAr), 7.11 (d, J = 8.15 Hz, 1H, CHAr); 13C-NMR (75 MHz, CDCl3) δ ppm 18.4 (CH2), 19.66 (CH2), 19.70 (CH3), 24.05 (CH3), 24.11 (CH3), 25.6 (CH3), 29.5 (CH2), 33.6 (CH), 37.6 (CH2), 38.2 (C), 39.3 (CH2), 40.8 (C), 48.2 (CH), 54.0 (CH3), 54.2 (CH3), 56.8 (CH2), 69.6 (CH2), 78.7 (CH2), 119.9 (q, J = 320.27, CF3), 123.7 (CHAr), 124.3 (CHAr), 127.0 (CHAr), 134.0 (CAr), 146.3 (CAr), 146.6 (CAr).

3.2.8. Synthesis of Guests

N-Acetylation of phenylalanine was performed according to the literature [45]. n-Bu4N salts were prepared by adding tetrabutylammonium hydroxide (1.0 M in MeOH, 1.0 eq) to the racemic acid (1.0 eq) in MeOH. After stirring for 1–3 h, the solvent was evaporated and the product was dried under vacuum.

4. Conclusions

A number of new chiral tertiary and quaternary amine solvating agents (CSAs) based on (+)-dehydroabietylamine were synthesized and found to resolve racemic Mosher’s acid and its n-Bu4N salt by 1H-NMR and 19F-NMR spectrocopy. Optimum conditions for the enantiomeric resolution with the CSAs were determined by titration. The CSAs are also useful in the determination of ee values of enantiomerically enriched mixtures. Both non-ionic and ionic CSAs resolve racemic carboxylic acids equally well. Best results were obtained with racemic carboxylic acids containing a large electronegative group at the α-position. A modification of the RES-TOCSY NMR pulse sequence was used, allowing the enhancement of enantiomeric discrimination when the resolution of multiplets is insufficient. In future work, the development of different 2-based CSAs will be continued.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/20/11/19732/s1.

Acknowledgments

T.L. is grateful for the University of Helsinki and the Finnish Concordia Fund for the support.

Author Contributions

T.L. conceived and designed the experiments; T.L. performed the experiments, except the modification of RES-TOCSY pulse sequence and measurement of RES-TOCSY experiments which were done by S.H.; T.L. analyzed the data, except the data from RES-TOCSY which was analysed by S.H.; T.L., S.H. and K.W. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nuopponen, M.; Willfor, S.; Jääskeläinen, A.; Sundberg, A.; Vuorinen, T. A UV resonance Raman (UVRR) spectroscopic study on the extractable compounds of Scots pine (Pinus sylvestris) wood Part I: Lipophilic compounds. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2004, 60, 2953–2961. [Google Scholar] [CrossRef] [PubMed]
  2. Qin, M.; Hannuksela, T.; Holmbom, B. Physico-chemical characterization of TMP resin and related model mixtures. Colloids Surfaces A Physicochem. Eng. Asp. 2003, 221, 243–254. [Google Scholar] [CrossRef]
  3. Cheney, L.C. Penicillin Salts of Amines Derived from Rosin. U.S. Patent 2585436, 12 February 1952. [Google Scholar]
  4. Nolan, M.O.; Bond, H.W. Results of laboratory screening tests of chemical compounds for molluscicidal activity. III. Derivatives of abietic acid. Am. J. Trop. Med. Hyg. 1955, 4, 152–155. [Google Scholar] [PubMed]
  5. Rosscup, R.J.; Liehe, H.J. Lubricant Comprising a Lubricating Oil and a Ureido Compound. U.S. Patent 3015625, 2 January 1962. [Google Scholar]
  6. Gottstein, W.J.; Cheney, L.C. Dehydroabietylamine. A new resolving agent. J. Org. Chem. 1965, 30, 2072–2073. [Google Scholar] [CrossRef]
  7. Bolchi, C.; Fumagalli, L.; Moroni, B.; Pallavicini, M.; Valoti, E. A short entry to enantiopure 2-substituted 1,4-benzodioxanes by efficient resolution methods. Tetrahedron Asymmetry 2003, 14, 3779–3785. [Google Scholar] [CrossRef]
  8. Laaksonen, T.; Heikkinen, S.; Wähälä, K. Synthesis and applications of secondary amine derivatives of (+)-dehydroabietylamine in chiral molecular recognition. Org. Biomol. Chem. 2015. [Google Scholar] [CrossRef] [PubMed]
  9. Bergmann, H.; Grosch, B.; Sitterberg, S.; Bach, T. An enantiomerically pure 1,5,7-trimethyl-3-azabicyclo[3.3.1]nonan-2-one as 1H-NMR shift reagent for the ee determination of chiral lactams, quinolones, and oxazolidinones. J. Org. Chem. 2004, 69, 970–973. [Google Scholar] [CrossRef] [PubMed]
  10. Heo, K.S.; Hyun, M.H.; Cho, Y.J.; Ryoo, J.J. Determination of optical purity of 3,5-dimethoxybenzoyl-leucine diethylamide by chiral chromatography and 1H- and 13C-NMR spectroscopy. Chirality 2011, 23, 281–286. [Google Scholar] [CrossRef] [PubMed]
  11. Grimm, S.H.; Allmendinger, L.; Hoefner, G.; Wanner, K.T. Enantiopurity Determination of the Enantiomers of the Triple Reuptake Inhibitor Indatraline. Chirality 2013, 25, 923–933. [Google Scholar] [CrossRef] [PubMed]
  12. Suzuki, M.; Deschamps, J.R.; Jacobson, A.E.; Rice, K.C. Chiral Resolution and Absolute Configuration of the Enantiomers of the Psychoactive “Designer Drug” 3,4-Methylenedioxypyrovalerone. Chirality 2015, 27, 287–293. [Google Scholar] [CrossRef] [PubMed]
  13. Uccello-Barretta, G.; Balzano, F. Chiral NMR Solvating Additives for Differentiation of Enantiomers. Top. Curr. Chem. 2013, 341, 69–131. [Google Scholar] [PubMed]
  14. Wenzel, T.J. Discrimination of Chiral Compounds Using NMR Spectroscopy; John Wiley & Sons: Hoboken, NJ, USA, 2007; p. 549. [Google Scholar]
  15. Kumar, V.; Olsen, C.E.; Schäffer, S.J.C.; Parmar, V.S.; Malhotra, S.V. Synthesis and Applications of Novel Bis(ammonium) Chiral Ionic Liquids Derived from Isomannide. Org. Lett. 2007, 9, 3905–3908. [Google Scholar] [CrossRef] [PubMed]
  16. De Rooy, S.L.; Li, M.; Bwambok, D.K.; El-Zahab, B.; Challa, S.; Warner, I.M. Ephedrinium-based protic chiral ionic liquids for enantiomeric recognition. Chirality 2011, 23, 54–62. [Google Scholar] [CrossRef] [PubMed]
  17. Satishkumar, S.; Periasamy, M. Chiral recognition of carboxylic acids by Troeger’s base derivatives. Tetrahedron Asymmetry 2009, 20, 2257–2262. [Google Scholar] [CrossRef]
  18. Jain, N.; Mandal, M.B.; Bedekar, A.V. Roof shape amines: synthesis and application as NMR chiral solvating agents for discrimination of α-functionalized acids. Tetrahedron 2014, 70, 4343–4354. [Google Scholar] [CrossRef]
  19. Yang, X.; Wang, G.; Zhong, C.; Wu, X.; Fu, E. Novel NMR chiral solvating agents derived from (1R,2R)-diaminocyclohexane: Synthesis and enantiodiscrimination for chiral carboxylic acids. Tetrahedron Asymmetry 2006, 17, 916–921. [Google Scholar] [CrossRef]
  20. Winkel, A.; Wilhelm, R. New chiral ionic liquids based on imidazolinium salts. Tetrahedron Asymmetry 2009, 20, 2344–2350. [Google Scholar] [CrossRef]
  21. Periasamy, M.; Dalai, M.; Padmaja, M. Chiral trans-1,2-diaminocyclohexane derivatives as chiral solvating agents for carboxylic acids. J. Chem. Sci. 2010, 122, 561–569. [Google Scholar] [CrossRef]
  22. Liu, L.; Ye, M.; Hu, X.; Yu, X.; Zhang, L.; Lei, X. Chiral solvating agents for carboxylic acids based on the salen moiety. Tetrahedron Asymmetry 2011, 22, 1667–1671. [Google Scholar] [CrossRef]
  23. Kumar, V.; Pei, C.; Olsen, C.E.; Schaeffer, S.J.C.; Parmar, V.S.; Malhotra, S.V. Novel carbohydrate-based chiral ammonium ionic liquids derived from isomannide. Tetrahedron Asymmetry 2008, 19, 664–671. [Google Scholar] [CrossRef]
  24. Heckel, T.; Winkel, A.; Wilhelm, R. Chiral ionic liquids based on nicotine for the chiral recognition of carboxylic acids. Tetrahedron Asymmetry 2013, 24, 1127–1133. [Google Scholar] [CrossRef]
  25. Gonzalez, L.; Altava, B.; Bolte, M.; Burguete, M.I.; Garcia-Verdugo, E.; Luis, S.V. Synthesis of Chiral Room Temperature Ionic Liquids from Amino Acids—Application in Chiral Molecular Recognition. Eur. J. Org. Chem. 2012, 26, 4996–5009. [Google Scholar] [CrossRef]
  26. Chaudhary, A.R.; Yadav, P.; Bedekar, A.V. Application of optically active aminonaphthols as NMR solvating agents for chiral discrimination of mandelic acid. Tetrahedron Asymmetry 2014, 25, 767–774. [Google Scholar] [CrossRef]
  27. Ashraf, S.A.; Pornputtkul, Y.; Kane-Maguire, L.A.P.; Wallace, G.G. Facile synthesis of a chiral ionic liquid derived from 1-phenylethylamine. Aust. J. Chem. 2007, 60, 64–67. [Google Scholar] [CrossRef]
  28. Altava, B.; Barbosa, D.S.; Isabel Burguete, M.; Escorihuela, J.; Luis, S.V. Synthesis of new chiral imidazolium salts derived from amino acids: Their evaluation in chiral molecular recognition. Tetrahedron Asymmetry 2009, 20, 999–1003. [Google Scholar] [CrossRef]
  29. Kannappan, J.; Jain, N.; Bedekar, A.V. Synthesis and applications of exo N-((1R,2R,4R)-1,7,7-trimethylbicyclo[2.2.1]heptan-2-yl)benzamides as NMR solvating agents for the chiral discrimination of 1,1'-binaphthyl-2,2'-diyl hydrogenphosphates and α-substituted acids. Tetrahedron Asymmetry 2015, 26, 1102–1107. [Google Scholar] [CrossRef]
  30. Gospodarowicz, K.; Holynska, M.; Paluch, M.; Lisowski, J. Novel chiral hexaazamacrocycles for the enantiodiscrimination of carboxylic acids. Tetrahedron 2012, 68, 9930–9935. [Google Scholar] [CrossRef]
  31. Tabassum, S.; Gilani, M.A.; Wilhelm, R. Imidazolinium sulfonate and sulfamate zwitterions as chiral solvating agents for enantiomeric excess calculations. Tetrahedron Asymmetry 2011, 22, 1632–1639. [Google Scholar] [CrossRef]
  32. Foreiter, M.B.; Gunaratne, H.Q.N.; Nockemann, P.; Seddon, K.R.; Stevenson, P.J.; Wassell, D.F. Chiral thiouronium salts: Synthesis, characterisation and application in NMR enantio-discrimination of chiral oxoanions. New J. Chem. 2013, 37, 515–533. [Google Scholar] [CrossRef]
  33. Bozkurt, S.; Durmaz, M.; Naziroglu, H.N.; Yilmaz, M.; Sirit, A. Amino alcohol based chiral solvating agents: Synthesis and applications in the NMR enantiodiscrimination of carboxylic acids. Tetrahedron Asymmetry 2011, 22, 541–549. [Google Scholar] [CrossRef]
  34. Wang, W.; Ma, F.; Shen, X.; Zhang, C. New chiral auxiliaries derived from (S)-α-phenylethylamine as chiral solvating agents for carboxylic acids. Tetrahedron Asymmetry 2007, 18, 832–837. [Google Scholar] [CrossRef]
  35. Pena, C.; Gonzalez-Sabin, J.; Alfonso, I.; Rebolledo, F.; Gotor, V. Cycloalkane-1,2-diamine derivatives as chiral solvating agents. Study of the structural variables controlling the NMR enantiodiscrimination of chiral carboxylic acids. Tetrahedron 2008, 64, 7709–7717. [Google Scholar] [CrossRef]
  36. Gualandi, A.; Grilli, S.; Savoia, D.; Kwit, M.; Gawronski, J. C-hexaphenyl-substituted trianglamine as a chiral solvating agent for carboxylic acids. Org. Biomol. Chem. 2011, 9, 4234–4241. [Google Scholar] [CrossRef] [PubMed]
  37. Tanaka, K.; Fukuda, N. “Calixarene-like” chiral amine macrocycles as novel chiral shift reagents for carboxylic acids. Tetrahedron Asymmetry 2009, 20, 111–114. [Google Scholar] [CrossRef]
  38. Perez-Trujillo, M.; Castanar, L.; Monteagudo, E.; Kuhn, L.T.; Nolis, P.; Virgili, A.; Williamson, R.T.; Parella, T. Simultaneous 1H- and 13C-NMR enantiodifferentiation from highly-resolved pure shift HSQC spectra. Chem. Commun. 2014, 50, 10214–10217. [Google Scholar] [CrossRef] [PubMed]
  39. Aguilar, J.A.; Faulkner, S.; Nilsson, M.; Morris, G.A. Pure shift 1H-NMR: A resolution of the resolution problem? Angew. Chem. Int. Ed. Engl. 2010, 49, 3901–3903. [Google Scholar] [CrossRef] [PubMed]
  40. Chaudhari, S.R.; Suryaprakash, N. Chiral discrimination and the measurement of enantiomeric excess from a severely overcrowded NMR spectrum. Chem. Phys. Lett. 2013, 555, 286–290. [Google Scholar] [CrossRef]
  41. Lokesh, N.; Chaudhari, S.R.; Suryaprakash, N. RES-TOCSY: A simple approach to resolve overlapped 1H-NMR spectra of enantiomers. Org. Biomol. Chem. 2014, 12, 993–997. [Google Scholar] [CrossRef] [PubMed]
  42. Cheney, L.C. Purification of Dehydroabietylamine. U.S. Patent 2787637, 2 April 1957. [Google Scholar]
  43. Su, G.; Huo, L.; Huang, W.; Wang, H.; Pan, Y. Synthesis and crystal structure of 2-dehydroabietyl-5-ethylsulfanyl-1,2,3,4-tetrazole. Chin. J. Struct. Chem. 2009, 28, 693–698. [Google Scholar]
  44. Wang, H.; Tang, L.; Pan, Y.; Liang, M. Synthesis of novel chiral quaternary ammonium salt from rosin. Chem. J. Internet 2004, 6, 56. [Google Scholar]
  45. Stella, S.; Chadha, A. Resolution of N-protected amino acid esters using whole cells of Candida parapsilosis ATCC 7330. Tetrahedron Asymmetry 2010, 21, 457–460. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are not available from the authors.
