Molecules 2012, 17(8), 9790-9802; doi:10.3390/molecules17089790

Article
Synthesis of Disaccharides Containing 6-Deoxy-α-L-talose as Potential Heparan Sulfate Mimetics
Jon K. Fairweather , Ligong Liu , Tomislav Karoli and Vito Ferro ,*
Drug Design Group, Progen Pharmaceuticals Ltd, Brisbane QLD 4076, Australia
Current address: Institute for Molecular Bioscience, The University of Queensland, Brisbane, QLD 4072, Australia.
Current address: School of Chemistry and Molecular Biosciences, The University of Queensland, Brisbane, QLD 4072, Australia.
*
Author to whom correspondence should be addressed; Email: v.ferro@uq.edu.au; Tel.: +61-7-3346-9598; Fax: +61-7-3365-4299.
Received: 28 June 2012; in revised form: 5 August 2012 / Accepted: 9 August 2012 /
Published: 15 August 2012

Abstract

: A 6-deoxy-α-L-talopyranoside acceptor was readily prepared from methyl α-L-rhamnopyranoside and glycosylated with thiogalactoside donors using NIS/TfOH as the promoter to give good yields of the desired α-linked disaccharide (69–90%). Glycosylation with a 2-azido-2-deoxy-D-glucosyl trichloroacetimidate donor was not completely stereoselective (α:β = 6:1), but the desired α-linked disaccharide could be isolated in good overall yield (60%) following conversion into its corresponding tribenzoate derivative. The disaccharides were designed to mimic the heparan sulfate (HS) disaccharide GlcN(2S,6S)-IdoA(2S). However, the intermediates readily derived from these disaccharides were not stable to the sulfonation/deacylation conditions required for their conversion into the target HS mimetics.
Keywords:
disaccharides; heparan sulfate mimetics; fibroblast growth factors

1. Introduction

The fibroblast growth factors FGF-1 and FGF-2 are heparan sulfate (HS)-binding proteins that play key roles in tumor angiogenesis, a critically important process in tumor growth and development [1,2]. They promote angiogenesis by binding with HS and their receptors (FGFRs) to form a ternary HS:FGF:FGFR complex which leads to receptor dimerization/activation and subsequent initiation of cell signaling [3]. Inhibiting angiogenesis by blocking ternary complex formation with HS mimetics is thus a promising strategy for the development of anticancer drugs [4,5,6] without the side effects sometimes associated with other antiangiogenic therapies [7].

A number of studies have described the synthesis of specific HS or HS-like oligosaccharides to interact with FGF-1 or FGF-2 [8,9,10,11] in order to obtain information about structural requirements for HS-FGF binding and activation. Despite much recent progress [12,13,14], the synthesis of native HS oligosaccharides remains a difficult and labour-intensive exercise and has thus lead to interest in less synthetically challenging oligosaccharide mimetics as FGF antagonists [10,15,16,17]. As part of a program aimed at the development of angiogenesis inhibitors, we recently described [18,19] the synthesis of simple disaccharides such as 26 which mimic the HS disaccharide GlcN(2S,6S)-IdoA(2S) (1, Figure 1), postulated from X-ray crystallographic analyses as a minimal HS consensus sequence for FGF binding [20]. The compounds were designed to maintain the α-(1→4) linkage between the two monosaccharide units and the spatial orientation of the two key sulfo groups [GlcN(2S) and IdoA(2S)]. The conformationally flexible disaccharides 24 were designed to mimic this known property [21,22] of IdoA residues. Disaccharides 5 and 6, on the other hand, were designed to investigate the other extreme: a locked 1C4 conformation. Molecular docking calculations indicated that the predicted locations of disaccharide sulfo groups in the binding site of FGF-1 and FGF-2 were consistent with the positions observed for co-crystallized heparin-derived oligosaccharides. These studies suggest that it may be possible to mimic HS oligosaccharides with simpler structures.

Molecules 17 09790 g001

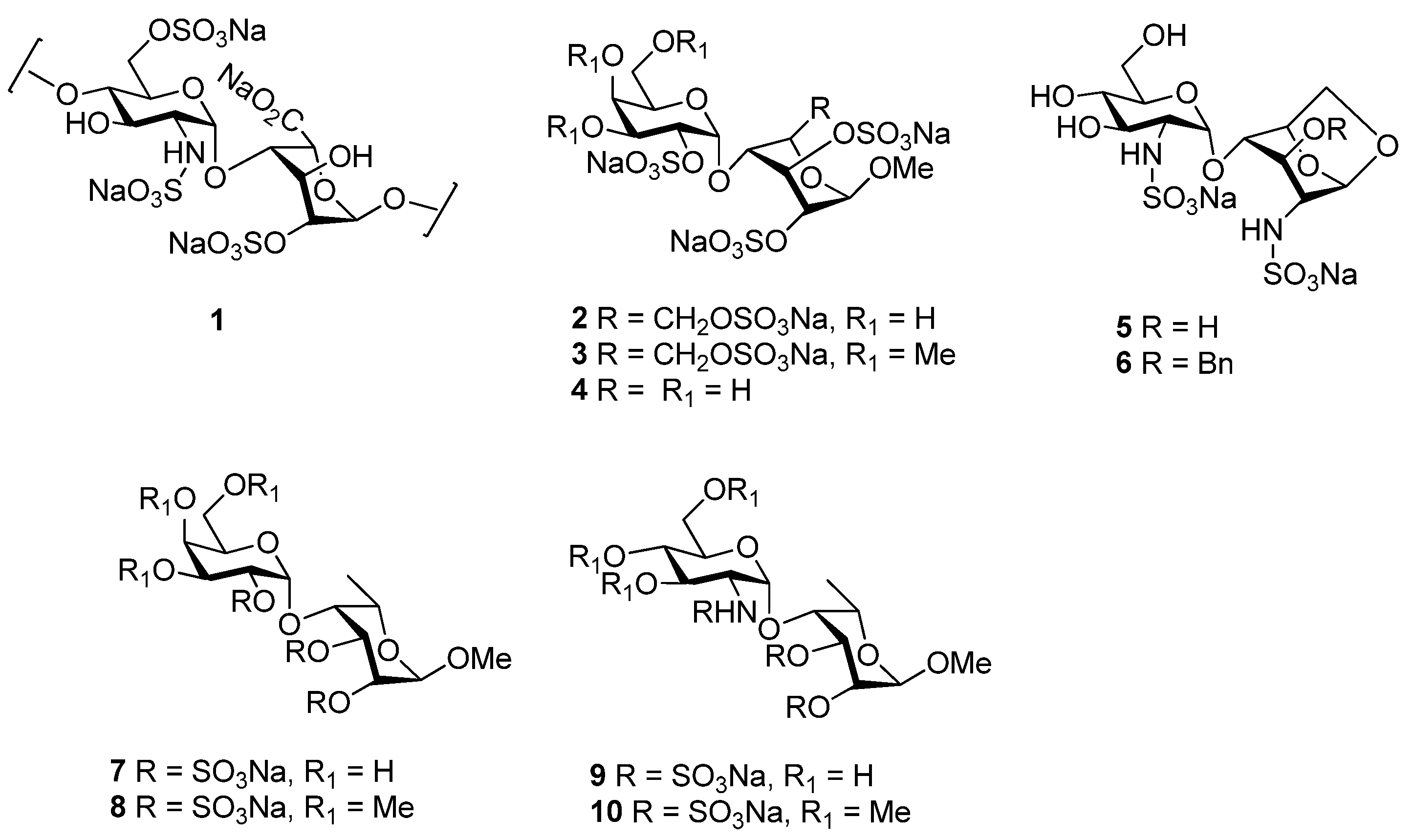

Figure 1. Structures of the GlcN(2S,6S)-IdoA(2S) disaccharide sequence 1, which represents a minimal consensus sequence for FGF:HS binding [20], conformationally flexible mimetics 24 [18], conformationally locked mimetics 5 and 6 [19], and proposed disaccharides of intermediate flexibility 710.

Click here to enlarge figure

Figure 1. Structures of the GlcN(2S,6S)-IdoA(2S) disaccharide sequence 1, which represents a minimal consensus sequence for FGF:HS binding [20], conformationally flexible mimetics 24 [18], conformationally locked mimetics 5 and 6 [19], and proposed disaccharides of intermediate flexibility 710.
Molecules 17 09790 g001

In order to extend the above investigations we herein describe the design and synthesis of simple disaccharides with intermediate conformational flexibility compared with 26, which once sulfated, could mimic disaccharide 1.

2. Results and Discussion

The previously synthesized disaccharides 26 were designed to mimic the essential features of 1, in particular the α-(1→4) linkage between the two monosaccharide units and the spatial orientation of the two key sulfo groups [GlcN(2S) and IdoA(2S)], with the assumption that N-sulfo groups could be interchanged with O-sulfo groups and vice versa. The disaccharides were prepared by the glycosylation of suitable monosaccharide acceptors (as IdoA mimics) with non-participating C2-protected glycosyl donors such as D-thiogalactosides 11 and 12 or the 2-azido-glucosyl imidate 13 (Figure 2), to favour the stereoselective formation of the desired α-(1→4) linkage. Disaccharides 24 are composed of a 2-O-sulfated D-Gal α(1→4)-linked to a polysulfated β-D-glucoside or xyloside. Polysulfation of β-D-glucosides or xylosides confers conformational flexibility upon this monosaccharide residue [23,24], confirmed by 1H-NMR spectroscopy, thus mimicking the conformational flexibility of IdoA. Disaccharides 56 on the other hand are composed of a D-glucosamine-N-sulfate α(1→4)-linked to a 1,6-anhydro-2-amino glucose. The latter is locked in the 1C4 conformation, mimicking the conformation of IdoA as found in some crystal structures of heparin oligosaccahrides bound to FGF [25,26].

Molecules 17 09790 g002
Figure 2. Glycosyl donors (1113) and 6-deoxy-L-taloside acceptor (14).

Click here to enlarge figure

Figure 2. Glycosyl donors (1113) and 6-deoxy-L-taloside acceptor (14).
Molecules 17 09790 g002

In order to extend the above studies, it was decided to investigate IdoA mimics with intermediate degrees of conformational flexibility. The 6-deoxy-L-taloside 14 was thus selected as a potential glycosyl acceptor because, like the majority of the L-sugars, it was expected to adopt the 1C4 conformation in solution but not be strictly held in this conformation like 5 and 6. It was anticipated that the use of 14 would, after deprotection and sulfonation, lead to target disaccharides such as 710. In addition to the desired 2-O-sulfate, an additional sulfate at O-3 could provide additional electrostatic interactions with the target proteins. Acceptor 14 was thus prepared in a straightforward manner from methyl α-L-rhamnopyranoside 15 [27], as outlined in Scheme 1. Triol 15 was treated with 2,2-dimethoxypropane and toluenesulfonic acid as catalyst to give the isopropylidene 16 which was subsequently oxidised with Dess-Martin periodinane to the ketone 17 in good yield (70%, 2 steps). Stereoselective reduction with sodium borohydride in methanol gave exclusively the 6-deoxy-α-L-taloside 18 which was converted into the diol 20 in moderate yield (54%, 3 steps) via allylation at C4 followed by toluenesulfonic acid catalysed methanolysis of the isopropylidene group. Diol 20 was then benzylated (NaH/benzyl bromide, 87%) and de-O-allylated with PdCl2 in methanol at reflux to afford the alcohol 14 in excellent yield (95%), ready for use in the glycosylation studies.

Glycosylation of acceptor 14 with methyl thiogalactoside donor 11 in dichloromethane at −20 °C with NIS/TfOH as the promoter was very rapid and gave the disaccharide 22 in high yield (90%) following purification by flash chromatography (Scheme 2). Analysis of the 1H-NMR spectrum of 22 confirmed the presence of the newly formed α-glycosidic linkage (doublet at 5.77 ppm, J1,2 = 3.6 Hz), and that the L-taloside ring remained in the desired 1C4 conformation (3J = 2.4–3.2 Hz). Interestingly the use of the homologous ethyl donor 12 resulted in a less clean reaction and only gave 22 in a still acceptable 69% isolated yield after flash chromatography.

Molecules 17 09790 g003

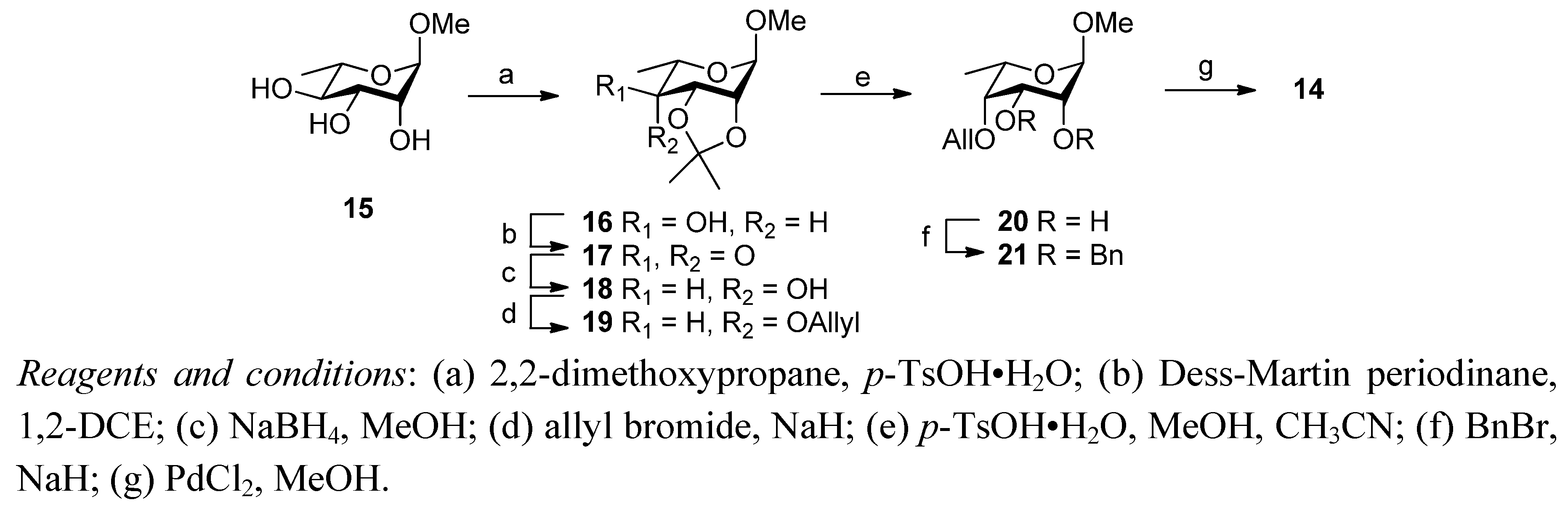

Scheme 1. Synthesis of 6-deoxy-L-taloside acceptor 14.

Click here to enlarge figure

Scheme 1. Synthesis of 6-deoxy-L-taloside acceptor 14.
Molecules 17 09790 g003
Molecules 17 09790 g004

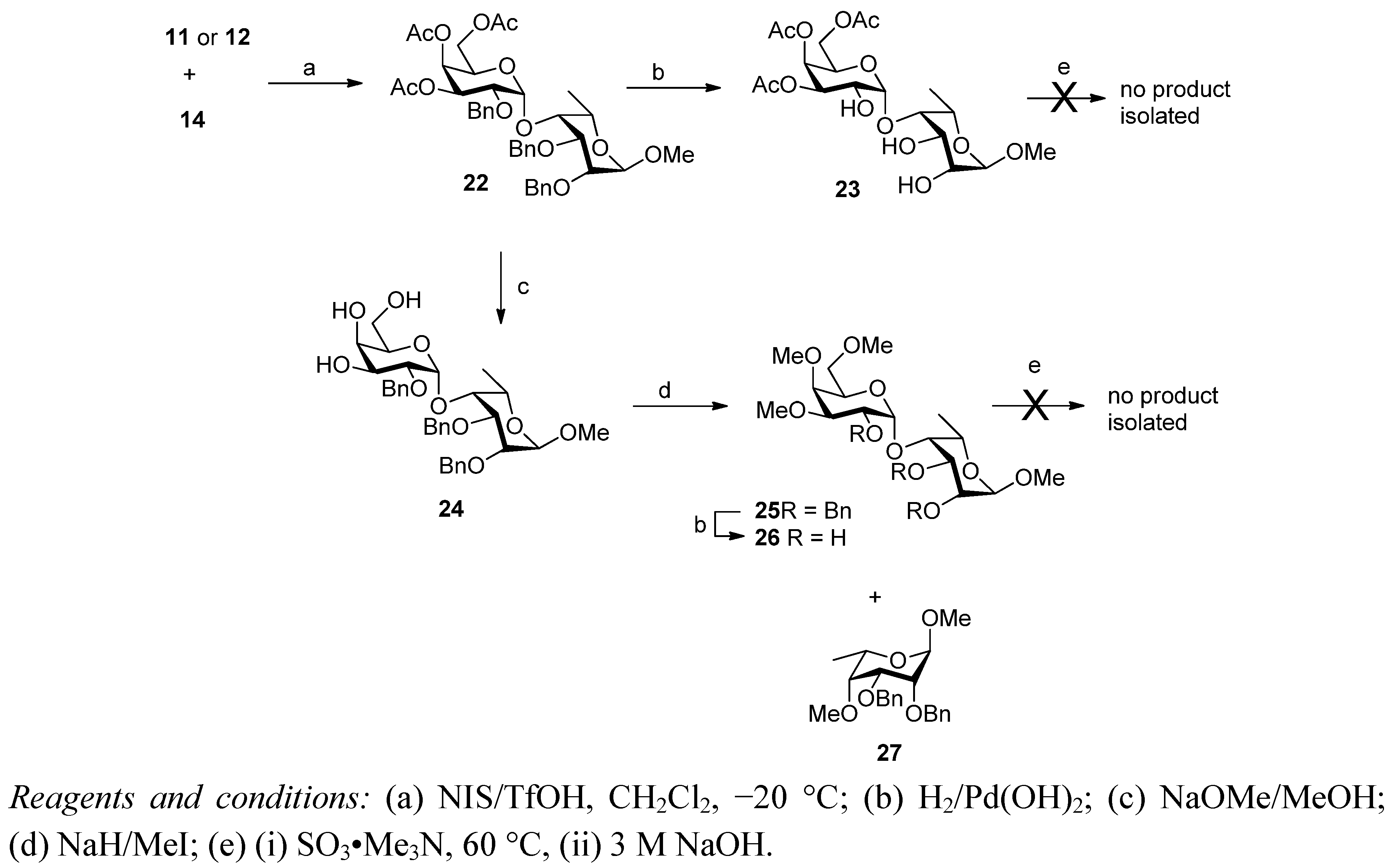

Scheme 2. Assembly of D-Gal-L-Tal disaccharide and attempted conversion into sulfated derivatives.

Click here to enlarge figure

Scheme 2. Assembly of D-Gal-L-Tal disaccharide and attempted conversion into sulfated derivatives.
Molecules 17 09790 g004

Attention was then turned towards conversion of 22 into the sulfated target disaccharides 7 and 8. Unfortunately, the compounds in this series proved to be unusually unstable to the standard transformations [18,19] used to successfully prepare disaccharides 26 (Scheme 2). Hydrogenolytic debenzylation of disaccharide 22 was hampered by apparent poisoning of the palladium catalyst by trace sulfur-containing impurities from the glycosylation step. However, by replacing the catalyst four times during reaction, and in the presence of glacial acetic acid, triol 23 was obtained in low yield (33%), but good purity after flash chromatography. Subsequent attempted sulfonation with concomitant deacetylation of 23 (SO3.Me3N followed by aqueous 3 M NaOH) gave rise to complex mixtures from which no pure product could be isolated by the chromatographic procedures previously used [18,19] (size exclusion chromatography on Bio-Gel P-2). It is known that sulfonation of carbohydrate polyols with sulfur trioxide-amine complexes can induce cleavage of acid labile groups and glycosidic linkages [28]. Evidently disaccharide 23 is not stable to these harsh conditions. In attempts to prepare the trimethyl derivative, both the Zemplén deacetylation/methylation and hydrogenolysis steps were low yielding (29–46% and 55%, respectively). The former caused significant degradation and in one case resulted in the isolation of the monosaccharide 27 as the dominant product (71%). Cleavage of glycosidic bonds under basic conditions in the presence of atmospheric oxygen is known [29,30], and could account for the degradation seen here, but it is unclear why these disaccharides are so sensitive compared with the earlier series. Attempted sulfonation of the small amounts of available 26 produced also gave rise to complex mixtures from which the desired products could not be isolated.

Attention was then turned to the alternative disaccharide series using imidate 13 as the glycosyl donor (Scheme 3). Following literature precedent [31], TBDMSOTf was selected as the promoter for the glycosylation of 14 with donor 13. The reaction proceeded rapidly in 1,2-dichloroethane at −20 °C (10 min, then→rt over 20 min), however, it was not completely stereoselective and resulted in an inseparable mixture of α and β anomers 28 (α:β = 6:1). The crude mixture was therefore deacetylated under Zemplén conditions (NaOMe in MeOH) and the crude triol 29 then benzoylated with benzoyl chloride in pyridine. The resultant mixture of benzoates was separable by careful column chromatography from which the desired α-linked disaccharide 30 was isolated in 60% overall yield along with the β-anomer 31 (10%).

Molecules 17 09790 g005

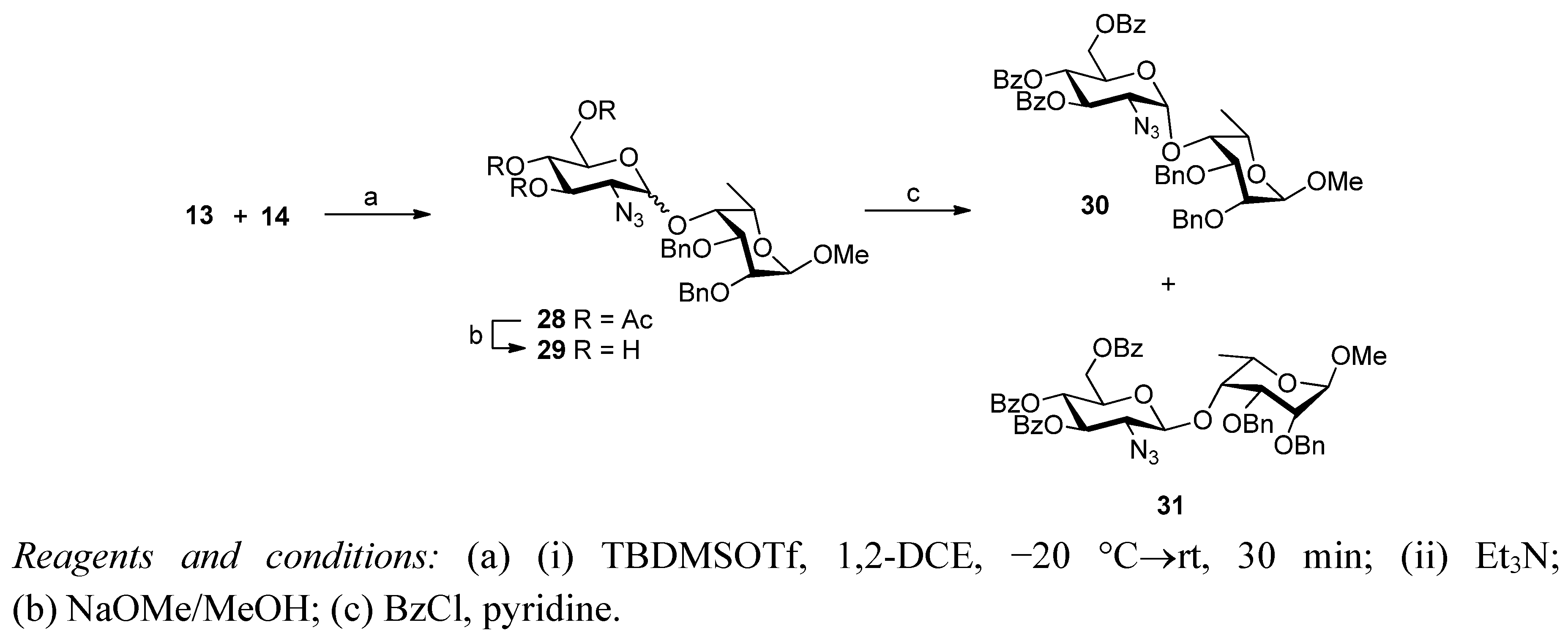

Scheme 3. Synthesis of D-Glc-L-Tal disaccharides.

Click here to enlarge figure

Scheme 3. Synthesis of D-Glc-L-Tal disaccharides.
Molecules 17 09790 g005

We were not able to transform disaccharide 30 into the desired sulfated products 9 or 10 (Scheme 4). Disaccharide 30 was subjected to catalytic transfer hydrogenation (Pearlman’s catalyst/ammonium formate) to presumably give the crude amine. However, attempted sulfonation only gave a complex mixture of products and 1H-NMR analysis indicated some loss of benzoates. The mixture was subjected to standard benzoylation conditions (excess benzoyl chloride/pyridine) but this did not result in simplification of the mixture and no pure products could be recovered. Compound 30 was subjected to the Zemplén and methylation procedures to give the trimethyl derivative 32 in moderate yield (69% over 2 steps). However, when this compound was subjected to the same azide reduction/sulfonation procedure as above, once again a complex mixture resulted from which no identifiable products were isolated.

Molecules 17 09790 g006

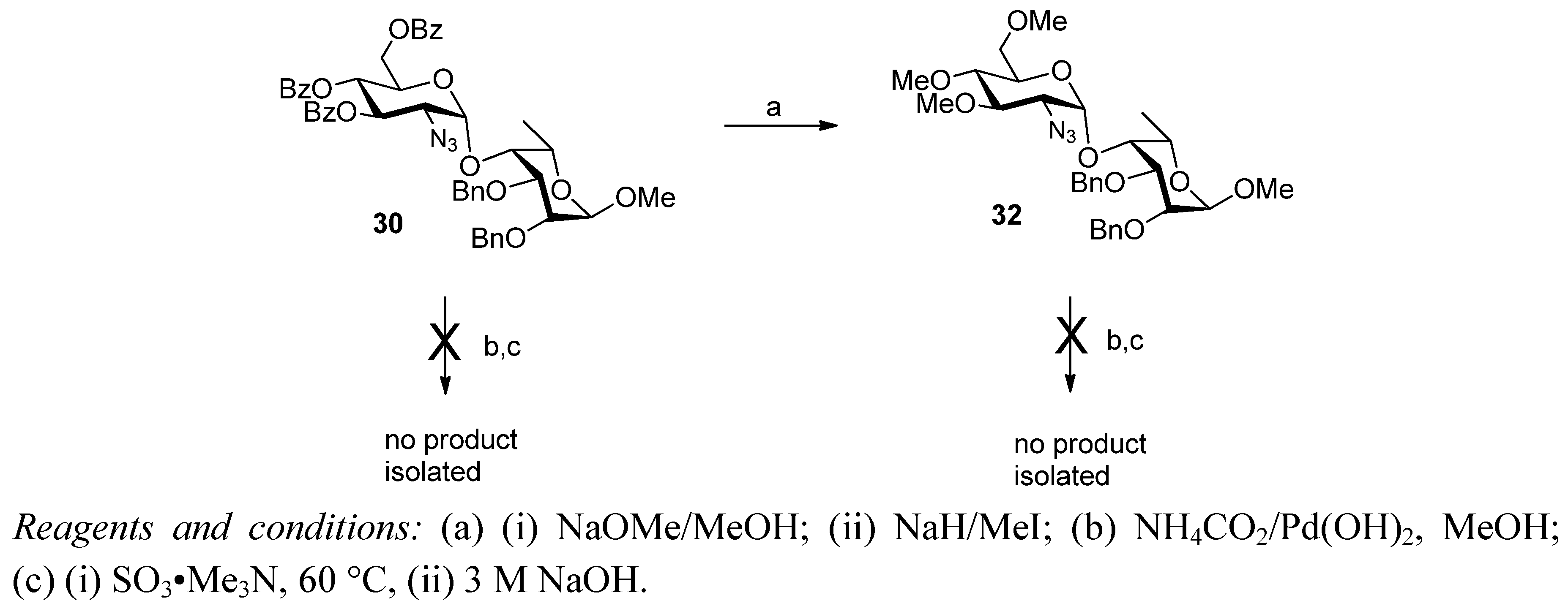

Scheme 4. Attempted conversion into sulfated derivatives.

Click here to enlarge figure

Scheme 4. Attempted conversion into sulfated derivatives.
Molecules 17 09790 g006

3. Experimental

General

1H-NMR spectra were recorded at 400 MHz for 1H, 100 MHz for 13C in deuteriochloroform (CDCl3) with residual CHCl3 (1H, δ 7.26) employed as internal standard, at ambient temperatures (298 K) unless specified otherwise. Where appropriate, analysis of 1H-NMR spectra was aided by gCOSY experiments. Flash chromatography was performed on Merck silica gel (40–63 μm) under a positive pressure with the specified eluants. All solvents used were of analytical grade. The progress of the reactions was monitored by TLC using commercially prepared Merck silica gel 60 F254 aluminium-backed plates. Compounds were visualized by charring with 5% sulfuric acid in MeOH and/or by visualization under ultraviolet light. The term ‘workup’ refers to dilution with water, extraction into an organic solvent, sequential washing of the organic extract with aq. 1 M HCl (where appropriate), saturated aq. NaHCO3 and brine, followed by drying over anhydrous MgSO4, filtration and evaporation of the solvent by means of a rotary evaporator at reduced pressure and where appropriate, extensive drying of the residue at <1 mmHg.

Attempted sulfonation. The polyol was dissolved in anhydrous DMF (0.04 M) and sulfur trioxide pyridine complex (2 eq. per hydroxyl) or sulfur trioxide trimethylamine complex (3 eq. per hydroxyl) was added. The mixture was stirred at 60 °C under a nitrogen (6–16 h), cooled (0 °C), treated with MeOH (2 mL) and then made basic to pH ≥ 9 by addition of 3 M NaOH solution. The mixture was filtered and evaporated to dryness and the residue was purified by size exclusion chromatography (Bio-Gel P-2, 5 × 100 cm, 2.8 mL/min, 0.1 M NH4HCO3, 2.8 min per vial). The fractions were analyzed for carbohydrate content by TLC (charring) or the 1,9-dimethylmethylene blue test [32] and for purity by CE [33].

Attempted sulfonation/deacylation. The polyol was sulfonated according to the general procedure for sulfonation, however, the residue obtained from evaporation of basified (pH = 9) crude mixture was redissolved in 3 M NaOH (0.16 M) and stirred at rt (o/n) before purification.

Ethyl 3,4,6-tri-O-acetyl-2-O-benzyl-1-thio-β-D-galactopyranoside 12. The title compound was prepared from ethyl 1-thio-β-D-galactopyranoside in an analogous fashion to the methyl thiogalactoside 11 according to the procedure of Pozsgay [34]. Flash chromatography (hexanes/EtOAc 6:1→2:1) gave 12 as a colourless oil (Rf = 0.20, hexanes/EtOAc 4:1). 1H-NMR: δ 7.35-7.23 (m, 5H, Ph), 5.37 (dd, 1H, J3,4 = 3.2, J4,5 = 1.2, H4), 4.98 (dd, 1H, J2,3 = 9.6, H3), 4.83, 4.57 (ABq, 2H, JA,B = 10.8, CH2Ph), 4.52 (d, 1H, J1,2 = 9.6, H1), 4.13 (dd, 1H, J6a,6b = 11.2, J5,6a = 7, H6a), 4.05 (dd, 1H, J5,6b = 6.4, H6b), 3.84 (ddd, 1H, H5), 3.62 (dd, 1H, H2), 2.82-2.68 (m, 2H, SCH2), 2.09 (s, 3H, Ac), 2.00 (s, 3H, Ac), 1.90 (s, 3H, Ac), 1.30 (t, 3H, J = 7.6, CH3).

Methyl 6-deoxy-2,3-O-isopropylidene-α-L-lyxo-hexopyran-4-uloside 17. (A) p-TsOH.H2O (100 mg) was added to a mixture of methyl α-L-rhamnopyranoside (15) [27] (1.45 g, 8.1 mmol) in 2,2-dimethoxypropane (10 mL) and the combined mixture stirred (rt, 20 min). Et3N (100 μL) was added to neutralise the reaction mixture and the solvent was evaporated. The residue was dissolved (EtOAc) and subjected to workup yielding, presumably, the acetal 16 [35] as a colourless oil. This was used for the next step without further purification. (B) Dess-Martin periodinane (3.80 g, 8.9 mmol) was added to the crude alcohol 16 [from (A) above] in 1,2-dichloroethane and the combined mixture heated (70 °C, 1 h). The mixture was cooled (rt) and then diluted (CHCl3) prior to workup including pre-treatment with Na2S2O3 (2 M). The residue was subjected to flash chromatography (EtOAc/hexanes 1:9→3:7) to give the ketone 17 [36] as a pale yellow oil (1.24 g, 70%, 2 steps). This was used for the next step without further characterisation.

Methyl 4-O-allyl-6-deoxy-α-L-talopyranoside 20. (A) NaBH4 (200 mg, 5.0 mmol) was added portion-wise to a stirred solution of the ketone 17 (1.24 g, 5.7 mmol) in MeOH (60 mL). The mixture was treated with AcOH (10% aq.) dropwise to destroy the excess reducing agent and the solvent evaporated. The residue was subjected to workup (EtOAc) yielding the alcohol 18 as a pale yellow oil. This was used in the next reaction without further purification. (B) The alcohol 18 [from (A) above] in DMF (2 mL) was added dropwise to a stirred suspension of pre-washed (hexane) NaH (560 mg of 50% oil suspension, 11.4 mmol) in DMF (15 mL) and the combined mixture stirred (0 °C→rt, 30 min). The mixture was then cooled (0 °C) and allyl bromide (735 μL, 8.5 mmol) was introduced and stirring continued (0 °C→rt, o/n). The mixture was cooled (0 °C), MeOH (3 mL) was added and stirring continued (5 min) prior to evaporation of the solvent. The residual oil was subjected to workup (EtOAc) to yield the acetal 19 as a pale yellow oil (1.12 g). This was used for the next reaction without further purification. (C) A mixture of the acetal 19 [from (B) above] and p-TsOH.H2O (100 mg) in MeOH (20 mL) and MeCN (20 mL) was heated under reflux (1 h). The mixture was cooled (rt) and Et3N (100 μL) was added prior to evaporation of the solvent. The residue was subjected to workup (EtOAc) and flash chromatography (EtOAc/hexanes 1:4→2:3) to yield the diol 20 as a colourless oil (668 mg, 54%, 3 steps). 1H-NMR: δ 1.26 (d, 3H, J5,6 6.4 Hz; H6), 3.33 (s, 3H, OMe), 3.46–3.48 (m, 1H, H2), 3.62 (br s, 1H, H4), 3.75 (dd, 1H, J2,3 = J3,4 = 3.2 Hz, H3), 3.79-3.85 (m, 1H H5), 4.12–4.26 (m, 2H, OCH2), 4.71 (s, 1H, H1), 5.15–5.27 (m, 2H, CH=CH2), 5.84–5.93 (m, 1H, CH=CH2); 13C-NMR (CDCl3, 100 MHz): δ 17.1, 55.2, 65.9, 66.7, 70.9, 75.6, 81.3, 102.2, 118.0, 134.3.

Methyl 2,3-di-O-benzyl-6-deoxy-α-L-talopyranoside 14. (A) The diol 20 (110 mg, 0.50 mmol) in DMF (1 mL) was added dropwise to a stirred suspension of pre-washed (hexane) NaH (500 mg of 50% oil suspension, 10 mmol) in DMF (5 mL) and the combined mixture stirred (0 °C→rt, 30 min). The mixture was then cooled (0 °C) and benzyl bromide (250 μL), 2.0 mmol) was introduced and stirring continued (0 °C→rt, o/n). The mixture was cooled (0 °C) and MeOH (3 mL) was added with continued stirring (5 min) prior to evaporation of the solvent. The residual oil was subjected to rapid silica filtration (10–40% EtOAc/hexanes) to yield, presumably, the dibenzyl ether 21 as a pale yellow oil (174 mg, 87%). This was used for the next reaction without further characterisation or purification. (B) A mixture of the allyl ether 21 (170 mg, 0.43 mmol) and PdCl2 (20 mg) in MeOH (15 mL) was heated under reflux (1 h). The solvent was evaporated and the residue subjected to flash chromatography (EtOAc/hexanes 1:9→3:7) to yield the alcohol 14 as a pale yellow oil (146 mg, 95%). 1H-NMR: δ 1.30 (s, 3 H, H6), 3.29 (s, 3 H, OMe), 3.65 (dd, 1 H, J2,3 = J3,4 = 3.2 Hz, H3), 3.69–3.75 (m, 3 H, H2, H4, H5), 4.51, 4.71 (ABq, JA,B = 12.0 Hz, CH2Ph), 4.68, 4.79 (ABq, JA,B = 11.9 Hz, CH2Ph), 4.72 (d, 1 H, J1,2 = 0.8 Hz, H1).

Methyl 3,4,6-tri-O-acetyl-2-O-benzyl-α-D-galactopyranosyl-(1→4)-2,3-di-O-benzyl-6-deoxy-α-L-talo-pyranoside 22. From donor 11: A mixture of the alcohol 14 (128 mg, 357 μmol), thioglycoside 11 (183 mg, 428 μmol) and freshly activated, powdered 3 Å mol sieves (500 mg) in dry CH2Cl2 (10 mL) was stirred at −30 °C for 20 min before adding NIS (125 mg, 556 μmol, 1.3 eq.) and TfOH (1 drop). Stirring was continued at −30 °C until the reaction was complete by TLC (~1.5 h) before Et3N (584 μL, 424 mg, 4.2 mmol, 7.5 eq.) was added. Evaporation onto silica gel and flash chromatography (EtOAc/hexanes 1:3→9:11) gave disaccharide 22 as a colourless film (238 mg, 90%; Rf = 0.28, hexanes/EtOAc = 1:1). 1H-NMR: δ 7.1-7.4 (m, 15H, 3 × Ph), 5.77 (d, 1H, J1,2 = 3.6 Hz, H1II), 5.46 (dd, 1H, J3,4 = 3.4, J4,5 = 1.3 Hz, H4II), 5.41 (dd, 1H, J2,3 = 10.4 Hz, H3II), 4.83 (d, 1H, J1,2 = 2.4 Hz, H1I), 4.49-4.72 (m, 6H, PhCH2), 4.27 (ddd, 1H, H5II), 4.11 (dd, 1H, J6a,6b = 11.4, J5,6b = 7.0, H6bII), 4.04 (dd, 1H, J5,6a = 6.4, H6aII), 3.95 (m, 1H, H5I), 3.94 (m, 1H, H4I), 3.83 (dd, 1H, H2II), 3.80 (dd, 1H, J2,3~3,4 = 3.2, H3I), 3.59 (dd, 1H, J1,2+2,3 = 2.8, H2I), 3.33 (s, 3H, OMe), 2.05 (s, 3H, Ac), 2.04 (s, 3H, Ac), 1.96 (s, 3H, Ac), 1.42 (d, 3H, J5,6 = 6.4, H6I); 13C NMR: δ 170.4, 170.0, 169.8, 138.3(2), 138.3(0), 138.1, 128.3, 128.1, 127.9, 127.8, 127.5, 127.4, 127.3(2), 127.2(8), 127.1, 99.0, 96.4, 77.3, 73.2, 72.3, 72.2, 72.1, 71.5, 71.2, 69.1, 68.4, 67.0, 66.3, 62.1, 55.0, 20.7, 20.6, 20.5, 17.0. From donor 12: The alcohol 14 (95 mg, 265 μmol), thioglycoside 12 (117 mg, 265 μmol) and freshly activated, powdered 3 Å mol sieves (350 mg) were subjected to the above NIS glycosylation conditions using 78 mg (345 μmol, 1.3 eq.) of NIS. Flash chromatography (EtOAc/hexanes 1:4→1:1) gave the pure α-anomer 22 (134 mg, 69%).

Methyl 3,4,6-tri-O-acetyl-α-D-galactopyranosyl-(1→4)-6-deoxy-α-L-talopyranoside 23. To a solution of 22 (120 mg, 163 μmol) in MeOH (5 mL) was added Pd/C (5%, 20 mg). The suspension was stirred (5 min) then filtered and additional Pd/C (5%, 20 mg) was added along with glacial acetic acid (20 μL) and the suspension was stirred overnight under hydrogen. The catalyst was replaced and the hydrogen was refilled with stirring overnight two more times before the suspension was filtered and subjected to flash chromatography (EtOAc/hexanes 3:2→7:3) to give the triol 23 (25 mg, 33%) as a colourless film. 1H-NMR (200 MHz, CDCl3): 5.44 (d, 1H, J3,4 = 3.1, H4II), 5.33 (d, 1H, J1,2 = 4.2, H1II), 5.09 (dd, 1H, J2,3 = 10.6, H3II), 4.73 (br s, 1H, H1I), 4.43 (t, 1H, J5,6 = 6.3, H5II), 4.11 (dd, 1H, H2II), 4.06 (app d, 2H), 3.8–4.0 (m, 3H), 3.65–3.71 (m, 1H), 3.35 (s, 3H, OMe), 3.3–3.5 (br s, 3H, OH), 2.12 (s, 3H, AcO), 2.03 (s, 3H, AcO), 2.02 (s, 3H, AcO), 1.32 (d, 3H, J5,6 = 6.6, H6I).

Methyl 3,4,6-tri-O-methyl-2-O-benzyl-α-D-galactopyranosyl-(1→4)-2,3-di-O-benzyl-6-deoxy-α-L-talo-pyranoside (25). A sliver of sodium was added to a solution of triacetate 22 (110 mg) in MeOH (10 mL) before stirring overnight. The solution was neutralised with resin (AG-50X8 H+), filtered and evaporated. DMF (10 mL), sodium hydride (30 mg, 60% in oil) and methyl iodide (50 μL) were added and the mixture was stirred overnight before it was quenched (ice), evaporated and subjected to flash chromatography (EtOAc/hexanes 3:7→3:2) to give 25 (45 mg, 46%) as a colourless film (Rf = 0.08, hexanes/EtOAc = 65:35). 1H-NMR: δ 7.0–7.3 (m, 15H, 3 × Ph), 5.50 (br d, 1H, J = 3.1, H1II), 4.78 (d, 1H, J = 3.2, H1I), 4.4–4.7 (m, 6H, PhCH2), 3.9–4.0 (m, 2H), 3.82 (br t, 1H, J = 2.8), 3.81 (dd, 1H, J = 3.7, 10, H2II), 3.64–3.76 (m, 3H), 3.503 (s, 3H, OMe), 3.499 (s, 3H, OMe), 3.48–3.52 (m, 2H), 3.43 (dd, 1H, J = 6.2, 9.5), 3.34 (s, 3H, OMe), 3.29 (s, 3H, OMe), 1.37 (d, 3H, J = 6.7, H6I).

In a separate experiment, following the above deacetylation and benzylation procedures, the triacetate 22 (67 mg, 90.9 μmol) was converted to trimethyl ether 25 as a minor product (17 mg, 29%, Rf = 0.08, hexanes/EtOAc = 65:35). The major fraction was the decomposed by-product methyl 2,3-di-O-benzyl-4-O-methyl-6-deoxy-α-L-talopyranoside 27 (colourless gum, 24 mg, 71%, Rf = 0.32, hexanes/EtOAc 65:35). 1H-NMR: δ 7.42–7.24 (m, 10H, 2 × Ph), 4.86, 4.72 (ABq, 2H, JA,B = 12.8, PhCH2), 4.76 (d, 1H, J = 1.6, H1), 4.53 (s, 2H, PhCH2), 3.85–3.80 (m, 1H), 3.68–3.64 (m, 2H), 3.66 (s, 3H, CH3O), 3.39 (m, 1H), 3.30 (s, 3H, CH3O), 1.33 (d, 3H, J = 6.4, CH3).

Methyl 3,4,6-tri-O-methyl-α-D-galactopyranosyl-(1→4)-6-deoxy-α-L-talopyranoside 26. 5% Palladium on activated charcoal (10 mg) and acetic acid (200 μL) were added to a solution of tribenzyl ether 25 (40 mg, 61 μmol) in MeOH (10 mL). The reaction flask was evacuated and refilled with hydrogen three times before the mixture was stirred under hydrogen overnight. The mixture was then filtered, evaporated and subjected to flash chromatography (EtOAc) to yield of triol 26 (13 mg, 55%) as a colourless oil. 1H-NMR: δ 5.26 (d, 1H, J = 4.2, H1II), 4.76 (d, 1H, J = 1.4, H1I), 4.10-4.15 (m, 2H), 3.93 (dq, 1H, J = 0.7, 6.5, H5I), 3.82 (t, 1H, J = 3.4), 3.77–3.79 (m, 1H), 3.70 (dd, 1H, J = 1.4, 3.3, H2I), 3.55 (s, 3H, OMe), 3.52–3.58 (m, 1H), 3.50 (s, 3H, OMe), 3.42–3.47 (m, 2H), 3.38 (s, 3H, OMe), 3.36 (s, 3H, OMe), 1.32 (d, 3H, J = 6.8, H6I).

Methyl 2-azido-3,4,6-tri-O-benzoyl-2-deoxy-α-D-glucopyranosyl-(1→4)-2,3-di-O-benzyl-6-deoxy-α-L-talopyranoside 30. (A) A mixture of the imidate [19] 13 (291 mg, 0.66 mmol) and alcohol 14 (157 mg, 0.44 mmol) in 1,2-DCE (5 mL) was stirred in the presence of activated mol. sieves (300 mg of 3 Å powder) under an atmosphere of argon (rt, 30 min) and then cooled (−20 °C) with continued stirring (10 min). TBDMSOTf (30 μL, 0.132 mmol) was introduced dropwise and the mixture was warmed (−20 °C→0 °C, 20 min). Et3N (100 μL) was introduced and the mixture was filtered and evaporated. The residue was subjected to workup (EtOAc) and flash chromatography (EtOAc/hexanes 1:9→2:3) to yield a fraction presumed to contain the disaccharide product 28 as a pale yellow oil (301 mg). 1H-NMR analysis indicated that a monosaccharide component was also present in the mixture. This residue was co-evaporated (2 × 10 mL CH3CN) and used in the next reaction without further purification or characterisation. (B) Na (a small piece) was added to a solution of the mixture from (A) (above) (0.44 mmol, max.) in MeOH (4 mL) and the combined mixture stirred (rt, 1 h). The mixture was evaporated and neutralised by the addition of Dowex 50X8 resin (H+ form), filtered and the filtrate evaporated. The residue was subjected to workup (EtOAc) and flash chromatography (EtOAc/hexanes 1:1→9:1) to yield a colourless oil (210 mg). This residue was co-evaporated (2 × 10 mL CH3CN) and used in the next reaction without further purification or characterisation. (C) BzCl (306 μL, 2.64 mmol) was added to a solution of the mixture from (A) (above) (29) (0.44 mmol, max.) and pyridine (2 mL) in 1,2-DCE (4 mL) and the combined mixture stirred (rt, o/n). The mixture was cooled (0 °C) and MeOH (2 mL) was introduced with continued stirring (0 °C→rt, 2 min) before evaporation and co-evaporation (toluene) of the solvent. The residue was subjected to workup (EtOAc) and flash chromatography (EtOAc/hexanes 1:9→3:7) to yield two compounds. Firstly, the α-linked disaccharide (30) was obtained as a colourless oil (217 mg, 60%, 3 steps). 1H-NMR: δ 1.48 (d, 3 H, J5,6 = 6.6 Hz, H6I), 3.31 (s, 3H, OCH3), 3.40 (dd, 1H, J1,2 = 3.7, J2,3 = 10.6 Hz, H2II), 3.64–3.65 (m, 1H, H2I), 3.73 (m, 1H, H3I), 3.88–3.95 (m, 1H, H5I), 4.05–4.07 (m, 1H, H4I), 4.35 (ddd, 1H, J4,5 = 10.2, J5,6a = 3.3, J5,6b = 5.8 Hz, H5II), 4.37, 4.61 (ABq, JA,B = 11.6 Hz; CH2Ph), 4.50 (dd, 1H, J6a,6b = 12.0 Hz, H6bII), 5.58 (dd, 1H, H6aII), 4.67, 4.77 (ABq, JA,B = 12.7 Hz, CH2Ph), 4.82 (d, 1H, J1,2 = 1.6 Hz, H1I), 5.24 (dd, 1H, J3,4 = 9.5, J4,5 = 10.1 Hz, H4II), 5.99 (dd, 1H, J2,3 = 10.7, J3,4 = 9.3 Hz, H3II), 6.14–6.15 (d, 1H, J1,2 = 4.0 Hz, H1II), 7.20–7.54, 7.90–7.99 (2 m, 25H, 5 × Ph); 13C-NMR: δ 17.6, 55.2, 61.8, 63.7, 66.9, 68.3, 70.5, 70.6, 70.6, 74.5, 96.3, 99.9, 127.7, 128.2, 128.4, 128.5, 128.5, 128.6, 128.6, 129.0, 129.5, 129.8, 129.9, 130.0, 130.1, 133.3, 133.4, 133.6, 136.3, 138.8, 165.6, 165.7, 166.3.

Next, the β-linked disaccharide (31) was obtained as a colourless oil (36 mg, 10%, 3 steps). 1H-NMR: δ 1.46 (d, 3H, J5,6 = 6.6 Hz, H6I), 3.33 (s, 3H, OMe), 3.53 (t, 1H, J1,2 = J 2,3 = 3.2 Hz, H2I), 3.70–3.75 (m, 1H, H2II), 3.85–3.93, 3.97–4.01 (2 m, 4H, H3I, H4I, H5I, H5II), 4.29 (dd, 1H, J5,6a = 5.3, J6a,6b = 12.2 Hz, H6aII); 4.44 (dd, 1H, J5,6b = 3.3, H6bII), 4.54, 4.73 (ABq, JA,B = 11.9 Hz, CH2Ph), 4.65 (d, 1H, J1,2 = 8.0 Hz, H1II), 4.72, 4.76 (ABq, JA,B = 12.7 Hz, CH2Ph), 4.77 (d, 1H, J1,2 = 3.5 Hz, H1I), 5.44–5.51 (m, 2H, H3II, H4II), 7.20–7.51, 7.83–7.94 (2 m, 25H, 5 × Ph).

Methyl 3,4,6-tri-O-methyl-2-azido-2-deoxy-α-D-glucopyranosyl-(1→4)-2,3-di-O-benzyl-6-deoxy-α-L-talopyranoside 32. Tribenzoate 30 (110 mg, 128 µmol) was subjected to the Zemplén and methylation procedures (as described above for the preparation of 25) with MeI (82 mg, 582 µmol). Flash chromatography (hexanes→EtOAc/hexanes 1:4) gave the trimethyl derivative 32 (52 mg, 69%, 2 steps) as a colourless oil. 1H-NMR: δ 7.42–7.22 (m, 10H, 2 × Ph), 5.73 (d, 1H, J = 3.7, H1II), 4.84 (d, 1H, J = 2.0, H1I), 4.82, 4.77 (ABq, 2H, J = 12.6, CH2Ph), 4.58, 4.54 (ABq, 2H, J = 11.9, CH2Ph), 3.95–3.93 (m, 1H), 3.90 (dt, 1H, J = 2.0, 6.7, H5I), (s, 3H, OMe), 3.76–3.57 (m, 6H), 3.65, 3.55, 3.42, 3.31 (4 × s, 4 × 3H, OMe), 3.28–3.21 (m, 2H), 1.34 (d, 3H, J = 6.5, H6I).

4. Conclusions

In conclusion, the 6-deoxy-α-L-taloside acceptor 14 was readily prepared in seven steps from methyl α-L-rhamnopyranoside in good overall yield. Glycosylation of 14 with the thiogalactoside donors 11 or 12 with NIS/TfOH as the promoter gave good yields of the α-linked disaccharide 22. Glycosylation with the thiomethyl donor 11 was preferred as it gave a cleaner reaction mixture from which the desired product was isolated in excellent yield. Glycosylation of 14 with the 2-azido-2-deoxy-glucosyl imidate 13 was not completely stereoselective (α:β = 6:1) and resulted in an inseparable mixture. However, deacetylation and conversion into the corresponding tribenzoates allowed for the isolation of the desired α-linked disaccharide 30 in good overall yield (60%). Unfortunately, the intermediates readily derived from 22 and 30 were not stable to the sulfonation/deacylation conditions required for their conversion into the target HS mimetics, resulting in complex mixtures from which no products could be isolated.

Supplementary Materials

Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/17/8/9790/s1.

Acknowledgments

We thank Siska Cochran, Caiping Li, Ian Bytheway and Robert Don for useful discussions.

References

  1. Presta, M.; Dell’Era, P.; Mitola, S.; Moroni, E.; Ronca, R.; Rusnati, M. Fibroblast growth factor/fibroblast growth factor receptor system in angiogenesis. Cytokine Growth Factor Rev. 2005, 16, 159–178, doi:10.1016/j.cytogfr.2005.01.004.
  2. Korc, M.; Friesel, R.E. The role of fibroblast growth factors in tumor growth. Curr. Cancer Drug Targets 2009, 9, 639–651, doi:10.2174/156800909789057006.
  3. Eswarakumar, V.P.; Lax, I.; Schlessinger, J. Cellular signaling by fibroblast growth factor receptors. Cytokine Growth Factor Rev. 2005, 16, 139–149, doi:10.1016/j.cytogfr.2005.01.001.
  4. Parish, C.R.; Freeman, C.; Brown, K.J.; Francis, D.J.; Cowden, W.B. Identification of sulfated oligosaccharide-based inhibitors of tumor growth and metastasis using novel in vitro assays for angiogenesis and heparanase activity. Cancer Res. 1999, 59, 3433–3441.
  5. Ferro, V.; Liu, L.; Johnstone, K.D.; Wimmer, N.; Karoli, T.; Handley, P.; Rowley, J.; Dredge, K.; Li, C.P.; Hammond, E.; et al. Discovery of PG545: a highly potent and simultaneous inhibitor of angiogenesis, tumor growth, and metastasis. J. Med. Chem. 2012, 55, 3804–3813, doi:10.1021/jm201708h.
  6. Casu, B.; Naggi, A.; Torri, G. Heparin-derived heparan sulfate mimics to modulate heparan sulfate-protein interaction in inflammation and cancer. Matrix Biol. 2010, 29, 442–452, doi:10.1016/j.matbio.2010.04.003.
  7. Force, T.; Kolaja, K.L. Cardiotoxicity of kinase inhibitors: The prediction and translation of preclinical models to clinical outcomes. Nat. Rev. Drug Discov. 2011, 10, 111–126, doi:10.1038/nrd3252.
  8. Angulo, J.; Ojeda, R.; de Paz, J.L.; Lucas, R.; Nieto, P.M.; Lozano, R.M.; Redondo-Horcajo, M.; Giménez-Gallego, G.; Martín-Lomas, M. The activation of fibroblast growth factors (FGFs) by glycosaminoglycans: influence of the sulfation pattern on the biological activity of FGF-1. ChemBioChem 2004, 5, 55–61, doi:10.1002/cbic.200300696.
  9. Poletti, L.; Lay, L. Chemical contributions to understanding heparin activity: synthesis of related sulfated oligosaccharides. Eur. J. Org. Chem. 2003, 2999–3024, doi:10.1002/ejoc.200200721.
  10. O’Brien, A.; Lynch, C.; O’Boyle, K.M.; Murphy, P.V. Synthesis of disaccharides derived from heparin and evaluation of effects on endothelial cell growth and on binding of heparin to FGF-2. Carbohydr. Res. 2004, 339, 2343–2354, doi:10.1016/j.carres.2004.07.018.
  11. Canales, A.; Angulo, J.; Ojeda, R.; Bruix, M.; Fayos, R.; Lozano, R.; Gimenez-Gallego, G.; Martin-Lomas, M.; Nieto, P.M.; Jimenez-Barbero, J. Conformational flexibility of a synthetic glycosylaminoglycan bound to a fibroblast growth factor. FGF-1 recognizes both the (1)C(4) and (2)S(O) conformations of a bioactive heparin-like hexasaccharide. J. Am. Chem. Soc. 2005, 127, 5778–5779, doi:10.1021/ja043363y.
  12. Hung, S.C.; Lu, X.A.; Lee, J.C.; Chang, M.D.; Fang, S.L.; Fan, T.C.; Zulueta, M.M.; Zhong, Y.Q. Synthesis of heparin oligosaccharides and their interaction with eosinophil-derived neurotoxin. Org. Biomol. Chem. 2012, 10, 760–772, doi:10.1039/c1ob06415k.
  13. Tiruchinapally, G.; Yin, Z.J.; El-Dakdouki, M.; Wang, Z.; Huang, X.F. Divergent heparin oligosaccharide synthesis with preinstalled sulfate esters. Chem.-Eur. J. 2011, 17, 10106–10112, doi:10.1002/chem.201101108.
  14. Maza, S.; Macchione, G.; Ojeda, R.; Lopez-Prados, J.; Angulo, J.; de Paz, J.L.; Nieto, P.M. Synthesis of amine-functionalized heparin oligosaccharides for the investigation of carbohydrate-protein interactions in microtiter plates. Org. Biomol. Chem. 2012, 10, 2146–2163, doi:10.1039/c2ob06607f.
  15. Murphy, P.V.; Pitt, N.; O’Brien, A.; Enright, P.M.; Dunne, A.; Wilson, S.J.; Duane, R.M.; O’Boyle, K.M. Identification of novel inhibitors of fibroblast growth factor (FGF-2) binding to heparin and endothelial cell survival from a structurally diverse carbohybrid library. Bioorg. Med. Chem. Lett. 2002, 12, 3287–3290, doi:10.1016/S0960-894X(02)00700-X.
  16. Liu, L.; Li, C.P.; Cochran, S.; Ferro, V. Application of the four-component Ugi condensation for the preparation of sulfated glycoconjugate libraries. Bioorg. Med. Chem. Lett. 2004, 14, 2221–2226, doi:10.1016/j.bmcl.2004.02.017.
  17. Zhang, J.; Riverst, G.; Zhu, Y.; Jacobson, A.; Peyers, J.; Grundstrom, G.; Burch, P.; Hussein, S.; Marolewski, A.; Herlihy, W.; Rusche, J. Identification of inhibitors of heparin-growth factor interactions from combinatorial libraries of four-component condensation reactions. Bioorg. Med. Chem. 2001, 9, 825–836, doi:10.1016/S0968-0896(00)00317-5.
  18. Liu, L.; Bytheway, I.; Karoli, T.; Fairweather, J.K.; Cochran, S.; Li, C.; Ferro, V. Design, synthesis, FGF-1 binding, and molecular modeling studies of conformationally flexible heparin mimetic disaccharides. Bioorg. Med. Chem. Lett. 2008, 18, 344–349, doi:10.1016/j.bmcl.2007.10.071.
  19. Fairweather, J.K.; Karoli, T.; Liu, L.; Bytheway, I.; Ferro, V. Synthesis of a heparan sulfate mimetic disaccharide with a conformationally locked residue from a common intermediate. Carbohydr. Res. 2009, 344, 2394–2398, doi:10.1016/j.carres.2009.09.012.
  20. Pellegrini, L. Role of heparan sulfate in fibroblast growth factor signalling: A structural view. Curr. Opin. Struct. Biol. 2001, 11, 629–634, doi:10.1016/S0959-440X(00)00258-X.
  21. Ferro, D.R.; Provasoli, A.; Ragazzi, M.; Torri, G.; Casu, B.; Gatti, G.; Jacquinet, J.C.; Sinaÿ, P.; Petitou, M.; Choay, J. Evidence for conformational equilibrium of the sulfated L-iduronate residue in heparin and in synthetic heparin mono- and oligosaccharides: NMR and force-field studies. J. Am. Chem. Soc. 1986, 108, 6773–6778, doi:10.1021/ja00281a052.
  22. Ferro, D.R.; Provasoli, A.; Ragazzi, M.; Casu, B.; Torri, G.; Bossennec, V.; Perly, B.; Sinaÿ, P.; Petitou, M.; Choay, J. Conformer populations of L-iduronic acid residues in glycosaminoglycan sequences. Carbohydr. Res. 1990, 195, 157–167, doi:10.1016/0008-6215(90)84164-P.
  23. Probst, K.C.; Wessel, H.P. Synthesis and conformational investigations of sulfated carbohydrates. J. Carbohydr. Chem. 2001, 20, 549–560, doi:10.1081/CAR-100108273.
  24. Wessel, H.P.; Bartsch, S. Conformational flexibility in highly sulfated -β-D-glucopyranoside derivatives. Carbohydr. Res. 1995, 274, 1–9, doi:10.1016/0008-6215(95)00131-C.
  25. DiGabriele, A.D.; Lax, I.; Chen, D.I.; Svahn, C.M.; Jaye, M.; Schlessinger, J.; Hendrickson, W.A. Structure of a heparin-linked biologically active dimer of fibroblast growth factor. Nature 1998, 393, 812–817, doi:10.1038/31741.
  26. Faham, S.; Hileman, R.E.; Fromm, J.R.; Linhardt, R.J.; Rees, D.C. Heparin structure and interactions with basic fibroblast growth factor. Science 1996, 271, 1116–1120, doi:10.1126/science.271.5252.1116.
  27. Clode, D.M.; Horton, D.; Weckerle, W. Reaction of derivatives of methyl 2,3-O-benzylidene-6-deoxy-α-L-mannopyranoside with butyllithium: Synthesis of methyl 2,6-dideoxy-4-O-methyl-α-L-erythro-hexopyranosid-3-ulose. Carbohydr. Res. 1976, 49, 305–314, doi:10.1016/S0008-6215(00)83147-X.
  28. Petit, E.; Papy-Garcia, D.; Muller, G.; Courtois, B.; Caruelle, J.-P.; Courtois, J. Controlled sulfatation of natural anionic bacterial polysaccharides can yield agents with specific regenerating activity in vivo. Biomacromolecules 2004, 5, 445–452, doi:10.1021/bm034257b.
  29. Cui, J.-F.; Byström, S.; Eneroth, P.; Björkhem, I. Novel mechanism for oxidative cleavage of glycosidic bonds: evidence for an oxygen dependent reaction. J. Org. Chem. 1994, 59, 8251–8255, doi:10.1021/jo00105a050.
  30. Lai, Y.Z. Kinetic evidence of anionic intermediates in the base-catalyzed cleavage of glycosidic bonds in the methyl D-glucopyranosides. Carbohydr. Res. 1972, 24, 57–65, doi:10.1016/S0008-6215(00)82259-4.
  31. Orgueira, H.A.; Bartolozzi, A.; Schell, P.; Litjens, R.E.J.N.; Palmacci, E.R.; Seeberger, P.H. Modular synthesis of heparin oligosaccharides. Chem. Eur. J. 2003, 9, 140–169, doi:10.1002/chem.200390009.
  32. Farndale, R.W.; Buttle, D.J.; Barrett, A.J. Improved quantitation and discrimination of sulphated glycosaminoglycans by use of dimethylmethylene blue. Biochim. Biophys. Acta 1986, 883, 173–177, doi:10.1016/0304-4165(86)90306-5.
  33. Yu, G.; Gunay, N.S.; Linhardt, R.J.; Toida, T.; Fareed, J.; Hoppensteadt, D.A.; Shadid, H.; Ferro, V.; Li, C.; Fewings, K.; et al. Preparation and anticoagulant activity of the phosphosulfomannan PI-88. Eur. J. Med. Chem. 2002, 37, 783–791, doi:10.1016/S0223-5234(02)01347-8.
  34. Pozsgay, V.; Trinh, L.; Shiloach, J.; Robbins, J.B.; Donohue-Rolfe, A.; Calderwood, S.B. Purification of subunit B of Shiga toxin using a synthetic trisaccharide-based affinity matrix. Bioconjug. Chem. 1996, 7, 45–55, doi:10.1021/bc9500711.
  35. Lipták, A.; Imre, J.; Nánási, P. Preparation of carbohydrate isopropylidene derivatives with 2,2-dimethoxypropane in the presence of toluene-p-sulphonic acid. Carbohydr. Res. 1981, 92, 154–156, doi:10.1016/S0008-6215(00)85991-1.
  36. Bajza, I.; Kövér, K.E.; Lipták, A. Synthesis of p-trifluoroacetamidophenyl (4,6-dideoxy-4-formamido-3-C-methyl-2-O-methyl-α-L-mannopyranosyl)- (1→3)-(2-O-methyl-α-D-rhamnopyranosyl)-(1→3)- (2-O-methyl-α-L-fucopyranosyl)-(1→3)-(α-L-rhamnopyranosyl)- (1→2)-6-deoxy-α-L-talopyranoside: A spacer-armed pentasaccharide glycopeptidolipid antigen of Mycobacterium avium serovar 14. Carbohydr. Res. 1998, 308, 247–258, doi:10.1016/S0008-6215(98)00074-3.
  • Sample Availability: Not available.
