Entropy 2014, 16(2), 870-884; doi:10.3390/e16020870
Article

Microstructures and Crackling Noise of AlxNbTiMoV High Entropy Alloys

Received: 28 October 2013; in revised form: 5 February 2014 / Accepted: 6 February 2014 / Published: 13 February 2014
(This article belongs to the Special Issue High Entropy Alloys)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

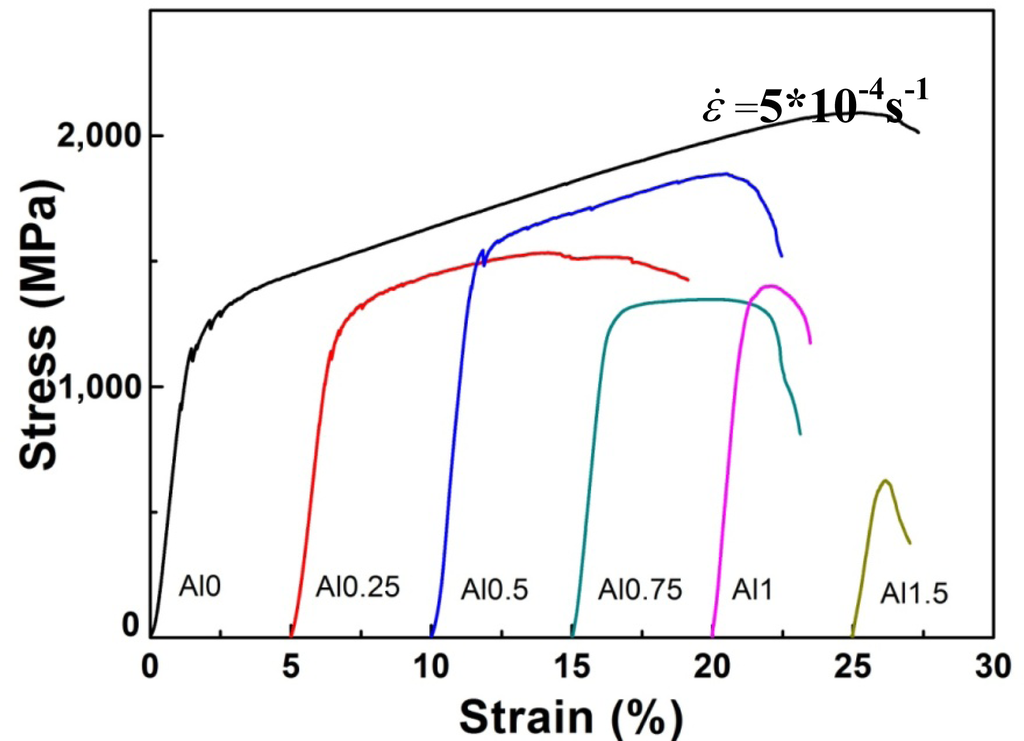

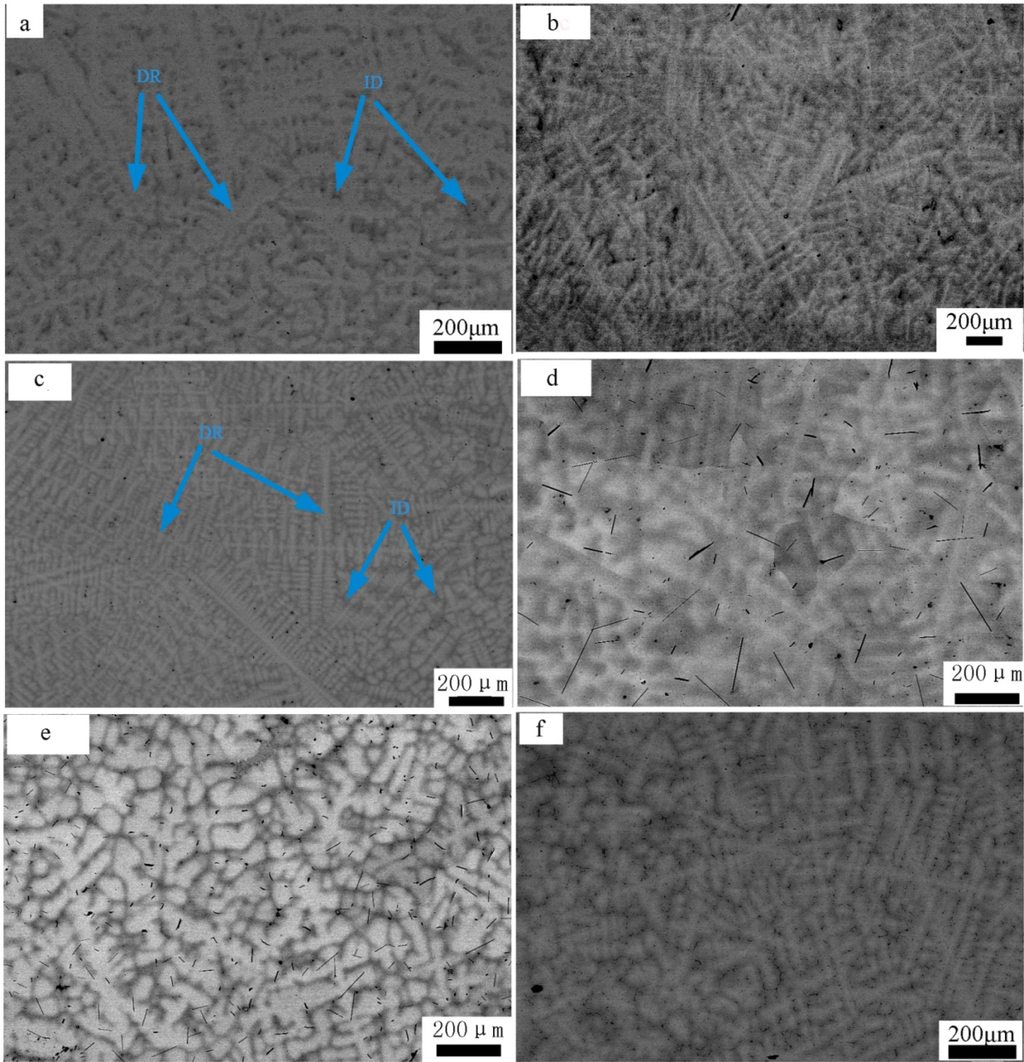

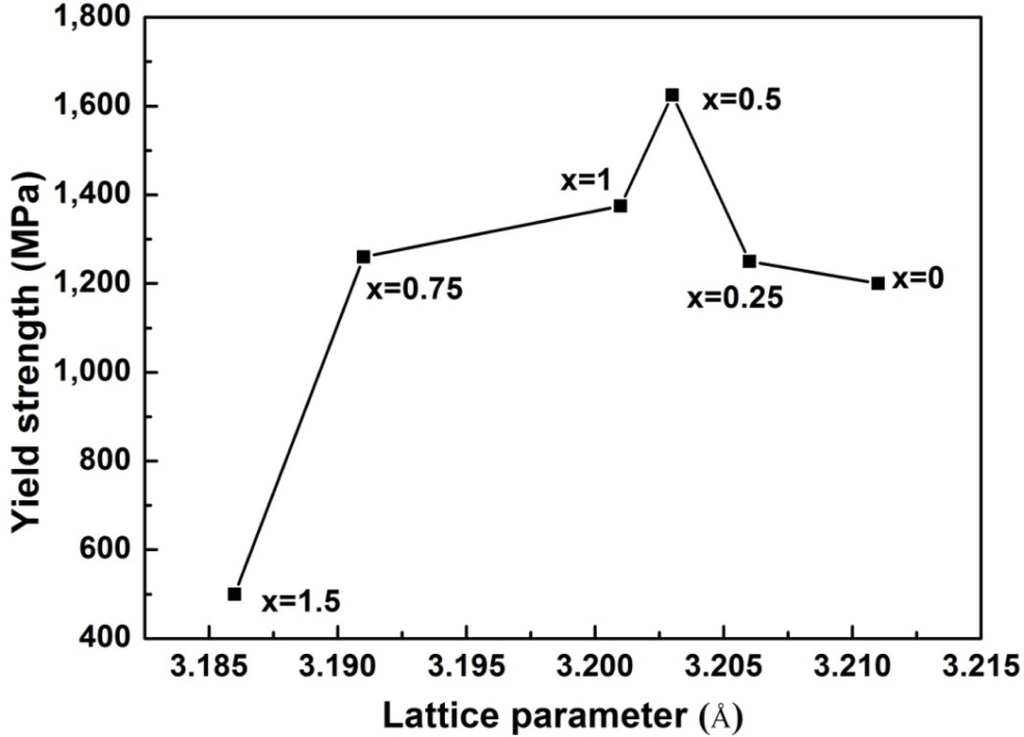

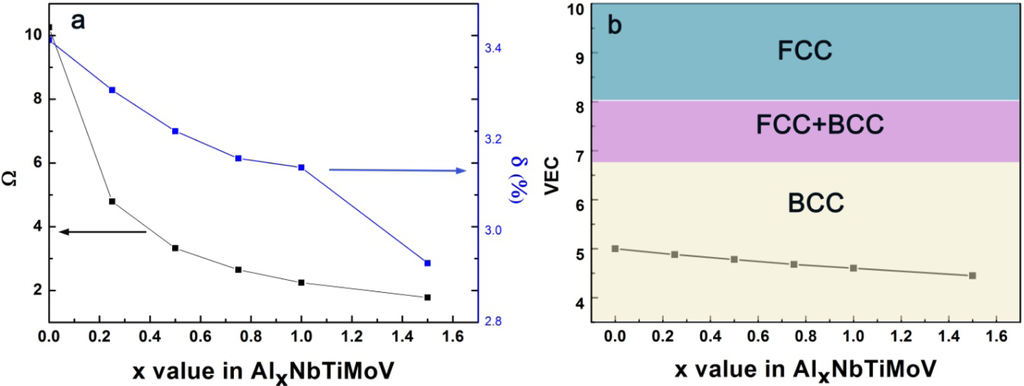

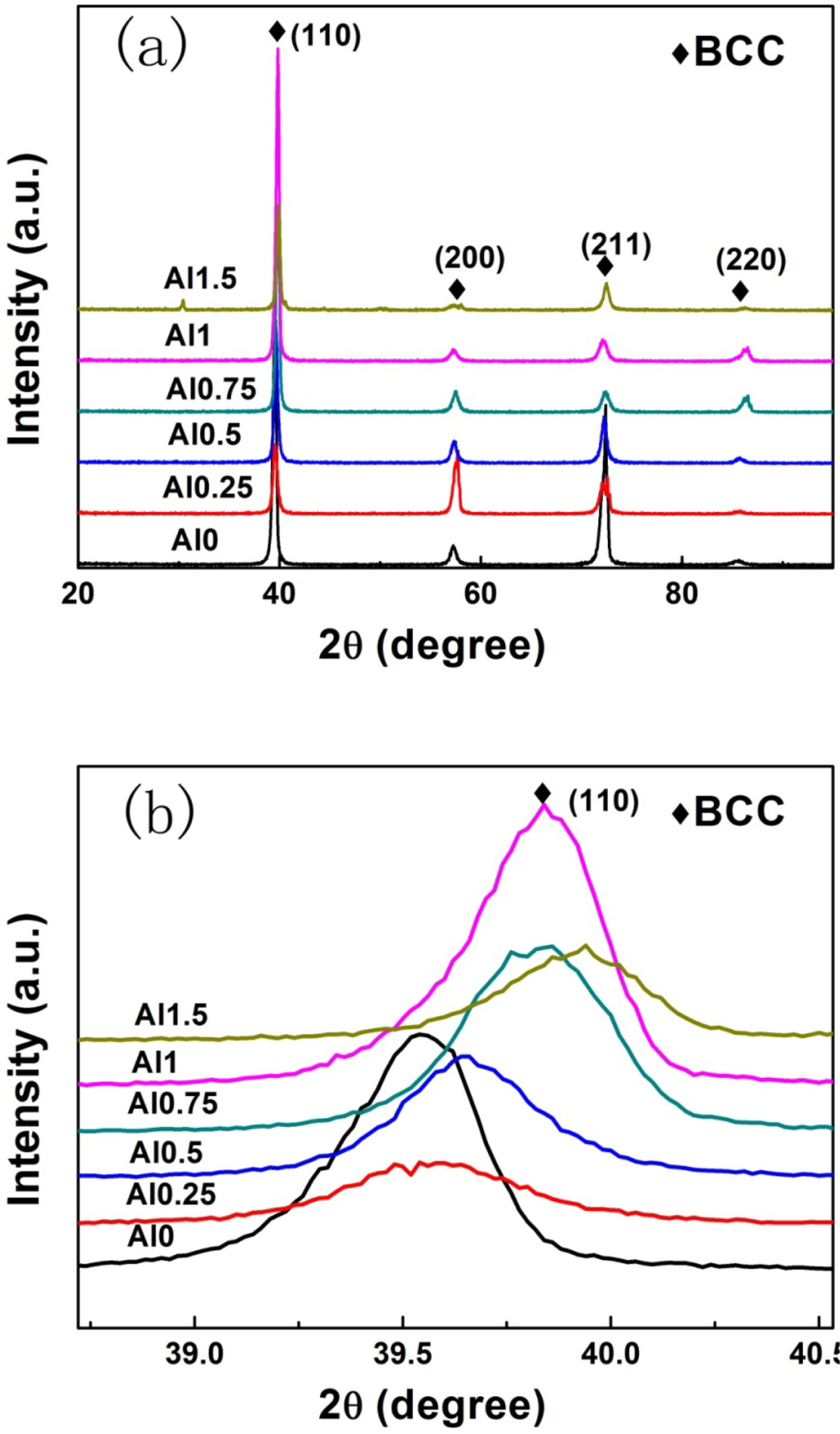

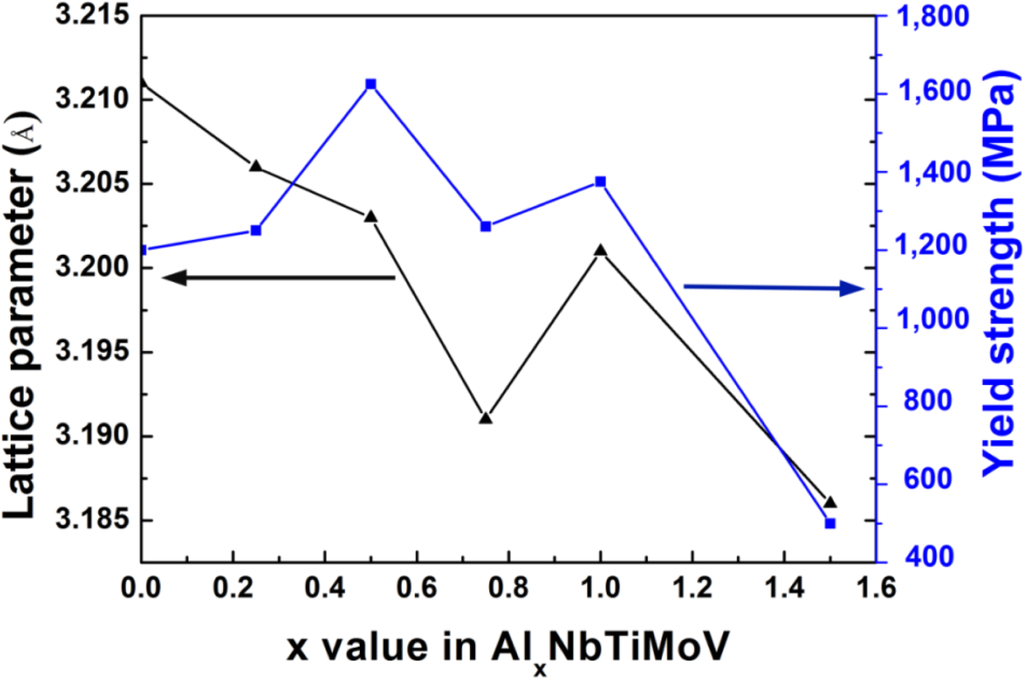

Abstract: A series of high entropy alloys (HEAs), AlxNbTiMoV, was produced by a vacuum arc-melting method. Their microstructures and compressive mechanical behavior at room temperature were investigated. It has been found that a single solid-solution phase with a body-centered cubic (BCC) crystal structure forms in these alloys. Among these alloys, Al0.5NbTiMoV reaches the highest yield strength (1,625 MPa), which should be attributed to the considerable solid-solution strengthening behavior. Furthermore, serration and crackling noises near the yielding point was observed in the NbTiMoV alloy, which represents the first such reported phenomenon at room temperature in HEAs.
Keywords: high entropy alloy; disordered solid solution; jerky flow; serration phenomena; crackling noise
PDF Full-text Download PDF Full-Text [2016 KB, uploaded 13 February 2014 10:26 CET]

Export to BibTeX |
EndNote


MDPI and ACS Style

Chen, S.Y.; Yang, X.; Dahmen, K.A.; Liaw, P.K.; Zhang, Y. Microstructures and Crackling Noise of AlxNbTiMoV High Entropy Alloys. Entropy 2014, 16, 870-884.

AMA Style

Chen SY, Yang X, Dahmen KA, Liaw PK, Zhang Y. Microstructures and Crackling Noise of AlxNbTiMoV High Entropy Alloys. Entropy. 2014; 16(2):870-884.

Chicago/Turabian Style

Chen, Shu Y.; Yang, Xiao; Dahmen, Karin A.; Liaw, Peter K.; Zhang, Yong. 2014. "Microstructures and Crackling Noise of AlxNbTiMoV High Entropy Alloys." Entropy 16, no. 2: 870-884.

Entropy EISSN 1099-4300 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
