Entropy 2014, 16(11), 5810-5821; doi:10.3390/e16115810

Choked Flow Characteristics of Subcritical Refrigerant Flowing Through Converging-Diverging Nozzles

1
Institute of Architecture and Civil Engineering, Hebei United University, Tangshan 063009, China
2
Department of Foreign Languages, Tangshan College, Tangshan 063000, China
*
Author to whom correspondence should be addressed.
Received: 10 August 2014 / Revised: 17 October 2014 / Accepted: 29 October 2014 / Published: 4 November 2014
View Full-Text   |   Download PDF [1092 KB, uploaded 24 February 2015]   |

Abstract

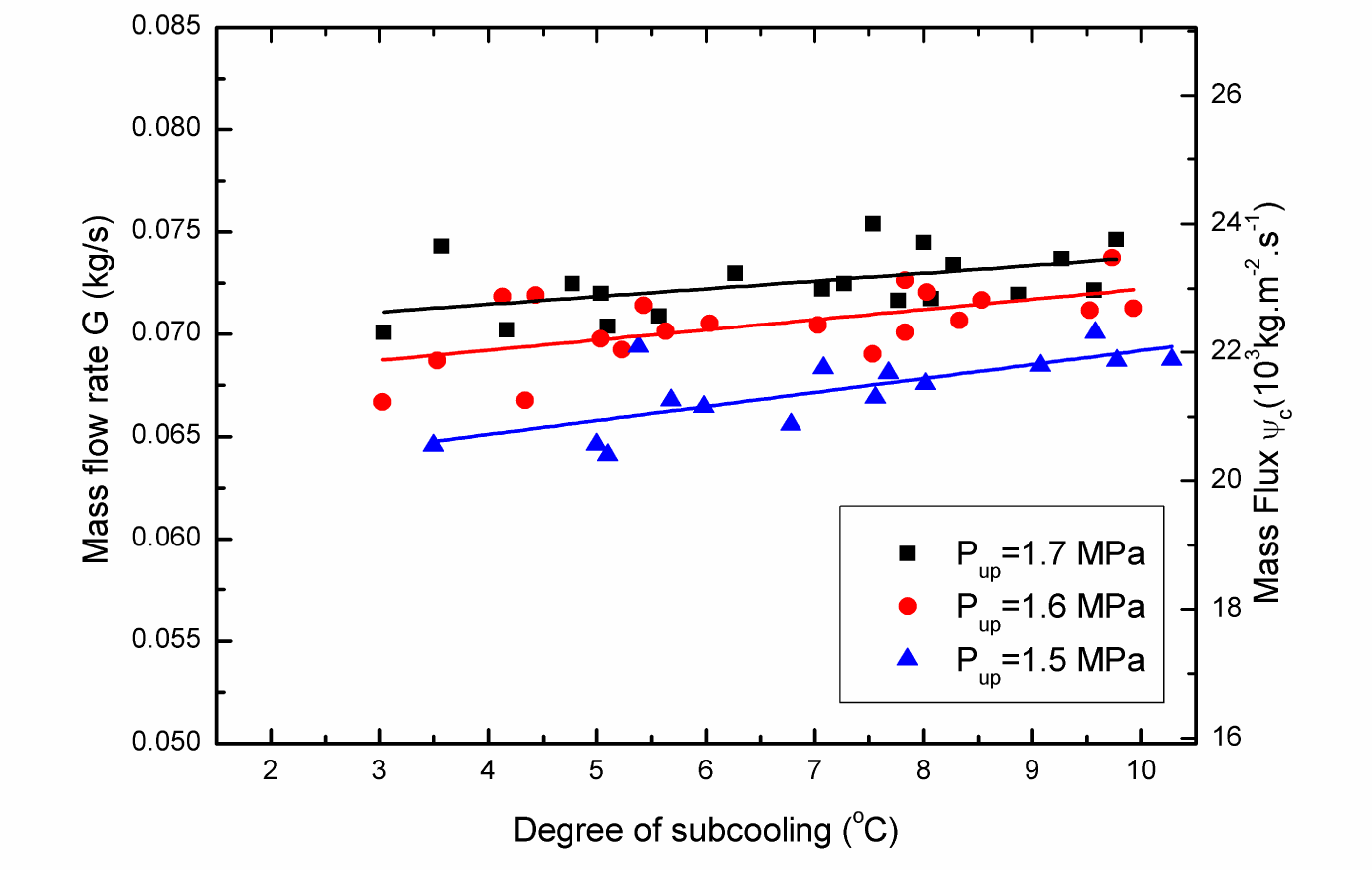

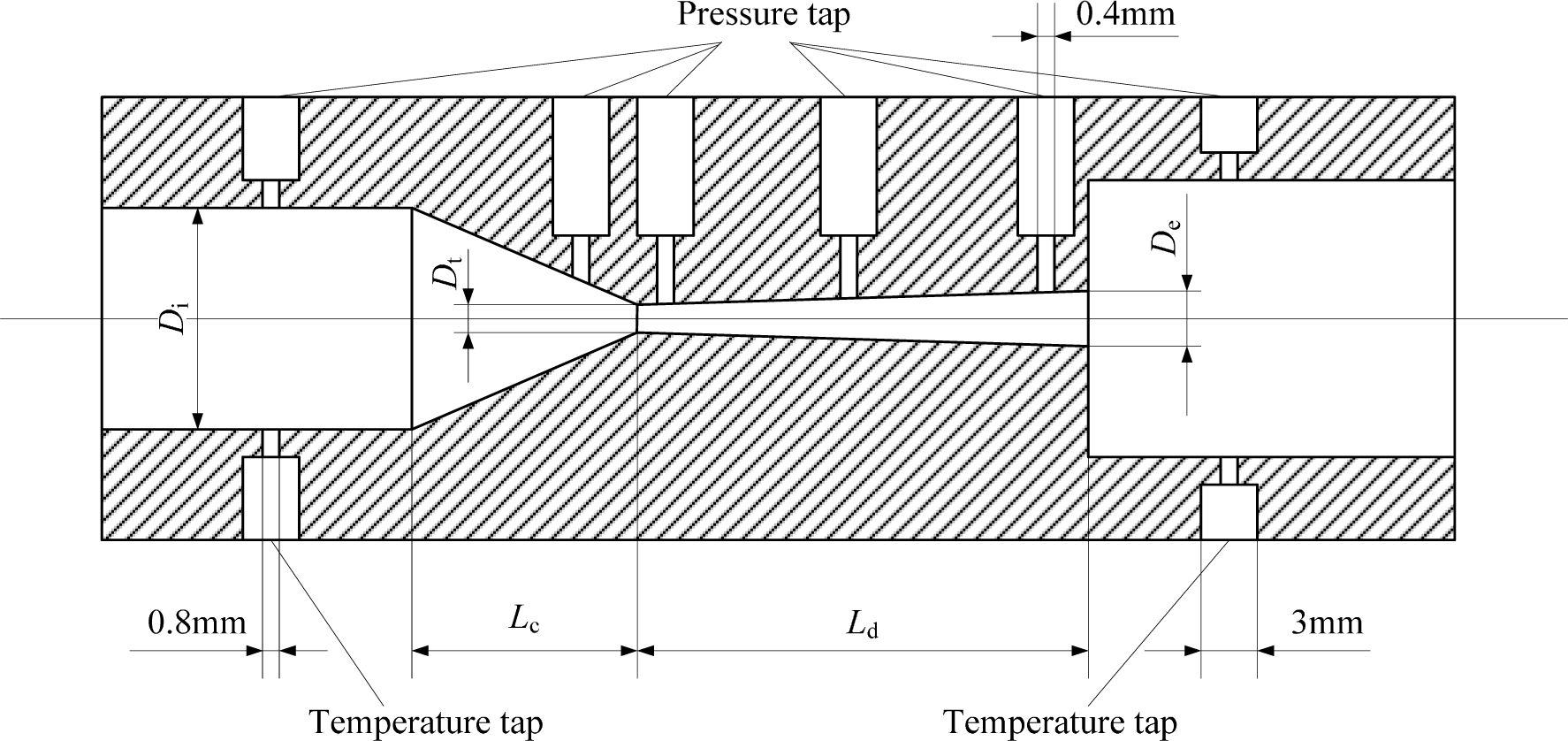

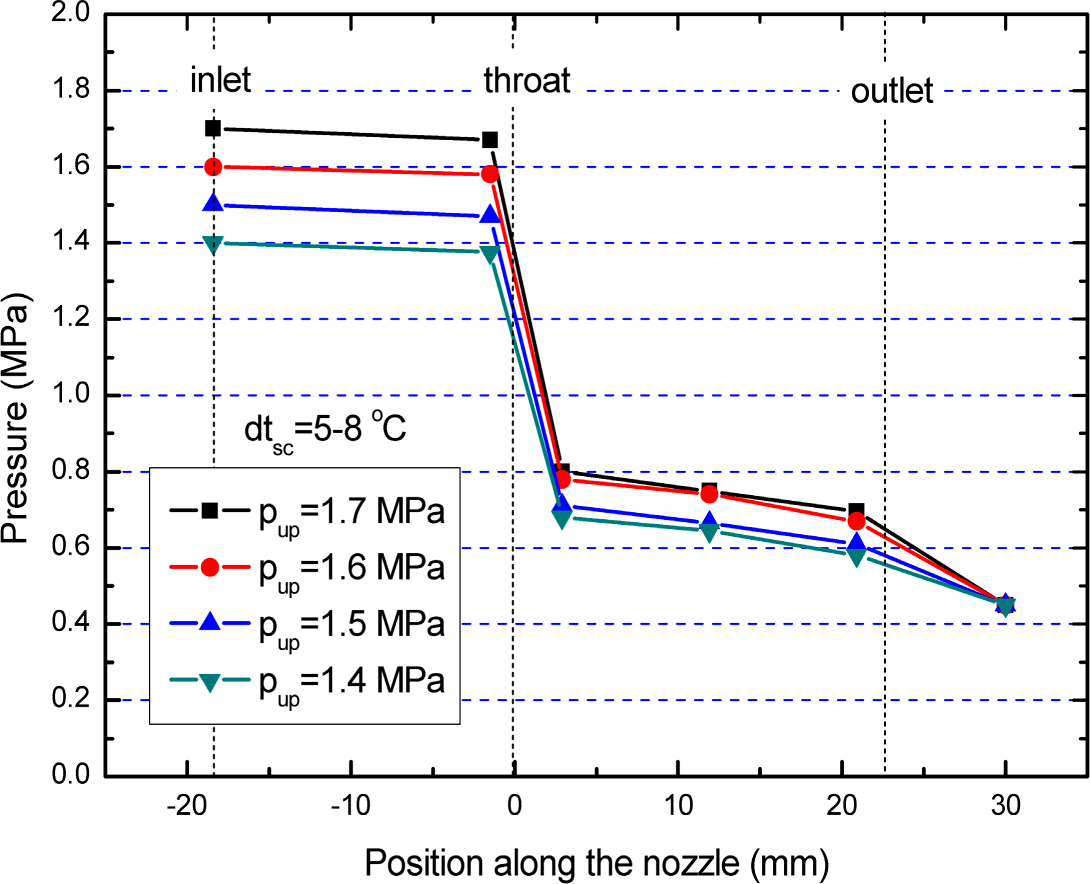

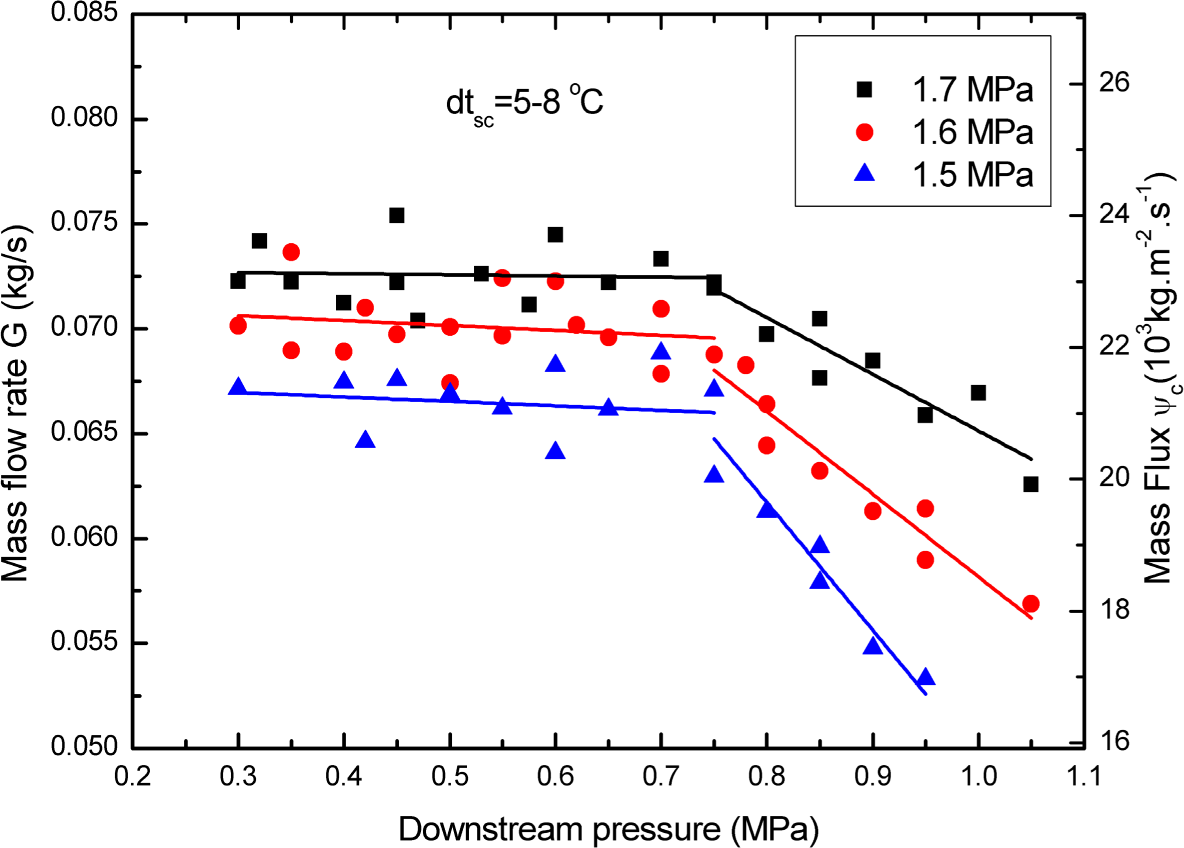

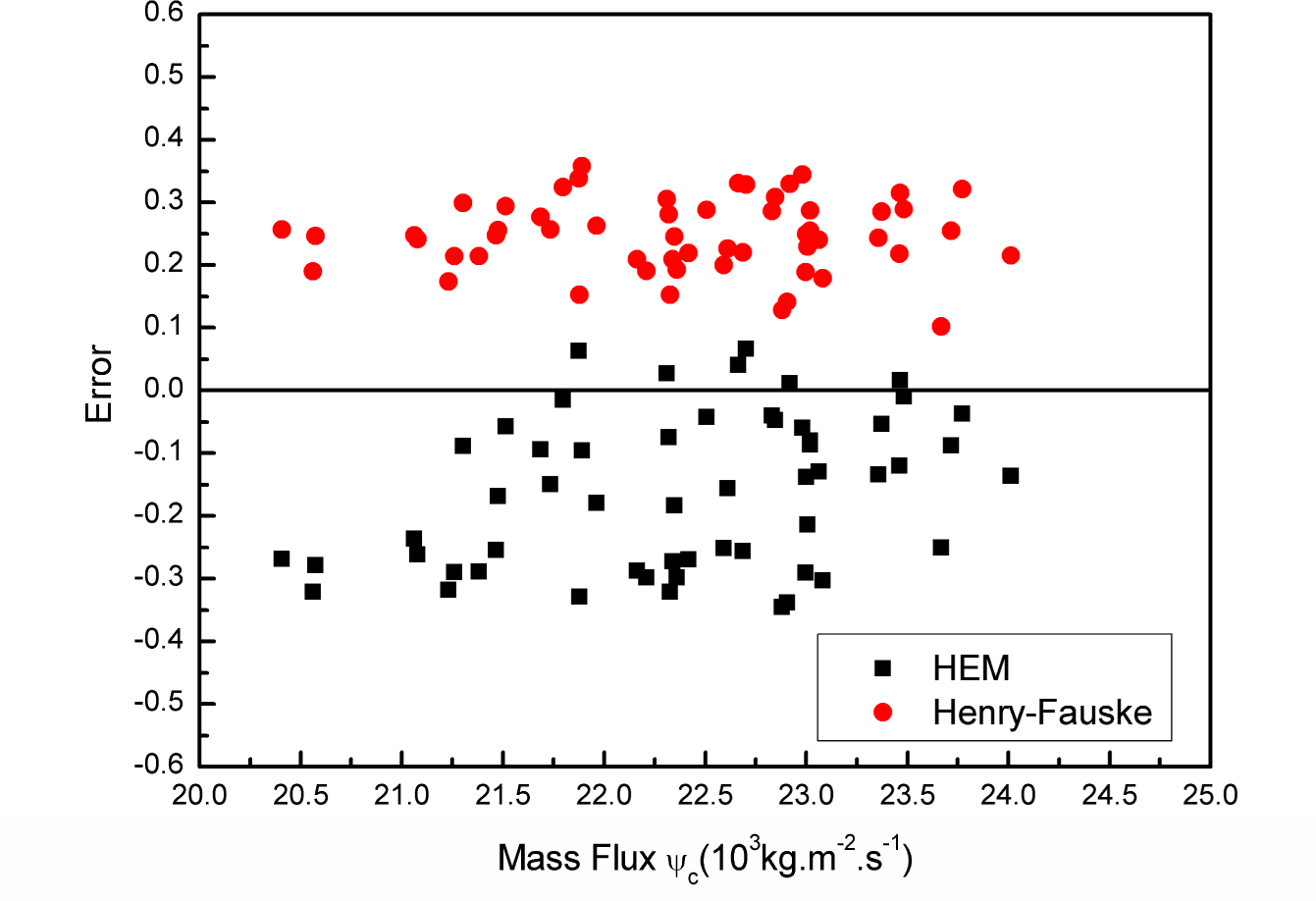

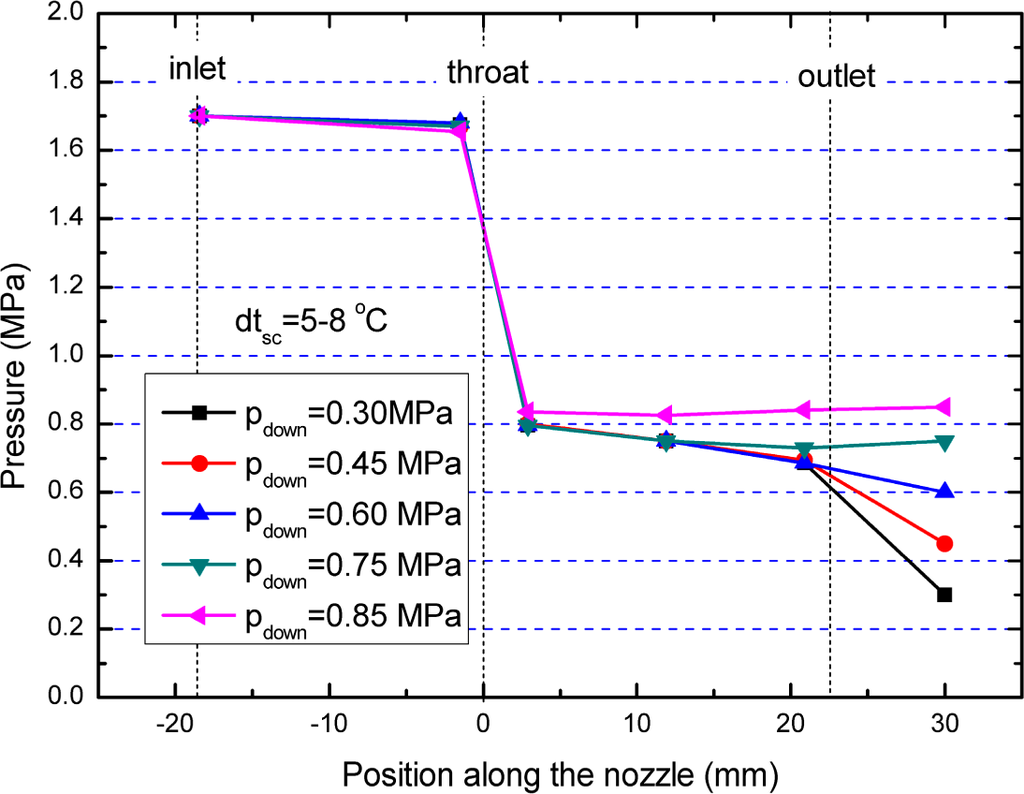

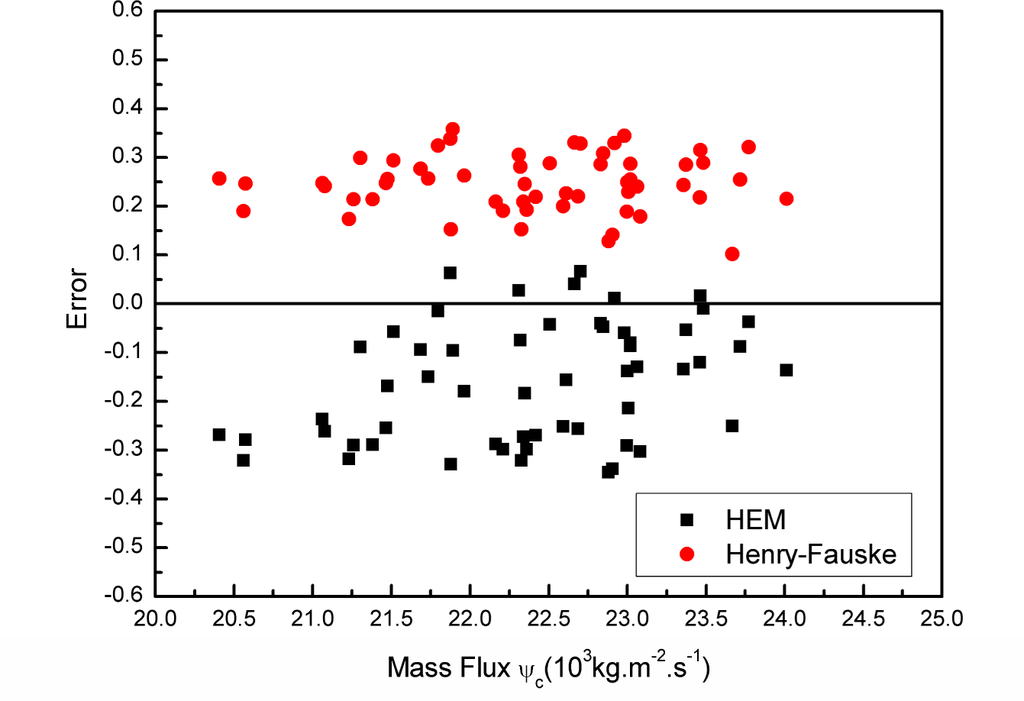

This paper presents the experimental results the choked flow characteristics of a subcritical refrigerant through a converging-diverging nozzle. A test nozzle with a throat diameter of 2 mm was designed and developed. The influence of operating conditions on the choked flow characteristics, i.e., the pressure profile and mass flow rate under choked flow conditions are investigated. The results indicate that the choked flow occurs in the flow of subcritical refrigerant through nozzles under the normal working conditions of air-conditioners or heat pumps. The pressure drop near the throat is about 80% of the total pressure drop through the nozzle. The critical mass flux is about 19,800 ~ 24,000 kg/(s·m2). The critical mass flow rate increases with increasing the upstream pressure and subcooling. Furthermore, the relative errors between the model predictions and the experimental results for the critical mass flux are also presented. It is found that the deviations of the predictions for homogeneous equilibrium model and Henry-Fauske model from the experimental values are −35% ~ 5% and 15% ~ 35%, respectively View Full-Text
Keywords: refrigeration system; nozzle; choked flow; critical mass flow rate refrigeration system; nozzle; choked flow; critical mass flow rate
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhang, Z.; Tian, L.; Tong, L.; Chen, Y. Choked Flow Characteristics of Subcritical Refrigerant Flowing Through Converging-Diverging Nozzles. Entropy 2014, 16, 5810-5821.
