Genome-Wide Analysis of the miRNA–mRNAs Network Involved in Cold Tolerance in Populus simonii × P. nigra

by
Bo Zhou
1,2,*,
Yutong Kang
2,
Jingtong Leng
2 and
Qijiang Xu
1,2,*
1
State Key Laboratory of Tree Genetics and Breeding, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China
2
College of Life Science, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China
*
Authors to whom correspondence should be addressed.
Genes 2019, 10(6), 430; https://doi.org/10.3390/genes10060430
Submission received: 9 April 2019 / Revised: 21 May 2019 / Accepted: 31 May 2019 / Published: 5 June 2019
(This article belongs to the Special Issue Plant miRNA Mediated Defense Response)
Browse Figures
Versions Notes

Abstract

:
Background: Cold tolerance is important for plants’ geographical distribution and survival in extreme seasonal variations of climate. However, Populus simonii × P. nigra shows wide adaptability and strong cold resistance. Transcriptional and post-transcriptional regulation of cold-responsive genes is crucial for cold tolerance in plants. To understand the roles of regulatory RNAs under cold induction in Populus simonii × P. nigra, we constructed cDNA and small RNA libraries from leaf buds treated or not with −4 °C for 8 h for analysis. Results: Through high-throughput sequencing and differential expression analysis, 61 miRNAs and 1229 DEGs were identified under cold induction condition in Populus simonii × P. nigra. The result showed that miR167a, miR1450, miR319a, miR395b, miR393a-5p, miR408-5p, and miR168a-5p were downregulated, whereas transcription level of miR172a increased under the cold treatment. Thirty-one phased-siRNA were also obtained (reads ≥ 4) and some of them proceeded from TAS3 loci. Analysis of the differentially expressed genes (DEGs) showed that transcription factor genes such as Cluster-15451.2 (putative MYB), Cluster-16493.29872 (putative bZIP), Cluster-16493.29175 (putative SBP), and Cluster-1378.1 (putative ARF) were differentially expressed in cold treated and untreated plantlets of Populus simonii × P. nigra. Integrated analysis of miRNAs and transcriptome showed miR319, miR159, miR167, miR395, miR390, and miR172 and their target genes, including MYB, SBP, bZIP, ARF, LHW, and ATL, were predicted to be involved in ARF pathway, SPL pathway, DnaJ related photosystem II, and LRR receptor kinase, and many of them are known to resist chilling injury. Particularly, a sophisticated regulatory model including miRNAs, phasiRNAs, and targets of them was set up. Conclusions: Integrated analysis of miRNAs and transcriptome uncovered the complicated regulation of the tolerance of cold in Populus simonii × P. nigra. MiRNAs, phasiRNAs, and gene-encoded transcription factors were characterized at a whole genome level and their expression patterns were proved to be complementary. This work lays a foundation for further research of the pathway of sRNAs and regulatory factors involved in cold tolerance.

1. Background

Plants have evolved sophisticated mechanisms to adapt various abiotic injuries such as heat, drought, salinity, and low temperature during their life cycle [1]. Cold injury, including chilling (<20 °C) and frost (<0 °C) is one of the key environmental factors in cold temperate zones that affect plant development and growth [2] and decide their geographical distribution. Low temperature can lead to the decrease of photosynthesis rate, the accumulation of reactive oxygen species (ROS), reduced nutrient absorption, disrupted membrane transport, and various forms of physiological damage. Plant cold-tolerance depends on their ability to regulate gene expression to control their physiology, metabolism, and growth [3]. Besides transcriptional regulation, post-transcription regulation is also popular in plants to control their gene expression during cold induction. MicroRNAs (miRNAs) are small noncoding RNAs that have been proved to play key roles in plant development, signal transduction, metabolism, and response to environmental injury [4,5,6].
miRNAs are 20–24 nt in length and mainly originate from the pre-existing MIR genes and protein-coding genes [7]. In plants, stem-loop or hairpin structure RNAs are recognized by RNase III-like enzymes (Dicer-Like, DCL) and processed into small RNAs, and then incorporated into an RNA-induced silencing complex (RISC). Finally, the mature miRNAs bind their target mRNAs through imperfect sequence complementarity to negatively regulate the expression of target genes [8,9]. Nowadays, a large number of miRNAs have been identified that perform regulatory functions in different plant species and are deposited in miRBase [10]. Recently many miRNAs have been reported to be involved in cold resistance responses in Arabidopsis [11,12], poplar [2,13], rice [14], tea plant [15], eggplant [16], and wheat [17]. In Arabidopsis, the expression levels of miR156, miR159, miR164, miR168, miR172, miR165/166, miR169, miR393, and miR319c are related to cold response [12,18,19], and the upregulated miRNAs are approximately 17% of Arabidopsis miRNAs [11]. However, in rice, 18 cold responsive miRNAs were identified, and most were downregulated [14]. Also, among 30 cold responsive miRNAs, 21 were validated to be downregulated in Populus tomentosa [2]. In a cold-tolerant tea plant cultivar, 31 upregulated miRNAs and 43 downregulated miRNAs were identified, while in a cold-sensitive tea plant cultivar, 46 upregulated miRNA and 45 downregulated miRNAs were evaluated in response to cold resistance [15]. In eggplant, 56 downregulated miRNAs and 28 upregulated miRNAs were also identified [16]. Moreover, 39 miRNAs were differentially expressed under cold treatment in wheat and among them, 23 were downregulated [20]. Cold injury negatively affects plant growth and development through cold-responsive gene regulatory networks. Apart from miRNAs, the activation of C-repeat binding factor (CBF) and cold-regulated (COR) genes have also been characterized to respond to cold resistance [21,22]. C-repeat binding factor 3(AtCBF3) and cold-regulated 15A (AtCOR15A) has been reported to enhance cold tolerance of transgenic eggplants [23].
Populus simonii × P. nigra, the hybrid crossed by P. simonii and P. nigra, is a fast-growing species widely distributed in North China, and can adapt to certain levels of cold climate. Due to its broad adaptability and resistance to abiotic injury, the poplar has been planted in commercial forests and for landscape enhancement in North China. However, in Heilongjiang province, the northeast of China, Populus simonii × P. nigra sometimes suffer from low temperature in spring. Therefore, the molecular mechanism that regulates plant responses in cold tolerance of Populus simonii × P. nigra remains to be understood. Based on the study of cold-related genes in Arabidopsis and other plant species, including Chinese white poplar (Populus tomentosa) [2], further research is necessary to identify miRNAs and their target genes involved in cold tolerance in Populus simonii × P. nigra through transcriptome and small RNA sequencing analysis.
To further explore the miRNAs and COR genes in response to cold resistance and understand the complex molecular regulation mechanism of cold tolerance in Populus simonii × P. nigra, transcriptome and small RNA sequencing were employed to determine the expression profile of miRNAs and their targets in response to cold. Clusters of differentially expressed genes under cold treatment in Populus simonii × P. nigra were identified to be related various pathways which may be response to cold tolerance in Populus simonii × P. nigra. The data of miRNAs and transcriptome that we obtained should help reveal the molecular mechanisms responsible for cold tolerance.

2. Methods

2.1. Plant Materials and Treatment

Twelve overwintering branchlets of Populus simonii × P. nigra were collected from the campus of Northeast Forestry University, Harbin, China, (126°37′ E, 45°42′ N) and treated with hydroponic culture under a constant relative humidity of 50–60% and a 14 h light/10 h dark cycle at 24 °C ± 2 °C. Two days later, the branchlets were divided into two groups and subjected to cold (−4 °C) or not for 8 h with light (15 W/m2). Then, three leaf buds were sampled from each branchlet of two groups (total 18 leaf buds from each cold treated and untreated samples) and immediately frozen in liquid nitrogen for RNA preparation. For real time PCR analysis, twelve samples were divided into two groups treated under the same conditions in triplicate and then the total RNA of the leaf buds (six buds for each replication of cold treated and untreated samples) was prepared for experiment 2.6. Total RNA extraction and RNA library construction for sequencing.

2.2. Total RNA Extraction and RNA Library Construction for Sequencing

Total RNA was isolated from the cold-treated and untreated P. simonii × P. nigra plantlets using Universal Plant Total RNA Extraction Kit (Bioteke, Beijing, China) following the manufacturer’s protocol. Total RNA was quantified and assessed for quality using a NanoPhotometer (IMPLEN, Westlake Village, CA, USA) and Agilent 2100 (Agilent Technologies, Folsom, CA, USA). Cold-treated (CTD) and untreated (UD) sRNA libraries and cDNA libraries were constructed using Small RNA Sample Pre Kit (Illumina, San Diego, CA, USA) and NEBNext® Ultra™ RNA Library Prep Kit for Illumina® (NEB, Ipswich, MA, USA) following the manufacturer’s recommendations. Then, the sRNA libraries and cDNA libraries were sequenced on an Illumina Hiseq platform (Novogene, Beijing, China).

2.3. Identification and Differential Expression Analysis of miRNAs

The raw sequences were firstly processed to filter out the 5′ adapter (5′-GTTCAGAGTTCTACAGTCCGACGATC-3′) and 3′ adapter (5′-AGATCGGAAGAGCACACGTCT-3′) sequences, N% > 10%, low-quality as well as polyA/T/G/C sequences, and to obtain the final clean reads. Then, the small RNA sequences with 18–30 nt in length were subjected to Populous tomentosa mRNAs, Rfam (http://rfam.xfam.org/), and NCBI GenBank databases (http://ftp.ncbi.nlm.nih.gov) to identify mRNA, rRNA, tRNA, snRNA, snoRNA, and repeat sequences. Finally, the remaining unique sequences were analyzed by BLAST against miRBase (Release 21, http://www.mirbase.org/) and sequences with identical or related (1–3 bases mismatch) sequences from mature miRNAs were identified as known miRNAs [24]. Potentially novel miRNAs were identified by folding the flanking genome sequence of unique small RNAs using MIREAP https://sourceforge.net/projects/mireap/. The RNA secondary structure of the predicted miRNAs was checked using Mfold http://www.bioinfo.rpi.edu/applications/mfold/cgi-bin/rna-form1.cgi [25]. The potential targets of conserved and novel miRNAs were predicted using the psRobot program [26] http://omicslab.genetics.ac.cn/psRobot/ with default parameters. The miRNA expression levels between the two libraries (CTD and UD) were analyzed by the ratio of normalized read count in CTD and normalized read count in UD. The read counts from each library were normalized to transcripts per million reads (TPM) as follows: Normalized expression = (actual miRNA count/total count of clean reads) × 1,000,000. Then DEGseq was used to differential expression analysis and the differential expression miRNAs were screened with q value (q value < 0.01) and foldchange (|log2(foldchange)| > 1). Hierarchical clustering of differentially expressed miRNAs was performed using the Cluster (v3.0)/Treeview software (v3.0) (http://bonsai.hgc.jp/~mdehoon/software/cluster/software.htm). The TPM data adjusted by log10 (TPM + 1) was used as the value of hierarchical clustering.

2.4. Analysis of Differential Expression Genes Based on Transcriptome Sequencing

Raw data (raw reads) of fastq format were firstly processed to remove adaptor sequence, low-quality reads (more than 20% nucleotides with quality value ≤10), and shorter reads (<50 bp) and to obtain clean reads. After that, Q20, Q30, GC-content, and sequence duplication level of the clean data were calculated. Then contigs were assembled and obtained by using Trinity [27] with min_kmer_cov set to two by default. Next, the reads were mapped back to contigs to obtain longer sequences (transcripts), and the main transcript was defined as a unigene. After that, ORFs were predicted for all unigenes using Getorf (http://emboss.sourceforge.net/apps/cvs/emboss/apps/getorf.html) and Bowtie program was used to map the reads from two libraries to unigenes [28]. Differential expression analysis of CTD and UD data was performed using the DEGSeq R package (1.12.0) [29] based on the negative binomial distribution [30]. The resulting P values were adjusted using the Benjamini and Hochberg’s approach for controlling the false discovery rate [31]. Genes with q value < 0.005 & |log2(foldchange)| > 1 found by DEGSeq were assigned as differentially expressed.

2.5. GO and KEGG Pathway Enrichment Analysis

Gene Ontology (GO) enrichment analysis of the differentially expressed genes (DEGs) was implemented by the GOseq R packages based Wallenius noncentral hyper-geometric distribution [32], which can adjust for gene length bias in DEGs. KEGG [33] was utilized for understanding high-level functions and utilities of the biological system (http://www.genome.jp/kegg/). We used KOBAS [34] software to test the statistical enrichment of differential expression genes in KEGG pathways.

2.6. Quantitative Real-Time PCR Analysis

Total RNA was obtained from cold-treated and untreated P. simonii × P. nigra cuttages. For cDNA synthesis, 1 μg of total RNA of each sample was reverse transcribed with stem-loop primers (miRNA expression analysis) or oligo dT primers (target gene expression analysis) using the PrimeScript Reagent Kit with gDNA Eraser (Takara, Dalian, China). Several cold-responsive miRNAs and genes were validated and quantified using qRT-PCR. Primers were designed according to the miRNA sequences (Table S1) and assembly data using the online Primer BLAST program (https://www.ncbi.nlm.nih.gov/tools/primer-blast) (Table S2). The qRT-PCR was performed using the LightCycler 480 SYBR GREEN I Master (Roche Applied Systems, Mannheim, Germany) and ROCHE LightCycler 480 real-time system (Roche Applied Systems). Each reaction with a 20 μL volume was carried out containing 10 μL of PCR Master Mix, 1 μL of the first-strand cDNA, and 0.5 μM of each primer. The PCR amplification program consisted of 95 °C for 10 min, followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min. A thermal denaturing cycle of 95 °C for 1 min and 65 °C for 30 s was applied to determine the dissociation curves for verifying the specificity of the PCR amplifications. Three biological replicates and three technical replicates were performed for each of the analyzed genes. The actin gene was used as an internal reference for normalization. Relative transcript levels of each gene were calculated with the comparative cycle threshold (2-dCt) method [35].

3. Results

3.1. Identification of miRNAs in Populus simonii × P. nigra

Two RNA-seq libraries from cold-treated (CTD) and untreated (UD) plantlets were constructed for high-throughput sequencing. After discarding the low-quality sequences and adapter sequences, 6,356,896 (CTD) and 6,125,123 (UD) clean reads were obtained. Of 18–30 nt sRNAs, 24 nt miRNAs were the most abundant in CTD and UD samples (Figure 1) which is consistent with the distribution patterns of sRNAs in Brassica napus and tea plant [15,36]. Also, 10,089 (CTD) and 45,241 (UD) small RNA reads were found to be similar to known miRNAs after comparing with mature miRNA sequence or miRNA precursor in miRBase 21.0. The rest of the sequences were rRNA, snRNA, snoRNA, novel miRNA, or ta-siRNA (Table 1). Among the classified sRNAs, the proportion of sRNAs reduced in CTD compared to sRNAs in UD sample implying that miRNAs might be involved in the regulation of cold tolerance. Except known miRNAs, the function of unknown cold responsive sRNAs remained to be identified. A total of 87 (UD) and 63 (CTD) conserved miRNAs belonging to 34 miRNA families were identified in the two libraries (Table S3). Among these miRNA families, the miR166 family is the most abundant, followed by miR159 and miR472 family in both libraries. Other miRNA families such as miR482, miR319, and miR398 were also detected at high copy number. According to the predicting hairpin structures, 16 novel miRNAs candidates with hairpin sequence were identified (Table S4). Additionally, we identified the candidate phased-siRNA in Populus simonii × P. nigra from CTD and UD sRNA libraries. In total, 31 phased-siRNA were obtained (reads ≥4) and mainly derived from four predicted phased loci (Table S5). The Cluster-12280.0 loci overlapped by siRNAs is homologous to TAS4 which is predicted to be triggered by miR828, and Cluster-16493.19914 loci is similar to TAS3 which is predicted to be bound by miR390 and initiated phasiRNA (Figure 2). Among the candidate ta-siRNA, most were identified from UD sRNA libraries.

3.2. Differential Analysis of Candidate miRNAs Involved In Cold Tolerance in Populus simonii × P. nigra

To accurately measure the abundance of miRNA, the reads of each miRNA was normalized to generate RPM (reads per million) and analyzed by DEGseq [29]. The threshold of log2 Ratio ≥1 was applied to identify the differential expression miRNAs. In total, 61 miRNAs including 57 known miRNAs and four novel miRNAs were significantly up- or downregulated under cold-treated or untreated conditions (Figure 3). Among the sRNAs detected in both CTD and UD libraries, 11 miRNAs, including miR164a, miR168a-5p, miR160e-5p, and miR482d-3p, were upregulated with the treatment of cold, while 50 miRNAs such as miR159a, miR1447, miR167e, miR168a-3p, miR1450, and miR162a were downregulated after cold treatment. Also, the greatest changes in abundance were miR171e and miR482d-3p, which showed more than four-fold differences in expression with cold treatment compared to without cold treatment. In addition, 25 miRNAs, including miR399f, miR6427-3p, miR160b-3p, miR482b-3p, and miR7817a, were only detected in the UD library, but certain miRNAs such as miR171c, miR172h-5p, miR390d-3p, miR393a-3p, miR482b-5b, and miR6421 were transcribed at low levels (Table S6).

3.3. Identification of Candidate Cold-Responsive Genes by Transcriptome Analysis

The cold-responsive differential expression genes (DEGs) were also analyzed and identified through sequencing CTD and UD plantlet cDNA libraries. After removing low-quality reads and adapter sequences, 54,357,974 and 48,912,024 clean reads were obtained from the UD and CTD raw data separately. The Trinity program [27] was used to assemble transcripts and among 178,416 transcripts, 92,755 transcripts were annotated to be encoding genes (Table 2). Among the databases of NR, NT, PFAM, GO, and KOG, 78,569 (84.7%) genes could be annotated in NT and 63,389 (68.34%) in NR, and only about 50% (45,817) genes could be annotated by GO (Figure S1). In addition, most of genes had significant matches with Populus trichocarpa (60.4%) and Populus euphratica (25.4%) (Figure S2). The FPKM (expected number of fragments per kilobase of transcript sequence per million base pairs sequenced) was calculated and only those genes that had FPKM values > 0.3 were kept for analysis. After being normalized by TMM, a total of 1229 DEGs were detected by DEGseq analysis (q value < 0.005 & |log2 (fold change)| > 1) including 667 upregulated and 562 downregulated genes under cold-induced conditions (Figure 4 and Table S7). Differential expression analysis showed that during the cold treatment, many significantly differentially expressed genes are involved in the physiological and biochemical process of cold response. Further analysis by GO showed that among the 45 subsets of GO categories, the functional categories of metabolic process, carbohydrate metabolic process, oxidation-reduction process and oxidoreductase activity, metal ion binding, and cation binding are predominant (Figure S3). The cluster of GO: 0009409 represents response to cold and had four genes (Cluster-16493.37648, Cluster-16493.20026, Cluster-16493.34543, Cluster-16493.59475) upregulated and four genes (Cluster-16493.31741, Cluster-16493.32925, Cluster-16493.33751, Cluster-16493.32107) downregulated (Table S8). Among the annotated differential expression genes are Cluster-16493.58443 (putative dehydration-responsive element-binding protein 2C, DREB2C), Cluster-16493.25004 (putative DREB2A), Cluster-16493.44317 (putative DREB3), Cluster-16493.25005 (putative DREB2H) which contains a single APETALA2/Ethylene responsive element-binding factor (AP2/ERF) domain and can bind to the CRT/DRE (C-repeat/Dehydration Responsive Element) DNA element of many cold-responsive (COR) genes. Cluster-16493.27238 is annotated as a cold-shock DNA-binding family protein and transcription factor such as leucine zipper protein (Cluster-16493.40514, Cluster-16493.27643), MYB-like transcription factor (Cluster-16493.30912, Cluster-16493.18975), WRKY transcription factor (Cluster-16493.45530, Cluster-16493.18576), ethylene-responsive transcription factor (Cluster-16493.20988, Cluster-16493.19581), MADS-box transcription factor (Cluster-16493.34387, Cluster-16493.40727), bHLH transcription factor (Cluster-16493.25125), bZIP transcription factor (Cluster-16493.29872, Cluster-16493.39911) have been identified (Table S9).

3.4. Regulation Analysis of miRNAs via Prediction of Target mRNA

To identify the targets of differentially expressed miRNAs, 61 miRNAs were searched against the DEGs of Populus simonii × P. nigra using psROBOT (http://omicslab.genetics.ac.cn/psRobot/) and 988 candidate targets were predicted (Table S10), including putative transcription factor RAV1 (Cluster-16493.60622), MYB4 (Cluster-16493.7466), MYB86 (Cluster-4772.0), MYB46 (Cluster-8733.0), MYB104 (Cluster-15451.2), DOF3.7 (Cluster-18908.2), RAV1 (Cluster-16493.20287), AP2/ERF, and B3 domain-containing transcription factor (Cluster-16493.10150, Cluster-16493.60622), CRF3 (Cluster-16493.14255) and WRKY16 (Cluster-16493.22410, Cluster-16493.39399). These identified miRNAs and target genes may have important roles in resistance to cold treatment. Among these miRNA–target pair genes, the expression patterns between ptc-miR319i, ptc-miR7812, ptc-miR172a, ptc-miR6462e, ptc-miR1444d, ptc-novel_48 miRNA, and their targets were complementary. The target genes were annotated to encode heat shock protein (Cluster-16493.44708, Cluster-16493.49274), bZIP transcription factor (Cluster-16493.29872), endo-glucanase 2 family protein (Cluster-16493.45983), polyphenol oxidase (Cluster-16493.41325), and coatomer subunit alpha-1 (Cluster-16493.31604) and they were all upregulated by cold treatment (Table 3). The sRNA and transcriptome sequences were deposited in the Sequence Read Archive (SRA) of the National Center for Biotechnology Information (NCBI) (PRJNA513148).

3.5. Expression Analysis of miRNAs by qRT-PCR

To validate the obtained differentially expressed miRNAs in response to cold, eight miRNAs were selected for further analysis by stem-loop qRT-PCR. Our result showed that miR167a, miR1450, miR319a, miR395b, miR393a-5p, miR408-5p, and miR168a-5p were downregulated after cold treatment (Figure 5), whereas transcription level of miR172a increased after cold treatment. The expression of most detected miRNAs was consistent with those by high throughput sequencing, except for miR172a and miR168a-5p. However, the transcription level of miR168a-5p was higher in both CTD and UD plantlets than that of other detected miRNAs, which was consistent with high throughput detection result. We also detected the expression of miR395b, miR393a-5p, miR408-5p, and miR168a-5p in CTD and UD roots and the results indicated that the expression of miR395b, miR393a-5p, and miR168a-5p decreased while the transcription level of miR408-5p was high in roots of cold-treated plants (Figure 6).

3.6. qRT-PCR Validation of the Transcription Level of Target Genes

Through high throughput sequencing, many candidate genes have been screened from cold-treated and untreated plantlets of Populus simonii × P. nigra. To validate the results obtained by high-throughput sequencing, the transcription level of nine genes including Cluster-15451.2, Cluster-6407.0, Cluster-16493.33635, Cluster-16493.29175, Cluster-16493.29872, Cluster-1378.1, Cluster-16493.36690, Cluster-16493.32252, and Cluster-16493.31604 were confirmed by real time PCR. Our results showed that eight of the nine detected genes (except Cluster-16493.31604) had the same expression patterns with transcriptome sequencing (Figure 7) in CTD and UD plantlets. The expression of Cluster-15451.2 (annotated transcription factor GAMYB), Cluster-6407.0 (annotated LRR receptor-like serine/threonine-protein kinase RFK1), Cluster-16493.33635 (annotated ATP sulfurylase 1, APS1), Cluster-16493.32252 (RING-H2 finger protein ATL38), Cluster-16493.29872 (annotated bZIP transcription factor 44, bZIP44), Cluster-1378.1, and Cluster-16493.36690 (annotated transcription factor LHW) were upregulated under the cold treatment, whereas the transcription level of Cluster-16493.29175 (annotated squamosa promoter-binding-like protein 1, SBP1) and Cluster-16493.31604 decreased after cold treatment. The most abundant transcription level of these detected genes was Cluster-16493.31604 which was annotated coatomer subunit alpha-1-like isoform X1 (COPA1) and the least expression was Cluster-1378.1 which was annotated auxin response factor 2 (ARF2). In addition, transcription factor GAMYB was predicted to have the binding sites of ptc-miR319i, ptc-miR319a, ptc-miR319e, novel_63, ptc-miR159a, and ptc-miR159d. Also, the RFK1 (with binding site of ptc-miR164a), APS1 (with binding site of ptc-miR395b), SBP1 (with binding site of ptc-miR167a), bZIP44 (with binding site of ptc-miR172), LHW (with binding site of ptc-miR395b), ATL38 (with binding site of ptc-miR393a-5p), COPA1 (with binding site of ptc-miR482a.1, ptc-miR168a-5p, novel_48), ARF2 (with binding site of ptc-miR319a) were all predicted to be regulated by isolated miRNAs. Moreover, the expression patterns of ptc-miR395b with its candidate target LHW, and ptc-miR393a-5p with its candidate target ATL4, are opposite in CTD and UD plantlets (Figure 5, Figure 6 and Figure 7).

4. Discussion

In plants, cold injury severely affects geographic distribution. Recent reports have suggested that miRNAs play important roles in various abiotic response during development of plants through negatively controlling the expression of their target gene [2,37,38]. Although many genes have been identified in Populus under cold treatment [2,13], few studies have reported on Populus simonii × P. nigra, which is widely distributed in Northeast China. Further study is needed to elucidate the functions of miRNAs at a genome-wide level in response to cold tolerance. There is always a cold spell at the end of April and early May in which the temperature can drop below zero degree with snow in Heilongjiang area of China. Through cold treatment, we found plants treated with −4 °C for 12 h show obvious damage by freezing and can recover normal growth, but plants treated with −8 °C for 12 h cannot grow normally and plants treated with −4 °C for 4 h show light damage (Figure S4). Then, we used high throughput sequencing to analyze the transcription level of miRNAs and transcriptome in Populus simonii × P. nigra with or without treatment with −4 °C for 8 h. The results showed that the expression of most conserved miRNAs decreased and the transcription level of their candidate targets significantly increased in response to cold treatment, suggesting that cold induction lead to increased cold-responsive gene expression through decreasing the level of miRNAs. Thus, genome-wide analysis of miRNAs and targets response to cold can provide crucial information for our understanding of the molecular regulation of cold tolerance in Populus simonii × P. nigra.

4.1. Cold-Responsive miRNAs in Populus simonii × P. nigra

In our study, the transcription levels of miRNAs were analyzed in Populus simonii × P. nigra with and without cold treatment and the results showed that the expression of about 70% of miRNAs was affected by cold treatment. Among them, about 80% of miRNAs were downregulated, indicating that decreased expression of miRNAs might play more crucial roles than increased expressions of miRNAs in Populus simonii × P. nigra. In Populus tomentosa, downregulated miRNAs were more common than upregulated miRNAs in response to cold treatment [2]. Previous research indicated that psu-miR475 in Populous suaveolens [39], miR160, miR168, miR390, and miR396 in Populus trichocarpa [40], and pto-miR171, pto-miR319, and pto-miR395 in Populus tomentosa [2] respond to cold. Similarly, in the present study, these miRNAs showed obvious changes under cold treatment. Additionally, conserved miRNAs, such as ptc-miR1450, ptc-miR159a, ptc-miR164a, ptc-miR167a, ptc-miR172a, and candidate novel ptc-novel_48, ptc-novel_50, ptc-novel_59, and ptc-novel_76, were differentially expressed under cold treatment. These obtained miRNAs might downregulate the expression of their target genes which encode regulatory and functional proteins involved in cold tolerance.
Phased, secondary small interfering RNA (phasiRNA) are derived from phasiRNA-producing loci which were originally discovered in Arabidopsis and were also called trans-acting small interfering RNA (ta-siRNA) [41]. Four known TAS genes (TAS1 and TAS2 are targeted by miR173, and TAS3, TAS4 are targeted by miR390 and miR828 separately) are conserved in plants and their functions relate to each target of ta-siRNA and the expression pattern of targets [41,42]. Our results showed the siRNA Nt_403935_×34, with a similar sequence to 5′ D8 (+) originated from Cluster-16493.19914, was predicted to be ptc-TAS3 loci and was bound by ptc-miR390. The targets of siRNA (Nt_403935_×34) were predicted to be auxin response factors and their transcription level increased in CTD plantlets. Also, miR390-TAS3 tasiRNA-ARF2/3/4 has been reported to be integrated with auxin signaling to regulate lateral root growth of Arabidopsis [43]. This implied that miR390-TAS3 tasiRNA-ARF2/3/4 might also be involved in the process of cold resistance of Populus simonii × P. nigra. TAS4 loci, where the siRNAs were triggered by miR828 and targeted a set of MYB transcription factors [44] was also be predicted, but ptc-miR828 was not detected in either CTD or UD plantlets of Populus simonii × P. nigra. We postulated that the reason for undetected ptc-miR828 might be related to the low transcription level of ptc-miR828 verified by stem-loop RT-PCR according to the sequence of pto-miR828a in Populus tomentosa.
The predicted targets of differentially expressed miRNAs identified in our research have also been reported to be involved in cold tolerance. Our results showed the target gene of cold-responsive ptc-miR164a was LRR (leucine-rich repeat) receptor kinase, which is reported to be cold-inducible and has Ser/Thr protein kinase activity [45]. The conserved miR160 with potential target of ARF (auxin response factor) also showed a cold-resistance response in wheat [20]. The cold responsive miR167 has been identified to have LTR (low temperature response) element in the upstream regions [46] and candidate low temperature-induced protein was also predicted in our research. Other targets of miR167, such as ARF and SPL12 (Squamosa promoter-binding-like protein 12) were also predicted and reported to response to cold treatment [17] or thermo tolerance [47]. DnaJ, the candidate target of miR162a was also reported to contribute to maintenance of photosystem II under chilling induction [48]. In addition, Myb and TCP, candidate targets of ptc-miR319, have also been reported to be subjected to cold resistance in sugarcane [49]. Our results showed that cold induced the changes in transcription level of ptc-miRNAs and therefore led to the expression of target genes involved in cold resistance. Certainly, many of the cold responsive miRNAs have also been reported to be involved in plant growth and development, such as miR159 in growth and programmed cell death [50], miR172 in floret development [51], and miR319 in leaf development [52]. These results suggest that miRNAs have complex and widely regulatory roles in various plant stress and growth responses.

4.2. Differentially Expressed Transcripts under Cold Treatment

The transcriptome analysis showed many candidate genes differentially expressed in CTD and UD plantlets of Populus simonii × P. nigra which might be cold responsive genes. The functions of orthologs for these candidate genes, especially those encoded transcription factors involved in cold tolerance, have been clarified in other plants. DREB, the orthologs of which have been identified from Populus simonii × P. nigra in our research, is well known to be involved in abiotic stress. For example, AaDREB1, isolated from cold tolerant plant Adonis amurensis, showed enhanced tolerance to low temperature in transgeneic Arabidopsis and rice [53]. DREB/CBF (C-repeat binding factor) can recognize and bind to the CRT/DRE (C-repeat/Dehydration Responsive Element) motif to regulate cold-responsive (COR) genes [54]. The orthologs of leucine zipper protein (Cluster-16493.40514, Cluster-16493.27643) were also identified in Populus simonii × P. nigra and leucine zipper protein was reported to interact with CBF1B and involved in low temperature response in hot pepper [55]. MYB-like transcription factor (Cluster-16493.30912, Cluster-16493.18975) belongs to the R2R3-MYB family and recently MdMYB23 has been reported to be involved in cold tolerance in apple [56]. In rice, WRKY71 had positive function in cold tolerance by regulating downstream target genes [57] and Cluster-16493.45530 and Cluster-16493.18576 were also annotated to be WRKY family genes. MfERF1, one of ethylene-responsive transcription factor (ERF) was isolated from Medicago falcata and conferred cold tolerance [58] and the orthologs of ethylene-responsive transcription factor (Cluster-16493.20988, Cluster-16493.19581) were also isolated in our results. Moreover, the MADS genes [59], bHLH [60], bZIP [61], were also reported to be involved in cold resistance.

4.3. miRNAs May Be Involved in Cold Tolerance by Negatively Regulating Target mRNAs

The downregulated miRNAs in response to cold treatment in Populus simonii × P. nigra would positively regulate the expression of their targets for cold resistance. Integrated analysis of miRNAs and their targets expression helps to reveal the regulatory pathways of functional miRNA–mRNA modules (Figure 8). Based on data analysis, the putative cold responsive regulation model showed sophisticated up- and downregulated network. Firstly, the cold signal was perceived and transmitted to transcription factor genes such as MYB, SBP, bZIP, ARF, LHW, ATL, MIR genes such as miR319, miR159, miR167, miR172, miR395, miR393, miR390, novel_63, and ncRNA genes which can be targeted by miRNA for generating siRNAs. The expression of putative MIR showed downregulation, whereas the expression of candidate transcription factor genes were upregulated. Secondly, the negative regulation between miRNAs and their candidate targets, such as miR390 and noncoding RNA TAS3, miR319, and MYB led to the expression of cold responsive transcription factors and accumulation of cold responsive metabolic pathway genes. Thirdly, the metabolic genes related to the LRR receptor kinase pathway, ARF pathway, SPL pathway, and DnaJ-mediated photosystem II are taken as candidate genes involved in cold tolerance of Populus simonii × P. nigra. Although cold responsive miRNAs and candidate genes were isolated and characterized in Populus simonii × P. nigra and several other species, such as wheat [20], sugarcane [62], tea plant [15], soybean [63], and tomato plant [64], the mechanism of molecular regulation at the transcriptional and post-transcriptional level involved in the network of cold tolerance is still largely unknown. Further work is needed to elucidate the function of these important genes in cold resistance-related regulatory pathways.

5. Conclusions

Cold tolerance miRNAs and candidate target genes were identified through integrated sRNA and transcriptome analysis in cold treatment of Populus simonii × P. nigra. MIR genes such as miR319, miR159, miR167, miR172, miR395, miR393, miR390, and novel_63 and transcriptional factors including MYB, SBP, bZIP, ARF, LHW, and ATL showed differential expression and they might be the main contributors related to LRR receptor kinase, the ARF pathway, the SPL pathway, and DnaJ-related photosystem II involved in the cold tolerance of Populus simonii × P. nigra. These results not only increase our knowledge of sRNAs involved in the post-transcriptional regulation of cold tolerance, but also provide candidate genes for future functional analysis of the cold tolerance-related signaling pathways in Populus simonii × P. nigra.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/6/430/s1. The data sets supporting the results of this article are included with the manuscript and its additional files. The sRNA and transcriptome sequences were deposited in the Sequence Read Archive (SRA) of the National Center for Biotechnology Information (NCBI) (PRJNA513148).

Author Contributions

B.Z. and Q.X. designed the experiments and B.Z. wrote the manuscript. B.Z., Y.K. and J.L. analyzed RNA-seq data and did the qRT-PCR experiments. All authors read and approved the final manuscript.

Funding

This work was supported by the Fundamental Research Funds for the Central Universities (2572014EA03, 2572017CA23), and the funds of State Key Laboratory of Tree Genetics and Breeding (Northeast Forestry University) (2013B010, K2013202).

Acknowledgments

The authors thank the Fundamental Research Funds for the Central Universities and the supporting of State Key Laboratory of Tree Genetics and Breeding (Northeast Forestry University).

Conflicts of Interest

The authors declare that they have no competing interests.

Abbreviations

AP2/ERF: APETALA2/Ethylene responsive element-binding factor; ARF: auxin response factor; miRNAs: microRNAs; CBF: C-repeat binding factor; COR: cold-regulated; CRT/DRE: C-repeat/Dehydration Responsive Element; CTD: cold treated; DCL: Dicer-Like; DEGs: differential expression genes; DREB2C: dehydration-responsive element-binding protein 2C; ERF: Ethylene-responsive transcription factor; FKPM: Fragments Per Kilobase of transcript sequence per Millions base pairs; RISC: RNA-induced silencing complex; ROS: reactive oxygen species; RPM: reads per million; SBP1: squamosa promoter-binding-like protein 1; UD: untreated.

References

  1. Zhao, J.G.; He, Q.S.; Chen, G.; Wang, L.; Jin, B. Regulation of Non-coding RNAs in Heat Stress Responses of Plants. Front. Plant Sci. 2016, 7, 1213. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, L.; Zhang, Y.; Ren, Y.; Xu, J.; Zhang, Z.; Wang, Y. Genome-wide identification of cold-responsive and new microRNAs in Populus tomentosa by high-throughput sequencing. Biochem. Biophys. Res. Commun. 2012, 417, 892–896. [Google Scholar] [CrossRef] [PubMed]
  3. Chinnusamy, V.; Zhu, J.K.; Sunkar, R. Gene regulation during cold stress acclimation in plants. Methods Mol. Biol. 2010, 639, 39–55. [Google Scholar] [PubMed]
  4. Chen, X. MicroRNA biogenesis and function in plants. FEBS Lett. 2005, 579, 5923–5931. [Google Scholar] [CrossRef] [PubMed]
  5. Jones-Rhoades, M.W.; Bartel, D.P.; Bartel, B. MicroRNAs and their regulatory roles in plants. Annu. Rev. Plant Biol. 2006, 57, 19–53. [Google Scholar] [CrossRef] [PubMed]
  6. Sun, G.L. MicroRNAs and their diverse functions in plants. Plant Mol. Biol. 2012, 80, 17–36. [Google Scholar] [CrossRef] [PubMed]
  7. Nozawa, M.; Miura, S.; Nei, M. Origins and evolution of microRNA genes in plant species. Genome Biol. Evol. 2012, 4, 230–239. [Google Scholar] [CrossRef]
  8. Rogers, K.; Chen, X. Biogenesis, turnover, and mode of action of plant microRNAs. Plant Cell 2013, 25, 2383–2399. [Google Scholar] [CrossRef]
  9. Mallory, A.C.; Vaucheret, H. Functions of microRNAs and related small RNAs in plants. Nat. Genet. 2006, 38, S31–S36. [Google Scholar] [CrossRef]
  10. Liu, R.; Lai, B.; Hu, B.; Qin, Y.; Hu, G.; Zhao, J. Identification of microRNAs and their target genes related to the accumulation of anthocyanins in Litchi chinensis by high-throughput sequencing and degradome analysis. Front. Plant Sci. 2017, 7, 2059. [Google Scholar] [CrossRef]
  11. Lee, B.H.; Henderson, D.A.; Zhu, J.K. The Arabidopsis cold-responsive transcriptome and its regulation by ICE1. Plant Cell 2005, 17, 3155–3175. [Google Scholar] [CrossRef] [PubMed]
  12. Zhou, X.; Wang, G.; Sutoh, K.; Zhu, J.K.; Zhang, W. Identification of cold-inducible microRNAs in plants by transcriptome analysis. Biochim. Biophys. Acta 2008, 1779, 780–788. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, S.; Sun, Y.H.; Chiang, V.L. Stress-responsive microRNAs in Populus. Plant J. 2008, 55, 131–151. [Google Scholar] [CrossRef] [PubMed]
  14. Lv, D.K.; Bai, X.; Li, Y.; Ding, X.D.; Ge, Y.; Cai, H.; Ji, W.; Wu, N.; Zhu, Y.M. Profiling of cold-stress-responsive miRNAs in rice by microarrays. Gene 2010, 459, 39–47. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Y.; Zhu, X.; Chen, X.; Song, C.; Zou, Z.; Wang, Y.; Wang, M.; Fang, W.; Li, X. Identification and characterization of cold-responsive microRNAs in tea plant (Camellia sinensis) and their targets using high-throughput sequencing and degradome analysis. BMC Plant Biol. 2014, 14, 271. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, X.; Liu, F.; Zhang, Y.; Wang, L.; Cheng, Y. Cold-responsive miRNAs and their target genes in the wild eggplant species Solanum aculeatissimum. BMC Genom. 2017, 18, 1000. [Google Scholar] [CrossRef] [PubMed]
  17. Tang, Z.; Zhang, L.; Xu, C.; Yuan, S.; Zhang, F.; Zheng, Y.; Zhao, C. Uncovering small RNA-mediated responses to cold stress in a wheat thermosensitive genic male-sterile line by deep sequencing. Plant Physiol. 2012, 159, 721–738. [Google Scholar] [CrossRef]
  18. Sunkar, R.; Zhu, J.K. Novel and stress-regulated microRNAs and other small RNAs from Arabidopsis. Plant Cell 2004, 16, 2001–2019. [Google Scholar] [CrossRef]
  19. Liu, H.H.; Tian, X.; Li, Y.J.; Wu, C.A.; Zheng, C.C. Microarray-based analysis of stress-regulated microRNAs in Arabidopsis thaliana. RNA 2008, 14, 836–843. [Google Scholar] [CrossRef]
  20. Song, G.; Zhang, R.; Zhang, S.; Li, Y.; Gao, J.; Han, X.; Chen, M.; Wang, J.; Li, W.; Li, G. Response of microRNAs to cold treatment in the young spikes of common wheat. BMC Genom. 2017, 18, 212. [Google Scholar] [CrossRef]
  21. Gilmour, S.J.; Zarka, D.G.; Stockinger, E.J.; Salazar, M.P.; Houghton, J.M.; Thomashow, M.F. Low temperature regulation of the Arabidopsis CBF family of AP2 transcriptional activators as an early step in cold-induced COR gene expression. Plant J. 1998, 16, 433–442. [Google Scholar] [CrossRef] [PubMed]
  22. Thomashow, M.F. Molecular basis of plant cold acclimation: Insights gained from studying the CBF cold response pathway. Plant Physiol. 2010, 154, 571–577. [Google Scholar] [CrossRef] [PubMed]
  23. Wan, F.; Pan, Y.; Li, J.; Chen, X.; Pan, Y.; Wang, Y.; Tian, S.; Zhang, X. Heterologous expression of Arabidopsis C-repeat binding factor 3 (AtCBF3) and cold-regulated 15A (AtCOR15A) enhanced chilling tolerance in transgenic eggplant (Solanum melongena L.). Plant Cell Rep. 2014, 33, 1951–1961. [Google Scholar] [CrossRef] [PubMed]
  24. Meyers, B.C.; Axtell, M.J.; Bartel, B.; Bartel, D.P.; Baulcombe, D.; Bowman, J.L.; Cao, X.; Carrington, J.C.; Chen, X.M.; Green, P.J.; et al. Criteria for Annotation of Plant MicroRNAs. Plant Cell 2008, 20, 3186–3190. [Google Scholar] [CrossRef] [PubMed]
  25. Michael, Z. Mfold web server for nucleic acid folding and hybridization prediction. Nucleic Acids Res. 2003, 31, 3406–3415. [Google Scholar]
  26. Wu, H.J.; Ma, Y.K.; Chen, T.; Wang, M.; Wang, X.J. PsRobot: A web-based plant small RNA meta-analysis toolbox. Nucleic Acids Res. 2012, 40, W22–W28. [Google Scholar] [CrossRef] [PubMed]
  27. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.D.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644. [Google Scholar] [CrossRef]
  28. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, R25. [Google Scholar] [CrossRef]
  29. Wang, L.K.; Feng, Z.X.; Wang, X.; Wang, X.W.; Zhang, X.G. DEGseq: An R package for identifying differentially expressed genes from RNA-seq data. Bioinformatics 2010, 26, 136–138. [Google Scholar] [CrossRef]
  30. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, R106. [Google Scholar] [CrossRef]
  31. Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Stat. Soc. 1995, 57, 289–300. [Google Scholar] [CrossRef]
  32. Young, M.D.; Wakefield, M.J.; Smyth, G.K.; Oshlack, A. Gene ontology analysis for RNA-seq: Accounting for selection bias. Genome Biol. 2010, 11, R14. [Google Scholar] [CrossRef] [PubMed]
  33. Kanehisa, M.; Araki, M.; Goto, S.; Hattori, M.; Hirakawa, M.; Itoh, M.; Katayama, T.; Kawashima, S.; Okuda, S.; Tokimatsu, T.; et al. KEGG for linking genomes to life and the environment. Nucleic Acids Res. 2008, 36, D480–D484. [Google Scholar] [CrossRef] [PubMed]
  34. Mao, X.Z.; Cai, T.; Olyarchuk, J.G.; Wei, L.P. Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 2005, 21, 3787–3793. [Google Scholar] [CrossRef] [PubMed]
  35. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, L.; Wang, M.B.; Tu, J.X.; Helliwell, C.A.; Waterhouse, P.M.; Dennis, E.S.; Fu, T.D.; Fan, Y.L. Cloning and characterization of microRNAs from Brassica napus. FEBS Lett. 2007, 581, 3848–3856. [Google Scholar] [CrossRef] [PubMed]
  37. Jian, H.; Yang, B.; Zhang, A.; Ma, J.; Ding, Y.; Chen, Z.; Li, J.; Xu, X.; Liu, L. Genome-Wide Identification of MicroRNAs in Response to Cadmium Stress in Oilseed Rape (Brassica napus L.) Using High-Throughput Sequencing. Int. J. Mol. Sci. 2018, 19, 1431. [Google Scholar] [CrossRef]
  38. Barakat, A.; Sriram, A.; Park, J.; Zhebentyayeva, T.; Main, D.; Abbott, A. Genome wide identification of chilling responsive microRNAs in Prunus persica. BMC Genom. 2012, 13, 481. [Google Scholar] [CrossRef]
  39. Niu, J.; Wang, J.; Hu, H.W.; Chen, Y.L.; An, J.Y.; Cai, J.; Sun, R.Z.; Sheng, Z.T.; Liu, X.P.; Lin, S.Z. Cross-talk between freezing response and signaling for regulatory transcriptions of MIR475b and its targets by miR475b promoter in Populus suaveolens. Sci. Rep. 2016, 6, 20648. [Google Scholar] [CrossRef]
  40. Lu, S.; Sun, Y.H.; Shi, R.; Clark, C.; Li, L.; Chiang, V.L. Novel and mechanical stress-responsive MicroRNAs in Populus trichocarpa that are absent from Arabidopsis. Plant Cell 2005, 17, 2186–2203. [Google Scholar] [CrossRef]
  41. Allen, E.; Xie, Z.; Gustafson, A.M.; Carrington, J.C. microRNA-directed phasing during trans-acting siRNA biogenesis in plants. Cell 2005, 121, 207–221. [Google Scholar] [CrossRef] [PubMed]
  42. Rajagopalan, R.; Vaucheret, H.; Trejo, J.; Bartel, D.P. A diverse and evolutionarily fluid set of microRNAs in Arabidopsis thaliana. Genes Dev. 2006, 20, 3407–3425. [Google Scholar] [CrossRef] [PubMed]
  43. Marin, E.; Jouannet, V.; Herz, A.; Lokerse, A.S.; Weijers, D.; Vaucheret, H.; Nussaume, L.; Crespi, M.D.; Maizel, A. miR390, Arabidopsis TAS3 tasiRNAs, and their AUXIN RESPONSE FACTOR targets define an autoregulatory network quantitatively regulating lateral root growth. Plant Cell 2010, 22, 1104–1117. [Google Scholar] [CrossRef] [PubMed]
  44. Rock, C.D. Trans-acting small interfering RNA4: Key to nutraceutical synthesis in grape development? Trends Plant Sci. 2013, 18, 601–610. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, L.; Wu, K.; Gao, P.; Liu, X.; Li, G.; Wu, Z. GsLRPK, a novel cold-activated leucine-rich repeat receptor-like protein kinase from Glycine soja, is a positive regulator to cold stress tolerance. Plant Sci. 2014, 215, 19–28. [Google Scholar] [CrossRef] [PubMed]
  46. Esmaeili, F.; Shiran, B.; Fallahi, H.; Mirakhorli, N.; Budak, H.; Martinez-Gomez, P. In silico search and biological validation of microRNAs related to drought response in peach and almond. Funct. Integr. Genom. 2017, 17, 189–201. [Google Scholar] [CrossRef]
  47. Chao, L.M.; Liu, Y.Q.; Chen, D.Y.; Xue, X.Y.; Mao, Y.B.; Chen, X.Y. Arabidopsis Transcription Factors SPL1 and SPL12 Confer Plant Thermotolerance at Reproductive Stage. Mol. Plant 2017, 10, 735–748. [Google Scholar] [CrossRef]
  48. Kong, F.; Deng, Y.; Zhou, B.; Wang, G.; Wang, Y.; Meng, Q. A chloroplast-targeted DnaJ protein contributes to maintenance of photosystem II under chilling stress. J. Exp. Bot. 2014, 65, 143–158. [Google Scholar] [CrossRef]
  49. Thiebaut, F.; Rojas, C.A.; Almeida, K.L.; Grativol, C.; Domiciano, G.C.; Lamb, C.R.; Engler Jde, A.; Hemerly, A.S.; Ferreira, P.C. Regulation of miR319 during cold stress in sugarcane. Plant Cell Environ. 2012, 35, 502–512. [Google Scholar] [CrossRef]
  50. Alonso-Peral, M.M.; Li, J.; Li, Y.; Allen, R.S.; Schnippenkoetter, W.; Ohms, S.; White, R.G.; Millar, A.A. The microRNA159-regulated GAMYB-like genes inhibit growth and promote programmed cell death in Arabidopsis. Plant Physiol. 2010, 154, 757–771. [Google Scholar] [CrossRef]
  51. Zhu, Q.H.; Upadhyaya, N.M.; Gubler, F.; Helliwell, C.A. Over-expression of miR172 causes loss of spikelet determinacy and floral organ abnormalities in rice (Oryza sativa). BMC Plant Biol. 2009, 9, 149. [Google Scholar] [CrossRef] [PubMed]
  52. Koyama, T.; Sato, F.; Ohme-Takagi, M. Roles of miR319 and TCP Transcription Factors in Leaf Development. Plant Physiol. 2017, 175, 874–885. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zong, J.M.; Li, X.W.; Zhou, Y.H.; Wang, F.W.; Wang, N.; Dong, Y.Y.; Yuan, Y.X.; Chen, H.; Liu, X.M.; Yao, N.; et al. The AaDREB1 Transcription Factor from the Cold-Tolerant Plant Adonis amurensis Enhances Abiotic Stress Tolerance in Transgenic Plant. Int. J. Mol. Sci. 2016, 17, 611. [Google Scholar] [CrossRef] [PubMed]
  54. Zhao, C.; Lang, Z.; Zhu, J.K. Cold responsive gene transcription becomes more complex. Trends Plant Sci. 2015, 20, 466–468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Kim, S.; An, C.S.; Hong, Y.N.; Lee, K.W. Cold-inducible transcription factor, CaCBF, is associated with a homeodomain leucine zipper protein in hot pepper (Capsicum annuum L.). Mol. Cells 2004, 18, 300–308. [Google Scholar] [PubMed]
  56. An, J.P.; Li, R.; Qu, F.J.; You, C.X.; Wang, X.F.; Hao, Y.J. R2R3-MYB transcription factor MdMYB23 is involved in the cold tolerance and proanthocyanidin accumulation in apple. Plant J. 2018, 96, 562–577. [Google Scholar] [CrossRef] [Green Version]
  57. Kim, C.-Y.; Vo, K.; Danh Nguyen, C.; Jeong, D.-H.; Lee, S.-K.; Kumar, M.; Kim, S.-R.; Park, S.-H.; Kim, J.J.; Jeon, J.-S. Functional analysis of a cold-responsive rice WRKY gene, OsWRKY71. Plant Biotechnol. Rep. 2016, 10, 13–23. [Google Scholar] [CrossRef]
  58. Zhuo, C.; Liang, L.; Zhao, Y.; Guo, Z.; Lu, S. A cold responsive ethylene responsive factor from Medicago falcata confers cold tolerance by up-regulation of polyamine turnover, antioxidant protection, and proline accumulation. Plant Cell Environ. 2018, 41, 2021–2032. [Google Scholar] [CrossRef]
  59. Saha, G.; Park, J.I.; Jung, H.J.; Ahmed, N.U.; Kayum, M.A.; Chung, M.Y.; Hur, Y.; Cho, Y.G.; Watanabe, M.; Nou, I.S. Genome-wide identification and characterization of MADS-box family genes related to organ development and stress resistance in Brassica rapa. BMC Genom. 2015, 16, 178. [Google Scholar] [CrossRef]
  60. Wang, Y.J.; Zhang, Z.G.; He, X.J.; Zhou, H.L.; Wen, Y.X.; Dai, J.X.; Zhang, J.S.; Chen, S.Y. A rice transcription factor OsbHLH1 is involved in cold stress response. Theor. Appl. Genet. 2003, 107, 1402–1409. [Google Scholar] [CrossRef]
  61. Wang, L.; Cao, H.; Qian, W.; Yao, L.; Hao, X.; Li, N.; Yang, Y.; Wang, X. Identification of a novel bZIP transcription factor in Camellia sinensis as a negative regulator of freezing tolerance in transgenic arabidopsis. Ann. Bot. 2017, 119, 1195–1209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Yang, Y.T.; Yu, Q.; Yang, Y.Y.; Su, Y.C.; Ahmad, W.; Guo, J.L.; Gao, S.W.; Xu, L.P.; Que, Y.X. Identification of cold-related miRNAs in sugarcane by small RNA sequencing and functional analysis of a cold inducible ScmiR393 to cold stress. Environ. Exp. Bot. 2018, 155, 464–476. [Google Scholar] [CrossRef]
  63. Zhang, S.L.; Wang, Y.N.; Li, K.X.; Zou, Y.M.; Chen, L.; Li, X. Identification of Cold-Responsive miRNAs and Their Target Genes in Nitrogen-Fixing Nodules of Soybean. Int. J. Mol. Sci. 2014, 15, 13596–13614. [Google Scholar] [CrossRef] [PubMed]
  64. Valiollahi, E.; Farsi, M.; Kakhki, A.M. Sly-miR166 and Sly-miR319 are components of the cold stress response in Solanum lycopersicum. Plant Biotechnol. Rep. 2014, 8, 349–356. [Google Scholar] [CrossRef]
Genes 10 00430 g001 550
Figure 1. Total sRNA read length distribution of the sequencing libraries (Cold treated, CTD; Untreated, UD).
Figure 1. Total sRNA read length distribution of the sequencing libraries (Cold treated, CTD; Untreated, UD).
Genes 10 00430 g001
Genes 10 00430 g002 550

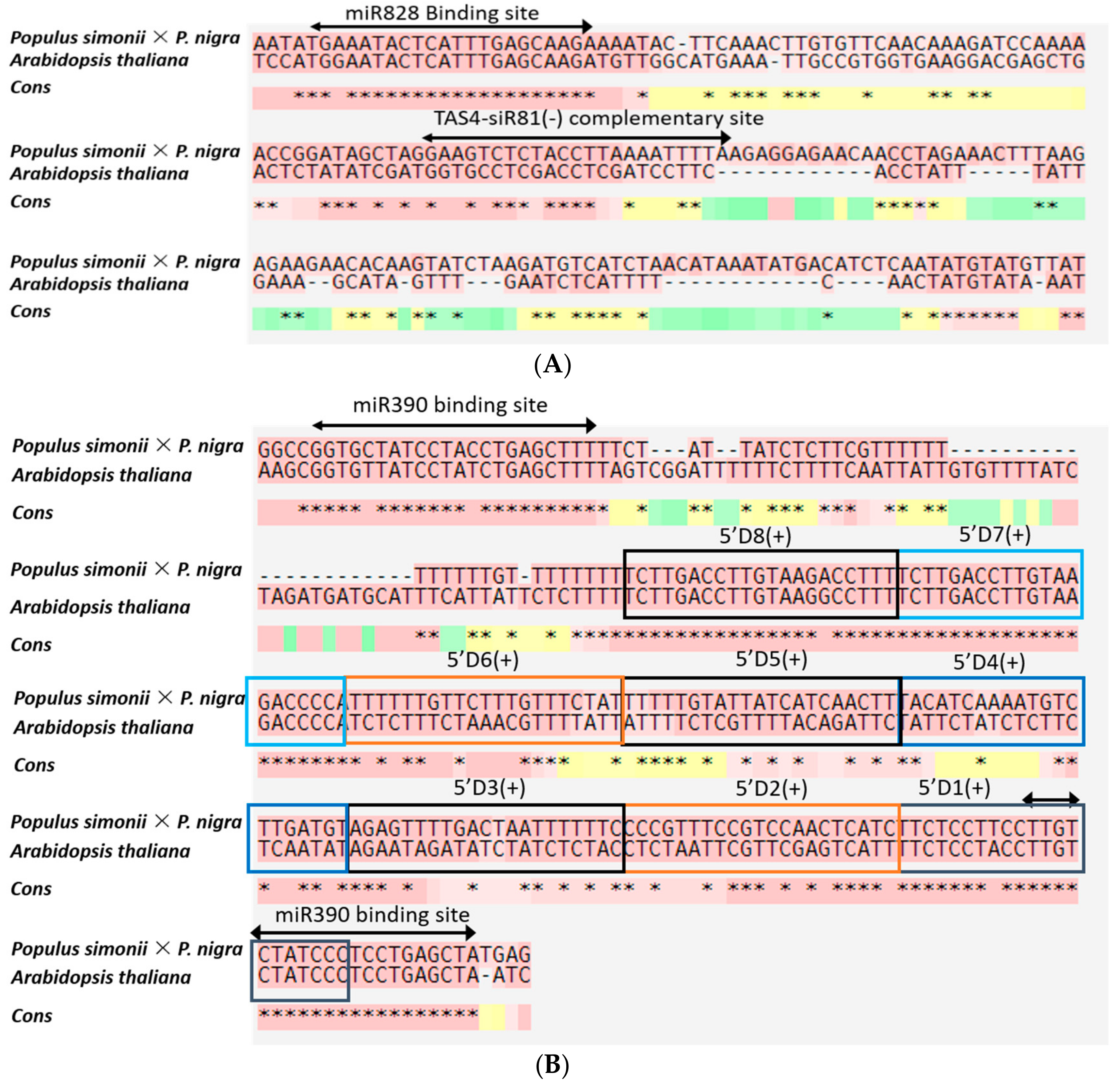

Figure 2. Sequence alignment of putative TAS3 and TAS4 paralogs in Populous simonii × P. nigra and Arabidopsis thaliana (Black arrow shows the complementary site of TAS4-siR81) (A) and the binding site of miR390 (B) miR828. Boxes indicate phased ta-siRNA and sequences of 5′D1(+) to 5′D8(+) that are proved in Arabidopsis.
Figure 2. Sequence alignment of putative TAS3 and TAS4 paralogs in Populous simonii × P. nigra and Arabidopsis thaliana (Black arrow shows the complementary site of TAS4-siR81) (A) and the binding site of miR390 (B) miR828. Boxes indicate phased ta-siRNA and sequences of 5′D1(+) to 5′D8(+) that are proved in Arabidopsis.
Genes 10 00430 g002
Genes 10 00430 g003 550
Figure 3. Hierarchical clustering of differentially expressed sRNAs in Populus simonii × P. nigra under cold-treated and untreated conditions.
Figure 3. Hierarchical clustering of differentially expressed sRNAs in Populus simonii × P. nigra under cold-treated and untreated conditions.
Genes 10 00430 g003
Genes 10 00430 g004 550

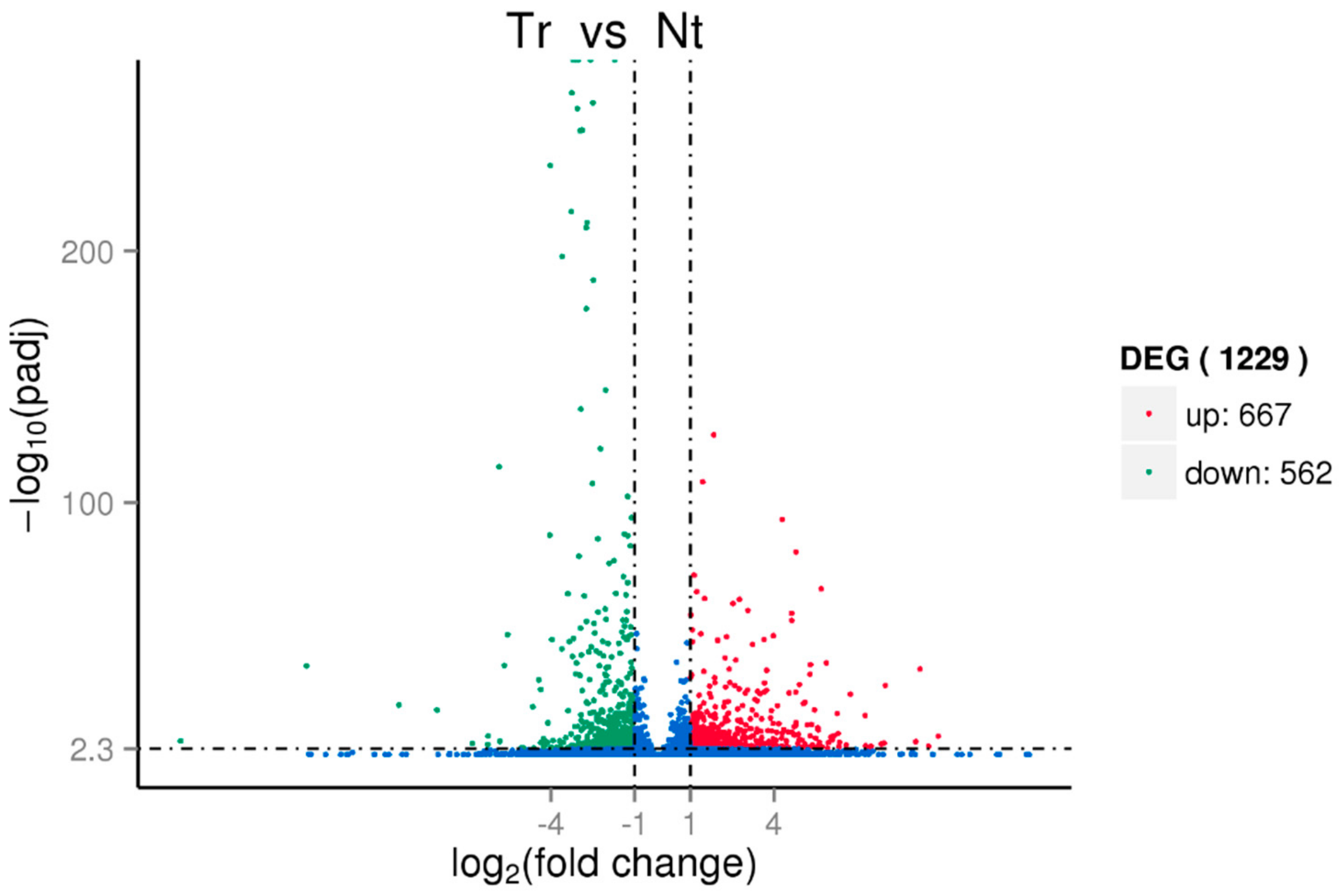

Figure 4. Differential expression genes (DEGs) identified in Populus simonii × P. nigra under cold treatment and untreated conditions.
Figure 4. Differential expression genes (DEGs) identified in Populus simonii × P. nigra under cold treatment and untreated conditions.
Genes 10 00430 g004
Genes 10 00430 g005 550

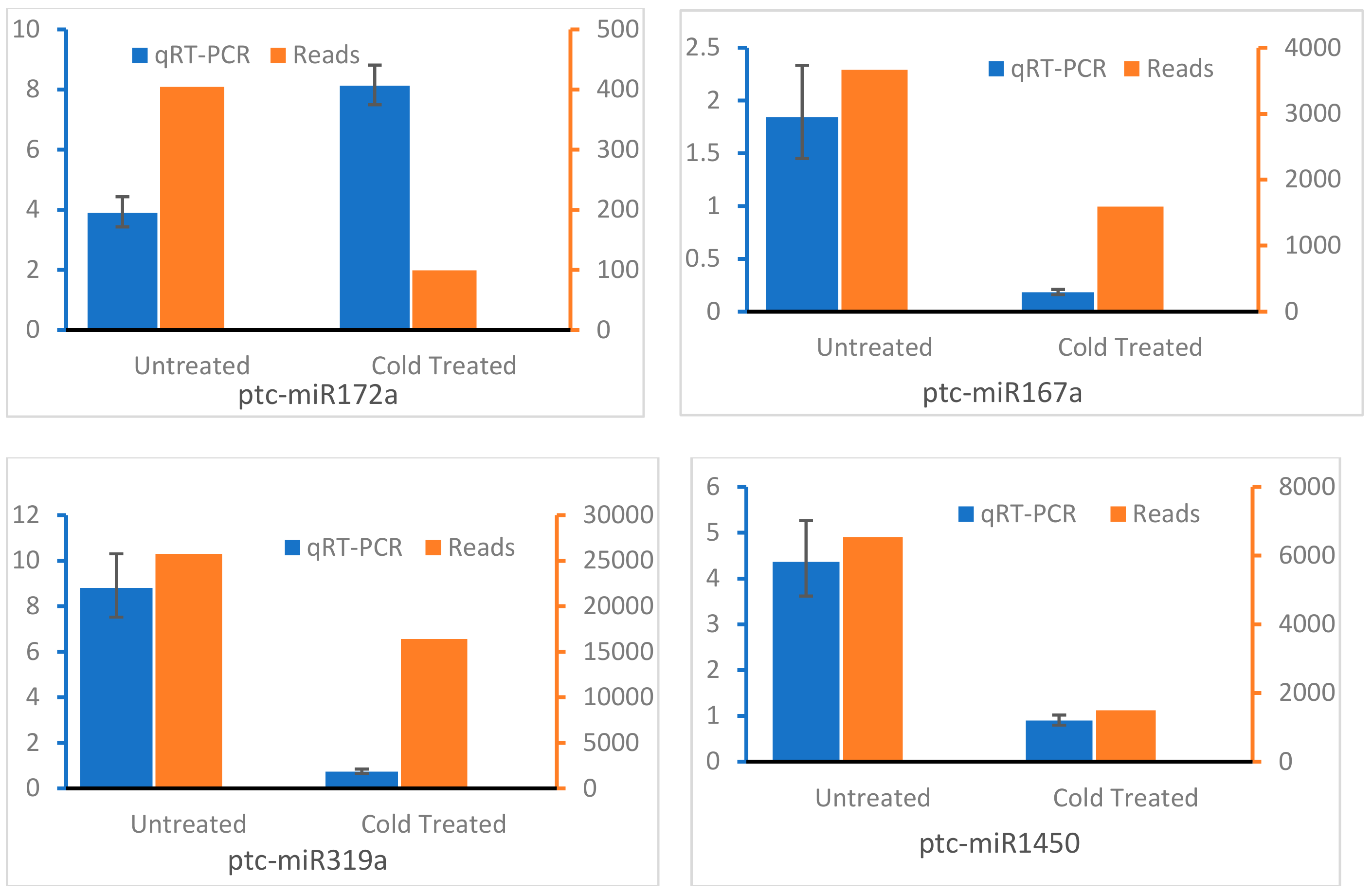

Figure 5. Comparing qRT-PCR data to reads analysis of candidate miRNAs in shoot of Populus simonii × P. nigra with and without cold treatment.
Figure 5. Comparing qRT-PCR data to reads analysis of candidate miRNAs in shoot of Populus simonii × P. nigra with and without cold treatment.
Genes 10 00430 g005
Genes 10 00430 g006 550

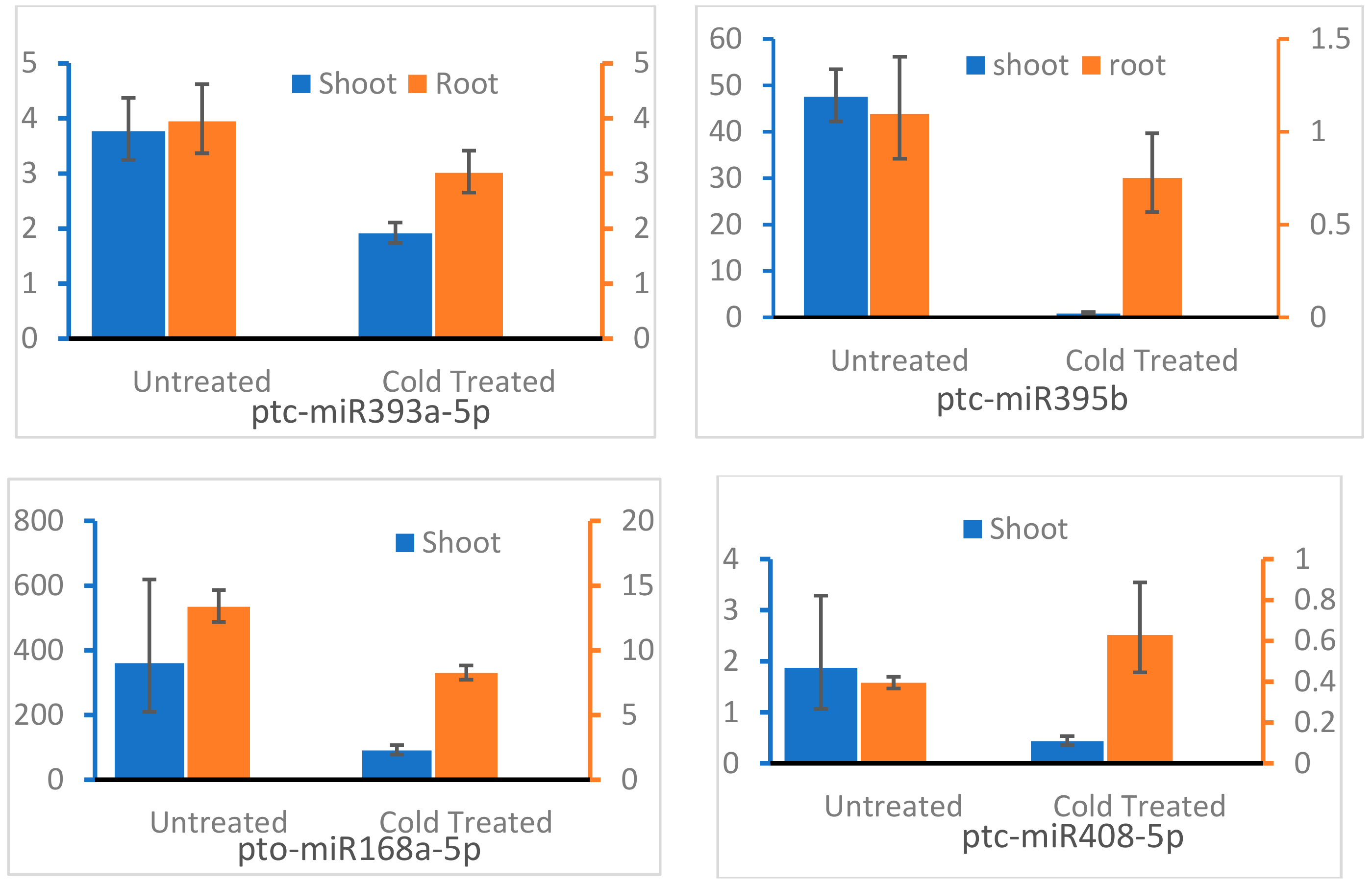

Figure 6. Relative expression analysis of candidate miRNAs in shoot and root of Populus simonii × P. nigra with and without cold treatment by real time PCR.
Figure 6. Relative expression analysis of candidate miRNAs in shoot and root of Populus simonii × P. nigra with and without cold treatment by real time PCR.
Genes 10 00430 g006
Genes 10 00430 g007 550

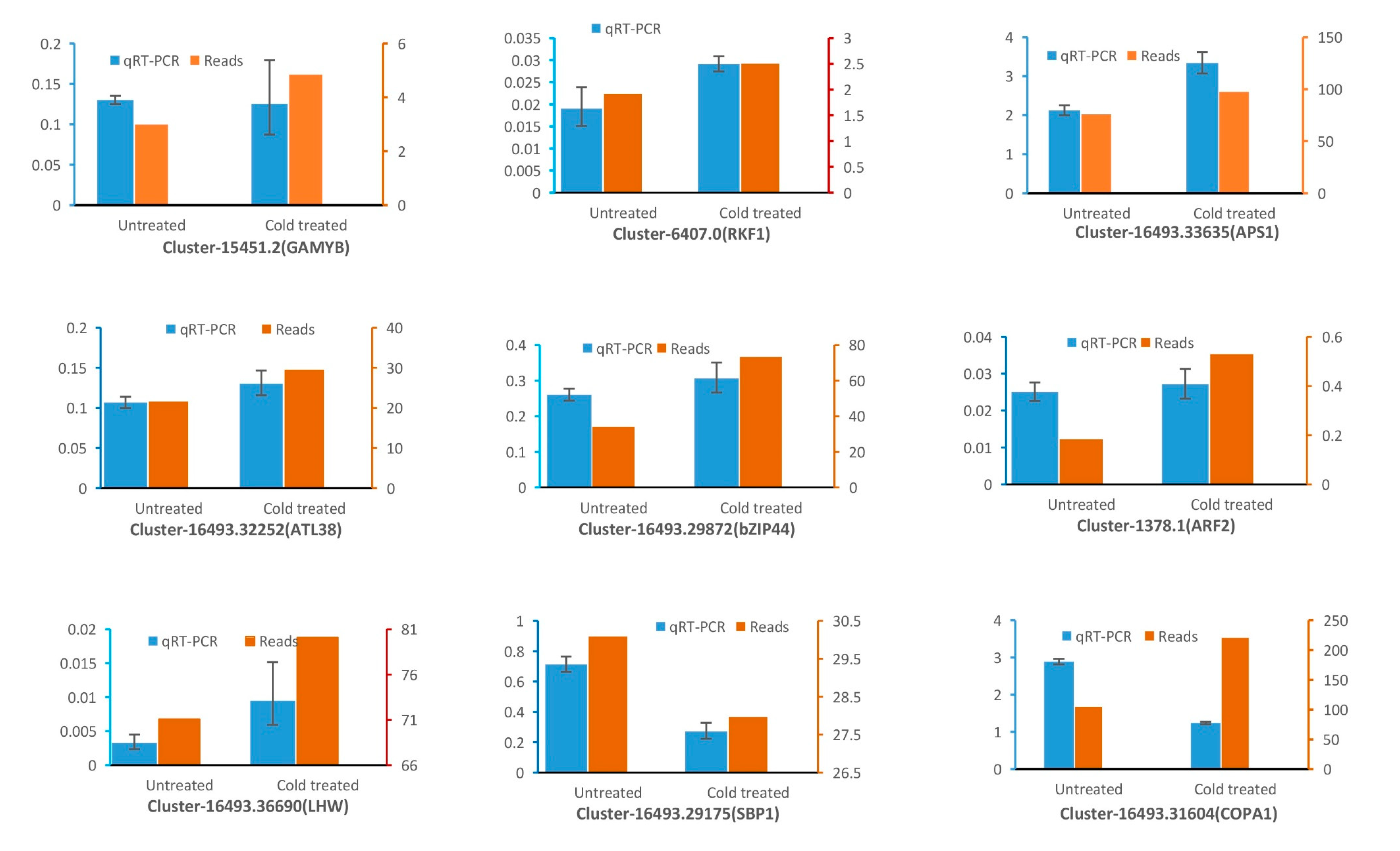

Figure 7. qRT-PCR expression levels of candidate targets detected in shoot of Populus simonii × P. nigra with and without cold treatment.
Figure 7. qRT-PCR expression levels of candidate targets detected in shoot of Populus simonii × P. nigra with and without cold treatment.
Genes 10 00430 g007
Genes 10 00430 g008 550

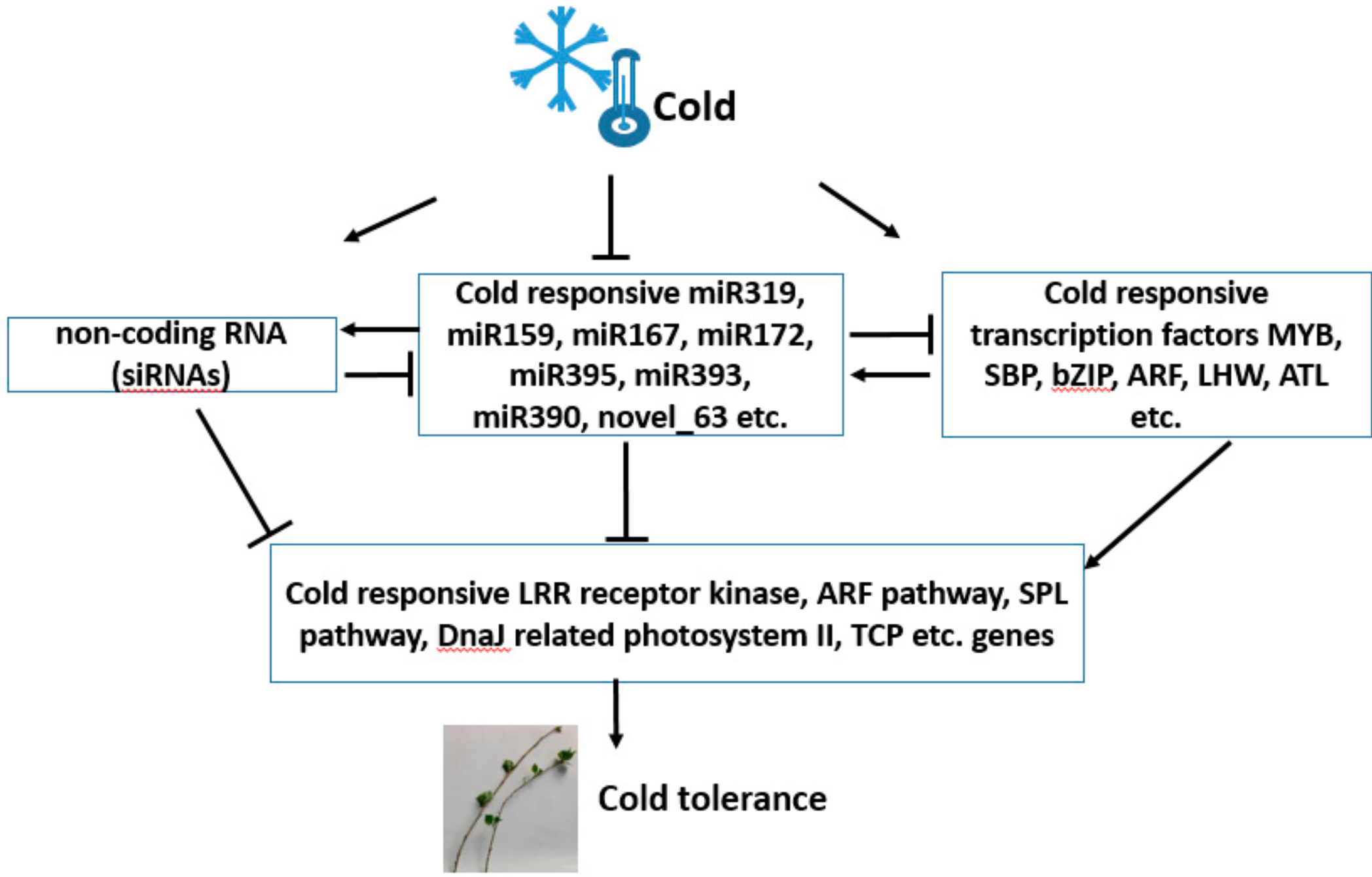

Figure 8. A putative cold responsive regulation model of sRNAs and their targets in Populus simonii × P. nigra.
Figure 8. A putative cold responsive regulation model of sRNAs and their targets in Populus simonii × P. nigra.
Genes 10 00430 g008
Table
Table 1. Small RNAs obtained in cold-treated (CTD) and untreated (UD) sRNA libraries.
Table 1. Small RNAs obtained in cold-treated (CTD) and untreated (UD) sRNA libraries.
SampleTotal ReadsClean ReadsTotal sRNAMapped sRNArRNAsnRNAsnoRNATa-siRNAKnown miRNANovel miRNA
Cold Treated6,757,2216,125,1232,247,2381,875,409251,512201219,53523510,089118
Untreated6,547,3946,356,8963,807,1593,126,566427,344257034,948277845,241681
Table
Table 2. RNA sequencing analysis in CTD and UD RNA libraries.
Table 2. RNA sequencing analysis in CTD and UD RNA libraries.
SampleRaw ReadsClean ReadsQ20 (%)Q30 (%)Number of Transcripts (>200 bp)N50N90Number of Genes (>200 bp)N50N90
CTD49,473,54448,912,02497.2195.5178,416134726692,7551668528
UD55,000,00054,357,97497.1795.46
Table
Table 3. The candidate differential targets of cold-responsive miRNAs in Populus simonii × P. nigra.
Table 3. The candidate differential targets of cold-responsive miRNAs in Populus simonii × P. nigra.
Target IDAnnotationmiRNA IDPredicted Binding SiteNegative Regulation
Cluster-16493.31604PREDICTED: coatomer subunit alpha-1-like isoform X1 novel_48miRNA: 1 TGTGGGAATGAACATTATGAG 21
| : | || :|||||| | | : : | : || :
Target: s312 ATACCTTTACTTGTGGTGCTT 292		yes
Cluster-16493.38601Putative EG45-like domain containing protein 1 ptc-miR167emiRNA: 1 TGAAGCTGCCAGCATGAT-CTG 21
|||| ||| : ||||| | *|| | **||
Target: 259 ACTTCGATGGTCGTCCTACAAC 238		no
Cluster-16493.31604PREDICTED: coatomer subunit alpha-1-like isoform X1ptc-miR168a-5pmiRNA: 1 TCGCTTGGTGCAGGTCGGGAA 21
|* ||||| | | : ||: : ||| | | ||
Target: 3706 ACCGAACCATGTTTAGCCCTT 3686		no
Cluster-16493.38601Putative EG45-like domain containing protein 1ptc-miR167f-5pmiRNA: 1 TGAAGCTGCCAGCATGATCTT 21
|||||| | : |||| | | *||| *||
Target: 259 ACTTCGATGGTCGTCCTACAA 239		no
Cluster-16493.38601Putative EG45-like domain containing protein 1ptc-miR167amiRNA: 1 TGAAGCTGCCAGCATGATCTA 21
||||| || : ||| ||| * |||* |*
Target: 259 ACTTCGATGGTCGTCCTACAA 239		no
Cluster-16493.40057LINE-1 retrotransposable element ORF2 proteinptc-miR396e-3pmiRNA: 1 CTCAAGAAAGCTGTGGGAGA 20
* : *|| |||| |||||| : | | | |
Target: 2923 CGCTTCTTTCGACACTCTCT 2904		no
Cluster-16493.31604PREDICTED: coatomer subunit alpha-1-like isoform X1ptc-miR482a.1miRNA: 1 CCTACTCCTCCCATTCC 17
||||* | |* | || || |: ||
Target: 1901 GGATAAGAAGGGTAGGG 1885		no
Cluster-16493.26584Calcium-transporting ATPase 4ptc-miR482a.1miRNA: 1 CCTACTCCTCCCATTCC 17
*|| *| || || |* ||||||
Target: 4880 TGAAGAGGAGTGTAAGG 4864		no
Cluster-16493.41325Polyphenol oxidase, chloroplastic ptc-miR1444dmiRNA: 1 CGAACGTTGACCGAATGT-GAA 21
|| ||||| : |||||||||| * | * |
Target: 85 GCTTGCAGCTGGCTTACACCCT 64		yes
Cluster-16493.29872Basic leucine zipper 63 ptc-miR172amiRNA: 1 AGAATCTTGATGATGCTGCAT 21
| : || | |||||| |* |||| |* * |
Target: 1241 TTTTAGAACTACGACGACCAA 1221		yes
Cluster-16493.41106Putative SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily A member 3-like 2 ptc-miR172amiRNA: 1 AGAATCTTGATGATGCTGCAT 21
| || || |||| | |*|*| || * |||
Target: 3710 TCTTAGAACTAGTCCGA-GTA 3691		no
Cluster-16493.44708Heat shock protein 90-1 ptc-miR319imiRNA: 1 TTGGGCTGAAGGGAGCTCCC 20
||| * ||: | | || : || || ||| *
Target: 890 AACGCGGCTTCTCTCGAGGT 871		yes
Cluster-16493.4927418.2 kDa class I heat shock family protein ptc-miR7812miRNA: 1 CTGTTATGAATTGATGGAGTG 21
* ||* ||| |||| || |||||*||
Target: 305 AACTATACTTAACTACCT-AC 286		yes
Cluster-16493.45983endo-glucanase 2 family protein ptc-miR6462emiRNA: 1 TCTTATGCGTTTTTGTCTCT 20
|||| || ||| ||| : : : | |* *|
Target: 590 AGAATACGCAAAGGTAG-TA 572		yes

Share and Cite

MDPI and ACS Style

Zhou, B.; Kang, Y.; Leng, J.; Xu, Q. Genome-Wide Analysis of the miRNA–mRNAs Network Involved in Cold Tolerance in Populus simonii × P. nigra. Genes 2019, 10, 430. https://doi.org/10.3390/genes10060430

AMA Style

Zhou B, Kang Y, Leng J, Xu Q. Genome-Wide Analysis of the miRNA–mRNAs Network Involved in Cold Tolerance in Populus simonii × P. nigra. Genes. 2019; 10(6):430. https://doi.org/10.3390/genes10060430

Chicago/Turabian Style

Zhou, Bo, Yutong Kang, Jingtong Leng, and Qijiang Xu. 2019. "Genome-Wide Analysis of the miRNA–mRNAs Network Involved in Cold Tolerance in Populus simonii × P. nigra" Genes 10, no. 6: 430. https://doi.org/10.3390/genes10060430

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
