Dynamic Infrared Thermography (DIRT) in Biomedical Applications: DIEP Flap Breast Reconstruction and Skin Cancer ^†

Abstract

Infrared thermography technology has improved drastically in recent years and is regaining interest in medicine for applications such as deep inferior epigastric perforate flap breast reconstruction, breast cancer diagnosis, skin tissue identification, psoriasis detection, etc. However, there is still a need for an optimised measurement setup and protocol in order to capture the most suitable images for decision making and further processing. Nowadays, different cooling methods are being used; nevertheless, a general optimised cooling protocol is not yet defined. In this manuscript, several cooling techniques, as well as the measurement setups, are reviewed and optimised. It is possible to enhance the thermal images by selecting an appropriate cooling method and duration, and additionally, an optimised measurement setup enables a comparison between different inspections.

1. Introduction

Infrared thermography (IRT) has been continuously improved over the last few years and has found widespread applications within scientific research and industry environments [1]. IRT in medicine has gained interest for use in deep inferior epigastric perforate (DIEP) flap breast reconstruction [2], psoriasis [3], skin cancer [4], breast cancer and many other medical conditions [5].

In our biomedical IRT research, we focus on DIEP flap breast reconstruction and skin tissue identification for skin cancer diagnosis. In breast reconstructions with DIEP flaps, the skin and subcutaneous tissue from the patient’s lower abdomen are used as a free flap to reconstruct the breast. One of the key elements in DIEP flap surgery is the selection of the best perforator to obtain sufficient blood supply to the flap after anastomosis [6]. The diagnosis of skin lesions measures the thermal response to thermal stress (cold provocation). After cooling the skin surface, a different thermal behaviour can be displayed because of the difference in the thermophysical properties of the lesion and the healthy tissue [7].

1.1. Thermal Provocation for Dynamic Infrared Thermography

1.1.1. DIEP Flap Breast Reconstruction

During the peroperative stage, to locate the best perforators, a cold challenge is performed on the abdomen. The first occurring hot spots during rewarming can be related to perforators with a larger blood supply and thus can be used for anastomosis of the DIEP flap [8]. The introduction of a cold challenge is necessary to create an equal starting situation for the whole area of interest. Different cooling methods have already been tested: Weum et al. [9] used a desktop fan. Thiessen et al. [6] did a comparison between different cooling methods. Cooling with a desktop fan did not meet their requirements of even cooling the surface and did not extract enough heat from the abdomen.

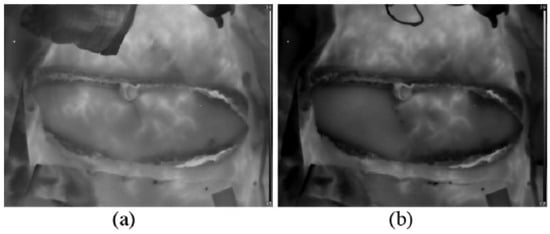

During the peroperative measurements, the influence of a specific perforator will determine which areas of the abdominal flap will be perfused by which dominant perforator and influences the final choice of perforators used for reconstruction. This is demonstrated in Figure 1. After anastomosis, the blood flow in the DIEP flap can be checked with DIRT to verify if the flap is properly vascularised to reduce the chance of necrosis.

Postoperative measurements include a static image of the reconstructed breast and a dynamic recording after the introduction of a cold challenge. These measurements can help visualize arterial or venous thrombosis and potential necrotic area(s) before clinical observation.

1.1.2. Skin Tissue Identification

The cooling of the skin lesion is necessary to create a thermal contrast to be able to differentiate between unhealthy and healthy skin. Magelhaes et al. [10] cool the lesions with the use of an aluminium medal. Godoy et al. [11] tested a Ranque–Hilsch vortex tube but replaced it with a commercially available AC unit due to its portability and ease of use.

1.2. Measurement Setup

1.2.1. DIEP Flap Breast Reconstruction

Weum et al. [9] describe in their work the use of an IR camera mounted on a tripod with an overhanging beam to do preoperative measurements. In their work, no measurement setup is described for peroperative measurements.

1.2.2. Skin Tissue Identification

During measurements for skin cancer identification, the IR camera is mostly mounted on a tripod [4]. Involuntary body movements are difficult to suppress while having a complex body position or while standing straight. This leads to degrading imaging quality. Magelhaes et al. [10] make use of a hand-held IR device that solves the problem of hard-to-reach skin lesions but makes it difficult to keep the measuring parameters, such as the distance to the object or angle, constant.

This manuscript focuses on the steps taken towards an optimised thermography measurement setup for biomedical applications. On one hand, the external stimulation of the body has a remarkable influence on the induced thermal contrast and should therefore be optimised. On the other hand, the used measurement hardware affects the possibility of performing accurate and consistent measurements. A standardised inspection protocol and setup enables comparing data sets between different measurements.

2. Materials and Methods

2.1. DIEP Flap Breast Reconstruction

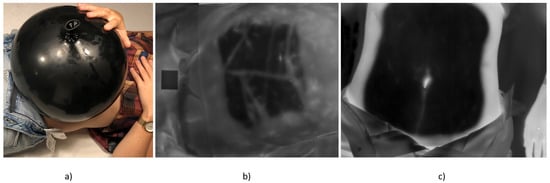

During the DIEP flap breast reconstruction, the measurements are performed using a long-wave thermal camera mounted on a long beam tripod, as can be read in [2]. The used camera is the Xenics Gobi 640 camera, which is a microbolometer working in the 8–14 $\mathsf{\mu }$m range. The camera is mounted perpendicular to the patient’s abdomen in order to obtain a clear view of the whole region of interest. The abdomen is cooled with a bag of ice water for 3 min, and afterwards, images are captured at 50 Hz for 5 min. The plastic bag cools down the abdomen correctly, without creases, if handled with care. Test measurements to cool the abdomen with a balloon filled with ice water are in progress. This technique has the advantage that no creases can form during cooling in comparison to a sterile plastic bag, as shown in Figure 2.

2.2. Skin Tissue Identification

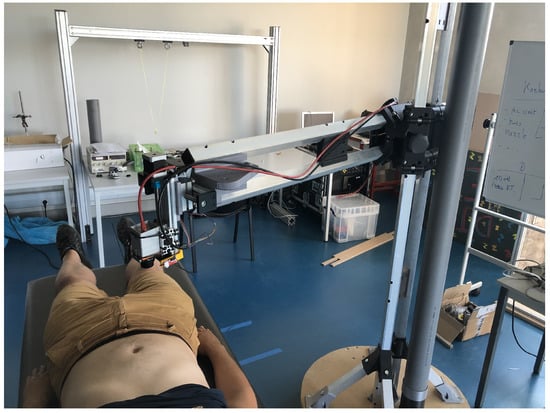

In the context of skin tissue identification measurements, several thermal cameras have been compared: the Xenics Gobi 640 camera, as used in Section 2.1, as well as a FLIR A700 camera. Both cameras function in the long-wave infrared spectrum between 8 and 14 $\mathsf{\mu }$m. The camera is mounted on a stand specifically designed and built for biomedical applications, as can be seen in Figure 3. The vertical linear guide rails at the end of the mount arm makes it possible to keep the camera located at a fixed distance from the skin. This is especially necessary if the FLIR A700 is used in combination with a macro lens. The region of interest containing the abnormal skin lesion is indicated using a semi-flexible leather square or plastic marker to make the ROI visible in the IR region. Different skin cooling methods are used, such as fan cooling, cooling with an aluminium plate, and cooling with a gel pack for various cooling times between 30 s and 90 s.

3. Conclusions

In order to be able to compare measurements taken at different moments, a generalised optimal measurement setup and protocol is necessary. Comparing different cooling techniques and cooling times resulted in finding the best suitable cooling protocol for thermal measurements during DIEP flap breast reconstruction surgery and for skin tissue identification. For both medical procedures, the measurement hardware was reviewed and optimised in order to increase the accuracy and repeatability of the measurements. For DIEP flap breast reconstructions, the hardware setup consists of only a long beam tripod resulting in static measurements, but for skin tissue identification, the mount is accommodated with a linear guide in order to provide a fixed measurement distance automatically.
