Rehydration Properties of Whey Protein Isolate Powders Containing Nanoparticulated Proteins

Abstract

The rehydration properties of original whey protein isolate (WPI_C) powder and spray-dried WPI prepared from either unheated (WPI_UH) or nanoparticulated WPI solutions were investigated. Nanoparticulation of whey proteins was achieved by subjecting reconstituted WPI_C solutions (10% protein, w/w, pH 7.0) to heat treatment at 90 °C for 30 s with no added calcium (WPI_H) or with 2.5 mM added calcium (WPI_HCa). Powder surface nanostructure and elemental composition were investigated using atomic force microscopy and X-ray photoelectron spectroscopy, followed by dynamic visualisation of wetting and dissolution characteristics using environmental scanning electron microscopy. The surface of powder particles for both WPI_UH and WPI_C samples generally appeared smooth, while WPI_H and WPI_HCa displayed micro-wrinkles with more significant deposition of nitrogen and calcium elements. WPI_H and WPI_HCa exhibited lower wettability and solubility performance than WPI_UH and WPI_C during microscopic observation. This study demonstrated that heat-induced aggregation of whey proteins, in the presence or absence of added calcium, before drying increases aggregate size, alters the powder surface properties, consequently impairing their wetting characteristics. This study also developed a fundamental understanding of WPI powder obtained from nanoparticulated whey proteins, which could be applied for the development of functional whey-based ingredients in food formulations, such as nanospacers to modulate protein–protein interactions in dairy concentrates.

1. Introduction

Whey protein ingredients, such as whey protein isolate (WPI), have a wide range of applications in food formulations due to their diverse techno-functional and nutritional properties [1]. The functionality of whey proteins can be tailored for applications such as fat mimetics and encapsulation, through processes such as heat treatment, high-pressure processing or enzymatic treatment. Applying such treatments separately or in combination to WPI solutions prior to drying leads to the development of novel WPI powders with unique functional properties, customized for specific applications [2,3]. This has aided the response to the continual demand by the food industry for ingredients with tailored functionalities [4] driven by cleaner labels, diversification into new markets and regulatory considerations [5]. However, understanding the rehydration properties (i.e., wetting, swelling, sinking, dispersion and dissolution characteristics) of novel WPI powders is required to underpin their potential applications in food formulation. It is well-established that wetting is the rate-limiting step during rehydration for WPI powders and poor wetting is most often manifested as powder clump formation on the surface of water [6].

The poor wetting properties of WPI powders arise from hydrophobic protein chains leading to the formation of large aggregates and coating of powder particle surfaces with lipids [7,8]. In addition, processing and storage conditions influence the microstructural properties of WPI powders. For example, WPI samples prepared at pH 6.5 exhibited a loss of soluble protein from 90 to 23% during 24 h of dry heating at 100 °C, as a result of denaturation and aggregation of whey proteins, leading to increased aggregate size from 56 to 220 nm through the formation of complexes [9]. Heat-induced alteration of WPI increases the surface hydrophobicity, with consequent impairment in rehydration characteristics of these powders [10]. Furthermore, denaturation and aggregation of whey proteins is favoured when the electrostatic repulsion between molecules is decreased through solvent conditions (e.g., pH, ionic strength, presence of cations), resulting in changes in protein molecule/aggregate size, microstructure, reactivity and colloidal stability [9,11]. Thus, whey protein aggregate size and related surface reactivity can be controlled by heating temperature (72 to 85 °C) and level of divalent cations (2.2 mM/L Ca²⁺) in the solution leading to the formation of protein complexes via salt bridges [12]. More specifically, a previous study has shown that aggregated whey protein particles in the micrometre (>1 µm; i.e., microparticulation) or nanometre (<1 µm; i.e., nanoparticulation) scales can be formed depending on the processing parameters (72–85 °C, 0–2.2 mM calcium), whey protein concentration and pH (in the range 2.5–6.5) [9,12]. Such alterations to the surface structures and aggregate size may influence water penetration, and thereby swelling, of such powders in water, impacting their rehydration performance. The subject of previous studies focusing on the improvement of rehydration properties include microfluidization [13], microparticulation [14], high-pressure treatment [15] and conjugation [16]. The previous study from our group showed the modulation of whey protein aggregate size through heat treatment and solvent conditions (e.g., Ca concentration) [17] and application of such aggregates in an infant milk formula system showed potential improvement of processing performance of the solution [18].

The influence of the process on powder properties and, consequently on rehydration characteristics, can be established by measuring the powder surface composition and imaging their micro-and nano-structures. The application of microscopic techniques facilitates understanding of the changes of the physical, structural and functional (e.g., swelling, wetting and/or dispersion) properties of powders during their rehydration [19]. Particularly, the utilisation of Environmental Scanning Electron Microscopy (ESEM) facilitates the analysis in situ of the powder particle morphological and physical changes in real-time and at high resolution during hydration and reconstitution [20]. Moreover, topographical assessment of powders using atomic force microscopy (AFM) provides 2- or 3-dimensional insights on powder surface structures [10], while X-ray photoelectron spectroscopy (XPS) reveals elemental composition at the powder surface [7]. Recent developments in sound-based technology can calculate gas (i.e., air) release from powder particles by measuring the frequency of sound through powder dispersion, which is linked to water transport properties during rehydration [21,22]. While the functional properties and applications of microparticulated whey proteins are reasonably well studied, the functionality, or surface properties of powder particles, of nanoparticulated whey protein powders is largely unknown. The utilisation of advanced analytical techniques facilitates the understanding of powder properties and their rehydration characteristics, as influenced by novel processes such as nanoparticulation of whey proteins prior to drying.

The overall objective of this study was to investigate the rehydration properties (wetting, swelling, dispersion and dissolution) of WPI powders produced from nanoparticulated whey proteins through heat- and mineral-induced denaturation and aggregation (90 °C, with or without 2.5 mM added calcium) and to compare them with an unheated WPI powder. This study will further the understanding of how nanoparticulation of whey proteins prior to spray-drying influences microstructure, powder surface structures, and the rehydration properties of resultant WPI powders. Such novel whey protein-based dairy ingredients can be applied in food formulations as thermally and colloidally stable alternatives to native whey protein, reducing subsequent protein–protein interactions.

2. Materials and Methods

2.1. Materials

Whey protein isolate (WPI_C; BiPro^®) powder was provided by Agropour (Saint-Hubert, Longueuil, QC, Canada). Calcium chloride (1 M), and all other chemicals and reagents, were obtained from Sigma-Aldrich (St. Louis, MO, USA).

2.2. Powder Preparation

The production of WPI powders prepared from nanoparticulated whey proteins was performed as described previously [23]. Briefly, WPI_C powder was rehydrated in ultrapure water at 10% (w/w) protein while stirring suspensions using an overhead stirrer at 150 rpm for 2 h at 25 °C, after which dispersions were adjusted to pH 7.0 using 1 N HCl/NaOH, and rehydrated overnight at 4 °C. Three WPI solutions were prepared under different thermal treatment conditions and calcium additions to target different extents of denaturation and aggregation of the whey proteins, informed by results of a preliminary study [23]. Samples generated were: an unheated WPI solution (WPI_UH), WPI solution heated (90 °C for 30 S) without added calcium (WPI_H) or heated with 2.5 mM added calcium (WPI_HCa). For WPI_Hca, 1 M CaCl₂ solution was added to ultrapure water to prepare a 2.5 mM solution in which WPIc powder was solubilised. Thermal treatments were applied in a continuous flow manner (1 L/min) using a high-temperature short-time Microthermics instrument (Microthermics, Raleigh, NC, USA) to batches of 60 L each. Solutions (~10.6% total solids) were spray-dried using a single-stage Niro 25 dryer (GEA, Søborg, Denmark) with inlet and outlet temperatures of 180 and 80 °C without pre-concentration to prevent any further aggregation; dryer inlet and outlet temperatures were chosen to target 4–6% moisture in final powders.

2.3. Composition of Whey Protein Isolate Powders

Protein content was determined by Kjeldahl method with nitrogen-to-protein conversion factor 6.38 [24] and moisture content using an oven-drying method at 103 °C [25].

2.4. Surface Elemental Composition of Whey Protein Isolate Powders

Surface elemental composition of WPI powders was determined using an X-ray photoelectron spectrophotometer (XPS) as described by McCarthy et al. [26]; briefly, a Kratos Axis 165 XPS (Kratos Analytical, Manchester, UK), with a monochromatic Al Kα X-ray source (1486.58 eV) at 150 W (15 kV, 10 mA), was utilised and the powder samples were attached to the sample holder prior to analysis using double-sided conductive tape.

2.5. Surface Topography of Whey Protein Isolate Powders

Topographical scans of WPI powders were acquired utilising AFM (Molecular force probe-3D, MFP-3D™, Oxford Instruments, Santa Barbara, CA, USA). Powder particles were sprayed using the sample dispersion unit of a Malvern morphology G3 instrument (Malvern Instruments Ltd., Worcestershire, UK) at 6 bar air pressure. Particles were adhered to a mica surface, which was fixed onto a glass slide with epoxy glue and samples were observed using light microscopy to ensure the powders were not masked by epoxy glue. The probe used was a micro-fabricated, Si-cantilever with a pyramidal tip (Oxford Instruments, Santa Barbara, CA, USA). Optical lever sensitivity calibration was established by averaging 100 force curves on a freshly cleaved mica surface [27]. The spring-constant (k) of the tip ranged between 2.4–2.8 N/m. The topographical studies were performed in intermittent-contact mode (AC-mode) in air. For topography, the surface was scanned for 10 µm × 10 µm and 4.7 µm × 4.7 µm, with a resolution of 512 × 512 pixels. Image acquisition and data analysis was performed using software Asylum Research (Ver. 16.29.232) based on lgor Pro (Ver 6.32).

2.6. Wettability and Dissolution Characteristics of Whey Protein Isolate Powders

The wettability of WPI powders was measured gravimetrically using a modified immersional wetting approach [28,29]. Powder samples were poured onto ultrapure water and allowed to wet and sink for 1 h. Powder that remained on the water surface was carefully removed with a spoon, weighted and dried overnight at 105 °C. The mass of final powder was calculated by subtracting the mass of moisture and wettability (%) was calculated from the mass of powder remaining on the water surface. The dissolution properties were assessed based on the amount of insoluble sediment formed after rehydration of WPI powders in water. WPI powder (6.0 g) was added to ultrapure water (100 mL) at 25 °C in a graduated centrifuge tube, together with an anti-foaming agent (Foamtech, FGA 0.1) and blended for 90 s in a solubility index meter using ~43 cm diameter rotor (Labinco BV, Breda, the Netherlands). Solutions were left to disperse for 15 min and gently stirred with a spatula in a reproducible manner before pouring an aliquot (50 mL) into a graduated glass centrifuge tube. After centrifugation (~350× g) for 5 min, the supernatant was removed, and distilled water was added to the sediment, up to the 50 mL line, before re-centrifugation (5 min). The amount of sediment in the final 50 mL solution was measured visually using graduations on the centrifuge tubes [30].

2.7. Powder Particle Morphology, Wetting, Swelling, and Dissolution

2.7.1. Scanning Electron Microscopy

WPI powders were dried at 102 °C for 4 h in an oven to remove moisture. The samples were mounted on aluminum stubs using a double-sided adhesive carbon disk and sputter-coated with a thin layer of gold/palladium using a Polaron E5100 sputter coater unit (Quorum Technologies Ltd., Sussex, UK). Morphology and surface structures of the samples were observed with a FEI Quanta™ 200 (FEI Company, Eindhoven, the Netherlands) scanning electron microscope (SEM) operating at 10 kV and magnification 800×. All images were captured using the integrated imaging software xT microscope control and a charge-coupled device (CCD) camera.

2.7.2. Environmental Scanning Electron Microscopy

For the hydration properties of WPI powders, samples were prepared and analysed based on an ESEM technique described previously by Cenini et al., [20]. Briefly, WPI powder samples were dried in an oven (102 °C, 4 h) and stored in a sealed desiccator over a saturated aqueous solution of lithium chloride (relative humidity, RH ~11% at 5 °C). Before imaging, powders were uniformly placed on double-sided carbon tape, attached to a copper stub (3205c Agar Scientific, Stansted, UK). The stub was mounted on a pre-cooled (5 °C) Peltier cooling stage fitted inside the microscope chamber. All observations were performed using an FEI Quanta^TM 200 SEM (FEI Company, Eindhoven, the Netherlands) equipped with a 500 µm aperture gaseous secondary electron detector using the following parameters: accelerating voltage 10 kV, spot size 3, magnification 800×, working distance 7.4 ± 0.6 mm and 0.1 ms scanning speed, at a constant temperature of 5 °C. Images were taken using xT microscope control software and a CCD camera. After the initial chamber pressure was achieved (100.0 Pa, 5 °C, ~11% RH), the RH was increased in 5% increments at 5 min intervals, starting from 15% RH. After reaching saturated water pressure (906.6 Pa ≥ 100% RH), the samples were held at this RH for 60 min. During this time, water started to form on the stub’s surface, eventually covering the sample entirely. The RH was then slowly decreased to the initial RH and the powder residue was imaged.

2.7.3. Particle Wetting and Dissolution Analysis by Light Backscatter Analysis

The colloidal properties of an aqueous system were measured based on the backscattering (BS) properties of samples exposed to pulsed near-infrared light (λ = 880 nm), exploiting the principle that larger particles in a dispersion scatter light more intensely [31]. In this study, WPI powder (0.8 g) was dispensed onto ultrapure water (20 mL, 25 °C) in glass vials (40 mm height), simulating the parameters for measuring powder wettability in the GEA Niro A 5b method [29]. Measurements of BS were taken every 30 s over a 1 h period, across the vertical axis of a glass vial (scanned at every 40 µm distance), utilising a Turbiscan™ LAB stability analyser (Formulaction, Toulouse, France). The acquired BS data of the powder dispersion were analysed using the integrated software package, the BS spectra were averaged and changes in BS (ΔBS) of spectra were calculated for each sample as given in Equation (1).

$$\Delta \mathrm{BS}=\left(B{S}_{t2}-B{S}_{t1}\right)/(t_2-t_1)$$

(1)

where, BS is backscattering at the given time (t₁ = 0, t₂ = 60 min).

As a comparator for the dispersibility of WPI powder for all treatments, a fully dissolved WPIc sample (WPI_D, 4% total solids) was used as a reference. Wetting properties were compared from the spectral region at the top 10 mm segment (40–31 mm height), while for dissolution properties, the spectral region of the segment between 30 to 0 mm was analysed.

2.7.4. Acoustic Resonance Dissolution Spectroscopy for Occluded Gas Release

The dissolution properties of WPI powders were assessed using a real-time recording of the changes in gas release from WPI powder samples during rehydration using Broadband Acoustic Resonance Dissolution Spectroscopy (BARDS; BARDS Research Centre, University College Cork, Cork, Ireland). BARDS measures the changes in sound frequency (0–20 kHz) in the presence of air bubbles that are released from powder particles during rehydration. The samples were prepared as described by Vos et al. [21]; briefly, the steady-state frequency of agitated ultrapure water (25 mL) at ~20 °C was measured for 30 s before 0.05 g (0.2% total solids) of powder was poured onto the water surface which was stirred at a constant rate to create a gentle vortex. The measurement is considered complete when the occluded gas escapes from the solvent and the sound frequency returns to the initial steady state. Extraction of frequency data from fixed time points based on the total time of the trial was carried out using the BARDS 0.9v software [8].

2.7.5. Measurement of Ion Release from Powder Particles

The release of ions in the dispersant solution during powder rehydration was assessed by monitoring conductivity of the solution using a conductivity probe connected to a Titrando auto titrator (Metrohm Ireland Ltd., Athy Road, Co. Carlow, Ireland) at 25 °C. Powder was dispersed at the rate of 1.25% TS (w/v) into 300 mL of ultrapure water, with the impeller speed adjusted to avoid vortex and foam formation. Conductivity was measured at 2 s intervals over 50 min [32].

2.8. Data Analysis

Spray-dried powders were manufactured and sample analysis was conducted in triplicate. Where applicable, the data generated were subjected to one-way ANOVA to determine statistically significant differences at a 95% confidence level (p < 0.05) using Microsoft Excel. A Tukey’s honesty significant difference test was used for sample comparison. Results are expressed as mean ± standard deviation, with statistically significant differences identified using superscript letters.

3. Results and Discussion

3.1. Powder Chemical, Bulk and Surface Composition

In an effort to specifically study the influence of nanoparticulation on physical and rehydration properties of the WPI powders, it was important that all powders had similar composition. The protein (w/w) percent of WPIc, WPI_UH, WPI_H and WPI_HCa was 94.6 ± 1.61, 89.5 ± 0.21, 90.6 ± 0.08, and 91.3 ± 1.39, respectively, while their moisture content was 3.81 ± 0.22, 5.0 ± 0.41, 6.28 ± 0.42, and 5.30 ± 0.20%. The extent of whey protein denaturation in WPI_UH, WPI_H and WPI_HCa was 3.20, 64.4 and 74.4%, while the size of whey protein particles/aggregates in solution was 7 ± 5.4 nm for WPI_C and WPI_UH, 114 ± 8.3 nm for WPI_H and 132 ± 6.7 nm for WPI_HCa, as a result of denaturation and aggregation [23]. The respective levels of denaturation of α-lactalbumin in the samples were 2.20, 44.5 and 54.8%, while the corresponding values for β-lactoglobulin were 3.60, 70.8 and 80.7% [23].

Nanoparticulation of whey proteins influenced the elemental composition (carbon, nitrogen, oxygen, calcium) of the surface of the subsequent powders (

Table 1. Elemental composition of the surface (10 nm depth) as determined using X-ray photoelectron spectroscopy in terms of oxygen, carbon, nitrogen, and calcium of 4 whey protein isolate powders, control (WPI_C), unheated (WPI_UH), heated prior to drying (WPI_H) and heated with calcium prior to drying (WPI_HCa).

	Relative Atomic Concentrations (%)
Powder	Oxygen	Carbon	Nitrogen	Calcium
WPIC	15.3 ± 0.4 b	69.7 ± 0.6 a	13.5 ± 0.6 b	0.0 b
WPIUH	17.3 ± 0.3 a	66.9 ± 0.4 b	13.3 ± 0.4 b	0.0 b
WPIH	17.4 ± 0.3 a	67.4 ± 0.4 b	14.1 ± 0.1 a	0.3 ± 0.1 a
WPIHCa	17.5 ± 0.3 a	67.2 ± 0.4 b	14.1 ± 0.4 a	0.2 ± 0.1 a

^a,b Means with different superscript letters within same column are significantly different p < 0.05.

). The oxygen content (%) of WPI_UH (17.3), WPI_H (17.4) and WPI_HCa (17.5) were similar, while the oxygen content was significantly lower (p < 0.05) in WPI_C (15.3) than in the other powders. The carbon content (%) of WPI_H (67.4), WPI_HCa (67.2) and WPI_UH (66.9) was similar, whereas WPI_C (69.7) had significantly higher (p < 0.05) carbon content. The nitrogen and calcium contents at the surface of WPI powders were similar in heated samples (WPI_H and WPI_HCa), while the contents in unheated samples (WPI_C and WPI_UH) were significantly lower (p < 0.05). The results from the current study indicate that thermal treatment (WPI_H vs. WPI_UH) altered the proportion of nitrogen and calcium at the surface of WPI powders, whereas there was no evidence of such an effect on increasing calcium content (WPI_H vs. WPI_HCa; Table 1). This suggests that heat-induced aggregation of whey proteins altered the surface composition of resultant powders because more nitrogenous materials (protein) were concentrated at the powder surface. A previous study based on spray-dried WPI powders demonstrated that 30% of the power particle surface was covered by lipid [7]. More nitrogenous material on the surface of the spray-dried WPI powders in the present study was probably due to larger aggregates, covering a greater proportion of total surface area of the powder, which buried minor components (lactose, fat and minerals) inside. Interestingly, the values for elemental composition in WPI powders reported in the current study were comparable to those reported in previous studies involving WPI powders [7,33].

3.2. Powder Surface Structure

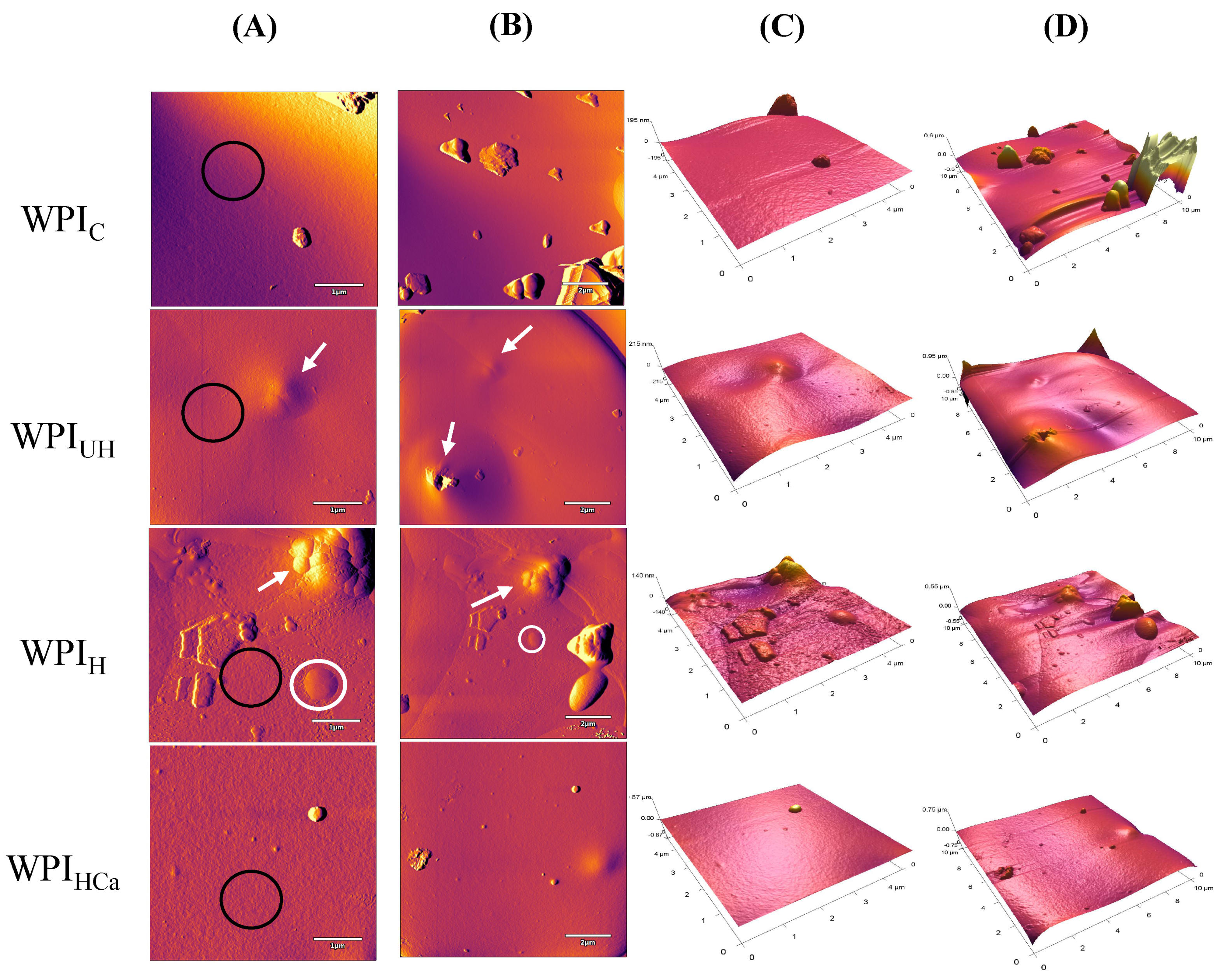

The morphological characteristics of WPI powders were reported in a previous study, showing powder particles in WPI_C and WPI_UH to be smooth, while powder particles in WPI_H and WPI_HCa had more shallow protrusions and broken structures [23]. Noteably, differences between WPI_c and WPI_UH were expected to be minimal, as both powders did not contain nanoparticulated whey proteins, with the powders differing only in the scale of drying technology used (i.e., industrial- and pilot-scale, respectively). In-depth topographical scans in two dimensions (amplitude image) and three dimensions (height image) on the powder particle surface obtained from AFM are shown in Figure 1. Topographical scans at 4 µm² resolution revealed WPI_C and WPI_HCa particles displayed micro wrinkles, WPI_H had both micro wrinkles and protrusions, while WPI_UH had a relatively smooth surface (Figure 1A,C); these results were confirmed with analysis of section lines of each sample (data not shown). The root mean square width of wrinkles (roughness) of WPI_C, WPI_UH, WPI_H, and WPI_HCa, was approximately 4.35 ± 1.24 nm, 0.35 ± 0.28 nm, 6.20 ± 2.4 nm, and 5.57 ± 1.92 nm, respectively. The results showed that the surface roughness of WPI powder particles was affected by the level of whey protein nanoparticulation, although it is less clearly discernible in the images (Figure 1).

The differences were more apparent at 10 µm², whereby WPI_C particles had smooth surfaces and protrusions, WPI_UH had smooth surfaces, WPI_H had a mix of smooth surfaces, micro wrinkles, extensive cracks and protrusions (as reported by Burgain et al. [10]), whereas WPI_HCa had more micro wrinkles and an apparent lack of any smooth areas on the surface (Figure 1B,D). The results presented in the current study show that spherical protrusions appeared embedded on WPI_H (Figure 1A,B, white circles), indicative of the formation of non-uniform structures during the drying process. It also demonstrates that the thermal treatment used induced the formation of micro wrinkles, and that the addition of calcium inhibited the formation of such protrusions. Nanoparticulation of whey proteins resulted in wrinkled surface microstructures in the subsequent WPI powders, similar to those reported by Burgain et al. [10], who investigated the effect of heat and aging on WPI powder surface structures. The AFM and XPS analysis showed that WPI powder prepared from nanoparticulated whey proteins, through heat- and mineral-induced aggregation, results in the surface being more dense with protein components, which could play a key role in the rehydration properties of these powders.

3.3. Rehydration Characteristics of WPI Powder

3.3.1. Powder Wetting and Dissolution

The results for wetting (proportion of powder particles that did not sink in ultrapure water at ambient temperature over 1 h) and dissolution characteristics of the WPI powders, as influenced by nanoparticulation of whey proteins, are shown in

Table 2. Wettability and insolubility measurements in ultrapure water dynamically over 50 min at 25 °C for whey protein isolate powders, original WPI (WPI_C), unheated (WPI_UH), heated (WPI_H) and heated with calcium prior to drying (WPI_HCa).

WPI Powders	Wetting (% w/w)	Insolubility Measurement (mL/50 mL)
WPIC	66.5 ± 2.5 b	<0.1
WPIUH	99.9 ± 0.1 a	<0.1
WPIH	19.1 ± 1.6 c	<0.1
WPIHCa	12.5 ± 1.6 c	0.2

^a–c Means with different superscript letters within same column are significantly different p < 0.05.

. Unheated samples (WPI_UH and WPI_C) wetted faster (99.9% and 66.5%, respectively) than heated samples (WPI_H and WPI_HCa), with wettability being 19.1 and 12.5%, respectively, indicating that nanoparticulation of whey proteins as a result of thermal treatment and calcium addition led to the powders having poor wetting properties. Dairy powders generally display poor wettability characteristics when hydrophobic components are concentrated at the powder particle surface, limiting water permeation into the powder particle [6]. The significantly poorer wetting properties of powders prepared with nanoparticulated whey proteins was likely due to unfolding of hydrophobic protein domains at the surface of the aggregates as a result of denaturation. Nanoparticulation of whey proteins has previously been shown to confer enhanced techno-functional properties, in particular higher heat stability (with associated benefits for thermal processing), on whey protein solutions, arising from the modulation of protein–protein interactions [12].

On the other hand, the insolubility characteristics of WPI_C, WPI_UH and WPI_H were similar, with the volume of insoluble material being less than 0.1 mL/50 mL in solution, whereas this was slightly higher (0.2 mL/50 mL) for WPI_HCa than the other WPI powders. The current study showed that heat and mineral-induced aggregation of whey proteins prior to drying resulted in a slightly higher proportion of insoluble material during powder dissolution (Table 2). However, such small differences in insolubility are likely to have minimal effects on the overall dissolution performance of the different WPI powders produced in the present work.

3.3.2. Powder Particle Hydration

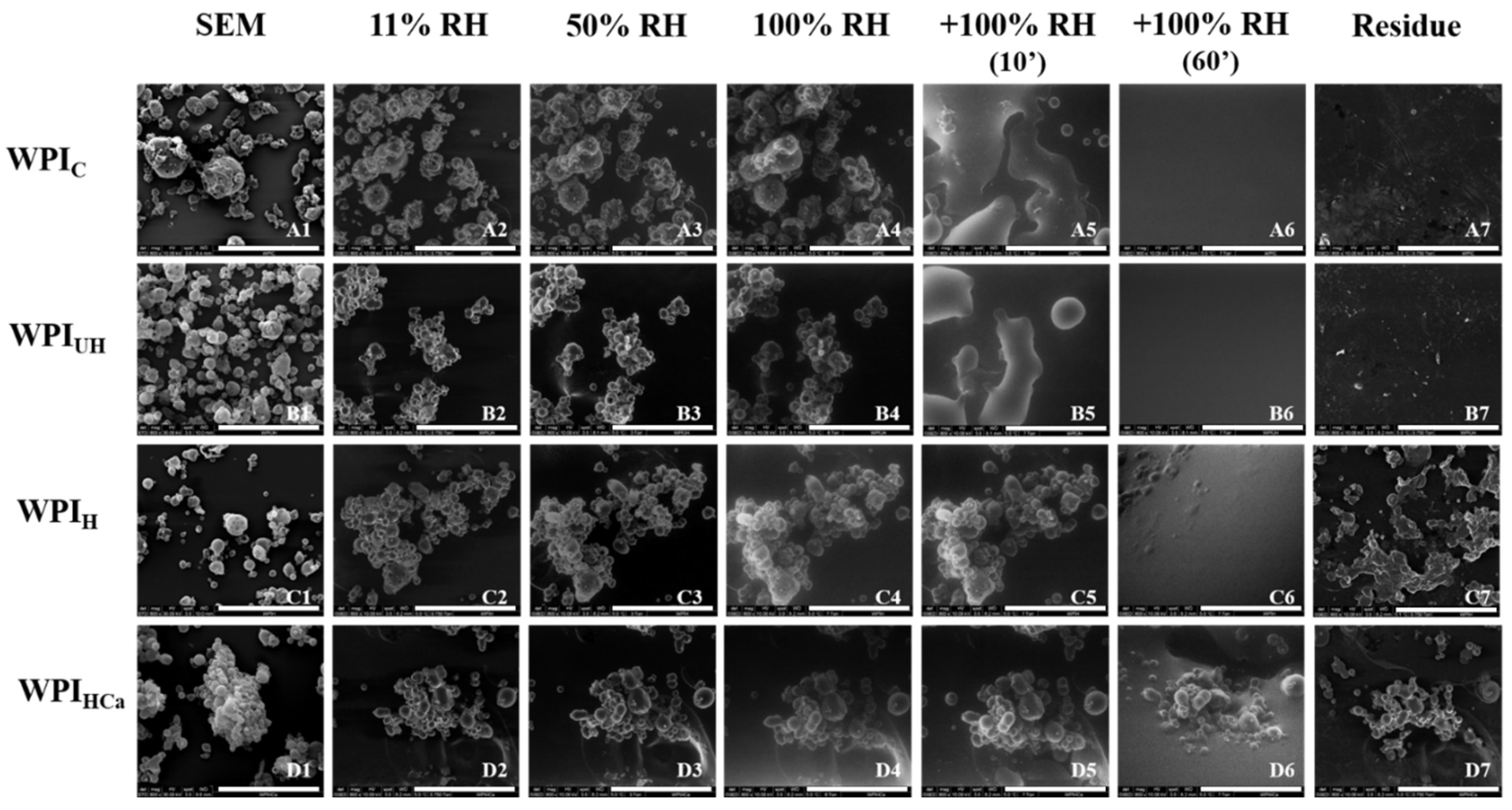

Using SEM, the surface microstructure of WPI_C and WPI_UH powder particles appeared smooth, while WPI_H and WPI_HCa had more shallow protrusions and broken structures (Figure 2(A1–D1)). All of the powders considered in this study showed signs of moisture sorption and slight swelling as RH increased from 11 to 100% using ESEM analysis (Figure 2(A2–D4)). Immediately after reaching 100% RH (867 Pa at 5 °C, Figure 2(A4–B4)), WPI_C and WPI_UH particles showed a rapid change in swelling rate, and after 10 min of exposure at 100% RH, they started to dissolve, completely losing shape and definition (Figure 2(A5–B5)). In contrast, WPI_H and WPI_HCa particles slowly swelled at 100% RH, and showed only a little dissolution, even at higher RH (>100%, 906.6 Pa at 5 °C) (Figure 2(C4,C5–D4,D5)). After 60 min at >100% RH (fully hydrated sample), WPI_C and WPI_UH had no visible particles on the formed water droplet, whereas partially dissolved WPI_H and WPI_HCa particles floated on top (Figure 2(A6–D6)). When the RH was returned to 11% RH (dry condition), and the resulting residue was imaged, WPI_C and WPI_UH had reasonably uniform residue with no visible particles (i.e., fully dissolved) (Figure 2(A7–B7)), while the residue for WPI_H and WPI_HCa exhibited particles with their original morphology still identifiable (Figure 2(C7–D7)). Shortening, or elimination, of swelling is generally linked to faster powder rehydration [34]. This indicates that the presence of thermal- and mineral-induced whey protein aggregates may increase the surface hydrophobicity, leading to lower accessibility of polar groups on powder surfaces for solvent to establish interactions, consequently inhibiting water uptake and hence powder particle swelling. Moreover, Hussain et al. [32] found the absence of powder swelling when secondary structures (i.e., α-helixes) of whey proteins are denatured.

3.3.3. Particle Dissolution by Backscattering Analysis

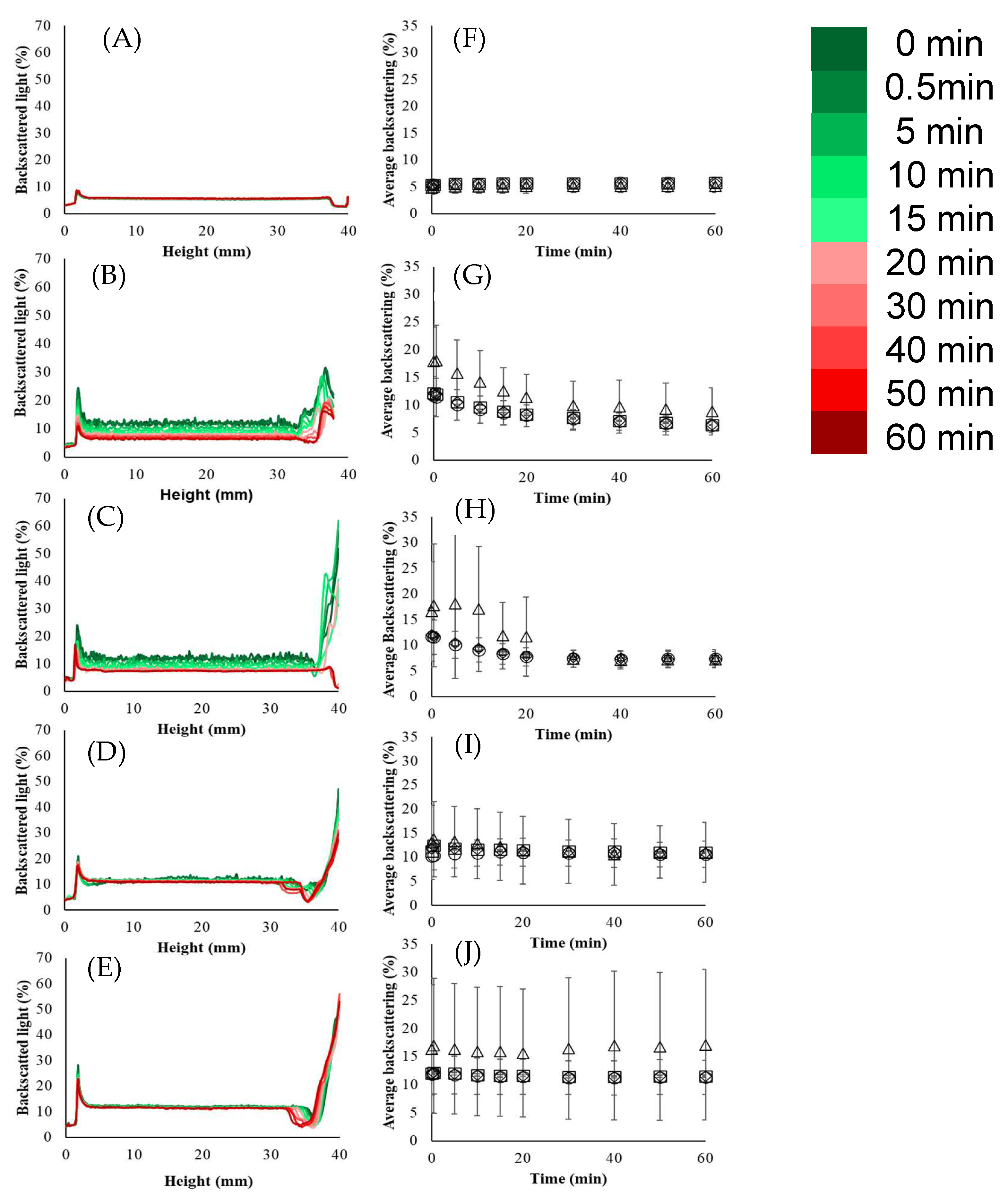

BS spectra and the calculated average backscattering (40 mm cell height over 1 h) of WPI_D and WPI powder samples for each treatment are shown in Figure 3, whereas the calculated average BS and ΔBS are shown in

Table 3. Average backscattering (%) of whey protein isolate (WPI) in deionized water at 25 °C measured after 1 h across the vertical axis of 40 mm cell. The samples are fully dispersed WPI solution (WPI_D), original control (WPI_C) powder, WPI powder prepared without heat treatment (WPI_UH), nanoparticulated powders prepared by heating prior to drying (WPI_H) or heated with calcium prior to drying (WPI_HCa).

Cell Height	WPID	WPIC	WPIUH	WPIH	WPIHCa
0–10 mm	5.7 ± 1.03	6.3 ± 1.28	7.4 ± 1.68	10.6 ± 2.69	11.3 ± 3.09
11–20 mm	5.7 ± 0.05	6.4 ± 0.08	7.5 ± 0.08	11.0 ± 0.10	11.6 ± 0.17
21–30 mm	5.6 ± 0.04	6.4 ± 0.09	7.4 ± 0.07	10.9 ± 0.11	11.6 ± 0.11
31–40 mm	5.1 ± 1.25	8.8 ± 2.43	7.2 ± 1.58	11.0 ± 6.20	17.1 ± 13.37

and Table S1, respectively. The BS spectra, and calculated average BS of WPI_D, were similar along all heights in the cell, representative of a stable dispersion after complete rehydration, similar to those reported in a previous study [35]. The BS of WPI_C, WPI_UH and WPI_HCa were similar within the 31–40 mm region, whereas WPI_H was lower (p < 0.05) compared to other WPI powders. As time progressed, the average BS of WPI_C and WPI_UH became more similar to that of WPI_D in all regions, whereas WPI_H and WPI_HCa remained significantly higher (p < 0.05) (Figure 3F–I). In general, after 1 h, the average BS and ΔBS of WPI_C (Figure 3B,G) and WPI_UH (Figure 3C,H) was significantly lower (p < 0.05), while the spectra of WPI_H (Figure 3D,I) and WPI_HCa (Figure 3E,J) remained comparable to those for WPI_D (Figure 3A,F) in all regions. Large standard deviation values in the 31–40 mm region resulted from the large concentration of powder at and near the surface of the water, contributing to a large amount of light being backscattered. Taken together, these data indicate that WPI_H and WPI_HCa powders had significantly (p < 0.05) inhibited particle migration from the top of the cell towards the bottom due to poor wettability characteristics. Moreover, the ΔBS of WPI_C and WPI_UH were negative in all regions (Table S1), and this is associated with the clarification (a type of particle migration from high to low concentration areas) of the solution, as shown in the work of Matsumiya et al. [36]. In this study, clarification can be related to wetting in the 31–40 mm region, and dissolution in all other regions. Comparing the BS of WPI_D at 1 h, it is evident that WPI_C and WPI_UH wetted and dispersed more quickly than WPI_H and WPI_Hca, as indicated by the lower values of % BS in the former samples (Table 3). It is clear from the results presented in the current study that the denatured and aggregated whey proteins at the WPI powder surface retarded sinking, likely due to poor instantaneous swelling and wetting properties.

3.3.4. Gas Release from WPI Powders during Rehydration

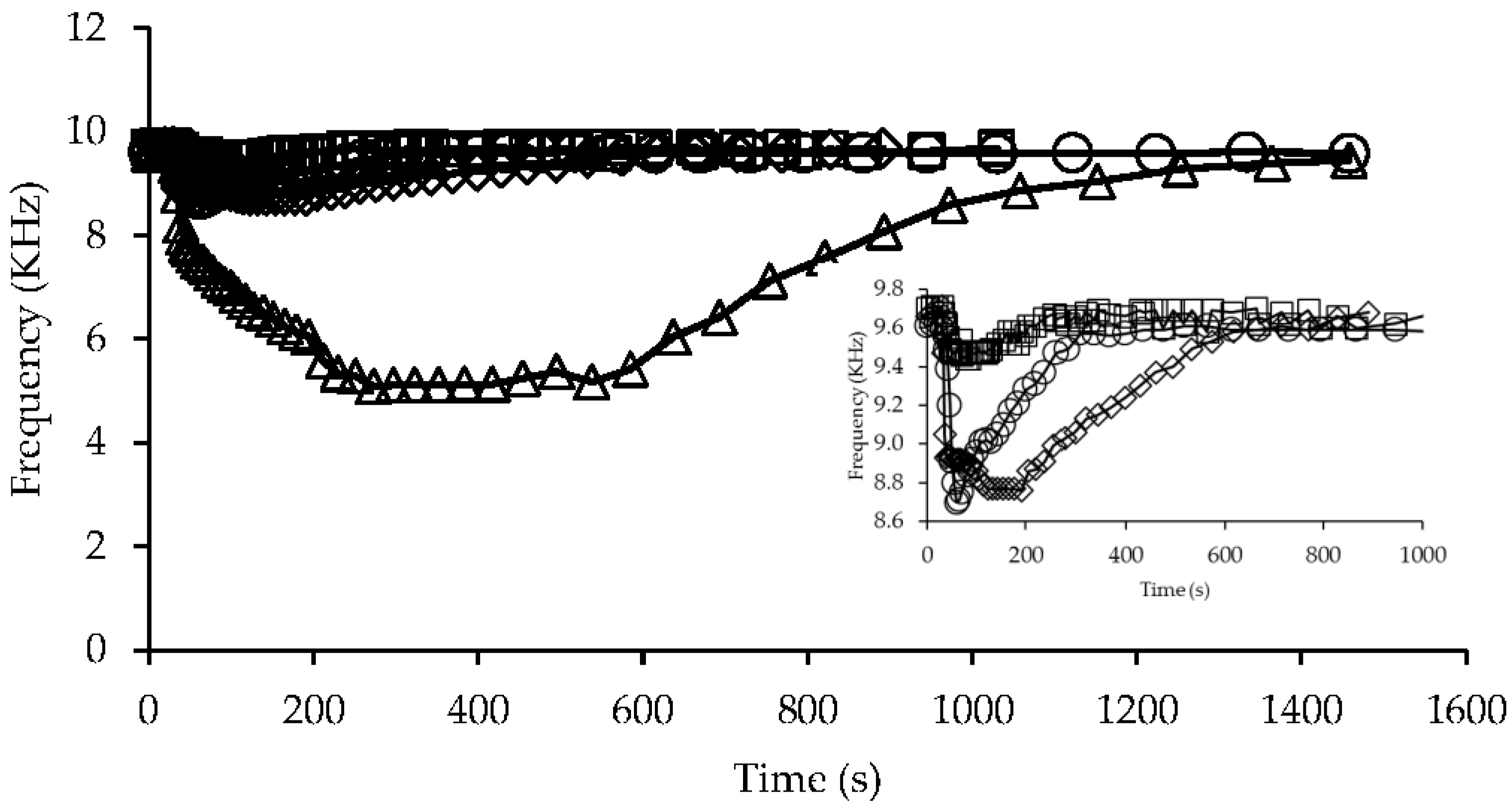

The acoustic frequency profiles of WPI_C, WPI_UH, WPI_H and WPI_HCA powder samples dissolved in ultrapure water are shown in Figure 4. In all dispersions, the frequency dropped to a minimum and slowly increased to the original steady-state, following the trend typically observed with dairy powders during rehydration [21,22]. The frequency drop was minimal for the WPI_UH dispersion (9.7 to 9.4 KHz), while WPI_C and WPI_H exhibited slightly greater frequency drops (9.6 to 8.7 KHz), with WPI_Hca displaying a significant frequency drop (9.6 to 5.08 KHz) (Figure 4). The frequency drop observed in the powder dispersions was due to the release of occluded and interstitial air in the dispersion, which is a balance between gas release from powder into the liquid and gas escape from liquid to the air [21]. The results show that WPI_UH, WPI_C and WPI_H had a relatively low volume of gas compared to WPI_HCa, as shown by a greater extent of frequency drop in the latter sample (Figure 4). The minimal frequency for samples WPI_C, WPI_UH, WPI_H and WPI_HCA was reached at 60, 80, 191 and 273 s, respectively, suggesting powders prepared with nanoparticulated whey proteins exhibited slower rates of gas diffusion into water, which is in agreement with the powder wettability characteristics. The acoustic frequency profiles demonstrate that nanoparticulation of whey proteins with heat and calcium prior to drying results in WPI powders with more occluded gas, possibly influencing the wettability, as occluded gas probably restricts water uptake in powder. This phenomenon may be explained by inward diffusion of a solvent through capillary networks, requiring replacement of occluded air; for powders containing higher levels of occluded air, capillary action could be retarded leading to slow wetting and sinking.

3.3.5. Mineral Release from WPI Powders

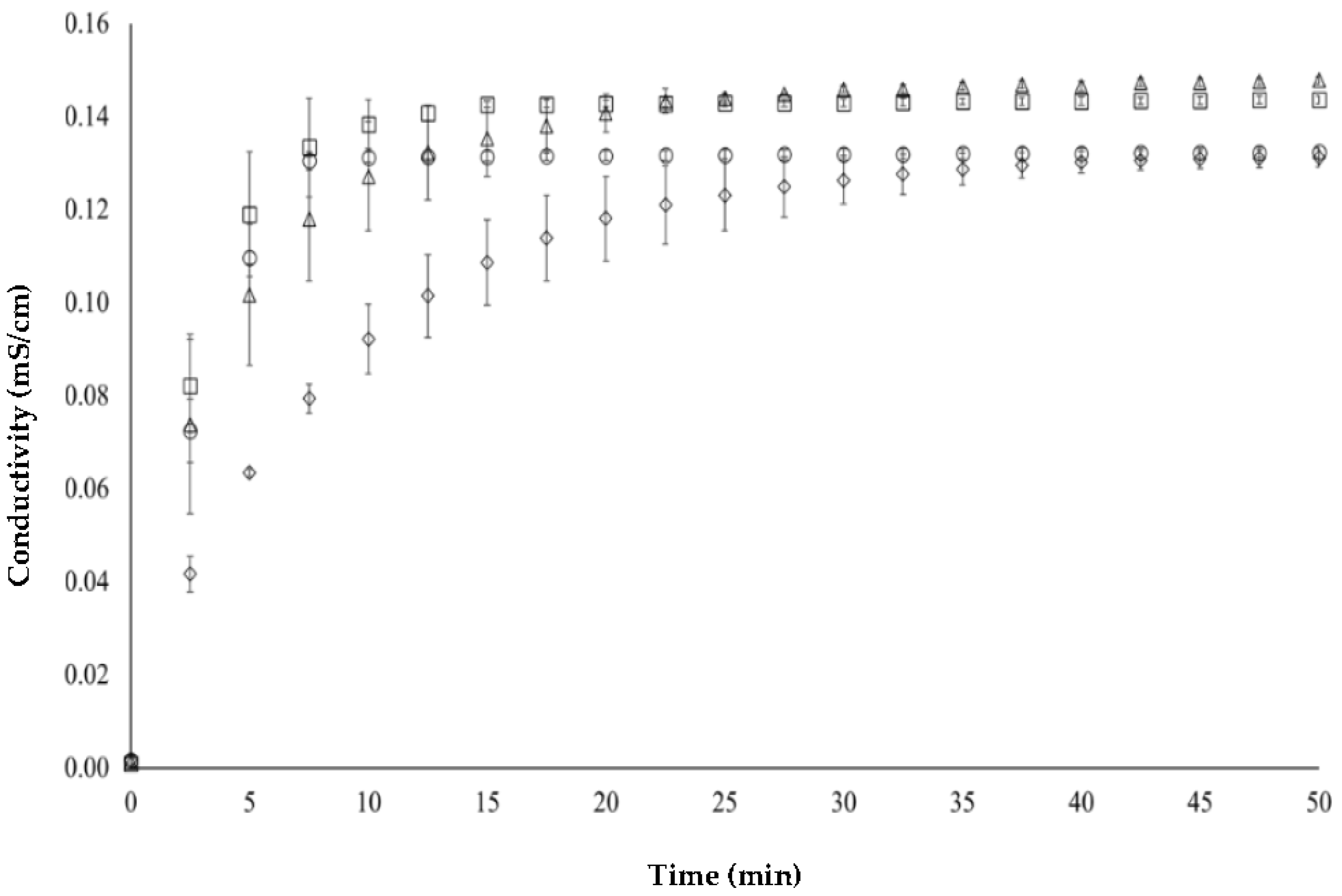

Conductivity in the dilute high-protein solutions with low ionic strength is mainly contributed due to anion and cation species [32]. The conductivity values of the WPI powder dispersions (indicative of mineral release) during the rehydration process increased initially and then remained in a steady-state (Figure 5). The dispersions of WPI_C, WPI_UH and WPI_Hca exhibited fairly similar increases in conductivity, then remained in a steady state after 15 min, whereas the dispersion of WPI_H showed a much slower increase in conductivity initially, taking 30 min to reach equilibrium. The slower rate of increase in conductivity for WPI_H dispersions, compared to WPI_UH, was possibly due to heat treatment applied during nanoparticulation, attributable to increased heat-induced protein-mineral interactions. Jambraka et al. [37] also studied the rehydration properties of WPI powders using ion release data from conductimetry and found lower conductivity values of WPI or WPC solutions when ultrasonicated, which provided an example for lower conductivity values possibly due to ion pairing and shielding with oppositely charged species.

4. Conclusions

The influence of nanoparticulation of whey proteins in solution, using heat- and mineral-induced controlled denaturation and aggregation, on physical and rehydration properties of the resultant WPI powders were assessed. XPS, AFM and ESEM analysis of powder surfaces showed that nanoparticulation resulted in WPI powders with more wrinkled powder particle structures, reduced wettability, greater inhibition of powder swelling, and higher levels of insoluble aggregates than the respective control WPI powder. The poor wetting properties of nanoparticulated WPI powders was likely due to higher proportions of protein at the powder surface, thereby reducing penetration and uptake of water. The results from the current study show that nanoparticulation of whey proteins modifies the surface properties of WPI powders, which influences the overall rehydration characteristics and mineral release, with important implications for applications of such powders, potentially including as nanospacers to modulate protein–protein interactions in casein-dominant powders, with associated rehydration and techno-functional benefits.
