Article

Fire, Rain and CO2: Potential Drivers of Tropical Savanna Vegetation Change, with Implications for Carbon Crediting

by
Greg Barber
1,*,
Andrew Edwards
2 and
Kerstin Zander
1
1
Northern Institute, Charles Darwin University, Darwin, NT 0909, Australia
2
Darwin Centre for Bushfire Research, Research Institute for the Environment and Livelihoods, Charles Darwin University, Darwin, NT 0909, Australia
*
Author to whom correspondence should be addressed.
Fire 2023, 6(12), 465; https://doi.org/10.3390/fire6120465
Submission received: 25 September 2023 / Revised: 20 November 2023 / Accepted: 4 December 2023 / Published: 7 December 2023
(This article belongs to the Special Issue Climate and Human-Driven Impacts on Tropical Rainforests)
Browse Figures
Review Reports Versions Notes

Abstract

:
A global trend of increasing tree cover in savannas has been observed and ascribed to a range of possible causes, including CO2 levels, changing rainfall and fire frequency. We tested these explanations in the Australian tropical savanna, taking 96 savanna ‘cool burning’ projects from Australia’s emissions offset scheme as case studies. We obtained readings of tree cover and explanatory variables from published remote sensing or spatial data sources. These were analysed using time-series linear regression to obtain coefficients for the influence of severe fire occurrence, annual rainfall and prior percentage tree cover. Although statistically significant coefficients for the key variables were found in only half (severe fire) or one quarter (rainfall) of the individual project models, when comparing all the model coefficients across the rainfall gradient, ecologically coherent explanations emerge. No residual trend was observed, suggesting rising CO2 levels have not influenced tree cover over the study period. Our approach models tree cover change by separating ecological drivers from human-controlled factors such as fire management. This is an essential design feature of national emissions inventories and emissions offsets programs, where crediting must be additional to the expected baseline, and arise from human activity.

1. Introduction

A global trend in ‘woody thickening’, or increasing tree cover in savannas and woodlands has been observed [1] and ascribed to a range of causes, from rising CO2 levels [2,3,4], to changing rainfall and fire frequency [4,5,6,7,8,9,10,11,12,13] and the impact of large herbivores [14].
In Australian tropical savannas, in the absence of traditional aboriginal burning practices, uncontrolled fire of higher severity occurs late in the dry season [15]. After the reinstatement of the practice of early dry season burning, fire intensity and potential fire frequency have been shown to be reduced, and may lead to an increase in the amount of carbon stored in living woody biomass [16]. However, the difficulty of separating the effects of human intervention from the variation in the natural baseline, or other possible trend drivers, makes it challenging to measure this additional carbon for emissions inventory or project crediting purposes [17,18,19,20,21].
A range of field studies have examined the dynamics of tropical savanna vegetation in Australia. Murphy et al. [11] analysed tropical savanna vegetation change via three on-ground surveys at five-yearly intervals in three Northern Territory national parks. Direct measurements of live tree basal area were converted via an allometric to tree carbon mass. Fire intensity and frequency were recorded and, along with gridded annual rainfall and site landform, were used as explanatory variables. The study observed very little change in total biomass at the sites over time. However, fire frequency and severity were found to be influential on the variation across the sites, causing a reduction in biomass predominantly in existing trees, rather than via impacts on mortality or recruitment. Frequent and severe fire was also observed to reduce tree growth increment in an earlier ten year study of plot-level measurements in Australian tropical savannas [22].
Using a LIDAR measure of savanna tree height and cover, lower above-ground biomass was observed in plots with higher fire intensity histories, [23]. Woody cover levels in 4000 ha of savanna in Kakadu National Park were studied [24] using aerial photographs between 1950 and 2016, and matched to a long-term record of fire history. No overall trend in woody cover over time was found at the site. Short term variation in cover was positively related to rainfall in the previous 12 months, and there were weak negative effects of fire occurring in the year of sampling and the previous 4 years. Tree cover expansion in tropical savannas in Litchfield National Park was observed over a 50-year period, from the interpretation of aerial photographs [4]. However, the study was unable to ascribe specific ecological factors to this observation. Tree cover changes over 40 years were found to track annual rainfall patterns [8] and, after controlling for rainfall, reduced tree cover was associated with higher fire frequency. In another approach, direct measurement of biomass by field sampling was compared with flux-tower measurements of gas exchange at a small number of sites in Australian tropical savannas [25] to estimate the drivers of carbon accumulation through net biome productivity
Rising atmospheric CO2 concentrations have been proposed as a driver of savanna tree cover expansion [2,3,26]. One possible mechanism is that steadily increasing CO2 levels are enhancing the water use efficiency of woody plants [27]. In that circumstance, the relationship between woody cover levels and annual rainfall would be expected to diverge over time, that is, tree cover might rise relative to the precipitation quantity. Contrasting this effect, it has been proposed that higher woody cover creates increasing competition between trees for available moisture [12,28], which may lead to the levels of tree cover increase reaching an upper limit.
Competition between trees and grasses are sometimes discussed as drivers of alternative stable states in savannas [29,30,31,32], with the implication that cover of either life form, once established, is likely to persist. A review of this extensively studied question [33] proposed a model of fire frequency and average rainfall ‘parameter space’ which could create stable states, or ‘bi-stability’, dependent on initial conditions and disturbance history. Sankaran et al. [34] makes the important observation that, in African savannas, rainfall may be the controlling variable for woody cover in arid and semi-arid zones, whereas periodic disturbances such as fire and herbivory become more important in ‘mesic’ savannas above 650 mm annual rainfall.
Factors generally not considered in this group of studies are the fire history of the sites, and the variation in topography or soil condition. All of these may impact on the potential for additional carbon storage after fire regime change [35,36].
Emissions crediting methodologies based on fire management in savannas have been implemented since 2015 under Australia’s emissions ‘offset’ scheme [37]. The program now covers around half of the area of the tropical savanna ecosystem [15] and has produced 12.9 million tonnes CO2-e of emissions abatement to date [38]. However, these methods only credit avoided emissions, where reduced fire intensity produces less of the more potent greenhouse gases, such as CH4 and N2O, and more recently, the accumulation of carbon in coarse ground fuels. It has been estimated [39] that the unmeasured annual sequestration benefit from Australia’s program could be 3.5 times the amount currently being credited. A recent study [40] used a demographic model derived from observed changes in field plots to predict increases in tree biomass, with an estimated crediting value three times that produced under the current method. Land-based crediting methodologies often use a baseline and credit approach [41]. The baseline is not the quantity of carbon present at the project site, but rather the ‘counter-factual’ that would have occurred over the project period, in the absence of human intervention.
The aim of this study is to derive an explanatory model that separates the possible drivers of changing woody vegetation cover in Australian tropical savannas [42] and generates ecologically coherent coefficients for these effects. Using insights from the literature, we collect observations or proxy variables for the important ecological factors, and construct time-series models for each of the registered savanna burning projects using stepwise regression. The objective is to isolate the effects of the fire management program from the ‘natural’ or baseline drivers. Where an increased living biomass is observed and can be demonstrated to be the result of a program of planned fire management [43], separate from the influence of climatic and climate-change variables, it may be possible to credit the additional carbon.

2. Materials and Methods

2.1. Study Sites

Our test sites were the 96 approved offset projects in the Australian tropical savanna ecoregion (Figure 1). The properties are under a range of tenures; national parks, indigenous management, private conservation reserves and pastoral leases. A total of 17 have had their project status revoked and 15 of the active projects had not been issued any offset credits during the study period.
The tropical savanna ecoregion [42] encompasses 1.2 million km2. Average annual rainfall is observed to increase when moving northwards, as woody vegetation cover increases [44]. Fire frequency, in broad terms, increases along the same gradient, varying from decadal to almost annual in the highest rainfall zones [45].

2.2. Data Collection

Polygons were obtained for each of the 96 offset project property boundaries [46]. Emissions crediting may occur for burning activities on a subset of land known as the Carbon Estimation Area, however, this boundary is not available to us. These polygons were used within QGIS [47] to sample the model explanatory variables which are provided in the form of raster layers, as detailed in Table 1 below.
The dependent variable in this study was the percentage or ‘fractional cover’ of photosynthetic vegetation [48] derived from Landsat data, now freely available in a series since 1987 at the 25 × 25 m pixel scale. As an estimate of woody vegetation, this study used the quarterly tile from September to November. In this region, grassy and herbaceous vegetation has dried off and is largely non-photosynthetic during this period, prior to the arrival of wet season rains. Changes in green woody vegetation cover levels may indicate either expansion or contraction of canopy cover by established trees, or recruitment or loss of new woody seedlings.
Data on fire severity [52] is available in spatial files for Australia’s tropical savannas for the period from 2003 to 2018, which limited our time-series model to 16 data points. This data set provides a classification of each pixel as severely or non-severely burnt, or unburnt, based on the extent of scorching of the tree canopy, which may influence photosynthetic potential and even tree mortality [52]. We preferred this to a severity estimate based on time of year [53] as it relies on direct observation of fire effects, and our testing of the data showed that severe fires, as measured by canopy scorch, can occur in all parts of the dry season [54]. Although this is a somewhat arbitrary cutoff and binary classification, there are technical difficulties with segmenting less severe fires into subclasses [54]. Remote sensing is from MODIS where pixels are approximately 100 times the size of the Landsat fractional green cover data, however, we expect these differences to have little effect considering the large area of the project sites.
An annual and long-term average rainfall spatial data set is provided by the Bureau of Meteorology [55]. These ‘gridded’ products extrapolate between weather recording stations to allow an estimate of rainfall at any point of the landscape. In the tropical savanna region, there are relatively few such stations compared to densely populated areas. This introduces a potential source of residuals when using gridded data to assess a more localised study site.

2.3. Statistical Analysis

The dependent variable observed annual change in tree cover in a linear regression time-series [56] model, regressed against potential drivers of tree cover change, such as variation in the extent of severe fire and annual rainfall. An annual time counter was used as a proxy variable for rising CO2 levels or other time trends. Linear regression with the lm function and model diagnostics (packages acf, trend, Kendall [57]) were carried out in R Studio v 2022.12.0 [58]. The structure of these models is described in Table 2 below.
We also tested for a correlation with previous percentage green woody cover. Woody vegetation is somewhat persistent, with a life history based on investment of energy in growth and maintenance of woody tissue. A low positive coefficient would indicate that after any change or disturbance, the level of cover is likely to return to its previous level. A high positive coefficient approaching a value of 1 would indicate a strong tendency of woody vegetation cover levels to reflect last year’s level, possibly indicating a ‘stable state’ mediated by disturbance, as described in the literature review. In statistical terms, this latter behaviour is known as a ‘random walk’. Such time-series concepts have only recently been used to model forest growth [59,60]. We diagnosed the benefit of this approach by testing the residuals of the model for autocorrelation [56] using the acf function in R Studio, to test whether the current level of green woody cover shows a correlation with its own past levels at a range of time lags. Failure to account for this effect could lead to an overstatement of the statistical significance of the models, and an incorrect estimate of the models’ other coefficients.
This explanatory approach to model structure is designed to accurately separate the human and environmental influences, but contrasts with a predictive model [61], which aims for more precision. Having selected the group of model variables that produces the best overall results for the whole group of projects, for consistency, these were included in all project models. Retaining terms with low statistical significance necessarily reduces the proportion of variation explained as measured in adjusted-R squared (R2) terms. We tested for the Variance Inflation Factor during this process to avoid risks of multicollinearity between variables.
Climate change may be causing a trend in rainfall conditions in the study area to become more, or less, favourable to woody vegetation growth. This is controlled when annual rainfall is added to the model. However, if increased tree cover creates more competition for available soil moisture, then the effects of rainfall over time would decrease at sites where tree cover increased. This was tested for in the time-series with a logarithmic transformation added to the rainfall variable. While it has been proposed that rainfall is increasing in Australia’s tropical savanna region [62,63,64], detecting such a trend from meteorological data would be challenging over our 20-year analysis period and is beyond the scope of this study.
It is also possible that rising CO2 levels are increasing the water use efficiency of plants, in which case, tree cover and rainfall levels could show diverging trends and lower significance in the coefficients derived. This study, therefore, tests the residuals of these models for linear trends, to capture the possibility of rising water use efficiency or other effects of rising atmospheric CO2. We used a simple annual counter, not actual CO2 levels, as these are known to be influenced on a global scale by the strength of the savanna sink [65,66,67]. Australian savannas were strongly influential on this variation [68] in line with the El Nino Southern Oscillation, which would potentially reverse the causality of CO2 levels with tree cover. Because this linear counter will show some degree of correlation with any other trending variable, we chose not to include it in the model where it would affect other variables, but rather to test it against the residuals of the derived project models. This linear trend approach may be sensitive to outliers in the starting and ending values of the time-series. Therefore, we also applied the Kendall and Sen’s slope tests to these residuals.
The R-squared measure almost always increases when extra variables are included in a model, so the adjusted R squared is used to correct for the inclusion of non-significant variables.
An alternative approach would be a mixed effects model combining all projects’ data with crossed grouping/random effects for projects, to explain part of the overall variation in tree cover, and years, to explain any region-wide annual variation in rainfall or fire occurrence. However, regulators and offset credit buyers are likely to require that individual projects demonstrate measurable, additional carbon sequestration, so we prefer to model each project as an individual time-series and present summarised results.

3. Results

3.1. Demonstration Time-Series Data

Figure 2 below illustrates the key variables tested in our models, using the long-running West Arnhem Land Fire Abatement project area as an example. Visual inspection suggests that annual rainfall and green woody cover show related annual movements, however, later in the time-series, green woody cover appears to continue rising even as rainfall decreases. A planned, the early dry season burning program led to a reduction in the extent of severe fire [69], which can be seen in the years after the project commenced in 2005. The year 2010 saw the breaking of a long-term ENSO-driven drought and the wet season began early, impacting on green woody cover in the late dry season of the previous year, hence the apparent increase in greenness in 2009. These timing effects can create residuals which reduce the significance of the variable’s coefficient.

3.2. Summarised Results for Project Models

The stepwise regression modelling approach and results are illustrated in Table 3 below. Model 5, which incorporates explanatory variables for severe fire, annual rainfall and lagged dependency on previous cover levels is the best performing model structure, based on R2, significance of explanatory variables and the absence of autocorrelation or a linear trend.
Table 3 illustrates the stepwise regression approach, progressing from left to right, with Model 5 incorporating the key ecological variables of severe fire, annual rainfall and previous level of tree cover. Figures for the explanatory variables are the number of models that achieved statistical significance for the variable of interest. Figures for the diagnostics are the number of models or the value of the diagnostic’s value. A total of 96 projects were modelled. Notable is that the severe fire coefficient shows the same sign and similar magnitude when extra variables are added. Testing of each of the 96 models with the acf function in R Studio indicated no autocorrelation in the residuals for those models where the lagged dependent variable for green woody cover was included, and linear trends are eliminated from the residuals in all but one case. Although the coefficient for the one-year-lagged dependent variable was within the selected significance threshold in only 54 of the 96 models, it nevertheless improves the model.

3.3. Variable Coefficients’ Relationship to Biophysical or Ecological Factors

To illustrate the ecological coherence of the tested explanatory variables and their coefficients, we present below plots of changes in green woody cover levels and the coefficients derived from each of the 96 project models in Model 5, compared to the long-term average rainfall gradient. Average annual rainfall, which broadly increases in a northerly direction across the study area, is an important determinant of tree cover, plant productivity and fire effects [44,70,71]. Percentage green woody cover generally increases with higher long-term average annual rainfall (Figure 3).
All but two of the projects saw some increase in the fractional cover between these two years and as observed in Table 3, around one quarter of all projects show a statistically significant trend when regressing a simple time counter against annually varying green woody cover levels.
Figure 4 illustrates the values of the severe fire coefficients derived from 96 project models, against long-term average rainfall. Visual inspection may suggest that this coefficient is higher (i.e., the occurrence of severe fire causes a higher reduction in tree cover) in higher rainfall areas, which typically have higher tree cover.
A positively signed coefficient for severe fire (above the dashed grey line at zero) is not ecologically coherent, as severe fire is not expected to lead to an increase in green woody cover. A few projects have coefficient values showing high negative outliers. These may arise when a project site experiences a large extent of severe fire in just one year, coinciding with very low levels of percentage green woody cover. This is atypical, as widespread fire is usually more common when vegetation cover is higher after strong rains. This effect was notable in 2009/2010 and may have occurred when the severe fire was early in the dry season, and thereby had a stronger impact on the reading of green woody cover in the September–November period. By contrast, if the green woody cover rose rapidly in a year where severe fire occurred after the green woody cover reading was taken (i.e., September to November, with fire occurring in December), this could lead to a positive coefficient indicating the perverse artifact of higher vegetation cover in response to severe fire.
The annual rainfall coefficient describes the effect on the percentage of green woody cover of annually varying rainfall occurrence. This could be conceived as a measure of ‘precipitation use efficiency’. As illustrated in Figure 5, in the lower average rainfall part of our study area, above average rainfall leads to increased green woody cover. However, in the high and reliable rainfall area, the coefficient is typically much lower, and in fact often negative, implying that each additional unit of rainfall leads to lower green woody cover.

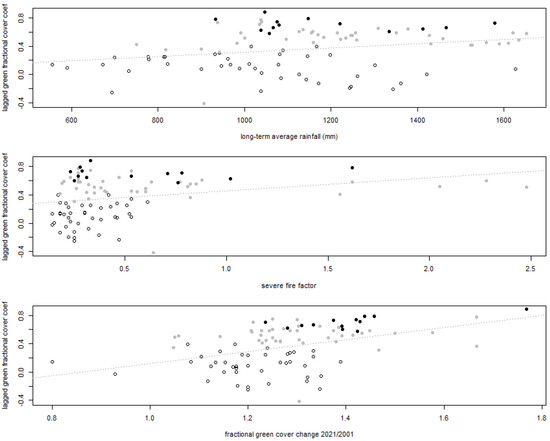

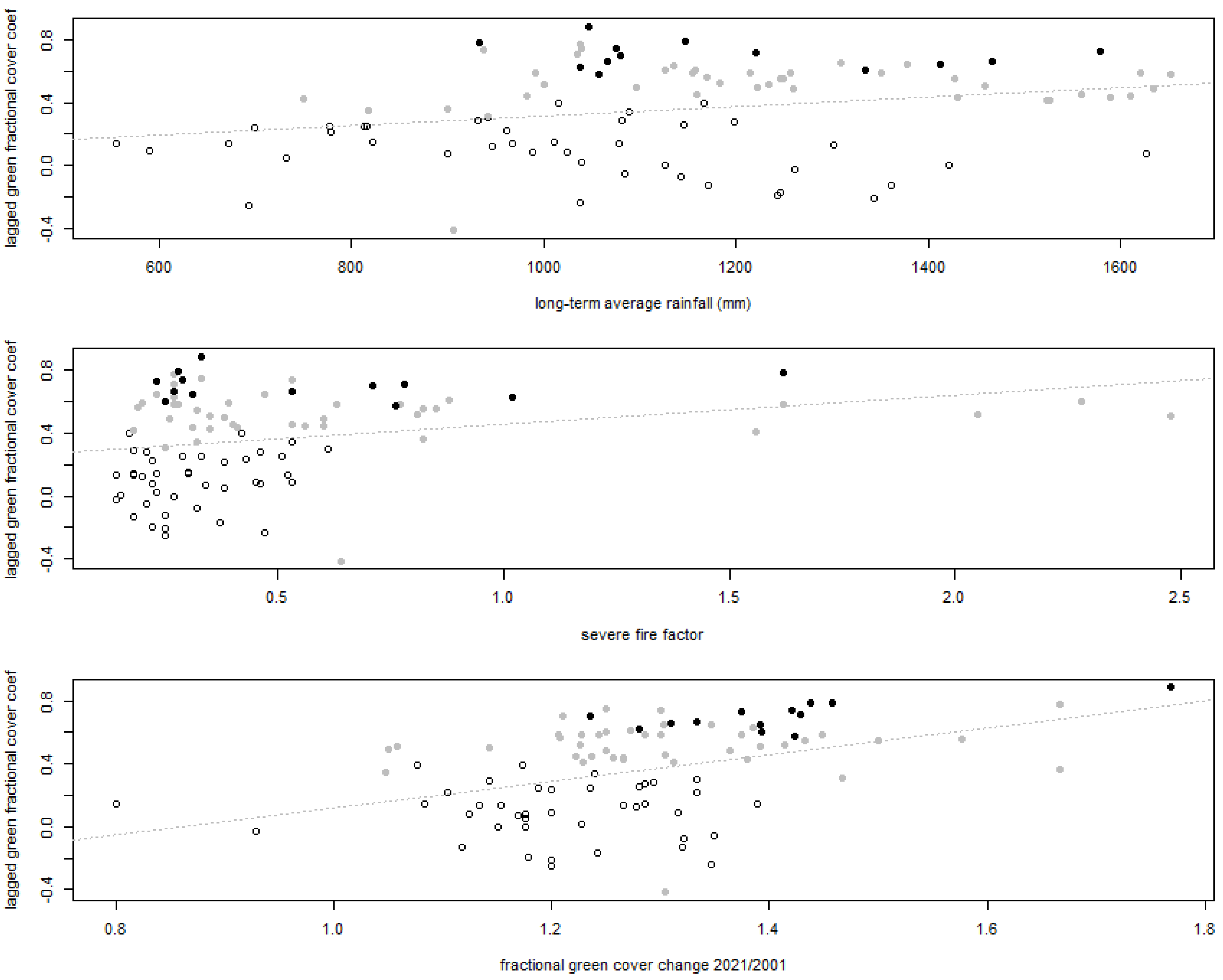

Figure 6 below shows the estimated coefficients for the influence of the previous year’s level of green woody cover, compared to parameters for severe fire occurrence and average rainfall across the study period as a whole, and compared with a measure of green woody cover level change over the study period. The filled points, typically with higher values of this coefficient, are those that achieved our selected threshold of statistical significance within their model (grey = Pr. < 0.1, black = Pr. < 0.01). The mean coefficient for the black filled points is 0.7, grey points 0.5. Adjusted R2 for the lines of best fit in the three panels are 0.057, 0.067, 0.165, respectively, i.e., quite low values for the proportion of variation explained.
For some fire projects, the extent of severe fire fell substantially during the study period. The highest values for severe fire extent are typically associated with cattle properties, where late dry season burning is preferred, as this encourages new grass growth at the onset of the wet season. In this figure, there may be observed a very weak association between the size of the lagged cover coefficient and the pattern of annual rainfall, severe fire occurrence and cover change. Therefore, we are not able to draw strong conclusions about the impact of potential tree cover persistence mechanisms on either the outcome variable or tree–grass ecosystem stability.

4. Discussion

Our explanatory model of changing savanna woody vegetation cover over time demonstrates ecological effects in line with the reviewed literature. Although statistically significant coefficients for the key variables were found in only half (severe fire) or one quarter (rainfall) of the project models, when comparing all the model coefficients across the rainfall gradient, ecologically coherent explanations for these patterns emerge. Even the projects with non-significant coefficients show estimates consistent with their ‘neighbours’ on the long-term average rainfall gradient.
Coefficients for the negative effect of severe fire on tree cover were consistent across most models, after allowing for higher percentage green woody cover in higher rainfall zones. Rainfall coefficients vary greatly but can also be understood in the context of long-term average rainfall, with the commonly observed phenomenon of higher precipitation use efficiency in drier zones. We observed a negative coefficient for rainfall effects on tree cover levels at the wettest study sites. Whitley et al. [72] modelled seasonal and annual patterns in vegetation Gross Primary Production that correlated with solar radiation levels. They concluded that productivity at their study site, in the northern, high rainfall end of our study region, is limited by the amount of solar radiation intercepted by the canopy rather than by water availability. This provides an explanation for how years of above average rainfall with its associated cloudiness could lead to lower green woody cover.
The ‘autocorrelation’ effect on green woody cover levels of previous cover levels, at a lag of one year, was eliminated by the inclusion of this lagged dependent variable in the models. In line with the broader literature on tree–grass interaction, which we briefly reviewed, the effect of this ‘persistence’ variable in our model is still somewhat uncertain. A coefficient of value 1 would indicate that a given percentage of tree cover, once established by disturbance or stochastic events, would persist indefinitely. Few of the coefficients approached this level, indicating that woody vegetation change is persistent in the short term but tends to revert to a stable state value over time, after controlling for the effects of the other ecological factors. Although many of these coefficients are non-significant, they can nevertheless contribute to the overall model fit and improve the reliability of other variables’ coefficients.
The overall absence of linear trends after controlling for fire and rain effects suggests that factors such as changing climate effects or CO2 levels, which would be expected to similarly impact vegetation across the whole of our study area, are not observable using our statistical methods. A total of 25 of the 96 properties initially showed a linear trend increase in tree cover over time. However, after the fire and rain explanatory variables are added to the model, we observed no outstanding time-based trends in the residuals, with the exception of the South-East Arnhem Land Fire Abatement Project (SEALFA) Project, which showed a residual linear trend in Model 5. This appears to be because this well-developed cool burning project has seen a reduction in the extent of both severe and non-severe fire in this project area, a phenomenon not observed in other projects.
The small number of data points, typically 16 years in our data series, means that including four explanatory terms in the model impacts strongly on the number of ‘degrees of freedom’ and raises the threshold for statistical significance. Work to extend the severe fire variable forward from 2018 using interpretation of the available remote sensing data would likely further improve the explanatory power of these models. A further body of work could derive an allometric that uses the measure of satellite-observable tree cover to estimate the quantity of above-ground living tree biomass [73]. This would allow the additional carbon in trees to be credited via a new measurement methodology [74] in Australia’s offset scheme. Alternately, our model coefficients could be incorporated into the programming of a biomass growth model, such as FullCAM [75], which is currently used for Australia’s land-based emissions inventory and for offset methodologies. Since these coefficients, especially rainfall, vary across the landscape, the approach would be to create a gridded set of modelling inputs, which is already a feature of FullCAM.

5. Conclusions

Using emissions offset projects from Australian tropical savannas as case studies, we have modelled satellite-observed changes in tree cover and obtained explanatory variables for the influence of severe fire occurrence, annual rainfall and the lagged effect of past percentage tree cover, in a linear regression time-series model. As new data are added to the time-series each year, the data set and model can be extended, and results will likely become more certain.
With this approach, we can separate and quantify the different drivers, including the human-controlled factors such as fire management, for any observable trend increase in savanna tree cover. Currently, any increase in living tree biomass resulting from cool burning practices is not able to be credited, as there is no approved methodology for doing so in Australia’s offset scheme. Our study points to an opportunity to efficiently use remote sensing as an input to a new crediting methodology for estimating changes to carbon stocks in savannas.
As previously noted, soil, slope and fire history may all impact on the ability for a given site to store additional carbon after a change in fire regime. Our landscape scale study areas do not easily allow for the inclusion of such variables into a model, nor do we have longer term fire histories for the sites. These factors may very well account for some of the differences in our variable coefficients. Repeating our study’s methodology, using small scale sites stratified for these factors could test the significance of these factors.

Author Contributions

Conceptualization G.B., Data curation G.B., Methodology G.B., Writing—original draft preparation G.B., methodology G.B., Writing—Review and Editing A.E. and K.Z., Supervision K.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was conducted as part of a Ph.D. thesis, at Charles Darwin University, with funding under the Research Training Program of the Commonwealth of Australia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data used are from previously published sources described in the References section.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stevens, N.; Lehmann, C.E.; Murphy, B.P.; Durigan, G. Savanna woody encroachment is widespread across three continents. Glob. Change Biol. 2017, 23, 235–244. [Google Scholar] [CrossRef] [PubMed]
  2. Kgope, B.S.; Bond, W.J.; Midgley, G.F. Growth responses of African savanna trees implicate atmospheric [CO2] as a driver of past and current changes in savanna tree cover. Austral. Ecol. 2010, 35, 451–463. [Google Scholar] [CrossRef]
  3. Wang, W.; Chen, X.; Wang, L.; Zhang, H.; Yin, G.; Zhang, Y. Approaching the truth of the missing carbon sink. Pol. J. Environ. Stud. 2016, 25, 1799–1802. [Google Scholar] [CrossRef] [PubMed]
  4. Bowman, D.; Walsh, A.; Milne, D. Forest expansion and grassland contraction within a Eucalyptus savanna matrix between 1941 and 1994 at Litchfield National Park in the Australian monsoon tropics. Glob. Ecol. Biogeogr. 2001, 10, 535–548. [Google Scholar] [CrossRef]
  5. Fensham, R.; Fairfax, R. Assessing woody vegetation cover change in north-west Australian savanna using aerial photography. Int. J. Wildland Fire 2003, 12, 359–367. [Google Scholar] [CrossRef]
  6. Fensham, R.; Fairfax, R.; Archer, S. Rainfall, land use and woody vegetation cover change in semi-arid Australian savanna. J. Ecol. 2005, 93, 596–606. [Google Scholar] [CrossRef]
  7. Fensham, R.; Fairfax, R.; Ward, D. Drought-induced tree death in savanna. Glob. Change Biol. 2009, 15, 380–387. [Google Scholar] [CrossRef]
  8. Lehmann, C.E.R. Spatio-Temporal Savanna Vegetation Dynamics in Northern Australia; Charles Darwin University: Darwin, Australia, 2007. [Google Scholar]
  9. Lehmann, C.E.; Prior, L.D.; Williams, R.J.; Bowman, D.M. Spatio-temporal trends in tree cover of a tropical mesic savanna are driven by landscape disturbance. J. Appl. Ecol. 2008, 45, 1304–1311. [Google Scholar] [CrossRef]
  10. Lehmann, C.E.; Prior, L.D.; Bowman, D.M. Decadal dynamics of tree cover in an Australian tropical savanna. Austral. Ecol. 2009, 34, 601–612. [Google Scholar] [CrossRef]
  11. Murphy, B.P.; Lehmann, C.E.; Russell-Smith, J.; Lawes, M.J. Fire regimes and woody biomass dynamics in Australian savannas. J. Biogeogr. 2014, 41, 133–144. [Google Scholar] [CrossRef]
  12. Murphy, B.P.; Liedloff, A.C.; Cook, G.D. Does fire limit tree biomass in Australian savannas? Int. J. Wildland Fire 2015, 24, 1–13. [Google Scholar] [CrossRef]
  13. Donohue, R.J.; McVicar, T.R.; Roderick, M.L. Climate-related trends in Australian vegetation cover as inferred from satellite observations, 1981–2006. Glob. Change Biol. 2009, 15, 1025–1039. [Google Scholar] [CrossRef]
  14. Asner, G.P.; Vaughn, N.; Smit, I.P.; Levick, S. Ecosystem-scale effects of megafauna in African savannas. Ecography 2016, 39, 240–252. [Google Scholar] [CrossRef]
  15. Edwards, A.; Archer, R.; De Bruyn, P.; Evans, J.; Lewis, B.; Vigilante, T.; Whyte, S.; Russell-Smith, J. Transforming fire management in northern Australia through successful implementation of savanna burning emissions reductions projects. J. Environ. Manag. 2021, 290, 112568. [Google Scholar] [CrossRef] [PubMed]
  16. Edwards, A.; Russell-Smith, J.; Meyer, M. Contemporary fire regime risks to key ecological assets and processes in north Australian savannas. Int. J. Wildland Fire 2015, 24, 857–870. [Google Scholar] [CrossRef]
  17. The Australia Institute. Questionable Integrity: Non-Additionality in the Emissions Reduction Fund’s Avoided Deforestation Method; The Australia Institute: Canberra, Australia, 2021. [Google Scholar]
  18. Australian Government Climate Change Authority. Coverage, Additionality and Baselines—Lessons from the Carbon Farming Initiative and Other Schemes; Australian Government Climate Change Authority: Canberra, Australia, 2014.
  19. Campbell, J.; Herremans, I.M.; Kleffner, A. Barriers to achieving additionality in carbon offsets: A regulatory risk perspective. J. Environ. Plan. Manag. 2018, 61, 2570–2589. [Google Scholar] [CrossRef]
  20. Michaelowa, A.; Hermwille, L.; Obergassel, W.; Butzengeiger, S. Additionality revisited: Guarding the integrity of market mechanisms under the Paris Agreement. Clim. Policy 2019, 19, 1211–1224. [Google Scholar] [CrossRef]
  21. Ruseva, T.; Marland, E.; Szymanski, C.; Hoyle, J.; Marland, G.; Kowalczyk, T. Additionality and permanence standards in California’s Forest Offset Protocol: A review of project and program level implications. J. Environ. Manag. 2017, 198, 277–288. [Google Scholar] [CrossRef]
  22. Murphy, B.P.; Russell-Smith, J.; Prior, L.D. Frequent fires reduce tree growth in northern Australian savannas: Implications for tree demography and carbon sequestration. Glob. Change Biol. 2010, 16, 331–343. [Google Scholar] [CrossRef]
  23. Levick, S.R.; Richards, A.E.; Cook, G.D.; Schatz, J.; Guderle, M.; Williams, R.J.; Subedi, P.; Trumbore, S.E.; Andersen, A.N. Rapid response of habitat structure and above-ground carbon storage to altered fire regimes in tropical savanna. Biogeosciences 2019, 16, 1493–1503. [Google Scholar] [CrossRef]
  24. Prior, L.D.; Whiteside, T.G.; Williamson, G.J.; Bartolo, R.E.; Bowman, D.M. Multi-decadal stability of woody cover in a mesic eucalypt savanna in the Australian monsoon tropics. Austral. Ecol. 2020, 45, 621–635. [Google Scholar] [CrossRef]
  25. Chen, X.; Hutley, L.B.; Eamus, D. Carbon balance of a tropical savanna of northern Australia. Oecologia 2003, 137, 405–416. [Google Scholar] [CrossRef]
  26. Wang, B.; Waters, C.; Anwar, M.R.; Cowie, A.; Li Liu, D.; Summers, D.; Paul, K.; Feng, P. Future climate impacts on forest growth and implications for carbon sequestration through reforestation in southeast Australia. J. Environ. Manag. 2022, 302, 113964. [Google Scholar] [CrossRef]
  27. Keenan, T.F.; Hollinger, D.Y.; Bohrer, G.; Dragoni, D.; Munger, J.W.; Schmid, H.P.; Richardson, A.D. Increase in forest water-use efficiency as atmospheric carbon dioxide concentrations rise. Nature 2013, 499, 324–327. [Google Scholar] [CrossRef] [PubMed]
  28. Murphy, B.; Liedloff, A.C.; Cook, G.D. Fire or water: Which limits tree biomass in Australian savannas? In Carbon Accounting and Savanna Fire Management; CSIRO Publishing: Canberra, Australia, 2015; pp. 273–294. [Google Scholar]
  29. Case, M.F.; Staver, A.C. Soil texture mediates tree responses to rainfall intensity in African savannas. New Phytol. 2018, 219, 1363–1372. [Google Scholar] [CrossRef] [PubMed]
  30. Staver, A.C.; Archibald, S.; Levin, S.A. The global extent and determinants of savanna and forest as alternative biome states. Science 2011, 334, 230–232. [Google Scholar] [CrossRef] [PubMed]
  31. Staver, A.C.; Archibald, S.; Levin, S. Tree cover in sub-Saharan Africa: Rainfall and fire constrain forest and savanna as alternative stable states. Ecology 2011, 92, 1063–1072. [Google Scholar] [CrossRef]
  32. Staver, A.C.; Asner, G.P.; Rodriguez-Iturbe, I.; Levin, S.A.; Smit, I.P. Spatial patterning among savanna trees in high-resolution, spatially extensive data. Proc. Natl. Acad. Sci. USA 2019, 116, 10681–10685. [Google Scholar] [CrossRef] [PubMed]
  33. Accatino, F.; De Michele, C.; Vezzoli, R.; Donzelli, D.; Scholes, R.J. Tree–grass co-existence in savanna: Interactions of rain and fire. J. Theor. Biol. 2010, 267, 235–242. [Google Scholar] [CrossRef]
  34. Sankaran, M.; Hanan, N.P.; Scholes, R.J.; Ratnam, J.; Augustine, D.J.; Cade, B.S.; Gignoux, J.; Higgins, S.I.; Le Roux, X.; Ludwig, F. Determinants of woody cover in African savannas. Nature 2005, 438, 846–849. [Google Scholar] [CrossRef]
  35. Pellegrini, A.F.; Ahlström, A.; Hobbie, S.E.; Reich, P.B.; Nieradzik, L.P.; Staver, A.C.; Scharenbroch, B.C.; Jumpponen, A.; Anderegg, W.R.; Randerson, J.T. Fire frequency drives decadal changes in soil carbon and nitrogen and ecosystem productivity. Nature 2018, 553, 194–198. [Google Scholar] [CrossRef] [PubMed]
  36. Arunrat, N.; Sereenonchai, S.; Kongsurakan, P.; Yuttitham, M.; Hatano, R. Variations of soil properties and soil surface loss after fire in rotational shifting cultivation in Northern Thailand. Front. Environ. Sci. 2023, 11, 1213181. [Google Scholar] [CrossRef]
  37. Clean Energy Regulator. Methods. 2020. Available online: http://www.cleanenergyregulator.gov.au/ERF/Forms-and-resources/methods (accessed on 3 December 2023).
  38. Clean Energy Regulator. Carbon Abatement Contract Register. Available online: https://www.cleanenergyregulator.gov.au/ERF/project-and-contracts-registers/carbon-abatement-contract-register (accessed on 3 December 2023).
  39. Cook, G.D.; Muepu, M.; Liedloff, A.C. Dead organic matter and the dynamics of carbon and greenhouse gas emissions in frequently burnt savannas. Int. J. Wildland Fire 2017, 25, 1252–1263. [Google Scholar] [CrossRef]
  40. Murphy, B.P.; Whitehead, P.J.; Evans, J.; Yates, C.P.; Edwards, A.C.; MacDermott, H.J.; Lynch, D.C.; Russell-Smith, J. Using a demographic model to project the long-term effects of fire management on tree biomass in Australian savannas. Ecol. Monogr. 2023, 93, e1564. [Google Scholar] [CrossRef]
  41. Bento, A.; Kanbur, R.; Leard, B. On the importance of baseline setting in carbon offsets markets. Clim. Change 2016, 137, 625–637. [Google Scholar] [CrossRef]
  42. Olson, D.M.; Dinerstein, E.; Wikramanayake, E.D.; Burgess, N.D.; Powell, G.V.; Underwood, E.C.; D’amico, J.A.; Itoua, I.; Strand, H.E.; Morrison, J.C. Terrestrial Ecoregions of the World: A New Map of Life on Earth: A new global map of terrestrial ecoregions provides an innovative tool for conserving biodiversity. BioScience 2001, 51, 933–938. [Google Scholar] [CrossRef]
  43. Williams, R.J.; Hutley, L.B.; Cook, G.D.; Russell-Smith, J.; Edwards, A.; Chen, X. Assessing the carbon sequestration potential of mesic savannas in the Northern Territory, Australia: Approaches, uncertainties and potential impacts of fire. Funct. Plant Biol. 2004, 31, 415–422. [Google Scholar] [CrossRef]
  44. Cook, G.D.; Liedloff, A.C.; Cuff, N.J.; Brocklehurst, P.S.; Williams, R.J. Stocks and dynamics of carbon in trees across a rainfall gradient in a tropical savanna. Austral. Ecol. 2015, 40, 845–856. [Google Scholar] [CrossRef]
  45. Northern Australia Fire Information. Available online: https://firenorth.org.au/nafi3/ (accessed on 3 December 2023).
  46. Clean Energy Regulator. Area-Based Emissions Reduction Fund (ERF) Projects. 2021. Available online: https://data.gov.au/home (accessed on 27 May 2021).
  47. QGIS Development Team. QGIS Geographic Information System v 3.12. Open Source Geospatial Foundation Project. PC. 2016. Available online: https://qgis.org/en/site/index.html (accessed on 3 December 2023).
  48. TERN—Australia’s Terrestrial Ecosystem Research Network. Seasonal Fractional Cover—Landsat, JRSRP Algorithm, Australia Coverage. 2021. Available online: https://portal.tern.org.au/ (accessed on 27 April 2021).
  49. Flood, N. Seasonal composite Landsat TM/ETM+ images using the medoid (a multi-dimensional median). Remote Sens. 2013, 5, 6481–6500. [Google Scholar] [CrossRef]
  50. Edwards, A.C.; Maier, S.W.; Hutley, L.B.; Williams, R.J.; Russell-Smith, J. Spectral analysis of fire severity in north Australian tropical savannas. Remote Sens. Environ. 2013, 136, 56–65. [Google Scholar] [CrossRef]
  51. Bureau of Meteorology. Gridded Average Rainfall Metadata. Available online: http://www.bom.gov.au/climate/averages/climatology/average-rainfall-metadata.shtml (accessed on 24 February 2021).
  52. Edwards, A.C.; Russell-Smith, J.; Maier, S.W. A comparison and validation of satellite-derived fire severity mapping techniques in fire prone north Australian savannas: Extreme fires and tree stem mortality. Remote Sens. Environ. 2018, 206, 287–299. [Google Scholar] [CrossRef]
  53. Laris, P. On the problems and promises of savanna fire regime change. Nat. Commun. 2021, 12, 4891. [Google Scholar] [CrossRef]
  54. Edwards, A.C.; Russell-Smith, J.; Maier, S. Measuring and mapping fire severity in the tropical savannas. In Carbon Accounting and Savanna Fire Management; Murphy, B., Edwards, A., Meyer, C.P., Russell-Smith, J., Eds.; CSIRO Publishing: Canberra, Australia, 2015; pp. 169–184. [Google Scholar]
  55. Bureau of Meteorology. Gridded Rainfall Variability Metadata. 2021. Available online: http://www.bom.gov.au/climate/averages/climatology/rainfall-variability-metadata.shtml (accessed on 6 February 2022).
  56. Box-Steffensmeier, J.M.; Freeman, J.R.; Hitt, M.P.; Pevehouse, J.C. Time Series Analysis for the Social Sciences; Cambridge University Press: Cambridge, UK, 2014. [Google Scholar]
  57. The Comprehensive R Archive Network. Available online: https://cran.r-project.org/ (accessed on 3 December 2023).
  58. R Core Team. R Studio 2022.12.0. PC. 2013. Available online: https://cir.nii.ac.jp/crid/1370294721063650048 (accessed on 3 December 2023).
  59. Rumyantseva, O.; Sarantsev, A.; Strigul, N. Autoregressive Modeling of Forest Dynamics. Forests 2019, 10, 1074. [Google Scholar] [CrossRef]
  60. Rumyantseva, O.; Sarantsev, A.; Strigul, N. Time Series Analysis of Forest Dynamics at the Ecoregion Level. Forecasting 2020, 2, 364–386. [Google Scholar] [CrossRef]
  61. Shmueli, G. To explain or to predict? Stat. Sci. 2010, 25, 289–310. [Google Scholar] [CrossRef]
  62. Dey, R.; Lewis, S.C.; Arblaster, J.M.; Abram, N.J. A review of past and projected changes in Australia’s rainfall. Wiley Interdiscip. Rev. Clim. Change 2019, 10, e577. [Google Scholar] [CrossRef]
  63. Heidemann, H.; Ribbe, J.; Cowan, T.; Henley, B.J.; Pudmenzky, C.; Stone, R.; Cobon, D.H. The influence of interannual and decadal Indo-Pacific sea surface temperature variability on Australian monsoon rainfall. J. Clim. 2022, 35, 425–444. [Google Scholar]
  64. Borowiak, A.; King, A.; Lane, T. The Link between the Madden-Julian Oscillation and Rainfall Trends in Northwest Australia. Geophys. Res. Lett. 2023, 50, e2022GL101799. [Google Scholar] [CrossRef]
  65. Ahlström, A.; Raupach, M.R.; Schurgers, G.; Smith, B.; Arneth, A.; Jung, M.; Reichstein, M.; Canadell, J.G.; Friedlingstein, P.; Jain, A.K. The dominant role of semi-arid ecosystems in the trend and variability of the land CO2 sink. Science 2015, 348, 895–899. [Google Scholar] [CrossRef] [PubMed]
  66. Dai, A.; Fung, I.Y. Can climate variability contribute to the “missing” CO2 sink? Glob. Biogeochem. Cycles 1993, 7, 599–609. [Google Scholar] [CrossRef]
  67. Eamus, D.; Cleverly, J. Australia’s role in the 2011 global carbon sink anomaly. Australas. Sci. 2015, 36, 18–19. [Google Scholar]
  68. Ma, X.; Huete, A.; Cleverly, J.; Eamus, D.; Chevallier, F.; Joiner, J.; Poulter, B.; Zhang, Y.; Guanter, L.; Meyer, W. Drought rapidly diminishes the large net CO2 uptake in 2011 over semi-arid Australia. Sci. Rep. 2016, 6, 37747. [Google Scholar] [CrossRef] [PubMed]
  69. Russell-Smith, J.; Yates, C.P.; Edwards, A.C.; Whitehead, P.J.; Murphy, B.P.; Lawes, M.J. Deriving multiple benefits from carbon market-based savanna fire management: An Australian example. PLoS ONE 2015, 10, e0143426. [Google Scholar] [CrossRef] [PubMed]
  70. Williams, R.; Duff, G.; Bowman, D.; Cook, G. Variation in the composition and structure of tropical savannas as a function of rainfall and soil texture along a large-scale climatic gradient in the Northern Territory, Australia. J. Biogeogr. 1996, 23, 747–756. [Google Scholar] [CrossRef]
  71. Hutley, L.B.; Beringer, J.; Isaac, P.R.; Hacker, J.M.; Cernusak, L.A. A sub-continental scale living laboratory: Spatial patterns of savanna vegetation over a rainfall gradient in northern Australia. Agric. For. Meteorol. 2011, 151, 1417–1428. [Google Scholar] [CrossRef]
  72. Whitley, R.J.; Macinnis-Ng, C.M.; Hutley, L.B.; Beringer, J.; Zeppel, M.; Williams, M.; Taylor, D.; Eamus, D. Is productivity of mesic savannas light limited or water limited? Results of a simulation study. Glob. Change Biol. 2011, 17, 3130–3149. [Google Scholar] [CrossRef]
  73. Eisfelder, C.; Kuenzer, C.; Dech, S. Derivation of biomass information for semi-arid areas using remote-sensing data. Int. J. Remote Sens. 2012, 33, 2937–2984. [Google Scholar] [CrossRef]
  74. Clean Energy Regulator. Vegetation Methods. Available online: https://www.cleanenergyregulator.gov.au/ERF/Choosing-a-project-type/Opportunities-for-the-land-sector/Vegetation-methods/ (accessed on 3 December 2023).
  75. Richards, G.P.; Evans, D.M. Development of a carbon accounting model (FullCAM Vers. 1.0) for the Australian continent. Aust. For. 2004, 67, 277–283. [Google Scholar] [CrossRef]
Fire 06 00465 g001

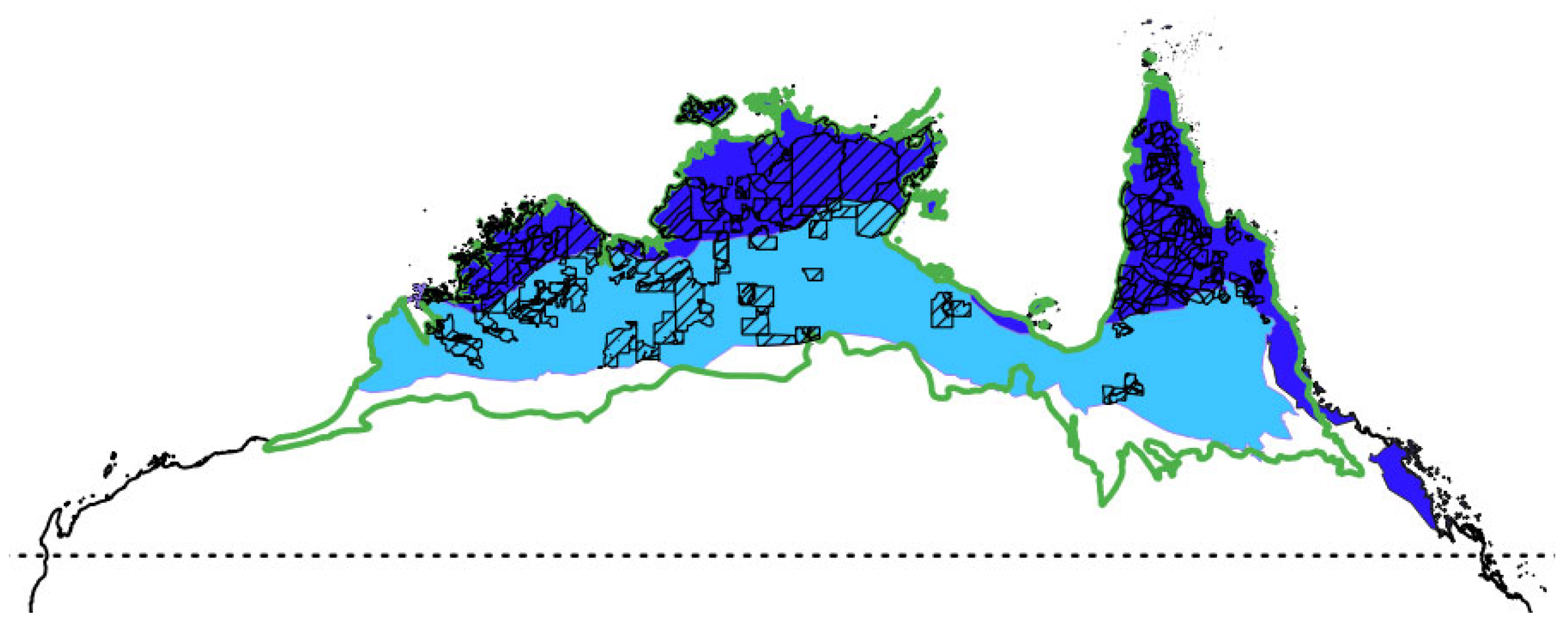

Figure 1. Map of the study area in tropical northern Australia, indicating Tropic of Cancer (dashed line), boundary of tropical savanna ecoregions from Terrestrial Ecoregions of the World [42] (green line), 600–1000 mm average annual rainfall zone (light blue), greater than 1000 mm (darker blue), registered savanna burning project sites (hatched areas).
Figure 1. Map of the study area in tropical northern Australia, indicating Tropic of Cancer (dashed line), boundary of tropical savanna ecoregions from Terrestrial Ecoregions of the World [42] (green line), 600–1000 mm average annual rainfall zone (light blue), greater than 1000 mm (darker blue), registered savanna burning project sites (hatched areas).
Fire 06 00465 g001
Fire 06 00465 g002

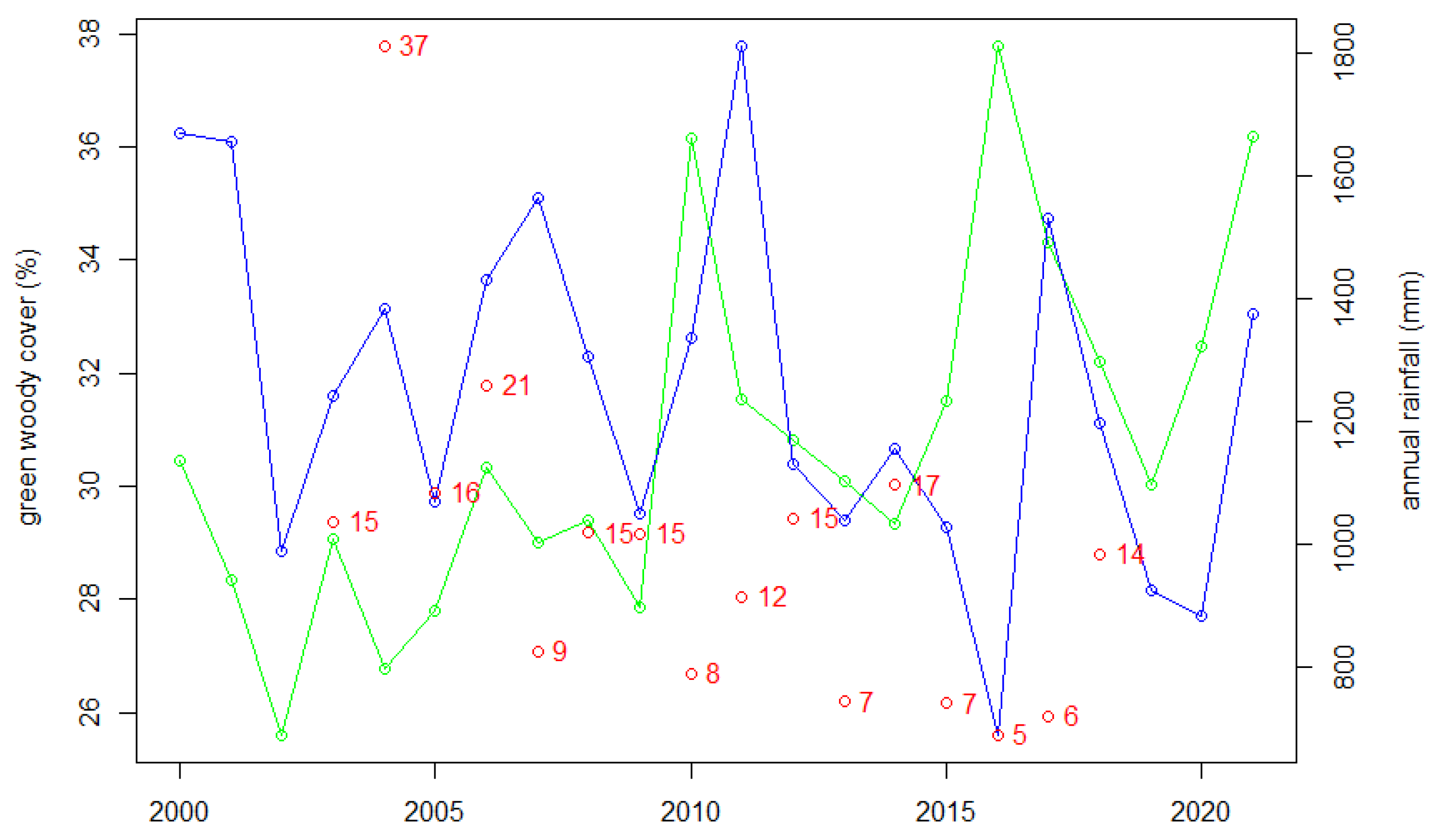

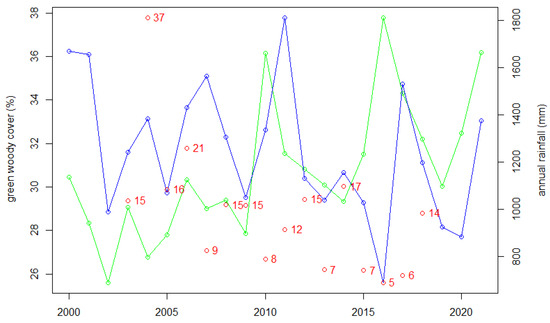

Figure 2. West Arnhem Land Fire Abatement (WALFA) project time series. Green woody cover, in percentage, is the green line and left-hand axis. Annual rainfall, mm, is the blue line and right axis. The red points are labelled for the annual percentage of the project area that was severely burned.
Figure 2. West Arnhem Land Fire Abatement (WALFA) project time series. Green woody cover, in percentage, is the green line and left-hand axis. Annual rainfall, mm, is the blue line and right axis. The red points are labelled for the annual percentage of the project area that was severely burned.
Fire 06 00465 g002
Fire 06 00465 g003

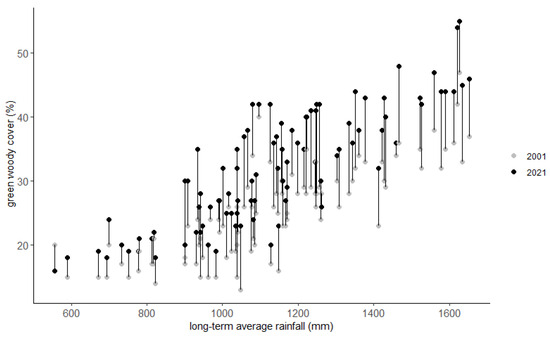

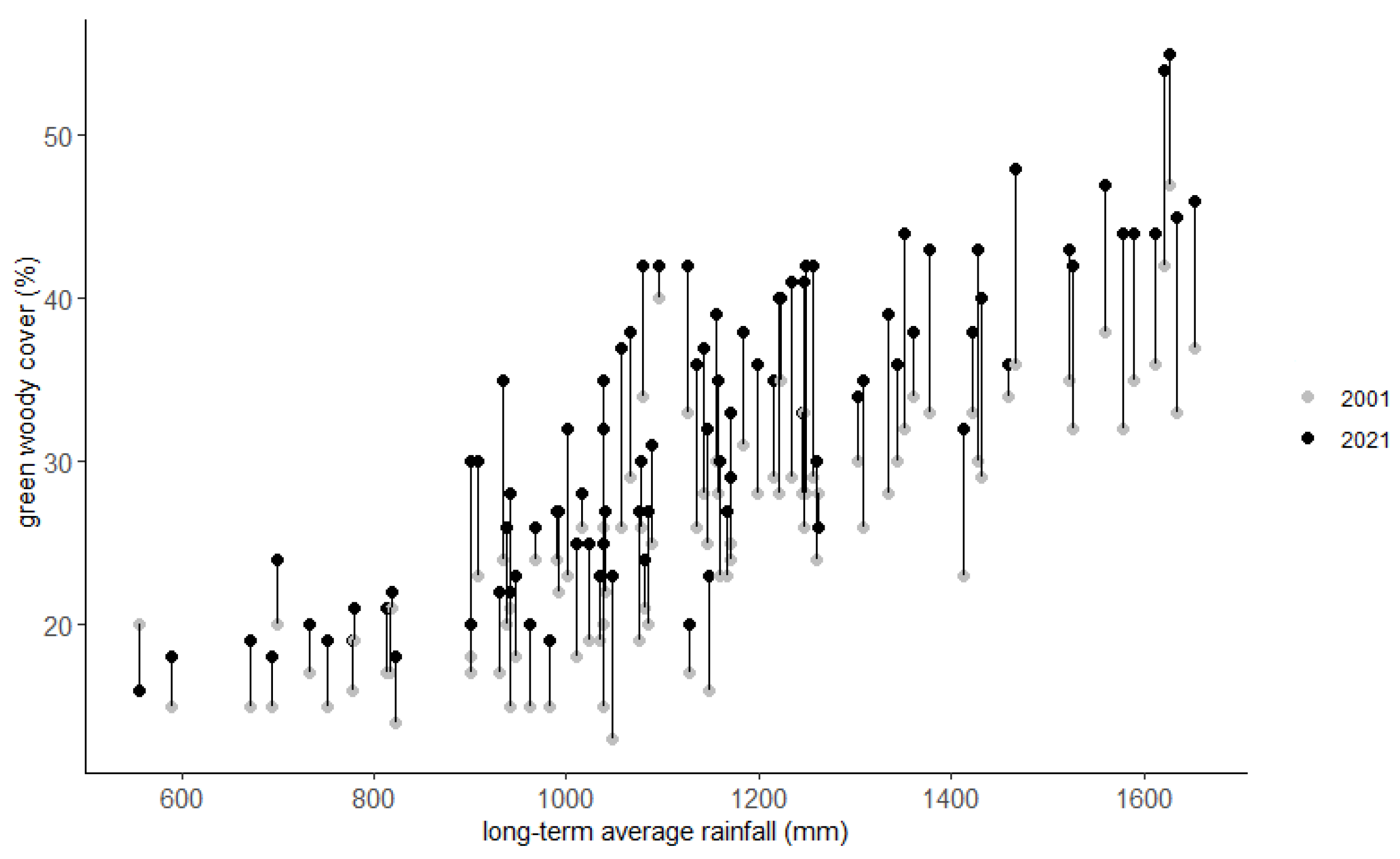

Figure 3. Change in green woody cover, percentage, (2001–2021) for the 96 projects, plotted against their long-term average annual rainfall.
Figure 3. Change in green woody cover, percentage, (2001–2021) for the 96 projects, plotted against their long-term average annual rainfall.
Fire 06 00465 g003
Fire 06 00465 g004

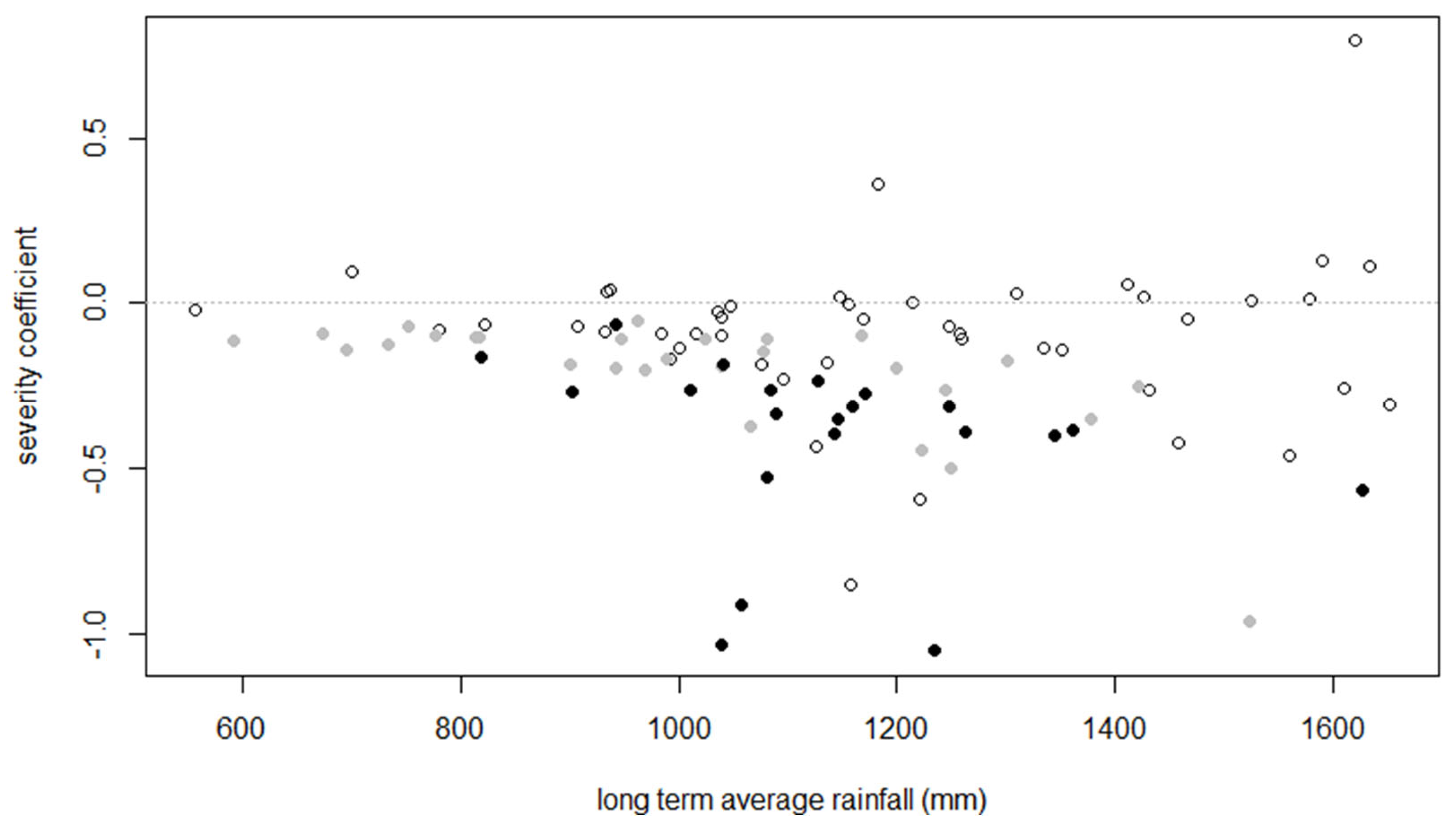

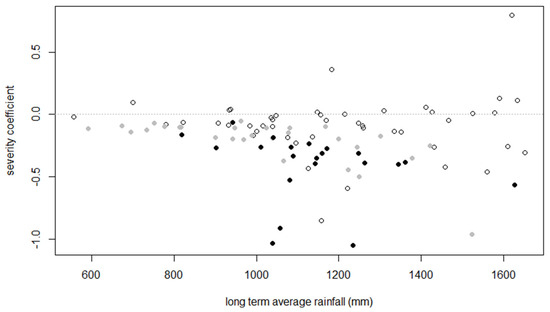

Figure 4. Severe fire coefficients for the 96 projects plotted against their reading for long-term annual rainfall. Filled points are those where the severe fire coefficient achieved statistical significance within their model (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled= Pr. ≥ 0.1) Dotted line at zero is for visibility, as all coefficients are expected to be negative.
Figure 4. Severe fire coefficients for the 96 projects plotted against their reading for long-term annual rainfall. Filled points are those where the severe fire coefficient achieved statistical significance within their model (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled= Pr. ≥ 0.1) Dotted line at zero is for visibility, as all coefficients are expected to be negative.
Fire 06 00465 g004
Fire 06 00465 g005

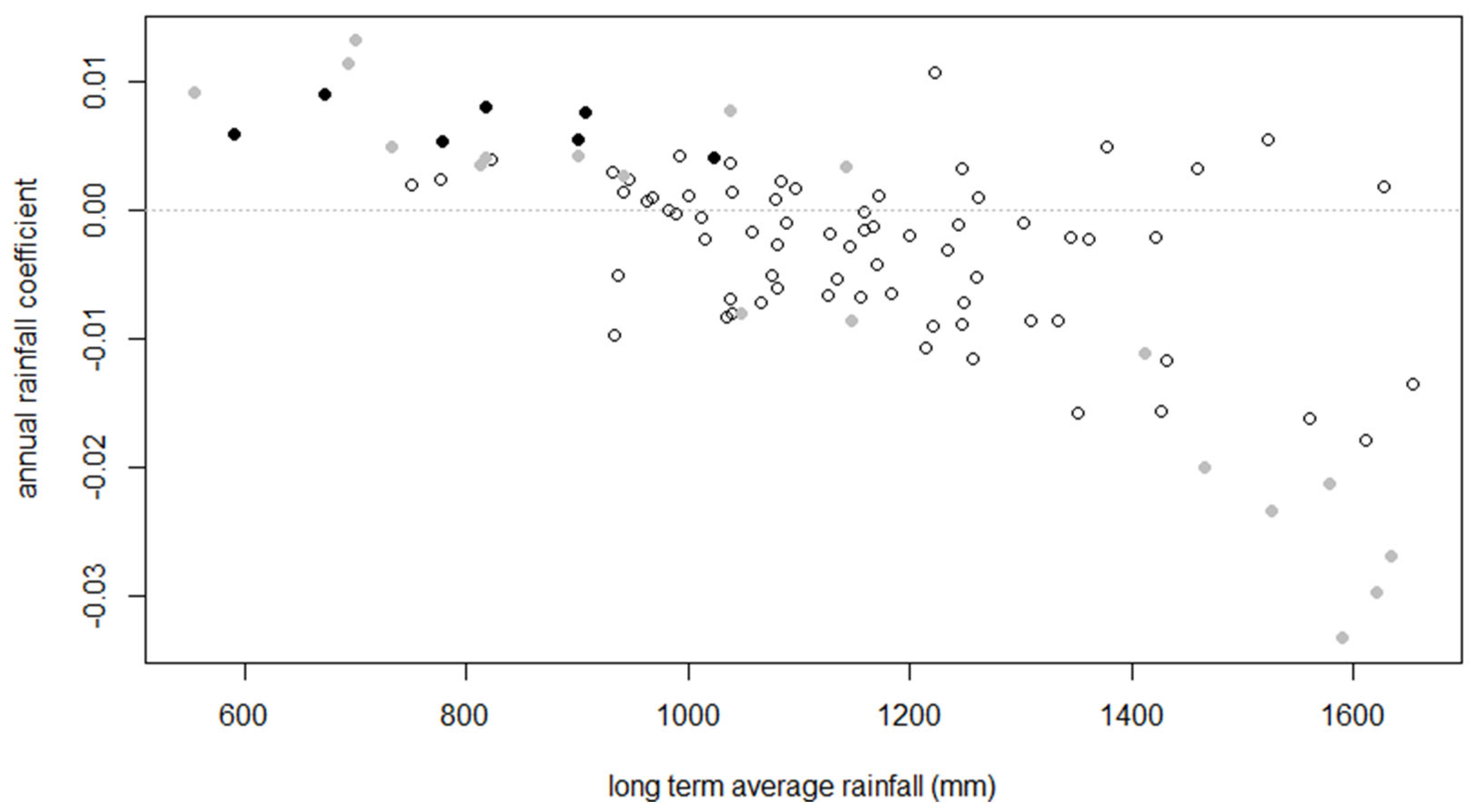

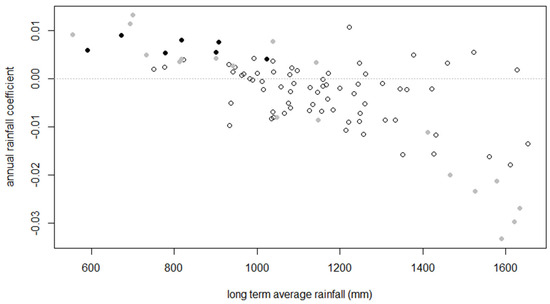

Figure 5. Annual rainfall coefficients for the 96 projects plotted against their reading of long-term annual rainfall. Filled points are those where the rainfall coefficient achieved statistical significance to the selected threshold (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled = Pr. ≥ 0.1). Dotted line at zero is for visibility, indicating a change from negative to positive effect of rainfall.
Figure 5. Annual rainfall coefficients for the 96 projects plotted against their reading of long-term annual rainfall. Filled points are those where the rainfall coefficient achieved statistical significance to the selected threshold (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled = Pr. ≥ 0.1). Dotted line at zero is for visibility, indicating a change from negative to positive effect of rainfall.
Fire 06 00465 g005
Fire 06 00465 g006
Figure 6. Lagged green woody cover coefficient for the 96 projects plotted against various ecological parameters. Severe fire factor approximates the average number of times a pixel within a given project would have been severely burnt over the 16-year study period. Green woody cover change is the 2021 green woody cover value divided by the 2001 value. Dotted points are a linear-regressed ‘line of best fit’. Filled points are those where the lagged green coefficient achieved statistical significance to the selected threshold (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled = Pr. ≥ 0.1).
Figure 6. Lagged green woody cover coefficient for the 96 projects plotted against various ecological parameters. Severe fire factor approximates the average number of times a pixel within a given project would have been severely burnt over the 16-year study period. Green woody cover change is the 2021 green woody cover value divided by the 2001 value. Dotted points are a linear-regressed ‘line of best fit’. Filled points are those where the lagged green coefficient achieved statistical significance to the selected threshold (grey = Pr. < 0.1, black = Pr. < 0.01, unfilled = Pr. ≥ 0.1).
Fire 06 00465 g006
Table 1. Description, notes and referenced sources of data used in model variables.
Table 1. Description, notes and referenced sources of data used in model variables.
VariableDescription, Notes and References
Green woody cover level during each time periodFractional green vegetation cover data (mean % across project site) 1988–2021 [48]. Provided as seasonal (i.e., quarterly) rasters with bands for percentage cover of photosynthetic and non-photosynthetic vegetation, and bare ground. We selected the September–November quarter which is the late dry season, when most herbaceous vegetation is non-photosynthetic and we infer that the greenness is predominantly photosynthetic woody vegetation. These quarterly tiles approximate median values for the quarter, prepared using the medoid method [49].
Severe fire % of area burnt for the calendar year time periodFire severity annual area (% of project site) 2003–2019. This is available as rasters prepared as part of a previous study. Severe fire is defined as greater than 50% canopy scorched [50].
Green woody cover level during each previously corresponding time periodThe green woody cover measure is expected to be correlated with its level from earlier periods. We used a one-year lagged time period.
Rainfall for the time periodMonthly rainfall obtained from the Bureau of Meteorology [51] annualised to the time period from September of the previous year to August of the following. Raster Calculator in QGIS was used to prepare these new variables.
Yearly counterA variable increasing by one integer for each annual time period. Used to estimate any remaining linear trends after regressing for the above variables. In particular, this could represent the effects of rising atmospheric CO2 concentrations as over the study period CO2 ppm is a mostly linear trend.
Table 2. Model structures illustrating stepwise regression approach.
Table 2. Model structures illustrating stepwise regression approach.
Outcome Variable
Green Woody Cover Versus:		Model Purpose
Model 1Time trend counterTo assess if a linear trend in tree cover is observable over the period 2001–2021
Model 2Severe fire percentageTo assess if severe fire correlates with changes in tree cover (2003–2018)
Model 3Severe fire percentage and previous year’s green woody cover (i.e., lagged dependent variable)As above, but testing for the effects of autocorrelation or persistence in tree cover
Model 4Severe fire percentage and previous 12 months rainfallAdding the effects of recent rainfall to fire effects, to observe any interaction between their coefficients or change in model fit
Model 5Severe fire percentage and previous year’s green woody cover and previous 12 months rainfallModel with all three variables’ effects
DiagnosticAutocorrelation and linear trend tested against residuals from models
Table 3. Model results.
Table 3. Model results.
Green Woody Cover Versus:
Model 1Model 2Model 3Model 4Model 5
96 projects were modelledtime trend countersevere fire percentagesevere fire percentage and previous year’s green woody cover (i.e., lagged dependent variable)severe fire percentage and previous 12 months rainfallsevere fire percentage and previous year’s green woody cover and previous 12 months rainfall
Explanatory Variables
number of project/models which show statistical significance (Pr. < 0.1) for the severe fire variable coefficient 50444648
number of project/models which show statistical significance (Pr. < 0.1) for the one-year-lagged dependent variable coefficient 54 54
number of project/models which show statistical significance (Pr. < 0.1) for the rainfall variable coefficient 2527
Diagnostics
mean value of the coefficient for the severe fire variable (significant severe fire coefficients only) −0.282−0.325−0.269−0.294
number of project/models that show autocorrelation at t−1 in the residuals48450360
number of project/models where a trend is found in the residuals (Pr. < 0.1)25 of 96 projects show a rising trend for green woody cover120121
mean value and range of the adjusted R-squared (only models with a significant severe fire coefficient)0.050.33
(0.13–0.75)		0.36
(0.0–0.74)		0.30
(0.0–0.81)		0.41
(0.10–0.80)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Barber, G.; Edwards, A.; Zander, K. Fire, Rain and CO2: Potential Drivers of Tropical Savanna Vegetation Change, with Implications for Carbon Crediting. Fire 2023, 6, 465. https://doi.org/10.3390/fire6120465

AMA Style

Barber G, Edwards A, Zander K. Fire, Rain and CO2: Potential Drivers of Tropical Savanna Vegetation Change, with Implications for Carbon Crediting. Fire. 2023; 6(12):465. https://doi.org/10.3390/fire6120465

Chicago/Turabian Style

Barber, Greg, Andrew Edwards, and Kerstin Zander. 2023. "Fire, Rain and CO2: Potential Drivers of Tropical Savanna Vegetation Change, with Implications for Carbon Crediting" Fire 6, no. 12: 465. https://doi.org/10.3390/fire6120465

Article Metrics

Back to TopTop
