Applied System Innovation 2018, 1(2), 10; doi:10.3390/asi1020010

Article
Health Symptom Checking System for Elderly People Using Fuzzy Analytic Hierarchy Process
1
Department of Electrical Engineering, National Taipei University of Technology, Taipei 10608, Taiwan
2
Department of Computer Science and Information Engineering, National Taipei University, New Taipei City 23741, Taiwan
3
Department of Neurology, Chang Gung Memorial Hospital, Taoyuan 33333, Taiwan
4
Arizona College of Osteopathic Medicine, Midwestern University, Glendale, AZ 85308, USA
*
Author to whom correspondence should be addressed.
Received: 16 January 2018 / Accepted: 4 April 2018 / Published: 10 April 2018

Abstract

:
The ever-escalating rise in numbers of the aging population has preempted a revolutionary change in the healthcare sector and serves as a major counterpoint to modern life in the 21st century. Increasing demand being placed on the health sector is almost certainly an inevitable process. However, providing appropriate healthcare services is requisite for senior citizens who suffer from various health issues and conditions. To minimize these health risks, we derived an intuitive technique for determining the incongruity of health symptoms by using a symptom checker, which is embedded into a versatile mobile app named Help-to-You (H2U). The designed app helps the users and carers to determine and identify conceivable reasons for elderly ailments and to assist users in deciding when to counsel a health practitioner. The intention of this empirical study was to further analyze and foresee certain variations of infections based on the symptoms accounted for by the patient. The recommended solution consolidated conceptual design with multi-criteria decision analysis (MCDA) technique and an analytic hierarchy process (AHP) with fuzzy weights to deal with the uncertainty of imprecision and ambiguity resulting from various disease factors. Experimental results verified the effectiveness of the proposed model, subsequently providing a variety of life assistance services.
Keywords:
symptom checker; mobile app; H2U; healthcare service; MCDA; fuzzy AHP; decision support

1. Introduction

Within the last few years, developing countries have experienced rapid growth of the elderly population. This abrupt increase endangers the healthcare system for every individual, producing an enormous need to improve their health and well-being. Furthermore, the younger population seeks escape or refuge from families in the hope of re-discovering their competence. Needless to say, this has become the norm as they have to battle with their life. Most parents/guardians anticipate and envision their children to be around as they age. Nevertheless, the younger generation often chooses a job away from where they grew up. This has resulted in many senior citizens ending up in nursing homes or living alone at home. A substantial percentage of elderly people confront individual health challenges, such as recurring infections including coronary disease, arthritis, blurred vision, diabetes, and depression [1]. Thus, prevention, control, and supervision of elderly health complications oblige a multidimensional approach to integrating various healthcare service systems. Most developed systems have concentrated on the quality of functional aspects of life assistance services that accentuate comfort and adequacy based on the concept of smart home.
MCDA fuzzy AHP, an intuitive diagnosis system platform in the symptom checker, incorporates knowledge of health issues in order to minimize uncertainty in making decisions based on the reported health symptoms. The proposed system aims at helping elderly patients and their caretakers to enrich the knowledge of the patients’ health problems. This developed system can help guide the users as to in which departments of the hospital to be counseled in emergency circumstances. This research develops a structured decision model, which delivers the most suitable approaches for assessing multiple-criteria issues of healthcare confronted by the elderly.
The novelty of the developed system was to propose a health symptom checker that can assist users and caregivers in comprehending the uncertainty degree of health issues, consequently keeping them fit and healthy. Furthermore, the presented work was not only confined to the elderly, but was also extended to other age groups by expanding the symptoms and alternatives in the database.
This paper is organized as follows. In Section 2, MCDA fuzzy AHP is used for the multiple criteria decision-making method. Section 3 describes the approach used in the symptom checker for healthcare. The experimental results and discussion from case studies are presented in Section 4. The final section concludes the study.

2. MCDA Fuzzy AHP

Healthcare problems and medical decision-making are unavoidable, and present challenges confronted in everyday life. In the healthcare system, using a structured assessment approach for decision-making and determining the complex problems with a feasible solution can have a positive impact on risk analysis. With these prevailing problems, MCDA strategies can help decision makers to proficiently deal with conflict states. The MCDA is a prominent method for decision-making, which analyzes and resolves multifaceted complications by evaluating the best sensible elucidation from assorted conflicting goals [2,3,4] to yield an optimized hassle-free healthcare system. This methodology is widely used in diverse application disciplines viz. information systems, telemedicine, internet search engines, hotels, food service, engineering education, etc. by consolidating the multidimensional difficulties [5,6]. In this study, we used the fuzzy AHP technique, which was embedded with a fuzzy theory for AHP. AHP is a hierarchical technique developed by Saaty [7], which is widely used for finding the most appropriate alternative that satisfies the complete set of objectives in multi-attribute decision-making problems.
In order to systematize complex problems in an unknown situation, AHP was carried out in a pairwise comparison matrix of diverse alternatives with respect to different criteria using an absolute scale in a hierarchical structure and facilitated a qualitative decision support tool for multidimensional complications [8]. Despite its popularity, AHP does not include vagueness to effectively deal with the uncertainty and imprecision dependency of the decision maker’s perception of the crisp values [9]. Such inconveniences have been addressed by using a fuzzy logic approach. In the fuzzy AHP, the evaluation criteria and alternatives are compared on a pairwise basis, and through the linguistic variables, which are represented by triangular fuzzy numbers (TFNs), to solve the ambiguity involving in ranking and prioritizing the alternatives in healthcare decision-making.

2.1. Fuzzy Numbers

The fuzzy set theory that deals with uncertainty due to imprecision and vagueness was contributed by Zadeh in 1965 [10]. Since then, fuzzy set theory has progressed in a variety of disciplines and applications in medicine, operational research, artificial intelligence, computer science, control engineering, decision control, expert systems, management science, pattern recognition, and robotics [11]. A fuzzy set is any set class of objects that allows its members to be assigned grades of membership function in the interval [0,1] [12]. TFN is used to describe the uncertainty of decision-making [13,14,15,16], which is indicated with three parameters L, M, and U, where L represents the smallest possible lower bound value, M describes the maximum grade equal to 1, and U denotes the upper bound value.
The membership function of TFN is denoted by μo: R → [0,1] as follows:
μ o ( x ) = { x L M L , if L x M U x U M , i f M x U 0 , o t h e r w i s e
A TFN is denoted by O ˜ = (oL, oM, oU) for uncertainty evaluation, as shown in Figure 1.
In Figure 2, the “goal” of the system is to help users to enrich the knowledge of the health issues and help to select the right practitioner to consult with them based on the related symptoms chosen by the user from the listed criteria. The “criteria” are the features of symptoms, e.g., chest pain, toothache, fever, thirst, weight loss, etc., which are rational with the decision. “Alternatives” denote the different courses of actions attainable to the decision maker, which signify various diseases, e.g., mental illness, diabetes, skin, eye, dental, orthopedic, cardiac, etc. First, the decision makers systematically evaluate alternatives by assigning a criterion for each of its attributes, and the attributes of its elements are compared pairwise against the criteria. Then, the alternatives are classified with respect to their impact on an element, and finally, alternatives are graded hierarchically based on the weights of their importance.

2.2. Computational Fuzzy AHP Procedure

Fuzzy AHP comprises of the following steps:
Step 1.
Based on the proposed decision model, the alternatives, criteria, and sub-criteria should be identified.
Step 2.
Interrelationships within the structure, including the criteria, sub-criteria, and alternatives, should be determined to construct the hierarchy structure.
Step 3.
Establish the TFNs.
Step 4.
Construct a fuzzy pairwise comparison matrix of the components with fuzzy judgments.
Step 5.
The alternative with the highest overall score was selected as a final priority decision.
Fuzzy pairwise comparison of TFNs was depicted in Equation (2) based on the decision maker preferences:
O ˜ = [ ( o 11 L , o 11 M , o 11 U ) ( o 12 L , o 12 M , o 12 U ) ( o 1 n L , o 1 n M , o 1 n U ) ( o 21 L , o 21 M , o 21 U ) ( o 22 L , o 22 M , o 22 U ) ( o 2 n L , o 2 n M , o 2 n U ) ( o m 1 L , o m 1 M , o m 1 U ) ( o m 2 L , o m 2 M , o m 2 U ) ( o m n L , o m n M , o m n U ) ]
where O ˜ is the precise judgment matrix and omn represents the comparison of the mth row element and nth column element. If O ˜ was a pairwise comparison matrix, then the fuzzy reciprocal matrix is given as follows.
O ˜ = [ ( 1 , 1 , 1 ) ( o 12 L , o 12 M , o 12 U ) ( o 1 n L , o 1 n M , o 1 n U ) ( 1 o 12 U , 1 o 12 M , 1 o 12 L ) ( 1 , 1 , 1 ) ( o 2 n L , o 2 n M , o 2 n U ) ( 1 o 1 n U , 1 o 1 n M , 1 o 1 n L ) ( 1 o 2 n U , 1 o 2 n M , 1 o 2 n L ) ( 1 , 1 , 1 ) ]
Operations of TFN can be described with the following properties [17,18,19].
There are numerous fuzzy operations applied in diverse fields, such as operational research, control theory, and management sciences. We have illustrated those operations applicable in this research below. Suppose that two TFNs O and P are respectively given by O = (o1, o2, o3) and P = (p1, p2, p3). Then, the triangular fuzzy operations are defined as follows:
  • Addition
    [ o 1 ,   o 2 , o 3 ]   +   [ p 1 ,   p 2 , p 3 ]   =   [ o 1   +   p 1 ,   o 2   +   p 2 , o 3   +   p 3 ]
  • Multiplication
    [ o 1 ,   o 2 , o 3 ]     [ p 1 ,   p 2 , p 3 ]   =   [ o 1     p 1 ,   o 2     p 2 , o 3   p 3 ]
  • Division
    [ o 1 ,   o 2 , o 3 ]   /   [ p 1 ,   p 2 , p 3 ]   =   [ o 1   p 3 , o 2   p 2 , o 3   p 1 ]
  • Inverse
    [ o 1 ,   o 2 , o 3 ] - 1   =   [ 1 o 3 , 1 o 2     ,   1 o 1   ]
Fuzzy numbers are described in linguistic concepts with words or sentences in natural or artificial language, such as low, medium, and high in a particular context, to express the patient’s feeling. The linguistic variable is used to deal with the complexity of creating the importance of preference scale for criteria and alternatives instead of the crisp values in fuzzy AHP [20,21,22].

3. Approach

Taking into account every individual healthcare condition, it was found that a significant number of senior citizens had at least one or more chronic conditions and multimorbidities that required immediate medical attention or assistance [23,24,25]. However, due to the lack of medical knowledge or social interaction among the individuals, most of the elderly who live alone at home were often constrained by an acute and sudden infarction, resulting in delayed diagnosis and treatment planning. A patient suffering chronic conditions needs individual self-care and a trained caregiver with medical knowledge to monitor and recognize the symptoms in order to prevent such acute and contingent infarction. To readily enhance health management and generate alarms in an emergency, a mobile-based symptom checker was designed to effectively share quality healthcare information. The symptom checker is a geriatric service management platform [26], which helps every user to educate themselves as to the possible diagnoses of their health-related symptoms and to make appropriate healthcare decisions to mitigate an emergency situation.

3.1. Symptom Checker

To develop an accessible system for the elderly, the medical knowledge of symptoms associated with the different diseases provided and assessed by Kuo and Huang (co-authors of this paper), was stored in the backend database of the proposed app H2U. There were 13 different disease conditions associated with more than 50 symptoms in the developed system. For an illustration of the application of MCDA and fuzzy AHP methods, we solicited 7 diseases (mental illness, diabetes, skin, eye, dental, ortho, and cardiac), which are commonly suffered by the elderly, to implement the system. For example, diabetes has possible symptoms such as excessive thirst, frequent urination, weight loss, tiredness, and slow healing of wounds. Mental illness shows symptoms of depression, chronic anxiety, change in sleeping, extreme mood change, Alzheimer’s disease, Parkinson’s disease, seizure epilepsy, etc. To use the symptom checker, users need to create an account with their personal credentials, then a one-time password will be sent to the registered mobile number. Figure 3 shows the flowchart of the symptom checker. Once the account is created, the users will be able to choose different symptoms related to their ailments. After the symptom selection is done, the system will generate possible ailments and suggest clinical departments, which can help the users find effective tactics of treatments. This platform will also assist caregivers in having knowledge of the geriatric patients’ ailment for the better treatment of their health issues. During a medical emergency, the users can make emergency calls to 911 for further proactive assistance.
Steps for using MCDA fuzzy AHP in symptom checker are described below:
  • Identify the problems of various criteria, i.e., symptoms, with respect to the ailments.
  • Multiple inputs of problems are associated to form a consolidated outcome of different conditions of diseases.
  • Generating a set of pairwise comparison matrices of various diseases and symptoms based on the importance and choices made by the end-users.
  • The alternative with the highest overall score from the comparisons to the weight priorities of the symptoms is chosen by the patients as the final decision.
  • Based on the final decision from the score, the patients will be informed the specific doctors or departments being consulted.
Figure 4 shows the mobile app interface where they choose the significant features of various symptoms for the medical interventions. Figure 4a shows the interface of the developed H2U system, which is composed of many useful functions related to healthcare, such as symptom checker, insurance, first aid, emergency support, assistance, medication, and medical report. After clicking the symptom checker icon, the app will show a list of symptoms for the user to choose from, as shown in Figure 4b. Based on the chosen symptoms, a list of possible diseases ranking in descending order will be displayed on the screen, as shown in Figure 4c. The app aims to provide an informational diagnosis tool with a medical knowledge base to make decisions by sorting the diseases based on the problems and health conditions. Therefore, the proposed symptom checker can prevent and treat the diseases of various symptoms with the right precision. This tool seeks to achieve a general implication, but is not a substitute for medical intervention or advice.
The collected clinical data are stored in the app and transmitted to the central database server immediately or periodically through the internet. In case of emergency, the H2U healthcare system can send an alarm or trigger an alert to the physicians, their relatives, and caregivers for the timely action of the user. Once the alert message is triggered, the physician will be able to be ready for an emergency backup for the patient and in the meantime, the physician can also review the patient’s clinical reports from the submitted medical information of the patient’s database that was already stored in the cloud. Daily clinical reports like blood pressure, blood sugar, heart rate, body temperature, body weight are recorded and saved in the mobile app and central database of elderly healthcare system. These collected clinical data stored in the patient database are used for future emergent references and precautions.

3.2. Weight Determination for Various Diseases

To illustrate the cognitive response of the symptom checker with MCDA fuzzy AHP, we defined 9 linguistic variable scales of absolute numbers with triangular fuzzy scales to tag the relative preference based on the importance of the comparison of different elements of the subjects for validity and reliability of the assessment. The basic classifications of the fuzzy AHP assessment scale are equally important, weakly or slightly important, moderately important, moderately plus, strongly important, strongly plus, very strong, very very strong, extremely important, and also gave a measurement of 1 to 9 on the nominal scale. The meanings of each measurement with the fuzzy numbers associated with corresponding linguistic variables and TFNs [27] are described in Table 1.
Considering healthcare problems, there are many factors that need to be taken into consideration. To illustrate the evaluation of the symptom checker, the 9 standard entities were taken to describe the level of match between the patient symptoms, S = {chest pain, toothache, fever, thirst, weight loss, Blurred vision, dizziness, swelling, depression} on the decision criteria, and the diseases, D = {mental illness, diabetes, skin, eye, dental, ortho, cardiac} as alternatives suffered by the elderly. Figure 5 shows a hierarchical structure of various attributes of criteria as symptoms and alternatives as diseases to set the goal for qualitative judgments verifying the prioritization of uncertainty decision [28,29].
The hierarchical structure is a skeleton depiction of the system structure, and was used to study the interaction between various symptoms and their impact on the entire system. To measure the performance assessment, the system compares every possible relationship and dependency among the multiple options of symptoms chosen by the users. Then, the structure aggregates enough granularity of weights of importance to distinguish and deliver conceivable diagnoses of symptoms. The design operation of the symptom checker is shown in the following ways. Since there were 9 sets of criteria of symptoms from the case study, there could be 9 comparisons based on the criteria, creating a 9 × 9 matrix. The diagonal elements of the matrix were always set to 1 and then the upper triangular matrix was filled up based on the importance of the alternatives as shown in Table 2.
To fill the upper triangular matrix, the following rules were used [30]:
  • If the judgment value was on the left side of 1, the actual judgment value was inserted.
  • If the judgment value was on the right side of 1, the reciprocal value was inserted.
To fill the lower triangular matrix, we used the reciprocal values of the upper diagonal. If bij was the element of row i and column j of the matrix, then the lower diagonal elements were filled as follows:
b j i = 1 b i j ;   i ,   j   =   1 ,   2 ,   ,   n .
Thus, the lower triangular matrix comparison can be completed as shown in Table 3.
Then a normalized matrix was created after full comparisons of the matrix as follows:
k i j = b i j Σ p = 1 m b p j
To evaluate the weights for each criterion and for each alternative with reference to a given criterion, the fuzzy synthetic extent analysis method was adopted here [31]. Ai with respect to ith criteria was achieved, where C was the set of criteria and n was the number of criteria, m was the number of decision alternatives and the subscripts i and j represented rows and columns, respectively.
A i = Σ j = 1 m M C i j [ i = 1 n . j = 1 m M C i j ] 1
After obtaining the weights of the different criteria of symptoms associated with the fuzzy synthetic extent of TFNs, the relative weights were calculated as follows:
w i = w i j = 1 m w j , i = 1 , 2 , ... , m .
where wi represented the normalized weight for the ith criterion. Table 4 showed the synthetic extent values and normalized weights for different criteria.
A similar mathematical methodology for weight calculation was used to estimate the weights for the given alternatives diseases with respect to criteria symptoms, and four of their respective results are shown in Table 5, Table 6, Table 7 and Table 8.
The possibility of final priority weight for different diseases with respect to the symptoms were calculated as follows:
W e i g h t = p i j w i ;   i = 1 ,   2 , , m ,   j = 1 ,   2 , , n .
where pij was the weight for diseases with respect to symptoms by pairwise comparison from Table 5, Table 6, Table 7 and Table 8. In Equation (12), wi represents the relative weights for different criteria symptoms by pairwise comparison from Table 4. Table 9 shows the priority weights for different diseases.

4. Results and Discussion

To validate the effectiveness of the proposed system, 17 participants (5 females and 12 males) were enrolled in this experiment starting from 1 September 2017 for three months. Each participant downloaded the developed app on their mobile device. Simple instructions were given to each participant to guarantee that they fully understood every function provided by the app. Data were collected from users’ queries about the symptoms whenever they felt sick. Then, each datum was transmitted through wifi or the internet to be saved in the backend database for further analysis.
We used various metrics, such as accuracy, sensitivity, and specificity [32], for performance evaluation and comparison of other methods to the proposed model.
Accuracy: This metric tested its ability to differentiate the recommended disease was the correct disease as assessed by physicians. To estimate the accuracy of a query, the proportion of true positive (TP) and true negative (TN) was calculated in all evaluated cases.
A c c u r a c y = T P + T N T P + T N + F P + F N
Sensitivity: This metric tested its ability to identify the true diseases. To estimate the accuracy of a query, the proportion of TP with respective to sum of TP and false negative (FN) in queries should be calculated.
S e n s i t i v i t y = T P T P + F N
Specificity: The specificity tested its ability to identify the nondisease cases. To estimate the accuracy of a query, the proportion of TN with respective to sum of TN and false positive (FP) in nondisease cases needed to be calculated.
S p e c i f i c i t y = T N T N + F P
The first case study was based on the 61 queries about diabetes-related symptoms in the database. Table 10 shows the confusion matrix. Note that in Table 10, after a participant had clicked some symptoms on the app, if the most possible disease recommended was diabetes, then it was termed “Yes”; otherwise, it was termed “No”. These results indicate that the accuracy, sensitivity, and specificity were 83.61%, 83.33%, and 84%, respectively. These results verify the effectiveness of the proposed symptom checker in helping users to identify the suspected diseases.
A log regression model was applied to find the relationship between the recommended disease and possible symptoms. We used those 61 queries in Table 10 to illustrate the calculation of coefficients in the regression model. To save space, only three queries are listed in Table 11, where the first row reads: a male, aged 57 years, had normal blood pressure, weight loss, high cholesterol, thirst, and obesity. Based on his query, the symptom checker inferred that he had diabetes, and this was confirmed by the physician. The log regression model was calculated as follows:
log y = β 0 + β 1 x 1 + + β 5 x 5
where y denotes diabetes, x1 to x5 represents blood pressure, weight loss, cholesterol, thirst, and obesity, respectively. β 0 is the intercept, and β 1 to β 5 are the corresponding coefficients of the symptoms. Based on these 61 data, the intercept and coefficients were found to be 0.765, 0.047, 0.121, 0.058, 0.168, and 0.073, respectively. By ranking the coefficients in descending order, thirst had the highest relative coefficient, at 0.168, to diabetes, followed by weight loss, at 0.121, and blood pressure had the least relationship, at 0.047. The higher the coefficient is, the more important the symptom is with regard to the disease. It was confirmed that patients with diabetes had the thirsty symptom.
The other case study applied the weights shown in Table 9 to determine the most possible disease from the users’ query. Comparing the weights of the diseases based on the symptoms, it can be determined that the patient had greater chance of suffering ortho by 19%, cardiac by 18%, dental by 17%, eye by 10%, diabetes by 7%, skin by 3% and mental illness by 1%, as shown in Figure 6 and Table 12. This relative weight implied that the user may suffer from ortho, followed by cardiac disease, and had the least chance of suffering from mental illness.
The results of the symptom checker with fuzzy AHP can provide a feasible solution to the uncertainty and complicated situation for the elderly based on the percentage score of relative weights of the health problems chosen by them. The proposed symptom checker provides an appropriate option to help users in determining diseases from their mobile devices.

5. Conclusions

In the healthcare system, early recognition and diagnosis of disease are the best health practices in terms of minimizing health risks and limiting the dangers to well-being faced by each individual in their daily life. This study proposed using a fuzzified predictive symptom checker to decisively identify the most appropriate ailments and any health-related threats with chronic consequences. This design system also delivers quantitative and qualitative knowledge for early diagnosis and helps users to choose the right practitioner for any medical problems. To establish a more accurate system, more participants will be enrolled in future experiments.

Acknowledgments

This work was supported in part by the Ministry of Science and Technology, Taiwan under Grants MOST105-2221-E-027-042- and MOST106-2221-E-027-001-, and in part by the joint project between the National Taipei University of Technology and Chang Gang Memorial Hospital under Grant NTUT-CGMH-106-05.

Author Contributions

Y.P. and H.B. conceived and designed the experiments; Y.P. created the ideas and modeling; H.B. analyzed the data and implemented the system. Y.P. and H.B. wrote the paper. H.C. and A. provided medical knowledge and assessed the results.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, S.; Blazer, D.G. Depression and cognition in the elderly. Annu. Rev. Clin. Psychol. 2015, 11, 331–360. [Google Scholar] [CrossRef] [PubMed]
  2. Thokala, P.; Devlin, N.; Marsh, K.; Baltussen, R.; Boysen, M.; Zoltan, K.; Longrenn, T.; Mussen, F.; Peacock, S.; Watkins, J.; et al. Multiple criteria decision analysis for health care decision making-an introduction: Report 1 of the ispor mcda emerging good practices task force. Value Health 2016, 19, 1–13. [Google Scholar] [CrossRef] [PubMed]
  3. Marsh, K.; Maarten, I.; Thokala, P.; Baltussen, R.; Boysen, M.; Zoltan, K.; Longrenn, T.; Mussen, F.; Peacock, S.; Watkins, J.; et al. Multiple criteria decision analysis for health care decision making emerging good practices: Report 2 of the ISPOR MCDA emerging good practices task force. Value Health 2016, 2, 125–137. [Google Scholar] [CrossRef] [PubMed]
  4. Dehe, D.; Bamford, D. Development, test and comparison of two Multiple Criteria Decision Analysis (MCDA) models: A case of healthcare infrastructure location. Expert Syst. Appl. 2015, 42, 6717–6727. [Google Scholar] [CrossRef]
  5. Neumann, A.; VanLier, P.A.C.; Gratz, K.L.; Koot, H.M. Multidimensional assessment of emotion regulation difficulties in adolescents using the difficulties in emotion regulation scale. Assessment 2010, 17, 138–149. [Google Scholar] [CrossRef] [PubMed]
  6. Bentes, A.V.; Carneiro, J.; Silva, J.F.; Kimura, H. Multidimensional assessment of organizational performance: Integrating BSC and AHP. J. Bus. Res. 2012, 65, 1790–1799. [Google Scholar] [CrossRef]
  7. Saaty, T.L. Decision making with the analytic hierarchy process. Int. J. Serv. Sci. 2008, 1, 83–97. [Google Scholar] [CrossRef]
  8. Waas, T.; Huge, J.; Block, T.; Wright, T.; Benitez-Capistros, F.; Verbruggen, A. Sustainability assessment and indicators: Tools in a decision-making strategy for sustainable development. Sustainability 2014, 6, 5512–5534. [Google Scholar] [CrossRef]
  9. Kanugantia, S.; Agarwalab, R.; Dutta, B.; Bhanegaonkard, P.; Singh, A.P.; Sakar, A.K. Road safety analysis using multi criteria approach: A case study in India. Trans. Res. Procedia 2017, 25, 4649–4661. [Google Scholar] [CrossRef]
  10. Lotfi, A.Z. Fuzzy sets. Inf. Control 1965, 8, 338–353. [Google Scholar] [CrossRef]
  11. Skalna, I.; Rebiasz, B.; Gaweł, B.; Basiura, B.; Duda, J.; Opiła, J.; P-Pilichowski, T. Advances in Fuzzy Decision Making: Theory and Practice, 1st ed.; Springer International Publishing: Cham, Switzerland, 2015; p. 151, ISBN-10: 3319264923; ISBN-13: 9783319264929. [Google Scholar]
  12. Huang, Y.-P.; Lai, S.-L.; Sandnes, F.E.; Liu, S.-I. Improving classifications of medical data based on fuzzy ART2 decision trees. Int. J. Fuzzy Syst. 2012, 14, 444–453. [Google Scholar]
  13. Shenify, M.; Mazarbhuiya, F.A. The expected value of a Fuzzy number. Int. J. Intell. Sci. 2015, 5, 1–5. [Google Scholar] [CrossRef]
  14. Dutta, P.; Boruah, H.; Ali, T. Fuzzy Arithmetic with and without using α-cut method: A comparative study. Int. J. Latest Trends Comput. 2011, 2, 99–107. [Google Scholar]
  15. Chutia, R.; Mahanta, S.; Datta, D. Arithmetic of triangular fuzzy variable from credibility theory. Int. J. Energy Inf. Commun. 2011, 2, 73–80. [Google Scholar]
  16. Zhou, J.; Yang, F.; Wang, K. Fuzzy arithmetic on LR fuzzy numbers with applications to fuzzy programming. J. Intell. Fuzzy Syst. 2016, 30, 71–87. [Google Scholar] [CrossRef]
  17. Ruan, J.; Shi, Y. Situation-based allocation of medical supplies in unconventional disasters with fuzzy triangular values. In Proceedings of the IEEE International Conference on Fuzzy Systems, Beijing, China, 6–11 July 2014; pp. 1178–1182. [Google Scholar]
  18. Xie, A.; Li, C.; Liu, H. Distributive equations of fuzzy implications based on continuous triangular conorms given as ordinal sum. IEEE Trans. Fuzzy Syst. 2013, 21, 541–554. [Google Scholar] [CrossRef]
  19. Lee, K.-H. First Course on Fuzzy Theory and Applications; Springer Science and Business Media: Warsaw, Poland, 2004; Volume 27, p. 335. ISBN 3-540-22988-4. [Google Scholar]
  20. Ayhan, M.B. A Fuzzy AHP approach for supplier selection problem: A case study in a gearmotor company. Int. J. Manag. Value Supply Chains 2013, 4, 11–23. [Google Scholar] [CrossRef]
  21. Lima, F.R.; Carpinetti, L.C.R. A comparison between fuzzy AHP and fuzzy TOPSIS methods to supplier selection. Appl. Soft Comput. 2014, 21, 194–209. [Google Scholar] [CrossRef]
  22. Emrouznejad, A.; William, H. Fuzzy Analytic Hierarchy Process, 1st ed.; Chapman and Hall/CRC: New York, NY, USA, 2017; p. 430. ISBN 9781498732482. [Google Scholar]
  23. Bahler, C.; Huber, C.A.; Brüngger, B.; Reich, O. Multimorbidity, health care utilization and costs in an elderly community-dwelling population: A claims data based observational study. BMC Health Serv. Res. 2015, 15, 1–12. [Google Scholar] [CrossRef] [PubMed]
  24. McPhail, S.M. Multimorbidity in chronic disease: Impact on health care resources and costs. Risk Manag. Healthc. Policy 2016, 9, 143–156. [Google Scholar] [CrossRef] [PubMed]
  25. Tyack, Z.; Frakes, K.A.; Barnett, A.; Cornwell, P.; Kuys, S.; McPhail, S. Predictors of health-related quality of life in people with a complex chronic disease including multimorbidity: A longitudinal cohort study. Qual. Life Res. 2016, 10, 2579–2592. [Google Scholar] [CrossRef] [PubMed]
  26. Huang, Y.-P.; Huang, C.-Y.; Liu, S.-I. Hybrid intelligent methods for arrhythmia detection and geriatric depression diagnosis. Appl. Soft Comput. 2013, 14, 38–46. [Google Scholar] [CrossRef]
  27. Afsordegan, A.; Sanchez, M.; Agell, N.; Zahedi, S.; Cremades, L.V. Decision making under uncertainty using a qualitative TOPSIS method for selecting sustainable energy alternatives. Int. J. Environ. Sci. Technol. 2016, 13, 1419–1432. [Google Scholar] [CrossRef]
  28. Chu, T.-C.; Varma, R. Evaluating suppliers via a multiple levels multiple criteria decision-making method under fuzzy environment. IEEE Trans. Comput. Ind. Eng. 2012, 62, 653–660. [Google Scholar] [CrossRef]
  29. Abdullah, L.; Najib, L. A new preference scale MCDM method based on interval-valued intuitionistic fuzzy sets and the analytic hierarchy process. Soft Comput. 2014, 20, 511–523. [Google Scholar] [CrossRef]
  30. Burnuamkaew, K. How to do AHP analysis in excel. In Division of Spatial Information Science, Graduate School of Life and Environmental Sciences; University of Tsukuba: Tsukuba, Japan, 2012. [Google Scholar]
  31. Chang, D.-Y. Applications of the extent analysis method on fuzzy AHP. Eur. J. Oper. Res. 1996, 95, 649–655. [Google Scholar] [CrossRef]
  32. Huang, Y.-P.; Zaza, S.; Chu, W.-J.; Krikorian, R.; Sandnes, F.E. Using fuzzy systems to infer memory impairment from MRI. Int. J. Fuzzy Syst. 2018, 20, 913–927. [Google Scholar] [CrossRef]

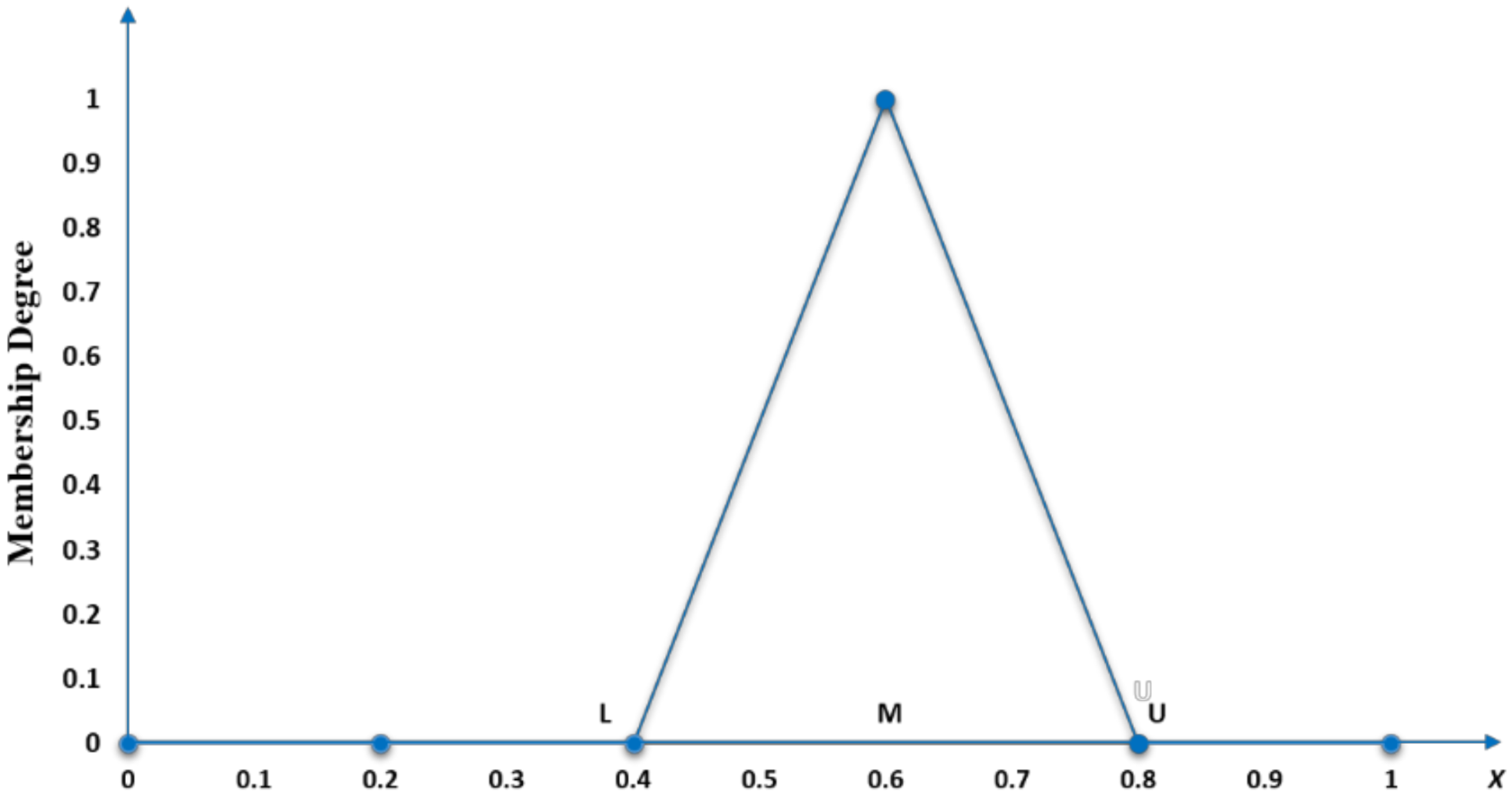

Figure 1. Triangular fuzzy numbers.
Figure 1. Triangular fuzzy numbers.
Asi 01 00010 g001
Figure 2. Schematic of the analytical hierarchy process.
Figure 2. Schematic of the analytical hierarchy process.
Asi 01 00010 g002
Figure 3. Flow execution of symptom checker.
Figure 3. Flow execution of symptom checker.
Asi 01 00010 g003

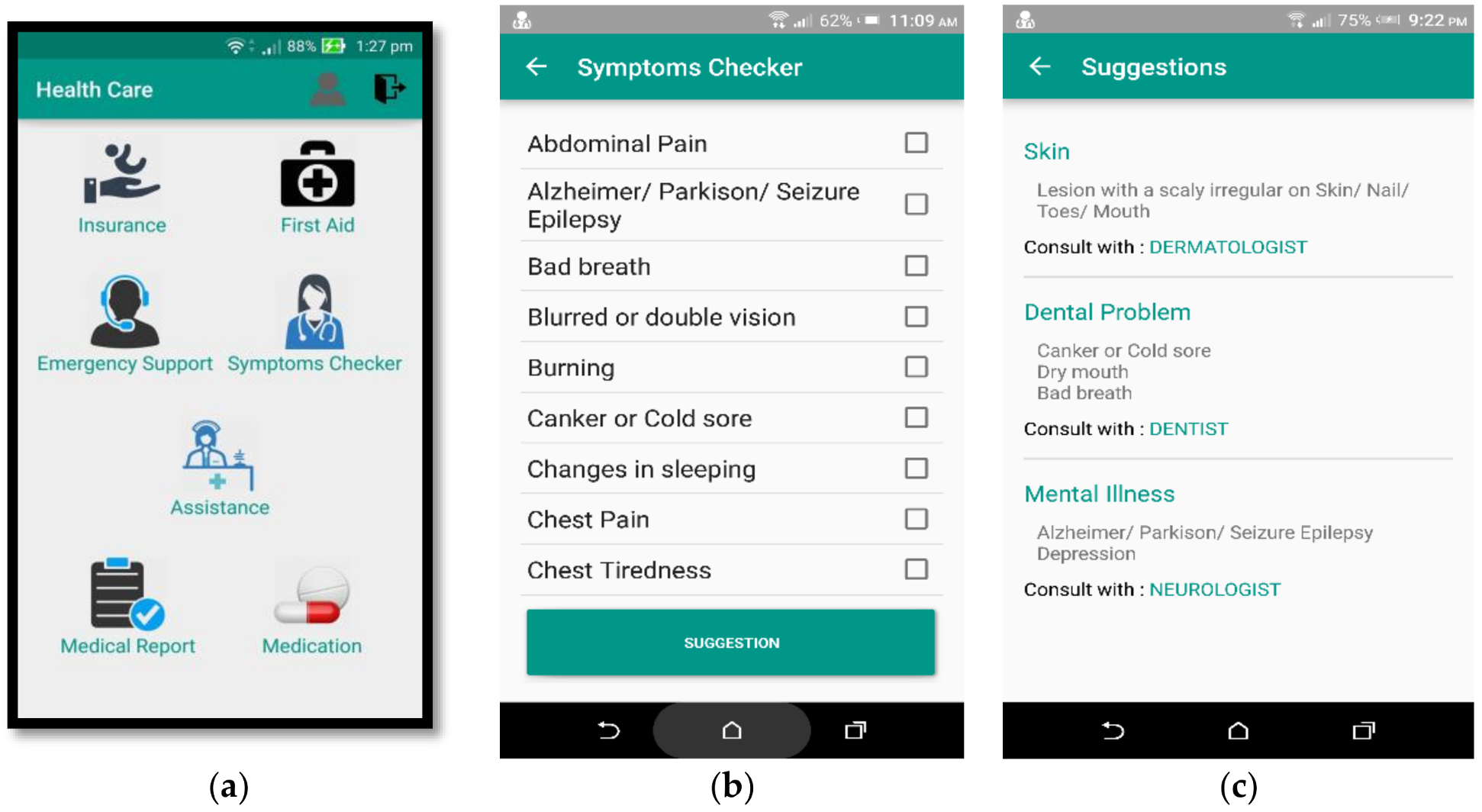

Figure 4. Symptom checker interface of H2U. (a) Interface of H2U system; (a) Interface of H2U system; (c) Suggested disease.
Figure 4. Symptom checker interface of H2U. (a) Interface of H2U system; (a) Interface of H2U system; (c) Suggested disease.
Asi 01 00010 g004

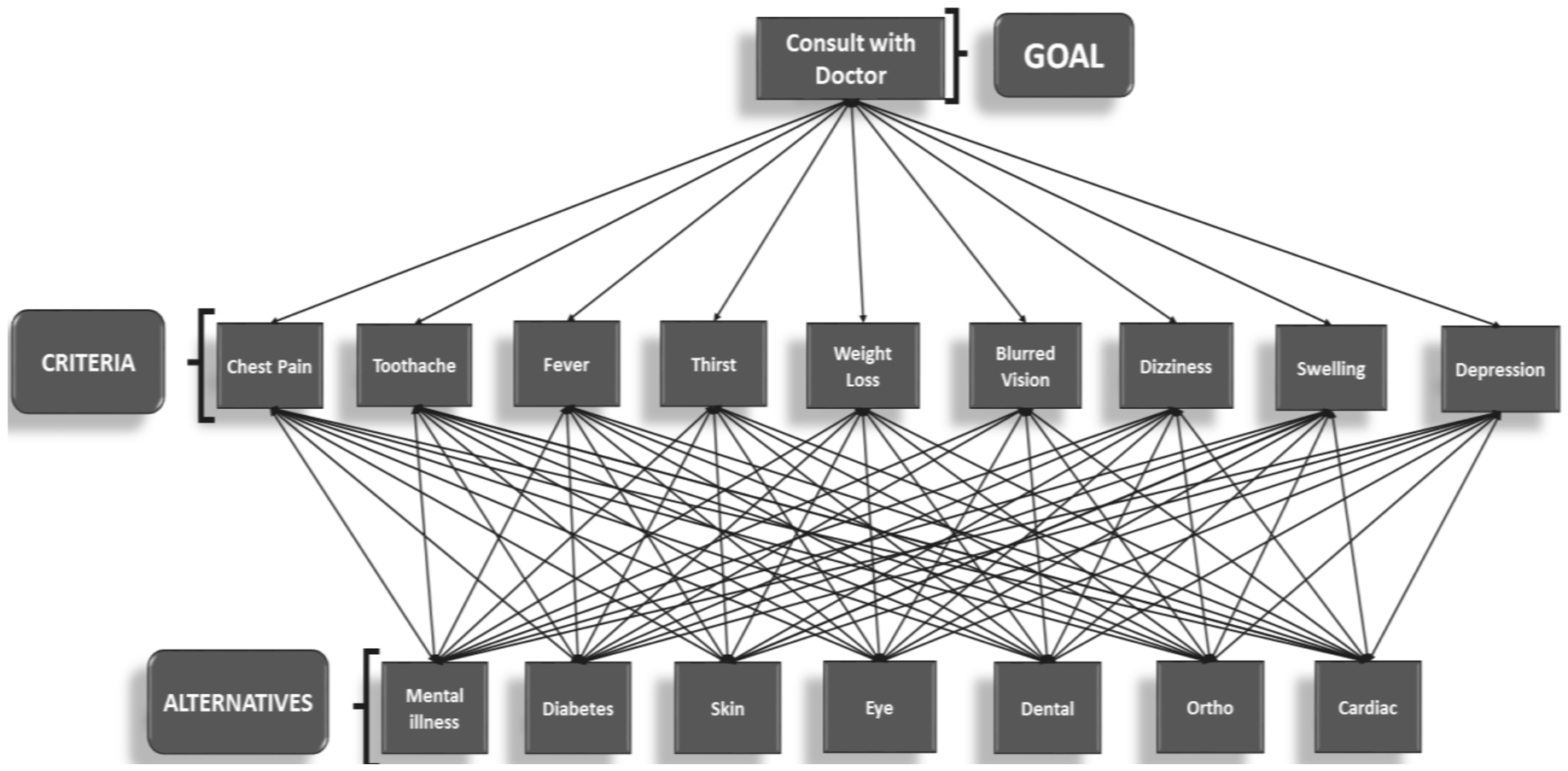

Figure 5. The structural depiction of symptom checker AHP.
Figure 5. The structural depiction of symptom checker AHP.
Asi 01 00010 g005
Figure 6. The probability of disease weights with respect to symptoms.
Figure 6. The probability of disease weights with respect to symptoms.
Asi 01 00010 g006
Table 1. Linguistic variable scales of absolute value.
Table 1. Linguistic variable scales of absolute value.
Linguistic VariablesLinguistic ScalesTriangular Fuzzy ScalesFuzzy Reciprocal
Equally Important1(0.02, 0.18, 0.80)(0.02, 0.18, 0.80)
Weakly or Slightly2(0.07, 0.23, 0.70)(0.23, 0.07, 0.70)
Moderately Important3(0.13, 0.27, 0.60)(0.27, 0.13, 0.60)
Moderately Plus4(0.22, 0.28, 0.50)(0.28, 0.22, 0.50)
Strongly Important5(0.33, 0.27, 0.40)(0.27, 0.33, 0.40)
Strongly Plus6(0.47, 0.23, 0.30)(0.23, 0.47, 0.30)
Very Strong7(0.62, 0.18, 0.20)(0.18, 0.62, 0.20)
Very Very Strong8(0.80, 0.10, 0.10)(0.10, 0.80, 0.10)
Extremely Important9(1.0, 0, 0)(0, 1.0, 0)
Table 2. Pairwise comparison matrix of upper triangular criteria symptoms.
Table 2. Pairwise comparison matrix of upper triangular criteria symptoms.
Chest PainToothacheFeverThirstWeight LossBlurred VisionDizzinessSwellingDepression
Chest Pain1, 1, 10.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.13, 0.27, 0.600.13, 0.27, 0.600.07, 0.23, 0.700.33, 0.27, 0.400.22, 0.28, 0.50
Toothache 1, 1, 10.22, 0.28, 0.500.07, 0.23, 0.700.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.80, 0.10, 0.100.07, 0.23, 0.70
Fever 1, 1, 10.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.07, 0.23, 0.701, 0, 00.47, 0.23, 0.30
Thirst 1, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.200.07, 0.23, 0.700.02, 0.18, 0.80
Weight Loss 1, 1, 10.02, 0.18, 0.800.62, 0.18, 0.200.62, 0.18, 0.200.22, 0.28, 0.50
Blurred Vision 1, 1, 10.80, 0.10, 0.100.33, 0.27, 0.400.07, 0.23, 0.70
Dizziness 1, 1, 10.22, 0.28, 0.500.80, 0.10, 0.10
Swelling 1, 1, 10.13, 0.27, 0.60
Depression 1, 1, 1
Table 3. Complete pairwise comparison matrix of criteria symptoms.
Table 3. Complete pairwise comparison matrix of criteria symptoms.
Chest PainToothacheFeverThirstWeight LossBlurred VisionDizzinessSwellingDepression
Chest Pain1, 1, 10.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.13, 0.27, 0.600.13, 0.27, 0.600.07, 0.23, 0.700.33, 0.27, 0.400.22, 0.28, 0.50
Toothache1.3, 5.6, 50.01, 1, 10.22, 0.28, 0.500.07, 0.23, 0.700.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.80, 0.10, 0.100.07, 0.23, 0.70
Fever1.4, 4.4, 14.32, 3.6, 4.51, 1, 10.02, 0.18, 0.800.07, 0.23, 0.700.13, 0.27, 0.600.07, 0.23, 0.701, 0, 00.47, 0.23, 0.30
Thirst1.7, 3.7, 7.71.4, 4.4, 14.31.3, 5.6, 50.01, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.200.07, 0.23, 0.700.02, 0.18, 0.80
Weight Loss1.7, 3.7, 7.71.3, 5.6, 50.01.4, 4.4, 14.31.3, 5.6, 50.01, 1, 10.02, 0.18, 0.800.62, 0.18, 0.200.62, 0.18, 0.200.22, 0.28, 0.50
Blurred Vision1.4, 4.4, 14.31.4, 4.4, 14.31.7, 3.7, 7.71.3, 5.6, 50.01.2, 5.6, 50.01, 1, 10.80, 0.10, 0.100.33, 0.27, 0.400.07, 0.23, 0.70
Dizziness1.3, 5.6, 50.01.7, 3.7, 7.71.4, 4.4, 14.31.3, 5.6, 50.05, 5.6, 1.710, 10, 0.131, 1, 10.22, 0.28, 0.500.80, 0.10, 0.10
Swelling2.5, 3.7, 3.010, 10, 10.30.0, 0.0, 11.4, 4.4, 14.35, 5.6, 1.72.5, 3.8, 3.42.0, 3.6, 4.61, 1, 10.13, 0.27, 0.60
Depression2.0, 3.6, 4.61.4, 4.4, 14.33.3, 4.4, 2.11.3, 5.6, 50.02, 3.6, 4.51.4, 4.3, 14.310, 10, 1.31.7, 3.7, 7.81, 1, 1
Table 4. Relative weights of criteria symptoms.
Table 4. Relative weights of criteria symptoms.
Sum of the RowSynthetic IndexSum of the Fuzzy NumbersWeight
Chest Pain1.9, 2.9, 6.10.003, 0.02, 0.060.080.01
Toothache3.6, 8.0, 55.10.01, 0.04, 0.520.570.07
Fever6.1, 10.0, 22.90.01, 0.05, 0.220.280.04
Thirst5.5, 15.5, 76.80.01, 0.08, 0.730.820.11
Weight Loss8, 20.9, 124.70.01, 0.11, 1.181.300.17
Blurred Vision9.2, 25.1, 138.50.01, 0.13, 1.311.450.19
Dizziness22.6, 36.1, 126.40.03, 0.19, 1.191.410.19
Swelling24.6, 32.1, 30.40.04, 0.17, 0.290.500.06
Depression24.1, 40.5, 99.70.04, 0.21, 0.941.190.16
Table 5. Evaluation of the symptom toothache with alternative diseases.
Table 5. Evaluation of the symptom toothache with alternative diseases.
TOOTHACHEMental IllnessDiabetesSkinEyeDentalOrthoCardiacWeights
Mental Illness1, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.13, 0.27, 0.600.13, 0.27, 0.600.02, 0.18, 0.800.02, 0.18, 0.800.01
Diabetes1.3, 5.6, 50.01, 1, 10.80, 0.10, 0.100.80, 0.10, 0.100.33, 0.27, 0.400.22, 0.28, 0.500.07, 0.23, 0.700.08
Skin1.3, 5.6, 50.010, 10, 1.31, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.09
Eye1.7, 3.7, 7.710, 10, 1.31.3, 5.6, 50.01, 1, 10.07, 0.23, 0.700.02, 0.18, 0.800.02, 0.18, 0.800.10
Dental1.7, 3.7, 7.72.5, 3.7, 3.01.3, 5.6, 50.01.4, 4.4, 14.31, 1, 10.02, 0.18, 0.800.07, 0.23, 0.700.12
Ortho1.3, 5.6, 50.02.0, 3.6, 4.61.3, 5.6, 50.01.3, 5.6, 50.01.2, 5.6, 50.01, 1, 10.02, 0.18, 0.800.29
Cardiac1.3, 5.6, 50.01.4, 4.4, 14.31.3, 5.6, 50.01.3, 5.6, 50.01.4, 4.4, 14.31.3, 5.6, 50.01, 1, 10.33
Table 6. Evaluation of the symptom fever with alternative diseases.
Table 6. Evaluation of the symptom fever with alternative diseases.
FEVERMental IllnessDiabetesSkinEyeDentalOrthoCardiacWeights
Mental Illness1, 1, 10.07, 0.23, 0.700.07, 0.23, 0.700.02, 0.18, 0.800.02, 0.18, 0.800.07, 0.23, 0.700.02, 0.18, 0.800.01
Diabetes1.4, 4.4, 14.31, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.22, 0.28, 0.500.02, 0.18, 0.800.03
Skin1.4, 4.4, 14.31.3, 5.6, 50.01, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.22, 0.28, 0.500.09
Eye1.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01, 1, 10.22, 0.28, 0.500.02, 0.18, 0.800.02, 0.18, 0.800.19
Dental1.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.02.0, 3.6, 4.51, 1, 10.07, 0.23, 0.700.22, 0.28, 0.500.20
Ortho1.4, 4.4, 14.31.3, 5.6, 50.01.3, 5.6, 50.01.4, 4.4, 14.31.2, 5.6, 50.01, 1, 10.02, 0.18, 0.800.23
Cardiac1.3, 5.6, 50.01.3, 5.6, 50.02.0, 3.6, 4.51.3, 5.6, 50.02.0, 3.6, 4.51.3, 5.6, 50.01, 1, 10.26
Table 7. Evaluation of the symptom blurred vision with alternative diseases.
Table 7. Evaluation of the symptom blurred vision with alternative diseases.
BLURRED VISIONMental IllnessDiabetesSkinEyeDentalOrthoCardiacWeights
Mental Illness1, 1, 10.02, 0.18, 0.800.33, 0.28, 0.400.33, 0.27, 0.400.02, 0.18, 0.800.02, 0.18, 0.800.07, 0.23, 0.700.01
Diabetes1.3, 5.6, 50.01, 1, 10.80, 0.10, 0.101, 0, 00.07, 0.23, 0.700.47, 0.23, 0.300.10, 0.30, 0.600.10
Skin1.7, 3.7, 7.710, 10, 1.31, 1, 10.02, 0.18, 0.800.10, 0.30, 0.600.02, 0.18, 0.800.02, 0.18, 0.800.03
Eye2.5, 3.7, 3.00, 0, 11.3, 5.6, 50.01, 1, 10.10, 0.30, 0.600.02, 0.18, 0.800.02, 0.18, 0.800.11
Dental1.3, 5.6, 50.01.4, 4.4, 14.31.7, 3.3, 101.7, 3.3, 101, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.15
Ortho1.3, 5.6, 50.03.3, 4.4, 2.11.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01, 1, 10.02, 0.18, 0.800.29
Cardiac1.4, 4.4, 14.31.7, 3.7, 7.71.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01, 1, 10.32
Table 8. Evaluation of the symptom depression with alternative diseases.
Table 8. Evaluation of the symptom depression with alternative diseases.
DEPRESSIONMental IllnessDiabetesSkinEyeDentalOrthoCardiacWeights
Mental Illness1, 1, 10.33, 0.27, 0.400.33, 0.27, 0.400.80, 0.10, 0.100.22, 0.28, 0.500.80, 0.10, 0.100.80, 0.10, 0.100.01
Diabetes2.5, 3.7, 3.01, 1, 10.80, 0.10, 0.100.33, 0.27, 0.400.07, 0.23, 0.700.13, 0.27, 0.600.13, 0.27, 0.600.02
Skin2.5, 3.7, 3.010, 10, 1.31, 1, 10.07, 0.23, 0.700.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.03
Eye10, 10, 1.32.5, 3.7, 3.01.4, 4.4, 14.31, 1, 10.02, 0.18, 0.800.02, 0.18, 0.800.02, 0.18, 0.800.06
Dental2.0, 3.6, 4.51.4, 4.4, 14.31.3, 5.6, 50.01.3, 5.6, 50.00.33, 0.27, 0.400.33, 0.27, 0.400.02, 0.18, 0.800.23
Ortho10, 10, 1.31.7, 3.7, 7.71.3, 5.6, 50.01.3, 5.6, 50.02.5, 3.7, 3.01, 1, 10.02, 0.18, 0.800.23
Cardiac10, 10, 1.31.7, 3.7, 7.71.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01.3, 5.6, 50.01, 1, 10.41
Table 9. Final weights of alternative diseases with respect to the goal.
Table 9. Final weights of alternative diseases with respect to the goal.
Chest PainToothacheFeverThirstWeight LossBlurred VisionDizzinessSwellingDepressionFinal Weights
Mental Illness0.0080.0090.0080.0070.0070.0100.0080.0090.0080.010
Diabetes0.0800.0750.0260.0230.0150.0980.0170.0380.0190.075
Skin0.1510.0860.0870.0280.0240.0350.0220.0280.0350.037
Eye0.1620.0970.1910.1270.1220.1060.0420.0630.0630.108
Dental0.0830.1150.1970.2290.1920.1450.2080.1460.2330.171
Ortho0.3040.2920.2270.2460.2840.2850.3470.3840.2340.192
Cardiac0.2130.3260.2650.3400.3560.3210.3570.3320.4080.187
Table 10. Final weights and overall ranking with respect to the goal.
Table 10. Final weights and overall ranking with respect to the goal.
Query vs. OutcomeOutcome
YesNo
QueryYes304
No621
Table 11. Three queries.
Table 11. Three queries.
AgeAge CategoryGenderBlood PressureWeight LossCholesterolThirstObesityDiabetes
5755–64MaleNormalYesHighYesYesYes
4945–54FemaleNormalYesNormalYesNoYes
6665–74FemaleNormalYesNormalYesYesNo
Table 12. Final weights and overall ranking with respect to the goal.
Table 12. Final weights and overall ranking with respect to the goal.
DiseasesFinal WeightsOverall Ranking
Mental Illness0.0107
Diabetes0.0755
Skin0.0376
Eye0.1084
Dental0.1713
Ortho0.1921
Cardiac0.1872

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Appl. Syst. Innov. EISSN 2571-5577 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
