Formation of Composite Coatings during Detonation Spraying of Cr3C2

by
Igor S. Batraev
1,
Vladimir Yu. Ulianitsky
1,2,
Alexandr A. Shtertser
1,*,
Dina V. Dudina
1,3 and
Arina V. Ukhina
3
1
Lavrentyev Institute of Hydrodynamics, Siberian Branch of the Russian Academy of Sciences,630090 Novosibirsk, Russia
2
Faculty of Aircraft, Novosibirsk State Technical University, 630073 Novosibirsk, Russia
3
Institute of Solid State Chemistry and Mechanochemistry, Siberian Branch of the Russian Academy of Sciences, 630117 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2023, 7(2), 71; https://doi.org/10.3390/jcs7020071
Submission received: 28 December 2022 / Revised: 28 January 2023 / Accepted: 3 February 2023 / Published: 8 February 2023
(This article belongs to the Section Composites Manufacturing and Processing)

Abstract

:
In the current practice of applying carbide-based coatings by thermal spraying, the starting material usually contains a metal binder. However, it is important to study the possibility of spraying binder-free carbides, since the metal components usually reduce the operating temperature and corrosion resistance of cermet coatings. In this work, a powder of chromium carbide, Cr3C2, was sprayed using a CCDS2000 detonation gun. Acetylene–oxygen mixtures C2H2 + kO2 with k varying from 0.8 to 3.0 were used as an energetic material. Due to chemical reactions between Cr3C2 and the detonation products, the coatings were of composite nature (multi-phase materials) with a composition depending on k. At k values in the range from 0.8 to 1.1, along with Cr3C2, the coatings contained chromium carbonitride Cr3N0.4C1.6. In the k range from 1.3 to 2.0, Cr7C3 and Cr were the main components of the coatings. As k was increased to 3.0, along with Cr7C3 and Cr, the CrO and Cr2O3 oxides formed in the coatings. The mechanical properties and wear resistance of the coatings were found to depend on their phase compositions. Coatings produced by detonation spraying of Cr3C2 powder may be useful for increasing the corrosion resistance of machine parts to mineral acids and high-temperature oxidation resistance.

1. Introduction

Coatings based on chromium carbide with a metal binder (Ni or NiCr) are in high demand in modern industry as protective coatings with good corrosion and abrasive resistance when working in aggressive environments up to a temperature of 900 °C [1]. Such composite coatings, thanks to the metal binder, the content of which is in the range from 10 to 30 wt. %, have good adhesion and cohesion, as well as hardness at the level of 1000 HV0.3. Depending on the conditions under which the coating operates, various thermal spray methods can be used: plasma spray (PS) [2,3], high-speed flame spraying using oxygen or air as an oxidizer (HVOF or HVAF) [4,5], detonation spraying [6] and, to a lesser extent, cold spray (CS) [7].
In recent years, there has been increased interest in obtaining ceramic coatings from pure chromium carbide, since such coatings have greater acid resistance compared to composite coatings. For example, in [8], Cr3C2 coatings were produced by post-treatment of chromium coatings formed by PS and CS methods. Post-treatment was carburization in a methane-containing medium during heat treatment. Thermal reactive diffusion (TRD) is also used to obtain films and thin coatings from pure chromium carbide [9,10,11]. Finally, in [12], the authors investigated the possibility of spraying a coating of pure chromium carbide by high-velocity suspension flame spraying (HVSFS).
There is no information in the literature on the formation of pure Cr3C2 coatings by detonation spraying. To fill this gap, this work was aimed at studying the possibility of detonation spraying of pure chromium carbide (without a metal binder) and investigating the composition and properties of the resultant coatings.

2. Materials and Methods

In the experiments, a chromium carbide powder (Cr3C2) produced by LLC “Rosnamis” (Taganrog, Russia) was used, which was sieved through a sieve of 20 μm. As shown in Figure 1, the powder particles have an irregular fragmentary shape. According to the microscopic analysis, the bulk of the powder is represented by particles ranging in size from 10 μm to 20 μm.
Chromium carbide, Cr3C2, is acid-resistant and insoluble in alkaline solutions. These properties make it suitable for applications in the chemical industry. Cr3C2 has an orthorhombic crystal lattice, a melting point of 2168 K, a modulus of elasticity of 372 GPa, thermal conductivity of 19.3 Wm−1K−1, microhardness of 1040–2020 HV (the spread is associated with the anisotropy of the crystal lattice) and a coefficient of thermal expansion of 11.7 × 10−6 K−1. Due to its high melting point, rather high thermal conductivity and high hardness, Cr3C2 can operate under wear conditions at elevated temperatures in aggressive environments. Since the value of the coefficient of thermal expansion of Cr3C2 is close to those of steels, it is widely used as a component of coatings with a nickel or nichrome binder. The coatings are deposited by the thermal spray techniques. Unlike WC-based coatings, the cobalt binder is not used in Cr3C2-based coatings because of the high solubility of Cr3C2 in cobalt [12].
Detonation spraying of the chromium carbide powder was carried out using a CCDS2000 detonation gun [13], developed at the Lavrentyev Institute of Hydrodynamics of the Siberian Branch of the Russian Academy of Sciences (LIH SB RAS). Acetylene, oxygen and nitrogen gases of technical purity (impurity concentration < 1%) were used to form an explosive mixture (EM), purge the barrel between the shots (nitrogen) and feed the powder into the gun barrel (nitrogen).
In thermal spray technologies, the coating deposition process is characterized by the deposition efficiency factor (DE), since only a fraction of the particles injected into the barrel of the detonation gun form a coating. Some particles ricochet or splash during the spraying process and are not deposited on the substrate. The DE parameter determines the spraying performance and is one of the optimization criteria of the spraying process. DE was calculated as DE = m/m0, where m is the mass of the material deposited in one shot, and m0 is the mass of the powder injected into the barrel in one shot.
The morphology of the powder and the microstructure of the coatings were studied by scanning electron microscopy (SEM) on a Carl Zeiss Merlin microscope (Carl Zeiss NTS, Oberkochen, Germany). The X-ray diffraction (XRD) patterns of the initial powder and coatings were recorded using a D8 ADVANCE diffractometer (Bruker AXS, Karlsruhe, Germany) with Cu Ka radiation. The optical images were obtained using an OLYMPUS GX-51 metallographic microscope (Tokyo, Japan). The porosity of the coatings was determined by analyzing the optical images of the cross-sections of the samples using OLYMPUS Stream Image Analysis software Stream Essentials 1.9.1 (Tokyo, Japan). The microhardness measurements were carried out using a Vickers DuraScan-50 hardness tester (EMCO-Test, Kuchl, Austria) at a load of 0.1 kg (HV0.1) at nine points on the cross-section of the coating. The average microhardness value is presented together with the standard deviation.
During the spraying process, residual stresses may accumulate in the coatings. At a high level of tensile stresses, cracking or peeling of the coating may occur during the spraying process. Therefore, to ensure the reliability and durability of the coating, the formation of moderate residual compression stresses is preferable. The characterization of residual stresses in coatings was carried out by the Almen method [14,15], in which the shape of a standardized steel strip (Almen strip) with a layer of a sprayed coating is analyzed. In the case of tensile stresses in the coating, the Almen strip is bent outward by a steel substrate. In the presence of compressive stresses, the strip is bent outward by the coating. The bond strength of the coatings to the substrate (adhesion) was measured according to the ASTM C633 standard using ULTRABOND-100TM glue. Mechanical tests were carried out on a Zwick Roell Z100 testing machine (ZwickRoell GmbH & Co. KG, Ulm, Germany).
The calculations of the temperature, kinetic head and concentrations of the components of the detonation products (DP) behind a detonation front were carried out using a computer code developed at LIH SB RAS (based on the theoretical model described in [16]). In order to calculate the velocities and temperatures of the sprayed particles, the LIH computer code developed at LIH SB RAS [17] was used. In this code, the dispersion of the molten particles into smaller ones in the barrel of a detonation gun is taken into account. When optimizing the spraying mode, the diameter and length of the gun barrel, the composition and volume of the explosive charge, the place of injection of the powder into the gun barrel and the size of its particles were varied in the calculations.

3. Results and Discussion

3.1. Results of Numerical Calculations

As shown in [18,19], an acetylene–oxygen explosive mixture (EM) should be used to implement the detonation spraying of refractory materials (materials with a melting point exceeding 3000 K). Experiments with tungsten carbide, which has a high melting point (Tm = 3058 K), have shown the need to choose the composition of EM in a narrow range, so that the temperature of the detonation products (DP) should be close to the maximum value (≈4500 K). The deposition of Cr3C2 (Tm = 2168 K) can presumably be carried out in a wider range of EM compositions, since its melting point is almost 900 K lower. Therefore, the calculations of the main detonation parameters—in particular, the temperature and kinetic head of the DP and their composition—were performed with a variation in the oxygen/carbon ratio k in the range from 0.8 to 3.0 for the C2H2 + kO2 acetylene–oxygen mixtures. The kinetic head is the product of the density and the square of the mass velocity of the DP, divided in half. Note that in fuel-depleted EM (k > 1), atomic oxygen is contained in DP, and in fuel-rich EM (k < 1), atomic carbon is present in DP. As a result, at high DP temperatures, the presence of atomic oxygen can cause the decarburization of chromium carbide [20], while new carbide phases can form in an environment containing atomic carbon [21].
Figure 2 and Figure 3 show the calculated detonation parameters of acetylene–oxygen C2H2 + kO2 mixtures with k in the range from 0.8 to 3.0. In the entire range 0.8 ≤ k ≤ 3.0, the temperature of DP does not fall below 4000 K. At k = 1.2, it reaches a maximum of 4536 K. This temperature is sufficient for melting refractory materials—for example, metallic tungsten (Tm = 3695 K) or its carbide (Tm = 3058 K). The kinetic head, which determines the acceleration of the particles, remains high (approximately 1.8 MPa) in the k range from 0.8 to 1.25, with a maximum value of 1.85 MPa reached at k = 1. Further, with increasing k, this parameter monotonically decreases and reaches a value of 1.3 MPa at k = 3.0. Figure 3 shows that in the range 0.8 ≤ k ≤ 1.0, the main components of DP are reducing agents: CO, H2 and H. Atomic carbon is also present at a low concentration. At k ≥ 1.0, in the DP, active oxidants, O and OH, appear. Their amounts gradually increase, reaching values of approximately 0.6 mol per mol of C2H2 at k = 3.0.
Figure 4 illustrates the detonation spraying process, for which calculations were performed. Calculations for the C2H2 + O2 (k = 1) mixture chosen as the base one showed that, in a barrel with a diameter of 20 mm and a length of 1000 mm, filled with EM up to the powder injection point (Lip = LbLec), Cr3C2 particles are heated up to the melting point.
Figure 5 illustrates how the temperature and velocity of the particles change as the latter move from the injection point to the exit from the barrel. As the particle accelerates and moves under the influence of DP, its position in the barrel is described by the X coordinate, counted from the end of the barrel. It can be seen in Figure 5 that even the largest particles with a size of 20 μm fly out of the barrel in a molten state, when injected at Lip = 400 mm. Particles with a size of 10 μm are heated in the barrel up to the melting point by running 150 mm from the injection point (Figure 5a) and fly out of the barrel in a molten state with a temperature of approximately 2300 K. Other particles with sizes of 15 μm and 20 μm fly out in a molten state with a temperature equal to the melting point. As seen in Figure 5b, the particle velocities at the barrel exit range from 630 m/s to 730 m/s.
Figure 6 shows the evolution of the temperature and velocity of Cr3C2 particles with a size of 15 μm as the latter move in the barrel for different k and a constant volume of the explosive mixture. It can be seen that as k is increased from 1.0 to 2.5, the temperature of the particles increases to 3000 K (Figure 6a). As k is further increased, the temperature begins to decrease. The increase in the particle temperature with an increase in k from 1 to 2.5 is due to an increase in the time of exposure of the particles to hot DP in the detonation gun barrel, since the particle velocity decreases (Figure 6b). The decrease in temperature observed at k < 2.5 is associated with a drop in the DP temperature, the particle velocities remaining sufficiently high. Figure 6 also shows that the value of k has a much stronger effect on the temperature than on the velocity of the particles flying out of the barrel. The maximum velocity of a particle with a size of 15 μm is gained quickly at a run of approximately 100 mm; at the same time, the temperature at k > 1 is constantly increasing, reaching a maximum at the barrel exit.

3.2. Experimental Results

The experiments on detonation spraying were carried out on a detonation gun with a barrel diameter of 20 mm and a length of 1000 mm. The Cr3C2 powder was injected into the barrel at a distance of 400 mm from its end. The C2H2 + kO2 explosive mixture filled the barrel up to the injection point of the powder, so that the length of the explosive charge was Lec = 600 mm (see Figure 4). The main goal was to study the effect of k on the composition and properties of the coatings.
When chromium carbide with a nichrome binder is detonation-sprayed, the spraying distance of L = 200 ± 50 mm is the optimal one, since, at this spraying distance, the hardness and wear resistance of the coatings reach their maxima, while the porosity of the coatings does not exceed 0.3% at L ranging from 50 to 300 mm [6]. Therefore, in this work, L = 200 mm was chosen as the base spraying distance, at which coatings were obtained using different values of k. The coatings were sprayed onto substrates of low-carbon steel with a size of 50 × 70 × 2 mm3. It was found that the coating was formed only at k ≥ 0.8. An important technological parameter is DE, characterizing the losses of the powder during spraying, as defined in Section 2. At k = 0.8, up to 40% of the powder is deposited on the substrate, i.e., DE = 40%. Figure 7 illustrates the dependence of DE on k, showing that in the range of k from 0.8 to 1.3, the value of DE does not change significantly and is around 40%. With a further increase in k, DE decreases, remaining at a level of 30% in the k range of 1.5–3.0.
One of the methods to pre-evaluate the quality of the coating is to study the coating spot formed by a series of shots on a substrate without scanning the surface. Figure 8 shows that, as k increases from 0.8 to 1.3, the quality of the coating improves, the spot becoming more uniform, showing no traces of erosion of the material. At the same time, the DE remains at a level of 40%. With a further increase in k, the DE decreases, and, in the range of k from 1.5 to 3.0, it is at a level of 30% (Figure 7). At k exceeding 2.0, because of the high concentrations of the oxidizing components in the DP, the decarburization of Cr3C2 and even the oxidation of metallic chromium occur (Figure 9). As the phase composition of the deposited material changes, the color of the spot also changes, from light gray to dark gray.
Figure 10 shows the microstructure of the coatings obtained at different k, while Figure 11 shows their hardness and porosity. The coating sprayed at k = 0.8 is characterized by porosity of 2%. With increasing k, the resultant coatings have a structure consisting of tightly packed lamellae. The porosity of these coatings decreases to 1%.
In accordance with the changes in the phase composition and microstructure, the coatings sprayed at different k differ in hardness (Figure 11). At k = 0.8 and k = 0.9, coatings with porosity of 1.5–2.0% and microhardness of approximately 700 HV0.1 are formed. These coatings contain chromium carbide Cr3C2 and chromium carbonitride Cr3N0.4C1.6 (Figure 9b). With an increase in k, the porosity of the coatings drops to 1%: at k = 1.0 and 1.1, the microhardness of the coatings is ≈800–900 HV0.1. In the k range from 1.3 to 2.5, the microhardness drops slightly to ≈700–800 HV0.1, apparently due to the presence of metallic Cr (Figure 9c,d). With a further increase in k and the formation of oxides in the coatings (Figure 9d), the microhardness increases again.
The dependence of DE on the spraying distance L was determined using an explosive mixture with k = 1 (Figure 12). At distances up to 100 mm, DE reaches 50–60%, which is a high value for thermal spraying. As the distance is further increased, the DE monotonously decreases, reaching 25–30% at a distance of 300 mm.
The most important performance characteristics of machine parts with functional coatings, which determine their working life, are the bonding strength of the coating to the substrate (adhesion), the strength of the coating itself (cohesion) and the coating’s resistance to abrasive wear. To study the properties of the coatings, samples were prepared at k varying from 0.8 to 3.0. The adhesion of the coatings was measured according to the ASTM C633 standard. During testing, the grips of the testing machine clung to the rods, which were glued to the coating and the substrate with ULTRABOND-100TM glue. During testing, the failure of samples occurred through the coating layer, which means that the coating strength (cohesion) was actually measured. Obviously, in this case, the adhesion was higher than the cohesion. The test results are shown in Figure 13, from which it is clear that the coating strength values are in the range from 19 to 30 MPa.
Testing of the coatings under abrasive wear conditions was carried out according to the ASTM G65 standard, according to which the test sample is pressed against a rotating wheel covered with rubber on the rim, and a granular abrasive is fed into the friction zone. The abrasive wear is measured by the loss of sample volume per 1000 revolutions of the rubberized wheel. Before testing, the coatings were ground on a diamond disc. This treatment provides a surface roughness not worse than 0.8 microns, which is required by the ASTM G65 standard. The thickness of the test coatings was 300 ± 50 microns. Testing was performed according to procedure B of the mentioned standard. The sample was pressed against a rubberized disk with a force of 130 N, the total number of revolutions of the disk was 2000 (abrading distance 1436 m), and the consumption of granular abrasive was 300–400 g/min. The dependence of the volumetric wear of the coatings on k is shown in Figure 14.
As seen in Figure 14, coatings sprayed at k = 0.8 and k = 0.9 are characterized by the maximum wear. This can be explained by the low microhardness, low cohesion and high porosity of these coatings (Figure 11 and Figure 13). With increasing k, coatings consisting of chromium carbide Cr3C2 and chromium carbonitride Cr3N0.4C1.6 become denser and have higher microhardness and cohesion, which leads to a decrease in wear to a level of 15 mm3/1000 rev. In the range of k from 1.3 to 2.0, dense, but less hard coatings are obtained due to the formation of metallic chromium (Figure 9c). As a result, their wear increases to 20 mm3/1000 rev. Chromium oxides are formed in coatings sprayed with near-stoichiometric compositions of the acetylene–oxygen explosive mixture (k = 2.0–3.0), which again leads to an increase in the resistance of the coatings to abrasive wear, which decreases to 15 mm3/1000 rev.
To assess the residual stresses in the coatings, tests were carried out using the Almen method [14,15]. According to this method, residual stresses in the coating are calculated from the measured deflection of a thin metal substrate (strip), on which the coating is applied. In our experiments, a coating with a thickness of 100 ± 20 μm was applied to an Almen strip of type N grade 1 with a size of 75 × 19 × 0.8 mm3, manufactured by Electronics Inc. (Mishawaka, IN, USA). After spraying, the strip bent under the influence of internal stresses so that the coating was on its convex surface (Figure 15). This type of deflection corresponds to compressive residual stresses in the coating. The deflection of the Almen strip with the applied coating was 720 μm.
The average level of residual stresses in the coating was estimated using the following formula [15]:
σ r = 4 E δ 2 h 3 t ( 1 μ ) ( 4 h 2 + l 2 )
where E, μ, δ and l are the Young’s modulus, Poisson’s ratio and the thickness and length of the Almen strip; t is the thickness of the coating, and h is the deflection of the Almen strip. For an Almen strip made of SAE 1070 steel, E = 2·105 MPa, μ = 0.3, δ = 0.8 mm, l = 75 mm. With a coating thickness of t = 0.1 mm and a deflection of the Almen strip of h = 0.72 mm, the calculation according to (1) gives the value of compressive residual stresses of σr = 312 MPa.
In the detonation spraying practice, it is known that an increase in the thickness of the coatings can sometimes lead to the formation of cracks and even the detachment of the coating from the substrate. However, in the present work, in the coatings up to 500 μm thick, sprayed on substrates of low-carbon steel with a size of 70 × 70 mm2, no signs of peeling or cracking were found.

3.3. Discussion

This work demonstrated the possibility of the detonation spraying of a binder-free Cr3C2 powder for the first time. Chromium carbide has a high melting point; therefore, high-energy acetylene–oxygen detonating mixtures (C2H2 + kO2) were chosen for the spraying. The k parameter reflects the oxygen to carbon molar ratio in the mixture. The calculation of the temperature and kinetic head of the detonation products, as well as the temperatures and velocities of the powder particles accelerated in the barrel of the detonation gun, proved the possibility of forming coatings from a Cr3C2 powder in a wide range of compositions of acetylene–oxygen explosive mixtures, with k varying between 0.8 and 3.0.
The experiments described above have shown that the phase and chemical composition of the coatings produced by the detonation spraying of a Cr3C2 powder change with k (Figure 9). Due to the chemical interactions of the powder particles with the active components of the DPs in the barrel of the detonation gun, composite coatings are formed. In particular, at k ranging from 0.8 to 1.1, along with Cr3C2, the coatings contain chromium carbonitride, Cr3N0.4C1.6. At k ranging from 1.3 to 2.0, the main phases in coatings are Cr7C3 and Cr. In the coatings obtained at higher k, CrO and Cr2O3 are present, along with the carbide phase, Cr7C3, and metallic chromium. Thus, ceramic coatings are formed only at values of k up to 1.1. At k exceeding 1.1, cermet coatings are formed. This is due to the appearance of oxidizing components (O, O2, OH) in the detonation products (Figure 3), which leads to the decarburization of Cr3C2.
Due to the high particle velocity and, accordingly, the manifestation of the peening effect, coatings with compressive residual stresses are formed. This is important from the point of view of the practical use of these coatings, since the compressive residual stresses are known to increase the fatigue strength of materials. The strength tests of the coatings by the glue method have shown that the bond strength of the coatings to the steel substrate (adhesion) is higher than the strength of the coating itself (cohesion), the latter reaching 30 MPa.
Interestingly, the resistance of the coatings to abrasive wear was found to be very sensitive to parameter k of the detonating mixture. Namely, in the range of k from 0.8 to 1.1, the wear resistance increases almost five-fold, and, with a further increase in k, it does not change significantly. Such an increase in the wear resistance seems to be associated with the transition from a ceramic to a cermet coating.
It should be noted that the mechanical properties and abrasive wear resistance of the coatings elaborated in the present study are inferior to those of Cr3C2-based detonation coatings with a nichrome binder [6]. A coating with 20 wt. % of nichrome binder has microhardness of 1150 HV0.3, strength of at least 150 MPa and abrasive wear of 3.25 mm3/1000 rev. However, nichrome melts at 1373 K (solidus temperature). It can be assumed that coatings made by spraying binder-free Cr3C2 will be able to withstand higher temperatures. Note that metallic chromium is a refractory metal and has a melting point of 2073 K. Thus, all components of the composite coatings produced by spraying Cr3C2 are refractory.
In addition to corrosion-resistant ceramic, cermet and metallic materials, corrosion-resistant polymers have been developed [22]. Polymer materials are promising for a broad range of applications as the properties of the polymer matrices can be significantly improved by the modifying additives [23,24,25,26]. As emphasized in [23], such materials “have high fracture toughness, light weight, superior strength to weight ratio, high tensile properties, high fatigue resistance, and improved corrosion resistance to severe environments”. However, polymers have much lower melting and decomposition temperatures and cannot compete with chromium carbide coatings operating at high temperatures.
Thus, the conducted research has shown that, by the detonation spraying of a Cr3C2 powder, it is possible to develop composite coatings, the phase and elemental composition of which differ significantly from the initial composition of the feedstock powder. Coatings produced by the detonation spraying of Cr3C2 powders may be useful for increasing the corrosion resistance of machine parts to mineral acids and high-temperature oxidation resistance. Further studies should focus on evaluating the coating performance under these conditions.

4. Conclusions

The possibility of applying chromium carbide coatings without a metal binder by detonation spraying has been proven. The conducted studies have shown that
-
for producing the coatings, acetylene–oxygen mixtures of C2H2 + kO2 with k values in the range from 0.8 to 3.0 can be used as an explosive;
-
due to the chemical interactions of the detonation products with the powder, spraying of Cr3C2 leads to the formation of composite coatings of various compositions, depending on k;
-
in the range k from 0.8 to 1.1, ceramic coatings containing Cr3C2 and Cr3N0.4C1.6 carbonitride form; when k varies from 1.1 to 3.0, the coatings are cermets containing Cr7C3 and Cr; herewith, at k greater than 2.0, CrO and Cr2O3 oxides appear in the coatings;
-
the lowest wear resistance (abrasive wear W = 74 mm3/1000 rev.) was observed in coatings produced at k = 0.8, when the cohesion (σ = 19 MPa) and microhardness (700 HV0.1) were also at their minimal levels;
-
the maximum wear resistance (abrasive wear W = 15 mm3/1000 rev.) was observed in coatings obtained at k > 1; in this case, the cohesion is maximum (σ = 26–30 MPa) when k = 1.1–1.4, and the microhardness is maximum (900 HV0.1) when k = 1.1.
From the point of view of the wear resistance, cohesion and hardness of the coatings, detonation spraying at k = 1.1–1.4 can be recommended as the optimal mode. However, if, for some reason, the presence of chromium oxides is necessary in the composition of a cermet coating, spraying at k values close to 3.0 is preferable.

Author Contributions

Conceptualization, I.S.B. and V.Y.U.; methodology, V.Y.U. and A.A.S.; software, I.S.B.; investigation, D.V.D., A.V.U. and I.S.B.; writing—original draft, A.A.S.; writing—review and editing, D.V.D., I.S.B. and V.Y.U. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Berger, L.-M. Application of Hardmetals as Thermal Spray Coatings. Int. J. Refract. Met. Hard Mater. 2015, 49, 350–364. [Google Scholar]
  2. Li, J.; Zhang, Y.; Huang, J.; Ding, C. Mechanical and Tribological Properties of Plasma-Sprayed Cr3C2-NiCr, WC-Co, and Cr203 Coatings. J. Therm. Spray Technol. 1998, 7, 242–246. [Google Scholar]
  3. Dzhurinskiy, D.; Babu, A.; Pathak, P.; Elkin, A.; Dautov, S.; Shornikov, P. Microstructure and wear properties of atmospheric plasma-sprayed Cr3C2-NiCr composite coatings. Surf. Coat. Technol. 2021, 428, 127904. [Google Scholar] [CrossRef]
  4. Janka, L.; Norpoth, J.; Trache, R.; Berger, L.-M. Influence of Heat Treatment on the Abrasive Wear Resistance of a Cr3C2-NiCr Coating Deposited by an Ethene-Fuelled HVOF Spray Process. Surf. Coat. Technol. 2016, 291, 444–451. [Google Scholar] [CrossRef]
  5. Alroy, R.J.; Kamaraj, M.; Sivakumar, G. HVAF vs oxygenated HVAF spraying: Fundamental understanding to optimize Cr3C2-NiCr coatings for elevated temperature erosion resistant applications. J. Mater. Process. Technol. 2022, 309, 117735. [Google Scholar]
  6. Ulianitsky, V.Y.; Batraev, I.S.; Rybin, D.K.; Dudina, D.V.; Shtertser, A.A.; Ukhina, A.V. Detonation Spraying of Cr3C2-NiCr Coatings and Their Properties. J. Therm. Spray Technol. 2022, 31, 598–608. [Google Scholar] [CrossRef]
  7. Singh, H.; Sidhu, T.S.; Karthikeyan, J.; Kalsi, S.B.S. Development and Characterization of Cr3C2-NiCr Coated Superalloy by Novel Cold Spray Process. Mater. Manuf. Process. 2016, 31, 1476–1482. [Google Scholar]
  8. Brupbacher, M.C.; Zhang, D.; Buchta, W.M.; Graybeal, M.L.; Rhim, Y.-R.; Nagle, D.C.; Spicer, J.B. Synthesis and characterization of binder-free Cr3C2 coatings on nickel-based alloys for molten fluoride salt corrosion resistance. J. Nucl. Mater. 2015, 461, 215–220. [Google Scholar]
  9. Su, X.; Zhao, S.; Sun, H.; Yang, X.; Zhang, P.; Xie, L. Chromium carbide coatings produced on ductile cast iron QT600-3 by thermal reactive diffusion in fluoride salt bath: Growth behavior, microstructure evolution and kinetics. Ceram. Int. 2019, 45, 1196–1201. [Google Scholar]
  10. Ganji, O.; Sajjadi, S.A.; Yang, Z.G.; Mirjalili, M.; Najari, M.R. On the formation and properties of chromium carbide and vanadium carbide coatings produced on W1 tool steel through thermal reactive diffusion (TRD). Ceram. Int. 2020, 46, 25320–25329. [Google Scholar] [CrossRef]
  11. Ganji, O.; Sajjadi, S.A.; Yang, Z.G.; Mirjalili, M. Tribological properties of duplex coatings of chromium-vanadium carbide produced by thermo-reactive diffusion (TRD). Ceram. Int. 2022, 48, 7475–7490. [Google Scholar] [CrossRef]
  12. Förg, A.; Blum, M.; Killinger, A.; Nicolás, J.A.M.; Gadow, R. Deposition of chromium oxide-chromium carbide coatings via high velocity suspension flame spraying (HVSFS). Surf. Coat. Technol. 2018, 351, 171–176. [Google Scholar]
  13. Ulianitsky, V.; Shtertser, A.; Zlobin, S.; Smurov, I. Computer-Controlled Detonation Spraying: From Process Fundamentals Toward Advanced Applications. J. Therm. Spray Technol. 2011, 20, 791–801. [Google Scholar] [CrossRef]
  14. Guagliano, M. Relating Almen intensity to residual stresses induced by shot peening: A numerical approach. J. Mater. Process. Technol. 2001, 110, 277–286. [Google Scholar] [CrossRef]
  15. Tillmann, W.; Hagen, L.; Luo, W. Process Parameter Settings and Their Effect on Residual Stresses in WC/W2C Reinforced Iron-Based Arc Sprayed Coatings. Coatings 2017, 7, 125. [Google Scholar]
  16. Pruuel, E.; Vasil’ev, A. Equation of State of Gas Detonation Products. Allowance for the Formation of the Condensed Phase of Carbon. Combust. Explos. Shock Waves 2021, 57, 576–587. [Google Scholar]
  17. Gavrilenko, T.P.; Nikolaev, Y.A.; Ulianitsky, V.Y.; Kim, M.C.; Hong, J.W. Computational Code for Detonation Spraying Process. In Proceedings of the Thermal Spray: Meeting the Challenges of the 21st Century, Nice, France, 25–29 May 1998; Coddet, C., Ed.; ASM International: Materials Park, OH, USA, 1998; pp. 1475–1483. [Google Scholar]
  18. Ulianitsky, V.; Batraev, I.; Shtertser, A.; Dudina, D.; Bulina, N.; Smurov, I. Detonation spraying behaviour of refractory metals: Case studies for Mo and Ta-based powders. Adv. Powder Technol. 2018, 29, 1859–1864. [Google Scholar] [CrossRef]
  19. Rybin, D.; Batraev, I.; Dudina, D.; Ukhina, A.; Ulianitsky, V. Deposition of tungsten coatings by detonation spraying. Surf. Coat. Technol. 2021, 409, 126943. [Google Scholar]
  20. Babu, P.; Basu, B.; Sundararajan, G. Processing–structure–property correlation and decarburization phenomenon in detonation sprayed WC–12Co coatings. Acta Mater. 2008, 56, 5012–5026. [Google Scholar]
  21. Ulianitsky, V.Y.; Dudina, D.V.; Batraev, I.S.; Kovalenko, A.I.; Bulina, N.V.; Bokhonov, B.B. Detonation spraying of titanium and formation of coatings with spraying atmosphere-dependent phase composition. Surf. Coat. Technol. 2015, 261, 174–180. [Google Scholar]
  22. Fuseini, M.; Zaghloul, M.M.Y. Investigation of Electrophoretic Deposition of PANI Nano fibers as a Manufacturing Technology for corrosion protection. Prog. Org. Coat. 2022, 171, 107015. [Google Scholar] [CrossRef]
  23. Zaghloul, M.Y.M.; Zaghloul, M.M.Y.; Zaghloul, M.M.Y. Developments in polyester composite materials—An in-depth review on natural fibres and nano fillers. Compos. Struct. 2021, 278, 114698. [Google Scholar] [CrossRef]
  24. Mahmoud Zaghloul, M.Y.; Yousry Zaghloul, M.M.; Yousry Zaghloul, M.M. Physical analysis and statistical investigation of tensile and fatigue behaviors of glass fiber-reinforced polyester via novel fibers arrangement. J. Compos. Mater. 2023, 57, 147–166. [Google Scholar] [CrossRef]
  25. Zaghloul, M.M.Y.; Steel, K.; Veidt, M.; Heitzmann, M.T. Wear behaviour of polymeric materials reinforced with man-made fibres: A comprehensive review about fibre volume fraction influence on wear performance. J. Reinf. Plast. Compos. 2022, 41, 215–241. [Google Scholar]
  26. Zaghloul, M.M.Y.; Zaghloul, M.Y.M.; Zaghloul, M.M.Y. Experimental and modeling analysis of mechanical-electrical behaviors of polypropylene composites filled with graphite and MWCNT fillers. Polym. Test. 2017, 63, 467–474. [Google Scholar]
Figure 1. Morphology of the Cr3C2 feedstock powder (Carl Zeiss Merlin electron microscope).
Figure 1. Morphology of the Cr3C2 feedstock powder (Carl Zeiss Merlin electron microscope).
Jcs 07 00071 g001

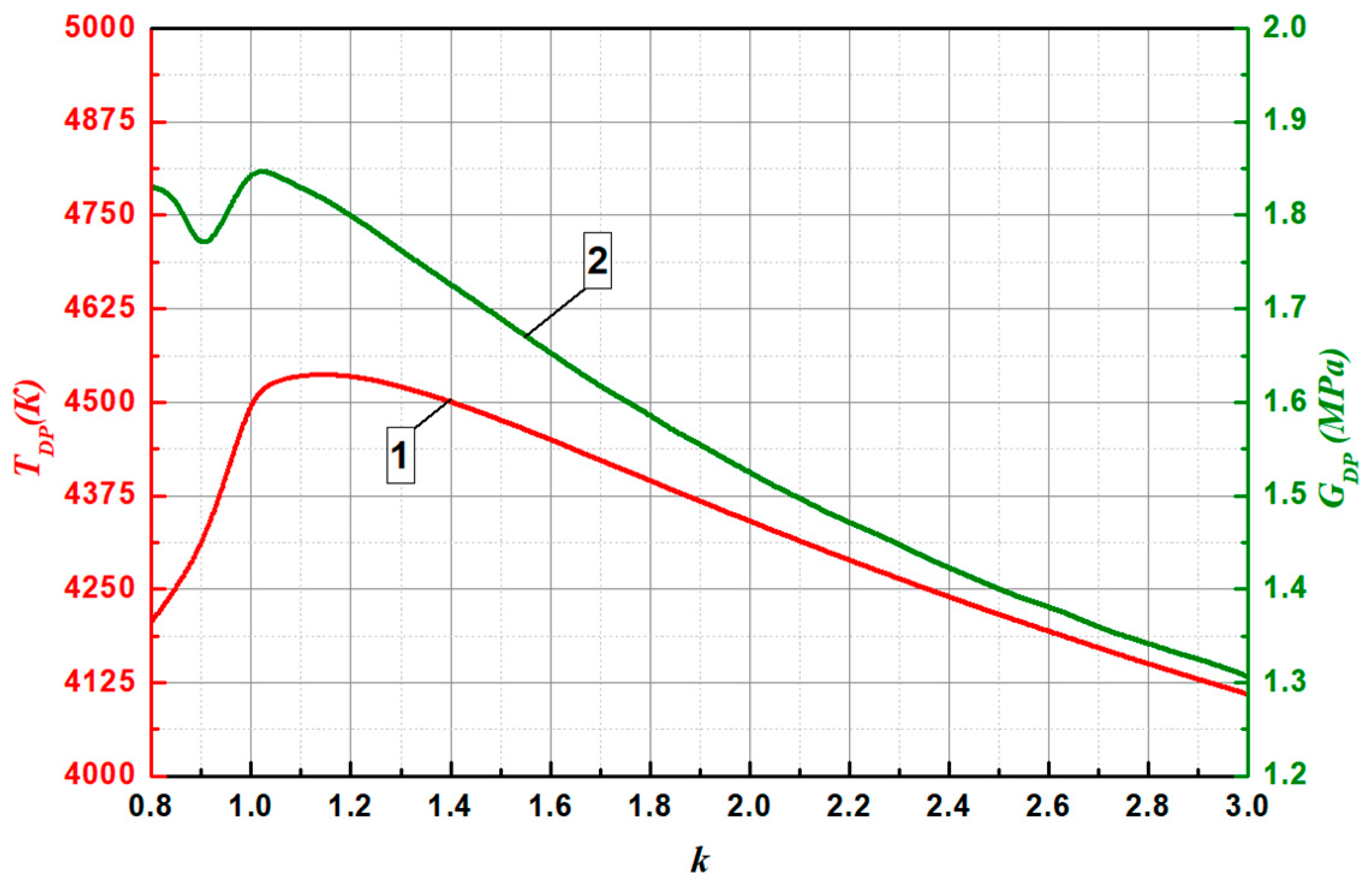

Figure 2. The dependence of temperature (curve 1) and kinetic head (curve 2) of DP on the k parameter of the initial explosive mixture.
Figure 2. The dependence of temperature (curve 1) and kinetic head (curve 2) of DP on the k parameter of the initial explosive mixture.
Jcs 07 00071 g002

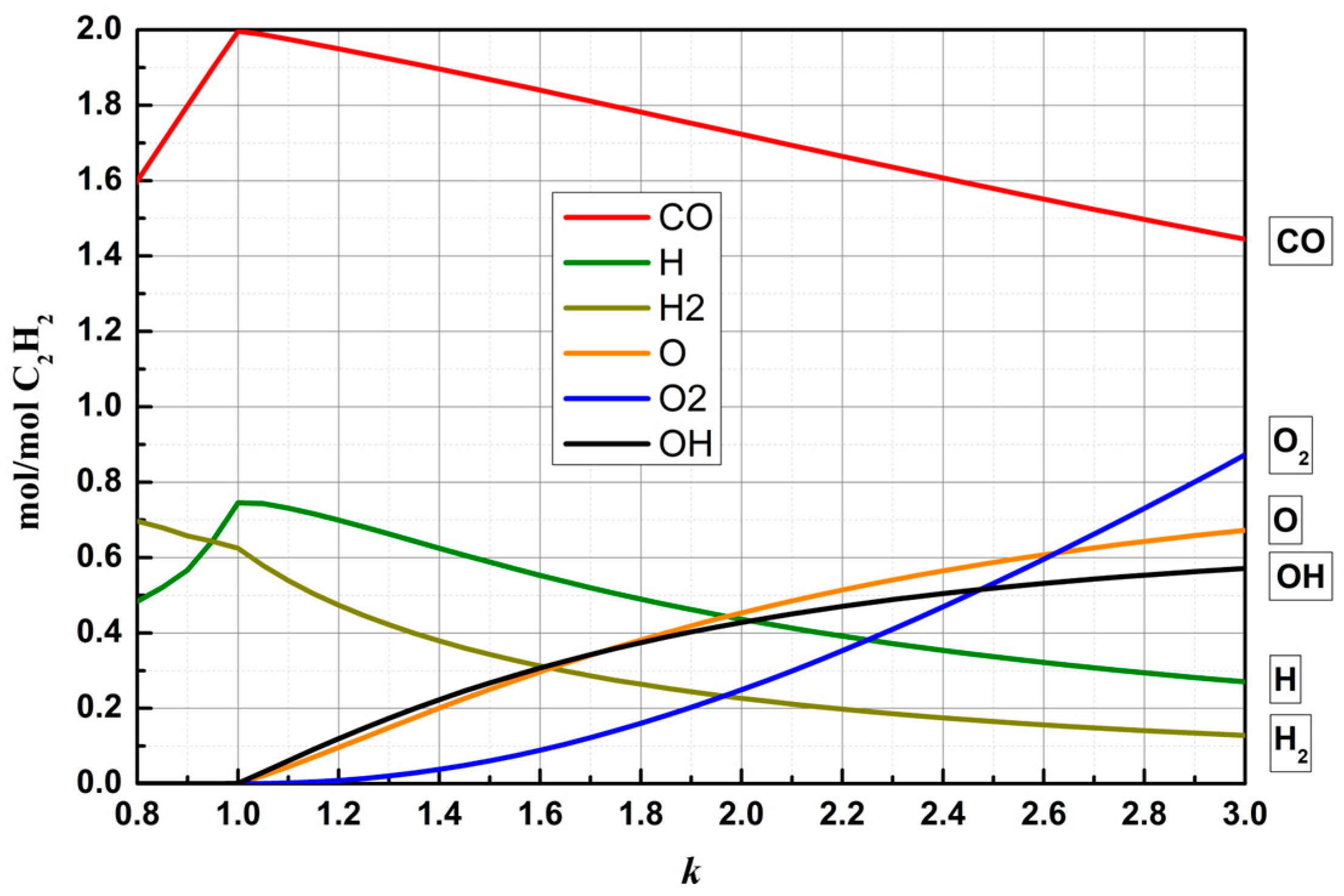

Figure 3. The dependence of the content of the main DP components on the k parameter of the initial explosive mixture.
Figure 3. The dependence of the content of the main DP components on the k parameter of the initial explosive mixture.
Jcs 07 00071 g003

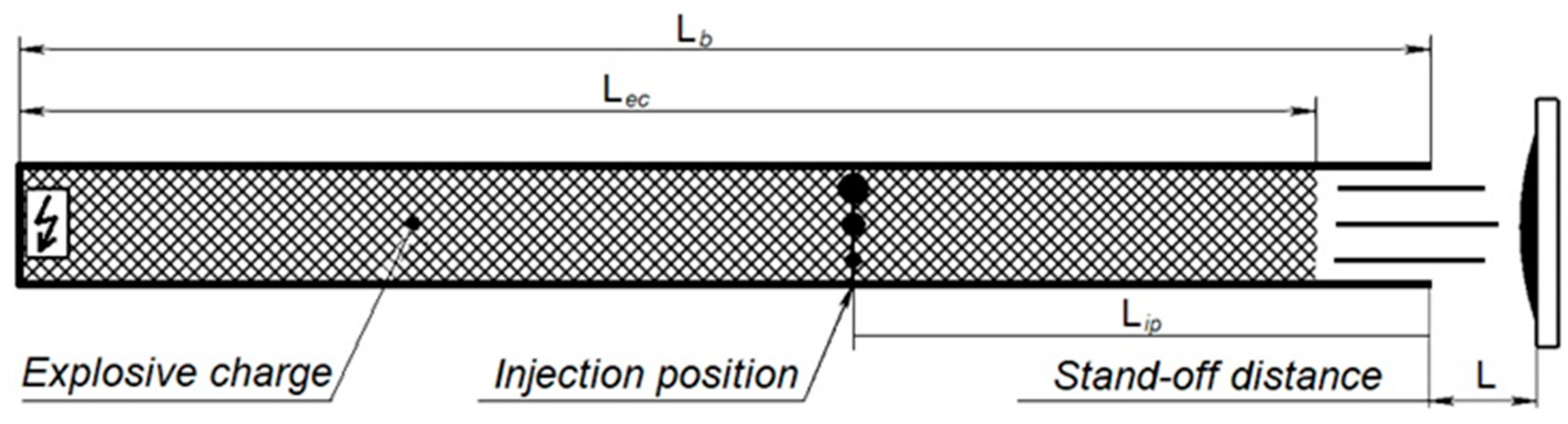

Figure 4. Detonation spraying scheme: Lb—barrel length, Lec—explosive charge length, Lip—distance from the end of the barrel to the powder injection point, L—spraying (stand-off) distance.
Figure 4. Detonation spraying scheme: Lb—barrel length, Lec—explosive charge length, Lip—distance from the end of the barrel to the powder injection point, L—spraying (stand-off) distance.
Jcs 07 00071 g004

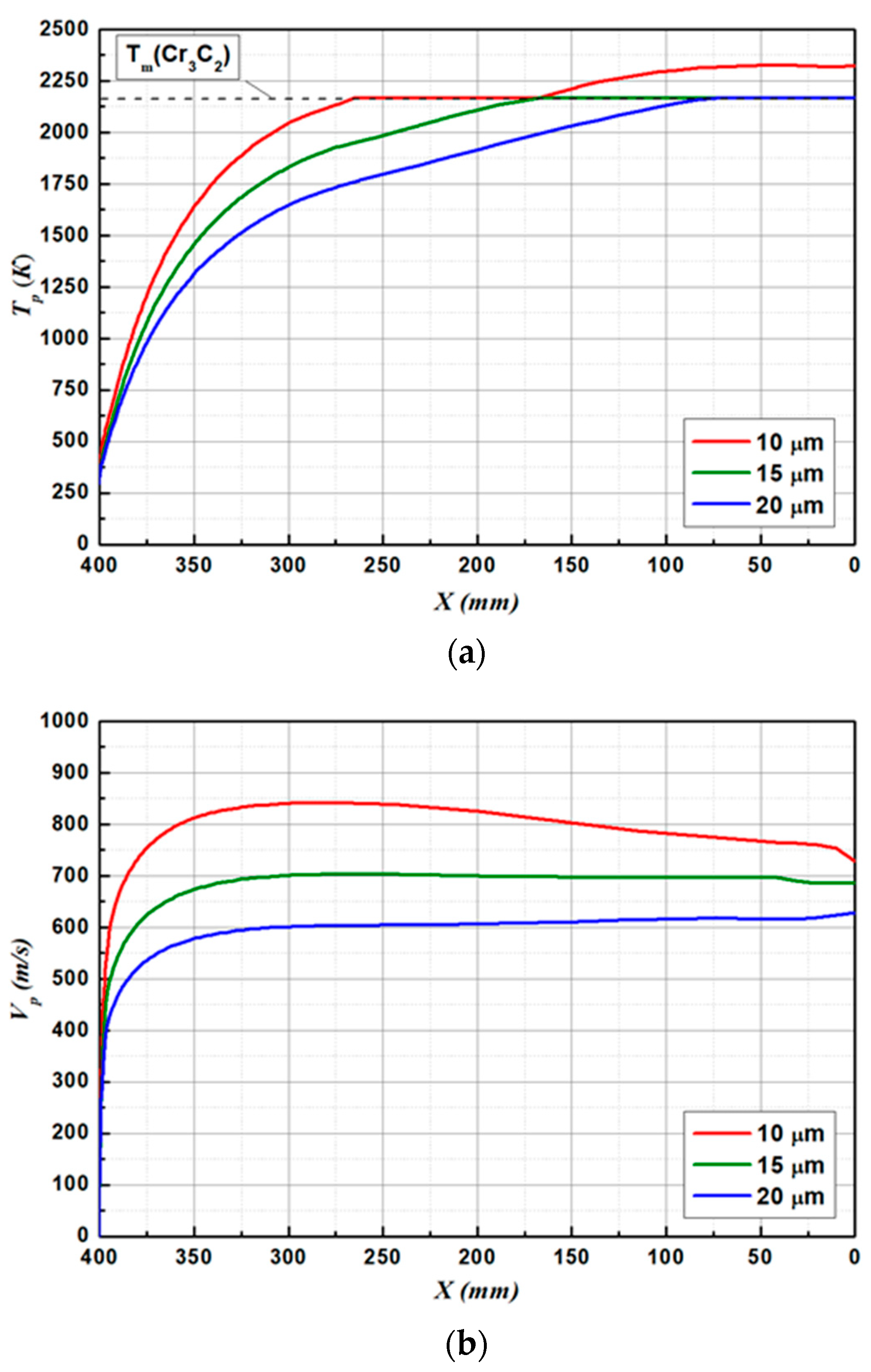

Figure 5. Change in temperature (a) and velocity (b) of Cr3C2 particles as they move from the injection point to the exit from the barrel: X is the distance from the particle current location to the end of the barrel, Tm (Cr3C2) is the melting point of chromium carbide.
Figure 5. Change in temperature (a) and velocity (b) of Cr3C2 particles as they move from the injection point to the exit from the barrel: X is the distance from the particle current location to the end of the barrel, Tm (Cr3C2) is the melting point of chromium carbide.
Jcs 07 00071 g005

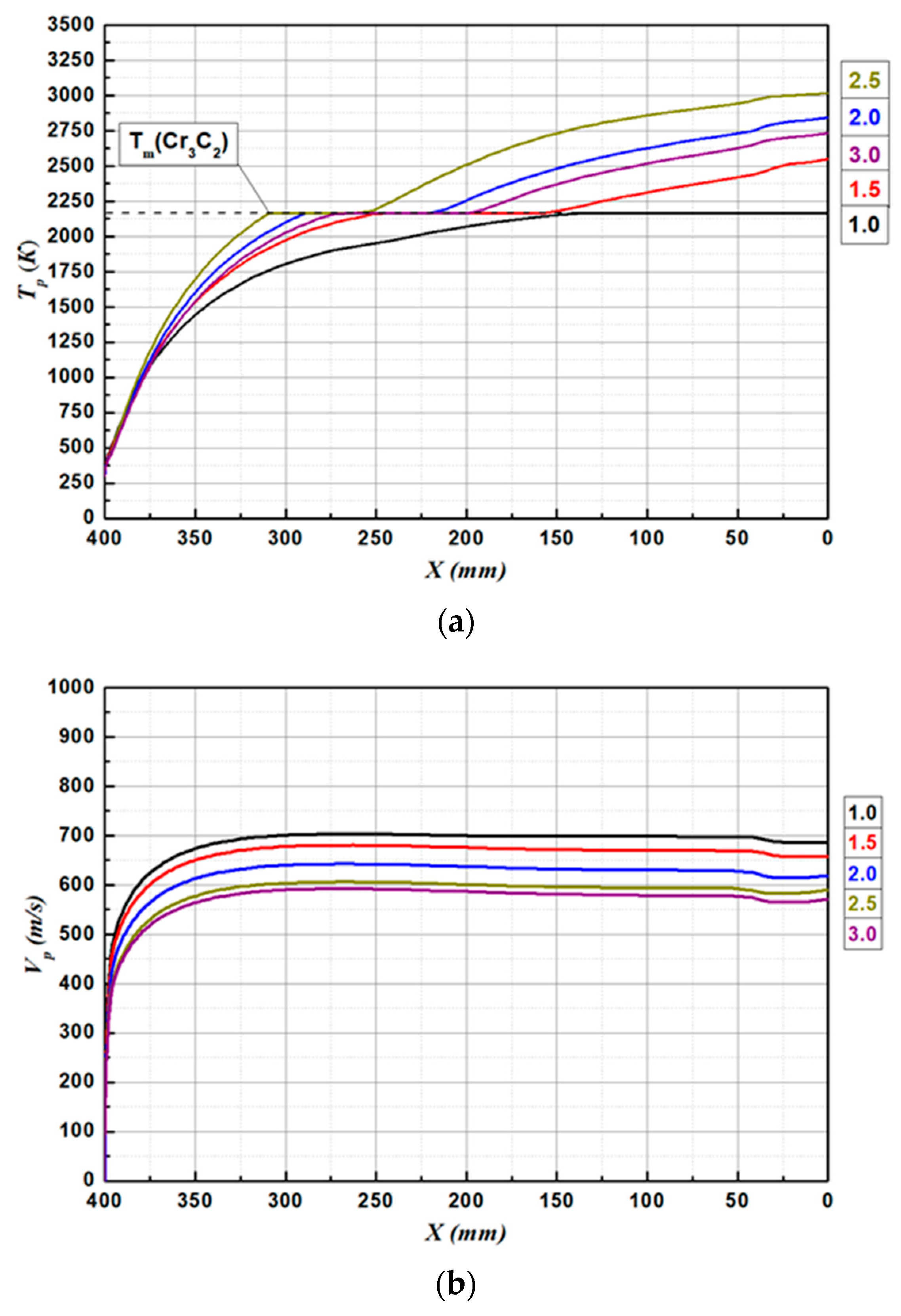

Figure 6. The dependence of the temperature (a) and velocity (b) of a Cr3C2 particle with a size of 15 μm on its position in the barrel for various k at a constant volume of explosive mixture.
Figure 6. The dependence of the temperature (a) and velocity (b) of a Cr3C2 particle with a size of 15 μm on its position in the barrel for various k at a constant volume of explosive mixture.
Jcs 07 00071 g006

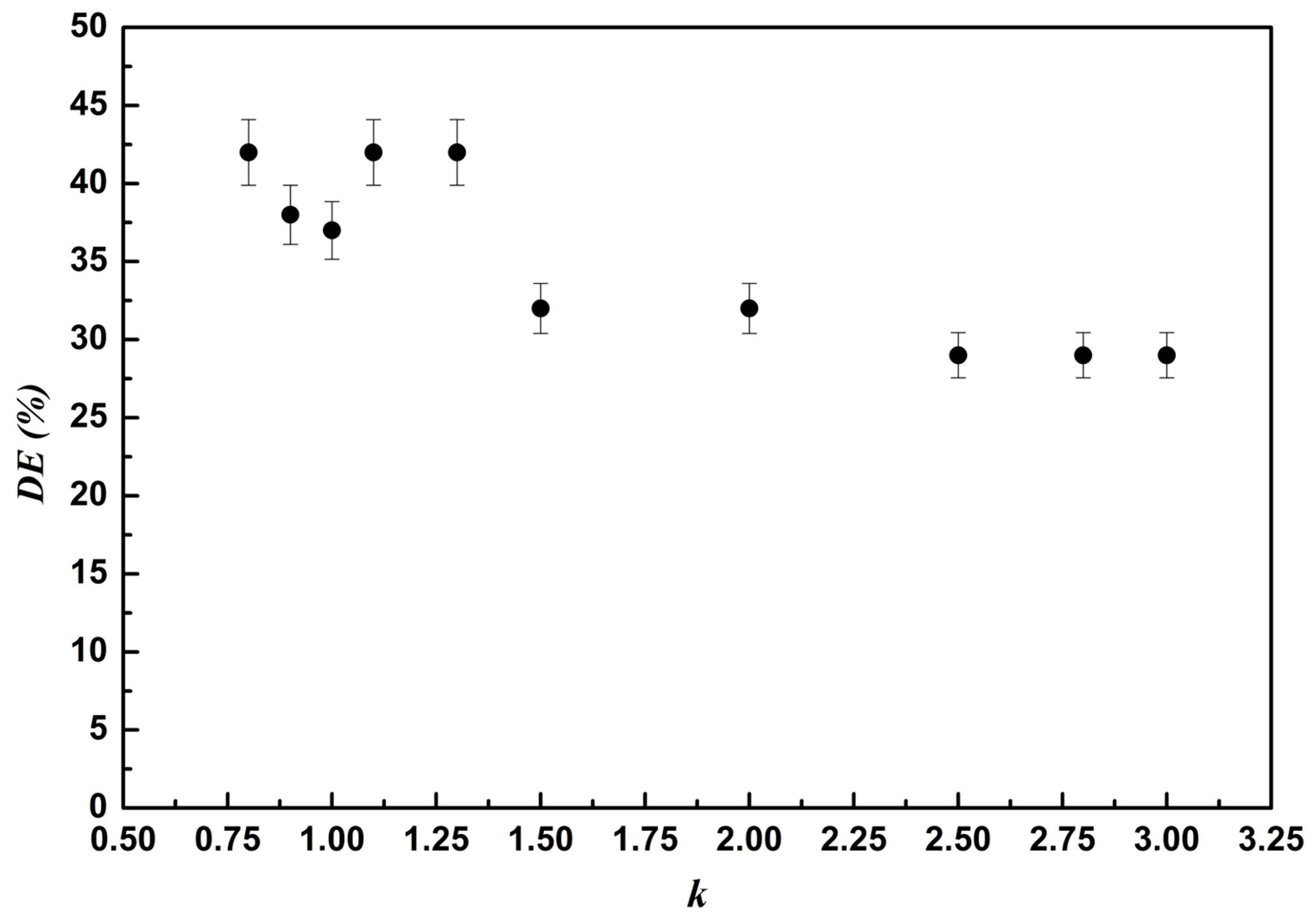

Figure 7. The dependence of the deposition efficiency (DE) on k during detonation spraying of Cr3C2.
Figure 7. The dependence of the deposition efficiency (DE) on k during detonation spraying of Cr3C2.
Jcs 07 00071 g007

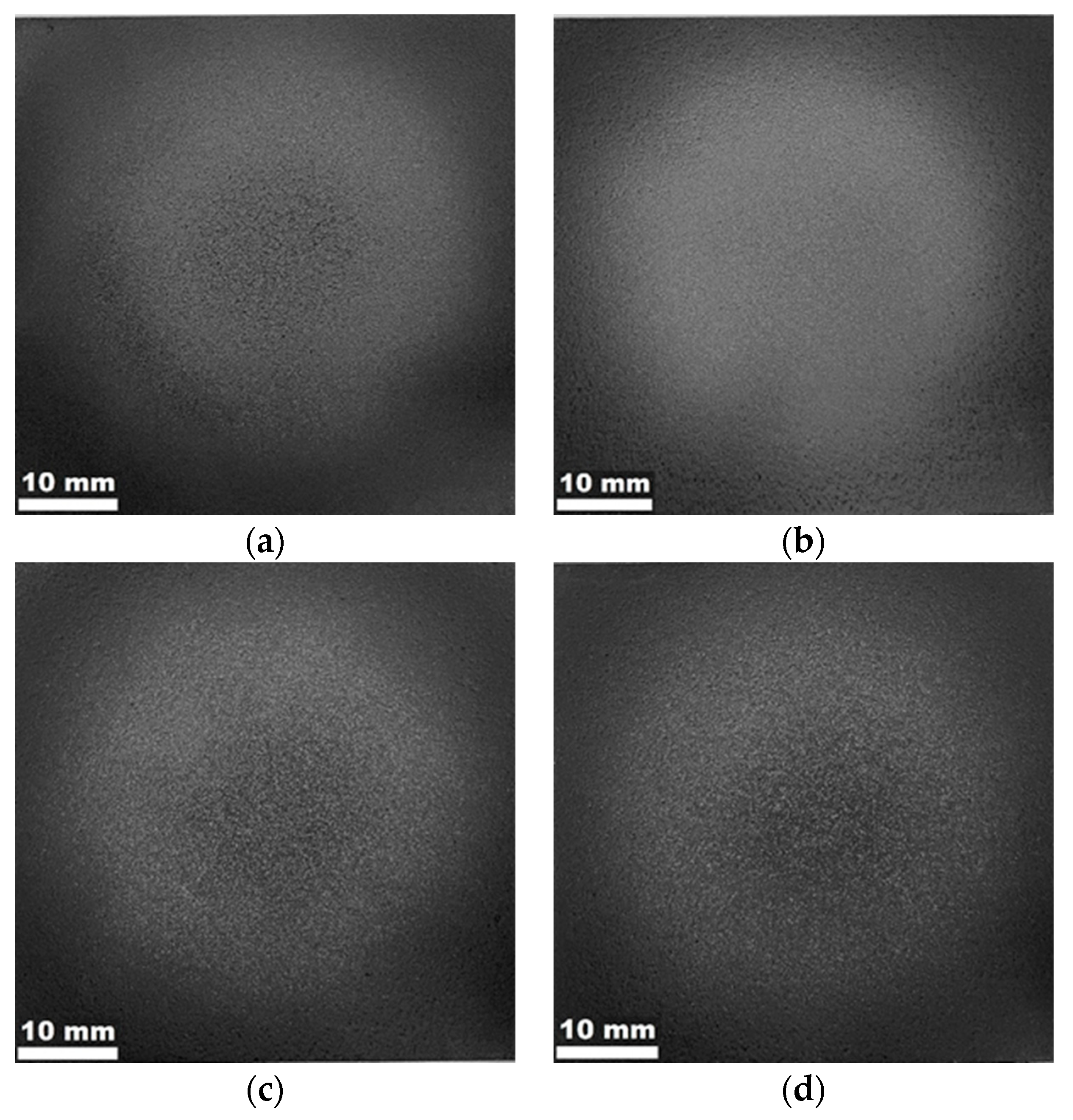

Figure 8. Coating spots obtained from the Cr3C2 powder at different k values: (a) k = 0.8, (b) k = 1.3, (c) k = 2.5, (d) k = 2.8.
Figure 8. Coating spots obtained from the Cr3C2 powder at different k values: (a) k = 0.8, (b) k = 1.3, (c) k = 2.5, (d) k = 2.8.
Jcs 07 00071 g008

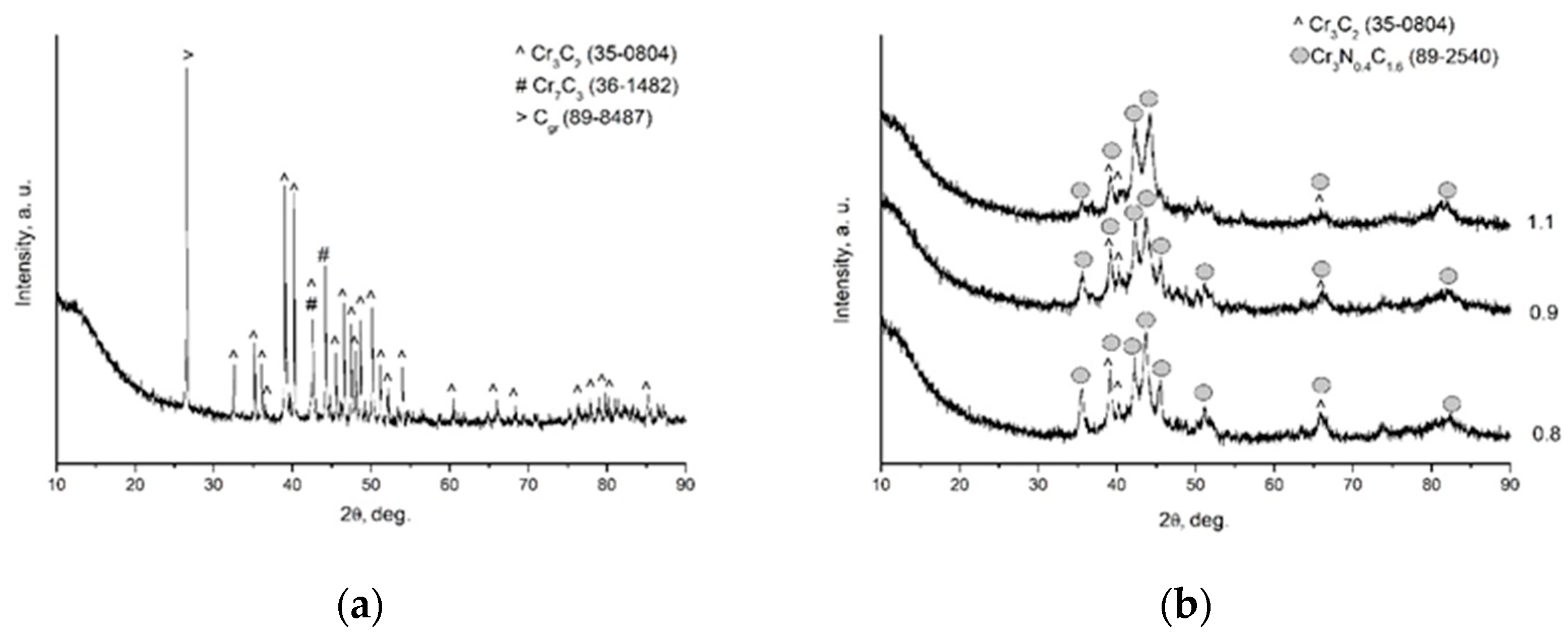

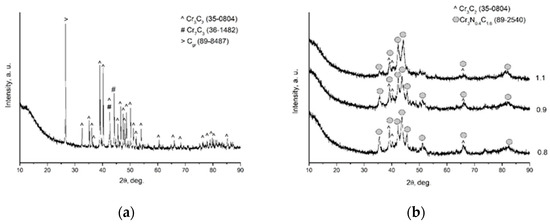

Figure 9. XRD patterns of the feedstock powder (a) and coatings obtained at various k: (b) k = 0.8, 0.9, 1.1; (c) k = 1.3, 1.5, 2.0; (d) k = 2.5, 2.8, 3.0.
Figure 9. XRD patterns of the feedstock powder (a) and coatings obtained at various k: (b) k = 0.8, 0.9, 1.1; (c) k = 1.3, 1.5, 2.0; (d) k = 2.5, 2.8, 3.0.
Jcs 07 00071 g009aJcs 07 00071 g009b

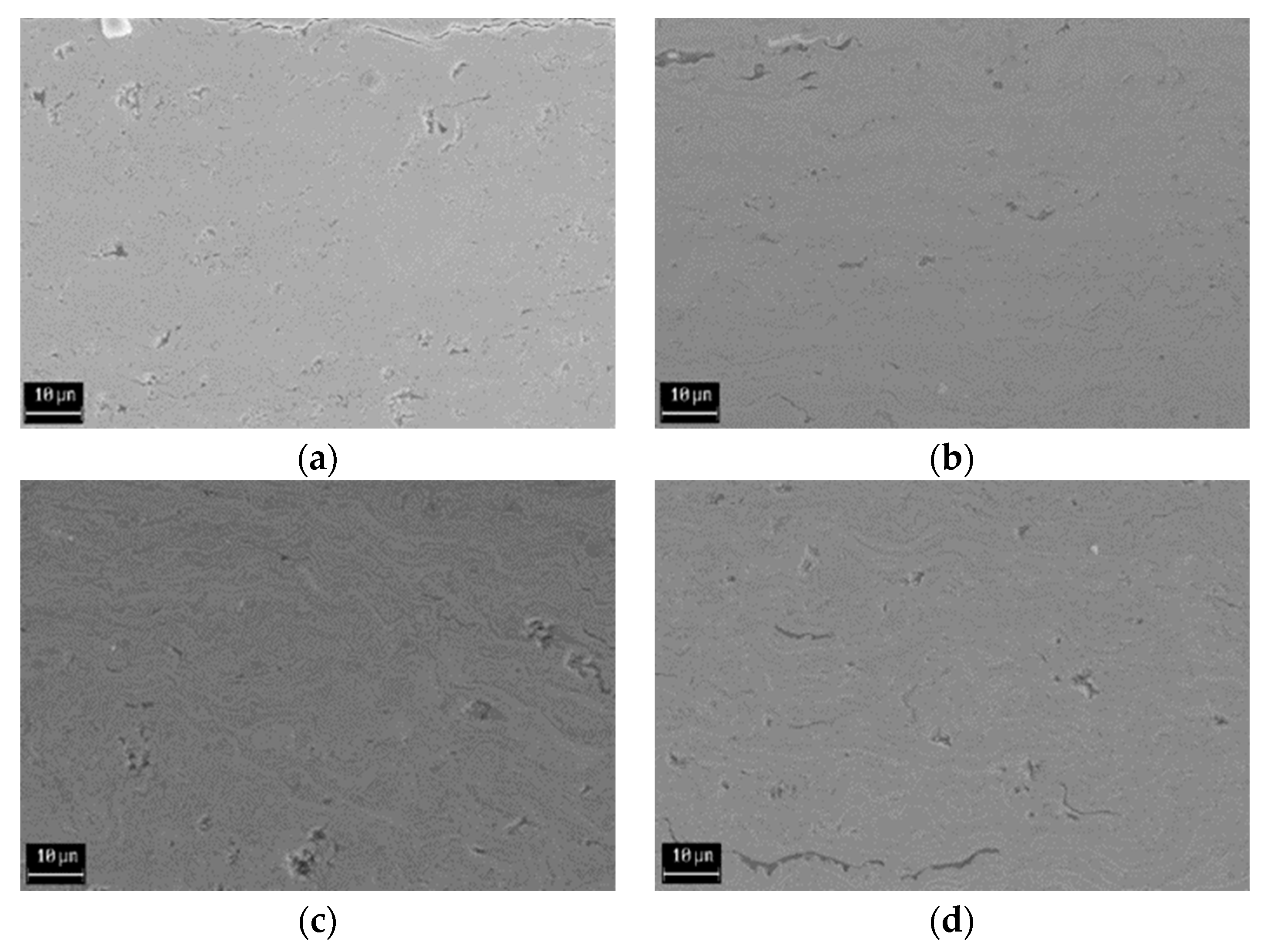

Figure 10. Microstructure of the coatings produced from the Cr3C2 powder at different k: (a) k = 0.8, (b) k = 1.3, (c) k = 2.5, (d) k = 2.8.
Figure 10. Microstructure of the coatings produced from the Cr3C2 powder at different k: (a) k = 0.8, (b) k = 1.3, (c) k = 2.5, (d) k = 2.8.
Jcs 07 00071 g010
Figure 11. The dependence of the microhardness and porosity of the coatings on k.
Figure 11. The dependence of the microhardness and porosity of the coatings on k.
Jcs 07 00071 g011
Figure 12. The dependence of the DE on the spraying distance at k = 1.0.
Figure 12. The dependence of the DE on the spraying distance at k = 1.0.
Jcs 07 00071 g012

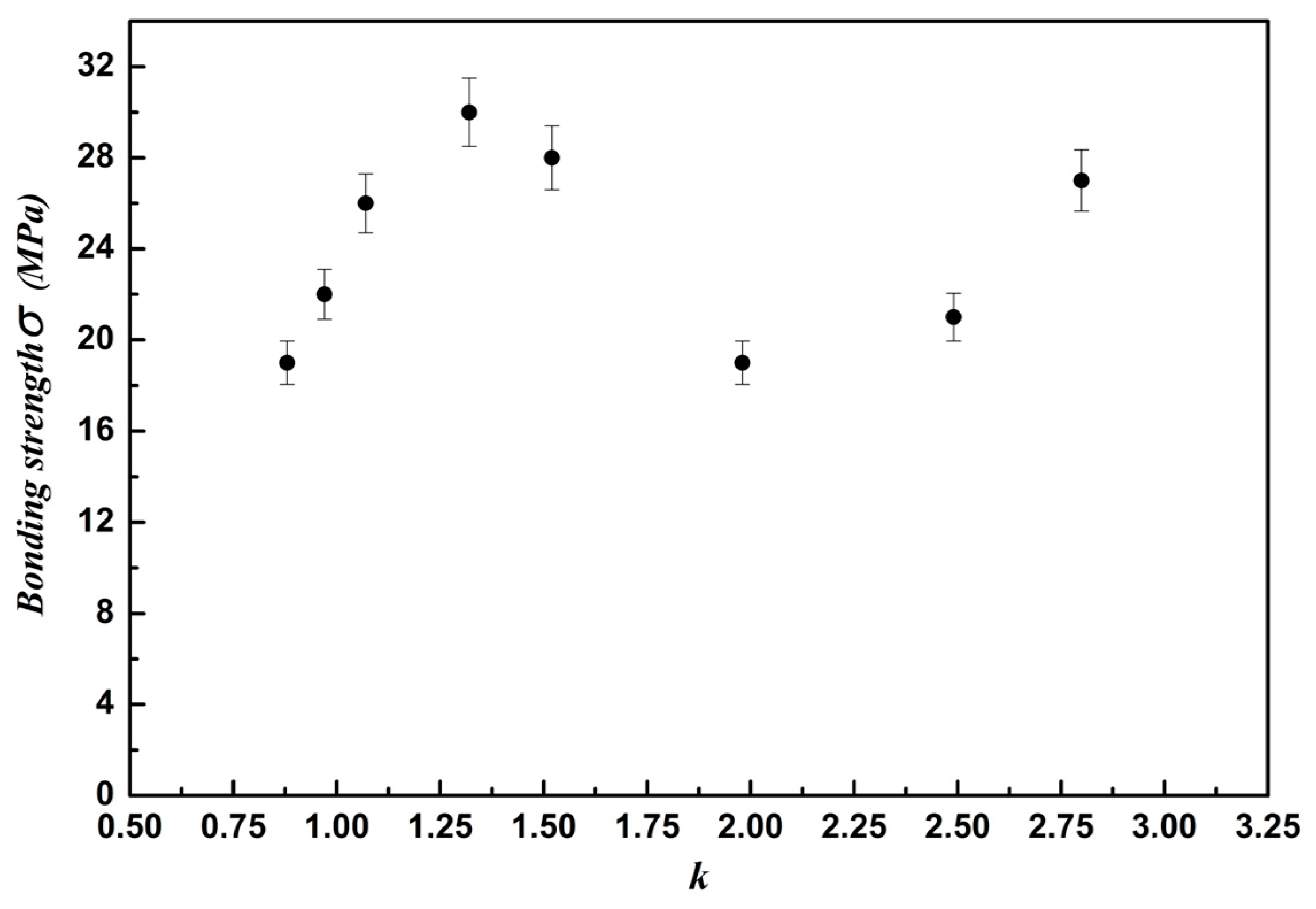

Figure 13. Dependence of the coating strength on k.
Figure 13. Dependence of the coating strength on k.
Jcs 07 00071 g013

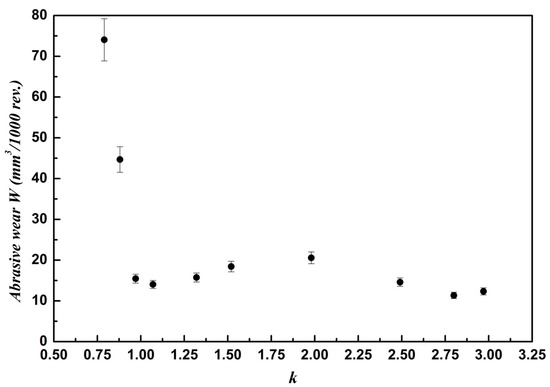

Figure 14. The dependence of abrasive wear on the k parameter.
Figure 14. The dependence of abrasive wear on the k parameter.
Jcs 07 00071 g014

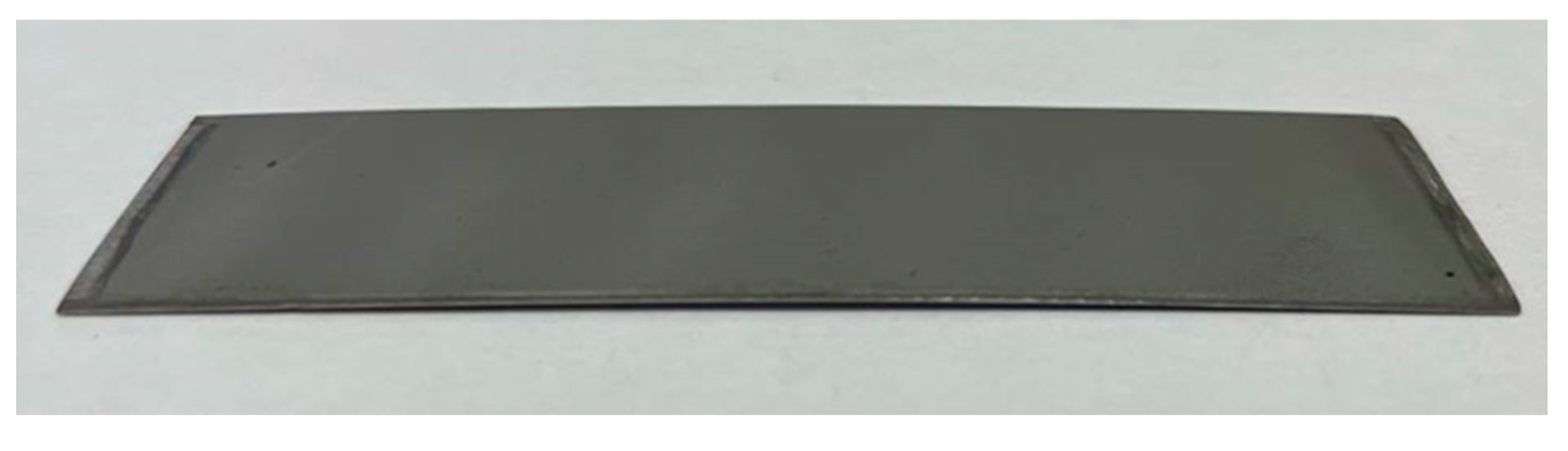

Figure 15. Almen strip with a composite coating produced by spraying the Cu3C2 powder at k = 1.1.
