Experimental Investigations on the Influence of Different Notch Designs on the Pullout Performance of Circumferentially Notched Z-pins

Abstract

The results of experimental research on the pullout properties of circumferentially notched z-pins with various notch designs are presented in this paper. Investigations on notched z-pins with four different notch designs—rectangular, circular, triangular, and sinusoidal—inserted into unidirectional (UD) and quasi-isotropic (QI) laminates were carried out in order to assess the influence of notch design and laminate structure on the resulting z-pin pullout properties. It can be shown that the application of circumferential notches at the z-pin surface causes significant increases in pullout forces and consequently, on the resulting pullout energies, regardless of which notch design is considered. The effect of notched z-pins is higher in a quasi-isotropic than in a unidirectional laminate structure. The highest enhancements of the pullout energy were found on quasi-isotropic laminates with circular and sinusoidal notch designs with increases of up to 69%, in comparison to measurements on samples with unnotched z-pins.

1. Introduction

In the last few decades, the importance of composite materials has increased steadily. Due to their excellent mechanical properties in combination with their low weight, carbon-fiber reinforced plastics (CFRP) are increasingly used in structural components for both aerospace applications as well as in new applications for electric mobility. The fracture-mechanical properties are crucial, since inhomogeneous cracks and materials of various sizes are always present in any composite structure. Under dynamic loads, they may grow and cause an increasing weakness of the composite structure. In addition, impact damage events can cause a significant reduction in the strength and stiffness properties of structural components made of fiber-reinforced plastics. These events may lead to delamination, which in turn leads to lower residual load capacities. There have been many developments on how to manage such cracks. Apart from the insertion of elastomer or thermoplastic particles into the primarily used thermosetting matrices [1,2], methods for the realization of three-dimensional fiber reinforcement structures exist, which can impede and indeed completely stop crack growth. Depending on the area of application, various textile techniques can be applied, such as 3D weaving [3,4,5], braiding [3,4,6,7], through-thickness stitching [4,8,9], or special techniques like tufting [10,11] or z-Anchoring [12,13] to create a 3D reinforcement structure and to achieve damage tolerant structural components with a desired safe life while maintaining specific performance at acceptable costs. When using preimpregnated semifinished fiber products (prepreg), the z-pin process is the preferred method for implementing a 3D fiber reinforcement due to the processing properties of these materials [14]. Numerous studies show that the insertion of a z-pin reinforcement has positive impacts on the delamination resistance of prepreg laminates. In general, an improvement of the delamination properties can be achieved under Mode-I [15,16,17,18,19,20,21], Mode-II [17,18,20,21,22,23], and mixed mode I/II stress [24,25,26] by the insertion of a z-pin reinforcement. Based on these properties, it can be stated that the impact damage resistance as well as the damage tolerance of a pinned laminate can be improved [27,28,29]. The inserted pins cause bridging effects at a crack under crack-opening loads, reducing the resulting stresses at the crack tip [30,31]. It involves energy dissipating mechanisms that can be described by the pullout process of the pins [20]. This results in a significant improvement of the interlaminar fracture toughness [23,32]. The interactions between z-pins and laminate during the z-pin-pullout process can be defined by the characteristic load-displacement curves, as illustrated by Figure 1.

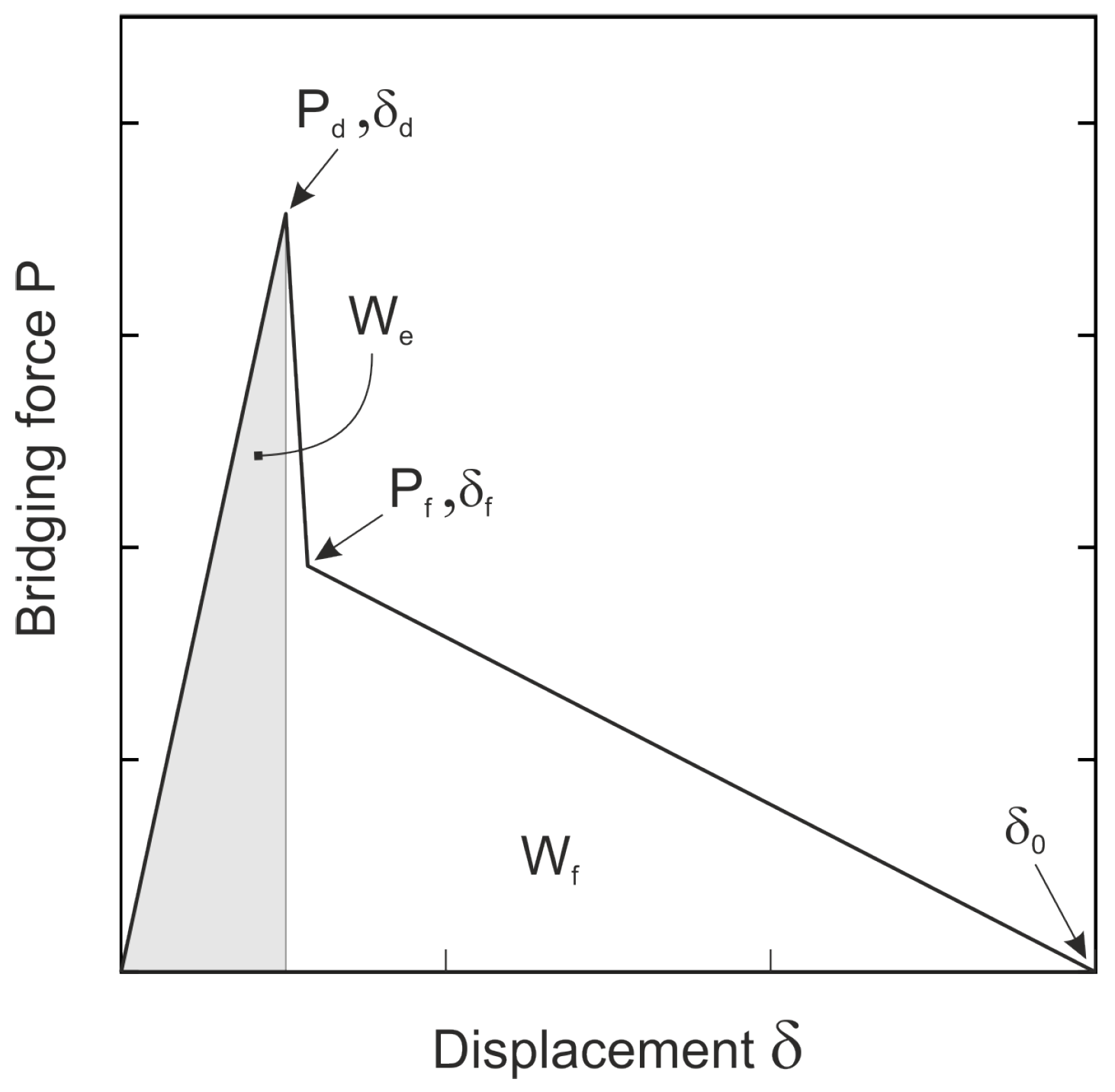

The typical trilinear curves can be defined by the values—maximum debonding force P_d, maximum frictional force P_f, and their respective crack-opening displacements $\mathsf{\delta }$_d and $\mathsf{\delta }$_f. The maximum crack-opening displacement value $\mathsf{\delta }$₀ is reached once all pins are pulled out completely. The energy W dissipated during the z-pin pullout can also be determined on the basis of the curve progressions. It consists of an elastic component W_e, which is primarily dependent on the adhesion between reinforcing elements and laminate; and a friction-induced part W_f, which is defined by the friction properties during the pullout process after complete debonding of the pins. The energy W dissipated during the pullout indicates the effectiveness of the z-pins to bridge the applied loads. Various investigations have been carried out to increase the transferable loads by means of suitable chemical, physical, or geometrical modifications of the z-pins, thus further increasing the delamination properties of the z-pinned laminates. Recent research shows that cryogenic and plasma surface treatment processes of the z-pin surface before insertion into the laminate can increase the surface roughness as well as cause active chemical groups which lead to an increased wettability with the matrix material and promote the formation of covalent bonds between matrix and pin surface. A surface treatment with liquid nitrogen and oxygen plasma leads to an increase of the pin-pullout energy W of 52% and 114% respectively [33,34,35]. Wang et al. [36] used z-pins coated with c-fibers and carbon nanotubes to improve the z-pin pullout bridging forces by enhancing the interlocking effects. As a result, increases in z-pin laminate shear strength of up to 43% were achieved, causing an increase in pullout energy of 160%. Vazquez et al. [37] reported improvements in pullout properties when the CFRP pins are formed by slightly twisted carbon-fiber tows and the matrix material of the pins was not fully cured (about 80%) before insertion into the prepreg laminate. The improvements can be explained on the one hand by the improved adhesion properties between the pins and the laminate matrix, as the formation of covalent bonds between pin-surface and laminate matrix is promoted. On the other hand, the twisted structure enlarges the pin surface that can be wetted by the laminate matrix. Additionally, Wang et al. [38] achieved improvements of the pullout properties with twisted pins, which can be characterized by a tripling of the maximum frictional force as well as pullout energy and an increase of the maximum interfacial shear strength between z-pin and laminate of 61%, compared to smooth pins. The investigations of Zhang et al. [39] performed on twisted pins indicate that increases in the maximum debonding and frictional force of up to 19.4% could be reached, due to the larger surface area with higher roughness caused by the twists. An enlarged surface area and improved interlocking effects between the z-pin surface and the laminate were found by Virakthi et al. [40] to be responsible for the significant increases in pullout strength values achieved in their investigations with threaded steel pins. Compared to the nonthreaded pins, it was possible to increase pullout strength by a factor of 3.5. Increased interlocking effects between z-pins and laminate can also be obtained by introducing circumferential notches at the z-pin surface. Hoffmann et al. [41] conducted investigations on circumferentially notched z-pins with rectangular notch design and notch depths between 25 $\mathsf{\mu }$m and 72 $\mathsf{\mu }$m and observed increases in the resulting pullout energy of up to 12%, compared to the unnotched z-pins, for a unidirectional laminate structure and a notch depth of 25 $\mathsf{\mu }$m.

On this basis, the present study carried out experimental investigations on the effect of the notch design on the z-pin pullout properties of microstructured z-pins with circumferential notches. Until now, only pullout tests have been performed on circumferentially notched z-pins with a rectangular cross-sectional geometry with notch depths between 25 $\mathsf{\mu }$m and 72 $\mathsf{\mu }$m [41]. It was shown that by microstructuring of the z-pin surface, the characteristic pullout forces and pullout energies could be increased significantly. During the application of rectangular notches at the z-pin surface, the unidirectional fibers of the pins are considerably damaged. Additionally, the notches cause stress concentrations under mechanical loading that can result in a reduction of the fracture performance of the pinned laminate. Consequently, the influence of the notch design on the pullout performance of circumferentially notched z-pins will be investigated. From the previous experimental results for rectangular notch designs, it can also be concluded that a further increase in pullout energy can be expected with reducing the notch depth to values less than 25 $\mathsf{\mu }$m. The investigations should contribute to the determination of an optimal notch geometry.

2. Materials and Test Procedure

2.1. Materials

The pullout test specimens were made from a carbon-fiber prepreg tape supplied by Cytec Engineered Materials. The prepreg material has a unidirectional fiber orientation of IM7 (intermediate modulus) carbon fibers with a weight-per-unit area of 145 g/m${}^2$. The matrix material is a toughened hot-curing epoxy resin system Cycom 977-2 with a curing temperature of 180 °C. The single-layer thickness in cured condition amounts to about 0.14 mm. The three-dimensional reinforcement consists of thin, rod-shaped elements (pins) made of a fiber-reinforced plastic with a diameter of 0.5 mm. Z-pins with a diameter of 0.5 mm are usually described as big pins. The impact on the resulting microstructure of the z-pinned laminate and therefore on the mechanical properties—e.g., the reduction of the in-plane properties—is higher than for pins with a small diameter (0.28 mm). However, pins with a diameter of 0.5 mm were used for the investigations carried out, as manual handling of these pins during the process of introducing notches is more convenient. Perspectively, z-pins smaller than 0.5 mm diameter should be used for the 3D-reinforcement. Hence, an automated process for the insertion of notches at the z-pin surface should be developed and implemented. The z-pins are made of a thermally stable bismaleimide (BMI) resin combined with unidirectional T300 carbon fibers. To determine the influence of notches on the pin pullout properties, circumferential notches with different cross-sectional shapes are added to a defined area at the surface of the z-pin by treatment with ultra-short laser pulses. The position of the notched area together with the detailed definition of the cross-sectional shapes of the different notch designs are shown in Figure 2.

The notch area at the pin surface has a length of 6.1 mm to ensure that the notched section is positioned over the entire thickness of the laminate after insertion. Four different notch designs are examined—rectangular, triangular, circular, and sinusoidal. The width of the notches b_n as well as the distance d_n is 100 $\mathsf{\mu }$m for all notch definitions tested. An overview of the notch designs and definitions examined is summarized in

Table 1. Details of investigated notch designs.

Notch Definition
Design	Depth tn [$\mathsf{\mu }$m]	Width bn [$\mathsf{\mu }$m]	Distance dn [$\mathsf{\mu }$m]	No. of Specimens [Pcs]
	Unnotched	-	-	-	6
Rectangular	20	100	100	6
Triangular	20	100	100	6
Sinusoidal	20	100	100	6
Circular	20	100	100	6
Circular	10	100	100	6
Circular	15	100	100	6
Circular	25	100	100	6

.

Along with the test specimens with unnotched z-pins, investigations are carried out on specimens with notched pins with different notch designs while keeping the notch depth t_n constant at 20 $\mathsf{\mu }$m. Furthermore, for samples with circular notch design, investigations on different notch depths t_n are carried out to determine the dependence of the pullout properties from the notch depth. For inserting the z-pins into the laminate, the Ultrasonically Assisted Z-Fibre process™(UAZ^®) is used. Freitas et al. [15,42] as well as Partridge et al. [29] give a comprehensive overview about the UAZ-process, which is used to insert thin, rod-shaped elements (pins) into the prepreg stack before curing cycle. The z-pins are inserted into a foam carrier in the desired configuration and driven into the laminate under axial pressure using an ultrasonic device. Once the notched areas on the pin surface are positioned in the laminate, the insertion process is completed and the parts of the pins that are protruding from the laminate are sheared off. Subsequently, the pinned laminate can be subjected to the curing process in an autoclave under material-specific curing conditions (pressure of 600–700 kPa and a temperature of 180 °C for 180 min).

2.2. Specimen Preparation and Pullout Test Set-Up

Pullout studies were conducted to characterize the resulting bridging traction properties of unnotched and circumferentially notched z-pins with different notch definitions. The z-pin pullout test set-up used is shown in Figure 3.

The investigated laminates are made of 32 layers of prepreg tape in order to achieve a laminate thickness of around 4.5 mm after curing. Unidirectional (UD) $\left[0_{32}\right]$ laminates as well as quasi-isotropic (QI) ${[\pm 45/0/90]}_{4S}$ laminates are built up to determine the pullout properties of z-pin-reinforced laminates depending on the laminate structure. To apply pure pullout loads to the inserted z-pins, a nonstick polytetrafluoroethylene (PTFE) film with a thickness of 12.5 $\mathsf{\mu }$m is located in the midplane of the laminate. In the central region of the specimens, an area of 10 mm × 10 mm is reinforced by unnotched or circumferentially notched z-pins. With a pin density of 1% for all specimens and a diameter of the used z-pins of 0.5 mm, the z-pin array is 3 × 3 z-pins. After the curing process and cutting the specimens from the laminate plate, T-shaped loading tabs were attached to the lower and upper side of the specimens for applying the crack-opening loads with a universal testing machine MTS-858 with a load-cell capacity of 2 kN. For each z-pin variant, six specimens were tested, as specified in Table 1. To determine the z-pin pullout properties, the specimens are loaded with a constant crack-opening displacement rate of 1 mm/min and the load-displacement curves are recorded. The tests were conducted until all pins were pulled out completely or had failed. From the load-displacement curves, the relevant pullout parameters for a comparison of the test samples with unnotched z-pins as well as with circumferentially notched z-pins can be identified, such as the maximum debonding force P_d and maximum frictional force P_f as well as their respective displacement values. Furthermore, the energies—elastic pullout energy W_e, frictional pullout energy W_f, and total pullout energy W—dissipated during the z-pin pullout process can be determined from the curve progressions. These values can be used to compare the different notch geometries to identify the notch definition having the greatest influence on the bridging effects.

3. Results and Discussion

3.1. Pullout-Forces

From the measured pullout curves, exemplified in Figure 4, for z-pinned samples with unnotched z-pins as well as triangular and sinusoidal circumferentially notched z-pins, the characteristic force values—maximum debonding force P_d as well as maximum frictional force P_f—can be determined.

It can be seen from the figure that the maximum values for P_d—i.e., the force required to detach a pin from the laminate—can be significantly increased by the application of notches at the z-pin surface, regardless of the notch geometry. This also applies to the values of the maximum frictional force P_f, which indicate the impact of the friction between pins and laminate during the pullout. It also increases with the presence of a notched structure on the z-pin surface, compared to the measured values of the sample with unnotched z-pins. A comparison of the values for the different notch designs with those of the unnotched pins gives an indication of the effectiveness of such a surface texturing. Figure 5 summarizes the mean values of the debonding and frictional forces as well as the corresponding standard deviation values for samples with unnotched and circumferentially notched pins with different notch designs in unidirectional and quasi-isotropic laminate structures.

For unidirectional laminates, as shown in Figure 5a, significant enhancements can be obtained for both debonding and frictional forces by using notched pins. The improvements of the debonding force range between 7% and 66% with respect to the unnotched samples with the highest values for sinusoidal notches. The frictional force also substantially increases passing from the unnotched to notched pins. However, no significant differences in the frictional force values of the various notch designs can be observed. All notch designs examined were found to have an increase in frictional force ranging from 37% to 39%. With a quasi-isotropic laminate structure, as primarily used in technical applications, substantial improvements of P_d and P_f can be detected when using notched z-pins. Figure 5b shows the results of the investigations on quasi-isotropic laminate structures. The debonding force values show an increase between 93% and 162%, whereas the sinusoidal notch design also gives the best results. The frictional forces follow the previously explained values of the debonding forces and increase from 89% to 191%. The sinusoidal notch design was the best overall. On the one hand, the geometrical characteristics of a sinusoidal notch geometry may help to explain why the debonding forces are largest. Assuming a constant position of the shear area (radius of the sheared pin) for the different notch geometries, a sinusoidal notch geometry will result in a larger shearing surface running through the web areas of the notched region of the pins. Thus, higher forces are required to detach the notched pins with sinusoidal notch geometry from the laminate and consequently, a higher elastic pullout energy can be expected. On the other hand, due to the continuous transition between webs and notches, less-intense stress concentrations, which can lead to premature failure in the transition areas, can be expected compared with the other notch types. If higher values for the maximum debonding force P_d are achieved by introducing notch structures at the z-pin surface than for unnotched pins, it can be deduced that the z-pins have better bonding or anchoring in the laminate due to the notch structures. Consequently, the increases in debonding force should be directly reflected in the values of the elastic pullout energy, since higher energies are necessary to separate the pins from the laminate. This has already been demonstrated by Knopp et al. [33,34] on pins previously subjected to a surface treatment using liquid nitrogen and different plasmas. Especially with the findings on cryogenically treated pins, it can be assumed that the increases in debonding and frictional properties are mainly driven by the enhanced surface roughness and the resulting interlocking effects. The higher values of the frictional force P_f indicate higher frictional interaction between the surfaces of the pins and the surrounding laminate. The reason can be found in the resulting microstructure at z-pin/laminate interface, as shown in Figure 6, for a partially pulled-out notched z-pin with sinusoidal notch design.

The pathway of the crack between z-pins and laminate is marked in color for better visibility. It can be observed that surface fibers of the pin are detached from the web areas between the notches so that the positions of the notches before pullout forces were applied are still discernible. The sheared fibers are still adhered to the laminate structure. During z-pin pullout, these fibers cause interlocking effects with the fibers in the web areas at the z-pin surface, resulting in higher resistance against the pullout. During the z-pin pullout, these areas are frequently superimposed which leads to the wavelike force-displacement curve progression, as exemplarily shown in Figure 4. The influence of the surface roughness in the area of the notches, resulting from the treatment process using ultra-short laser pulses, was not considered in the investigations carried out. In order to overcome the higher forces, a rise in the required energy—the friction pullout energy W_f—can also be expected. The investigations on different notch depths using circular notch designs with a constant notch distance of 100 $\mathsf{\mu }$m for unidirectional and quasi-isotropic laminate structures are shown in Figure 7.

Figure 7a represents the influence of the notch depth for circular notch designs on the characteristic force values P_d and P_f for a unidirectional laminate structure. For the examined notch depths, an increase in the force values can be observed by reducing the notch depth. Both force values have their maximum at a notch depth of 10 $\mathsf{\mu }$m and show improvements of about 75% for P_d and 45% for P_f compared to the unnotched pins. The results for the quasi-isotropic laminates (see Figure 7b) show similar characteristics, however, the respective increases are higher—134% for P_d and 109% for P_f—and reach their maximum at a notch depth of about 15 $\mathsf{\mu }$m.

3.2. Z-pin Traction Energy

To evaluate the effectiveness of a z-pin reinforcement, it is necessary to know the energy dissipated during the z-pin pullout process. The elastic pullout energy W_e, which corresponds to the energy dissipated during the pullout until the pins are completely detached from the laminate; combined with the frictional part W_f, which represents the energy dissipated starting when the pins are completely detached until the pullout is completed, equals the total pullout energy W. By comparing these parameters for the investigated notch designs and laminate structures, it is possible to identify the notch design that has the greatest impact on the fracture-mechanical and impact properties of the pinned laminate. Furthermore, the sensitivity of the abovementioned properties to notch geometry can be assessed. In Figure 8, average values and corresponding standard deviation of the elastic (a), frictional (b), and total (c) pullout energies are shown for the various notch designs in unidirectional and quasi-isotropic laminate structures.

The elastic values of the pullout energy indicate that by applying notches at the pin surfaces, higher values can be achieved, regardless of the notch geometry and laminate structure. For a unidirectional laminate structure, increases of up to 123% can be realized with sinusoidal notch designs. The triangular shape provides the lowest increases of around 15% compared to the unnotched pins. The values obtained directly follow the debonding forces of the respective notch design. In a quasi-isotropic laminate structure, the test specimens with a sinusoidal notch design also show the highest values, which corresponds to a rise of the elastic pullout energy of 947%. This implies that the energy required to debond the notched pins with sinusoidal notches from the laminate under axial loading is approximately 10 times higher than for the unnotched z-pins. If the energy introduced into the material is high enough to detach the pins, then higher friction values during pin pullout effectively impede crack growth by reducing the energy at the crack tip as a result of the bridging effect [14]. The determined frictional pullout energies for the various notch designs are shown in Figure 8b. The frictional energy W_f, which represents the bigger part of the total energy W, shows only small enhancements up to a maximum of 12% for triangular and circular notch designs for unidirectional laminates. By contrast, no increase can be shown for a rectangular notch design. The pins with sinusoidal notches also show only minor increases of W_f of about 5%. In comparison, for quasi-isotropic laminate structures, the improvements are higher than those for samples with UD laminate structures. Improvements in friction energy of up to 53% can be measured for both circular and sinusoidal notch designs. The rectangular notch design also provides the lowest values with an increase of 13%. Once again, these results are consistent with the data gathered for the maximum frictional pullout force P_f (see Figure 6). To determine the total pullout energy, the elastic values and frictional values are combined. The results are presented in Figure 8c for unidirectional and quasi-isotropic laminates. It can be seen that at a notch depth of 20 $\mathsf{\mu }$m, a notch distance of 100 $\mathsf{\mu }$m, and a notch width of also 100 $\mathsf{\mu }$m for unidirectional laminate structures, the triangular notches as well as the circular notches have the largest increase with respect to the unnotched pins of 12–13%. By contrast, rectangular notches show no significant improvement in total pullout energy. The improvements achieved for QI laminates are greater and become maximum for circular and sinusoidal notch designs. This means that enhancements in pullout energy of up to 69% can be recorded.

If only the pullout energies for specimens with circular notch designs and different notch depths are considered, as illustrated in Figure 9, for the elastic portion (a), the frictional portion (b), and the total energy (c), the values of the elastic energies W_e and frictional pullout energies W_f are also following the values described above for the debonding and frictional forces.

For unidirectional laminate structures, the maximum energy values are found for W_e at a notch depth of 10 $\mathsf{\mu }$m and for W_f at 15 $\mathsf{\mu }$m. As a result, the total energy W reaches its maximum at a notch depth of 15 $\mathsf{\mu }$m and exceeds the values of the samples with unnotched z-pins by about 20%. If a quasi-isotropic laminate structure is considered, the enhancements of the energy values are more pronounced and also have their maximum at a notch depth of 15 $\mathsf{\mu }$m, irrespective of whether the elastic component, the frictional component, or the total energy is considered. The rise amounts to approximately 74% compared to the unnotched z-pins with the same laminate structure.

3.3. Z-pin Stiffness

To determine the effect of notching on the measured axial stiffness of the z-pins introduced into a UD and QI laminate, the load-displacement relationships were used for calculating the values. The results are summarized in

Table 2. Average stiffness and corresponding standard deviation values evaluated for different circumferentially notched z-pins inserted in unidirectional and quasi-isotropic laminates. The percentage of variation in stiffness in comparison to unnotched z-pins is also reported.

Notch Design	c [kN/mm]	$\mathsf{\Delta }$c [%]	c [kN/mm]	$\mathsf{\Delta }$c [%]
	Unidirectional		Quasi-Isotropic
Unnotched	1.06 ± 0.11	-	0.97 ± 0.14	-
Rectangular	1.13 ± 0.05	+7	1.20 ± 0.12	+24
Triangular	1.10 ± 0.16	+4	1.17 ± 0.08	+20
Sinusoidal	1.18 ± 0.01	+11	1.12 ± 0.08	+16
Circular	1.23 ± 0.10	+16	1.17 ± 0.20	+20

for the various notch designs in unidirectional and quasi-isotropic laminates.

The results show that the measured stiffness c in a unidirectional laminate structure is slightly increased by the introduction of notches. The improvements range from 4% to 16%, with the highest values being obtained by samples with circular notch designs. For QI laminates, the stiffness increase is higher compared to UD laminates, ranging between 16% and 24%. The values observed consequently indicate an enlargement of the measured stiffness of the z-pins, independent of the notch design and laminate structure. The mechanisms responsible for the reported effects are not yet fully understood. It was expected that the insertion of the notches would cause cutting of fibers of the pin and result in reduced stiffness of the pins. The calculated stiffness data presented in the table are combined stiffness, which result from a proportion of the z-pins and a proportion of the laminate surrounding the pin. Likewise, fibers and matrix material of the laminate are pushed into the notches during the manufacturing process, contributing to the overall stiffness. The higher stiffness of the samples with quasi-isotropic laminate structures may result from the higher amount of entwining fibers of the laminate around the pins—also placed in the notches—compared to unidirectional laminates. With unidirectional laminates, only a limited area of the notches are filled with fibers of the laminate which contribute to the overall stiffness. From the studies of Wang et al. [38] on the performance of twisted composite z-pins, it is known that twisting of the fibers results in a significant reduction of the stiffness properties of the z-pins. The higher the number of turns of the fiber bundles, the larger the loss of stiffness. However, the maximum debonding pullout force could be improved by up to 19.4% for twisted pins in comparison to untwisted pins, due to the higher interlocking effects caused by the formation of helical grooves on pin surface due to fiber twisting (form closure). As already described by Hoffmann et al. [41], high stiffness of the inserted z-pins is crucial for an effective absorption of the applied loads under Mode-I crack-opening conditions and for a significant prevention of crack growth resulting from an enhancement of the elastic part of the pullout energy. Similar to the twisted z-pins, the results of the notched pins show improvements of the maximum debonding forces under pullout conditions, caused by the higher interlocking between pins and laminate. With a notch depth higher than 25 $\mathsf{\mu }$m using rectangular notch design in combination with an unidirectional laminate structure, we can observe that the calculated stiffness showed no clear trend, but increases of 3% to 16% can be achieved. Results of the investigations performed on notched z-pins with different notch designs and a constant notch depth of 20 $\mathsf{\mu }$m follow the findings described by Hoffmann et al. [41]. The increases in the stiffness calculated for unidirectional laminate structures correspond with their results for the same laminate structure.

4. Conclusions

The positive effect of improved interlocking between z-pins and the surrounding laminate on the bridging mechanisms under crack-opening loads has already been shown in previous experimental investigations [33,38,41]. In continuation, experimental studies were conducted to determine the impact of the notch design on the resulting pullout properties of circumferentially notched z-pins. From the presented experimental investigations, the following conclusions can be drawn:

• By introducing notches at the z-pin surface, the maximum values of the characteristic pullout parameters—maximum debonding force P_d and maximum frictional force P_f—can be significantly increased compared to those of unnotched pins, regardless of notch design and laminate structure. The increases for UD laminate structures are lower than for QI laminates.
• The resulting pullout energies follow the values found for the characteristic pullout forces. Therefore, the gains in pullout energy W for QI laminates are higher for all notch designs than for UD laminates, compared to the unnotched pins.
• For unidirectional laminates, no substantial variation of the resulting total pullout energy for the different notch designs can be determined. In contrast, the investigations on QI laminates show that the highest increases in total pullout energy of up to 69% can be achieved for sinusoidal notch designs.
• Examining the dependence of the pullout forces and energies on the notch depth with a circular notch design at constant notch width and distance, it can be seen that the maximum values occur at a notch depth of approximately 15 $\mathsf{\mu }$m, regardless of the laminate structure considered.
• Notched pins show a significant increase in the elastic part of the pullout energy W_e, especially in a QI laminate structure. Therefore, independent from the notch design, notched z-pins can effectively stop crack growth under mode-I loading by hindering pin separation, and therefore prevent reaching the frictional pullout phase, unless it is with much higher energy values.
• The application of circumferential notches has no negative impact on the measured stiffness of the pins in the laminate during pullout loading. Instead, slightly higher values can be found for all notch designs, whereby the values for QI laminate structures are higher than the values for UD laminate structures.

The treatment of the pins by ultra-short laser pulses causes a surface roughness in the root of the notches, which depends on the processing parameters (e.g., depth of ablation per processing step, speed of processing, laser power, and further). Additional investigations should clarify whether there is a dependency of the surface roughness in the root of the notches on the resulting pullout properties and which parameters must be selected to find an optimal surface roughness for the specific notch geometry. Further studies are necessary to examine the effects of the improved bridging mechanisms on the resulting fracture-mechanical properties, especially for Mode-II crack-opening loads. Particularly in the case of Mode-II crack-opening loading, which results primarily in shear failure of the z-pins, the reduced cross-sections can potentially result in a reduction of delamination toughness. The impact of a microstructuring of the z-pin surfaces on the in-plane properties must also be investigated in order to quantify any negative effects. Due to the additional stress concentrations in the area of the notches that are caused by the geometrical cross-over points, the resulting dynamic properties could also be strongly affected and should therefore be investigated.
