Finite Element Analysis and Experimental Characterisation of SMC Composite Car Hood Specimens under Complex Loadings

Marine Additive Manufacturing Centre of Excellence (MAMCE), University of New Brunswick, 3 Bailey Drive, P.O. Box 4400, Fredericton, NB E3B 5A1, Canada
*
Author to whom correspondence should be addressed.
Received: 7 July 2018 / Revised: 9 August 2018 / Accepted: 28 August 2018 / Published: 4 September 2018
Full-Text   |   PDF [10237 KB, uploaded 4 September 2018]   |

Abstract

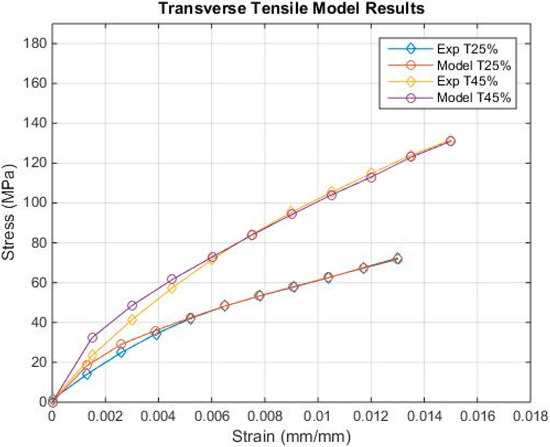

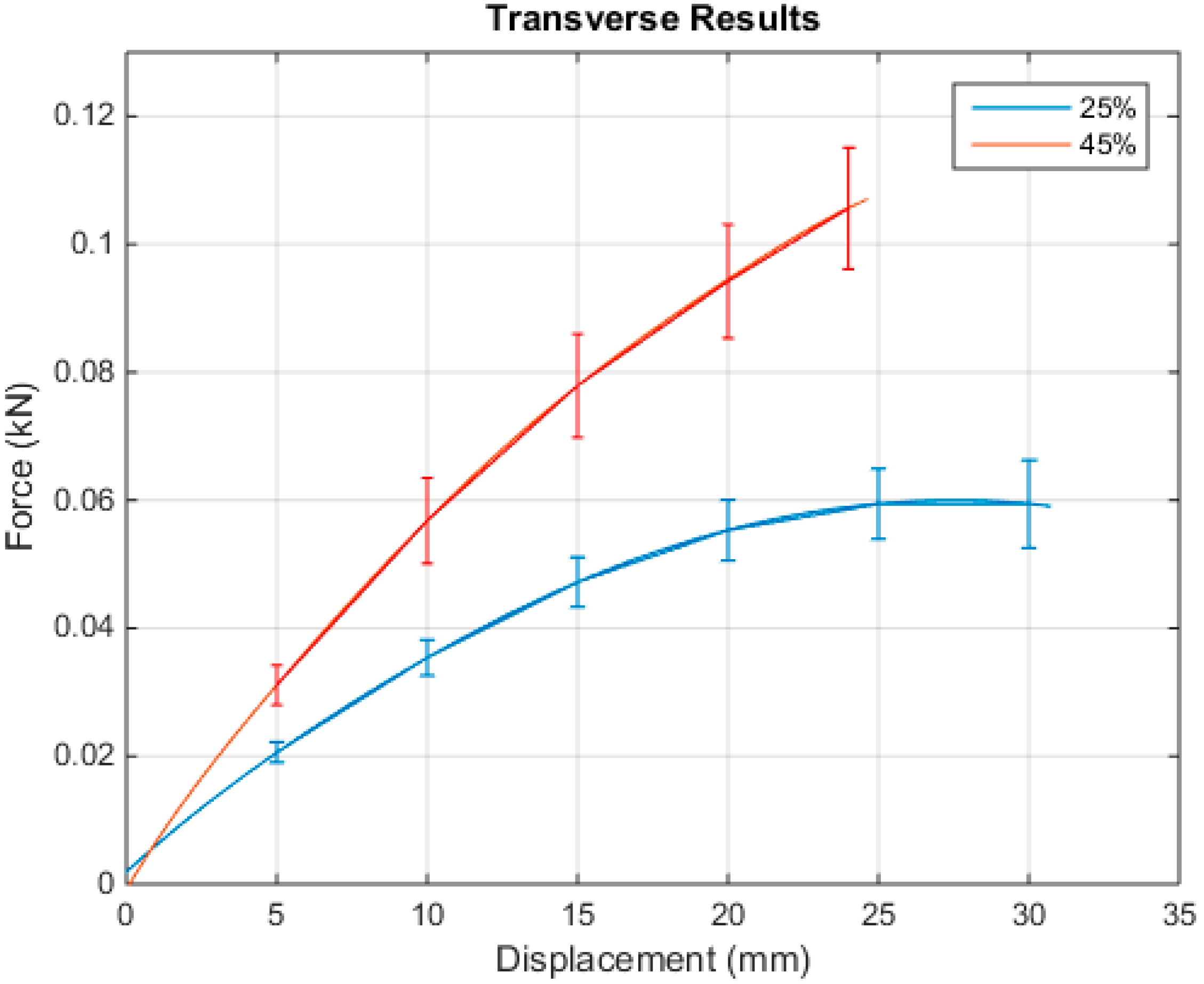

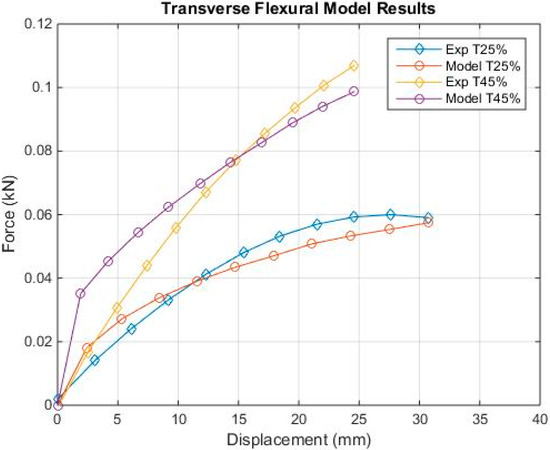

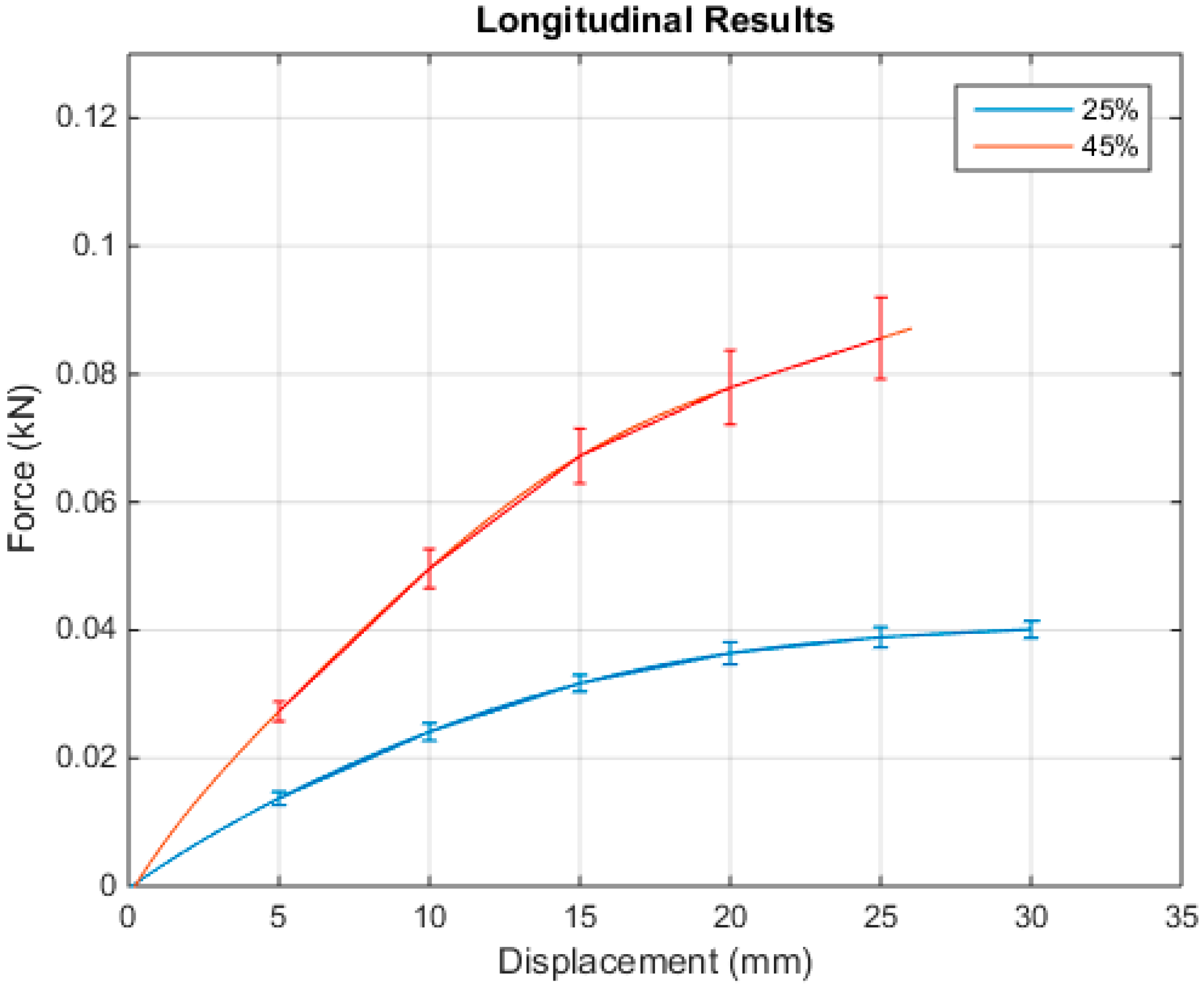

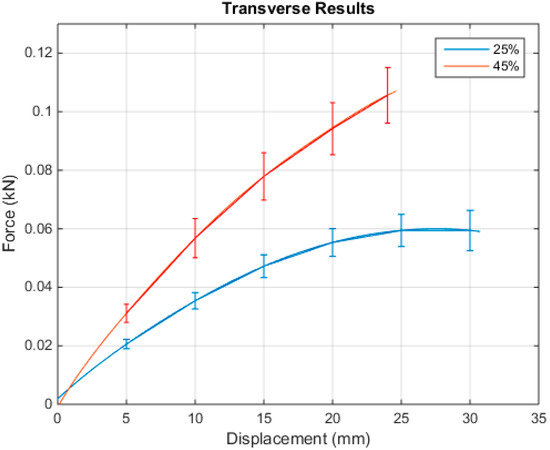

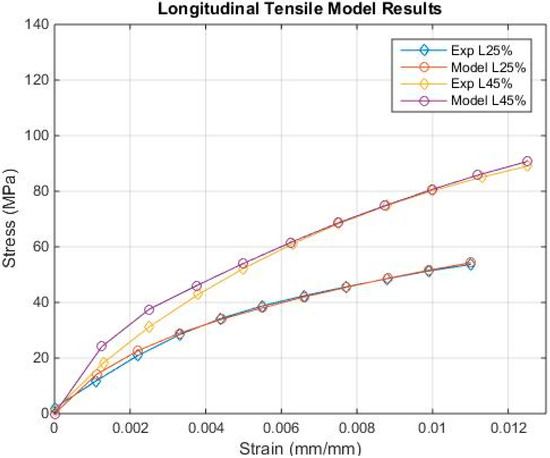

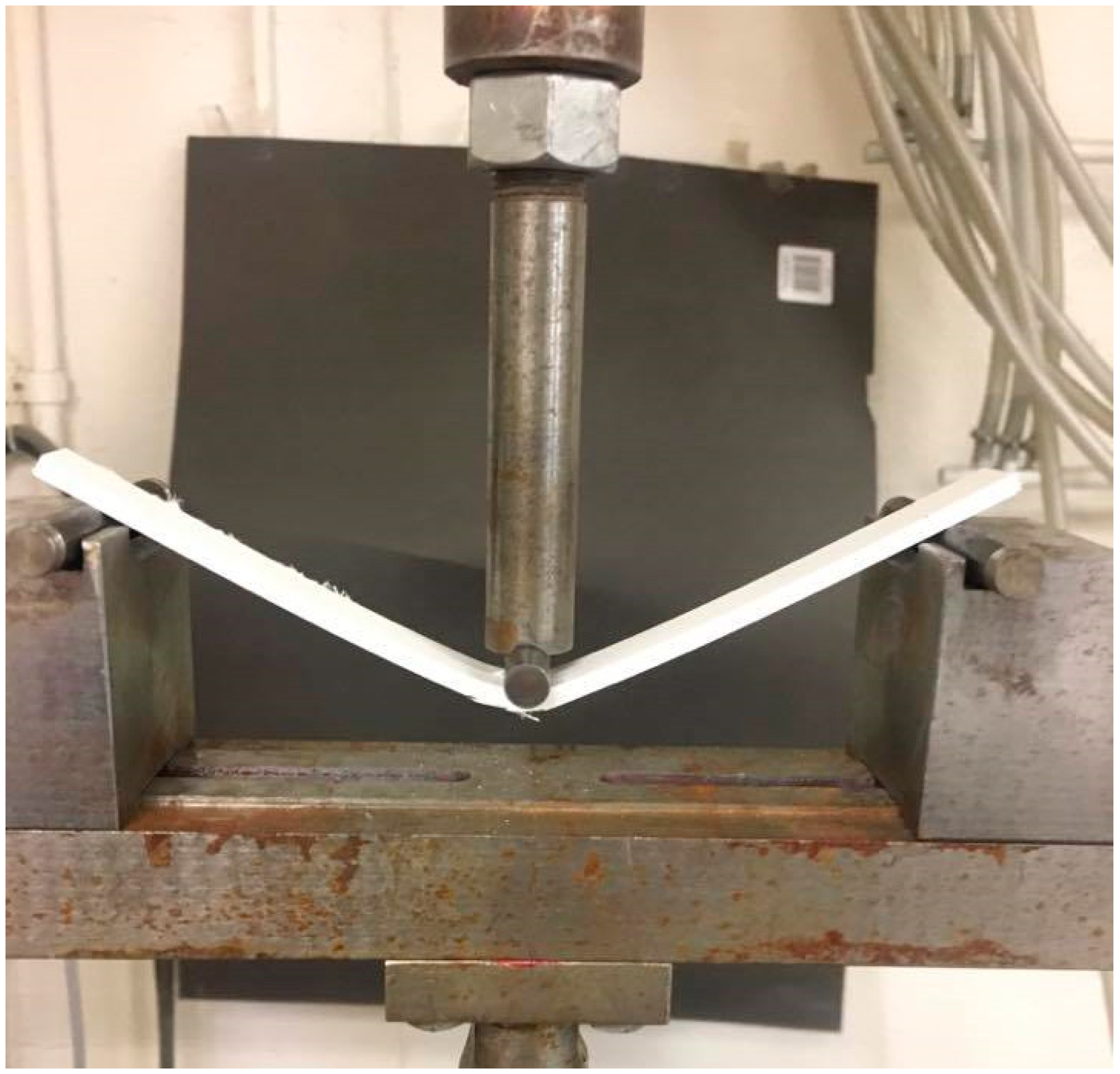

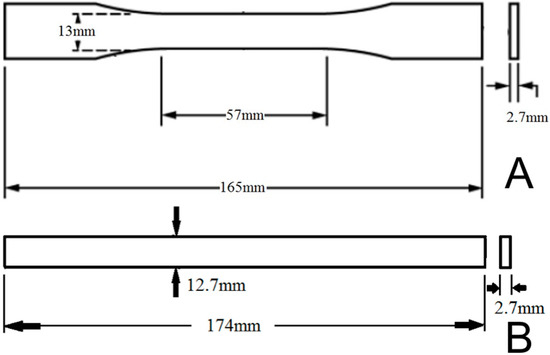

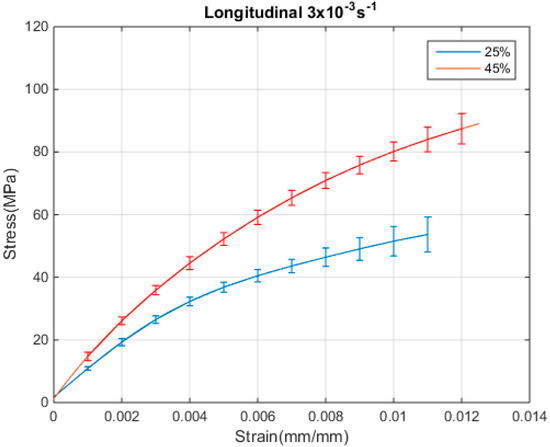

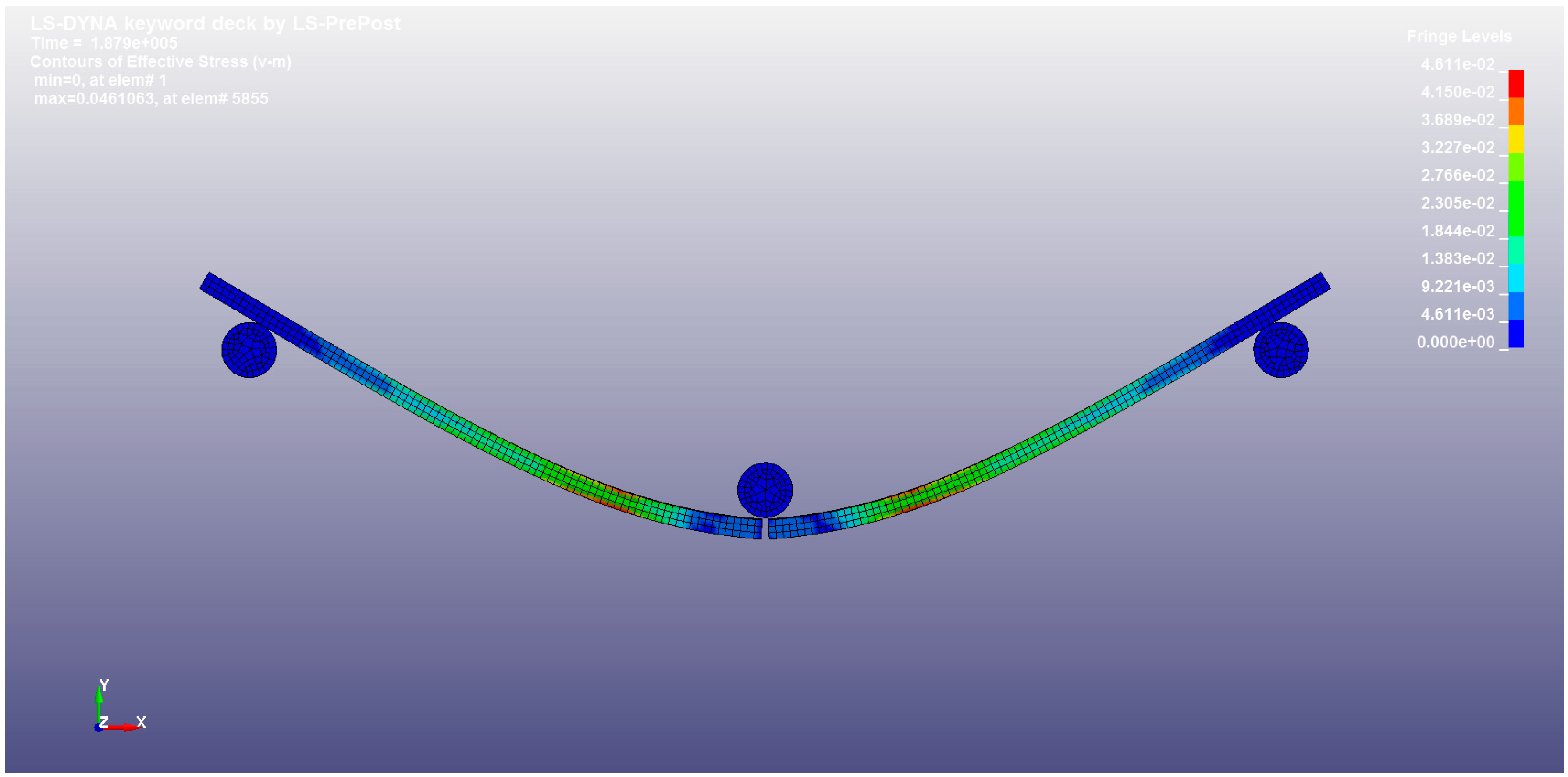

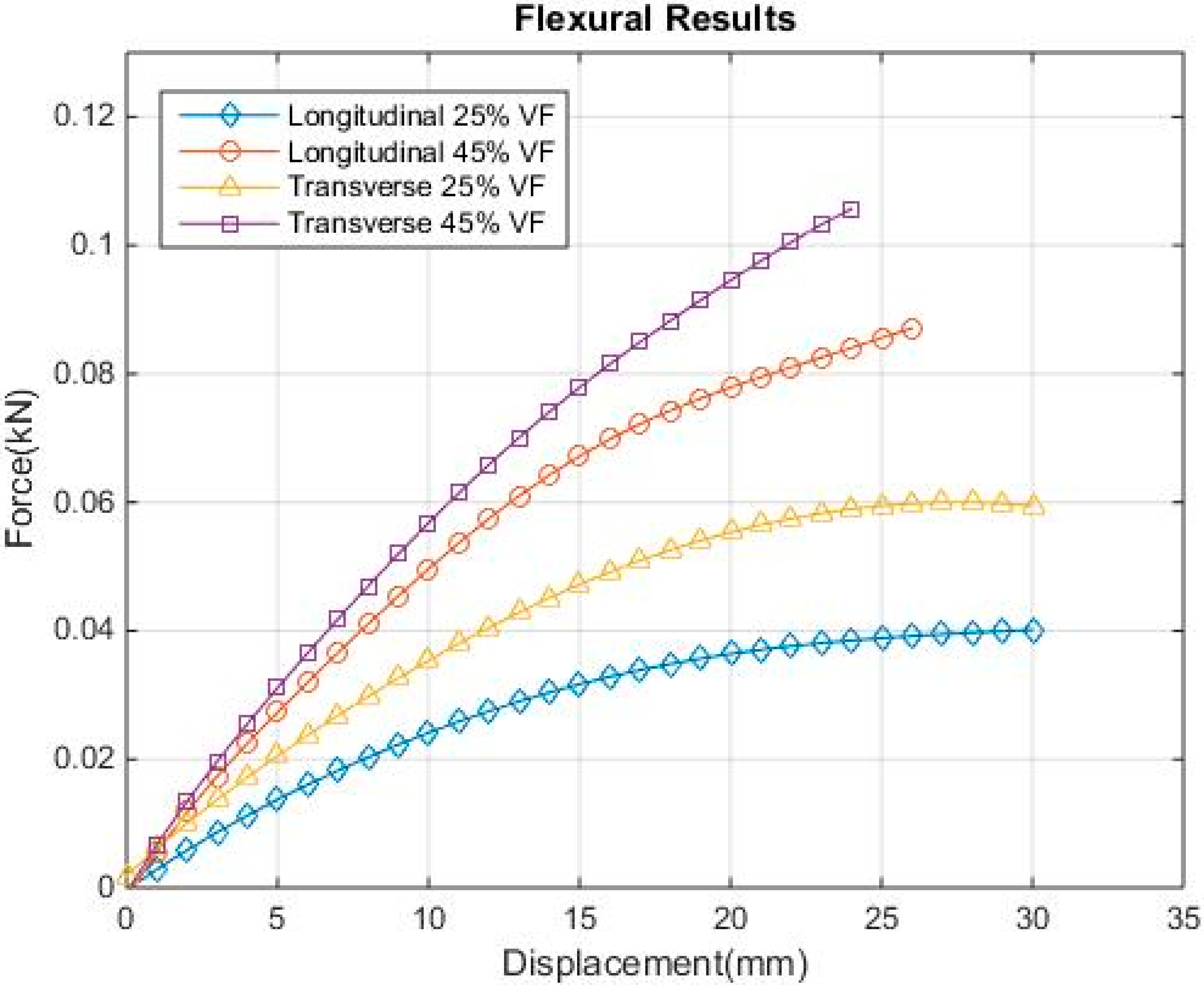

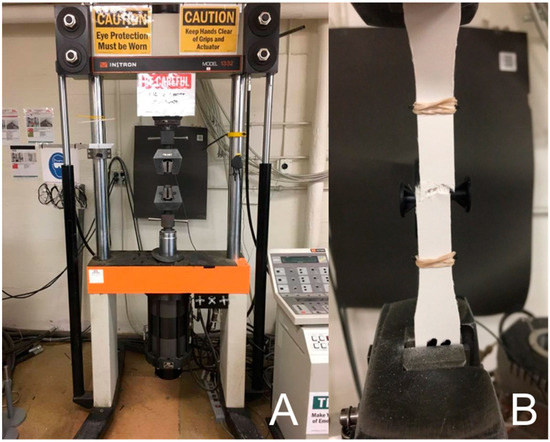

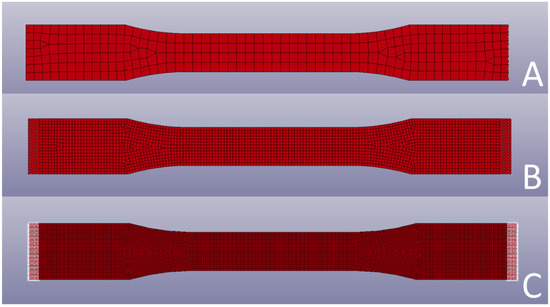

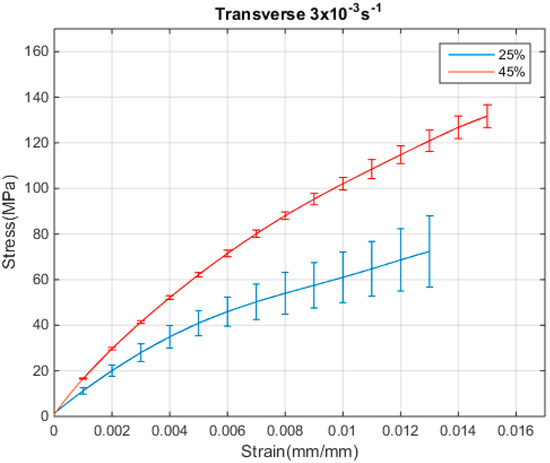

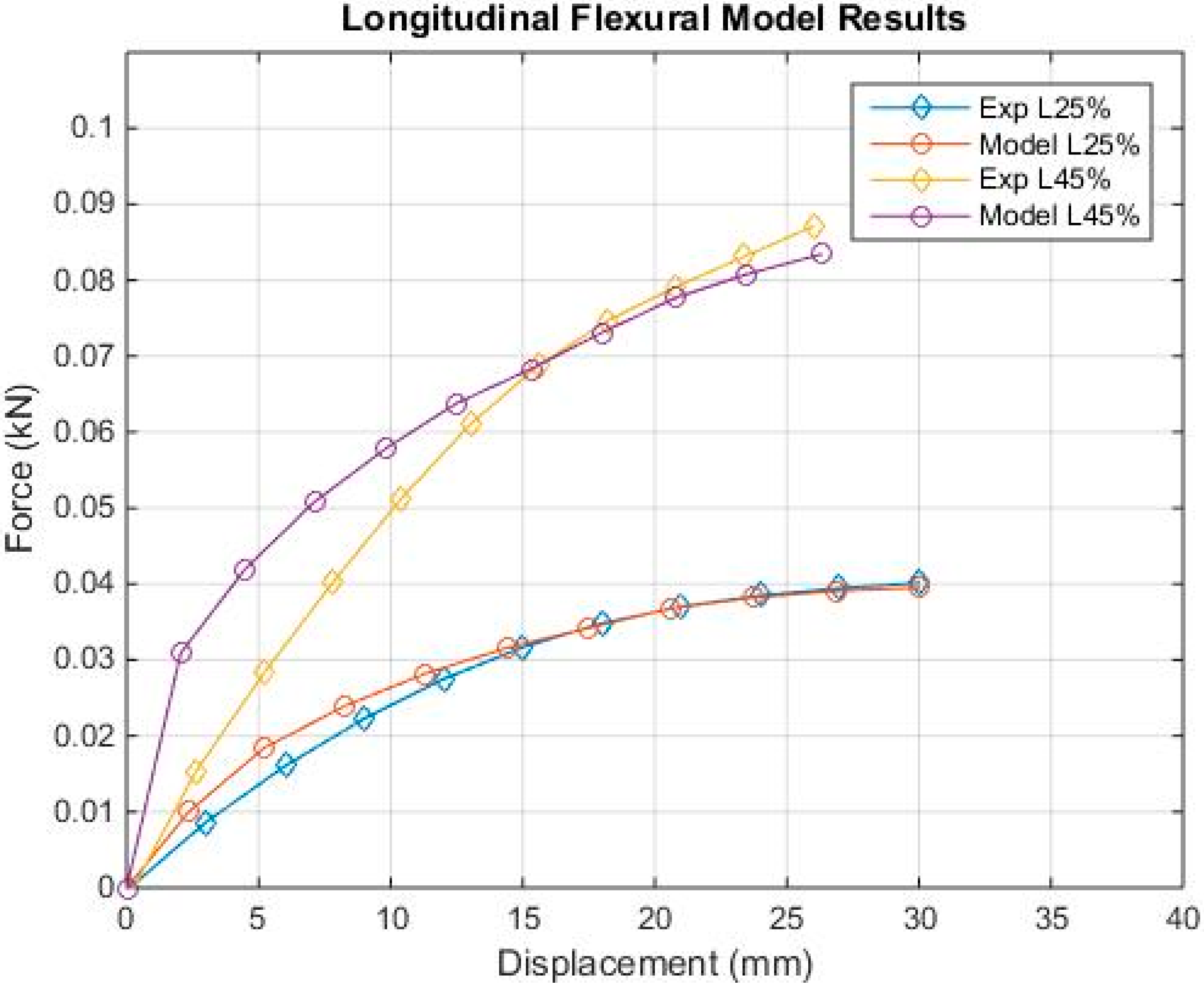

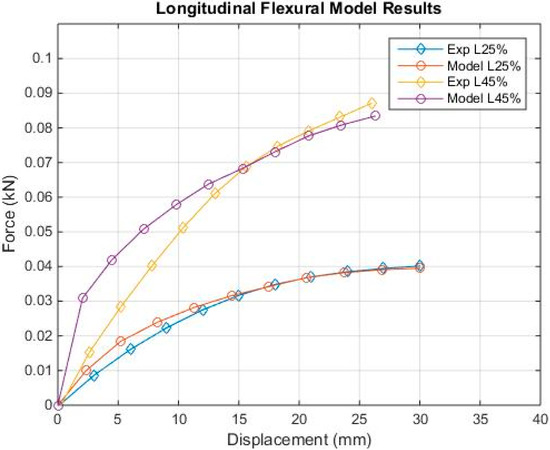

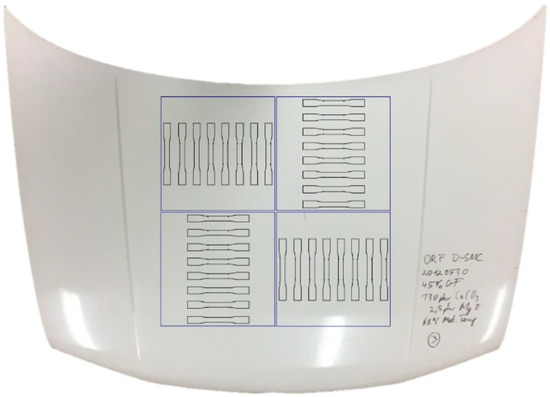

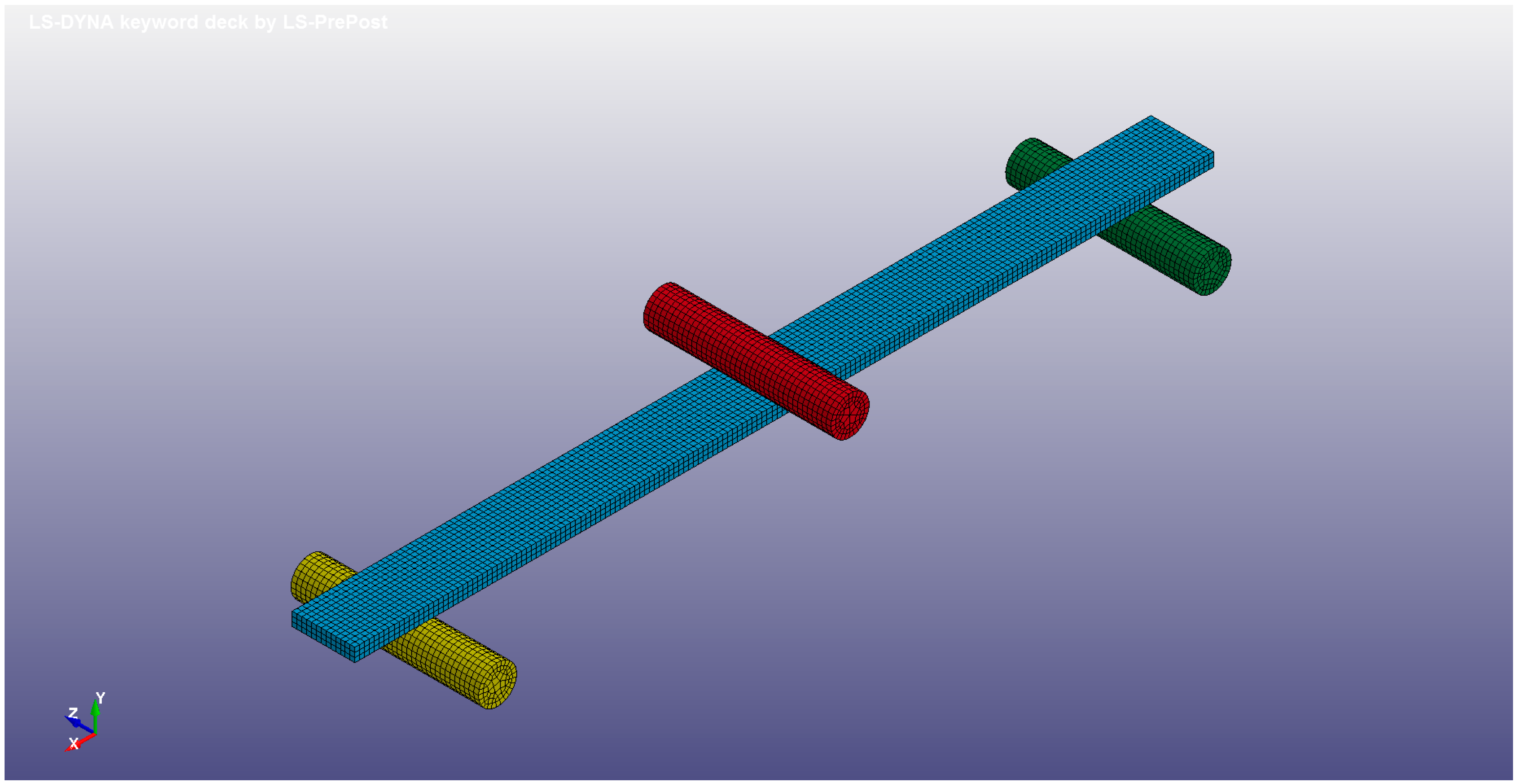

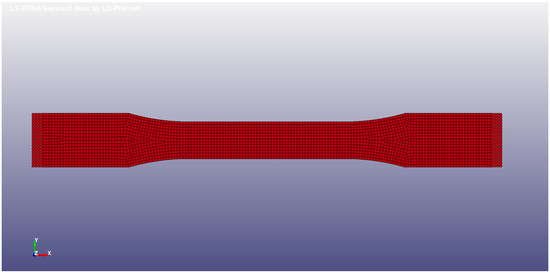

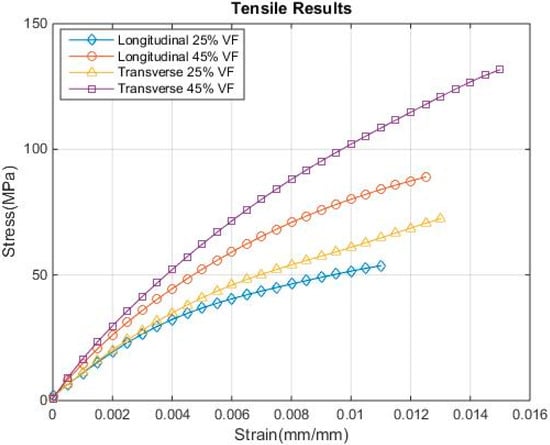

Composite materials have recently been of particular interest to the automotive industry due to their high strength-to-weight ratio and versatility. Among the different composite materials used in mass-produced vehicles are sheet moulded compound (SMC) composites, which consist of random fibres, making them inexpensive candidates for non-structural applications in future vehicles. In this work, SMC composite materials were prepared with varying fibre orientations and volume fractions (25% and 45%) and subjected to a series of uniaxial tensile and flexural bending tests at a strain rate of 3 × 10−3 s−1. Tensile strength as well as failure strain increased with the increasing fibre volume fraction for the uniaxial tests. Flexural strength was found to also increase with increasing fibre percentage; however, failure displacement was found to decrease. The two material directions studied—longitudinal and transverse—showed superior strength and failure strain/displacement in the transverse direction. The experimental results were then used to create a finite element model to describe the deformation behaviour of SMC composites. Tensile results were first used to create and calibrate the model; then, the model was validated with flexural experimental results. The finite element model closely predicted both SMC volume fraction samples, predicting the failure force and displacement with less than 3.5% error in the lower volume fraction tests, and 6.6% error in the higher volume fraction tests. View Full-Text
Keywords: discontinuous reinforcement; glass fibres; uniaxial tensile tests; three-point bending tests; mechanical properties; finite element modelling discontinuous reinforcement; glass fibres; uniaxial tensile tests; three-point bending tests; mechanical properties; finite element modelling
