Optimizing Surface Micro Grooving to Reduce the Checking and Cupping of Douglas Fir, Western Hemlock and White Spruce Decking Exposed to Natural Weathering

by
Sina Heshmati
1,
Mohammad Sadegh Mazloomi
1,2 and
Philip David Evans
1,2,*
1
Centre for Advanced Wood Processing, University of British Columbia, Vancouver, BC V6T 1Z4, Canada
2
Department of Applied Mathematics, The Australian National University, Canberra 0200, Australia
*
Author to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2018, 2(4), 67; https://doi.org/10.3390/jmmp2040067
Submission received: 20 September 2018 / Revised: 2 October 2018 / Accepted: 9 October 2018 / Published: 11 October 2018
Browse Figures
Versions Notes

Abstract

:
Machining grooves into the surface of pine and fir (Abies spp.) deckboards reduces undesirable checking that develops when “profiled” boards are exposed to the weather. We aim to develop improved profiles for Douglas fir, western hemlock and white spruce decking to reduce their susceptibility to checking, and understand how profile geometry influences the stresses that cause checking. We varied the width and depth of grooves in profiled deckboards, exposed deckboards to the weather, and measured checking and cupping of boards. A numerical model examined the effect of groove depth on the moisture-induced stresses in profiled spruce boards. Profiling significantly reduced checking, but increased cupping of deckboards made from all three species. Western hemlock checked more than the other two species. Profiles with narrow grooves (rib profiles) were better at restricting checking than profiles with wider grooves. A rib profile with deeper grooves developed smaller stresses than a rib profile with shallower grooves, and boards with the former profile checked less than boards with shallower grooves. We conclude that checking of profiled Douglas fir, western hemlock and white spruce decking is significantly reduced by changing profile geometry, and our results suggest the best profiles to reduce checking of all three species.

1. Introduction

Wood exposed outside to the weather erodes, cracks and becomes grey in color [1]. These adverse effects of the weather on the surface properties of wood do not penetrate deeply into wood and are distinct from fungal decay, which under favorable conditions can penetrate into and affect the strength of large wooden structures [1,2]. Fungal decay can be prevented by pressure-treating wood with solutions of chemical preservatives [2]. Wood preservatives, however, are less effective at protecting wood surfaces from the adverse effects of the weather, and as a result, treated wood used outdoors is often finished with coatings to maintain its appearance and prevent the wood from cracking (checking) [3]. The checking of wood used outdoors can also be restricted by machining micro-grooves into the surface of wood [4,5,6]. Micro-grooving, hereafter referred to as profiling, is commonly applied to deckboards manufactured in Asia, Australia, Europe and New Zealand, but it is uncommon in North America [7,8]. The decking market in North America is valued at $US 7 billion per annum, and wood products command 84% of the market [9]. However, wood is rapidly losing market share to wood plastic composites that are less susceptible to checking and require less maintenance than wood decking [10]. For example, demand for wood plastic decking in North America is growing at 5% per annum compared to 3% per annum for wood decking [9]. The same trend is occurring in other countries [11]. As a result of the success of wood plastic decking, there has been significant interest in improving the resistance of wooden deckboards to weathering and in particular checking. This interest explains the recent attention in North America to optimizing profiling to make it better at reducing the checking of deckboards exposed to the weather [12,13,14,15,16,17,18,19]. It also accounts for increasing interest in Europe and elsewhere in deckboards made from tropical wood species or thermally or chemically modified woods that are less susceptible to checking and cupping than preservative-treated deckboards [20,21,22].
Research on optimizing surface profiling to reduce the checking of decking has focused on a limited number of wood species. The focus of research in Canada has been on the amabilis fir (Abies amabilis, (Dougl.) ex J. Forbe) because it is susceptible to checking and, as a result, is under-utilized for decking, even though it is easier to treat with wood preservatives than most other Canadian wood species [23,24]. The checking of amabilis fir can be reduced significantly by profiling, and profiles with narrow grooves (rib profile) are more effective at reducing checking than wavy profiles (ribble or ripple) with wider grooves [13,15]. In addition, rib profiles with deeper grooves appear to be more effective at reducing checking of amabilis fir than profiles with shallower grooves [19]. These findings on the greater effectiveness of rib profiles compared to wavy profiles at reducing the checking of wooden deckboards are only relevant to boards made from amabilis fir because two previous studies showed that wavy profiles were more effective than rib profiles at reducing the checking of southern pine (Pinus spp.) decking [13,15]. Hence, further research is needed to optimize profiling for commercially important North American wood species that are used to manufacture decking.
In this paper, we examine the effects of surface profiling on the checking and cupping of wood decking exposed outdoors to the weather. We selected three important commercial wood species for our research: Douglas fir (Pseudotsuga menziesii (Mirb.) Franco); western hemlock (Tsuga heterophylla (Raf.) Sarg.); and white spruce (Picea glauca (Moench) Voss). Douglas fir, hemlock and spruce comprise over 50% of the 27.5 billion cubic meters of wood growing in non-protected land in Canada [25]. Wood from these species is used to manufacture decking [23], and pre-commercial trials of profiled Douglas fir decking have commenced in North America [26]. This study was carried out to determine the profiles that are most effective at reducing the checking of decking made from the three different wood species. We hypothesize that the geometry of profiles will influence checking of profiled decking. Our results show that rib profiles with narrow and deep grooves were better than profiles with wide or shallow grooves at restricting checking of all three species. Furthermore, our numerical model explains why a rib profile with deep grooves was more effective than a rib profile with shallow grooves at restricting checking of profiled spruce deckboards.

2. Materials and Methods

2.1. Manufacture of Profiled Decking

Six plain-sawn Douglas fir, western hemlock and white spruce boards, approximately 40 × 140 × 4877 mm3 in size were purchased from Northern Building Supplies (Vancouver, BC, Canada), Teal Jones Group (Surrey, BC, Canada), and Home Depot (Richmond, BC, Canada), respectively. The boards were stored in a conditioning room at 20 ± 1 °C and 65 ± 5% relative humidity for one month. The growth ring widths and grain angles of the six boards for each wood species were measured using a ruler and protractor, as described previously [27]. The densities of separate matched wood samples cut from parent boards were measured by water displacement and oven-drying overnight at 105 ± 5 °C (Table 1).
The six parent boards for each wood species were cross-cut using a pendulum saw (Stromab ps 50/f, Campagnola Emilia, Italy) to produce 12 samples, each 400 mm in length. Each sample was planed to a thickness of 35 mm using a European rotary planer (Martin T44, Otto Martin Maschinenbau, Ottobeuren, Germany). Six samples from each parent board for each wood species were selected at random and assigned to the six different profile types, including the flat unprofiled control (Table 2). The six profile types were a subset of those we described previously [19].
The rib profiles had very narrow grooves and hemispherical peaks (Table 2). The wavy (ribble and ripple) profiles had wider grooves (Table 2). Within the rib profile type there were three grooves depths: 1, 1.5 mm (short rib); 2, 2.0 mm (rib); 3, 2.5 mm (tall rib) (Table 2). The widths of peaks in all samples except the flat controls were 5.0 mm.
The method used to machine profiled deckboards is exactly the same as that described in our previous paper [19], except samples were machined using a shaper (Martin T26, Otto Martin Maschinenbau, Ottobeuren, Germany) rather than a molding machine. The first decking sample was fed into the shaper by hand and machined at a spindle speed of 6000 rpm to produce the selected profile. The remaining two (species) samples selected at random were then profiled. The whole process was repeated for each assigned profile and so on until all 18 samples (6 profiles × 3 species) from the first parent board for all three species were profiled. Then, samples from the second parent board for each species were profiled as above, followed by samples from boards 3, 4, 5 and 6 until all 108 samples (6 boards × 6 samples [profile type] × 3 species) had been machined. The final dimensions of the profiled boards were 400 (length) × 140 (width) × 35 mm3 (thickness). Decking samples were air-dried in a conditioning room at 20 ± 1 °C and 65 ± 5% r.h. (relative humidity) for four months. Each sample was placed on a flat surface against a steel fence and planer deviation (cupping) was measured in three places using a dial gauge micrometer attached to a precision-machined steel square, as described previously [19]. The ends of the samples were brush-coated with a sealer (ZINSSER Bulls Eye 1, 2, 3 acrylic-latex undercoat, primer, sealer and stain blocker, Rust-Oleum Co., Vernon Hills, Illinois, USA) at the recommended rate (10 m2/L), and samples were allowed to air dry overnight. The ends of the samples were re-coated with the sealer and samples were conditioned as above for a further two months and weighed using a digital balance (Mettler Toledo PG5002-S, Mississauga, ON, Canada). Sealing of the end-grain of samples was done to reduce preservative uptake via end-grain and to prevent checks from developing in end-grain.
All decking samples were treated with a 1.8% alkaline copper quaternary (ACQ type C) preservative solution containing copper oxide (66.7%) and alkyldimethylbenzyl-ammonium chloride (33.3%) in a commercial pressure-treatment plant operated by Stella-Jones Inc. and located in Carseland, AB, Canada (50°51′7.2″ N, 113°28′12″ W). The pressure treatment cycle consisted of 30 min under a vacuum of −74.5 kPa, 85 min at a pressure of 958 kPa, and 120 min under a vacuum of −74.5 kPa. Treated decking samples were weighed and preservative retentions of samples were calculated. Preservative retentions of Douglas fir, western hemlock and white spruce samples were 3.7 kg/m3 (min = 1.1; max = 6.1; SD = 1.1), 6.9 kg/m3 (min = 3.5; max = 8.7; SD = 1.1) and 2.4 kg/m3 (min = 0.4; max = 5.0; SD = 1.3), respectively. Differences in preservative retentions of Douglas fir, western hemlock and white spruce samples were statistically significant (p < 0.001), whereas there was no significant (p = 0.479) effect of profiling on preservative retention of treated samples. After treatment, samples were air-dried in a conditioning room at 20 ± 1 °C and 65 ± 5% r.h. for two months, reweighed and their cupping was re-measured, as above.

2.2. Outdoor Weathering and Statistical Analysis of Data

Profiled samples and the matching flat controls cut from each of the six parent boards for each species were screwed to separate wooden sub-frames made from pressure-treated 2 × 4 lumber to create six mini-decks. Each mini-deck was 2.9 m long, 35 cm wide and 47 cm high. Boards were fastened at each corner to the sub-frames using 34 mm long, 3.1 mm wide galvanized decking screws applied using the CAMO® Edge Deck Fastening System (Grand Rapids, MI, USA, https://www.camofasteners.com/). A gap of 10 mm was left between each of the 18 boards in each rack. Unprofiled spruce boards, measuring 360 × 90 × 40 mm3 were screwed to each end of the row of 18 boards on each rack to prevent the edges of samples at the ends of the racks from being exposed to the weather. The weathering racks were exposed outdoors in Vancouver at FPInnovation’s test site (49.257, −123.244) for six months from 1st May 2017 to 31st October 2017. All samples were removed from racks after 14 weeks on 7 August and cupping of samples was re-measured as described above. Samples were returned to the racks on 11 August. The weather conditions during the exposure trial are summarized in Table 3. At the end of the trial, weathered samples were removed from the racks, conditioned at 20 ± 1°C and 65 ± 5% r.h. for two months and the length and width of visible checks were measured using a transparent plastic ruler and calibrated optical loupe (Carson LumiLoupe 10× Power Stand Magnifier, Carson Optical, Inc., Ronkonkoma, NY, USA), as described previously [19].
Our experiment was a randomized block design. Each of the six weathering racks contained 18 deckboard samples (five profiled samples and the flat control for each of the species) and represents a block. The factors of interest (wood species and profile type) were fully replicated in each block. Analysis of variance (ANOVA) of the effect of wood species and sample type (profiled and flat samples) on the following numerical indicators of checking and cupping were analyzed: (1) total area of all visible checks ([length × width] × n); (2) average width of the five largest checks in each sample; (3) average area of the largest check in each sample; and (4) difference in cupping measured in three places in samples before and after 14 weeks of weathering. ANOVA was also used to examine the effects of wood species and profiling on the preservative retention of treated samples. The factorial design of the experiment allowed data to be averaged across non-significant (p > 0.05) effects, giving the experiment greater precision. All statistical computation including model checking was performed using Genstat (v. 19) [27]. As a result of such checks, data for the area of the largest check in each sample were transformed into natural logarithms before final analysis. Results describing the effects of profiling on the checking and cupping of deckboards are presented in graphs and error bars on each graph (± standard error of difference, p < 0.05), can be used to estimate whether the differences between individual means are statistically significant [28].

2.3. Numerical Modeling

Finite element analysis (modeling) was performed to explore the effect of groove depth on the moisture-induced stresses generated by wetting and drying profiled spruce deckboard samples. Moisture diffusion in wood has been widely modeled using Fick’s second law [29,30], which can be expressed using Equation (1) [31]:
∂ M ∂ t = { D x ∂ 2 M ∂ x 2 , D y ∂ 2 M ∂ y 2 , D z ∂ 2 M ∂ z 2 } ,
where M is the local moisture concentration (kg/kg), t is time (s), and Dx, Dy, and Dz represent the coefficient of moisture diffusivity of wood in x (tangential), y (radial) and z (longitudinal) directions, respectively. Our FEA software did not have a moisture diffusion simulation module, but there is similarity between the governing equations for moisture diffusion and thermal diffusion [32]. Thermal diffusion (transient heat conduction) can be described using Equation (2) [31]:
∂ T ∂ t = { α T x ∂ 2 T ∂ x 2 , α T y ∂ 2 T ∂ y 2 , α T z ∂ 2 T ∂ z 2 } ,
where T stands for local temperature (°C), t is time (s), and αTx is thermal diffusivity (m2/s) in x-direction and can be defined as α T x = K x / ( ρ C p ) where Kx is thermal conductivity in x-direction (W/m·°C), ρ is density (kg/m3), and Cp is specific heat (J/kg·°C). The similarity between thermal and moisture-diffusion equations makes it possible to use the thermal diffusion simulation module in the FEA software ANSYS Multiphysics to simulate moisture diffusion [33]. On the other hand, hygroscopic strain, εh, induced by moisture diffusion into the material can be defined using Equation (3) in which βx, βy and βz are coefficient of moisture expansion in the x, y, and z directions, respectively.
{ ε h x , ε h y , ε h z } = { β x M , β y M , β z M }
Table 4 shows the mechanical properties of spruce (Picea spp.) [33], and Table 5 shows the moisture diffusion and hygroscopic swelling properties of spruce. Moisture diffusion coefficients, D, and coefficients of moisture expansion, β, were taken from the literature [34,35].
To simulate moisture diffusion into wood, the surface moisture contents of grooved wood samples needed to be estimated. Therefore, an experiment was carried out to measure the moisture content of peaks and grooves in spruce wood samples with either 2.5 mm deep (tall rib) or 1.5 mm deep (short rib) profiles (Table 2). Each sample was sprayed with a fine mist of water (15 g per sample) and allowed to dry under two 500 W lamps (Shopro L002716, Burnaby, BC, Canada) for 90 min. The surface moisture contents of the peaks and grooves were measured every 2 min using a pin-type moisture meter (Delmhorst RDM3, Towaco, NJ, USA). Surface moisture contents were used as starting values to simulate moisture diffusion in the grooved wood substrates. Moisture diffusion was modeled using the thermal transient module in ANSYS. The initial time step for this analysis was 60 s with minimum and maximum time steps of 10 and 120 s, respectively. Due to the symmetry of profiled deckboard samples only half of each profiled sample was modeled, as shown in Figure 1. Sensitivity analysis was performed to find an appropriate element type and size for FEA. Elements with tetrahedral shape and a maximum size of 1 mm were used to mesh wood profiles. As a result of this simulation, moisture content contours of the wood substrates were known at any time. Then, the transient thermal module was linked with the transient structural module in ANSYS to simulate the hygroscopic behavior of the samples. Finally, the moisture-induced stresses and strains were determined for profiles with deep (tall rib) or shallow (short rib) grooves.
All numerical modeling was carried out on a high-end laptop (Lenovo Ideapad Y700, 17”, Lenovo Canada, Markham, ON, Canada) with an Intel® Core™ i7-6700HQ CPU at 2.6 GHz and 16 GB of RAM.

3. Results

3.1. Effects of Profiling on Checking and Cupping of Deckboards

There were significant (p < 0.001) effects of wood species and sample type (profiled and flat deckboards) on checking of samples, but there were no significant (p > 0.05) interactions of species × sample type on checking. In other words, the effect of profiling was consistent across the Douglas fir, western hemlock and white spruce samples. The total area of checks in profiled samples was significantly (p < 0.05) smaller than the area of checks in unprofiled (flat) deckboard samples (Figure 2). There were also significant (p < 0.05) differences in the total area of checks that developed in the different profiled samples (Figure 2). The profiles with narrow and deep grooves (tall rib and rib) were significantly (p < 0.05) better at restricting checking than the other profiles, including the short rib profile (Figure 2).
Wide checks are easier to see than narrower ones, and influence the appearance of deckboards to a greater extent than narrow checks [18]. Checks were significantly (p < 0.05) narrower in profiled boards than in unprofiled (flat) deckboard samples (Figure 3).
Profiles with narrower grooves (rib profiles), including the short rib profile, were significantly (p < 0.05) more effective than profiles with wider grooves (ribble and ripple profiles) at restricting checks from becoming wider when profiled deckboards were exposed outside for six months (Figure 3). Furthermore, the largest check in profiled samples was significantly (p < 0.001) smaller than those in unprofiled (flat) deckboard samples (Figure 4). There were also significant (p < 0.05) differences in the area of the largest check that developed in the different profiled boards (Figure 4). The largest check in samples with narrow and deep grooves (tall rib and rib) was significantly (p < 0.05) smaller than those in other profiled samples including samples with the short rib profile (Figure 4).
In addition to the effects of profiling on checking of deckboards, there were significant (p < 0.01) effects of ‘species’ on checking, as mentioned above, although there were no significant (p > 0.05) species × profiling interactions on checking. The significant effects of species on checking occurred because checks in western hemlock boards were always more numerous and larger than those in spruce boards, and there were also significant differences in the severity of checking in western hemlock vs. Douglas fir samples and Douglas fir vs. spruce samples (Table 6).
There were significant effects of species (p < 0.001) and sample type (profiled and flat, p = 0.038) on the cupping of samples during natural weathering, expressed as the difference in cupping of samples before and after weathering. Western hemlock samples cupped (0.35 mm) significantly (p < 0.05) more than spruce (0.25) or Douglas fir (0.09) samples during weathering, and the difference in cupping of spruce and Douglas fir samples was also statistically significant (p < 0.05). Cupping of unprofiled (flat) samples was significantly (p < 0.05) less than those of profiled samples except for samples with narrow and deep grooves (tall rib) (Figure 5).

3.2. Numerical Modeling of the Effects of Groove Depth on Stress

Figure 6 shows the moisture contents of the grooves and peaks in profiled spruce samples with narrow (rib) and either deep (tall) or shallow (short) grooves. The moisture contents in the grooves and peaks of the two types of profiled samples are initially similar, and higher in grooves than in the peaks. The samples with the shallow grooves (short rib profile) dry more rapidly than samples with deeper grooves (tall rib profile), and moisture contents of grooves and peaks in the former samples converge more rapidly than those of samples with deeper grooves.
Figure 7 shows the normal stress in x-direction in profiled samples with deep (tall rib) or shallow grooves (short rib). The maximum compressive stress in the first 15 min of the drying cycle, when the wood was still wet is higher for the sample with shallow grooves compared to that in the sample with deeper grooves (Figure 7). Moreover, later in the drying period, the tensile stress in the former sample is higher than that in the sample with deeper grooves (Figure 7).
Figure 8 and Figure 9 show the induced normal stresses in x-direction for samples with shallow (short rib) and deep (tall rib) grooves, respectively. It can be observed that in the sample with shallower (1.5 mm deep) grooves the number of areas with high stress is greater than those in a sample with 2.5 mm deep grooves (tall rib profile).

4. Discussion

Profiling of deckboards is a good way of reducing the negative effect of surface checking on the appearance of deckboards exposed outdoors, and profiled deckboards are common in Asia, Australia, Europe and New Zealand, as mentioned above [7,8]. They are not common in North America. Interest in manufacturing profiled wooden deckboards in North America is increasing, but profiling has only been tested on a handful of wood species [12,13,14,15,16,17,18,19]. Previous results suggested that rib profiles with narrow grooves were better than profiles with wider grooves (ribble or ripple profiles) at reducing the checking of amabilis fir [19], but studies have also shown that the effectiveness of different profiles varies with wood species, as mentioned in the introduction [13,15]. Therefore, it has been difficult to recommend the best profile for the manufacture of profiled decking from North American softwood species, apart from amabilis fir or southern pine. Softwoods such as Douglas fir, western hemlock and white spruce are more commercially important than amabilis fir [36], and results here suggest that a profile with narrow grooves (rib profile) is better than wavy profiles (ribble or ripple) at reducing the checking of these three species. This finding accords with previous research that optimized surface profiling for amabilis fir deckboards [13,15,19]. Our finding that tensile stresses are greater in grooves of rib samples also accords with findings that tensile strains during drying are highest in the grooves of deckboards with wavy profiles [37], and observations that checks are mainly located in grooves of profiled deckboards [4,12,13].
In addition to the effect of groove width on checking (rib vs. ribble or ripple) we also observed that groove depth in boards with narrow grooves (rib profiles) had a significant effect on two measures of checking. Our previous research on the effect of profile geometry on the checking of amabilis fir suggested that groove depth influenced checking, but the relationship between groove depth and check parameters was not strong [19]. Our current experimental findings are more convincing and our model of the effect of groove depth on checking suggests why ribbed boards with deeper grooves (2 or 2.5 mm) check less than boards with shallower grooves (1.5 mm). In particular, we found that stresses, which cause checking at wood surfaces during drying [38], were greater in ribbed spruce samples with shallow grooves (1.5 mm deep) compared to samples with deeper grooves (2.5 mm deep). Furthermore, the former samples contained more areas with high stress. Rib samples with shallow grooves dried more rapidly than samples with deeper grooves, which may explain the pattern of stress development in the two types of samples. Accordingly, treatments such as coatings that restrict the rate of drying of profiled deckboards may further reduce checking. In accord with this suggestion, Akhtari and Nicholas [17] found that coatings containing zinc oxide or titanium dioxide particles reduced the checking of ribbed southern pine deckboards exposed to artificial accelerated weathering by approximately fifty percent [17].
Ribbed boards with grooves that exceed 2 mm in depth are manufactured commercially [7]. For example, our survey of the topography of profiled deckboards manufactured around the world found that six of the 19 ribbed boards we analyzed had grooves that were deeper than 2 mm [7]. Boards with profiles that are very similar to our standard rib profile with a groove depth of 2 mm are manufactured commercially from radiata pine (Pinus radiata D. Don) or European larch (Larix decidua Mill.) [7]. Pre-commercial trials of profiled Douglas fir decking have been established in the USA based on our initial finding that rib profiles were better than wavy profiles at restricting the checking of amabilis fir decking [19]. The profile that was chosen for these trials was our standard rib profile with a groove depth of 2.0 mm. Results here support the choice of this standard rib profile for the profiled Douglas fir deckboards used for these pre-commercial trials [26].
The positive effects of profiling on the checking of deckboards exposed to the weather are clouded by results from some previous studies showing that profiling increases the undesirable cupping of amabilis fir deckboards exposed to the weather [13,19]. Cupping of profiled plywood siding exposed to the weather is also more pronounced than that of flat plywood siding [6,39]. In contrast, other studies have shown that profiling reduces the cupping and distortion of southern pine deckboards exposed to the weather [16,17]. Our results here for Douglas fir, western hemlock and white spruce deckboards accord with the results of our previous study that showed that profiling increased the cupping of amabilis fir deckboards exposed to the weather [19]. Previously we suggested that grooves or saw kerfs that are machined into the undersides of deck or flooring boards might reduce the tendency of profiled deckboards to cup when they are exposed outdoors [40,41]. We have carried out a study to examine whether this approach can reduce the cupping of profiled Douglas fir, western hemlock and white spruce boards cut from the same parent boards as those used here. Our results have successfully demonstrated the efficacy of this approach and they will be reported in a separate paper that is being prepared for publication.
In addition to the effects of profiling on the checking and cupping of deckboards, we also observed a significant wood species effect on checking and cupping of deckboards. Our finding that western hemlock deckboards checked more than Douglas fir or white spruce boards accords with the results of two previous studies that compared the checking of decking made from different softwood species [23,42]. One of these studies noted that softwood species that checked less than other species were ones that were dimensionally stable or impermeable such as western red cedar (Thuja plicata Donn ex D.Don), yellow cedar (Cupressus nootkatensis D.Don 1824) and white spruce [42]. White spruce deckboards here also cupped less than western hemlock deckboards. Norway spruce (Picea abies (L.) Karst), which is similar to white spruce, is preferred for exterior house siding in Europe because it cups and checks less than Scots pine (Pinus sylvestris L.) siding [43,44]. This desirable property of spruce has been attributed to its impermeability resulting from high percentages of blocked (aspirated) bordered pits and small proportion of ray tracheids [44,45]. Accordingly, it is possible that the lower checking and cupping of white spruce deckboards than western hemlock boards could be due to the lower permeability of the former species compared to western hemlock. Douglas fir is also less permeable than western hemlock, which may account for why Douglas fir deckboards checked and cupped less than western hemlock deckboards. However, Douglas fir deckboards cupped less than spruce deckboards even though they were more permeable than white spruce boards. Hence, differences in the permeability of the three wood species used to make deckboards cannot fully explain the variation in cupping of deckboards exposed to natural weathering.
The Douglas fir, western hemlock and white spruce samples tested here were treated with the preservative chemical ACQ (alkaline copper quaternary). This feature of our experimentation accords with commercial practice, but on the other hand decking boards are expected to maintain their appearance for several years, whereas we assessed checking after only six months’ exposure. Nevertheless, Morris and Ingram [18] found that a rib profile significantly reduced the surface checking of subalpine fir (Abies lasiocarpa (Hooker) Nuttall) decking after six, 17, 36, 60, and 120 months’ exposure. The difference in checking of unprofiled and ribbed decking became smaller, particularly after five years’ exposure, but the authors concluded that ‘profiling significantly reduced the checking of deckboards exposed to the weather for 10 years, and ‘checks in ribbed boards were very difficult to see at standing height’ [18]. Therefore, we suggest that our results on the effectiveness of rib profiles at reducing the checking of Douglas fir, western hemlock and white spruce are promising, but further research, similar to that carried out by Morris and Ingram [18], is needed to examine the long-term effectiveness of the profiles at reducing the checking of all three species, and to determine whether profiling affects the decay resistance of deckboards [18,19].

5. Conclusions

Our experimental results provide strong evidence that machined profiles with deep narrow grooves (tall rib profiles) are more effective than profiles with wider (ribble or ripple profiles) or shallower grooves (short rib profile) at restricting checking of ACQ-treated Douglas fir, western hemlock and white spruce deckboards exposed to natural weathering. Our numerical model explains why tall rib profiles with deeper grooves were more effective than short rib profiles with shallower grooves at restricting checking of profiled spruce deckboards. We conclude that current pre-commercial trials of profiled Douglas fir deckboards have selected a good profile (2 mm deep rib) to reduce the negative effects of checking on the appearance of deckboards exposed outdoors. However, this profile increased the undesirable cupping of deckboards exposed outdoors, and research is needed to solve this problem before the profiles developed here can be used commercially.

Author Contributions

P.D.E. conceived and designed the experiments. S.H. performed all experimental work. M.S.M. developed the analytical model. P.D.E. analyzed all data and wrote the first draft of the paper. All authors discussed and commented on the results and contributed to the final submitted and published manuscript.

Acknowledgments

We thank Natural Science and Engineering Research Council of Canada for financial support (CRDPJ 485007-15); Alan Preston, Paul Morris, Rod Stirling and Dallin Brooks for their helpful insights into the treatment and profiling of wooden decking; Lukie H. Leung, Joseph Doh Wook Kim, Daniel Wong, Des Fitzgerald, Duane Johnson and Ron Zeegers for technical assistance. P.D.E. thanks Faculty of Forestry, FPInnovations, Tolko and Viance for their support of his BC Leadership Chair at the University of British Columbia, and The Australian National University (ANU) for an Honorary Professorship in the Department of Applied Mathematics, Research School of Physics and Engineering at the ANU.

Conflicts of Interest

The authors declare no conflict of interest, and none of the individuals or organizations acknowledged above were involved in the design of our experiment, collection, and interpretation of data or the writing of this paper.

References

  1. Evans, P.D. Weathering of wood and wood composites. In Handbook of Wood Chemistry and Wood Composites, 2nd ed.; Rowell, R.M., Ed.; CRC Press: New York, NY, USA; Taylor & Francis Group: Didcot, UK, 2012; pp. 151–216, Chapter 7. [Google Scholar]
  2. Zabel, R.A.; Morrell, J.J. Wood Microbiology: Decay and Its Prevention; Academic Press: Cambridge, MA, USA, 2012; p. 476. [Google Scholar]
  3. Nejad, M.; Cooper, C. Exterior wood coatings. Part-1: Performance of semitransparent stains on preservative-treated wood. J. Coat. Technol. Res. 2011, 8, 449–458. [Google Scholar] [CrossRef]
  4. Böttcher, P. Einfluß verschiedenartiger oberflächenprofilierungen an holz auf die veränderung der wetterbeständigkeit. Holz als Roh und Werkst. 1977, 35, 247–251. [Google Scholar] [CrossRef]
  5. Norlander, N.E.; Knowles, R.A. Method and Apparatus for Making Simulated Hand Split Shakes. U.S. Patent 3,512,562, 19 May 1970. [Google Scholar]
  6. Deskey, D. Plywood Panel. U.S. Patent 2,286,068, 9 June 1942. [Google Scholar]
  7. Cheng, K.J.; Evans, P.D. A note on the surface topography of profiled wood decking. Aust. For. J. 2016, 79, 147–152. [Google Scholar] [CrossRef]
  8. Shida, S.; Ono, H.; Mikami, T.; Takahashi, H. Utilization and evaluation of exterior wood. IV. Slipperiness of wood decks for floating piers. Mokuzai Gakkaishi 1992, 38, 835–840. [Google Scholar]
  9. Light, L. Deck Wars: Synthetics Aim to Walk all Over Wood. MoneyWatch June 17. Available online: https://www.cbsnews.com/news/deck-wars-synthetics-aim-to-walk-all-over-wood/ (accessed on 28 September 2018).
  10. Green, C. Synthetic decking takes off. Fine Homebuild. 2005, 172, 44–49. [Google Scholar]
  11. Rasche, P. Plastic Decking Market Global Share 2018 with Growing CAGR of 7.86% by 2023. Available online: http://theindustryherald.com/2018/08/30/plastic-decking-market-global-share-2018-with-growing-cagr-of-7.86-by-2023 (accessed on 28 September 2018).
  12. McFarling, S.M.; Morris, P.I. High Performance Wood Decking. In Proceedings of the Twenty Sixth Annual Meeting Canadian Wood Preservation Association [CD-ROM], Toronto, ON, Canada, 25–26 October 2005; Canadian Wood Preservation Association: Campbellville, ON, Canada, 2006; pp. 99–109. [Google Scholar]
  13. Morris, P.I.; McFarling, S. Field Testing of Wood Products in Canada XVII: High-performance Profiled Wood Decking. In Proceedings of the Twenty Ninth Annual Meeting Canadian Wood Preservation Association [CD-ROM], Vancouver, BC, Canada, 28–29 October 2008; Canadian Wood Preservation Association: Campbellville, ON, Canada, 2009; pp. 72–82. [Google Scholar]
  14. McFarling, S.M.; Morris, P.I.; Knudson, R.M. Extracting greater value from subalpine fir: Profiled decking. For. Prod. J. 2009, 59, 24–28. [Google Scholar]
  15. Evans, P.D.; Cullis, I.; Morris, P.I. Checking of profiled southern pine and amabilis fir deck boards. For. Prod. J. 2010, 60, 501–507. [Google Scholar] [CrossRef]
  16. Akhtari, M.; Nicholas, D. Effect of profiling and preservative treatments on the weathering characteristics of southern pine deck boards. Eur. J. Wood Wood Prod. 2014, 72, 829–831. [Google Scholar] [CrossRef]
  17. Akhtari, M.; Nicholas, D. Effect of machined profile, zinc oxide and titanium dioxide particles on checking southern pine deck boards during weathering. IET Nanobiotechnol. 2014, 1–4. [Google Scholar] [CrossRef] [PubMed]
  18. Morris, P.I.; Ingram, J.K. Field testing in Canada XXIV: Ten years inspection of profiled decking. In Proceedings of the Thirty Sixth Annual Meeting Canadian Wood Preservation Association [CD ROM], Ottawa, ON, Canada, 27–28 October 2015; Canadian Wood Preservation Association: Campbellville, ON, Canada, 2016; pp. 101–111. [Google Scholar]
  19. Cheng, K.J.; Evans, P.D. Manufacture of profiled amabilis fir deckboards with reduced susceptibility to surface checking. J. Manuf. Mater. Process. 2018, 2, 7. [Google Scholar] [CrossRef]
  20. Chan, G.; Evans, P.D. Acetylated pine is as resistant to surface checking as the tropical hardwood IPE. In Proceedings of the American Wood Protection Association Conference, San Juan, PR, USA, 1–3 May 2016; American Wood Protection Association: Birmingham, AL, USA, 2016; pp. 65–68. [Google Scholar]
  21. Cheng, K.J.; Evans, P.D. Weathering performance of white spruce decking treated with low molecular weight phenol formaldehyde resin. In Proceedings of the Eleventh Pacific Rim Bio-based Composites Symposium, Shizuoka, Japan, 28–30 November 2012; Wood Technological Association of Japan: Tokyo, Japan, 2012; pp. 575–577. [Google Scholar]
  22. Rapp, A.O.; Sailer, M. Oil heat treatment of wood in Germany-state of the art. In Proceedings of the Special Seminar on Review of Heat Treatments of Wood, Antibes, France, 9 February 2001; Available online: http://www.westwoodcorporation.com/worldwide/review_heat.pdf (accessed on 10 October 2018).
  23. Morris, P.I.; Ingram, J.K. Field Testing of Wood Preservatives in Canada. XI. Nine-year Inspection of the CITW Decking Test. In Proceedings of the Twenty Third Annual Meeting Canadian Wood Preservation Association [CD ROM], Vancouver, BC, Canada, 22–23 October 2002; Canadian Wood Preservation Association: Campbellville, ON, Canada, 2003; pp. 156–169. [Google Scholar]
  24. Morris, P.I. Pacific silver fir is the more-treatable component of hem-fir from coastal British Columbia. For. Prod. J. 1995, 45, 37–40. [Google Scholar]
  25. Poon, J. Wood Market Statistics in Canada; FPInnovations: Vancouver, BC, Canada, 2010; p. 70. [Google Scholar]
  26. Anon. Get in the Groove. Introducing Profiled Decking. The Newest Innovation in Preserved Wood Outdoor Products. Available online: http://preservedwood.org/Uses/ProfiledDecking.aspx (accessed on 9 July 2018).
  27. Evans, P.D.; Vollmer, S.; Kim, J.D.W.; Chan, G.; Kraushaar Gibson, S. Improving the performance of clear coatings on wood through the aggregation of marginal gains. Coatings 2016, 6, 66. [Google Scholar] [CrossRef]
  28. Williams, L.J.; Hervé, A. Fisher’s least significant difference (LSD) test. In Encyclopedia of Research Design; Salkind, N., Ed.; SAGE: Thousand Oaks, CA, USA, 2010; p. 6. [Google Scholar]
  29. Skaar, C. Wood-Water Relations; Springer: Berlin, Germany, 1988. [Google Scholar]
  30. Shmulsky, R.; Jones, P.D. Chapter 7, Wood and water. In Forest Products and Wood Science: An Introduction, 6th ed.; John Wiley & Sons: West Sussex, UK, 2011. [Google Scholar]
  31. Hsu, H.C.; Hsu, Y.T. Characterization of hygroscopic swelling and thermo-hygromechanical design on electronic package. J. Mech. 2009, 25, 225–232. [Google Scholar] [CrossRef]
  32. Crank, J. The Mathematics of Diffusion; The Oxford University Press: London, UK, 1956. [Google Scholar]
  33. Hsu, H.C.; Hsu, Y.T.; Hsich, W.L.; Weng, M.C.; ZhangJian, S.T.; Hsu, F.J.; Chen, Y.F.; Fu, S.L. Hygroscopic swelling effect on polymeric materials and thermo-hygro-mechanical design on finger printer package. In Proceedings of the 3rd International Microsystems, Packaging, Assembly & Circuits Technology Conference, Taipei, Taiwan, 22–24 October 2008; Institute of Electrical and Electronics Engineers (IEEE): New York, NY, USA, 2008; pp. 291–294. [Google Scholar]
  34. Time, B. Hygroscopic Moisture Transport in Wood. Ph.D. Thesis, Norwegian University of Science and Technology, Trondheim, Norway, 1998. [Google Scholar]
  35. Rafsanjani, A.; Derome, D.; Wittel, F.K.; Carmeliet, J. Computational up-scaling of anisotropic swelling and mechanical behavior of hierarchical cellular materials. Compos. Sci. Technol. 2012, 72, 744–751. [Google Scholar] [CrossRef]
  36. Barnes, A. 2016 Economic State of the B.C. Forest Sector. Available online: https://www2.gov.bc.ca/assets/gov/farming-natural-resources-and-industry/forestry/forest-industry-economics/economic-state/2016_economic_state_of_bc_forest_sector-with_appendix.pdf (accessed on 9 July 2018).
  37. Mallet, J.; Kalyanasundaram, S.; Evans, P.D. Digital image correlation of strains at profiled wood surfaces exposed to wetting and drying. J. Imaging 2018, 4, 38. [Google Scholar] [CrossRef]
  38. Schniewind, A.P. Mechanism of check formation. For. Prod. J. 1963, 13, 475–480. [Google Scholar]
  39. Bailey, W.C. Balanced Striated Plywood Panel. U.S. Patent 2,363,927, 28 November 1944. [Google Scholar]
  40. Ratu, R.; Weizenegger, J.; Evans, P.D. Preliminary Observations of the Effect of Kerfing on the Surface Checking and Warping of Flat Sawn Southern Pine Decking. In Proceedings of the Thirty Eighth Annual Meeting of International Research Group on Wood Protection, Jackson Lake Lodge, WY, USA, 20–24 May 2007; International Research Group on Wood Protection: Stockholm, Sweden, 2007; pp. 1–7. [Google Scholar]
  41. Nystrom, R. Board for Use in Constructing a Flooring Surface. U.S. Patent 5,474,831, 12 December 1995. [Google Scholar]
  42. Cheng, K.J. Reducing the Surface Checking of Deck-Boards Exposed to Natural Weathering: Effects of Wood Species and Surface Profiling. Master’s Thesis, University of British Columbia, Vancouver, BC, Canada, 2015; p. 232. Available online: https://open.library.ubc.ca/cIRcle/collections/ubctheses/24/items/1.0166219 (accessed on 30 September 2018).
  43. Sandberg, D.; Söderström, O. Crack formation due to weathering of radial and tangential sections of pine and spruce. Wood Mater. Sci. Eng. 2006, 1, 12–20. [Google Scholar] [CrossRef]
  44. Virta, J.; Koponen, S.; Absetz, I. Cupping of wooden cladding boards in cyclic conditions—A study of boards made of Norway spruce (Picea abies) and Scots pine sapwood (Pinus sylvestris). Wood Sci. Technol. 2005, 39, 431–438. [Google Scholar] [CrossRef]
  45. Liese, W.; Bauch, J. On anatomical causes of the refractory behavior of spruce and Douglas-fir. J. Inst. Wood Sci. 1967, 19, 3–14. [Google Scholar]
Jmmp 02 00067 g001 550

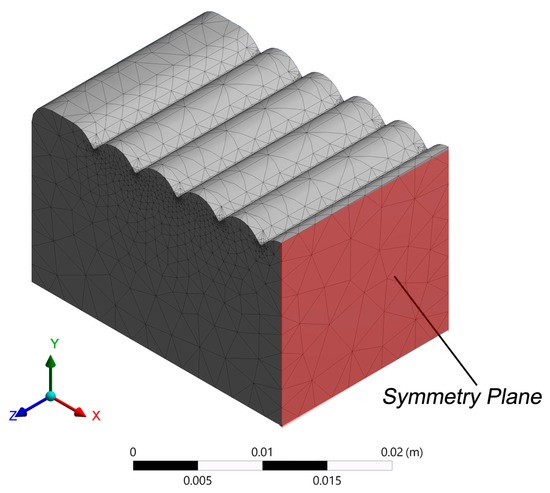

Figure 1. A finite element model of a profiled short rib board with shallow grooves and its symmetry plane.
Figure 1. A finite element model of a profiled short rib board with shallow grooves and its symmetry plane.
Jmmp 02 00067 g001
Jmmp 02 00067 g002 550

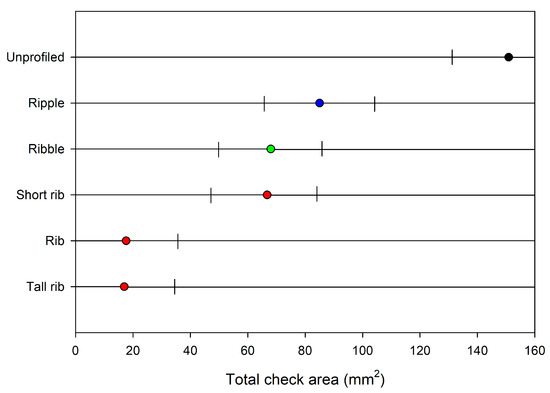

Figure 2. Total area of visible checks in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce).
Figure 2. Total area of visible checks in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce).
Jmmp 02 00067 g002
Jmmp 02 00067 g003 550

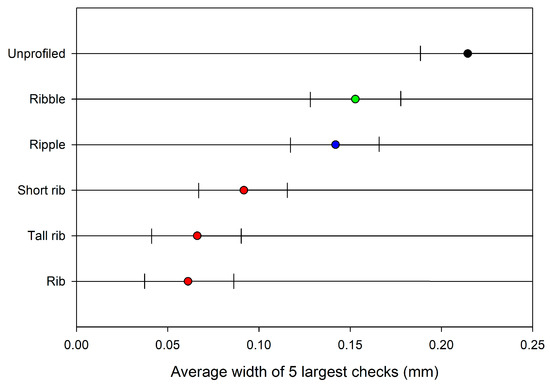

Figure 3. Average width of five largest checks in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce).
Figure 3. Average width of five largest checks in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce).
Jmmp 02 00067 g003
Jmmp 02 00067 g004 550

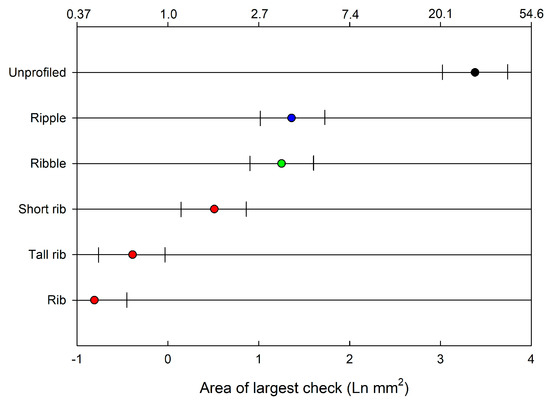

Figure 4. Average area of the largest individual check that developed in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce). Values on X-axis represent natural logarithms, but back-transformed (ex) values on natural scale can be found on the X2-axis.
Figure 4. Average area of the largest individual check that developed in profiled deckboard samples exposed to natural weathering is significantly lower than that in similarly exposed flat (unprofiled) samples. Results are averaged across all three species (Douglas fir, western hemlock and white spruce). Values on X-axis represent natural logarithms, but back-transformed (ex) values on natural scale can be found on the X2-axis.
Jmmp 02 00067 g004
Jmmp 02 00067 g005 550

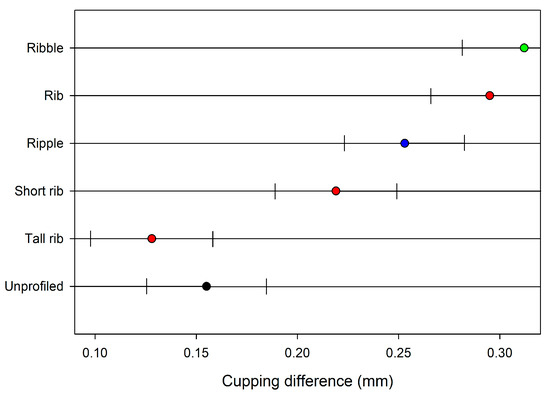

Figure 5. Difference in cupping of deckboard samples before and after they were exposed to natural weathering.
Figure 5. Difference in cupping of deckboard samples before and after they were exposed to natural weathering.
Jmmp 02 00067 g005
Jmmp 02 00067 g006 550

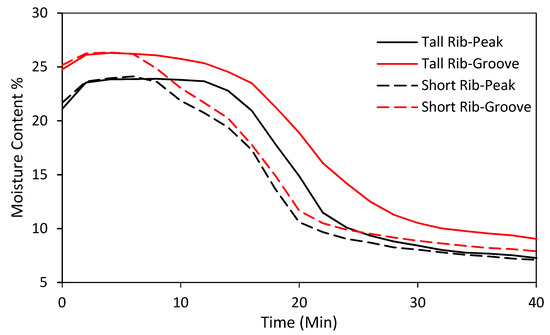

Figure 6. Moisture contents of grooves and peaks in profiled spruce samples with deep (tall rib) or shallow grooves (short rib) during a drying cycle.
Figure 6. Moisture contents of grooves and peaks in profiled spruce samples with deep (tall rib) or shallow grooves (short rib) during a drying cycle.
Jmmp 02 00067 g006
Jmmp 02 00067 g007 550

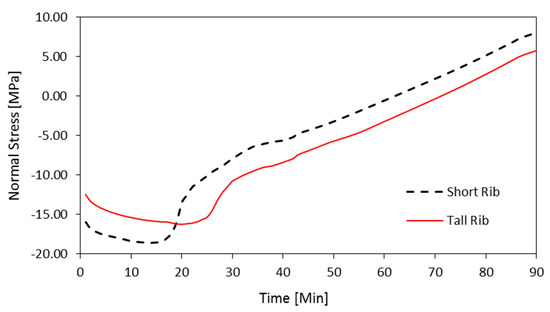

Figure 7. Normal stress in x-direction in the grooves of samples with 2.5 mm deep grooves (tall rib) vs. 1.5 mm deep (short rib) grooves.
Figure 7. Normal stress in x-direction in the grooves of samples with 2.5 mm deep grooves (tall rib) vs. 1.5 mm deep (short rib) grooves.
Jmmp 02 00067 g007
Jmmp 02 00067 g008 550

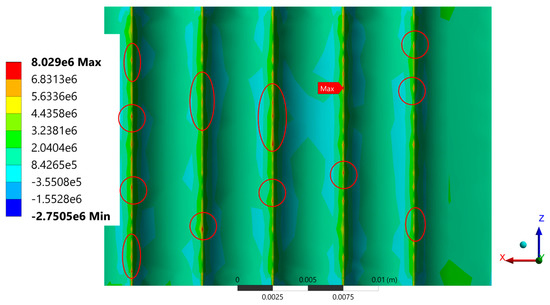

Figure 8. Normal stress in x-direction at the surface of a sample with 1.5 mm deep (short rib) grooves at the end of drying period (the areas with high stress are circled).
Figure 8. Normal stress in x-direction at the surface of a sample with 1.5 mm deep (short rib) grooves at the end of drying period (the areas with high stress are circled).
Jmmp 02 00067 g008
Jmmp 02 00067 g009 550

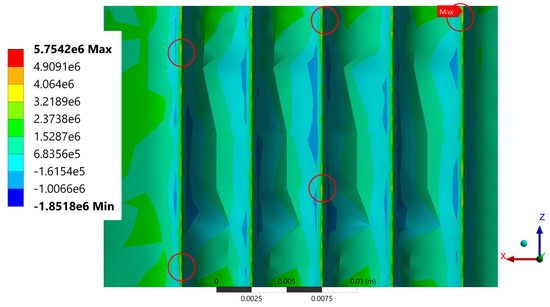

Figure 9. Normal stress in x-direction at the surface of a sample with 2.5 mm deep (tall rib) grooves at the end of drying period (the areas with high stress are circled).
Figure 9. Normal stress in x-direction at the surface of a sample with 2.5 mm deep (tall rib) grooves at the end of drying period (the areas with high stress are circled).
Jmmp 02 00067 g009
Table
Table 1. Wood properties of Douglas fir (D. Fir), western hemlock (Hem) and white spruce boards.
Table 1. Wood properties of Douglas fir (D. Fir), western hemlock (Hem) and white spruce boards.
BoardGrowth Ring Widths (mm)Grain Angle (°)Densities (g/cm3)
D. FirHemSpruceD. FirHemSpruceD. FirHemSpruce
13.74.80.81.93.11.40.420.490.38
27.91.73.42.12.61.20.530.420.34
34.41.13.11.81.90.90.360.410.39
47.83.83.72.73.32.20.470.440.35
54.34.21.23.42.81.80.460.500.38
63.32.90.91.52.22.30.430.400.31
Average5.23.02.22.22.61.60.4450.440.36
Table
Table 2. Dimensions of the designed profiles used to manufacture profiled deckboard samples from Douglas fir, western hemlock and white spruce.
Table 2. Dimensions of the designed profiles used to manufacture profiled deckboard samples from Douglas fir, western hemlock and white spruce.
Profile typeGroove Depth (mm)Groove Radius (mm)Peak Radius (mm)
Rib2.00.162.4
Tall rib2.50.152.2
Short rib1.50.162.4
Ribble2.00.651.3
Ripple2.01.01.2
Flat---
Numbers of peaks per 15 cm (groove frequency) was 30 for all profiles except flat samples.
Table
Table 3. Weather conditions in Vancouver, British Columbia, Canada during the six-month exposure trial (1st May to 31st October 2017).
Table 3. Weather conditions in Vancouver, British Columbia, Canada during the six-month exposure trial (1st May to 31st October 2017).
MonthTemperature (°C)Total Precipitation (mm)
MeanMaximum 1Minimum 1
May12.816.8 (25.9)8.7 (3.8)102.2
June15.619.6 (26.2)11.5 (8.3)46.4
July18.322.9 (25.7)13.7 (10.4)1.8
August18.823.3 (29.5)14.3 (10.9)5.0
September16.020.1 (26.6)11.8 (6.8)29.4
October8.212.8 (16.8)6.0 (0.6)114.3
1 Mean minimum and maximum temperatures (with extremes in parentheses). Data are for Vancouver International Airport (49.196, −123.182), http://climate.weather.gc.ca/historical_data/search_historic_data_e.html.
Table
Table 4. Mechanical properties of spruce.
Table 4. Mechanical properties of spruce.
Ex (MPa)Ey (MPa)Ez (MPa)Gxy (MPa)Gxz (MPa)Gyz (MPa)υxyυxzυyz
46484210800306406900.310.0230.026
Ex, Ey and Ez = elastic moduli in x, y and z directions, respectively; Gxy = longitudinal shear modulus; Gxz and Gyz = transverse shear moduli; υxy = longitudinal Poisson’s ratio; υxz and υyz = transverse Poisson’s ratios.
Table
Table 5. Moisture diffusion and hygroscopic swelling properties of spruce *.
Table 5. Moisture diffusion and hygroscopic swelling properties of spruce *.
Dx (m2/s)Dy (m2/s)Dz (m2/s)βxβyβz
52 × 10−12 52 × 10−121000 × 10−120.170.3080.001
* See text for meaning of parameters.
Table
Table 6. Checking of profiled Douglas fir, western hemlock and white spruce boards exposed to natural weathering. Results are averaged across all profiled samples.
Table 6. Checking of profiled Douglas fir, western hemlock and white spruce boards exposed to natural weathering. Results are averaged across all profiled samples.
SpeciesCheck Parameters
Total Check Area (mm2) *Width of 5 Largest Checks (mm) †Largest Check Area (ln mm2) ‡,**
Hem97.5 a0.156 a1.33 a (3.78) **
D. fir68.8 b0.111 b0.93 a (2.53)
Spruce36.2 c0.097 b0.39 b (1.47)
* p < 0.001; † p = 0.001; ‡ p < 0.001; ** back-transformed values (ex) in parentheses. Means in each column sharing the same superscripted letter (a, b, c) are not significantly (p > 0.05) different from each other.

Share and Cite

MDPI and ACS Style

Heshmati, S.; Mazloomi, M.S.; Evans, P.D. Optimizing Surface Micro Grooving to Reduce the Checking and Cupping of Douglas Fir, Western Hemlock and White Spruce Decking Exposed to Natural Weathering. J. Manuf. Mater. Process. 2018, 2, 67. https://doi.org/10.3390/jmmp2040067

AMA Style

Heshmati S, Mazloomi MS, Evans PD. Optimizing Surface Micro Grooving to Reduce the Checking and Cupping of Douglas Fir, Western Hemlock and White Spruce Decking Exposed to Natural Weathering. Journal of Manufacturing and Materials Processing. 2018; 2(4):67. https://doi.org/10.3390/jmmp2040067

Chicago/Turabian Style

Heshmati, Sina, Mohammad Sadegh Mazloomi, and Philip David Evans. 2018. "Optimizing Surface Micro Grooving to Reduce the Checking and Cupping of Douglas Fir, Western Hemlock and White Spruce Decking Exposed to Natural Weathering" Journal of Manufacturing and Materials Processing 2, no. 4: 67. https://doi.org/10.3390/jmmp2040067

Article Metrics

Back to TopTop
