An Enhanced Phase Change Material Composite for Electrical Vehicle Thermal Management

Abstract

Lithium-ion (Li-ion) battery cells are influenced by high energy, reliability, and robustness. However, they produce a noticeable amount of heat during the charging and discharging process. This paper presents an optimal thermal management system (TMS) using a phase change material (PCM) and PCM-graphite for a cylindrical Li-ion battery module. The experimental results show that the maximum temperature of the module under natural convection, PCM, and PCM-graphite cooling methods reached 64.38, 40.4, and 39 °C, respectively. It was found that the temperature of the module using PCM and PCM-graphite reduced by 38% and 40%, respectively. The temperature uniformity increased by 60% and 96% using the PCM and PCM-graphite. Moreover, some numerical simulations were solved using COMSOL Multiphysics^® for the battery module.

1. Introduction

The traditional combustion engine has been gradually replaced by electric vehicles (EVs) and hybrid electric vehicles due to CO₂ emissions, global warming, and fossil fuel shortages. Lithium-ion (Li-ion) batteries are selected for EV energy storage due to their tremendous features like high voltage, long cycle-life, high specific energy, and low self-discharge [1,2]. Although Li-ion batteries are the ideal energy storage for EVs, they suffer a number of drawbacks, like degradation and heat generation during the charging and discharging process [3,4]. A battery thermal management system (TMS) is vital for EVs as almost 50% of EV cost returns to the battery pack [5]. In this context, some techniques, such as equivalent circuit modeling, are used for the parameter identification of Li-ion batteries to analyze their thermal response numerically [6,7]. Moreover, online data-driven techniques are employed for the health management of these batteries [8].

Different cooling systems, constituting active, passive, and hybrid systems, have been used by researchers to cool the battery module/pack in EVs [9,10,11]. Active cooling methods like liquid and air cooling systems use external power [12,13]. On the other hand, passive cooling methods like a heat pipe [14], phase change materials (PCM) [15], and heat sinks [16] do not use power. Hybrid cooling systems are a combination of active and passive cooling systems which need external power [17,18]. Many analyses have been presented on battery TMS to specify their effectiveness. The air cooling system is an effortless cooling system that benefits from low cost and a simple design [19]. However, an air cooling system needs a power source and high volume [20]. This cooling system is not successful in high-current profiles and high ambient temperatures [21]. The liquid cooling system is a reliable cooling method in the application of EVs due to the high heat-transfer coefficient of liquids [22]. Nevertheless, it suffers from high cost, complex design, high energy consumption, and leakage [23]. The heat pipe cooling system is also a famous method for battery cooling [24]. However, it needs secondary cooling for the continuous process. It also suffers from a complex design, high cost, and high volume. The PCM cooling system is a successful and common method for battery cooling. It benefits from many advantages, constituting no power, uniform cooling, simple design, and low cost [25]. PCM is a material with the ability to receive or release a high amount of energy at an almost constant temperature for a specific time [26]. Nevertheless, most PCMs suffer from low thermal conductivity [22,26]. To remove such a problem, a supportive material can be added to the pure PCM to enhance its thermal conductivity. Lots of methods, like adding fins, heat pipes, aluminum and copper mesh, copper foil, and heat sinks, have been used to remove this issue [27]. Behi et al. [28] investigated the thermal performance of PCM-assisted heat pipe for electronic cooling. They found that using the heat pipe tremendously increased the cooling ability of the PCM. Behi et al. [29] experimentally and numerically studied the enhancement of PCM energy storage using heat pipe. Karimi et al. [30] designed a passive TMS using PCM for a module. They considered the functioning of the system and validated it using Simcenter AMEsim^® and COMSOL Multiphysics^®. In a different study, they considered the effect of an aluminum grid mesh to enhance the thermal properties of the PCM. They found that the maximum temperature of the module decreased to 36 °C using the aluminum-PCM [31]. Behi et al. [32] experimentally and numerically considered the effect of PCM-assisted heat pipe for battery cooling. They found that the combination of the PCM and heat pipe could contribute to battery cooling of up to 40.7%.

However, most of the mentioned methods not only increase the volume of the cooling system but also raise its weight. Therefore, one of the best solutions for improving the thermal conductivity of pure PCMs is the addition of additive materials like graphite. Yazici [33] experimentally studied the effect of a PCM-graphite composite on the thermal management of a battery in low-temperature ambience. Behi et al. [34] considered the cooling influence of the PCM graphite on an LTO battery cell under fast discharging. They discovered that the PCM-graphite composite is a successful method for battery cooling in passive TMS. Akula and Balaji [35] designed a novel passive PCM-E-graphite cooling system for cylindrical battery cells. They found that adding the graphite has a direct effect on the cooling effect. Yazici [33] considered the effect of a PCM-graphite matrix composite on battery temperature. They found that the PCM composite, using preheating, is an effective method for battery cooling at high discharge rates. In this study, the cooling effect of PCM and PCM-graphite were considered regarding 24 cylindrical battery cells under a 1.5C discharging rate. The battery module is directly submerged in PCM and PCM-graphite to reduce the module temperature. The thermal contact resistance is removed by applying a submerged technique, which can contribute to better cooling performance. The maximum temperature of the cells and the temperature uniformity of the module were investigated experimentally and numerically. The thermal conductivity of the PCM increased using graphite, which gives a better cooling performance. The PCM-graphite composite becomes advanced via the high thermal conductivity of graphite and the high heat storage capacity of the PCM. The void between the cells is used for PCM placement, with a zero-volume increase. It was found that the temperature of the module using PCM and PCM-graphite was reduced by 38% and 40%, respectively. Moreover, the temperature uniformity of the module was increased by 60% and 96% using the PCM and PCM-graphite, respectively.

2. Experimental Test Setup

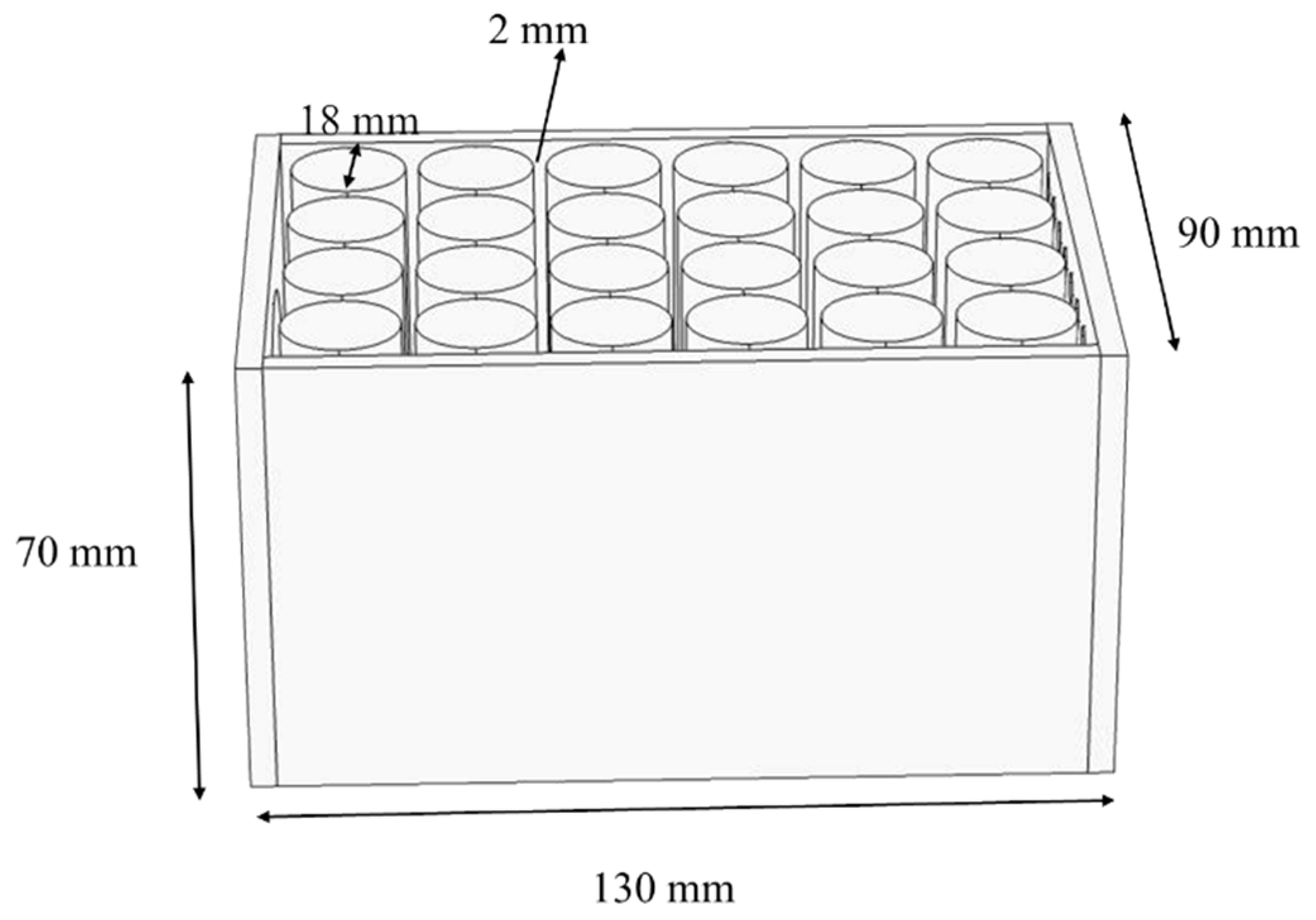

The experimental test setup in this study consisted of a cylindrical battery module (18,650 cells) with a cell nominal capacity of 2200 mAh. The module consisted of 24 cells with every cell fixed by a cell holder, with a space of 2 mm. The module is arranged in four columns and six rows. The test setup comprises an 18,650 battery module, a PVC box, a power supply, PCM, two K-type thermocouples, a data logger, and a personal computer. The module is connected to a PEC battery tester with a ±0.005 accuracy in order to cycle the module. The PICO USB TC-08 was chosen as a data logger to record the module temperature. In this study, the cooling effect of natural convection, PCM, and PCM-graphite was considered. Figure 1 shows the schematic and dimensions of the battery module.

Cylindrical cells are structured from multiple layers of the active portion of the Li-ion battery. Therefore, there is anisotropic thermal conductivity in radial and axial directions. The important physical features of the cells applied in the battery module are shown in

Table 1. The important physical features of the cell in the battery module are adapted from [36].

Parameters	Value	Unit
Nominal capacity	2.2	A
Nominal voltage	3.6	V
Density	2722	Kg m−3
Mass	0.045	kg
Specific heat capacity	1200	J kg−1 K−1
Length	65	mm
Diameter	18	mm
Thermal conductivity	kr = 0.2, kz = 37.6 [37,38,39,40]	W m−1 K−1

.

In order to conduct the tests, the setup was connected to the battery tester. The module was discharged under a 1.5C rate for 2720 s. Two K-type thermocouples were linked to the cells to measure the surface temperature of the cells. The picture of the test setup and the location of the thermocouples is shown in Figure 2.

3. Experimental Results

3.1. Reflection of the Natural Convection

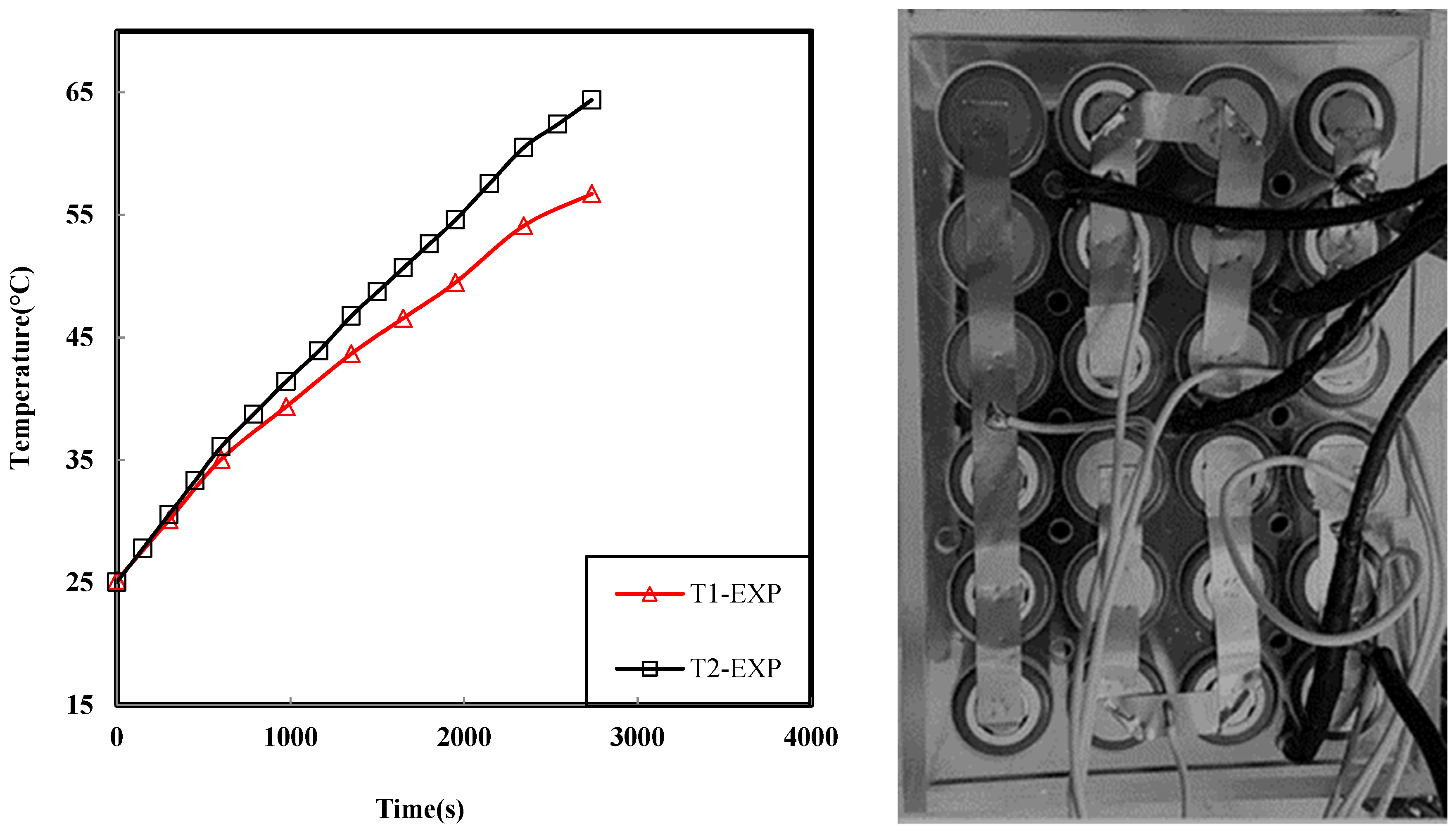

Natural convection caused by the buoyancy effect is the first cooling method that is primarily utilized to take away heat dissipation. For this reason, the surface temperature of the cells was measured under a 1.5C discharging rate. According to the data, the convection coefficient was around 6.87 W/m² K, which was calculated experimentally [25]. Natural convection benefits from zero energy consumption, a simple design, and low cost. Figure 3 shows the temperature of the thermocouples of T₁ and T₂ under the initial temperature of 25 °C. According to the results, the temperature of T₁ and T₂ reaches almost 57 °C and 65 °C. As can be seen, there is an 8 °C difference between the two thermocouples, which is caused due to the location of the cells, the heat dissipation effect of other cells, and the lowered effect of natural convection in the center of the module.

3.2. Reflection of the PCM

PCM cooling is commonly applied as an appropriate battery thermal management method, owing to its simple design, low cost, and high performance. The PCM-based cooling system is classified as a passive cooling system, which does not need any external power source. According to the PCMs physical features, it can absorb heat at a constant temperature within the normal operating range. Therefore, based on PCM latent heat, it can keep the battery cell/module at a constant temperature for a specific time. In the current study, a paraffin PCM was used for the thermal management of the module. The PCM is classified as organic paraffin, which is produced by Shanghai Tianlan New Material Technology Co., Ltd. (Shanghai, China). The main features of the PCM are mentioned in

Table 2. The main features of the PCM are adapted from [17].

Parameters	Value	Unit
Melting domain	35–42	°C
Max operation temperature	210	°C
Thermal conductivity (Solid-Liquid)	0.25–0.4	W/m K
Heat storage capacity	220	kJ/kg
Density (Solid-Liquid)	0.8–0.85	Kg/Lit
Specific heat capacity	2500	J/kg K

.

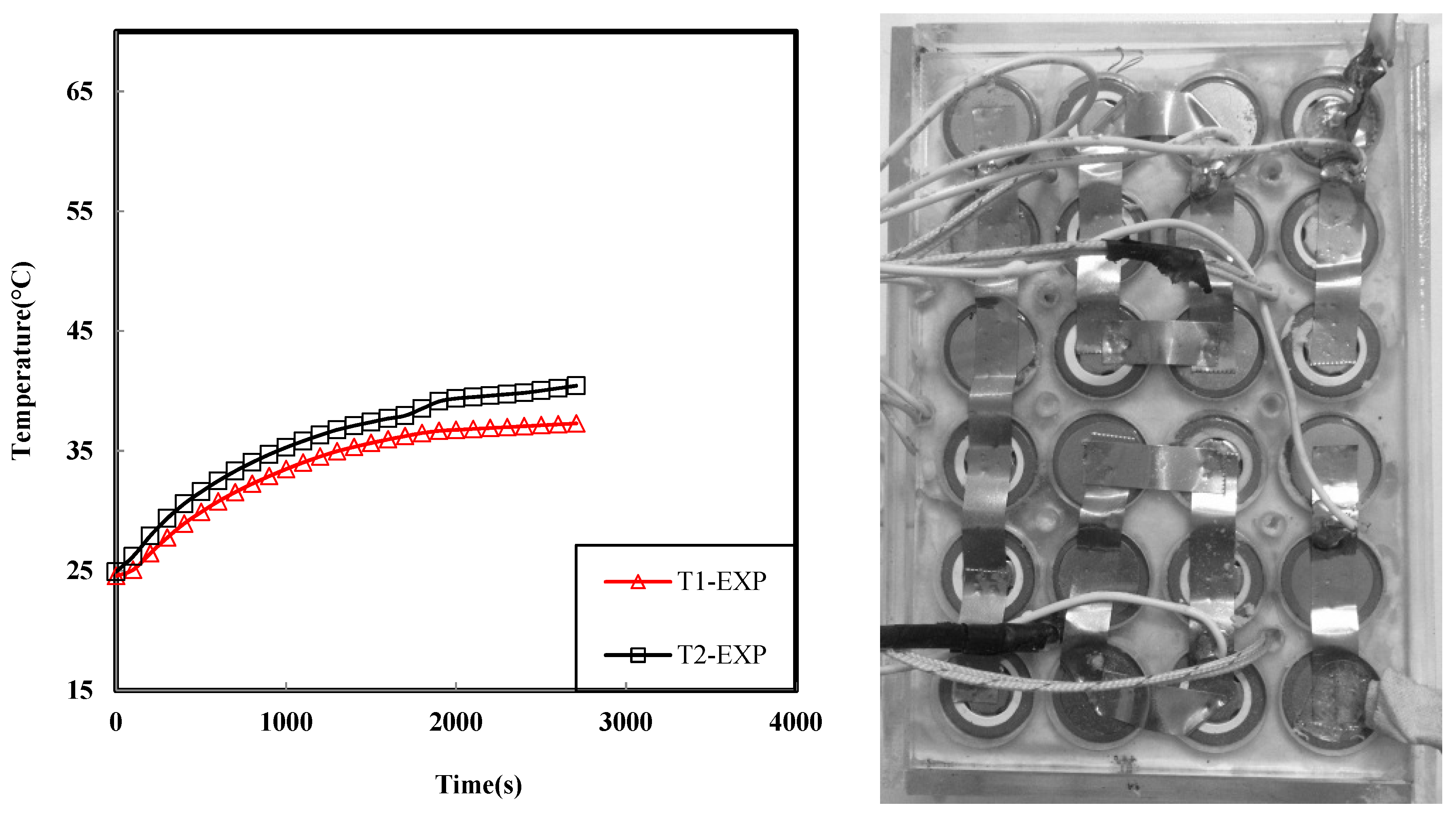

As can be seen in Figure 4, the module temperature was controlled perfectly by PCM cooling. Moreover, the temperature uniformity increased. The maximum temperature of the module reached 40.4 °C, which shows a 38% reduction compared with natural convection. There is only a 3.2 °C difference between the two thermocouples, which increased the temperature uniformity by 60%.

Reflection of the PCM Graphite

Pure PCMs generally suffer from low thermal conductivity [7]. This drawback can be compensated for by using composite materials. Graphite, as a high thermally conductive material, has superior advantages to increase the thermal conductivity of PCM. PCM-graphite can advance the heat conductivity of the PCM cooling system, which may increase the heat transfer efficiency. In this section, the module is in direct contact with the PCM-graphite. The main physical features of the PCM-graphite are mentioned in

Table 3. The main features of the PCM-graphite are adapted from [17].

Parameters	Value	Unit
Melting domain	35–42	°C
Max operation temperature	210	°C
Thermal conductivity (Solid-Liquid)	0.5–1	W/m K
Heat storage capacity	210	kJ/kg
Density (Solid-Liquid)	0.8–0.85	Kg/Lit
Specific heat capacity	2500	J/kg K

.

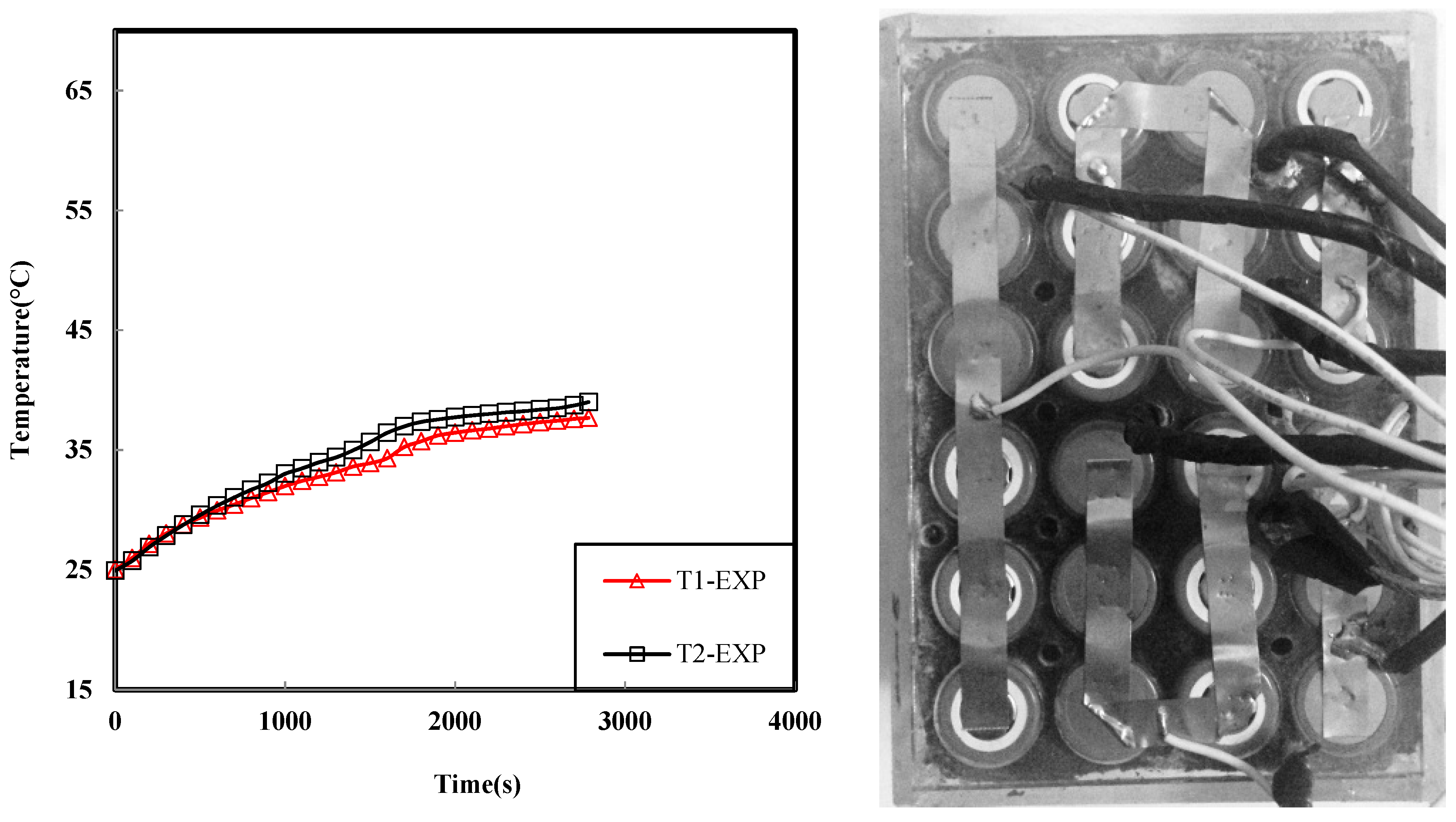

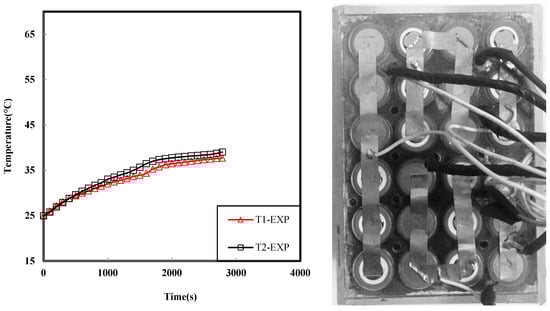

Figure 5 shows the temperature curve of the battery module and a picture of the test setup using PCM-graphite. It is obvious that the module temperature has been completely controlled by the PCM-graphite. The maximum temperature of the module reached 39 °C, which shows a 40% reduction compared with natural convection. Moreover, the temperature uniformity also increased. There is only a 0.3 °C difference between the two thermocouples, which improved the temperature uniformity by 96%.

3.3. Comparison of Experimental Results

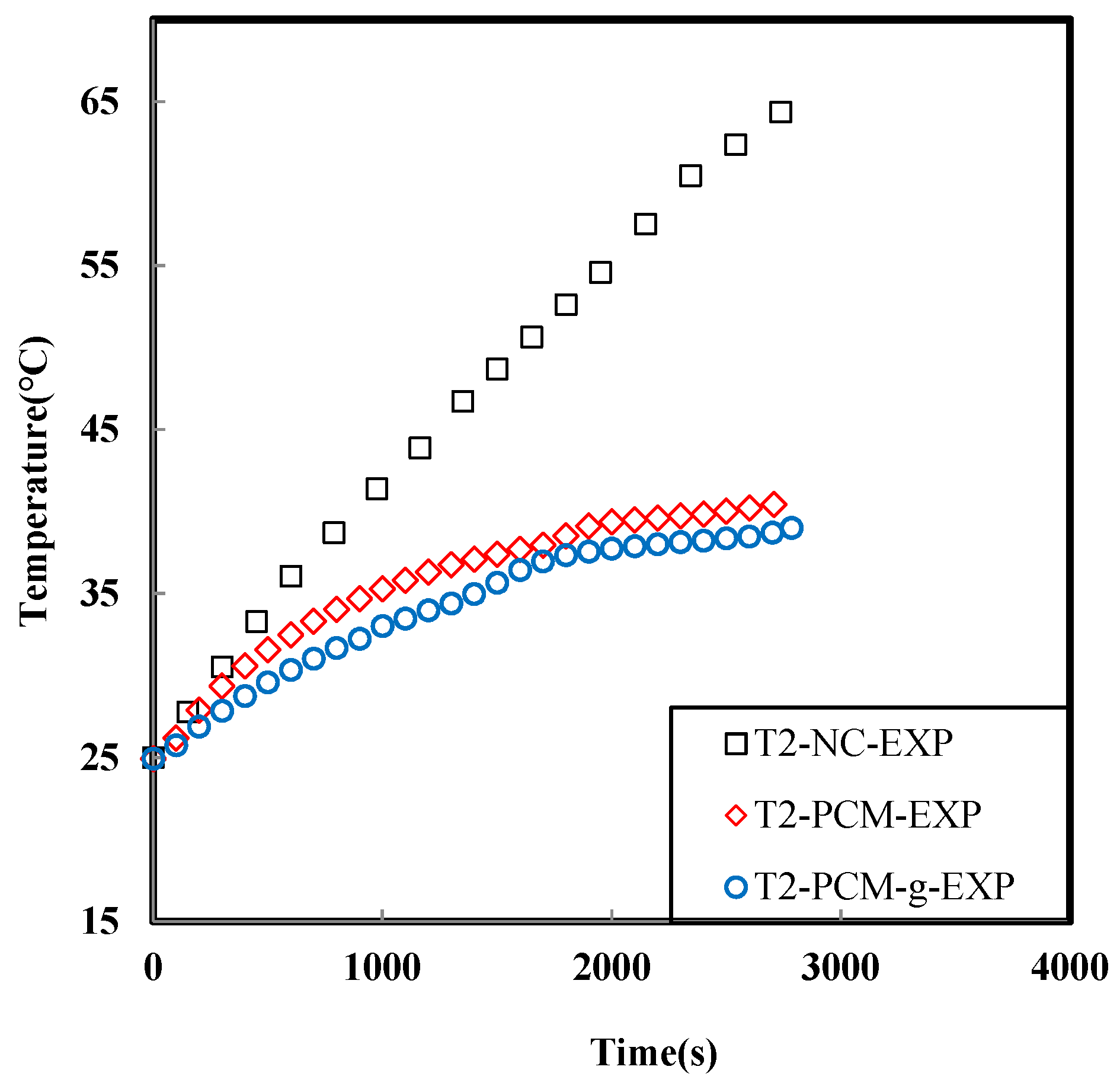

The transient temperature of the T₂ thermocouple is now selected to examine the performance of the proposed cooling systems. According to the Figure 6, the temperature of T₂ reached almost 65 °C, due to the natural convection effect. This temperature is far from the acceptable Li-ion battery temperature (25–40 °C) and will definitely cause its life span to decrease. The PCM cooling systems were introduced to control the heat generation of the module. The temperature of T₂ reached 40.4 °C and 39 °C for the PCM and PCM-graphite methods, respectively. It was found that the module temperature decreased by 38% and 40% compared with natural convection, respectively.

4. Simulation

4.1. Battery Thermal Model

In the current study, COMSOL Multiphysics^® was selected to simulate the 3D thermal behavior of the cell and the PCM. The thermal model makes it possible to enhance TMS and use the battery cells in a module/pack. The internal and external resistances are the main cause of heat generation in the battery. Generally, heat generation is divided into reversible and irreversible heat. Reversible heat returns to the heat, which is generated in the cathodes and anodes and is called entropic heating. Entropic heating is produced by electrochemical reactions from reversible entropy change. It can be exothermic or endothermic based on the state of charge (SOC). The reversible battery heat generation can be calculated as follows [41]:

$$q_{rev}=I\left[T \frac{d{U}_{OC}}{dT}\right]$$

(1)

where I, T, and $\frac{d{U}_{OC}}{dT}$ are the current, battery temperature, and entropic heat coefficient, respectively. Irreversible heat returns to joules or ohmic heating. It can be produced due to the exchange of current within the internal resistance in the electrode, electrolyte, and current collector. The irreversible heat is always exothermic, owing to quadratic current dependence. The irreversible battery heat generation can be calculated as follows:

$$q_{irr}=I\left[U_{OC}-U\right]=R{I}^2$$

(2)

where $U_{OC}$, $U$, and $R$ are the open-circuit voltage, battery voltage, and the battery internal resistance, respectively. The internal resistance consists of the ohmic and polarization resistances, which depend on the SOC and battery temperature.

$$q_{gen}=q_{irr}+q_{rev}$$

(3)

In the present study, using a 1.5C discharge rate, a volumetric heat generation of 48,750 W/m³ was selected for module simulation.

4.2. Descriptive Equations for PCM

The descriptive equations of continuity, momentum, and energy for the thermal response of the PCM are comprised as follows [7]:

$$\frac{\partial u_r}{\partial r}+\frac{u_r}{r}+\frac{\partial u_z}{\partial z}=0$$

(4)

$$\frac{\partial u_r}{\partial t}+u_r\frac{\partial u_r}{\partial r}+ u_z\frac{\partial u_z}{\partial z}=-\frac{1}{\rho }\frac{\partial p}{\partial r}+\mathsf{\nu }(\frac{{\partial }^2{u}_r}{\partial r^2}+\frac{1}{r}\frac{\partial u_r}{\partial r}-\frac{u_r}{r^2}+\frac{{\partial }^2{u}_r}{\partial z^2})$$

(5)

$$\begin{gathered} \frac{\partial u_z}{\partial t}+ u_r\frac{\partial u_z}{\partial r}+ u_z\frac{\partial u_z}{\partial z}=-\frac{1}{\rho }\frac{\partial p}{\partial z}+\mathsf{\nu }(\frac{{\partial }^2{u}_z}{\partial r^2}+\frac{1}{r}\frac{\partial u_z}{\partial r}-\frac{u_r}{r^2}+\frac{{\partial }^2{u}_z}{\partial z^2})+\mathrm{g} \\ [\beta (T -T_{\mathrm{m}}) - 1] \end{gathered}$$

(6)

$$\frac{\partial h}{\partial t}+ u_r\frac{\partial h}{\partial r}+ u_z\frac{\partial h}{\partial z}=\frac{1}{\rho }\left[\frac{1}{r}\frac{\partial }{\partial r}\left(kr\frac{\partial T}{\partial r}\right)+\frac{\partial }{\partial z}\left(k\frac{\partial T}{\partial z} \right)\right]$$

(7)

In the PCM melting process, $T_1$ is known as an initial temperature, $T_m$ as a melting temperature, and $T_2$ as a final temperature $(T_2=T_m+ \Delta T)$. A mushy zone happens between the solid and liquid phases during the operation of this function within the interval of $\Delta T$. Equation (11) shows the different phases of the PCM.

$$\begin{gathered} T^{*} ⩽ T_1 \left(Solid phase\right) \\ {T}_1< T^{*}<T_2 \left(Mushy phase\right) \\ {T}^{*}⩾T_2 \left(Liquid phase\right) \end{gathered}$$

(8)

The heat capacity of the PCM is mentioned as a value of phase transition function, which depends on the PCM temperature ($s$: solid;$t$: transition; $l$: liquid):

$$C=\{\begin{array}{cc}{c}_s\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T^{*} ⩽ T_1\hfill \\ c_t\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T_1< T^{*}<T_2\hfill \\ c_l\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T^{*}⩾T_2\hfill \end{array}$$

(9)

COMSOL, based on the defined equations, tries to simulate the heat transfer for the battery and PCM. The total amount of heat that can be received by the PCM is evaluated in the following equation:

$$Q_{PCM }=m{c}_s\left(T_1-T_m\right)+mL+m{c}_l\left(T_2-T_m\right)$$

(10)

where $m$ is the mass of the PCM. Moreover, the thermal conductivity of the PCM can be expressed as follows:

$$C=\{\begin{array}{cc}{k}_s\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T^{*} ⩽ T_1\hfill \\ \frac{k_s + k_l}{2}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T_1< T^{*}<T_2\hfill \\ k_l\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hfill & \hfill T^{*}⩾T_2\hfill \end{array}$$

(11)

4.3. Validation of the Thermal Model for Natural Convection, PCM, and PCM-Graphite Cooling System

In order to validate the numerical modeling, the maximum temperature of the module (T₂) was selected to be compared with the simulation results. The simulation was conducted at a module level under the 1.5C discharging rate and at an ambient temperature of 25 °C. Figure 7 displays the validation graphs for the natural convection, PCM, and PCM-graphite cooling methods. According to the graph trends, there is an acceptable agreement between the experimental and simulation results. The root mean square error (RMSE) for natural convection, PCM and PCM-graphite cooling methods was 0.72%, 2.1%, and 1.15%, respectively.

5. Simulation Results

5.1. Thermal Behavior Contour of the Module in Different Cooling Methods

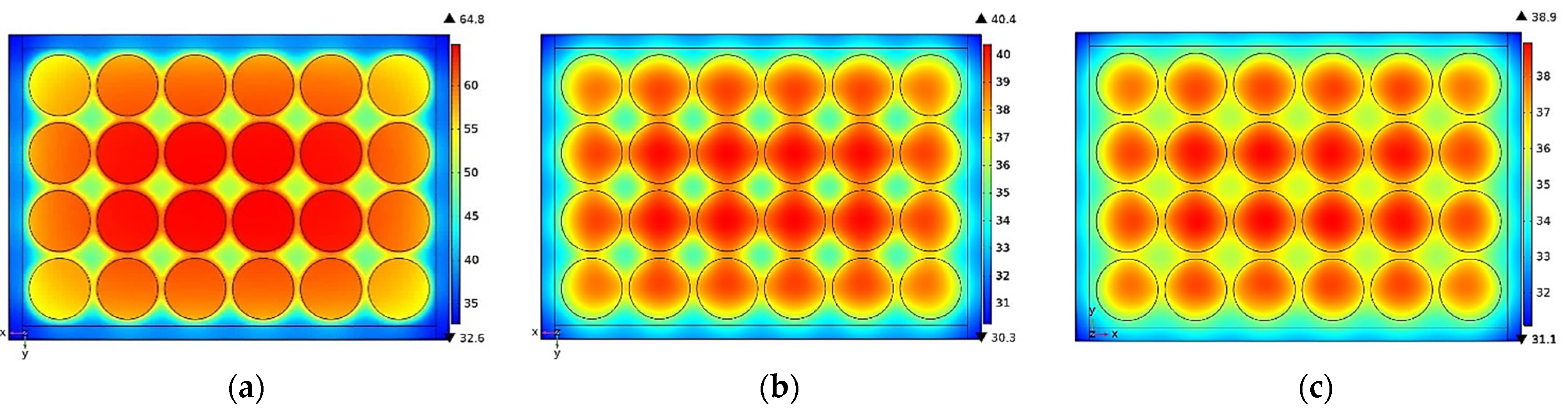

The heat transfer contour at the end of the discharging process is shown in Figure 8 (under the different cooling methods). Temperature contour is a suitable way to display the heat concentration inside the module. In natural convection cooling, the heat generation is more dominant in the center of the module due to the heat gradient of the border cells and the lower effectiveness of the free cooling. The maximum temperature reached almost 65 °C, which is outside of the safe zone for batteries. PCM cooling enacted a tremendous effect on the maximum temperature and temperature uniformity of the module. The maximum module temperature reached 40.4 °C, which proved that PCM cooling is an acceptable cooling method. In the third condition, the temperature of the module was considered under the PCM-graphite effect. It can be seen the maximum temperature reaches 38.9 °C, with more temperature uniformity, owing to the high thermal conductivity of the graphite.

5.2. Liquid Fraction Contour of Module for PCM and PCM-Graphite Cooling Methods

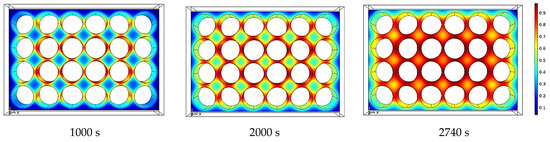

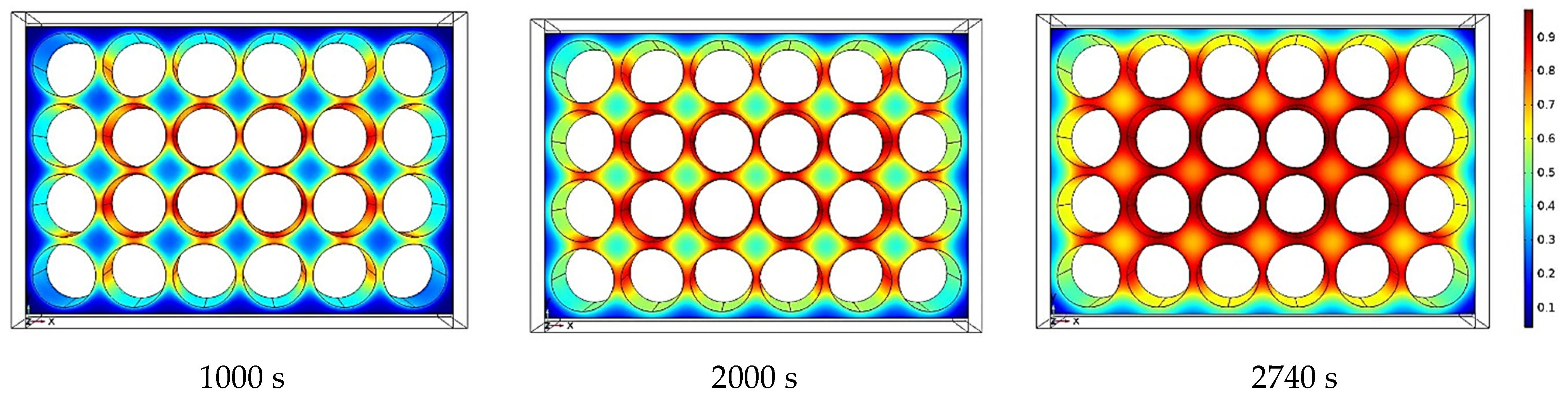

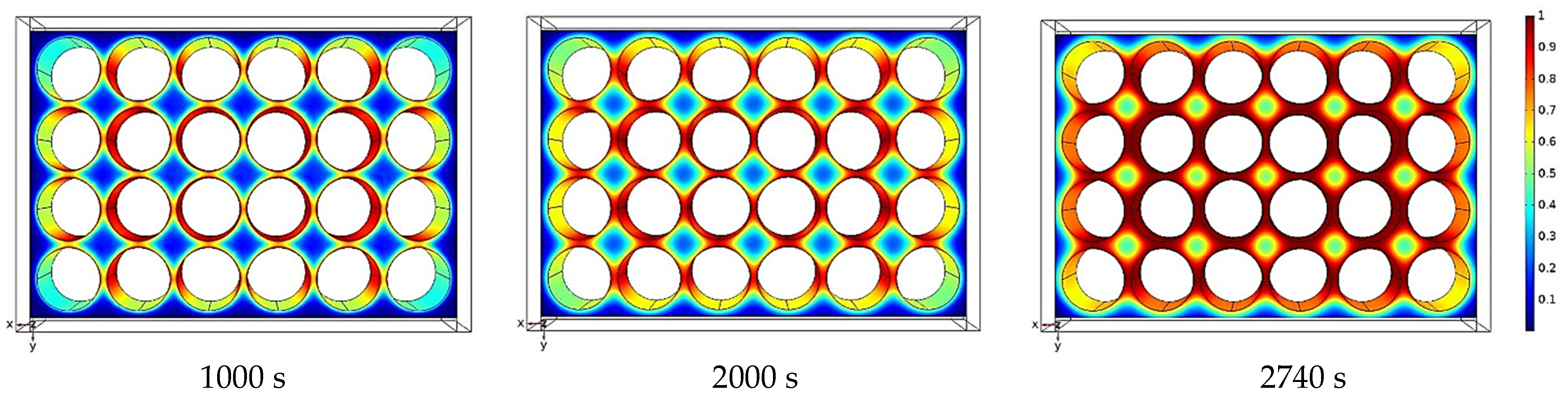

Figure 9 and Figure 10 show the liquid fraction of the PCM and PCM-graphite under a 1.5C discharging process. The blue and red colors identify the solid and liquid forms of the PCM (solid = 0, liquid = 1). At the beginning of the cooling process, heat generation, along with the cells, is transferred via conduction within the PCM and PCM-graphite. In this current stage, heat is absorbed in a sensible form until it reaches the phase change temperature (mushy zone). In the mushy zone, a thin axial layer of PCM melts along the cell’s surface, as shown at 2000 s. As time passes, the melting process continues, with more heat dissipation inside the PCM (2740 s). At the phase change zone, the heat has been absorbed as a latent form and at a constant temperature. This phenomenon is the main advantage of using PCM as a cooling method. It is obvious the heat is dispersed more uniformly inside the PCM-graphite, owing to the high thermal conductivity of the graphite.

6. Conclusions

The present study experimentally and numerically explored the cooling effectiveness of natural convection, PCM, and PCM-graphite methods for a cylindrical battery module under a 1.5C discharging rate. The results are concluded as follows:

• The maximum temperature of the module in the presence of natural convection for the initial temperature of 25 °C at a 1.5C discharging rate was measured. According to the measured results the maximum module temperature reached 64.38 °C, which is outside of the ideal Li-ion battery temperature;
• The PCM cooling system reduced the temperature of the module to 40.4 °C, which is a 38% reduction in the maximum module temperature. Moreover, the temperature uniformity of the module was increased by 60%;
• Using the PCM-graphite cooling system, the maximum module temperature reached 39 °C, which is a 40% reduction. Furthermore, the temperature uniformity of the module increased by 96%;
• The CFD model for different cooling strategies was validated against the experimental results and attained satisfactory agreement. The temperature contours and phase change process have been investigated at different times for PCM and PCM-graphite cooling systems.
