Communication

Phytophthora in Horticultural Nursery Green Waste—A Risk to Plant Health

by
Kadiatou Schiffer-Forsyth
1,
Debra Frederickson Matika
1,
Pete E. Hedley
2,
Peter J. A. Cock
2 and
Sarah Green
1,*
1
Forest Research, Northern Research Station, Roslin EH25 9SY, UK
2
The James Hutton Institute, Invergowrie, Dundee DD2 5DA, UK
*
Author to whom correspondence should be addressed.
Horticulturae 2023, 9(6), 616; https://doi.org/10.3390/horticulturae9060616
Submission received: 28 April 2023 / Revised: 16 May 2023 / Accepted: 18 May 2023 / Published: 24 May 2023
(This article belongs to the Special Issue Plant Pathology in Horticultural Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
Phytophthora is a genus of destructive plant pathogens. Certain species are damaging to native ecosystems, forestry, and the horticultural sector, and there is evidence of their dissemination in plant imports. Horticultural nurseries are central nodes of the plant trade and previous studies have found a high diversity of Phytophthora associated with plant nursery stock. It was subsequently hypothesized that green waste disposal sites in nurseries could harbour diverse Phytophthora communities and act as a pathogen reservoir and conduit, facilitating further Phytophthora infection of nursery stock and its spread into the wider environment. This project identified Phytophthora species associated with green waste at three Scottish nurseries by sampling material from waste piles, water run-off from piles, and roots from discarded plants. Species were identified using a baiting method and sequencing of environmental DNA. Plant nursery green waste was shown to harbour diverse and varied Phytophthora species assemblages, with differences among nurseries reflecting biosecurity management practices. Eighteen Phytophthora species were detected in the samples, including the highly destructive pathogens P. ramorum and P. austrocedri. Results suggest that the improved management of waste, for example through effective on-site composting, is essential to reduce the risk of Phytophthora pathogens spreading from nurseries into the wider environment.

1. Introduction

The genus Phytophthora is a group of oomycetes (water moulds) that contains many important plant pathogens infecting and causing economic damage to a broad range of hosts worldwide. They are the causal agents of some of the most destructive tree disease epidemics globally, for example Phytophthora ramorum causing ‘sudden oak death’ in the USA [1], P. agathidicida causing kauri dieback in New Zealand [2], and P. cinnamomi causing widespread mortality of various woody hosts in Australia, South Africa, and Europe [3]. Of the estimated 500 species in the genus, 180 have been described so far [4,5]. Sixty Phytophthora species are known to occur in the UK, with some recent introductions that have become increasingly problematic in the last 20 years, especially as forest pathogens [6]. Due to its wide host range, the genus Phytophthora can have wide-reaching impacts across sectors, including ornamental plants in nurseries, natural ecosystems, and horticultural crops. The immense impact of an introduced Phytophthora species on food security is best exemplified by potato late blight, caused by P. infestans, and the devastating Great Famine that followed its introduction into Ireland and continental Europe in the mid-19th Century [7].
The lifecycle of Phytophthora takes place in soil and water, hence the nursery environment is highly conducive to these pathogens. Triggered by waterlogging or rain, the spore-bearing structures (sporangia) release motile zoospores [8] which respond to chemical signals to find a suitable site for infection, usually on fine roots or in the collar region of plant hosts. Some species can also produce oospores and chlamydospores, persistent structures that can remain dormant for several years [8].
The most effective way to limit the damage of invasive pathogens is to prevent new incursions through interception at the port of entry, but the life cycle of Phytophthora means that the pathogen can be dormant and infected plants may not appear diseased. When infected stock arrives at plant nurseries, the proximity to numerous potential host species, high humidity levels, and movement of growing media and water offer favourable conditions for the survival and spread of Phytophthora [9,10]. It was with this in mind that the ‘Phyto-Threats’ project was conducted in the UK, which aimed to characterise Phytophthora diversity in plant nurseries in relation to management practices [11,12]. This study, in which 118 nurseries across the UK were surveyed over a three-year period, found 63 Phytophthora species in total, including species not previously reported in the UK [12]. It was also observed that plant nursery green waste is often dumped on site and left for extended periods of time, as there is no clear use for this material [11]. In the present study, two detection methods were used to identify species: the sequencing of environmental DNA (metabarcoding) and the baiting of Phytophthora into live culture followed by the molecular identification of cultures. These verified methods [13,14] are highly robust and have been used successfully for Phytophthora detection in a wide range of environments such as woodlands, public parks and gardens [13,14,15,16,17], and plant nurseries [12,16,18].
The aim of this project was to use these established methods to identify Phytophthora species associated with nursery green waste at plant nurseries operating different management practices. Phytophthora species assemblages were expected to vary with the overall approach to biosecurity of the nursery, the sample type, and the diagnostic method used. Indeed, diverse Phytophthora species assemblages were found, including two recently invasive and highly damaging pathogens, P. ramorum and P. austrocedri.

2. Materials and Methods

2.1. Nursery Sampling

Samples were obtained in January and February 2022 from three horticultural nurseries (N1, N2 and N3) located in central Scotland. The sampling method was intentionally biased towards detecting Phytophthora and included three different sample types associated with green waste piles: solid waste (spent growing media and partially decomposed plant material); roots from intact dumped plants; and water associated with the waste piles (Figure 1 and Figure 2). A set of management criteria related to plant production and biosecurity was obtained for each nursery (Table 1). Nursery N1 was a non-commercial specialist horticultural nursery that has several biosecurity measures in place, including high-temperature composting of green waste. Nurseries N2 and N3 were commercial nurseries that import a portion of their stock from overseas and dump green waste on site without having a composting system in place (Table 1).
For solid waste sampling, approximately 500 g of a heterogenous mix of spent growing media, stems, leaves and broken-up discarded stock plants was collected from two waste piles per site at three horizons: (A) the upper surface of the pile; (B) mid-way down the pile; and (C) the base of the pile, resulting in six solid waste samples per site. Solid waste samples were split, with 250 g being used for baiting analyses and the remainder being processed for metagenomic sequencing as outlined below. Root samples were also collected in triplicate from plants discarded on the piles which were identifiable to genus or family level. No root samples were taken from N1 because no clearly identifiable plants were present on the waste piles. Thirteen root samples were obtained from N2 and 15 root samples from N3. Approximately 3–5 g of roots was pinched from the base of each root ball and placed into perforated paper envelopes.
Before sampling water on site, 5 L laboratory mains water was pumped through the equipment described below as a check for contamination (blank lab control). At each nursery, the water used for irrigation was also sampled. Three further water samples were collected per nursery, including puddles draining from waste piles, streams if located less than 10 m away from the waste pile, and a flow-through method in which waste material from the pile was placed into pots on trays and watered to flush out any Phytophthora propagules. The flow-through water was left to sit for 30 min in the base of the tray before being sampled. For each nursery water sample collected, 1 L was decanted into a sterile Duran bottle (DWK Life Sciences GmbH, Wertheim, Germany) and processed for baiting. Three 5 L replicate sub-samples of water from each source were then pumped through a 47 mm diameter mixed-cellulose ester filter (Millipore Sigma, Bedford, MA, USA) of 1.2 µm pore size held in a 47 mm polycarbonate in-line filter holder (Pall Corporation, New York, NY, USA) using an adapted knapsack sprayer (CP15 2000 Series Knapsack Sprayer 15 L). Up to three filters for each sample were preserved in 8 mL Longmire lysis buffer [19].

2.2. Baiting Analyses

To bait Phytophthora from samples, the method described by Pérez-Sierra et al. [20] was followed. Solid waste (250 g) was placed in a sandwich box that was then flooded with sterile distilled water to a level 2–3 cm above the substrate. For water samples, 1 L was placed in each sandwich box. Bait leaves (Rhododendron spp., Hebe spp., Hedera helix, Quercus suber, and Quercus ilex) were floated on the water surface, the leaves covering as much of the water surface as possible. Controls replicated this set up but with sterile distilled water and bait leaves only. Bait leaves were inspected every day for lesion development. Tissue from lesion margins was surface-sterilised and plated on Phytophthora-selective synthetic mucor agar medium [21] and incubated at 16–20 °C. Isolates suspected to be Phytophthora, based on the presence of aseptate, hyaline, and freely branching mycelia forming white colonies (Figure 3), were sub-cultured onto V8 agar [22]. Phytophthora isolates obtained from baiting were identified with Sanger sequencing of the 900 bp internal transcribed spacer (ITS) ribosomal DNA region amplified using the forward primer ITS6 (5′ GAAGGTGAAGTCGTAACAAGG 3′) and the reverse primer ITS4 (5′ TCCTCCGCTTATTGATATGC 3′) [23], this being the internationally recognized, standard barcode region for Phytophthora identification [24]. To identify the isolate to species level, sequences were analysed with BLAST against GenBank based on a 100% or 99% match to a sequence derived from a type strain or voucher specimen, or published in a peer-reviewed taxonomic paper.

2.3. Metabarcoding Analyses

For each solid waste sample, 250 g was dried at 60 °C for 72 h and mixed thoroughly. A 20 g aliquot per sample was then milled using a Mixer Mill (MM 400; Retsch GmbH, Haan, Germany) with two 1 cm ball bearings. DNA was extracted from three replicate 250 mg subsamples using the DNeasy PowerSoil Pro Kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. Root samples were freeze-dried for 24 h, 40 mg per sample milled, and DNA extracted with the DNeasy Plant Pro Kit (Qiagen, Hilden, Germany). For water samples, DNA was extracted in triplicate from 1.5 mL aliquots of the buffer solution in which the filters had been stored, and DNA was extracted using the DNeasy Blood and Tissue Kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions.
Genomic DNA extracted from solid waste, roots, and water samples was processed following the method used by Riddell et al. [15]. The ~260 bp ITS1 region of ribosomal DNA was amplified using nested PCR with the forward primer 18Ph2 (5′ GGATAGACTGTTGCAATTTTCAGT 3′) and the reverse primer 5.8S-1 (5′ GCARRGACTTTCGTCCCYRC 3′) in the 1st round and the forward primer ITS6 (5′ GAAGGTGAAGTCGTAACAAGG 3′) and the reverse primer 5.8S-1 in the 2nd round, as described in the protocol of Scibetta et al. [13]. Amendments to the protocol include the use of KAPA HiFi HotStart ReadyMix (KAPA Biosystems, Wilmington, MA, USA) and a reaction volume of 12.5 µL, with each reaction containing 4.5 µL PCR-grade water, 6.25 µL Kapa HiFi ReadyMix, 0.375 µL (10 µM) of each forward and reverse primer, and 1 µL DNA or 1 µL round 1 reaction product. Amplification conditions were also altered from the Scibetta et al. protocol [13] with initial denaturation at 95 °C for 3 min (1st and 2nd round), followed by 30 cycles of 98 °C for 20 s, 61 °C for 25 s, and 72 °C for 40 s, with a final cycle of 72 °C for 1 min (1st round) and 25 cycles of 98 °C for 20 s, 61 °C for 25 s, and 72 °C for 25 s with a final cycle of 72 °C for 1 min (2nd round). When PCR amplification was successful, the round 1 product was re-amplified using 2nd round primers with MiSeq adapters that allow Illumina index and sequencing adapter attachment.
Samples were pooled for 250 bp paired-end sequencing on a single flow cell of an Illumina MiSeq sequencer using the MiSeq v. 2 500 bp Standard kit (Illumina, San Diego, CA, USA). The pooled library was loaded at 3 pM, with 40% PhiX control library included. Following quality and error control, and de-multiplexing, each remaining unique sequence was assigned to species using the Phytophthora classifier (THAPBI-PICT) developed as part of the Phyto-Threats project and shown to be highly accurate with minimal risk of false-positive detections [12,25]. Some very closely related Phytophthora spp. cannot be distinguished at the ITS1 region, with P. andina, P. infestans, P. ipomoeae, and P. urerae being returned as possible identifications for one sequence, for example. These were reviewed manually using known host and geographical range and other factors, in this case leaving P. infestans as the most likely source of the DNA. The high sensitivity of amplicon-based PCR means that cross-contamination could result in false positives. To reduce this risk, synthetic controls were included throughout the molecular work, and the bioinformatic pipeline has stringent default abundance thresholds [25].

3. Results

Overall, 58 samples were collected from the 3 nurseries (18 solid waste, 12 water, and 28 root samples). Of these, 34.5% were positive for Phytophthora, with an average of 2.7 species found per positive sample (Table 2). No Phytophthora was detected in the lab blank water controls. No Phytophthora spp. were detected at N1, a non-commercial specialist nursery operating high biosecurity standards (Table 1 and Table 2). Fifteen Phytophthora species were detected at N2 and 9 species at N3; both nurseries are commercial producers of hardy nursery stock (Table 1 and Table 2). Eighteen known Phytophthora spp. were identified in total across these two nurseries, mostly falling into clades 6 and 8 (Table 2), including two highly destructive clade 8 pathogens: P. ramorum and P. austrocedri. Phytophthora ramorum was baited into live culture from two solid waste samples collected from N2 and from four solid waste samples collected from N3. DNA of P. austrocedri was detected with metabarcoding in two water samples (irrigation and stream water) collected from N2 (Table 2). Horizon C, at the base of the waste piles, yielded the highest mean number of Phytophthora spp. per sample (2.5) compared with horizons A and B (mean of 0.8 species, respectively).
The two detection methods, metabarcoding and baiting, complemented each other, with six species detected using both methods, ten species detected exclusively with metabarcoding, and two species detected exclusively with baiting (Figure 3). The eight isolates obtained by baiting are shown in Figure 4. Eleven Phytophthora spp. were found in the solid waste samples across N2 and N3, including P. ramorum and the broad host range pathogens P. plurivora, P. multivora, and P. cactorum (Figure 5). Eight species were found in water samples including two closely related clade 8 species, P. austrocedri and P. syringae, and five aquatic clade 6 species. Four out of the twelve water samples were positive for Phytophthora. Root samples contained five species including the ubiquitous root-infecting pathogens P. cryptogea and P. pseudocryptogea as well as P. hibernalis (Figure 5).

4. Discussion

A surprisingly high diversity of Phytophthora spp. was detected in waste piles at two of the three nurseries sampled in this study, the majority of them being well-studied pathogens on a range of woody and non-woody plant species grown for the ornamental trade. One key finding was the live culturing of several isolates of the quarantine-regulated pathogen P. ramorum from [27] nurseries N2 and N3. This pathogen, which has a known host range exceeding 100 different plant species, including many commonly traded ornamental taxa such as Rhododendron, Camellia, and Viburnum [12], is currently the cause of devastating epidemics of oaks in the western USA and of larch in the UK [28,29]. Wider environment epidemics such as these are thought to have been initiated by inoculum originally introduced on imported planting material [15]. Phytophthora ramorum was predominantly found in the lowest horizon of solid waste piles, which also harboured the highest number of other Phytophthora species. Since Phytophthora requires water for dispersal of motile zoospores, the high water content at the bottom of the waste piles allows it to leach through the waste material, raising the risk of spread of these pathogens in water run-off from the piles. Also of concern is the detection of P. austrocedri DNA in stream and irrigation water at nursery N2. This pathogen is quarantine-regulated and invasive in the wider environment, causing widespread mortality of native juniper (Juniperus communis), an important ecological species in Britain [30]. Phytophthora austrocedri is also frequently detected on roots and foliage of nursery stock of other Cupressaceae hosts including Cupressus x leylandii and Chamaecyparis lawsoniana [12], again raising concerns about its global spread in the nursery trade.
Other aggressive Phytophthora pathogens found to be present in or associated with the nursery waste piles included P. cryptogea and P. pseudocryptogea [31], both of which are cosmopolitan species globally, causing damping off and root rot of plants in well over 100 genera [8], and P. cactorum [32], P. citricola [33], P. multivora [34], P. plurivora [33] and P. syringae [35]. All these species are considered common in Britain, causing root, stem, and shoot cankers on many plant hosts [36,37]. DNA of P. castanetorum was detected in roots and solid waste samples at N2. This species was first described from Castanea sativa in Portugal and is considered to be a fairly weak pathogen which may be endemic to Europe [26]. Phytophthora hibernalis was baited into culture from solid waste at N2 and detected with metabarcoding in a pine root at N3. This species was originally described on citrus in Australia [38] and is regarded as having a limited distribution in the wider UK environment [39], thus its finding here is of concern as it suggests dissemination through the nursery trade. Other species detected include the aquatic clade 6 Phytophthoras, such as P. gonapodyides, P. chlamydospora, and P. megasperma, which are regarded as native and less pathogenic [4] although all three of these species have been found causing lesions on riparian trees in Britain [39]. The baiting into live culture of the other clade 6 species P. bilorbang and P. gregata is of interest as detections of these species in the UK to date have been rare. Notably, P. bilorbang has recently been found causing damage to olive trees in Italy [40]. Phytophthora infestans, the causative agent of potato late blight, was detected in water from a puddle at N3, along with three other species. This mix of species present in plant nurseries is concerning, because it may facilitate hybridizations and the development of more virulent pathogenic species and strains [41].
Differences in the results obtained from the two methods used to detect Phytophthora spp. could be due to several methodological reasons. Baiting exploits the selective pathogenicity of Phytophthora for living tissue and is an effective method for isolating Phytophthora from environmental samples [4,20]. Eight isolates were obtained from baiting and could unambiguously be identified using Sanger sequencing. Baiting also has the advantage of providing objective evidence that a species is present and viable, thus able to infect host plants. Phytophthora spp. that are weaker competitors, slower-growing, or that do not readily produce zoospores under laboratory conditions can be outgrown by a few stronger competitors and the number of species detected with baiting may be artificially low [16]. However, the baiting of slower-growing species P. ramorum and P. hibernalis, as well as fast-growing clade 6 species, suggests that the baiting protocol used here worked well. Comparatively, metabarcoding offers a broader and more complete overview of species present as it is extremely sensitive, detecting resting spores and DNA that may not necessarily originate from living propagules. P. ramorum and P. gregata, however, were detected with baiting but not with metabarcoding in this study. This could be due to the fact that Phytophthora propagules are unevenly distributed in the substrate, and that for metabarcoding DNA was extracted from only 750 mg (250 mg in triplicate) of sample substrate, compared with 250 g sample substrate used for baiting. The discrepancy in species detected between methods due to the heterogenous distribution of propagules in soil or bulk substrate is also discussed by La Spada et al. [16], highlighting the complementarity of the two methods and advantages of their use in combination.
The findings of this project tend to reflect the biosecurity management practices of each nursery and therefore provide an evidence base for improving nursery waste disposal methods. Both N2 and N3, which had abundant Phytophthoras associated with their green waste, are commercial growers which import live plants and discard their green waste onto piles adjacent to each nursery. These waste piles are not properly composted and are located next to streams and hedgerows which may potentially facilitate pathogen spread into the wider environment. N1, conversely, had no Phytophthora detected in the waste piles with baiting or metabarcoding. This nursery does not import live plants and operates stringent biosecurity practices, including a high-temperature composting system for green waste which is located in a concrete holding area away from plant stock and hedgerows. The results of this project, combined with the insights from previous research [9,10,11,12], suggest there is likely to be a strong causal link between more stringent biosecurity measures and lack of Phytophthora detected at N1. Results from this work were communicated to nursery managers along with recommendations on how to improve practice, and in response N2 has planned to replace their waste pile with a composting system and to spread the fully composted material on agricultural land.
At the time that this study was conducted, there was no sector-wide approach to nursery green waste management in the UK and no clear advice for plant nursery managers on how to deal with waste from a plant health perspective. Elliot et al. [42] surveyed a range of nursery stakeholders in the UK to understand their waste management practices and perceptions on associated plant health risks. The majority of respondents dealt with their waste by dumping on site, yet most (73%) agreed with the need to implement changes on their nursery in regard to plant waste management and biosecurity, with the main limiting factors being lack of guidance on available options and concerns over high costs.
Aiming to address this issue, and utilizing evidence from this diagnostic study, guidance on biosecurity best practice for safe disposal of plant waste and spent growing media has now been published by Elliot et al. in the form of a flier which is available online [42]. The guidance advises growers to minimize waste and risk of infected waste material by growing clean plants, provides advice on safe waste storage prior to disposal, and presents information on options for safe disposal of green waste including on-site composting, incineration, disposal to landfill, or removal to a commercial composting facility. In the UK, the Plant Health Management Standard (PHMS) underpins the ‘Plant Healthy Certification Scheme’ currently being rolled out for horticultural businesses [43] with the aim of widespread adoption across the ornamental and amenity horticulture supply chain. Businesses and organizations that join the scheme will have to comply with the PHMS and will be identifiable as those which handle plant material in a manner that promotes plant health and biosecurity, including low-risk waste management practices. Given the ubiquity of Phytophthora in horticultural trade networks across Europe and globally [9,10], it is hoped that evidence presented here on biosecurity risks from plant waste will help to inform management practices beyond the UK.

Author Contributions

Conceptualization, S.G. and D.F.M.; methodology, S.G., D.F.M., P.J.A.C. and P.E.H.; software, P.J.A.C.; validation, P.J.A.C.; formal analysis, P.J.A.C. and P.E.H.; investigation, K.S.-F.; data curation, K.S.-F.; writing—original draft preparation, K.S.-F.; writing—review and editing, S.G., D.F.M. and K.S.-F.; visualization, K.S.-F.; supervision, S.G. and D.F.M.; funding acquisition, S.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was commissioned by Scotland’s Centre of Expertise for Plant Health Funded by Scottish Government through the Rural & Environment Science and Analytical Services (RESAS) Division under grant agreement No PHC2021/02.

Data Availability Statement

The raw Illumina reads of data presented in this study are openly available from Zenodo at (https://doi.org/10.5281/zenodo.7925609) as FASTQ files (accessed on 10 April 2023).

Acknowledgments

The authors wish to thank the three partner nursery managers for allowing us to sample on their premises, enabling this project to go ahead. We also thank Jenny Morris for technical support with the metabarcoding at the James Hutton Institute.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goss, E.M.; Carbone, I.; Grünwald, N.J. Ancient isolation and independent evolution of the three clonal lineages of the exotic sudden oak death pathogen Phytophthora ramorum. Mol. Ecol. 2009, 18, 1161–1174. [Google Scholar] [CrossRef] [PubMed]
  2. Bradshaw, R.E.; Bellgard, S.E.; Black, A.; Burns, B.R.; Gerth, M.L.; McDougal, R.L.; Scott, P.M.; Waipara, N.W.; Weir, B.S.; Williams, N.M.; et al. Phytophthora agathidicida: Research progress, cultural perspectives and knowledge gaps in the control and management of kauri dieback in New Zealand. Plant Pathology 2020, 69, 3–16. [Google Scholar] [CrossRef]
  3. Dobrowolski, M.P.; Tommerup, I.C.; Shearer, B.L.; O’Brien, P.A. Three clonal lineages of Phytophthora cinnamomi in Australia revealed by microsatellites. Phytopathology 2003, 93, 695–704. [Google Scholar] [CrossRef] [PubMed]
  4. Brasier, C.M. Phytophthora Biodiversity: How Many Phytophthora Species are There. Phytophthoras in Forests and Natural Ecosystems. In Proceedings of the Fourth Meeting of the International Union of Forest Research Organizations (IUFRO) Working Party S07.02.09, Monterey, CA, USA, 26–31 August 2007; United States Department of Agriculture: Albany, CA, USA, 2009; pp. 101–117. [Google Scholar]
  5. Yang, X.; Tyler, B.M.; Hong, C. An expanded phylogeny for the genus Phytophthora. IMA Fungus 2017, 8, 355–384. [Google Scholar] [CrossRef] [PubMed]
  6. Keriö, S.; Daniels, H.A.; Gómez-Gallego, M.; Tabima, J.F.; Lenz, R.R.; Søndreli, K.L.; Grünwald, N.J.; Williams, N.; Mcdougal, R.; LeBoldus, J.M. From genomes to forest management–tackling invasive Phytophthora species in the era of genomics. Can. J. Plant Pathol. 2020, 42, 1–29. [Google Scholar] [CrossRef]
  7. Harting, P. Recherches sur la Nature et les Causes de la Maladie des Pommes de Terre en 1845; CG Sulpke: Amsterdam, The Netherlands, 1846. [Google Scholar]
  8. Erwin, D.C.; Ribeiro, O.K. Phytophthora Diseases Worldwide; American Phytopathological Society Press: St. Paul, MN, USA, 1996. [Google Scholar]
  9. Antonelli, C.; Biscontri, M.; Tabet, D.; Vettraino, A.M. The Never-Ending Presence of Phytophthora Species in Italian Nurseries. Pathogens 2023, 12, 15. [Google Scholar] [CrossRef]
  10. Brasier, C.M. The biosecurity threat to the UK and global environment from international trade in plants. Plant Pathol. 2008, 57, 792–808. [Google Scholar] [CrossRef]
  11. Forest Research. Global Threats from Phytophthora s (PHYTO-THREATS). 2019. Available online: https://www.forestresearch.gov.uk/research/global-threats-fromPhytophthora-spp-phyto-threats/ (accessed on 20 April 2023).
  12. Green, S.; Cooke, D.E.; Dunn, M.; Barwell, L.; Purse, B.; Chapman, D.S.; Valatin, G.; Schlenzig, A.; Barbrook, J.; Pettitt, T.; et al. PHYTO-THREATS: Addressing threats to UK forests and woodlands from Phytophthora; identifying risks of spread in trade and methods for mitigation. Forests 2021, 12, 1617. [Google Scholar] [CrossRef]
  13. Scibetta, S.; Schena, L.; Chimento, A.; Cacciola, S.O.; Cooke, D.E. A molecular method to assess Phytophthora diversity in environmental samples. J. Microbiol. Methods 2012, 88, 356–368. [Google Scholar] [CrossRef]
  14. Khaliq, I.; Hardy, G.E.S.J.; White, D.; Burgess, T.I. eDNA from roots: A robust tool for determining Phytophthora communities in natural ecosystems. FEMS Microbiol. Ecol. 2018, 94, fiy048. [Google Scholar] [CrossRef]
  15. Riddell, C.E.; Frederickson-Matika, D.; Armstrong, A.C.; Elliot, M.; Forster, J.; Hedley, P.E.; Morris, J.; Thorpe, P.; Cooke, D.E.; Pritchard, L.; et al. Metabarcoding reveals a high diversity of woody host-associated Phytophthora s in soils at public gardens and amenity woodlands in Britain. PeerJ 2019, 7, e6931. [Google Scholar] [CrossRef] [PubMed]
  16. La Spada, F.; Cock, P.J.; Randall, E.; Pane, A.; Cooke, D.E.; Cacciola, S.O. DNA Metabarcoding and Isolation by Baiting Complement Each Other in Revealing Phytophthora Diversity in Anthropized and Natural Ecosystems. J. Fungi 2022, 8, 330. [Google Scholar] [CrossRef] [PubMed]
  17. Landa, B.B.; Arias-Giraldo, L.F.; Henricot, B.; Montes-Borrego, M.; Shuttleworth, L.A.; Pérez-Sierra, A. Diversity of Phytophthora species detected in disturbed and undisturbed British soils using high-throughput sequencing targeting ITS rRNA and COI mtDNA regions. Forests 2021, 12, 229. [Google Scholar] [CrossRef]
  18. Jung, T.; Orlikowski, L.; Henricot, B.; Abad-Campos, P.; Aday, A.G.; Aguín Casal, O.; Bakonyi, J.; Cacciola, S.O.; Cech, T.; Chavarriaga, D.; et al. Widespread Phytophthora infestations in European nurseries put forest, semi-natural and horticultural ecosystems at high risk of Phytophthora diseases. For. Pathol. 2016, 46, 134–163. [Google Scholar] [CrossRef]
  19. Longmire, J.L.; Maltbie, M.; Baker, R.J. Use of ”Lysis Buffer” in DNA Isolation and Its Implication for Museum Collections; Museum of Texas Tech University: Lubbock, TX, USA, 1997. [Google Scholar]
  20. Pérez-Sierra, A.; Jung, M.H.; Jung, T. Survey and monitoring of Phytophthora species in natural ecosystems: Methods for sampling, isolation, purification, storage, and pathogenicity tests. In Plant Pathology: Method and Protocols (13–49); Springer: New York, NY, USA, 2022. [Google Scholar]
  21. Elliot, C.G.; Hendrie, M.R.; Knights, B.A. The sterol requirement of Phytophthora cactorum. Microbiology 1966, 42, 425–435. [Google Scholar] [CrossRef]
  22. Jeffers, S.N. Protocol 07-11.1: V8 agar (V8A) or Broth. Laboratory Protocols for Phytophthora species (1–2); The American Phytopathological Society: St. Paul, MN, USA, 2015. [Google Scholar]
  23. White, T.J.; Bruns, T.; Lee, S.J.W.T.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR Protocols: A Guide to Methods and Applications; Academic Press: Amsterdam, The Netherlands, 1990; Volume 18, pp. 315–322. [Google Scholar]
  24. Cooke, D.E.L.; Drenth, A.; Duncan, J.M.; Wagels, G.; Brasier, C.M. A molecular phylogeny of Phytophthora and related oomycetes. Fungal Genet. Biol. 2000, 30, 17–32. [Google Scholar] [CrossRef]
  25. Cock, P.J.; Cooke, D.E.; Thorpe, P.; Pritchard, L. THAPBI PICT-a fast, cautious, and accurate metabarcoding analysis pipeline. bioRxiv 2023. in print. [Google Scholar] [CrossRef]
  26. Jung, T.; Jung, M.H.; Cacciola, S.O.; Cech, T.; Bakonyi, J.; Seress, D.; Mosca, S.; Schena, L.; Seddaiu, S.; Pane, A.; et al. Multiple new cryptic pathogenic Phytophthora species from Fagaceae forests in Austria, Italy and Portugal. IMA Fungus 2017, 8, 219–244. [Google Scholar] [CrossRef]
  27. Werres, S.; Marwitz, R.; In’t Veld, W.A.M.; De Cock, A.W.; Bonants, P.J.; De Weerdt, M.; Themann, K.; Ilieva, E.; Baayen, R.P. Phytophthora ramorum sp. nov., a new pathogen on Rhododendron and Viburnum. Mycol. Res. 2001, 105, 1155–1165. [Google Scholar] [CrossRef]
  28. Webber, J.F.; Mullett, M.; Brasier, C.M. Dieback and mortality of plantation Japanese larch (Larix kaempferi) associated with infection by Phytophthora ramorum. New Dis. Rep. 2010, 22, 19. [Google Scholar] [CrossRef]
  29. Brasier, C.; Webber, J. Sudden larch death. Nature 2010, 466, 824–825. [Google Scholar] [CrossRef] [PubMed]
  30. Green, S.; Elliot, M.; Armstrong, A.; Hendry, S.J. Phytophthora austrocedrae emerges as a serious threat to juniper (Juniperus communis) in Britain. Plant Pathol. 2015, 64, 456–466. [Google Scholar] [CrossRef]
  31. Safaiefarahani, B.; Mostowfizadeh-Ghalamfarsa, R.S.T.J.; Hardy, G.S.J.; Burgess, T.I. Re-evaluation of the Phytophthora cryptogea species complex and the description of a new species, Phytophthora pseudocryptogea sp. nov. Mycol. Prog. 2015, 14, 1–12. [Google Scholar] [CrossRef]
  32. Lebert, H.; Cohn, F. Über die Fäule der Cactusstämme. Beiträge Biol. Pflanz 1870, 1, 51–57. [Google Scholar]
  33. Jung, T.; Burgess, T.I. Re-evaluation of Phytophthora citricola isolates from multiple woody hosts in Europe and North America reveals a new species, Phytophthora plurivora sp. nov. Pers. Mol. Phylogeny Evol. Fungi 2009, 22, 95–110. [Google Scholar] [CrossRef]
  34. Scott, P.M.; Burgess, T.I.; Barber, P.A.; Shearer, B.L.; Stukely, M.J.C.; Hardy, G.S.J.; Jung, T. Phytophthora multivora sp. nov., a new species recovered from declining Eucalyptus, Banksia, Agonis and other plant specie in Western Australia. Pers. Mol. Phylogeny Evol. Fungi 2009, 22, 1–13. [Google Scholar] [CrossRef]
  35. Klebahn, H. Die neue Zweig-und Knospenkrankheit. In Krankheiten des Flieders; Borntraeger: Stuttgart, Germany, 1909; pp. 18–75. [Google Scholar]
  36. Cooke, D.E.L. Threats Posed by Phytophthora to Scottish Plant Health: A Review of Previous Findings, Pathways of Entry and Further Spread and the Status of Diagnostic Techniques; RESAS Phytophthora Risk Review Report Commissioned by the Scottish Government; Plant Health Service: Dundee, UK, 2015. [Google Scholar]
  37. Prigigallo, M.I.; Mosca, S.; Cacciola, S.O.; Cooke, D.E.L.; Schena, L. Molecular analysis of Phytophthora diversity in nursery-grown ornamental and fruit plants. Plant Pathol. 2015, 64, 1308–1319. [Google Scholar] [CrossRef]
  38. Carne, J.R. Phytophthora hibernalis. Soc. W. Australia 1925, 12, 13. [Google Scholar]
  39. Forest Research Tree Health Advisory Database. Available online: https://www.forestresearch.gov.uk/services/tree-health-diagnostic-and-advisory-service/ (accessed on 20 April 2023).
  40. Santilli, E.; Riolo, M.; La Spada, F.; Pane, A.; Cacciola, S.O. First report of root rot caused by Phytophthora bilorbang on Olea europaea in Italy. Plants 2020, 9, 826. [Google Scholar] [CrossRef]
  41. Ersek, T.; English, J.T.; Schoelz, J.E. Creation of species hybrids of Phytophthora with modified host ranges by zoospore fusion. Phytopathology 1995, 85, 1343–1347. [Google Scholar] [CrossRef]
  42. Elliot, M.; Green, S.; Litterick, A.; Yeomans, A. Identifying the Plant Health Risks Associated with Plant Waste Disposal and Peat-Free Growing Media and Developing Best Practice Guidance for Waste Disposal and Composting Across Sectors: Project Final Report. PHC2021/02. Scotland’s Centre of Expertise for Plant Health (PHC). 2023. Available online: https://www.planthealthcentre.scot/sites/www.planthealthcentre.scot/files/2023-03/PHC2021_02%20Plant_waste_disposal_Policy_Summary.pdf (accessed on 10 April 2023).
  43. Plant Healthy. Plant Healthy Certification Scheme. 2022. Available online: https://planthealthy.org.uk/ (accessed on 22 June 2022).
Horticulturae 09 00616 g001 550
Figure 1. Diagrammatic overview of the methods employed for sampling, processing of samples, and analysis.
Figure 1. Diagrammatic overview of the methods employed for sampling, processing of samples, and analysis.
Horticulturae 09 00616 g001
Horticulturae 09 00616 g002 550

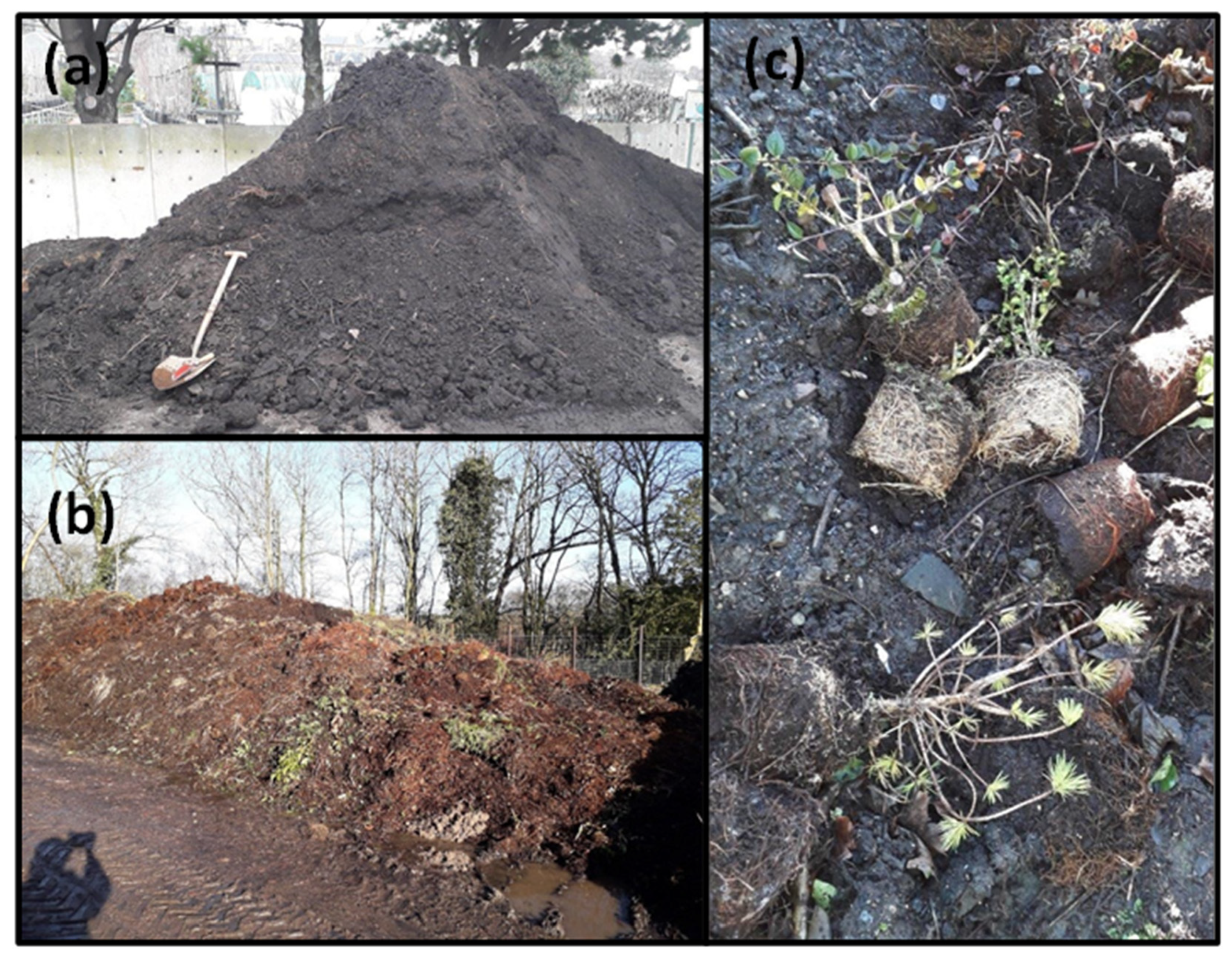

Figure 2. Photographs illustrating (a) composted waste pile yielding no Phytophthora, (b) untreated waste pile which yielded multiple Phytophthora species including P. ramorum, (c) discarded plants from which roots were sampled, yielding Phytophthora.
Figure 2. Photographs illustrating (a) composted waste pile yielding no Phytophthora, (b) untreated waste pile which yielded multiple Phytophthora species including P. ramorum, (c) discarded plants from which roots were sampled, yielding Phytophthora.
Horticulturae 09 00616 g002
Horticulturae 09 00616 g003 550

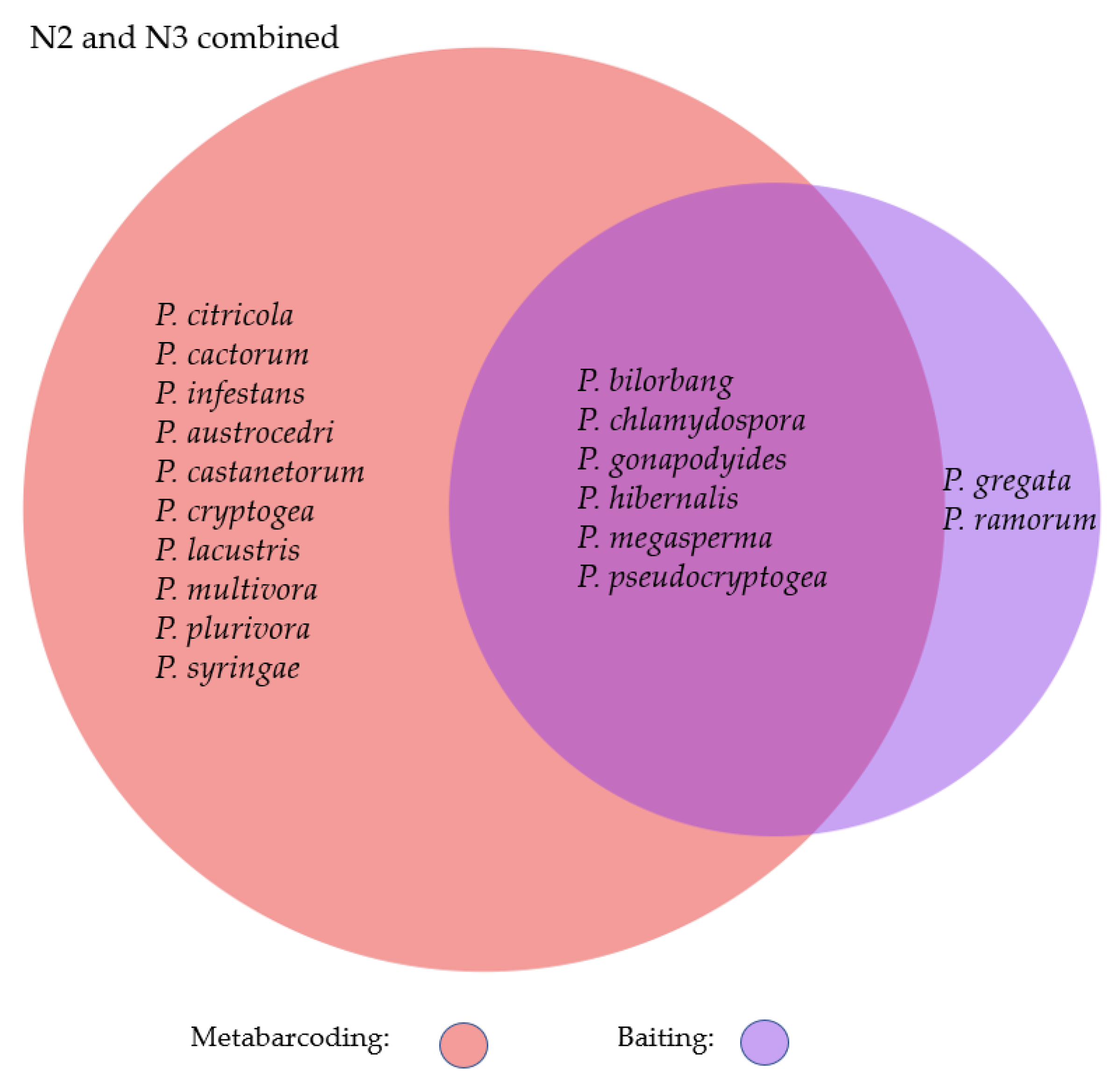

Figure 3. Venn diagram showing Phytophthora species detected with metabarcoding and baiting at N2 and N3.
Figure 3. Venn diagram showing Phytophthora species detected with metabarcoding and baiting at N2 and N3.
Horticulturae 09 00616 g003
Horticulturae 09 00616 g004 550
Figure 4. Ten-day-old colonies of isolates baited from N2 and N3 growing on V8 agar at 16–20 °C: (a) P. gregata, (b) P. chlamydospora, (c) P. ramorum, (d) P. gonapodyides, (e) P. pseudocryptogea, (f) P. hibernalis, (g) P. bilorbang, (h) P. megasperma.
Figure 4. Ten-day-old colonies of isolates baited from N2 and N3 growing on V8 agar at 16–20 °C: (a) P. gregata, (b) P. chlamydospora, (c) P. ramorum, (d) P. gonapodyides, (e) P. pseudocryptogea, (f) P. hibernalis, (g) P. bilorbang, (h) P. megasperma.
Horticulturae 09 00616 g004
Horticulturae 09 00616 g005 550

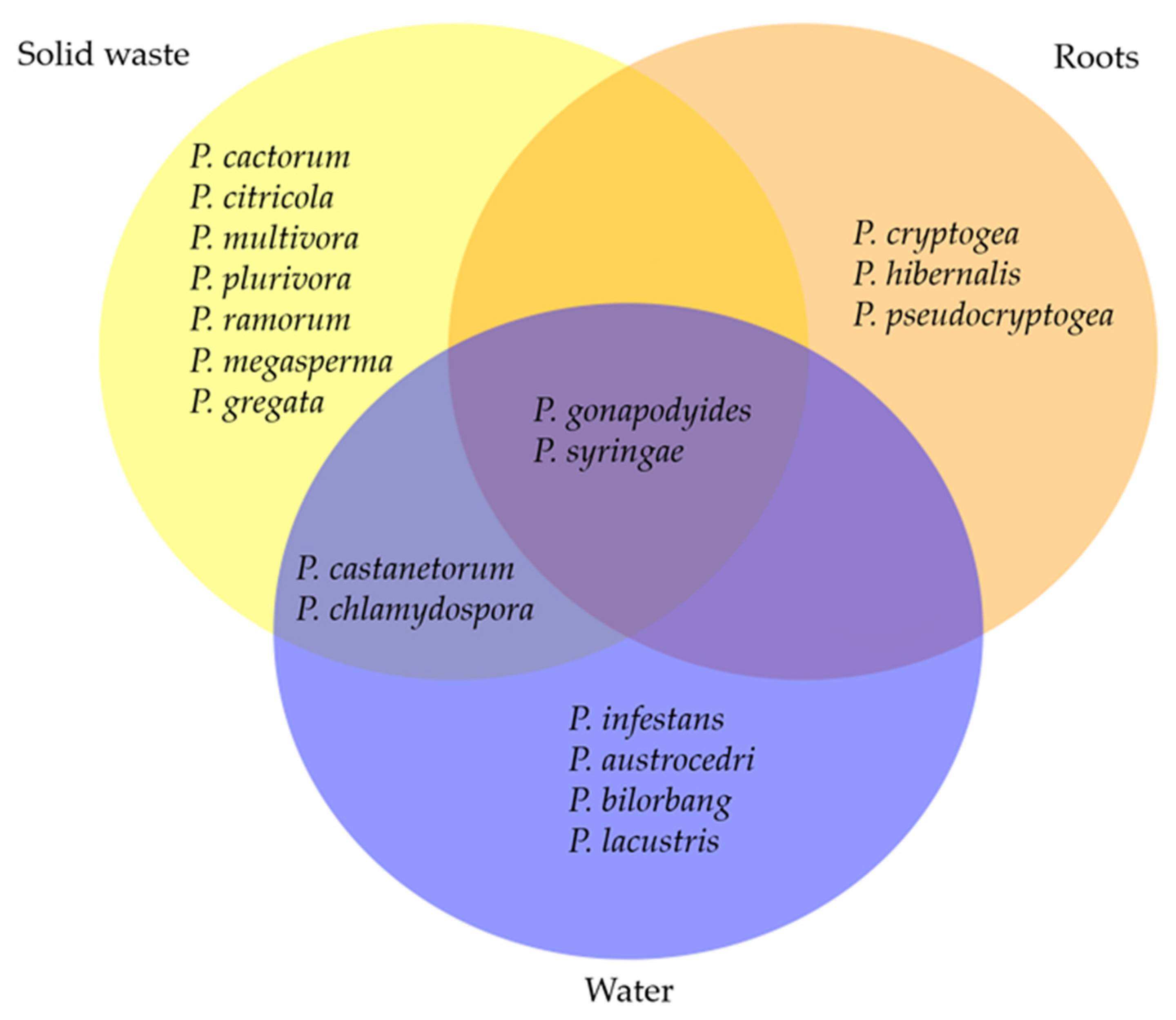

Figure 5. Venn diagram showing Phytophthora species detected in different sample types at N2 and N3.
Figure 5. Venn diagram showing Phytophthora species detected in different sample types at N2 and N3.
Horticulturae 09 00616 g005
Table
Table 1. Summary of biosecurity-related management practices in the three surveyed nurseries.
Table 1. Summary of biosecurity-related management practices in the three surveyed nurseries.
Nursery 1Nursery 2Nursery 3
PurposeNon-commercial specialist horticultural nurseryCommercial nurseryCommercial nursery
Irrigation sourceMainsMains stored in open tankStream water in pond
% of stock propagated on site99050
% of stock from UK17210
% of stock from EU02840
% of stock from outside EU001
Waste disposal methodWaste composted on site in concrete holding areaStored at back of nursery site near stream and hedgerowStored at back of nursery site near stream and woodland
Other biosecurity measuresDisinfection stations, mats and quarantine area for new stock.No disinfection stations, mats and no quarantine area.No disinfection stations, mats and no quarantine area.
Table
Table 2. Summary data of Phytophthora species detected in samples associated with green waste in three Scottish nurseries. ND = not detected, NA = not analyzed.
Table 2. Summary data of Phytophthora species detected in samples associated with green waste in three Scottish nurseries. ND = not detected, NA = not analyzed.
SiteSample TypeSpecies Detected with Baiting, Clade, and Sub-Clade in BracketsSpecies Detected with Metabarcoding, Clade, and Sub-Clade in BracketsTotal Number of Species
per Sample
N14 water samples
6 solid waste samples
No root samples		NDND0
N2Water (on site irrigation
water/field blank)		NAP. austrocedri (clade 8)3
P. bilorbang (clade 6b)
P. lacustris (clade 6b)
Water (stream bordering nursery site)P. bilorbang (clade 6b)P. austrocedri (clade 8d)3
P. lacustris (clade 6b)
Root (discarded cypress root ball)NAP. castanetorum (clade 12) *3
P. gonapodyides (clade 6b)
P. syringae (clade 8d)
Root (discarded yew root ball)NAP. cryptogea (clade 8a)2
P. pseudocryptogea (clade 8a)
Root (unidentified broadleaf root ball)NAP. pseudocryptogea (clade 8a)1
Solid waste 1 (horizon A)P. chlamydospora (clade 6b)ND1
Solid waste 1 (horizon B)NDP. citricola (clade 2c)
P. plurivora (clade 2c)		4
P. chlamydospora (clade 6b)
P. castanetorum (clade 12) *
Solid waste 1 (horizon C)P. ramorum (clade 8c)P. syringae (clade 8d)6
P. pseudocryptogea (clade 8a)P. plurivora (clade 2c)
P. chlamydospora (clade 8a)
P. hibernalis (clade 8c)
Solid waste 2 (horizon A)NDP. megasperma (clade 6b)1
Solid waste 2 (horizon B)NDP. syringae (clade 8d)3
P. castanetorum (clade 12) *
P. cactorum (clade 1a)
Solid waste 2 (horizon C)P. chlamydospora (clade 6b)P. syringae (clade 8d)5
P. gonapodyides (clade 6b)
P. ramorum (clade 8c)
P. gregata (clade 6b)
N3Water (puddle)NAP. infestans (clade 1c)4
P. chlamydospora (clade 6b)
P. gonapodyides (clade 6b)
P. syringae (clade 8d)
Water (puddle)P. chlamydospora (clade 6b)ND1
Root (discarded pine root ball)NAP. hibernalis (clade 8c)1
Solid waste 3 (horizon A)P. gonapodyides (clade 6b)ND1
Solid waste 3 (horizon B)P. ramorum (clade 8c)ND1
Solid waste 3 (horizon C)P. chlamydospora (clade 6b)P. cactorum (clade 1a)5
P. gonapodyides (clade 6b)P. syringae (clade 8d)
P. ramorum (clade 8c)
Solid waste 4 (horizon A)P. chlamydospora (clade 6b)ND3
P. gonapodyides (clade 6b)
P. ramorum (clade 8c)
Solid waste 4 (horizon B)P. chlamydospora (clade 6b)P. multivora (clade 2c)5
P. megasperma (clade 6b)P. syringae (clade 8d)
P. gonapogyides (clade 6b)P. gonapodyides (clade 6b)
Solid waste 4 (horizon C)P. chlamydospora (clade 6b)ND2
P. ramorum (clade 8c)
* Jung et al. [26] placed this recently described species into a proposed clade 12.
