Article

Genetic Variation and Association Analysis of Phenolic Compounds in Rapeseed (Brassica napus L.) Mutant Lines Using Genotyping-by-Sequencing (GBS)

1
Advanced Radiation Technology Institute, Korea Atomic Energy Research Institute, Jeongeup 56212, Republic of Korea
2
Department of Plant Production Sciences, Graduate School, Sunchon National University, Suncheon 57922, Republic of Korea
3
Department of Horticulture, College of Industrial Sciences, Kongju National University, Yesan 32439, Republic of Korea
4
Department of Agricultural Biotechnology, National Institute of Agricultural Sciences, RDA, Jeonju 54874, Republic of Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Horticulturae 2023, 9(11), 1204; https://doi.org/10.3390/horticulturae9111204
Submission received: 31 August 2023 / Revised: 20 October 2023 / Accepted: 25 October 2023 / Published: 6 November 2023
(This article belongs to the Special Issue Advances in Brassica Crops Genomics and Breeding, Volume II)

Abstract

:
The concentration of phenolic compounds in rapeseed is important because they are either anti-nutritional compounds or directly related to antioxidant activity. In this study, single nucleotide polymorphisms (SNPs) were identified using genotyping-by-sequencing (GBS), and an association study was conducted to investigate phenolic content in 95 rapeseed mutant lines derived from gamma rays and their original cultivar. A total of 3,196,318 SNPs were detected, resulting in the identification of a set of 70,208 union SNPs used to perform association studies. Seven compounds were identified, sinapine being the major phenolic compound (91.2–99.2%) in all genotypes. An association study was conducted for seven compounds and total phenolic content (TPC). It identified 241 SNPs that were significantly associated with these compounds, total sinapine content (TSC), and TPC. Based on the SNP markers detected, BnaC02g20420D was associated with dihexose, BnaC08g30570D with progoitrin, BnaA01g06890D with methyl sinapate, BnaA09g16810D with sinapine(4-O-8′)guaiacyl, BnaCnng39930D with trans-sinapine 1, BnaA07g31720D with trans-sinapine 2, BnaC03g31950D with sinapoyl malate, and BnaAnng27700D with TPC. These were selected as candidate genes that may play a key role in rapeseed. The SNP markers associated with these key phenolic compounds can be used as targets in breeding programs to reduce anti-nutritional components.

1. Introduction

Rapeseed (Brassica napus L., Brassicaceae) is one of the most widely cultivated crops. It produces beautiful flowers and is extensively used as food, animal feed, and a resource for bio-industries [1,2]. Rapeseed seeds are used as both food and feed. They contain high levels of proteins, minerals, carotenoids, and vitamins and have antioxidant properties. The presence of high amounts of antinutritional compounds, such as phenolics, limits the use of rapeseed extracts in animal feed [3,4]. Breeding to reduce the concentrations of phenolic compounds is important for developing high-quality rapeseed for food and feed [4,5]. Similarly, genetic enhancement of seed yield is one of the main goals of rapeseed breeding programs [1]. As one of the most important crops for the food and animal feed industries in Korea, rapeseed needs to be improved in terms of its nutritional value and seed yield, as the amount of rapeseed produced at present is insufficient to meet the national demand. Therefore, it is important to produce materials with novel nutritional traits and high seed yield to be used as rapeseed genetic resources.
Sinapate esters with sinapoylcholine (sinapine), a major phenolic compound in rapeseed seed, are known for their antioxidant properties and their role as important natural cancer-preventive agents [6,7]. However, the presence of phenolic compounds and glucosinolates in rapeseed confers a bitter taste and decreased palatability, thereby making food and feed less desirable. In addition, giving rapeseed meal containing sinapine to laying chickens can produce fishy-smelling eggs [5,6]. The phenylpropanoid pathway is the main metabolic pathway that produces phenolic compounds, with one of its major products being sinapine, accounting for up to 80% of the phenolic compounds in rapeseed seeds. Glucosinolates are nitrogen- and sulfur-containing compounds found in members of the Brassicaceae family, including rapeseed. Glucosinolate biosynthesis relies on interactions among several biosynthetic pathways in plants [8]. Plants contain more than 100 different glucosinolate compounds that can be chemically categorized into aliphatic, indolic, and aromatic glucosinolates [8,9]. Depending on their precursor amino acids, glucosinolates can be further categorized into indole glucosinolates derived from tryptophan; aliphatic glucosinolates derived from alanine, leucine, valine, and methionine; and aromatic glucosinolates derived from phenylalanine and tyrosine. Progoitrin (2R-2-hydroxy 3-butenyl glucosinolates) is an example of aliphatic glucosinolate, which serves as a precursor to sulforaphane [8,9,10,11]. Several studies have explored the connections among rapeseed phenolic compound biosynthesis, glucosinolate biosynthesis, and metabolic pathways [4,8]. Although glucosinolates and phenylpropanoids are synthesized through distinct biosynthetic pathways and have unique functions, a study on Arabidopsis mutants revealed interactions between glucosinolate biosynthesis and phenylpropanoid biosynthesis pathways [11]. In addition, glucosinolates are of significant interest due to their health benefits because of their anticancer effects [12]. However, these compounds confer a bitter taste and include biologically active isothiocyanates that reduce the quality of food and feedstocks made from rapeseed [1,3]. Since natural variation in sinapine and glucosinolate contents is limited in rapeseed, it is a reasonable approach to improve its nutritional value with mutations targeting sinapine content [6,7,13]. Radiation-induced mutation is one of the most effective methods for altering the composition of functional compounds for commercialization. Mutants obtained using radiation breeding methods often exhibit altered phenotypic traits, including changes in secondary metabolite profiles [14]. Gamma-ray radiation represents ionizing radiation that induces diverse mutational changes, from simple base substitutions to single and/or double-strand DNA breaks. In other studies, mutation breeding technology has been successfully used to improve the phenolic compound contents in various crops to levels surpassing those of natural variation [14,15,16]. While the phenolic and glucosinolate biosynthetic pathways have been extensively studied in rapeseed, the molecular networks that regulate phenolic and glucosinolate compound metabolism in mutant genotypes obtained using radiation breeding techniques are not well understood.
Entire plant genomes can be determined using next-generation sequencing (NGS), and the data can be used to detect single-nucleotide polymorphisms (SNPs) [17]. Genotyping-by-sequencing (GBS) evaluates the target genome using scaled-down labels. These methods allow for direct analyses and advancement of breeding goals using high-throughput SNP genotyping analysis, quantitative trait locus (QTL) mapping, and association mapping [18,19]. Association mapping is when SNPs are used for the indirect selection of target traits in crops [20,21,22]. There are non-random associations between SNP markers and nutritional characteristics in the mutants of genetically diverse crops. Association mapping has been widely applied in Brassica breeding to target nutritional characteristics such as protein, phenolics, and oil contents, fatty acid composition, and glucosinolates [5,7,13,14,22].
In this study, we developed novel rapeseed mutant lines from domestic rapeseed cultivars using gamma-ray irradiation and determined the phenolic and glucosinolate contents in these lines. The objective was to identify SNPs in rapeseed mutant lines derived from the original cultivars. Simultaneously, an association study using GBS analysis revealed associations between novel SNP loci and phenolic compound/glucosinolate contents in the mutant lines.

2. Materials and Methods

2.1. Plant Materials

The mutant lines were generated by treating the seeds of the commercial cultivar Brassica napus ‘Youngsan’ and B. napus ‘Tammi’ with various doses of gamma-ray (60Co) irradiation as follows: 500 Gy (46 mutant lines from Tammi), 600 Gy (37 mutant lines; Y6 lines), 800 Gy (7 mutant lines; Y8 lines), and 1000 Gy (5 mutant lines; Y10 lines) at 2009. The treated seeds were sown to obtain the M1 generation, and seeds from one silique developed from the main stem of each M1 plant were harvested. In the M2 generation, all individuals from the original cultivar were investigated for agronomic characteristics (seed yield, flowering time, and dwarfism) mutations. Ninety-five rapeseed mutants, selected based on their phenolic compound contents, were obtained from the M7 and M9 generations. The self-fertilization procedure was continued until the M9 generation. We analyzed the uniformity of the phenolic contents using UPLC (Ultra Performance Liquid Chromatography) for three generations (M7 to M9) to select stable lines. Finally, 95 mutants that varied in phenolic compound content and exhibited stable inheritance of the mutated characteristics from the M7 to M9 generations were selected. Radiation-generated mutant genotypes were grown by the Radiation Breeding Research Team at the Advanced Radiation Technology Institute of the Korea Atomic Energy Research Institute (35°51′09″ N, 126°83′41″ E). The seeds were planted in plots (3 × 6 m) and row spacing of 20 and 40 cm, respectively. Fertilizer (N:P:K 4:2:2 w/w/w) was applied to 600 kg∙ha−1 at pre-sowing, and the plants were not fertilized after sowing. Seed yield was surveyed on 95 mutants and original cultivars during three generations (M7 to M9). Young leaves were sampled from the two original cultivars (Youngsan and Tammi) and 95 rapeseed mutants. Genomic DNA was isolated using the DNeasy Plant Mini Kit (Qiagen, Hilden, Germany).

2.2. Library Construction and Genotyping-by-Sequencing

The construction of GBS libraries involved the use of the restriction enzyme ApeKI (5′-GCWGC-3′) following a modified protocol from a previously published study [18]. The oligonucleotides for the top and bottom strands of each barcode adapter and common adapter were diluted in TE (50 μM each) and annealed using a thermocycler. In total, 100 ng/μL of DNA samples were added to wells containing the adapter. The samples were then digested with ApeKI (New England Biolabs, Ipswich, MA, USA) overnight at 75 °C. The digested DNA samples, each with a different barcode adapter, were combined (5 μL each) and purified using a commercial kit (QIAquick PCR Purification Kit; Qiagen, Valencia, CA, USA) according to the manufacturer’s instructions. Amplification of the restriction fragments from each library was performed in 50 μL volumes using HerculaseII Fusion DNA Polymerase (Agilent, CA, USA) and primers (A) 5′-AAT GAT ACG GCG ACC ACC GAG ATC TAC ACT CTT TCC CTA CAC GAC GCT CTT CCG ATC T-3′ and (B) 5′-CAA GCA GAA GAC GGC ATA CGA GAT CGG TCT CGG CAT TCC TGC TGA ACC GCT CTT CCG ATC T-3′. The amplified sample pools were then used as the sequencing “library” and were sequenced on the Illumina HiSeq 2000 platform by SEEDERS Co. (Daejeon, Republic of Korea).

2.3. Sequence Preprocessing and Alignment to Reference Genome Sequence

The demultiplexing process involved the use of the barcode sequence, followed by adapter removal and sequence quality trimming. Adapter trimming was carried out using Cutadapt (Version 1.8.3) [23], and sequence quality trimming was performed using the DynamicTrim and LengthSort features of the SolexaQA program (V.1.13) [17]. The DynamicTrim tool trimmed low-quality bases at the ends of short reads based on the Phred score and produced high-quality cleaned reads. LengthSort removed excessive base cuts made by DynamicTrim and kept only reads with a Phred score of ≥20 and a length of ≥25 bp. The cleaned reads were then mapped to the reference genome sequence of Brassica napus V5.1 using BWA (0.6.1-r104) [24]. The mapping process was a preliminary step for detecting raw SNPs (In/Del) in the B. napus Ver. 5.1 (http://www.genoscope.cns.fr/brassicanapus accessed on 10 April 2023) and sequenced samples. A SAM file was generated using default values, with the exception of the following options: seed length (−l) of 30, maximum differences in the seed (−k) of 1, number of threads (−t) of 16, mismatch penalty (−M) of 6, gap opening penalty (−O) of 15, and gap extension penalty (−E) of 8. The experiment was repeated to ensure accuracy.

2.4. Raw SNP Detection and Consensus Sequence Extraction

The cleaned reads were mapped to the standard genome sequence, and the resulting SAM files were used to detect raw single nucleotide polymorphisms (SNPs) using SAMtools (0.1.16) [25] and to extract consensus sequences. Before SNP detection, the SNPs were validated using an in-house script developed by SEEDERS [26]. Raw SNP detection was performed with default values, with the exception of the following options: minimum mapping quality for SNPs (−Q) of 30, minimum mapping quality for gaps (−q) of 15, minimum read depth (−d) of 3, minimum indel score for nearby SNP filtering (−G) of 30, SNPs within 15 bp of a gap to be filtered (−w) of 15, window size for filtering dense SNPs (−W) of 30, and maximum read depth (−D) of 489.

2.5. Generate SNP Matrix

An integrated SNP matrix was generated from the samples to analyze the SNPs among the objects of interest. The process involved the creation of a list of unions using raw SNP positions obtained by comparing each sample with a reference genome (Brassica napus V. 5.1). Non-SNP loci were filled in from the consensus sequence of each sample. The final SNP matrix was generated by filtering out miscalled SNP positions using comparisons among the samples. SNPs were then divided into homozygous (read depth ≥ 90%), heterozygous (40–60%), and other (undistinguishable by type) groups based on their positions [21]. The SNP positions were then classified into intergenic or genic regions of the reference genome, with the genic region further classified into CDS or intron regions. To identify the SNPs that were unique to each mutant line, the common SNP in the original cultivars ‘Youngsan’ and ‘Tammi’ was first selected in the integrated SNP matrix, followed by the selection of polymorphic SNPs by comparing the common SNP of the original cultivar with the base sequence of each mutant. Finally, the SNP loci of each mutant line were integrated to secure the SNP locus of the union for subsequent gene ontology and functional analysis.

2.6. Ultra-High-Performance Liquid Chromatography (UPLC) and Total Phenolic Content Analysis

The phenolic compounds present in the fully mature seeds were analyzed using UPLC [7]. Rapeseed seed (10 g) was extracted using a mixture of methanol and water (80:20 v/v) and filtered through a polyvinylidene fluoride syringe filter. The UPLC system was equipped with an XR-ODS column and a C18 guard column, and the mobile phase consisted of solvent A (0.1% trifluoroacetic acid in distilled water) and solvent B (0.1% trifluoroacetic acid in acetonitrile). The phenolic compounds were separated using a gradient of solvent B, and detection was performed at 280 nm. The peaks in the HPLC chromatogram were identified based on spectra, standards, and data from the literature. For quantification, calibration curves of these standards were prepared from measurements at five concentrations (25, 50, 75, 100, and 125 mg/mL). The linear equation for sinapine (Sigma, St. Louis, MO, USA) was y = 77901X + 69457. The calibration curves were linear with a high correlation coefficient (r2 = 0.9932). Seeds were collected from the fully mature periods for each mutant line. The samples were quantified using sinapine, and the results were based on three biological replicates for each sample.
The total phenolic content (TPC) was determined using the Folin–Ciocalteu colorimetric method [27]. A small quantity (0.2 mL) of each extract and 1.5 mL of Folin–Ciocalteu reagent (20% v/v) were mixed thoroughly. Next, 4 mL of Na2CO3 (7%) was added, then made up to 10 mL with water. The mixture was kept in the dark at room temperature for 90 min. The absorbance was then measured at 760 nm using a UV-spectrophotometer (UV-1800, Shimadzu, Kyoto, Japan). TPC was calculated using a calibration curve of sinapic acid (Sigma, USA). Calibration curves of these standards were prepared from measurements at seven concentrations (25, 50, 75, 100, 125, 150, and 200 mg/mL). The linear equation for sinapic acid was y = 0.101X − 0.0181. The calibration curves were linear with a high correlation coefficient (r2 = 0.9974).

2.7. Association and Networking Study

In the association analysis, the 70,208 union SNP dataset was used, and the FarmCPU model was utilized in the genomic association and prediction integrated tool (GAPIT) R package [28]. The Q general linear model (GLM) was performed on the chosen Q-matrix derived from STRUCTURE to determine the experiment-wise p-value for each marker’s significance. The next step was to create a Q-mixed linear model (Q-MLM) method with a kinship matrix. The significance of SNPs was determined based on a p-value < 0.0001 with corresponding −log10 (p) values of 4.0 for the significant threshold. The annotated genes that were selected as significant SNPs were evaluated for their probable interactions, co-expression, predictions, co-localization, and shared proteins to define gene functions using GeneMANIA (https://genemania.org/ accessed on 2 May 2023).

3. Results

3.1. Genotyping-by-Sequencing of Rapeseed Genotypes

A GBS analysis was conducted on 95 mutant lines and two original cultivars of rapeseed using the Illumina HiSeq 2000 platform (Illumina, San Diego, CA, USA). A summary of the sequence data generated from the 95 rapeseed mutant lines and the two original cultivars is shown in Table 1 and Table S1. A total of 1088 million reads were generated, with an average of 11 million reads per sample. After removing low-quality sequences, there were 967,244,884 clean reads, with an average of 9.9 million reads per plant sample. The total length of the clean reads ranged from 140,097,724 bp to 3,013,306,105 bp, with an average read length of 1,112,595,675 bp. The total number of mapped reads was 740,184,076 for all lines, with an average of 7,630,764 reads per sample. The proportion of reads mapped to the reference genome sequence ranged from 27.79% to 91.10%, with an average of 75.14%. The total length of the mapped region was 1,765,446,134 bp, with an average of 18,200,476 bp per sample. The mapped region covered approximately 2.14% of the reference genome sequence with an average depth of 15.82×.

3.2. Identification of SNPs

The distribution of union SNPs on rapeseed chromosomes is shown in Figure 1. The number of union SNPs on rapeseed chromosomes ranged from 1850 (chromosome A02) to 4638 (chromosome C01). Chromosomes C01, C02, C03, and C08 had more union SNPs than did the other chromosomes. Chromosome A09 had the highest number (2887) of union SNPs on genic regions.
The SNPs for each line were first selected by comparing the union SNPs in each matrix position between the sample and the reference genome sequence (Table S2). A total of 3,196,318 SNPs were identified, with the majority being homozygous (2,025,206). The highest number of SNPs (51,816) was recorded in the Tm8-10 mutant line, and the lowest number (10,717) was recorded in the Y6-203 mutant line.
Polymorphic SNPs were identified by comparing the common SNPs in the original cultivar with the base sequences of the mutant lines, wherein any changes were considered to have resulted from mutation (Table S3; Supplementary Materials File S1). The total number of polymorphic SNPs in each line ranged from 417 (Y6-322) to 11,256 (Y10-32), with an average of 6654. The number of homozygous SNPs in each rapeseed mutant line ranged from 210 (Y6-322) to 10,357 (Y10-12), with an average of 5318 per mutant line. A collection of 70,208 SNPs without overlaps was constructed (Table S4). Of these, 32,276 were located in intergenic regions, and 37,932 were located in genic regions, encompassing 16,550 genes. Among the SNPs in genic regions, 25,807 were located in gene coding sequences, 900 in gene promoter regions, 10,031 in introns, and 1194 in untranslated regions.

3.3. Phenolic Compound Content and Seed Yield

The phenolic compound contents in the 95 mutant lines and the two original cultivars are shown in Table 2 and Figure 2. Seven main phenolic compounds were identified: dihexose (peak 1, tR 4.6; C12H22O11), progoitrin (peak 2, tR 6.5; C11H19NO10S2), trans-sinapine 1 (peak 3, tR 16.1; C16H24NO5), trans-sinapine 2 (peak 4, tR 16.4; C16H24NO5), sinapine(4-O-8′)guaiacyl (peak 5, tR 17.7; C25H24O12), sinapoyl malate (peak 6, tR 20.3; C15H16O9), and methyl sinapate (peak 7, tR 25.4; C12H14O5) (Figure 3 and Table S5). The contents of dihexose, progoitrin, trans-sinapine 1, trans-sinapine 2, sinapine(4-O-8′)guaiacyl, sinapoyl malate, and methyl sinapate were 0.70 ± 0.29, 0.15 ± 0.06, 16.03 ± 0.04, 17.65 ± 2.00, 0.14 ± 0.08, 0.94 ± 0.11, and 0.05 ± 0.01 mg∙g−1, respectively, in ‘Youngsan’. The contents of dihexose, progoitrin, trans-sinapine 1, trans-sinapine 2, sinapine(4-O-8′)guaiacyl, sinapoyl malate, and methyl sinapate were 0.21 ± 0.04, 0.08 ± 0.01, 16.03 ± 0.29, 7.64 ± 1.63, 22.22 ± 1.48, 0.12 ± 0.03, 1.08 ± 0.27, and 0.09 ± 0.03 mg∙g−1, respectively, in ‘Tammi’. Sinapine was the major (91.2–99.2%) phenolic compound in all genotypes. Significant difference in sinapine content were observed among mutant lines. The trans-sinapine 1 content of the mutant lines ranged from 1.86 ± 0.36 mg∙g−1 to 25.85 ± 1.32 mg∙g−1. The trans-sinapine 1 content was highest in Tm10-3 and lowest in Tm10-5EF. The trans-sinapine 2 content was highest in Tm7M-1 (25.67 ± 1.22 mg∙g−1) and lowest in Tm10-3 (1.11 ± 0.25 mg∙g−1). The total contents of the seven main phenolic compounds ranged from 46.03 mg∙g−1 (in Y6-81a) to 8.31 mg∙g−1 (in Y6-29-30). Dihexose, progoitrin, sinapine(4-O-8)guaiacyl, sinapoyl malate, and methyl sinapate were present in relatively small amounts in all genotypes. The progoitrin (glucosinolates) content in the mutant lines ranged from 0.03 ± 1.22 mg∙g−1 in Tm10-9EF to 0.50 ± 0.05 mg∙g−1 in Tm6-7. Among the mutant lines, Y-6-81a showed higher levels of dihexose (1.48 mg∙g−1), progoitrin (0.40 mg∙g−1), sinapine(4-O-8′)guaiacyl (0.21 mg∙g−1), cyclic spermidine-alkaloid (0.62 mg∙g−1), and methyl sinapate (0.29 mg∙g−1).
The seed yields of the 95 mutant lines and the two original cultivars are shown in Figure 4. The seed yields of ‘Youngsan’ and ‘Tammi’ were 2856.7 ± 27.5 kg∙ha−1 and 3420.0 ± 33.5 kg∙ha−1, respectively. Significant difference in seed yield were observed among the mutant lines. The seed yield of the mutant lines ranged from 2333.3 ± 20.2 kg∙ha−1 (in Y6-21) to 3602.7 ± 15.7 kg∙ha−1 (in TM6-3) with an average of 2943.6 ± 19.4 kg∙ha−1.
The total phenolic contents (TPCs) of the 95 mutant lines and the two original cultivars are shown in Figure 5. The TPCs of ‘Tammi’ and ‘Youngsan’ were 57.29 ± 0.78 mg∙g−1 and 66.04 mg∙g−1, respectively. The highest TPC was in Y6-81a (78.31 mg∙g−1), and the lowest TPC was in Y6-29-30 (15.86 mg∙g−1). Fourteen mutant lines had lower TPC (<30 mg∙g−1): Y8-18-23, Y10-3-21, Y6-81b, Y6-201, Y6-202, Y6-291, Y6172, Y6-29-30, Tm8-14, Tm10-1, Tm10-2, TM10-3, Tm10-4EF, and Tm10-5EF. Two mutant lines, Y6-11 and Y6-81a, showed significantly higher TPCs than that of their original cultivar ‘Youngsan’.

3.4. Association Analysis

All of the SNPs significantly associated with phenolic compounds and glucosinolate (progoitrin) are listed in Table S6. Among the 70,208 union SNP dataset associations identified, 241 SNPs were significantly associated with phenolic compounds and glucosinolate. Of the 241 selected union SNPs, 119 were located in genic regions, and 122 were located in intergenic regions. Two candidate genes associated with the strongest SNP variant for two major phenolic compounds (trans-sinapine 1 and trans-sinapine 2) were identified. BnaCnng39930D encoding a RING/U-box superfamily protein was associated with trans-sinapine 1, and BnaA07g31720D encoding a pentatricopeptide repeat (PPR) superfamily protein was associated with trans-sinapine 2. Five SNP loci were significantly associated with total sinapine content (TSC). The genes at the five loci were BnaAnng09880D (no annotated function), BnaC06g38030D (transcription coactivator), BnaC03g31950D (S-adenosyl-L-methionine-dependent methyltransferase superfamily protein), BnaC05g08990D (RNA-binding; RRM/RBD/RNP motifs family protein), and BnaA06g09180D (protein kinase 2A). The C03_19651313 SNP marker on chromosome C03 was consistently associated with both TSC and sinapoyl malate, and the gene at this locus was BnaC03g31950D. The candidate gene most strongly associated with variation in progoitrin content was BnaC08g30570D (ARABIDILLO-2) (Table 3 and Table 4). No SNPs were significantly associated with variations in seed yield.

3.5. Networking Analysis

The relationships among the genes identified in the association analysis were analyzed using GeneMANIA (Figure 6). Among the four types of functional interaction networks, co-expression accounted for the largest proportion of identified genes (96.05%), followed by co-localization (2.14%), predicted interactions (1.67%), and shared protein domains (0.14%). Co-expression was predicted to affect the TPC in rapeseed. The GeneMANIA analyses did not detect any direct network linking defensin-like (DEFL) family protein (AT2G04045; BnaC02g35370D), double Clp-N motif-containing P-loop nucleoside triphosphate hydrolases superfamily protein (AT4G29920; BnaAnng26190D), AT59 (BnaA06g09240D), or MEI1 (BnaC06g38030D). Twenty associating genes were identified, which are listed according to rank order as follows: CFM3A (No. 1), PDE312 (No. 2), PUB17 (No. 3), ATEXO70E1 (No. 4), FTSH12 (No. 5), CLASP (No. 6), AT3G59040 (No. 7), AT2G32170 (No. 8), emb1703 (No. 9), SKIP8 (No. 10), CITRX (No. 11), RH39 (No. 12), LECRK55 (No. 13), EMB2654 (No. 14), AT5G58330 (No. 15), GTE2 (No. 16), RIBA1 (No. 17), ACT8 (No. 18), MEE40 (No. 19), and PUB13 (No. 20). Interestingly, TPR13 (tetratricopeptide repeat-like superfamily protein) was consistently associated with sinapine 1, sinapine(4-O-8′)guaiacyl, and progoitrin, while AT4G00740 (probable methyltransferase PMT13) was significantly associated with TSC and sinapoyl malate.

4. Discussion

Rapeseed is a widely cultivated oil crop, and its seeds are also a valuable food, feed, and source of materials for the bio-industry [1,2]. Phenolic compounds and glucosinolates are widely distributed in rapeseed. Their antioxidant properties have been demonstrated using a range of assay methods, including 2, 2′-diphenyl-1-picrylhydrazyl radical (DPPH), ferric reducing antioxidant power, peroxyl radical scavenging, ferric tripyridyl triazine complex reduction, and organic radical scavenging assays [1,2,3,4,5,6,7]. They are associated with a number of health benefits, including reduced risks of chronic diseases such as cancer, cardiovascular disease, and diabetes [6,7]. However, phenolic compounds and glucosinolates in rapeseed confer a bitter taste and decrease palatability, thereby making food and feed less desirable [5,6]. Despite the nutritional and medicinal value of phenolic compounds and glucosinolates, there is little information available about rapeseed genetic resources or genetic markers associated with these traits. This knowledge gap restricts the manipulation of these traits in breeding programs.
Generally, the variations in phenolic compounds in rapeseed mainly depend on genotype, while small variations have been attributed to cultivation conditions [29,30]. Typically, new genetic resources for rapeseed are developed through hybridization. However, the narrow range of phenolic compounds in rapeseed genotypes has limited the accurate characterization of new genetic resources [6,7,29,30]. Mutagenesis using gamma-ray radiation is an effective way to increase the variation in phenolic compounds in various plants. Gamma-ray mutagenesis has been used to improve many useful traits of rapeseed, such as seed yield, morphology, resistance to pathogens, and variability in fatty acid composition [14,15]. Our research group recently developed new cultivars of Chrysanthemum, Rubus, and Dendrobium with altered phenolic compound profiles using gamma-ray irradiation [16,31,32]. In this study, we analyzed the phenolic compound profiles of two original cultivars and 95 mutant lines of rapeseed obtained using gamma-ray irradiation. The original cultivars ‘Youngsan’ and ‘Tammi’ are mid-oleic acid (63.0–66.0%), low glucosinolate (0.43%), mid-oil content (43.9%), and non-erucic acid [33] cultivars. Several studies have investigated the oil content, fatty acid composition, and glucosinolates in rapeseed; however, few have focused on phenolic compounds [5,34,35]. The major phenolic compounds in the original cultivars and mutant lines are sinapine [33]. The major phenolic compounds in the original cultivars and mutant lines are sinapate esters with sinapoylcholine (sinapine) [33]. Sinapine is the most abundant phenolic compound in rapeseed, accounting for more than 65% of the TPC [29,33,34,35,36]. There have been no previous studies on the phenolic compound contents in Korean breeding cultivars and mutant genotypes of rapeseed. The sinapine concentrations in the original cultivars ‘Youngsan’ and ‘Tammi’ (29.86 and 33.68 mg∙g−1, respectively) were higher than those reported for 575 winter rapeseed genotypes (3.2 to 12.7 mg∙g−1) [37], but similar to or lower than those reported for two Korean domestic cultivars and one imported cultivar from India (29.74 to 52.24 mg∙g−1) [36]. Reducing the sinapine content has been one of the major goals in rapeseed breeding to improve the nutritional value of rapeseed meal. The high TPCs in the original cultivars ‘Youngsan’ and ‘Tammi’ mean that their seeds have low value in the food and feed industries. The TPCs in eight mutant lines were less than half of those in the original cultivars, whereas the TPC in Y6-81a was significantly higher than those in the other genotypes. A previous study reported that sinapine was the chief contributor to antioxidant activity in Australian canola meal [7]. The ability to control the TPC with radiation breeding may have applications in rapeseed breeding programs for the food, feed, and medicinal industries. Additionally, phenolic compounds determine the seed coat color of rapeseed [6]. In the present study, the original cultivars had a black seed coat. Although the mutants had increased or decreased phenolic compound contents compared with the original cultivars, only one showed a different seed coat color (Y6-29-30, which produced brown seeds). Mutation breeding technology can change some characteristics of a pre-existing cultivar and improve its nutritional quality [10]. High seed yield is an important trait for rapeseed breeding [37]. The original cultivars ‘Youngsan’ and ‘Tammi’ have favorable agronomic characteristics, such as early flowering and mid-seed yield (2800 to 3500 kg/ha). Evaluation of the mutant lines over three growing seasons showed that the seed yield of two mutant lines (Y6-351 and Y8-18-13) was 10% higher (>3200 kg/ha) than that of their original cultivar ‘Youngsan’. Unfortunately, none of the SNPs detected in the GBS analysis were significantly associated with seed yield. Nevertheless, the substantial improvement in seed yield observed in Y6-351 and Y8-18-13 suggests their potential utility in the development of new cultivars.
NGS methods have been used in molecular research on rapeseed [13,21]. However, information about changes in the types and contents of phenolic compounds in rapeseed genotypes produced using mutation breeding is lacking. In this study, we explored novel SNPs in rapeseed mutant lines generated using gamma-ray irradiation. The number of SNPs ranged from 417 to 11,256, averaging 6649 per mutant line. In the rapeseed mutant lines, many SNPs were detected on chromosomes C01, C02, and C03. Similarly, in our previous study, many SNPs were detected on chromosomes C01, C03, and A09 in mutant lines with altered fatty acid profiles generated with gamma-ray irradiation [21]. The biological effect of gamma rays depends on the genotype, and chromosome aberration is the most important event in mutation breeding [14]. Of the 70,208 union SNPs detected in this study, 241 were significantly associated with seven phenolic compounds. Association studies based on SNP markers have been widely used to analyze complex quality traits in crops. Previous studies have identified candidate genes associated with oil content, fatty acids, glucosinolate, sinapine, phytic acid, tannin, and crude fiber in rapeseed [13,15,21,37,38]. The present study identified significant SNPs associated with phenolics (sinapine, sinapoyl malate, and methyl sinapate) and glucosinolates (progoitrin) in various mutant lines using association analysis. Then, the networks involved in the genetic control of these traits were explored using GeneMANIA. Phenolics are responsible for the bitter taste of vegetables, and they can induce hypothyroidism. However, these compounds are of interest because of their potential as cancer-preventive agents [39]. The glucosinolate content in rapeseed appears to be influenced by genetic and environmental factors, as well as by nitrogen supply. Nitrogen fertilizer is required for growing rapeseed with low glucosinolate contents, but this can be expensive [29,40]. The development of novel rapeseed cultivars with low glucosinolate content can solve this problem. In this study, a total of 21 genes were associated with progoitrin, with BnaC08g30570D (ARABIDILLO-2; ARD-2) identified as a strong candidate gene. However, further research is needed to fully understand the role of BnaC08g30570D in glucosinolate biosynthesis. The network analysis also identified a tetratricopeptide repeat (TPR)-like superfamily protein associated with glucosinolate biosynthesis. TPR-like superfamily proteins have no known direct connections with glucosinolates. However, the TPR domain is often found in conjunction with the F-box domain or WD40 domain, and proteins with these domains are involved in DNA repair [41,42]. Therefore, it is possible that a TPR protein could also play a role in regulating glucosinolate biosynthesis in plants.
Sinapine biosynthesis is a complex biochemical pathway in plants that leads to the production of sinapine, also known as sinapoylcholine [4,5,7]. The gene BnaCnng39930D containing an SNP associated with trans-sinapine 1 was predicted to encode a RING/U-box superfamily protein. The RING/U-box superfamily is a large and diverse group of E3 ubiquitin ligases that play important roles in regulating various cellular processes, including protein degradation, transcriptional regulation, and signal transduction [43]. While there is no direct evidence that RING/U-box proteins are related to phenolic biosynthesis in plants, BnaCnng39930D is known to be involved in the biosynthesis of erucic acid, one of the fatty acids in the seed oil of rapeseed [43]. Interestingly, our previous study revealed that oleic acid is the main fatty acid in most mutants derived from ‘Tammi’, except for Tm8-15 and Tm10-1St. Oleic linoleic and erucic acid were identified as the major fatty acids in Tm8-15 and Tm10-1St [21]. In the present study, these mutants also showed significantly lower sinapine contents. Further research is needed to fully understand the role of RING/U-box proteins in phenolic biosynthesis. The gene BnaA07g31720D containing the trans-sinapine 2-related SNP was predicted to encode a PPR superfamily protein. Members of the PPR superfamily are RNA-binding proteins that are involved in various aspects of RNA metabolism, including RNA editing, splicing, and translation. A study on Arabidopsis suggested that PPR proteins may indirectly affect the biosynthesis of sinapine by regulating the expression of genes involved in its biosynthetic pathway [44]. A PPR protein has been shown to regulate the expression of genes involved in the phenylpropanoid pathway, including the gene encoding cinnamate 4-hydroxylase (C4H), which is also a key enzyme in sinapine biosynthesis. Similarly, the PPR protein OTP70 has been shown to regulate the expression of genes involved in the phenylpropanoid pathway in rice [45]. Thus, the PPR superfamily protein encoded by BnaA07g31720D, which affects sinapine content, may function in a similar manner. BnaA01g06890D, which contains a methyl sinapate-related SNP, was predicted to encode heavy metal ATPase 2 (HMA2). HMA2 plays a role in heavy metal detoxification in plants by transporting heavy metal ions such as copper, zinc, cadmium, and lead out of the cytosol and into intracellular compartments or out of the cell [46]. Compared with wild-type plants, HMA2-knockout mutants of Arabidopsis thaliana exhibited reduced levels of total phenolic compounds, including flavonoids and lignin [47]. However, the exact mechanism by which HMA2 influences phenolic biosynthesis in rapeseed is not yet known.
The association analysis revealed that BnaC06g38030D (transcription coactivator) BnaC03g31950D (S-adenosyl-L-methionine-dependent methyltransferase superfamily protein), BnaC05g08990D (RNA-binding; RRM/RBD/RNP motifs family protein), and BnaA06g09180D (protein kinase 2A) showed significant associations with TSC. The biosynthesis of sinapine is mediated by a number of enzymes, including protein kinases. Protein kinases catalyze the transfer of a phosphate group from ATP to a target protein, typically another enzyme or a receptor protein [48]. In the context of sinapine biosynthesis, protein kinases are involved in the regulation of the pathway, where they control the activity of the participating enzymes. A serine/threonine kinase has been identified to play a role in sinapine biosynthesis in rapeseed [4,5,48]. Protein kinases regulate diverse cellular processes such as signal transduction, cell division, and metabolism. There is evidence to suggest that phenolic compounds interact with protein kinases and modulate their activity [49,50]. Phenolic compounds inhibit the activity of some protein kinases but promote the activity of others. In addition, certain phenolic compounds can alter the expression of genes encoding protein kinases, potentially leading to changes in cellular signaling [48,50]. The biosynthesis of sinapine involves several steps, one of which is catalyzed by S-adenosyl-L-methionine (SAM)-dependent methyltransferases (SAM-Mtases). SAM-Mtases transfer a methyl group from SAM to a target molecule, usually a protein, DNA, RNA, or small molecule [49,50,51,52], and play a crucial role in many biological processes, including gene expression, signal transduction, and metabolism [22,52]. In sinapine biosynthesis, SAM serves as a methyl donor from which SAM-Mtases transfer the methyl group to a precursor molecule, sinapoylglucose, forming sinapoylmalate. This reaction is catalyzed by malate sinapoyltransferase (SMT), which belongs to the SAM-Mtase superfamily [5,22,52]. SMT is a key enzyme in the biosynthesis of sinapine and is expressed in several plant tissues, including leaves, stems, and seeds [51]. Its activity is regulated by various factors, including developmental stage, environmental conditions, and genetic background. SAM-Mtases play essential role in the biosynthesis of sinapine and other phenolic compounds in Brassica species [50,51,52]. However, the candidate genes encoding these enzymes are members of multiple-gene families. A clear understanding of the relationships among them is necessary to elucidate the functional mechanism of phenolic compound biosynthesis in rapeseed.
In this study, as part of the genome analysis, we used GBS analysis to identify associations between mutations in rapeseed and phenolic compounds and to investigate candidate genes linked to these associations. Although radiation-induced mutations are known to occur independently at different genetic loci, our previous research revealed the presence of mutation hotspots where mutations occur in the same genomic regions [53]. To enhance the precision of our genetic analysis, it is imperative to conduct quantitative trait loci (QTL) analysis to investigate linkage disequilibrium within the mapping population. Additionally, we propose the integration of advanced NGS technologies, such as whole-genome sequencing and targeted resequencing, with GBS analysis to gain a more comprehensive understanding of these genetic phenomena.

5. Conclusions

In the present study, we analyzed phenolics and glucosinolates (progoitrin) in the seeds of novel rapeseed mutants. There were differences in phenolic and progoitrin profiles between the two original cultivars (‘Youngsan’ and ‘Tammi’) and among their gamma-irradiated mutants. Changes in the types and amounts of these compounds are the focus of breeding programs to improve the quality of rapeseed. The results of our study identified mutant genotypes and 241 candidate genes significantly associated with phenolic quality traits of rapeseed. This information may offer helpful insights to promote rapeseed breeding. This is the first study describing the SNPs generated using GBS and an association analysis to identify genes related to the large variability in phenolic contents among rapeseed mutants derived from gamma-ray irradiation. BnaCnng39930D, BnaA07g31720D, BnaC03g31950D, BnaA06g09180D, and BnaA06g31740D were identified as candidate genes related to sinapine and progoitrin contents. Studies on the molecular networks that regulate glucosinolates and phenolic compound metabolism in mutants obtained using radiation breeding techniques can provide valuable insights into the regulation of plant secondary metabolism. The mutants obtained in this study will be useful resources for the development of novel rapeseed cultivars with improved phenolic and glucosinolate profiles. Our results may help researchers select mutants with suitable SNPs, associations, and networks as optimal genotypes for the food and medicinal industries.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae9111204/s1, Table S1: Results of genotyping-by-sequencing analysis in rapeseed genotypes. Table S2: Summary of total SNP numbers and alignment to the reference genome sequence. Table S3: Summary of polymorphic SNPs collected by comparing the common SNPs in the original cultivar with the base sequences of the mutant lines. Table S4: List of union SNP matrix loci that were generated for 95 rapeseed mutant lines. Table S5: Peak assignments of the aqueous methanol extract from the seed of rapeseed. References [7,36] are cited in the Supplementary Materials. Table S6: List of 241 significant associated SNPs with phenolics by association mapping in rapeseed. Supplement Material File S1: List of polymorphic SNPs in 95 mutant lines associated with phenolic compounds by association study in rapeseed mutant line.

Author Contributions

Conceptualization: C.-H.B., J.-W.A. and S.-Y.K.; formal analysis: D.-G.K., J.R., B.Y., Y.-J.L., J.H.K. and S.H.K.; investigation: W.J.K., S.-J.K., J.-B.K. and J.I.L.; writing—original draft preparation: J.R., B.Y., J.K. and J.I.L.; writing—review and editing: J.-W.A. and C.-H.B.; project administration: S.H.K.; funding acquisition: S.-J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the research program of KAERI, Republic of Korea (Project No. 523320-23) and the National Research Foundation of Korea (NRF) grant funded by the Korean government (RS-2022-00156231).

Data Availability Statement

The original contributions presented in this study are publicly available.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, Q.; Hua, W.; Yin, Y.; Zhang, X.; Liu, L.; Shi, J.; Zhao, Y.; Qin, L.; Chen, C.; Wang, H. Rapeseed research and production in Chaina. Crop J. 2017, 5, 127–135. [Google Scholar] [CrossRef]
  2. Delgado, M.; Felix, M.; Bengoechea, C. Development of bioplastic materials: From rapeseed oil industry by products to added-value biodegradable biocomposite materials. Ind. Crops Prod. 2018, 125, 401–407. [Google Scholar] [CrossRef]
  3. Nega, T.; Woldes, Y. Review on nutritional limitations and opportunities of using rapeseed meal and other rapeseed by-products in animal feeding. J. Nutr. Health Food Eng. 2018, 8, 43–48. [Google Scholar] [CrossRef]
  4. Wolfram, K.; Schmidt, J.; Wray, V.; Milkowski, C.; Schliemann, W.; Strack, D. Profiling of phenylpropanoids in transgenic low-sinapine oilseed rapeseed (Brassica napus). Phytochem. 2010, 71, 1076–1084. [Google Scholar] [CrossRef]
  5. Cartea, M.E.; Francisco, M.; Soengas, P.; Velasco, P. Phenolic compounds in Brassica vegetables. Molecules 2011, 16, 251–280. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, Y.; Meng, G.; Chen, S.; Chen, Y.; Jiang, J.; Wang, Y.P. Correlation analysis of phenolic contents and antioxidation in Yellow- and black-seeded Brassica napus. Molecules 2018, 23, 1815. [Google Scholar] [CrossRef]
  7. Obied, H.K.; Song, Y.; Foley, S.; Loughlin, M.; Reman, A.; Mailer, R.; Masud, T.; Agboola, S. Biophenols and antioxidant properties of Australian canola meal. J. Agric. Food Chem. 2013, 61, 9176–9184. [Google Scholar] [CrossRef]
  8. Tolra, R.P.; Alonso, R.; Poschenrieder, C.; Barcelo, D.; Barcelo, J. Determination of glucosinolates in rapeseed and Thlaspi caerulescens plants by liquid chromatography–atmospheric pressure chemical ionization mass spectrometry. J. Chromatogr. A 2000, 889, 75–81. [Google Scholar] [CrossRef]
  9. Bischoff, K.L. Glucosinolates. In Nutraceuticals; Academic Press: Cambridge, MA, USA, 2016; pp. 551–554. [Google Scholar]
  10. Miklavcic Visnjevec, A.; Tamayo Tenorio, A.; Steenkjaer Hastrup, A.C.; Hansen, N.M.L.; Peeters, K.; Schwarzkopf, M. Glucosinolates and isothiocyantes in processed rapeseed determined by HPLC-DAD-qTOF. Plants 2021, 10, 2548. [Google Scholar] [CrossRef]
  11. Kim, J.I.; Zhang, X.; Pascuzzi, P.E.; Liu, C.J.; Chapple, C. Glucosinolate and phenylpropanoid biosynthesis are linked by proteasome-dependent degradation of PAL. New Phytol. 2020, 225, 154–168. [Google Scholar] [CrossRef]
  12. Melim, C.; Lauro, M.R.; Pires, I.M.; Oliveira, P.J.; Cabral, C. The role of glucosinolates from cruciferous vegetables (Brassicaceae) in gastrointestinal cancers: From prevention to therapeutics. Pharmaceutics 2022, 14, 190. [Google Scholar] [CrossRef] [PubMed]
  13. Bhinder, G.; Sharma, S.; Kaur, H.; Akhater, J.; Mittal, M.; Sandhu, S. Genomic regions associated with seed meal quality traits in Brassica napus germplasm. Front. Plant Sci. 2022, 13, 882766. [Google Scholar] [CrossRef] [PubMed]
  14. Spencer-Lopes, M.M.; Forster, B.P.; Jankuloski, L. Manual on mutation. In Food and Agriculture Organization of the United Nations, 3rd ed.; FAO/IAEA: Rome, Italy, 2018; pp. 187–189. [Google Scholar]
  15. Singh, S.; Verma, A.K. A review on efforts of induced mutagenesis for qualitative and quantitative improvement of oilseed brassicas. J. Pharm. Phytochem. 2015, 4, 298–302. [Google Scholar]
  16. Ryu, J.; Nam, B.; Kim, B.R.; Kim, S.H.; Jo, Y.D.; Ahn, J.W.; Kim, J.B.; Jin, C.H.; Han, A.R. Comparative analysis of phytochemical composition of gamma-irradiated mutant cultivars of Chrysanthemum morifolium. Molecules 2019, 24, 3003. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, S.; Banks, T.W.; Cloutier, S. SNP discovery through next generation sequencing and its applications. Int. J. Plant Genom. 2012, 2012, 831460. [Google Scholar] [CrossRef]
  18. Elshire, R.J.; Glaubitz, J.C.; Sun, Q.; Poland, J.A.; Kawamoto, K.; Buckler, E.S.; Mitchell, S.E. A robust, simple genotyping-by- sequencing (GBS) approach for high diversity species. PLoS ONE 2011, 6, e19379. [Google Scholar] [CrossRef]
  19. Zhu, M.C.; Ran, H.; Zhao, H.Y.; Tang, Y.S.; Shi, X.T.; Jiang, H.Y.; Zhang, Z.Y.; Fu, F.Y.; Xu, X.F.; Tang, Z.L.; et al. Identification of quantitative trait loci and candidate genes controlling seed pigments of rapeseed. J. Interg. Agric. 2021, 20, 2862–2879. [Google Scholar] [CrossRef]
  20. Cai, D.; Xiao, Y.; Yang, W.; Ye, W.; Wang, B.; Younas, M.; Wu, J.; Liu, K. Association mapping of six yield-related traits in rapeseed (Brassica napus L.). Theor. Appl. Genet. 2014, 127, 85–96. [Google Scholar] [CrossRef]
  21. Ryu, J.; Lyu, J.I.; Kim, D.G.; Koo, K.M.; Yang, B.; Jo, Y.D.; Kim, S.H.; Kwon, S.J.; Ha, B.K.; Kang, S.Y.; et al. Single nucleotide polymorphism (SNP) discovery and association study of rapeseed (Brassica napus L.) mutant lines using genotyping-by- sequencing (GBS). Agronomy 2021, 11, 508. [Google Scholar] [CrossRef]
  22. Khalifa, A.M.; Abd-Elshafy, E.; Abu-Khudir, R.; Gaafar, R.M. Infuence of gamma radiation and phenylalanine on secondary metabolites in callus cultures of milk thistle (Silybum marianum L.). J. Genetic Eng. Biotech. 2022, 20, 166. [Google Scholar] [CrossRef]
  23. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet J. 2011, 17, 10–13. [Google Scholar] [CrossRef]
  24. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed]
  25. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The sequence align- ment/map format and SAM tools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed]
  26. Oh, J.E.; Kim, J.E.; Kim, J.; Lee, M.H.; Lee, K.; Kim, T.H.; Jo, S.H.; Lee, J.H. Development of an SNP marker set for marker-assisted backcrossing using genotyping-by-sequencing in tetraploid perilla. Mol. Genet. Genom. 2023, 1–13. [Google Scholar] [CrossRef] [PubMed]
  27. Xu, L.; Diosady, L.L. Rapid method for total phenolic acid determination in rapeseed/canola meals. Food Resear. Inter. 1997, 30, 571–574. [Google Scholar] [CrossRef]
  28. Liu, X.; Huang, M.; Fan, B.; Buckler, E.S.; Zhang, Z. Iterative usage of fixed and random effect models for powerful and efficient genome-wide association studies. PLoS Genet. 2016, 12, e1005767. [Google Scholar] [CrossRef]
  29. Raboanatahiry, N.; Li, H.; Yu, L.; Li, M. Rapeseed (Brassica napus): Processing, utilization, and genetic improvement. Agronomy 2021, 11, 1776. [Google Scholar] [CrossRef]
  30. Guirrou, I.; El Harrak, A.; El Antari, A.; Hssaini, L.; Hanine, H.; El Fechtali, M.; Nabloussi, A. Bioactive compounds assessment in six Moroccan rapeseed (Brassica napus L.) varieties grown in two contrasting environments. Agronomy 2023, 13, 460. [Google Scholar] [CrossRef]
  31. Ryu, J.; Kim, W.J.; Im, J.; Kim, S.H.; Lee, K.S.; Jo, H.J.; Kim, E.Y.; Kang, S.Y.; Lee, J.H.; Ha, H.K. Genotyping-by-sequencing based single nucleotide polymorphisms enabled kompetitive allele specific PCR marker development in mutant Rubus genotypes. Electron. J. Biotechnol. 2018, 35, 57–62. [Google Scholar] [CrossRef]
  32. Lim, G.H.; Kim, S.W.; Ryu, J.; Kang, S.Y.; Kim, J.B.; Kim, S.H. Upregulation of the MYB2 transcription factor is associated with increased accumulation of anthocyanin in the leaves of Dendrobium bigibbum. Int. J. Mol. Sci. 2020, 21, 5653. [Google Scholar] [CrossRef]
  33. Lee, T.S.; Lee, Y.H.; Kim, K.S.; Lee, H.K.; Jang, Y.S.; Choi, I.H.; Kim, K.S. Effect of sowing time on oil content and fatty acid composition characteristics in rapeseed cultivars. Korean J. Plant Resour. 2014, 27, 202–208. [Google Scholar] [CrossRef]
  34. Naczk, M.; Amarowicz, R.; Sullivan, A.; Shahidi, F. Current research development on polyphenolics of rapeseed/canola: A review. Food Chem. 1998, 62, 489–502. [Google Scholar] [CrossRef]
  35. Felde, T.Z.; Baumert, A.; Strack, D.; Becker, H.C.; Mollers, C. Genetic variation for sinapate ester content in winter rapeseed (Brassica napus L.) and development of NIRS calibration equations. Plant Breed. 2007, 126, 291–296. [Google Scholar] [CrossRef]
  36. Yang, S.C.; Arasu, M.V.; Chun, J.H.; Jang, Y.S.; Lee, Y.H.; Kim, I.H.; Lee, K.T.; Hong, S.T.; Kim, S.J. Identification and determination of phenolic compounds in rapeseed meals (Brassica napus L.). J. Agric. Chem. Environ. 2015, 4, 14–23. [Google Scholar] [CrossRef]
  37. Chen, G.; Geng, J.F.; Rahman, M.; Liu, X.P.; Tu, J.X.; Fu, T.D.; Li, G.Y.; McVetty, P.B.E.; Tahir, M. Identification of QTL for oil content, seed yield, and flowering time in oilseed rape (Brassica napus). Euphytica 2010, 175, 161–174. [Google Scholar] [CrossRef]
  38. Lu, K.; Wei, L.; Li, X.; Wang, Y.; Wu, M.; Liu, M.; Zhang, C.; Chen, Z.; Xiao, Z.; Jian, H.; et al. Whole-genome resequencing reveals Brassica napus origin and genetic loci involved in its improvement. Nat. Commun. 2019, 10, 1154. [Google Scholar] [CrossRef]
  39. Soundararajan, P.; Kim, J.S. Anti-carcinogenic glucosinolates in cruciferous vegetables and their antagonistic effects on prevention of cancers. Molecules 2018, 23, 2983. [Google Scholar] [CrossRef]
  40. Jeschke, V.; Weber, K.; Moore, S.S.; Burow, M. Coordination of glucosinolate biosynthesis and turnover under different nutrient conditions. Front. Plant Sci. 2019, 10, 1560. [Google Scholar] [CrossRef]
  41. Gangurde, S.S.; Nayak, S.N.; Joshi, P.; Purohit, S.; Sudini, H.K.; Chitikineni, A.; Hong, Y.; Guo, B.; Chen, X.; Pandey, M.K.; et al. Comparative transcriptome analysis identified candidate genes for late leaf spot resistance and cause of defoliation in groundnut. Int. J. Mol. Sci. 2021, 22, 4491. [Google Scholar] [CrossRef]
  42. Zhang, X.; Gou, M.; Liu, C.J. Arabidopsis Kelch repeat F-Box proteins regulate phenylpropanoid biosynthesis via controlling the turnover of phenylalanine ammonia-lyase. Plant Cell 2013, 25, 4994–5010. [Google Scholar] [CrossRef]
  43. Qu, C.; Li, J.; Zhu, K.; Liang, D.; Liu, J.; Hu, Q. Metabolic engineering of fatty acids for breeding of new oilseed crops: Strategies, progress, and perspectives. Engineering 2017, 3, 27–35. [Google Scholar]
  44. Zhu, Q.; Dugardeyn, J.; Zhang, C.; Takenaka, M.; Kristina Kuhn, K.; Craddock, C.; Smalle, J.; Karampelias, M.; Denecke, J.; Peters, J.; et al. SLO2, a mitochondrial pentatricopeptide repeat protein affecting several RNA editing sites, is required for energy metabolism. Plant J. 2012, 71, 335–345. [Google Scholar] [CrossRef] [PubMed]
  45. Chateigner-Boutin, A.L.; des Francs-Small, C.C.; Delannoy, E.; Kahlau, S.; Tanz, S.K.; de Longevialle, A.F.; Sota Fujii, S.; Small, L. OTP70 is a pentatricopeptide repeat protein of the E subgroup involved in splicing of the plastid transcript rpoC1. Plant J. 2012, 65, 532–542. [Google Scholar] [CrossRef] [PubMed]
  46. Eren, E.; Arguello, J.M. Arabidopsis HMA2, a divalent heavy metal-transporting PIB-type ATPase, is involved in cytoplasmic Zn2+ homeostasis. Plant Physiol. 2004, 136, 3712–3723. [Google Scholar] [CrossRef]
  47. Yuan, Y.; Wu, H.; Wang, N.; Li, J.; Zhao, W.; Du, J.; Wang, D.; Ling, H.Q. FIT interacts with AtbHLH38 and AtbHLH39 in regulating iron uptake gene expression for iron homeostasis in Arabidopsis. Cell Res. 2008, 18, 385–397. [Google Scholar] [CrossRef]
  48. Nguyen, V.P.T.; Stewart, J.D.; Ioannou, I.; Allais, F. Sinapic acid and sinapate esters in Brassica: Innate accumulation, biosynthesis, accessibility via chemical synthesis or recovery from biomass, and biological activities. Front. Chem. 2021, 9, 664602. [Google Scholar] [CrossRef]
  49. Strehmel, N.; Hoehenwarter, W.; Mönchgesang, S.; Majovsky, P.; Krüger, S.; Scheel, D.; Lee, J. Stress-related mitogen-activated protein kinases stimulate the accumulation of small molecules and proteins in Arabidopsis thaliana root exudates. Front. Plant Sci. 2017, 8, 1292. [Google Scholar] [CrossRef]
  50. Wang, Z.; Bao, L.L.; Zhao, F.Y.; Tang, M.Q.; Chen, T.; Li, Y.; Wang, B.X.; Fu, B.; Fang, H.; Li, G.Y.; et al. BnaMPK3 Is a key regulator of defense responses to the devastating plant pathogen Sclerotinia sclerotiorum in oilseed rape. Front. Plant Sci. 2019, 10, 91. [Google Scholar] [CrossRef]
  51. Tohge, T.; Watanabe, M.; Hoefgen, R.; Fernie, A.R. The evolution of phenylpropanoid metabolism in the green lineage. CRBMol. Biol. Rev. 2013, 2, 123–152. [Google Scholar] [CrossRef]
  52. Vogt, T. Phenylpropanoid biosynthesis. Mol. Plant 2010, 3, 2–20. [Google Scholar] [CrossRef]
  53. Kim, D.G.; Lyu, J.I.; Kim, J.M.; Seo, J.S.; Choi, H.I.; Jo, Y.D.; Kim, S.H.; Eom, S.H.; Ahn, J.W.; Bae, C.H.; et al. Identification of loci governing agronomic traits and mutation hotspots via a gbs-based genome-wide association study in a soybean mutant diversity pool. Int. J. Mol. Sci. 2022, 23, 10441. [Google Scholar] [CrossRef] [PubMed]

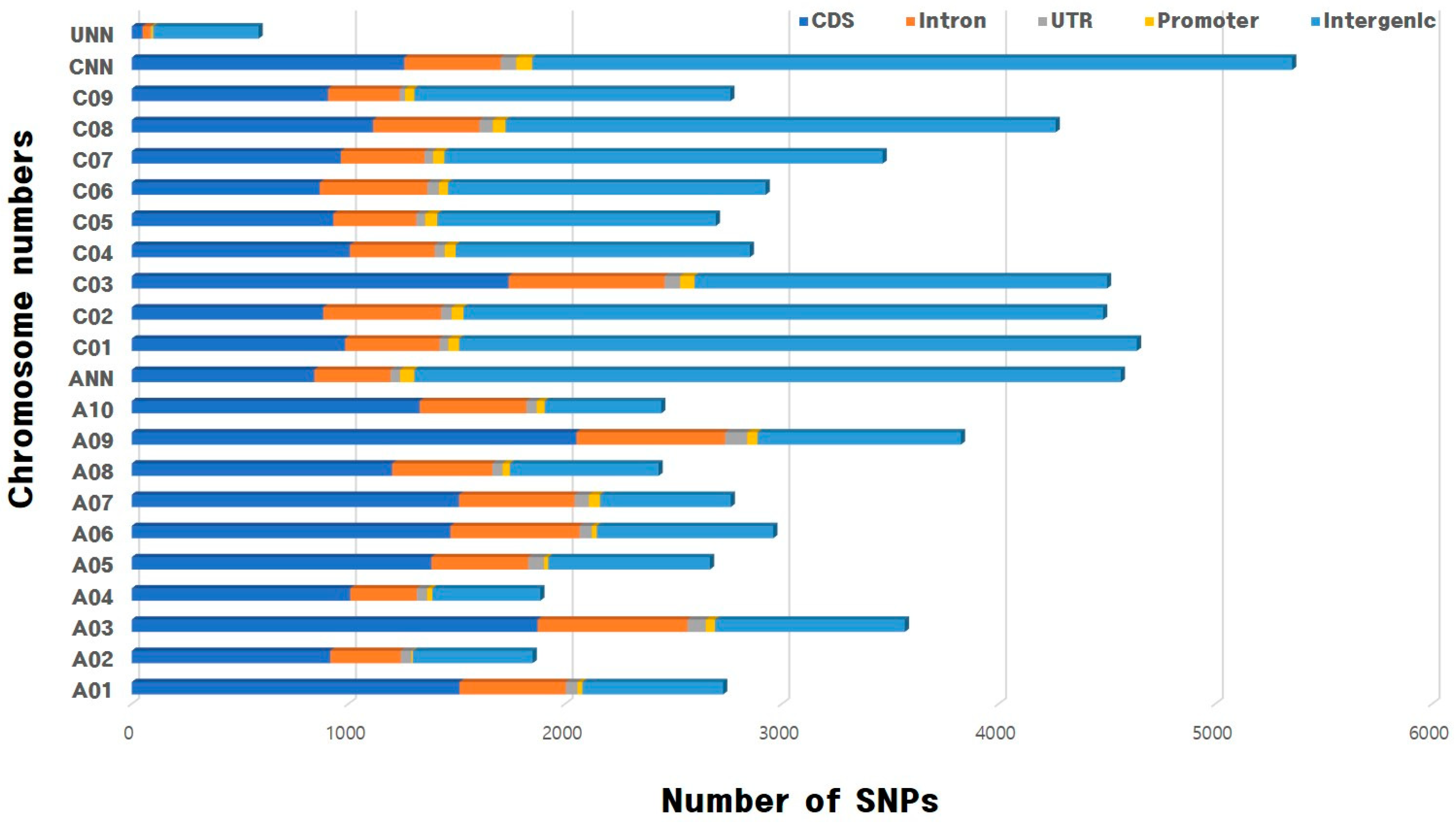

Figure 1. Chromosomal distribution of 70,208 union SNPs identified using GBS in 95 mutant lines obtained with gamma-ray irradiation treatment. Reference genome sequence: Brassica napus V.5.1 (http://www.genoscope.cns.fr/brassicanapus accessed on 10 April 2023).
Figure 1. Chromosomal distribution of 70,208 union SNPs identified using GBS in 95 mutant lines obtained with gamma-ray irradiation treatment. Reference genome sequence: Brassica napus V.5.1 (http://www.genoscope.cns.fr/brassicanapus accessed on 10 April 2023).
Horticulturae 09 01204 g001

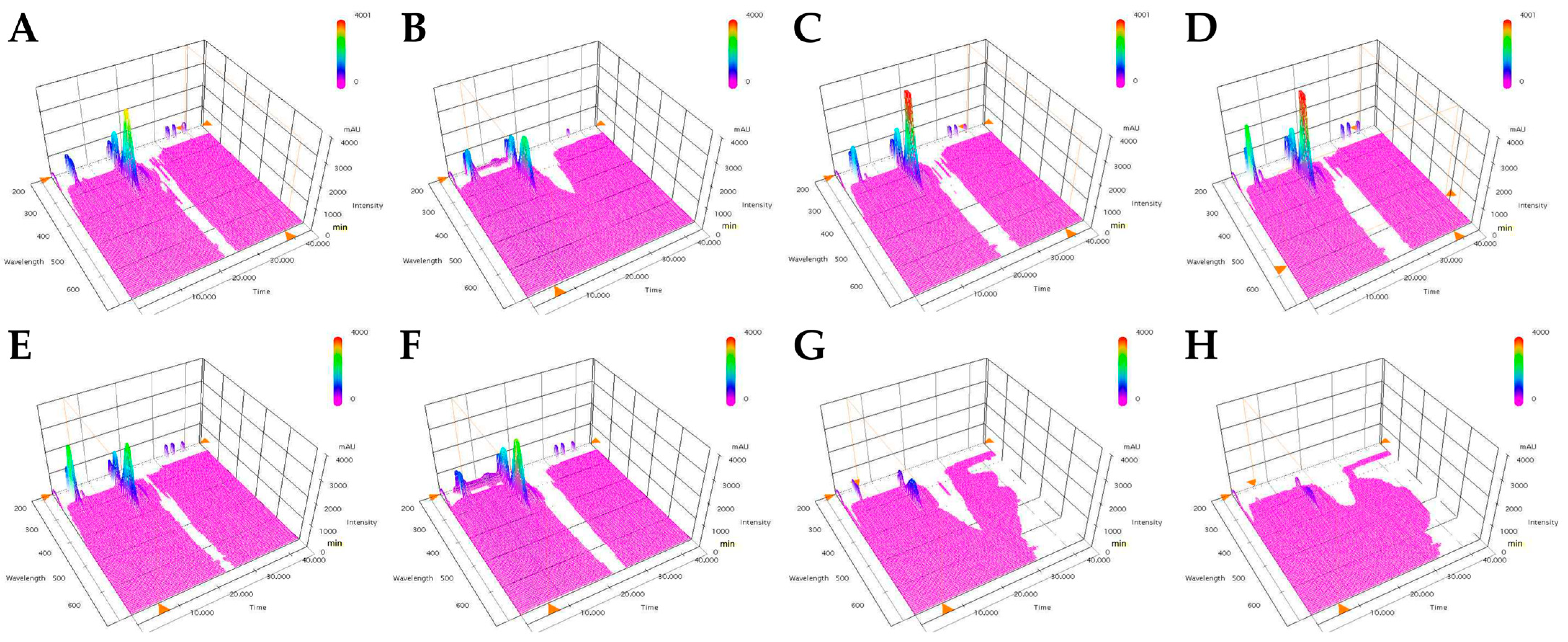

Figure 2. Three-dimensional chromatogram from UPLC analysis of different rapeseed genotypes. (A): ‘Youngsan’, (B): ‘Tammi’, (C): Y6-11, (D): Y6-81a, (E): Tm7M-1, (F): Tm10-3, (G): Tm10-5EF, and (H): Y6-29-30.
Figure 2. Three-dimensional chromatogram from UPLC analysis of different rapeseed genotypes. (A): ‘Youngsan’, (B): ‘Tammi’, (C): Y6-11, (D): Y6-81a, (E): Tm7M-1, (F): Tm10-3, (G): Tm10-5EF, and (H): Y6-29-30.
Horticulturae 09 01204 g002

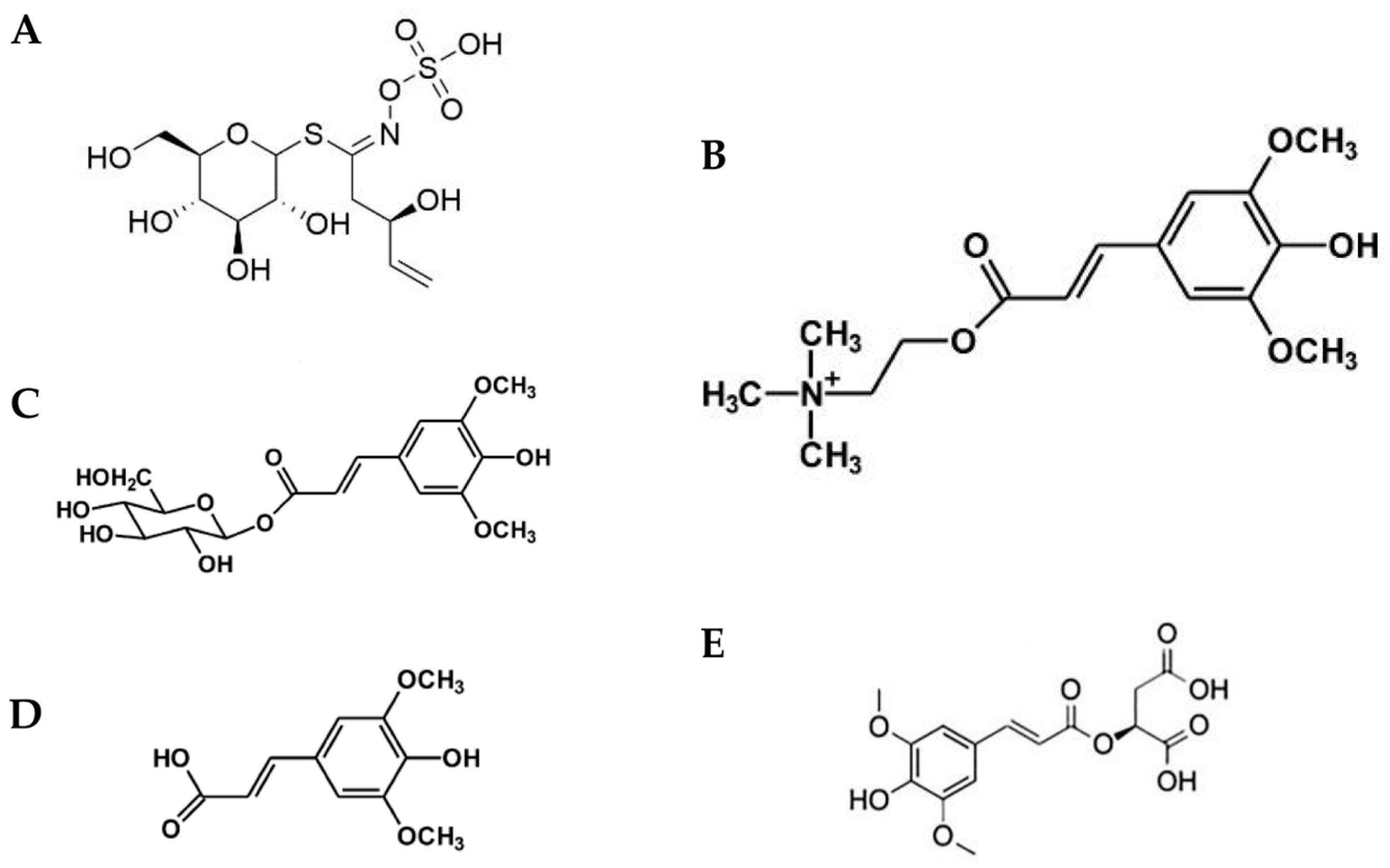

Figure 3. Chemical structure of major glucosinolate (A) and phenolic (BE) in rapeseed seed. (A): Progoitrin, (B): sinapine, (C): sinapine(4-O-8′)guaiacyl, (D): sinapoyl malate, and (E): sinapate.
Figure 3. Chemical structure of major glucosinolate (A) and phenolic (BE) in rapeseed seed. (A): Progoitrin, (B): sinapine, (C): sinapine(4-O-8′)guaiacyl, (D): sinapoyl malate, and (E): sinapate.
Horticulturae 09 01204 g003

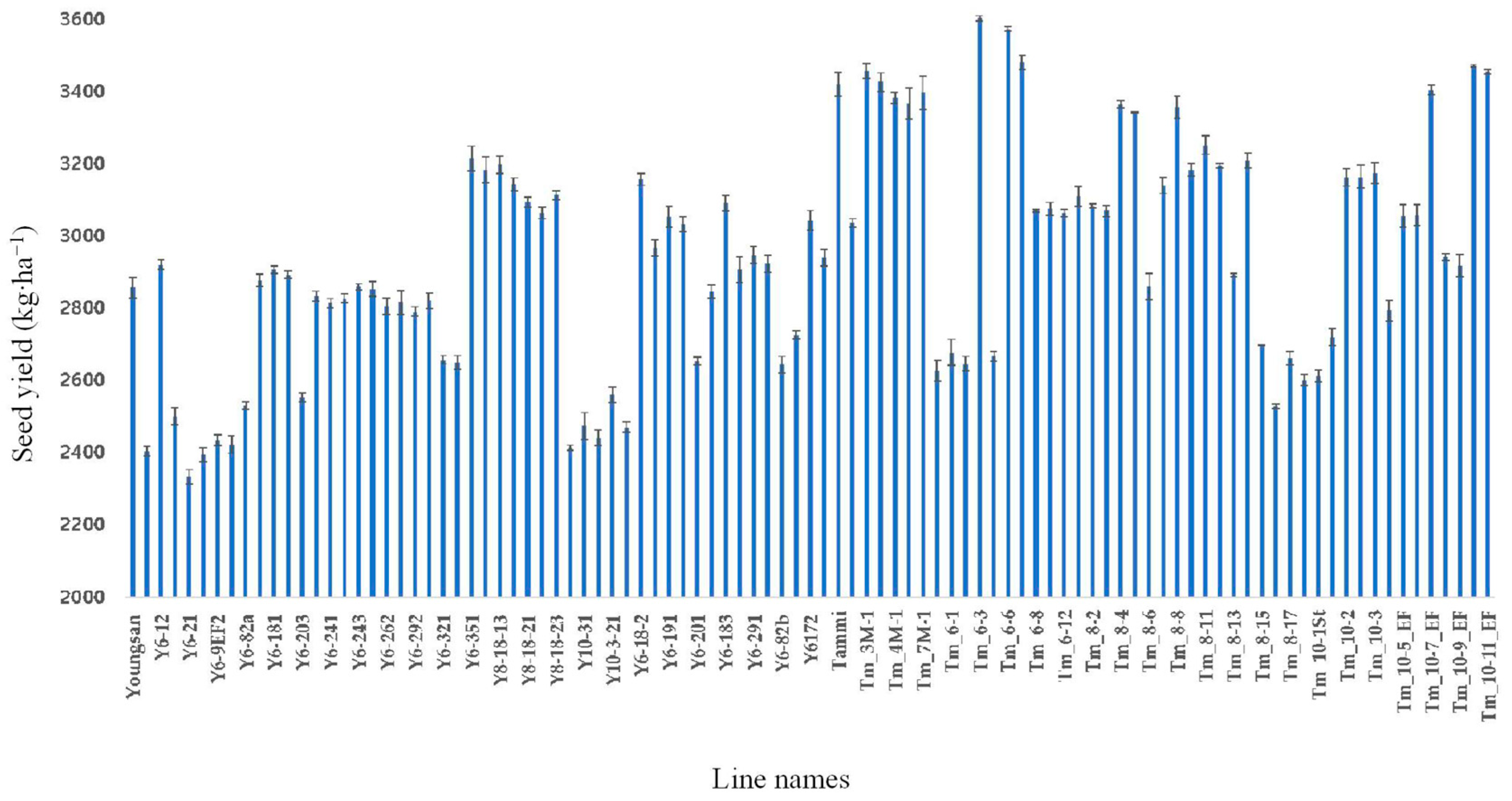

Figure 4. Seed yield in the two original cultivars and 95 mutant lines.
Figure 4. Seed yield in the two original cultivars and 95 mutant lines.
Horticulturae 09 01204 g004

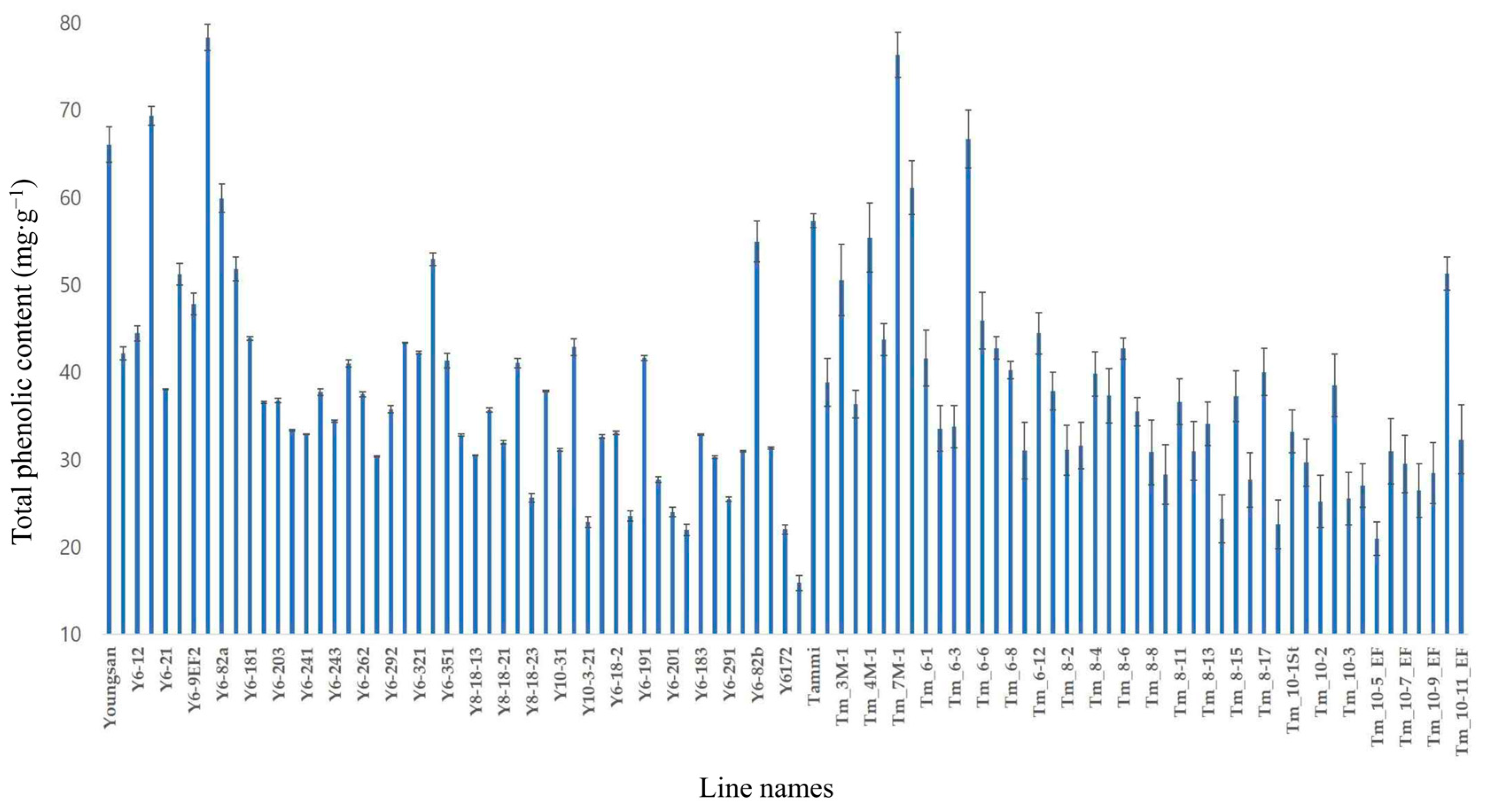

Figure 5. Total phenolic compound contents in 97 rapeseed genotypes (n = 3 per genotype).
Figure 5. Total phenolic compound contents in 97 rapeseed genotypes (n = 3 per genotype).
Horticulturae 09 01204 g005

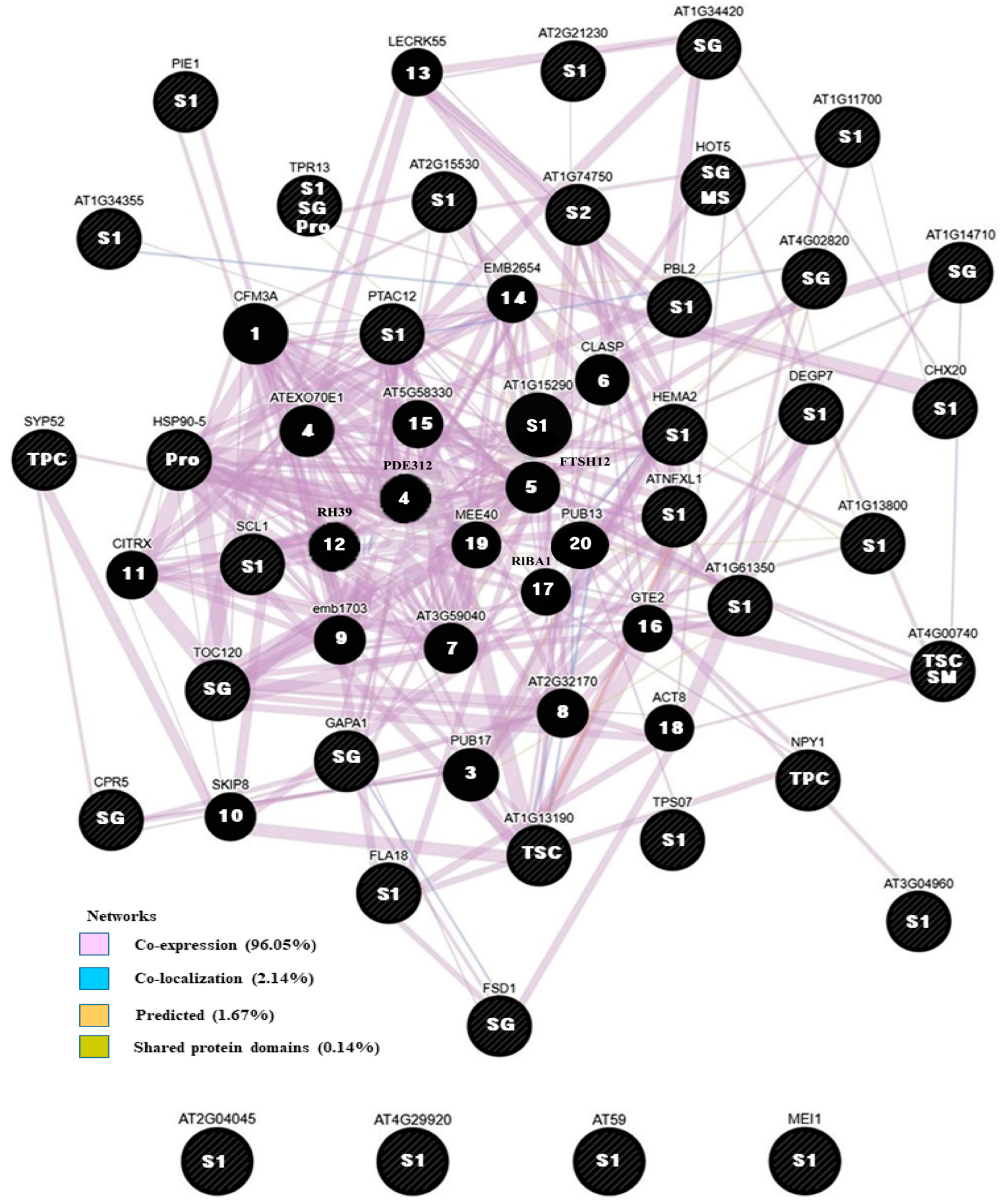

Figure 6. Networking analysis of phenolics and glucosinolate-associated genes harboring SNPs, constructed using GeneMANIA. S1: trans-sinapine 1, S2: trans-sinapine 2, SG: sinapine(4-O-8′)guaiacyl, SM: sinapoyl malate, TPC: total phenolic content, TSC: total sinapine content, MS: methyl sinapate, Pro: progoitrin, 1–20: rank number.
Figure 6. Networking analysis of phenolics and glucosinolate-associated genes harboring SNPs, constructed using GeneMANIA. S1: trans-sinapine 1, S2: trans-sinapine 2, SG: sinapine(4-O-8′)guaiacyl, SM: sinapoyl malate, TPC: total phenolic content, TSC: total sinapine content, MS: methyl sinapate, Pro: progoitrin, 1–20: rank number.
Horticulturae 09 01204 g006
Table 1. Summary of GBS data and alignment to the reference genome sequence.
Table 1. Summary of GBS data and alignment to the reference genome sequence.
TotalAverage/Plant
Raw data
Reads1,088,590,05411,222,578
Bases (bp)164,377,098,1541,694,609,259
After trimming
Reads967,244,8849,971,597
Bases (bp)107,921,780,4991,112,595,675
Mapped reads on reference genome 1
Mapped reads740,184,0767,630,764
Bases (bp)1,765,446,13418,200,476
Reference genome coverage (%)2.14
Reference genome depth15.82
1 Reference genome sequence: Brassica napus V5.1 (http://www.genoscope.cns.fr/brassicanapus accessed on 10 April 2023).
Table 2. Contents of phenolic compounds in seed extracts from 97 different rapeseed genotypes.
Table 2. Contents of phenolic compounds in seed extracts from 97 different rapeseed genotypes.
No.Line
Names
DihexoseProgoitrintrans-
Sinapine 1
trans-
Sinapine 2
Sinapine (4-O-8′) GuaiacylSinapoyl
Malate
Methyl
Sinapate
Total
1Youngsan0.70 ± 0.290.15 ± 0.0616.03 ± 0.0417.65 ± 2.000.14 ± 0.080.94 ± 0.110.05 ± 0.0135.66 ± 2.69
2Y6-30.49 ± 0.210.24 ± 0.0713.25 ± 2.0011.77 ± 1.040.15 ± 0.020.22 ± 0.050.05 ± 0.0126.18 ± 3.50
3Y6-120.56 ± 0.200.18 ± 0.0214.00 ± 2.0412.50 ± 1.130.16 ± 0.010.27 ± 0.060.06 ± 0.0227.73 ± 3.58
4Y6-110.52 ± 0.230.13 ± 0.0718.46 ± 0.3022.89 ± 0.880.16 ± 0.060.30 ± 0.060.04 ± 0.0142.50 ± 1.71
5Y6-210.38 ± 0.130.16 ± 0.0612.41 ± 1.0409.11 ± 0.550.21 ± 0.040.04 ± 0.010.18 ± 0.0722.48 ± 1.99
6Y6-9EF10.60 ± 0.240.13 ± 0.0714.74 ± 0.7414.18 ± 1.470.20 ± 0.060.68 ± 0.130.04 ± 0.0130.57 ± 2.82
7Y6-9EF20.67 ± 0.300.26 ± 0.0514.87 ± 0.2513.54 ± 1.400.18 ± 0.030.32 ± 0.060.04 ± 0.0129.88 ± 2.21
8Y6-81a1.48 ± 0.660.40 ± 0.0018.07 ± 1.1324.77 ± 1.450.21 ± 0.030.81 ± 0.150.29 ± 0.0846.03 ± 3.71
9Y6-82a1.23 ± 0.550.36 ± 0.0115.70 ± 0.8816.85 ± 1.650.23 ± 0.040.69 ± 0.120.25 ± 0.0735.31 ± 3.43
10Y6-1711.11 ± 0.480.34 ± 0.0213.82 ± 0.2414.19 ± 1.550.20 ± 0.020.63 ± 0.120.22 ± 0.0730.51 ± 2.60
11Y6-1810.40 ± 0.130.15 ± 0.0513.72 ± 0.8810.19 ± 0.820.08 ± 0.000.34 ± 0.100.12± 0.0425.01 ± 2.01
12Y6-1920.43 ± 0.160.15 ± 0.0511.25 ± 1.1209.12 ± 0.570.07 ± 0.000.34 ± 0.090.15 ± 0.0521.51 ± 2.04
13Y6-2030.29 ± 0.100.14 ± 0.0612.06 ± 0.5809.78 ± 0.720.17 ± 0.030.02 ± 0.010.12 ± 0.0422.59 ± 1.54
14Y6-2210.33 ± 0.120.15 ± 0.0510.95 ± 0.5508.72 ± 0.500.18 ± 0.050.02 ± 0.010.13 ± 0.0420.49 ± 1.31
15Y6-2410.32 ± 0.120.15 ± 0.0510.81 ± 0.0308.85 ± 0.530.19 ± 0.050.02 ± 0.000.12 ± 0.0420.47 ± 0.83
16Y6-2420.28 ± 0.100.14 ± 0.0612.77 ± 0.2310.14 ± 0.820.16 ± 0.030.02 ± 0.010.14 ± 0.0423.64 ± 1.29
17Y6-2430.29 ± 0.100.14 ± 0.0511.63 ± 1.4709.39 ± 0.640.14 ± 0.030.02 ± 0.000.11 ± 0.0321.72 ± 2.34
18Y6-2510.90 ± 0.400.27 ± 0.0313.43 ± 1.2410.93 ± 1.050.28 ± 0.080.01 ± 0.000.11 ± 0.0325.93 ± 2.83
19Y6-2620.40 ± 0.120.16 ± 0.0411.94 ± 0.1710.17 ± 0.860.19 ± 0.050.01 ± 0.000.14 ± 0.0423.01 ± 1.28
20Y6-2710.33 ± 0.110.10 ± 0.0209.74 ± 1.4008.46 ± 0.480.13 ± 0.030.02 ± 0.010.08 ± 0.0318.87 ± 2.07
21Y6-2920.25 ± 0.060.13 ± 0.0510.97 ± 1.2209.28 ± 0.770.07 ± 0.010.05 ± 0.010.14 ± 0.0620.89 ± 2.20
22Y6-2940.29 ± 0.090.13 ± 0.0512.69 ± 0.0810.62 ± 1.020.11 ± 0.040.01 ± 0.000.18 ± 0.0724.03 ± 1.34
23Y6-3210.30 ± 0.110.09 ± 0.0212.08 ± 1.4509.54 ± 0.880.13 ± 0.020.04 ± 0.010.10 ± 0.0422.27 ± 2.54
24Y6-3220.44 ± 0.170.10 ± 0.0116.71 ± 1.5313.38 ± 1.610.15 ± 0.030.04 ± 0.010.17 ± 0.0630.99 ± 3.43
25Y6-3510.46 ± 0.220.09 ± 0.0412.26 ± 0.0212.78 ± 1.350.11 ± 0.020.19 ± 0.040.04 ± 0.0125.94 ± 1.70
26Y8-18-120.33 ± 0.130.11 ± 0.0110.64 ± 1.6509.07 ± 0.670.08 ± 0.020.03 ± 0.010.12 ± 0.0420.37 ± 2.53
27Y8-18-130.31 ± 0.110.10 ± 0.0209.82 ± 1.6308.41 ± 0.480.06 ± 0.020.04 ± 0.010.08 ± 0.0218.82 ± 2.28
28Y8-18-140.41 ± 0.170.13 ± 0.0011.24 ± 0.2209.69 ± 0.770.07 ± 0.020.04 ± 0.010.13 ± 0.0621.72 ± 1.25
29Y8-18-210.31 ± 0.110.09 ± 0.0210.01 ± 1.5508.37 ± 0.500.07 ± 0.020.02 ± 0.010.10 ± 0.0318.98 ± 2.24
30Y8-18-220.35 ± 0.130.11 ± 0.0213.04 ± 1.3310.94 ± 1.080.09 ± 0.020.03 ± 0.010.16 ± 0.0724.71 ± 2.65
31Y8-18-230.25 ± 0.080.09 ± 0.0207.66 ± 0.6006.74 ± 0.180.05 ± 0.020.02 ± 0.010.11 ± 0.0414.91 ± 0.95
32Y10-120.37 ± 0.130.16 ± 0.0410.26 ± 0.8208.99 ± 0.770.09 ± 0.030.06 ± 0.020.18 ± 0.0720.11 ± 1.88
33Y10-310.23 ± 0.080.09 ± 0.0209.57 ± 0.2208.11 ± 0.510.07 ± 0.030.03 ± 0.010.14 ± 0.0518.24 ± 0.93
34Y10-320.31 ± 0.110.09 ± 0.0212.85 ± 0.6910.45 ± 1.310.14 ± 0.040.05 ± 0.010.17 ± 0.0824.06 ± 2.28
35Y10-3-210.33 ± 0.110.14 ± 0.0407.20 ± 0.5706.05 ± 0.070.06 ± 0.010.04 ± 0.010.07 ± 0.0213.89 ± 0.84
36Y10-1b20.43 ± 0.180.12 ± 0.0010.15 ± 0.1208.20 ± 0.510.19 ± 0.050.02 ± 0.000.11 ± 0.0419.22 ± 0.91
37Y6-18-20.27 ± 0.090.09 ± 0.0309.79 ± 0.4907.94 ± 0.490.04 ± 0.010.02 ± 0.000.11 ± 0.0318.25 ± 1.14
38Y6-81b0.40 ± 0.140.15 ± 0.0407.39 ± 0.7206.18 ± 0.090.07 ± 0.010.03 ± 0.010.05 ± 0.0114.27 ± 1.03
39Y6-1910.37 ± 0.120.10 ± 0.0213.00 ± 0.2309.84 ± 0.950.07 ± 0.030.02 ± 0.010.14 ± 0.0523.54 ± 1.41
40Y8-18-110.25 ± 0.100.09 ± 0.0208.53 ± 0.5707.26 ± 0.320.06 ± 0.010.02 ± 0.010.13 ± 0.0516.35 ± 1.08
41Y6-2010.51 ± 0.200.14 ± 0.0107.18 ± 0.5006.28 ± 0.130.15 ± 0.040.02 ± 0.010.08 ± 0.0214.37 ± 0.91
42Y6-2020.20 ± 0.070.08 ± 0.0207.05 ± 0.0705.78 ± 0.060.08 ± 0.020.02 ± 0.010.11 ± 0.0313.32 ± 0.27
43Y6-1830.46 ± 0.150.10 ± 0.0209.16 ± 0.5807.80 ± 0.500.04 ± 0.020.02 ± 0.010.14 ± 0.0417.73 ± 1.32
44Y6-2520.37 ± 0.120.10 ± 0.0109.76 ± 0.5308.12 ± 0.540.15 ± 0.040.01 ± 0.000.07 ± 0.0218.59 ± 1.26
45Y6-2910.29 ± 0.090.10 ± 0.0206.85 ± 0.0506.69 ± 0.260.04 ± 0.010.10 ± 0.020.11 ± 0.0314.17 ± 0.49
46Y6-2220.37 ± 0.150.10 ± 0.0109.73 ± 0.4708.30 ± 0.620.13 ± 0.030.02 ± 0.010.12 ± 0.0518.77 ± 1.34
47Y6-82b1.41 ± 0.700.29 ± 0.0813.32 ± 0.8216.32 ± 2.640.09 ± 0.030.71 ± 0.160.25 ± 0.0732.39 ± 4.50
48Y6-220.41 ± 0.170.11 ± 0.0108.91 ± 0.3507.69 ± 0.550.17 ± 0.030.02 ± 0.010.14 ± 0.0617.44 ± 1.18
49Y61720.32 ± 0.110.10 ± 0.0106.41 ± 0.5405.50 ± 0.110.05 ± 0.010.02 ± 0.000.06 ± 0.0212.47 ± 0.80
50Y6-29-300.39 ± 0.130.15 ± 0.0304.31 ± 0.6404.01 ± 0.160.03 ± 0.010.03 ± 0.010.04 ± 0.0108.96 ± 0.99
51Tammi0.21 ± 0.040.08 ± 0.0107.64 ± 1.6322.22 ± 1.480.12 ± 0.031.08 ± 0.270.09 ± 0.0331.45 ± 3.50
52Tm2M-10.30 ± 0.060.05 ± 0.0103.67 ± 0.6617.14 ± 1.320.05 ± 0.020.29 ± 0.070.04 ± 0.0121.54 ± 2.15
53Tm3M-10.69 ± 0.130.45 ± 0.1903.36 ± 0.5517.96 ± 1.400.01 ± 0.000.35 ± 0.090.07 ± 0.0322.89 ± 2.39
54Tm3M-20.07 ± 0.010.08 ± 0.0118.85 ± 1.7412.29 ± 2.720.05 ± 0.010.30 ± 0.080.02 ± 0.0131.65 ± 4.58
55Tm4M-10.48 ± 0.040.35 ± 0.1304.50 ± 0.7719.64 ± 1.350.07 ± 0.030.86 ± 0.200.07 ± 0.0225.97 ± 2.54
56Tm4M-20.34 ± 0.030.10 ± 0.0104.15 ± 0.6719.71 ± 1.550.07 ± 0.030.41 ± 0.100.06 ± 0.0224.84 ± 2.41
57Tm7M-10.57 ± 0.120.41 ± 0.0907.09 ± 0.9725.67 ± 1.220.12 ± 0.041.01 ± 0.260.31 ± 0.0935.18 ± 2.79
58Tm7M-20.52 ± 0.110.37 ± 0.0704.39 ± 1.1419.56 ± 1.300.09 ± 0.030.78 ± 0.200.24 ± 0.0725.94 ± 2.91
59Tm6-10.03 ± 0.010.08 ± 0.0111.41 ± 1.8212.92 ± 2.770.07 ± 0.020.02 ± 0.010.02 ± 0.0124.55 ± 4.65
60Tm6-20.06 ± 0.000.13 ± 0.0206.34 ± 0.9911.16 ± 2.590.04 ± 0.020.02 ± 0.010.02 ± 0.0117.78 ± 3.63
61Tm6-30.05 ± 0.000.14 ± 0.0103.80 ± 0.5012.30 ± 2.880.05 ± 0.020.03 ± 0.010.02 ± 0.0116.38 ± 3.43
62Tm6-40.54 ± 0.100.48 ± 0.0004.82 ± 1.1421.71 ± 0.900.10 ± 0.030.87 ± 0.220.27 ± 0.0828.79 ± 2.47
63Tm6-60.21 ± 0.030.11 ± 0.0004.79 ± 0.9424.41 ± 1.380.07 ± 0.020.38 ± 0.090.01 ± 0.0029.98 ± 2.47
64Tm6-70.43 ± 0.070.50 ± 0.0504.54 ± 0.8011.23 ± 2.650.05 ± 0.020.03 ± 0.010.02 ± 0.0116.80 ± 3.61
65Tm6-80.39 ± 0.060.35 ± 0.0403.10 ± 0.3511.21 ± 2.650.04 ± 0.010.02 ± 0.010.02 ± 0.0115.13 ± 3.12
66Tm6-100.03 ± 0.010.07 ± 0.0002.77 ± 0.4312.22 ± 2.710.04 ± 0.010.02 ± 0.010.02 ± 0.0115.16 ± 3.18
67Tm6-120.55 ± 0.090.40 ± 0.0304.86 ± 0.9816.93 ± 1.010.07 ± 0.020.02 ± 0.010.02 ± 0.0122.85 ± 2.15
68Tm6-130.13 ± 0.010.08 ± 0.0004.06 ± 0.8113.70 ± 2.660.06 ± 0.020.03 ± 0.010.03 ± 0.0118.09 ± 3.52
69Tm8-20.10 ± 0.040.07 ± 0.0102.85 ± 0.5411.25 ± 2.530.04 ± 0.010.03 ± 0.010.02 ± 0.0114.37 ± 3.14
70Tm8-30.04 ± 0.000.06 ± 0.0009.94 ± 2.3511.65 ± 2.660.05 ± 0.010.07 ± 0.020.03 ± 0.0121.84 ± 5.06
71Tm8-40.13 ± 0.020.06 ± 0.0113.21 ±3.3413.43 ± 2.660.09 ± 0.020.05 ± 0.010.04 ± 0.0127.01 ± 6.07
72Tm8-50.03 ± 0.010.06 ± 0.0120.81 ± 1.3211.85 ± 2.860.07 ± 0.020.06 ± 0.020.02 ± 0.0132.91 ± 4.23
73Tm8-60.09 ± 0.020.07 ± 0.0022.15 ± 1.5718.04 ± 0.300.10 ± 0.020.06 ± 0.020.04 ± 0.0140.55 ± 1.94
74Tm8-70.14 ± 0.030.08 ± 0.0102.74 ± 0.6917.10 ± 1.030.09 ± 0.020.25 ± 0.060.01 ± 0.0020.40 ± 1.84
75Tm8-80.09 ± 0.000.07 ± 0.0004.85 ± 1.0311.00 ± 2.700.07 ± 0.020.04 ± 0.010.03 ± 0.0116.17 ± 3.77
76Tm8-100.07 ± 0.030.06 ± 0.0004.34 ± 0.8610.71 ± 2.470.05 ± 0.010.06 ± 0.020.02 ± 0.0115.31 ± 3.39
77Tm8-110.17 ± 0.040.31 ± 0.0405.54 ± 1.2012.38 ± 2.430.07 ± 0.020.05 ± 0.010.04 ± 0.0118.55 ± 3.75
78Tm8-120.08 ± 0.020.06 ± 0.0004.74 ± 1.1710.31 ± 2.380.05 ± 0.020.03 ± 0.010.03 ± 0.0115.30 ± 3.60
79Tm8-130.18 ± 0.010.27 ± 0.0307.81 ± 0.3815.66 ± 0.690.08 ± 0.020.04 ± 0.010.05 ± 0.0224.09 ±1.16
80Tm8-140.08 ± 0.000.05 ± 0.0104.38 ± 1.0907.92 ± 2.140.04 ± 0.010.03 ± 0.010.03 ± 0.0112.53 ± 3.27
81Tm8-150.17 ± 0.010.28 ± 0.0208.00 ± 1.9710.37 ± 2.430.08 ± 0.020.08 ± 0.020.05 ± 0.0219.03 ±4.49
82Tm8-160.09 ± 0.000.06 ± 0.0003.30 ± 0.7909.37 ± 2.330.12 ± 0.020.03 ± 0.010.04 ± 0.0113.02 ± 3.16
83Tm8-170.17 ± 0.010.31 ± 0.0008.42 ± 1.1811.47 ± 2.510.26 ± 0.040.07 ± 0.020.06 ± 0.0220.74 ± 3.78
84Tm10-10.08 ± 0.010.06 ± 0.0103.28 ± 0.7307.32 ± 2.030.10 ± 0.020.06 ± 0.010.02 ± 0.0110.92 ± 2.81
85Tm10-1St0.16 ± 0.020.30 ± 0.0305.39 ± 0.4209.93 ± 2.280.34 ± 0.060.04 ± 0.000.03 ± 0.0116.20 ± 2.82
86Tm10-1Lin0.13 ± 0.010.16 ± 0.0307.08 ± 0.8309.06 ± 2.150.03 ± 0.010.02 ± 0.010.03 ± 0.0116.52 ± 3.05
87Tm10-20.09 ± 0.020.07 ± 0.0002.12 ± 0.3307.52 ± 2.040.12 ± 0.020.04 ± 0.010.02 ± 0.0109.98 ± 2.43
88Tm10Oel0.14 ± 0.010.22 ± 0.0311.30 ± 1.7512.54 ± 2.190.13 ± 0.020.02 ± 0.010.05 ± 0.0224.40 ± 4.03
89Tm10-30.08 ± 0.000.05 ± 0.0025.85 ± 1.3201.11 ± 0.250.05 ± 0.010.03 ± 0.010.04 ± 0.0227.21 ± 1.60
90Tm10-4EF0.51 ± 0.080.20 ± 0.0403.11 ± 0.5807.95 ± 2.030.30 ± 0.060.03 ± 0.010.02 ± 0.0112.13 ± 2.81
91Tm10-5EF0.10 ± 0.010.08 ± 0.0301.86 ± 0.3606.93 ± 1.920.14 ± 0.020.03 ± 0.010.03 ± 0.0109.18 ± 2.35
92Tm10-6EF0.08 ± 0.010.04 ± 0.0008.02 ± 1.8010.28 ± 2.090.10 ± 0.030.03 ± 0.010.05 ± 0.0218.60 ± 3.95
93Tm10-7EF0.09 ± 0.010.06 ± 0.0104.51 ± 0.2610.40 ± 2.130.31 ± 0.060.02 ± 0.000.02 ± 0.0115.39 ± 2.47
94Tm10-8EF0.08 ± 0.010.04 ± 0.0008.61 ± 0.5408.03 ± 2.030.06 ± 0.010.13 ± 0.030.04 ± 0.0116.99 ± 2.64
95Tm10-9EF0.28 ± 0.100.03 ± 0.0104.36 ± 0.3010.81 ± 2.000.27 ± 0.060.03 ± 0.010.04 ± 0.0115.83 ± 2.49
96Tm10-10EF0.06 ± 0.010.22 ± 0.0204.88 ± 0.2720.93 ± 0.870.53 ± 0.120.80 ± 0.160.27 ± 0.0727.68 ± 1.53
97Tm10-11EF0.31 ± 0.110.04 ± 0.0111.82 ± 0.8309.59 ± 2.160.33 ± 0.080.05 ± 0.010.05 ± 0.0222.20 ± 3.21
Values (mean ± SD) of extracts analyzed individually in triplicate.
Table 3. A summary of the SNPs significantly associated with phenolic compounds.
Table 3. A summary of the SNPs significantly associated with phenolic compounds.
CompoundsSNP No.SNP Loci
Dihexose5BnaC02g20420D, BnaA03g40510D, BnaA03g18260D, BnaC03g32440D, BnaC03g20990D
Progoitrin15BnaC08g30570D, BnaC06g02290D, BnaC06g02290D, BnaA06g31740D, BnaC01g10570D, BnaA01g13400D, BnaC04g51220D, BnaA08g28090D, BnaC07g03420D, BnaC01g13560D, BnaC01g04810D, BnaC05g24360D, BnaAnng10510D, BnaA08g24650D, BnaC09g27750D
trans-sinapine 127BnaCnng39930D, BnaC02g35370D, BnaC06g07520D, BnaA09g13790D, BnaAnng26190D, BnaC05g11590D, BnaC08g35930D, BnaA09g19450D, BnaA06g07300D, BnaA06g08830D, BnaCnng18490D, BnaC06g38030D, BnaA08g09430D, BnaC06g08200D, BnaCnng23620D, BnaA10g22100D, BnaCnng58110D, BnaA01g20360D, BnaA07g37760D, BnaC04g10570D, BnaA09g24030D, BnaA06g09240D, BnaC04g10570D, BnaA08g25950D, BnaC05g46690D, BnaA07g31720D, BnaC03g31950D
trans-sinapine 21BnaA07g31720D
Total sinapine content5BnaC06g38030D, BnaC05g08990D, BnaC03g31950D, BnaAnng09880D, BnaA06g09180D
Sinapine(4-O-8′)guaiacyl13BnaA09g16810D, BnaA05g23210D, BnaC07g23750D, BnaCnng31150D, BnaC09g23720D, BnaC09g22600D, BnaC08g16340D, BnaC03g49370D, BnaC01g17020D, BnaA08g06400D, BnaC02g26880D, BnaC09g54330D, BnaC07g23750D
Methyl sinapate41BnaCnng46600D, BnaCnng42240D, BnaCnng31900D, BnaCnng20310D, BnaCnng13750D, BnaC09g41550D, BnaC09g26810D, BnaC09g24670D, BnaC09g17390D, BnaC07g04160D, BnaC06g18890D, BnaC06g18590D, BnaC06g07440D, BnaC06g07070D, BnaC06g06790D, BnaC05g04580D, BnaC04g56040D, BnaC03g70630D, BnaC03g50270D, BnaC03g32630D, BnaC03g09080D, BnaC02g16010D, BnaC01g41960D, BnaC01g21850D, BnaC01g16590D, BnaC01g05320D, BnaAnng07310D, BnaA10g14470D, BnaA10g11420D, BnaA10g00800D, BnaA09g16810D, BnaA08g12900D, BnaA04g14130D, BnaA03g31990D, BnaA01g27460D, BnaA01g25280D, BnaA01g19380D, BnaA01g19380D, BnaA01g19380D, BnaA01g19380D, BnaA01g06890D
Sinapoyl malate1BnaC03g31950D
Total phenolic content2BnaC01g06630D, BnaAnng27700D
Table 4. Association study highlighting candidate genes associated with phenolic compounds in rapeseed mutant lines.
Table 4. Association study highlighting candidate genes associated with phenolic compounds in rapeseed mutant lines.
TriatsChr_PositionLOG10(P)Transcript:FeatureDescriptionTAIR IDAllele
DI aC02_168596484.70BnaC02g20420D:CDSUlp1 protease family proteinAT5G45570T/G
MS bA01_ 192002786.74BnaA01g06890D:CDSHeavy metal atpase 2AT4G30110C/T
Pro cC08_302920425.66BnaC08g30570D:CDSARABIDILLO-2AT3G60350A/T
ProA06_212720254.68BnaA06g31740D:CDSTetratricopeptide repeat (TPR)-like superfamily proteinAT3G27960C/T
SG dA09_101095766.52BnaA09g16810D:IntronGroES-like zinc-binding dehydrogenase family proteinAT5G43940T/C
S1 eCNN_385000126.42BnaCnng39930D:CDSRING/U-box superfamily proteinAT2G15530G/A
S2 fA07_220865124.59BnaA07g31720D:CDSPentatricopeptide repeat (PPR) superfamily proteinAT1G79590G/T
TSC gANN_105917014.47BnaAnng09880D:CDSNo annotated function-A/T
TSCSC06_357939284.33BnaC06g38030D:CDS Transcription coactivatorsAT1G77320G/T
TSCC03_196513134.25BnaC03g31950D:IntronS-adenosyl-L-methionine-dependent methyltransferases superfamily proteinAT4G00740T/G
SM h4.59
TSCC05_48431544.21BnaC05g08990D:promoterRNA-binding (RRM/RBD/RNP motifs) family protein G/A
TSCA06_49699994.07BnaA06g09180D:IntronProtein kinase 2A A/T
TPC iANN_317050695.39BnaAnng27700D:promoterSyntaxin of plants 52AT1G79590G/T
a DI: dihexose, b MS: methyl sinapate, c Pro: progoitrin, d SG: sinapine(4-O-8′)guaiacyl, e S1: trans-sinapine 1, f S2: trans-sinapine 2, g TSC: total sinapine content, h SM: sinapoyl malate, i TPC: total phenolic content.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, D.-G.; Ryu, J.; Yang, B.; Lee, Y.-J.; Kim, J.H.; Kim, J.; Kim, W.J.; Kim, S.H.; Kwon, S.-J.; Kim, J.-B.; et al. Genetic Variation and Association Analysis of Phenolic Compounds in Rapeseed (Brassica napus L.) Mutant Lines Using Genotyping-by-Sequencing (GBS). Horticulturae 2023, 9, 1204. https://doi.org/10.3390/horticulturae9111204

AMA Style

Kim D-G, Ryu J, Yang B, Lee Y-J, Kim JH, Kim J, Kim WJ, Kim SH, Kwon S-J, Kim J-B, et al. Genetic Variation and Association Analysis of Phenolic Compounds in Rapeseed (Brassica napus L.) Mutant Lines Using Genotyping-by-Sequencing (GBS). Horticulturae. 2023; 9(11):1204. https://doi.org/10.3390/horticulturae9111204

Chicago/Turabian Style

Kim, Dong-Gun, Jaihyunk Ryu, Baul Yang, Ye-Jin Lee, Jae Hoon Kim, Juyoung Kim, Woon Ji Kim, Sang Hoon Kim, Soon-Jae Kwon, Jin-Baek Kim, and et al. 2023. "Genetic Variation and Association Analysis of Phenolic Compounds in Rapeseed (Brassica napus L.) Mutant Lines Using Genotyping-by-Sequencing (GBS)" Horticulturae 9, no. 11: 1204. https://doi.org/10.3390/horticulturae9111204

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
