Genome-Wide Identification and Expression Analysis of MYB Transcription Factors and Their Responses to Abiotic Stresses in Woodland Strawberry (Fragaria vesca)

by
Huihui Li
2,†,
Yanwei Zhou
1,†,
Zongxin Ma
2,
Xiaoqing Lu
1,
Yunlong Li
1 and
Hong Chen
1,*
1
Institute of Botany, Jiangsu Province and Chinese Academy of Sciences, Nanjing 210014, China
2
Fuyang Academy of Agricultural Sciences, Fuyang 236065, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Horticulturae 2021, 7(5), 97; https://doi.org/10.3390/horticulturae7050097
Submission received: 30 March 2021 / Revised: 26 April 2021 / Accepted: 27 April 2021 / Published: 2 May 2021
(This article belongs to the Section Genetics, Genomics, Breeding, and Biotechnology (G2B2))
Browse Figures
Versions Notes

Abstract

:
Woodland strawberry (Fragaria vesca) is a diploid strawberry that is widely used as a model of cultivated octoploid strawberry (Fragaria × ananassa). It has also been used as a model for Rosaceae fruits, non-climacteric fruits, and stolons. The MYB superfamily is the largest transcription factor family in plants, and its members play important roles in plant growth and development. However, the complete MYB superfamily in woodland strawberry has not been studied. In this study, a total of 217 MYB genes were identified in woodland strawberry and classified into four groups: one 4R-MYB protein, five 3R-MYB proteins, 113 2R-MYB proteins, and 98 1R-MYB proteins. The phylogenetic relationship of each MYB subgroup was consistent in terms of intron/exon structure and conserved motif composition. The MYB genes in woodland strawberry underwent loss and expansion events during evolution. The transcriptome data revealed that most FveMYB genes are expressed in several organs, whereas 15 FveMYB genes exhibit organ-specific expression, including five genes (FveMYB101, -112, -44, and -8; FveMYB1R81) in roots, two genes (FveMYB62 and -77) in stolon tips, three genes (FveMYB99 and -35; FveMYB1R96) in open flowers, and five genes (FveMYB76 and -100; FveMYB1R4, -5, and -86) in immature fruits. During fruit ripening of woodland strawberry, the expression levels of 84 FveMYB genes were decreased, of which five genes (FveMYB4, -22, -50, and -66; FveMYB1R57) decreased more than 10-fold, whereas those 18 FveMYB genes were increased, especially FveMYB10 and FveMYB74 increased more than 30-fold. In addition, the expression levels of 36, 68, 52, and 62 FveMYB genes were altered by gibberellic acid, abscisic acid, cold, and heat treatments, respectively, and among them, several genes exhibited similar expression patterns for multiple treatments, suggesting possible roles in the crosstalk of multiple signaling pathways. This study provides candidate genes for the study of stolon formation, fruit development and ripening, and abiotic stress responses.

1. Introduction

Higher plants have evolved complex regulatory mechanisms to adapt to a constantly changing environment. Transcription factors are important components of these regulatory mechanisms due to their ability to regulate cell development, differentiation, and growth by binding to specific DNA sites to regulate gene expression. According to the type of DNA binding domain, transcription factors can be classified into different gene families, and among them, the MYB transcription factors comprise an important family containing numerous members [1,2,3].
MYB transcription factors are characterized by one to four conserved MYB domains (Myb_DNA-binding domains). Each domain contains approximately 52 amino acids and consists of three alpha helices, of which, helices 2 and 3 form a helix-turn-helix structure that inserts into the main groove of the target DNA that is recognized by helix 3 [4]. According to the number of MYB domain repeats, the MYB transcription factors can be classified into four subfamilies. The 2R-MYB proteins, also called R2R3-MYBs, contain two MYB domain repeats (generally R2 and R3 repeats). The 3R-MYB or R1R2R3-MYB proteins contain three MYB domain repeats (generally R1, R2, and R3). The 4R-MYB proteins contain four MYB domain repeats, and 1R-MYB or MYB-related proteins contain a single or partial MYB domain repeat [5].
In higher plants, R2R3-MYBs are the most widespread MYB proteins [6]. R2R3-MYB proteins not only play important roles in phenylpropanoid metabolism [7], flavonoid biosynthesis [8], anthocyanin biosynthesis [9], indolic and aliphatic glucosinolate biosynthesis [10], epidermis and root formation [11], and embryogenesis [12], but also protect plants against environmental stresses such as high salinity, cold, high temperature, drought, phosphate starvation, nitrogen deficiency, and so on [13]. The MYB-related subfamily may be older than the R2R3-MYB subfamily in terms of their evolutionary process [2]. MYB-related proteins may have different functions compared to R2R3-MYB and R1R2R3-MYB proteins due to their different manner of binding to target DNA [2]. MYB-related subfamily genes have attracted little attention, and few have been functionally studied; for example, some Circadian Clock Associated 1 (CCA1)-like genes are involved in maintaining the circadian rhythm [14,15,16], and some Caprice (CPC)-like genes are involved in controlling cell morphogenesis [17,18,19]. In animals, MYB proteins are encoded by a small gene family, usually 3R-MYBs [20]. As homologs, plant 3R-MYB proteins have been reported to participate in cell-cycle regulation and plant abiotic stress responses [21,22,23]. At present, the functions of 4R-MYB proteins remain unclear.
In Arabidopsis, MYB transcription factors have been investigated extensively. MYBs are widely involved in secondary metabolism, cell morphogenesis, signal transduction in plant growth, abiotic and biological stress responses, circadian rhythms, dorso-ventral relationships, and other physiological and biochemical activities [24]. Some MYB genes in other plant species are thought to be related to important agricultural features, such as reproductive development, wood formation, legume-specific nodules, and wine quality in grapes [25,26,27]. In addition, numerous MYB superfamily proteins in rice, cucumber, pear, peach, apple, and other plants have been defined and described as being involved in abiotic stress responses, hormones, anthers, and fruit development [27,28,29,30,31,32].
Cultivated strawberry is not only a popular fruit but also a typical non-climacteric fruit that has representative significance in the study of fruit development and ripening. As a diploid plant, the woodland strawberry genome is less complex than the cultivated strawberry genome, and it has become a model plant for studying strawberries, Rosaceae, and other non-climacteric fruits [33]. At present, there are limited reports on the woodland strawberry MYB superfamily, only the identification of R2R3-MYB subfamily members and a few functional studies [20,34,35]. Therefore, in this study, we comprehensively analyzed the entire MYB superfamily of woodland strawberry, including the less studied 1R-MYB, 3R-MYB, and 4R-MYB families. The phylogeny, gene structure, and chromosomal locations of these putative MYB genes were analyzed. In addition, the expression patterns of all MYB genes in various organs and tissues of woodland strawberry and seedlings under different treatments (cold and heat stress, and exogenous gibberellic acid (GA) and abscisic acid (ABA) treatments) were explored. This study provides basic information on the woodland strawberry MYB superfamily as well as important clues for studying the functions of possible MYB genes involved in stolon formation, fruit development and ripening, and responses to abiotic stresses in woodland strawberry.

2. Materials and Methods

2.1. Identification and Phylogenetic Analysis of MYB Proteins

The protein database and annotation information of woodland strawberry was downloaded from GDR (https://www.rosaceae.org/species/fragaria/fragaria_vesca (access on 13 May 2019)). First, the MYB DNA-binding domain HMM file (PF00249) from the Pfam database (https://pfam.xfam.org/(accessed on 13 May 2019)) was used as a query to look for possible MYB proteins in woodland strawberry. Secondly, each candidate MYB gene containing MYB DNA-binding domain was confirmed through the pfam website (https://pfam.xfam.org/(accessed on 13 May 2019)) with an E-value cut-off of 1 × e−4. The longest protein was selected when a gene had alternative splicing. Finally, 217 MYB proteins in woodland strawberry were identified.
198 Arabidopsis MYB gene names were issued by Chen et al. [36]. The corresponding Arabidopsis protein sequences were downloaded from Phytozome (https://phytozome.jgi.doe.gov/pz/portal.html (accessed on 13 May 2019)). In order to analyze the phylogenetic relationship and evolutionary history of the MYB gene family, four phylogenetic trees were set up in this paper. The protein sequence alignment was performed through ClustalX2.0 software with default settings to obtain faste files. The phylogenetic trees were created by MEGA 6.0 using the ML (Maximum Likelihood) method, and the bootstrap test was repeated 1000 times.

2.2. Chromosomal Location, Gene Structure, Conserved Domain, and Motif Analysis of MYB Genes

Conserved domains of woodland strawberry MYB proteins were obtained through the pfam website using Batch search (https://pfam.xfam.org/search#tabview=tab1 (accessed on 13 May 2019)). The conserved motifs were analyzed through MEME (http://meme-suite.org/tools/meme (accessed on 13 May 2019)), with the maximum number of motifs was 15, and other parameters default. The results of conserved domains and motifs were visualized through TBtools software. The chromosomal location, duplication events, and intron/exon structure of the woodland strawberry MYB genes were analyzed by utilizing TBtools software (Version No. 0.66763, South China Agricultural University, Guangzhou, China) [37].

2.3. Plant Materials and Treatments

The genome-sequenced diploid woodland strawberry “Hawaii 4” (Fragaria vesca) was used as plant material. The plants were grown in pots in a glass-enclosed greenhouse under native conditions. Immature fruits with seeds were collected at about 8–15 DPA, and roots, crowns, leaves, petioles, stolons, stolon tips, and fully open flowers were also sampled at the same time. All of the samples were rapidly frozen in liquid nitrogen, and then stored at −80 °C for RNA extraction. Roots, crowns, leaves, petioles, stolons, and immature fruits had three biological replicates, and stolon tips and fully open flowers had two biological replicates because of limited samples.
For cold, heat, GA3 and ABA treatments, ‘Hawaii 4′ seedlings were grown in a climate chamber under a 16 h light (22 °C) with 15,000 Lux irradiance and 8 h dark (20 °C) for about two months. To avoid photoperiod effect on gene expression during treatments, the growth conditions were reset as 24 h light (22 °C), and the seedlings were re-adaptation for three days before treatments. Afterwards, seedlings were transferred to another chamber maintained at 40 °C for heat treatment and at 4 °C for cold treatment. For GA3 and ABA treatment, the seedlings were sprayed with 50 mg/L GA3 and 100 μM ABA solution, respectively. At 0, 2, 6, 12, 24, and 48 h after treatments, the seedlings were collected, rapidly frozen in liquid nitrogen, and then stored at −80 °C for RNA extraction. Three biological replicates were performed.

2.4. Heat Map Construction of FveMYB Gene Expressions

The reads per kilobase per million (RPKM) values of transcriptome data in Figure 6B,D of woodland strawberry were downloaded from Li et al. (2019) [38]. The FPKM values of FveMYB genes in Figure 6A,C, 8–11 were selected from our own transcriptome data (accession number: PRJNA723745). Then RPKM and FPKM values were transformed in log2 level, and heat maps were constructed by MeV4.8 software (Dana-Farber Cancer Institute, Boston, MA, USA).

3. Results

3.1. Identification and Classification of MYB Proteins in Woodland Strawberry

The Myb_DNA-binding (PF00249) hidden Markov model profile was used as a query to search for potential MYB proteins in the woodland strawberry protein database. As a result, 217 proteins containing MYB domains were identified in woodland strawberry. According to the number of Myb_DNA-binding repeats, we categorized these proteins into four groups: one 4R-MYB, five 3R-MYBs, 113 2R-MYBs, and 98 1R-MYBs. Accordingly, these MYB proteins were named FveMYB4R1, FveMYB3R1–5, FveMYB1–113, and FveMYB1R1–98, respectively (Table S1).

3.2. Phylogenetic Analysis and Gene Structure of MYB Genes in Woodland Strawberry

According to a previous study in watermelon [39], the 1R-MYB subfamily exhibits greater differentiation and evolution capabilities than do the 2R-MYB and 3R-MYB subfamilies in plants. Thus, we used 2R-MYB and 3R-MYB proteins to construct one phylogenetic tree, while the 1R-MYB and 4R-MYB proteins were combined to construct another phylogenetic tree. Based on the bootstrap values and topology, the two phylogenetic trees are divided into 29 and 14 subgroups, respectively; these subgroups were named S1–29 and Sr1–14 (Figure 1A and Figure 2A).
To investigate the genetic structural diversity of FveMYBs, we analyzed the conserved motif structure and intron–exon organization. The motif compositions of most MYB proteins are similar in the 2R-MYB and 3R-MYB groups, but diverse in the 1R-MYB and 4R-MYB groups (Figure 1B and Figure 2B). In the 2R-MYB group, almost all proteins in subgroups S2–23 have Motifs 3, 5, 2, 4, and 1, except for FveMYB105 and FveMYB9, which lack Motif 5. In subgroup S1, the members have another conserved motif (Motif 11). S24 members have Motifs 3, 2, 4, and 1 as well as three specific motifs (Motif 15, 13, and 12). S26 and S27 members have Motifs 3, 9, 2, 4, and 1. S29 members have one Motif 8, one Motif 9, and two Motif 3s. S25 members, which belong to the 3R-MYB subfamily, have Motifs 3, 9, 2, 4, and 1 as well as one specific Motif 10 (Figure 1B). In the 1R-MYB group, the motif composition is much more diverse among the 14 subgroups but is similar within each subgroup with one or two specific motifs. For example, Sr2 contains Motif 10, Sr4 contains Motif 4, Sr5 and Sr6 contain Motif 3, Sr10 contains Motif 9, Sr12 contains Motifs 14 and 13, Sr13 contains Motif 15, and so on (Figure 2B). In addition, the motifs of most 2R-MYB proteins are usually located at the N terminus, whereas the motifs of 1R-MYBs are more scattered (Figure 1B and Figure 2B).
The intron–exon organization of 1R-MYB genes is much more variable than that of 2R-MYB genes (Figure 1C and Figure 2C); ~66% of 2R-MYB genes have a conserved splicing pattern showing a structure of three exons separated by two introns (Figure 1C), whereas ~61% of 1R-MYBs have at least four introns, with a maximum number of 19 introns (Figure 2C). Six 2R-MYB genes (FveMYB94, -110, -26, -25, -4, and -14) and two 1R-MYB genes (FveMYB1R79 and -90) have no introns (Figure 1C and Figure 2C). These findings imply that 2R-MYB genes are conservative, whereas 1R-MYB genes are diverse in their evolutionary processes. The five 3R-MYB genes contain at least five introns, with a maximum number of 11 introns. The only 4R-MYB gene (FveMYB4R1) contains eight introns. The degree of variable splicing in the genes of these two subfamilies is higher than that of the 2R-MYB subfamily, and closer to the 1R-MYB subfamily.

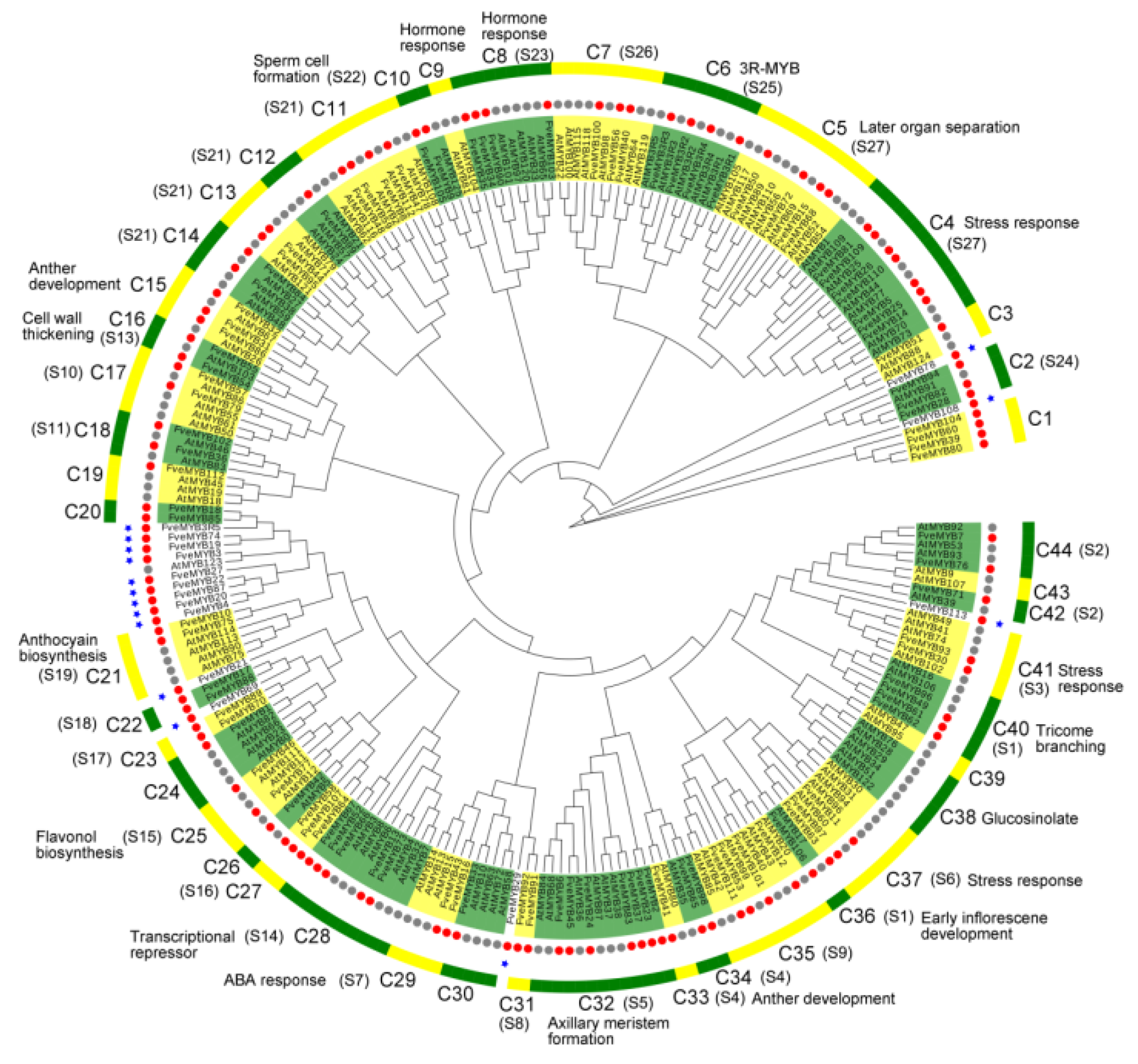

To evaluate the phylogenetic relationships of FveMYB proteins in woodland strawberry and Arabidopsis, 2R-MYB and 3R-MYB proteins from woodland strawberry and Arabidopsis were used to construct one phylogenetic tree, while 1R-MYB and 4R-MYB proteins were used to build another phylogenetic tree. Except for 14 2R-FveMYB proteins, one 2R-AtMYB protein, and one 3R-FveMYB protein, the remaining 2R-MYB and 3R-MYB proteins could be grouped into 44 clades, designated C1–44, based on bootstrap values (>50). Clade C6 contained all 3R-MYB proteins, and the remaining 43 clades contained 224 of the 239 2R-MYB proteins (Figure 3). Among the 43 clades, 30 clades contained 2R-MYB proteins from both woodland strawberry and Arabidopsis, indicating that the possible functions of these FveMYBs were similar to those of Arabidopsis AtMYBs (Figure 3). However, clades C9, C38, C39, and C43 contained only AtMYBs, whereas C1, C20, C22, C23, C27, and C31 contained only FveMYBs, suggesting that these proteins may play different roles in woodland strawberry and Arabidopsis. In addition, clade C6 contained five 3R-MYB proteins from Arabidopsis, but only four of the five 3R-MYB proteins from woodland strawberry belonged to this clade; the remaining 3R-MYB protein (FveMYB3R5) did not belong to any clade, suggesting a different role for FveMYB3R5 (Figure 3).

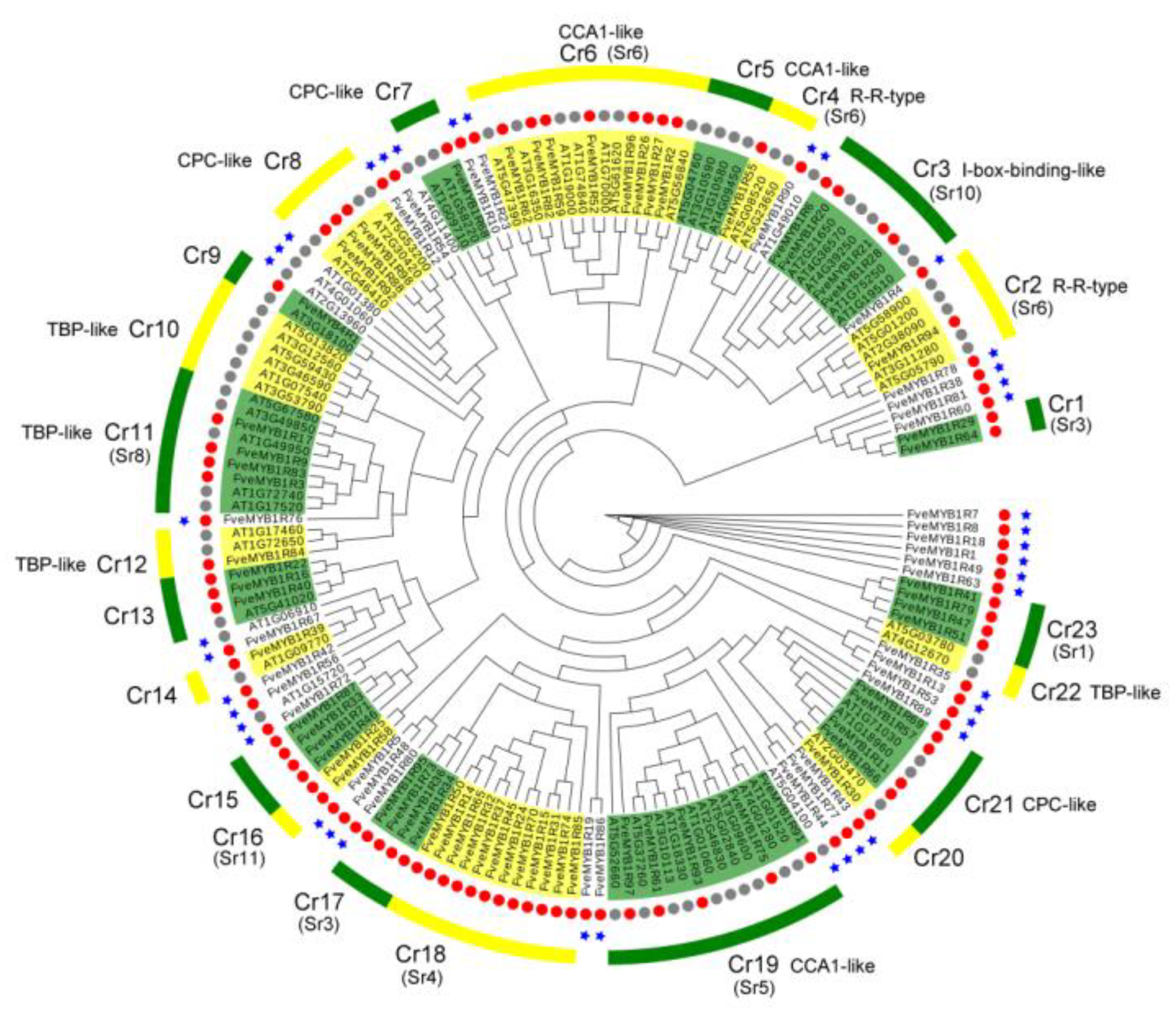

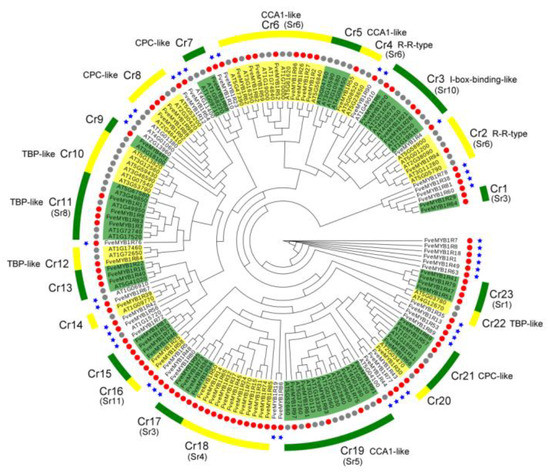

In the phylogenetic tree constructed using 1R-MYB and 4R-MYB proteins, twenty-three clades (Cr1–23) had bootstrap values greater than 50, and these clades comprised 80.1% (133/166) of the 67 MYB-related proteins in Arabidopsis (including seven atypical MYB proteins) and the 98 1R-MYB proteins and one 4R-MYB protein of woodland strawberry. The remaining 33 strawberry proteins and eight Arabidopsis proteins were not grouped into these clades because the bootstrap values were below 50 (Figure 4). Fourteen clades (Cr2, 3, 4, 6, 7, 8, 9, 11, 12, 13, 14, 19, 20, and 21) contained both woodland strawberry and Arabidopsis MYB proteins, of which four clades (Cr2, 4, 7, and 12) contained one FveMYB and more than one AtMYB (Figure 4). Six clades (Cr1, 15, 16, 17, 18, and 23) contained only FveMYB proteins, and three clades (Cr5, 10, and 22) contained only AtMYB proteins (Figure 4). According to a previous study [36], 1R-MYB proteins in Arabidopsis are classified into five categories: CCA1-like, CPC-like, TATA-binding protein (TBP)-like, I-box-binding-like, and R-R-type. In woodland strawberry, thirteen 1R-MYBs grouped into clades Cr6 and Cr19, which contained the Arabidopsis CCA1-like proteins. The CPC-like proteins were in clades Cr7, Cr8, and Cr21, which contained eight woodland strawberry 1R-MYB proteins. TBP-like proteins were in four clades (Cr10, Cr11, Cr12, and Cr22) that included five strawberry 1R-MYB proteins. R-R-type proteins were in two clades (Cr2 and Cr4), which contained only two strawberry 1R-MYBs. The I-box-binding-like proteins were mainly in clade Cr3, which contained four strawberry 1R-MYB proteins (Figure 4). In addition, six clades (Cr1, 15, 16, 17, 18, and 23) contained only woodland strawberry proteins, comprising ~29% (28/98) of the strawberry 1R-MYBs, suggesting their specific functions in woodland strawberry. Two 4R-MYB proteins (FveMYB4R1 and AT3G18100) were grouped into one clade (Cr9) (Figure 4), suggesting that FveMYB4R1 may be an ortholog of AT3G18100 (AtMYB4R1).

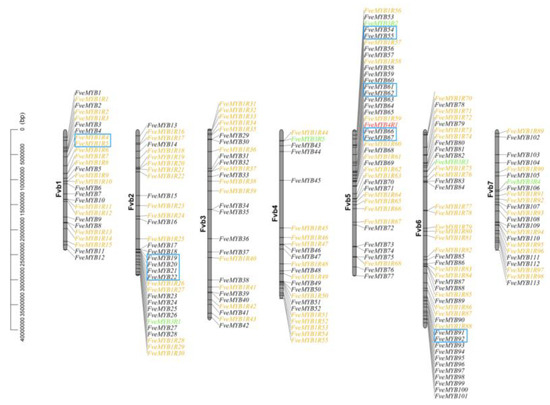

3.3. Chromosomal Distribution and Gene Duplication of MYB Genes in Woodland Strawberry

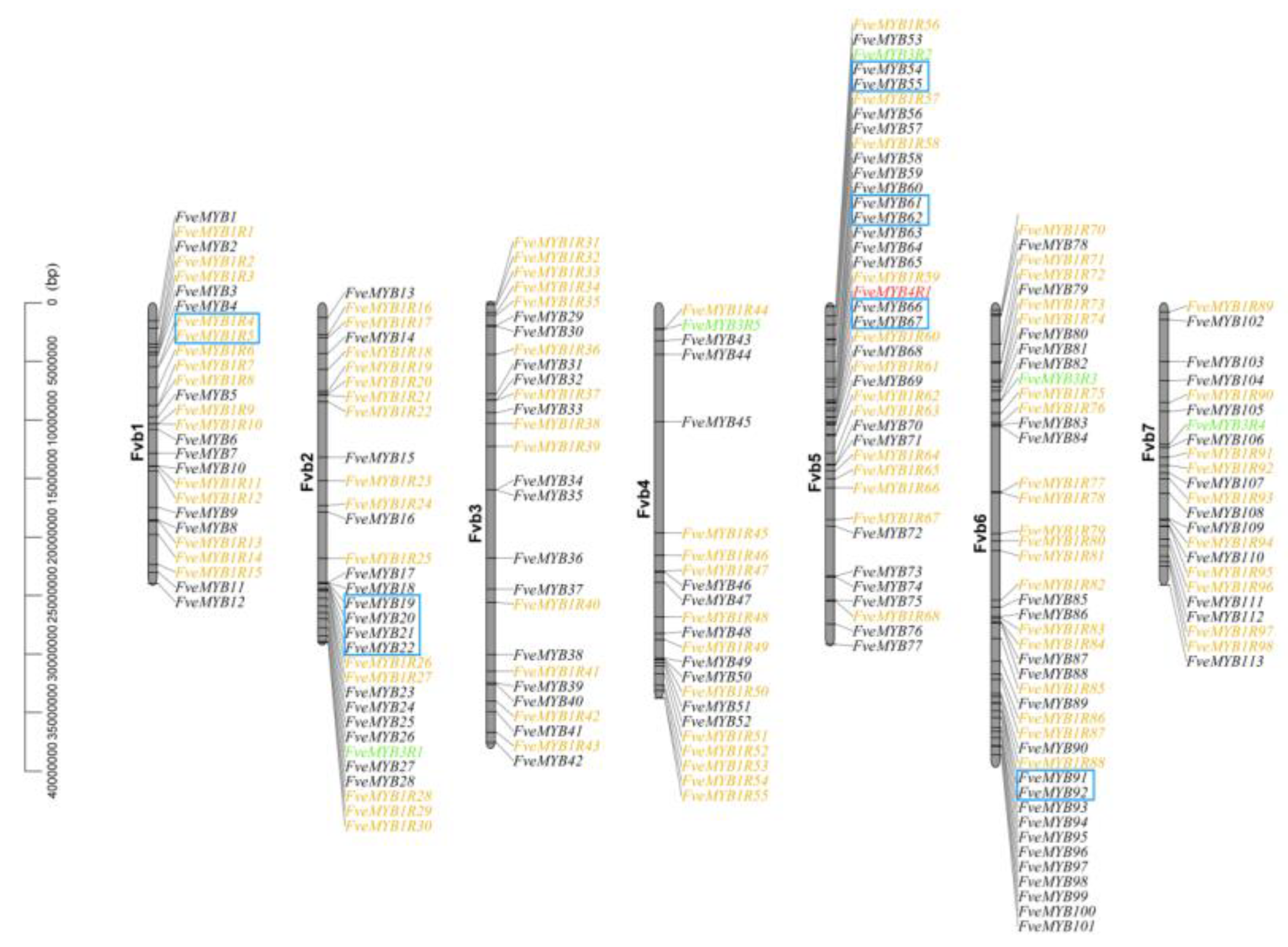

Using woodland strawberry gene annotation, the chromosomal distribution of the 217 FveMYB genes was studied. The results revealed that the 2R-MYB and 1R-MYB genes are unevenly distributed over all seven chromosomes (Figure 5). The 2R-MYB genes are mainly distributed in chromosomes Fvb5 and Fvb6, accounting for 22.1% (25/113) and 21.2% (24/113) of the total 2R-MYB genes of woodland strawberry, respectively. Chromosomes Fvb1, Fvb2, Fvb3, Fvb4, and Fvb7 harbor 12, 16, 14, 10, and 12 2R-MYB genes, respectively. Of strawberry 1R-MYB genes, 20.4% (20/98) are in Fvb6, whereas 15, 15, 13, 12, 13, and 10 are in Fvb1, Fvb2, Fvb3, Fvb4, Fvb5, and Fvb7, respectively. The five strawberry 3R-MYB genes are distributed in five different chromosomes (Fvb2, 4, 5, 6, and 7). The only strawberry 4R-MYB gene is located in Fvb5 (Figure 5). In summary, strawberry Fvb5 and Fvb6 contain the largest numbers of FveMYB genes.
Gene expansion plays an important role in species evolution. To examine the evolutionary history of the MYB superfamily in woodland strawberry, the duplication type of FveMYB genes was studied. The results revealed five 2R-MYB gene clusters (Fvb2: FveMYB19–22; Fvb5: FveMYB54 and -55, FveMYB61 and -62, and FveMYB66 and -67; Fvb6: FveMYB91 and -92) and one 1R-MYB gene cluster (Fvb1: FveMYB1R4 and -R5) in the seven woodland strawberry chromosomes (Figure 5). However, no segment duplication of the FveMYB genes was found through genome investigation.

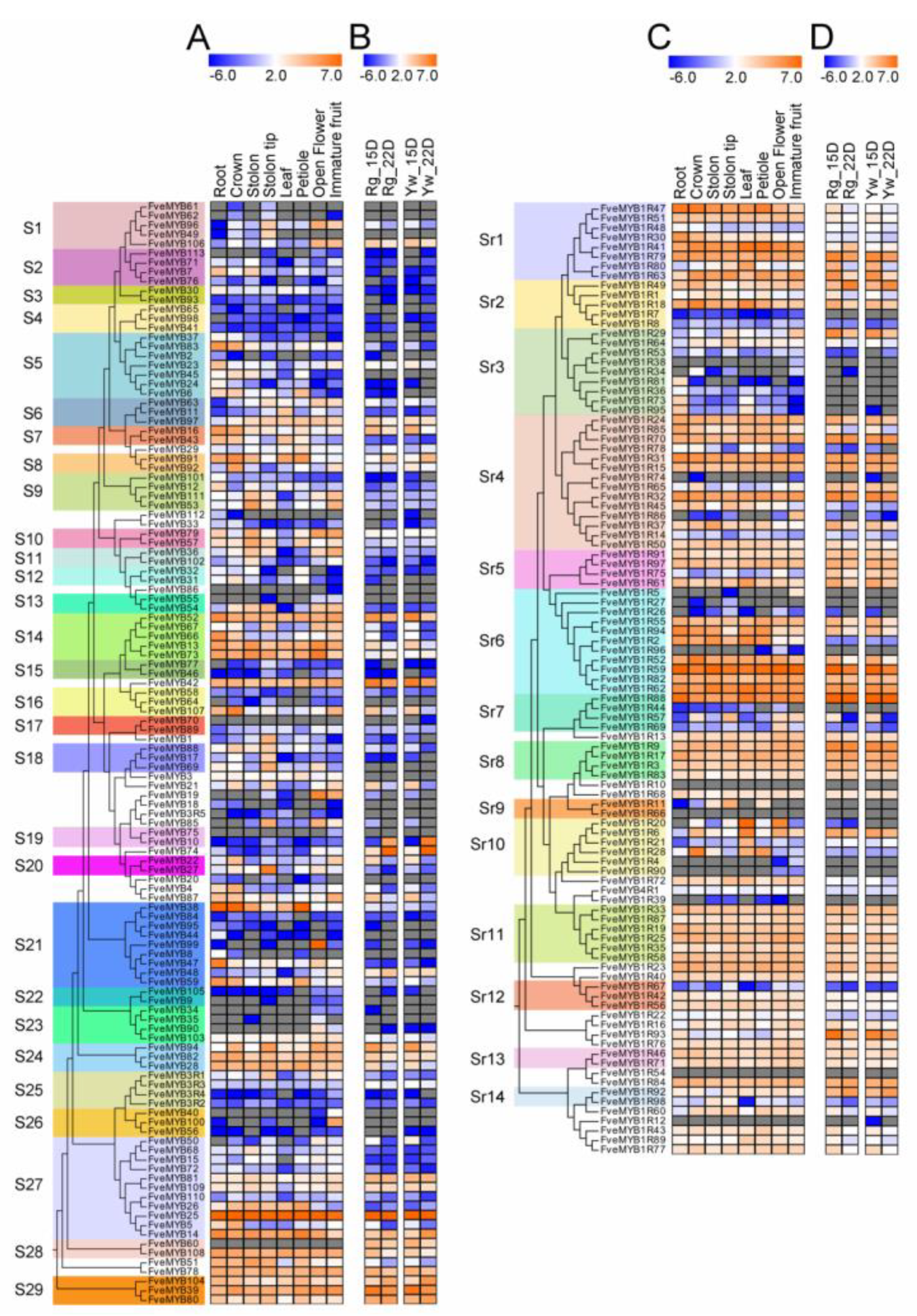

3.4. Expression Profiles of FveMYB Genes in Various Organs of Woodland Strawberry

To investigate the expression patterns of FveMYB genes in different organs of woodland strawberry, we analyzed transcription data from the root, crown, stolon, stolon tip, leaf, petiole, open flower, and immature fruit of woodland strawberry variety “Hawaii 4”. Genes with fragments per kilobyte per million (FPKM) values >1 were considered to be expressed [40,41]. Twenty-one 2R-MYB genes had FPKM values <1 in all eight organs, suggesting that these genes may not have roles in these organs. Twenty-nine 2R-MYB genes had FPKM values >1 in all eight organs, suggesting widespread function of these genes in organ development. Sixty-three 2R-MYB genes were expressed in one to seven organs; notably, 10 of them were specifically expressed in certain woodland strawberry organs (Figure 6A; Table S2). For example, FveMYB101, -112, -44, and -8 were only expressed in roots; FveMYB62 and -77 were expressed in stolon tips; FveMYB99 and -35 were expressed in open flowers; and FveMYB76 and -100 were mainly expressed in immature fruits. These results suggest that these genes function in the development of specific organs. In addition, FveMYB6 and -30 were expressed in the six vegetative organs but were hardly expressed in the two reproductive organs. By contrast, FveMYB55 and -90 were mainly expressed in the two reproductive organs but were almost undetectable in the six vegetative organs (Figure 6A; Table S2).
Transcription data for the 1R-MYB genes showed that 62% (61/98) of the genes were strongly expressed in all eight organs. Eleven 1R-MYB genes had FPKM values <1 in all eight organs, and the remaining 26 1R-MYB genes were expressed in one to seven organs (Figure 6C; Table S2). Five 1R-MYB genes exhibited organ-specific expression. For example, FveMYB1R96 was mainly expressed in open flowers, whereas FveMYB1R81 was only expressed in roots. Three 1R-MYB genes (FveMYB1R4, -5, and -86) were mainly expressed in immature fruits. FveMYB1R73 and -78 were preferentially expressed in vegetative organs. In addition, three 3R-MYB genes (FveMYB3R2, -4, and -5) had FPKM values <1 in all eight organs (Figure 6A; Table S2); FveMYB3R1 was expressed in all eight organs, with the highest expression in the stolon tip, and FveMYB3R3 was expressed in multiple organs, but the FPKM values were low. The only 4R-MYB gene was expressed in all eight organs, indicating that FveMYB4R1 may play a role in the development of multiple organs (Figure 6C; Table S2). In conclusion, FveMYB genes may be associated with the growth and development of various organs in woodland strawberry.
To evaluate the roles of FveMYB genes in strawberry fruit development and ripening, we analyzed published RNA-sequencing data on immature and ripening fruits in two woodland strawberry varieties, “Ruegen” (red fruit) and “Yellow Wonder” (yellow fruit) [38]. The expression levels of 34 2R-MYB genes and 50 1R-MYB genes decreased during fruit ripening in the two strawberry varieties, of which the expression of four 2R-MYB genes (FveMYB4, -22, -50, and -66) and one 1R-MYB gene (FveMYB1R57) decreased more than 10-fold (Figure 6B; Table S3). By contrast, the expression levels of 10 2R-MYB genes (FveMYB10, -14, -29, -48, -57, -73, -74, -80, -91, and -104) and eight 1R-MYB genes (FveMYB1R17, -21, -41, -46, -49, -84, -88, and -92) increased in the two strawberry varieties. Among them, FveMYB10 was scarcely expressed in the immature fruit, but increased significantly, 33.02- and 74.46-fold, in the ripening fruit of “Ruegen” and “Yellow Wonder,” respectively. In addition, compared to immature fruit, the expression of FveMYB74 in ripening fruit increased more than 30-fold. Among the five 3R-MYB genes, only FveMYB3R3 was highly expressed in both the immature and ripening fruit of the two woodland strawberry varieties, and the expression level was lower during fruit ripening (Figure 6B; Table S3). The only 4R-MYB gene (FveMYB4R1) was not expressed in immature or ripening fruit (Figure 6D; Table S3). In summary, six 2R-MYB genes (FveMYB4, -10, -22, -50, -66, and -74) and one 1R-MYB gene (FveMYB1R57) may be associated with the development and ripening of woodland strawberry fruit. Notably, the expression of FveMYB1R75 decreased significantly in “Ruegen” but increased slightly in “Yellow Wonder” from the immature to the ripening fruit stage (Figure 6D; Table S3), suggesting functional differences in these two strawberry varieties with different fruit colors.

3.5. Expression Analysis of MYB Genes in Woodland Strawberry under ABA and GA Treatments

The plant hormone ABA is a regulator of strawberry fruit maturation and abiotic stress responses [42,43], whereas GAs have been reported to be involved in strawberry stolon formation and early fruit development [42,44]. Therefore, we analyzed transcription data from woodland strawberry seedlings treated with exogenous ABA and GA3 to explore the response of FveMYBs to ABA and GA treatments.
The expression levels of 39 2R-MYB genes and 29 1R-MYB genes were altered after exogenous ABA treatment (Figure 7A,C; Table S4). Among them, 20 2R-MYB genes (FveMYB3, -5, -7, -12, -14, -25, -30, -39, -43, -47, -59, -63, -68, -78, -80, -93, -96, -97, -104, and -108) and 11 1R-MYB genes (FveMYB1R3, -17, -47, -62, -70, -71, -75, -77, -79, -89, and -97) exhibited increased expression followed by decreased expression under ABA treatment (Figure 7A,C; Table S4), of which the expression of four genes (FveMYB12, -14, -30, and -43) increased more than sevenfold at 2 h, then gradually decreased. The expression levels of 16 2R-MYB genes (FveMYB13, -21, -22, -27, -28, -38, -51, -67, -69, -82, -83, -87, -88, -94, -107, and -109) and 13 1R-MYB genes (FveMYB1R9, -11, -15, -29, -48, -56, -60, -65, -78, -83, -84, -85, and -93) first decreased and then increased, with the expression of five genes reduced more than twofold at 2 h (Figure 7A,C; Table S4). In addition, the expression levels of two 2R-MYB genes (FveMYB4 and -53) and two 1R-MYB genes (FveMYB1R57 and -68) continuously increased after ABA treatment (Figure 7A,C; Table S4). By contrast, the expression levels of two 1R-MYB genes (FveMYB1R6 and -92) continuously decreased after ABA treatment. In addition, one 1R-MYB gene (FveMYB1R20) had a FPKM value >5.06 before treatment, but this value decreased to <1 after ABA treatment (Figure 7C; Table S4). In summary, the results suggest that many FveMYB genes are regulated by ABA and thus, may participate in ABA-related biological processes in woodland strawberry.
After exogenous GA treatment, the expression levels of 15 2R-MYB genes, 21 1R-MYB genes, and the 4R-MYB gene were altered (Figure 7B,D; Table S4). The expression levels of 12 2R-MYB genes (FveMYB3, -11, -14, -16, -30, -39, -43, -47, -57, -63, -78, and -104), 13 1R-MYB genes (FveMYB1R3, -25, -36, -49, -50, -58, -68, -70, -77, -79, -89, -92, and -97), and the 4R-MYB gene (FveMYB4R1) first increased and then decreased (Figure 7B,D; Table S4). The expression of four genes (FveMYB14, -43, and -104; FveMYB1R36) increased more than twofold at 2 h (particularly that of FveMYB43, which increased 48.6-fold) and then began to decrease. The expression levels of three 2R-MYB genes (FveMYB82, -87, and -89) and eight 1R-MYB genes (FveMYB1R2, -33, -56, -61, -83, -84, -93, and -94) first decreased and then increased (Figure 7B,D; Table S4). These FveMYBs may be involved in GA-related biological processes in woodland strawberry.

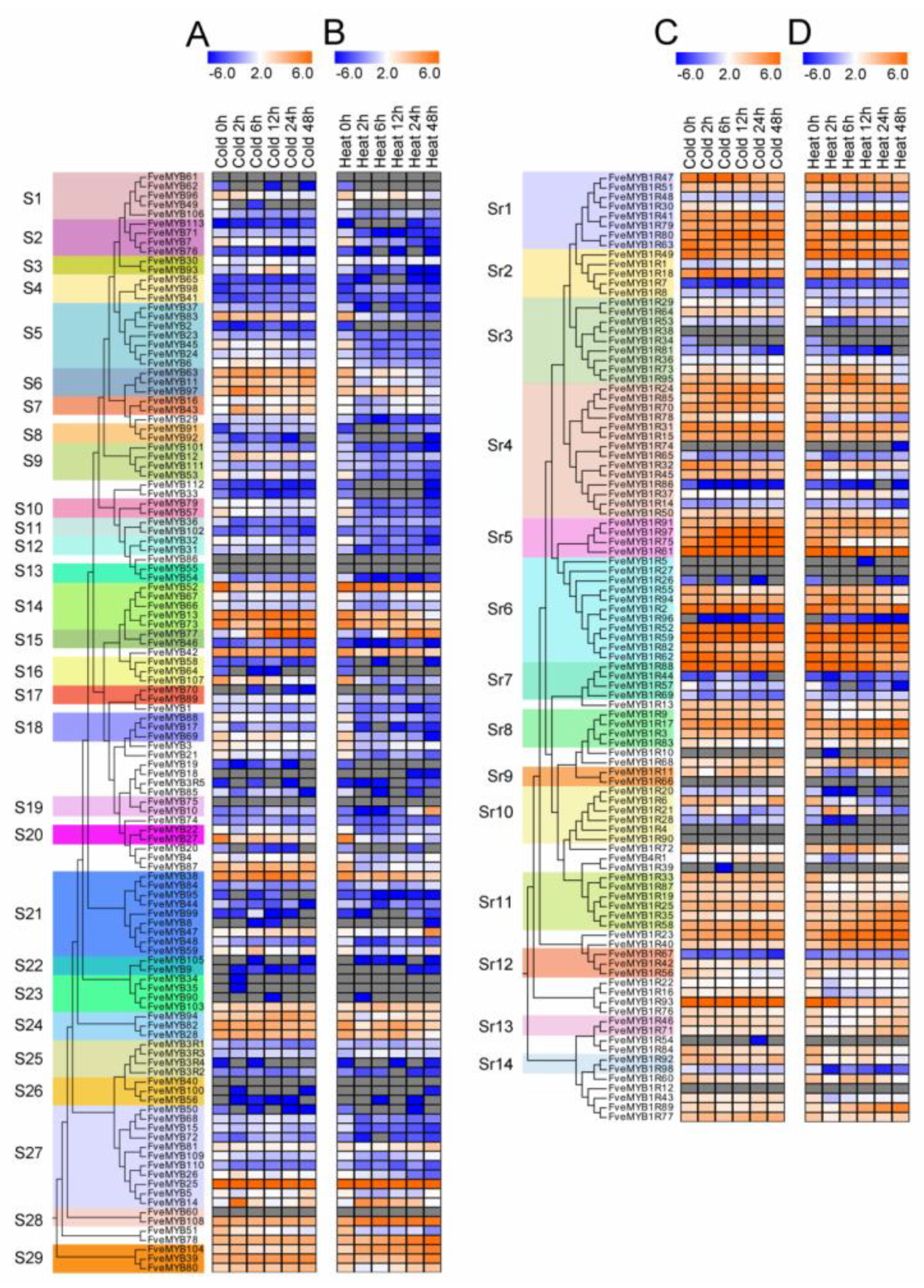

3.6. Expression Patterns of FveMYB Genes under Heat and Cold Treatments

As a perennial plant, strawberry is subjected to the heat of summer and the cold of winter; thus, we analyzed the response of woodland strawberry MYB genes to cold and heat stresses. The transcription data revealed that a large number of FveMYB genes in woodland strawberry responded to cold and heat stresses. The detailed results follow.
After cold treatment, the expression levels of four 2R-MYB genes (FveMYB6, -25, -77, and -94), 16 1R-MYB genes (FveMYB1R21, -23, -29, -41, -45, -47, -50, -52, -58, -61, -73, -80, -85, -91, -93, and -97), and one 3R-MYB gene (FveMYB3R3) first increased and then decreased (Figure 8A,C; Table S5). For example, the expression levels of FveMYB25, FveMYB1R21, and FveMYB1R47 increased 2.2-, 6.6-, and 1.4-fold at 2 h, respectively, and then gradually decreased to less than the control level at 48 h. FveMYB1R29 expression increased slightly at 2 and 6 h, and then gradually decreased twofold compared to the control at 48 h. Compared to the control, FveMYB77 expression was upregulated in the first 24 h, with the highest expression (75.6-fold increase) at 24 h; then, the expression level decreased 51.9-fold at 48 h. Meanwhile, the expression levels of five 2R-MYB (FveMYB3, -28, -52, -73, and -109) genes and eight 1R-MYB genes (FveMYB1R1, -6, -33, -43, -60, -62, -88, and -98) first decreased and then increased (Figure 8A,C; Table S5). Among them, FveMYB52, FveMYB73, and FveMYB1R88 exhibited the lowest expression levels at 6, 2, and 6 h, respectively. In addition, the expression levels of two 2R-MYB genes (FveMYB39 and -78), two 1R-MYB genes (FveMYB1R3 and -25), and the 4R-MYB gene (FveMYB4R1) gradually increased, whereas that of one 2R-MYB gene (FveMYB51) and nine 1R-MYB genes (FveMYB1R19, -30, -32, -56, -63, -72, -76, -78, and -82) gradually decreased after cold treatment (Figure 8A,C; Table S5). Among them, the expression of FveMYB51, FveMYB1R30, FveMYB1R56, and FveMYB1R78 decreased more than threefold compared to that of the control after 48 h. Interestingly, two 1R-MYB genes (FveMYB1R14 and -28) were scarcely expressed for the first 12 h of treatment, then were expressed at 24 h. In the control, the FPKM values of FveMYB48 and -106 were 2.17 and 2.18 respectively, but the FPKM values were <1 after cold treatment (Figure 8A,C; Table S5).
Under heat treatment, the transcription levels of two 2R-MYB genes (FveMYB14 and -103), 12 1R-MYB genes (FveMYB1R1, -18, -21, -37, -41, -47, -50, -73, -80, -91, -94, and -95), and one 3R-MYB gene (FveMYB3R3) first increased and then decreased (Figure 8B,D; Table S5). Among them, 10 genes (FveMYB14; FveMYB1R1, -18, -21, -37, -47, -50, -73, -94, and -95) were upregulated at 2 h and then downregulated to below control levels at 48 h. By contrast, the expression levels of 11 2R-MYB genes (FveMYB3, -4, -22, -39, -47, -59, -78, -80, -81, -94, and -109), 14 1R-MYB genes (FveMYB1R9, -11, -13, -16, -25, -46, -51, -58, -63, -71, -76, -79, -85, and -89), and the 4R-MYB gene (FveMYB4R1) first decreased and then increased (Figure 8B,D; Table S5). Among them, the FPKM values of three genes (FveMYB1R11 and -16; FveMYB4R1) were at least 10-fold lower than that of the control at 2 h, and then gradually increased. In addition, five 1R-MYB genes (FveMYB1R3, -17, -35, -40, and -68) were upregulated by heat treatment; in particular, the expression levels of FveMYB1R35 and -68 increased more than threefold at 48 h compared to the control (Figure 8B,D; Table S5). Two 2R-MYB genes (FveMYB26 and FveMYB52) and four 1R-MYB genes (FveMYB1R59, -62, -75, and -88) were downregulated by heat treatment, among which, the transcripts of FveMYB26, FveMYB1R75, and FveMYB1R88 decreased more than sixfold at 48 h (Figure 8B,D; Table S5). Notably, 11 2R-MYB genes (FveMYB6, -7, -15, -21, -32, -45, -48, -49, -53, -57, and -79) and three 1R-MYB genes (FveMYB1R53, -57, and -98) had FPKM values >2 in untreated seedlings but were hardly expressed in heat-treated seedlings. In particular, FveMYB7, -45, and -57 had FPKM values >7 in the control, but values of <1 after heat treatment (Figure 8B,D; Table S5). By contrast, one 2R-MYB gene (FveMYB10) was scarcely expressed at 12 h of heat treatment, but was expressed at 24 h, and its expression then increased more than sevenfold at 48 h compared to 24 h (Figure 8B; Table S5).

4. Discussion

4.1. Identification and Comparison of MYB Genes in Woodland Strawberry and Arabidopsis

The MYB superfamily is a large transcription factor family in plants. At present, numerous MYB genes with various numbers of MYB domain repeats have been identified in different plants, such as 680 members in Brassica napus, 256 members in peach, 198 members in Arabidopsis, etc. [32,36,45]. By contrast, fewer MYB genes have been identified in some species, such as 162 members in watermelon and 122 members in Brachypodium distachyon [39,46]. The number of MYB genes may be linked to the genome size and evolution of the species. In strawberry, although the R2R3-MYB subfamily had been previously identified, the other MYB subfamilies and their expression patterns have not been comprehensively analyzed [47]. In this study, we identified 217 FveMYB genes in woodland strawberry (Table S1). Similar to Arabidopsis and rice [28], 113 (52%) and 98 (45%) FveMYBs were identified as 2R-MYB and 1R-MYB genes, respectively (Table S1). In addition, we found six gene clusters (five 2R-MYB gene clusters and one 1R-MYB gene cluster) and no segment duplications in the woodland strawberry genome (Figure 5). This is similar to the duplication type of watermelon MYB genes [39].
The 3R-MYB proteins are universal in vertebrates but rare in plants. In Arabidopsis and rice, five and four 3R-MYB proteins have been identified, respectively [28]. Similarly, we also found five 3R-MYB proteins in woodland strawberry. Interestingly, only four strawberry 3R-MYB proteins (FveMYB3R1-4) and five Arabidopsis 3R-MYB proteins (AtMYB3R1-5) are classified within the same clade (C6) (Figure 3). Based on motif structure, the conserved motif of FveMYB3R5 is significantly different from that of FveMYB3R1-4. For example, FveMYB3R5 additionally has Motifs 2, 4, and 1, whereas FveMYB3R1-4 have Motifs 10 and 9, which FveMYB3R5 lacks (Figure 1). At the same time, the sequence alignment showed that the three repeats of FveMYB3R1-4 and AtMYB3R1-5 are very similar, whereas FveMYB3R5 only has one repeat (Figure S1). Therefore, we speculate that FveMYB3R5 has a different function from those of other woodland strawberry 3R-MYB proteins. In addition, one woodland strawberry 4R-MYB protein (FveMYB4R1) was identified that clustered with Arabidopsis 4R-MYB proteins, suggesting a similar function in these two plants.

4.2. Possible Roles of FveMYB Genes and Their Crosstalk with the ABA Signaling Pathway in Response to Abiotic Stresses

High temperatures in summer and low temperatures in winter greatly impact the vegetative and reproductive growth of cultivated strawberry. To identify the FveMYB genes that may be linked to cold and heat tolerance, we analyzed the expression changes in FveMYB genes under cold and heat treatments. In plants, many MYB genes are associated with the response to abiotic stresses, and the Arabidopsis MYB genes have been the most extensively investigated. For example, AtMYB21, -33, -35, -60, -65, -80, -99, and -110 participate in drought stress; AtMYB20, AtMYB73, and HPPBF-1 (AT5G13820) are involved in salt stress; PHR1 (AT1G12370), PHR2 (At1g79430), PHL1 (AT5G29000), and CCA1 (AT2G46830) participate in phosphate (Pi) starvation; RVE1 (AT5G17300), MYBC1 (AT2G40970), CIR1 (AT5G37260), AtMYB15, and AtMYB44 respond to freezing stress or cold; the expression of AtMYB3, AtMYB6, and MYBL2 (AT1G71030) is regulated by high temperatures, and so on [13]. In our study, 73% (159/217) and 70% (151/217) of woodland strawberry MYB genes were induced by cold and heat stress, respectively. Among them, FveMYB1R61 was upregulated at 2, 6, 12, and 24 h after cold stress (Figure 8C; Table S5). This is consistent with the performance of its homolog CIR1 (AT5G37260) under freezing stress [48], indicating that FveMYB1R61 and CIR1 have high functional conservation. Rowan et al. found that two Arabidopsis MYB genes (AtMYB3 and AtMYB6) were upregulated by elevated temperatures, whereas another (AtMYB4) was downregulated [49]. In this study, these three AtMYB genes clustered together with five FveMYB genes (FveMYB13, -52, -66, -67, and -73) in clade C28, and the five FveMYB genes all exhibited downregulated expression under high temperature stress (Figure 3 and Figure 8B; Table S5). This indicates that the genes in clade C28 may have undergone severe functional differentiation during the evolution process. This phenomenon also exists in clade Cr21. For example, MYBL2 (AT1G71030) is upregulated by high temperature, whereas FveMYB1R57 on the same branch is downregulated by high temperature (Figure 3 and Figure 8D; Table S5).
To enhance their adaptability to various abiotic stresses, plants generally upregulate ABA. In plants, the MYB transcription factor superfamily is a primary regulator of ABA-biosynthesis genes [43]. Previous reports indicated that some MYB genes mediate ABA signals in response to abiotic stresses. For example, AtMYB96 is simultaneously induced by drought stress and ABA, and has been demonstrated to mediate ABA signaling in response to drought stress in Arabidopsis [50]. Overexpression of AtMYB15 enhances the drought and freezing tolerance of Arabidopsis and is responsive to ABA [51,52]. AtMYB2 is a transcriptional activator in the ABA signaling pathway, and it also responds to abiotic stresses such as drought, salt, and Pi starvation [13,53]. In this study, several genes exhibited similar or opposite expression patterns under cold or heat stress and ABA treatment. For example, the expression level of FveMYB1R47 increased 1.5- and 3.2-fold at 2 h under cold stress and ABA treatment, respectively, and then decreased (Figure 7C and Figure 8C). Similarly, FveMYB1R20 was expressed in the control, but was scarcely expressed under heat stress and exogenous ABA treatment (Figure 7C and Figure 8D). FveMYB14 was upregulated 9.2- and 10.3-fold at 2 h under heat stress and exogenous ABA treatment, respectively, and then gradually downregulated (Figure 7A and Figure 8B). In addition, the expression of FveMYB59 peaked after 6 h of heat stress and then decreased. In the ABA treatment, FveMYB59 expression was lowest at 6 h and then increased (Figure 7A and Figure 8B). We speculate that these genes may be associated with the crosstalk between the cold or heat stress response and the ABA signaling pathway.

4.3. Possible Roles of FveMYB Genes in Plant Organs and Their Responses to Plant Hormones

At present, the functions of some MYB genes in plant vegetative growth have been characterized. In Arabidopsis, slight drought stress can promote the expression of AtMYB60 to regulate root growth and increase water absorption capacity, whereas severe drought stress can inhibit the expression of AtMYB60, leading to stomatal closure and root growth inhibition [54]. AtMYB59 is abundantly expressed in roots and is involved with the cell cycle and root growth [55]. In this study, FveMYB38, a homolog of AtMYB59, had the highest expression in roots (Figure 6A; Table S2), indicating that FveMYB38 may be associated with root growth in woodland strawberry. Interestingly, three FveMYB genes (FveMYB11, -63, and -97) that clustered with AtMYB60 in clade C37 were hardly expressed in roots but could be induced by ABA, and FveMYB63 and -97 were transiently upregulated by ABA, similar to AtMYB60 in Arabidopsis (Figure 7A; Table S4). Therefore, we speculate that FveMYB63 and -97 may have lower expression levels in roots under normal conditions but can be induced under abiotic stress conditions to promote root growth. In addition, five FveMYB genes (FveMYB101, -112, -44, and -8; FveMYB1R81) were specifically expressed in roots and thus, may also participate in root formation and development, but this needs further study (Figure 6A,C; Table S2).
Stolon propagation is the main asexual propagation method for cultivating strawberries. The stolon is a unique organ of cultivated strawberries and has not been found in model plants such as Arabidopsis, rice, and tomato. According to previous reports, GA can regulate the initiation and elongation of stolons. The formation of stolons is promoted by exogenous GA and inhibited by exogenous GA inhibitors [44]. This study found that five FveMYB genes (FveMYB1, -27, -53, -69, and -102) were primarily expressed in the stolon or stolon tip (Figure 6A; Table S2), and four of these genes (FveMYB1, -27, -53, and -69) were transiently downregulated by GA (Figure 7B; Table S4). We assume that these genes are involved in the GA signaling pathway to regulate stolon or stolon tip development. Wenjun Sun et al. reported that StMYB19 had the highest expression in potato stolons, and also had higher expressions in other seven organs [56]. In this study, three FveMYBs genes (FveMYB5, -25 and -14) were clustered with StMYB19 (Figure S2). Among them, FveMYB5, -25 and -14 were not the highest expression in stolons, but they were expressed in various organs of strawberry (Figure 6A), indicating that FveMYB5, -25 and -14 play a role in various organs of strawberry including stolons. FveMYB1, -27, -69, and -102 had no orthologous genes in potato, while FveMYB53 was clustered with potato StMYB143 (Figure S2). FveMYB53 was expressed in most organs, with the highest expression in strawberry stolons (Figure 6A). StMYB143 was also expressed in all potato tissues, but did not have the highest expression in potato stolons [56]. Therefore, the MYB genes, which regulate the growth and development of stolons, may have functional differentiation in strawberry and potato. In addition, the FPKM values of FveMYB62 and FveMYB77 were only >1 in the stolon tip and were almost undetectable in the other organs (Figure 6A; Table S2). These genes may play a role in stolon elongation.
The roles of many MYB genes in the development of floral organs have also been reported. For example, AtMYB21 and AtMYB24 are flower-specific transcription factors [57,58]. Clustered together with AtMYB21 and AtMYB24 in clade C13, FveMYB99 was abundantly transcribed in open flowers but almost unexpressed in the other seven organs (Figure 3 and Figure 6A; Table S2). In detail, FveMYB99 was abundantly expressed in mature anthers (Anther_12), mature carpels (Carpel_12), and unpollinated styles (0 d after pollination) (Table S6). This indicates that FveMYB99 is functionally conserved in both strawberry and Arabidopsis. AtMYB80 (formerly AtMYB103) can regulate the development of pollen and is functionally conserved in various crops such as wheat, rice, canola, and cotton [59,60,61]. As a homolog of AtMYB80, transcripts of FveMYB41 increased significantly in Anther_9, then decreased rapidly, and were almost nonexistent in Anther_12 (Table S6). This indicates that FveMYB41 may be primarily involved in pollen development at the Anther_9 stage of woodland strawberry. AtMYB17 is involved in early inflorescence development via the regulation of the expression of LFY and AGL15 [62]. In this study, FveMYB106, a homolog of AtMYB17, was expressed abundantly in young carpels (Carpel_7-8) and young anthers (Anther_7-8). It was then gradually downregulated during the development of these floral organs (Figure 3; Table S6). This indicates that FveMYB106 is also involved in the development of premature floral organs. In addition, AtMYB33 and AtMYB65 are involved in the development of anthers [63], and their homolog, FveMYB35, was only expressed in open flowers, indicating that FveMYB35 may be involved in the formation of floral organs and primarily regulate the development of anthers. Other FveMYB genes (such as FveMYB1R96 and FveMYB1R69) expressed in flowers may also play roles in the development of woodland strawberry floral organs, although their orthologous genes in Arabidopsis have not been studied.

4.4. MYB Transcription Factors That Color Fruit

At present, many MYB genes have been reported to regulate the biosynthesis of anthocyanins in fruits, such as MrMYB1 of Chinese bayberry [64]; MdMYB10 and MdMYB1 of apple [63,65]; LcMYB1 of lychee [66]; MYB7 of peach [32]; MYB114, PbMYB10b, and PbMYB9 of pear [67,68]; SlMYB75 and SlMYBATV of tomato [69,70], etc. In Arabidopsis, AtMYB75, -90, -113, and -114 have also been reported to regulate anthocyanin biosynthesis [71,72]. In this study, two FveMYB genes (FveMYB10 and FveMYB75) clustered together with these four Arabidopsis genes in clade C21 (Figure 3). Interestingly, from the immature to ripening stage of strawberry fruit, only FveMYB10 was upregulated, whereas FveMYB75 was not detected (Figure 6B; Table S3). This indicates that FveMYB10 may regulate anthocyanin biosynthesis during the ripening of woodland strawberry fruit, whereas FveMYB75 may have a different function. This function of FveMYB10 has been reported by Chen and Castillejo C et al. [73,74], corroborating our results. During the fruit ripening of octoploid strawberry (Fragaria × ananassa), FaMYB10 promotes the biosynthesis of anthocyanins through the independent regulation of light and ABA [75]. Similarly, the expression of FveMYB10 was increased after ABA treatment (Figure 6A; Table S4), but this result was only obtained by ABA treatment on woodland strawberry seedlings, ABA effect on FveMYB10 expression in woodland strawberry fruits needs further studies. In addition, transcription data from various organs showed that FveMYB76 was mainly transcribed in fruits and was almost unexpressed in other organs (Figure 6A; Table S2). Further analysis revealed that FveMYB76 was only expressed in the ghost and wall tissues of the achene, and it was gradually upregulated with development of the achene (Table S6). Similarly, FveMYB100 was abundantly expressed in fruits, but hardly expressed or detected in other organs (Figure 6A; Table S2). Detailed fruit tissue data showed that FveMYB100 was also mainly expressed in achene tissues (embryo, ghost, and wall), especially in Ghost_4 (Table S6). However, it is puzzling that FveMYB76 and FveMYB100 were expressed at very low levels in the immature and ripening fruit of the two woodland strawberry varieties (Figure 6B; Table S3); therefore, further research is needed. Five MYB genes (FveMYB4, -22, -50, and -66; FveMYB1R57) stood out because they were highly expressed in early developing fruit but were significantly downregulated from the immature to the ripening stage (Figure 6B,D; Table S3), indicating their roles in the early development of woodland strawberry fruit. These FveMYB genes may regulate the development and ripening of woodland strawberry fruit.

5. Conclusions

In this study, we identified 217 MYB proteins that were divided into four subgroups in woodland strawberry. The phylogenetic relationship of each MYB subgroup was consistent with the intron/exon structure and conserved motif composition. The RNA-seq analysis showed that most of the FveMYB genes expressed in multiple organs, only 11 FveMYB genes showed organ-specific expression. Eighty-four genes showed decreased expression, and eighteen genes showed increased expression during fruit ripening. In addition, several genes could be regulated by GA3, ABA, cold and heat treatments. This study provides some candidate MYB genes for the study of stolon formation, fruit development and ripening, and abiotic stress.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/horticulturae7050097/s1, Figure S1: Multiple alignment of 10 3R-MYB protein sequences in Arabidopsis and woodland strawberry, Figure S2: The phylogenetic tree of 2R-MYB proteins from woodland strawberry and potato, Table S1: Rename of 217 MYB genes in woodland strawberry, Table S2: The FPKM value of 217 MYB genes in different organs of woodland strawberry, Table S3: The RPKM value of 217 MYB genes in the ripening fruits of woodland strawberry, Table S4: The FPKM value of 217 MYB genes under ABA and GA3 treatment of woodland strawberry seedlings, Table S5: The FPKM value of 217 MYB genes under heat and cold treatments of woodland strawberry seedlings, Table S6: The RPKM value of 217 MYB genes in the flowers, early-stage fruits, and ripening fruits of woodland strawberry, Table S7: The 15 motifs of 2R-MYB and 3R-MYB proteins from woodland strawberry, Table S8: The 15 motifs of 1R-MYB and 4R-MYB proteins from woodland strawberry, Table S9: The Sequences of 198 Arabidopsis MYB genes.

Author Contributions

Investigation, H.L., Y.Z., Z.M., X.L., Y.L., and H.C.; methodology, H.L. and Y.Z.; software, H.L. and Y.Z.; visualization, H.L. and Z.M.; data curation, H.L. and Y.Z.; supervision, H.C.; project administration, H.C.; writing—original draft preparation, H.L. and H.C.; writing—review and editing, H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NSFC 31601736).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pabo, C.O.; Sauer, R.T. Transcription factors: Structural families and principles of DNA recognition. Annu. Rev. Biochem. 1992, 61, 1053–1095. [Google Scholar] [CrossRef]
  2. Jin, H.; Martin, C. Multifunctionality and diversity within the plant MYB-gene family. Plant Mol. Biol. 1999, 41, 577–585. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, S.; Chen, J.-G. Regulation of cell fate determination by single-repeat R3 MYB transcription factors in Arabidopsis. Front. Plant Sci. 2014, 5, 133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ogata, K.; Morikawa, S.; Nakamura, H.; Sekikawa, A.; Inoue, T.; Kanai, H.; Sarai, A.; Ishii, S.; Nishimura, Y. Solution structure of a specific DNA complex of the Myb DNA-binding domain with cooperative recognition helices. Cell 1994, 79, 639–648. [Google Scholar] [CrossRef]
  5. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef] [PubMed]
  6. Martin, C.; Paz-Ares, J. MYB transcription factors in plants. Trends Genet. 1997, 13, 67–73. [Google Scholar] [CrossRef]
  7. Liu, J.; Osbourn, A.; Ma, P. MYB transcription factors as regulators of phenylpropanoid metabolism in plants. Mol. Plant 2015, 8, 689–708. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Czemmel, S.; Heppel, S.C.; Bogs, J. R2R3 MYB transcription factors: Key regulators of the flavonoid biosynthetic pathway in grapevine. Protoplasma 2012, 249, 109–118. [Google Scholar] [CrossRef]
  9. Naing, A.H.; Kim, C.K. Roles of R2R3-MYB transcription factors in transcriptional regulation of anthocyanin biosynthesis in horticultural plants. Plant Mol. Biol. 2018, 98, 1–18. [Google Scholar] [CrossRef]
  10. Gigolashvili, T.; Berger, B.; Flügge, U.-I. Specific and coordinated control of indolic and aliphatic glucosinolate biosynthesis by R2R3-MYB transcription factors in Arabidopsis thaliana. Phytochem. Rev. 2009, 8, 3–13. [Google Scholar] [CrossRef]
  11. Du, H.; Zhang, L.; Liu, L.; Tang, X.-F.; Yang, W.-J.; Wu, Y.-M.; Huang, Y.-B.; Tang, Y.-X. Biochemical and molecular characterization of plant MYB transcription factor family. Biochemistry 2009, 74, 1–11. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, X.; Niu, Q.-W.; Teng, C.; Li, C.; Mu, J.; Chua, N.-H.; Zuo, J. Overexpression of PGA37/MYB118 and MYB115 promotes vegetative-to-embryonic transition in Arabidopsis. Cell Res. 2008, 19, 224–235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Li, C.; Ng, C.K.-Y.; Fan, L.-M. MYB transcription factors, active players in abiotic stress signaling. Environ. Exp. Bot. 2015, 114, 80–91. [Google Scholar] [CrossRef]
  14. Alabadi, D.; Oyama, T.; Yanovsky, M.J.; Harmon, F.G.; Más, P.; Kay, S.A. Reciprocal regulation between TOC1 and LHY/CCA1 within the Arabidopsis circadian clock. Science 2001, 293, 880–883. [Google Scholar] [CrossRef]
  15. Mizoguchi, T.; Wheatley, K.; Hanzawa, Y.; Wright, L.; Mizoguchi, M.; Song, H.-R.; Carré, I.A.; Coupland, G. LHY and CCA1 are partially redundant genes required to maintain circadian rhythms in Arabidopsis. Dev. Cell 2002, 2, 629–641. [Google Scholar] [CrossRef] [Green Version]
  16. Kuno, N.; Møller, S.G.; Shinomura, T.; Xu, X.; Chua, N.-H.; Furuya, M. The novel MYB protein early-phytochrome-responsive 1 is a component of a slave circadian oscillator in Arabidopsis. Plant Cell 2003, 15, 2476–2488. [Google Scholar] [CrossRef] [Green Version]
  17. Schellmann, S.; Schnittger, A.; Kirik, V.; Wada, T.; Okada, K.; Beermann, A.; Thumfahrt, J.; Jürgens, G.; Hülskamp, M. Triptychon and Caprice mediate lateral inhibition during trichome and root hair patterning in Arabidopsis. EMBO J. 2002, 21, 5036–5046. [Google Scholar] [CrossRef] [Green Version]
  18. Sawa, S. Overexpression of the AtmybL2 gene represses trichome development in Arabidopsis. DNA Res. 2002, 9, 31–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Kirik, V.; Simon, M.; Huelskamp, M.; Schiefelbein, J. The enhancer of Try and CPC1 gene acts redundantly with Triptychon and Caprice in trichome and root hair cell patterning in Arabidopsis. Dev. Biol. 2004, 268, 506–513. [Google Scholar] [CrossRef] [Green Version]
  20. Jiang, C.; Gu, J.; Chopra, S.; Gu, X.; Peterson, T. Ordered origin of the typical two- and three-repeat Myb genes. Gene 2004, 326, 13–22. [Google Scholar] [CrossRef]
  21. Ito, M. Conservation and diversification of three-repeat Myb transcription factors in plants. J. Plant Res. 2005, 118, 61–69. [Google Scholar] [CrossRef] [PubMed]
  22. Haga, N.; Kobayashi, K.; Suzuki, T.; Maeo, K.; Kubo, M.; Ohtani, M.; Mitsuda, N.; Demura, T.; Nakamura, K.; Jürgens, G.; et al. Mutations in MYB3R1 and MYB3R4 cause pleiotropic developmental defects and preferential down-regulation of multiple G2/M-specific genes in Arabidopsis. Plant Physiol. 2011, 157, 706–717. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Dai, X.; Xu, Y.; Ma, Q.; Xu, W.; Wang, T.; Xue, Y.; Chong, K. Overexpression of an R1R2R3 MYB Gene, OsMYB3R-2, increases tolerance to freezing, drought, and salt stress in transgenic Arabidopsis. Plant Physiol. 2007, 143, 1739–1751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Riechmann, J.L.; Ratcliffe, O.J. A genomic perspective on plant transcription factors. Curr. Opin. Plant Biol. 2000, 3, 423–434. [Google Scholar] [CrossRef]
  25. Wilkins, O.; Nahal, H.; Foong, J.; Provart, N.J.; Campbell, M.M. Expansion and diversification of the populus R2R3-MYB family of transcription factors. Plant Physiol. 2009, 149, 981–993. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Du, H.; Yang, S.-S.; Liang, Z.; Feng, B.-R.; Liu, L.; Huang, Y.-B.; Tang, Y.-X. Genome-wide analysis of the MYB transcription factor superfamily in soybean. BMC Plant Biol. 2012, 12, 106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Matus, J.T.; Aquea, F.; Arce-Johnson, P. Analysis of the grape MYB R2R3 subfamily reveals expanded wine quality-related clades and conserved gene structure organization across Vitis and Arabidopsis genomes. BMC Plant Biol. 2008, 8, 1–15. [Google Scholar] [CrossRef] [Green Version]
  28. Katiyar, A.; Smita, S.; Lenka, S.K.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K.C. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef] [Green Version]
  29. Li, Q.; Zhang, C.; Li, J.; Wang, L.; Ren, Z. Genome-wide identification and characterization of R2R3MYB family in Cucumis sativus. PLoS ONE 2012, 7, e47576. [Google Scholar] [CrossRef] [Green Version]
  30. Cao, Y.; Han, Y.; Li, D.; Lin, Y.; Cai, Y. MYB transcription factors in Chinese pear (Pyrus bretschneideri Rehd.): Genome-wide identification, classification, and expression profiling during fruit development. Front. Plant Sci. 2016, 7, 577. [Google Scholar] [CrossRef] [Green Version]
  31. Zhong-Hui, C.; Shi-Zhong, Z.; Rong-Kai, W.; Zhang, R.-F.; Yu-Jin, H. Genome wide analysis of the apple MYB transcription factor family allows the identification of MdoMYB121 gene confering abiotic stress tolerance in plants. PLoS ONE 2013, 8, e69955. [Google Scholar]
  32. Zhang, C.; Ma, R.; Xu, J.; Yan, J.; Guo, L.; Song, J.; Feng, R.; Yu, M. Genome-wide identification and classification of MYB superfamily genes in peach. PLoS ONE 2018, 13, e0199192. [Google Scholar] [CrossRef] [PubMed]
  33. Shulaev, V.; Sargent, D.J.; Crowhurst, R.N.; Mockler, T.C.; Folkerts, O.; Delcher, A.L.; Jaiswal, P.; Mockaitis, K.; Liston, A.; Mane, S.P.; et al. The genome of woodland strawberry (Fragaria vesca). Nat. Genet. 2010, 43, 109–116. [Google Scholar] [CrossRef]
  34. Medina-Puche, L.; Molina-Hidalgo, F.J.; Boersma, M.; Schuurink, R.C.; López-Vidriero, I.; Solano, R.; Franco-Zorrilla, J.-M.; Caballero, J.L.; Blanco-Portales, R.; Muñoz-Blanco, J. An R2R3-MYB Transcription factor regulates eugenol production in ripe strawberry fruit receptacles. Plant Physiol. 2015, 168, 598–614. [Google Scholar] [CrossRef] [Green Version]
  35. Hawkins, C.; Caruana, J.; Schiksnis, E.; Liu, Z. Genome-scale DNA variant analysis and functional validation of a SNP underlying yellow fruit color in wild strawberry. Sci. Rep. 2016, 6, 29017. [Google Scholar] [CrossRef] [Green Version]
  36. Yanhui, C.; Xiaoyuan, Y.; Kun, H.; Meihua, L.; Jigang, L.; Zhaofeng, G.; Zhiqiang, L.; Yunfei, Z.; Xiaoxiao, W.; Xiaoming, Q.; et al. The MYB transcription factor superfamily of Arabidopsis: Expression analysis and phylogenetic comparison with the rice MYB family. Plant Mol. Biol. 2006, 60, 107–124. [Google Scholar] [CrossRef] [PubMed]
  37. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  38. Li, Y.; Pi, M.; Gao, Q.; Liu, Z.; Kang, C. Updated annotation of the wild strawberry Fragaria vesca V4 genome. Hortic. Res. 2019, 6, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Xu, Q.; He, J.; Dong, J.; Hou, X.; Zhang, X. Genomic survey and expression profiling of the MYB gene family in watermelon. Hortic. Plant J. 2018, 4, 1–15. [Google Scholar] [CrossRef]
  40. Trapnell, C.; Williams, B.A.; Pertea, G.; Mortazavi, A.; Kwan, G.; Van Baren, M.J.; Salzberg, S.L.; Wold, B.J.; Pachter, L. Transcript assembly and quantification by RNA-Seq reveals unannotated transcripts and isoform switching during cell differentiation. Nat. Biotechnol. 2010, 28, 511–515. [Google Scholar] [CrossRef] [Green Version]
  41. Gu, T.; Jia, S.; Huang, X.; Wang, L.; Fu, W.; Huo, G.; Gan, L.; Ding, J.; Li, Y. Transcriptome and hormone analyses provide insights into hormonal regulation in strawberry ripening. Planta 2019, 250, 145–162. [Google Scholar] [CrossRef]
  42. Symons, G.M.; Chua, Y.-J.; Ross, J.J.; Quittenden, L.J.; Davies, N.W.; Reid, J.B. Hormonal changes during non-climacteric ripening in strawberry. J. Exp. Bot. 2012, 63, 4741–4750. [Google Scholar] [CrossRef] [Green Version]
  43. Dar, N.A.; Amin, I.; Wani, W.; Wani, S.A.; Shikari, A.B.; Wani, S.H.; Masoodi, K.Z. Abscisic acid: A key regulator of abiotic stress tolerance in plants. Plant Gene 2017, 11, 106–111. [Google Scholar] [CrossRef]
  44. Chen, H.; Li, H.; Lu, X.; Chen, L.; Liu, J.; Wu, H. Identification and expression analysis of GRAS transcription factors to elucidate candidate genes related to stolons, fruit ripening and abiotic stresses in woodland strawberry (Fragaria vesca). Int. J. Mol. Sci. 2019, 20, 4593. [Google Scholar] [CrossRef] [Green Version]
  45. Li, P.; Wen, J.; Chen, P.; Guo, P.; Ke, Y.; Wang, M.; Liu, M.; Tran, L.-S.P.; Li, J.; Du, H. MYB superfamily in Brassica napus: Evidence for hormone-mediated expression profiles, large expansion, and functions in root hair development. Biomolecules 2020, 10, 875. [Google Scholar] [CrossRef] [PubMed]
  46. Chen, S.; Niu, X.; Guan, Y.; Li, H. Genome-wide analysis and expression profiles of the MYB genes in Brachypodium distachyon. Plant Cell Physiol. 2017, 58, 1777–1788. [Google Scholar] [CrossRef] [PubMed]
  47. Liu, H.; Xiong, J.-S.; Jiang, Y.-T.; Wang, L.; Cheng, Z.-M. (Max) evolution of the R2R3-MYB gene family in six Rosaceae species and expression in woodland strawberry. J. Integr. Agric. 2019, 18, 2753–2770. [Google Scholar] [CrossRef]
  48. Guan, Q.; Wu, J.; Zhang, Y.; Jiang, C.; Liu, R.; Chai, C.; Zhu, J. A DEAD box RNA helicase is critical for pre-mRNA splicing, cold-responsive gene regulation, and cold tolerance in Arabidopsis. Plant Cell 2013, 25, 342–356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Rowan, D.D.; Cao, M.; Lin-Wang, K.; Cooney, J.M.; Jensen, D.J.; Austin, P.T.; Hunt, M.B.; Norling, C.; Hellens, R.P.; Schaffer, R.J.; et al. Environmental regulation of leaf colour in red 35S:PAP1 Arabidopsis thaliana. New Phytol. 2009, 182, 102–115. [Google Scholar] [CrossRef]
  50. Seo, P.J.; Xiang, F.; Qiao, M.; Park, J.-Y.; Na Lee, Y.; Kim, S.-G.; Lee, Y.-H.; Park, W.J.; Park, C.-M. The MYB96 transcription factor mediates abscisic acid signaling during drought stress response in Arabidopsis. Plant Physiol. 2009, 151, 275–289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Ding, Z.; Li, S.; An, X.; Liu, X.; Qin, H.; Wang, D. Transgenic expression of MYB15 confers enhanced sensitivity to abscisic acid and improved drought tolerance in Arabidopsis thaliana. J. Genet. Genom. 2009, 36, 17–29. [Google Scholar] [CrossRef]
  52. Agarwal, M.; Hao, Y.; Kapoor, A.; Dong, C.-H.; Fujii, H.; Zheng, X.; Zhu, J.-K. A R2R3 Type MYB transcription factor is involved in the cold regulation of CBF genes and in acquired freezing tolerance. J. Biol. Chem. 2006, 281, 37636–37645. [Google Scholar] [CrossRef] [Green Version]
  53. Abe, H.; Urao, T.; Ito, T.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Arabidopsis AtMYC2 (bHLH) and AtMYB2 (MYB) function as transcriptional activators in abscisic acid signaling. Plant Cell 2003, 15, 63–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Oh, J.E.; Kwon, Y.; Kim, J.H.; Noh, H.; Hong, S.-W.; Lee, H. A dual role for MYB60 in stomatal regulation and root growth of Arabidopsis thaliana under drought stress. Plant Mol. Biol. 2011, 77, 91–103. [Google Scholar] [CrossRef] [PubMed]
  55. Mu, R.-L.; Cao, Y.-R.; Liu, Y.-F.; Lei, G.; Zou, H.-F.; Liao, Y.; Wang, H.-W.; Zhang, W.-K.; Ma, B.; Du, J.-Z.; et al. An R2R3-type transcription factor gene AtMYB59 regulates root growth and cell cycle progression in Arabidopsis. Cell Res. 2009, 19, 1291–1304. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Sun, W.; Ma, Z.; Chen, H.; Liu, M. MYB gene family in potato (Solanum tuberosum L.): Genome-wide identification of hormone-responsive reveals their potential functions in growth and development. Int. J. Mol. Sci. 2019, 20, 4847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Yang, X.Y.; Li, J.G.; Pei, M.; Gu, H.; Chen, Z.L.; Qu, L.-J. Over-expression of a flower-specific transcription factor gene AtMYB24 causes aberrant anther development. Plant Cell Rep. 2006, 26, 219–228. [Google Scholar] [CrossRef]
  58. Shin, B.; Choi, G.; Yi, H.; Yang, S.; Cho, I.; Kim, J.; Lee, S.; Paek, N.-C.; Kim, J.-H.; Song, P.-S.; et al. AtMYB21, a gene encoding a flower-specific transcription factor, is regulated by COP1. Plant J. 2002, 30, 23–32. [Google Scholar] [CrossRef]
  59. Phan, H.A.; Li, S.F.; Parish, R.W. MYB80, a regulator of tapetal and pollen development, is functionally conserved in crops. Plant Mol. Biol. 2011, 78, 171–183. [Google Scholar] [CrossRef]
  60. Li, S.F.; Iacuone, S.; Parish, R.W. Suppression and restoration of male fertility using a transcription factor. Plant Biotechnol. J. 2007, 5, 297–312. [Google Scholar] [CrossRef]
  61. Higginson, T.; Li, S.F.; Parish, R.W. AtMYB103 regulates tapetum and trichome development in Arabidopsis thaliana. Plant J. 2003, 35, 177–192. [Google Scholar] [CrossRef]
  62. Zhang, Y.; Cao, G.; Qu, L.-J.; Gu, H. Characterization of Arabidopsis MYB transcription factor gene AtMYB17 and its possible regulation by LEAFY and AGL15. J. Genet. Genom. 2009, 36, 99–107. [Google Scholar] [CrossRef]
  63. Li, Y.-Y.; Mao, K.; Zhao, C.; Zhao, X.-Y.; Zhang, H.-L.; Shu, H.-R.; Hao, Y.-J. MdCOP1 ubiquitin E3 ligases interact with MdMYB1 to regulate light-induced anthocyanin biosynthesis and red fruit coloration in apple. Plant Physiol. 2012, 160, 1011–1022. [Google Scholar] [CrossRef] [Green Version]
  64. Niu, S.-S.; Xu, C.-J.; Zhang, W.-S.; Zhang, B.; Li, X.; Lin-Wang, K.; Ferguson, I.B.; Allan, A.C.; Chen, K.-S. Coordinated regulation of anthocyanin biosynthesis in Chinese bayberry (Myrica rubra) fruit by a R2R3 MYB transcription factor. Planta 2010, 231, 887–899. [Google Scholar] [CrossRef] [PubMed]
  65. Espley, R.V.; Hellens, R.P.; Putterill, J.; Stevenson, D.E.; Kutty-Amma, S.; Allan, A.C. Red colouration in apple fruit is due to the activity of the MYB transcription factor, MdMYB10. Plant J. 2007, 49, 414–427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Lai, B.; Li, X.-J.; Hu, B.; Qin, Y.-H.; Huang, X.-M.; Wang, H.-C.; Hu, G.-B. LcMYB1 is a key determinant of differential anthocyanin accumulation among genotypes, tissues, developmental phases and ABA and light stimuli in Litchi chinensis. PLoS ONE 2014, 9, e86293. [Google Scholar] [CrossRef] [PubMed]
  67. Yao, G.; Ming, M.; Allan, A.C.; Gu, C.; Li, L.; Wu, X.; Wang, R.; Chang, Y.; Qi, K.; Zhang, S.; et al. Map-based cloning of the pear geneMYB114identifies an interaction with other transcription factors to coordinately regulate fruit anthocyanin biosynthesis. Plant J. 2017, 92, 437–451. [Google Scholar] [CrossRef] [Green Version]
  68. Zhai, R.; Wang, Z.; Zhang, S.; Meng, G.; Song, L.; Wang, Z.; Li, P.; Ma, F.; Xu, L. Two MYB transcription factors regulate flavonoid biosynthesis in pear fruit (Pyrus bretschneideri Rehd.). J. Exp. Bot. 2016, 67, 1275–1284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Jian, W.; Cao, H.; Yuan, S.; Liu, Y.; Lu, J.; Lu, W.; Li, N.; Wang, J.; Zou, J.; Tang, N.; et al. SlMYB75, an MYB-type transcription factor, promotes anthocyanin accumulation and enhances volatile aroma production in tomato fruits. Hortic. Res. 2019, 6, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Cao, X.; Qiu, Z.; Wang, X.; Van Giang, T.; Liu, X.; Wang, J.; Wang, X.; Gao, J.; Guo, Y.; Du, Y.; et al. A putative R3 MYB repressor is the candidate gene underlying atroviolacium, a locus for anthocyanin pigmentation in tomato fruit. J. Exp. Bot. 2017, 68, 5745–5758. [Google Scholar] [CrossRef]
  71. Gonzalez, A.; Zhao, M.; Leavitt, J.M.; Lloyd, A.M. Regulation of the anthocyanin biosynthetic pathway by the TTG1/bHLH/Myb transcriptional complex in Arabidopsis seedlings. Plant J. 2008, 53, 814–827. [Google Scholar] [CrossRef]
  72. Warner, N.M. Unravelling the Roles of Two Senescent Enhanced MYB Transcription Factors in the Regulation of Anthocyanin Biosynthesis in Arabidopsis Thaliana. Ph.D. Thesis, University of Warwick, Coventry, UK, 2008. [Google Scholar]
  73. Chen, G.; Xu, P.; Pan, J.; Li, Y.; Zhou, J.; Kuang, H.; Lian, H. Inhibition of FvMYB10 transcriptional activity promotes color loss in strawberry fruit. Plant Sci. 2020, 298, 110578. [Google Scholar] [CrossRef]
  74. Castillejo, C.; Waurich, V.; Wagner, H.; Ramos, R.; Oiza, N.; Muñoz, P.; Triviño, J.C.; Caruana, J.; Liu, Z.; Cobo, N.; et al. Allelic variation of MYB10 is the major force controlling natural variation in skin and flesh color in strawberry (Fragaria spp.) fruit. Plant Cell 2020, 32, 3723–3749. [Google Scholar] [CrossRef]
  75. Kadomura-Ishikawa, Y.; Miyawaki, K.; Takahashi, A.; Masuda, T.; Noji, S. Light and abscisic acid independently regulated FaMYB10 in Fragaria × ananassa fruit. Planta 2015, 241, 953–965. [Google Scholar] [CrossRef]
Horticulturae 07 00097 g001 550

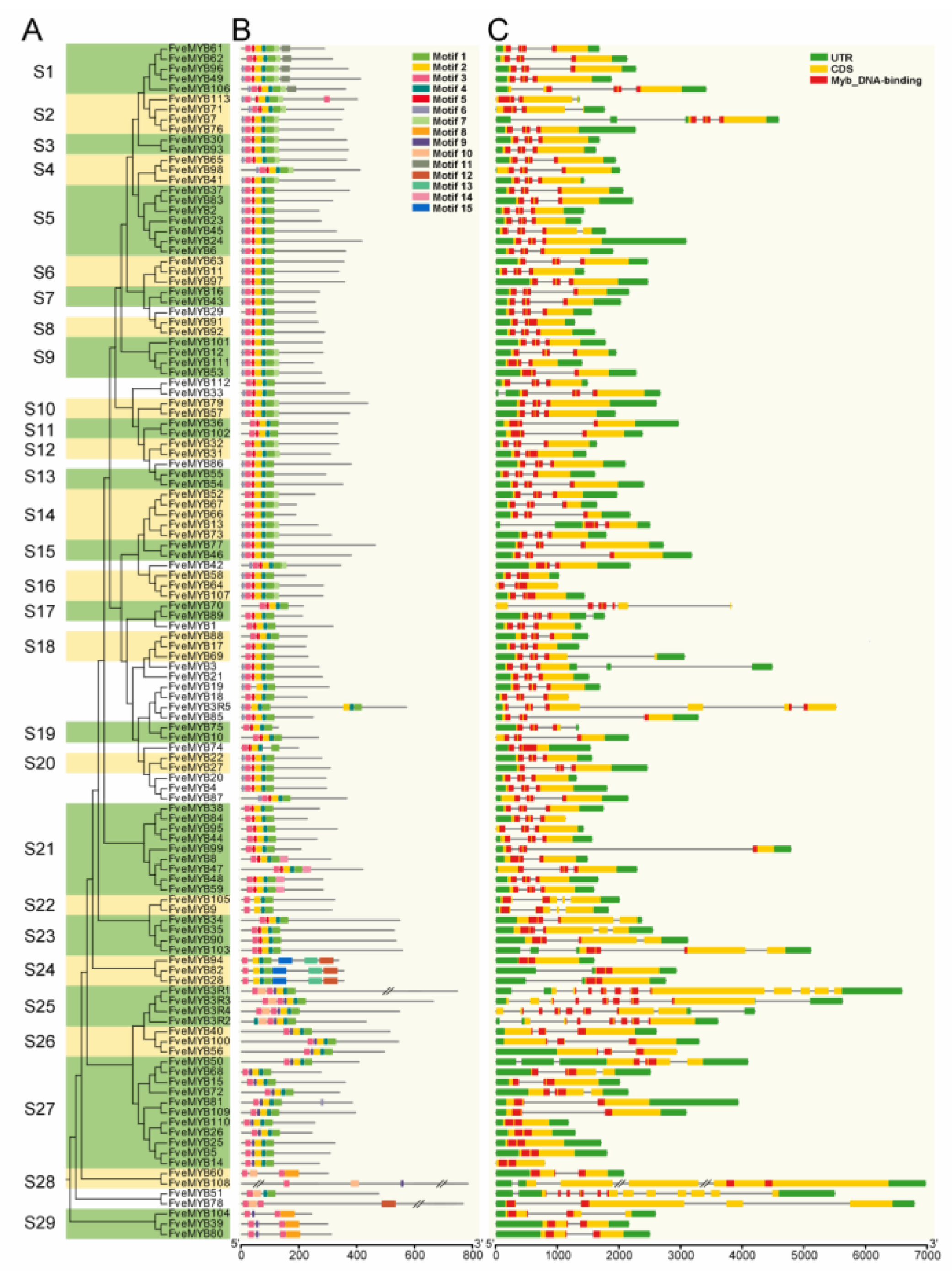

Figure 1. The phylogenetic relationship, conserved motif structure, domain, and intron–exon organization of 2R-MYB and 3R-MYB proteins in woodland strawberry. (A) The phylogenetic tree of five 3R-MYB proteins and 113 2R-MYB proteins in woodland strawberry. According to previous study in soybean [26], the phylogenetic tree was divided into 29 subgroups (S1–S29) based on bootstrap values (>50), which had only one R1R2R3 subgroup. Some proteins were not clustered together due to bootstrap values were below than 50. (B) The motif composition of 2R-MYB and 3R-MYB proteins from woodland strawberry. Fifteen motifs were marked with different color boxes. (C) The domain composition and intron–exon organization of 2R-MYB and 3R-MYB proteins from woodland strawberry. Red boxes represent Myb_DNA-binding domains. The exon structure was shown as yellow CDS (s) and green UTR (s). The space (grey lines) between the boxes were intron(s).
Figure 1. The phylogenetic relationship, conserved motif structure, domain, and intron–exon organization of 2R-MYB and 3R-MYB proteins in woodland strawberry. (A) The phylogenetic tree of five 3R-MYB proteins and 113 2R-MYB proteins in woodland strawberry. According to previous study in soybean [26], the phylogenetic tree was divided into 29 subgroups (S1–S29) based on bootstrap values (>50), which had only one R1R2R3 subgroup. Some proteins were not clustered together due to bootstrap values were below than 50. (B) The motif composition of 2R-MYB and 3R-MYB proteins from woodland strawberry. Fifteen motifs were marked with different color boxes. (C) The domain composition and intron–exon organization of 2R-MYB and 3R-MYB proteins from woodland strawberry. Red boxes represent Myb_DNA-binding domains. The exon structure was shown as yellow CDS (s) and green UTR (s). The space (grey lines) between the boxes were intron(s).
Horticulturae 07 00097 g001
Horticulturae 07 00097 g002 550

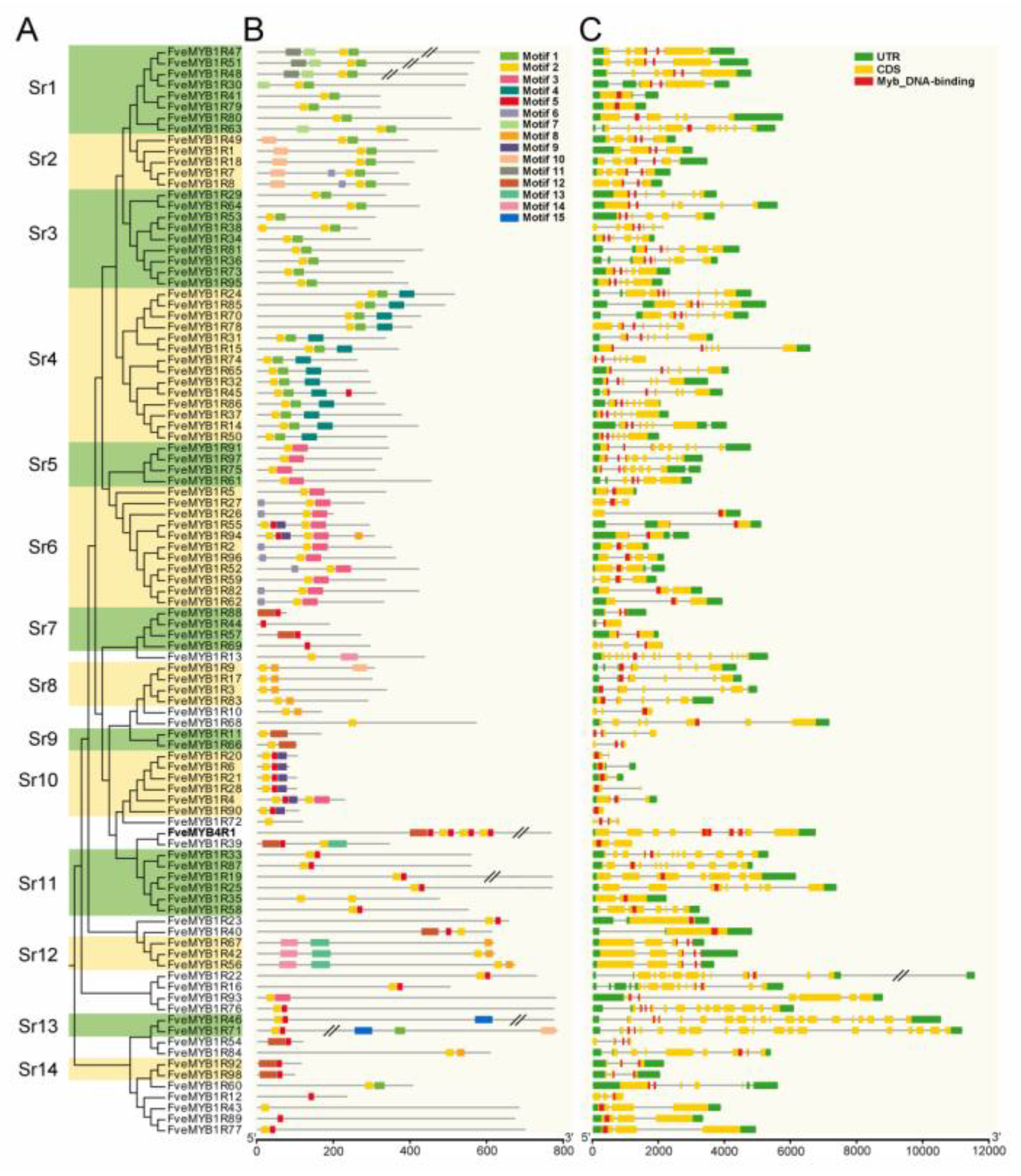

Figure 2. The phylogenetic relationship, conserved motif structure, domain, and intron–exon organization of 1R-MYB and 4R-MYB proteins in woodland strawberry. (A) Phylogenetic tree of 98 1R-MYB proteins and one 4R-MYB protein in woodland strawberry. According to previous study in soybean [26], the phylogenetic tree was divided into 14 subgroups (Sr1–Sr14) based on bootstrap values (>50). Some proteins were not clustered together due to bootstrap values were below than 50. (B) The motif composition of 1R-MYB and 4R-MYB proteins from woodland strawberry. Fifteen motifs are marked with different color boxes. (C) The domain composition and intron–exon organization of 1R-MYB and 4R-MYB proteins from woodland strawberry. Red boxes represent Myb_DNA-binding domains. The exon structure was shown as yellow CDS (s) and green UTR (s). The space (grey lines) between the boxes were intron(s).
Figure 2. The phylogenetic relationship, conserved motif structure, domain, and intron–exon organization of 1R-MYB and 4R-MYB proteins in woodland strawberry. (A) Phylogenetic tree of 98 1R-MYB proteins and one 4R-MYB protein in woodland strawberry. According to previous study in soybean [26], the phylogenetic tree was divided into 14 subgroups (Sr1–Sr14) based on bootstrap values (>50). Some proteins were not clustered together due to bootstrap values were below than 50. (B) The motif composition of 1R-MYB and 4R-MYB proteins from woodland strawberry. Fifteen motifs are marked with different color boxes. (C) The domain composition and intron–exon organization of 1R-MYB and 4R-MYB proteins from woodland strawberry. Red boxes represent Myb_DNA-binding domains. The exon structure was shown as yellow CDS (s) and green UTR (s). The space (grey lines) between the boxes were intron(s).
Horticulturae 07 00097 g002
Horticulturae 07 00097 g003 550
Figure 3. The phylogenetic tree of 2R-MYB and 3R-MYB proteins from woodland strawberry and Arabidopsis. According to previous study in soybean [26], the phylogenetic tree was divided into 44 phylogenetic clades (C1–C44) based on bootstrap values (>50). Red dots represent MYB proteins from woodland strawberry. Grey dots represent MYB proteins from Arabidopsis. Blue stars represent MYB proteins from woodland strawberry not fit into any clades (bootstrap support values < 50). S1–S29 are group numbers of strawberry 2R-MYB and 3R-MYB proteins named in Figure 1. The function of some members from Arabidopsis was annotated outside the circle.
Figure 3. The phylogenetic tree of 2R-MYB and 3R-MYB proteins from woodland strawberry and Arabidopsis. According to previous study in soybean [26], the phylogenetic tree was divided into 44 phylogenetic clades (C1–C44) based on bootstrap values (>50). Red dots represent MYB proteins from woodland strawberry. Grey dots represent MYB proteins from Arabidopsis. Blue stars represent MYB proteins from woodland strawberry not fit into any clades (bootstrap support values < 50). S1–S29 are group numbers of strawberry 2R-MYB and 3R-MYB proteins named in Figure 1. The function of some members from Arabidopsis was annotated outside the circle.
Horticulturae 07 00097 g003
Horticulturae 07 00097 g004 550
Figure 4. The phylogenetic tree of 1R-MYB and 4R-MYB proteins from woodland strawberry and Arabidopsis. According to previous study in soybean [26], the phylogenetic tree was divided into 23 phylogenetic clades (Cr1–Cr23) based on bootstrap values (>50). Red dots represent MYB proteins from woodland strawberry. Grey dots represent MYB proteins from Arabidopsis. Blue stars represent MYB proteins from woodland strawberry not fit into any clades (bootstrap support values <50). Sr1–Sr14 are group numbers of strawberry 1R-MYB and 4R-MYB proteins named in Figure 2. The function of some members from Arabidopsis was annotated outside the circle.
Figure 4. The phylogenetic tree of 1R-MYB and 4R-MYB proteins from woodland strawberry and Arabidopsis. According to previous study in soybean [26], the phylogenetic tree was divided into 23 phylogenetic clades (Cr1–Cr23) based on bootstrap values (>50). Red dots represent MYB proteins from woodland strawberry. Grey dots represent MYB proteins from Arabidopsis. Blue stars represent MYB proteins from woodland strawberry not fit into any clades (bootstrap support values <50). Sr1–Sr14 are group numbers of strawberry 1R-MYB and 4R-MYB proteins named in Figure 2. The function of some members from Arabidopsis was annotated outside the circle.
Horticulturae 07 00097 g004
Horticulturae 07 00097 g005 550
Figure 5. The physical location and gene duplication of MYB genes in woodland strawberry. The 217 FveMYB genes were located on seven chromosomes (Fvb1–Fvb7). Genes in black on the right side of each chromosome indicate the 2R-MYB genes, whereas genes in yellow represent the 1R-MYB genes. Genes in green represent the 3R-MYB genes, and gene in red represents the 4R-MYB gene. Six FveMYB gene clusters were in blue boxes. The scale bar on the left represents the genetic length of the chromosomes.
Figure 5. The physical location and gene duplication of MYB genes in woodland strawberry. The 217 FveMYB genes were located on seven chromosomes (Fvb1–Fvb7). Genes in black on the right side of each chromosome indicate the 2R-MYB genes, whereas genes in yellow represent the 1R-MYB genes. Genes in green represent the 3R-MYB genes, and gene in red represents the 4R-MYB gene. Six FveMYB gene clusters were in blue boxes. The scale bar on the left represents the genetic length of the chromosomes.
Horticulturae 07 00097 g005
Horticulturae 07 00097 g006 550
Figure 6. Expression pattern of FveMYB genes in various organs of woodland strawberry. (A,C) Expression pattern of 2R-MYB and 3R-MYB, 1R-MYB, and 4R-MYB genes in the root, crown, stolon, stolon tip, leaf, petiole, open flower, and immature fruit of woodland strawberry. (B,D) Expression pattern of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes in the immature and ripening fruit of two woodland strawberry varieties “Ruegen” and “Yellow Wonder”. The transcription data were downloaded from Li et al., (2019) [38]. FPKM values in (A,C) were located in Supplementary Table S2. RPKM values in (B,D) were located in Supplementary S3. The heat map showed log2 level.
Figure 6. Expression pattern of FveMYB genes in various organs of woodland strawberry. (A,C) Expression pattern of 2R-MYB and 3R-MYB, 1R-MYB, and 4R-MYB genes in the root, crown, stolon, stolon tip, leaf, petiole, open flower, and immature fruit of woodland strawberry. (B,D) Expression pattern of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes in the immature and ripening fruit of two woodland strawberry varieties “Ruegen” and “Yellow Wonder”. The transcription data were downloaded from Li et al., (2019) [38]. FPKM values in (A,C) were located in Supplementary Table S2. RPKM values in (B,D) were located in Supplementary S3. The heat map showed log2 level.
Horticulturae 07 00097 g006
Horticulturae 07 00097 g007 550
Figure 7. Expression of FveMYB genes of woodland strawberry under ABA and GA3 treatments. (A,C) Expressions of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under ABA treatment. (B,D) Expression of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under GA3 treatment. Woodland strawberry variety “Hawaii 4” seedlings were used for ABA and GA3 treatments. FPKM values were in Supplementary Table S4, and the heat map showed log2 level.
Figure 7. Expression of FveMYB genes of woodland strawberry under ABA and GA3 treatments. (A,C) Expressions of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under ABA treatment. (B,D) Expression of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under GA3 treatment. Woodland strawberry variety “Hawaii 4” seedlings were used for ABA and GA3 treatments. FPKM values were in Supplementary Table S4, and the heat map showed log2 level.
Horticulturae 07 00097 g007
Horticulturae 07 00097 g008 550
Figure 8. Expression of FveMYB genes of woodland strawberry under cold and heat stresses. (A,C) Expression of 2R-MYB and 3R-MYB, 1R-MYB, and 4R-MYB genes of woodland strawberry under cold stress (4 °C). (B,D) Expression of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under heat stress (40 °C). Woodland strawberry variety “Hawaii 4” seedlings were used for cold and heat treatments. FPKM values were in Supplementary Table S5, and the heat map showed log2 level.
Figure 8. Expression of FveMYB genes of woodland strawberry under cold and heat stresses. (A,C) Expression of 2R-MYB and 3R-MYB, 1R-MYB, and 4R-MYB genes of woodland strawberry under cold stress (4 °C). (B,D) Expression of 2R-MYB and 3R-MYB, 1R-MYB and 4R-MYB genes of woodland strawberry under heat stress (40 °C). Woodland strawberry variety “Hawaii 4” seedlings were used for cold and heat treatments. FPKM values were in Supplementary Table S5, and the heat map showed log2 level.
Horticulturae 07 00097 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, H.; Zhou, Y.; Ma, Z.; Lu, X.; Li, Y.; Chen, H. Genome-Wide Identification and Expression Analysis of MYB Transcription Factors and Their Responses to Abiotic Stresses in Woodland Strawberry (Fragaria vesca). Horticulturae 2021, 7, 97. https://doi.org/10.3390/horticulturae7050097

AMA Style

Li H, Zhou Y, Ma Z, Lu X, Li Y, Chen H. Genome-Wide Identification and Expression Analysis of MYB Transcription Factors and Their Responses to Abiotic Stresses in Woodland Strawberry (Fragaria vesca). Horticulturae. 2021; 7(5):97. https://doi.org/10.3390/horticulturae7050097

Chicago/Turabian Style

Li, Huihui, Yanwei Zhou, Zongxin Ma, Xiaoqing Lu, Yunlong Li, and Hong Chen. 2021. "Genome-Wide Identification and Expression Analysis of MYB Transcription Factors and Their Responses to Abiotic Stresses in Woodland Strawberry (Fragaria vesca)" Horticulturae 7, no. 5: 97. https://doi.org/10.3390/horticulturae7050097

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
