Performance of Recombinant Komagataella phaffii in Plant-Based Meat Flavor Compound-Leghemoglobin (LegH) Production through Fed-Batch Fermentations

Abstract

Soy leghemoglobin (LegH) has been gaining interest over the last years as an efficient flavor and aroma compound in plant-based meat substitutes. Hence, in the following article, we demonstrate the methods for LegH production using a recombinant Komagataella phaffii strain. Multiple fed-batch fermentation with an alternative to a BSM medium, where glucose was used as the main carbon source, was implemented and the growth kinetics, e.g., a maximal specific biomass growth of 0.239 g·g⁻¹·h⁻¹, a biomass yield from the substrate of 0.298 g·g⁻¹, and a maximal specific substrate consumption rate of 0.81 g·g⁻¹·h⁻¹ were identified. Leghemoglobin production resulted in a yield of 0.513 mg·gDCW⁻¹, while the highest biomass density achieved in this study was 121.80 gDCW·L⁻¹. The applied medium that showed potential for additional optimization studies, which, in contrast to BSM, made it possible to separate pH control from nitrogen supply, does not affect medium turbidity measurements and does not induce metabolite synthesis during yeast biomass growth.

1. Introduction

Humans are physiologically omnivorous, and animal meat provides several essential nutrients (vitamin B12, essential amino acids, complete proteins, heme iron, creatine, etc.) for maintaining health and promoting organism development, especially for children. Historically, livestock provides us with foods of animal origin, including meat. Although, during the last two centuries of population growth, urbanization, economic growth, and flourishing markets all led to the rapid increase in demand for meat and animal products on a global scale [1]. Global meat production has tripled over the last four decades alone and is expected to more than double by the year 2050 to reach a total capacity of 470 million tons [2]. Thus, the livestock sector can be considered the fastest-growing agricultural subsector today, employing 1.3 billion and supporting about 4 billion people worldwide. Of the total global protein consumption, animal proteins now represent 40%, and this number is anticipated to increase as population increases [3].

Unfortunately, modern livestock production systems are associated with multiple environmental problems such as soil and water pollution, loss of habitat and biodiversity, increased soil erosion, and greenhouse gas emissions. World meat production at present is contributing between 15 and 24% of total greenhouse gas emissions (higher than the transport industry) [2]. Considering that the fossil energy to animal protein ratios as of now are at their lowest in the case of broilers (4:1) and their highest in the case of lamb (57:1), it can be concluded that traditional meat production systems are also associated with energy inefficiencies, which only aggravate the summarized environmental concerns [4].

Even though animal meat is the most accessible source of essential nutrients, the production and consumption of meat have been reported to also cause negative effects on human health. For example, there are reports that the consumption of red and processed meat increases the risk of developing colon, lung, pancreatic, and prostate cancers [5,6,7,8,9,10] and other chronic diseases [6,9,11].

Adding to what is stated above, traditional meat production is often unsanitary and relatively inefficient from the point of view of raw material transformation. By removing animals from the meat production process, most of the summarized problems may be alleviated [12]. Thus, in recent years, cell-based meat (CBM), plant-based meat (PBM), and filamentous fungi-based meat (FBM) have raised great interest as efficient animal meat substitutes.

Cell-based meat (CBM), also known as in vitro meat, lab-grown meat, or cultured meat, refers to a range of products that are produced by cultivating animal cells in the laboratory or industrial equipment. The technology behind CBM was developed by advancements in stem cell biology, such as induced pluripotent stem cells and tissue engineering techniques that were originally developed for medical purposes. CBM production consists of the isolation and cultivation of muscle and fat cells, the formulation of xeno-free culture mediums, the development of scaffolds, and the cultivation process within a bioreactor [2].

Concerning human health, large-scale in vitro meat manufacturing may require increased artificial hormone supplementation in the cultivation medium. So far, no viable methods have been adapted to produce CBM on a large scale without the use of antibiotics to prevent bacterial infections [13]. Due to slower growth, the contamination risk in mammalian cell cultures is much higher than in microbial or yeast processes [14]. Additionally, mammalian cells are generally difficult to work with since they are fragile in nature and the conventionally applied cultivation mediums are expensive, which in turn impact the feasibility of such production [15]. Furthermore, a notable challenge associated with in vitro meat production is scale up [1]. Current CBM production systems can reach production volumes of several dozen m³ at maximum (per one bioreactor), which is insufficient to satisfy the potential consumer demand [1]. Thus, current cell-based meat manufacturing at an industrial scale is hampered by high production costs, scale-up difficulties, and gaps in fundamental knowledge about employing cell cultures for food application [12].

Another key challenge is the perception of in vitro meat by the public. Several limitations of CBM have been outlined previously, e.g., social, economic, and technical constraints, including uncertain acceptance by the consumers [16]. The latter prima facie seems to be a serious challenge, which renders the perception of in vitro meat as unattractive and ‘unnatural’. Additionally, cultured meat does not require the slaughtering of farm animals for its production, and multiple vegetarian sub-classes (such as emotional vegetarians) are considered not likely to include CBM in their diet. The mentioned statement can be explained by the fact that cultured meat is still formally meat, and multiple vegetarian groups have already developed a visceral resistance to meat itself, not simply as a fear of health problems or disapproval of farming practices but more as a moral emotion of disgust and revulsion [17].

Another alternative is fungal-based meat, e.g., mycoproteins, which compared to proteins from plant or animal sources, pose multiple characteristic advantages. Products derived from fungi exhibit distinct nutritional profiles, lower production costs, and greater environmental benefits. Notably, filamentous fungi can be cultivated on inexpensive substrates, and even in substrates comprised of food industry by-products, e.g., sugarcane bagasses and agricultural or forestry waste materials [18,19,20]. The meat-like texture of fungal mycelium is suitable for forming traditionally shaped food, e.g., meatballs, nuggets, etc., which benefits consumer acceptance. However, a major disadvantage is the sensory role, which might delay the filamentous fungi-based meat integration into Western markets, as it occasionally may be perceived as tough to chew and bitter. In Eastern countries, fungi-based foods already have taken a niche in everyday human diets; therefore, the acceptance of fungal-derived products on a global scale could be a matter of time [21].

Plant-based meat can be described as a meat-like substance, which is vegetarian and/or vegan friendly, as it uses ingredients derived solely from plant sources. Such products aim to recreate the flavor and texture close to that of animal meat using compounds derived from plants to make it more compelling for consumers. However, recipe development and cooking methods play a crucial role in reaching the mentioned aim. The conventional components used in such recipes include proteins (sourced from soy and potatoes), fats (derived from coconut and sunflower oils), carbohydrates (such as potato starch and corn starch), nutritional additives (like yeast extract and vitamins), and other additives (including beet juice extract, apple extract, and plant hemoglobins), which are usually added to recreate ‘meat-like’ flavors [22]. Genetically modified yeast strains, for example, Komagataella phaffii, previously known as Pichia pastoris, were utilized to produce soy leghemoglobin (LegH), which mimics the color and flavor of meat in plant-based meatballs, patties, rissoles, etc. [23]. Leghemoglobin is usually added to plant-based meat products in 0.5–2% by mass (like the quantity of myoglobin in animal meat).

It is worth noting that the LegH protein used in these processes via recombinant microorganism strains has received safety approval from the Food and Drug Administration (FDA) [24]. As the GMO is not itself an ingredient of plant-based meat, such products are not considered genetically modified (or containing genetically modified ingredients), according to both European and US legislations. Thus, recent trends indicate that LegH meat substitutes will gain more interest in the near future, which will inevitably give rise to the demand for efficient cultivation/fermentation systems of plant-based meat mass production.

Apart from artificially adding LegH to the end product, the development of fermented PBM (using leghemoglobin-containing cultures) has been investigated. The utilization of microorganisms or the construction of microbial consortia with specific bioconversion capabilities (e.g., proteolysis, aromatization via amino acid metabolism, or other) can offer a highly efficient means to make PBM more palatable. Presently, this approach is used to develop fermented products based on pea protein, aimed at diminishing the characteristics of the legumes and introducing new flavors (e.g., fruity or dairy-like palate) that are more appealing to consumers [25,26].

LegH-producing recombinant microorganism strains, which were studied previously, include Candida, Hansenula, Komagataella, and Toruplosis genus representatives [27]. The mentioned strains are considered methylotrophic yeasts, which utilize alcohols (usually methanol) as substrates, and in their recombinant form can produce LegH via a methanol-inducible promoter element. Komagataella phaffii seems to have promoted the most noticeable interest in LegH production due to the positive characteristics of this strain, e.g., high growth rates and recombinant protein production capacities, a wide industrial application history in the production of both pharma and food products, and availability of standardized gene alteration methods [28].

Conventionally, Komagataella phaffii fermentations for recombinant protein production are operated in a fed batch, which is justified by the ability to provide controlled nutrient feeding, thus ensuring a possibility to optimize cell growth and protein expression [29]. Furthermore, this approach extends the production phase, resulting in higher biomass and protein titers (in case the protein is endogenous) compared to traditional batch fermentations, which are often limited by nutrient depletion after the growth phase. Controlling feeding rates in fed-batch fermentations can be challenging, as it requires precise monitoring and adjustment to avoid issues, such as nutrient imbalances (growth limitation) and the formation of by-products (acetates and ethanol in the case of K. phaffii), all of which can impact the overall success of the fermentation process [30].

In K. phaffii recombinant protein production, the regulation of synthetic pAOX1 variants is based on principles of repression/promotion, using glucose or glycerol as the only substrate. At high concentrations of glycerol or glucose, pAOX1 variants are repressed, but at lower substrate availability are promoted during fed-batch cultures. In contrast to pGAP-controlled protein production with glucose as the substrate, protein production typically increases with specific growth rates close to μ_max. The opposite is often found for pAOX1-controlled high-level recombinant protein formation induced by methanol, where maximum specific secretion rates were observed at a μ considerably below μ_max. K. phaffii strains with novel pAOX1 variant promoters, which are cultured with glycerol, are a combination of the two mentioned systems with respect to promoter features and the substrate. As a result, product formation is not predictable a priori and has to be determined empirically for each combination of promoter and heterologous genes [31].

The most commonly used medium for the high cell density fed-batch fermentation of K. phaffii is the basal salt medium (BSM) proposed by Invitrogen (USA) [29,32,33]. The two-stage cultivation of glycerol and methanol associated with Invitrogen’s ‘Pichia Fermentation Process Guidelines’ is well documented and present in most pAOX1-promoter-based cultivation strategies. However, recent trends advocate for a move away from standard protocols toward a more conceptual approach, which allows for the development of process-specific strategies tailored both to the specific combination of product/genetic construct and the characteristics of the bioreactor equipment [34]. Furthermore, during the vast history of BSM application, authors have outlined multiple important problems, e.g., precipitation, unbalanced composition, and high ionic strength, which affect the culture performance. For example, as a result of precipitation, the actual concentration of dissolved minerals remaining in the medium is difficult to determine, and the turbidity caused by the salts complicates the measurement of cell densities (optical densities). Additionally, the BSM medium implies the use of NH₄OH for both pH control and the supply of nitrogen, which is necessary for cell growth. The mentioned fact can pose a significant problem in cases where the nitrogen amount in the medium must be maintained at specific values and, thus, cannot be interlinked with other control mechanisms [33]. Hence, the drawbacks of BSM give rise to the necessity to develop other physiologically rational and suitable mediums for efficient recombinant protein production in Komagataella phaffii [33].

Considering the rise in interest toward LegH production processes and apparent blank spots regarding the fermentation process specifics, the focus of the present research was aimed at the development and application of a production protocol for the production of recombinant LegH protein by Komagataella phaffii with upregulated HEM1 and HEM2 genes through fed-batch fermentations in an alternative medium. The composition of the fermentation media and feeding solution was chosen among the ones published in the literature (with modifications), which, in contrast to BSM, do not incorporate nitrogen in the form of ammonium hydroxide (allowing independent pH and nitrogen level control) and do not influence medium turbidity.

2. Materials and Methods

2.1. Yeast Strain and Media

The Komagataella phaffii X-33 strain used as a basis for this work was the same as the one described by Pentjuss et al. [35]. An artificial gene encoding the soy legHemoglobin sequence (GenBank Acc. NP_001235248.2) was designed by GenScript, synthesized by BioCat GmbH (Heidelberg, Germany), and cloned into the pPICZC vector (Invitrogen) using EcoRI and NotI restriction sites. The plasmid was linearized with PmeI and transformed by electroporation. Mut  +  transformants were produced on agarized YPD plates containing 800 µg/mL zeocin and analytically cultivated in flasks with a rich BMMY medium for three days. The best legH-producing clone was selected for the overexpression of heme in the mentioned strain. Genes involved in the heme pathway were chosen to be paired with strong promoters and integrated into the yeast genome. Sequences for HEM1 (XP_002491645.1) and HEM2 (BA75_04933T0) were identified by searching (BLAST) Saccharomyces cerevisiae homologs in NCBI Komagataella phaffii GS115 entries. The genes were synthesized by Twist Bioscience (USA). Gene sequences are attached in Appendix A. An expression construct (pGAP-HEM1-TDH4tt-pAOX1-HEM2-chr4_0883tt) was created by Golden Gate Assembly as described in Prielhoffer et al. 2017 [36]. The transformation was performed by electroporation and positive colonies that were screened out by colony PCR.

The obtained yeast strain was maintained on YPD agar plates, containing the following reagents (per liter): yeast extract 10 g, bactopeptone 20 g, glucose 20 g, and agar 20 g. The inoculum for bioreactor fermentations was grown in a 200 mL Erlenmeyer flask with 100 mL of medium containing (per liter) glucose 20 g, peptone 20 g, and yeast extract 10 g. Incubation was performed for 48 h at 30 °C in an orbital shaker-incubator ES-20 (Biosan Ltd., Riga, Latvia).

A synthetic growth medium was used during cultivation in the laboratory bioreactor; see

Table 1. Media and feeding solutions’ composition.

Component	Batch	Glucose Feeding Solution	Methanol Feeding Solution	Component	Vitamin Solution	Component	Metal Solution
	g/L				g/L		g/L
Glucose	5.00; 10 or 20	400	-	Ca-panthothenate	0.001	CuSO4·5H2O	0.0003
KH2PO4	1.06	21.25	20	Nicotinic acid	0.001	NaI	0.0001
K2HPO4	0.09	1.75	1.75	Inositol	0.025	MnSO4·H2O	0.001
CaCl2·2H2O	0.005	0.20	0.20	Pyridoxine	0.001	Na2MoO4·2H2O	0.0004
(NH4)2SO4	1.88	75.00	75.00	Para-aminobezoic acid	0.0002	H3BO3	0.001
MgSO4·7H2O	0.18	7.00	7.00	Biotin	0.00005	CoCl2·6H2O	0.0003
FeSO4·7H2O	0.003	0.016	0.016	Thiamin	0.001	ZnSO4·7H2O	0.0045
Methanol	-	-	300
	mL/L
Vitamin solution	2	4	4
Metal solution	1	2	2

. Each experiment was split into three stages: (1) batch phase, biomass growth without feeding supply, (2) fed-batch biomass growth with feeding supply, and (3) LegH production induction. Leghemoglobin production was induced by activating the methanol feeding supply after an optimal fermentation time, obtaining a biomass concentration of around 70 g dry cell weight (DCW) per liter. The determination of biomass DCW and leghemoglobin concentration is described below.

2.2. Fed-Batch Cultivations

Bioreactor fed-batch fermentation processes were carried out in a 5.4 L total volume EDF-5.4_1 (Bioreactors.net AS, Riga, Latvia) bench-top system. During the fed-batch fermentations, the temperature was maintained at 30 °C, pH was controlled to 6.0 ± 0.2, and dissolved oxygen was kept at 40 ± 5%-sat. The pH was controlled by two peristaltic pumps, which automatically dosed H₂SO₄ (20 W%) or NaOH (10 W%) solutions into the medium. The foam level was registered via a conductivity sensor, which was mounted on the top lid of the bioreactor’s vessel. Upon reaching the set level, the designated peristaltic pump automatically dosed Antifoam A (Sigma-Aldrich Chemie GmbH, Taufkirchen, Germany) until the foam level decreased to normal levels. The dissolved oxygen (DO) level was maintained according to a cascade algorithm, which operated with two control principles in a defined succession, e.g., primarily regulating the agitation rate (from 100 to 800 rpm) and secondly enriching the inlet gas with oxygen. The flow rate of gas was maintained at 2.0 standard liters per minute (slpm) throughout the fermentation process.

The CO₂ and O₂ concentrations were measured online in the off gas with the help of a BlueInOneCell gas analyzer (BlueSens gas sensor GmbH, Herten, Germany). The ethanol concentration estimate was determined with an ethanol/methanol sensor MeOH Sensor (Raven BioTech Inc., Vancouver, BC, Canada).

The gas analysis data, e.g., respiratory quotient (RQ) and oxygen uptake rate (OUR), were calculated automatically by the EDF-5.4_1 system from the off-gas data.

The biomass samples were harvested aseptically for offline products and metabolite measurements. The biomass concentration was determined through optical density (OD) measurements at 600 nm with a Jenway UV-Visible Spectrophotometer 7205 (Cole-Parmer Instrument Company Ltd., Saint Neots, UK). The glucose concentration in the medium was measured by a blood sugar analyzer, AccuCheck ACTIVE (F. Hoffmann-La Roche A.G, Basel, Switzerland).

The permittivity was measured by an Incyte VCD sensor (Hamilton Bonaduz AG, Bonaduz, Switzerland).

2.3. Determination of Biomass Dry Cell Weight

The relationship between the dry cell weight (DCW) of biomass and the absorbance at a wavelength of 600 nm was determined using gravimetry. Initially, a portion of the growth medium containing K. phaffii cells was harvested from the bioreactor during the exponential growth phase. The absorbance of this solution was then measured at 600 nm. Subsequently, the solution was divided into two equal parts. One part was placed in a convection oven and dried at 60 °C for a minimum of 24 to 48 h, or until the mass reading reached equilibrium. The second part of the solution underwent centrifugation at 3500 rpm for 10 min with lab-scale centrifuge Z 167 M (Hermle Labortechnik GmbH, Wehingen, Germany). The resulting supernatant was filtered through a 60 mm glass filter and then transferred to a convection oven for drying at 60 °C for at least 24 to 48 h until the mass reading reached equilibrium. Once both the supernatant and growth medium samples reached a constant mass, their masses were measured and used to calculate correlation coefficients. The following mathematical correlation (Equation (1)) was used to calculate the correlation coefficient:

$$k=\frac{X_{\mathit{DCW}}}{{\mathit{OD}}_{600}}=(\frac{m_X}{\mathit{Vx}}-\frac{m_{\mathit{Sn}}}{\mathit{Vsm}})/{\mathit{OD}}_{600}$$

(1)

where X_DCW is the biomass concentration in the fermentation medium, g(DCW)·L⁻¹, OD₆₀₀ is the absorbance of the solution measured at 600 nm, m_x is the mass of the dry residue (left from the solution containing K. phaffii cells), g, ms_n is the mass of the dry residue (left from the supernatant), g, V_x is the volume of the solution containing K. phaffii cells, L, and V_sn is the volume of the supernatant, L.

During the present study, the correlation coefficient value was determined as 0.145 g(DCW)·L⁻¹·A.U.⁻¹.

2.4. Determination of Leghemoglobin Concentration

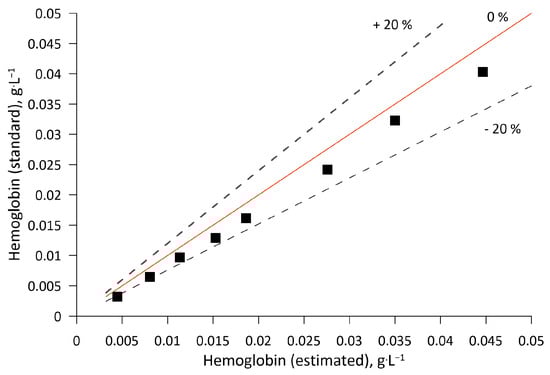

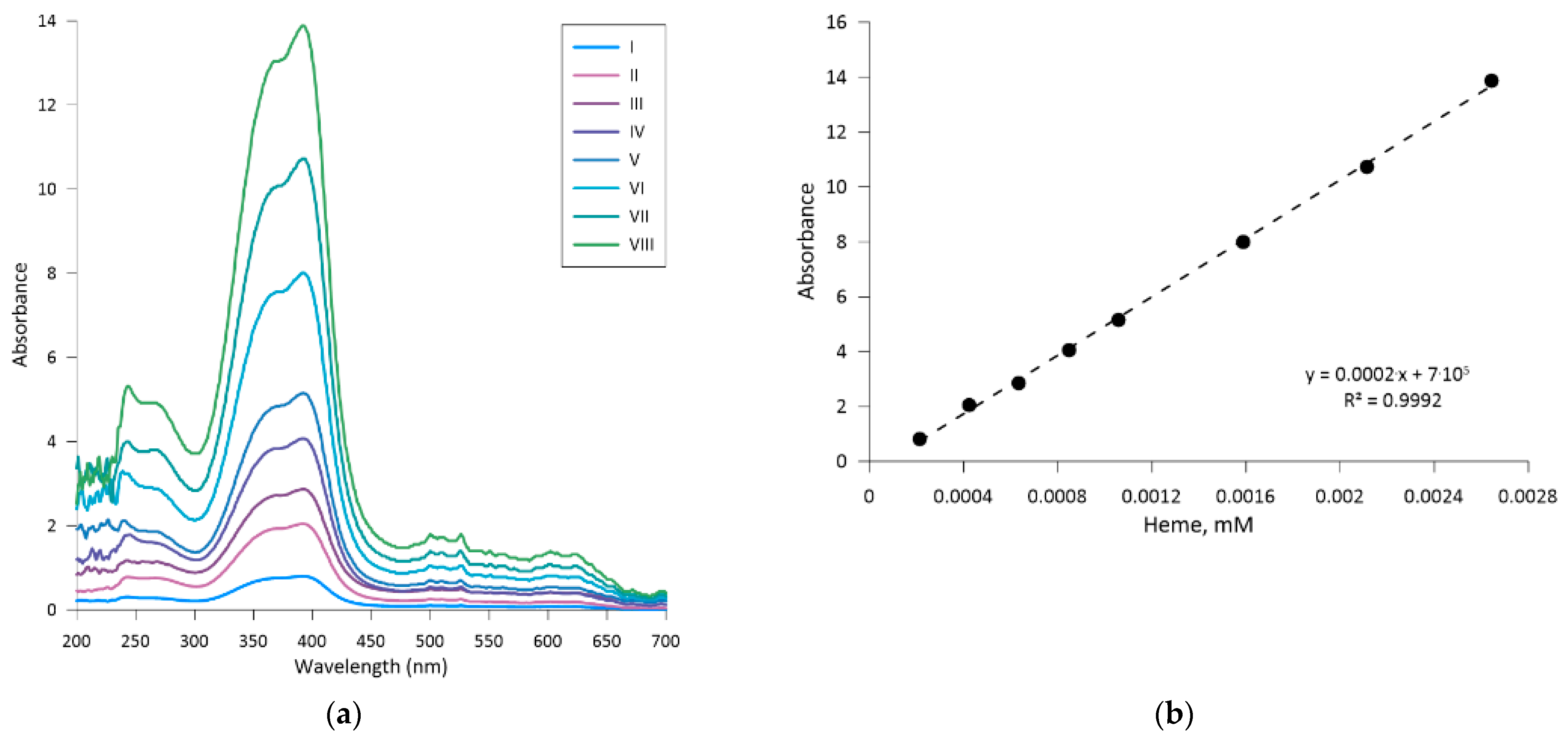

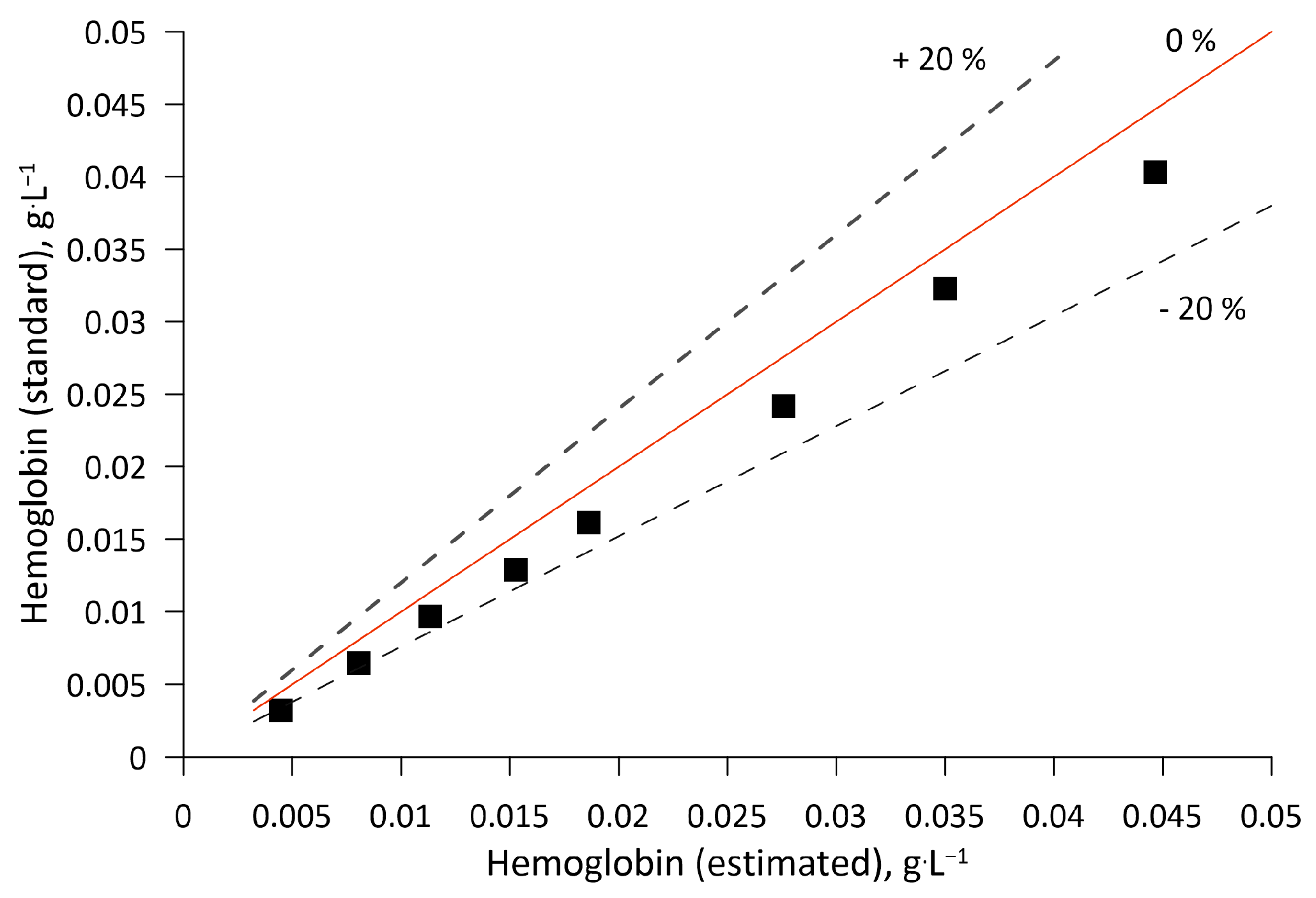

The concentration of leghemoglobin was determined through a developed absorption spectroscopy method, which was developed based on the information published by Hopp et al. [37]. The first phase of this analysis involves washing the yeast biomass. Medium samples were harvested and transferred into four 15 mL vials at particular cultivation time points and then centrifuged. After centrifugation, the supernatant was carefully removed, and a saline solution (9 g·L⁻¹ NaCl) was added to the remaining precipitate, reaching the 7.5 mL mark. The contents of each two samples were then combined into one vial. This procedure was repeated until a single 15 mL vial with precipitate was obtained.

The second phase of the analysis was cell disruption. Initially, an anti-coagulant solution, containing 1.5 g Na-EDTA and 0.2 g NaOH per liter, was added to the 15 mL vial containing the previously obtained biomass precipitate. Suspension was achieved through vigorous agitation using a vortexer LLG-uniTEXER (Lab Logistics Group GmbH, Wehingen, Germany). Next, 1.5 mL of the suspension was transferred into two 2 mL vials. Each vial was then filled with glass beads with a diameter of 0.40–0.60 mm until the liquid level reached the 2.0 mL mark. These vials were then vortexed for at least 15 min, which was followed by refrigeration at 4 °C for 10 min. The vortexing and refrigeration steps are repeated a total of two times. Finally, the vials were centrifuged at 3500 rpm for 10 min. The supernatant is then harvested and diluted as needed with the anti-coagulant solution. The absorption spectra of the solutions were measured within the range of 300 to 600 nm using a quartz cuvette with a light path of 1 cm and a Jenway UV-Visible Spectrophotometer 7205 (Cole-Parmer Instrument Company Ltd., Saint Neots, UK).

An absorption value at 415 nm was used for the calculation of leghemoglobin concentration in the biomass sample. The correlation between the absorption and LegH concentration was determined through the calibration of the described method using analogous hemeproteins and compounds, e.g., hemin (51280, Sigma-Aldrich Co. LCC, Saint Louis, MO, USA) and hemoglobin (08449, Sigma-Aldrich Co. LCC, Saint Louis, MO, USA). As the heme molecules in leghemoglobin, hemin and hemoglobin, are responsible for light absorption at the characteristic wavelength, and the A.U. vs. heme molecule molar concentration was constructed using hemin and validated for the hemoglobin case (see Appendix B).

Considering the mentioned procedure, the following equation was used to calculate the amount of produced leghemoglobin per gram of dry cell mass:

$$Y_{P/\mathit{DCW}}=\frac{c_{\mathit{LegH}}}{4·X_{\mathit{DCW}}}$$

(2)

where Y_P/DCW is the yield of leghemoglobin per gram of yeast biomass, g·g(DCW)⁻¹, and c_LegH is the concentration of leghemoglobin in the final sample (measured by light absorption; see Appendix B).

3. Results

3.1. Fed-Batch Cultivations of K. phaffii

The key areas of interest for the first cultivation included identifying the strain’s maximal growth rate, substrate consumption rate, biomass yield from the substrate, and understanding any potential limitations, which should be considered in subsequent processes.

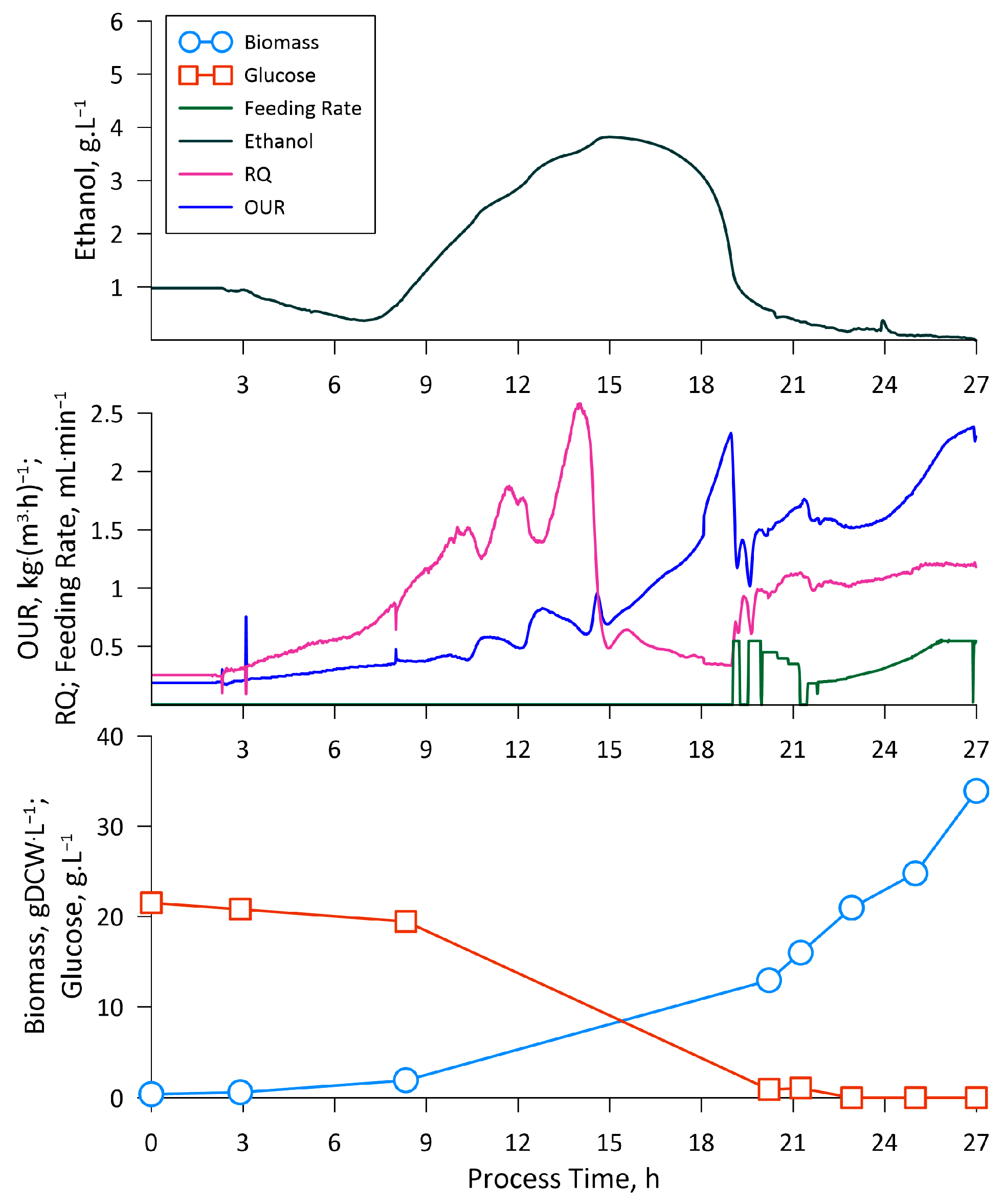

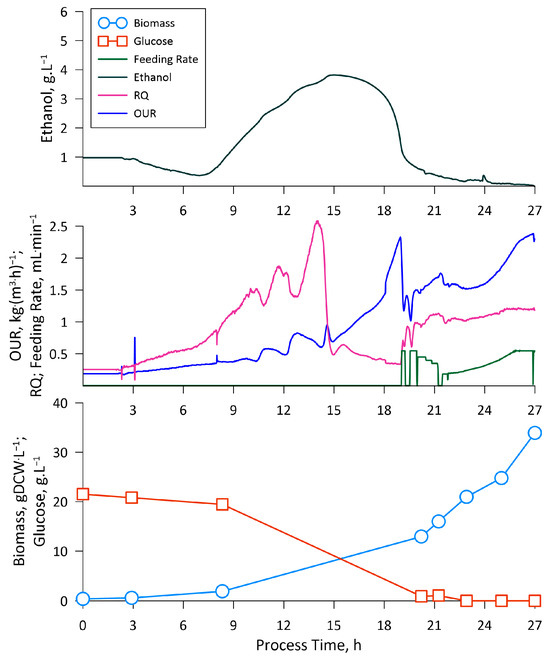

The data on biomass, glucose, and ethanol concentrations, as well as gas analysis data (RQ and OUR), are shown in Figure 1.

During the batch stage, an increase in ethanol concentrations was observed, which reached a maximum of 3.8 g·L⁻¹ in the 14th hour (see Figure 1).

The switching between glucose uptake, ethanol production, and ethanol consumption can be observed on the RQ diagram in Figure 1. From the beginning of the cultivation, the RQ value increased, reaching a maximal value of 2.6 in the 14th hour. Starting from the 14th hour, the RQ decreased, reaching values of roughly 0.3–0.5 until the 19th hour. After the 19th hour, the RQ increased to 1.0–1.1 and remained such until the end of the cultivation.

The depletion of available substrates can be observed in the OUR diagram (see Figure 1). From the beginning of the cultivation and until the 19th hour, the oxygen uptake rate steadily increased, reaching a maximal value of 2.41 kg·(m³·h)⁻¹. In the 19th hour, the OUR abruptly decreased to 1.03 kg·(m³·h)⁻¹ and continued to increase until 2.47 kg·(m³·h)⁻¹ at the end of the cultivation.

In the 19th hour, the feeding stage was initiated by supplying pulses of the feeding solution into the cultivation medium (see Figure 1). Two pulses of 7.7 and 13.7 mL were supplied between the 19th and 20th hour to estimate the biomass yield from the substrate (Y_xs) and biomass growth rate (µ_max). The biomass growth rate was estimated by linear regression using multiple data points, while the yield was calculated by identifying the change in biomass and substrate concentration within a particular time period. Once both mentioned parameters were estimated, an exponential feeding profile was calculated and enabled in the 21.5th hour. Further feeding supply was performed to estimate the biomass yield from the substrate (Y_xs).

From the generated experimental data, the maximal specific glucose consumption rate was calculated using the following equation:

$${\sigma }_{\mathit{max}}=\frac{{\mu }_{\mathit{max}}}{Y_{\mathit{xs}}}$$

(3)

The mentioned parameters were equal to µ_max = 0.16 h⁻¹, σ_max = 0.65 h⁻¹, and Y_xs = 0.269.

The final biomass concentration, which was measured in the 27th cultivation hour, reached 33.28 gDCW·L⁻¹ (see Figure 1).

Based on µ_max and Y_xs, the feeding profile (feeding rate vs. process time) for the second fed-batch fermentation was calculated (see Figure 2).

Building on the valuable insights gained from the first fed-batch cultivation, the primary objective of the subsequent experiment was to implement data-driven adjustments to both the cultivation medium composition and the feeding supply. For the second cultivation, the initial glucose concentration in the medium was lowered from 20 to 5 g·L⁻¹ (to observe the effect of initial substrate concentration on ethanol production), and the feeding stage was prolonged in order to increase the final biomass concentration in the medium.

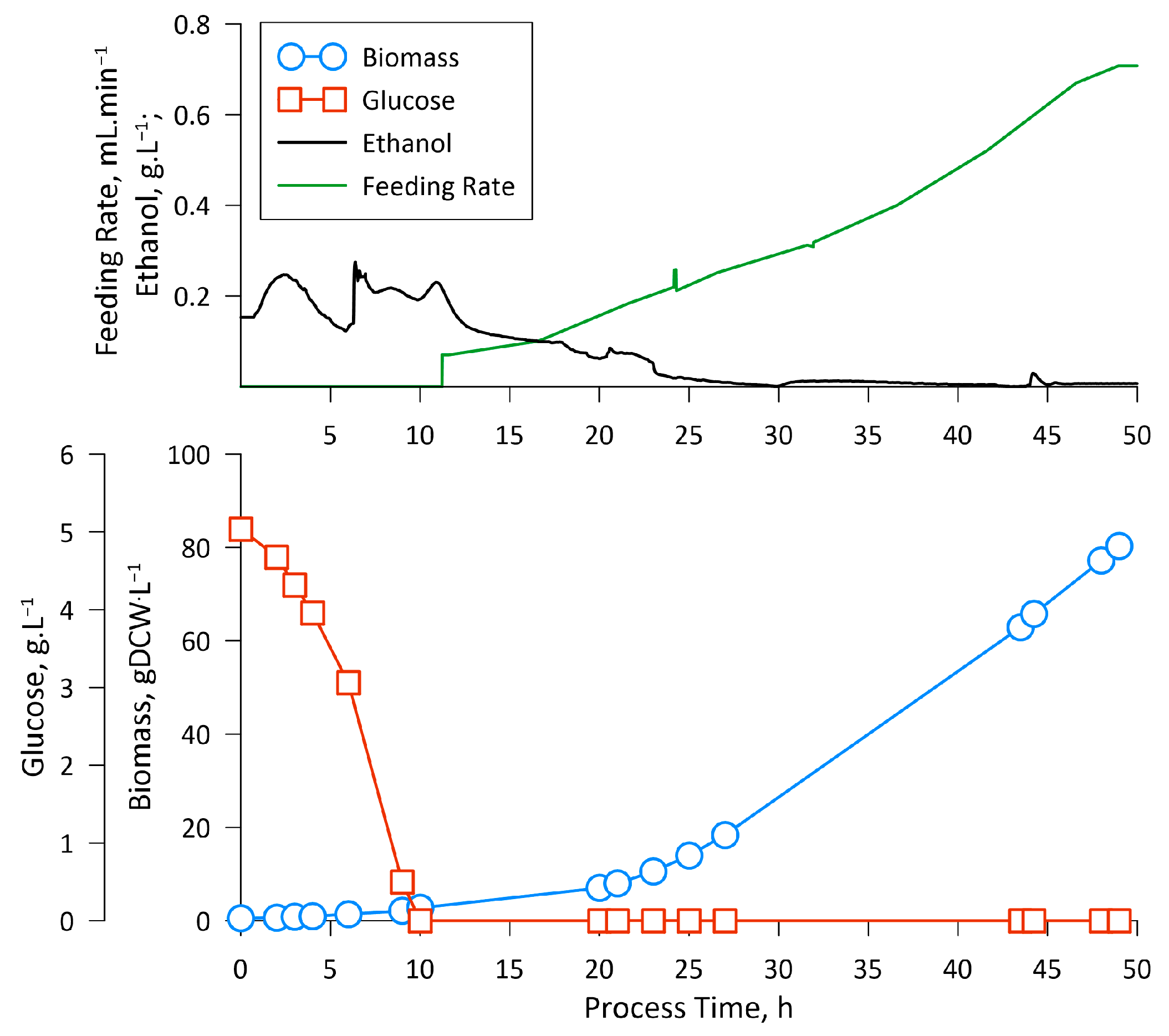

The data on biomass, glucose, and ethanol concentrations, as well as feeding rates, are shown in Figure 2.

During the batch stage, an increase in ethanol concentrations was observed, which reached a maximum of 0.2 g·L⁻¹ in the 6th hour (see Figure 2), which is a substantial decrease with respect to the ethanol concentration achieved in the first cultivation.

In the second cultivation, the feeding was initiated in the 10th hour (see Figure 2). The feeding profile for the second cultivation was calculated based on the data gathered from the first experiment.

The final biomass concentration, which was measured in the 49th cultivation hour, reached 80.26 gDCW·L⁻¹.

The main goal of the third cultivation was to re-estimate the maximal glucose uptake rate, σ_max, the maximal specific biomass growth rate, µ_max, and the biomass yield from the substrate (see

Table 2. K. phaffii glucose uptake, biomass growth, and biomass yield from substrate parameter values identified from the third cultivation data in comparison to the values reported in the literature.

Substrate	µmax, h−1	σmax, h−1	Yxs, g·g−1	Reference
Glucose	0.24	0.81	0.29	This Research
	0.15	0.25	0.59	[38]
Glycerol	0.24	0.39	0.61	[39]
	0.28	0.39	0.72	[40]
	0.29	0.62	0.47	[41]
	0.21	0.49	0.43	[42]
	0.23	0.42	0.55	[33]

). To achieve this, we implemented a strategy of manually adjusting the feeding rate until the substrate begins to accumulate in the medium. Upon accumulation, the difference between the amount of added substrate and the substrate concentration in the medium in each time frame was considered to be the maximal glucose uptake rate. The biomass yield from the substrate was calculated using data from multiple time points (when the RQ was close to 1.0, indicating carbohydrate metabolism solely for biomass growth) and averaged. The maximal specific biomass growth rate was calculated using Equation (3).

Furthermore, the third fed-batch cultivation was also aimed at evaluating the effect of elevating the initial glucose concentration in the medium from 5 to 10 g·L⁻¹ on the production of ethanol.

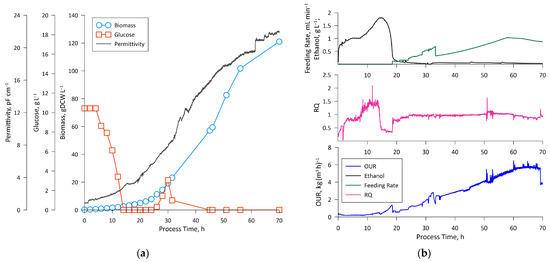

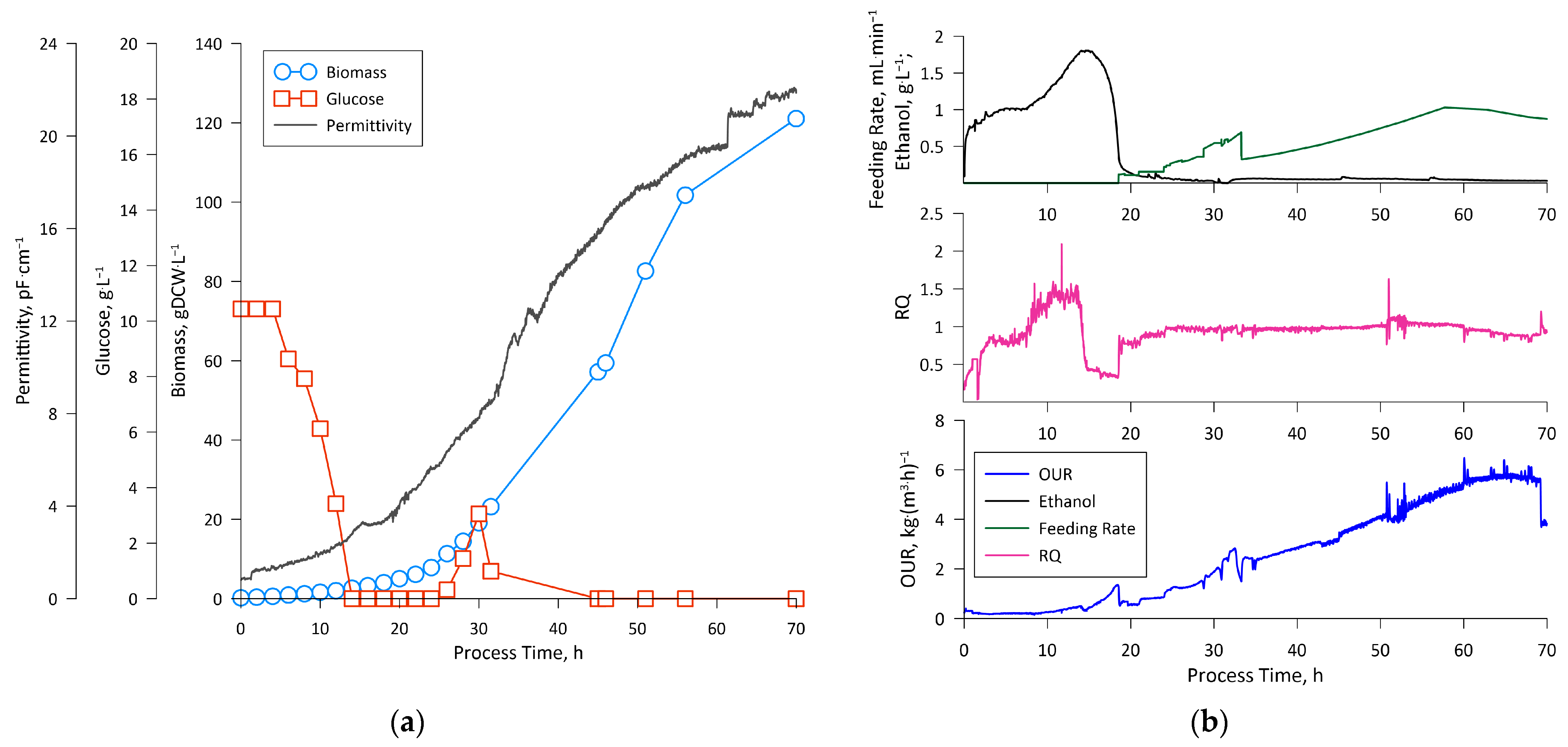

The data on biomass, glucose, and ethanol concentrations, as well as gas analysis data (RQ and OUR), permittivity (proportional to viable cell density), and feeding rate, are shown in Figure 3.

During the batch stage, an increase in ethanol concentration was observed, which reached a maximum of 1.8 g·L⁻¹ in the 14th hour (see Figure 3b).

The switching between glucose uptake, ethanol production, and ethanol consumption can be observed in the RQ diagram in Figure 3b. From the beginning of the cultivation, the RQ value increased, reaching a maximal value of 1.5 in the 12th hour. Starting from the 14th hour, the RQ decreased, reaching values of roughly 0.3–0.4, and remained in this range until the 18th hour. After the 18th hour, the RQ increased to 1.0–1.1, and remained such until the end of the cultivation.

The depletion of available substrates can be observed in the OUR diagram (see Figure 3b). From the beginning of the cultivation and until the 18th hour, the oxygen uptake rate steadily increased, reaching a maximal value of 1.58 kg·(m³·h)⁻¹. In the 18th hour, the OUR abruptly decreased to 0.47 kg·(m³·h)⁻¹, after which it continued to increase until 6.12 kg·(m³·h)⁻¹ at the end of the cultivation.

In the 18th hour, the feeding stage was initiated (see Figure 3b). The initial feeding profile for the third cultivation was calculated based on the data gathered from the first experiment. During the initial fed-batch stage, e.g., from the 18th until the 33rd hour, the feeding rate was gradually increased until substrate accumulation was observed (at the 30th hour) (see Figure 3a). After the accumulated substrate reached 3 g·L⁻¹, the feeding profile was returned to its initial state and proceeded until the end of the cultivation, e.g., the 70th hour.

The final biomass concentration, which was measured on the 70th cultivation hour, reached 121.80 gDCW·L⁻¹, which is the highest cell density reached in the context of this study (see Figure 3a).

3.2. LegH Production Fed-Batch Fermentations

The leghemoglobin production fed-batch fermentation was implemented in two phases: (1) the glucose phase, during which the yeast biomass was grown until reaching a concentration of about 70 gDCW·L⁻¹, and (2) the methanol phase, during which the previous substrate (glucose) was switched to methanol.

For the glucose phase, an exponential feeding profile was calculated based on the data generated from the third cultivation. Additionally, based on the observations from previous experiments, the initial glucose concentration in the medium was chosen to be 5 g·L⁻¹ in order to minimize ethanol production in the pre-feeding phase.

During the methanol phase, the respective feeding solution was supplied into the medium in order to maintain methanol at about 1 g·L⁻¹ (measured by the ethanol/methanol sensor) throughout the fermentation.

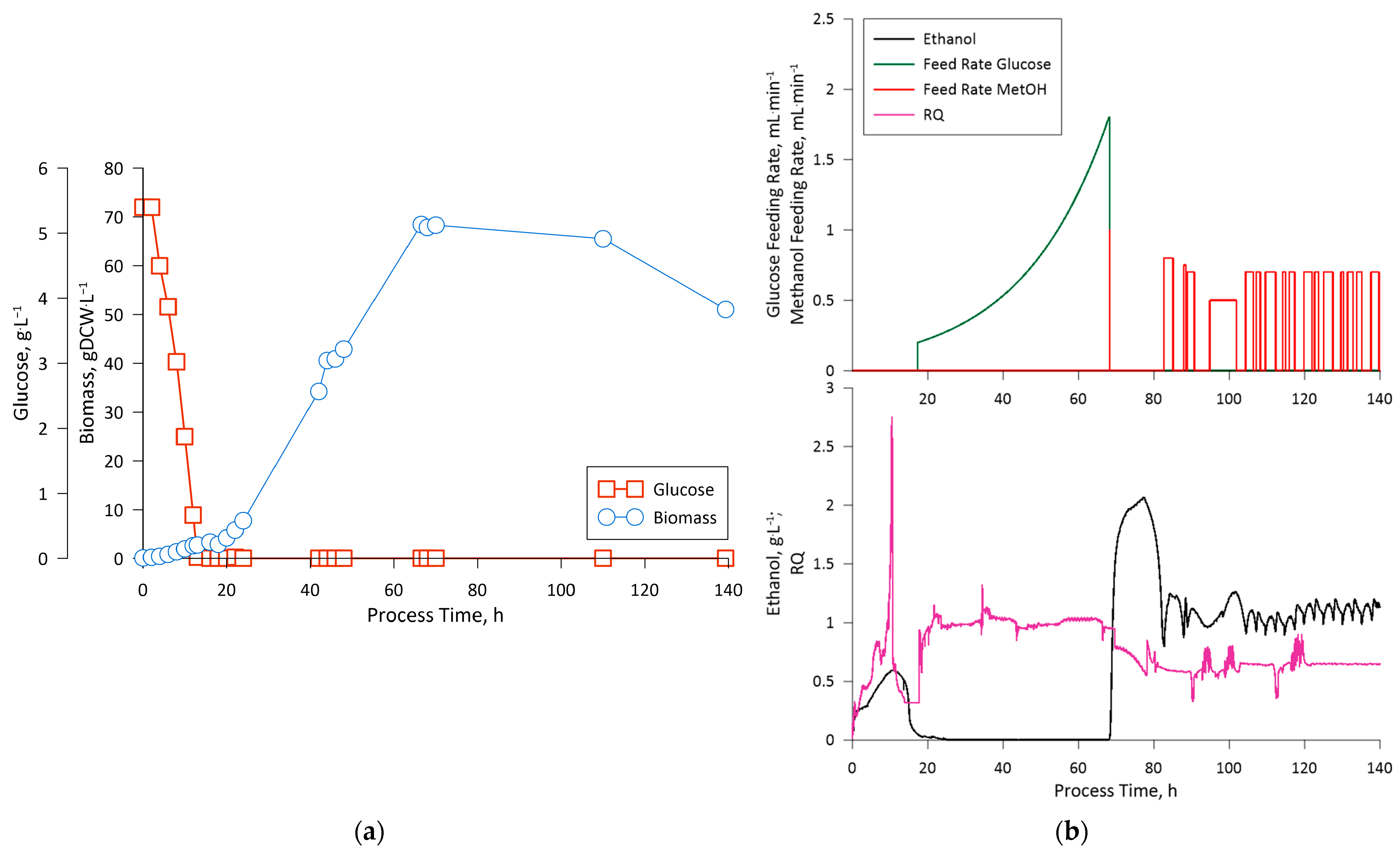

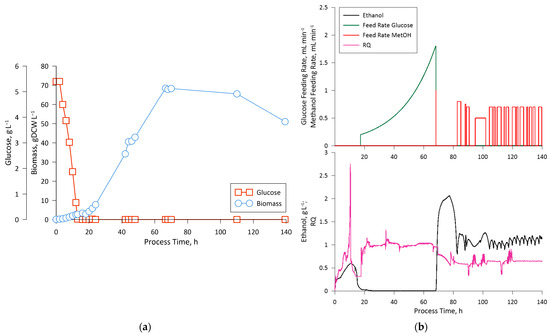

The data on biomass, glucose, ethanol, and methanol concentrations, as well as gas analysis data (RQ) and glucose/methanol feeding rates, are shown in Figure 4.

During the batch stage, an increase in ethanol concentrations was observed, which reached a maximum of 0.6 g·L⁻¹ (see Figure 4b). In the 68th hour of the fermentation, the methanol phase was initiated by supplying a single pulse of the methanol feeding solution, which raised the MeOH concentration in the medium to 2.0 g·L⁻¹ (see Figure 4b). After the first pulse, no feeding was implemented, which let the culture switch to alcohol consumption. In the 83rd hour, when the MeOH concentration in the medium fell to 0.7 g·L⁻¹, the feeding was initiated in pulse mode to maintain the substrate concentration at about 1.0 g·L⁻¹ (see Figure 4b).

The switching between glucose uptake, ethanol production, and ethanol/methanol consumption can be observed in the RQ diagram in Figure 4b. From the beginning of the cultivation, the RQ value increased, reaching a maximal value of 2.7 in the 15th hour. Starting from the 15th hour, the RQ decreased, reaching values of roughly 0.3–0.4, and remained in this range until the 18th hour (when the produced ethanol was fully consumed). After the 18th hour, the RQ increased to 0.9–1.0 and remained such until the end of the glucose phase (the 68th hour). After the 68th hour (end of the glucose and start of the methanol phase), the RQ decreased to 0.6–0.7 and remained in the mentioned range until the end of the fermentation.

The biomass concentration, which was measured in the 68th cultivation hour (end of the glucose phase), reached 68.44 gDCW·L⁻¹ (see Figure 4a). After the end of the methanol phase, the biomass concentration decreased to 51.04 gDCW·L⁻¹, which is most likely attributed to fermentation medium dilution.

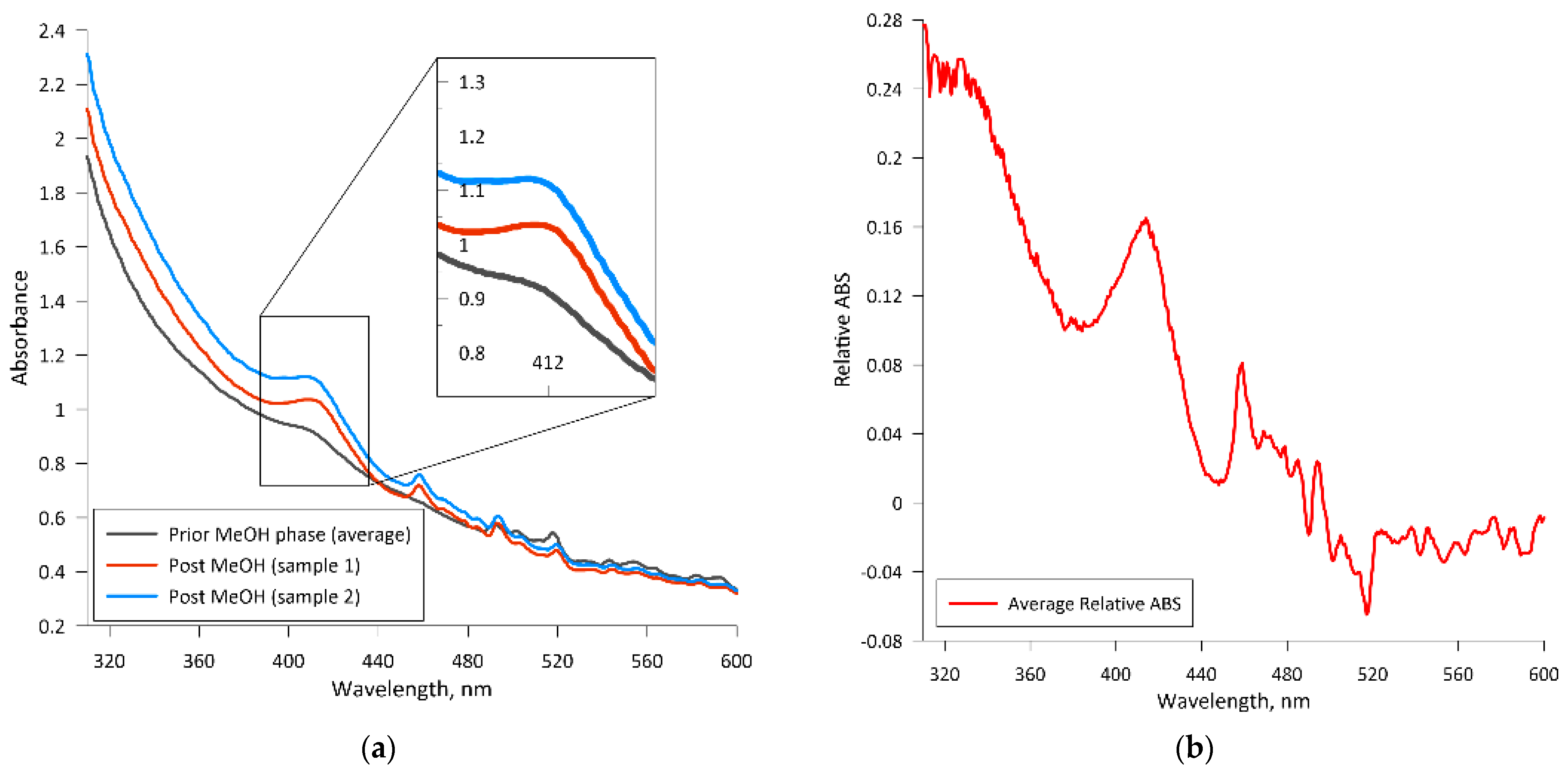

For LegH quantification, two medium samples were harvested from the bioreactor in the 66th hour and processed according to the previously described procedure. Thus, the UV/Vis absorption spectrums for the biomass lysate prior to methanol phase initiation were obtained, and an average was calculated (Prior MeOH (average)) (see Figure 5a). The second set of absorption (ABS) measurements was carried out for the biomass lysate sample harvested in the 140th hour (end of the fermentation); see Figure 5a (sample 1 and sample 2). In order to determine the absorption, increase the characteristic wavelength with respect to the pre-induction sample and subtract the first averaged absorption set data from the second averaged set, thus obtaining the information on the relative ABS increase due to LegH production (see Figure 5b).

The measured ABS increase for the post-induction samples amounted to 0.162. To estimate the concentration of heme and leghemoglobin, respectively, in the biomass, a lysate from the previously constructed calibration curve was used (see Appendix B). Finally, using Equation (2) and taking into account the final dilution (×200) of the sample prior to measuring the absorbance, the LegH yield per gram of dry biomass was calculated and amounted to 0.513 mg·gDCW⁻¹.

4. Discussion

Primarily, the obtained experimental data on ethanol production in K. phaffii cultivations under the conditions of excess substrate indicate that even at relatively low initial glucose concentrations (5 g·L⁻¹), ethanol synthesis is stimulated. In cultivations 1–3, it can be observed that the ethanol concentration during the batch phase is proportional to the initial glucose concentration, e.g., 0.2, 1.8, and 3.8 g·L⁻¹ of ethanol at initial glucose concentrations of 5, 10, and 20 g·L⁻¹, respectively. The latter could be a potential bottleneck in the utilization of glucose-containing fermentation mediums for processes, where K. phaffii is used as the production platform. One aspect is the inefficient utilization of available substrate for biomass growth, e.g., a portion of the available substrate is converted into the secondary metabolite. Even though eventually, when the glucose is depleted, the yeast switches to ethanol consumption, such intermediate processes lower the final biomass yield as a portion of the carbon is lost during the conversion from glucose to ethanol. The latter can be observed from the difference in Y_xs estimated for the batch phase of the first (higher ethanol production) cultivation and the feeding phase of the third (no ethanol production) cultivation. The second most noticeable aspect is the lag, which is present when the biomass switches from one substrate to another, which could prolong the production process. For example, in the case of the LegH production phase, the lag of switching from glucose to methanol amounted to roughly 10 h.

Considering the stated above, 5 g·L⁻¹ of initial glucose in the cultivation mediums could be suitable for K. phaffii-based processing using the proposed medium composition as an alternative to BSM. Furthermore, the amount of biomass obtained at the end of the pre-feeding phase is enough to implement continuous feeding techniques, e.g., most commercial peristaltic pumps are able to operate within the required productivity range.

In comparison to a medium based on glycerol as the main carbon source, glucose in the applied medium composition seemed to promote similar biomass growth rates [33] (see Table 2). However, a decrease in biomass yield from the substrate, in relation to previously published data, has been noticed [41] (see Table 2). The latter confirms the fact that glycerol as a substrate delivers more ATP than glucose under aerobic conditions, leading to higher biomass and product yields compared to the use of glucose [43]. Nevertheless, the properties of glucose, which make it much easier to quantify at-line during the cultivation, can justify the use of this substrate, especially in process development, where the determination of mass fluxes and the calculation of growth kinetics are highly important.

In the context of biomass switching to different substrates, the RQ data exhibited high potential as a means of identifying the current state of the cultivation. With respect to the data available in multiple publications, the RQ value denotes the currently utilized substrate type, e.g., the RQ values for fat, protein, and carbohydrate are 0.7, 0.8, and 1.0, respectively. An RQ of >1.0 might suggest excessive substrate provision that can result in the production of metabolites linked to the particular overflow metabolism state. An RQ of <0.7 might suggest underfeeding and/or the utilization of ketones and alcohols as substrates [44]. From the presented data of the third cultivation experiment and the LegH production fermentation, the RQ indicates that during the feeding phase, the supplied glucose was utilized solely for biomass growth (RQ = 1.0 ± 0.1), and the methanol was utilized by the cells during production (RQ = 0.6 ± 0.5). Thus, the applied medium and feeding solution compositions did not induce shifts to metabolite synthesis or limit the biomass growth/recombinant protein production.

Apart from RQ, the gas analysis data (OUR), which was gathered for the third cultivation, gave valuable insight into the changes in the culture state, especially at higher biomass concentrations. At RQ = 1.0 ± 0.1 (glucose feeding stage), the oxygen uptake rate grew proportionally to the biomass concentration, thus indicating that the culture remained in a steady state, e.g., the specific oxygen consumption rate (q_ox) was constant. The latter indicates the potential of linking the gas analysis data with the biomass concentration, thus creating an indirect estimator (soft sensor) for measuring cell densities online for the particular process configuration. Furthermore, the permittivity (viable cell density) data also exhibited a good correlation both with OUR and biomass density, thus indicating that natural cell lysis and growth remained proportional throughout the cultivation.

The fed-batch fermentation process for the engineered K. phaffii strain, aimed at leghemoglobin production, was managed, taking into consideration the observation from the previously performed cultivations. This fermentation, as was stated previously, was divided into two phases: the glucose feeding phase and the methanol feeding phase. The transition to the methanol feeding phase was strategically set at a biomass concentration of 70 gDCW·L⁻¹. The mentioned cell density was selected due to the slight change in cell size, which was observed in the third cultivations in the 51st hour through optical microscopy. The latter could indicate an increase in the osmatic pressure of the medium due to the accumulation of salts. Thus, even though the applied medium and feeding solution composition showed optimistic results in the context of this study, the composition of the solutes should be optimized as part of future research. Nevertheless, to circumvent this issue, a lower biomass concentration was selected for the start of the methanol feeding phase.

Upon enabling methanol feeding, we observed a gradual decrease in cell density over time, which appeared to be linked to fermentation medium dilution. This observation has led us to contemplate the possibility that the methanol concentration in the feeding solution should be increased to maintain an equilibrium between the dilution effects and substrate consumption.

The obtained LegH yield per gram of biomass, as was stated previously, amounted to 0.513 mg·gDCW⁻¹ (additionally confirmed through gel electrophoresis, see Appendix C Figure A3). In comparison to the results published by other authors for similar yeast strains with the BSM medium, the mentioned yield is comparable, indicating that the particular medium composition effect on protein synthesis is negligible and can be attributed to the peculiarities of the specific K. phaffii modification [1,3,28]. Considering that the increased LegH yields for recombinant strains held a higher count of gene alterations compared to the results demonstrated by Shao et al. [28], the current strain should be improved as part of future studies, with the aim of increasing its efficiency and, as a result, commercial potential as a food-grade LegH production platform.

Considering the main goal set for the current article, e.g., the production of leghemoglobin in K. phaffii fermentations, the data gathered from the three fed-batch cultivations enabled the development of a protocol (feeding profiles, medium/feeding solution compositions) suitable for this particular strain. However, as part of future research, multiple crucial points must be addressed in order to improve and/or optimize the developed methods, e.g., medium/feeding solution optimization and certain improvements of the engineered K. phaffii strain.
