Preparation of Silicon Oxide-Carbon Composite with Tailored Electrochemical Properties for Anode in Lithium-Ion Batteries

1
C1 Gas & Carbon Convergent Research Center, Korea Research Institute of Chemical Technology, Daejeon 34114, Republic of Korea
2
Department of Advanced Materials Engineering for Information and Electronics, Integrated Education Institute for Frontier Science and Technology (BK21 Four), Kyung Hee University, 1732 Deogyeong-daero, Giheung-gu, Yongin-si 17104, Republic of Korea
3
Advanced Materials and Chemical Engineering, University of Science and Technology (UST), Gajeong-ro, Yuseong-gu, Daejeon 34113, Republic of Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Submission received: 5 October 2023 / Revised: 13 November 2023 / Accepted: 29 November 2023 / Published: 1 December 2023
(This article belongs to the Special Issue Advanced Carbon Nanomaterials and Hybrids)

Abstract

:
For high-efficiency and high-stability lithium ion batteries, a silicon oxide-based carbon composite has been developed as an anode material. To minimize structural defects (cracking and pulverization) due to volumetric contraction/expansion during charge/discharge, silicon oxide (SiOx) is adopted. A pitch—a carbon precursor—is introduced to the surface of SiOx using the mechanofusion method. The introduced pitch precursor can be readily transformed into a carbon layer through stabilization and carbonization processes, resulting in SiOx@C. This carbon layer plays a crucial role in buffering the volume expansion of SiOx during lithiation/delithiation processes, enhancing electrical conductivity, and preventing direct contact with the electrolyte. In order to improve the capacity and cycle stability of SiOx, the electrochemical performances of SiOx@C composites are comparatively analyzed according to the mixing ratio of SiOx and pitch, as well as the loading amount in the anode material. Compared to pristine SiOx, the SiOx@C composite prepared through the optimization of the experimental conditions exhibits approximately 1.6 and 1.8 times higher discharge capacity and initial coulombic efficiency, respectively. In addition, it shows excellent capacity retention and cycle stability, even after more than 300 charge and discharge tests.

Graphical Abstract

1. Introduction

At present, as the development and distribution of medium-to-large batteries for electric vehicles and energy storage increases, demand for lithium-ion battery (LIBs) market is also steadily increasing. In LIBs, the cathode material is responsible for energy generation, while the anode material functions in energy storage and release. The determination of the energy density hinges on the capacity to create substantial energy during the charging phase, a task predominantly governed by the cathode material. To date, extensive research efforts have predominantly concentrated on enhancing the cathode materials. However, the usefulness of the energy generated from the anode material depends on either adequate storage capacity or optimal exhaust efficiency. Therefore, for efficient energy storage, the importance of anode materials with high capacity and excellent stability is increasing.
The anode material of LIBs is mostly composed of natural or artificial graphite. However, artificial graphite anode materials have reached their theoretical capacity limit (372 mAh/g) and are limited in meeting the rising demands for high energy and power. Therefore, there is a need for the development of new materials to achieve high-capacity batteries [1,2,3,4].
Silicon (Si) offers a high theoretical capacity of around 4200 mAh/g, allowing it to store 15 lithium atoms (Li) per 4 Si atoms (Li3.75Si), equivalent to 1 Li for every 6 carbon atoms (LiC6) in comparison to carbon. However, the Si-based anodes experience significant volume expansion/contraction during charge/discharge cycles, leading to electrode pulverization, solid electrolyte interphase (SEI) destruction, and structural collapse, resulting in decreased cycle stability [5,6,7,8]. To overcome these limitations, Silicon oxide (SiOx, 0 < x < 2) has emerged as a promising candidate. While SiOx electrodes show lower capacity compared to pure Si, the oxides (such as Li2O and Li4SiO4) generated during charge/discharge function as a buffer against volume changes, leading to enhanced structural stability within the electrode. Additionally, SiOx shows improved stability due to its lower reactivity with Li ions. These characteristics contribute to an excellent cycling performance and high energy density. However, the SiOx still encounters challenges such as low initial efficiency, poor electrical conductivity, and significant volume changes during charge/discharge cycles [9]. Similar to the silicon, SiOx also forms a passivation layer when it comes into direct contact with an electrolyte. This SEI layer can lead to a decrease in ionic conductivity and blockage of active sites, resulting in reduced initial Coulombic efficiency (ICE). Furthermore, the low electrical conductivity arising from the insulating properties of SiOx can interrupt ion movement during the charging/discharging process, causing issues that deteriorate the electrochemical performance [10,11].
The most efficient way to solve these problems is to combine it with carbon materials or forming a carbon layer on the surface of SiOx. By introducing the carbonaceous materials to the SiOx, it becomes possible to suppress side reactions with the electrolyte and minimize the formation of a passivation layer, such as the SEI layer, which forms through irreversible reactions on the anode surface [12,13]. Furthermore, when using a carbon with excellent electrical conductivity and high thermal conductivity, not only can the charge transfer speed be enhanced, but also the thermal stability of the LIBs can be significantly improved [14].
Various research has reported coating or forming composites using carbon materials with Si and SiOx [15,16,17,18]. It has been reported that Si/carbon composites can be produced through physical methods such as ball milling and spray drying technology [19]. In particular, Liu et al. manufactured spherical nanostructured Si/carbon composites using ball milling technology by employing nanometer-sized Si and fine graphite particles within a pyrolyzed carbon matrix [20]. As a chemical method, Yoshio et al. utilized a carbon precursor and thermal vapor deposition [21,22], while Kim et al. used pyrolysis fuel oil as a carbon precursor and utilized chemical vapor deposition for research aimed at introducing a carbon layer onto the surface of Si particles [23]. Additionally, Guo and his research team proposed a method for producing porous Si/carbon composites using a simple sol-gel method and a thermal imbalance reaction [24], and other studies utilizing various chemical methods have also been reported [25,26,27].
However, the previous research has primarily been conducted at the laboratory scale and faced limitations in terms of the manufacturing cost and yield from an industrial point of view. Therefore, for the practical mass production of high-capacity Si-based anode materials, it is essential to focus more on factors like ensuring capacity, improving the ICE, reducing manufacturing costs, and ensuring material mechanical safety.
Herein, a SiOx-carbon (SiOx@C) composite was produced using the simple mechanofusion method to address the challenges associated with Si as an anode material for LIBs. By using pitch with a high softening point as a carbon precursor, a stable carbon layer was formed on the SiOx surface during the carbonization process. The optimal conditions for fabricating SiOx@C composites were established through the evaluation of the electrochemical properties of anode electrodes according to the mixing ratio of SiOx and pitch, as well as the content ratio in the anode material. Additionally, the capacity retention and cycle stability were evaluated through cycle charge/discharge tests of the SiOx@C composite-based anode electrodes.

2. Materials and Methods

2.1. Materials

The graphite (MAGE, <25 μm, Hitachi, Tokyo, Japan) and SiOx (DAEJOO electronic materials Co., Ltd., Siheung-si, Korea) were used as received. Pyrolysis fuel oil, which was supplied from Yeocheon NCC (Yeosu, Korea) was used as the carbon precursor. The ash content of petroleum pitch confirmed 0.04 %, with 72.1% of fixed carbon. Carboxymethyl cellulose (CMC, Wellcos, Gunpo-si, Korea) and styrene-butadiene rubber (SBR, Wellcos, Gunpo-si, Korea) were used as binders; Super P (carbon black, Sigma-Aldrich, Burlington, MA, USA) was used as conducting additive; 1.0 M LiPF6 in ethylene carbonate/diethylene carbonate (EC/DEC = 1:1 vol.%, Soulbrain, Seongnam-si, Korea), Celgard 2400 (Wellcos, Gunpo-si, Korea) was used as electrolytes and separators. All chemicals were used without further purification.

2.2. Fabrication of SiOx@C Composites

The pitch was coated on the SiOx using the mechanofusion method (NOB Nobilta mini, HOSOKAWA MICRON, Osaka, Japan). SiOx and pitch were placed in the vessel and the mixing/dispersion process was performed through rotation of the equipment. In the mechanofusion process, the initial dry coating process was conducted at 2000 rpm for 20 min, followed by 4000 rpm for 10 min. After complexation, SiOx-pitch composite was placed in the furnace. The stabilization processes were performed at 290 °C for 14 h with, a temperature increase rate of 5 °C/h in a nitrogen atmosphere. Then, carbonization was performed at 900 °C for 1 h with a temperature increase rate of 5 °C/min. During the carbonization process, coking occurred from the carbon precursor on the surface of SiOx. The prepared carbon-coated SiOx samples were named SiOx@C_9:1, SiOx@C_8:2, SiOx@C_7:3, and SiOx@C_6:4 according to the different SiOx/pitch weight ratios.

2.3. Fabrication of SiOx@C Composite Anode Half Cell

For electrical characterizations, electrochemical tests were carried out using 2032 coin cells assembled using lithium metal foil as the counter electrode in an atmosphere of argon in a glove box. The electrodes were prepared from a coating slurry containing active materials, super-P, CMC, and SBR with a mass ratio of 95.5:1.1:1.1:2.3. The slurry was uniformly pasted on copper foils using a doctor blade and dried at 80 °C for 12 h in a vacuum oven. The diameter of the working electrodes was 14.0 mm, and the loading mass of the active materials was approximately 1.5 mg/cm2. The electrolyte was 1.0 M LiPF6 dissolved in EC and DEC at a volume ratio of 1:1. Galvanostatic charge/discharge measurements were carried out in a voltage range of 0.01–1.5 V vs. Li/Li+ at a current density of 40 mA/g for the first cycle. The assembled coin cells were evaluated with a multichannel battery cycler (WBCS3000, WonATech Co., Ltd., Seoul, Korea) to test their electrochemical performance. Charge/discharge tests were performed at a rate of 0.1 C within the cut-off voltage, ranging between 0.01 V and 2.0 V versus Li/Li+ at room temperature. The rate characteristics were obtained by charging and discharging once at 0.1 C and then charging and discharging at different C-rates (0.2, 0.5, 1.0, 2.0 and 5.0 C) for 5 cycles each. The cycling stability was determined based on 100 cycles at a rate of 0.5 C.

2.4. Characterizations

Thermogravimetric analysis (TGA) of the prepared SiOx@C composites was conducted using a SDT Q600 instrument (TA Instruments, New Castle, DE, USA). The morphologies and microstructures of the samples were characterized through Field-Emission scanning electron microscopy (FE-SEM) (JSM-6700F, JEOL, Tokyo, Japan), Energy-dispersive X-ray spectroscopy (EDS) (XFlash6, Bruker, Billerica, MA, USA), and transmission electron microscopy (TEM) (FEI, Tecnai G2-20, Hillsboro, OR, USA). Si2p and C1s binding energies of SiOx@C composites were analyzed using X-ray Photoelectron Spectroscopy (XPS, KRATOS, AXIS Supra, Shimadzu, Kyoto, Japan). The BET analyses were performed using an ASAP 2020 (Micromeritics, Norcross, GA, USA) and using the N2 adsorption-desorption isotherms. Raman spectroscopy analyses (LabRAM HR-800, Horiba, Osaka, Japan) and powder electrical characteristics evaluation (HPRM-FA2, HANTECH, Gunpo-si, Korea) were carried out to investigate the chemical/mechanical properties of pristine SiOx and the SiOx@C composites.

3. Results and Discussion

3.1. Mechanofusion-Derived SiOx@C Composites

The overall procedure for fabricating the SiOx@C composite using mechanofusion process is represented in Figure 1a. Mechanofusion is a method that efficiently combines different materials without the need for additional binders by applying three types of physical forces (compression, shear, and rotational forces) to internal particles [28]. The mechanofusion process is relatively simple, inexpensive, and requires no solvents, thereby making it potentially attractive for environmentally responsible commercial manufacture. Under our experiment condition, SiOx served as the host material, while a pitch was used as the guest material to facilitate composite formation. Irregularly shaped SiOx particles, averaging 1.8 μm in size, were used in the experiment. Furthermore, as a result of analyzing the oxidation level of pristine SiOx through X-ray photoelectron spectroscopy (XPS) measurement, it was found that the x value of the SiOx used in this work was 1.04 (see the Supplementary Materials Figure S1). The carbon precursor—the pitch—was prepared through the thermal polymerization of residual petroleum oil, which was previously reported in our work [29]. Due to the compression and shear forces generated between the blade and the rotating plate, independent SiOx particles aggregate and combine with surrounding particles and pitch to form SiOx-pitch composites (SiOx@P). (Figure 1b). During this process, the high heat generated from the high-speed rotating plate, exceeding the softening point (S.P) of the pitch, increases the cohesion between the SiOx particles and pitch by neither coating the SiOx surface nor promoting particle–particle adhesion. Following complexation, the SiOx@P undergoes a transformation into a carbon layer through a stabilization and carbonization process. Generally, the thermoplastic feature of the pitch, the carbonization process, is performed after forming a crosslinking bond while undergoing a stabilization (insolubilization, oxidation) process at a temperature near the softening point to maintain the shape of the complex during the carbonization process [30]. The pitch used in this experiment had an S.P. of 270 °C, and was stabilized at 290 °C for a sufficient period of time in an oxygen (O2) atmosphere to form a more stable carbon structure. The carbonization yield of the coating pitch, as confirmed through the TGA curve, was 72% (see the Supplementary Materials Figure S2). Consequently, it is expected that pores will form inside the carbon layer after carbonization, and these pores are anticipated to facilitate the creation of a connection path for the electrolyte’s active material and provide a buffering effect against volume expansion of SiOx. A successful carbonization process was also visually confirmed by a color change in the sample. The initial dark brown SiOx was transformed into black due to the presence of the carbon layer on the surface after composite formation and carbonization (Figure 1a inset).

3.2. Characterization of SiOx@C Composites

Changes in the particle size and shape resulting from the mechanofusion process were confirmed through SEM analysis. Figure 2a,b shows the particle shape before and after complexation, with the particle size analysis results shown in the inset. The pristine SiOx particles showed a smooth surface with sharp edges, while the SiOx@C composites exhibited a rougher surface and blunt edges. This is because the surface becomes rougher as the coating pitch present on the composite surface goes through the stabilization/carbonization process. The particle analysis revealed that the D50 value of the pristine SiOx was approximately 1.8 µm, whereas that of the SiOx@C composite was around 7.6 µm. These alterations in the surface morphology and particle size can be attributed to the composite formation process. During the mechanofusion process, a single SiOx particle aggregates with 2–3 surrounding particles and the pitch, leading to an increase in the average particle size. This result is consistent with the complexation process mechanism described above.
Generally, it is known that the size of the anode active material should be 15 μm or less to provide a sufficient reaction surface area and maintain ionic/electronic conductivity during charging/discharging [31]. In the case of the SiOx@C composite prepared in this experiment, the average particle size is under 8 μm; thus, it is considered that it may be applicable to the manufacturing process of an anode material without an additional particle sizing step.
EDS mapping analysis was also performed to confirm the formation of the carbon layer according to the stabilization and carbonization process. Figure 2c illustrates the SEM images of the SiOx@C composites along with the EDS mapping results. The elemental distribution analysis revealed the presence of silicon (76.9%), carbon (15.3%), and oxygen (7.6%) elements. It clearly shows that carbon elements are widely distributed throughout the whole SiOx@C composite surface, indicating the uniform formation of the carbon layer.
The carbon layer on the surface of the SiOx@C composites functions as a buffer layer, effectively minimizing structural defects such as cracks and pulverization caused by the volume expansion and contraction of SiOx during charging/discharging. Additionally, it reduces contact resistance between active materials, facilitating rapid electron movement and providing an efficient pathway for electrons. The thickness of the carbon layer directly influences the electrochemical properties of the SiOx@C composites as it is closely related to the battery performance. Therefore, this study focuses on investigating the relation between the carbon layer thickness and the electrochemical properties by varying the amount of pitch during the fabrication of the SiOx@C composites via the mechanofusion method.
Changes in the carbon layer thickness of the SiOx@C composites were analyzed using TEM in response to variations in the pitch content for complexation. Figure 3a depicts the pristine SiOx surface without the addition of the pitch. Figure 3b–e shows images of the SiOx@C composite surfaces with 10, 20, 30, and 40 wt% of pitch added compared to SiOx, respectively. The pristine SiOx shows a clean and smooth surface, whereas an increase in the coating pitch content leads to the roughening of the SiOx@C composite surface due to the influence of the formed carbon layer. Additionally, with the increase in pitch content, the amount of carbon precursor capable of binding to the SiOx surface during the mechanofusion process also increased. This led to the gradual thickening of the carbon layer on the SiOx surface, forming an amorphous carbon layer through stabilization and carbonization. Notably, the sample with 40 wt% added pitch (SiOx@C_6:4) exhibited a carbon layer thickness of around 400 nm.
Figure 3f shows the correlation between the mixing ratio and coating layer thickness. The theoretical value was calculated based on the particle size analysis results, assuming a SiOx radius of 3.8 μm, and the actual measured value was obtained from the TEM analysis results. Both the theoretical and actual values indicated that as the amount of added pitch increased, the carbon layer thickness also tended to increase. However, it was observed that the actual thickness of the carbon layer was slightly lower than the theoretical value. This discrepancy can be attributed to factors such as the irregularity of the SiOx particle shape and incomplete composite formation. In the case of the pristine SiOx, which possesses an irregular morphology rather than spherical shape, it is anticipated that the carbon layer thickness might be uneven. Additionally, the difference between the theoretical and measured values is likely due to the influence of residual pitch that did not participate in the mechanofusion process, resulting in incomplete composite formation.
The degree of structural defects in the carbon layer on the SiOx surface was determined through Raman analysis, and the results are presented in Figure 4a. Both the pristine SiOx and SiOx@C composites show a peak at around 520 cm−1, corresponding to the Si bulk single crystal, while the SiOx@C composite displays carbon-related peaks at 1350 cm−1 and 1600 cm−1, corresponding to the D-band and G-band, respectively. The D-band indicates the degree of surface defect or disorder in the carbon layer, while the G-band represents unique characteristics related to the graphitization of the carbon layer [32].
In general, the relative intensity of the D-band to the G-band (ID/IG) serves as an indicator of the degree of defects in the carbon bond structure. A decrease in the ID/IG value means reduced defectiveness or increased crystallinity of the carbon bonding structure, while an increase in the ID/IG value indicates increased defectiveness or decreased crystallinity [33]. For the SiOx@C composites, the ID/IG value was approximately 0.98, which was similar to the characteristic value of typical amorphous carbon. These results confirmed that the pitch composited with SiOx particles was changed into an amorphous carbon layer, characterized by a mixed structure of sp2 and sp3 bonds, through the stabilization and carbonization process. In addition, the sp2/sp3 bonding ratio of the carbon layer in the SiOx@C composite was also investigated (see the Supplementary Materials Figure S3). From the C1s XPS peak, it is obvious that the carbon layer in the SiOx@C composite exists in the sp2 configuration more than the sp3 configuration, and it is revealed that the sp2/sp3 ratio is about 2.26. Consequently, it was verified that the pitch with a low content of volatile hydrocarbons can serve as an effective precursor for forming a carbon layer due to its high coking value.
The carbon layer introduced into SiOx is anticipated to improve the electrical conductivity of SiOx. Changes in the electrical properties of the SiOx@C composites prepared with varying amounts of pitch were analyzed using a powder resistance measurement (Figure 4b). The SiOx is a representative insulating material known for its high dielectric breakdown strength and low leakage current. As a result, the SiOx exhibited insulating properties, with electrical conductivity converging to 0 S/cm. In contrast, the SiOx@C composites showed an enhancement in electrical conductivity with the increasing content of added coating pitch. It was also confirmed that as the pitch content increases, the powder conductivity also increases faster at the same pressure. These phenomena are ascribed to the increased thickness of the carbon layer, which possesses excellent electrical conductivity. As the thickness of the carbon layer increases during the densification process under pressure, the reduction in the resistance per unit volume occurs due to the establishment of extended conductive channels. Under our experimental condition, the composite with 50 wt% added pitch (SiOx@C_5:5) demonstrated superior electrical conductivity of 4.2 S/cm under a pressure of 200 MPa. This value is more than 14 times higher than that of the SiOx@C_9:1 sample measured under the same conditions.
An electrochemical impedance spectroscopy (EIS) analysis was also performed for investigating the impedance of the cell containing SiOx@C composites (see the Supplementary Materials Figure S4). All SiOx@C composite cells have a lower charge transfer resistance (Rct) than that of the SiOx cells, and the Rct value of the SiOx@C composites decreased with the increasing content of added coating pitch; this means that it has a smaller contact resistance and higher electrical conductivity as the thickness of the carbon layer increases. The Rct value of the SiOx@C_6:4 composite electrode is approximately 201 Ω, which is significantly lower than the Rct of 372 Ω of the pristine SiOx electrode.
The specific surface area of the anode material plays a crucial role in the initial charging and discharging processes of LIBs. The increased specific surface area of the active material provides advantages in terms of the capacity and rate characteristics. However, an excessive surface area can lead to the formation of irreversible compounds, such as SEI layers and Li2Si2O5, Li2SiO3, Li4SiO4, resulting in reduced initial efficiency [34].
To examine the changes in the specific surface area and pore structure of the SiOx@C composite resulting from the carbon layer formation, nitrogen gas adsorption-desorption isotherms were conducted. As shown in Figure 5a, both the SiOx and SiOx@C composites show similar adsorption isotherms, with minimal nitrogen adsorption at low relative pressures (P/P0 < 0.3), suggesting the development of mesopores and macropores rather than micropores. For the specific surface area (SBET), pristine SiOx was determined to have a value of 9.1 m2/g. However, the SBET of the SiOx@C composite (SiOx@C_8:2) was about 6.0 m2/g, which represents a relatively reduced value compared to the pristine SiOx. This reduction is attributed to the increase in the average particle size resulting from particle agglomeration during the mechanofusion process.
Generally, the specific surface area of electrode materials is considered suitable below 10 m2/g, as larger values can negatively impact the battery life cycle [35]. The SBET values of the SiOx@C composites prepared in this experiment ranged between 5 and 7 m2/g, with no additional increase in the specific surface area observed through the mechanofusion composite process (Table 1). Under our experimental condition, the pore size was calculated from the desorption isotherm using the BJH (Barrett-Joyner-Halenda) method. As a result of the BJH pore size distribution analysis (Figure 5b), it can be seen that there are many pores with a diameter of 10 nm or more in the pristine SiOx sample. On the other hand, in the case of the SiOx@C composite, most pores were found to be concentratedly distributed in the range of 0.9 to 10 nm, with an average size of 8.68 nm. Interestingly, following the mechanofusion process, there was a slight decrease in the SBET value, while the pore volume increased by over 450%. This phenomenon can be explained by the development of micro- and meso-pores as a result of carbon layer formation. During the carbonization process, the stabilized pitch introduces reactions that involve the removal of oxygen and hydrogen functional groups, promoting the development of micro- and meso-pores on the surface. As a result, it was found that in the case of the SiOx@C composite, the microporosity and mesoporosity increased by 2.8% and 8.4%, respectively, while the macroporosity decreased to about 11.2% compared to the pristine SiOx. Furthermore, the average pore size reduced by approximately 40% after the mechanofusion process (from 14.7 nm to 8.7 nm), indicating the development of smaller pores around the range of 2–10 nm. This observation coincides with the aforementioned increase in the mesopore volume and supports the explanation for the increase in the pore volume.

3.3. Battery Performance Evaluation of SiOx@C Composite Anode

The electrochemical properties of the anode materials were evaluated under various fabricating conditions and active material composition ratios, with all the charge/discharge curves presented in Figure 6a. The corresponding results for the discharge capacity and initial efficiency are summarized in Figure 6b,c, respectively.
In the case of the anode electrode using only artificial graphite (AG) as the active material, a discharge capacity of 345.0 mAh/g and an initial efficiency of 91.0% were observed. This was comparable to the theoretical values of the typical AG-based anode materials (Figure 6b). In the case of the electrode prepared by adding pristine SiOx to the AG, the discharge capacity was found to increase to 463.3 mAh/g, up to a loading amount of 20 wt%, after which it began to decrease. This decrease was attributed to the volume expansion of SiOx during lithium intercalation, leading to pulverization and loss of electrical contact due to the resulting structural transformation [36].
For the SiOx@C composites, the carbon layer on the SiOx surface effectively alleviated the volume expansion of SiOx caused by lithiation/delithiation and maintained the electrical conductivity, resulting in an increase in the discharge capacity with the increasing loading amount. Although a consistent causal relationship between the mixing ratio and discharge capacity was not observed at the same loading amount, as the content of pitch increased, the discharge capacity tended to decrease. Namely, the carbon layer thickness of the SiOx@C composite and the discharge capacity showed an inverse relationship. This is attributed to SiOx being the primary determinant of the discharge capacity in the SiOx@C composites. Unlike graphite, which stores lithium ions through an intercalation reaction within the graphitic layers, an amorphous carbon is known to have a small contribution to securing the discharge capacity. To confirm the capacity contribution of the carbon layer in the SiOx@C composite, the control experiments were carried out using carbonized pitch as a comparison material (see the Supplementary Materials Figure S5). The carbonized pitch is expected to have a capacity of approximately 25 mAh/g, and the carbon layer of the SiOx@C composite is believed to not contribute significantly to the capacity. The amorphous carbon layer introduced on the SiOx surface only stored lithium ions in localized vacancies created by the unstable stacking structure of the carbon layer [37]. Otherwise, when the pitch content was low (e.g., SiOx@C_9:1), the capacity retention was relatively reduced due to the decreased role of the carbon layer described earlier. The sample with the highest discharge capacity was the SiOx@C_8:2 composite with the loading amount of 40 wt%. This sample showed a discharge capacity of 685 mAh/g, which was approximately 1.57 times higher than that of the pristine SiOx at the same loading amount. The detailed charge storage mechanism according to the lithiation/delithiation process of the SiOx@C composite is shown in Supplementary Materials Figure S6.
Figure 6c represents the ICE of the samples prepared with different mixing ratios and active material compositions. Both the SiOx and SiOx@C composites showed a tendency for the ICE value to decrease as the loading amount increased. In the case of the pristine SiOx, the ICE value significantly decreased, reaching the lowest value of 43.4% when the loading amount was 40%. However, the SiOx@C composites showed relatively high ICE values. At the 40 wt% loading amount, the SiOx@C_6:4 composites demonstrated an ICE of 78.9%. This value was approximately 1.82 times higher than that of pristine SiOx. This improvement was attributed to the effective suppression of irreversible reactions and SEI formation by the carbon layer introduced on the SiOx surface. At the same loading amount, it was observed that the ICE tends to increase with the higher pitch content for fabricating SiOx@C composites. In other words, an increased thickness of the carbon layer contributed to the enhanced stability of the active material. A thicker carbon layer introduced into the SiOx@C composites is more advantageous in terms of the ICE value, but less advantageous in terms of securing the discharge capacity. Therefore, in this study, based on the various cell test results, the SiOx@C_8:2 composite sample was selected as the optimal mixing ratio for the anode material, and cycle stability tests were conducted.
Cycling measurements were conducted on the anodes consisting of the pristine SiOx and SiOx@C_8:2 composites at a current density of 1.0 C for the initial two cycles, and 0.5 C for the subsequent cycles. A compilation of investigations carried out using various SiOx@carbon composites is also presented in Supplementary Materials Figure S7. As depicted in Figure 7a, the SiOx@C_8:2 composite shows a higher reversible capacity and more stable cycling performance compared to the pristine SiOx. The anode containing the SiOx@C_8:2 composite with the 20 wt% loading amount maintains about 60% of its initial charge capacity after 300 cycles, whereas the pristine SiOx anode exhibits a significant decrease in capacity with a capacity retention rate of only 12.6% at 100 cycles.
Furthermore, the Coulombic efficiency of the SiOx anode reaches 99% after 10 cycles, while the Coulombic efficiency of the SiOx@C_8:2 anode achieves 99% after only 4 cycles (Figure 7b). The delayed attainment of 99% Coulombic efficiency in the SiOx anode suggests the continued formation of SEI and excessive side reactions on untreated surfaces, potentially leading to a substantial capacity reduction by consuming limited Li+ ions.
Additionally, to compare the rate characteristics of the anode, the C-rate was measured at a current density of 0.1 C during the first cycle, followed by measurements at 0.2 C, 0.5 C, 1.0 C, 2.0 C, and 5.0 C for the subsequent five cycles (Figure 7c). In particular, the SiOx@C_8:2 composite demonstrated a stable specific capacity of 77.2% at a current density of 5.0 C compared to 0.2 C. Furthermore, as the current density was reduced from 5.0 C back to 0.2 C, the specific capacity recovered to 440 mAh/g. In contrast, the SiOx anode showed relatively inferior rate characteristics, exhibiting a specific capacity of only 47.8% at a current density of 5.0 C compared to the established 0.2 C rate. Upon returning the current density from 5.0 C to 0.2 C, the SiOx anode showed a specific capacity of only 189 mAh/g. Thus, it is believed that the carbon layer on the SiOx@C composite induces the uniform formation of the SEI layer, thereby having a positive effect on battery cycle stability.

4. Conclusions

In summary, to overcome the inherent limitations of existing Si-based anode materials, the SiOx-based carbon composite material was developed and applied as an anode material. Mechanofusion complexation was performed using the SiOx and pitch as host and guest materials, respectively. During the mechanofusion process, the SiOx particles aggregated and formed complexes with the surrounding particles and coating pitch, resulting in an increase in the average particle diameter from 1.8 μm to 6.7 µm. The introduced pitch was converted into a carbon layer through stabilization and carbonization processes, forming a uniform coating on the SiOx surface, as confirmed by the EDS mapping analysis. The TEM analysis showed that as the pitch content increased, the carbon layer thickness also increased, and this thickness could be adjusted from 0 to 600 nm by varying the pitch contents. The Raman analysis revealed a non-crystalline carbon layer with a mixture of sp2 and sp3 hybridized structures, while the BET analysis indicated the development of fine and mesopores within the carbon layer. The increased carbon layer thickness resulted in improved electrical conductivity, addressing the electrically insulating characteristic of pristine SiOx. Based on the outstanding mechanical and excellent electrical properties of the carbon layer, the SiOx@C composites presented an enhanced discharge capacity and initial efficiency compared to the pristine SiOx. The evaluation of the battery anode performance of the SiOx@C composites, considering the mixing ratio of silicon oxide and pitch, as well as the loading amount in the anode material, revealed that as the pitch content for the coating increased (resulting in thicker carbon layer), there was a decrease in the discharge capacity, but an increase in the initial efficiency. Notably, the SiOx@C_8:2 composite material, produced through optimization, demonstrated a discharge capacity approximately 1.6 times higher and an initial efficiency approximately 1.8 times better at the same content level as the pristine SiOx, maintaining excellent cycle stability for more than 300 cycles after the second cycle.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/c9040114/s1, S1: Oxidation level of pristine SiOx; S2: TGA analysis of pitch; S3: sp2/sp3 carbon ratio in SiOx@C composite; S4: EIS analysis; S5: Discharge capacity of carbon layer; S6: Charge storage mechanism; S7: Compilation of different investigations using various silicon oxide-carbon composites.

Author Contributions

Conceptualization, Y.-P.J. and J.-Y.H.; methodology, J.U.L.; validation, Y.-P.J. and J.-Y.H.; formal analysis, J.-Y.H.; investigation, S.J.K. and S.-J.H.; data curation, J.-Y.H., S.-J.H. and J.U.L.; writing—original draft preparation, S.J.K.; writing—review and editing, Y.-P.J. and J.-Y.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Technology Innovation Program (20006777, 20006778), by the Industrial Strategic Technology Development Program (20012763), and by the Energy Core Technology Program (1415186918) funded by the Ministry of Trade, Industry and Energy (MOTIE, Korea). The APC was funded by the Industrial Strategic Technology Development Program.

Data Availability Statement

Data are contained within the article and supplementary materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jin, Y.; Li, S.; Kushima, A.; Zheng, X.; Sun, Y.; Xie, J.; Sun, J.; Xue, W.; Zhou, G.; Wu, J.; et al. Self-healing SEI enables full-cell cycling of a silicon-majority anode with a coulombic efficiency exceeding 99.9%. Energy Environ. Sci. 2017, 10, 580–592. [Google Scholar] [CrossRef]
  2. Liu, N.; Liu, J.; Jia, D.; Huang, Y.; Luo, J.; Mamat, X.; Yu, Y.; Dong, Y.; Hu, G. Multi-core yolk-shell like mesoporous double carbon-coated silicon nanoparticles as anode materials for lithium-ion batteries. Energy Storage Mater. 2019, 18, 165–173. [Google Scholar] [CrossRef]
  3. Xu, Q.; Sun, J.-K.; Yu, Z.-L.; Yin, Y.-X.; Xin, S.; Yu, S.-H.; Guo, Y.-G. SiOx Encapsulated in Graphene Bubble Film: An Ultrastable Li-Ion Battery Anode. Adv. Mater. 2018, 30, 1707430. [Google Scholar] [CrossRef] [PubMed]
  4. Liang, Y.; Ding, W.; Yao, B.; Zheng, F.; Smirnova, A.; Gu, Z. Mediating Lithium Plating/Stripping by Constructing 3D Au@Cu Pentagonal Pyramid Array. Batteries 2023, 9, 279. [Google Scholar] [CrossRef]
  5. Shi, L.; Pang, C.; Chen, S.; Wang, M.; Wang, K.; Tan, Z.; Gao, P.; Ren, J.; Huang, Y.; Peng, H.; et al. Vertical graphene growth on SiO microparticles for stable lithium ion battery anodes. Nano Lett. 2017, 17, 3681–3687. [Google Scholar] [CrossRef] [PubMed]
  6. Yu, H.; Wang, Y.; Jing, Y.; Ma, J.; Du, C.F.; Yan, Q. Surface Modified MXene-Based Nanocomposites for Electrochemical Energy Conversion and Storage. Small 2019, 15, 1901503. [Google Scholar] [CrossRef]
  7. Jia, L.; Zou, P.; Gao, X.; Zhao, Y.; He, M.H.; Engelhard, S.D.; Burton, H.; Wang, H.; Ren, X.; Li, Q.; et al. High-performance silicon anodes enabled by nonflammable localized high-concentraion electrolytes. Adv. Energy Mater. 2019, 9, 1900784. [Google Scholar] [CrossRef]
  8. Yi, R.; Zai, J.; Dai, F.; Gordin, M.L.; Wang, D. Dual conductive network-enabled graphene/Si–C composite anode with high areal capacity for lithium-ion batteries. Nano Energy 2014, 6, 211–218. [Google Scholar] [CrossRef]
  9. Shi, L.; Wang, W.K.; Wang, A.B.; Yuan, K.G.; Jin, Z.Q.; Yang, Y.S. Scalable synthesis of core-shell structured SiOx/nitrogen-doped carbon composite as a high-performance anode material for lithium-ion batteries. J. Power Sources 2016, 318, 184–191. [Google Scholar] [CrossRef]
  10. Guo, J.; Dong, D.; Wang, J.; Liu, D.; Yu, X.; Zheng, Y.; Wen, Z.; Lei, W.; Deng, Y.; Wang, J.; et al. Silicon-based lithium ion battery systems: State-of-the-art from half and full cell viewpoint. Adv. Funct. Mater. 2021, 31, 2102546. [Google Scholar] [CrossRef]
  11. Jiao, M.; Wang, Y.; Ye, C.; Wang, C.; Zhang, W.; Liang, C. High-capacity SiOx (0 ≤ x ≤ 2) as promising anode materials for next-generation lithium-ion batteries. J. Alloys Compd. 2020, 842, 155774. [Google Scholar] [CrossRef]
  12. Zhang, K.; Mao, H.; Gu, X.; Song, C.; Yang, J.; Qian, Y. ZIF-Derived Cobalt-Containing N-Doped Carbon-Coated SiOx Nanoparticles for Superior Lithium Storage. ACS Appl. Mater. Interfaces 2020, 12, 7206–7211. [Google Scholar] [CrossRef] [PubMed]
  13. Feng, K.; Li, M.; Liu, W.; Kashkooli, A.G.; Xiao, X.; Cai, M.; Chen, Z. Silicon-based anodes for lithium-ion batteries: From fundamentals to practical applications. Small 2018, 14, 1702737. [Google Scholar] [CrossRef] [PubMed]
  14. Jeong, H.S.; Kim, J.S.; Jo, K.I.; Choi, J.H.; Koo, J.S. Oriented wrinkle textures of free-standing graphene nanosheets: Application as a high-performance lithium-ion battery anode. Carbon Lett. 2021, 31, 277–285. [Google Scholar] [CrossRef]
  15. Park, M.; Lee, D.; Shin, S.; Kim, H.-J.; Hyun, J. Flexible conductive nanocellulose combined with silicon nanoparticles and polyaniline. Carbohydr. Polym. 2016, 140, 43–50. [Google Scholar] [CrossRef] [PubMed]
  16. Ren, W.-F.; Li, J.-T.; Huang, Z.-G.; Deng, L.; Zhou, Y.; Huang, L.; Sun, S.-G. Fabrication of Si Nanoparticles@ Conductive Carbon Framework@ Polymer Composite as High-Areal-Capacity Anode of Lithium-Ion Batteries. ChemElectroChem 2018, 5, 3258–3265. [Google Scholar] [CrossRef]
  17. Choi, S.; Kwon, T.-W.; Coskun, A.; Choi, J.W. Highly elastic binders integrating polyrotaxanes for silicon microparticle anodes in lithium ion batteries. Science 2007, 357, 279–283. [Google Scholar] [CrossRef] [PubMed]
  18. Xin, Y.; Pan, S.; Hu, X.; Miao, C.; Nie, S.; Mou, H.; Xiao, W. Engineering amorphous SnO2 nanoparticles integrated into porous N-doped carbon matrix as high-performance anode for lithium-ion batteries. J. Colloid Interface Sci. 2023, 639, 133–144. [Google Scholar] [CrossRef]
  19. Lee, S.J.; Kim, H.J.; Hwang, T.H.; Choi, S.; Park, S.H.; Deniz, E.; Jung, D.S.; Choi, J.W. Delicate Structural Control of Si–SiOx–C Composite via High-Speed Spray Pyrolysis for Li-Ion Battery Anodes. Nano Lett. 2017, 17, 1870–1876. [Google Scholar] [CrossRef]
  20. Wang, D.; Gao, M.; Pan, H.; Wang, J.; Liu, Y. High performance amorphous-Si@ SiOx/C composite anode materials for Li-ion batteries derived from ball-milling and in situ carbonization. J. Power Sources 2014, 256, 190–199. [Google Scholar] [CrossRef]
  21. Umeno, T.; Fukuda, K.; Wang, H.; Dimov, N.; Iwao, T.; Yoshio, M. Novel anode material for lithium-ion batteries: Carbon-coated silicon prepared by thermal vapor decomposition. Chem. Lett. 2001, 30, 1186–1187. [Google Scholar] [CrossRef]
  22. Mukhan, O.; Umirov, N.; Lee, B.-M.; Yun, J.-S.; Choi, J.-H.; Kim, S.-S. A Facile Carbon Coating on Mg-Embedded SiOx Alloy for Fabrication of High-Energy Lithium-Ion Batteries. Adv. Mater. Interfaces 2022, 21, 2201426. [Google Scholar] [CrossRef]
  23. Kim, D.S.; Kim, K.H.; Lim, C.H.; Lee, C.; Lee, Y.S. Carbon-coated SiOx anode materials via PVD and pyrolyzed fuel oil to achieve lithium-ion batteries with high cycling stability. Carbon Lett. 2022, 32, 321–328. [Google Scholar] [CrossRef]
  24. Xu, Q.; Sun, J.-K.; Yin, Y.-X.; Guo, Y.-G. Facile Synthesis of Blocky SiOx/C with Graphite-Like Structure for High-Performance Lithium-Ion Battery Anodes. Adv. Funct. Mater. 2018, 28, 1705235. [Google Scholar] [CrossRef]
  25. Zuo, X.; Zhu, J.; Müller-Buschbaum, P.; Cheng, Y.-J. Silicon based lithium-ion battery anodes: A chronicle perspective review. Nano Energy 2017, 31, 113–143. [Google Scholar] [CrossRef]
  26. Zhang, M.; Zhang, T.; Ma, Y.; Chen, Y. Latest development of nanostructured Si/C materials for lithium anode studies and applications. Energy Storage Mater. 2016, 4, 1–14. [Google Scholar] [CrossRef]
  27. Shaker, M.; Ghazvini, A.A.S.; Qureshi, F.R.; Reza, R. A criterion combined of bulk and surface lithium storage to predict the capacity of porous carbon lithium-ion battery anodes: Lithium-ion battery anode capacity prediction. Carbon Lett. 2021, 31, 985–990. [Google Scholar] [CrossRef]
  28. Cao, Y.; Hatchard, T.D.; Dunlap, R.A.; Obrovac, M.N. Mechanofusion-Derived Si-Alloy/Graphite Composite Electrode Materials for Li-Ion Batteries. J. Mater. Chem. A 2019, 7, 8335–8343. [Google Scholar] [CrossRef]
  29. Choi, J.-E.; Ko, S.; Jeon, Y.-P. Preparation of petroleum impregnating pitches from pyrolysis fuel oil using two-step heat treatments. Carbon Lett. 2019, 29, 369–376. [Google Scholar] [CrossRef]
  30. An, D.; Kim, K.H.; Lim, C.; Lee, Y.-S. Effect of kneading and carbonization temperature on the structure of the carbon block for thermally conductive bulk graphites. Carbon Lett. 2021, 31, 1357–1364. [Google Scholar] [CrossRef]
  31. Jo, M.; Sim, S.; Kim, J.; Oh, P.; Son, Y. Micron-Sized SiOx-Graphite Compound as Anode Materials for Commercializable Lithium-Ion Batteries. Nanomaterials 2022, 12, 1956. [Google Scholar] [CrossRef] [PubMed]
  32. Matthews, M.J.; Pimenta, M.A.; Dresselhaus, G.; Dresselhaus, M.S.; Endo, M. Origin of dispersive effects of the Raman D band in carbon materials. Phys. Rev. B 1999, 59, R6585. [Google Scholar] [CrossRef]
  33. Xu, M.; Tan, C. Defect Size Effect and Defect Band Conduction of Ultrathin Oxides After Degradation and Breakdown. Electron Device Lett. 2009, 30, 410–412. [Google Scholar]
  34. Xia, Y.; Yoshio, M.; Noguchi, H. Improved electrochemical performance of LiFePO4 by increasing its specific surface area. Electrochim. Acta 2006, 52, 240–245. [Google Scholar] [CrossRef]
  35. Wang, Z.Y.; Zhang, H.H.; Zhang, X.Y.; Wang, X.M.; Zhang, X. Yolk-shell porous Fe3O4@C anchored on graphene as anode for Li-ion half/full batteries with high rate capability and long cycle life. Compos. B Eng. 2022, 247, 110308. [Google Scholar] [CrossRef]
  36. Li, G.; Huang, L.-B.; Yan, M.-Y.; Li, J.-Y.; Jiang, K.-C.; Yin, Y.-X.; Xin, S.; Xu, Q.; Guo, Y.-G. An integral interface with dynamically stable evolution on micron-sized SiOx particle anode. Nano Energy 2020, 74, 104890. [Google Scholar] [CrossRef]
  37. Hernandha, R.F.H.; Rath, P.C.; Umesh, B.; Patra, J.; Huang, C.-Y.; Wu, W.-W.; Dong, Q.-F.; Li, J.; Chang, J.-K. Supercritical CO2-Assisted SiOx/Carbon Multi-Layer Coating on Si Anode for Lithium-Ion Batteries. Adv. Funct. Mater. 2021, 31, 2104135. [Google Scholar] [CrossRef]

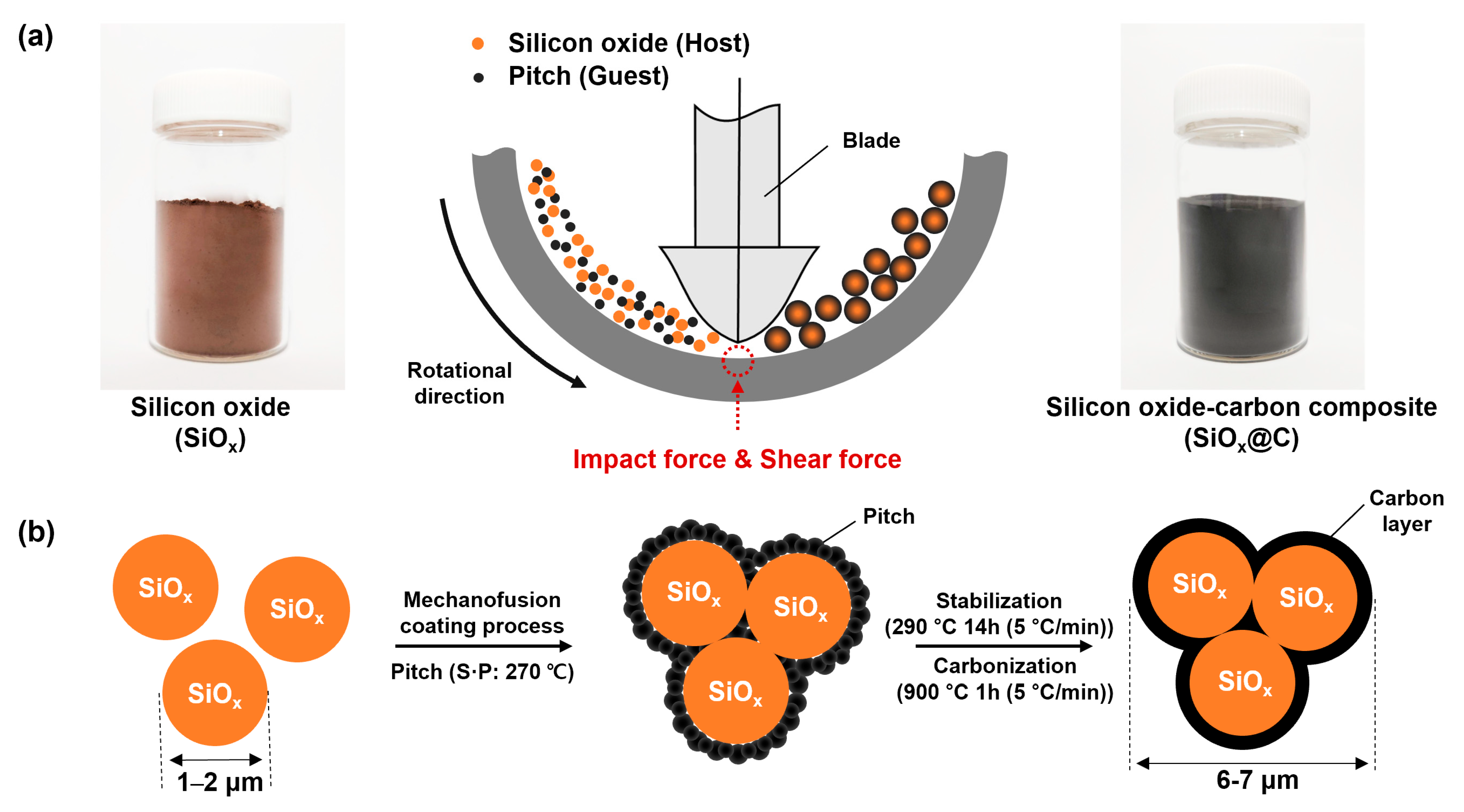

Figure 1. (a) Schematic illustration for fabricating SiOx@C composites by mechanofusion process, and digital photographs of SiOx and SiOx@C composites. (b) Plausible schematic mechanism for the formation of SiOx@C composites.
Figure 1. (a) Schematic illustration for fabricating SiOx@C composites by mechanofusion process, and digital photographs of SiOx and SiOx@C composites. (b) Plausible schematic mechanism for the formation of SiOx@C composites.
Carbon 09 00114 g001

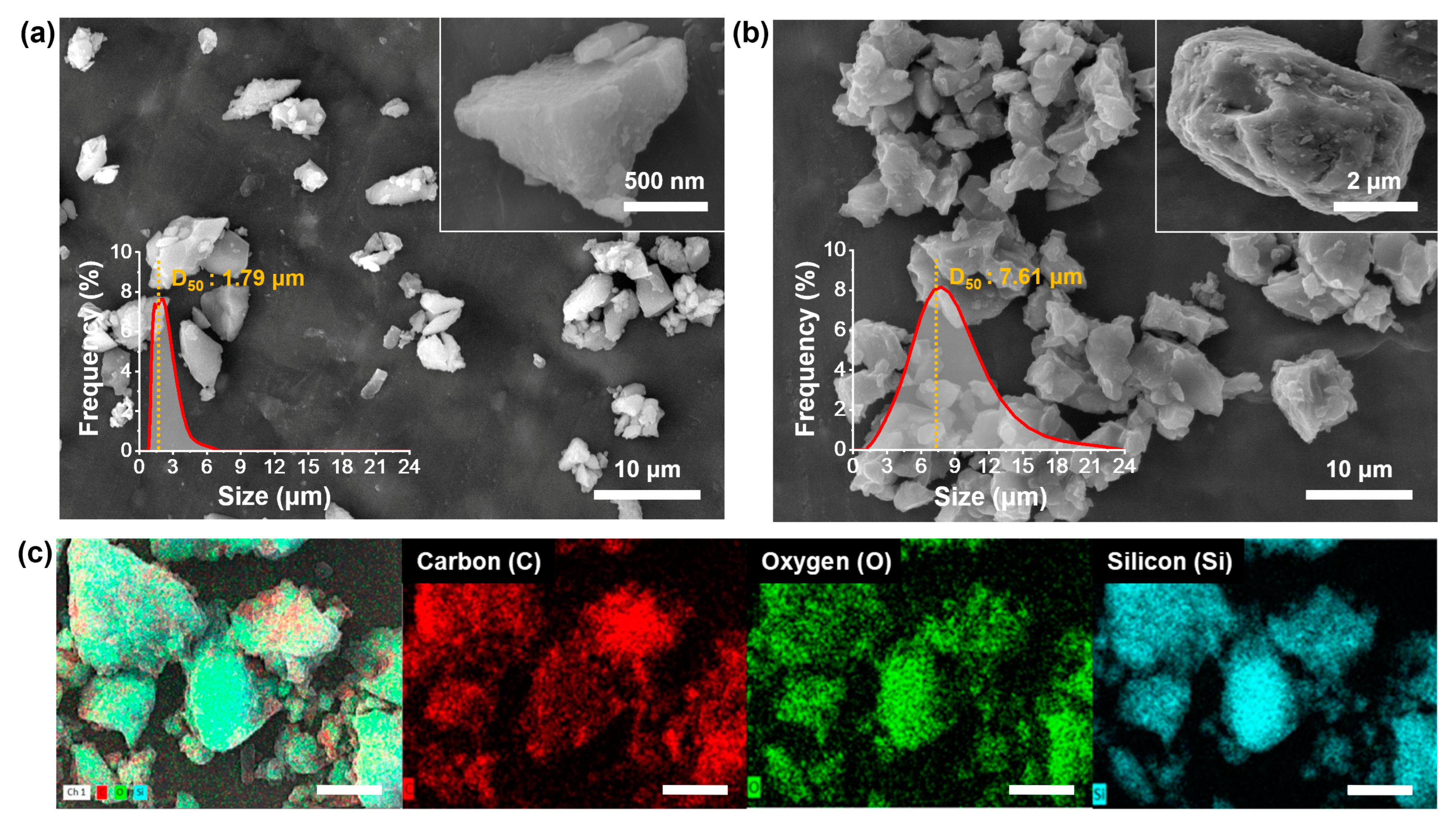

Figure 2. FE-SEM images and particle-size distribution of the (a) SiOx and (b) SiOx@C composites (inset: SEM image of the corresponding sample with high magnification). (c) Energy dispersive X-ray spectroscopy (EDS) elemental maps of corresponding C, O, and Si in the SiOx@C composites (inset scale bar is 5 μm).
Figure 2. FE-SEM images and particle-size distribution of the (a) SiOx and (b) SiOx@C composites (inset: SEM image of the corresponding sample with high magnification). (c) Energy dispersive X-ray spectroscopy (EDS) elemental maps of corresponding C, O, and Si in the SiOx@C composites (inset scale bar is 5 μm).
Carbon 09 00114 g002

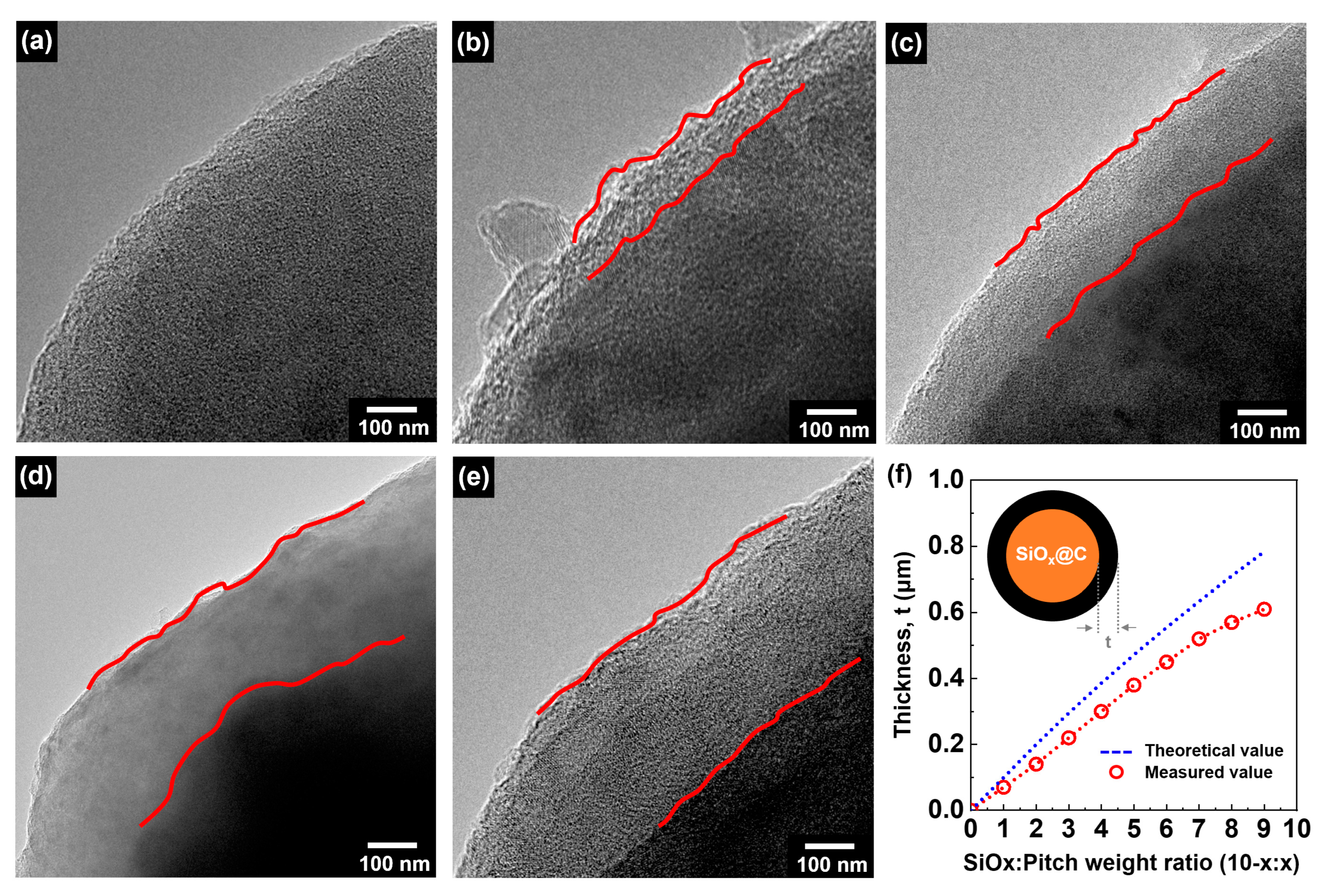

Figure 3. TEM images of the SiOx@C composites prepared with different SiOx/pitch weight ratios of (a) 0, (b) 10, (c) 20, (d) 30 and (e) 40. (f) Carbon layer thickness as a function of SiOx/pitch weight ratios. Blue dot line and red circle indicate the theoretical and measured value, respectively.
Figure 3. TEM images of the SiOx@C composites prepared with different SiOx/pitch weight ratios of (a) 0, (b) 10, (c) 20, (d) 30 and (e) 40. (f) Carbon layer thickness as a function of SiOx/pitch weight ratios. Blue dot line and red circle indicate the theoretical and measured value, respectively.
Carbon 09 00114 g003
Figure 4. (a) Raman spectra of SiOx and SiOx@C composite. (inset: Deconvoluted peaks on D and G band are indicated by a gray line. (b) Powder conductivity of SiOx@C composites prepared with different SiOx/Pitch weight ratios of 0, 10, 20, 30, 40 and 50 wt%.
Figure 4. (a) Raman spectra of SiOx and SiOx@C composite. (inset: Deconvoluted peaks on D and G band are indicated by a gray line. (b) Powder conductivity of SiOx@C composites prepared with different SiOx/Pitch weight ratios of 0, 10, 20, 30, 40 and 50 wt%.
Carbon 09 00114 g004
Figure 5. (a) Nitrogen adsorption–desorption isotherms and corresponding (b) BJH pore size distributions of the SiOx and SiOx@C_8:2 composites derived from desorption isotherms.
Figure 5. (a) Nitrogen adsorption–desorption isotherms and corresponding (b) BJH pore size distributions of the SiOx and SiOx@C_8:2 composites derived from desorption isotherms.
Carbon 09 00114 g005

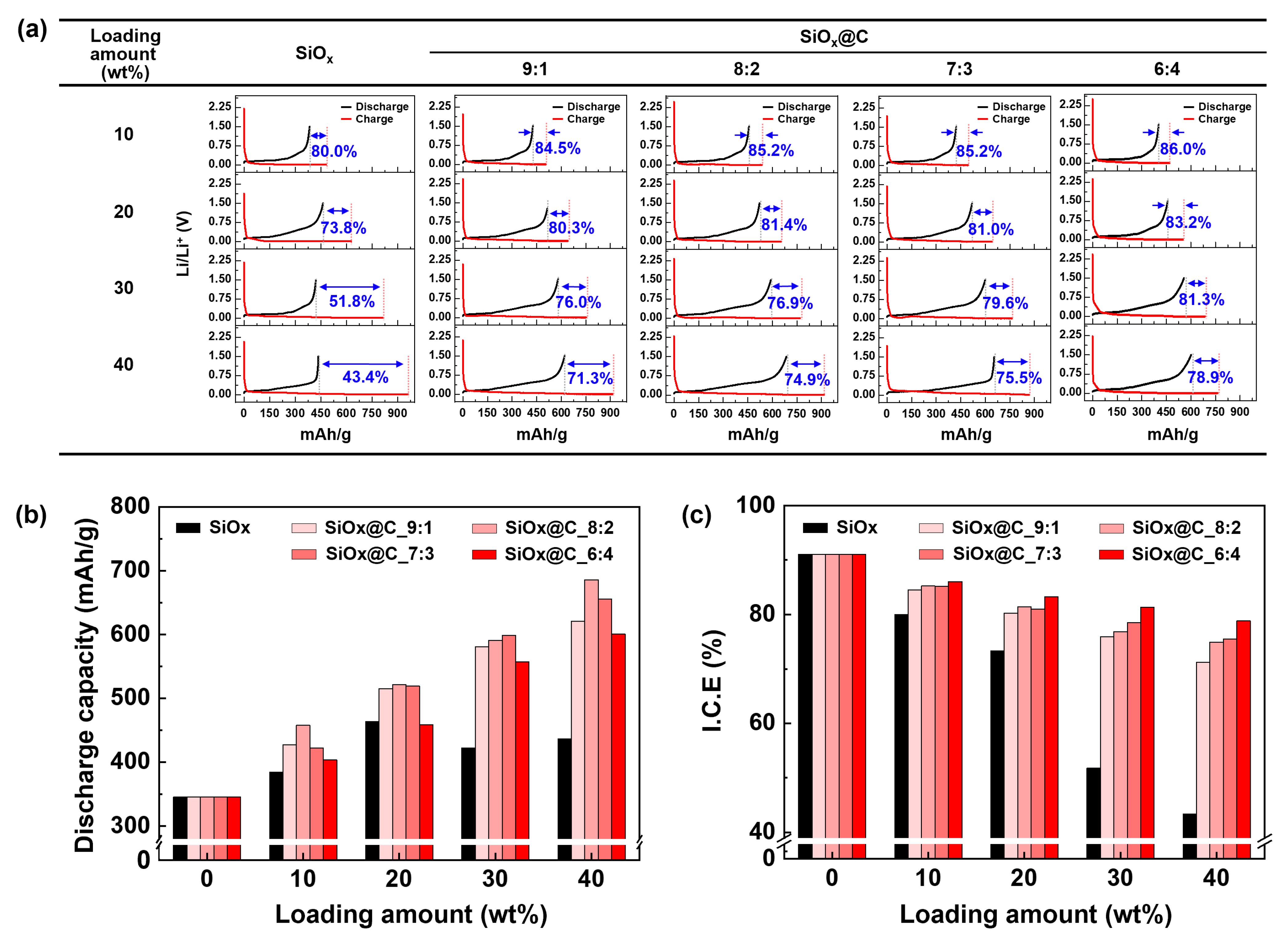

Figure 6. (a) The first charge/discharge voltage profiles of the anode using pristine SiOx and SiOx@C composites prepared with the SiOx/Pitch weight ratio of 0, 10, 20, 30, and 40. (b) Discharge capacity and (c) ICE as a function of loading amount (0–40 wt%). All cell tests were performed in a climate chamber at 25 °C with the rate of 0.2 C.
