Open AccessArticle
C 2018, 4(1), 11; doi:10.3390/c4010011

Nitrogen-Doped Hollow Carbon Spheres with Embedded Co Nanoparticles as Active Non-Noble-Metal Electrocatalysts for the Oxygen Reduction Reaction

1,2
,
1
,
1,* , 1,3,* , 2,3
,
4,* and 1,3,*
1
State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, 1295 Dingxi Road, Shanghai 200050, China
2
School of Materials Science and Engineering, Shanghai University, 99 Shangda Road, Shanghai 200444, China
3
Shanghai Institute of Materials Genome, Shanghai 200050, China
4
Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
*
Authors to whom correspondence should be addressed.
Received: 8 January 2018 / Revised: 4 February 2018 / Accepted: 6 February 2018 / Published: 9 February 2018
(This article belongs to the Special Issue Functional Nanoporous Carbon-Based Materials)
View Full-Text   |   Download PDF [3317 KB, uploaded 9 February 2018]   |

Abstract

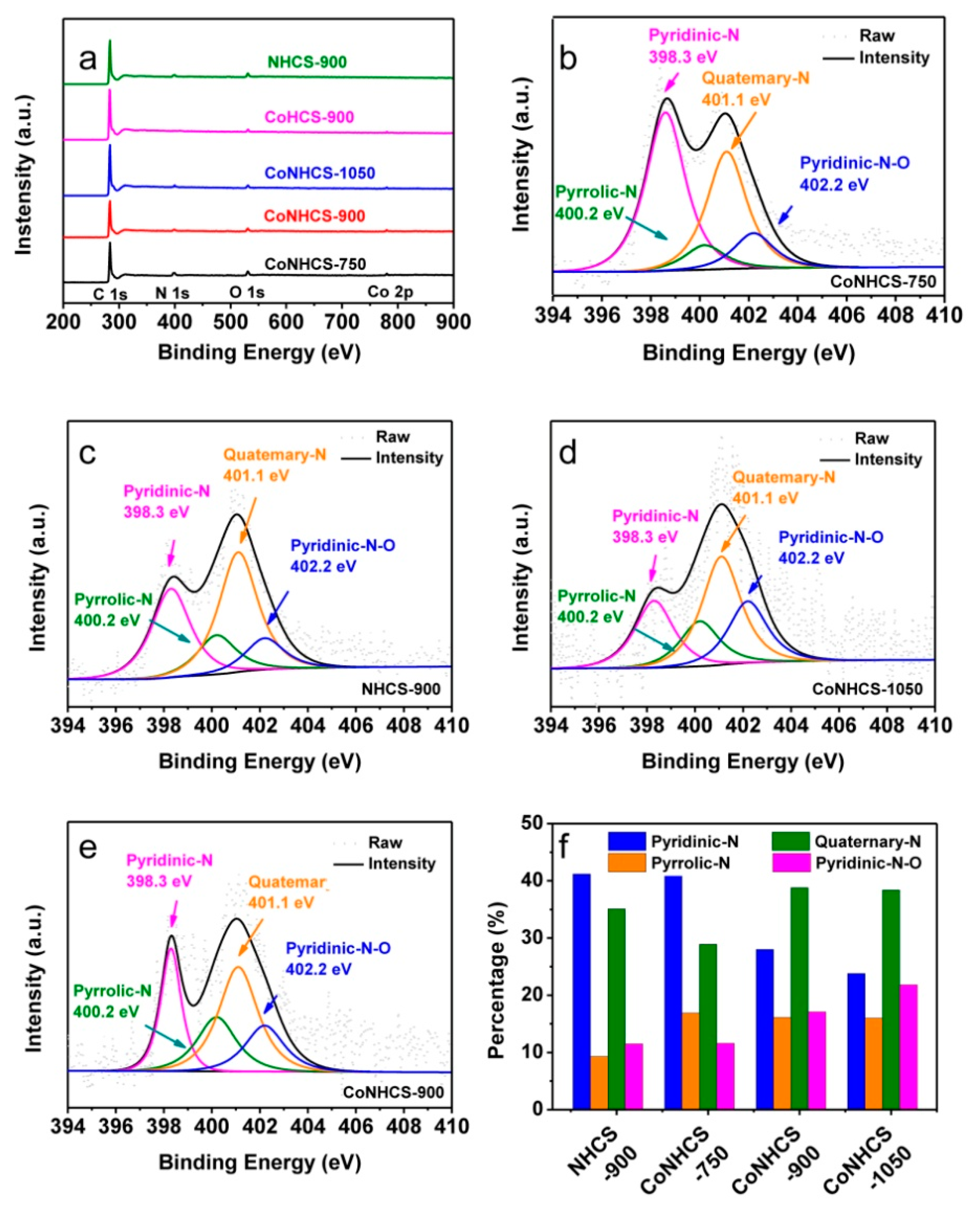

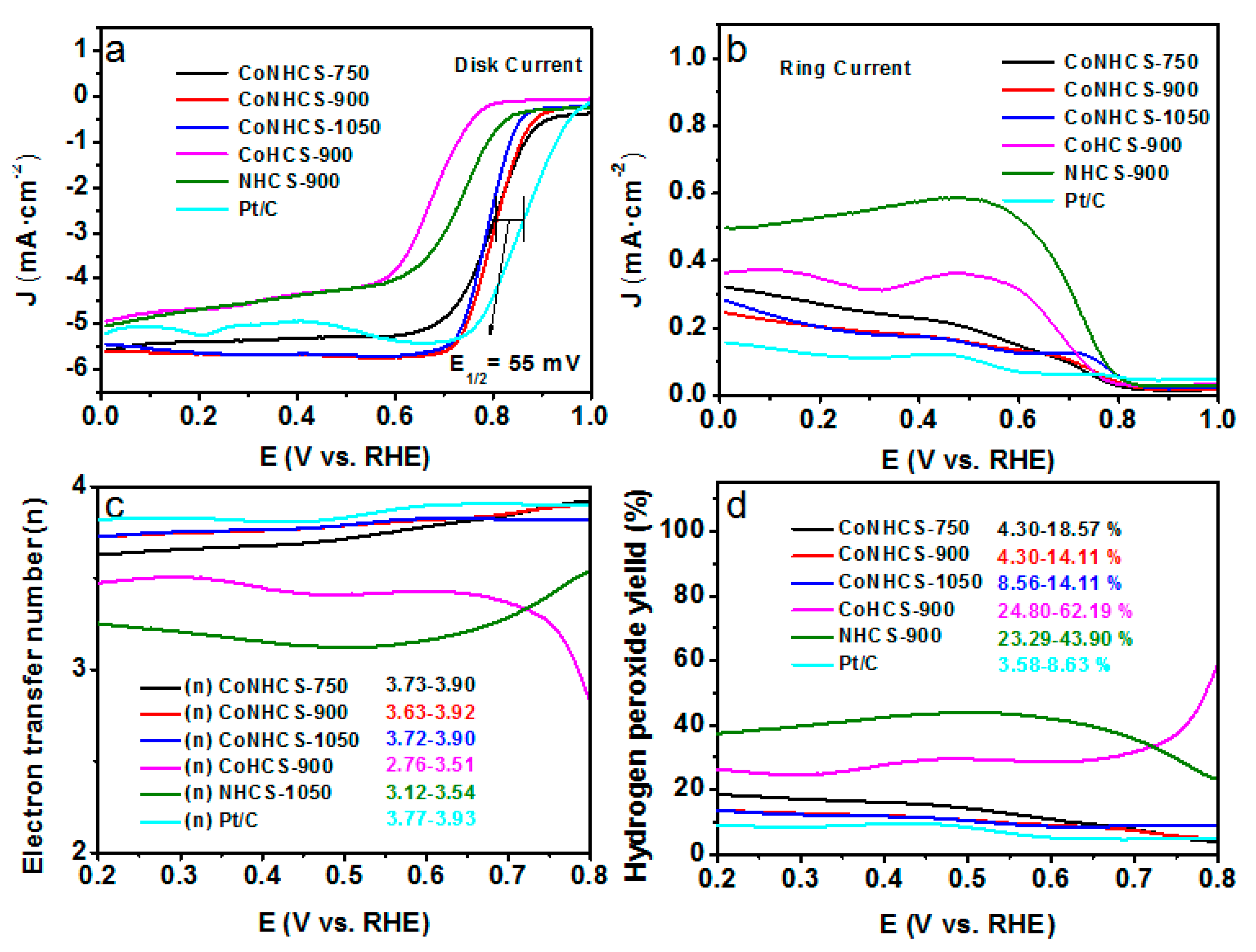

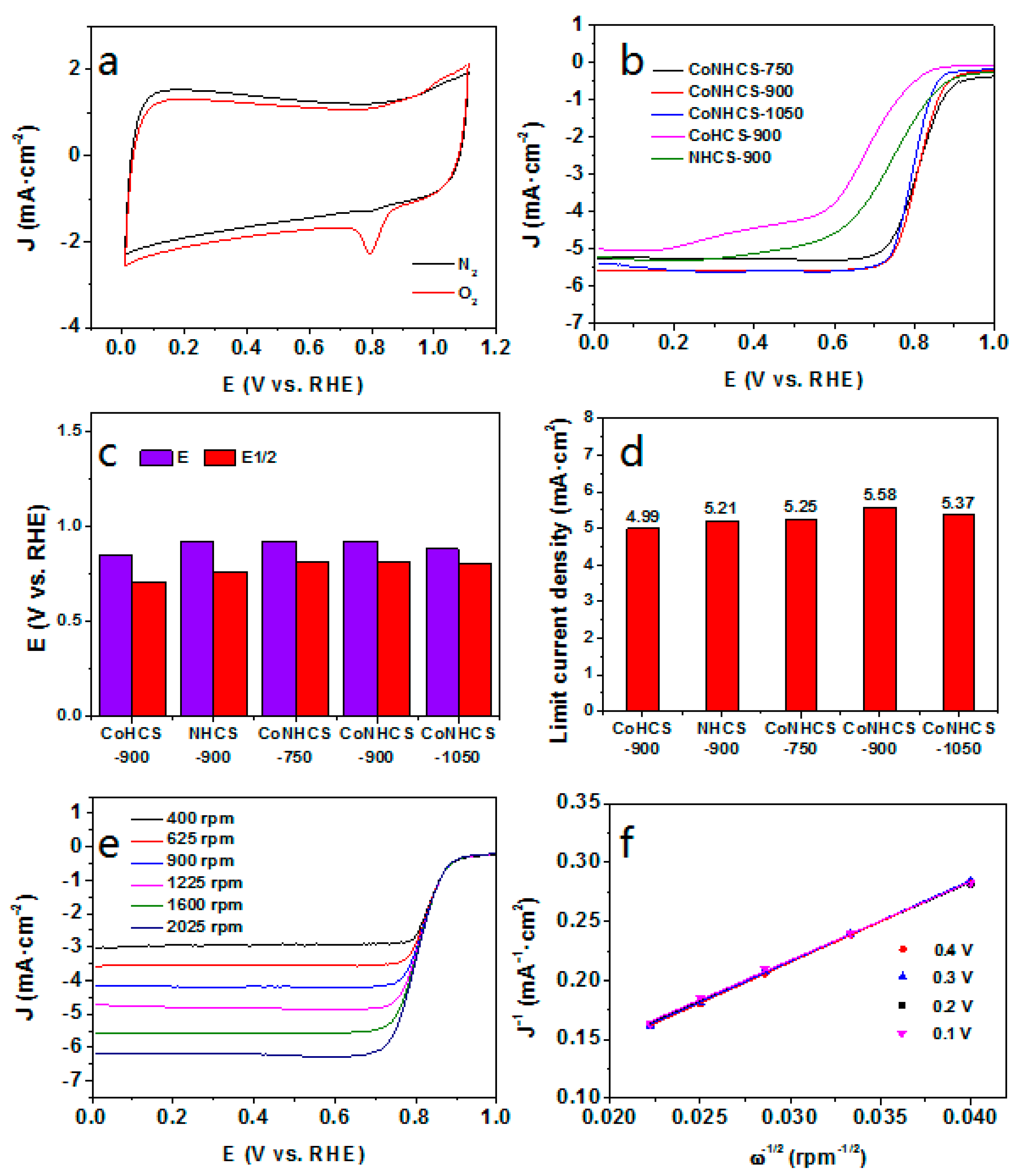

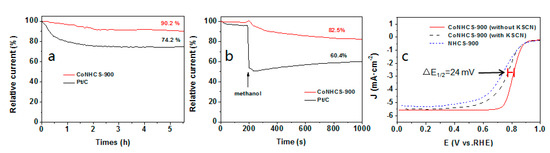

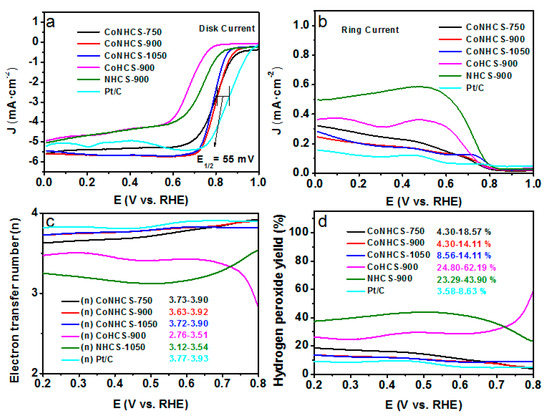

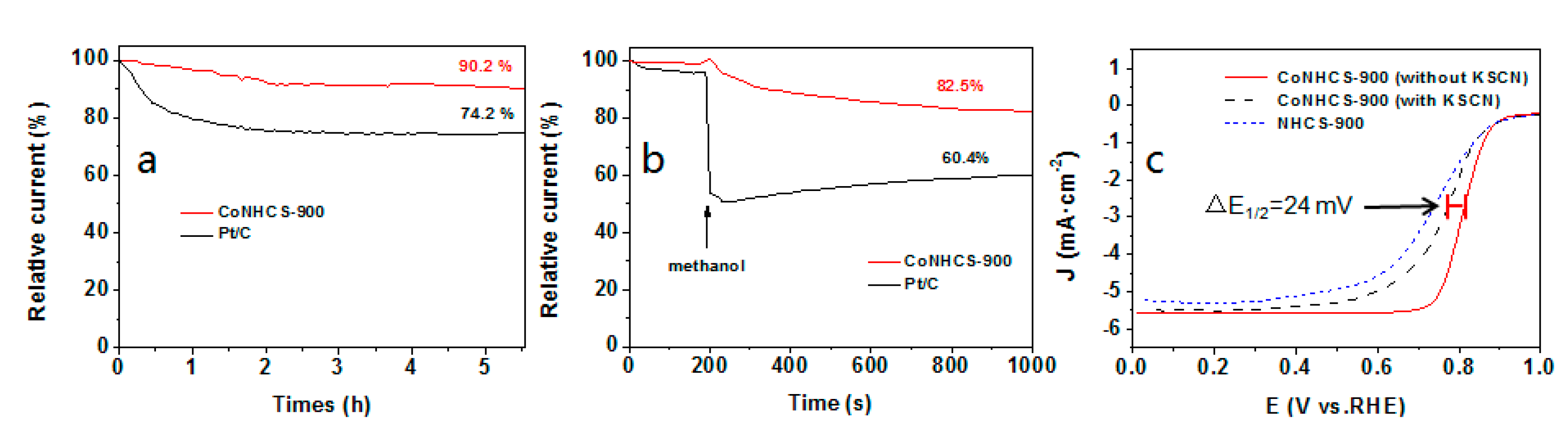

Transition metal (Fe, Co, Ni) complexes on carbon nanomaterials are promising candidates as electrocatalysts towards the oxygen reduction reaction (ORR). In this paper, nitrogen-doped hollow carbon spheres with embedded Co nanoparticles were successfully prepared via a controllable synthesis strategy. The morphology characterization shows that the hollow carbon spheres possess an average diameter of ~150 nm with a narrow size distribution and a shell thickness of ~14.5 nm. The content of N doping ranges from 2.1 to 6.6 at.% depending on the calcination temperature from 900 to 1050 °C. Compared with commercial Pt/C, the Co-containing nitrogen-doped hollow carbon spheres prepared at 900 °C (CoNHCS-900) as an ORR electrocatalyst shows a half-wave potential shift of only ∆E1/2 = 55 mV, but a superior stability of about 90.2% maintenance after 20,000 s in the O2-saturated 0.1 M KOH at a rotating speed of 1600 rpm. This could be ascribed to the synergistic effects of N-containing moieties, Co-Nx species, and Co nanoparticles, which significantly increase the density of active sites and promote the charge transfer during the ORR process. View Full-Text
Keywords: cobalt nanoparticles; hollow carbon spheres; fuel cells; electrocatalysis; oxygen reduction reaction cobalt nanoparticles; hollow carbon spheres; fuel cells; electrocatalysis; oxygen reduction reaction
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
