Auto-Continuous Synthesis of Robust and Hydrophobic Silica Aerogel Microspheres from Low-Cost Aqueous Sodium Silicate for Fast Dynamic Organics Removal

by
Ziqian Sun
1,†,
Zhiyang Zhao
1,†,
Yong Kong
1,2,*,
Jian Ren
1,
Xing Jiang
1 and
Xiaodong Shen
1,2
1
College of Materials Science and Engineering, Nanjing Tech University, Nanjing 210009, China
2
State Key Laboratory of Materials-Oriented Chemical Engineering, Nanjing 210009, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Gels 2022, 8(12), 778; https://doi.org/10.3390/gels8120778
Submission received: 1 November 2022 / Revised: 24 November 2022 / Accepted: 25 November 2022 / Published: 28 November 2022
(This article belongs to the Special Issue Advanced Hydrogel for Water Treatment)
Browse Figures
Versions Notes

Abstract

:
An efficient auto-continuous globing process was developed with a self-built apparatus to synthesize pure silica aerogel microspheres (PSAMs) using sodium silicate as a precursor and water as a solvent. A hydrophobic silica aerogel microsphere (HSAM) was obtained by methyl grafting. A reinforced silica aerogel microsphere (RSAM) was prepared by polymer cross-linking on the framework of the silica gel. The pH value of the reaction system and the temperature of the coagulating bath were critical to form perfect SAMs with a diameter of 3.0 ± 0.2 mm. The grafted methyl groups are thermally stable up to 400 °C. Polymer cross-linking increased the strength significantly, owing to the polymer coating on the framework of silica aerogel. The pore volumes of HSAM (6.44 cm3/g) and RSAM (3.17 cm3/g) were much higher than their state-of-the-art counterparts. Their specific surface areas were also at a high level. The HSAM and RSAM showed high organic sorption capacities, i.e., 17.9 g/g of pump oil, 11.8 g/g of hexane, and 22.2 mg/g of 10 mg/L methyl orange. The novel preparation method was facile, cost-effective, safe, and eco-friendly, and the resulting SAM sorbents were exceptional in capacity, dynamics, regenerability, and stability.

1. Introduction

Silica aerogels have large specific surface areas, nanopore volumes, and porosities and show excellent performances in thermal insulation, adsorption, catalysis, and many other aspects [1,2,3,4,5,6]. Recently, it has caused wide public concern to remove organic contaminants from water with hydrophobic silica aerogels [7,8]. Tetraethoxysilane (TEOS) and tetramethoxysilane (TMOS) are generally used as precursors to synthesize silica aerogels, which have a lot of hydroxy groups that can be grafted with methylic silanes to obtain hydrophobic silica aerogels [9,10,11]. The methyl groups of hydrophobic silica aerogels can enhance the interaction between silica aerogel and organic contaminants, improve the sorption selectivity and capacity of the organics, and avoid network failure from water. Qin et al. synthesized hydrophobic silica aerogel powder by modifying TEOS-derived silica gel with trimethylchlorosilane (TMCS) [12]. The sample with 12 h modification had a specific surface area of 875 m2/g, a pore volume of 0.56 cm3/g, and a phenol absorption capacity of 142 mg/g from water. Sert Çok et al. investigated the effect of a hydrophobic modifier on the structure and organic sorption performance of hydrophobic silica aerogel monoliths [13]. TMCS was the optimal modifier, and the corresponding hydrophobic silica aerogel had a specific surface area and a pore volume of 789 m2/g and 2.49 cm3/g, respectively. The hexane and vegetable oil absorption capacities were 7.0 and 8.5 g/g, respectively, and were stable within six cycles.
The use of silicon alkoxide is efficient for synthesizing hydrophobic silica aerogels for water treatment. However, the organic precursors are expensive, which limits the engineering application of silica aerogels. As an alternative, sodium silicate is low-cost and has a broad resource of raw material. Instead of organic solvents, such as ethanol, for silicon alkoxide-based silica aerogels, water is used as the solvent for the sodium silicate-based silica aerogels, which is safer and greener [14]. The sodium silicate-derived silica aerogels with TMCS as a hydrophobic modifier achieved a specific surface area of 870 m2/g and a pore volume of 4.27 cm3/g, which were as high as those of the silicon alkoxide-based counterparts [15,16,17,18,19]. The sodium silicate-based hydrophobic silica aerogel monolith with a specific surface area of 870 m2/g and a pore volume of 4.0 cm3/g achieved a stable heptane absorption capacity (2.97 g/g) within 10 cycles [19]. The sodium silicate-based hydrophobic silica aerogel powder with a specific surface area of 246 m2/g had a silicone oil absorption capacity of 1.32 g/g [20].
The aforementioned studies indicate that current products are mostly monoliths and powders, which are difficult to use in practical projects. The aerogel powders used in flow through separation systems could lead to high backpressure and low permeability [21]. The monoliths are adverse to mass transfer, leading to low sorption capacity owing to the short-circuiting effect. Microsphere is a new product type of aerogels, which was synthesized by the ball drop method, emulsion method, and jet cutting method, which are potential in water treatment [22,23,24,25,26,27,28,29]. The microsphere avoids the blockage of the fixed adsorbent bed and offers good interaction between adsorbent and adsorbate [21,30,31]. Moreover, microspheres are easy to recycle from water for regeneration. The sodium silicate-based hydrophobic silica aerogel microsphere has also been successfully synthesized [32]. Based on the ball drop method, the silica gel microsphere was formed by slowly dropping the silica sol into the silicon oil bath, the silica gel microsphere was modified with TMCS and dried with ambient pressure drying (APD) to form the hydrophobic silica aerogel microsphere with a specific surface area of 515 m2/g and a pore volume of 1.48 cm3/g. However, the Rhodamine B adsorption performance of the hydrophobic silica aerogel microsphere was much lower than its hydrophilic counterparts.
The sodium silicate-based aerogel microsphere is a promising sorbent for organic removal from water. However, the inherent fragility of silica aerogels still restricts their engineering application in water treatment. Moreover, the intermittent ball drop method for molding microsphere is inefficient. Hence, a series of silica aerogel microspheres (PSAM, HSAM, and RSAM) were synthesized from sodium silicate via a continuous globing processing on a self-built apparatus in this work. The hydrophobic silica aerogel microsphere (HSAM) with large pore volumes and specific surface areas was synthesized by grafting a hydrophobic modifier onto the pure silica aerogel microsphere (PSAM). To overcome the fragility of the HSAM, the reinforced silica aerogel microsphere (RSAM) was synthesized by the cross-linking of polymers onto the PSAM. The synthesis mechanisms, structures, and organic sorption performances of these SAMs were investigated.

2. Results and Discussion

2.1. Auto-Continuous Globing Process and Reaction Mechanism

Figure 1 and Video S1 vividly show the schematic and the auto-continuous globing process of SAMs. All the silica aerogels go through a sol–gel process to form a wet gel. However, the gelation mechanism of the microspheres is different from the monoliths and powders. As shown in Figure 1a, to obtain the perfect gel microsphere, the gelation kinetics of the solution or sol should not be fast before dropping and very fast in the coagulating bath. Therefore, the ASS and HAc solutions were prepared separately, and the dropping was performed as soon as the solutions were a mixture in the silicone tube. The mixing was carried out at room temperature to reduce the reaction kinetics, and the gelation was performed in the silicon oil bath at 90 °C to improve the reaction kinetics. The mixture and dimethicone are not mutually soluble, which leads to the formation of spherical droplets. In any event, the pH value is dominant. To form the perfect SGM, the optimal pH value is 5.74 ± 0.05, which leads to a gelation time of 4 ± 1 min at room temperature and less than 5 s at 90 °C. A pH volume beyond 5.74 ± 0.05 led to a longer gelation time in the silicon oil bath, which resulted in the serious aggregation of the liquid droplets. Moreover, the temperature of the coagulating bath should be high enough to accelerate the formation of SGM. The lower temperature of the silicon oil bath (70 °C) led to the mild aggregation of spherical droplets. The sol–gel process of the organic alkoxides to form silica gels depends on the hydrolysis and dehydration condensation of the silica alkoxides. The sol–gel behavior of the sodium silicate is similar to the silicon alkoxides.
As shown in Figure 1b, sodium silicate was firstly protonated to form the Si-OH species under acid condition, then the Si-OH groups condensed via dehydration to form Si-O-Si linkages, generating silica colloidal particles. Finally, the silica gel was formed through the aggregation of silica colloidal particles. The PSAM could be obtained after the drying of the gel. The formation of HSAMs is attributed to the graft of -CH3 species on the framework of the aerogel.
As shown in Figure 1c, the functional precursor, HMDS, was grafted onto the framework of the silica gel based on the formation of the Si-O-Si-(CH3)3 species. The non-polar -CH3 groups in the HSAM endow them with hydrophobicity.
The synthesis mechanism of the RSAM is presented in Figure 1d. The SGM was firstly functionalized with amino groups (-NH2) by grafting the APTES onto the framework of the SGM based on the dehydration reaction between the surface hydroxyl of SGM and the hydrolyzed species of APTES. HDI was grafted onto the framework of the SGM by reacting with the amino groups. Along with the HDI molecules that reacted with the amino groups one by one, the polymer chains were formed on the framework of the SGM; thus, the brittle silica framework was coated with robust polyurea chains [33,34]. As a result, the SAM was reinforced by polymer cross-linking.

2.2. Chemical Component

The FTIR spectra of the HDI, PSAM, HSAM and RSAM are shown in Figure 2a. All the SAM samples have three bands around 450, 794, and 1060 cm−1, which are attributed to the deformation vibration of O-Si-O, the symmetric stretching vibration of Si-O (Si-O-Si), and the antisymmetric stretching vibration of Si-O-Si, respectively [35]. The bands around 950–965 cm−1 are assigned to the Si-O in-plane stretching vibration of the Si-OH species [35]. The Si-OH species gradually disappeared from PSAM to HSAM and RSAM. This reveals that the Si-OH groups in the SGM were consumed by grafting HMDS and APTES molecules, as illustrated in Figure 2a. For the HSAM, the presence of the C-H stretching vibration of -CH3 at 2962 cm−1, the C-H bending of -CH3 at 1258 cm−1, and the Si-C stretching vibration of Si-CH3 at 842 cm−1 suggest that the hydrophobic Si-CH3 species of HMDS were successfully grafted [35,36]. For the RSAM, the C-H vibration bands at 2932, 2857, 1250, 1478, and 1461 cm−1 are attributed to the methylene groups, demonstrating the loading of HDI and APTES moieties on the RSAM [35]. The band at 3322 cm−1 of the RSAM results from the N-H stretching vibration of polyurea and APTES moieties [37]. The bands of HDI at 2248 and 1355 cm−1 are attributed to the antisymmetric stretching vibration and symmetric stretching vibration of the N=C=O groups of HDI [38]. These bands do not appear in the spectrum of the RSAM, indicating that the HDI monomer was loaded on the RSAM via polymerization to form polyurea structures, and the polymer cross-linking of the SAM was achieved. The bend around 623 cm−1 of the RSAM is mainly attributed to the bending vibration of O=C=N in HDI, indicating the presence of less incompletely reacted HDI. Correspondingly, the C=O and C-N-H stretching vibrations of the polyurea species were observed around 1618 and 1567 cm−1, respectively. The SEM mapping confirms HDI loading on the RSAM (Figure S1).
Figure 2b shows the comparative 13C NMR characterization of the pure silica aerogel microsphere (PSAM) and the HDI-reinforced silica aerogel microsphere (RSAM). As shown in the figure, the new vibration peak at around 159.6 ppm is assigned to the newly formed amino groups, indicating that HDI reacted with the -NH2 groups of silica clusters forming the -NH-C-O-NH- chains [39]. The intense peaks at 42.7 and 30.6 ppm are attributed to the -CH2 groups of the HDI cross-linker [40,41]. The peak at around 60 ppm induced by ethoxylation is evident in the PSAM [42], while a very weak peak can be observed in the RSAM, further verifying the polymerization between -NH2 and -NCO groups. The above results suggest the existence of -NCO groups, indicating the successful cross-linking of HDI.

2.3. Thermal Performance

TG and DTA curves of SAMs are shown in Figure 2c,d. The weight loss below 100 °C derives from the adsorbed water. The SAM presents more weight loss of water than the HSAM and RSAM as it possesses abundant hydroxyl species, which could be consumed via HMDS and APTES grafting. The hydroxyl groups readily adsorb moisture via hydrogen bonding. The slight weight loss of the PSAM above 100 °C is from the elimination of bonded water and hydroxyl species, which suggests that the dehydration reaction between the two Si-OH groups were carried out adequately, and the dominant species of the PSAM is silica. There was no obvious weight loss between 100 and 400 °C for HSAM, indicating that the grafted Si-CH3 species have excellent standing stability below 400 °C. The thermal stability of the hydrophobic groups of the HSAM is better than its state-of-the-art counterparts, which generally decomposed below 350 °C. The weight loss of the -CH3 species from 400 to 800 °C was very small, revealing that the HSAM has respectable thermal stability at an elevated temperature. The weight loss above 250 °C of the RSAM corresponds to the decomposition of the polyurea derived from the polymerization of HDI moieties. The DTA curve of the RSAM confirms that the polyurea in the RSAM starts to decompose at 250 °C and rapidly decomposes around 300 °C. The considerable weight loss of the RSAM above 250 °C suggests the effective cross-linking of HDI.

2.4. Microstructure and Morphology

The larger the ratio of the solvent to silicon source, the larger the specific surface area and pore volume of the aerogel obtained but the poorer the mechanical properties. The practical value of SAMs was taken into account, and a ratio was chosen that would ensure good mechanical properties of the PASM and HSAM with the best possible specific surface area and pore volume. A N2 adsorption test was performed to comprehensively understand the microstructure of SAMs. The N2 adsorption/desorption isotherms and pore size distribution curves are shown in Figure 3a,b. All the samples show type IV isotherms with H2 hysteresis loops, indicating that SAMs have a mesoporous structure constructed by irregular spherical pores and nanoparticles. The absence of the saturation adsorption platform close to 1 of P/P0 indicates the existence of macropores and large voids in the SAMs, which can be observed in the pore size distribution curves. It can be found from the pore size distribution curve presented in Figure 3b and pore structure data presented in Table 1 that the pore size and pore volume of the HSAM and RSAM are distinctly larger than that of the PSAM, which seems incompatible with common sense. The PSAM possesses the lowest apparent density at 0.080 g/cm3; its total pore volume is about 12 cm3/g, in theory, considering the skeleton density of SiO2 (2.2 g/cm3). However, the measured pore volume (2.27 cm3/g) is much lower than the theoretical pore volume, which means there are many pores that cannot be detected by the N2 adsorption method. As observed in the SEM image of PSAM, the pore width of these large voids is mostly larger than 100 nm, which is beyond the detect region of the N2 adsorption method. Generally, the N2 adsorption method only detects pores of 1–100 nm normally. The large voids are partially filled after surface modification with HMDS; thus, most pores of the HSAM are nanoscale, as presented in Figure 4e,h. The nanopore volume of the HSAM (6.44 cm3/g) is much higher than its state-of-the-art counterparts, but the specific surface area (652 m2/g) is mediocre [12,13,14,15,16,17,18,19]. The measured pore volume and specific surface area of the RSAM substantially decrease relative to the HSAM, which could be explained by the nanopores that were blocked by polymer cross-linking. Nonetheless, the specific surface area and pore volume of the RSAM are higher than its state-of-the-art counterparts [33,34,43]. As seen from the pore size distribution, the RSAM has relatively large pores, as the smaller pores are blocked after APTES grafting and polyurea coating, only leaving the larger pores. Overall, the porosity and total pore volume of the aerogel depend on the apparent and skeleton densities. However, the measured pore volume and specific surface area are closely linked to the pore size.
The photographs and SEM images of SAMs are shown in Figure 4. All SAMs exhibit a high degree of sphericity. The PSAM and HSAM are translucent, while the PSAM is white and opaque. The diameter of SAMs is 3.0 ± 0.2 mm. The apparent densities of the PSAM, HSAM, and RSAM are 0.08, 0.11, and 0.166 g/cm3, respectively. The dramatic increase in the apparent density from the PSAM to the HSAM and RSAM demonstrates that plenty of Si-CH3 and polyurea species are grafted on the HSAM and RSAM, respectively. The SEM images demonstrate that the PSAM and HSAM showed a nanoporous network constructed by colloidal particles and nanopores, which is the same as the typical silica aerogels [3,44,45]. The graft of the Si-CH3 species leads to the decrease in large voids, and the microscopic morphology of the HSAM is similar with the reported hydrophobic silica aerogels [9,11,46,47]. However, the RSAM with polymer cross-linking showed a network with agglomerations, of which the particles were connected to each other as HDI-derived polyurea coated on the framework [33]. The TEM images confirmed the naked framework of the PSAM and the polymer coated framework of the RSAM (Figure S4). The results well confirmed the successful reinforcement of the RSAM.

2.5. Mechanical and Hydrophobic Performance

Hydrophobic silica aerogels are commonly used for organics’ removal from water and have shown good performances. The low compressive strength limits the application of hydrophobic silica aerogels significantly. To demonstrate the enhanced compressive strength of the RSAM, 10 microspheres with a diameter of 3 ± 0.2 mm were used to conduct the compression test (Figure S5). The crushing force–stress curves of the HSAM and RSAM are shown in Figure 5a. Polymer cross-linking can improve the strength of the SAM significantly. The crushing force increases from 0.4 N for the HSAM to 19.2 N for the RSAM. It is understandable when the microstructure of the HSAM and RSAM is taken into consideration. The nanoparticles that construct the framework of the RSAM are coated with polyurea, which improve the strength of the framework.
After HMDS modification, the HSAM exhibited a water contact angle of 139°, as seen in Figure 5e. To confirm the thermal stability of the HSAM observed from the TG curve, the samples were treated in a muffle furnace. The results demonstrate that the HSAM can retain hydrophobicity at an elevated temperature up to 400 °C in Figure S3. Although the RSAM is hydrophilic and has a water contact angle of 73°, as seen in Figure S2, the polymer coating can avoid damage from water to a large extent, which is very different from the PSAM (Videos S2 and S3). The network of the PSAM cracked when contacting water, and the PSAM was destroyed by water. However, the PSAM’s macroscopic structure was retained in the water. This reveals that the RSAM can be used for water treatment, although it is not hydrophobic.

2.6. Adsorption Performance and Cyclic Stability

The saturated absorption capacities of the HSAM and PSAM for pump oil and hexane are summarized in Table 2. The HSAM possesses better oil absorption performance than the RSAM, owing to its large pore volume and specific surface area. Moreover, the methyl species in the HSAM favor the interaction between HSAM and oils. The oil absorption capacities of the HSAM and RSAM are as high as its state-of-the-art counterparts [12,13,19,20,46]. The regenerability is significant for the sorbent, which can reduce the long-running cost. The desorption rates and cyclic absorption capacities of the HSAM and RSAM within 10 cycles are shown in Figure 5b,c. Both the HSAM and RSAM can be regenerated effectively; the desorption rates are close to 100%. Although the RSAM has lower absorption capacities, owing to the small pore volume and specific surface, it shows better cyclic stability due to the reinforced network. The absorption capacities of the HSAM gradually decrease along with the cycle.
Except oil, dyestuff is another contaminant for water. MO was used to estimate the dyestuff adsorption performance of SAMs. The MO adsorption kinetics of SAMs are shown in Figure 5d. It should be noted that a low MO concentration and restricted MO solution are employed to evaluate the MO adsorption performance, which is challenging for a sorbent. The HSAM and RSAM achieve adsorption equilibrium within 40 min, and the adsorption halftime is only 9.6 and 10.5 min for the HSAM and RSAM, respectively [48,49]. This reveals that the HSAM and RSAM are dynamic for diluting MO adsorption from water, and the kinetics are not affected by the pore structure and chemical constituent. The MO concentration should be the dominant factor for adsorption dynamics. The MO adsorption capacity of the HSAM is much higher than that of the RSAM, which is understandable when the pore volume and specific surface area are taken into consideration. The equilibrated MO adsorption capacities of the HSAM and RSAM are 22.2 and 8.24 mg/g, respectively, which are much better than that of the reported hydrophobic silica aerogel microspheres, monoliths, and powders [32]. Figure 5f provides a qualitative comparison of SAMs with materials such as cellulose aerogels, activated carbon, activated alumina, and polyurethane. Compared with other adsorbent materials reported in the literature and conventional commercial adsorbent materials [50,51,52,53,54,55,56], as concluded in Table 3, SAMs have a more comprehensive, excellent performance in terms of both microstructure, such as specific surface aera (SSA), and pore volume (PV), and practical performance, such as hydrophobicity, strength, adsorption capacity, cycling performance, and productivity.

3. Conclusions

SAMs can be synthesized via a continuous globing process on a self-built apparatus with sodium silicate as a precursor and water as a solvent. To obtain the perfect SAM, the pH value of the reaction system and the temperature of the coagulating bath are critical. The preferred pH value of the reaction solution and the temperature of the dimethicone bath are 5.74 ± 0.05 and 90 °C, respectively. The hydrophobic modification to obtain the HSAM can be achieved by grafting Si-CH3 species on the SAM. The chemically bonded methyl groups show a surprising thermal stability up to 400 °C. The reinforcement of the SAM to form the RSAM was carried out based on polymer cross-linking, which coats the polyurea on the SAM. Polymer cross-linking enhances the robustness of the framework of the RSAM effectively. The crushing force increased from 0.4 N for the HSAM to 19.2 N for the RSAM. The pore volumes of HSAM (6.44 cm3/g) and RSAM (3.17 cm3/g) are much larger than their state-of-the-art counterparts. The specific surface areas of the HSAM and RSAM are 652 and 296 m2/g, respectively, which are at a high level. The organics’ sorption capacities of the RSAM are lower than those of the HSAM, owing to the poorer pore volume and specific surface area. However, the cyclic stability of the RSAM is better, benefiting from the reinforced network. The pump oil, hexane, and dilute MO sorption capacities of the HSAM are 17.9 g/g, 11.8 g/g, and 22.2 mg/g, respectively. The new SAM preparation method is facile, cost-effective, safe, and eco-friendly, and the resulting SAM sorbents are exceptional in capacity, dynamics, regenerability, and stability.

4. Materials and Methods

4.1. Materials

Aqueous sodium silicate (ASS, 33 wt%, modulus 3.3) was supplied by the Quechen Silicon Chemical Co., Ltd., Wuxi, China. Dimethicone oil (viscosity 1000 ± 80 mPa·s), aminopropyltriethoxysilane (APTES, 98%), hexamethyldisilazane (HMDS, 99%), and hexamethylene diisocyanate (HDI, 99%) were purchased from the Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China. Acetic acid (HAc, 99.5%) and acetonitrile (ACN, 99%) were purchased from the Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. Ethanol (EtOH, 99.7%) was purchased from the Wuxi Yasheng Chemical Co., Ltd., Wuxi, China. Deionized water (W) was homemade in the laboratory. All reagents were used without any further purification.

4.2. Synthesis of the PSAM

The silica aerogel microspheres (SGMs) were synthesized through a continuous globing process on a self-built apparatus presented in Figure 1a. The inner and outer diameter of the silicone tube was 1.8 and 3.0 mm, respectively. The ASS and HAc solutions were prepared in advance by mixing ASS and HAc with water. The volume ratio of ASS/W was 6:14.1, while that of HAc/W was 1.2:18.9. Two solutions were mixed together with a peristaltic pump and an ultrasonic cleaner, and then auto-dropped into the oil bath of dimethicone at 90 °C to form the SGM. The SGM was washed with hot water three times to remove the external oil, then immersed in ethanol for solvent exchange at 50 °C for 48 h; the ethanol was changed four times to ensure all the water in SGM was replaced by ethanol thoroughly. The solvent-exchanged SGM was dried with supercritical CO2 to achieve the PSAM as control.

4.3. Synthesis of the HSAM

To obtain the HSAM, the ethanol-exchanged SGM was immersed in a HMDS/EtOH solution with a volume ratio of 2:1 for hydrophobic modification at room temperature for 48 h; the volume ratio of the modified solution to the SGM was 2:1. Subsequently, the modified SGM was washed with ethanol 3 times for 18 h to remove unreacted HMDS. Finally, the HMDS-modified SGM was dried with supercritical CO2 drying to obtain HSAM.

4.4. Synthesis of the RSAM

To obtain the RSAM, the ethanol-exchanged SGM was immersed in an APTES/EtOH/W solution with a molar ratio of 1:24:3 for amine grafting at 50 °C for 72 h. The amine-grafted SGM was washed with ACN at 50 °C, 4 times, within 48 h. Then, the amine-grafted SGM was immersed in an HDI/ACN solution at 50 °C for 48 h to obtain the reinforced SGM. The volume ratio of HDI/ACN was 1:1, and the volume ratio of the modified solution to the SGM was 2:1. The reinforced SGM was washed with ethanol at 50 °C, 4 times, within 48 h, whereafter the reinforced SGM was dried with supercritical CO2 to obtain the RSAM.

4.5. Characterization

The diameter of SAMs was obtained by selecting 100 microspheres from each PSAM, HSAM and PSAM and measuring them with vernier calipers and taking the average value. The apparent density was calculated from the weight and volume of the SAMs. For each sample, five microspheres were selected randomly to measure the average weight and volume. Fourier transform infrared spectroscopy (FTIR) was characterized on an IR-Spirit Fourier transform infrared spectrometer (Shimadzu, Kyoto, Japan) with ATR kit. Thermogravimetry/differential thermal analysis (TG/DTA) was performed on an HCT-1 thermogravimetric analyzer (HENVEN, Beijing, China) from 25 to 800 °C at a rate of 10 °C/min. The air flow rate was maintained at 30 mL/min. The water contact angle was measured on a JC2000D1 contact angle instrument (Zhongchen, Shanghai, China). SEM images and mapping were taken on a JEOL JSM-7600F field emission scanning electron microscope. TEM images were collected on a FEI Talos F200X G2 transmission electron microscope. A N2 adsorption/desorption test was performed on a Belsorp mini-X porosimeter. The mechanical performance was carried out on a DECCA-1 universal testing machine (Deka, Shenzhen, China). The organic absorption performances were evaluated with methyl orange (MO), hexane, and vacuum pump oil. The MO adsorption capacity was measured on a 722S UV/Vis spectrophotometer (Jinghua, Shanghai, China). The hexane and pump oil absorption capacities were evaluated by gravimetric method.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gels8120778/s1, Figure S1: SEM mapping of the RSAM of C, N, O, Si element; Figure S2: Water contact angles of the (a) HSAM and (b) RSAM; Figure S3: Hydrophobicity and hydrophilicity of the HSAM treated at different temperatures ranging from room temperature to 450 °C; Figure S4: TEM images of (a) PSAM and (b) RSAM; Figure S5: Photograph of the force-stress test; Figure S6: Flow chart of the oil absorption with SAMs; Figure S7: Demonstration of the MO adsorption of RSAM; Figure S8: Diameter distribution of SAMs. (a) PSAM (b) HSAM (c) RSAM; Video S1: The auto-continuous synthesis of the SAMs; Video S2: The PSAM destroyed in water; Video S3: The RSAM retained in water.

Author Contributions

The authors Y.K. and X.S. designed and supervised the whole study; Z.S. and Z.Z. performed the experiment; Z.S. and Z.Z. drafted the manuscript; J.R. and X.J. revised the manuscript; Z.S. and Z.Z. equally contributed to this work. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the financial supports from the Natural Science Foundation of Jiangsu Province, China (BK20211263), and the Postgraduate Research and Practice Innovation Program of Jiangsu Province (KYCX21_1110).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that there are no conflict of interests regarding the work reported in this paper.

References

  1. Zhao, S.; Siqueira, G.; Drdova, S.; Norris, D.; Ubert, C.; Bonnin, A.; Galmarini, S.; Ganobjak, M.; Pan, Z.; Brunner, S.; et al. Additive manufacturing of silica aerogels. Nature 2020, 584, 387–392. [Google Scholar] [CrossRef]
  2. Mazrouei-Sebdani, Z.; Begum, H.; Schoenwald, S.; Horoshenkov, K.V.; Malfait, W.J. A review on silica aerogel-based materials for acoustic applications. J. Non-Cryst. Solids 2021, 562, 120770. [Google Scholar] [CrossRef]
  3. Lin, J.; Li, G.; Liu, W.; Qiu, R.; Wei, H.; Zong, K.; Cai, X. A review of recent progress on the silica aerogel monoliths: Synthesis, reinforcement, and applications. J. Mater. Sci. 2021, 56, 10812–10833. [Google Scholar] [CrossRef]
  4. Kong, Y.; Shen, X.; Cui, S.; Fan, M. Facile synthesis of an amine hybrid aerogel with high adsorption efficiency and regenerability for air capture via a solvothermal-assisted sol-gel process and supercritical drying. Green Chem. 2015, 17, 3436–3445. [Google Scholar] [CrossRef]
  5. Zhao, Z.; Cui, Y.; Kong, Y.; Ren, J.; Jiang, X.; Yan, W.; Li, M.; Tang, J.; Liu, X.; Shen, X. Thermal and mechanical performances of the superflexible, hydrophobic, silica-based aerogel for thermal insulation at ultralow temperature. ACS Appl. Mater. Interfaces 2021, 13, 21286–21298. [Google Scholar] [CrossRef]
  6. Woignier, T.; Primera, J.; Alaoui, A.; Dieudonne, P.; Duffours, L.; Beurroies, I.; Calas-Etienne, S.; Despestis, F.; Faivre, A.; Etienne, P. Fractal structure in silica and composites aerogels. Gels 2020, 7, 1. [Google Scholar] [CrossRef]
  7. Meng, S.; Yu, S.; Tang, F.; Hu, X.; Lu, J.; Fei, X.; Zhu, M. Fiber engineering of silica-based aerogels with surface specificity and regenerability for continuous removal of dye pollutants from wastewaters. Microporous Mesoporous Mat. 2021, 314, 110874. [Google Scholar] [CrossRef]
  8. Meng, S.; Zhang, J.; Xu, W.; Chen, W.; Zhu, L.; Zhou, Z.; Zhu, M. Structural control of silica aerogel fibers for methylene blue removal. Sci. China-Technol. Sci. 2019, 62, 958–964. [Google Scholar] [CrossRef]
  9. Malfait, W.J.; Zhao, S.; Verel, R.; Iswar, S.; Rentsch, D.; Fener, R.; Zhang, Y.; Milow, B.; Koebel, M.M. Surface chemistry of hydrophobic silica aerogels. Chem. Mater. 2015, 27, 6737–6745. [Google Scholar] [CrossRef]
  10. He, S.; Huang, Y.; Chen, G.; Feng, M.; Dai, H.; Yuan, B.; Chen, X. Effect of heat treatment on hydrophobic silica aerogel. J. Hazard. Mater. 2019, 362, 294–302. [Google Scholar] [CrossRef]
  11. Cok, S.S.; Gizli, N. Hydrophobic silica aerogels synthesized in ambient conditions by preserving the pore structure via two-step silylation. Ceram. Int. 2020, 46, 27789–27799. [Google Scholar] [CrossRef]
  12. Qin, G.; Yao, Y.; Wei, W.; Zhang, T. Preparation of hydrophobic granular silica aerogels and adsorption of phenol from water. Appl. Surf. Sci. 2013, 280, 806–811. [Google Scholar] [CrossRef]
  13. Cok, S.S.; Koc, F.; Gizli, N. Lightweight and highly hydrophobic silica aerogels dried in ambient pressure for an efficient oil/organic solvent adsorption. J. Hazard. Mater. 2021, 408, 124858. [Google Scholar]
  14. Minju, N.; Nair, B.N.; Savithri, S. Sodium silicate-derived aerogels: Effect of processing parameters on their applications. RSC Adv. 2021, 11, 15301–15322. [Google Scholar]
  15. He, S.; Li, Z.; Shi, X.; Yang, H.; Gong, L.; Cheng, X. Rapid synthesis of sodium silicate based hydrophobic silica aerogel granules with large surface area. Adv. Powder Technol. 2015, 26, 537–541. [Google Scholar] [CrossRef]
  16. Nah, H.-Y.; Parale, V.G.; Jung, H.-N.-R.; Lee, K.-Y.; Lim, C.-H.; Ku, Y.S.; Park, H.-H. Role of oxalic acid in structural formation of sodium silicate-based silica aerogel by ambient pressure drying. J. Sol-Gel Sci. Technol. 2018, 85, 302–310. [Google Scholar] [CrossRef]
  17. Nah, H.-Y.; Parale, V.G.; Lee, K.-Y.; Choi, H.; Kim, T.; Lim, C.-H.; Seo, J.-Y.; Ku, Y.S.; Park, J.-W.; Park, H.-H. Silylation of sodium silicate-based silica aerogel using trimethylethoxysilane as alternative surface modification agent. J. Sol-Gel Sci. Technol. 2018, 87, 319–330. [Google Scholar] [CrossRef]
  18. Khedkar, M.V.; Somvanshi, S.B.; Humbe, A.V.; Jadhav, K.M. Surface modified sodium silicate based superhydrophobic silica aerogels prepared via ambient pressure drying process. J. Non-Cryst. Solids 2019, 511, 140–146. [Google Scholar] [CrossRef]
  19. Mazrouei-Sebdani, Z.; Salimian, S.; Khoddami, A.; Shams-Ghahfarokhi, F. Sodium silicate based aerogel for absorbing oil from water: The impact of surface energy on the oil/water separation. Mater. Res. Express 2019, 6, 085059. [Google Scholar] [CrossRef]
  20. Cho, Y.-S.; Sung, S.; Woo, S.H.; Kim, Y.S. Optimization of oil adsorption capacity by aerogel powder synthesized using emulsion droplets as micro-reactors in ambient conditions from sodium silicate as precursor. Korean J. Met. Mater. 2021, 59, 99–112. [Google Scholar] [CrossRef]
  21. Wang, D.; McLaughlin, E.; Pfeffer, R.; Lin, Y.S. Aqueous phase adsorption of toluene in a packed and fluidized bed of hydrophobic aerogels. Chem. Eng. J. 2011, 168, 1201–1208. [Google Scholar] [CrossRef]
  22. Basaran, E.; Arici, T.A.; Ozcan, A.; Gok, O.; Ozcan, A.S. Effects of different parameters on the synthesis of silica aerogel microspheres in supercritical CO2 and their potential use as an adsorbent. J. Sol-Gel Sci. Technol. 2019, 89, 458–472. [Google Scholar] [CrossRef]
  23. Zhang, Y.; Wang, J.; Zhang, X. Surfactant-free synthesis of silica aerogel microspheres with hierarchically porous structure. J. Colloid Interface Sci. 2018, 515, 1–9. [Google Scholar] [CrossRef]
  24. Cheng, Y.; Cai, Y.; Wang, Z.; Lu, X.; Xia, H. Ultralight NiCo@rGO aerogel microspheres with magnetic response for oil/water separation. Chem. Eng. J. 2022, 430, 132894. [Google Scholar] [CrossRef]
  25. Li, J.; Cheng, R.; Chen, J.; Lan, J.; Li, S.; Zhou, M.; Zeng, T.; Hou, H. Microscopic mechanism about the selective adsorption of Cr(VI) from salt solution on nitrogen-doped carbon aerogel microsphere pyrolysis products. Sci. Total Environ. 2021, 798, 149331. [Google Scholar] [CrossRef]
  26. Wu, K.; Liu, X.; Li, Z.; Jiao, Y.; Zhou, C. Fabrication of chitosan/graphene oxide composite aerogel microspheres with high bilirubin removal performance. Mater. Sci. Eng. C-Mater. Biol. Appl. 2020, 106, 110162. [Google Scholar] [CrossRef]
  27. Baudron, V.; Gurikov, P.; Smirnova, I. A continuous approach to the emulsion gelation method for the production of aerogel micro-particle. Colloid Surf. A-Physicochem. Eng. Asp. 2019, 566, 58–69. [Google Scholar] [CrossRef]
  28. Ganesan, K.; Budtova, T.; Ratke, L.; Gurikov, P.; Baudron, V.; Preibisch, I.; Niemeyer, P.; Smirnova, I.; Milow, B. Review on the production of polysaccharide aerogel particles. Materials 2018, 11, 2144. [Google Scholar] [CrossRef] [Green Version]
  29. Paraskevopoulou, P.; Smirnova, I.; Athamneh, T.; Papastergiou, M.; Chriti, D.; Mali, G.; Cendak, T.; Raptopoulos, G.; Gurikov, P. Polyurea-crosslinked biopolymer aerogel beads. RSC Adv. 2020, 10, 40843–40852. [Google Scholar] [CrossRef]
  30. Jiang, X.; Kong, Y.; Zhao, Z.; Shen, X. Spherical amine grafted silica aerogels for CO2 capture. RSC Adv. 2020, 10, 25911–25917. [Google Scholar] [CrossRef]
  31. Jiang, X.; Ren, J.; Kong, Y.; Zhao, Z.; Shen, X.; Fan, M. Shape-tailorable amine grafted silica aerogel microsphere for CO2 capture. Green Chem. Eng. 2020, 1, 140–146. [Google Scholar] [CrossRef]
  32. Zong, S.; Wei, W.; Jiang, Z.; Yan, Z.; Zhu, J.; Xie, J. Characterization and comparison of uniform hydrophilic/hydrophobic transparent silica aerogel beads: Skeleton strength and surface modification. RSC Adv. 2015, 5, 55579–55587. [Google Scholar] [CrossRef]
  33. Meador, M.A.B.; Capadona, L.A.; McCorkle, L.; Papadopoulos, D.S.; Leventis, N. Structure−property relationships in porous 3D nanostructures as a function of preparation conditions:  Isocyanate cross-linked silica aerogels. Chem. Mater. 2007, 19, 2247–2260. [Google Scholar] [CrossRef] [Green Version]
  34. Leventis, N. Three-dimensional core-shell superstructures: Mechanically strong aerogels. Acc. Chem. Res. 2007, 40, 874–884. [Google Scholar] [CrossRef] [PubMed]
  35. Al-Oweini, R.; El-Rassy, H. Synthesis and characterization by FTIR spectroscopy of silica aerogels prepared using several Si(OR)4 and R’’Si(OR’)3 precursors. J. Mol. Struct. 2009, 919, 140–145. [Google Scholar] [CrossRef]
  36. Yokogawa, H.; Yokoyama, M. Hydrophobic silica aerogels. J. Non-Cryst. Solids 1995, 186, 23–29. [Google Scholar] [CrossRef]
  37. Camargo, R.E.; Macosko, C.W.; Tirrell, M.; Wellinghoff, S.T. Hydrogen-bonding in segmented polyurethanes-band assignment for the carbonyl region. Polym. Commun. 1983, 24, 314–315. [Google Scholar]
  38. Song, C.M.; Wang, D.N.; Pan, T.Y.; Shi, X.M.; Sha, H.X. Characterization of polyisocyanurate made from hexamethylene diisocyanate. Acta Polym. Sin. 2002, 3, 319–325. [Google Scholar]
  39. Leventis, N.; Sotiriou-Leventis, C.; Chandrasekaran, N.; Mulik, S.; Larimore, Z.J.; Lu, H.; Churu, G.; Mang, J.T. Multifunctional polyurea aerogels from isocyanates and water. A structure−property case study. Chem. Mat. 2010, 22, 6692–6710. [Google Scholar] [CrossRef]
  40. Nguyen, B.N.; Meador, M.A.B.; Scheiman, D.; McCorkle, L. Polyimide aerogels using triisocyanate as cross-linker. ACS Appl. Mater. Interfaces 2017, 9, 27313–27321. [Google Scholar] [CrossRef]
  41. Wu, X.; Man, J.; Liu, S.; Huang, S.; Lu, J.; Tai, J.; Zhong, Y.; Shen, X.; Cui, S.; Chen, X. Isocyanate-crosslinked silica aerogel monolith with low thermal conductivity and much enhanced mechanical properties: Fabrication and analysis of forming mechanisms. Ceram. Int. 2021, 47, 26668–26677. [Google Scholar] [CrossRef]
  42. Capadona, L.A.; Meador, M.A.B.; Alunni, A.; Fabrizio, E.F.; Vassilaras, P.; Leventis, N. Flexible, low-density polymer crosslinked silica aerogels. Polymer 2006, 47, 5754–5761. [Google Scholar] [CrossRef]
  43. Katti, A.; Shimpi, N.; Roy, S.; Lu, H.; Fabrizio, E.F.; Dass, A.; Capadona, L.A.; Leventis, N. Chemical, physical, and mechanical characterization of isocyanate cross-linked amine-modified silica aerogels. Chem. Mater. 2006, 18, 285–296. [Google Scholar] [CrossRef]
  44. Wang, J.; Petit, D.; Ren, S. Transparent thermal insulation silica aerogels. Nanoscale Adv. 2020, 2, 5504–5515. [Google Scholar] [CrossRef]
  45. Ji, X.; Zhou, Q.; Qiu, G.; Yue, C.; Guo, M.; Chen, F.; Zhang, M. Preparation of monolithic silica-based aerogels with high thermal stability by ambient pressure drying. Ceram. Int. 2018, 44, 11923–11931. [Google Scholar] [CrossRef]
  46. Yao, C.; Dong, X.; Gao, G.; Sha, F.; Xu, D. Microstructure and adsorption properties of MTMS/TEOS Co-precursor silica aerogels dried at ambient pressure. J. Non-Cryst. Solids 2021, 562, 120778. [Google Scholar] [CrossRef]
  47. Yi, Z.; Tang, Q.; Jiang, T.; Cheng, Y. Adsorption performance of hydrophobic/hydrophilic silica aerogel for low concentration organic pollutant in aqueous solution. Nanotechnol. Rev. 2019, 8, 266–274. [Google Scholar] [CrossRef]
  48. Kong, Y.; Jiang, G.; Wu, Y.; Cui, S.; Shen, X. Amine hybrid aerogel for high-efficiency CO2 capture: Effect of amine loading and CO 2 concentration. Chem. Eng. J. 2016, 306, 362–368. [Google Scholar] [CrossRef]
  49. Kong, Y.; Shen, X.; Fan, M.; Yang, M.; Cui, S. Dynamic capture of low-concentration CO2 on amine hybrid silsesquioxane aerogel. Chem. Eng. J. 2016, 283, 1059–1068. [Google Scholar] [CrossRef]
  50. Gong, C.; Ni, J.P.; Tian, C.; Su, Z.H. Research in porous structure of cellulose aerogel made from cellulose nanofibrils. Int. J. Biol. Macromol. 2021, 172, 573–579. [Google Scholar] [CrossRef]
  51. Zhao, Y.; Zhong, K.; Liu, W.; Cui, S.; Zhong, Y.; Jiang, S. Preparation and oil adsorption properties of hydrophobic microcrystalline cellulose aerogel. Cellulose 2020, 27, 7663–7675. [Google Scholar] [CrossRef]
  52. Kuang, Y.; Zhang, X.; Zhou, S. Adsorption of methylene blue in water onto activated carbon by surfactant modification. Water 2020, 12, 587. [Google Scholar] [CrossRef] [Green Version]
  53. Heidarinejad, Z.; Dehghani, M.H.; Heidari, M.; Javedan, G.; Ali, I.; Sillanpää, M. Methods for preparation and activation of activated carbon: A review. Environ. Chem. Lett. 2020, 18, 393–415. [Google Scholar] [CrossRef]
  54. Simon-Herrero, C.; Romero, A.; Esteban-Arranz, A.; de la Osa, A.R.; Sanchez-Silva, L. Utilization and reusability of hydroxyethyl cellulose alumina based aerogels for the removal of spilled oil. Chemosphere 2020, 260, 127568. [Google Scholar] [CrossRef]
  55. Tan, X.; Yang, Y.; Liu, Y.; Li, X.; Fan, X.; Zhou, Z.; Liu, C.; Yin, W. Enhanced simultaneous organics and nutrients removal in tidal flow constructed wetland using activated alumina as substrate treating domestic wastewater. Bioresour. Technol. 2019, 280, 441–446. [Google Scholar] [CrossRef]
  56. Liu, H.-D.; Wang, Y.; Yang, M.-B.; He, Q. Evaluation of hydrophobic polyurethane foam as sorbent material for oil spill recovery. J. Macromol. Sci. Part A-Pure Appl. Chem. 2013, 51, 88–100. [Google Scholar] [CrossRef]
Gels 08 00778 g001 550

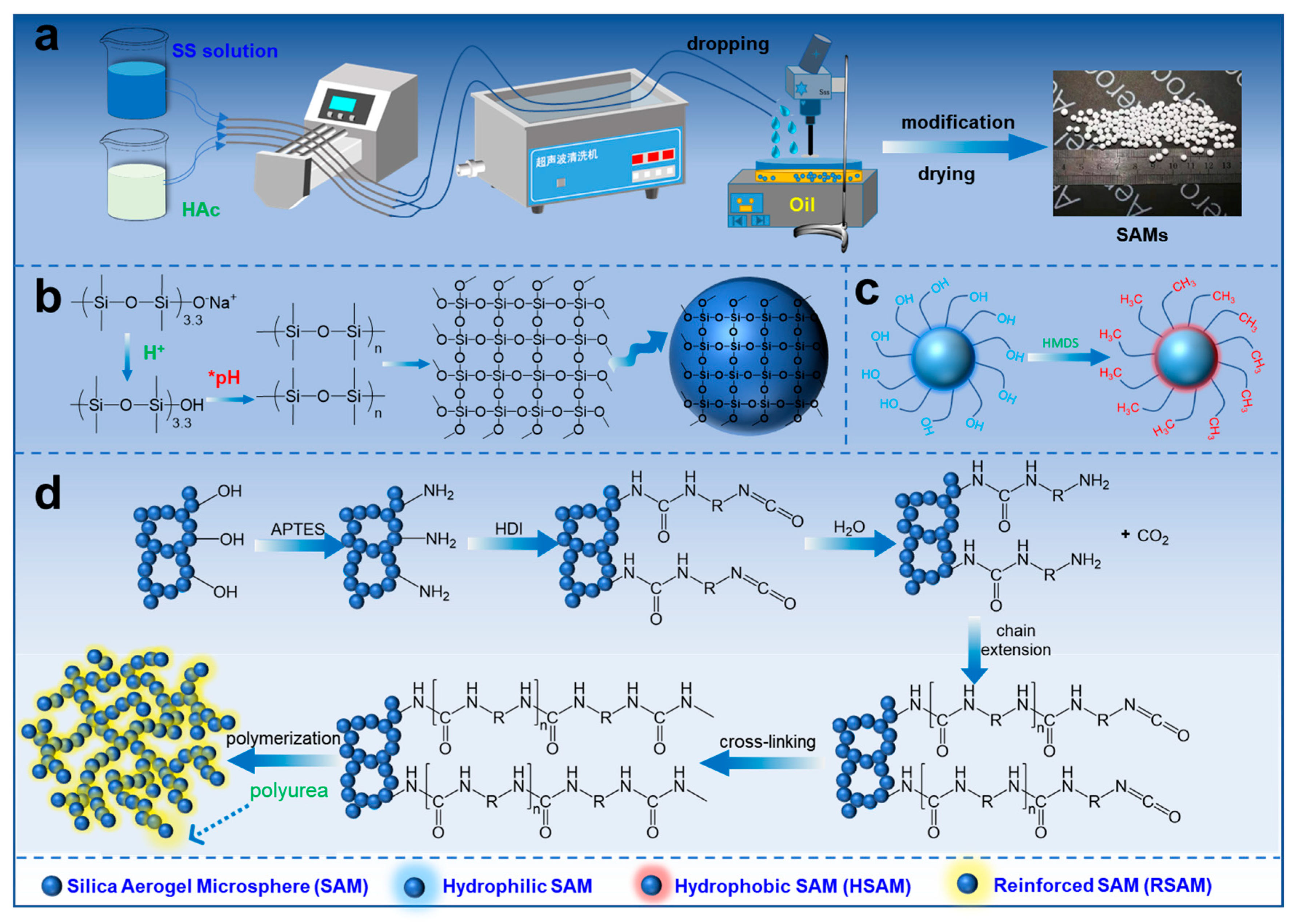

Figure 1. (a) The auto-continuous globing process of SAMs and (b–d) the schematic of the sphericalization, hydrophobization, and reinforcement.
Figure 1. (a) The auto-continuous globing process of SAMs and (b–d) the schematic of the sphericalization, hydrophobization, and reinforcement.
Gels 08 00778 g001
Gels 08 00778 g002 550

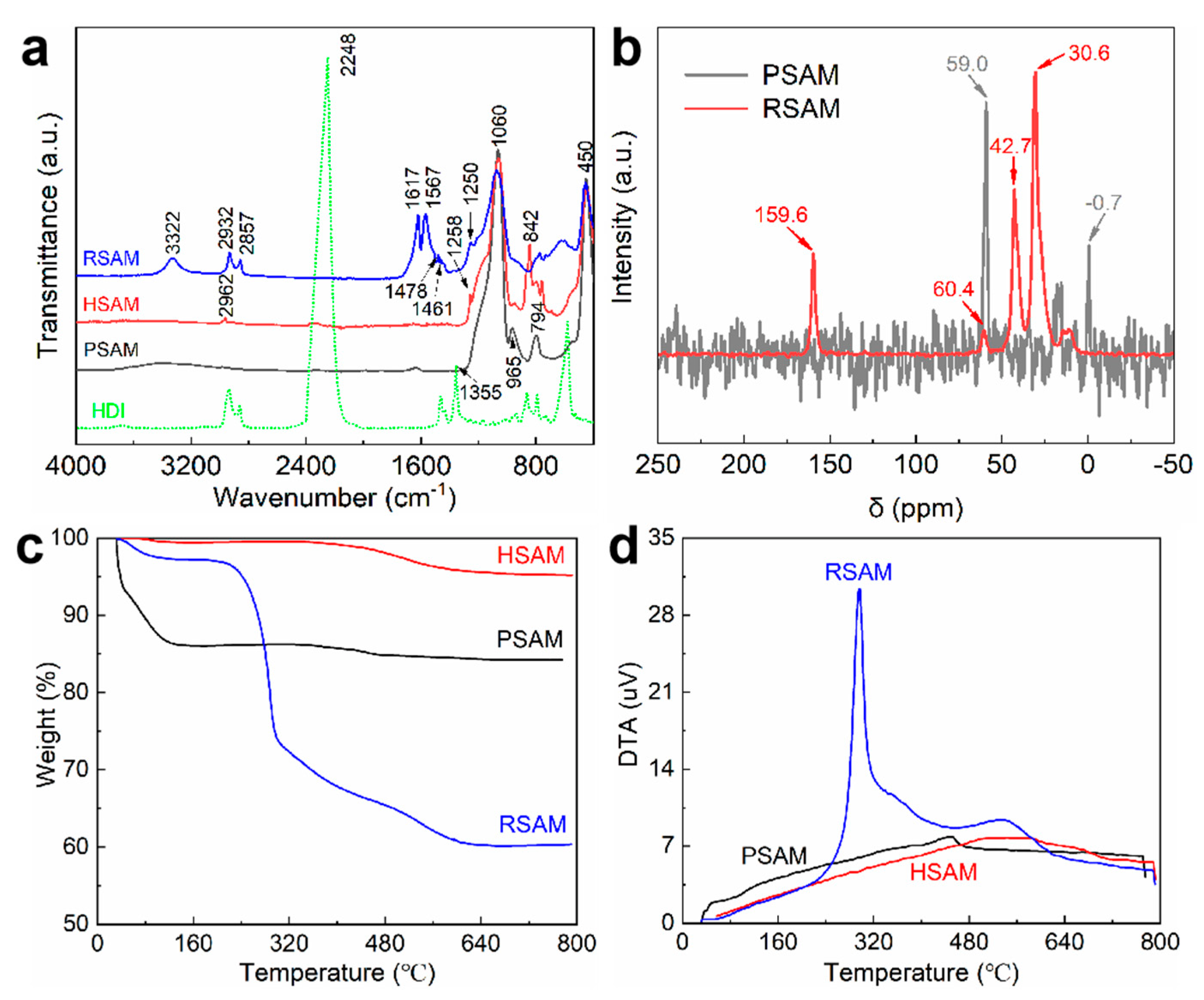

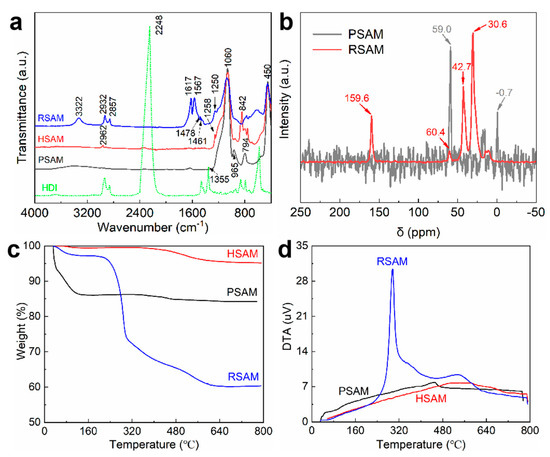

Figure 2. (a) FTIR spectra of SAMs and HDI. (b) Comparative 13C NMR characterization of the PSAM and RSAM. (c,d) TG and DTA curves of SAMs.
Figure 2. (a) FTIR spectra of SAMs and HDI. (b) Comparative 13C NMR characterization of the PSAM and RSAM. (c,d) TG and DTA curves of SAMs.
Gels 08 00778 g002
Gels 08 00778 g003 550

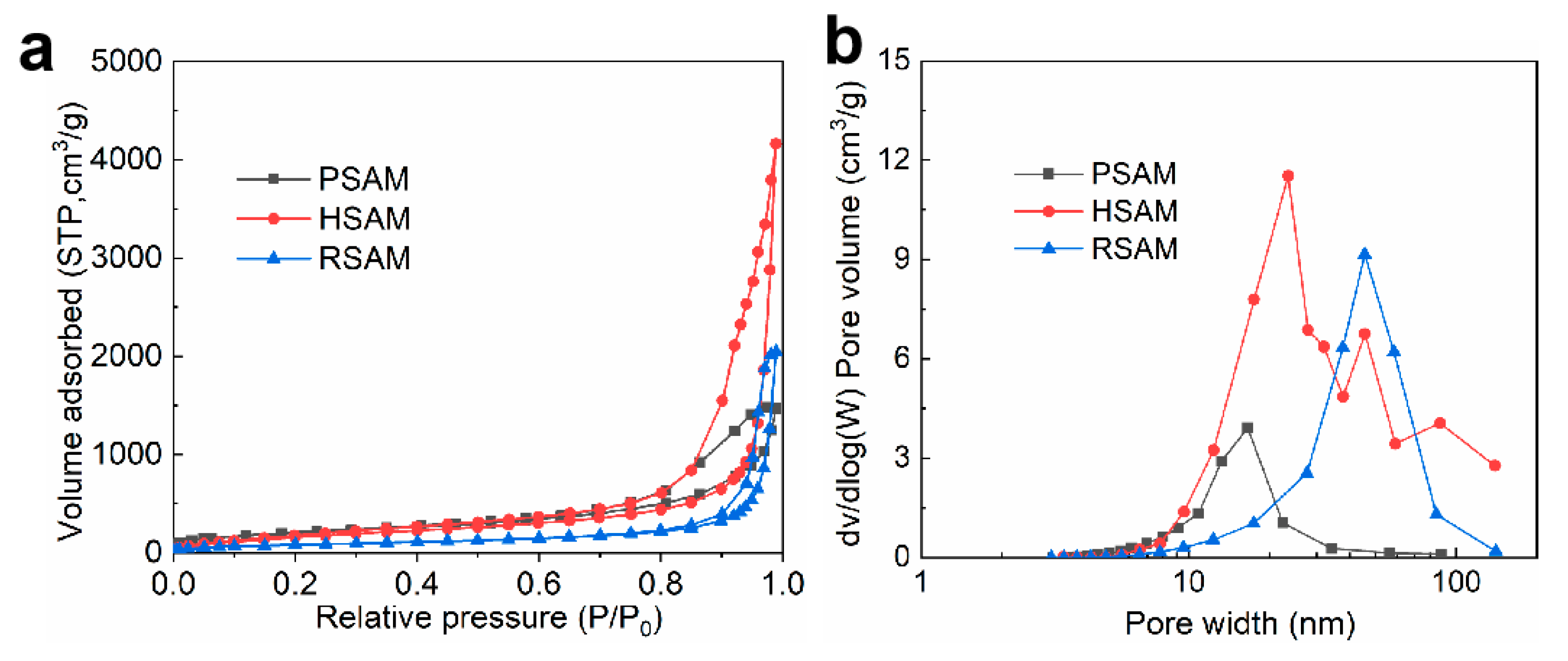

Figure 3. (a) N2 adsorption/desorption isotherms of SAMs. (b) Pore size distribution curves of SAMs.
Figure 3. (a) N2 adsorption/desorption isotherms of SAMs. (b) Pore size distribution curves of SAMs.
Gels 08 00778 g003
Gels 08 00778 g004 550
Figure 4. Optical images and SEM images of SAMs: (a–c) Optical images of the PSAM, HSAM, and RSAM. (d–f) SEM images of the PSAM, HSAM, and RSAM with low magnification. (g–i) High magnification.
Figure 4. Optical images and SEM images of SAMs: (a–c) Optical images of the PSAM, HSAM, and RSAM. (d–f) SEM images of the PSAM, HSAM, and RSAM with low magnification. (g–i) High magnification.
Gels 08 00778 g004
Gels 08 00778 g005 550

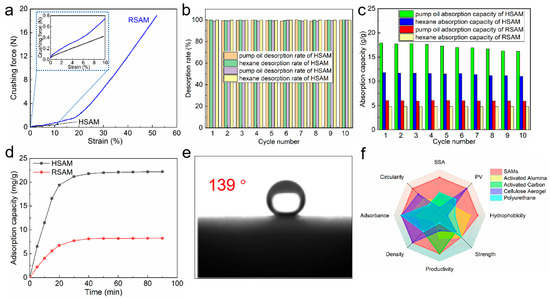

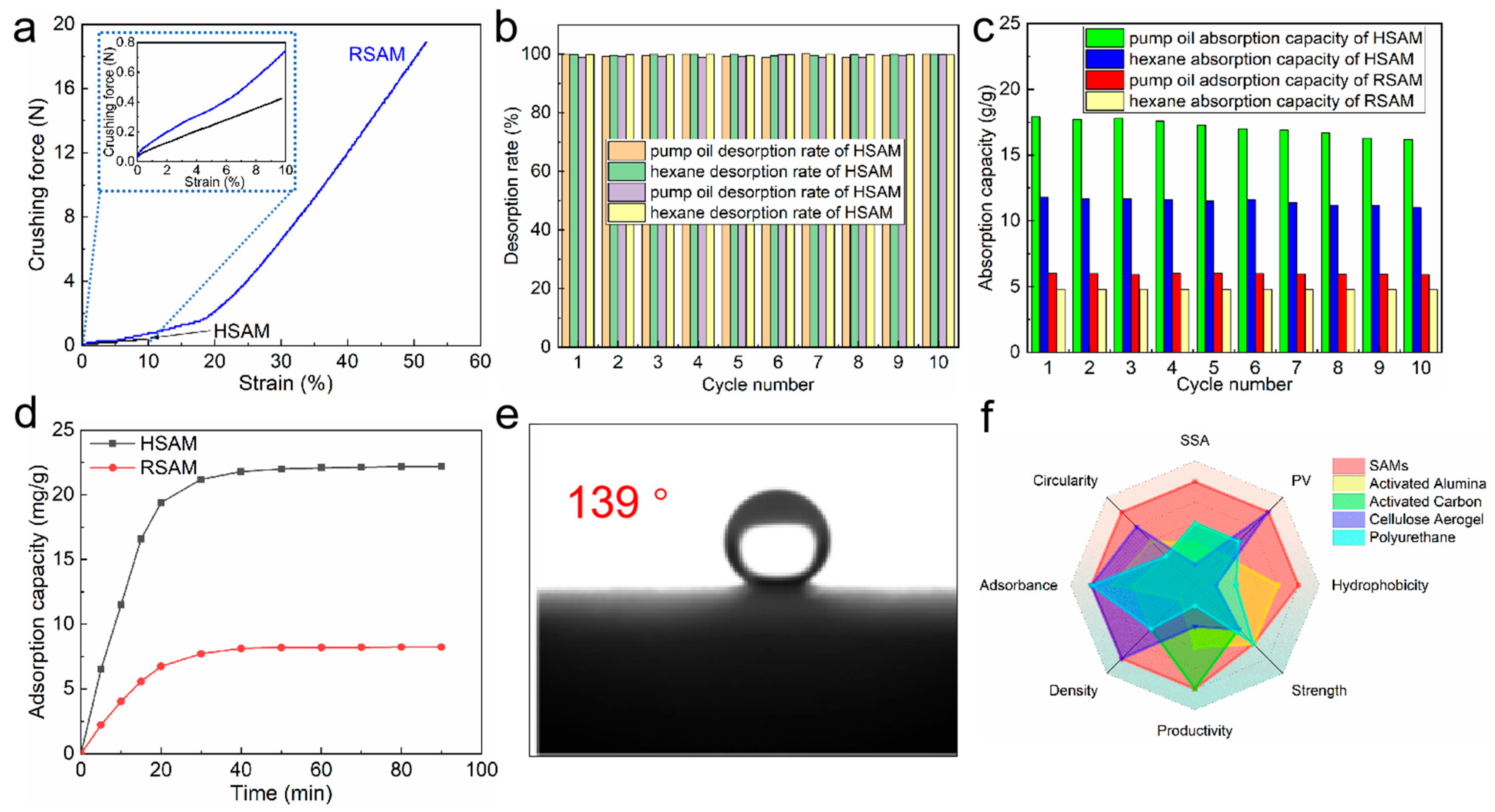

Figure 5. (a) Crushing force–strain curves of the HSAM and RSAM. (b) Desorption rates of the HSAM and RSAM. (c) Cyclic absorption capacities of the HSAM and RSAM. (d) MO adsorption kinetics of the HSAM and RSAM (0.10 ± 0.01 g of sorbent, 10 mg/L MO solution, and 100 and 250 mL MO solution for the HSAM and RSAM, respectively). (e) Water contact angle of the HSAM. (f) Qualitative comparison of typical properties of commercial adsorption materials, PSAM, HSAM, and RSAM.
Figure 5. (a) Crushing force–strain curves of the HSAM and RSAM. (b) Desorption rates of the HSAM and RSAM. (c) Cyclic absorption capacities of the HSAM and RSAM. (d) MO adsorption kinetics of the HSAM and RSAM (0.10 ± 0.01 g of sorbent, 10 mg/L MO solution, and 100 and 250 mL MO solution for the HSAM and RSAM, respectively). (e) Water contact angle of the HSAM. (f) Qualitative comparison of typical properties of commercial adsorption materials, PSAM, HSAM, and RSAM.
Gels 08 00778 g005
Table
Table 1. Characterization data of the PSAM, HSAM, and RSAM.
Table 1. Characterization data of the PSAM, HSAM, and RSAM.
SampleApparent Density (g/cm3)Specific Surface Area (m2/g)Pore Volume (cm3/g)
SAM0.080 ± 0.0037262.27
HSAM0.108 ± 0.0026526.44
RSAM0.166 ± 0.0022963.17
Table
Table 2. Saturated oil absorption capacity of the HSAM and RSAM.
Table 2. Saturated oil absorption capacity of the HSAM and RSAM.
SamplePump Oil (g/g)Hexane (g/g)
HSAM17.911.8
RSAM6.04.8
Table
Table 3. Comparison of the specific surface area of SAMs and other adsorption materials.
Table 3. Comparison of the specific surface area of SAMs and other adsorption materials.
MaterialsSSA (m2/g)Density (g/cm3)Absorbance (g/g)Refs.
SAMs296–7260.08–0.1666.03–17.9This work
Hydrophobic SiO2 aerogel7892.498.5[13]
Cellulose aerogel1800.02–0.212.8[50,51]
Activated carbon5000.45–0.65-[52,53]
Activated alumina3001.068[54,55]
Polyurethane6550.417.7[56]
