Article

Development of a Cardio-Oncology Service in Lithuania: Prediction, Prevention, Monitoring and Treatment of Cancer Treatment-Induced Cardiotoxicity

by
Eglė Čiburienė
1,*,
Sigita Aidietienė
1,
Greta Ščerbickaitė
1,
Birutė Brasiūnienė
2,3,
Monika Drobnienė
2,
Edita Baltruškevičienė
2,
Tadas Žvirblis
4,5 and
Jelena Čelutkienė
1
1
Clinic of Cardiac and Vascular Diseases, Institute of Clinical Medicine, Faculty of Medicine, Vilnius University, M.K. Čiurlionis Str. 21, 03101 Vilnius, Lithuania
2
Department of Medical Oncology, National Cancer Institute, 08406 Vilnius, Lithuania
3
Clinic of Internal Diseases, Family Medicine and Oncology, Institute of Clinical Medicine, Faculty of Medicine, Vilnius University, 08661 Vilnius, Lithuania
4
Department of Mechanical and Material Engineering, Vilnius Gediminas Technical University, 10223 Vilnius, Lithuania
5
Institute of Biomedical Sciences, Faculty of Medicine, Vilnius University, M.K. Čiurlionio Str. 21, 03101 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
J. Cardiovasc. Dev. Dis. 2022, 9(5), 134; https://doi.org/10.3390/jcdd9050134
Submission received: 5 April 2022 / Revised: 24 April 2022 / Accepted: 25 April 2022 / Published: 26 April 2022
(This article belongs to the Special Issue Cardiovascular Toxicity Related to Cancer Treatment)

Abstract

:
Background: Advances in cancer therapy have dramatically improved outcomes for cancer pa-tients. However, cancer treatment can cause several cardiovascular (CV) complications, increasing cardiac mortality and morbidity in cancer patients and survivors. As a result, a new cardiology subspecialty—cardio-oncology (CO)—has been developed. The goals of CO are to understand the mechanism of the cardiotoxicity (CTX) of cancer therapies and invent the best monitoring and treatment strategies to improve the survival of cancer patients. Methods: We performed a retro-spective observational study reporting on the 6-year experience of the first CO service in Vilnius, Lithuania. Cancer patients were consulted by a single part-time specialist at Vilnius University Hospital. All new patients underwent blood tests, including cardiac biomarkers and advanced transthoracic echocardiogram (TTE) with stress protocol if indicated. During a follow-up, we evaluated the association of patient survival with such variables as age, gender, reasons for re-ferral, cancer location and stage, cardiovascular (CV) risk factors (RF), and rates and stage of CTX and treatment strategies. Results: 447 patients were consulted (70% females), and the median age was 64 years. Cardiovascular (CV) RF was common: 38.5% of patients had hypertension, almost 38% had dyslipidemia, 29% were obese, 10% were smokers, and 9% had diabetes. Nearly 26% of patients had a history of HF. Early biochemical cardiotoxicity was determined in 27%, early functional cardiotoxicity was seen in 17%, and early mixed cardiotoxicity—in 45% of referred patients treated with cardiotoxic cancer therapies. In addition, reduced left ventricular ejection fraction (LVEF) was found in 7% of patients. Beta-blockers (BB) were administered to 61.1% of patients, while angiotensin-converting enzyme inhibitors/angiotensin receptor blockers (ACEI/ARB) to 54.1% of patients. In addition, 18.3% of patients received loop diuretics and almost 12% mineralocorticoid receptor antagonists (MRA), respectively. A total of 143 patients died during the 6-year follow-up period. The leading cause of death was primarily cancer (92.3%). Only in 5.6% of patients, cardiovascular complications were reported as the cause of death, and 2.1% of deaths were due to the COVID–19 infection. We found that age (HR 1.020 [95% CI: (1.005–1.036)] p = 0.009); LV diastolic dysfunction (HR 1.731 [95% CI: 1.115–2.689] p = 0.015; NYHA stage II (HR 2.016 [95% CI: 1.242–3.272] p = 0.005; NYHA stage III (HR 3.545 [95% CI: 1.948–6.450] p < 0.001; kidney dysfunction (HR 2.085 [95% CI: 1.377–3.159] p = 0.001; previous cancer (HR 2.004 [95% CI: 1.219–3.295] p = 0.006); tumor progression (HR 1.853 [95% CI: 1.217–2.823] p = 0.004) and lung cancer (HR 2.907 [95%CI: 1.826–4.627] p < 0.001) were statistically significantly associated with the increased risk of all-cause death. Conclusions: CO is a rapidly growing subspecialty of cardiology that aims to remove cardiac disease as a barrier to effective cancer treatment by preventing and reversing cardiac damage caused by cancer therapies. Establishing a CO service requires a cardiologist with an interest in oncology. Continuous education, medical training, and clinical research are crucial to success. Age, previous cancer, tumor progression, kidney dysfunction, left ventricular diastolic dysfunction, and NYHA stages were associated with increased mortality.

1. Introduction

Cardio-oncology is a relatively new field of cardiology that evolved due to a growing number of patients presenting to cardiology services before, during, or after cancer treatment. Cardio-oncology focuses on detecting, monitoring, and treating cardiovascular disease as a side effect of cancer treatment, which can cause cardiac dysfunction, hypertension, ischemia, valvular and pericardial disease, thromboembolism, arrhythmias, and are the primary cause of morbidity and mortality in the oncological population [1].
Cardiovascular diseases and cancer account for most of the deaths in Lithuania, and they are the leading causes of death in Lithuania. It accounted for 52.7% of all deaths (approximately 16,000 people) in 2020. In the last 10 years, the CV morbidity rate has been unchanged while the mortality rate decreased from 915 to 733 per 100,000 people [2].
In Lithuania, 8168 cancer deaths (18.9% of all deaths) were reported in 2020, and 17,073 new cancer cases were detected. The cancer rate has increased by 33% in the last 10 years, from 563 to 750 per 100,000 people. The most frequent cancer in men is prostate cancer (25.9%), followed by lung cancer (12.8%) and colorectal cancer (10.8%), whereas in women, breast cancer is the most common (21%), followed by colorectal cancer (11.4%) and uterus cancer (9.5%) [2,3].
The rising cancer prevalence and interaction between cardiovascular disease and cancer have resulted in the need for cardio-oncology services in Lithuania. The first CO service was established in Vilnius University hospital Santaros Clinics to determine the cardiovascular risk in cancer patients, diagnose the early cardiovascular dysfunction during cancer treatment, and provide appropriate prevention and treatment for cardiotoxicity.
We hypothesized that early cardiotoxicity is a frequent finding in cancer patients receiving cardiotoxic therapies, but progression to HF is rare, whereas the risk of cardiotoxicity is associated with the cardiovascular risk profile; the aim of our study was to identify which risk factors have the most significant impact on the development of early cardiotoxicity and cancer patients’ survival.

2. Methods

We retrospectively studied patients referred to the cardio-oncology service at Vilnius University Hospital Santaros Clinics between December 2014 and December 2020.
Patients were referred by medical oncologists (74.8%), primary care (15.3%), and other cardiologists (9.9%). Common reasons for referrals to cardio-oncology clinic were (1) baseline cardiovascular risk assessment before cancer therapy; (2) assessment and treatment of left ventricular dysfunction and HF; (3) hypertension induced by cancer therapy; (4) chemotherapy-induced vasospasm; (5) direct cardiac complications of cancer (pericardial effusion and cardiac AL amyloidosis), (6) cancer-associated thrombosis, (7) arrhythmias, (8) QTc prolongation, and (9) evaluation of cardiac tumors.
Patients with 23 types of cancer were consulted. Rarely consulted cancer types (skin (5 patients), brain (3 patients), pharyngeal (4 patients), and sarcomas (6patients)) we grouped into “others”.
Eleven groups of anticancer treatment were administered to our patients: anthracycline (doxorubicin and epirubicin); anti-HER2 therapy (trastuzumab and pertuzumab); vascular endothelial growth factor inhibitors (pazopanib, sunitinib, bevacizumab, regorafenib, lenvatinib, ponatinib, and axitinib); multikinase inhibitors (nilotinib, crizotinib, dabrafenib, trametinib, dasatinib, gefitinib, and imatinib); fluoropyrimidine drugs (5-fluorouracil, capecitabine, and gemcitabine); alkylating agents (cyclophosphamide, temozolomide, carboplatin, cisplatin, ifosfamide, and oxaliplatin); antimicrotubule agents (docetaxel, paclitaxel, vinorelbine, and eribulin); proteasome inhibitors (bortezomib and carfilzomib); immune checkpoint inhibitors (nivolumab); monoclonal antibodies (cetuximab, rituximab, rovalpituzumab, panitumumab, and denosumab); hormonotherapy (tamoxifen, fulvestrant, goserelin, anastrozole, letrozole, exemestane, triptorelin, enzlutamide, and abiraterone).
For every patient, we performed an electrocardiogram (ECG), advanced transthoracic echocardiogram (TTE) to estimate left ventricular ejection fraction (LVEF), LV diastolic function, global longitudinal strain (GLS), valves assessment, right ventricular (RV) function and other heart function abnormalities.
LVEF was assessed by Simpson’s 2D and the drop in LVEF by >10% to a value < 50% from baseline value as well as 2D GLS reduction < −18% was considered chemotherapy-induced CTX [4].
Diastolic LV dysfunction was identified when half of the these variables were abnormal: septal e’ < 7 cm/s, lateral e’< 10 cm/s, average E/e’ ratio > 14, LA volume index > 34 mL/m2, and peak TR velocity > 2.8 m/s [5].
Stress protocol (exercise stress testing, myocardial single-photon emission computed tomography (SPECT), or dobutamine stress test) was performed if indicated.
Cardiovascular risk assessment was accomplished for every patient, and risk factors modification was suggested. Antihypertensive drugs, statins, antiplatelet agents, or anticoagulants were prescribed, and optimization of current HF treatment was made according to the latest guidelines. All patients were presented with the benefits of moderate physical activity during cancer treatment [6].
Additionally, we measured serum cardiac biomarkers, such as troponin and natriuretic peptides (brain natriuretic peptide [BNP] or N-terminal pro-brain natriuretic peptide [NT-proBNP]), which facilitate to diagnose cardiotoxicity early [7]. Acute HF is unlikely when NT-proBNP < 300 ng/L or BNP < 100 ng/L. Cut-offs for chronic HF are NT-proBNP < 125 ng/L or BNP < 35 ng/L [8].
According to our laboratory parameters, elevated troponin I concentration was >35 ng/L for men and >16 ng/L for women.
Since cardiovascular dysfunction can occur at any time of cancer treatment, it may take several visits. Based on baseline risk assessment, a follow-up plan with TTE and cardiac-specific biomarkers was made for each patient. According to recent guidelines, prior cardiotoxic cancer treatment, medical history of CVD, and CV RF were combined to inform the surveillance protocol [9].
High and moderate baseline cardiovascular risk patients were monitored more often than low-risk patients. Moreover, all patients were recommended to attend a follow-up visit 12 months after the last chemotherapy cycle.
In the case of cardiotoxicity, guideline-based HF treatment was administered, and follow-up visits were planned. Cardiotoxicity was diagnosed, classified, and managed according to Royal Brompton Hospital myocardial toxicity classes [10]. Patients who developed cardiotoxicity and were prescribed cardioprotective treatment were monitored every 1–3 months until normalized test results.
Information about the reason and date of death was obtained from the Lithuanian Cancer Registry, a member of the International Association of Cancer Registries and European Network of Cancer registries. Lithuanian Cancer Registry periodically performs data linkage with the Lithuanian Causes of Death Registry, achieving data about the date and foremost reason of death and other information from the death certificate.

3. Statistical Analysis

Quantitative continuous variables are presented as minimal (min), mean, maximal values (max), and standard deviation (SD). For categorical variables, frequencies and proportions (percentages) of each category or combination of categories are presented. An independent sample t-test was used to compare the values of means between the two groups. One-way ANOVA was performed to identify the significant differences between more than two groups. The Chi-square test was used to evaluate the differences between two independent categorical data groups. A univariate Cox regression model was used to evaluate potential risk factors for overall survival. Factors found to be below 0.05 statistical significance level in univariate Cox regression analysis were entered into a multivariate model with a forward model selection process. Overall survival was defined as the time from the patient’s first visit to the cardio-oncology clinic to death from any cause. Data were obtained from the Lithuanian Cancer Registry. A two-tailed p-value < 0.05 considered being significant. Statistical analysis was performed using Statistical Analysis System (SAS) package version 9.2.

4. Results

We retrospectively studied 447 patients (70% females) referred to our service in 6 years between December 2014 and December 2020. The median follow-up was 18.5 months. The average visit frequency was 3.1 visits per person (1–14). The median age of the patients was 64, ranging from 18–92 years.
Medical oncologists referred most patients, and the most common reasons for referral were cancer treatment complications and pre-chemo/pre-operation risk assessment (45% and 42% of patients, respectively). The stress test was performed on 64% of patients.
Patients with 23 cancer types were referred; more than half of the patients had an advanced cancer stage. The baseline characteristics of the patients are listed in Table 1. Cancer types’ gender distribution is shown in Figure 1.

4.1. Baseline Cardiovascular Risk Stratification in Cancer Patients and Their Personalized Surveillance Plan during Cardiotoxic Treatment

CV risk factors were common among cancer patients (Figure 2). Therefore, to identify patients at increased risk for cardiotoxicity, careful baseline assessment of cardiovascular risk factors and prior cardiovascular diseases or prior exposition to cardiotoxic treatments are needed.
One-third of 198 patients referred prior to cancer treatment were considered at a high and very high baseline risk. Main cardiovascular cardiotoxicity risk factors are presented in Figure 3.
Previous CVD and modifiable CV risk factors treatment was optimized for high baseline cardiovascular risk patients, and a personalized surveillance plan was recommended: cardiac biomarkers test and echocardiogram every two cycles of cardiotoxic chemotherapy. Medium-risk patients were suggested to consult a cardiologist at the end of cardiotoxic treatment or if any cardiac signs or symptoms appear. Low-risk patients should consult a cardiologist if any cardiac signs and symptoms manifest or 12 months after cardiotoxic treatment [11]. It took an average of 2–3 visits for low-risk patients, 3–5 visits for medium-risk patients and 4–7 for high-risk patients. Even more visits were needed after CTX was diagnosed.
The relationship of anticancer therapies and cardiac risk factors is shown in Figure 4.

4.2. Cancer Therapy-Induced Cardiotoxicity

45% of patients were referred for cardiac problems during cancer therapy. Symptomatic LVSD was determined in 13 (6.4%), while asymptomatic LVSD was seen in only one (0.6%) patient. Troponin elevation was found in 23 (11.3%), NP elevation in 50 (24.6%), GLS reduction in 17 (8.4%) and diastolic dysfunction in 24 (11.8%) patients.
Early biochemical cardiotoxicity was determined in 44 (21.7%) patients, and early functional cardiotoxicity was diagnosed in 23 (11.3%) patients. In seven (3.4%) patients, we determined early mixed cardiotoxicity. Myocardial damage markers in patients undergoing cancer treatment are shown in Figure 5.
Any new troponin elevation above the upper limit of normal was considered subclinical cardiotoxicity, and cardioprotective treatment with ACEI/ARB or BAB was prescribed. These patients were re-consulted every 4–6 weeks, and if troponin continued to rise, BAB or ACEI/ARB was added at maximally tolerated doses. At every visit, an echocardiogram was performed to evaluate LVEF, diastolic function, and GLS.
Isolated NP elevation led to an increase in monitoring frequency.
New GLS reduction < −18% was acknowledged as early subclinical cardiotoxicity, and re-consultation after 4 weeks was administered. If GLS continued to decline, cardioprotective treatment was initiated.

4.3. Treatment Options

9.8% of patients have been prescribed contemporary HF treatment with ACEI/ARB, BAB, MRA and diuretics. Other treatment modalities are presented in Figure 6. Our patients received BAB more frequently than ACEI/ARB (53% vs. 47%).
When cardioprotective treatment was administered in case of troponin elevation, the normalization of troponin concentrations was observed after 4–8 weeks. Positive effects of HF were noticed after 6–8 weeks.

4.4. Impact of Prognostic Factors on Survival in Cancer Patients Referred to CO Clinic

During the study period, 143 (32%) patients died, more women than men.
Deceased patients were older and more frequently had elevated NP, LV diastolic dysfunction, and decreased GLS. In addition, these patients had more advanced cancer and HF NYHA stages, metastatic cancer, kidney dysfunction, cancer-associated inflammation, previous cancer history, and tumor progression (Table 2). The cardiovascular risk profile and rates of cardiovascular death of patients with different cancer stages are presented in Figure 7.
The prognostic impact of different factors is presented in Table 3. In univariate analysis, we found that age, NP elevation, LV diastolic dysfunction, decreased GLS, cancer stage III and IV, HF NYHA stage II and III, kidney dysfunction, CRP elevation, anemia, previous cancer, tumor progression and genitourinary, gynecologic and lung cancer were statistically significantly associated with increased risk of all-cause death. HF NYHA stage I and IV were excluded from analysis due to insufficient data.
Multivariable Cox regression analysis revealed that age, LV diastolic dysfunction, lung cancer, metastatic disease, NYHA stage II, III, kidney dysfunction, previous cancer, and cancer progression were the independent predictors of death (cancer stage, CRP, and GLS were excluded from the analysis due to insufficient data) (Table 4).

5. Discussion

Cardio-oncology service aims to improve the standard of care for oncology patients and cancer survivors treated with cardiotoxic cancer therapies or radiotherapy. New cancer therapies are being developed rapidly, extending cancer patients’ lives. However, this benefit comes with adverse cardiovascular effects. Therefore, comprehending the mechanism of adverse effects causing CTX and developing personalized treatment and follow-up strategies based on the most recent guidelines is mandatory in CO care.
Cardio-oncology services are relatively new, and data about their activities and results are limited. We presented the information about our CO service prediction, prevention, monitoring, and treatment of cancer treatment-induced cardiotoxicity strategy. We think that it is important to share experience in the phase of establishing CO service globally.
These are the first data showing an independent association between LV diastolic dysfunction and all-cause mortality in cancer patients. Cardiovascular risk factors (AH, diabetes, dyslipidemia, smoking, and previous cardiac disease) did not show predictive value for death in the population referred to our CO service. The rates of hypertension and diabetes were similar to other studied cancer patients, but rates of dyslipidemia and obesity were higher [10,12].
It is being studied what the most effective cardioprotective treatment in cancer patients undergoing cardiotoxic treatment is [13,14,15]. Data from the multiple small trials suggest that ACEI/ARB and BAB have a potential role in cardiotoxicity prevention and treatment. However, what is the most effective therapy is still unknown because of the lack of solid evidence. We prescribe BAB slightly more frequently than in other cardio-oncology services [12].
We consult cancer patients according to the latest cardio-oncology guidelines, research, and recommendations. Furthermore, continued education is needed to keep up with innovations.
Our results revealed that mild cardiotoxicity (abnormal biomarkers, some LV function abnormalities, and LVEF ≥ 50%) was diagnosed in 34.5% of patients, and this was consistent with results from the Cardiotox Registry data where mild cardiotoxicity was observed in 31.6% of cancer patients [12]. However, in the cardio-oncology service of Royal Brompton hospital, these rates were higher probably because they consult exclusively high baseline risk patients [10].
With age, the number of cardiovascular risk factors increases, their treatment is less intensive, and cardioprotective properties are diminished, leading to increased cardiotoxicity rates in the elderly [16]. A more advanced cancer stage may be associated with more intensive and/or complex cancer treatment, which can cause more cardiovascular complications. Anemia and renal insufficiency complicate not only cancer but also heart condition. It has already been proved that age, cancer stage, metastatic cancer, anemia, renal insufficiency, inflammatory status, and lung cancer is associated with increased mortality. However, our data showed that genitourinary and gynecologic cancer statistically significantly increases the risk of death.
Cardiovascular system assessment prior to cardiotoxic cancer treatment would help manage pre-existing CVD and modifiable CV risk factors. It would reduce the risk of CV complications during cancer treatment and decrease cancer treatment interruptions, but only a few patients receive this. Only a few referred patients had an echocardiogram, and no cardio-specific biomarkers or GLS were performed before cancer therapy started. Most patients are referred to a cardiologist only when the cancer therapy-induced cardiotoxicity occurs, although this could have been avoided if baseline cardiovascular risk had been assessed and the appropriate monitoring plan had been scheduled.

6. Study Limitations

These data represent a clinical experience from a single center and have limitations related to the retrospective nature of the study’s design: missing data on potential confounding factors. In addition, LVEF and GLS measurements are always influenced by the image quality and inter-vendor variability.
Another problem is with the cause of death coding in mortality statistics in our country: most often cause of death of cancer patients is coded as “cancer”, and information about underlying conditions is not available.
Most of the patients were referred to our center late when HF symptoms appeared, and no prior biomarkers or echocardiography were performed.
Dyslipidemia was diagnosed according to elevated total cholesterol and LDL cholesterol levels regardless of low HDL cholesterol level, which is also a cardiovascular risk factor.

7. Conclusions

CO is a rapidly growing subspecialty of cardiology that aims to remove cardiac disease as a barrier to effective cancer treatment and prevent, reduce, and reverse cardiac damage of cancer therapies. This would be impossible without mutual cooperation among oncologists and cardiologists. At least one cardiologist interested in oncology is needed to establish a CO service. Continuous education, medical training, and clinical research are crucial to success. It is vital to assess baseline cardiovascular risk in patients prior to cardiotoxic cancer treatment, and an appropriate monitoring plan should be scheduled. Moreover, biomarkers must be performed more often to diagnose cardiotoxicity early and start cardioprotective treatment to prevent HF. Early diagnosis and appropriate treatment of mild cardiotoxicity will help prevent cancer treatment interruptions and reduce the mortality of cancer patients.

8. Declarations

Consent for publication: The manuscript does not contain any individual person’s data in any form. All authors consent for publication.

Author Contributions

All authors contributed significantly to the manuscript. Conceptualization, J.Č. and S.A.; Methodology, E.Č.; Validation, E.Č.; Formal Analysis, T.Ž.; Investigation, E.Č. and G.Š.; Resources, M.D., B.B. and E.B.; Data Curation, E.Č.; Writing—Original Draft Preparation, E.Č.; Writing—Review and Editing, E.Č., J.Č., S.A., T.Ž., B.B., M.D. and E.B.; Visualization, E.Č.; Supervision, J.Č. and S.A. All authors have read and agreed to the published version of the manuscript.

Funding

No funding was used in support of this manuscript.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Vilnius Regional Biomedical Research ethics committee: protocol code CO1, 2018-12-04, No.158200-18/12-1089-582.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All data and materials are available upon request.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ACEIangiotensin-converting enzyme inhibitor
ARBangiotensin receptor blocker
AHarterial hypertension
BBbeta-blocker
BNPbrain natriuretic peptide
CADcoronary artery disease
CCBcalcium channel blocker
Chemochemotherapy
COcardio-oncology
CRPC-reactive protein
CTXcardiotoxicity
CVcardiovascular
CVRFcardiovascular risk factor
DOACdirect oral anticoagulant
DMdiabetes mellitus
DNAdeoxyribonucleic acid
GFRglomerular filtration rate
GIgastrointestinal
GLSglobal longitudinal strain
GUgenitourinary
Gyngynecological
Hemhematological
HFheart failure
HFpEFheart failure with preserved ejection fraction
Hgbhemoglobin
HRhazard ratio
ICIimmune checkpoint inhibitors
LMWHlow molecular weight heparin
LVEFleft ventricular ejection fraction
MRAmineralocorticoid receptor antagonist
NPnatriuretic peptide
NT-proBNPN-terminal pro-brain natriuretic peptide
PIproteasome inhibitors
RESreticuloendothelial system
RFrisk factor
RTradiotherapy
S’ tricuspid annular systolic velocity by tissue Doppler
SASStatistical Analysis System
SDstandard deviation
TAPStricuspid annular plane systolic excursion
TKItyrosine kinase inhibitor
Tntroponin;
Tn Itroponin I
VEGFvascular endothelial growth factor
Vsversus
VTEvenous thromboembolism

References

  1. Pan, J.; Garza, F.; Lyon, A.R. Cardio-oncology: Rationale, aims and future directions. Curr. Opin. Support Palliat. Care 2021, 15, 134–140. [Google Scholar] [CrossRef] [PubMed]
  2. Available online: https://stat.hi.lt/default.aspx?report_id=256 (accessed on 24 September 2021).
  3. Ervik, M.; Lam, F.; Laversanne, M.; Ferlay, J.; Bray, F. Global Cancer Observatory: Cancer over Time; International Agency for Research on Cancer: Lyon, France. Available online: https://gco.iarc.fr/overtime (accessed on 24 September 2021).
  4. Zamorano, J.L.; Lancellotti, P.; Rodriguez Muñoz, D.; Aboyans, V.; Asteggiano, R.; Galderisi, M.; Habib, G.; Lenihan, D.J.; Lip, G.Y.H.; Lyon, A.R.; et al. 2016 ESC Position Paper on cancer treatments and cardiovascular toxicity developed under the auspices of the ESC Committee for Practice Guidelines: The Task Force for cancer treatments and cardiovascular toxicity of the European Society of Cardiology (ESC). Eur. Heart J. 2016, 37, 2768–2801. [Google Scholar] [CrossRef] [PubMed]
  5. Nagueh, S.F.; Smiseth, O.A.; Appleton, C.P.; Byrd, B.F., 3rd; Dokainish, H.; Edvardsen, T.; Flachskampf, F.A.; Gillebert, T.C.; Klein, A.L.; Lancellotti, P.; et al. Recommendations for the Evaluation of Left Ventricular Diastolic Function by Echocardiography: An Update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J. Am. Soc. Echocardiogr. 2016, 29, 277–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Peterson, L.L.; Ligibel, J.A. Exercise and Cardiovascular Outcomes in Older Women with Breast Cancer: The Heart of the Matter. JACC CardioOncology 2019, 1, 51–53. [Google Scholar] [CrossRef] [PubMed]
  7. Michel, L.; Mincu, R.I.; Mahabadi, A.A.; Settelmeier, S.; Al-Rashid, F.; Rassaf, T.; Totzeck, M. Troponins and brain natriuretic peptides for the prediction of cardiotoxicity in cancer patients: A meta-analysis. Eur. J. Heart Fail. 2020, 22, 350–361. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. McDonagh, T.A.; Metra, M.; Adamo, M.; Gardner, R.S.; Baumbach, A.; Böhm, M.; Burri, H.; Butler, J.; Čelutkienė, J.; Chioncel, O.; et al. 2021 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure. Eur. Heart J. 2021, 42, 3599–3726. [Google Scholar] [CrossRef] [PubMed]
  9. Lyon, A.R.; Dent, S.; Stanway, S.; Earl, H.; Brezden-Masley, C.; Cohen-Solal, A.; Tocchetti, C.G.; Moslehi, J.J.; Groarke, J.D.; Bergler-Klein, J.; et al. Baseline cardiovascular risk assessment in cancer patients scheduled to receive cardiotoxic cancer therapies: A position statement and new risk assessment tools from the Cardio-Oncology Study Group of the Heart Failure Association of the European Society of Cardiology in collaboration with the International Cardio-Oncology Society. Eur. J. Heart Fail. 2020, 22, 1945–1960. [Google Scholar] [CrossRef] [PubMed]
  10. Pareek, N.; Cevallos, J.; Moliner, P.; Shah, M.; Tan, L.L.; Chambers, V.; Baksi, A.J.; Khattar, R.S.; Sharma, R.; Rosen, S.D.; et al. Activity and outcomes of a cardio-oncology service in the United Kingdom-a five-year experience. Eur. J. Heart Fail. 2018, 20, 1721–1731. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Čelutkienė, J.; Pudil, R.; López-Fernández, T.; Grapsa, J.; Nihoyannopoulos, P.; Bergler-Klein, J.; Cohen-Solal, A.; Farmakis, D.; Tocchetti, C.G.; von Haehling, S.; et al. Role of cardiovascular imaging in cancer patients receiving cardiotoxic therapies: A position statement on behalf of the Heart Failure Association (HFA), the European Association of Cardiovascular Imaging (EACVI) and the Cardio-Oncology Council of the European Society of Cardiology (ESC). Eur. J. Heart Fail. 2020, 22, 1504–1524. [Google Scholar] [CrossRef] [PubMed]
  12. López-Sendón, J.; Álvarez-Ortega, C.; Auñon, P.Z.; Soto, A.B.; Lyon, A.R.; Farmakis, D.; Cardinale, D.; Albendea, M.C.; Batlle, J.F.; Rodríguez, I.R.; et al. Classification, prevalence, and outcomes of anticancer therapy-induced cardiotoxicity: The CARDIOTOX registry. Eur. Heart J. 2020, 41, 1720–1729. [Google Scholar] [CrossRef] [PubMed]
  13. Gulati, G.; Heck, S.L.; Røsjø, H.; Ree, A.H.; Hoffmann, P.; Hagve, T.A.; Norseth, J.; Gravdehaug, B.; Steine, K.; Geisler, J.; et al. Neurohormonal Blockade and Circulating Cardiovascular Biomarkers During Anthracycline Therapy in Breast Cancer Patients: Results from the PRADA (Prevention of Cardiac Dysfunction During Adjuvant Breast Cancer Therapy) Study. J. Am. Heart Assoc. 2017, 6, e006513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Avila, M.S.; Ayub-Ferreira, S.M.; de Barros Wanderley, M.R., Jr.; das Dores Cruz, F.; Gonçalves Brandão, S.M.; Rigaud, V.O.C.; Higuchi-Dos-Santos, M.H.; Hajjar, L.A.; Kalil Filho, R.; Hoff, P.M.; et al. Carvedilol for Prevention of Chemotherapy-Related Cardiotoxicity: The CECCY Trial. J. Am. Coll. Cardiol. 2018, 71, 2281–2290. [Google Scholar] [CrossRef] [PubMed]
  15. Vaduganathan, M.; Hirji, S.A.; Qamar, A.; Bajaj, N.; Gupta, A.; Zaha, V.; Chandra, A.; Haykowsky, M.; Ky, B.; Moslehi, J.; et al. Efficacy of Neurohormonal Therapies in Preventing Cardiotoxicity in Patients with Cancer Undergoing Chemotherapy. JACC CardioOncology 2019, 1, 54–65. [Google Scholar] [CrossRef] [PubMed]
  16. van Herck, Y.; Feyaerts, A.; Alibhai, S.; Papamichael, D.; Decoster, L.; Lambrechts, Y.; Pinchuk, M.; Bechter, O.; Herrera-Caceres, J.; Bibeau, F.; et al. Is cancer biology different in older patients? Lancet Healthy Longev. 2021, 2, e663–e677. [Google Scholar] [CrossRef]
Figure 1. Sex differences in cancer incidence.
Figure 1. Sex differences in cancer incidence.
Jcdd 09 00134 g001

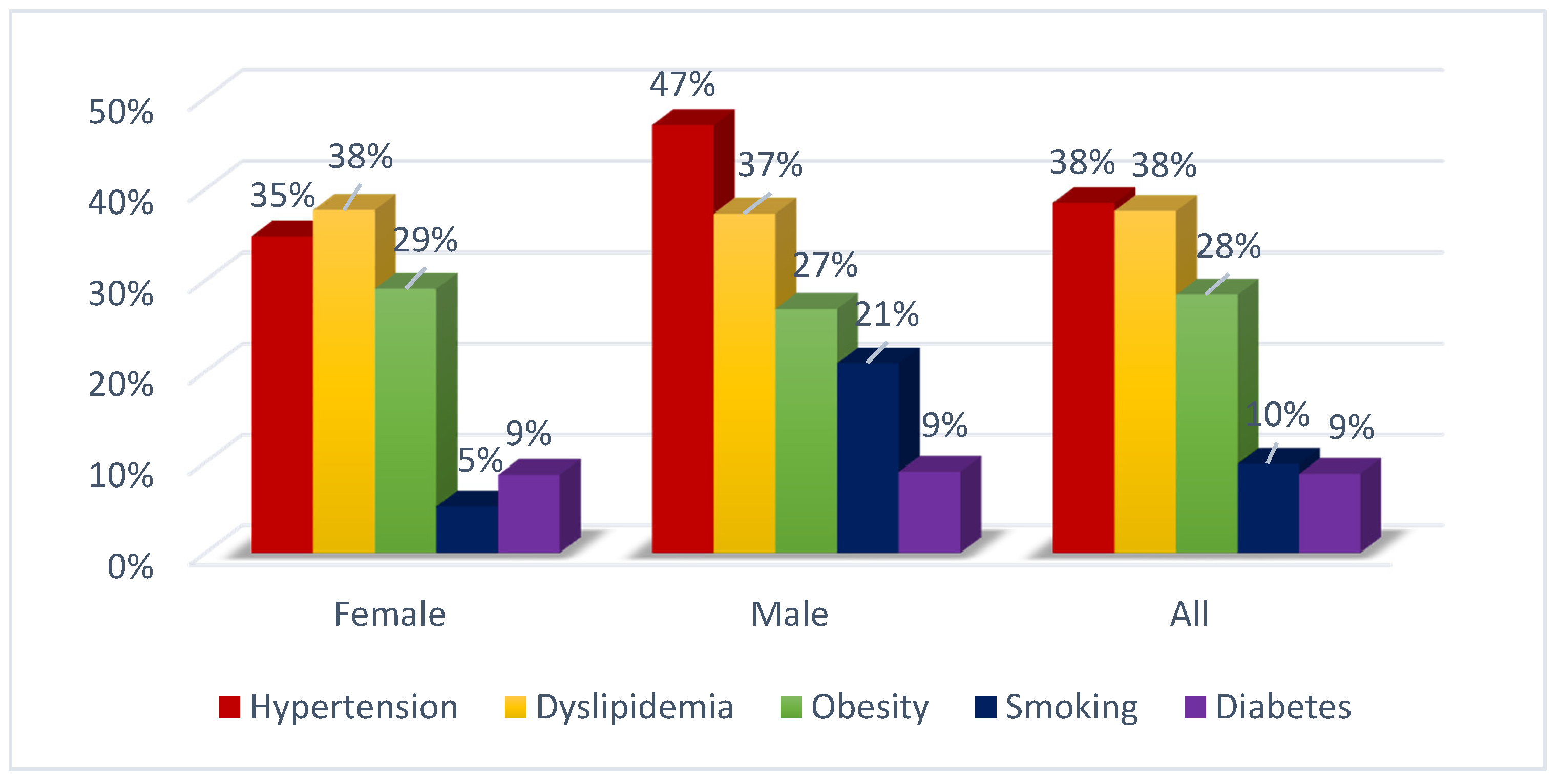

Figure 2. Cardiovascular risk factors in cancer patients.
Figure 2. Cardiovascular risk factors in cancer patients.
Jcdd 09 00134 g002
Figure 3. Cardiovascular cardiotoxicity risk factors in cancer patients prior to cardiotoxic cancer therapies. AH—arterial hypertension; CAD—coronary artery disease; HF—heart failure; LVEF—left ventricular ejection fraction; NP—natriuretic peptides; RT—radiotherapy; Tn—troponin.
Figure 3. Cardiovascular cardiotoxicity risk factors in cancer patients prior to cardiotoxic cancer therapies. AH—arterial hypertension; CAD—coronary artery disease; HF—heart failure; LVEF—left ventricular ejection fraction; NP—natriuretic peptides; RT—radiotherapy; Tn—troponin.
Jcdd 09 00134 g003

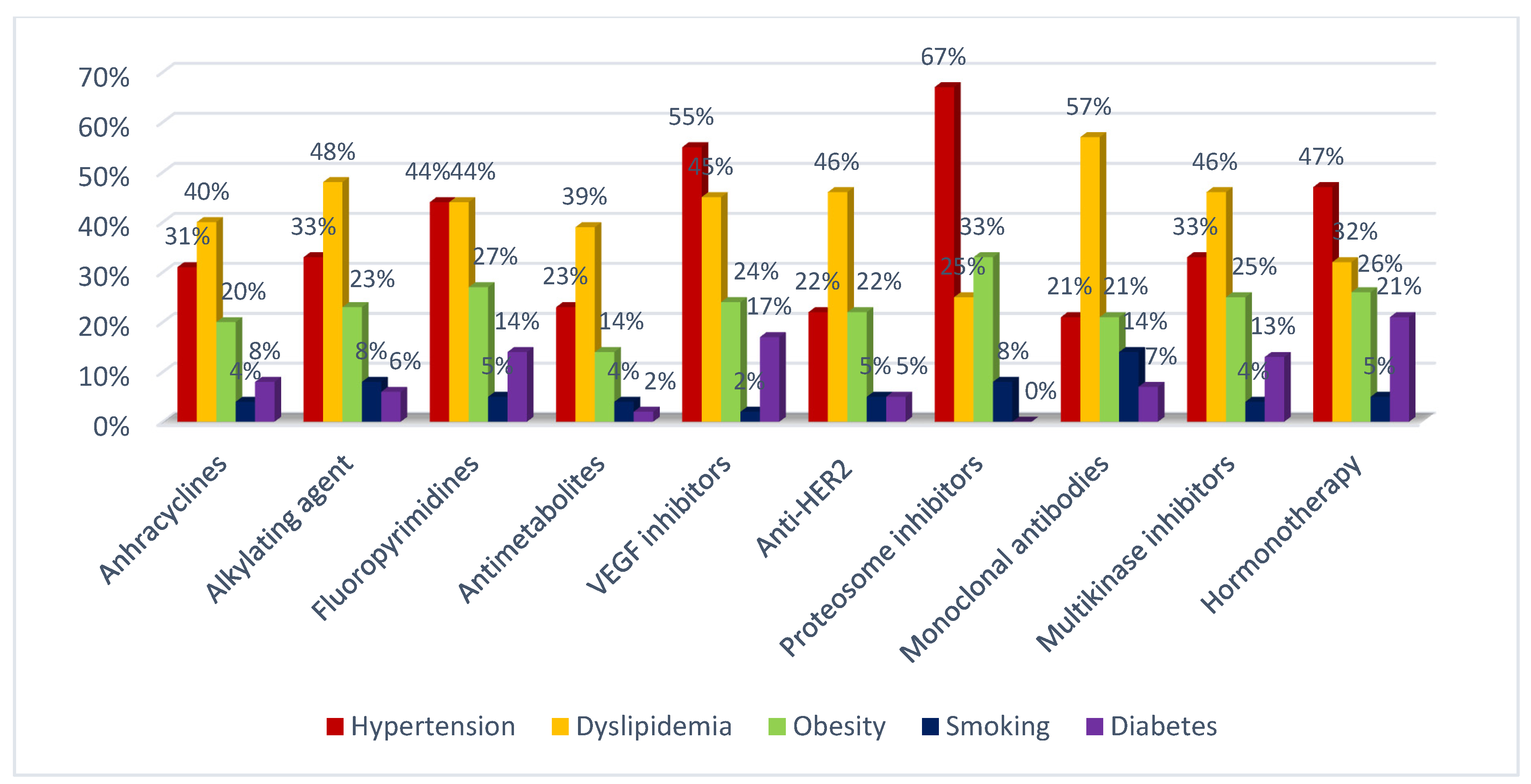

Figure 4. The relationship between anticancer therapies and cardiac risk factors.
Figure 4. The relationship between anticancer therapies and cardiac risk factors.
Jcdd 09 00134 g004

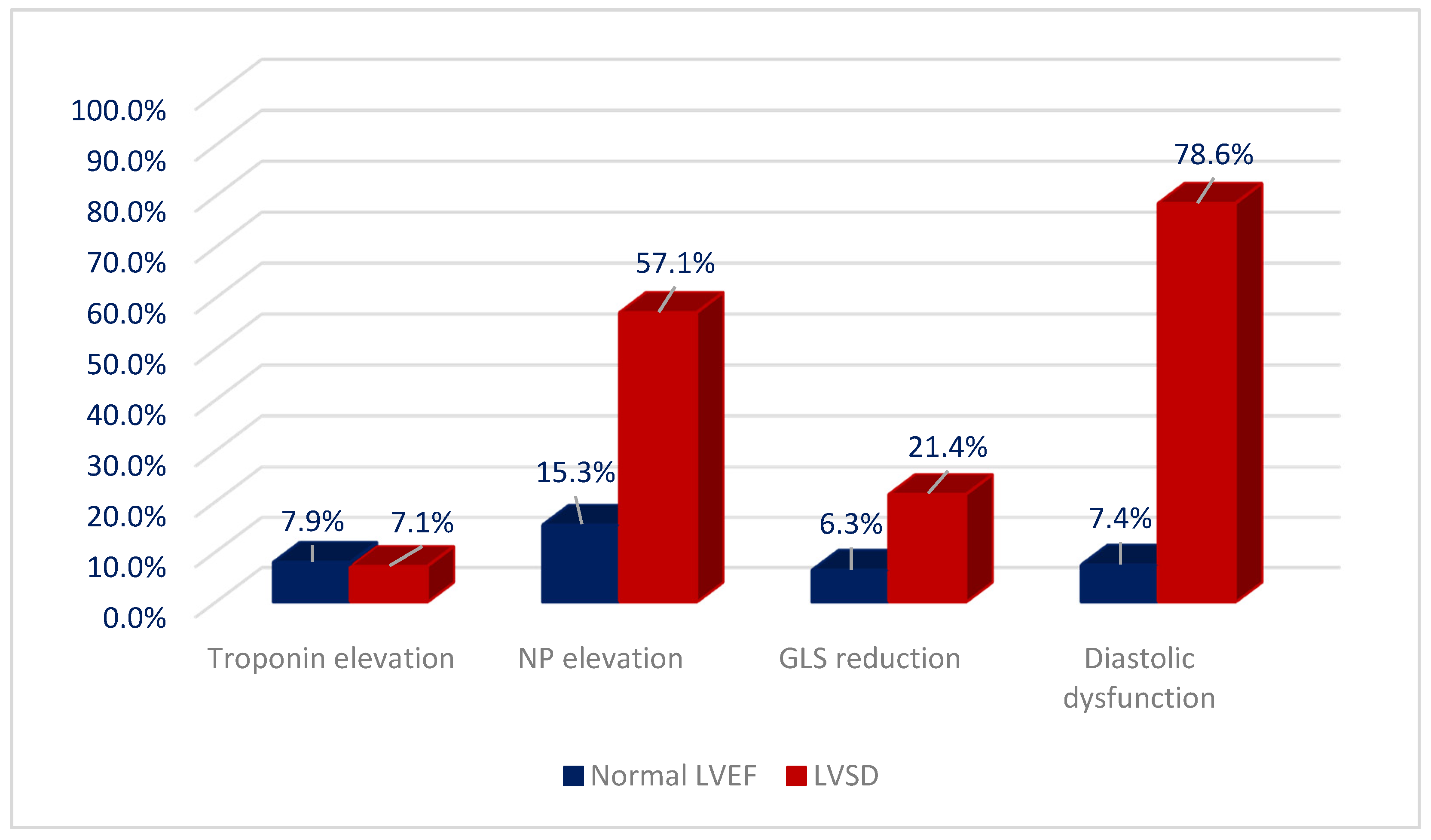

Figure 5. Myocardial damage markers in patients with normal and reduced LVEF. NP—natriuretic peptides; GLS—global longitudinal strain; LVEF—left ventricular ejection fraction, LVSD—left ventricular systolic dysfunction.
Figure 5. Myocardial damage markers in patients with normal and reduced LVEF. NP—natriuretic peptides; GLS—global longitudinal strain; LVEF—left ventricular ejection fraction, LVSD—left ventricular systolic dysfunction.
Jcdd 09 00134 g005

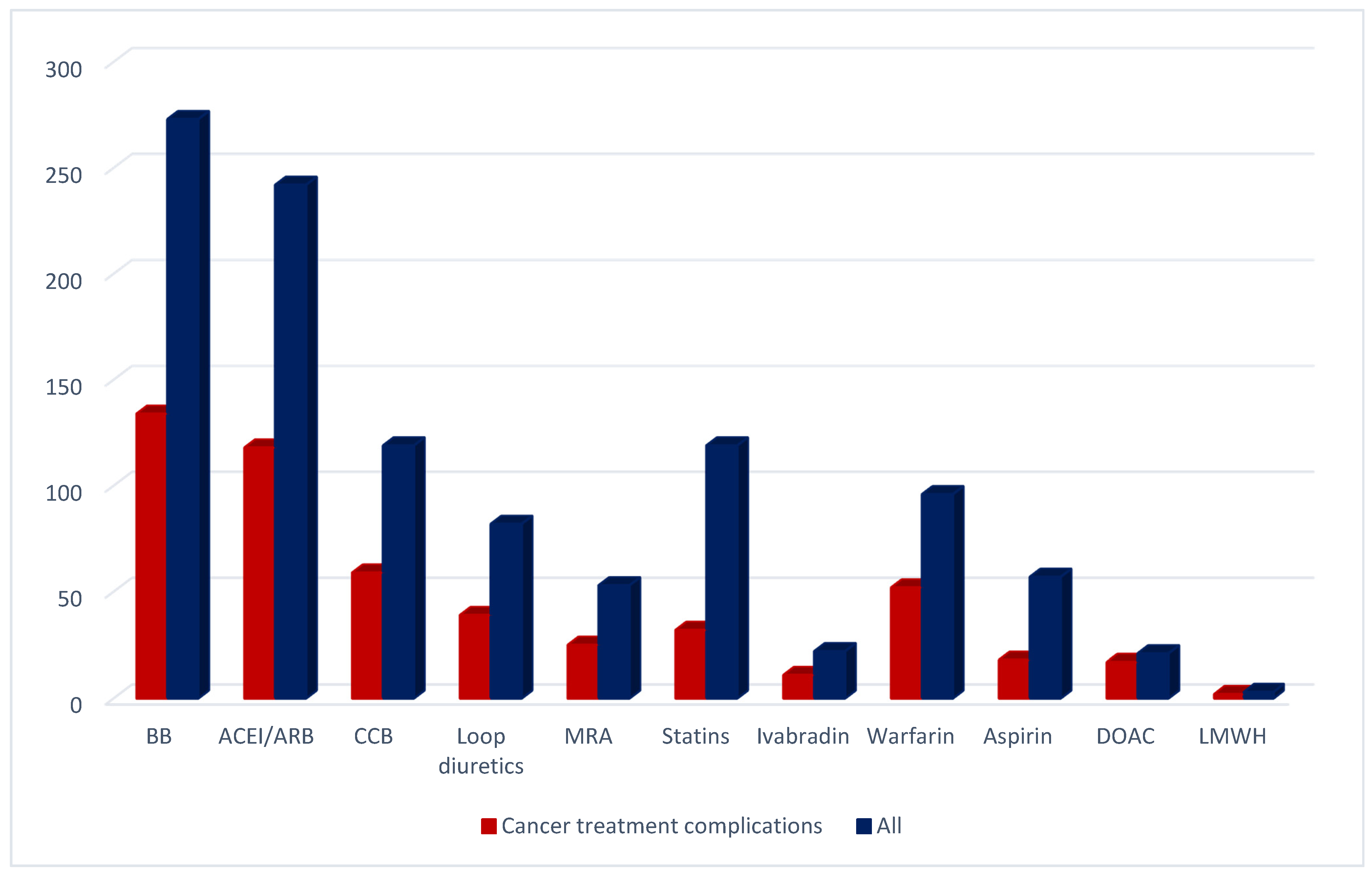

Figure 6. Treatment options. ACEI/ARB—angiotensin-converting enzyme inhibitor/angiotensin receptor blocker; BB—beta-blocker; CCB—calcium channel blocker; DOAC—direct oral anticoagulant; LMWH—low molecular weight heparin; MRA—mineralocorticoid receptor antagonist.
Figure 6. Treatment options. ACEI/ARB—angiotensin-converting enzyme inhibitor/angiotensin receptor blocker; BB—beta-blocker; CCB—calcium channel blocker; DOAC—direct oral anticoagulant; LMWH—low molecular weight heparin; MRA—mineralocorticoid receptor antagonist.
Jcdd 09 00134 g006

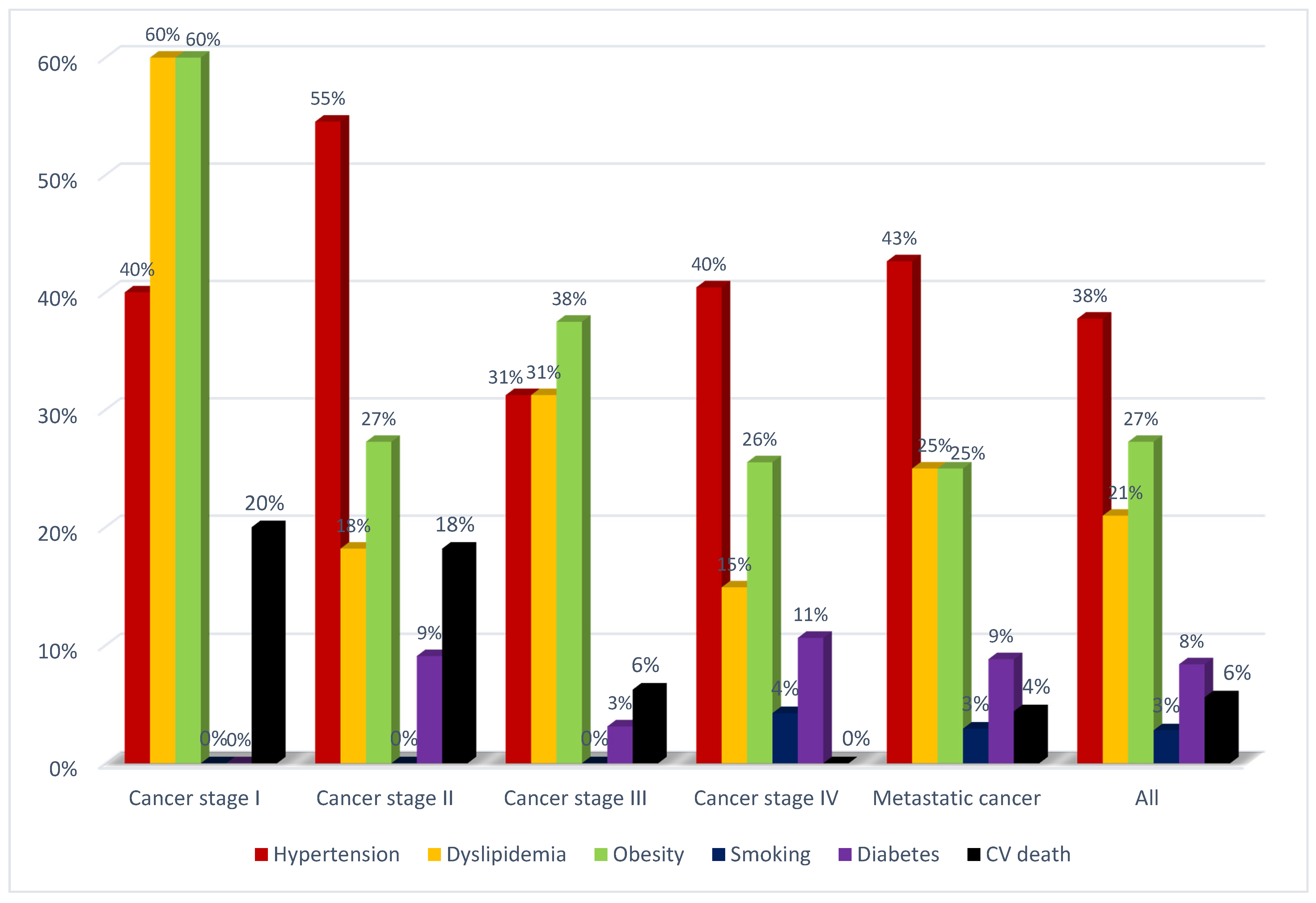

Figure 7. The cardiovascular risk profile and cardiovascular death rates of patients with different cancer stages. CV—cardiovascular.
Figure 7. The cardiovascular risk profile and cardiovascular death rates of patients with different cancer stages. CV—cardiovascular.
Jcdd 09 00134 g007
Table 1. Patient baseline characteristics.
Table 1. Patient baseline characteristics.
Baseline Characteristics All
n = 447 (%)
Age, years, (mean ± SD, range)63.9 ± 18.3, 18–92
Female sex, n (%)313 (70)
Type of visit, n (%)
Pre-surgery/pre-chemotherapy189 (42.3)
Cancer treatment complications:203 (45.4)
  • LVD
14 (6.9)
  • hypertension induced by cancer therapy
79 (38.9)
  • Chemotherapy-induced vasospasm
16 (7.9)
  • Pericardial effusion
9 (4.4)
  • Cardiac AL amyloidosis
3 (1.5)
  • Cancer-associated thrombosis
17 (8.4)
  • Arrhythmias
48 (23.6)
  • QTc prolongation
13 (6.4)
  • Cardiac tumors
4 (2)
Post-treatment complications55 (12.3)
Cancer location, n (%)447 (100)
Breast168 (37.6)
Gastrointestinal86 (19.2)
Hematologic66 (14.8)
Genitourinary42 (9.4)
Gynecologic37 (8.2)
Lung30 (6.7)
Other18 (4)
Cancer stage, n (%)241 (53.9)
I29 (12)
II77 (31.9)
III76 (31.5)
IV58 (24)
Metastatic cancer114 (25.5)
CV risk factors, n (%)447 (100)
Hypertension172 (38.5)
Diabetes39 (8.7)
Dyslipidemia a168 (37.6)
Smoking44 (9.8)
Obesity127 (28.4)
History of HF47 (10.5)
Prior CAD42 (9.4)
Valvular heart disease19 (4.2)
Kidney dysfunction (GFR < 60 mL/min/1.73 m2)62 (17.1)
Sinus rhythm, n (%)396 (88.6)
Anticancer therapy, n258 (57.7)
Anthracycline75 (29.1)
Alkylating agents84 (32.6)
Fluoropyrimidines66 (25.6)
Antimetabolites57 (22.1)
VEGF inhibitors42 (16.3)
Anti-HER2 therapy37 (14.3)
Hormonotherapy19 (7.4)
Proteasome inhibitors12 (4.6)
Monoclonal antibodies14 (5.4)
Multikinase inhibitors24 (9.3)
ICI1 (0.4)
Myocardial damage markers, n (%)
  • Tn I measured
278 (62.2)
  • Tn I elevation
32 (11.5)
  • BNP measured
329 (73.6)
  • BNP > 100 ng/L
112 (34)
  • BNP > 35 ng/L
221 (67.2)
  • NT-pro BNP measured
51 (11.4)
  • NT pro BNP > 125 if age < 75; > 450 if age > 75 years
17 (33.3)
  • LVEF < 50%
33 (7.4)
  • LVEF ≥ 40 and < 50%
21 (4.7)
  • LVEF < 40%
12 (2.7)
  • LAVI > 34 mL/m2
250 (70)
  • E/É ≥ 14
46 (12.3)
  • GLS < −18%
38 (23.5)
  • TAPSE b < 17 mm
17 (10.2)
  • S’ c < 12 m/s
3 (1.6)
Previous cancer, n (%)31 (6.9)
Previous chemotherapy, n (%)46 (10.3)
Previous radiotherapy, n (%)41 (9.2)
Cancer progression, n (%)88 (19.7)
BNP—brain natriuretic peptide; CAD—coronary artery disease; GFR—glomerular filtration rate; GLS—global longitudinal strain; HF—heart failure; ICI—immune checkpoint inhibitors; LAVI—left atrial volume index; LVD—left ventricular dysfunction; LVEF—left ventricular ejection fraction; NP—natriuretic peptide; NT—proBNP—N-terminal pro-brain natriuretic peptide; S’—tricuspid annular systolic velocity by tissue Doppler; SD—standard deviation; TAPSE—tricuspid annular plane systolic excursion, Tn I—troponin I; VEGF—vascular endothelial growth factor; VTE—venous thromboembolism. a Dyslipidemia was diagnosed when the total cholesterol level was >5.2 mmol/L, LDL cholesterol level >3 mmol/L. b TAPSE was measured in 166 patients. c S’ was measured in 192 patients.
Table 2. Deceased patients’ characteristics.
Table 2. Deceased patients’ characteristics.
Patients CharacteristicsDeceased Patients
n = 143 (%)
Alive Patients
n = 304 (%)
p-Value
Age, years, (mean ± SD, range)67.6 ± 10.46, 33–9262.2 ± 13.29,
18–92
<0.001
Female sex, n (%)90 (62.9)223 (73.4)0.025
Myocardial damage markers, n (%)
Troponin elevation
NP elevation
Left ventricular systolic dysfunction
Left ventricular diastolic dysfunction
Abnormal GLS

11 (14.5)
56 (48.3)
14 (9.8)
85 (69.7)
15 (42.9)

22 (10.8)
73 (29.4)
19 (6.3)
114 (42.4)
23 (18.1)

0.402
<0.001
0.182
<0.001
0.002
Cancer location *, n (%)
Breast
Gastrointestinal
Hematologic
Genitourinary
Gynecologic
Lung
Other

22 (15.4)
35 (24.5)
14 (9.8)
21 (14.7)
21(14.7)
23 (16.1)
7 (4.9)

158 (52.0)
51 (16.8)
52 (17.1)
21 (6.9)
16 (5.3)
7 (2.3)
11 (3.6)

<0.001
0.054
0.042
0.009
<0.001
<0.001
0.522
Cancer stage, n (%)
I
II
III
IV

5 (5.3)
11 (11.6)
32 (33.7)
47 (49.5)

26 (14.6)
72 (40.4)
52 (29.2)
28 (15.7)
<0.001
Metastatic cancer, n (%)68 (47.6)47 (15.5)<0.001
HF NYHA stage, n (%)
0
I
II
III
IV

24 (17.6)
12 (8.8)
73 (53.7)
26 (19.1)
1 (0.7)

122 (46.2)
23 (8.7)
98 (37.1)
21 (8.0)
0
<0.001
CV risk factors, n (%)
Hypertension
Diabetes
Dyslipidemia
Smoking
Obesity
Prior CAD
Valvular Heart Disease
Kidney dysfunction (GFR < 60 mL/min/1.73 m2)

54 (37.8)
12 (8.4)
30 (21)
4 (30.8)
39 (27.3)
15 (10.5)
7 (4.9)
28 (19.6)

117 (38.5)
27 (8.9)138 (45.4)
16 (37.2)
88 (28.9)
28 (9.2)
12 (3.9)
34 (11.2)

0.883
0.864
<0.001
0.671
0.714
0.669
0.643
0.017
CRP elevation, n (%)47.2 (57.33)11.8 (36.70)0.005
Anemia, n (%)22 (15.4)39 (12.8)0.463
ECG QTc > 500 ms5 (3.5)7 (2.3)0.466
Anticancer therapy, n
Anthracycline
Alkylating agents
Fluoropyrimidines
Antimetabolites
VEGF
Anti-HER2 therapy
Hormonotherapy
Proteasome inhibitors
Monoclonal antibodies
Multikinase inhibitors
ICI
11 (7.7)
23 (16.1)
25 (17.5)
14 (9.8)
21 (14.7)
4 (2.8)
7 (4.9)
1 (0.7)
4 (2.8)
5 (3.5)
1 (0.7)
64 (21.1)
61 (20.1)
41 (13.5)
43 (14.1)
21 (6.9)
33 (10.9)
12 (3.9)
11 (3.6)
10 (3.3)
19 (6.1)
0
<0.001
0.315
0.267
0.198
0.009
0.004
0.643
0.075
0.780
0.420
0.144
Sinus rhythm, n (%)125 (87.4)271 (89.1)0.698
Previous cancer, n (%)18 (12.6)13 (4.3)0.001
Previous chemotherapy, n (%)17 (11.9)29 (9.5)0.446
Previous radiotherapy, n (%)15 (10.5)26 (8.6)0.508
Cancer progression, n (%)48 (33.6)40 (13.2)<0.001
* We grouped rare cancer types into “others” (skin, brain, pharyngeal, sarcomas). CAD—coronary artery disease; CRP—C-reactive protein; ECG—electrocardiogram; GFR—glomerular filtration rate; GLS—global longitudinal strain; ICI—immune checkpoint inhibitors; NP—natriuretic peptide; SD—standard deviation; VEGF—vascular endothelial growth factor.
Table 3. Univariate Cox regression analysis.
Table 3. Univariate Cox regression analysis.
FactorCategoryHR (95% CI)p-Value
Age 1.026 (1.011–1.041)<0.001
Male sexYes1.295 (0.922–1.820)0.136
Myocardial damage markers
Troponin elevation
NP elevation
Left ventricular systolic dysfunction
Left ventricular diastolic dysfunction
Abnormal GLS

Yes
Yes
Yes
Yes
Yes

0.937 (0.493–1.779)
2.030 (1.408–2.927)
1.478 (0.851–2.566)
2.264 (1.538–3.332)
2.665 (1.363–5.211)

0.842
<0.001
0.165
<0.001
0.004
Cancer location
Breast
Gastrointestinal
Hematologic
Genitourinary
Gynecologic
Lung
Other

Yes
Yes
Yes
Yes
Yes
Yes
Yes

0.267 (0.169–0.421)
1.273 (0.869–1.865)
0.694 (0.399–1.207)
1.600 (1.007–2.543)
2.052 (1.291–3.262)
4.142 (2.645–6.487)
1.370 (0.640–2.931)

<0.001
0.216
0.196
0.047
0.002
<0.001
0.417
Cancer stage
II
III
IV

Yes
Yes
Yes

0.842 (0.292–2.425)
2.843 (1.107–7.304)
4.127 (1.641–10.381)

0.749
0.030
0.003
Metastatic cancerYes3.482 (2.499–4.851)<0.001
NYHA stage
I

Yes

1.762 (0.881–3.524)

0.109
II
III
IV
Yes
Yes
Yes
2.588 (1.630–4.110)
3.664 (2.102–6.388)
5.808 (0.783–43.090)
<0.001
<0.001
0.085
CV risk factors, n (%)
Hypertension
Diabetes
Dyslipidemia
Smoking
Obesity
Prior CAD
Valvular Heart Disease
Kidney dysfunction (GFR < 60 mL/min/1.73 m2)

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

0.949 (0.676–1.331)
0.873 (0.483–1.577)
0.447 (0.298–0.669)
0.547 (0.165–1.814)
0.912 (0.631–1.319)
1.016 (0.594–1.735)
1.500 (0.700–3.212)
2.013 (1.330–3.048)

0.760
0.652
<0.001
0.324
0.625
0.955
0.297
<0.001
CRP elevation, n (%)Yes1.007 (1.002–1.011)0.002
Anemia, n (%)Yes1.929 (1.221–3.049)0.005
ECG QTc > 500 msYes1.296 (0.530–3.169)0.570
Sinus rhythm, n (%)Yes0.522 (0.129–2.114)0.363
Previous cancer, n (%)Yes2.096 (1.278–3.438)0.003
Previous chemotherapy, n (%)Yes1.301 (0.783–2.162)0.310
Previous radiotherapy, n (%)Yes1.333 (0.780–2.279)0.294
Cancer progressionYes3.118 (2.191–4.439)<0.001
CAD—coronary artery disease; CRP—C-reactive protein; ECG—electrocardiogram; GFR—glomerular filtration rate; GLS—global longitudinal strain; NP—natriuretic peptide.
Table 4. Multivariate Cox regression analysis.
Table 4. Multivariate Cox regression analysis.
FactorCategoryHR (95% CI)p-Value
Age 1.020 (1.005–1.036)0.009
Myocardial damage markers
Left ventricular diastolic dysfunction

Yes

1.731 (1.115–2.689)

0.015
Cancer location
Breast
Lung

Yes
Yes

0.387 (0.241–0.621)
2.907 (1.826–4.627)

<0.001
<0.001
Metastatic cancerYes2.208 (1.482–3.289)<0.001
NYHA stage
II
III

Yes
Yes

2.016 (1.242–3.272)
3.545 (1.948–6.450)

0.005
<0.001
CV risk factors, n (%)
Dyslipidemia
Kidney dysfunction (GFR < 60 mL/min/1.73 m2)

Yes
Yes

0.438 (0.292–0.657)
2.085 (1.377–3.159)

<0.001
0.001
Previous cancer, n (%)Yes2.004 (1.219–3.295)0.006
Cancer progressionYes 1.853 (1.217–2.823)0.004
GFR—glomerular filtration rate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Čiburienė, E.; Aidietienė, S.; Ščerbickaitė, G.; Brasiūnienė, B.; Drobnienė, M.; Baltruškevičienė, E.; Žvirblis, T.; Čelutkienė, J. Development of a Cardio-Oncology Service in Lithuania: Prediction, Prevention, Monitoring and Treatment of Cancer Treatment-Induced Cardiotoxicity. J. Cardiovasc. Dev. Dis. 2022, 9, 134. https://doi.org/10.3390/jcdd9050134

AMA Style

Čiburienė E, Aidietienė S, Ščerbickaitė G, Brasiūnienė B, Drobnienė M, Baltruškevičienė E, Žvirblis T, Čelutkienė J. Development of a Cardio-Oncology Service in Lithuania: Prediction, Prevention, Monitoring and Treatment of Cancer Treatment-Induced Cardiotoxicity. Journal of Cardiovascular Development and Disease. 2022; 9(5):134. https://doi.org/10.3390/jcdd9050134

Chicago/Turabian Style

Čiburienė, Eglė, Sigita Aidietienė, Greta Ščerbickaitė, Birutė Brasiūnienė, Monika Drobnienė, Edita Baltruškevičienė, Tadas Žvirblis, and Jelena Čelutkienė. 2022. "Development of a Cardio-Oncology Service in Lithuania: Prediction, Prevention, Monitoring and Treatment of Cancer Treatment-Induced Cardiotoxicity" Journal of Cardiovascular Development and Disease 9, no. 5: 134. https://doi.org/10.3390/jcdd9050134

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
