Characteristics of Recent Aftershocks Sequences (2014, 2015, 2018) Derived from New Seismological and Geodetic Data on the Ionian Islands, Greece

by
Alexandra Moshou
1,*,
Panagiotis Argyrakis
1,
Antonios Konstantaras
2,
Anna-Christina Daverona
3 and
Nikos C. Sagias
4
1
Institute of Geodynamics, National Observatory of Athens, Lofos Nymphon, 11810 Athens, Greece
2
Department of Electronic Engineering, Hellenic Mediterranean University, 3 Romanou Str., Chalepa, 73133 Chania, Crete, Greece
3
Department of Surveying and Geoinformatics Engineers, Faculty of Engineering, Egaleo Park Campus, University of West Attica, Ag. Spyridonos Street, Aigaleo, 12243 Athens, Greece
4
Department Informatics and Telecommunications, Faculty of Economics and Technology, University of the Peloponnese, Akadimaikou G. K. Vlachou Street, GR-22131 Tripoli, Greece
*
Author to whom correspondence should be addressed.
Data 2021, 6(2), 8; https://doi.org/10.3390/data6020008
Submission received: 19 December 2020 / Revised: 15 January 2021 / Accepted: 16 January 2021 / Published: 20 January 2021
(This article belongs to the Section Spatial Data Science and Digital Earth)
Browse Figures
Versions Notes

Abstract

:
In 2014–2018, four strong earthquakes occurred in the Ionian Sea, Greece. After these events, a rich aftershock sequence followed. More analytically, according to the manual solutions of the National Observatory of Athens, the first event occurred on 26 January 2014 in Cephalonia Island with magnitude ML = 5.8, followed by another in the same region on 3 February 2014 with magnitude ML = 5.7. The third event occurred on 17 November 2015, ML = 6.0 in Lefkas Island and the last on 25 October 2018, ML = 6.6 in Zakynthos Island. The first three of these earthquakes caused moderate structural damages, mainly in houses and produced particular unrest to the local population. This work determines a seismic moment tensor for both large and intermediate magnitude earthquakes (M > 4.0). Geodetic data from permanent GPS stations were analyzed to investigate the displacement due to the earthquakes.

1. Introduction

A detailed analysis of both seismological and geodetic data of the Ionian Islands is performed in this study. It is the first time that such an extensive time period analysis with the latest state-of-the-art software and usage of updated data like the ITRF 2014 reference frame has been applied to Greece’s most seismogenic area.
This area is characterized by continuous seismic activity and frequent occurrence of large earthquakes (M > 6.0). The tectonic structure of the islands of Cephalonia and Ithaca results from the effect of compressive stresses in which periods of tensile stresses are inserted [1].
The faults kinematics of Cephalonia are classified into the three following categories [2]:
  • Reverse faults in the area of Argostoli.
  • Strike-slip faults—Argostoli, Paliki and SE Cephalonia area.
The most characteristic tectonic structure is the clockwise fault of Cephalonia (Cephalonia Transform Fault Zone), which consists of Lefkas to the north with a direction of north-west and the part of Cephalonia to the south with the direction north-west [3]. The existence of this transformation fault had been suggested by both studies [4,5,6] and geological mapping [7,8,9].
The first seismological indications for horizontal sliding movements in the study area were developed in the 1980s based on epicenters [10] and focal mechanisms of strong earthquakes and aftershocks of 17/01/1983 M = 7.0 and 23/03/1983 M = 6.2, [11,12]. Further study by many scientists confirmed the effect of the horizontal slip fault in the area using synthetic waveform modeling [13], with micro-seismic studies [14] and geodetic measurements [15,16]. The results from the micro-seismic [14,17] and geodetic measurements [15,16] led to the conclusion that this regime extends to the north in the area of Lefkas. Recent studies based on precise epicenters and focal mechanisms confirm the existence of this seismically active fault of Cephalonia that runs parallel to the west coast of Lefkas [3].
The complex seismotectonic structure that controls the wider area’s seismicity is the Greek arc section’s subsidence zone in the Ionian Sea area below Cephalonia [18].

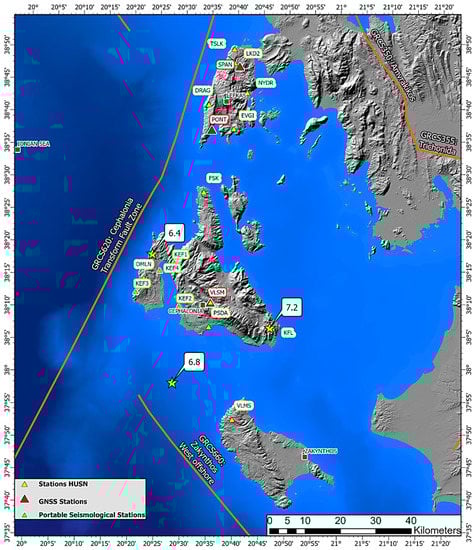

Figure 1 represents a general structure map showing the prefectures of the broader region of Western Greece. For the study area (Ionian Islands), the portable seismological station sites’ selection criterion was based on the existence and operation of permanent seismological and geodetic stations that had already been installed. Faults were collected from the international literature and digitized by ArcGIS Pro.
Aftershock sequences’ statistical processing is an essential tool for understanding the earthquake process’s focal mechanisms. Changes in the rate of seismicity during seismic sequences indicate precursors to the generation of a strong earthquake during the sequence [19,20,21,22]. Detailed seismological data of these large events and the strongest aftershocks were used in this work: The first and significant part focuses on the main event’s extensional focal mechanisms and the comparison with those calculated from other institutions. In the second part, using GPS data and calculations of the GPS time series, the coseismic deformation is estimated. The above combination produces precise conclusions about unique seismic sequence characteristics.

2. Data

In this section, seismological data were used to calculate the seismic parameters of both main earthquakes as well as the major aftershocks of them. The data were collected, analyzed, and processed using an appropriate methodology, analyzed in the next section, and in more detail in [25,26]. GNSS data analysis was performed along with the seismic data to calculate the displacement caused by seismic vibrations and compare it with seismic solutions.

2.1. Seismological Data

In this study, seismological broadband data from the Hellenic Unified Seismological Network were collected and analyzed to determine the source parameters of the events in the Ionian Sea. For this purpose, 13 broadband stations were equipped with three components seismometers from the Hellenic Unified Seismological Network (HUSN); detailed information is presented in Table 1.

2.2. Geodetic Data

The GPS data (30-s sampling interval) were collected and processed from stations VLSM (Valsamata Cephalonia), SPAN (Spanohori Lefkas), PONT (Ponti Lefkas) shown in Figure 1, which belong to the national geodetic network of the Institute of Geodynamics —National Observatory of Athens (NOANET; [31]). The exact location and instrument information of the permanent stations are shown in Table 2.
After collecting GPS raw data from the online repository, a preprocessing procedure was applied to assure the best quality of post-processing results. TEQC software [32] was used to identify data incompatibilities, excess multipath, and data gaps.

3. Methods

3.1. Fault Plane Solutions

In this section, the Moment Tensor Solution for the strong events and all the moderate earthquakes from each aftershock sequence were calculated and presented. For this purpose, seismological broadband data from the Hellenic Unified Seismological Network (HUSN) were collected, analyzed, and used to determine the fault plane solution, the Moment Magnitude (Mw), and the Depth (d) of the strongest earthquakes of the K1,2, L1 and Z1 sequence.
A methodology based on a moment tensor inversion was used, as analytically described in [26,33,34] using Ammon’s software [35]. This method calculates synthetic seismograms directly compared with the observed ones for a given velocity structure. As implemented by Randall [36], Kennett’s reflectivity method was applied to determine the Green Functions. Synthetics for the three fundamental faults are combined with an appropriate 1-D velocity model, which, in our case, is the one proposed by Haslinger [37]. The Haslinger velocity model was used. Initially, Green’s functions for different depths were calculated. Regional data of five 3-component broadband stations belonging to the HUSN and situated at different azimuth coverage and epicentral distances less than 3° were selected and analyzed.
Initially, Green’s functions for different depths were calculated by the analyst. Initial inversions were performed at a depth interval of 5 km followed by a finer one every 1–2 km around the depth that exhibited the lowest misfit.
Regional data of five broadband stations, at different azimuth coverage and epicentral distances less than 3°, equipped with three components seismometers, were selected and analyzed. The first step of the procedure is preparing the data, including the deconvolution of instrument response, the integration of the velocity to displacement, and the horizontal components’ rotation to radial and transverse. Then the long period part of the signal was introduced to perform the inversion. After several attempts, our analysis was implemented using a seismic wave velocity model considered the most appropriate area under study. A bandpass filter is applied to both the observed waveforms and synthetics. We used a frequency band between 0.05 and 0.02 Hz, although the moderate magnitudes were in the range of 4.0 ≤ Mw ≤ 4.5. In all our inversions, we use a fixed waveform length of 80 s (the inversion results indicate that inverting waveforms longer than 80 s resulted in higher misfits). Moment tensor solutions’ quality can be evaluated by considering the average misfit and the compensated linear vector dipole (CLVD; Column 9, Table A1, Table A2 and Table A3). There is a quality code that consists of the letters A–D for each solution for the minimum misfit and between the numbers 1–4 (Quality; Column 11, Table A1, Table A2 and Table A3) for the percent of CLVD [38,39].
a. Cephalonia Seismic Sequence

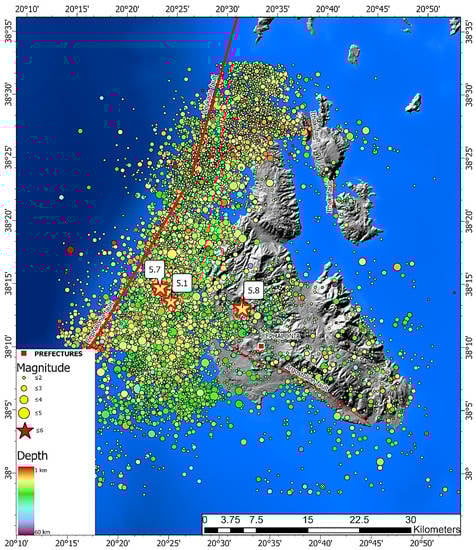

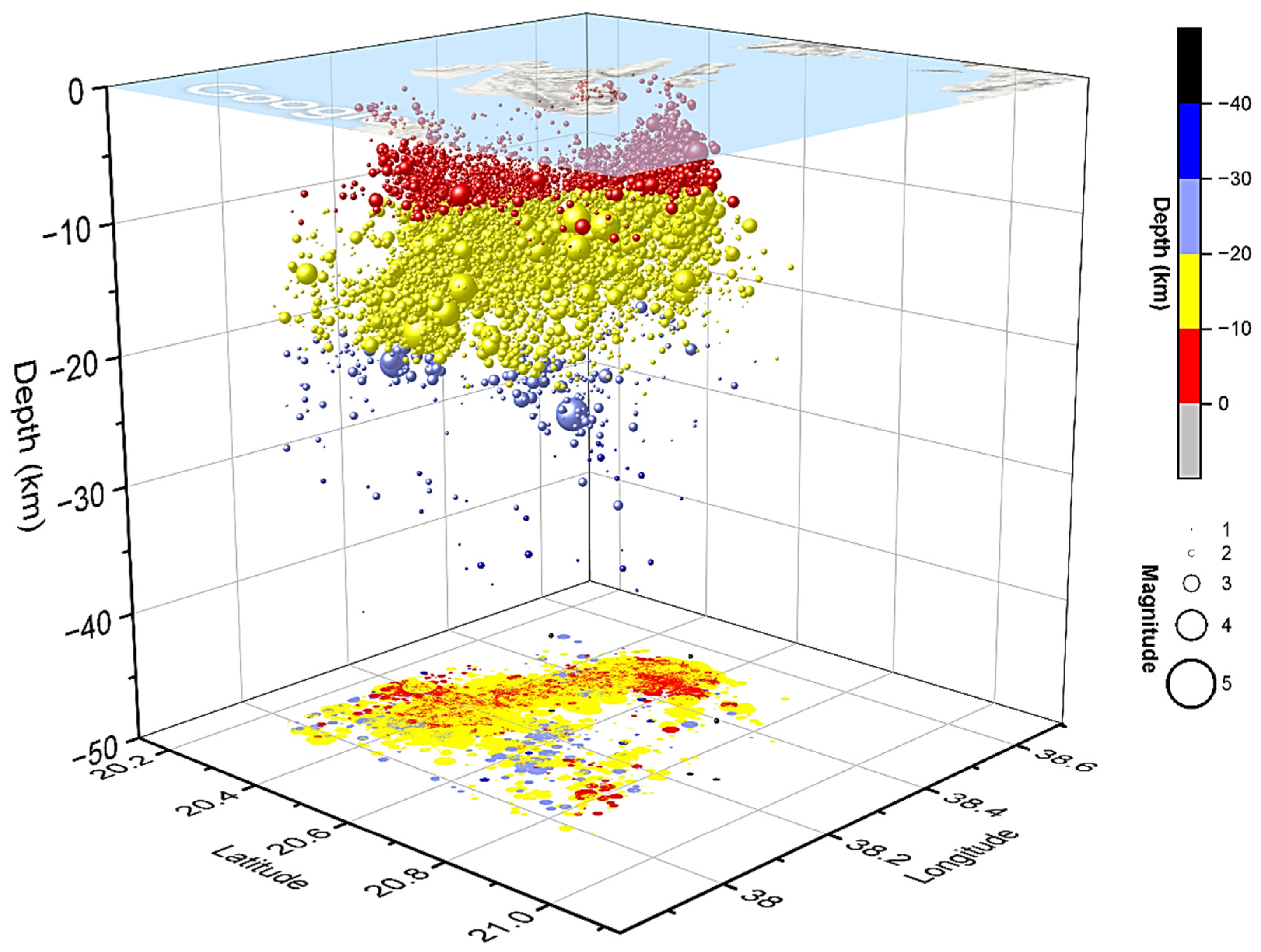

The area of Cephalonia is characterized by too high seismicity, as shown by the past, for example, the seismic action of August 1953 with earthquakes of magnitude 6.5, 6.8, and 7.2 leveled Kefalonia, Zakynthos, and Ithaca and caused about 480 human casualties. The geodynamics and seismotectonic of the area are particularly complex [3,18]. After the destructive sequence of 1953, the strongest earthquakes that have taken place on the broader area are the one west of Cephalonia on 17 January 1983 with ML = 7.0, [10,13] and the one on 18 January 1997 with ML = 6.6 in the Strofades islands. The recent earthquake filled a seismic gap in the area.
On 26 January 2014 (13:55, UTC), two strong earthquakes of magnitude Mw = 6.1 and Mw = 5.2 (18:45, UTC) occurred in the island of Cephalonia, central Ionia Sea. These events induced extensive structural damages, mainly in the western and central parts. Eight days later, on 3 February 2014 (03:08, UTC), a second strong event with a magnitude similar to the first (Mw = 6.0) happened at the north section of Lixouri town. The geographical coordinates for the first events were manually located for this study and found φ = 38.252° Ν, λ = 20.443° Ε at a depth of 16 km. These two earthquakes (Mw = 6.1 and Mw = 6.0) occurred in the Cephalonia island as the destructive events of 1953. In the first days of August 1953 (9 August 1953 and 12 August 1953), three earthquakes of magnitude 6.4, 6.8, and 7.2 [2] took place in Cephalonia. For these three strong events, the source parameters were calculated and compared to the observed solutions from other institutes, and for the majority of them, a good agreement was found (Table 3). A large number of aftershocks followed these events. We note that 2462 events were recorded and analyzed for the first month, while from the beginning of the sequence until the end of 2019 more than 17,000 events took place and were recorded and viewed as a point cloud [40,41,42]. In Figure 2, the 3-D view clearly defines the earthquake epicenters depth zones that may overlay in a 2-D representation. From this catalog and for the largest events (Mw > 3.8), the activation fault, the Source Parameters, the Seismic Moment (M0) and the Moment Magnitude (Mw) were calculated using the moment tensor inversion [26].

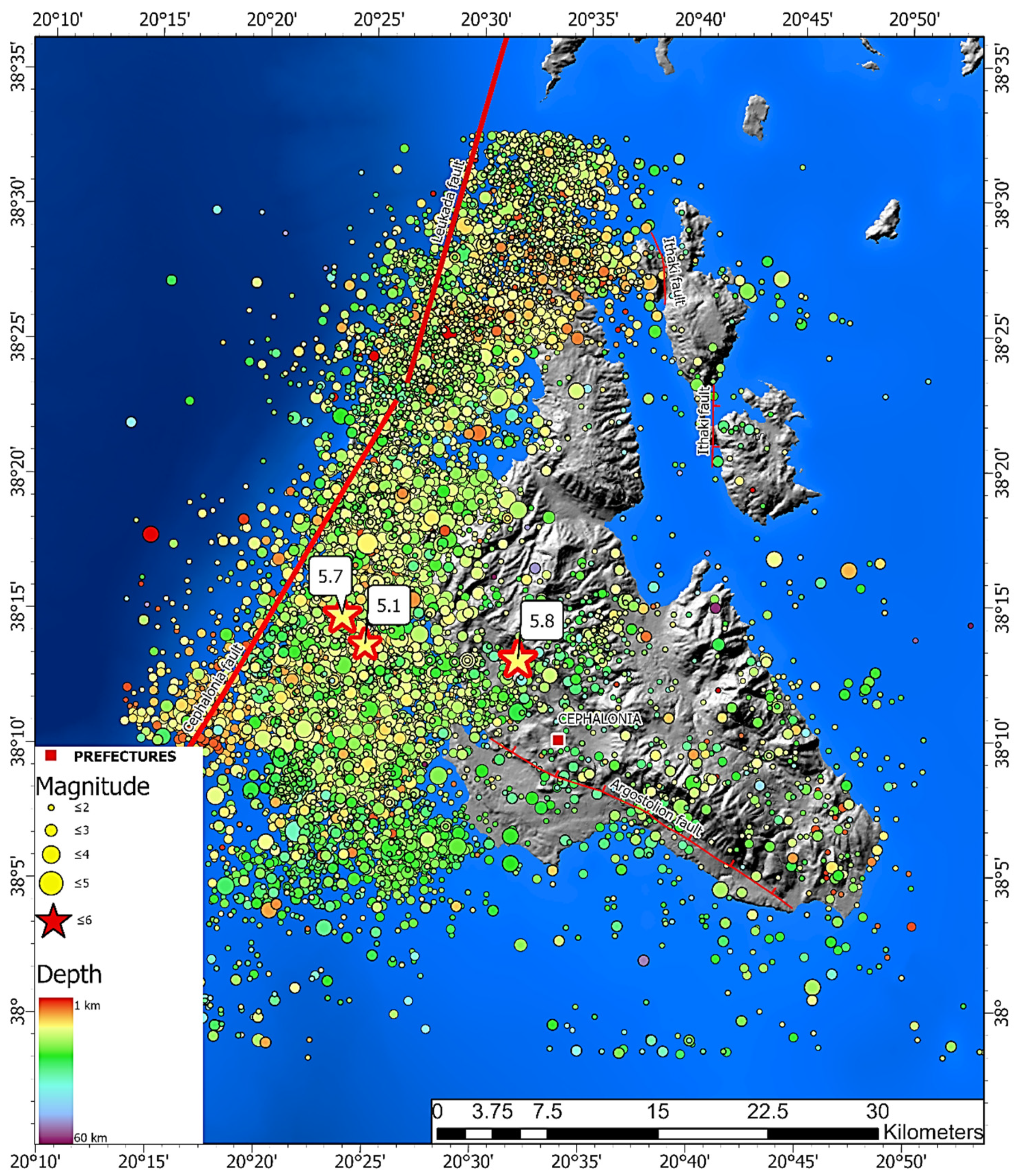

Immediately after the earthquake on 26 January 2014, in Paliki of Cephalonia, the Geodynamic Institute sent a team of scientists and technicians. They installed a portable network of four stations (KEF1, KEF2, KEF3, and KEF4) since the number of existing permanent stations was insufficient for detailed recording of aftershock-seismic activity [43,44]. The significant result of the portable network installation was the possibility of recording thousands of earthquakes (n > 8000) over a year, with magnitudes M > 1.0, as seen in Figure 3. The seismological portable network’s geographical distribution and the data used from the permanent seismological network stations for the inversion appear in Figure 1.

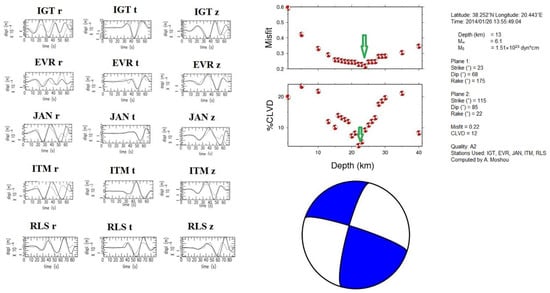

Using the methodology described in the previous Section 3.1 and in the study [26] the Source Parameters (φ, δ, λ), the Moment Magnitude (Μw), the Seismic Moment (M0) and the depth were calculated and are presented in Figure 4, Figure 5 and Figure 6 regarding the three strongest earthquakes in Cephalonia Island.

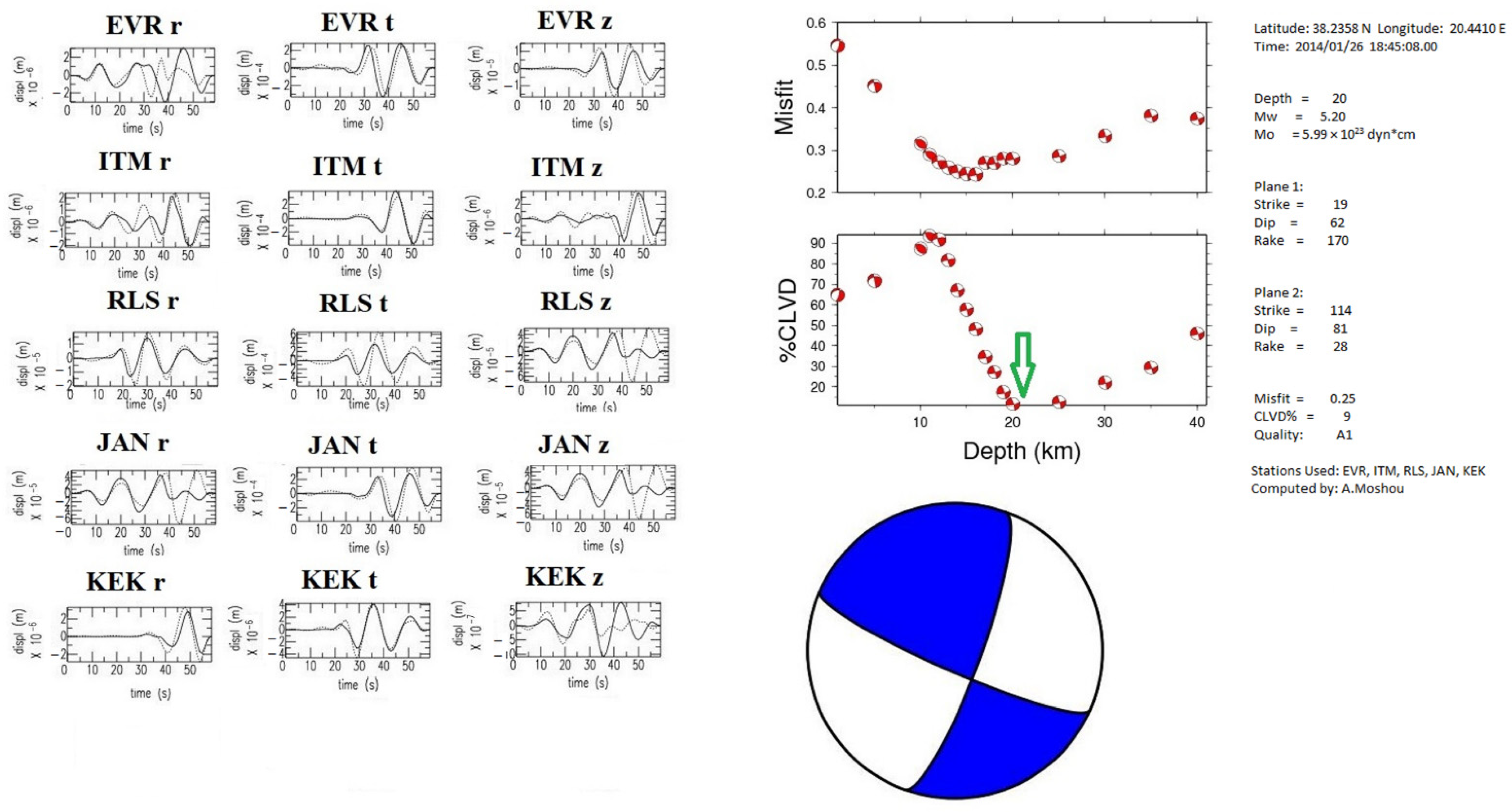

The Scheme 26 January 2014 (18:45 UTC), a few hours later, a second of magnitude Mw = 5.2 occurred in the same region as the first event. Using waveforms from Unified Seismological Network (HUSN), the epicenter was manually located at 38.1423° N, 20.2812° E. Broadband recordings from the HUSN network were collected, and those at epicentral distances less than 3° degrees were selected. For the inversion method, five stations were used with good azimuthal coverage. Reverse type faulting was revealed after applying the previous methodology. The obtained focal mechanism is φ = 19°, δ = 62° and λ = 170°. The seismic moment is equal to Mo = 5.99 × 1023 dyn·cm, for a focal depth equal to 20 km. The inversion resulted in a double couple (DC) equal to 91%, while the compensated linear vector dipole was equal to 9% (Figure 5).

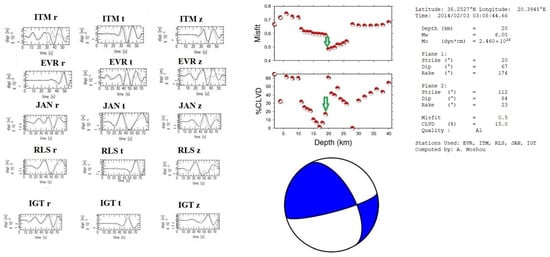

Next, we present the results of inversion for the third-largest earthquake of this seismic sequence. This earthquake showed specificity as to the application of the method mainly because of its geographical position. The epicenter was calculated in the NW part of Cephalonia Island, according to the National Observatory of Athens (φ = 38.2462° N, λ = 20.3958° E). Due to insufficient azimuthal coverage of the Greek stations, trials were made for some fault plane solutions being recalculated by adding records either of Italian stations, either in mixed epicentral distances, more than 300 km, thus extending our azimuthal coverage to the west and south of the epicenter. To compute the focal mechanism of six stations for three components, each one was used in epicentral distances between 130 and 380 km to determine this event’s source parameters. The source parameters were calculated using the method of moment tensor inversion outlined previously. The best fit solution is: strike = 20°, strike = 67°, rake = 174°, and the focal depth was calculated at 20 km. The seismic moment is determined as Mo = 2.46 × 1024 dyn∙cm, and the calculated double couple (DC) was found equal to 88%, while the compensated linear vector dipole (CLVD) to 12%. The results of the applied procedure are presented in Figure 5.
b. Lefkas Seismic Sequence

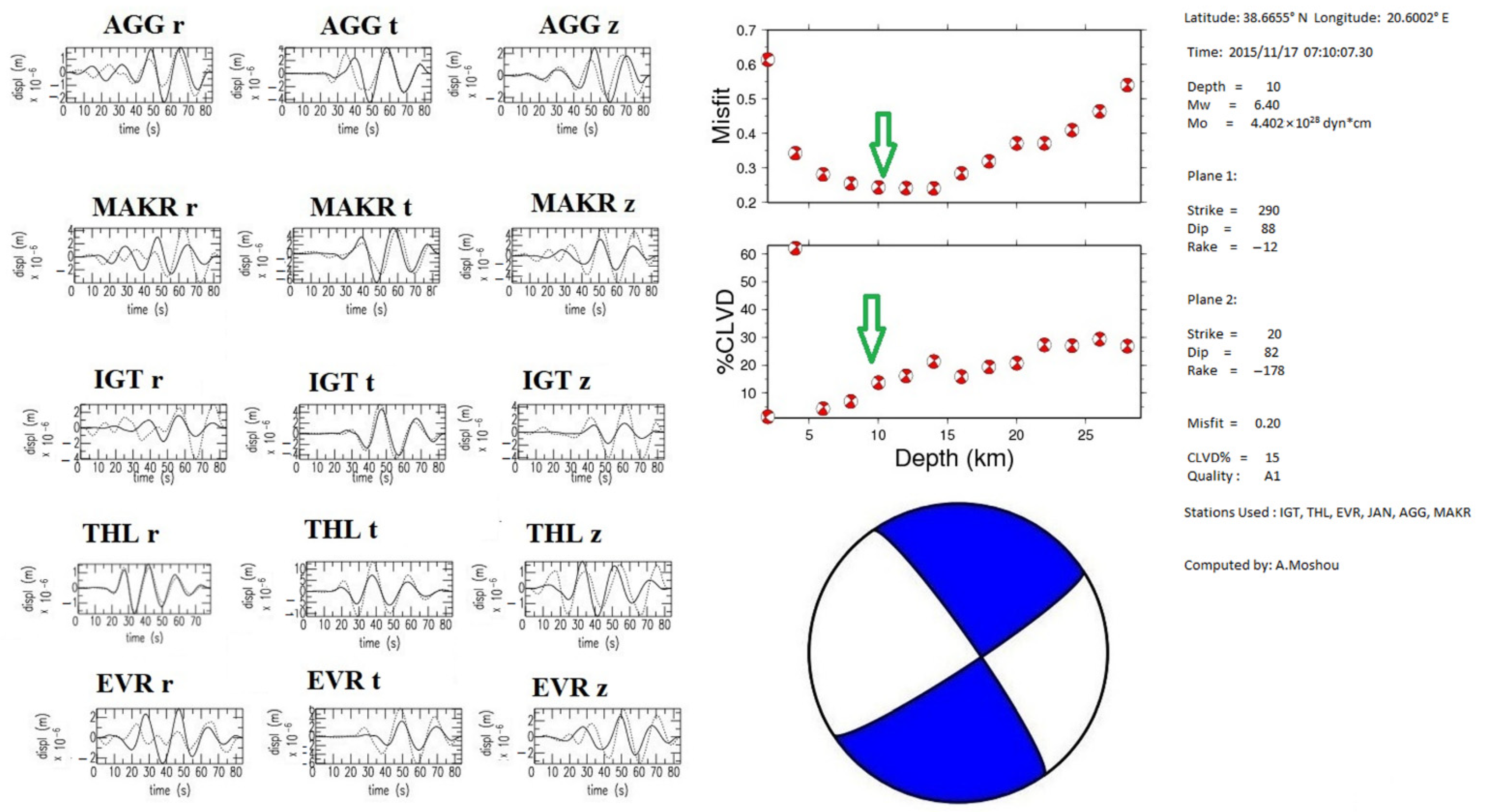

A strong earthquake with a magnitude Mw = 6.4 occurred in Lefkas Island, Greece. The geographical coordinates, as they calculated from the manual analysis of the Institute of Geodynamics—NOA [27] are φ = 38.6655° N, λ = 20.6002° E at a depth of 10 km. A few hours later, a second strong event with magnitude ML = 5.0 occurred in the same region. These earthquakes caused much structural damage to Agios Petros, Athani, Dragano, and Komilio [46,47] and environmental effects, including liquefaction, extensive rockfalls, and landslides, [48]. No surface ruptures were found in the field. The most recent strong earthquake occurred on 14 August 2003 with a magnitude of Mw = 6.2, offshore the western coast of Lefkas Island, causing severe damages around the whole island [49,50].

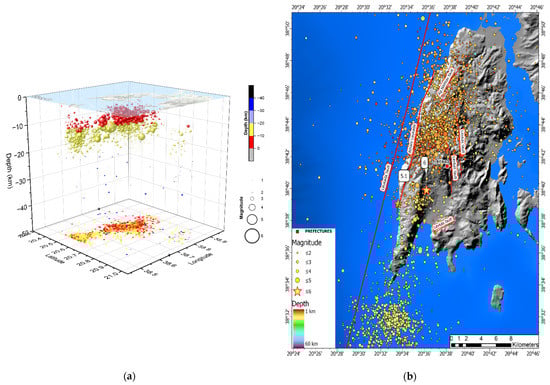

A rich seismic sequence followed these events for the following days. More specifically, from 17 November 2015 until the end of the month, 837 events were recorded, while for the first 24 h, the recorded events were 206. The 3D distribution of the epicenters compared to depths and the magnitudes and the distribution of the aftershocks relative to the years is shown in Figure 7a,b.
All the focal mechanisms from events with magnitude Mw > 4.0 were calculated using the proposed methodology (Appendix A, Table A2). The source parameter and the focal mechanism for the main event are shown in Figure 8. For this purpose, the data of six stations of three components, each one in epicentral distances less than 350 km, were used. The source parameters were calculated using the method of moment tensor inversion outlined previously. For the main event, the inversion indicates the activation of a strike-slip type faulting. The best fit solution is strike = 290°, strike = 88°, rake = −12°, and the focal depth is calculated at 10 km. The seismic moment was determined as M0 = 4.402 × 1028 dyn∙cm, and the calculated double couple (DC) was found equal to 85%, while the compensated linear vector dipole (CLVD) to 15%. The following table (Table 4) presents the moment tensor solutions from various institutions for the 17 November 2015 Lefkas earthquake.
c. Zakynthos Seismic Sequence

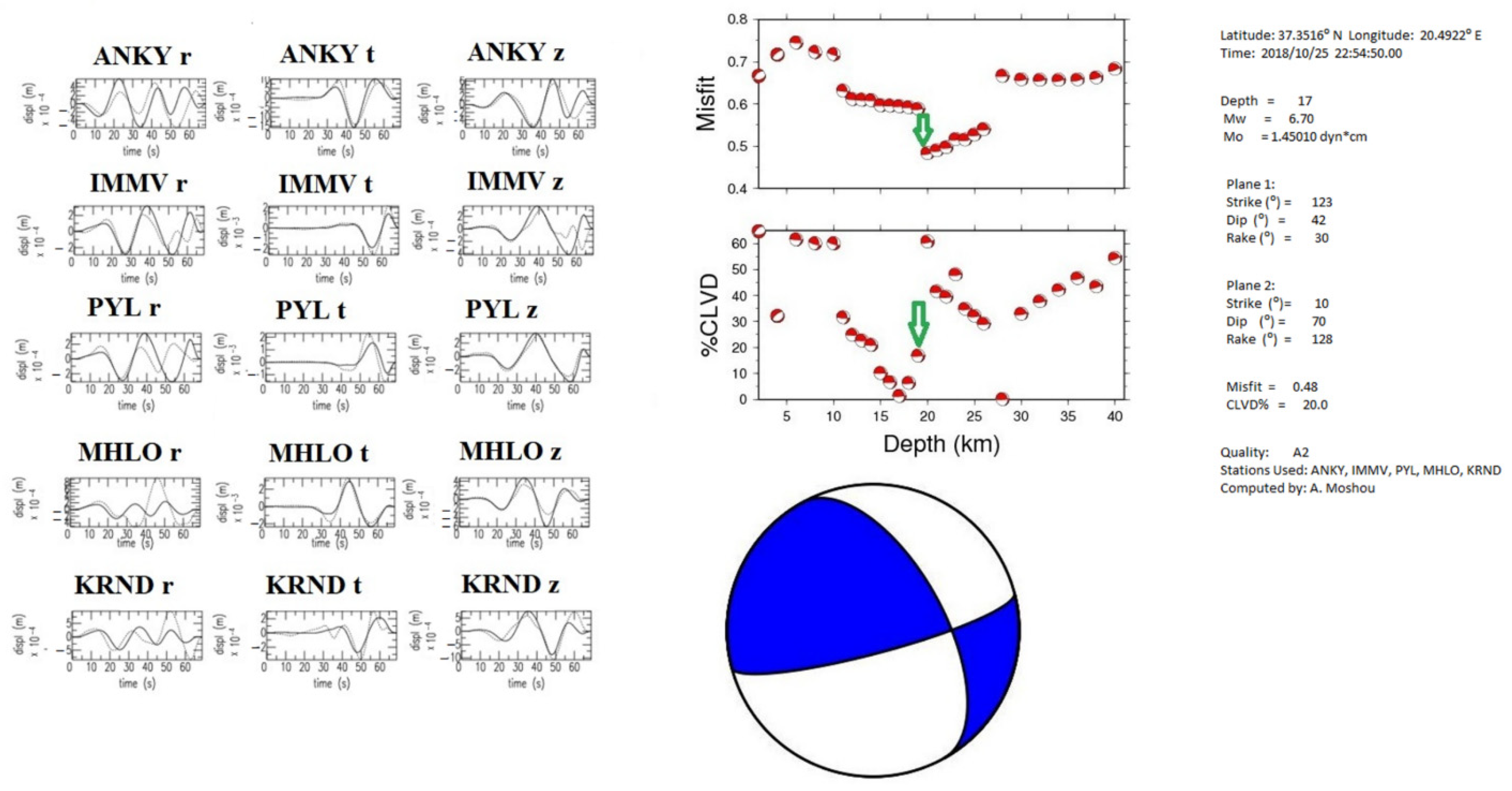

On 25 October 2018 (22:54 UTC) a strong shallow earthquake with magnitude Mw = 6.7 occurred offshore Zakynthos (Ionian Sea, Greece). The epicenter calculated was located φ = 37.341° N, λ = 20.512° E, 40 km southwest of the island of Zakynthos, Ionian Sea, Greece, [52,53,54].

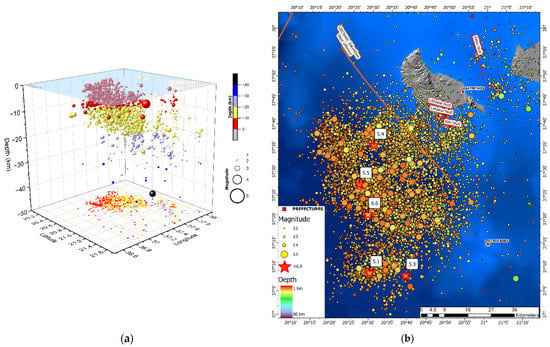

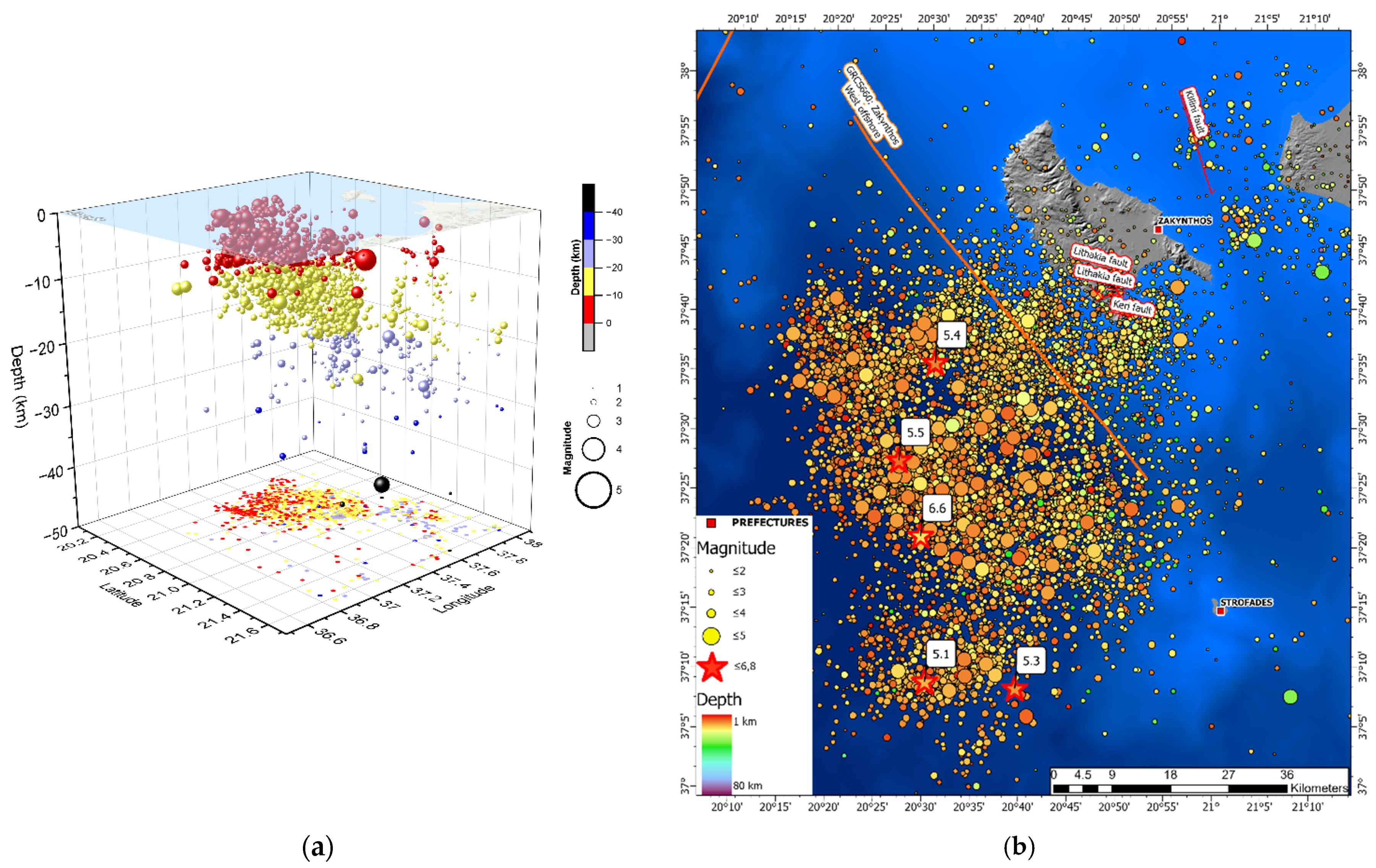

A large number of aftershocks that followed this event appears in Figure 9a,b. The most recent seismic sequence occurred during April–May 2006. It consists of four moderate earthquakes (5.3 ≤ Mw ≤ 5.7) that were followed by significant seismic activity. Those focal mechanisms were calculated in the study [55].
All the focal mechanisms from events with magnitude Mw > 4.5 were calculated (Appendix A, Table A3). To determine the source parameters, the data of five stations of three components, each one in epicentral distances less than 350 km, were used. The source parameters were calculated using the method of moment tensor inversion outlined previously. Thrust type faulting was revealed after applying moment tensor inversion. The best fit solution was strike = 123°, strike = 42°, rake = 30°, and the focal depth was calculated at 17 km. The seismic moment was determined at M0 = 1.45 × 1026 dyn∙cm, and the calculated double couple (DC) was found equal to 80%, while the compensated linear vector dipole (CLVD) to 20%. The result of the applied modeling is presented in Figure 10. The following table (Table 5) presents the moment tensor solutions from various institutions for the 25 October 2018 Zakynthos earthquake.

3.2. Processing of GPS Data

GIPSY/OASIS II software (ver. 6.4) developed by Jet Propulsion Laboratory (JPL, Pasadena, CA, USA) [56] was used to process our data from GPS. The post-processing software uses the precise Point Positioning strategy (PPP) [57]. This method’s main advantage is that only a single specific station is needed to produce results, rather than analyzing tens of stations in a DGPS technique, saving valuable computational resources and time.
The GPS data format was RINEX 2.11 from all the three stations (VLSM, PONT, KLOK), a non-fiducial high precision clock, and orbit files that were used (flinnR_nf from JPL). According to international guidelines and experience [58] (a value of 5 × 108 cm/s2) random walk noise is recommended; zenith and tropospheric estimation were used. A troposphere mapping function GPT2 (Global Pressure and Temperature Mapping Function) [59] was used, which was shown to be better than the NIELL mapping function [60] and provides similar results as the VMF1 model (Vienna Mapping Function). Because we analyzed long-term recording GNSS stations [61] (we kept the advantage not to maintain a tropospheric database for this purpose), the use of GPT2 was found to be more appropriate. A lower elevation angle cutoff of 10° was used to eliminate the near-field multipath effect. Also, a receiver antenna calibration file was calculated and generated for each station separately from the IGS atx file, [62]. WahrK1 [63] tide model was used, and (OcnldCpn) ocean load tide model was added, which uses 11 tidal frequencies to infer other frequencies; After the post-processing procedure, a reference frame transformation to ITRF2014 took place for each station and the time series further analyzed with TSANALYZER [64] to remove any outliers and extract the velocity of each station. The final time series is presented in Figure 11.

4. Discussions

Both seismological and geodetic data were used to analyze the strong events during the period 2014–2019 in the Ionian Islands. Source parameters were calculated for the seismic events using regional seismological data. The knowledge of the source parameters for strong as well as for moderate earthquakes is an essential tool for seismically active regions. In general, it allows analytical studies to reveal the tectonics and the seismogenic characteristics of a specific region. The modeling of the strongest earthquakes, using regional data of these sequences, was studied and revealed the region’s tectonics, which is characterized by strike-slip and thrust faulting. Strike-slip faulting appears in Cephalonia and Lefkas strong earthquakes, while thrust type faulting appears south of Zakynthos island. Common events were compared with other studies [65,66], and they were found in very good agreement. The main reason to compare this study’s solutions with those from other various institutes is to check the proposed methodology’s stability as it is applied to earthquakes with different seismotectonic regimes and different magnitude ranges. For all the events used to calculate the source parameters, the epicenter was recalculated and appears in the first line of Table 3, Table 4 and Table 5 with bold using the velocity model [37].
To determine fault-plane solutions, a methodology and appropriate software implementing the moment tensor inversion was applied. The method calculates synthetic seismograms directly compared with the observed ones for a given velocity structure. The reflectivity method of Kennett, as implemented by Randall, was applied to determine the Green functions. Synthetics for the three fundamental faults are combined with an appropriate 1-D velocity model, which, in our case, is the one proposed by Hasslinger [37]. The focal mechanisms solutions determined in this study appear in Figure 12.

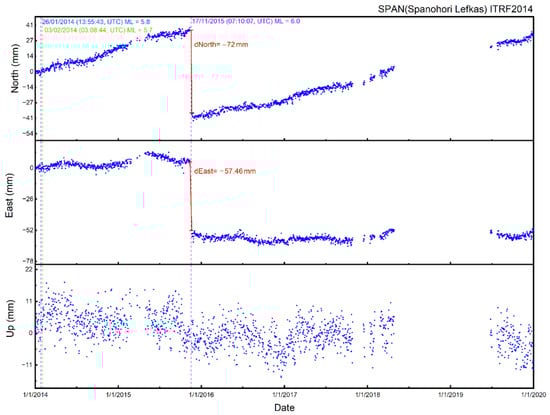

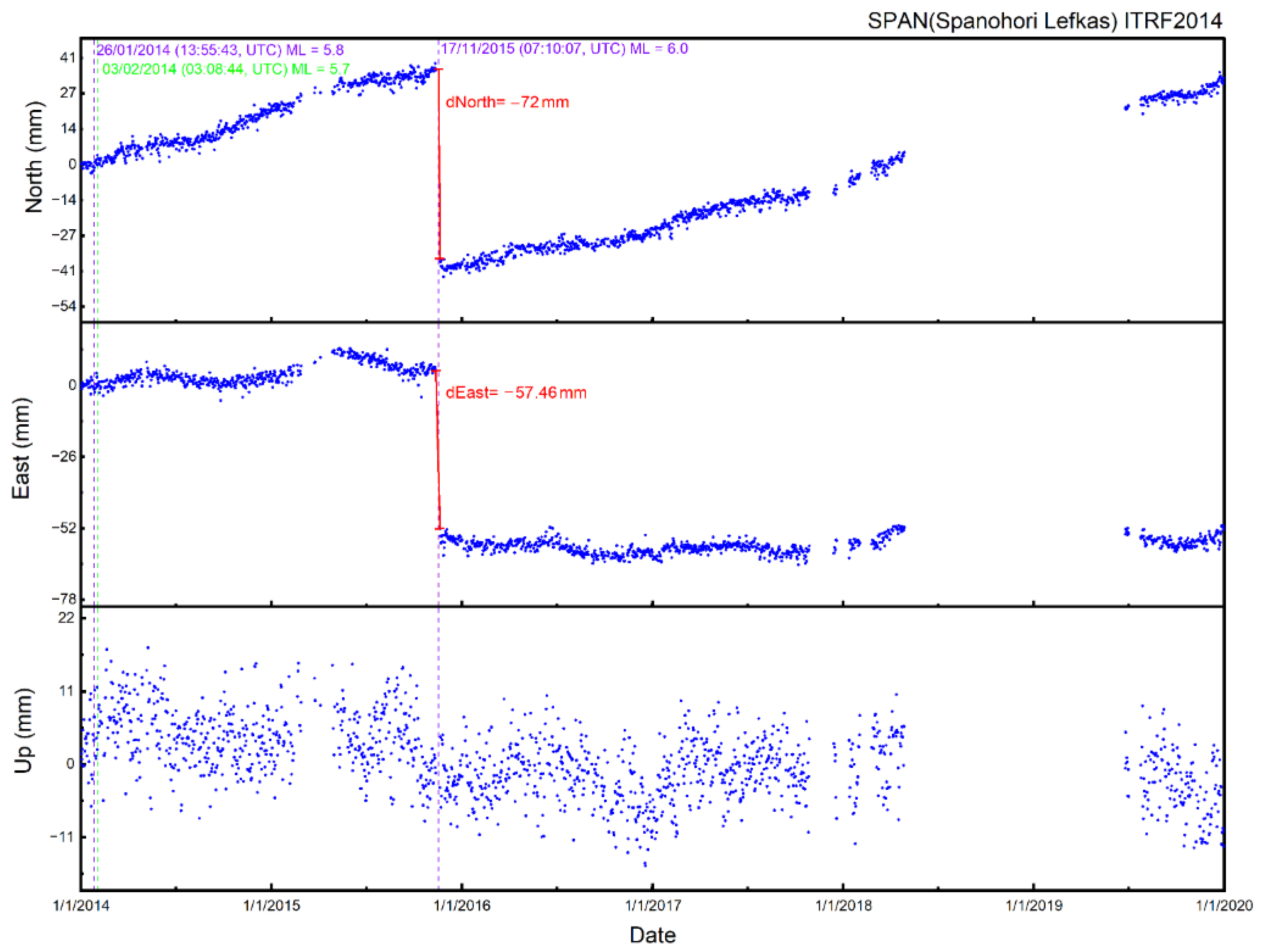

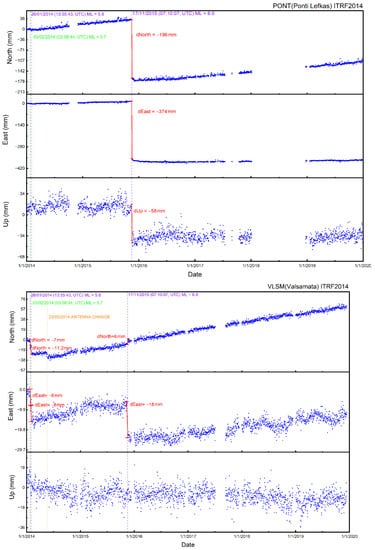

Moreover, the Geodetic Time Series of all the earthquake sequences was analyzed by PPP methodology, which finds the precise position only using each station and precise orbits and clocks products. The position is independent of long-baseline errors introduced by Differential GPS (DGPS) [67], which may produce over or underestimated displacements. The ITRF2014 reference frame [68] minimizes the error introduced from older reference frames like IGb08 and ITRF2008 seen in other studies [69].

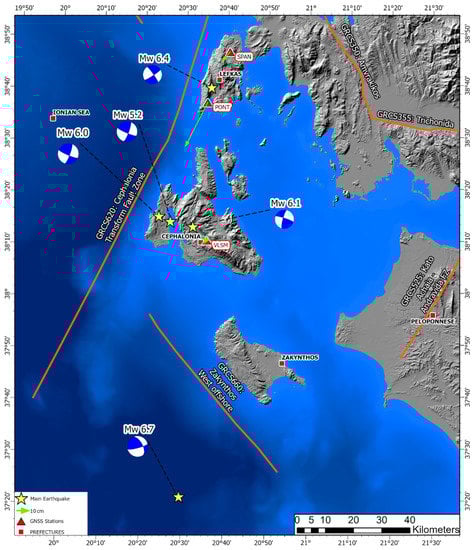

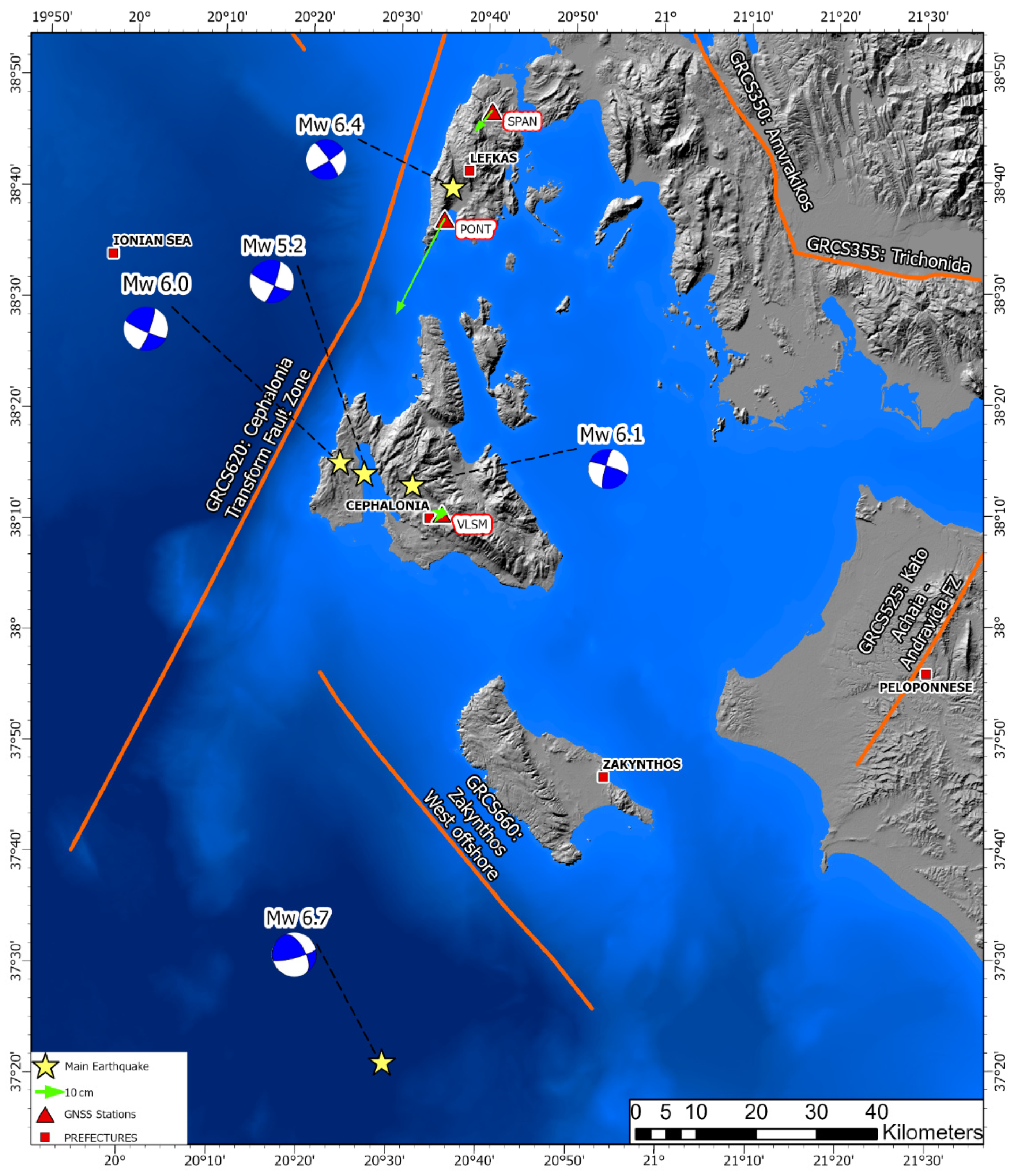

We observe that the Lefkas event caused displacement in a broader area (in stations PONT, SPAN, and VLSM) but the Cephalonia event only in the limited area of Cephalonia (in station VLSM). These data contribute to a clearer understanding that the Lefkas event occurred as a result of the CTF regional system [70,71] in contradiction to the Cephalonia event that occurred as a result of the CTF local faulting system. This evidence is getting stronger by Moment Tensors studies, which are the same at both events.
Future studies should consider that data from more seismological and geodetical stations in the broader area of Ionian will help better understand the local CTF Cephalonia faulting structure; also, a transformation of a new local reference system will give us more precise results in GPS time series.

5. Conclusions

In this study, the focal mechanisms of small earthquakes, west of Lefkas to North Cephalonia, are mainly characterized by horizontal slip faults. Specifically, as demonstrated by the method, the right-hand horizontal shift fault west of Cephalonia receives an address ~40° north, while for the department west of Lefkas, it turned out that the fault has a direction of 20° north. Also, the study of focal mechanisms indicates that west of Lefkas, the activation of a strike-slip fault occurred. East of Zakynthos up to the western part of the Peloponnese is predominated by horizontal sliding mechanisms, while in Zakynthos’s bay, they respond mainly with reverse focal mechanisms. Most of the earthquakes in the area are associated with one right-hand horizontal slip. There are surface earthquakes with activation in the eastern part of the Ionian, mainly horizontal slip faults. Finally, in the southern part, inverted types of generating mechanisms are activated. The depth of the earthquakes studied in this area is between 12 and 30 km, which shows that they are increased compared to the usual depths are identified for surface earthquakes throughout Greece. Here the seismicity seems to be deeper than in other parts of Greece.
In the western part of Cephalonia Island, Ionian Sea, at the SSW-wards continuation of the Lefkas segment of the Cephalonia Transform Fault Zone (CTFZ), more than 8000 earthquakes occurred in the first year. The obtained results provided insights on the rupture mechanism and temporal distribution of the seismic sequence. Source parameters that are focal depth, fault plane solution, and seismic moment were determined by applying the moment tensor inversion methodology using regional data in distances less than 3°. The determined fault plane solutions represent a strike-slip fault’s activation, and the depth distribution of the entire sequence ranges between 10 and 20 km. For the same region and events, the GNSS data were used and analyzed. The results indicate that an N–S displacement of ~7 mm and an E–W displacement of ~8 mm took place at station VLSM, and also at earthquake 3 February 2014 (03:08:44, UTC) ML = 5.7 an N–S displacement of ~11.2 mm and E–W displacement ~8 mm took place at the same station and none of the other two stations were significantly affected. The seismic sequence of Cephalonia in 2014 is evolving into a seismic area with a general direction from NW to NN. Τhe seismic sequence of Cephalonia in 2014 is evolving into a seismic area with a general direction from NW to NN and which is the continuation to the NN of the seismogenic area of Lefkas in 2003.
The second seismic sequence analyzed is the Lefkas Island earthquake (17 November 2015, 07:10:07, UTC) to the southwestern part of Lefkas island. In total, 2804 events that followed this event were recorded and analyzed to have a distribution of the epicenters. The moment tensor solution indicated the activation of a strike-slip fault with a right-lateral direction. The GNSS data analysis showed an N–S displacement of ~196 mm, an E–W displacement of ~374 mm, and a vertical displacement of ~58 mm at station PONT. From the analysis of the PONT station’s geodetic data and the seismological waveforms’ processing, it was observed that in the earthquake of 17 November 2015, the ruptured zone was broken, and not activated in the earthquake of 14 August 2003. Also, an N–S displacement of ~72 mm and E–W displacement of ~57.46 mm occurred at station SPAN; accordingly, an S–N displacement of ~6 mm and E–W displacement of ~18 mm took place at station VLSM. These results are confirmed by the focal mechanism that has already been calculated in the present study. We conclude that in Lefkada’s earthquake, the seismic fault moved parallel to Lefkada’s west coast in Cephalonia’s direction. This is confirmed by the seismicity distribution that was presented in Figure 3 and Figure 7b and the GNSS data processing. Finally, the earthquake sequence at the southern coast of Zakynthos Island that lasted from October 2018 April until the end of 2019 saw that this shallow event was followed by a rich aftershock sequence with a direction SW of the Zakynthos Island. In total, more than 12,000 events were recorded and analyzed in order to calculate the epicenter and the depth. The largest aftershocks of the sequence data were collected and processed to calculate the focal mechanism; the source parameters are the fault plane solution, the focal depth, and the moment magnitude. This analysis emerged for most of them the activation of a strike-slip fault for earthquakes with a focal depth of less than 10 km, while for those with a focal depth greater than 10 km, the activation of a thrust type faulting, with a component of strike-slip, indicates that the 25 October 2018 Mw = 6.7 event ruptured the Hellenic megathrust. This event highlights the high degree of seismic coupling in the Hellenic Arc western region. The GNSS data also point to a similar pattern between the coseismic strain released during 2014 until the end of the 2019 event and the long-term (interseismic) strain accumulation along the west Hellenic Arc. Also, the fault-plane geometry is well constrained by GNSS; this is consistent with the distribution of the aftershocks.

Author Contributions

A.M.: conceptualization, software, methodology, writing—original draft, writing—review and editing, Supervision, funding acquisition, investigation, visualization. P.A.: software, writing—original draft, writing—review and editing. A.K.: data curation, formal analysis, writing—original draft, writing—review and editing. A.-C.D.: data curation, software, visualization. N.C.S.: software, investigation, visualization. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The datasets presented in this study and the contents of the tables are openly available in:
https://bbnet.gein.noa.gr/HL/real-time-plotting/noa-stations-list/hl-network-and-collaborative-stations-information
http://www.geophysics.geol.uoa.gr/stations/gmaps3/leaf_stations.php?map=1&lng=el.
http://geophysics.geo.auth.gr/ss/Book_LOG.htm.
http://seismo.geology.upatras.gr/heliplots/StationsInfo.htm
https://www.emsc-csem.org/Earthquake/
https://bbnet.gein.noa.gr/HL/
http://www.orfeus-eu.org/eida
http://194.177.194.238:8080/noanetgsac/gsacapi/

Acknowledgments

We acknowledge the use of Hellenic Unified Seismograph Network (HUSN) data and we would like to thank the N.O.A. scientific personnel for phase picking. We gratefully thank the European permanent seismic network operators who make their data available through EIDA, http://www.orfeus-eu.org/eida. In this study, data from the following Institutes were used:
  • H.L. (N.O.A., Hellenic Seismic Network), doi:10.7914/SN/HL.
  • H.T. (Aristotle University of Thessaloniki Seismological Network), doi:10.7914/SN/HT.
  • H.P. (University of Patras, Seismological Laboratory), doi:10.7914/SN/HP.
  • H.A. (National and Kapodistrian University of Athens, Seismological Laboratory), doi:10.7914/SN/HA.
Figures containing maps were drawn using the Generic Mapping Tools (GMT) software (Wessel and Smith, 1998), http://gmt.soest.hawaii.edu/. We acknowledge concession for the use of ESRI products licensed to the Hellenic National Tsunami Warning Center, National Observatory of Athens, through the project “HELPOS—Hellenic Plate Observing System” (MIS 5002697). HELPOS is implemented under the Action “Reinforcement of the Research and Innovation Infrastructure”, funded by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020) and co-financed by Greece and the European Union (European Regional Development Fund). We thank the NOANET network for GNSS data, http://geodesy.gein.noa.gr:8000/nginfo/.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Source Parameters of the main events as well as for the intermediate magnitudes for Cephalonia Seismic Sequence for the period 2014–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic Moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of the Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending on the misfit and the percentage CLVD.
Table A1. Source Parameters of the main events as well as for the intermediate magnitudes for Cephalonia Seismic Sequence for the period 2014–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic Moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of the Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending on the misfit and the percentage CLVD.
NrOriginLocationMoMwDepth (km)Plane 1Plane 2CLVD (%)Nr of StationsQuality
DateTimeLat (°)Lon (°)(dyn∙cm)CatalogMTStrike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
101/26/201413:55:4238.219020.53201.510 × 10256.121.1132368175115852235A1
201/26/201414:08:3938.188020.53252.960 × 10224.318.91220641701148126154B1
301/26/201414:21:5838.208820.37879.520 × 10214.09.9822671681177923124C1
401/26/201414:24:0438.253220.39032.220 × 10224.214.51419621701148128164B1
501/26/201414:41:3938.216720.47572.220 × 10224.217.11320601721148330134B1
601/26/201414:55:5038.213220.41009.520 × 10214.014.21423681761158622124B1
701/26/201414:59:2538.303020.47537.350 × 10224.512.91225651791158925104B1
801/26/201415:36:3938.236320.43731.380 × 10224.117.1131864170112812685C1
901/26/201418:45:0838.235820.44105.990 × 10235.216.5201962170114812895A1
1001/26/201419:03:0738.187320.41772.960 × 10224.317.11320691691148021125A2
1101/26/201419:12:0438.240820.40024.060 × 10224.418.01222701681167920154A1
1201/26/201421:15:3438.133720.30028.170 × 10224.610.41123651701178125144B1
1301/26/201421:42:1238.189020.48629.520 × 10214.013.01317641651147727134B1
1401/26/201423:06:5538.239820.42972.220 × 10224.218.31324651741178525124A2
1501/27/20149:47:3838.151720.40251.380 × 10224.114.81426681751188522104A1
1601/27/201413:05:5038.230820.44032.960 × 10224.311.1111969169113802184B1
1701/27/201415:39:3438.374820.42222.220 × 10224.213.8132080173289831074C1
1801/28/20141:05:5538.254220.43479.520 × 10214.015.11220651721138325124B1
1901/28/20145:12:5338.208320.38172.960 × 10224.312.882262170117812884C1
2001/28/20148:07:1138.213820.55029.520 × 10214.015.31123601721178330134A1
2101/28/201414:49:3338.212020.45529.520 × 10214.017.71125681741178422104B1
2201/28/201419:12:1138.404820.50221.380 × 10224.110.61217641761098626124A2
2301/28/201422:22:3738.403720.48852.220 × 10224.215.6132065173113842594A2
2401/28/201422:23:3938.392720.44182.220 × 10224.215.91222601751158630134B1
2501/30/201411:06:1838.405020.52674.060 × 10224.49.284731591007018124C1
2601/31/20146:52:4738.421020.48434.060 × 10224.412.4121964170113812674B1
2701/31/201412:45:4038.418020.46772.960 × 10224.318.61318651701128125124A1
2802/01/201416:33:3838.172720.38767.350 × 10224.510.6121768175109852284B1
2903/02/20143:08:4438.252720.39482.460 × 10246.010.51720671741128423105A1
3002/04/201419:42:1238.281720.37022.220 × 10224.216.51123661721168324104B1
3102/07/20143:26:4338.325320.43252.220 × 10224.213.0925601701208130124A2
3202/07/20148:59:4338.233820.45582.220 × 10224.212.9122065175114812594B1
3302/09/20148:22:5838.175220.36757.350 × 10224.511.21220671801109023124B1
3402/12/201410:34:3138.165520.35388.170 × 10224.611.11225701661207721145B1
3502/14/20143:38:3338.167720.34328.170 × 10224.79.81320671701148123135B1
3602/21/201415:18:2338.214720.97207.350 × 10224.516.21326731771178717104B1
3703/05/201412:49:2038.078020.30928.170 × 10224.620.41230701701238015124A1
3803/05/201415:08:4338.079220.34671.380 × 10224.118.01418701681127920134B1
3903/05/201418:42:0238.142320.41859.520 × 10214.016.31222651681177925104B1
4003/10/201423:27:4838.208720.28529.520 × 10214.013.4122570170120852694B1
4111/05/201414:22:2438.102720.48771.380 × 10224.116.6102368175115852284A1
4211/07/20147:41:3838.102020.43588.170 × 10224.717.792064170114812694B1
4311/08/201423:15:4238.099820.44004.065 × 10255.018.41122671681177923105C1
4411/12/20146:31:3738.289320.47229.520 × 10214.013.891962170114812884B1
4511/13/20149:37:5338.380320.51422.960 × 10224.312.4132360172117833074A1
4611/24/20147:20:3238.302220.36301.380 × 10224.115.21317681751098522124B1
4712/11/201422:24:2238.381520.44128.170 × 10224.628.0122560170120813084B1
4803/31/201515:48:4138.317320.52208.170 × 10224.611.31418641701128126134A2
4904/04/20154:38:1938.310820.53084.060 × 10224.413.41219621701148128104B1
5006/02/201514:04:2138.146520.47224.060 × 10224.415.3122069169114802195A1
5111/17/201511:49:4538.486220.48579.520 × 10214.07.5132270168116792075A2
5211/18/20155:18:1338.496720.51774.060 × 10224.413.6122077173112831385B1
5311/19/201517:45:5538.462320.49522.960 × 10224.312.584068176132862294B1
5411/20/20155:12:2438.470320.48758.170 × 10224.712.41420641781118826124A1
5501/04/20167:21:4538.315520.40122.960 × 10224.315.0132088166111762124A2
5604/11/201618:53:4438.213320.33251.380 × 10224.120.5121587144107544134A1
5715/01/20191:11:4938.289820.41422.220 × 10224.211.211473159100701884A1
Table
Table A2. Source parameters of the main events and the intermediate magnitudes for Lefkas Seismic Sequence for the period 2015–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending from the misfit and the percentage CLVD.
Table A2. Source parameters of the main events and the intermediate magnitudes for Lefkas Seismic Sequence for the period 2015–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending from the misfit and the percentage CLVD.
Nr.OriginLocationM0 (dyn*cm)MwDepth (km)Plane 1Plane 2CLVD (%)Nr of StationsQuality
DateTimeLat (°)Lon (°)CatalogMTStrike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
111/17/20157:10:0738.665520.60024.402 × 10286.410.71029088−122082−178156A1
211/17/20158:33:4038.651520.55704.065 × 10255.08.78112876228417786A1
311/17/201511:49:4538.486220.48571.439 × 10224.07.5231025−84383−123104B1
411/17/201511:57:2538.702520.61456.133 × 10224.59.9424651721178325125A2
511/17/201512:37:5638.702220.65381.300 × 10234.74.841448914537617974A1
611/17/201519:39:3438.704020.60172.240 × 10224.28.543088544186−175104A1
711/18/20155:18:1338.496720.51775.817 × 10224.413.68336861726781995A2
811/18/201512:15:3838.844320.59153.857 × 10235.017.21020371−17411184−1965A1
911/18/201513:03:1438.719720.62881.483 × 10234.78.3431496−245367−15855A1
1011/18/201518:30:0738.723820.62802.443 × 10224.26.322908615521597104A2
1111/20/20155:12:2438.470320.48751.746 × 10234.812.48116805268517065A1
1211/20/20159:33:1438.634720.58307.662 × 10224.510.7620380175294851075A1
1311/20/201523:37:0438.712820.60939.104 × 10254.612.0230257−103781−14694A1
1411/21/20150:41:5638.714820.61707.199 × 10224.59.3229780−203169−168104A1
1501/04/201618:00:5538.603720.59172.720 × 10224.214.1102947−17429586−43104A2
1612/25/201723:47:0538.593720.56135.817 × 10224.44.7811170503575215074A1
1701/15/20191:25:0538.942820.61785.817 × 10224.418.8111195830147115054A1
1802/05/20192:26:0938.980320.58704.065 × 10255.013.21022427170317855465A1
1902/26/201910:05:5938.862320.61041.439 × 10224.04.6829153−92783−142104A1
Table
Table A3. Source parameters of the main events and the intermediate magnitudes for Zakynthos Seismic Sequence for the period 2018–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending from the misfit and the percentage CLVD.
Table A3. Source parameters of the main events and the intermediate magnitudes for Zakynthos Seismic Sequence for the period 2018–2019. Nr is the event number. Lat and Lon are the geographical coordinates of each event, as calculated by the National Observatory of Athens; M0 is the seismic moment in dyn*cm, Mw is the moment magnitude; Strike, Dip, Rake of the two nodal planes are the seismic parameters as calculated from the inversion; CLVD is the percentage of Compensated Linear Vector Dipole, which describes seismic sources with no volume changes; Nr of stations is the number of stations used in inversion and finally the quality of the solution depending from the misfit and the percentage CLVD.
NrOriginLocationM0 (dyn*cm)MwDepth (km)Plane 1Plane 2CLVD (%)Nr of StationsQuality
DateTimeLat (°)Lon (°) CatalogMTStrike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
110/25/201822:22:5337.348220.55471.746 × 10234.85.015140708034722116104A1
210/25/201822:54:5037.351620.49221.450 × 10266.712.81712342301070128205A2
310/26/20185:48:3637.359220.50584.065 × 10255.03.11619391391436659125A1
410/26/20181:06:0337.388720.85607.350 × 10224.55.61533471701308343154A2
510/26/20180:13:3937.466020.67127.350 × 10224.55.71819281761138862134A1
610/26/201812:41:1337.375320.53605.420 × 10225.17.3192328163128826384A1
710/26/201816:07:0937.424820.58924.060 × 10224.46.71534156140695741105A2
810/27/20185:28:4637.474320.63924.060 × 10224.45.11225611261494544124A1
910/30/20182:59:5937.593820.51235.820 × 10245.46.9183641152148725374A1
1010/30/20188:32:2637.484020.43001.746 × 10234.811.317124817736016145105A1
1110/30/201815:12:0237.457520.45221.900 × 10235.85.5191828164122836355A1
1211/01/20182:44:4837.367320.56588.170 × 10224.611.31820251661238466134A1
1311/04/20183:12:4437.378520.41131.746 × 10234.85.2171628166119846695A1
1411/05/20186:46:1237.626820.48637.350 × 10224.58.31710241791019066104A1
1511/11/201823:38:3537.632720.50551.746 × 10234.87.01812271781048963125A1
1611/15/20189:02:0537.522720.68251.746 × 10234.817.41522291561337963125A1
1711/15/20189:09:2637.488720.65037.350 × 10224.56.81742491671418042104A2
1812/25/20181:41:2737.324320.79638.170 × 10224.612.31414251681158566104A2

References

  1. Lekkas, E.; Danamos, G.; Mavrikas, G. Geological Structure and Evolution of Kefallonia and Ithaki islands. Bull. Geol. Soc. Greece 2001, 34, 11–17. [Google Scholar] [CrossRef]
  2. Stiros, S.C.; Pirazzoli, P.A.; Laborel, J.; Laborel-Deguen, F. The 1953 earthquake in Kefallinia (Western Hellenic Arc): Coastal uplift and halotectonic faulting. Geophys. J. Int. 1994, 117, 834–849. [Google Scholar] [CrossRef] [Green Version]
  3. Louvari, E.; Kiratzi, A.A.; Papazachos, B.C. The Kefallinia transform fault and its extension to western Lefkas Island (Greece). Tectonophysics 1999, 308, 223–236. [Google Scholar] [CrossRef]
  4. Finetti, I.; Morreli, C. Geophysical exprolation of the 44Mediterranean Sea. Boll. Geofis. Teor. 1973, 15, 263–341. [Google Scholar]
  5. Stride, A.; Belderson, R.; Kenyon, N. Evolving miogeoanticlines of the Eastern Mediterranean (Hellenic, Calabrian and Cyprus outer ridges). Philos. Trans. R. Soc. Lond. 1979, 282, 255–285. [Google Scholar]
  6. Finetti, I. Structure, stratigraphy and evolution of central Mediterranean. Boll. Geofis. Teor. Appl. 1982, 24, 247–426. [Google Scholar]
  7. BP (British Petroleum) Co., Ltd. The Geological Results of Petroleum Exploration in Western Greece: Institute for Geology and Subsurface Research (Now Institute of Geology and Mineral Exploration) Special Report 10; BP (British Petroleum) Co., Ltd.: London, UK, 1971; pp. 1–73. [Google Scholar]
  8. Mercier, J.; Bousquet, B.; Delibassis, N.; Drakopoulos, I.; Keraudren, B.; Lemeille, F.; Sorel, D. Deformations en compression dans le Quaternaire des rivages ionien, Donnes neotectoniques et seismiques. C. R. Acad. Sci. Paris 1972, 275, 2307–2310. [Google Scholar]
  9. Cushing, M. Evolution Structural de la Marge Nord-Ouest Hellenique Dans l” Ile de Lefkas et Ses Environs (Grece Nord-Occidentale). Ph.D. Thesis, Univ. d”Orsay, Paris, France, 1985. [Google Scholar]
  10. Scordilis, E.M.; Karakaisis, G.F.; Karakostas, B.G.; Panagiotopoulos, D.G.; Comninakis, P.E.; Papazachos, B.C. Evidence for transform faulting in the Ionian Sea: The Kefallinia island earthquake sequence of 1983. Pure Appl. Geophys. 1985, 123, 388–397. [Google Scholar] [CrossRef]
  11. Anderson, H.; Jackson, J. Active tectonics of the Adriatic region. Geophys. J. Int. 1987, 91, 937–983. [Google Scholar] [CrossRef]
  12. Jackson, J.; McKenzie, D. The relationship between plate motions and seismic moment tensors, and the rates of active deformation in the Mediterranean and Middle East. Geophys. J. Int. 1988, 93, 45–73. [Google Scholar] [CrossRef] [Green Version]
  13. Kiratzi, A.A.; Langston, C.A. Moment tensor inversion of the 1983 17 January Kefallinia event of Ionian Islands (Greece). Geophys. J. Int. 1991, 105, 529–535. [Google Scholar] [CrossRef] [Green Version]
  14. Hatzfeld, D.; Kassaras, I.; Panagiotopoulos, D.; Amorese, D.; Makropoulos, K.; Karakaisis, D.; Coutant, O. Microseismicity and strain pattern in northwestern Greece. Tectonics 1995, 14, 773–785. [Google Scholar] [CrossRef]
  15. Kahle, H.; Muller, M.; Geiger, A.; Danuser, G.; Mueller, S.; Veis, G.; Billiris, H.; Paradissis, D. The strain field in northwestern Greece and the Ionian islands: Results inferres from G.P.S. measurements. Tectonophysics 1995, 249, 41–52. [Google Scholar] [CrossRef]
  16. Kahle, H.; Muller, M.; Veis, G. Trajectories of crustal deformation of Western Greece fromGPS observations 1989–1994. J. Geophys. Lett. 1996, 23, 677–680. [Google Scholar] [CrossRef]
  17. Makropoulos, K.; Diagourtas, D.; Kassaras, J.; Kouskouna, V.; Papadimitriou, P.; Ziazia, M. The November–December 1994 Lefkas (W. Greece) earthquake sequence: Results from in situ seismological survey (abstract). In Proceedings of the 1st Congress of the Balkan Geophysical Society, Athens, Greece, 23–27 September 1996. [Google Scholar]
  18. Sachpazi, M.; Hirn, A.; Laigle, M.C.; Haslinger, F.; Kissling, E.; Hello, Y.C.; Lépine, J.C.; Sapin, M.; Ansorge, J. Western Hellenic subduction and Kefallinia Transform: Local earthquakes and plate transport and strain. Tectonophysics 2000, 319, 301–319. [Google Scholar] [CrossRef]
  19. Konstantaras, A. Expert knowledge-based algorithm for the dynamic discrimination of interactive natural clusters. Earth Sci. Inf. 2016, 9, 95–100. [Google Scholar] [CrossRef]
  20. Konstantaras, A. Classification of distinct seismic regions and regional temporal modelling of seismicity in the vicinity of the Hellenic seismic arc. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2013, 6, 1857–1863. [Google Scholar] [CrossRef]
  21. Konstantaras, A.; Vallianatos, F.; Varley, M.R.; Makris, J.P. Soft-computing modelling of seismicity in the southern Hellenic Arc. IEEE Geosci. Remote Sens. Lett. 2008, 5, 323–327. [Google Scholar] [CrossRef]
  22. Konstantaras, A. Deep Learning and Parallel Processing Spatio-Temporal Clustering Unveil New Ionian Distinct Seismic Zone. Informatics 2020, 7, 39. [Google Scholar] [CrossRef]
  23. Emodnet-bathymetry.eu. Emodnet Bathymetry. 2021. Available online: https://www.emodnet-bathymetry.eu (accessed on 18 January 2021).
  24. EU-DEM. 2021. Available online: https://land.copernicus.eu/imagery-in-situ/eu-dem (accessed on 18 January 2021).
  25. Basili, R.; Kastelic, V.; Demircioglu, M.B.; Moreno, D.G.; Nemser, E.S.; Petricca, P.; Sboras, S.P.; Besana-Ostman, G.M.; Cabral, J.; Camelbeeck, T.; et al. The European Database of Seismogenic Faults (EDSF) Compiled in the Framework of the Project SHARE. 2013. Available online: http://diss.rm.ingv.it/share-edsf/ (accessed on 18 January 2021). [CrossRef]
  26. Moshou, A. Strong earthquake sequences in Greece during 2008–2014: Moment Tensor inversions and fault plane discrimination. Open J. Earthq. Res. 2020, 9, 323–348. [Google Scholar] [CrossRef]
  27. Bbnet.gein.noa.gr. NOA Seismic Network (HL)—Introduction. 2021. Available online: https://bbnet.gein.noa.gr/HL (accessed on 18 January 2021).
  28. Geophysics.geol.uoa.gr. Department of Geophysics—Geothermics. 2021. Available online: http://www.geophysics.geol.uoa.gr (accessed on 18 January 2021).
  29. Geophysics.geo.auth.gr. Τομέας Γεωφυσικής A.Π.Θ. 2021. Available online: http://geophysics.geo.auth.gr (accessed on 18 January 2021).
  30. Seismo.geology.upatras.gr. UPSL—Uni. Patras Seismological Laboratory. 2021. Available online: http://seismo.geology.upatras.gr (accessed on 18 January 2021).
  31. Gein.noa.gr. Noanet Greece Gnss Network. 2021. Available online: http://www.gein.noa.gr/services/GPS/noa_gps.html (accessed on 18 January 2021).
  32. Estey, L.H.; Meertens, C.M. TEQC: The Multi-Purpose Toolkit for GPS/GLONASS Data. GPS Solut. 1999, 3, 42–49. [Google Scholar] [CrossRef]
  33. Ganas, A.; Karastathis, V.; Moshou, A.; Valkaniotis, S.; Mouzakiotis, E.; Papathanassiou, G. Aftershock relocation and frequency–size distribution, stress inversion and seismotectonic setting of the 7 August 2013 M = 5.4 earthquake in Kallidromon Mountain, central Greece. Tectonophysics 2014, 617, 101–113. [Google Scholar] [CrossRef]
  34. Ganas, A.; Kourkouli, P.; Briole, P.; Moshou, A.; Elias, P.; Parcharidis, I. Coseismic Displacements from Moderate-Size Earthquakes Mapped by Sentinel-1 Differential Interferometry: The Case of February 2017 Gulpinar Earthquake Sequence (Biga Peninsula, Turkey). Remote Sens. 2017, 10, 1089. [Google Scholar] [CrossRef] [Green Version]
  35. Randal, G.E. Efficient calculation of complete differential seismograms for laterally homogeneous earth models. Geophys. J. Int. 1994, 118, 245–254. [Google Scholar] [CrossRef] [Green Version]
  36. Kennett, B.N.L. Seismic Wave Propagation in Stratified Media; Cambridge University Press: Cambridge, UK, 1983. [Google Scholar]
  37. Haslinger, F.; Kissling, E.; Ansorge, J.; Hatzfeld, D.; Papadimitriou, E.; Karakostas, V.; Makropoulos, K.; Kahl, H.G.; Peter, Y. 3D crustal structure from local earthquake tomography around the Gulf of Arta (Ionian region, N.W. Greece). Tectonophysics 1999, 304, 201–218. [Google Scholar] [CrossRef]
  38. Konstantinou, K.; Melis, N.; Boukouras, K. Routine Regional Moment Tensor Inversion for Earthquakes in the Greek Region: The National Observatory of Athens (N.O.A.) Database (2001–2006). Seismol. Res. Lett. 2010, 81, 750–760. [Google Scholar] [CrossRef]
  39. Melis, N.; Konstantinou, K. Real-time Seismic Monitoring in the Greek Region: An Example from the 17 October 2005 East Aegean Sea Earthquake Sequence. Seismol. Res. Lett. 2006, 77, 364–370. [Google Scholar] [CrossRef] [Green Version]
  40. Maravelakis, E.; Konstantaras, A.; Kabassi, K.; Chrysakis, I.; Georgis, C.; Axaridou, A. 3DSYSTEK web-based point cloud viewer. In Proceedings of the 5th International Conference on Information, Intelligence, Systems & Applications (IISA 2014), Chania, Greece, 7–9 July 2014; pp. 262–266. [Google Scholar]
  41. Axaridou, A.; Chrysakis, I.; Georgis, C.; Theodoridou, M.; Doerr, M.; Konstantaras, A.; Maravelakis, E. 3D-SYSTEK: Recording and exploiting the production workflow of 3D-models in cultural heritage. In Proceedings of the 5th International Conference on Information, Intelligence, Systems & Applications (IISA 2014), Chania, Greece, 7–9 July 2014; pp. 51–56. [Google Scholar]
  42. Karastathis, V.; Koukouvelas, I.; Ganas, A.; Moshou, A.; Mouzakiotis, A.; Papadopoulos, G.; Spanos, A. The strong Mw6 earthquake of 26 January 2014 in Kefallinia island, Ionian Sea, Greece: A first report. In Proceedings of the European Geosciences Union General Assembly 2014, Vienna, Austria, 27 April–2 May 2014; Volume 16, p. E.G.U. 2014-1700. [Google Scholar]
  43. Chouliaras, G.; Makropoulos, K.; Melis, N.; Drakatos, G.; Argyrakis, P.; Boukouras, K.; Petro, P.; European Seismological Commission. Improving the detecta bility of seismic events in Greece: The rapid deployment of N.O.A.’s portable seismographic network. In Proceedings of the European Seismological Commission 32nd General Assembly, Montpellier, France, 6–10 September 2010. [Google Scholar]
  44. Chouliaras, G. The rapid deployment of portable seismographic networks for real-time earthquake hazard assessment. In Proceedings of the International Workshop on Seismic Hazard and Earthquake Engineering, Kefalonia, Greece, 24–25 September 2014. [Google Scholar]
  45. Emsc-csem.org. Moment Tensors. 2021. Available online: https://www.emsc-csem.org/Earthquake/tensors.php?id=355461&year=2014 (accessed on 18 January 2021).
  46. Papathanassiou, G.; Ganas, A.; Moshou, A.; Valkaniotis, S. Geoenviromental effects of the M = 6.4, 17 November 2015 earthquake on south Lefkas, Ionian Sea, Greece. Bull. Geol. Soc. Greece 2016, 50, 521–539. [Google Scholar] [CrossRef] [Green Version]
  47. Papathanassiou, G.; Pavlides, S.; Ganas, A. The 2003 Lefkas earthquake: Field observations and preliminary microzonation map based on liquefaction potential index for the town of Lefkas. Eng. Geol. 2003, 82, 12–31. [Google Scholar] [CrossRef]
  48. Papadopoulos, G.A.; Karastathis, V.K.; Ganas, A.; Pavlides, S.; Fokaefs, A.; Orfanogiannaki, K. The Lefkas, Ionian Sea (Greece), shock (Mw 6.2) of 14 August 2003: Evidence for the characteristic earthquake from seismicity and ground failures. Earth Planets Space 2003, 55, 713–718. [Google Scholar] [CrossRef] [Green Version]
  49. Ganas, A.; Briole, P.; Papathanassiou, G.; Bozionelos, G.; Avallone, A.; Melgar, D.; Argyrakis, P.; Valkaniotis, S.; Mendonidis, E.; Moshou, A.; et al. A Preliminary Report on the 17 November, 2015 M = 6.4 South Lefkas Earthquake, Ionian Sea, Greece. Report on Emsc Csem. 2015. Available online: https://www.emsc-csem.org/Doc/Additional_Earthquake_Report/470390/Lefkas%2017%20Nov%202015%20earthquake%20report.pdf (accessed on 18 January 2021).
  50. Karakostas, V.; Papadimitriou, E.; Papazachos, C. Properties of the 2003 Lefkada, Ionian Islands, Greece, Earthquake Seismic Sequence and Seismicity Triggering. Bull. Seismol. Soc. Am. 2003, 94, 1976–1981. [Google Scholar] [CrossRef] [Green Version]
  51. Bbnet.gein.noa.gr. BBNET—Database of Revised Events (Since 01 January 2008). 2021. Available online: https://bbnet.gein.noa.gr/HL/databases/database (accessed on 18 January 2021).
  52. Sokos, E.; Gallovič, F.; Evangelidis, C.P.; Serpetsidaki, A.; Plicka, V.; Kostelecký, J.; Zahradník, J. The 2018 Mw 6.8 Zande, Greece, earthquake: Dominant strike-slip faulting near subducting slab. Seismol. Res. Lett. 2020, 91, 721–732. [Google Scholar] [CrossRef]
  53. Zahradnik, J.; Sokos, E.; Plicka, V. Zande 25 October 2018, Mw 6.8 Earthquake: Superposition of Strike-Slip and Thrust? EMSC Web Report. 2018. Available online: https://www.emsccsem.org/Files/news/Earthquakes_reports/Zande_2018_Report.pdf (accessed on 18 January 2021).
  54. Ganas, A.; Briole, P.; Bozionelos, G.; Elias, P.; Valkaniotis, S.; Tsironi, V.; Moshou, A.; Andritsou, N. The 25 October, 2018 M6.7 Zande Earthquake Sequence (Ionian Sea, Greece): Fault Modelling from Seismic and GNSS Data and Implications for Seismic Strain Release Along the Western Hellenic Arc. Bull. Geol. Soc. Greece 2019, 7, 602–603. [Google Scholar]
  55. Papadimitriou, P.; Chousianitis, K.; Agalos, A.; Moshou, A.; Lagios, E.; Makropoulos, K. The spatially extended 2006 April Zande (Ionian Islands, Greece) seismic sequence and evidence for stress transfer. Geophys. J. Int. 2012, 190, 1025–1040. [Google Scholar] [CrossRef]
  56. Gipsy-oasis.jpl.nasa.gov. 2021. Available online: http://gipsy-oasis.jpl.nasa.gov (accessed on 18 January 2021).
  57. Zumberge, J.F.; Heflin, M.B.; Jefferson, D.C.; Watkins, M.M.; Webb, F.H. Precise point positioning for the efficient and robust analysis of G.P.S. data from large network. J. Geophys. Res. 1997, 102, 5005–5017. [Google Scholar] [CrossRef] [Green Version]
  58. Hill, E.M.; Blewitt, G. Testing for fault activity at Yucca Mountain, Nevada, using independent G.P.S. results from the BARGEN network. Geophys. Res. Lett. 2006, 33. [Google Scholar] [CrossRef]
  59. Rozsa, S. Modelling Tropospheric Delays Using the Global Surface Meteorological Parameter Model GPT2. Period Polytech. Civ. Eng. 2014, 58, 301–308. [Google Scholar] [CrossRef] [Green Version]
  60. Wang, M.; Li, B. Evaluation of Empirical Tropospheric Models Using Satellite-Tracking Tropospheric Wet Delays with Water Vapor Radiometer at Tongji, China. Sensors 2016, 16, 186. [Google Scholar] [CrossRef] [Green Version]
  61. Steigenberger, P.; Boehm, J.; Tesmer, V. Comparison of GMF/GPT with VMF1/ECMWF and Implications for Atmospheric Loading. J. Geod. 2009, 83, 943. [Google Scholar] [CrossRef]
  62. Igs.org. WG/PP Registration—International GNSS Service. Available online: http://www.igs.org/wg (accessed on 18 January 2021).
  63. Wahr, J.M. Deformation induced by polar motion. J. Geophys. Res. 1995, 90, 9363–9368. [Google Scholar] [CrossRef]
  64. Wu, D.; Yan, H.; Shen, Y. TSAnalyzer, a GNSS time series analysis software. GPS Solut. 2017, 21, 1389–1394. [Google Scholar] [CrossRef]
  65. Papadopoulos, G.; Karastathis, V.; Koukouvelas, I.; Sachpazi, M.; Baskoutas, I.; Chouliaras, G.; Agalos, A.; Daskalaki, E.; Minadakis, G.; Moschou, A.; et al. The Kefallinia, Ionian Sea (Greece), sequence of strong earthquakes of January–February 2014: A first report. Res. Geophys. 2014, 4, 19–30. [Google Scholar]
  66. Benetatos, C.; Kiratzi, A.; Roumelioti, Z.; Stavrakakis, G.; Drakatos, G.; Latoussakis, I. The 14 August 2003 Lefkas Island (Greece) earthquake: Focal mechanisms of the mainshock and of the aftershock sequence. J. Seismol. 2005, 9, 171–190. [Google Scholar] [CrossRef]
  67. Parkinson, B.W.; Enge, P. Differential G.P.S. In Global Positioning System: Theory and Applications; Parkinson, B., Spilker, J., Axelrad, P., Enge, P., Eds.; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 1996; Volume II, pp. 3–50. [Google Scholar]
  68. Rebischung, P.; Altamimi, Z.; Ray, J.; Garayt, B. The IGS contribution to ITRF2014. J. Geod. 2016, 90, 611–630. [Google Scholar] [CrossRef]
  69. Sakkas, V.; Lagios, E. Ground deformation effects from the M6 earthquakes (2014–2015) on Kefallinia–Ithaca Islands (Western Greece) deduced by G.P.S. observations. Acta Geophys. 2017, 65, 207–222. [Google Scholar] [CrossRef]
  70. Chousianitis, K.; Konca, A.O.; Tselentis, G.-A.; Papadopoulos, G.A.; Gianniou, M. Slip model of the 17 November 2015 Mw = 6.5 Lefkada earthquake from the joint inversion of geodetic and seismic data. Geophys. Res. Lett. 2016, 43, 7973–7981. [Google Scholar] [CrossRef] [Green Version]
  71. Avallone, A.; Cirella, A.; Cheloni, D.; Tolomei, C.; Theodoulidis, N.; Piatanesi, A.; Briole, P.; Ganas, A. Near-source high-rate G.P.S., strong motion and InSAR observations to image the 2015 Lefkada (Greece) Earthquake rupture history. Sci. Rep. 2017, 7, 10358. [Google Scholar] [CrossRef] [Green Version]
Data 06 00008 g001 550
Figure 1. General structure map of the Ionian Sea and the broader area of West Greece; red squares represent the prefectures, while orange lines the main active faults for the study area [23]. Bathymetry is from Emodnet Bathymetr, [23] and DEM. Copernicus Land Monitoring Service, [24] red triangles represent the GNSS network stations, green triangles represent the stations of the portable seismograph network installed immediately after the main earthquake, yellow triangles indicate the permanent stations of the Unified Seismological Network (HUSN), and finally, the three yellow stars indicate the historical earthquake in the region of Cephalonia.
Figure 1. General structure map of the Ionian Sea and the broader area of West Greece; red squares represent the prefectures, while orange lines the main active faults for the study area [23]. Bathymetry is from Emodnet Bathymetr, [23] and DEM. Copernicus Land Monitoring Service, [24] red triangles represent the GNSS network stations, green triangles represent the stations of the portable seismograph network installed immediately after the main earthquake, yellow triangles indicate the permanent stations of the Unified Seismological Network (HUSN), and finally, the three yellow stars indicate the historical earthquake in the region of Cephalonia.
Data 06 00008 g001
Data 06 00008 g002 550
Figure 2. 3-D distribution of epicenters relative to the seismic sequence’s depth and magnitude in Cephalonia Island for 2014–2019.
Figure 2. 3-D distribution of epicenters relative to the seismic sequence’s depth and magnitude in Cephalonia Island for 2014–2019.
Data 06 00008 g002
Data 06 00008 g003 550
Figure 3. The 26 January 2014 (ML = 5.8, 5.1—yellow stars), 3 February (ML = 5.7—yellow star), and aftershock epicenters were recorded and manually calculated by the scientific team of the peaking of National Observatory of Athens (NOA—[27]) until 31 December 2019. Distribution of the epicenters for the time period 2014–2019 size and color of the points according to magnitude and depth.
Figure 3. The 26 January 2014 (ML = 5.8, 5.1—yellow stars), 3 February (ML = 5.7—yellow star), and aftershock epicenters were recorded and manually calculated by the scientific team of the peaking of National Observatory of Athens (NOA—[27]) until 31 December 2019. Distribution of the epicenters for the time period 2014–2019 size and color of the points according to magnitude and depth.
Data 06 00008 g003
Data 06 00008 g004 550
Figure 4. Moment tensor solution of the 26 January 2014 (13:55 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/compensated linear vector dipole (CLVD)-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Figure 4. Moment tensor solution of the 26 January 2014 (13:55 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/compensated linear vector dipole (CLVD)-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Data 06 00008 g004
Data 06 00008 g005 550
Figure 5. Moment tensor solution of the 26 January 2014 (18:45 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/compensated linear vector dipole (CLVD)-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Figure 5. Moment tensor solution of the 26 January 2014 (18:45 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/compensated linear vector dipole (CLVD)-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Data 06 00008 g005
Data 06 00008 g006 550
Figure 6. Moment tensor solution of the 3 February 2014 (03:08 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams. Below this appears the summary of the solution and the corresponding beach ball. The left of the figure shows the misfit/CLVD diagrams observed and synthetic displacement waveforms (continuous and dotted lines, respectively) at the inverted stations for the radial, tangential and vertical components. In the lower part of the figure, the solution’s summary and the fault plane solution as lower hemisphere equal-area projection are depicted.
Figure 6. Moment tensor solution of the 3 February 2014 (03:08 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams. Below this appears the summary of the solution and the corresponding beach ball. The left of the figure shows the misfit/CLVD diagrams observed and synthetic displacement waveforms (continuous and dotted lines, respectively) at the inverted stations for the radial, tangential and vertical components. In the lower part of the figure, the solution’s summary and the fault plane solution as lower hemisphere equal-area projection are depicted.
Data 06 00008 g006
Data 06 00008 g007 550
Figure 7. (a) 3-D distribution of epicenters for the seismic sequences in Lefkas Island for the time period 17 November 2015–31 December 2019 with a total number of events n = 2804. The red color marks the epicenter with depths under 10 km, the yellow color the epicenter of this sequence with depths between 10 km < d < 20 km, and the blue color the epicenters with depths between them 30 km < d < 40 km. All the epicenters’ depths were taken as calculated from the manual analysis of the National Observatory of Athens, [51], by selecting the study area and the time interval; (b) distribution of epicenters for the seismic sequences in Lefkas Island for 17 November 2015–31 December 2019 with a total number of events n = 2804. All the epicenters were taken as calculated from the manual analysis of the National Observatory of Athens, [51] by selecting the study area and the time interval. The size and color of the points are dependent on magnitude and depth accordingly.
Figure 7. (a) 3-D distribution of epicenters for the seismic sequences in Lefkas Island for the time period 17 November 2015–31 December 2019 with a total number of events n = 2804. The red color marks the epicenter with depths under 10 km, the yellow color the epicenter of this sequence with depths between 10 km < d < 20 km, and the blue color the epicenters with depths between them 30 km < d < 40 km. All the epicenters’ depths were taken as calculated from the manual analysis of the National Observatory of Athens, [51], by selecting the study area and the time interval; (b) distribution of epicenters for the seismic sequences in Lefkas Island for 17 November 2015–31 December 2019 with a total number of events n = 2804. All the epicenters were taken as calculated from the manual analysis of the National Observatory of Athens, [51] by selecting the study area and the time interval. The size and color of the points are dependent on magnitude and depth accordingly.
Data 06 00008 g007
Data 06 00008 g008 550
Figure 8. Moment tensor solution of the 17 November 2015 (07:10 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Figure 8. Moment tensor solution of the 17 November 2015 (07:10 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Data 06 00008 g008
Data 06 00008 g009 550
Figure 9. (a) Distribution of epicenters for the seismic sequences in Zakynthos Island for the period 25 October 2018–31 December 2019 with a total number of events n = 12.629. All the epicenters’ depths were taken as calculated from the manual analysis of the National Observatory of Athens dataset [51] selecting the study area and the time interval; (b) distribution of epicenters for the seismic sequences in Zakynthos Island for the period 25 October 2018–31 December 2019. All the epicenters were taken as calculated from the manual analysis of the National Observatory of Athens, [51] by selecting the study area and the time interval.
Figure 9. (a) Distribution of epicenters for the seismic sequences in Zakynthos Island for the period 25 October 2018–31 December 2019 with a total number of events n = 12.629. All the epicenters’ depths were taken as calculated from the manual analysis of the National Observatory of Athens dataset [51] selecting the study area and the time interval; (b) distribution of epicenters for the seismic sequences in Zakynthos Island for the period 25 October 2018–31 December 2019. All the epicenters were taken as calculated from the manual analysis of the National Observatory of Athens, [51] by selecting the study area and the time interval.
Data 06 00008 g009
Data 06 00008 g010 550
Figure 10. Moment tensor solution of the 25 October 2018 (22:54 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Figure 10. Moment tensor solution of the 25 October 2018 (22:54 UTC) earthquake. The selected solution is highlighted with the green arrow in the misfit/CLVD-versus-depth diagrams (center-up). The summary of the solution and the corresponding beach ball is shown in the center-low. The observed and synthetic displacement waveforms (continuous and dotted lines, respectively) are shown at the left, at the inverted stations for the radial, tangential and vertical components. At left-center-right and up-middle-low, the summary of the solution and the fault plane solution as lower hemisphere equal-area projection are depicted.
Data 06 00008 g010
Data 06 00008 g011a 550Data 06 00008 g011b 550
Figure 11. GNSS time series of permanent stations: from the top, Ponti Lefkas (PONT), Valsamata Cephalonia (VLSM) and Spanohori Lefkas (SPAN). Vertical lines show the significant earthquakes in 2014 and 2015 and also shows in 2014 the effect on the time series of the antenna change at station VLSM. The displacement that occurred was marked with a vertical red line. The east displacement scale in Figure 12 was changed (magnified) to better observe the displacement.
Figure 11. GNSS time series of permanent stations: from the top, Ponti Lefkas (PONT), Valsamata Cephalonia (VLSM) and Spanohori Lefkas (SPAN). Vertical lines show the significant earthquakes in 2014 and 2015 and also shows in 2014 the effect on the time series of the antenna change at station VLSM. The displacement that occurred was marked with a vertical red line. The east displacement scale in Figure 12 was changed (magnified) to better observe the displacement.
Data 06 00008 g011aData 06 00008 g011b
Data 06 00008 g012 550
Figure 12. The Ionian region’s main earthquakes from 2014 to 2019 with Moment Tensors solutions and major faults from [56], the red triangles represent the permanent GNSS stations with green arrows representing the displacement from Lefkas Earthquake (Mw 6.4) PONT 42.2 cm, SPAN 9.2 cm, VLSM 2 cm.
Figure 12. The Ionian region’s main earthquakes from 2014 to 2019 with Moment Tensors solutions and major faults from [56], the red triangles represent the permanent GNSS stations with green arrows representing the displacement from Lefkas Earthquake (Mw 6.4) PONT 42.2 cm, SPAN 9.2 cm, VLSM 2 cm.
Data 06 00008 g012
Table
Table 1. Characteristics of Seismological stations in the broader area of Greece. Station coordinates are in decimal degrees; elevation is in m. Sources: [27,28,29,30].
Table 1. Characteristics of Seismological stations in the broader area of Greece. Station coordinates are in decimal degrees; elevation is in m. Sources: [27,28,29,30].
Name of the StationLocationLatitude (°)Longitude (°)Elevation (m)DataloggerSeismometer
A.G.G.Agios Georgios39.0211022.33600625TRIDENTCMG-3ESP/100
ANKYAntikythira Island35.8670423.30117143PS6-SCGuralp-3ESPC/60
EVRKarpenisi Evritania38.9165721.810501037DR24-SCGuralp-3ESPC/60
IGTIgoumenitsa39.5315020.32990262HRD-24CMG-3ESP/100
IMMVChania Crete35.4606023.98110230PS6-SCSTS-2
ITMIthomi Messinia37.1787221.92522423DR24-SCSTS-2
JANJanena39.6561620.84874526DR24-SCGuralp-3ESPC/60
KEKKerkira Island39.7127019.79623227DR24-SCSTS-2
KRNDKranidi37.3830023.15020140TAURUSCMG-3ESP/100
MAKRMakrakomi39.0132022.13170532CMG-DM24S6-EAMCMG-40T
MHLOMilos Island36.6898424.40171175PS6-SCLe3D/20
THLKlokotos Thessalia39.5646822.0144086DR24-SCSTS-2
PYLPylos36.8955021.74200220CMG-3TReftek-130
Table
Table 2. Characteristics of GNSS stations in Ionian. Station coordinates are in decimal degrees; height is in m.
Table 2. Characteristics of GNSS stations in Ionian. Station coordinates are in decimal degrees; height is in m.
NameLocationLATLONHeightAntennaReceiverData StartData End
VLSMValsamata (Cephalonia)38.17620.588437.19LEIAS 10, NONELEICA GR1001 January 201430 December 2019
PONTPonti (Lefkas)38.61920.58548.81LEIAX1202, GG NONELEICA GRX 1200PRO01 January 201430 December 2019
SPANSpanochori (Lefkas)38.78120.673451.34LEIAX1202, GG NONELEICA GRX 1200PRO01 January 201430 December 2019
Table
Table 3. List of Moment Tensor Solutions published by various Institutions for Cephalonia earthquakes’ main shocks (January–February 2014). Source: [45].
Table 3. List of Moment Tensor Solutions published by various Institutions for Cephalonia earthquakes’ main shocks (January–February 2014). Source: [45].
Cephalonia Earthquake (26 January 2014, 13:55:43.04, UTC) Mw = 6.1
InstituteLat (°)Lon (°)MwM0 (dyn*cm)Depth (km)Strike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
Our Study38.25220.4436.11.510 × 10231323681751158522
NOA38.22020.3906.01.250 × 1028618671641147524
HARV38.15020.3606.12.040 × 10251420651771118725
INGV38.17020.3706.11.700 × 10251029081−12089−171
KOERI38.28320.5985.89.570 × 1024161687−17428684−3
GFZ38.25020.4506.12.000 × 10251728985419886175
CPP38.20020.4006.22.120 × 10251910491591147442
GEOAZUR38.20820.4256.22.120 × 1025615681651117622
AUTH38.26020.5906.11.360 × 10281028690−51685−180
UOA38.21320.4676.12.030 × 10251630701691248020
Cephalonia Earthquake (26 January 2014, 18:45:08.02, UTC) Mw = 5.3
InstituteLat (°)Lon (°)MwM0 (dyn*cm)Depth (km)Strike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
Our Study38.23520.4415.25.990 × 10232019621701148128
NOA38.23620.4425.31.030 × 1027614964651635131
HARV38.10020.2505.52.020 × 10241716391381416559
INGV38.12020.2805.52.200 × 10241715381391406660
GFZ38.29020.3405.41.400 × 10241517350913524089
AUTH38.23020.3705.31.410 × 1024920391231605866
Cephalonia Earthquake (03/02/2014, 03:08:44.66, UTC) Mw = 6.0
InstituteLat (°)Lon (°)MwM0 (dyn*cm)Depth (km)Strike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
Our Study38.24620.3966.11.630 × 102512176581452866137
NOA38.25320.3955.91.020 × 1028313751631087315
HARV38.12020.3706.01.490 × 10251212451541207248
USGS38.19020.3406.01.490 × 102516356501271265254
INGV38.20020.3906.12.000 × 1025813431611187749
KOERI38.26020.3205.89.570 × 102460317665919338139
GFZ38.23020.3906.01.300 × 102514183561383005643
CPP38.30020.3006.44.270 × 102515142828435510122
AUTH38.27020.3206.09.640 × 1024728787−31787−177
UOA38.26920.3885.99.600 × 1024535621751278628
Table
Table 4. List of Moment Tensor Solutions published by various Institutions for the 17 November 2015 earthquake (07:10, UTC) Source: CSEM—EMSC, [45].
Table 4. List of Moment Tensor Solutions published by various Institutions for the 17 November 2015 earthquake (07:10, UTC) Source: CSEM—EMSC, [45].
Lefkas Earthquake (17 November 2015, 07:10:07.30, UTC) Mw = 6.4
InstituteLat (°)Lon (°)MwM0 (dyn*cm)Depth (km)Strike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
Our Study38.665520.60026.44.400 × 10251029088−122082−178
NOA38.666220.59576.44.400 × 10251020388159293692
USGS38.765920.55766.56.690 × 10251529386−92380−176
GFZ38.790020.47006.44.600 × 1025131128762284177
HARVARD38.500020.51006.56.920 × 1025142469−17629287−21
INGV38.620020.32006.55.700 × 10251323711791138919
IPGP38.755020.55206.69.980 × 10251329585−182772−175
CPPT38.780020.63006.56.170 × 10251529480−52485−170
AUTH38.660020.60006.34.960 × 102512201801422995313
UPSL38.675720.57206.45.270 × 10251221167−16511577−24
Table
Table 5. List of Moment Tensor Solutions published by various Institutions for the 25 October 2018 earthquake (22:54, UTC). Source: CSEM—EMSC.
Table 5. List of Moment Tensor Solutions published by various Institutions for the 25 October 2018 earthquake (22:54, UTC). Source: CSEM—EMSC.
Zakynthos Earthquake (25 October 2018, 22:54:50.00, UTC) Mw = 6.7
InstituteLat (°)Lon (°)MwM0 (dyn*cm)Depth (km)Strike (°)Dip (°)Rake (°)Strike (°)Dip (°)Rake (°)
Our Study37.351620.49226.71.450 × 10261712342301070128
NOA37.341020.51236.71.450 × 10261010885411449174
USGS37.577520.68596.81.700 × 102619.51098151838166
INGV37.490020.60006.82.600 × 10262511785631727168
GFZ37.520020.66006.82.100 × 1026181078568523167
GCMT37.330020.61006.82.310 × 10261211784661324165
UPSL37.530020.62006.81.780 × 10261010985421547173
AUTH37.390020.63006.68.590 × 10251427386−10380−179
UOA37.360120.49556.69.050 × 10252011984661524164
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moshou, A.; Argyrakis, P.; Konstantaras, A.; Daverona, A.-C.; Sagias, N.C. Characteristics of Recent Aftershocks Sequences (2014, 2015, 2018) Derived from New Seismological and Geodetic Data on the Ionian Islands, Greece. Data 2021, 6, 8. https://doi.org/10.3390/data6020008

AMA Style

Moshou A, Argyrakis P, Konstantaras A, Daverona A-C, Sagias NC. Characteristics of Recent Aftershocks Sequences (2014, 2015, 2018) Derived from New Seismological and Geodetic Data on the Ionian Islands, Greece. Data. 2021; 6(2):8. https://doi.org/10.3390/data6020008

Chicago/Turabian Style

Moshou, Alexandra, Panagiotis Argyrakis, Antonios Konstantaras, Anna-Christina Daverona, and Nikos C. Sagias. 2021. "Characteristics of Recent Aftershocks Sequences (2014, 2015, 2018) Derived from New Seismological and Geodetic Data on the Ionian Islands, Greece" Data 6, no. 2: 8. https://doi.org/10.3390/data6020008

Article Metrics

Back to TopTop
