Bioengineering 2018, 5(1), 18; https://doi.org/10.3390/bioengineering5010018

Effects of Sterilization Cycles on PEEK for Medical Device Application

College Central, Institute of Technical Education, 2 Ang Mo Kio Drive, Singapore 567720, Singapore
*
Author to whom correspondence should be addressed.
Received: 19 January 2018 / Revised: 2 February 2018 / Accepted: 14 February 2018 / Published: 21 February 2018
View Full-Text   |   Download PDF [2355 KB, uploaded 24 February 2018]   |

Abstract

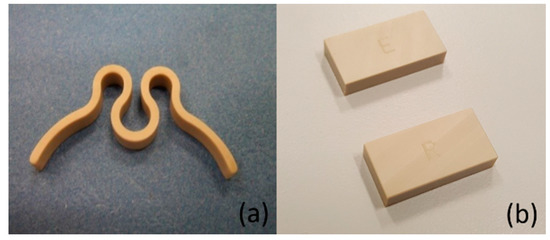

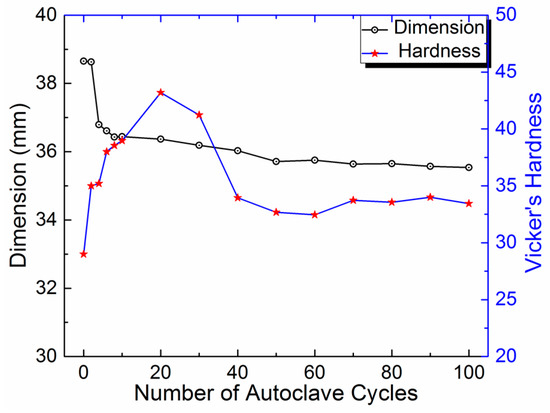

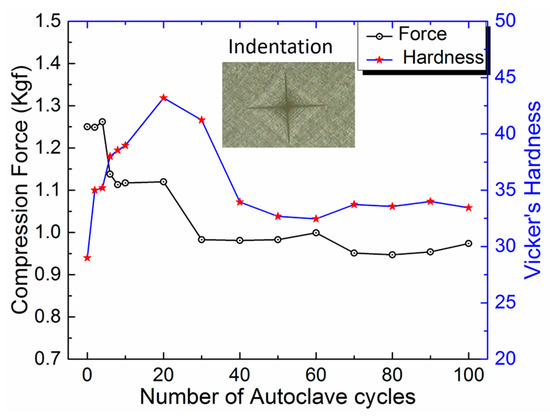

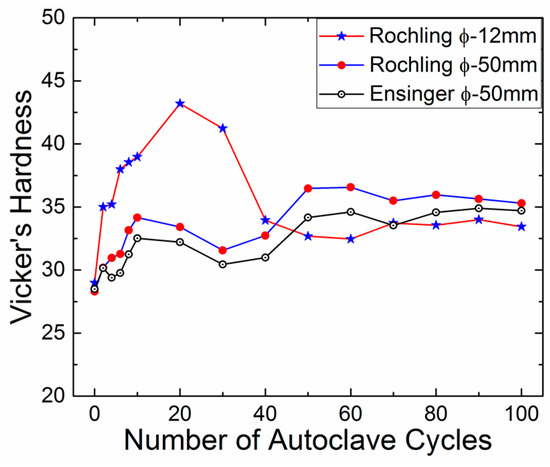

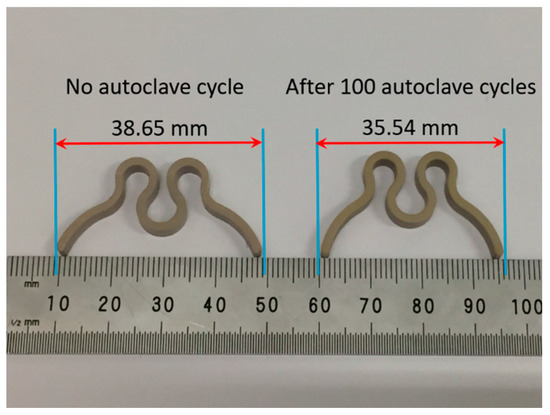

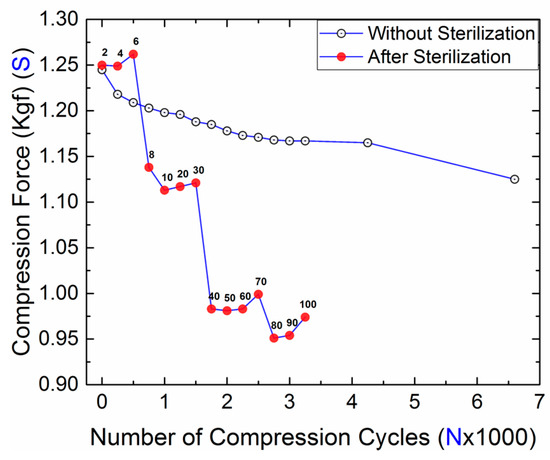

The effects of the sterilization process have been studied on medical grade thermoplastic polyetheretherketone (PEEK). For a reusable medical device, material reliability is an important parameter to decide its lifetime, as it will be subjected to the continuous steam sterilization process. A spring nature, clip component was selected out of a newly designed medical device (patented) to perform this reliability study. This clip component was sterilized for a predetermined number of cycles (2, 4, 6, 8, 10, 20…100) at 121 °C for 30 min. A significant decrease of ~20% in the compression force of the spring was observed after 30 cycles, and a ~6% decrease in the lateral dimension of the clip was observed after 50 cycles. No further significant change in the compression force or dimension was observed for the subsequent sterilization cycles. Vickers hardness and differential scanning calorimetry (DSC) techniques were used to characterize the effects of sterilization. DSC results exhibited no significant change in the degree of cure and melting behavior of PEEK before and after the sterilization. Hardness measurement exhibited an increase of ~49% in hardness after just 20 cycles. When an unsterilized sample was heated for repetitive cycles without the presence of moisture (121 °C, 10 and 20 cycles), only ~7% of the maximum change in hardness was observed. View Full-Text
Keywords: polyetheretherketone; PEEK; DSC; Vickers hardness; medical grade; medical device polyetheretherketone; PEEK; DSC; Vickers hardness; medical grade; medical device
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Kumar, A.; Yap, W.T.; Foo, S.L.; Lee, T.K. Effects of Sterilization Cycles on PEEK for Medical Device Application. Bioengineering 2018, 5, 18.
