Phenolic Compounds from Sesame Cake and Antioxidant Activity: A New Insight for Agri-Food Residues’ Significance for Sustainable Development

by
Reham Hassan Mekky
1,2,
Essam Abdel-Sattar
3,
Antonio Segura-Carretero
2,4,* and
María del Mar Contreras
2,4,†
1
Department of Pharmacognosy, Faculty of Pharmacy, Egyptian Russian University, Badr City, Cairo-Suez Road, Cairo 11829, Egypt
2
Research and Development Functional Food Centre (CIDAF), Bioregiόn Building, Health Science Technological Park, Avenida del Conocimiento s/n, 18016 Granada, Spain
3
Department of Pharmacognosy, Faculty of Pharmacy, Cairo University, Kasr El-Aini Street, Cairo 11562, Egypt
4
Department of Analytical Chemistry, Faculty of Sciences, University of Granada, Avenida Fuentenueva s/n, 18071 Granada, Spain
*
Author to whom correspondence should be addressed.
†
Present address: Department of Chemical, Environmental and Materials Engineering, Universidad de Jaén, Campus Las Lagunillas, 23071 Jaén, Spain.
Foods 2019, 8(10), 432; https://doi.org/10.3390/foods8100432
Submission received: 30 August 2019 / Revised: 14 September 2019 / Accepted: 17 September 2019 / Published: 22 September 2019
(This article belongs to the Special Issue Extraction Strategies to Recover Bioactive Compounds, Incorporation into Food and Health Benefits)
Browse Figures
Versions Notes

Abstract

:
Agri-food residues represent a rich source of nutrients and bioactive secondary metabolites, including phenolic compounds. The effective utilization of these by-products in food supplements and the nutraceuticals industry could provide a way of valorization in the transition to becoming more sustainable. In this context, the present study describes the phenolic profiling of sesame (Sesamum indicum L.) cake using reversed-phase high-performance liquid chromatography coupled to diode array detection and quadrupole-time-of-flight-mass spectrometry. Compounds were characterized based on their retention time, UV spectra, accurate mass spectrometry (MS) and MS/MS data along with comparison with standards, whenever possible, and the relevant literature. The characterized compounds (112 metabolites) belong to several classes, namely, phenolic acids (hydroxybenzoic acids and hydroxycinnamic acids), flavonoids, and lignans. Moreover, organic acids and some nitrogenous compounds were characterized. The total phenol content and the antioxidant activity of the cake extract were determined. This study provides useful information for the valorization of by-products from the sesame oil industry.

1. Introduction

Pedaliaceae is considered a small family, with 14 genera and 70 species. It is natively distributed in the Old World and commonly known as the sesame family [1]. Sesame (Sesamum indicum L.) is a prominent oil crop that is cultivated all over the world. It is believed that sesame originates from India [2]. Nevertheless, it has been present in the Ancient Egyptian civilization since the third century BC, where the ancient Egyptian used it for soothing asthma [3].
Sesame seeds are considered a rich source of proteins, dietary fibers, carbohydrates, fats, and vitamins [2,4]. Several studies investigated the phytochemical composition of sesame seeds and/or oil with a focus on lignans. For instance, Dachtler and coworkers applied online liquid chromatography coupled to nuclear magnetic resonance and mass spectrometry (MS) to characterize lignans in sesame oil, whereas Grougnet and others isolated lignans from sesame seeds and perisperms, respectively [5,6]. Regarding other phytochemicals, Hassan studied the physical characteristics of two Egyptian cultivars of sesame as well as their content of phenolic acids while taking into account the effect of roasting of seeds. Botelho et al. applied supercritical fluid extraction to black sesame seeds. The extracts showed significant amounts of unsaturated fatty acids and phytosterols, which were subjected for neuroprotective studies [7]. Moreover, sesame seeds showed several biological activities viz. antioxidant, hypolipidemic, hypocholesterolemic, antidiabetic, anticancer, antihypertensive, and cardioprotective activities [2,8,9]. Thus, more studies are required to establish the chemical composition of sesame since, as far as we know, most of the published studies on sesame focused on a short list of compounds.
Today, new efforts are addressed to valorize agri-industrial by-products in different ways. This includes obtaining extracts rich in functional secondary metabolites, which can be useful in the sustainable development of functional food supplements and nutraceuticals [10]. In accordance with the Food and Agriculture Organization (FAO) of the United Nations statistics, the global production of sesame is higher than 7 million tons, and around 2 million tons of sesame oil are produced. Consequently, there is a growing interest in the utilization of the cake by-product, which represents nearly 70% of the total production of the seeds [11]. The cake could maintain a large part of the phytochemical composition of the seeds and, thus, their functionality.
Therefore, the objective of this study was to perform an untargeted metabolic profiling of sesame cake, mainly focused on the structural elucidation of phenolic compounds, through reversed-phase (RP) high-performance liquid chromatography (HPLC) coupled to diode array detection (DAD) and quadrupole-time-of-flight (QTOF)-MS. In addition, the antioxidant activity via measurement of the total phenol content (TPC) and the Trolox equivalent antioxidant capacity (TEAC) was assayed. These results give new insights into the phenolic composition of this undervalued sesame by-product.

2. Materials and Methods

2.1. Chemicals and Reagents

Methanol, n-hexane, acetone, acetonitrile, and glacial acetic acid were purchased from Fisher Chemicals (Thermo Fisher Scientific, Waltham, MA, USA). The solvents used for extraction and characterization were of analytical and MS grade, respectively. Ultrapure water was obtained with a Milli-Q system (Millipore, Bedford, MA, USA). Folin & Ciocalteu’s phenol reagent, sodium carbonate, ABTS (2,2′-azinobis (3-ethylbenzothiazoline-6-sulfonate)), Trolox (6-hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid), potassium persulfate, l-tyrosine, and phenolic standards were purchased from Sigma-Aldrich (St. Louis, MO, USA), while l-tryptophan and l-phenylalanine were from Acros Organics (Morris Plains, NJ, USA). Kaempferide was purchased from Extrasynthese (Genay, France). The degree of purity of the standards was around 95% (w/w).

2.2. Samples Procurement and Extraction Procedures

The Egyptian sesame cultivar ‘Giza 32’ was kindly provided and identified by Agriculture Engineer Nadia Abdel-Azim, Egyptian Ministry of Agriculture and Land Reclamation (Giza, Egypt). Prior to the extraction, the seeds were ground (particle size around 1 mm) with Ultra Centrifugal Mill ZM 200, Retsch (Haan, Germany).
The first step of the extraction method was performed according to previous studies [12,13] with some modifications. For each one, 1 g of sample was firstly homogenized with 10 mL n-hexane and subjected to magnetic stirrer Agimatic-N (Jp Selecta, Barcelona, Spain) at room temperature for 30 min for defatting. Then defatted sesame cake was homogenized with 25 mL methanol/water (50:50, v/v) using an Ultra-TurraxIka T18 basic (Ika-Werke GmbH & Co. KG, Staufen, Germany), sonicated for 10 min at room temperature in an ultrasonic bath B3510 (40 kHz) (Branson, Danbury, CT, USA), and homogenized in the aforementioned magnetic stirrer at room temperature for 60 min. The mixture was finally centrifuged at 7155× g (8000 rpm) for 15 min and 5 °C using Sorvall ST 16 (Thermo Sci., ThermoFisher, Waltham, MA, USA) and the supernatant was collected. The pellet was re-extracted with 25 mL acetone/water (70:30, v/v). Both supernatants were combined and evaporated under vacuum using a rotary evaporator at 38 °C (Rotavapor R-200, BüchiLabortechnik, AG, Switzerland). Three independent extractions were performed. Finally, the dry cake extracts were dissolved in methanol/water (80:20, v/v), filtered (0.45 µm syringe filter, regenerated cellulose) and stored at −20 °C until analysis.

2.3. Analysis by RP-HPLC–DAD–ESI–QTOF-MS and -MS/MS

Analyses were made with an Agilent 1200 series rapid resolution (Santa Clara, CA, USA) equipped with a binary pump, an autosampler, and a diode array detector (DAD). Separation was carried out with a core-shell Halo C18 analytical column (150 mm × 4.6 mm, 2.7 μm particle size). The system was coupled to a 6540 Agilent Ultra-High-Definition (UHD) Accurate-Mass Q-TOF LC/MS equipped with an Agilent Dual Jet Stream electrospray ionization (Dual AJS ESI) interface.
Gradient elution was conducted with two mobile phases consisting of acidified water (0.5% acetic acid, v/v) (phase A) and acetonitrile (phase B) with a constant flow rate of 0.5 mL/min according to [13]. The gradient program was 0 min, 99% A and 1% B; 5.50 min, 93% A and 7% B; 11 min, 86% A and 14% B; 17.5 min, 76% A and 24% B; 22.50 min, 60% A and 40% B; 27.50 min, 0% A and 100% B; 28.5 min 0% A and 100% B; 29.5 min, initial conditions, which were finally maintained for 5.50 min for column equilibration (total run 35 min). The injection volume was 15 µL and three analyses were performed.
The operating conditions briefly were drying nitrogen gas temperature, 325 °C with a flow of 10 L/min; nebulizer pressure, 20 psig; sheath gas temperature, 400 °C with a flow of 12 L/min; capillary voltage, 4000 V; nozzle voltage, 500 V; fragmentor voltage, 130 V; skimmer voltage, 45 V; octapole radiofrequency voltage, 750 V. Data acquisition (2.5 Hz) in profile mode was governed via MassHunter Workstation software (Agilent technologies). The spectra were acquired in negative-ion mode over a mass-to-charge (m/z) range from 70 to 1500. The detection window was set to 100 ppm. Reference mass correction on each sample was performed with a continuous infusion of Agilent TOF biopolymer analysis mixture containing trifluoroacetic acid ammonium salt (m/z 112.9856 corresponding to the trifluoroacetic acid ion) and hexakis (1H, 1H, 3H-tetrafluoropropoxy) phosphazine (m/z 1033.9881 corresponding to the trifluoroacetic acid ammonium salt adduct ion). MS/MS experiments were performed in automatic mode, using the following collision energy values: m/z 100, 40 eV; m/z 500, 45 eV; m/z 1000, 50 eV; and m/z 1500, 55 eV.
MassHunter Qualitative Analysis B.06.00 (Agilent technologies) was used for data analysis following the strategy proposed by [10,12,14]. The characterization of compounds was performed by generation of candidate formula with a mass accuracy limit of 5 ppm. The MS score related to the contribution to mass accuracy, isotope abundance and isotope spacing for the generated molecular formula was set at ≥90. After the generation of the molecular formula, retention time (Rt), UV, and MS/MS spectra were also considered and compared with literature. Consequently, the following chemical structure databases were consulted: ChemSpider (http://www.chemspider.com), SciFinder Scholar (https://scifinder.cas.org), Reaxys (http://www.reaxys.com), PubChem (http://pubchem.ncbi.nlm.nih.gov), KNApSAcK Core System database (http://www.knapsackfamily.com/knapsack_jsp/top.html), METLIN Metabolite Database (http://metlin.scripps.edu), Phenol-Explorer (www.phenol-explorer.eu), Dictionary of Natural Products (http://dnp.chemnetbase.com), Phytochemical dictionary of natural products database [15] and tracing available literature via Egyptian Knowledge Bank (https://www.ekb.eg/). Confirmation was made through a comparison with standards, whenever these were available in-house. Moreover, the peak area obtained by MS for each compound was determined to estimate the abundance of each characterized phenolic compound.

2.4. Total Phenol Content (TPC) Assay

The TPC of the extracts was determined in triplicate colorimetrically by Folin–Ciocalteu reagent [16] and modified according to [17] in 96-well polystyrene microplates (Thermo Fisher) and using a Synergy MxMonochromator-Based Multi-Mode Microplate reader (Bio-Tek Instruments Inc., Winooski, VT, USA). The absorbance of the solution was measured at a wavelength of 760 nm after incubation for 2 h in the dark and compared with a calibration curve of serially diluted gallic acid (GA). The results were expressed as GA equivalents (GAE). Analyses were done in triplicate.

2.5. Trolox Equivalent Antioxidant Capacity Assay

TEAC absorbance measurements were performed using the aforementioned microplate reader and following the procedure described by [12]. Briefly, ABTS+ was produced by reacting ABTS stock solution with 2.45 mM potassium persulfate (final concentration). The mixture was kept in dark at room temperature for 24 h and the solution diluted with water until reaching an absorbance value of 0.70 (±0.03) at 734 nm. Afterwards, 300 μL of this solution and 30 μL of the cake extract were mixed and measured. Absorbance reading was compared to a standard calibration curve of Trolox and the results expressed as equivalents of Trolox (TE). Caffeic acid was used as a positive control. Analyses were done in triplicate.

3. Results and Discussion

3.1. Metabolic Profiling of Sesame Cake by RP-HPLC–DAD–QTOF-MS and -MS/MS

The sesame cake was subjected to core–shell RP-HPLC–DAD–ESI–QTOF-MS and -MS/MS analysis in negative ionization mode, providing Rt, experimental m/z, generated molecular formulae, mass error in ppm, mass score, double bond equivalents (DBE), UV maxima, and tandem mass fragments. For clarification, Table 1 and Table 2 illustrate the aforementioned parameters for phenolic compounds and non-phenolic compounds, respectively. Moreover, Tables S1 and S2 (supplementary material) also detail metabolites class/subclass, plant species, family, and previously reported literature for phenolic compounds and non-phenolic compounds, respectively. The total number of characterized metabolites was 112, including 92 metabolites that were reported for the first time in sesame, with 20 new proposed structures. Figure 1 shows the base peak chromatogram of the cake extract, showing its complexity.

3.1.1. Hydroxybenzoic Acids

Qualitatively, phenolic acids were the most abundant phenolic compounds by 40 metabolites. They are divided into hydroxybenzoic acids (13) and hydroxycinnamic acids (27).
Concerning hydroxybenzoic acids, they can be classified into non-hydroxylated (benzoic acid), mono-hydroxylated (p-hydroxybenzoic acid), di-hydroxylated (gentisic, protocatechuic, and vanillic acid derivatives), and tri-hydroxylated (gallic acid and syringic acid derivatives). It bears noting that five of them were confirmed with standards. In brief, m/z 121.03 exerted a neutral loss of CO and UV absorbance at λmax 272 nm. It was characterized as benzoic acid and has been previously reported in sesame [4]. The compound with a m/z value of 137.02 was confirmed to be p-hydroxybenzoic acid upon comparison with a standard. Similarly, two compounds showed a molecular formula of C7H6O4 and m/z of 153.02. By comparing with standards, they were confirmed as protocatechuic acid (3,4-dihydroxybenzoic acid) and gentisic acid (2,5-dihydroxybenzoic acid).
In regard to O-methylated derivatives of dihydroxybenzoic acids, five derivatives of vanillic acid were characterized. Vanillic acid was observed with m/z 167.04, and was confirmed with standard. It has been reported before in sesame [18]. In addition, three isomers of vanillic acid hexoside (C14H18O9) were observed at Rt 9.02, 10.28, and 10.66 min. They revealed the neutral loss of the hexose moiety (162 Da) and CO2 (44 Da), complying with the typical decarboxylation of phenolic acids [10,12,17]. They were reported for the first time in S. indicum, nevertheless, they were reported in the genus Sesamum in accordance with the Dictionary of Natural Products database (Table S1). Vanillic acid pentoside hexoside was characterized with m/z 461.13 and sequential loss of pentose (m/z 329.09), hexose (m/z 167.03, i.e., vanillic acid ion), and methyl (m/z 153.02) moieties. It was detected for the first time in sesame (Table 1 and Table S1). Concerning tri-hydroxylated benzoic acids, both gallic and syringic acids were observed with m/z 169.01 and 197.05, respectively. These assignments were confirmed with standards. It is worth noting that the compound with an m/z value of 329.09 and molecular formula C14H18O9 exerted the neutral loss of pentose with an aglycone fragment of (m/z 197.05) followed by fragmentation of syringic acid. It was tentatively identified as syringic acid pentoside and proposed as a new structure. Similarly, compound at m/z 359.10 (C15H20O10) showed a neutral loss of a hexose moiety with syringic acid fragmentation pattern. In this way, two consecutive losses of CH3 were observed until fragment 166.10, indicating methoxy substituents. Moreover, the loss of CO2 from the carboxyl moiety was also observed (m/z 153.06 and 138.03) followed by losses of CH3 (Figure 2a) [17]. Therefore, it was identified as syringic acid hexoside, which was described for the first time in sesame.

3.1.2. Hydroxycinnamic Acids

Regarding hydroxycinnamic acid, it was found in free form, conjugated with quinic acid or with sugars. The occurrence of p-coumaric acid, m-coumaric acid, chlorogenic acid (caffeoylquinic acid), caffeic acid, ferulic acid, and sinapic acid were unequivocally confirmed with standards enabling characterization validation, which was in agreement with previous studies [19]. It is worth noting that both m-coumaric acid and chlorogenic acid were described for the first time in sesame. Moreover, cinnamic acid (21, m/z 147.05) was observed with the neutral loss of CO2 from the carboxylate moiety and water (Table 1 and Table S1).
Five isomers of p-coumaric acid hexosides were detected expressing the neutral loss of hexose moieties releasing aglycones of m/z 163.04 followed by decarboxylation (m/z 119.05), except for the hydrated form (M−H+H2O) and, hence, dehydration occurred firstly [13]. In the same manner, three isomers of ferulic acid hexoside (C16H20O9, m/z 355.10) and sinapic acid hexoside (C17H22O10, m/z 385.11) were observed (Table 1 and Table S1). As an example, the fragmentation of the latter compound is shown in Figure 2b. Another compound was described as ferulic acid dihexoside (sibiricose A5). In addition, seven novel hydrocinnamic acids were tentatively identified as ferulic acid pentoside isomers (I–III), sinapic acid deoxyhexoside hexoside isomers (I–III), and diferuloyl hexoside (Table 1 and Table S1). The latter was characterized by the presence of fragment ions at m/z 337.0929 (C16H17O8−) and 193.0503 (C10H9O4−), i.e., feruloylhexosyl and ferulic acid, respectively. Ferulic acid ion showed the typical decarboxylation and demethylation of this type of compound in MS/MS (Figure 2c), as for sinapic acid. Remarkably, most of these compounds are described for the first time in sesame (Table S1).
Moreover, caffeoyl derivatives were found. Based on molecular formula (C21H28O13) and fragmentation pattern with successive loss of deoxyhexose and hexose, the caffeic acid derivate cistanoside F (C21H28O13) was characterized. Furthermore, three caffeoylphenylethanoid derivatives were observed. Verbascoside and isoverbascoside expressed the neutral loss of caffeoyl moieties and deoxyhexoses through the presence of the ion m/z 461.17 and m/z 315.11, respectively. β-Hydroxyverbascoside was identified with similar fragmentation pattern as of verbascoside with additional loss of hydroxyl group (16 Da) [19]. These caffeoyl derivatives were isolated before from sesame [20,21].

3.1.3. Lignans

Lignans are natural phenolic compounds that possess several biological activities, especially antioxidant and estrogenic activities. A simple lignan is composed of two phenyl propanoid derivatives (C6–C3) linked through a β–β-linkage [22]. In this context, 18 lignan derivatives were identified in cake of sesame, which belonged to the furofuran subclass of lignans. As a matter of fact, the in-depth analysis of tandem MS data made it possible to preliminary predict lignan structures, whose presence in sesame were not discovered and could yet contribute to its bioactivity (Table 1). For that, studies using tandem MS/MS were consulted for analog structures [22,23,24,25]. All of them were glycosides, and the loss of each sugar was observed until the product ions of the aglycones were released and hence observed [22].
Briefly, three isomers of pinoresinol dihexoside were detected showing subsequent losses of two hexosyl moieties with aglycone fragmentation showing the fragment m/z 151.04 (C8H7O3−) due to cleavage of the tetrahydrofuran ring followed by methyl loss from the guaiacyl moiety [22,24,25] (Table 1 and Table S1, Figure 3a). Similarly, two isomers, (m/z 767.24, C35H44O19), resembled the aforementioned fragmentation with additional loss of a malonyl moiety (CO2 and an acetyl moiety CH2CO) (86 Da). Consequently, they were characterized as pinoresinol malonyl dihexoside (I–II). In the same manner, xanthoxylol trihexoside and xanthoxylol malonyl trihexoside were tentatively characterized with the observation of the loss of CH3OH (32 Da) (m/z 323.10). In addition, minor fragments were observed at m/z 149.05 from the aglycone corresponding to methylenedioxyphenyl-CO (C8H5O3−) [23] and the counterpart after the loss of CO (m/z 177.09). The ion m/z 121.03 (C7H5O2−, methylenedioxyphenyl) was also observed according to [22,23], as well more abundant ions from sugars such as m/z 179.06 (hexose, C6H12O6), 161.05 (hexosyl, C6H10O5), and 89.02 (C3H5O3−). For clarification, Figure 3b illustrates the fragmentation pattern of xanthoxylol malonyl trihexoside. Although these glycosides have been reported here for the first time, and aglycone was characterized by Fukuda et al. [25].
In regard to sesaminol derivatives, two isomers of sesaminol trihexoside (I–II) and sesaminol tetrahexoside (I–II) were identified with the observation of m/z 149.05 characterizing furofurano lignans [23], as commented upon before, as well as the counterpart at m/z 219.06 (C12H11O4−). Moreover, two isomers of sesaminol dipentoside were identified, also showing a fragment at m/z 135.03; i.e.,methylenedioxyphenyl–CH2 (C8H7O2−) [23]. The acetic acid adduct of sesamolinol hexoside (m/z 593.19, C28H34O14) and three new isomers of sesamolinol dipentoside were observed with the observation of the aglycone at m/z 371.11 (Table 1 and Table S1). In the first case, fragment ions at m/z 138.0323 (C7H6O3−) and m/z 233.0817 (C13H13O4−) were detected, corresponding to the fragmentation of the aglycone structure, while in the rest of cases, the fragmentation of the aglycone was poor under the MS/MS conditions used for the assay. Finally, hydroxysesamolin trihexoside was tentatively identified with the presence of aglycone at m/z 385.09. The aglycone part showed MS/MS product ions at 137.0244 (C7H5O3−), which could indicate a similarity to sesamolinol structure, but also product ions at 165.0192 (C8H5O4−) and 149.0452 (C8H5O3−), which could indicate the presence of a hydroxylated methylenedioxyphenyl–CO moiety.

3.1.4. Coumarins

Regarding coumarins, umbelliferone (7-hydroxycoumarin) was unequivocally confirmed with a standard.

3.1.5. Flavonoids

A total of 26 flavonoids were characterized in the sesame cake extract, being classified mainly into a flavan-3-ol, flavanones (2), flavones (15), and flavonols (8) (Table 1). It is worth noting that (−)-epicatechin, naringenin, luteolin 7-O-β-d-glucopyranoside, luteolin, apigenin, quercetin, rutin, quercetin 3-O-β-d-glucopyranoside, quercetin 3-O-β-d-galactopyranoside, quercetin 3-O-rhamnopyranoside, myricetin, kaempferol, and kaempferide were identified through comparison with standards. All of them were described for the first time in the genus Sesamum, except for apigenin and luteolin 7-O-β-d-glucopyranoside, according to the phytochemical dictionary database [15].
Additionally, the fragmentation pattern of compound at m/z 255.07 (Rt 29.81 min, C15H12O4) revealed the common fragment ion released after retro Diels–Alder fission and retrocyclization at m/z 151.00 (C7H3O4) (1,3A−) by this type of compound [26]. Moreover, the ion fragment with m/z at 103.05 (C8H7−) could be derived from band B (1,3B−). Besides the fragmentation pattern, it showed UV absorbance at λmax 288 nm, suggesting a flavanone nucleus [12]. Therefore, it was tentatively identified as pinocembrin, which was described for the first time in sesame.
The occurrence of C-glycosides of flavones was noticed with 12 derivatives of either luteolin or apigenin, which were observed for the first time in sesame. They were characterized by the presence of prominent fragment ions after the characteristic sequential loss of 90 (C3H6O3) and/or 120 Da (C4H8O4), in agreement with previous studies [12,14,17,19,27]. As an example, two isomers of luteolin C-hexoside were identified, exerting characteristic fragments at m/z 357.06 and 327.05, respectively. Similarly, three isomers of luteolin C-deoxyhexoside-C-hexoside were tentatively identified based on comparing their fragmentation pattern and UV absorbance with reported literature [27]. As for apigenin derivative, five isomers of apigenin C-pentoside-C-hexoside were observed, showing fragmentation patterns and UV absorbance of C-flavones as described in reported studies [15,17]. Moreover, a minor fragment ion at m/z 117.03 (C8H5O) (1,3B−) was observed, suggesting that the aglycone is apigenin. Similarly, two isomers of apigenin di-C-pentoside were tentatively characterized. As Figure 3c shows, the consequent neutral loss of sugar fragments (30–180 Da) was observed (Table 1 and Table S1, Figure 3c).

3.1.6. Others (Non-Phenolic Compounds)

A total of 17 organic acids were observed in the cake of the sesame, namely gluconic/galactonic acids, citric acid (I–III), malic acid (I–II), citramalic acid, itaconic acid, (−)-3-dehydroshikimic acid, quinic acid (I–II), pantothenic acid (I–II), isopropylmalic acid (I–II), and azelaic acid. Their fragmentation patterns were in agreement with reported studies [12,14,17,19,28,29,30] (Table 2 and Table S2). All of the identified organic acids are reported for the first time in sesame.
Regarding nitrogenous compounds, it is worth mentioning that five amino acids were characterized, viz. asparagine, leucine/isoleucine, tyrosine, and phenylalanine. Their fragmentation patterns were characterized by deamination and/or decarboxylation [13,15,17]. In addition, both tyrosine and phenylalanine were confirmed with standards. Furthermore, a peptide was observed (Rt 6.29 min, m/z 611.1454, C20H32N6O12S2) exerting the loss of a glutathione moiety (m/z 306.08) followed by a loss of SH2 from the cysteinyl group. Finally, the product ion of the glutamyl moiety was observed at m/z 128.04. It was compared with data on the METLIN database to be described as oxidized glutathione (GSSG), indicating the presence of reduced glutathione (GSH) in the cake of sesame, which is easily auto-oxidized to GSSG during sample preparation and/or analysis [31]. In fact, GSH is considered to be a powerful cellular antioxidant that prevents oxidative stress in biological systems and, hence, prevents the onset and progression of many serious diseases such as diabetes mellitus, cancer, and Alzheimer’s disease [31]. Furthermore, a derivative of tryptophan (m/z 529.18, C26H30N2O10) was observed as well as succinyladenosine (m/z 382.10, C14H17N5O8), a nucleoside derivative. It bears noting that the characteristic tetrasaccharide sesamose could be the ion with m/z 665.21, presenting subsequent losses of hexosyl moieties in MS/MS (Table 2 and Table S2).

3.2. TPC, TEAC, and Phenolic Abundance

The extract of sesame cake showed a total phenol content of 1.9 ± 0.3 mg GAE/g cake extract. In fact, this value is even beyond results by Mohadaly et al. [18], where total phenol contents were assayed of single different solvents cake extracts of the Egyptian cultivar ‘Shandweel-3’. The value of TPC ranged from 0.1 (petroleum ether extract) to 0.8 (methanol extract) mg GAE/g cake extract. This could be attributed to the combined solvent extraction accompanied with ultra-sonication, which enhances the extraction process [12,32]. In regard to the TEAC assay, the extract expressed a value of 2.65 ± 0.08 µmol TE/g of cake extract. In fact, Janu et al. [33] focused on the antioxidant activity of the sesame oil, which was found to be 0.004 µg TE/mL oil (i.e., around 0.02 µmol TE/g oil) indicating the value of the cake as an agri-industrial by-product that needs further attentions for its antioxidant potential as well as other biological activities.
To evaluate the contribution of phenolic compounds, a summary of the characterization results is shown in Figure 4. In the perspective of subclasses, flavonoids were the most abundant, representing 38.3% of the total characterized phenolic metabolites followed by hydroxycinnamic acids and then lignans (Figure 4a). Similarly, flavonoids and hydroxycinnamic acids were also the most representative families in qualitative terms (Figure 4b).
The exploration of alternative strategies for the treatment of many chronic diseases such as cancer, diabetes, and heart and liver diseases continues to attract scientists in discovering drugs derived from plant origins [34,35,36]. In fact, there is growing attention in the valorization of agri-food residues to provide new functional ingredients with bioactivities for sustainability of the agri-industry. It bears noting that such by-products represent around 40% of total plant foods [10,37]. For that, the elucidation of the potential bioactive phytochemicals is a requirement. In this regard, the application of UHPLC–QTOF-MS enabled us to characterize 86 phenolic compounds in sesame cake and, hence, as far as we know, this is the first study providing comprehensive phenolic profiling of sesame cake. In addition, the antioxidant activity of the sesame cake extract was determined by the TEAC method. In this regard, furofurano lignans possess anticancer, cardiovasculoprotective, neuroprotective, antioxidant, and anti-inflammatory activities. Moreover, they are metabolized by gut microflora into enterolactone and enterodiol, which are considered phytoestrogens [38]. Thus, these compounds could contribute to the antioxidant activity of the extract.
In this line, a previous study on sesame cake showed that the main contributors to the antioxidant activity were sesamol and water- (sesaminol tri- and di-glucoside) and lipid-soluble lignans (sesamin and sesamolin), but the extraction procedure was based on Soxhlet extraction with methanol [39]. In this sense, our results revealed the presence of sesamol and a wider range of lignan glycosides, but there were no free lignans, which could be due to the use of more polar extraction conditions and the removal of the fatty phase. Moreover, C-glycosides were the most abundant compounds both as a subclass, accounting for around 37.3% in relative abundance, and individually, i.e., apigenin C-pentoside-C-hexoside I (8.8%) followed by luteolin C-deoxyhexoside-C-hexoside III (7.0%), luteolin C-deoxyhexoside-C-hexoside II (6.7%), and apigenin C-pentoside-C-hexoside IV (5.1%). As a matter of fact, it seems that C-glycosylation enhances antioxidant capacity, where the hydroxyl group and metal chelation sites of flavones are free [14,40]. Thus, these compounds could be the highest contributors to the antioxidant activity of the extract, agreeing with Zhou et al. [41]. These authors highlighted that the antioxidant activity of sesame cake extracts was associated with the total content of flavonoids, but these compounds were not characterized. Furthermore, oxidized glutathione was detected for the first time in the cake of sesame, which could be produced from reduced glutathione during sample preparations. It is considered a strong marker for the antioxidant potential of this agri-industrial byproduct.

4. Conclusions

In this study, core–shell RP-HPLC–DAD–ESI–QTOF-MS and -MS/MS methods were employed to analyze the cake of the Egyptian cultivar of sesame ‘Giza 32’. A total of 112 metabolites were characterized in sesame cake, and among them, 86 were phenolic compounds. The observed lignans were of furofurano type and, among them, 12 lignans are considered to be new proposed structures. Moreover, this is the first report showing the conjugation of malonyl moieties to lignans in Pedaliaceae. With regard to the characterized flavonoids, they were classified into flavones (15), flavonols (8), flavanones (2), and a flavan-3-ol. C-Glycosides of flavones have been reported here for the first time in sesame. This type of flavonoid was the most abundant. Furthermore, the antioxidant activity of the sesame cake extract was determined by TEAC method and, hence, our results suggest that not only sesamol and lignans, but also C-glycosides and other compounds could contribute to this bioactivity. Consequently, further studies are required for the development of food supplements and nutraceuticals from sesame cake to widen its applicability and to move into a more sustainable industry with zero waste.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-8158/8/10/432/s1, Table S1: Phenolic compounds characterized in the cake of the Egyptian cultivar of sesame ‘Giza 32’, Table S2: Non-phenolic compounds characterized in the cake of the Egyptian cultivar of sesame ‘Giza 32’.

Author Contributions

Investigation, R.H.M. and M.d.M.C.; Methodology, M.d.M.C.; Data analysis, R.H.M.; Validation, R.H.M., M.d.M.C.; Writing—Original Draft, R.H.M.; Writing—Review & Editing; M.d.M.C., E.A.-S. and A.S.-C.; Supervision, E.A.-S. and A.S.-C.

Funding

This work was supported by the International Cooperation Cell ICC06 under the Erasmus Mundus—Al Idrisi II programme “scholarship scheme for exchange and cooperation between Europe and North Africa”. M.d.M.C. thanks the postdoctoral grant funded by the “Acción 6 del Plan de Apoyo a la Investigación de la Universidad de Jaén, 2017–2019”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lamiales—Encyclopædia Britannica. Available online: https://www.britannica.com/plant/Lamiales (accessed on 20 June 2019).
  2. Lim, T. Sesamum indicum. In Edible Medicinal and Non-Medicinal Plants; Springer: Dordrecht, The Netherlands, 2012; Volume 4, pp. 187–219. [Google Scholar]
  3. Aboelsoud, N.H. Herbal medicine in ancient Egypt. J. Med. Plants Res. 2010, 4, 082–086. [Google Scholar]
  4. Hassan, M.A. Studies on Egyptian sesame seeds (Sesamum indicum L.) and its products 1-Physicochemical analysis and phenolic acids of roasted Egyptian sesame seeds (Sesamum indicum L.). World J. Dairy Food Sci. 2012, 7, 195–201. [Google Scholar]
  5. Grougnet, R.; Magiatis, P.; Laborie, H.; Lazarou, D.; Papadopoulos, A.; Skaltsounis, A.-L. Sesamolinol glucoside, disaminyl ether, and other lignans from sesame seeds. J. Agric. Food Chem. 2011, 60, 108–111. [Google Scholar] [CrossRef] [PubMed]
  6. Grougnet, R.; Magiatis, P.; Mitaku, S.; Terzis, A.; Tillequin, F.; Skaltsounis, A.-L. New lignans from the perisperm of Sesamum indicum. J. Agric. Food Chem. 2006, 54, 7570–7574. [Google Scholar] [CrossRef] [PubMed]
  7. Botelho, J.R.S.; Medeiros, N.G.; Rodrigues, A.M.C.; Araújo, M.E.; Machado, N.T.; Guimarães Santos, A.; Santos, I.R.; Gomes-Leal, W.; Carvalho Junior, R.N. Black sesame (Sesamum indicum L.) seeds extracts by CO2 supercritical fluid extraction: Isotherms of global yield, kinetics data, total fatty acids, phytosterols and neuroprotective effects. J. Supercrit. Fluid. 2014, 93, 49–55. [Google Scholar] [CrossRef]
  8. Dachtler, M.; van de Put, F.H.M.; v. Stijn, F.; Beindorff, C.M.; Fritsche, J. On-line LC-NMR-MS characterization of sesame oil extracts and assessment of their antioxidant activity. Eur. J. Lipid Sci. Technol. 2003, 105, 488–496. [Google Scholar] [CrossRef]
  9. Namiki, M. Nutraceutical functions of sesame: A review. Crit. Rev. Food Sci. Nutr. 2007, 47, 651–673. [Google Scholar] [CrossRef] [PubMed]
  10. Abouzed, T.K.; Contreras, M.d.M.; Sadek, K.M.; Shukry, M.; Abdelhady, D.H.; Gouda, W.M.; Abdo, W.; Nasr, N.E.; Mekky, R.H.; Segura-Carretero, A.; et al. Red onion scales ameliorated streptozotocin-induced diabetes and diabetic nephropathy in Wistar rats in relation to their metabolite fingerprint. Diabetes Res. Clin. Pract. 2018, 140, 253–264. [Google Scholar] [CrossRef] [PubMed]
  11. FAO-Statitics. Productions, Crops; FAO-Statitics: Rome, Italy, 2014. [Google Scholar]
  12. Mekky, R.H.; Contreras, M.d.M.; El-Gindi, M.R.; Abdel-Monem, A.R.; Abdel-Sattar, E.; Segura-Carretero, A. Profiling of phenolic and other compounds from Egyptian cultivars of chickpea (Cicer arietinum L.) and antioxidant activity: A comparative study. RSC Adv. 2015, 5, 17751–17767. [Google Scholar] [CrossRef]
  13. Saura-Calixto, F.; Serrano, J.; Goni, I. Intake and bioaccessibility of total polyphenols in a whole diet. Food Chem. 2007, 101, 492–501. [Google Scholar] [CrossRef] [Green Version]
  14. Ammar, S.; Contreras, M.d.M.; Belguith-Hadrich, O.; Segura-Carretero, A.; Bouaziz, M. Assessment of the distribution of phenolic compounds and contribution to the antioxidant activity in Tunisian fig leaves, fruits, skins and pulps using mass spectrometry-based analysis. Food Funct. 2015, 6, 3663–3677. [Google Scholar] [CrossRef] [PubMed]
  15. The Dictionary of Natural Products Database. Available online: https://www.crcpress.com/go/the_dictionary_of_natural_products (accessed on 20 June 2019).
  16. Singleton, V.; Rossi, J.A. Colorimetry of total phenolics with phosphomolybdic-phosphotungstic acid reagents. Am. J. Enol. Viticult. 1965, 16, 144–158. [Google Scholar]
  17. Ammar, S.; Contreras, M.d.M.; Belguith-Hadrich, O.; Bouaziz, M.; Segura-Carretero, A. New insights into the qualitative phenolic profile of Ficus carica L. fruits and leaves from Tunisia using ultra-high-performance liquid chromatography coupled to quadrupole-time-of-flight mass spectrometry and their antioxidant activity. RSC Adv. 2015, 5, 20035–20050. [Google Scholar] [CrossRef]
  18. Mohdaly, A.A.A.; Hassanien, M.F.R.; Mahmoud, A.; Sarhan, M.A.; Smetanska, I. Phenolics extracted from potato, sugar beet, and sesame processing by-products. Int. J. Food Prop. 2013, 16, 1148–1168. [Google Scholar] [CrossRef]
  19. Ammar, S.; Contreras, M.d.M.; Gargouri, B.; Segura-Carretero, A.; Bouaziz, M. RP-HPLC-DAD-ESI-QTOF-MS based metabolic profiling of the potential Olea europaea by-product “wood” and its comparison with leaf counterpart. Phytochem. Anal. 2017, 28, 217–229. [Google Scholar] [CrossRef] [PubMed]
  20. Suzuki, N.; Miyase, T.; Ueno, A. Phenylethanoid glycosides of Sesamum indicum. Phytochemistry 1993, 34, 729–732. [Google Scholar] [CrossRef]
  21. Khaleel, A.E.S.; Gonaid, M.H.; El-Bagry, R.I.; Sleem, A.A.; Shabana, M. Chemical and biological study of the residual aerial parts of Sesamum indicum L. J. Food Drug Anal. 2007, 15, 249–257. [Google Scholar]
  22. Eklund, P.C.; Backman, M.J.; Kronberg, L.Å.; Smeds, A.I.; Sjöholm, R.E. Identification of lignans by liquid chromatography-electrospray ionization ion-trap mass spectrometry. J. Mass Spectrom. 2008, 43, 97–107. [Google Scholar] [CrossRef]
  23. Lee, J.; Choe, E. Extraction of lignan compounds from roasted sesame oil and their effects on the autoxidation of methyl linoleate. J. Food Sci. 2006, 71, C430–C436. [Google Scholar] [CrossRef]
  24. Abu-Reidah, I.M.; Arráez-Román, D.; Segura-Carretero, A.; Fernández-Gutiérrez, A. Extensive characterisation of bioactive phenolic constituents from globe artichoke (Cynara scolymus L.) by HPLC–DAD-ESI-QTOF-MS. Food Chem. 2013, 141, 2269–2277. [Google Scholar] [CrossRef]
  25. Fukuda, Y.; Osawa, T.; Namiki, M.; Ozaki, T. Studies on antioxidative substances in sesame seed. Agric. Biol. Chem. 1985, 49, 301–306. [Google Scholar]
  26. Mekky, R.H. A Comparative phytochemical and biological studies on certain Egyptian varieties of Cicer arietinum Linn., Family Fabaceae. Ph. D. Thesis, Cairo University, Giza, Egypt, 2016. [Google Scholar]
  27. Abu-Reidah, I.M.; Arráez-Román, D.; Quirantes-Piné, R.; Fernández-Arroyo, S.; Segura-Carretero, A.; Fernández-Gutiérrez, A. HPLC–ESI-Q-TOF-MS for a comprehensive characterization of bioactive phenolic compounds in cucumber whole fruit extract. Food Res. Int. 2012, 46, 108–117. [Google Scholar] [CrossRef]
  28. Gómez-Romero, M.; Segura-Carretero, A.; Fernández-Gutiérrez, A. Metabolite profiling and quantification of phenolic compounds in methanol extracts of tomato fruit. Phytochemistry 2010, 71, 1848–1864. [Google Scholar] [CrossRef] [PubMed]
  29. Kozukue, E.; Kozukue, N.; Tsuchida, H. Identification and changes of phenolic compounds in bamboo shoots during storage at 20 °C. J. Jpn. Soc. Hortic. Sci. 1998, 67, 805–811. [Google Scholar] [CrossRef]
  30. Contreras, M.d.M.; Algieri, F.; Rodriguez-Nogales, A.; Gálvez, J.; Segura-Carretero, A. Phytochemical profiling of anti-inflammatory Lavandula extracts via RP-HPLC-DAD-QTOF-MS and -MS/MS: Assessment of their qualitative and quantitative differences. Electrophoresis 2018, 39, 1284–1293. [Google Scholar] [CrossRef]
  31. Herzog, K.; IJlst, L.; van Cruchten, A.G.; van Roermund, C.W.T.; Kulik, W.; Wanders, R.J.A.; Waterham, H.R. An UPLC-MS/MS assay to measure glutathione as marker for oxidative stress in cultured cells. Metabolites 2019, 9, 45. [Google Scholar] [CrossRef] [PubMed]
  32. Sahin, S.; Elhussein, E.A.A. Assessment of sesame (Sesamum indicum L.) cake as a source of high-added value substances: From waste to health. Phytochem. Rev. 2018, 17, 691–700. [Google Scholar] [CrossRef]
  33. Janu, C.; Kumar, D.R.S.; Reshma, M.V.; Jayamurthy, P.; Sundaresan, A.; Nisha, P. Comparative study on the total phenolic content and radical scavenging activity of common edible vegetable oils. J. Food Biochem. 2014, 38, 38–49. [Google Scholar] [CrossRef]
  34. Ross, I.A. Medicinal Plants of the World; Humana Press: New Jersey, USA, 2005; Volume 3, pp. 1–623. [Google Scholar]
  35. Elgindi, M.; Ayoub, N.; Milad, R.; Mekky, R. Antioxidant and cytotoxic activities of Cuphea hyssopifolia Kunth (Lythraceae) cultivated in Egypt. J. Pharmacogn. Phytochem. 2012, 1, 67–77. [Google Scholar]
  36. Mekky, R.H.; Fayed, M.R.; El-Gindi, M.R.; Abdel-Monem, A.R.; Contreras, M.d.M.; Segura-Carretero, A.; Abdel-Sattar, E. Hepatoprotective effect and chemical assessment of a selected Egyptian chickpea cultivar. Front. Pharmacol. 2016, 7, 1–9. [Google Scholar] [CrossRef]
  37. Loizzo, M.R.; Sicari, V.; Pellicanò, T.; Xiao, J.; Poiana, M.; Tundis, R. Comparative analysis of chemical composition, antioxidant and anti-proliferative activities of Italian Vitis vinifera by-products for a sustainable agro-industry. Food Chem. Toxicol. 2019, 127, 127–134. [Google Scholar] [CrossRef] [PubMed]
  38. Sok, D.E.; Cui, H.S.; Kim, M.R. Isolation and boactivities of furfuran type lignan compounds from edible plants. Recent Pat. Food Nutr. Agric. 2009, 1, 87–95. [Google Scholar] [CrossRef] [PubMed]
  39. Suja, K.P.; Jayalekshmy, A.; Arumughan, C. Antioxidant activity of sesame cake extract. Food Chem. 2005, 91, 213–219. [Google Scholar] [CrossRef]
  40. Materska, M. Flavone C-glycosides from Capsicum annuum L.: Relationships between antioxidant activity and lipophilicity. Eur. Food Res. Technol. 2015, 240, 549–557. [Google Scholar] [CrossRef]
  41. Zhou, L.; Lin, X.; Abbasi, A.M.; Zheng, B. Phytochemical contents and antioxidant and antiproliferative activities of selected black and white sesame seeds. Biomed. Res. Int. 2016, 2016, 8495630. [Google Scholar] [CrossRef] [PubMed]
Foods 08 00432 g001 550

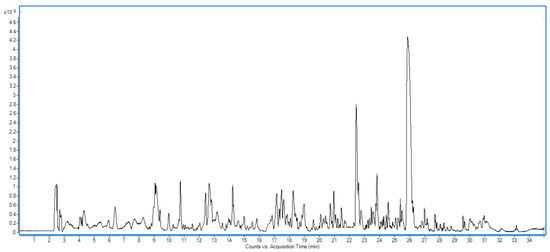

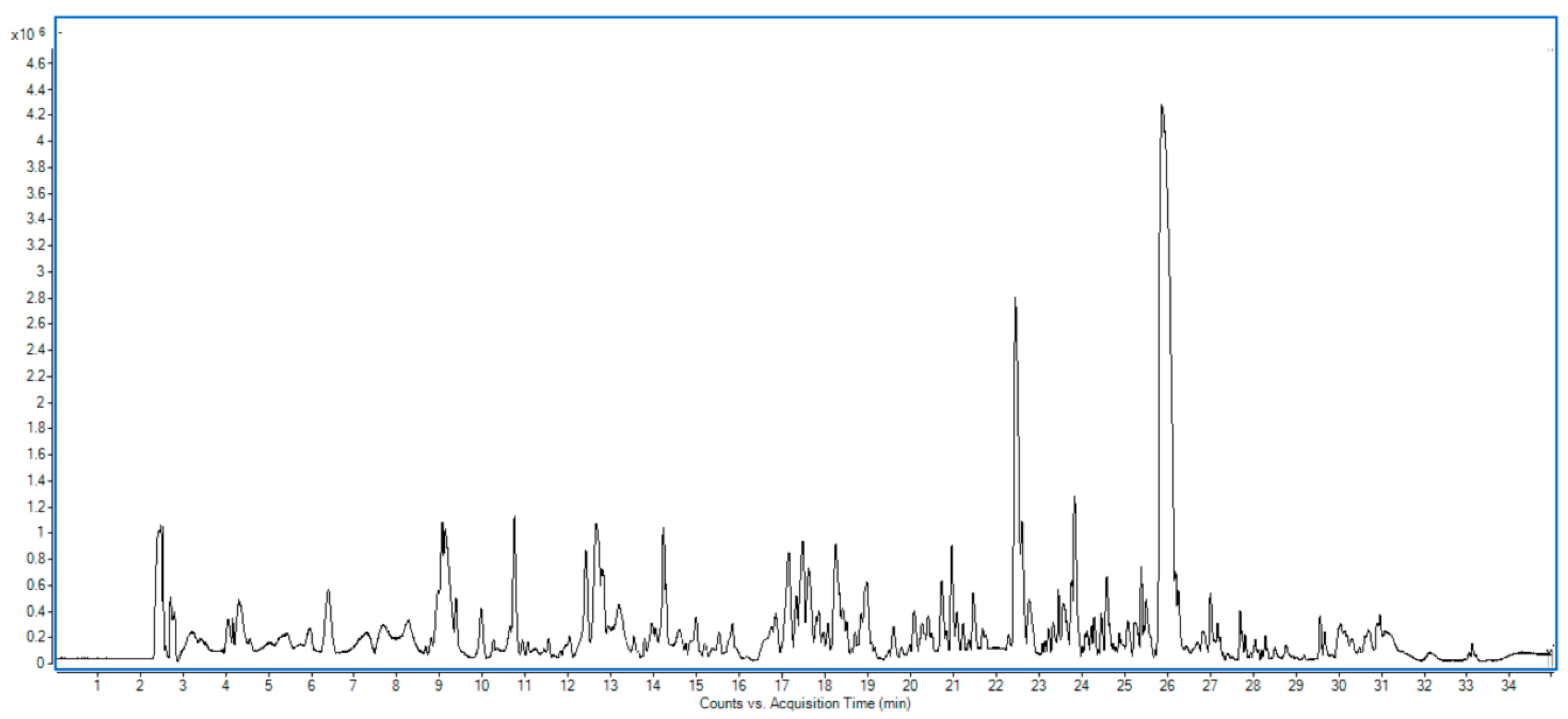

Figure 1. Base peak chromatogram of the cake of the Egyptian cultivar of sesame ‘Giza 32’.
Figure 1. Base peak chromatogram of the cake of the Egyptian cultivar of sesame ‘Giza 32’.
Foods 08 00432 g001
Foods 08 00432 g002 550

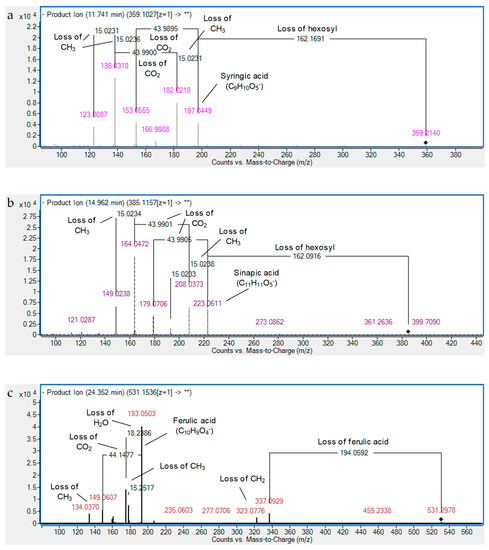

Figure 2. Fragmentation patterns of (a) syringic acid hexoside, (b) sinapic acid hexoside, and (c) diferuloyl hexoside.
Figure 2. Fragmentation patterns of (a) syringic acid hexoside, (b) sinapic acid hexoside, and (c) diferuloyl hexoside.
Foods 08 00432 g002
Foods 08 00432 g003 550

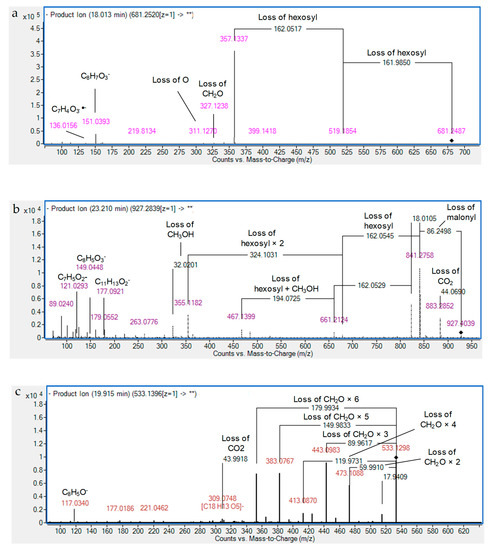

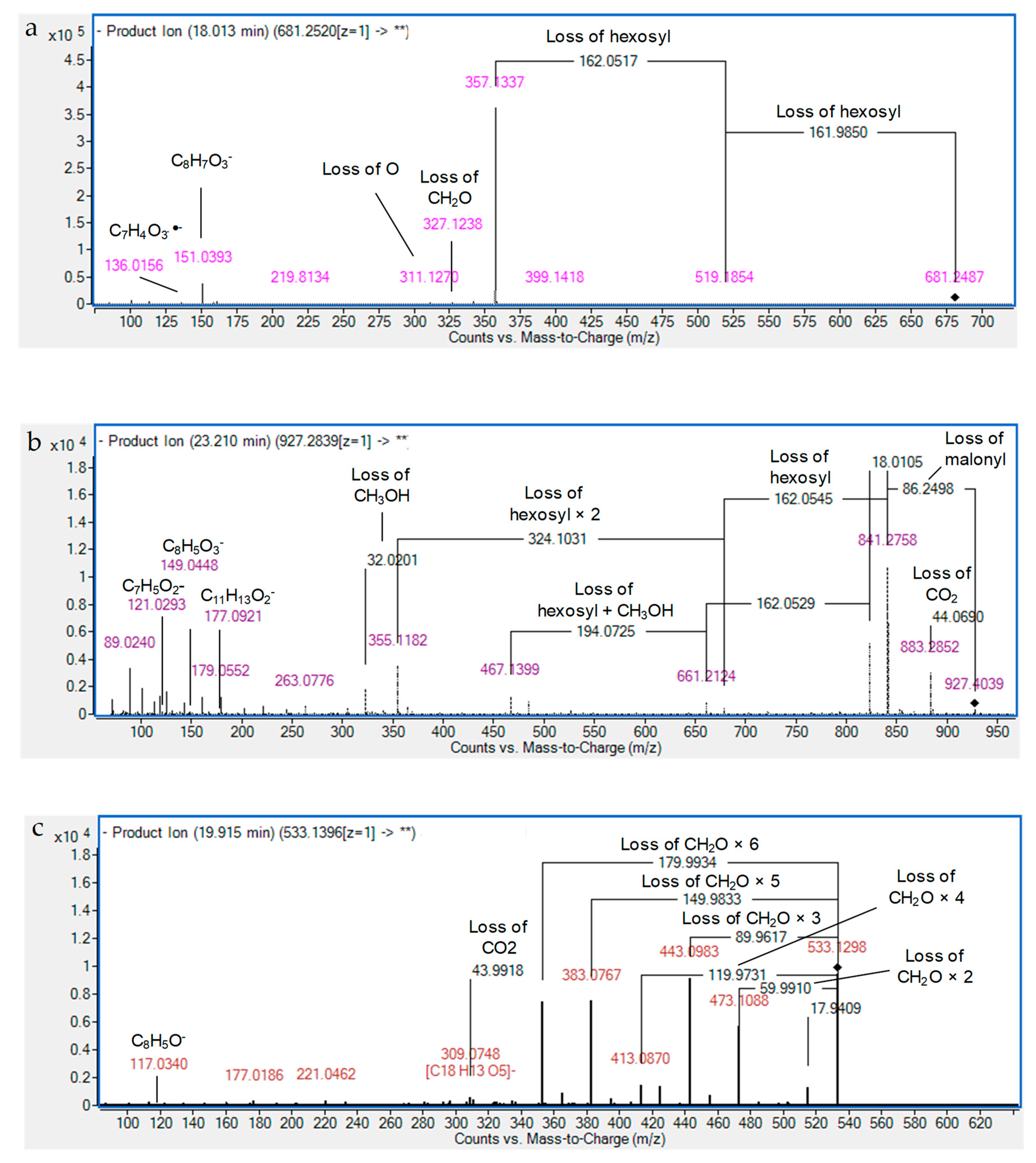

Figure 3. Patterns of (a) pinoresinol dihexoside I, (b) xanthoxylol malonyl trihexoside, and (c) apigenin di-C-pentoside II.
Figure 3. Patterns of (a) pinoresinol dihexoside I, (b) xanthoxylol malonyl trihexoside, and (c) apigenin di-C-pentoside II.
Foods 08 00432 g003
Foods 08 00432 g004 550

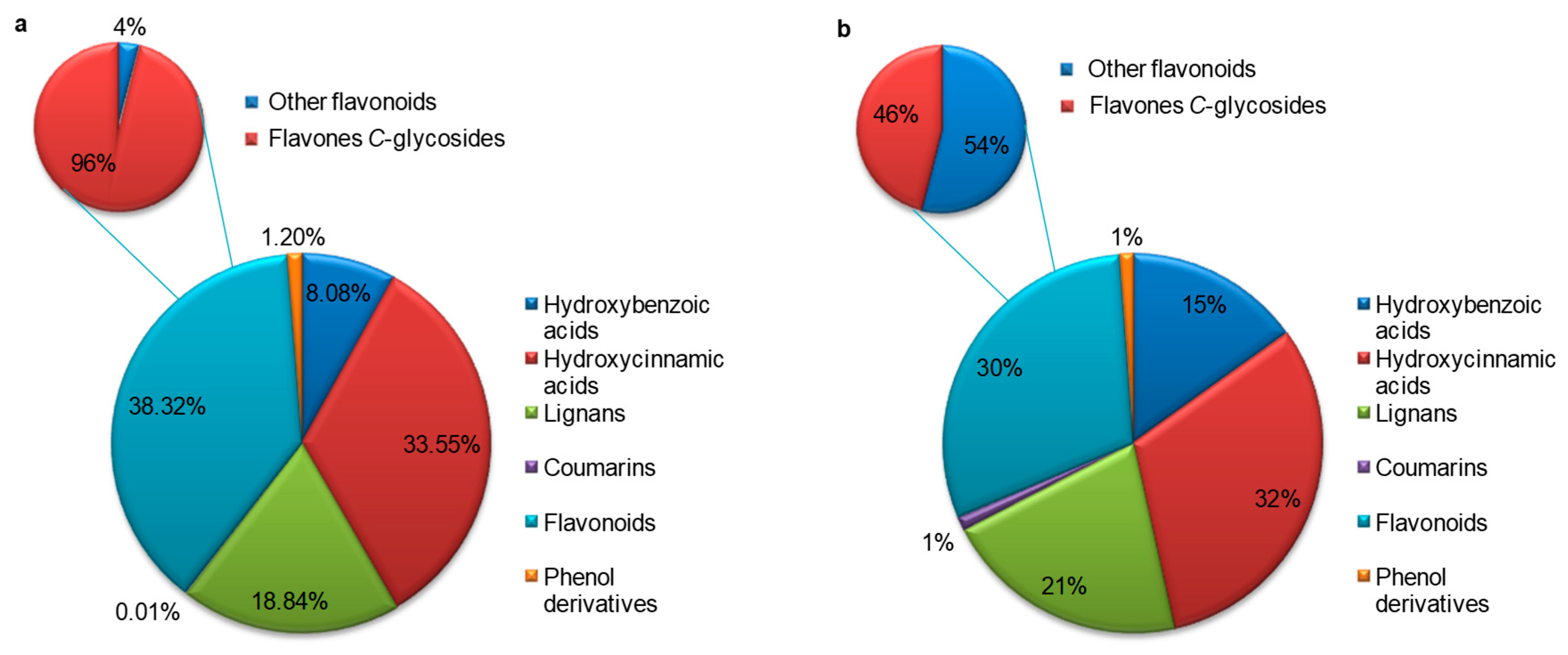

Figure 4. Summary of the characterization results on sesame phenolic compounds: (a) relative abundance (%) and (b) qualitative classification (%).
Figure 4. Summary of the characterization results on sesame phenolic compounds: (a) relative abundance (%) and (b) qualitative classification (%).
Foods 08 00432 g004
Table
Table 1. Phenolic compounds characterized in the cake of the Egyptian cultivar of Sesamum indicum L. ‘Giza 32’.
Table 1. Phenolic compounds characterized in the cake of the Egyptian cultivar of Sesamum indicum L. ‘Giza 32’.
NumberRt (min)Experimental m/z a [M − H]−Theoretical Mass (M)Molecular FormulaError (ppm)Error (mDa)ScoreMain FragmentsDBEUV (nm)Proposed Compound c
17.33169.0140170.0215C7H6O52.090.3684.05N.D.5N.D.Gallic acid *
28.74137.0242138.0316C7H6O30.510.0796.91N.D.5N.D.Sesamol
39.02329.0881330.0951C14H18O9−0.5−0.292.03167.0351, 123.04566256sh, 286Vanillic acid hexoside I
49.10147.0454148.0524C9H8O2−1.2−0.398.8103.0556, 85.02906255Cinnamic acid
59.56329.0878330.0951C14H18O90.00.096.43197.0457, 153.01936N.D.Syringic acid pentoside
69.91343.1036344.1107C15H20O9−0.2−0.199.74163.0401, 119.04986N.D.p-Coumaric acid hexoside I (in hydrated form)
710.28329.0879330.0951C14H18O9−1.0−0.394.93167.0349, 152.0117, 123.0450, 108.02186257sh, 285Vanillic acid hexoside II
810.66329.0882330.0951C14H18O9−1.0−0.397.69167.0349, 152.0113, 123.0451, 108.02176255sh, 285Vanillic acid hexoside III
911.20461.1302462.1373C19H26O130.00.094.27329.0876, 299.0775, 167.0345, 152.01947N.D.Vanillic acid pentosidehexoside
1011.33153.0194154.0266C7H6O4−0.64−0.184.11N.D.5257, 283sh3,4-Dihydroxybenzoic acid * (protocatechuic acid)
1111.83359.0982360.1057C15H20O100.40.299.54197.0449, 182.0218, 166.9988, 153.0555, 138.0318, 123.00876267Syringic acid hexoside
1212.35325.0932326.1002C15H18O8−0.6−0.299.12163.0399, 119.05007287p-Coumaric acid hexoside II
1312.72325.0932326.1002C15H18O8−0.6−0.299.12163.0419, 119.05037286p-Coumaric acid hexoside III
1413.58487.1456488.1530C21H28O13−0.08−0.0480.23341.1085, 179.05448270Caffeic acid hexosidedeoxyhexoside (cistanoside F)
1513.93355.1039356.1107C16H20O9−1.0−0.499.18193.0504, 178.0268, 134.0378, 119.04897228, 288, 310Ferulic acid hexoside isomer I
1614.22355.1038356.1107C16H20O9−0.7−0.398.93193.0507, 178.0269, 134.0374, 119.05137228, 288, 310Ferulic acid hexoside isomer II
1714.30153.0193154.0266C7H6O40.330.0585.78N.D.5N.D.2,5-Dihydroxybenzoic acid * (gentisic acid)
1814.89137.0242138.0317C7H6O3−0.10.093.21N.D.5272p-Hydroxybenzoic acid *
1914.96385.1136386.1213C17H22O10−0.5−0.287.56223.0611, 208.0373, 179.0706, 164.0472, 149.02387290Sinapic acid hexoside
2014.99353.0878354.0951C16H18O90.70.399.38N.D.8278Caffeoylquinic acid * (chlorogenic acid)
2115.12531.1719532.1792C23H32O140.00.196.82385.1140, 223.0610, 179.0706, 165.0551, 150.03158283Sinapic acid deoxyhexosidehexoside I
2215.16517.1560518.1635C22H30O140.10.095.85193.0501, 175.0395, 149.0606, 134.03678277Ferulic acid dihexoside (sibiricose A5)
2315.58325.0930326.1002C15H18O8−0.30−0.1097.64163.0398, 121.0293, 119.04987228, 276p-Coumaric acid hexoside IV
2415.74325.0930326.1002C15H18O8−0.38−0.1299.22163.0391, 119.04987282, 312p-Coumaric acid hexoside V
2516.61325.0932326.1002C15H18O8−0.5−0.297.58193.0508, 134.03757291Ferulic acid pentoside I
2616.75167.0356168.0426C8H8O4−3.59−0.6094.34N.D.5232, 264, 293Vanillic acid *
2716.81355.1050356.1107C16H20O9−3.8−1.493.17193.0506, 178.0274, 134.0378, 119.05027228, 288Ferulic acid hexoside isomer III
2816.88593.1516594.1585C27H30O15−0.6−0.498.31503.1189, 473.1090, 383.0773, 353.066613280, 323LuteolinC-deoxyhexosideC-hexoside I
2917.01179.0349180.0422C9H8O40.60.186.26N.D.6233, 273Caffeic acid *
3017.15593.1518594.1585C27H30O15−1.0−0.698.52533.1313, 503.1623, 473.1085, 383.0772, 353.066413272, 330LuteolinC-deoxyhexosideC-hexoside II
3117.44197.0453198.0528C9H10O51.30.380.31182.0218, 166.9984, 153.0182, 123.00885273Syringic acid *
3217.51593.1522594.1585C27H30O15−1.7−1.097.71533.1290, 503.1186, 473.1084, 383.0770, 353.066313272, 330LuteolinC-deoxyhexosideC-hexoside III
3317.62531.1724532.1792C23H32O14−0.8−0.498.13208.0329, 165.0560, 150.03238278Sinapic acid deoxyhexosidehexoside II
3417.73289.0718290.0790C15H14O6−0.33−0.1085.47N.D.9234, 272(-)-Epicatechin *
3517.83531.1733532.1792C23H32O14−2.1−1.196.91165.0558, 150.03228277Sinapic acid deoxyhexosidehexoside III
3617.96681.2400682.2473C32H42O160.000.0099.86519.1854, 357.1337, 342.1101, 327.1238, 151.0393, 136.015612280Pinoresinol dihexoside I
3718.24563.1415564.1479C26H28O14−1.65−0.9396.8545.1296, 503.1192, 473.1084, 443.0983, 413.0873, 383.0771, 353.0666, 117.033613272, 327Apigenin C-pentoside-C-hexoside I
3818.30121.0296122.0368C7H6O2−1.21−0.1599.6592.02665.5272Benzoic acid
3918.67563.1413564.1479C26H28O14−1.01−0.5798.77545.1297, 503.1188, 473.1086, 443.0983, 413.0876, 383.0766, 353.0661, 117.035113272, 326Apigenin C-pentoside-C-hexoside II
4018.83563.1414564.1479C26H28O14−1.19−0.6798.47545.1292, 503.1186, 473.1081, 443.0976, 413.0874, 383.0766, 353.0661, 117.033713269, 337Apigenin C-pentoside-C-hexoside III
4118.90447.0938448.1006C21H20O11−2.10−0.9496.95357.0618, 327.0510, 297.0405, 285.040712272, 332Luteolin C-hexoside I
4218.93563.1412564.1479C26H28O14−0.97−0.5598.82545.1296, 503.1186, 473.1082, 443.0976, 413.0874, 383.0768, 353.0664, 117.034613272, 333Apigenin C-pentoside-C-hexoside IV
4319.18533.1303534.1373C25H26O13−0.45−0.2498.84N.D.13274, 320shApigenin di-C-pentoside I
4419.44563.1411564.1479C26H28O14−1.08−0.6198.75545.1300, 503.1206, 473.1087, 443.0980, 413.0875, 383.0768, 353.066813N.D.Apigenin C-pentoside-C-hexoside V
4519.48325.0930326.1002C15H18O8−0.10.099.16193.0506, 175.09737N.D.Ferulic acid pentoside II
4619.60447.0945448.1006C21H20O11−2.35−1.0596.73357.0611, 327.0507, 297.0404, 285.040012265, 334Luteolin C-hexoside II
4719.85767.2402768.2477C35H44O190.070.0691.82723.2460, 357.1341, 342.1102, 327.1236, 151.0399, 136.016514276Pinoresinol malonyl dihexoside I
4819.92533.1304534.1373C25H26O13−1.49−0.8097.89515.1191, 503.1164, 473.1088, 443.0983, 413.0870, 383.0101, 353.0667, 117.034013277Apigenin di-C-pentoside II
4919.95767.2405768.2477C35H44O19−0.20−0.1597.21723.2656, 681.2187, 561.1957, 357.1346, 342.1104, 327.1236, 151.0399, 136.016514279Pinoresinol malonyl dihexoside II
5020.33163.0399164.0473C9H8O3−0.14−0.0296.2119.05016284p-Coumaric acid *
5120.52609.1463610.1534C27H30O16−0.32−0.1996.93301.0825, 178.9975, 151.002913N.D.Quercetin 3-O-rutinoside (rutin) *
5221.06681.2399682.2473C32H42O160.500.3497.7519.1519, 357.1325, 327.0853, 339.0883, 309.0763, 151.0387, 137.024912280Pinoresinol dihexoside II
5321.13463.0884464.0955C21H20O12−0.54−0.2596.41N.D.12N.D.Quercetin 3-O-β-d-glucopyranoside *
5421.23623.1994624.2054C29H36O15−1.64−1.0297.45461.1689, 315.1084, 297.0981, 179.0351, 161.0240, 153.0567, 135.0452, 113.024412280, 308Verbascoside
5521.27639.1993640.2003C29H36O16−0.03−0.0296.46477.1427, 331.0809, 297.0764, 179.0339, 161.045312282β-Hydroxyverbascoside (campneoside II)
5621.30463.0884464.0955C21H20O12−1.11−0.5297.47N.D.12N.D.Quercetin 3-O-β-D-galactopyranoside*
5721.36447.0929448.1006C21H20O110.770.3481.14N.D.12N.D.Luteolin 7-O-β-D-glucopyranoside *
5821.48223.0611224.0685C11H12O50.900.2083.94N.D.6N.D.Sinapic acid *
5921.54193.0506194.0579C10H10O4−0.4−0.198.4178.0271, 134.0371, 119.05027230, 295sh, 322Ferulic acid *
6022.09161.0245162.0317C9H6O3−1.2−0.284.29N.D.7N.D.7-Hydroxycoumarin * (umbelliferone)
6122.291017.31121018.3165C44H58O27−1.44−1.4697.58855.2379, 693.1894, 369.0920, 323.0935, 221.0642, 219.0625, 179.0543, 161.0422, 149.0425, 143.034116286Sesaminol tetrahexoside I
6222.29623.1981624.2054C29H36O150.370.2398.18461.1659, 315.1088, 297.0969, 179.0354, 161.0241, 153.0546, 135.0453, 113.024312280, 308Isoverbascoside
6322.34681.2389682.2473C32H42O162.131.4594.88519.1850, 357.1336, 327.0850, 297.0766, 161.0456, 151.0394, 149.0429, 137.060912288Pinoresinoldihexoside III
6422.401017.30971018.3165C44H58O27−0.19−0.1999.14855.2565, 693.2027, 369.0976, 323.0934, 221.0661, 219.0625, 179.0559, 161.0451, 149.045616284Sesaminol tetrahexoside II
6522.56841.2785842.2857C38H50O21−1.42−1.2097.87679.2245, 517.1755, 485.1514, 355.1189, 323.0984, 221.0668, 179.0563, 161.0459, 149.0455, 121.0295, 89.024414285Xanthoxylol trihexoside
6622.93163.0399164.0473C9H8O31.641.2786.8N.D.6284m-Coumaric acid *
6723.15927.2789928.2849C41H52O24−1.26−1.1797.47883.2852, 841.2758, 823.2653, 679.2213, 661.2124, 485.1489, 467.1399, 355.1182, 323.0980, 221.0659, 161.0457, 179.0552, 177.0921, 149.0448, 121.029316288Xanthoxylol malonyl trihexoside
6823.26447.0942448.1006C21H20O11−2.16−0.9785.48N.D.12N.D.Quercetin 3-O-rhamnopyranoside *
6923.32855.2585856.2637C38H48O22−2.0−1.796.4693.2013, 485.1485, 369.0965, 323.0980, 221.0663, 219.0668, 179.0558, 161.0455, 149.0453, 143.0347, 119.035015283Sesaminol trihexoside I
7023.45855.2578856.2637C38H48O22−1.8−1.596.86693.2329, 531.1494, 485.1508, 369.0978 221.0664, 219.0657, 179.0558, 161.0457, 149.0456, 143.0349, 119.034915290Sesaminol trihexoside II
7124.25871.2515872.2586C38H48O230.40.398.91709.1974, 691.1869, 529.1376, 485.1509, 385.0926, 323.0985, 221.0665, 179.0556, 165.0192, 161.0457, 143.0347, 149.0452, 137.0243, 119.0349, 89.024315292Hydroxysesamolin trihexoside
7224.32531.1513532.1581C26H28O12−0.7−0.499.00337.0929, 323.0776, 193.0503, 178.0267, 175.0398, 149.0607, 134.037013292Diferuloyl hexoside
7324.45317.0305318.0388C15H10O8−3.7−1.282.25N.D.11N.D.Myricetin *
7426.45285.0408286.0477C15H10O6−1.2−0.399.42N.D.11288, 340Luteolin *
7526.65301.0349302.0420C15H10O72.10.690.98N.D.11N.D.Quercetin *
7627.01593.1884 b594.1949C28H34O14−1.3−0.898.05371.1143, 356.0911, 233.0817, 161.0457, 138.032312283Sesamolinolhexoside
7727.19633.1829634.1898C30H34O15−0.3−0.299.43N.D.14286Sesaminol dipentoside I
7827.43633.1824634.1898C30H34O150.20.199.47501.1317, 369.0969, 339.0969, 219.0646, 135.034114285Sesaminol dipentoside II
7927.67635.1984636.2054C30H36O15−0.4−0.298.82371.113213285Sesamolinol dipentoside I
8027.82635.1991636.2054C30H36O15−1.1−0.796.65371.112813286Sesamolinol dipentoside II
8127.85269.0457270.0528C15H10O5−1.0−0.383.23N.D.11N.D.Apigenin *
8227.94635.1980636.2054C30H36O150.20.199.43371.113513286Sesamolinol dipentoside III
8328.19285.0403286.0477C15H10O60.70.084.77N.D.11N.D.Kaempferol *
8428.32271.0610272.0685C15H12O50.70.299.86N.D.10N.D.Naringenin *
8529.81255.0664256.0736C15H12O4−0.23−0.0699.3213.0551, 171.0440, 151.0026, 107.0136, 103.0534, 83.013410288Pinocembrin
8629.84299.0566300.0634C16H12O6−0.6−0.289.67N.D.11N.D.Kaempferide *
a Detected ions were [M−H]−. b Detected ion was acetic acid adduct [M+CH3COOH − H]−. c Isomers are denoted with letter codes I, II, etc. * Identification confirmed by comparison with standards; N.D., below 5 mAU or masked by compound with higher signal. Compounds in bold letter indicate new proposed structures.
Table
Table 2. Non-phenolic compounds characterized in the cake of the Egyptian cultivar of Sesamum indicum L. ‘Giza 32’.
Table 2. Non-phenolic compounds characterized in the cake of the Egyptian cultivar of Sesamum indicum L. ‘Giza 32’.
NumbertR (min)Experimental m/za [M − H]−Theoretical Mass (M)Molecular FormulaError (ppm)Error (mDa)ScoreMain FragmentsDBEUV (nm)Proposed Compound b
1′2.57195.0513196.0583C6H12O7−1.3−0.399.39135.03051N.D.Gluconic/Galactonic acid I
2′2.59131.0463132.0535C4H8N2O30.110.0197.72114.0110, 113.03582N.D.Asparagine
3′2.65195.0513196.0583C6H12O7−0.9−0.299.19135.02971N.D.Gluconic/Galactonicacid II
4′2.65665.2144666.2219C24H42O210.540.3698.67503.1618, 341.1086, 179.05584N.D.Sesamose
5′2.96191.0198192.027C6H8O7−0.2−099.31173.0087, 111.00893N.D.Citric acid I
6′3.15133.0143134.0215C4H6O5−0.7−0.199.61115.00372N.D.Malic acid I
7′3.45133.0141134.0215C4H6O50.890.2799.34115.00392N.D.Malic acid II
8′3.96191.0197192.027C6H8O70.170.0399.75173.0086, 111.00883N.D.Citric acid II
9′4.02147.0296148.0372C5H8O51.30.1997.42103.04002N.D.Citramalic acid
10′4.08129.0191130.0268C5H6O41.90.2599.485.02973N.D.Itaconic acid
11′4.27191.0203192.027C6H8O70.210.0499.93111.00863N.D.Citric acid III
12′4.52130.0872131.0949C6H13NO21.490.299.47112.9861N.D.Leucine/Isoleucine
13′5.33180.0663181.0745C9H11NO3−1.7−0.394.97163.04065264Tyrosine *
14′5.51130.0874131.0949C6H13NO2−0.4−0.198.93112.98601N.D.Leucine/Isoleucine
15′6.29611.1454612.152C20H32N6O12S2−0.9−0.698.87481.1002, 338.0483, 306.0761, 288.0658, 254.0780, 179.0461, 128.03538N.D.Oxidized glutathione (Glutathione disulfide)
16′7.00171.0303172.0372C7H8O5−3.4−0.695.58127.04034230(−)-3-Dehydroshikimic acid
17′7.67191.0569192.0634C7H12O6−3.6−0.796.92147.0663, 129.0557, 101.06102N.D.Quinic acid I
18′8.19191.056192.0634C7H12O60.10.099.64147.0655, 129.0551, 101.06042N.D.Quinic acid II
19′9.12164.0718165.0790C9H11NO2−0.4−0.199.53147.0455, 129.0557, 85.02975255Phenylalanine *
20′10.16218.1034219.1107C9H17NO50.10.098.6146.08192N.D.Pantothenic acid (Vit B5) I
21′10.53218.1038219.1107C9H17NO5−1.4−0.398.6146.08222N.D.Pantothenic acid (Vit B5) II
22′11.39382.1003383.1077C14H17N5O8−0.1−0.198.1266.0892, 250.574, 206.0679, 134.0468, 115.00349265Succinyladenosine
23′12.72529.1834530.19C26H30N2O10−0.9−0.599.2203.0820, 159.0924, 142.0655, 116.050013279, 287shTryptophan derivative
24′14.30175.0611176.0685C7H12O50.620.1199.62115.042N.D.Isopropylmalic acid I
25′14.61175.061176.0685C7H12O51.410.2599.21115.042N.D.Isopropylmalic acid II
26′24.03187.0979188.1049C9H16O4−1.8−0.398.65125.0972N.D.Azelaic acid
a Detected ions were [M − H]−. b Isomers are denoted with letter codes I, II, etc. * Identification confirmed by comparison with standards; N.D., below 5 mAU or masked by compound with higher signal.

Share and Cite

MDPI and ACS Style

Mekky, R.H.; Abdel-Sattar, E.; Segura-Carretero, A.; Contreras, M.d.M. Phenolic Compounds from Sesame Cake and Antioxidant Activity: A New Insight for Agri-Food Residues’ Significance for Sustainable Development. Foods 2019, 8, 432. https://doi.org/10.3390/foods8100432

AMA Style

Mekky RH, Abdel-Sattar E, Segura-Carretero A, Contreras MdM. Phenolic Compounds from Sesame Cake and Antioxidant Activity: A New Insight for Agri-Food Residues’ Significance for Sustainable Development. Foods. 2019; 8(10):432. https://doi.org/10.3390/foods8100432

Chicago/Turabian Style

Mekky, Reham Hassan, Essam Abdel-Sattar, Antonio Segura-Carretero, and María del Mar Contreras. 2019. "Phenolic Compounds from Sesame Cake and Antioxidant Activity: A New Insight for Agri-Food Residues’ Significance for Sustainable Development" Foods 8, no. 10: 432. https://doi.org/10.3390/foods8100432

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
