The Estimation of Chemical Properties of Pepper Treated with Natural Fertilizers Based on Image Texture Parameters

by
Ewa Ropelewska
* and
Justyna Szwejda-Grzybowska
Fruit and Vegetable Storage and Processing Department, The National Institute of Horticultural Research, Konstytucji 3 Maja 1/3, 96-100 Skierniewice, Poland
*
Author to whom correspondence should be addressed.
Foods 2023, 12(11), 2123; https://doi.org/10.3390/foods12112123
Submission received: 19 April 2023 / Revised: 17 May 2023 / Accepted: 23 May 2023 / Published: 24 May 2023
(This article belongs to the Special Issue Applications of Artificial Intelligence in Food Industry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The cultivar and fertilization can affect the physicochemical properties of pepper fruit. This study aimed at estimating the content of α-carotene, β-carotene, total carotenoids, and the total sugars of unfertilized pepper and samples treated with natural fertilizers based on texture parameters determined using image analysis. Pearson’s correlation coefficients, scatter plots, regression equations, and coefficients of determination were determined. For red pepper Sprinter F1, the correlation coefficient (R) reached 0.9999 for a texture from color channel B and −0.9999 for a texture from channel Y for the content of α-carotene, −0.9998 (channel a) for β-carotene, 0.9999 (channel a) and −0.9999 (channel L) for total carotenoids, as well as 0.9998 (channel R) and −0.9998 (channel a) for total sugars. The image textures of yellow pepper Devito F1 were correlated with the content of total carotenoids and total sugars with the correlation coefficient reaching −0.9993 (channel b) and 0.9999 (channel Y), respectively. The coefficient of determination (R2) of up to 0.9999 for α-carotene content and the texture from color channel Y for pepper Sprinter F1 and 0.9998 for total sugars and the texture from color channel Y for pepper Devito F1 were found. Furthermore, very high coefficients of correlation and determination, as well as successful regression equations regardless of the cultivar were determined.

1. Introduction

Nowadays, the consequences associated with conventional agricultural production are observed, such as the disruption of natural diversity, soil and water pollution by fertilizers and plant protection products, reduced biomass production, and an increase in diseases. Therefore, there is an increasing trend in agricultural production based on the agroecological concept. With the ever-increasing nutritional awareness of society, the group of consumers looking for organically produced food is growing, and thus the demand for products with high health-promoting value and free of pesticides is increasing. The use of chemical plant protection products is an easy way of combating organisms that are harmful to plants, but it carries a risk to the health of people, animals, and the environment. More and more modern preparations of natural origin for use in plant cultivation are appearing on the market, which have a beneficial effect on plant-life processes and, at the same time, can influence the composition and content of bioactive and nutritional compounds and protect plants from diseases and pests [1,2].
Sweet pepper (Capsicum annuum L.), otherwise known as the annual pepper plant, is classified as a plant of the Solanaceae family. About 39 pepper species have been identified, including five domesticated species, C. annuum, C. baccatum, C. chinense, C. frutescens, and C. pubescens [3]. It is a vegetable with low energy value and low index and glycemic load. It is one of the vegetables characterized by high health-promoting compounds, carotenoids (especially beta-carotene, α-carotene, and lutein); phenolic compounds; and vitamins, such as ascorbic acid, vitamins (A, E, and K). It is also a good source of folic acid, minerals (potassium, manganese, iron, and magnesium), and dietary fiber [4,5,6]. In previous studies, a 100 g serving of peppers was found to cover 100% of the recommended daily intake of vitamin C, 5–10% of tocopherol, and 5–10% of provitamin A [6].
Nutritional and health-promoting compounds contained in pepper fruits play an important role in the prevention of cardiovascular diseases and cancer [7,8,9]. Among these compounds, the carotenoids—pigments present in the seed coat of pepper fruits—are of great importance. Scientists are increasingly paying attention to the health-promoting value of carotenoids and their role in disease prevention. Among other things, these compounds are part of the body’s defense system against free radicals, an excess of which accelerates cellular aging processes. These processes can become the cause of the development of chronic diseases, such as cancer and cardiovascular diseases. As the selected are precursors of vitamin A, they also counteract diseases associated with vitamin A deficiency. Vitamin A is responsible for vision and is involved in processes in the retina. It also plays a very important role in the proliferation of bone tissue and epithelial cells, especially of the oral mucosa, gastrointestinal tract, urinary tract, respiratory tract, as well as the organ of vision. In plants, carotenoids are pigments that play an important role in protecting plants from photo-oxidative effects. They are effective antioxidants and participate in scavenging singlet oxygen and superoxide radicals [10].
Among the compounds that largely determine the nutritional value of pepper fruits are the sugars that give them their sweet taste. Their content is genetically determined and can be modified by agrotechnical and climatic conditions [11,12,13,14]. The sugar content also depends on the ripeness of the pepper fruit [13,15,16]. These compounds mainly accumulate in the pericarp of peppers and their content may vary from variety to variety [17]. In addition, sugars, together with specific volatile compounds, can affect the overall perception of taste and are vitamin C stabilizers [18]. Vegetables and fruits that have a high vitamin C content in their composition have been proven to have high levels of sugars [13,19].
The pepper fruit cultivars differ in color, size, shape, and flavor. The color and shape of pepper fruit at the stage of consumer maturity depend on the presence of a gene system. Pepper fruits synthesize and accumulate a variety of carotenoids in tissues with a wide range of content. Even within the same cultivar, the composition and number of carotenoids can vary considerably depending on maturity stage, growing region, and growing conditions [20,21,22,23]. The first level of regulation of carotenoid biosynthesis in pepper fruit is the transcriptional control of gene biosynthesis. It is the main determinant of carotenoid production in pepper during fruit ripening in response to developmental cues [24,25]. Various studies confirm that capsanthin, β-carotene, and β-cryptoxanthin are the carotenoids responsible for the red color of peppers [26,27]. In contrast, yellow pepper varieties contain lutein, violaxanthin, antheraxanthin, and zeaxanthin. The orange color of pepper fruits is determined by the presence of α- and β-carotene, β-cryptoxanthin, zeaxanthin, and lutein. Brown varieties mainly contain red carotenoid pigments, such as red pepper fruits [26]. The shape of the pepper fruit is also an important varietal characteristic, ranging from very long and narrow, through spherical to fruit in the form of a short or elongated prism. The wall thickness of the pepper fruit can be 5–12 mm depending on the variety and growth conditions. The average weight of pepper fruit in large-flowered sweet varieties reaches 250–350 g, and often more [13]. Flesh and skin texture, juiciness and postharvest shelf life are determined by both genetic traits and growing conditions [28].
As mentioned above, the physicochemical properties depend on the pepper cultivar and can be affected by fertilization. Research involving image analysis allows for an objective assessment of the quality of food products with the reduction in the time, costs, and labor consumption of analyzes [29]. Due to image processing, the textural, color, and morphological parameters in the images can be computed and then interpreted [30]. The image texture parameters can be considered a function of the spatial variation of the brightness pixel intensity and carry information about the structure of the samples, whereas analyses of image textures provide insights into product quality. Image textures can be analyzed using specialized software packages, for example, MaZda, which enables quantitative analysis, including texture parameters computation, as well as texture selection and extraction, data classification and visualization, and image segmentation tools. MaZda provides options for the transformation of color images to grayscale and conversions to individual color channels (components) [31,32,33]. Several channels are most commonly used. There are color channels R (red), G (green), and B (blue) from the RGB color space; L (lightness component from black to white), a (red for positive and green for negative values), and b (yellow for positive and blue for negative values) from the Lab color space; and X (component with color information), Y (lightness), and Z (component with color information) from the XYZ color space [29,34].
The objective of this study was to estimate the chemical properties of peppers belonging to two cultivars treated with natural fertilizers in a fast and inexpensive manner based on image texture parameters. A great novelty of the present study is related to the estimation of α-carotene, β-carotene, total carotenoids, and total sugars of untreated red pepper Sprinter F1 and yellow pepper Devito F1 and samples subjected to different organic fertilization, such as NaturalCrop® SL, Bio-algeen S90, and nettle fertilizer. The innovative regression equations including features selected from a set of 1629 image textures from nine color channels were determined. The developed procedure could enable the selection of fruit with the desired properties based on the image features without the need to perform more labor-intensive and expensive measurements.

2. Materials and Methods

2.1. Experimental Design

The experimental material consisted of pepper growing in greenhouses at the Laboratory of Cultivation of Vegetable and Edible Mushrooms of the National Institute of Horticultural Research in Skierniewice in Poland. Peppers belonged to two cultivars of Sprinter F1 characterized by red fruit and Devito F1 with yellow fruit. The experiment was carried out between March and October 2021. During the experiment, daily climatological data were collected inside the greenhouse, using a thermo-hygrometer. Organic pepper seeds were used and potted seedlings were planted in the soil in an ecological greenhouse under the principles of organic farming. The experiment was set up in the soil with a pH of 6.0. Before planting, the soil was fertilized with organic plant compost at a dose of 300 kg per 100 m2, obtaining the soil fertility at the level (mg dm−3) of N-230, P-310, K-400, and Mg-350. The seedlings were planted on April 20, in a row-row system, at a spacing of 35 cm × 60 cm (3.6 plants per 1 m2). Plants were grown in a four-shoot system. Pepper fertigation was carried out with the use of a drip system and fertilizers approved for organic cultivation depending on the current humidity and nutritional requirements of the pepper in particular growth stages [35]. The fruit was harvested at the stage of colorful ripeness.

2.2. Preparations

In research natural preparation and fertilizers approved for organic farming was performed such as: nettle fertilizer (NE/427/2018) (as a substance with biocidal and nutritional effect) based on N-NO3 about 0.5–0.7 mg·L−1, N-NH4 >100 mg·L−1, P about 20 mg·L−1, K-about 650 mg·L−1, F—0.2 mg·L−1, pH 6.3–6.7 (20% solution was used); Bio-algeen S90 (organic fertilizer) containing 90 groups of chemicals compounds, including amino acids; vitamins; alginic acid and other unexplored active components of marine algae; N—0.02%; P—0.006%; K—0.096%; Ca—0.31%; MG—0.021% and B—16 mg·kg−1; Fe—6.3 mg·kg−1; Cu—0.2 mg·kg−1; Mn—0.6 mg·kg−1; Zn −1.0 mg·kg−1 (0.3% solution was used); NaturalCrop® SL (growth and development stimulator)—enzymatic concentrate of peptides; and 16 L-amino acids most important for plants (GLY, GLU, HIS, LYS) of plant origin >50% (605 g·L−1), including free amino acids 0.2% (242 g·L−1), amino nitrogen 9% (109 g·L−1), organic carbon 24.5% (296.5 g·L−1) (0.3% solution was used), and the control (unfertilized plots).

2.3. Image Acquisition and Processing

The image acquisition was performed using an Epson Perfection V600 flatbed scanner. The scanner was placed in a black box to obtain a black background of images. The images of pepper slices (cross-sections) with a thickness of 10 mm obtained using a slicing machine were considered. In the case of each cultivar and treatment, images of 50 slices were acquired, as follows:
  • − Fifty slices of a control sample of Sprinter F1 pepper,
  • − Fifty slices of Sprinter F1 pepper treated with NaturalCrop® SL,
  • − Fifty slices of Sprinter F1 pepper treated with Bio-algeen S90,
  • − Fifty slices of Sprinter F1 pepper treated with nettle fertilizer,
  • − Fifty slices of a control sample of Devito F1 pepper,
  • − Fifty slices of Devito F1 pepper treated with NaturalCrop® SL,
  • − Fifty slices of Devito F1 pepper treated with Bio-algeen S90,
  • − Fifty slices of Devito F1 pepper treated with nettle fertilizer.
The acquired images were saved in a TIFF format at 800 dpi resolution. Before processing in the Mazda software (Łódź University of Technology, Institute of Electronics, Łódź, Poland) [31,32,33], the pepper slice images were converted to a BMP format. Then, texture parameter extraction was carried out for each of the color channels L, a, b, R, G, B, X, Y, and Z. The sample images are presented in Figure 1. The image segmentation into pepper slices and the background was performed manually based on the pixel brightness intensity. Each pepper slice (the area of flesh without skin) was considered as a region of interest (ROI). For each ROI, in total 1629 image textures, including 181 textures for each color channel were computed.

2.4. Chemical Properties

The samples for chemical analysis were prepared from 10 pepper fruits from each repetition. Pepper fruits were cut into quarters, frozen in liquid nitrogen, crushed in a Blixer homogenizer and stored at −20 °C.

2.4.1. HPLC Analysis of Sugars

An HPLC analysis of total sugars (sucrose, glucose, and fructose) was determined by high-performance liquid chromatography (Agilent 1200 HPLC system, equipped with a differential refractometric detector), using Aminex HPX-87C (300 mm × 7.5 mm) with a precolumn according to European Standard EN 12630. The isocratic flow was 0.6 mL·min−1, column temperature was 80 °C, and mobile phase-edetate calcium disodium (Ca-EDTA). The samples were dissolved in redistilled water, homogenized, and purified on a Waters SepPak PLUS C18 filter. The sugars were quantified by calibration curve for sucrose, glucose and fructose, and the results were expressed as mg 100 g−1 fresh mass (f.m.).

2.4.2. Carotenoid Extraction

Carotenoid content was determined by the method according to Bohoyo-Gil et al. [36]. The sample was homogenized in the extraction solution (hexane:acetone 6:4) and filtered through a Büchner funnel under reduced pressure. Next, the extract was transferred to a separating funnel and shaken with the addition of water. After phase separation, the water–acetone phase was discarded. The acetone rinsing operation was repeated until the lower phase was free of acetone and the upper hexane phase containing carotenoids was filtered through a filter paper containing anhydrous sodium sulphate into an evaporation flask. Hexane was evaporated to dryness in a vacuum evaporator at 40 °C, the dry residue was quantitatively transferred to a 25 mL flask with a solution of acetonitrile:methanol:ethyl acetate 55:25:20 + 0.1% BHT + 1 mL TEA and 4 mL of hexane. The flask extract was filtered with a 45 µm PTFE filter into an amber bottle and analyzed by HPLC.

2.4.3. HPLC Analysis of Carotenoids

An HPLC analysis of total carotenoids in pepper samples was determined by high-performance liquid chromatography (HPLC), using a Kinetex C-18 column (250 mm × 4.6 mm; 5 µm) on an Agilent 1200 HPLC system equipped with a DAD detector. The elution conditions were as follows, 0.7 mL min−1, temperature 28 °C, wavelength 450 nm, and 472 nm; in the mobile phase, acetonitrile (A), methanol + 1 mL TEA + 1 g BHT (B), ethyl acetate (C); and in gradient flow, 0–10 min, 95% A, 2% B, 3% C; 10–25 min, 55% A, 20% B, 25% C; 25–35 min, 95% A, 2% B, and 3% C. The calculations were quantified by calibration with the standards of β-carotene and α-carotene (Sigma-Aldrich, Darmstadt, Germany). The carotenoid content was expressed in mg 100 g−1 f.m.

2.5. Statistical Analysis

The linear relationships between the chemical properties and image textures of pepper samples were determined using STATISTICA 13.1 (Dell Inc., Tulsa, OK, USA, StatSoft Polska, Kraków, Poland). The analysis was performed separately for samples of Sprinter F1 and Devito F1 and then for a dataset combining both cultivars Sprinter F1 and Devito F1. In the case of Sprinter F1 pepper, among the chemical properties, α-carotene, β-carotene, total carotenoids, and total sugars were considered. For Devito F1, α-carotene was not detected and the differences in the content of β-carotene were very small. Therefore, the analyses for Devito F1 and a dataset combining Sprinter F1 and Devito F1 were performed only for total carotenoids and total sugars. In the first step, Pearson’s correlation coefficients (R) were determined at a significance level of p < 0.05, and scatter plots were created. In the case of image textures from color channels L, a, b, R, G, B, X, Y, and Z for which the correlations occurred, the highest value of R for positive correlation and the highest value of R for negative correlation were selected to be presented in this paper. Then, regression equations for the estimation of chemical properties of pepper untreated and treated with natural fertilizers using image texture parameters were determined and coefficients of determination (R2) were computed.

3. Results and Discussion

3.1. Relationship between Chemical Properties and Image Texture Parameters of Red Pepper Sprinter F1

In the case of red pepper Sprinter F1, correlations between α-carotene, β-carotene, total carotenoids, and total sugars with selected image textures were observed (Table 1). Very strong positive and negative correlations were determined for each of the considered organic chemical compounds reaching 0.9999 and −0.9999 for α-carotene and total carotenoids. In the case of α-carotene, statistically significant correlation coefficients were found for textures of images in color channels a, R, G, B, Y, and Z. The correlation coefficient (R) of 0.9999 was found for one image texture from color channel B and −0.9999 for a texture from channel Y. None of the image textures from channels L, b, and X correlated with α-carotene. Therefore, these channels turned out to be useless for the estimation of α-carotene content. For total carotenoids, both positive and negative relationships with image textures from all color channels L, a, b, R, G, B, X, Y, and Z were observed, and the values of R equal to 0.9999 and −0.9999 were determined for color channels a and L, respectively. In the case of β-carotene, the positive correlations with image textures from color channels a, R, G, B, Y, and Z were observed, reaching 0.9994 for a texture from channel B. Whereas negative correlations with textures from color channels a, R, G, B, X, Y, and Z were observed, and the highest value was −0.9998 for a texture from channel a. It was found that the content of total sugars was positively correlated only with textures of images in color channels R, G, and X with the coefficient of up to 0.9998 in the case of color channel R. Negative correlations with textures from color channels L, a, R, G, X, Y, and Z reached the value of −0.9998 for channel a.
The scatter plots for α-carotene, β-carotene, total carotenoids, total sugars with selected image texture parameters, for which the highest values coefficient R for positive and negative correlations were determined, confirmed the strong relationship between chemical properties and image textures of control red pepper Sprinter F1 and samples treated with natural fertilizers (Figure 2). The positive relationships between α-carotene and the texture from color channel B, β-carotene and the texture from color channel B, total carotenoids, and the texture from color channel a, as well as total sugars and the texture from color channel R, are presented. The strongest negative correlations between α-carotene with the texture from color channel Y, β-carotene with the texture from color channel a, total carotenoids with the texture from color channel L, and total sugars with the texture from color channel a are shown.

3.2. Relationship between Chemical Properties and Image Texture Parameters of Yellow Pepper Devito F1

The texture parameters of flesh images of yellow pepper Devito F1 were correlated with the content of total carotenoids and total sugars (Table 2). Positive correlations were found between total carotenoids and image textures from color channels L, a, b, B, X, and Y with the value of correlation coefficient reaching 0.9899 for the texture from channel X, as well as total sugars and image textures from color channels L, a, b, G, B, X, and Y reaching 0.9999 for the texture from channel Y; while the content of total carotenoids was negatively correlated with image textures from color channels L, b, R, B, and X with a correlation coefficient of up to −0.9993 for the texture from channel b. The negative correlations between the content of total sugars and image textures from channels L, a, G, B, X, and Y reaching −0.9971 for the texture from channel G were determined.
The relationships between total carotenoids and total sugars with selected Image texture parameters of control and fertilized yellow pepper Devito F1 are presented in Figure 3 in the form of scatter plots. The graphs for textures characterized by the strongest positive and negative correlations, such as textures from color channels X and b for total carotenoids, and textures from color channels Y and G for total sugars are shown.

3.3. Relationship between Combined Chemical Properties and Image Texture Parameters of Red Pepper Sprinter F1 and Yellow Pepper Devito F1

In the next step of the analysis, correlations between a set of combined image texture parameters and chemical properties of red pepper Sprinter F1 and yellow pepper Devito F1 belonging to the unfertilized group and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer were determined (Table 3). The content of total carotenoids was positively and negatively correlated with image texture parameters from color channels L, a, b, B, G, X, Y, and Z. The highest positive and negative correlation coefficients were 0.9956 and −0.9935 for textures from color channel Y. In the case of total sugars, the positive correlations with image textures from channels L, a, b, G, X, and Y were observed and the correlation coefficient reached 0.9768 for the texture from channel Y; whereas the negative correlations with image textures from channels L, a, b, G, B, X, and Y with the highest value of −0.9583 for the texture from color channel G were determined.
The scatter plots for total carotenoids and total sugars confirmed the strong relationships with selected image texture parameters of red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer (Figure 4). The strongest positive and negative correlations between total carotenoids with textures from color channel Y and total sugars with textures from color channels Y and G are presented.
Additionally, the regression equations for estimating chemical properties of unfertilized and fertilized pepper samples, as well as coefficients of determination (R2) separately for red pepper Sprinter F1, yellow pepper Devito F1, and a set combining parameters for Sprinter F1 and Devito F1 were determined (Table 4). The higher R2, the better the data fit the regression model. Image textures whose values were the most different between groups of peppers were the most suitable for building regression models. In the case of each chemical parameter, one regression equation for a texture for which the strongest positive correlation and one equation for the strongest negative correlation were set up. In the case of pepper Sprinter F1, all values of R2 were higher than 0.9980, reaching 0.9999 for α-carotene content and the texture YS4RVLngREmph from color channel Y. It indicated that the texture YS4RVLngREmph most differentiated all groups of pepper Sprinter F1, such as control and samples treated with NaturalCrop® SL, Bio-algeen S90, and nettle fertilizer. Pepper Devito F1 was also characterized by very high R2 of up to 0.9998 for the content of total sugars and the texture YS5SH1Entropy from color channel Y. It meant that the control sample of pepper Devito F1, and samples treated with three different natural preparations were the most different in terms of the texture YS5SH1Entropy that was most useful for developing the regression model; whereas the values of R2 reached 0.9912 for total carotenoids and the texture YS5SH5Contrast from color channel Y for a set combining parameters for both cultivars. This confirmed that the textures of color channel Y of images are the most successful for estimating chemical properties of untreated peppers and samples treated with natural fertilizers.
The performed studies revealed strong correlations between the chemical properties and selected image texture parameters of red and yellow pepper samples. Very correct regression equations turn out to be useful for the estimation of the content of carotenoids and sugars based on pepper image parameters. Additionally, available literature reported the relationships between image or spectral features and chemical characteristics. In our previous research, the correlations between lycopene content and image textures of tomato fruit were determined with the correlation coefficient (R) reaching −0.99 for selected texture parameters of images in channels G, b, and Y and coefficients of determination (R2) of 0.99 for image texture from channel G [37]. Pace et al. [38] observed relationships of the visual appearance and color parameters of images of fresh-cut nectarines with R2 of up to 0.7622. The sugar content of potatoes was predicted based on hyperspectral imaging data by Rady et al. [39] with R reaching 0.97 for glucose. The sugar content was also estimated for apples with a high R parameter (0.8861) using multispectral imaging [40] and wine grapes with R2 > 0.8 based on visible and near infrared and the short-wave infrared point spectroscopic data [41]. Furthermore, the prediction of soluble solid content of apples with R > 0.8 was possible based on features extracted from laser light backscattering images [42]. Our results presented in this paper were a significantly novel compared to the available literature, and included the determination of correlations and models for predicting the content of chemical properties based on selected parameters from a very large set of over 1600 textures from nine color channels. It allowed for the selection of textures providing correlation coefficients of up to 0.9999 and −0.9999, as well as very high coefficients of determination reaching 0.9999. The successful results may prompt the use of the developed procedure for other species and varieties of fruit and vegetables and the testing of the approach for other chemical parameters.

4. Conclusions

The correlations between chemical properties and image textures from different color channels of red and yellow peppers untreated and treated with natural fertilizers were determined. In the case of red pepper Sprinter F1, statistically significant correlation coefficients were found between α-carotene, β-carotene, total carotenoids, and total sugars with selected image texture parameters. Yellow pepper Devito F1, as well as a combined dataset for both cultivars were characterized by the correlations between total carotenoids and total sugars with selected textures. Furthermore, the high coefficients of determination confirmed the possibility of estimation of chemical properties based on image texture parameters from different color channels for individual cultivars, as well as regardless of the cultivar. The highest values of R2 were for regression equations set up based on selected textures from images in color channel Y.
Due to the achievement of promising results, research aimed at estimating chemical properties based on image features can be continued and further research directions can be set. Further research may include more pepper cultivars, as well as other species of fruit and vegetables. Furthermore, more natural fertilizers can be used to provide more groups in an experimental design. The developed procedure can be of great practical importance to estimate the chemical properties of samples treated with various fertilizers based on selected image texture parameters.

Author Contributions

Conceptualization, E.R.; methodology, E.R. and J.S.-G.; software, E.R.; validation, E.R.; formal analysis, E.R. and J.S.-G.; investigation, E.R. and J.S.-G.; resources, E.R. and J.S.-G.; data curation, E.R. and J.S.-G.; writing—original draft preparation, E.R. and J.S.-G.; writing—review and editing, E.R. and J.S.-G.; visualization, E.R.; supervision, E.R.; project administration, J.S.-G.; funding acquisition, J.S.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This study was conducted as part of a comprehensive study financed by the Ministry of Science and Higher Education, as part of the research subsidy granted to the National Institute of Horticultural Research, Poland (Grant No. ZPiPOiW/1/2020 entitled: “The influence of natural preparations on the quality of pepper in organic greenhouse production”).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baker, B.P.; Green, T.A.; Loker, A.J. Biological Control and Integrated Pest Management in Organic and Conventional Systems. Biol. Control 2020, 140, 104095. [Google Scholar] [CrossRef]
  2. Hamid, B.; Zaman, M.; Farooq, S.; Fatima, S.; Sayyed, R.Z.; Baba, Z.A.; Sheikh, T.A.; Reddy, M.S.; Enshasy, H.E.; Gafur, A.; et al. Bacterial Plant Biostimulants: A Sustainable Way towards Improving Growth, Productivity, and Health of Crops. Sustainability 2021, 13, 2856. [Google Scholar] [CrossRef]
  3. Bosland, P.W.; Votava, E.J. Peppers: Vegetable and Spice Capsicums, 2nd ed.; CABI: London, UK, 2010. [Google Scholar]
  4. Sreeramulu, D.; Raghunath, M. Antioxidant activity and phenolic content of roots, tubers and vegetables commonly consumed in India. Food Res. Int. 2010, 43, 1017–1020. [Google Scholar] [CrossRef]
  5. Chen, L.; Kang, Y.H. Anti-inflammatory and antioxidant activities of red pepper (Capsicum annum L.) stalk extracts: Comparison of pericarp and placenta extract. J. Funct. Food 2013, 5, 1724–1731. [Google Scholar] [CrossRef]
  6. Wahyuni, Y.; Ballester, A.R.; Sudarmonowati, E.; Bino, R.J.; Bovy, A.G. Secondary metabolites of Capsicum species and their importance in the human diet. J. Nat. Prod. 2013, 76, 783–793. [Google Scholar] [CrossRef]
  7. Asnin, L.; Park, S.W. Isolation and Analysis of Bioactive Compounds in Capsicum Peppers. Crit. Rev. Food Sci. Nutr. 2015, 55, 254–289. [Google Scholar] [CrossRef] [PubMed]
  8. Yang, L.; Wen, K.S.; Ruan, X.; Zhao, Y.X.; Wei, F.; Wang, Q. Response of plant secondary metabolites to environmental factors. Molecules 2018, 23, 762. [Google Scholar] [CrossRef]
  9. Zou, L.; Tan, W.K.; Du, Y.; Lee, H.W.; Liang, X.; Lei, J.; Striegel, L.; Weber, N.; Rychlik, M.; Ong, C.N. Nutritional metabolites in Brassica rapa subsp. chinensis var. parachinensis (choy sum) at three different growth stages: Microgreen, seedling and adult plant. Food Chem. 2021, 357, 129535. [Google Scholar] [CrossRef]
  10. Igielska-Kalwat, J.; Gościańska, J.; Nowak, I. Carotenoids as natural antioxidants. Postepy Hig. I Med. Dosw. (Online) 2015, 69, 418–428. [Google Scholar]
  11. Szafirowska, A.; Elkner, K. The comparison of yielding and nutritive value of organic and conventional pepper fruits. Veget. Crops Reser. Bull. 2009, 71, 111–121. [Google Scholar] [CrossRef]
  12. Ozgur, M.; Akpinar-Bayizit, A.; Ozcan, T.; Yilmaz-Ersan, I. Functional compounds and antioxidant properties of dried green and red peppers. Afr. J. Agric. Res. 2011, 6, 5638–5644. [Google Scholar] [CrossRef]
  13. Russo, V.M. Pepper, Botany, Production and Uses; CABI: London, UK, 2012. [Google Scholar]
  14. Jamiołkowska, A. Preparaty Biotechniczne i Biologiczne w Ochronie Papryki Słodkiej (Capsicum annuum L.) Przed Grzybami Chorobotwórczymi i Indukowaniu Reakcji Obronnych Roślin; Ser. Rozpr. Nauk., 376; Wydawnictwo Uniwersytetu Przyrodniczego w Lublinie: Lublin, Poland, 2013; p. 117. [Google Scholar]
  15. Flores, P.; Navarro, J.M.; Garrido, C.; Rubio, J.S.; Martinez, V. Influence of Ca2+, K+ and NO3− fertilisation on nutritional quality of pepper. J. Sci. Food Agric. 2004, 84, 569–574. [Google Scholar] [CrossRef]
  16. Michałojć, Z.; Dzida, K. Yielding and biological value of sweet pepper fruits depending on foliar feeding using calcium. Acta Sci. Pol. Hortorum Cultus 2012, 11, 255–264. [Google Scholar]
  17. Zamljen, T.; Jakopic, J.; Hudina, M.; Veberic, R.; Slatnar, A. Influence of intra and inter species variation in chilies (Capsicum spp.) on metabolite composition of three fruit segments. Sci. Rep. 2021, 11, 4932. [Google Scholar] [CrossRef]
  18. Eggink, P.M.; Maliepaard, C.; Tikunov, Y.; Haanstra, J.P.W.; Pohu-Flament, L.M.M.; De Wit-Maljaars, S.C.; Willeboordse-Vos, F.; Bos, S.; Waard, C.B.-D.; Leeuwen, P.J.D.G.-V. Prediction of sweet pepper (Capsicum annuum) flavor over different harvests. Euphytica 2012, 187, 117–131. [Google Scholar] [CrossRef]
  19. Jamiołkowska, A.; Buczkowska, H.; Thanoon, A. Effect of biological preparations on the health state of pepper fruits and content of saccharides. Acta Sci. Pol. Hortorum Cultus 2016, 15, 95–107. [Google Scholar]
  20. Ribes-Moya, A.M.; Adalid, A.M.; Raigón, M.D.; Hellín, P.; Fita, A.; Rodríguez-Burruezo, A. Variation in flavonoids in a collection of peppers (Capsicum spp.) under organic and conventional cultivation: Effect of the genotype, ripening stage, and growing system. J. Sci. Food Agric. 2019, 100, 2208–2223. [Google Scholar] [CrossRef]
  21. Russo, V.M.; Howard, L.R. Carotenoids in pungent and non-pungent peppers at various developmental stages grown in the field and glasshouse. J. Sci. Food Agric. 2002, 82, 615–624. [Google Scholar] [CrossRef]
  22. Tripodi, P.; Cardi, T.; Bianchi, G.; Migliori, C.A.; Schiavi, M.; Rotino, G.L.; Lo Scalzo, R. Genetic and environmental factors underlying variation in yield performance and bioactive compound content of hot pepper varieties (Capsicum annuum L.) cultivated in two contrasting Italian locations. Eur. Food Res. Technol. 2018, 244, 1555–1567. [Google Scholar] [CrossRef]
  23. Bhandari, S.R.; Jung, B.D.; Baek, H.Y.; Lee, Y.S. Ripening-dependent changes in phytonutrients and antioxidant activity of red pepper (Capsicum annuum L.) fruits cultivated under open-field conditions. Hort. Sci. 2013, 48, 1275–1282. [Google Scholar] [CrossRef]
  24. Guzman, I.; Hamby, S.; Romero, J.; Basland, P.; O’Connell, M. Variability of carotenoid biosynthesis in orange colored Capsicum spp. Plant Sci. 2010, 179, 49–59. [Google Scholar] [CrossRef] [PubMed]
  25. Yuan, H.; Zhang, J.; Nageswaran, D.; Li, L. Carotenoid metabolism and regulation in horticultural crops. Hortic. Res. 2015, 2, 15036. [Google Scholar] [CrossRef]
  26. Gomez-Garcia, M.; Ochoa-Alejo, N. Biochemistry and Molecular biology of Carotenoid biosynthesis In Chili pepper (Capsicum ssp.). Int. J. Mol. Sci. 2013, 14, 19025–19053. [Google Scholar] [CrossRef] [PubMed]
  27. Chávez-Mendoza, C.; Sanchez, E.; Muñoz-Marquez, E.; Sida-Arreola, J.P.; Flores-Cordova, M.A. Bioactive compounds and antioxidant activity in different grafted varieties of bell pepper. Antioxidants 2015, 4, 427–446. [Google Scholar] [CrossRef] [PubMed]
  28. Li, P.; Zhang, X.; Liu, Y.; Xie, Z.; Zhang, R.; Zhao, K.; Lv, J.; Wen, J.; Deng, M. Characterization of 75 Cultivars of Four Capsicum Species in Terms of Fruit Morphology, Capsaicinoids, Fatty Acids, and Pigments. Appl. Sci. 2022, 12, 6292. [Google Scholar] [CrossRef]
  29. Ropelewska, E. The Application of Machine Learning for Cultivar Discrimination of Sweet Cherry Endocarp. Agriculture 2021, 11, 6. [Google Scholar] [CrossRef]
  30. Bhargava, A.; Bansal, A. Fruits and vegetables quality evaluation using computer vision: A review. J. King Saud Univ.-Comput. Inf. Sci. 2021, 33, 243–257. [Google Scholar] [CrossRef]
  31. Strzelecki, M.; Szczypinski, P.; Materka, A.; Klepaczko, A. A software tool for automatic classification and segmentation of 2D/3D medical images. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2013, 702, 137–140. [Google Scholar] [CrossRef]
  32. Szczypiński, P.M.; Strzelecki, M.; Materka, A.; Klepaczko, A. MaZda-A software package for image texture analysis. Comput. Methods Programs Biomed. 2009, 94, 66–76. [Google Scholar] [CrossRef]
  33. Szczypiński, P.M.; Strzelecki, M.; Materka, A. Mazda-A software for texture analysis. In Proceedings of the 2007 International Symposium on Information Technology Convergence (ISITC 2007), Jeonju, Republic of Korea, 23–24 November 2007; IEEE: Piscataway, NJ, USA, 2007; pp. 245–249. [Google Scholar]
  34. Ibraheem, N.A.; Hasan, M.M.; Khan, R.Z.; Mishra, P.K. Understanding Color Models: A Review. ARPN J. Sci. Technol. 2012, 2, 265–275. [Google Scholar]
  35. Stępowska, A.; Grudzień, K.; Adamicki, E.; Dobrzański, A.; Robak, J.; Szwejda, J. Ekologiczne Metody Uprawy Papryki w Gruncie i Pod Osłonami; Kaniszewski, S., Ed.; KCRE-RCDRRiOW: Radom, Poland, 2004; p. 44. [Google Scholar]
  36. Bohoyo-Gil, D.; Dominguez-Valhondo, D.; García-Parra, J.J.; González-Gómez, D. UHPLC as a suitable methodology for the analysis of carotenoids in food matrix. Eur. Food Res. Technol. 2012, 235, 1055–1061. [Google Scholar] [CrossRef]
  37. Ropelewska, E.; Szwejda-Grzybowska, J. Relationship of Textures from Tomato Fruit Images Acquired Using a Digital Camera and Lycopene Content Determined by High-Performance Liquid Chromatography. Agriculture 2022, 12, 1495. [Google Scholar] [CrossRef]
  38. Pace, B.; Cefola, M.; Renna, F.; Attolico, G. Relationship between visual appearance and browning as evaluated by image analysis and chemical traits in fresh-cut nectarines. Postharvest Biol. Technol. 2011, 61, 178–183. [Google Scholar] [CrossRef]
  39. Rady, A.; Guyer, D.; Lu, R. Evaluation of Sugar Content of Potatoes using Hyperspectral Imaging. Food Bioprocess Technol. 2015, 8, 995–1010. [Google Scholar] [CrossRef]
  40. Tang, C.; He, H.; Li, E.; Li, H. Multispectral imaging for predicting sugar content of ‘Fuji’ apples. Opt. Laser Technol. 2018, 106, 280–285. [Google Scholar]
  41. Kalopesa, E.; Karyotis, K.; Tziolas, N.; Tsakiridis, N.; Samarinas, N.; Zalidis, G. Estimation of Sugar Content in Wine Grapes via In Situ VNIR–SWIR Point Spectroscopy Using Explainable Artificial Intelligence Techniques. Sensors 2023, 23, 1065. [Google Scholar] [CrossRef]
  42. Qing, Z.; Ji, B.; Zude, M. Predicting soluble solid content and firmness in apple fruit by means of laser light backscattering image analysis. J. Food Eng. 2007, 82, 58–67. [Google Scholar] [CrossRef]
Foods 12 02123 g001 550

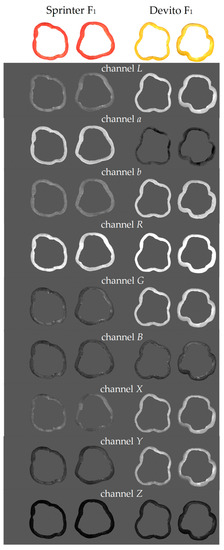

Figure 1. Original color images of pepper slices and images in different color channels.
Figure 1. Original color images of pepper slices and images in different color channels.
Foods 12 02123 g001
Foods 12 02123 g002 550

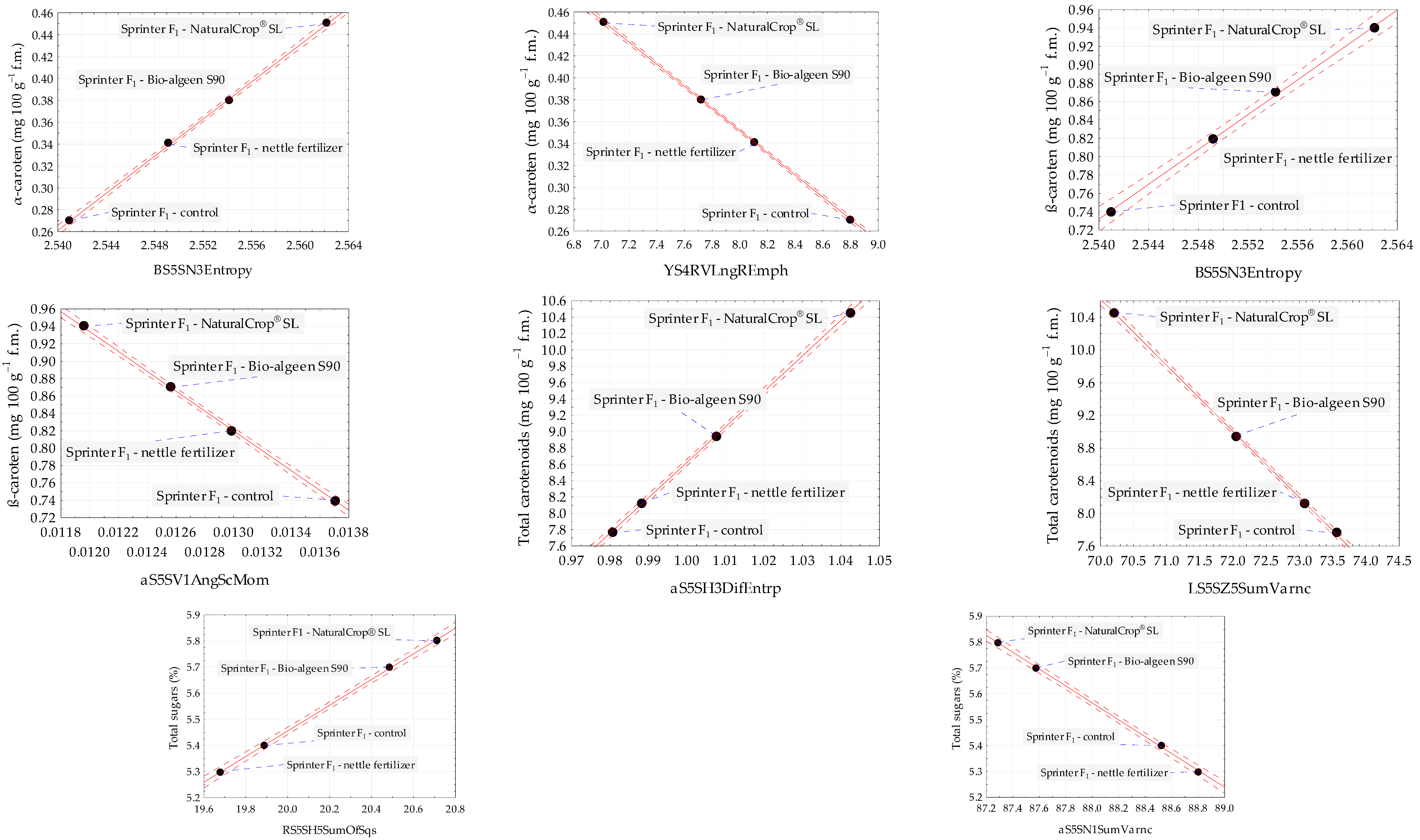

Figure 2. Scatter plots for α-carotene, β-carotene, total carotenoids, and total sugars with selected image texture parameters of control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer red pepper Sprinter F1 samples. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Figure 2. Scatter plots for α-carotene, β-carotene, total carotenoids, and total sugars with selected image texture parameters of control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer red pepper Sprinter F1 samples. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Foods 12 02123 g002
Foods 12 02123 g003 550

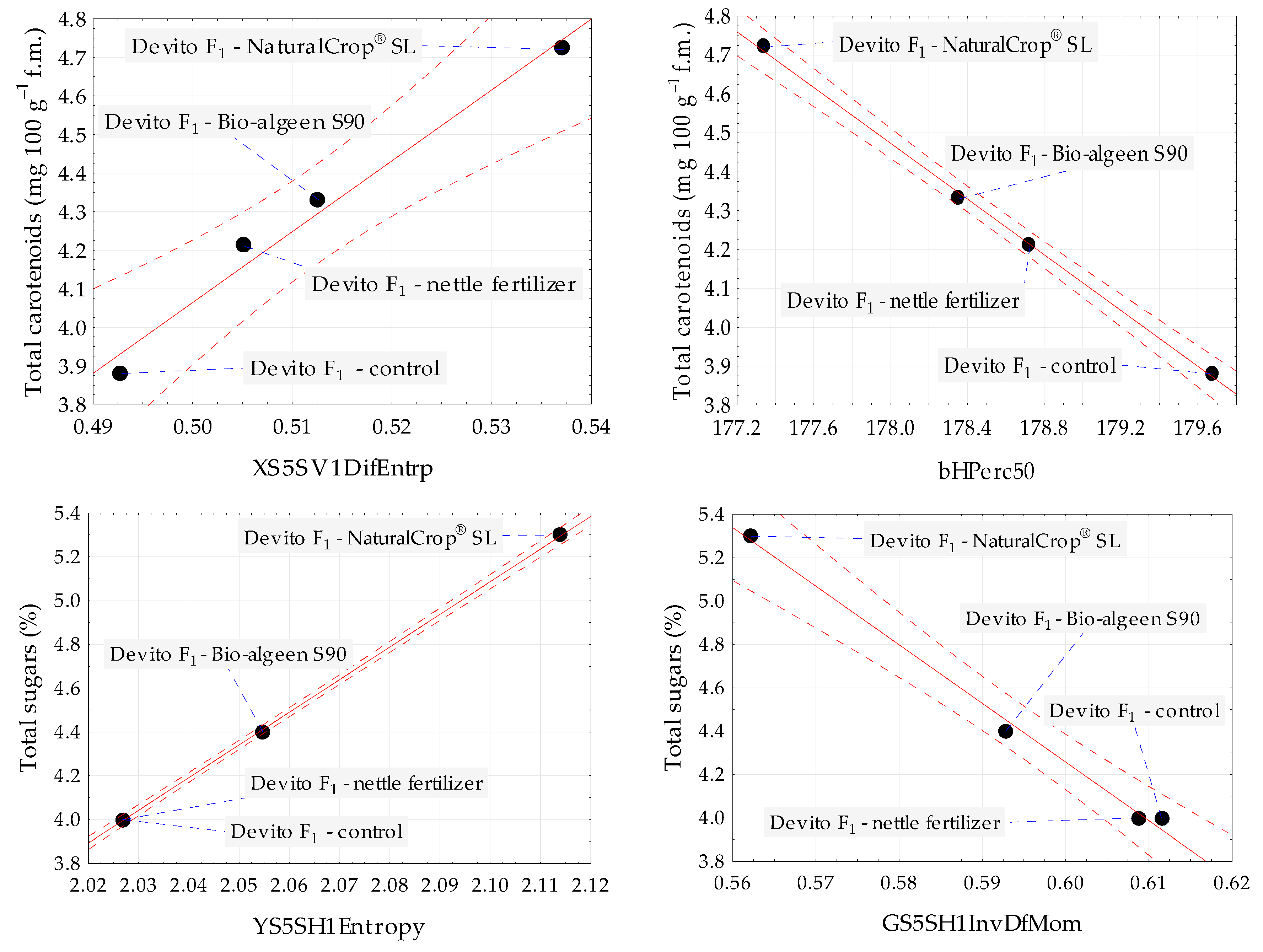

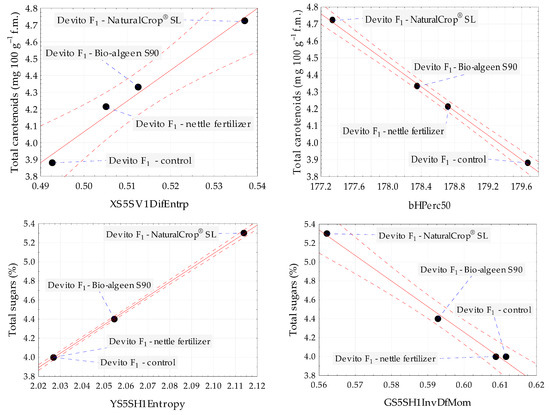

Figure 3. Scatter plots for total carotenoids and total sugars with selected image texture parameters of control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer yellow pepper Devito F1. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Figure 3. Scatter plots for total carotenoids and total sugars with selected image texture parameters of control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer yellow pepper Devito F1. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Foods 12 02123 g003
Foods 12 02123 g004 550

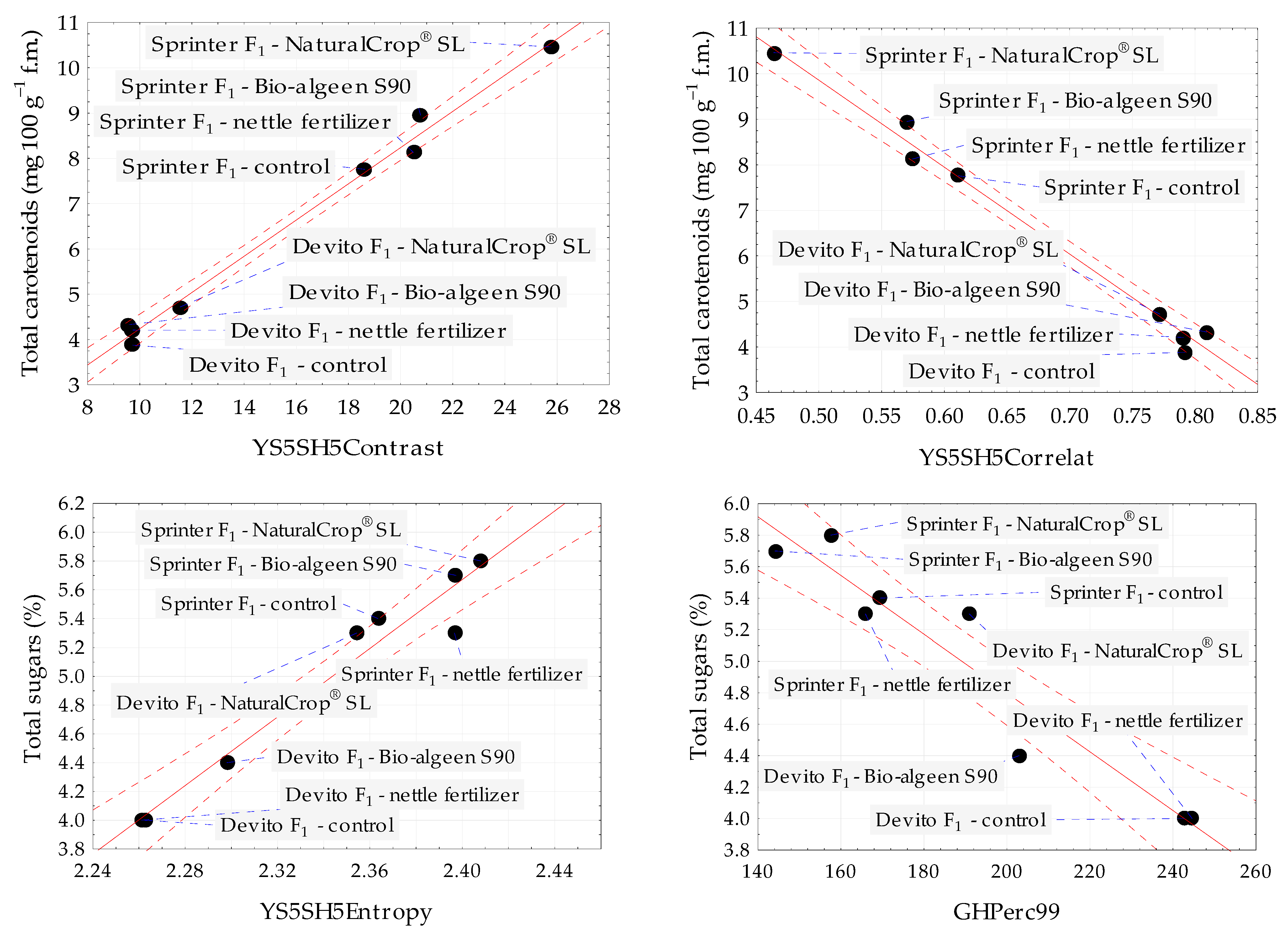

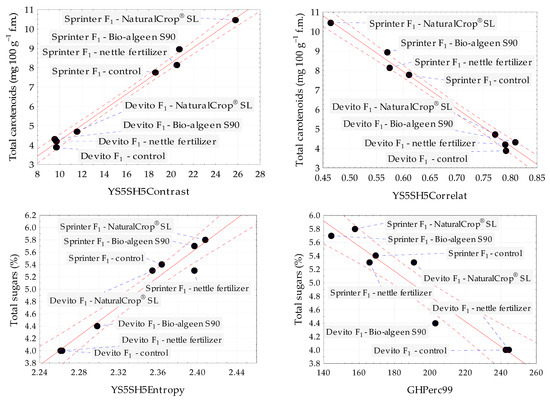

Figure 4. Scatter plots for total carotenoids and total sugars with selected image texture parameters of red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Figure 4. Scatter plots for total carotenoids and total sugars with selected image texture parameters of red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer. Black dot—mean value; blue dashed line—line connecting the sample name to the mean value; red dashed line—confidence interval (95%); and solid red line—regression line.
Foods 12 02123 g004
Table
Table 1. Correlation coefficients (R) between α-carotene (mg 100 g−1 f.m.), β-carotene (mg 100 g−1 f.m.), total carotenoids (mg 100 g−1 f.m.), and total sugars (%) with selected image texture parameters for control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer red pepper Sprinter F1 samples; p < 0.05.
Table 1. Correlation coefficients (R) between α-carotene (mg 100 g−1 f.m.), β-carotene (mg 100 g−1 f.m.), total carotenoids (mg 100 g−1 f.m.), and total sugars (%) with selected image texture parameters for control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer red pepper Sprinter F1 samples; p < 0.05.
α-Carotene (mg 100 g−1 f.m.)β-Carotene (mg 100 g−1 f.m.)Total Carotenoids (mg 100 g−1 f.m.)Total Sugars (%)
Texture ParameterCorrelation CoefficientTexture ParameterCorrelation CoefficientTexture ParameterCorrelation CoefficientTexture ParameterCorrelation Coefficient
BS5SN3Entropy0.9999BS5SN3Entropy0.9994aS5SH3DifEntrp0.9999RS5SH5SumOfSqs0.9998
ZS4RZFraction0.9996aS5SV5Entropy0.9991GS5SV5Contrast0.9998XS5SH3SumOfSqs0.9708
aS5SV5Entropy0.9989ZS4RZFraction0.9985XS5SZ3SumOfSqs0.9933GS4RVFraction0.9685
GS5SN1Entropy0.9964GS5SV5Entropy0.9984ZS5SH3DifEntrp0.9984
YS5SN5DifEntrp0.9847YS5SN5DifEntrp0.9763RS5SN3Entropy0.9984aS5SN1SumVarnc−0.9998
RS5SN5DifEntrp0.9766RS5SN5DifEntrp0.9666BS5SH3Entropy0.9920ZHDomn01−0.9997
YS5SH5DifEntrp0.9825XS5SV5SumEntrp−0.9993
YS4RVLngREmph−0.9999aS5SV1AngScMom−0.9998bS5SN5Entropy0.9507YHDomn10−0.9993
aS5SV3AngScMom−0.9996GS5SV1AngScMom−0.9993LS5SN5DifEntrp0.9505RHMaxm01−0.9981
RS5SZ5SumAverg−0.9975YS4RVLngREmph−0.9987 LHDomn10−0.9979
GS5SV1AngScMom−0.9972RS5SZ5SumAverg−0.9971LS5SZ5SumVarnc−0.9999GS5SZ5SumVarnc−0.9790
BS5SV5AngScMom−0.9968BS5SV5AngScMom−0.9939GS5SV3InvDfMom−0.9999
ZS5SV5InvDfMom−0.9920ZS5SV5InvDfMom−0.9859RS5SZ3InvDfMom−0.9999
XS5SN5InvDfMom−0.9631bHPerc10−0.9998
aS5SN1InvDfMom−0.9996
BS4RZLngREmph−0.9986
YS5SH3InvDfMom−0.9909
ZS5SH5Correlat−0.9847
XS5SZ5InvDfMom−0.9724
The first letter in the texture parameter name means the color channel L, a, b, R, G, B, X, Y, or Z; Entropy—entropy; Fraction—fraction of image in runs; DifEntrp—difference entropy; LngREmph —long run emphasis; AngScMom—angular second moment; SumAverg—sum average; InvDfMom—inverse difference moment; Contrast—contrast; SumOfSqs—sum of squares; SumVarnc—sum variance; Perc—percentile; Domn—dominant; SumEntrp—sum entropy; and Maxm—maximum of moments.
Table
Table 2. Correlation coefficients (R) between total carotenoids (mg 100 g−1 f.m.) and total sugars (%) with selected image texture parameters for control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer yellow pepper Devito F1 samples; p < 0.05.
Table 2. Correlation coefficients (R) between total carotenoids (mg 100 g−1 f.m.) and total sugars (%) with selected image texture parameters for control and treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer yellow pepper Devito F1 samples; p < 0.05.
Total Carotenoids (mg 100 g−1 f.m.)Total Sugars (%)
Texture ParameterCorrelation CoefficientTexture ParameterCorrelation Coefficient
XS5SV1DifEntrp0.9899YS5SH1Entropy0.9999
aSGNonZeros0.9840bS5SH3SumEntrp0.9997
bATeta40.9783GSGMean0.9997
YATeta20.9716LS5SZ5Contrast0.9995
BS5SV1DifVarnc0.9708XS5SN3Contrast0.9990
LS5SV3DifEntrp0.9595BS5SH1DifVarnc0.9915
aS5SZ5Correlat0.9752
bHPerc50−0.9993
RSGKurtosis−0.9948GS5SH1InvDfMom−0.9971
XS5SV1InvDfMom−0.9909XS5SZ5InvDfMom−0.9894
GS4RHLngREmph−0.9765BS5SZ5SumVarnc−0.9875
BS5SH5SumVarnc−0.9696aS5SN5DifVarnc−0.9870
LATeta2−0.9681LS5SH1InvDfMom−0.9808
YS5SV1AngScMom−0.9553
The first letter in the texture parameter name means the color channel L, a, b, R, G, B, X, Y, or Z; DifEntrp—difference entropy; GNonZeros—percentage of pixels with nonzero gradient; Teta4—parametr θ4; Teta2—parametr θ2; DifVarnc—difference variance; Perc—percentile; Kurtosis—histogram’s kurtosis; InvDfMom—inverse difference moment; LngREmph—long run emphasis; SumVarnc—sum variance; Entropy—entropy; SumEntrp—sum entropy; GMean—absolute gradient mean; Contrast—contrast; and Correlat—correlation.
Table
Table 3. Correlation coefficients (R) between total carotenoids (mg 100 g−1 f.m.) and total sugars (%) with selected image texture parameters for red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer; p < 0.05.
Table 3. Correlation coefficients (R) between total carotenoids (mg 100 g−1 f.m.) and total sugars (%) with selected image texture parameters for red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer; p < 0.05.
Total Carotenoids (mg 100 g−1 f.m.)Total Sugars (%)
Texture ParameterCorrelation CoefficientTexture ParameterCorrelation Coefficient
YS5SH5Contrast0.9956YS5SH5Entropy0.9768
GS5SV5Contrast0.9941XS5SZ5Entropy0.9562
LS5SN5Contrast0.9883LS5SH3Entropy0.9461
aS5SH5Contrast0.9832GS5SN5Entropy0.9443
XS5SZ5DifEntrp0.9773bS5SZ5SumEntrp0.9375
bS5SV5SumEntrp0.9415aSGNonZeros0.9309
ZSGVariance0.8966
BS5SZ3Contrast0.8953GHPerc99−0.9583
YS5SH1AngScMom−0.9537
YS5SH5Correlat−0.9935LS5SN5InvDfMom−0.9536
GS5SH5Correlat−0.9921XS5SH3AngScMom−0.9494
LS5SH5Correlat−0.9901aHMaxm01−0.9210
aS5SH1AngScMom−0.9882bHPerc99−0.8803
XS4RNLngREmph−0.9756BS5SZ3Correlat−0.8565
bHDomn01−0.9663
BS5SH3Correlat−0.9202
ZS5SH3Correlat−0.9109
The first letter in the texture parameter name means the color channel L, a, b, R, G, B, X, Y, or Z; Contrast—contrast; DifEntrp—difference entropy; SumEntrp—sum entropy; Variance—histogram’s variance; Correlat—correlation; AngScMom—angular second moment; LngREmph—long run emphasis; Domn—dominant; GNonZeros—percentage of pixels with nonzero gradient; Perc—percentile; InvDfMom—inverse difference moment; and Maxm—maximum of moments.
Table
Table 4. The regression equations for chemical properties based on image parameters and coefficients of determination for red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control samples and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer; p < 0.05.
Table 4. The regression equations for chemical properties based on image parameters and coefficients of determination for red pepper Sprinter F1 and yellow pepper Devito F1 belonging to control samples and samples treated with NaturalCrop®, Bio-algeen S90, and nettle fertilizer; p < 0.05.
Regression Equation Coefficient of Determination (R2)
Sprinter F1
α-carotene (mg 100 g−1 f.m.) = −21.28 + 8.4805 × BS5SN3Entropy0.9998
α-carotene (mg 100 g−1 f.m.) = 1.1611 − 0.1012 × YS4RVLngREmph0.9999
ß-carotene (mg 100 g−1 f.m.) = −23.35 + 9.4824 × BS5SN3Entropy0.9988
ß-carotene (mg 100 g−1 f.m.) = 2.3051 − 114.3 × aS5SV1AngScMom0.9996
Total carotenoids (mg 100 g−1 f.m.) = −34.78 + 43.407 × aS5SH3DifEntrp0.9998
Total carotenoids (mg 100 g−1 f.m.) = 67.258 − 0.8091 × LS5SZ5SumVarnc0.9998
Total sugars (%) = −4.350 + 0.49032 × RS5SH5SumOfSqs0.9996
Total sugars (%) = 34.265 − 0.3261 × aS5SN1SumVarnc0.9996
Devito F1
Total carotenoids (mg 100 g−1 f.m.) = −5.122 + 18.372 × XS5SV1DifEntrp0.9798
Total carotenoids (mg 100 g−1 f.m.) = 68.248 − 0.3583 × bHPerc500.9986
Total sugars (%) = −26.24 + 14.916 × YS5SH1Entropy0.9998
Total sugars (%) = 20.481 − 27.04 × GS5SH1InvDfMom0.9942
Sprinter F1 and Devito F1
Total carotenoids (mg 100 g−1 f.m.) = 0.24275 + 0.39985 × YS5SH5Contrast0.9912
Total carotenoids (mg 100 g−1 f.m.) = 19.407 − 19.10 × YS5SH5Correlat0.9870
Total sugars (%) = −22.91 + 11.908 × YS5SH5Entropy 0.9536
Total sugars (%) = 8.5299 − 0.0187 × GHPerc990.9166
The first letter in the texture parameter name means the color channel L, a, b, R, G, B, X, Y, or Z; Entropy—entropy; LngREmph—long run emphasis; AngScMom—angular second moment; DifEntrp—difference entropy; SumVarnc—sum variance; SumOfSqs—sum of squares; Perc—percentile; InvDfMom—inverse difference moment; Contrast—contrast; and Correlat—correlation.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ropelewska, E.; Szwejda-Grzybowska, J. The Estimation of Chemical Properties of Pepper Treated with Natural Fertilizers Based on Image Texture Parameters. Foods 2023, 12, 2123. https://doi.org/10.3390/foods12112123

AMA Style

Ropelewska E, Szwejda-Grzybowska J. The Estimation of Chemical Properties of Pepper Treated with Natural Fertilizers Based on Image Texture Parameters. Foods. 2023; 12(11):2123. https://doi.org/10.3390/foods12112123

Chicago/Turabian Style

Ropelewska, Ewa, and Justyna Szwejda-Grzybowska. 2023. "The Estimation of Chemical Properties of Pepper Treated with Natural Fertilizers Based on Image Texture Parameters" Foods 12, no. 11: 2123. https://doi.org/10.3390/foods12112123

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
