Photonics 2016, 3(3), 46; doi:10.3390/photonics3030046

Ar+-Implanted Si-Waveguide Photodiodes for Mid-Infrared Detection

1
Photonics Research Center, United States Military Academy, West Point, NY 10996, USA
2
Department of Electrical Engineering, Columbia University, 500 W. 120th Street, New York, NY 10027, USA
3
Center for Functional Nanomaterials, Brookhaven National Laboratory, PO Box 5000, Upton, NY 11973, USA
4
College of Nanoscale Science and Engineering, SUNYPOLY, Albany, NY 12203, USA
5
Department of Electrical and Systems Engineering, University of Pennsylvania, 200 S. 33rd Street, Philadelphia, PA 19104, USA
6
IBM T. J. Watson Research Center, 1101 Kitchawan Rd., Yorktown Heights, NY 10598, USA
7
Microelectronics Sciences Laboratories, Columbia University, 500 W. 120th Street, New York, NY 10027, USA
*
Author to whom correspondence should be addressed.
Received: 30 June 2016 / Revised: 18 July 2016 / Accepted: 22 July 2016 / Published: 27 July 2016
(This article belongs to the Special Issue Advanced Photodetectors Devices and Technologies)
View Full-Text   |   Download PDF [1680 KB, uploaded 27 July 2016]   |

Abstract

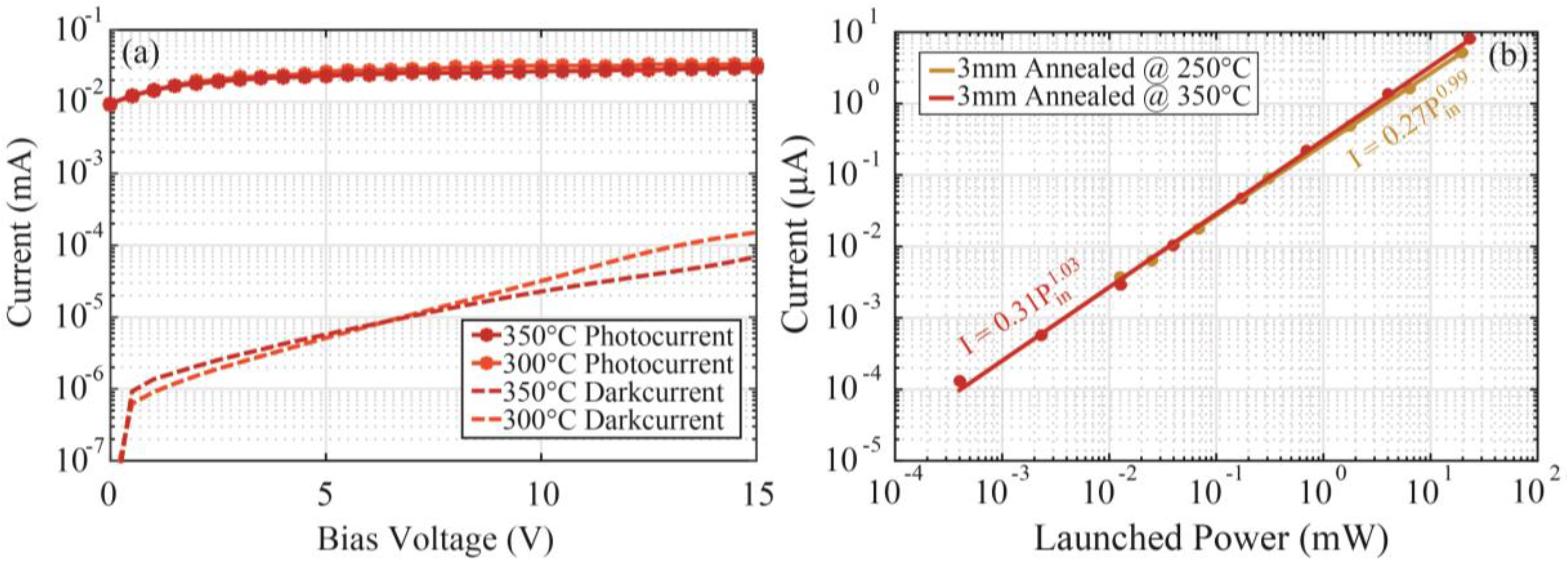

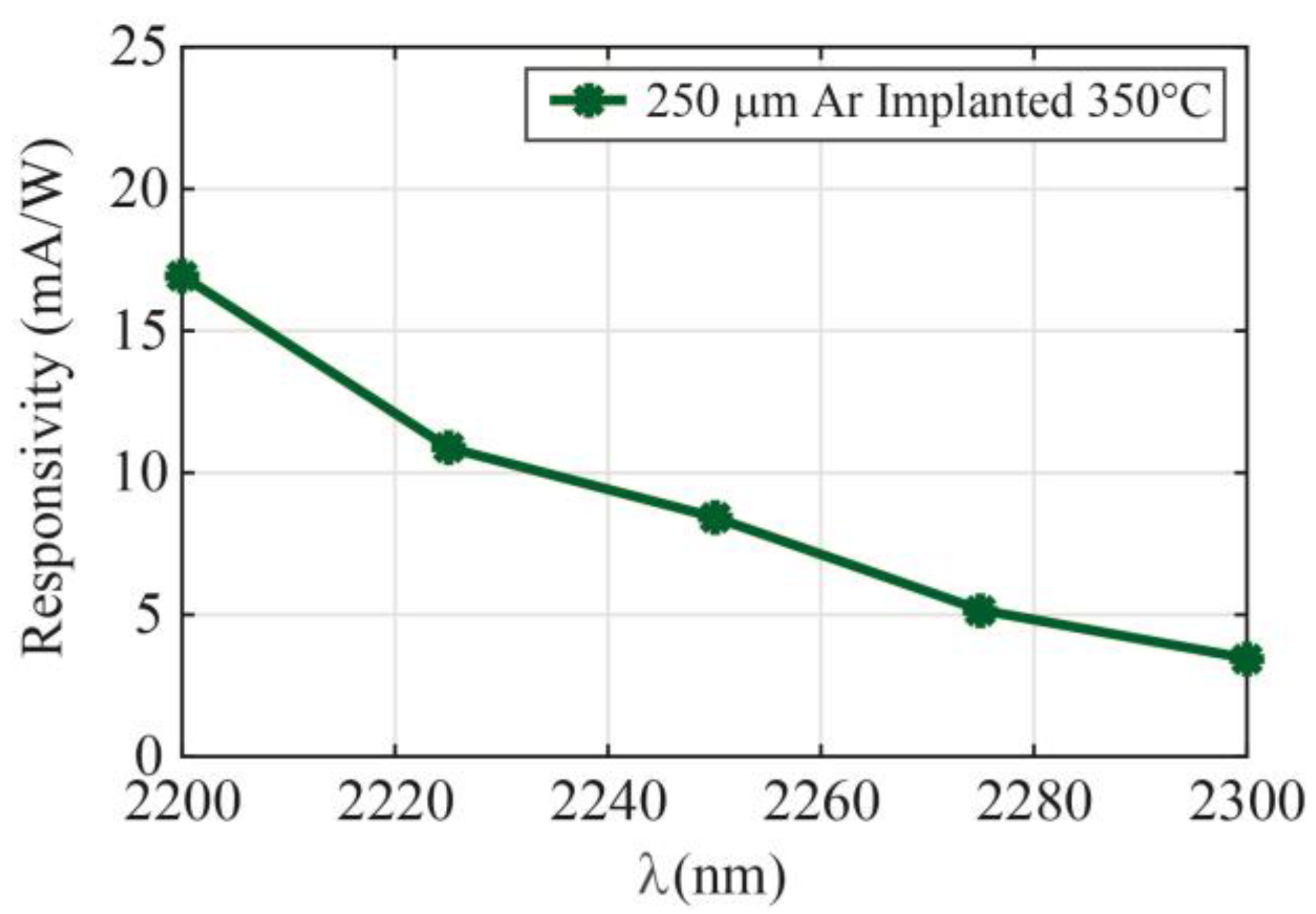

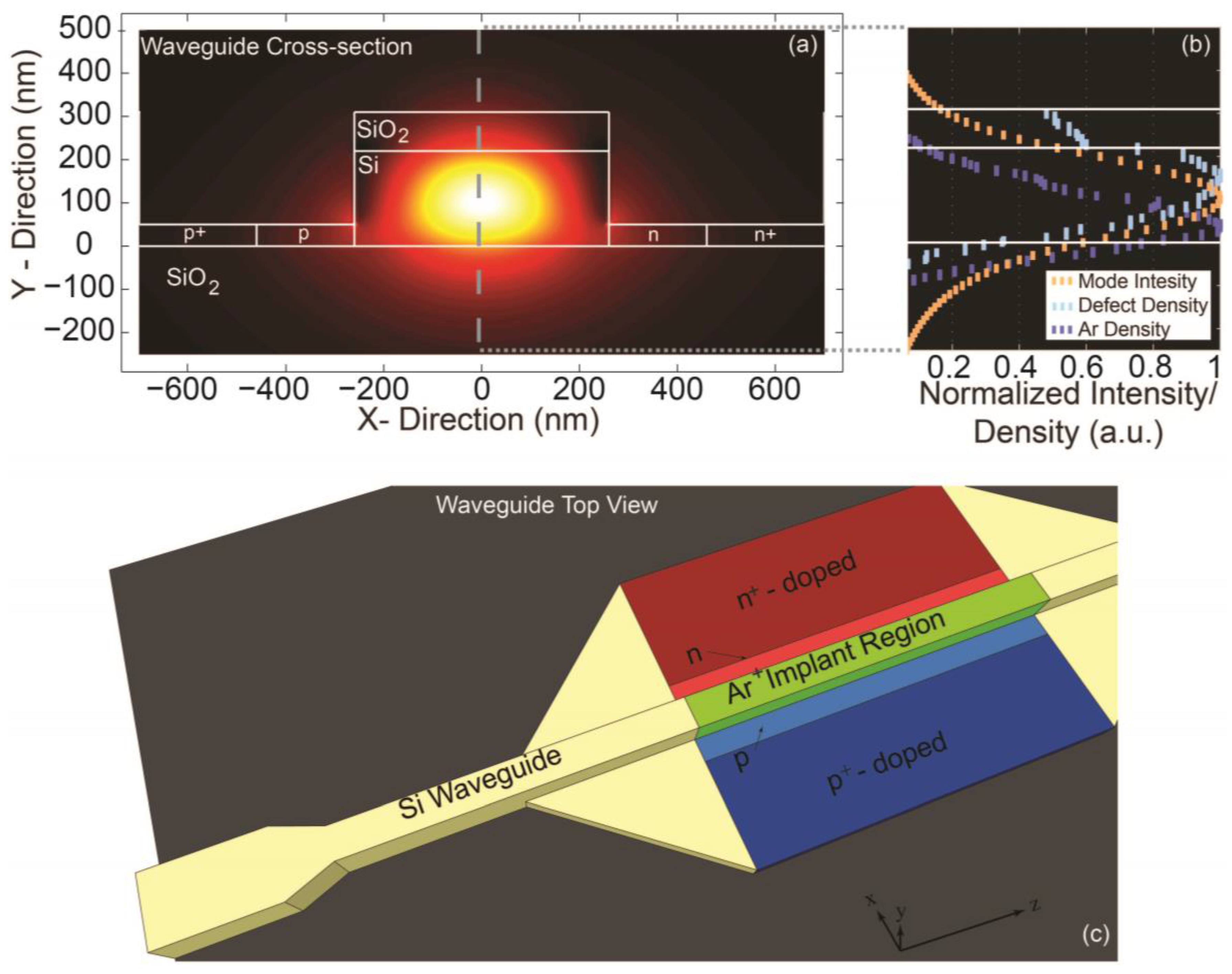

Complementary metal-oxide-semiconductor (CMOS)-compatible Ar+-implanted Si-waveguide p-i-n photodetectors operating in the mid-infrared (2.2 to 2.3 µm wavelengths) are demonstrated at room temperature. Responsivities exceeding 21 mA/W are measured at a 5 V reverse bias with an estimated internal quantum efficiency of 3.1%–3.7%. The dark current is found to vary from a few nanoamps down to less than 11 pA after post-implantation annealing at 350 °C. Linearity is demonstrated over four orders of magnitude, confirming a single-photon absorption process. The devices demonstrate a higher thermal processing budget than similar Si+-implanted devices and achieve higher responsivity after annealing up to 350 °C. View Full-Text
Keywords: silicon; photodetectors; integrated optics devices silicon; photodetectors; integrated optics devices
